Toyota 4-Runner Limited 2003-2009\*

*For non-navigation models

Visit NetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications

KIT FEATURES

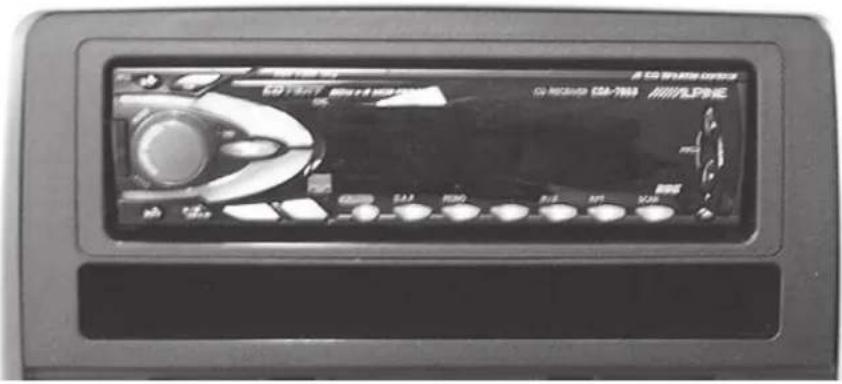

• DIN radio provision with pocket
- ISO DIN radio provision with pocket

KIT COMPONENTS

• A) Radio housing • B) ISO brackets • C) ISO trim plate

AE

•

[Non-Text]

TABLE OF CONTENTS

Dash Disassembly 2

Kit Assembly

-DIN radio provision with pocket ....3
-ISO DIN radio provision with pocket ....3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-1761 • TYTO-01

Antenna Adapter: Not required

TOOLS REQUIRED

• Panel removal tool
  • Phillips screwdriver
• 10mm socket removal tool

Attention: With the key out of the ignition, disconnect the negative battery terminal before installing this product. Ensure that all installation connections are secure before cycling the ignition to test this product.

DASH DISASSEMBLY

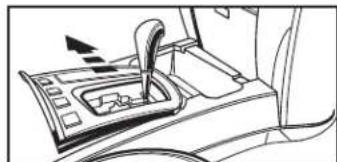

1. Unsnap and remove trim from around shifter. (Figure A)
2. Unsnap and remove center console cover. (Figure B)
3. Unsnap trim ring from around ignition key cylinder.
4. Remove (1) 10 mm bolt from bottom right side of panel below steering column. Unsnap panel and pull away to gain access behind panel. (Figure C)

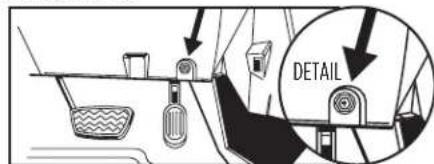

5. Remove (1) 10 mm bolt on bottom left of center panel behind panel below steering column. (Figure D)

Line drawing of a car interior showing the intake manifold and control panel (no text or symbols)

(Figure A) (Figure E)

Technical line drawing of a mechanical component or housing (no text or symbols)

(Figure B) (Figure F)

DETAIL

(Figure C)

DETAIL

(Figure D)

1. Remove (1) 10 mm bolt beneath climate control behind pocket door. (Figure E) Unsnap climate control, unplug and remove climate control. (Figure F)
2. Remove (2) 10 mm bolts beneath radio behind climate controls. (Figure G)
3. Unsnap and remove entire center panel around radio.
4. Remove (2) 10 mm bolts securing radio. Unplug and remove radio. (Figure H) Continue to Kit Assembly

Diagram of a vehicle dashboard with a directional arrow pointing to the dashboard panel (no text or symbols present)

Line drawing of a car's front dashboard with control panel and air vent (no text or symbols)

Interior view of a car dashboard with control panel and buttons (no text or symbols visible)

(Figure G)

Technical diagram of a vehicle chassis showing internal components and directional arrows (no text or labels)

(Figure H)

KIT ASSEMBLY

DIN radio provision with pocket

1. Remove the metal DIN sleeve from the aftermarket radio.
2. Slide the sleeve into the radio housing and secure by bending the metal locking tabs outward. (Figure A)
3. Slide the radio back into the sleeve until it clicks in. (Figure B)
4. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS.
5. Re-connect the negative battery terminal and test the unit for proper operation.
6. Reassemble the dash in reverse order of disassembly

Hand using a power tool to adjust or install a component on a battery (no text or symbols visible)

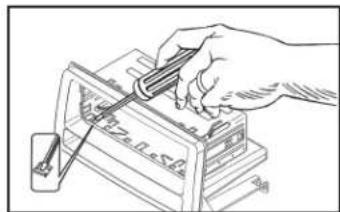

(Figure A)

Line drawing of a device with control panel and buttons (no text or symbols)

(Figure B)

ISO DIN radio provision with pocket

1. Remove the metal DIN sleeve and trim ring from the aftermarket radio.
2. Mount the ISO brackets to the radio with the screws supplied with the radio. (Figure A)

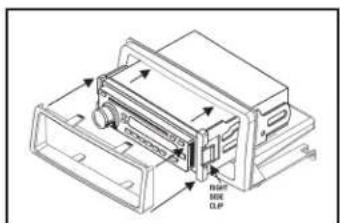

3. Slide the radio into the radio housing until the side clips engage. Snap the ISO trim plate into the radio housing. (Figure B)
4. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS.
5. Re-connect the negative battery terminal and test the unit for proper operation.
6. Reassemble the dash in reverse order of disassembly.

Hand using a screwdriver to adjust or install electronic equipment (no text or symbols visible)

(Figure A)

Reset DLP

(Figure B)

Having difficulties? We're here to help.

our Tech Support line at:

386-257-1187

mail at:

[e-mail]

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills b enselling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.edu or call

368-672-5171 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
