99-7525S - Audio Installation Kit Metra - Free user manual and instructions

Product Type	Car Stereo Installation Kit
Brand	Metra
Model	99-7525S
Application	Mazda 5 (with factory NAV) 2008-2010
Radio Provision	ISO DIN with pocket, ISO DDIN
Finish	Painted Silver
Kit Components	Radio trim panel, radio brackets (2), pocket, (8) #8 x 3/8" Phillips screws
Additional Parts Required (sold separately)	Wiring harness Metra 70-7903, panel removal tool, Phillips screwdriver, socket wrench
Antenna Adapter Required	No
Dimensions (approximate)	Trim panel: 7 x 4.5 inches; brackets: 3 x 1 inches; pocket: 2 x 7 inches
Weight (approximate)	0.5 lbs (0.23 kg)
Material	Plastic, painted silver
Power Supply	No power required (mechanical installation)
Main Functions	Mount aftermarket radio in factory dash, provide DIN/DDIN options
Maintenance & Cleaning	Wipe with damp cloth; avoid harsh chemicals
Safety Precautions	Disconnect battery before installation; do not remove radio with ignition on; connect all accessories before cycling ignition
Spare Parts & Repairability	Replacement parts available from Metra (call 1-800-253-TECH)
General Notes	Do not use if vehicle has factory NAV; follow dash disassembly steps precisely; MECP certified technician recommended
Warranty	Limited lifetime warranty (contact Metra for details)

Frequently Asked Questions - 99-7525S Metra

Is the Metra 99-7525S compatible with my Mazda 5?

Yes, this kit is specifically designed for Mazda 5 models with factory navigation from 2008 to 2010.

What parts are included in the Metra 99-7525S kit?

The kit includes a radio trim panel (A), two radio brackets (B), a pocket (C), and eight #8 x 3/8" Phillips screws (D).

What tools are required for installation?

You will need a panel removal tool, a Phillips screwdriver, and a socket wrench.

Do I need a wiring harness or antenna adapter for this kit?

Yes, a wiring harness (Metra 70-7903) is required and sold separately. No antenna adapter is needed.

How do I remove the factory radio and dash panels?

Refer to the included instructions. Typically, you remove the shifter knob, shifter trim, side panels, center console, and then the radio/climate control panel using Phillips screws and panel removal tools.

Can I install either a single DIN or double DIN radio?

Yes, the kit supports ISO DIN radio with the pocket for a single DIN unit, or ISO DDIN for a double DIN radio.

What size screws are used to secure the radio brackets?

The kit includes #8 x 3/8" Phillips screws. These are used to attach brackets to the trim panel and the pocket.

What should I do if I have trouble during installation?

Call Metra Tech Support at 1-800-253-TECH. Have the vehicle apart and the instructions handy before calling.

Is it safe to install this kit myself?

Yes, but follow safety precautions: disconnect the battery, ensure all accessories are connected before turning ignition on, and do not remove the factory radio with the key in the on position.

Does the Metra 99-7525S come with a warranty?

Yes, Metra offers a limited lifetime warranty. Contact Metra or your retailer for details.

USER MANUAL 99-7525S Metra

Close-up of a modern air conditioner unit with a digital display screen (no visible text or symbols)

Mazda 5 (with factory NAV) 2008-2010

KIT FEATURES

• ISO DIN radio provision with pocket
• ISO DDIN radio provision
- Painted silver

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (8) #8 x 3/8" Phillips screws

A

Technical line drawing of a curved mechanical component with mounting holes (no text or symbols)

B

Two isometric technical drawings of metal bracket components (no text or symbols)

C

D

TABLE OF CONTENTS

Dash Disassembly 2-3

Kit Preparation 4

Kit Assembly

-ISO DIN radio provision with pocket ....5

-ISO DDIN radio provision 5

WIRING & ANTENNA CONNECTIONS(sold separately)

Wiring Harness: 70-7903

Antenna Adapter: Not required

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• Socket wrench

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

DASH DISASSEMBLY

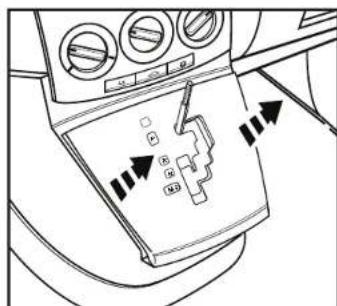

1. Remove the shifter knob, unclip and remove the shifter trim panel, then remove (2) Phillips screws exposed. (Figure A)

2. Unclip and remove the left and right side trim panels from the front of the center console, then remove (1) Phillips screws exposed on each side. (Figures B, C)

Continued on the next page

Technical line drawing of a mechanical component with arrows indicating motion or force direction (no text or symbols)

(Figure B)(Figure A) (Figure C)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

DASH DISASSEMBLY (CONT.)

1. Unclip the center console, pulling towards the rear of the vehicle to release the clips, then sit aside. (Figure D)

Note: Models with a full center console will require additional disassembly.

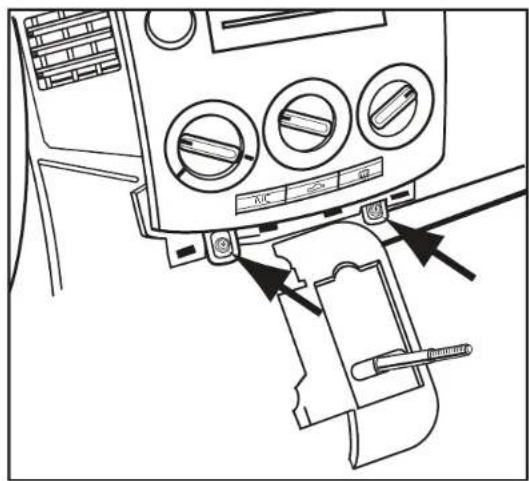

1. Remove (2) Phillips screws securing the bottom of the radio/climate control panel, then unclip just the climate control panel and set aside. (Figure E)

2. Remove (1) screw securing the bottom left of the radio, then unclip, unplug, and remove the radio.

Continue to Kit Preparation

Technical line drawing of a mechanical component with no visible text or symbols

(Figure D) (Figure E)

KIT PREPARATION

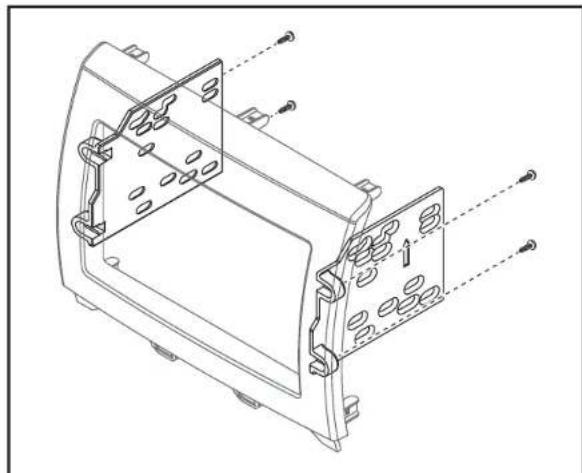

1. Secure the dio brackets to radio trim panel using (4) #8 x 3/8" Phillips screws provided. (Figure A)
2. Remove the panel clips from the factory radio/climate control panel, then attach them onto to the radio trim panel.

Continue to Kit Assembly

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

(Figure A)

KIT ASSEMBLY

ISO DIN radio provision with pocket

1. Secure the socket to the radio brackets using the (4) #8 x 3/8" Phillips screws provided. (Figure A)
2. Remove the metal DIN sleeve and trim ring from the aftermarket radio.
3. Slide the radio into the bracket/pocket assembly and then secure it using the screws supplied with the radio. (Figure B)
4. Locate the factory wiring harness and connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or Axxess. Test the radio for proper operation.
5. Clip the completed assembly to the dash, then reassemble the dash in the reverse order of disassembly to complete the installation.

Technical line drawing of a microwave oven with mounting holes and internal compartments (no text or symbols)

Line drawing of a microwave oven with control panel and ventilation slots (no text or symbols)

(Figure B)

ISO DDIN radio provision

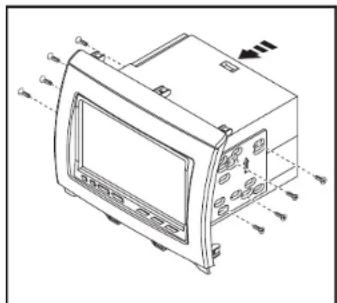

1. Slide the radio into the bracket assembly and then secure it using the screws supplied with the radio. (Figure B)

2. Locate the factory wiring harness and connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or Axxess. Test the radio for proper operation.

3. Clip the completed assembly to the dash, then reassemble the dash in the reverse order of disassembly to complete the installation.

(Figure A)(Figure A)

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.

Log onto www.installenstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
