USER MANUAL 95-6547B Metra

Interior view of a car dashboard with air filters and a digital display (no visible text or symbols)

Dodge Dakota 2001-2004 / Durango 2001-2003

KIT FEATURES

- ISO DDIN radio provision

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Cut template

A

Simple line drawing of a rectangular frame or panel (no text or symbols)

•

•

Simple line drawing of a rectangular frame with rounded corners and a central horizontal bar (no text or symbols)

TABLE OF CONTENTS

Dash Disassembly 2

Kit Preparation ....3

Kit Assembly 3

WIRING & ANTENNA CONNECTIONS(sold separately)

Wiring Harness: 70-1817 (2001) • 70-6502 (02-04)

Antenna Adapter: N/R (2001) • 40-CR10 (02-04)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• T20 Torx screwdriver • Cutting tool • File

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

DASH DISASSEMBLY

1. Remove (3) T20 Torx screws from the bottom edge of the panel below the steering column, then unclip and remove the panel. (Figure A)
2. Remove (2) Phillips screws from the instrument cluster panel above the gauges. (Figure A)
3. Remove (3) T20 Torx screws from the bottom of the steering column shroud, then unclip and remove just the top half of the shroud. (Figure A)
4. Unclip the entire dash panel surrounding the radio, climate controls, and instrument cluster. Unplug the climate controls, then remove the panel.
5. Remove (4) Phillips screws securing the radio, then slide the radio out. Unplug and remove the radio.

2 Screws 3 Screws 3 Screws

(Figure A)

Continue to Kit Preparation

KIT PREPARATION KIT ASSEMB

1. Remove (4) Phillips screws securing the climate controls, then remove them in preparation for the following steps.

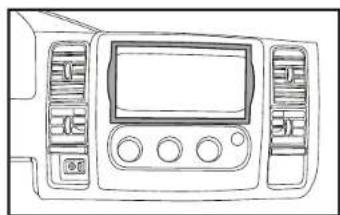

2. Place theout template over the factory dash panel. (Figure A)
3. Scribe the dash panel on the inside edges of the template to mark for cutting. (Figure A)

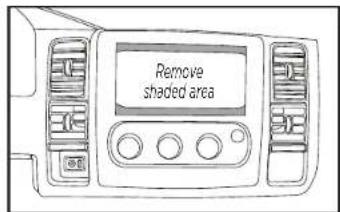

4. Remove theout template, then cut the dash panel and remove shaded areas. (Figure B)
5. Clip the radio trim panel onto the dash panel and ensure that it seats properly to the panel. If not, file the panel until it seats properly.
6. Secure the climate controls back to the dash panel using the factory screws.

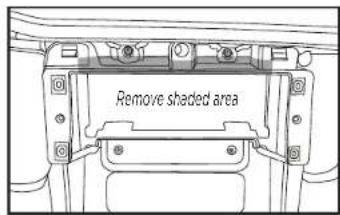

7. Cut the shaded area of the sub-dash to allow room for the radio assembly. (Figure C)

Continue to Kit Assembly

Line drawing of a car dashboard with front, back, and side panels (no text or symbols)

(Figure A)

Remove shaded area

(Figure B)

Remove shaded area

(Figure C)

1. Secure the radio brackets to the radio using the screws supplied with the radio. (Figure A)
2. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or Axxess. Test the radio for proper operation.
3. Secure the radio assembly to the dash using the factory screws.
4. Reassemble the dash in reverse order of disassembly to complete the installation.

Technical line drawing of an electronic device casing with mounting holes and internal components (no text or symbols)

(Figure A)

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.
