32-EL - Lawn mower SABO - Free user manual and instructions

Product type	Corded electric lawn mower
Brand	SABO
Model	32-EL
Cutting width	32 cm
Motor power	1 200 W
Power supply	230 V / 50 Hz, mains cable
Cutting type	Rotary steel blade
Cutting height adjustment	Central, 6 positions (20-60 mm)
Grass catcher capacity	35 L
Handle	Ergonomic foldable, with safety switch
Weight	12 kg
Dimensions (L × W × H)	80 × 38 × 45 cm
Sound level	78 dB(A) (LwA)
Main functions	Cutting, mulching (plug supplied), collecting
Maintenance and cleaning	Clean after use with brush, sharpen blade annually
Safety	Quick motor stop, two-hand handle, protective cover
Spare parts and repairability	Blade, belt, bearings, catcher available at retailer
General information	Made in Germany, model year 2020

Frequently Asked Questions - 32-EL SABO

How to start the SABO 32-EL lawn mower?

Make sure the cable is plugged in and the safety switch (lever on the handle) is pressed. Then pull the start trigger towards the handle. Release to stop.

How to adjust the cutting height?

Use the central adjustment lever. Turn it to select one of the 6 positions, from 20 mm (lowest) to 60 mm (highest).

Can I use a grass catcher?

Yes, the mower comes with a 35 L catcher. Attach it at the back. For mulching, remove the catcher and install the supplied mulching plug.

How to clean the mower after use?

First unplug the device. Use a brush or damp cloth to remove grass. Do not use direct water jet. Dry it before storing.

Do I need engine oil?

No, this is an electric mower without a combustion engine. No oil is needed. Simply check the blade condition.

What to do if the blade no longer cuts well?

Sharpen the blade with a file or replace it if too damaged. Consult the manual for disassembly. Always unplug before.

How to store the mower in winter?

Clean it thoroughly, grease the axles, and store in a dry, frost-free place. Fold the handle to save space.

The mower makes an abnormal noise, what to do?

Check if the blade is loose or damaged. Tighten the screws. If the noise persists, contact SABO after-sales service.

Where to find spare parts?

Blades, catchers, belts and bearings are available from SABO authorized dealers or online. Always use original parts.

What is the length of the mains cable?

The supplied cable is 10 meters. For larger areas, use a suitable extension cord of at least 1.5 mm².

USER MANUAL 32-EL SABO

1 Introduction....2
2 Explanation of the rating plate affixed to the machine .... 2
3 Explanation of the pictograms....2
4 Explanation of the symbols....2
5 Proper use ....3
6 General Safety Guidelines for the hand-held rotary lawnmower (electric) ..... 3

General safety instructions 3

Preparatory measures 3

Handling....4

Maintenance and storage 5

7 Description of components....5
8 Preparation....5

Assembling the handlebar lower section (Illustration S3 + C1)....5

Assembling the handlebar upper section (Illustration E1) 6

Assemble the collecting sack and hang it onto the mower (Illustration Q1 + R1 + S1) 6

Adjusting the cutting height (Illustration 1)....6

9 Before using the lawnmower for the first time....6
10 Starting the machine....6

Attaching the connecting cable (Illustration C2) 6

Attaching the connecting cable to the strain relief fitting (Illustration D2) ...... 6

Starting the motor (Illustration A2) 6

11 Switching off the Motor (Illustration F)....6
12 Emergency stopping....7
13 Grass collector 7

Operation with grass collector 7

Turbo signal (shows when the grass collector is full) (Illustration J + K) ...... 7

Emptying the grass collector 7

Operation without grass collector 7

14 Mowing 7

Mowing on slopes....7

Handling the cable during use 7

Checking operating safety 7

Time restrictions....7

Tips on caring for your lawn (Illustration M) 7

15 Service intervals....7
16 Care and servicing of your lawnmower 8

Cleaning (Illustration O)....8

Storage 8

Collapsing the handle (Illustration B4) 8

Transporting and securing the equipment....8

Maintenance of the blade 8

Sharpening and balancing the blade (Illustration Q) 8

Replacing the blade....8

17 Troubleshooting....8
18 Technical data....9

Motor....9

Mower 9

Sound power level 9

Sound pressure level 9

Vibrations....9

19 Original spare parts....9

Declaration of Conformity ...... see the back, after the last language

1 INTRODUCTION

Dear Garden Lover,

Where pride in a trim lawn is coupled with a love of gardening, gardeners really appreciate good gardening equipment. You have made an excellent choice in purchasing your new lawn mower. It combines the power of a major traditional brand with the innovations of modern high-tech. You will feel this when you are working with it and be very pleased with the wonderful result.

Yet before you start work on your lawn, here is some important information which you should always heed.

Before you start your mower for the first time, read this operation manual through carefully to familiarise yourself with the correct operation and maintenance of the machine and to avoid injury or damage to your lawn mower.

Use the lawn mower carefully. The pictograms on the mower draw your attention to the most important precautionary measures. The meaning of the pictograms is explained on this page.

The safety instructions in this operating manual are marked with symbols. The symbols are explained in the table on the following page.

The terms "left" and "right" always refer to the left and right-hand side of the mower seen in the direction of movement.

Your mower will work reliably when the technical instructions are followed exactly. We would like to point out that any damage to the mower caused by operating faults is not covered by warranty / guarantee obligations.

We hope you enjoy cultivating your lawn with your new mower.

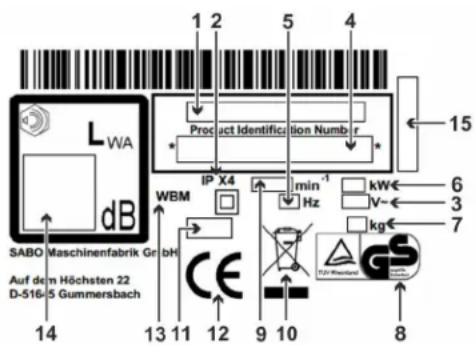

2 EXPLANATION OF THE RATING PLATE AFFIXED TO THE MACHINE

1 Model
2 Protection type
3 Connection voltage
4 Product identification number
5 Network frequency
6 Power
7 Weight
8 Tested safety (depending on model)
9 Motor speed
10 Electrical appliances should not be disposed of with household waste. Equipment, accessories and packaging must be disposed of in an environmentally friendly way
11 Year of manufacture
12 CE conformity symbol
13 Hand-guided lawn-mower
14 Guaranteed sound power level
15 Serial number

See the rating plate for the correct model designation for your equipment and the serial number.

3 EXPLANATION OF THE PICTOGRAMS

Read and follow the operator's manual and safety instructions!

Risk caused by thrown elements when the motor is running - Maintain the safety gap / Keep others away! Keep all persons outside the danger area!

Keep supply flexible cord away from cutting blades.

Caution, sharp cutting blades. Keep hands and feet away from the blades! - Switch the motor off and remove the plug from mains before performing any cleaning and maintenance work or if cord is damaged.

Motor STOP

Electrical appliances must not be disposed of as household waste. Send equipment, accessories and packaging for environmental recycling.

4 EXPLANATION OF THE SYMBOLS

WARNING

Always read and follow the operating instructions and general safety regulations carefully. Keep the operating instructions for reference purposes.

Proper use also includes adherence to the operation, maintenance and service conditions prescribed by the manufacturer.

WARNING

Keep all persons outside the danger area!

Contact with the rotating blade can cause severe injury.

Objects ejected at high speed can cause severe injury.

You must never mow the lawn if there are other persons nearby, especially children or animals.

WARNING

Electric shock can lead to serious injuries.

The electrical equipment must not be modified.

Check the connection cable for signs of damage and ageing before you start a new mowing job. Make sure the cable can move freely, do not kink, chafe or squash it.

Damaged connection cables must be replaced.

Do not spray the device off with water. The electrical system could become damaged.

Always have an authorised professional workshop replace, regrind and balance the blade, since an insulation protection test always has to be carried out after repairs or maintenance work on insulation parts (e.g. blade screw) in accordance with the applicable standard DIN EN 60335.

WARNING

Watch out for sharp blades! Contact with the rotating blade can cause severe foot injuries.

Only start the engine when standing behind the mower.

Ensure that your feet do not get under the housing.

WARNING

Watch out for sharp blades! Contact with the rotating blade can cause severe hand and foot injuries.

When the engine is running, always observe the safety distance to the machine which is maintained by the handlebar.

Ensure that your hands and feet do not get under the housing.

WARNING

Objects thrown upwards can cause serious injuries.

Before mowing areas covered in leaves in particular, remove all stones, sticks, wires, toys and other objects from the lawn.

Never use the equipment with the protective devices damaged or missing.

Missing or damaged safety and protective devices are a safety hazard for both you and other people.

Before initial operation, check that the cutting blade screw is fastened, then examine the cutter bar for a tight fit, wear and damage every time you intend to use the mower. Have an authorised workshop replace a worn or damaged blade. Have an authorised workshop tighten the cutting blade screw.

WARNING

Electric shock can lead to serious injuries.

Keep the connection cable away from the cutting blade.

When starting the mower make sure the connection cable is not near the housing.

Do not mow over the connection cable.

In the event of damage, switch the mower off and wait for the blade to come to a standstill, remove the plug from the mains immediately. Do not touch the connection cable before it has been disconnected from the mains supply. Damaged connection cables must be replaced.

CAUTION

If the mains plug is not disconnected from the mains during work on the equipment, the motor may start up and this can result in serious injuries.

Switch the motor off and disconnect the mains plug before carrying out any maintenance and repair work. When servicing the cutter blades note that they can be moved even when the voltage source is switched off.

Consult the operating instructions for respective cleaning or maintenance instructions.

Insufficient equipment maintenance will lead to safety-related faults.

WARNING

Contact with the rotating blade can cause severe hand and foot injury. Objects ejected at high speeds can cause severe injury.

Switch the motor off and wait until the blade comes to stop:

- if the mower has to be lifted or tilted, e.g. in order to transport it;

- when moving off the lawn onto paths or roads;

– if the machine is left unattended for any time;

– before adjusting the cutting height;

– before removing the collector bag;

CAUTION

Contact with the sharp edges of the blade and other sharp edges of the machine can cause severe injury.

Protective gloves must be worn at all times during maintenance and cleaning work.

5 PROPER USE

• The equipment is exclusively designed for mowing grass and lawn areas within the context of gardening and landscape care ("Proper use"). Any use going beyond this is considered not proper; the manufacturer is not liable for any damage resulting from such use, the risk is borne by the user alone. Proper use also includes adherence to the operation, maintenance and service conditions prescribed by the manufacturer.
• Special care is required during use in public areas, parks, sports facilities, on roads and in agricultural and forestry operations.
• The mower must not be used in particular for trimming bushes, hedges and shrubs, for cutting twining plants or greenery on roofs and in flower baskets or boxes, for extraction or blowing on pavements.
• The use of any additional equipment and attachments not approved by the manufacturer is prohibited. If such additional equipment and attachments are used, the CE conformity and guarantee are considered null and void. Unauthorised modifications to this lawn mower exclude the manufacturer from liability for any damage resulting from these modifications.

6 GENERAL SAFETY GUIDELINES FOR THE HAND-HELD ROTARY LAWNMOWER (ELECTRIC)

General safety instructions

Always read the operating instructions carefully for your own protection and to guarantee perfect function. Familiarise yourself with the operating elements and correct machine operation. Keep the operating instructions for reference purposes.

• Remember that the machine operator or user is responsible for accidents with other persons or their property.
  • These operating instructions belong to the machine and must be handed over to the new owner in the event of the machine being sold.
• Never allow children and persons under 16 years of age or other persons not familiar with the operating instructions to use the machine. Local regulations can specify the minimum age of the user.
• Explain the potential hazards and how to avoid accidents to all those who are to use the equipment. This equipment may only be used, serviced and repaired by persons who are familiar with it and have been informed about the hazards.
• This equipment is not intended to be used by persons with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety and have received instructions from this person as to how the equipment is used. This supervisor must decide in advance whether the person with limited physical, sensory or mental aptitude is suitable for this task.

Never use the mower while persons, particularly children, or animals are nearby.

• Keep your machine safely! Unused equipment should be kept in dry, closed rooms inaccessible to children.
• Machine safety and protective devices must not be manipulated or disabled.

Preparatory measures

• When mowing you must always wear a strong pair of shoes or safety shoes and long trousers. Avoid wearing loose clothing or clothing with cords or belts hanging down. Do not mow whilst you are barefooted or wearing sandals. Wear protective goggles to protect your eyes.
• Loud noises can lead to hearing impairments. Wear ear protection.

Before and during mowing, check the whole area the equipment is being used on and remove all stones, sticks, wires, toys and other objects which can be caught and catapulted out.

If you also use a robotic mower for lawn care, the following safety instructions must be heeded with regard to the working area of the robotic mower:

• Before working on these areas (mowing, scarifying etc.) always check the range of the boundary wire.
• If the wires are laid in the ground they must be checked, no wires may be visible, with particular attention necessary at the charging station.
• If the boundary wires are laid above ground they should be routed tight directly on the ground and not lie loose in the grass. The wires must be sufficiently fixed using boundary staples, see the operating manual.
• The boundary staples must not project, if this is the case push them firmly in place.
• Remove any residual wires that are lying around before starting to mow.

In the cases described above, there is a risk of the wire being pulled in and wound up by the tool; this can lead to serious injury.

• Low-hanging branches and similar obstacles can injure the operator or interfere with the mowing operation. Before mowing, identify potential obstacles such as low-hanging branches, and trim back or remove those obstacles.
• In order to guarantee the proper and safe operation of garden equipment, a connection cable of the minimum quality H05 RN-F (alternatively H05 VV-F) in accordance with DIN/VDE 0282/4 with a cross-section of 3 × 1.5 ~mm^2 and a connection plug made of or covered with rubber in accordance with DIN/VDE 0620-2-1 are required. Connection must be to a CEE 7/4 socket 230 V AC.
• When a childproof cable is used, care must be taken that the fuse works perfectly (smoothly) as otherwise the device connection plug could become damaged.
• The plug must be fitted with a 16 amp slow fuse.
• We recommend that a residual current operated device with a maximum breaking current of maximum 30 mA or equivalent safety equipment be used.

EN

The electrical equipment must not be modified. The connection cable must be checked for signs of damage and ageing before every new mowing job and may only be used in a perfect condition.

• If the unit is to be operated via a generator, an authorised specialist workshop should first be consulted with regard to a suitable generator.
• Before use, always carry out a visual inspection to see whether the cutting tool, attachment screws and the complete cutting unit are worn or damaged. To avoid unbalance, worn or damaged blades and attachment screws must be replaced by an authorised workshop.
• The condition of the pictograms must be checked every time the device is used. Worn or damaged pictograms must be replaced.

Handling

• The machine must not be operated in potentially explosive surroundings.

The connecting cable must kept away from the cutting tool. Whilst you are mowing the lawn, do not drive over the connecting cable with the machine; when guiding the connecting cable, always make sure that you are keeping a safe distance.

If the connection cable is damaged, switch the equipment off and wait for the blade to come to a standstill. Disconnect the mains plug immediately. Do not touch the connection cable before it has been disconnected from the mains supply. Damaged connection cables must be replaced. Make sure the cable can move freely, do not kink, chafe or squash it.

• Do not mow in bad weather when lightning could strike.
• Do not wear radio or music headphones. Safe service and operation requires your full attention.
• Only mow during daylight or if the lighting is good. Always push the machine at walking pace.

- Please adjust the driving speed depending on the person and the terrain. Increase the speed gradually until you reached an adequate driving speed.

- Use care when approaching blind corners, shrubs, trees, or other obstacles that may obscure vision.

- Do not move too closely to compound steps, trenches and banks. The equipment can suddenly topple over when a wheel suddenly gives way over the edge of a cliff or trench or when an edge suddenly yields.

- Please be careful when mowing underneath playground equipment (e.g. swings). The equipment could get into an unsafe position. This may result in risk of injury.

- Do not operate the equipment when you are sick, tired or under the influence of alcohol, medicine or drugs.

- Avoid using the machine if possible on wet grass, in order to avoid the danger of slipping.

• Always make sure that you are standing securely whilst mowing slopes. Always mow at right angles to the slope, never mow straight up or down. Please be especially careful when you change direction when mowing on a slope.

- Do not mow excessively steep slopes! Mowing slopes always means additional risks. Your lawnmower is powerful enough to mow on slopes with a gradient of up to 58% (30° angle). For safety reasons, however, we urgently recommend you do not exploit this theoretical performance potential. Always make sure you have a firm stance. Manually guided lawnmowers should never be used for slopes with a gradient in excess of 26% (15° angle of slope). Stability may be lost.

- Please be especially careful when turning the machine or pulling it towards yourself.

- If you walk backwards whilst using the machine, you can easily stumble so this should be avoided. Avoid unnatural body positions. Ensure that you are standing securely and keep your balance at all times.

• Always observe the safety distance to the machine which is maintained by the handlebar.

- In order to avoid the machine slipping when being carried, always hold the machine by the grip devices provided (carrying handle, housing, handlebar ends or transverse bar of the lower handlebar section). Do not grasp the machine by the ejection flap!

- Note the weight of the machine before lifting or carrying it (see technical data). Lifting heavy weights can lead to health problems.

- Never lift or carry the machine when the engine is running.

- Never use the machine with safety and protective devices damaged or missing. Missing or damaged safety and protective devices are a safety hazard for both you and other people.

Safety equipment includes (see chapter Component description):

- Motor stop safety control bar (1) The lawn mower is equipped with a motor stop device. During operation and in the event of a hazard, the electric motor is switched off by releasing the motor stop bar. The electric motor and the blade must come to a standstill within 3 seconds. After release, the bar must always return to the position shown in the "component description" diagram. If this is not the case, it must be checked immediately by an authorised workshop.

Risk of injury!

If the blade run-on time is longer, stop using the equipment and take it to an authorised workshop.

Measuring run-on time

After the electric motor has been started, the blade rotates and a wind-like noise can be heard.

The run-on time corresponds to the duration of the wind-like noise after the electric motor has been switched off, it can be measured using a stopwatch.

The function of the safety control bar must never be put out of operation.

It is important to make sure that the safety control bar functions correctly. If this is not the case, have it repaired by an authorised specialist workshop.

Protective equipment includes (see chapter Component description):

- Housing, grass collecting bag, ejection flap (3). The protective devices protect the user against objects being ejected at high speed. The machine must not be operated with a damaged housing or without a properly fitted collecting bag or ejection flap on the housing.

- Housing This protection unit protects against injuries through contact with the rotating cutting blade bar. The equipment must not be operated with a damaged housing. Please make sure that hands and feet are not placed underneath the housing.

- Cover hose at upper part of bar (9), engine hood (4) and engine bracket (6), switch-plug combination with cable (2, 10), connection cable, cutting blade screw This protection unit protects against injuries through contact with electrical power carrying parts. The electrical equipment must not be modified. Damaged connection cables must be replaced. Please use a connection cable with a minimum quality of H 05 RN-F (alternatively H05 VV-F) in accordance with DIN/VDE 0282/4. In accordance with the existing standard DIN EN 60335, an insulation protection test must be made after repair and maintenance work at insulation parts.

The safety devices must not be modified.

• Start or operate the starter switch with great care and according to the manufacturer's instructions.
• During the starting process, do not switch on the drive if available.

When you start the machine, make sure that your feet are at a sufficiently safe distance away from the cutting blades.

When the engine is started, the machine must not be tilted on end, if necessary it must be tilted by pressing the guide bar down so that the cutting tool is pointing in the direction away from the user, but only as far as absolutely necessary. For as long as the equipment has not been lowered to the ground again, both your hands must be on the top part of the bar.

Do not start the engine when persons or animals are standing in front of the mower.

When using equipment with a side ejector, do not start the engine when you are standing in front of the ejector channel or other people/animals are located in the ejection area.

Never put your hands or feet near or under revolving parts. Always make sure that your hands or feet do not get under the housing. Always maintain a safe distance from the ejector opening.

Stop the engine by releasing the motor stop bar, pull the plug, make sure that all moving parts have come to a complete standstill:

• if you intend to leave the machine;
  – before inspecting the connection cable;
• before you inspect, clean or carry out work on the machine;
  – before unblocking jams or removing blockages in the ejection channel;
• if a foreign body has been encountered;

• when the machine starts to vibrate strangely.

• If a foreign object has been encountered or if the machine becomes blocked, e.g. by driving onto an obstacle, a specialist dealer must check whether parts of the machine have been damaged or deformed. Any necessary repairs must also be carried out by an authorized specialist workshop.

• If the machine starts to vibrate unusually heavily or to make unusual noises, please have it checked immediately by an authorised workshop. Heavy vibrations on your hands can damage your health. Please contact an authorised workshop immediately if heavy vibrations occur.

• WARNING

The noise and vibration levels shown in these operating instructions are the maximum levels for use of the machine.

The use of an unbalanced cutting element, the excessive speed of movement, or the absence of maintenance have a significant influence on noise emissions and vibrations. Consequently, it is necessary to take preventive steps to eliminate possible damage due to high levels of noise and stress from vibration.

Maintain the machine well, wear ear protection devices, and take breaks while working.

Adhere to the maintenance work listed in this operating manual and have the equipment checked and serviced regularly by an authorised workshop.

Switch the engine off by releasing the motor stop bar, make sure that all moving parts have come to a complete standstill,

• if you have to lift or tilt the mower e.g. for transport purposes;
• when you need to transport the machine to and from the area to be mowed
• when driving off the lawn;
• if you have to leave the machine for a short time;
• when you wish to adjust the cutting height;
  – before you remove the grass collecting bag.

Maintenance and storage

• Insufficient equipment maintenance will lead to safety-related faults.
- Ensure that all screws have been tightened securely and that the machine is in a safe working condition.

The ejection flap must only be opened and the grass collector removed when the motor is turned off.

Before you start mowing, always check the grass collecting equipment for wear or loss of functionality.

Before you start mowing, always check the condition and firm attachment of the cutting blade. The blade attachment screw must always be tightened by an authorised workshop since an insulation protection test always has to be carried out after repairs or maintenance work on insulation parts (e.g. blade screw) in accordance with the applicable standard DIN EN 60335. A worn or damaged blade must always be replaced.

Always have the replacement, sharpening or balancing of the blade carried out by an authorised workshop, since according to the applicable standard DIN EN 60335, an insulation test must always be carried out following repairs or maintenance work to insulating components (e.g. blade screws).

- For reasons of safety, always replace worn or damaged parts.

Protective gloves must be worn at all times during maintenance and cleaning work.

Maintenance and cleaning work may only be carried out with the motor switched off and mains plug disconnected. When servicing the cutter blades note that they can be moved even when the voltage source is switched off. Regular maintenance is essential for safety and top performance.

Do not clean the machine with running water or pressure cleaners. This could damage the electrical system.

For reasons of warranty and safety, only genuine spare parts may be used. Non-equivalent spare parts can damage the machine and are a safety hazard.

• Notes for Switzerland:

Electric appliances must only be operated if a residual current operated device with a maximum breaking current of 30 mA is also integrated into the circuit.

• Notes for Austria:

The socket coupler of the connecting cable must be splashproof.

7 DESCRIPTION OF COMPONENTS

1 Actuating grip for motor (safety grip)
2 Cable connection plug
3 Ejection flap
4 Electric motor hood
5 Handle for adjusting the height
6 Motor bracket
7 Strain relief device for electric cable
8 Cable guide
9 Casing on the upper part of the bar
10 Locking button (red)

8 PREPARATION

The following parts are included in the packaging for assembly of the mower:

• Mower
  • Pre-assembled handlebar upper section
• Handlebar lower section
  • Collecting bag, collecting bag frame, chute
• Tool bag with the following contents:

– Operator's manual with Declaration of Conformity
- Warranty conditions
- Various fixing parts (strain relief fitting, flat-head screw, cable guide, washers, wing-nuts, cheese head screws, cable tie).

In the unlikely event of a missing part, please contact your dealer.

Assembling the handlebar lower section (Illustration S3 + C1)

Before assembling the handlebar lower section, the strain relief device (1) (from the tool box) must first be fitted over the handlebar lower section S3.

• Insert the ends of the bars as far as they will go into the two holes on the right and left of the body C1.
• Insert the two screws from below and tighten with a srewdriver.

Assembling the handlebar upper section (Illustration E1)

• The safety grip for motor is pre-assembled on the upper handle and the cable to the electric motor is attached here.
• Fit the handlebar upper section to the lower section at right and left, so that the attachment holes of both sections are in alignment.
• Insert the flat-head screw inwards on the left hand side, and the cable guide inwards on the right hand side and screw both handlebar sections together on the inside using a washer and a wing-nut.
• Place the cable into the cable guide. This prevents trapping of the cable when folding the handlebar.
• Attach the cable to the lower handlebar section using the cable tie from the toolbox. When folding the upper handlebar section, ensure that the cable is not trapped.

Assemble the collecting sack and hang it onto the mower (Illustration Q1 + R1 + S1)

• Turn the chute (1) outwards and push fully down Q1.
• First insert the grass bag frame with the clip forward into the grass bag. Align the upper seams of the bag with the clip.
• Press the retaining profiles of the collecting sack onto the bars of the collecting sack frame R1.
• Press the chute (1) on to the collecting sack frame from above Q1.
• Open the ejection flap of the mower upwards.
• Pick up the collecting sack by the carrying strap, place the chute (1) at the collecting sack opening into the ejection flap and hang it in the mower casing with its two side hooks upwards S1.
• Attach ejection flap to collector.

Adjusting the cutting height (Illustration I)

Safety instruction!

See table for explanation of symbols page 3

The desired cutting height is set at the front and rear with the respective adjusting levers on the left side of the mower.

• Pull lever to the side to release from the notch, adjust to required position and reinsert in notch.
• All wheels must be positioned at the same height.

IMPORTANT

Mowing at the lowest cutting height should only be carried out on level and plane lawns!

Please observe that the lower cutting height settings may only be used for optimal conditions. If you select cutting height that is too low, the turf can be damaged and under certain circumstances it can even be destroyed.

Besides the cutting height, also the moving speed influences the cutting pattern and collection result. Adapt the cutting height and moving speed to the grass height to be cut.

9BEFORE USING THE LAWNMOWER FOR THE FIRST TIME

Safety instruction!

See table for explanation of symbols page 3

Check all screw connections for a tight fit. Tighten the screws if necessary. Attachment of the cutter bar must be checked in particular (refer here to the chapter "Cutter bar care").

The blade attachment screw must always be tightened by an authorised workshop since an insulation protection test always has to be carried out after repairs or maintenance work on insulation parts (e.g. blade screw) in accordance with the applicable standard DIN EN 60335.

The lawn mower is equipped with a motor stop device.

Before using the equipment for the first time, make sure that the motor stop safety control bar is working perfectly. When the control bar is released, the motor and cutter bar must come to a standstill within three seconds.

After release, the bar must always return to the position shown in the "component description" diagram.

If this is not the case, it must be checked immediately by an authorised workshop.

Risk of injury!

If the blade run-on time is longer, stop using the equipment and take it to an authorised workshop.

Measuring run-on time

After the electric motor has been started, the blade rotates and a wind-like noise can be heard.

The run-on time corresponds to the duration of the wind-like noise after the electric motor has been switched off, it can be measured using a stopwatch.

Machine safety and protective devices must not be manipulated or disabled!

Make sure that all protective devices have been attached properly and are not damaged.

10 STARTING THE MACHINE

Safety instruction!

See table for explanation of symbols page 3

IMPORTANT

If the unit is to be operated via a generator, an authorised specialist workshop should first be consulted with regard to a suitable generator.

Attaching the connecting cable (Illustration C2)

NOTE

In order to guarantee the proper and safe operation of the garden equipment, a connection cable of the minimum quality H05 RN-F (alternatively H05 VV-F) in accordance with DIN/VDE 0282/4 with a cross-section of 3 x 1.5 mm² and a connection plug made of or covered with rubber in accordance with DIN/VDE 0620-2-1 are required. Connection must be to a CEE 7/4 socket 230 V AC, slow-blow 16 A fuse.

When a childproof cable is used, care must be taken that the fuse works perfectly (smoothly) as otherwise the device connection plug could become damaged.

• Plug the cable into the switch/plug combination on the upper handle.
• Only then should the connecting cable be connected to the mains.
• When removing the cable always disconnect the cable plug from the mains first.

Attaching the connecting cable to the strain relief fitting (Illustration D2)

ATTENTION

The unit may not be used without the cable relief in order to prevent damages to the switch/plug combination and to the cable. The cable must be hung in the cable relief on the unit to ensure that it is fixed safely. This prevents the cable socket from being pulled off the unit. Moreover, the cable aligns itself automatically on the other side when cornering.

• Form a semi-circular loop in the cable, keep a distance of approx. 80 cm from the connection cable coupling.
• Insert the cable from the bottom into the cable relief and loop it around the fastening post.
• Hold the cable by both ends and pull it firmly into the cable relief.

Starting the motor (Illustration A2)

Only start the engine when you are standing behind the mower.

Always place the mower on a level area which is not covered with high grass (if the grass is too high it will block the cutter bar start-up and make starting the mower more difficult). When the engine is started, the machine must not be tilted on end, if necessary it must be tilted by pressing the guide bar down so that the cutting tool is pointing in the direction away from the user, but only as far as absolutely necessary. As long as the mower has not been lowered to the ground again, both your hands must be on the top part of the bar.

• To switch on the motor, first press and hold the red button.
• With the other hand, pull the safety grip on the upper handlebar section. The grip must be held in this position during operation.
• The red button can then be released.

IMPORTANT

If the motor does not start 5 seconds after the unit is started, then

1. Let go of the switch holder
2. Pull the plug!
3. Check the power cable
4. Check the power supply at the building (fuse)
5. Check the unit for blockages in the mowing chamber
   6 Get it checked by an authorised specialist workshop.

11 SWITCHING OFF THE MOTOR (ILLUSTRATION F)

To switch off the motor, release the safety grip. The motor will be switched off and the automatic blade brake stops the blade within 3 seconds.

12 EMERGENCY STOPPING

Release the safety grip.

• The blade will stop.
• The motor will stop.

NOTE

Before every mowing job, make sure that the safety control bar for the motor brake is working perfectly.

- when the safety control bar is released, the motor and cutter bar must come to a standstill within three seconds.

If this is not the case, please consult your nearest authorised workshop.

13 GRASS COLLECTOR

Safety instruction!

See table for explanation of symbols page 3

Operation with grass collector

While mowing, ensure that the collector is emptied in good time. The turbo signal on the collector will indicate when the collector should be emptied.

IMPORTANT

Make sure that the chute (1) S1 is not bent when handling the collector.

Turbo signal (shows when the grass collector is full)

(Illustration J + K)

There is an indicator on the top of the collector that shows whether the collector is empty or full:

• The collector indicator inflates if the collector is empty and during the mowing J.
• If the collector is full, the indicator collapses; once this happens, stop mowing immediately and empty the collector K.

IMPORTANT

If the fabric of the grass collector is very dirty the turbo indicator will not inflate – in this case, clean the fabric immediately. The grass collector will only collect grass perfectly if it is permeable to air.

IMPORTANT

Do not clean the grass collector with hot water!

Emptying the grass collector

• Switch off engine.
• Lift ejection flap.
• Unhinge the full grass collector from the mower at the carrying strap – the ejection flap closes automatically.
• Empty the collector thoroughly whilst holding it by the carrying strap and the moulded handle on the bottom.

Operation without grass collector

WARNING

When mowing without grass collector the ejection flap on the mower housing must always be closed (flap down).

14 MOWING

Safety instruction!

See table for explanation of symbols

page 3

Mowing on slopes

NOTE

The mower can be used on banks and slopes with a gradient of up to 58% (30° angle).

For safety reasons, however, we urgently recommend you do not exploit this theoretical performance potential. Always make sure you have a firm stance. Manually guided lawnmowers should never be used for slopes with a gradient in excess of 26% (15° angle of slope). Stability may be lost.

Handling the cable during use

Prepare the cable in such a way that the machine can pull it behind easily over the lawn area already mown. When the mower is turned, the cable relief automatically places the

cable on the other side of the handle bar.

Make sure that the cable is kept away from the cutting tools and does not form any loops.

Examine the mains connection cable before any mowing for signs of damage and only use it if it is in perfect condition.

Checking operating safety

The lawnmower is equipped with a motor stop device.

Before every mowing job, make sure that the motor stop safety control bar is working perfectly. When the control bar is released, the motor and cutter bar must come to a standstill within three seconds.

After release, the bar must always return to the position shown in the "component description" diagram.

If this is not the case, it must be checked immediately by an authorised workshop.

Risk of injury!

If the blade run-on time is longer, stop using the equipment and take it to an authorised workshop.

Measuring run-on time

After the electric motor has been started, the blade rotates and a wind-like noise can be heard.

The run-on time corresponds to the duration of the wind-like noise after the electric motor has been switched off, it can be measured using a stopwatch.

Machine safety and protective devices must not be manipulated or disabled.

Make sure that all protective devices have been attached properly and are not damaged.

Check the upper part of the bar (insulation) for damage. If the casing should be damaged, contact the nearest authorised workshop without delay, since otherwise injuries (electric shock) can occur through touching the live parts.

To avoid risk, check the condition and firm attachment of the blade before every mowing job. The blade attachment screw must always be tightened by an authorised workshop since an insulation protection test always has to be carried out after repairs and maintenance work on insulation parts (e.g. blade screw) in accordance with the applicable standard DIN EN 60335. A worn or damaged blade must always be replaced. (refer here to the chapter "Cutter blade care")

In addition, check the fan, blade coupling and fan housing every 10 operating hours for wear and a tight fit. Also check equipment screws and nuts for a firm fit and tighten if necessary.

If the mower mechanism becomes blocked e.g. by colliding with an obstacle, have an authorised workshop check whether any parts of the mower are damaged or deformed. Always have any necessary repairs done by an authorised workshop too.

If the machine starts to vibrate unusually heavily or to make unusual noises, please have it checked immediately by an authorised workshop.

Time restrictions

The time at which lawnmowers may be used varies from region to region. Please ask the corresponding authorities before using your mower.

Tips on caring for your lawn (Illustration M)

WARNING

Remove any objects (stones, wood, branches, etc.) from the lawn before each cut; but still watch out for objects lying around during the mowing process.

Ask your dealer about lawn care instructions. Information and instructions about mowing can also be found on the manufacturer website.

15 SERVICE INTERVALS

IMPORTANT

Avoid damage! Under extreme or unusual conditions, shorter servicing intervals than the ones specified below may be necessary. If you establish any problems, please contact an authorised workshop.

Carry out routine servicing on the machine in line with the following servicing intervals. Work must be carried out at the following servicing intervals in addition to the maintenance work listed in these operating instructions.

Before initial use

• Check all screw connections for a tight fit.
• Check the cutting blade screw and have an authorised workshop tighten it if necessary.
• Check whether the safety control bar for the engine brake is working perfectly.
• Check that all protective devices have been attached properly and are not damaged.

Before every operation

• Check the lawn area and remove any objects.
• Check the area of the boundary wires (if an automatic mower is being used for lawn care).
• Check the condition and firm fit of the blade, if necessary have an authorised workshop tighten the blade screw.
• Check whether the safety control bar for the engine brake is working perfectly.
• Check that all protective devices have been attached properly and are not damaged.
• Check grass collecting equipment for wear or loss of functionality.
• Check the upper part of the bar (insulation) for damage.
• Check the connection cable for damage and ageing.

Every 10 operating hours

• Check all screw connections for a tight fit.
• Check the fan, blade coupling and fan housing regularly for wear and a tight fit.

After every operation

• Clean the mower.
• Check the blade for damage and wear.

16 CARE AND SERVICING OF YOUR LAWNMOWER

Regular care is the best way to guarantee a long service life and problem-free operation. Insufficient equipment maintenance will lead to safety-related faults!

Only use original spare parts because only those guarantee safety and quality!

Safety instruction! See table for explanation of symbols page 3

Cleaning (Illustration O)

Remove dirt and grass residue immediately after finishing mowing. Place the mower on its side and use a brush or cloth to clean.

ATTENTION

Do not put your fingers into the openings of the fan housing and hold onto the fan. If the blade bar is rotated during cleaning, there is a risk that your fingers may become caught between the fan and the fan housing!

IMPORTANT

Never spray the mower with water. This may damage the electrical systems.

Storage

Always keep the machine in a clean condition in a closed, dry room out of reach of children. Always allow the engine to cool down before you store the machine in a closed room.

Collapsing the handle (Illustration B4)

• To save storage space or for transport, loosen the two wing nuts such that the top guide tube can be folded down towards the engine.
• Do not kink nor squeeze the cable in the process.

CAUTION

When folding the bar for transport and storage purposes, when loosening the wing nuts it is possible that unintentional upsetting of the bar may occur. In addition, this may result in crushed points between the top and bottom of the bar. This may result in a risk of injury!

Transporting and securing the equipment

• If the equipment has to be carried, do not hold the ejection flap. Hold the housing at the front and the cross tube of the bottom part of the guide bar at the back.
• Transport the equipment in an upright position.
• Park the means of transport on level ground so that the equipment cannot roll away before it is secured.
  – Remove the collecting bag and secure it separately during transport
• Secure the equipment with approved load-securing devices (e.g. tie-down straps with clamping elements) on or inside the vehicle. Tie-down straps are belt bands made of synthetic fibres. Every tie-down strap is marked with a label. The label contains important details for application. The information on this label must be heeded when using the tie-down strap.
• For loaded goods that can roll, we recommend using direct strapping with four lashing straps. Secure the wheels of the equipment in such a way that it does not move during transportation.

NOTE Do not tighten the belts too firmly. Fixing the equipment too firmly can cause damage.

Maintenance of the blade

A sharp blade guarantees optimum cutting performance. Before you start mowing, always check the condition and firm attachment of the cutting blade. The blade attachment screw must always be tightened by an authorised workshop. If the blade screw is too tight or too loose, the blade coupling and cutter bar can become damaged or loose which can lead to serious injuries. A worn or damaged blade must always be replaced.

Sharpening and balancing the blade (Illustration Q)

WARNING

The sharpening and balancing of the blade should be carried out only by an authorized specialist workshop, since according to the applicable standard DIN EN 60335, an insulation test must always be carried out following repairs or maintenance work to insulating components (e.g. blade screws).

An improperly sharpened or unbalanced blade can cause severe vibrations, and damage the lawnmower.

The cutting edges of the cutting blade may be grinded only until the respective value (see illustration Q) or the marking (1) on the cutting blade (ring) has been reached. Attention! Observe the grinding angle of 30^ .

Your professional workshop can check this value - (grinding limit) for you!

WARNING

A blade by which the wear limit (marking) has been exceeded can break off and spin away; this can cause severe injuries.

Replacing the blade

WARNING

The cutter bar must always be replaced by an authorised workshop since an insulation protection test always has to be carried out after repairs and maintenance work on insulation parts (e.g. blade screw) in accordance with the applicable standard DIN EN 60335.

In addition, a wrongly assembled cutting blade coupling can allow the cutter bar to become loose, which can lead to serious injuries.

• Only use genuine cutter bars for replacement. Non-equivalent spare parts can damage the machine and are a safety hazard.
• Replacement cutting tool must be marked permanently with the name and/or company logo of the manufacturer or supplier and the part number.

17 TROUBLESHOOTING

Fault Possible cause Remedy
If the motor does not start 5 seconds after the unit is started	No power supply. Connect	the plug C2.Check the fuse.
	Power cable damaged. Get it checked by an authorised workshop.
	Cutting height has been set too low (grass is too high and blocks the starting of the motor).	Set a higher cutting height I.Machine tilts when starting it.
	Too much grass waste in the housing.	Clean the cutting chamber of grass, ensure that the gap between fan and housing is kept clean (pull the plug first!).
		Get it checked by an authorised workshop.
Extreme vibration		Have it checked by an authorized dealer
Unclean cut, lawn is yellow	Blade blunt.	Have it sharpened and balanced by an authorized dealer Q.
	Cutting height too low. Adjust to higher cutting height I.
	Mowing too fast. Adjust mowing speed.
	Insufficient overlapping of cuts when mowing.	Tall grass conditions may dictate that more overlapping of cuts is required.
	Lawn becomes matted. A	lawn scarifier can remedy the problem considerably
Ejection blocked	Turbo signal has not been detected J + K .	Empty the grass collector L .
	Cutting height too low for grass that is too high.	Adjust to higher cutting height I .
	Pushing mower too fast.	Adjust mowing speed.
	Grass not dry. Let grass dry.

Repairs to electrical machines must always be performed only by qualified electricians. Please do not repair them yourself.

In the case of faults and defects which have not been listed here, please contact the nearest authorized dealer. This applies in particular to appliances with electrical motors, as when these are repaired they must always undergo an insulation protection test.

Your authorized dealer will also help you if you do not wish to perform any of the maintenance work described here yourself.

18 TECHNICAL DATA

Motor

Motor Alternating current motor

Connection voltage 230 V

Power 1100 W

Motor speed 3000 min ^-1

Mower

Housing Impact-resistant plastic (ABS)
Cutting width 320 mm
Cutting heights per axle, 25, 35, 45, 55, 65, 80 mm
Grass collector capacity 32 litres
Weight 15,0 kg
Length	1100 mm
Width	385 mm
Height	1025 mm
Wheels front / rear	140 mm / 140 mm
Bearing front / rear	Sleeve bearing

Sound power level

Guaranteed sound power level; measured according to 2000/14/EC

L_wa = 90 dB(A)

Sound pressure level

Emission sound pressure level at operator's workplace; measured according to EN60335-2-77	L_pA = 81 dB(A)
Measuring inaccuracy; according to ISO 4871	3 dB

Vibrations

Vibrations on the lawnmower's handlebar; measured according to EN60335-2-77	a_hw = 1 m/s^2
Measuring inaccuracy; according to EN12096	0.5 m/s^2

19 ORIGINAL SPARE PARTS

Cutter bar

For safety reasons, the cutter bar must always be replaced by an authorised workshop.This workshop has the respective spare part numbers for the cutter bar available

1 Inleiding....2

Name and address of the person in the community authorized to compile the technical construction file:
