| Product type | Canister vacuum cleaner |
| Use | Indoor, dry vacuuming |
| Power supply | Mains 220-240 V ~ 50/60 Hz |
| Power | 700 W (estimated) |
| Dust compartment capacity | 2 L (estimated) |
| Filter type | Round filter + HEPA filter |
| Round filter cleaning | Soft brush (do not wash) |
| HEPA filter cleaning | Tap the plastic edge; do not wash or rinse |
| HEPA filter replacement | After a few months or if worn/damaged |
| Tube | Telescopic with locking button |
| Suction nozzle | With surface selector (hard floor/carpet) |
| Included accessories | Crevice tool, suction nozzle, telescopic tube, hose |
| Airflow adjustment | Yes, via button on the hose |
| Cord length | 5 m (estimated) |
| Cord rewinder | Automatic via foot/hand button |
| Weight | 4 kg (estimated) |
| Dimensions (L x W x H) | 400 x 300 x 250 mm (estimated) |
| Materials | Plastic |
| Warranty | 2 years (standard) |
| Country of manufacture | China (estimated) |
Frequently Asked Questions - 332938 Twister PRINCESS
User questions about 332938 Twister PRINCESS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual 332938 Twister - PRINCESS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 332938 Twister by PRINCESS.
USER MANUAL 332938 Twister PRINCESS
Gefeliciteerd!
You have purchased a Princess appliance. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this appliance for many years.
Description (fig. A)
Your 332938 Princess vacuum cleaner has been designed for vacuuming dry substances. The appliance is not suitable for vacuuming wet substances. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.
- On/off button
- Mains cable rewind button
- Dust compartment
- Release button (dust compartment)
- Handgrip
- Hose
- Tube
- Extension tube
- Airflow control switch
- Suction nozzle
- Floor surface selector
- Wheels
- Parking bracket
- Crevice nozzle
- Hose connection
- Locking knob (extension tube)
Assembly (fig. A)
Before you proceed, we need you to pay attention to the following notes:
- Before assembly, always switch off the appliance and remove the mains plug from the wall socket.
Mounting and removing the dust compartment (fig. A)
Before you proceed, we would like you to focus your attention on the following notes:
- Do not use the appliance without the dust compartment.
To remove the dust compartment, keep the release button (4) pressed and pull the dust compartment (3) from the appliance.
To mount the dust compartment, insert the dust compartment (3) into the appliance until the release button (4) clicks into place.
Mounting and removing the hose (fig. A)
Before you proceed, we would like you to focus your attention on the following notes:
- Before mounting the hose, make sure that the dust compartment is inserted into the appliance.
To mount the hose (6), insert the hose • outlet into the hose connection (15) until the release buttons click into place.
To remove the hose (6), keep the release · buttons pressed and pull the hose outlet from the hose connection (15).
Mounting and removing the tube (fig. A)
To mount the tube, insert the hose (6) into the tube (7).
To remove the tube, pull the hose (6) from the tube (7).
Mounting and removing the suction nozzle (fig. A)
The suction nozzle can be mounted to the extension tube.
To mount the suction nozzle, insert the • extension tube (8) into the suction nozzle (10).
To remove the suction nozzle, pull the • extension tube (8) from the suction nozzle (10).
Mounting and removing the crevice nozzle (fig. A)
The crevice nozzle can be used for vacuuming in narrow and hard-to-reach places. The crevice nozzle can be mounted to the hose or to the extension tube.
To mount the crevice nozzle to the hose, insert the hose (6) into the crevice nozzle (14).
To mount the crevice nozzle to the • extension tube, insert the extension tube (8) into the crevice nozzle (14).
To remove the crevice nozzle, pull the crevice nozzle (14) from the hose (6) or the extension tube (8).
Use
Unwinding and rewinding the mains cable (fig. A)
The mains cable rewind button (2) can be operated by hand or foot.
Before you proceed, we would like you to focus your attention on the following notes:
- Do not unwind or rewind the mains cable while the appliance is switched on.
- Always hold the mains plug to unwind the mains cable. Never pull the mains cable.
Before use, hold the mains plug and unwind a sufficient length of the mains cable from the back of the appliance.
After use, press the mains cable rewind · button (2) to rewind the mains cable back into the appliance. Manually guide the mains cable to make sure that it does not swing back. Make sure that the mains plug is correctly located.
Adjusting the length of the tube (fig. A)
Keep the locking knob (16) pressed and slide the extension tube (8) to the required position.
Release the locking knob (16).
Adjusting the suction nozzle (fig. A)
The floor surface selector can be set to adjust the suction nozzle to the required floor surface. The floor surface selector can be operated by hand or foot.
For vacuuming on laminates, tiles, etc., press the corresponding part (A) of the floor surface selector (11).
For vacuuming on carpets, press the corresponding part (B) of the floor surface selector (11).
Switching on and off (fig. A)
The on/off button can be operated by hand or foot.
To switch on the appliance, press the • on/off button (1).
To switch off the appliance, press the • on/off button (1) again.
Adjusting the airflow (fig. A)
The airflow can be adjusted using the airflow control switch.
To adjust the airflow, set the airflow control switch (9) to the required position.
Cleaning and maintenance
Before you proceed, we need you to pay attention to the following notes:
- Before cleaning or maintenance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
- Do not immerse the appliance in water or any other liquids for cleaning.
Before you proceed, we would like you to focus your attention on the following notes:
- Do not use aggressive or abrasive cleaning agents to clean the appliance.
- Do not use sharp objects to clean the appliance.
Regularly check the appliance for possible damage.
Regularly clean the ventilation slots using a soft brush.
Store the appliance in a dry place, out of the reach of children.
Emptying the dust compartment (fig. A & B)
Keep the release button (4) pressed and • pull the dust compartment (3) from the appliance.
Press the release button (17) and open the • cover (18).
- Carefully tap the dust compartment (3) with your hand to remove the dust. Close the cover (18) until the release button (17) clicks into place.
- Insert the dust compartment (3) into the appliance until the release button (4) clicks into place.

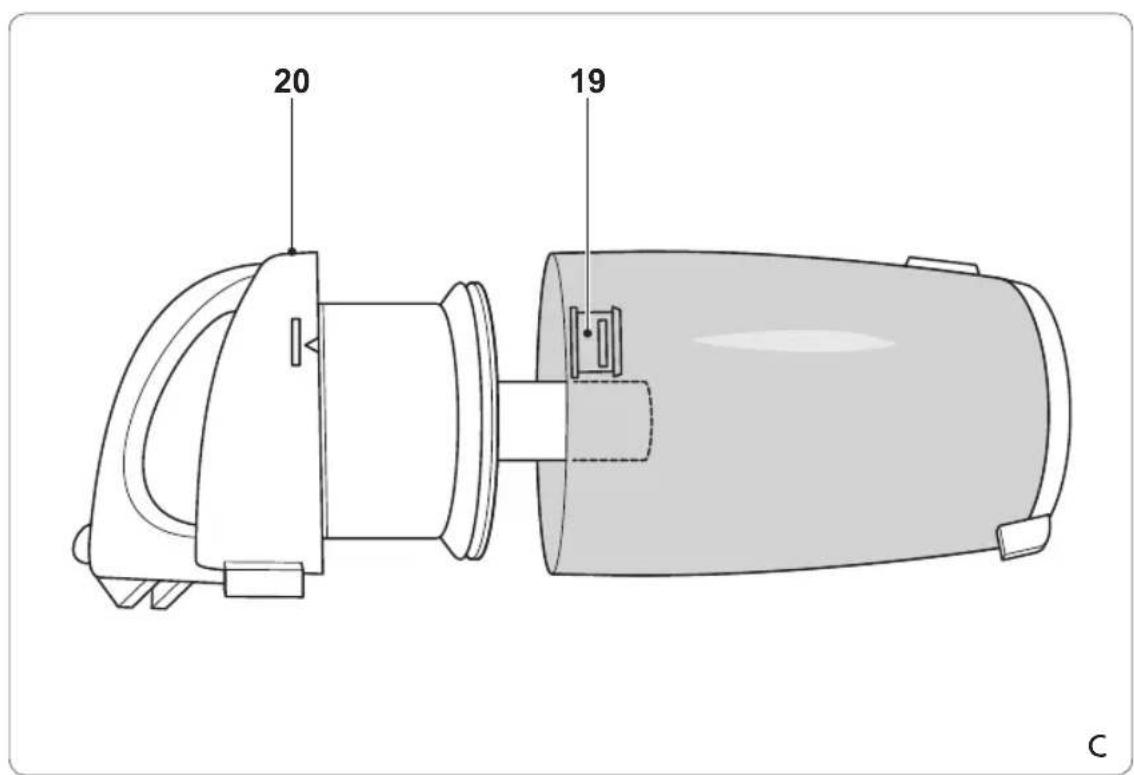

Cleaning the round filter (fig. B & C)
Keep the release button (4) pressed and • pull the dust compartment (3) from the appliance.
If necessary, empty the dust compartment • (3).
Release the clip (19).
Remove the round filter (20) from the dust · compartment (3).
Remove the dust from the round filter (20) using a soft brush.
Place the round filter (20) into the dust · compartment (3).
Lock the clip (19).
Insert the dust compartment (3) into the appliance until the release button (4) clicks into place.

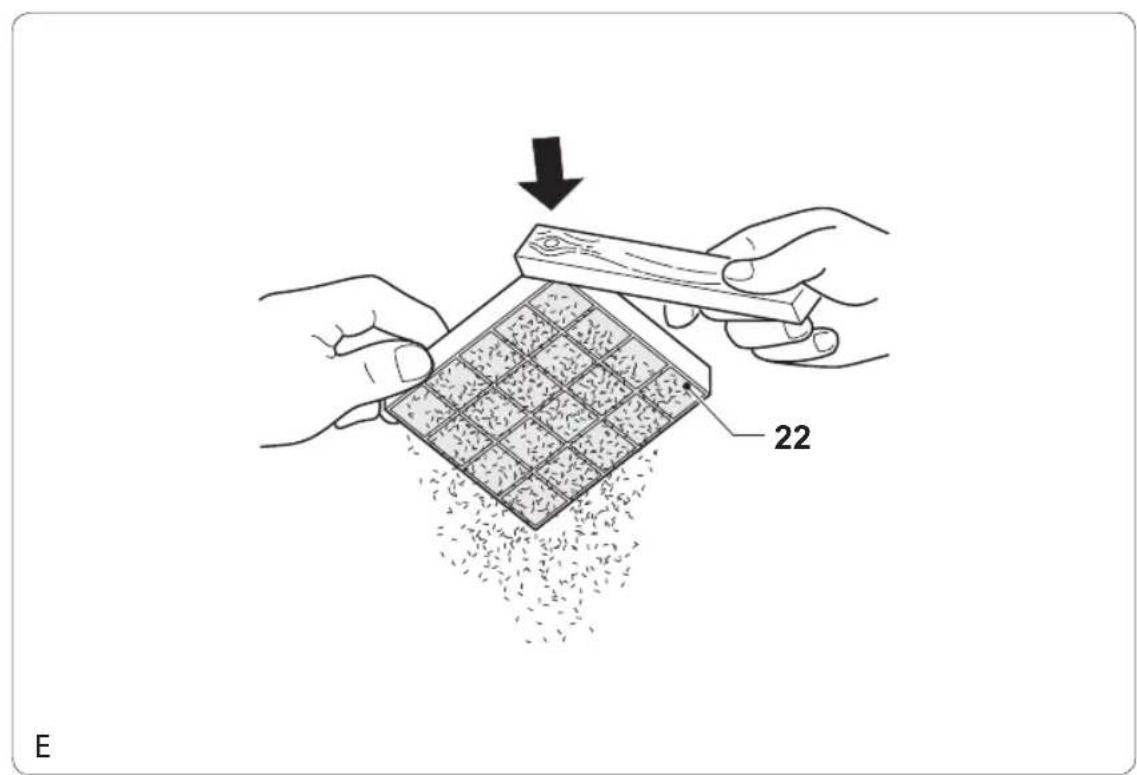

Cleaning and replacing the HEPA filter (fig. D & E)
The appliance is equipped with a HEPA filter. The HEPA filter is a special air filter which removes more than 99% of the dust particles that otherwise would recirculate back into the air. The HEPA filter must be cleaned regularly. The HEPA filter must be replaced after several months or whenever worn or damaged. Replacement HEPA filters are available from our service station.
Before you proceed, we would like you to focus your attention on the following notes:
- Do not wash or rinse the HEPA filter.
- Do not tap the HEPA filter itself to avoid damage to the filter.
Keep the release button (4) pressed and • pull the dust compartment (3) from the appliance.
Remove the wind outlet filter (21). Remove the HEPA filter (22).
Carefully tap the plastic edge of the HEPA filter (22) to remove the dust particles. If the filter is worn, use a new filter.
Place the HEPA filter (22).
Place the wind outlet filter (21).
Insert the dust compartment (3) into the appliance until the release button (4) clicks into place.
Safety instructions
General safety
Read the manual carefully before use. • Keep the manual for future reference.
Only use the appliance and the accessories • for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual.
Do not use the appliance if any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.
- Children should be supervised to ensure that they do not play with the appliance. The use of this appliance by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance.
- Do not use the appliance near bathtubs, showers, basins or other vessels containing water.
Do not immerse the appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands.
Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again.
Electrical safety
- Before use, always check that the mains voltage is the same as the voltage on the rating plate of the appliance.
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.
Make sure that water cannot enter the contact plugs of the mains cable.
• Always fully unwind the mains cable.
Make sure that the mains cable does not • hang over the edge of a worktop and cannot be caught accidentally or tripped over. - Keep the mains cable away from heat, oil and sharp edges.
Do not use the appliance if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.
Do not pull the mains cable to disconnect • the mains plug from the mains.
Disconnect the mains plug from the mains · when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.
If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board.
This is a double-insulated appliance and does not need an earth connection.
Warning! On no account should either the live or neutral wires be connected to the earth terminal.
Safety instructions for vacuum cleaners
Do not use the appliance outdoors. Do not use the appliance without the dust compartment.
Do not use the appliance without the round filter. Do not use the appliance without the HEPA filter.
Do not use the appliance to vacuum liquids. Do not use the appliance to vacuum flammable materials.
Only hold the appliance by the handgrip. Keep the motor unit away from your eyes and face.
Always work from bottom up when using the appliance on stairs.
Store the appliance in a dry place when • not in use. Make sure that children do not have access to stored appliances.
Disclaimer
Subject to change; specifications can be changed without further notice.
U.K. Wiring instructions
The wires in the mains lead are coloured in accordance with the following code:
BLUE NEUTRAL
BROWN LIVE
As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.
