Product type	Rotary hammer drill
Brand	Hitachi (Hikoki)
Model	DH 40MR
Main usage	Drilling and chiseling in concrete, masonry, and metal
Rated power	1100 W
Supply voltage	230 V ~ 50 Hz
No-load speed	0 – 1050 rpm (variable)
Impact frequency	0 – 4500 bpm
Impact energy	2.7 J (EPTA 05/2009)
Max drilling capacity (concrete)	40 mm
Max drilling capacity (steel)	13 mm
Max drilling capacity (wood)	50 mm
Chuck type	SDS-Plus (quick-change)
Weight	5.2 kg
Overall length	380 mm
Overall height	245 mm
Main functions	Hammer drilling, drilling without hammer, chiseling with angle adjustment
Electronic speed control	Yes, with adjustment wheel
Rotation direction	Right / left (reversible)
Safety	Double insulation, safety clutch, automatic carbon brush shut-off
Maintenance and cleaning	Clean ventilation slots with a brush; replace carbon brushes every 100-150 hours
Spare parts and repairability	Available: carbon brushes, switch, bearings. Repairability index: 7.5/10
Included accessories	SDS-Plus chuck, depth stop, auxiliary handle, hex key, carrying case
Certifications	CE, EAC, RoHS

Frequently Asked Questions - DH 40MR HITACHI

What is the maximum drilling diameter in concrete with the Hitachi DH 40MR?

The maximum drilling diameter in concrete is 40 mm with an SDS-Plus drill bit.

Can I use standard cylindrical drill bits with an adapter?

Yes, but it is recommended to use an appropriate drill chuck (keyed chuck) as an option. The original chuck is only SDS-Plus.

How do I adjust the speed and impact?

The speed is adjustable via the wheel on the trigger. The impact is activated by turning the mode selector to the hammer position (hammer symbol).

What is the difference between 'drilling' and 'hammer drilling' modes?

In simple drilling mode (without impact), the tool rotates without striking, ideal for metal or wood. In impact mode, a striking mechanism is activated to break concrete.

How do I change the motor carbon brushes?

Unplug the tool, remove the side caps with a screwdriver, take out the old carbon brushes, insert the new ones respecting the direction. Replace the caps. The carbon brushes are standard and easy to find.

What should I do if the drill stops during use?

This may be due to overheating or worn carbon brushes. Let the tool cool for 15 minutes. If the problem persists, check the carbon brushes; replace them if they are less than 6 mm.

Is it possible to use the DH 40MR for chiseling?

Yes, by turning the selector to the chisel mode (chisel symbol). You can also adjust the chisel angle by turning the adjustment collar.

What is the noise level of this tool?

The sound pressure level is about 90 dB(A). Always wear hearing protection.

How to lubricate the impact mechanism?

The grease is internal and does not require regular maintenance. If you disassemble the tool, apply a special hammer grease (lithium grease) on the gears.

Where can I find the complete user manual?

You can download the free PDF manual from the site notice-facile.com by selecting your language.

USER MANUAL DH 40MR HITACHI

Rotary Hammer Bohrhammer Marteau Perforateur Martello perforatore Boorhamer Martillo perforador Martelo perfurador

DH 40MR

Technical line drawing of a mechanical drill bit with threaded shaft and housing (no text or symbols)

Read through carefully and understand these instructions before use. Diese Anleitung vor Benutzung des Werkzeugs sorgfältig durchlesen und verstehen. Lire soigneusement et bien assimiler ces instructions avant usage. Prima dell'uso leggere attentamente e comprendere queste istruzioni. Deze gebruiksaanwijzing s.v.p. voor gebruik zorgvuldig doorlezen. Leer cuidadosamente y comprender estas instrucciones antes del uso. Antes de usar, leia com cuidado para assimilar estas instruções.

Handling instructions Bedienungsanleitung Mode d'emploi Istruzioni per l'uso Gebruiksaanwijzing Instrucciones de manejo Instruções de uso

Line drawing of a hand using a drill bit to measure a drill bit (no text or symbols present)

Illustration of a hand using a power tool to drill or drill with a screwdriver, no text or symbols present

Illustration of a hand using a tool to tighten a screw, no text or symbols present

Illustration of a hand holding a cylindrical object with a handle, no text or symbols present

Illustration of a hand using a power tool to lift a cylindrical component (no text or symbols)

	English Deutsch	Français Italiano
1	Tool shank	Werkzeugschaft	Queue	Gambo
2	Grease	Schmierfett	Graisse	Grasso

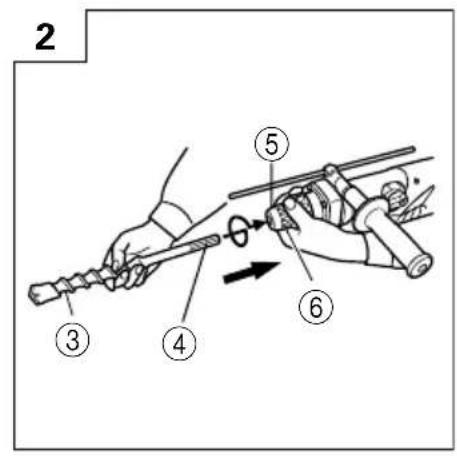

3	Tool	Werkzeug	Outil	Utensile
4	Part of SDS max shank	Teii des SDS-max Schaftes	Elément de la tige SDS max	Parte dell'asta SDS max
5	Front cap	Vordere Abdeckung	Capuchon avant	Protezione davanti
6	Grip	Spannbacke	Attache coulissante	Presa davanti
7	Dial	Skalenscheibe	Bague	Manopola
8	Button	Knopf	Bouton	Tasto

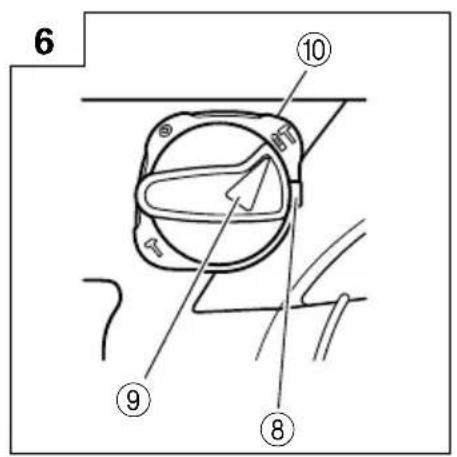

9	Selector lever	Wahlhebel	Sélecteur	Leva di selezione
10	Lever holder	Hebelhalter	Support de levier	Supporto leva

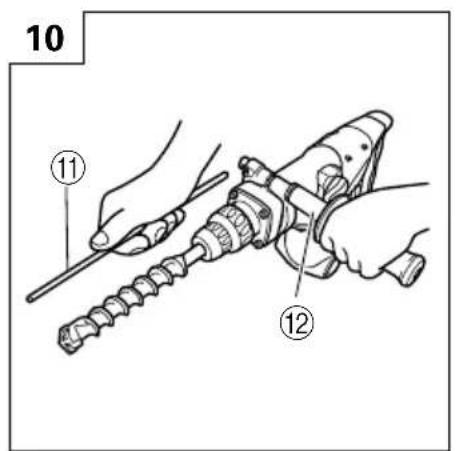

11	Stopper	Anschlagstange	Quenouille	Bacchetta d'arresto
12	Side handle	Seitengriff	Poignée latérale	Impugnatura laterale

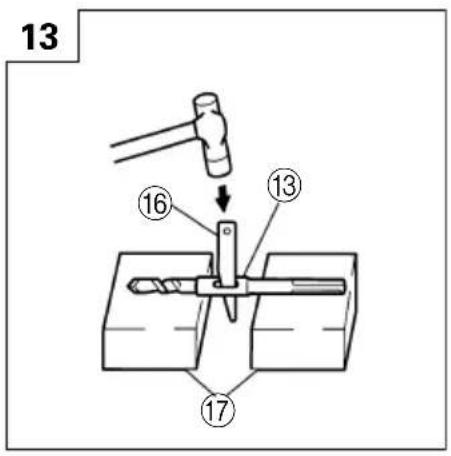

13	Taper shank adapter	Konusschaftadapter	Raccord de queue conique	Adattatore del gambo conico
14	Drill bit (taper shank)	Bohren (mit konischem Schaft)	Mèche (Queue conique)	Punta del trapano (gambo conico)
15	Indicating groove shows standard depth matching the outside diameter of the anchor for drilling.	Anzeigerille zeigt Normalloch-tiefe gemäß Außendurchmesser des Ankers für Bohren.	La rainure indicatrice montre la profondeur standard adaptée au diamètre extérieur de l'ancre pour le perçage.	Scanalatura di riferimento indicante la profondità standard con il diametro esterno dell'ancora per il trapanaggio.
16	Cotter	Keil	Clavette	Chiave trasversale
17	Rest	Auflage	Support	Appoggio
18	Drill chuck	Bohrfutter	Mandrin porte-foret	Mandrino
19	Chuck adapter	Bohrfutteradapter	Raccord de mandrin	Adattatore per mandrino

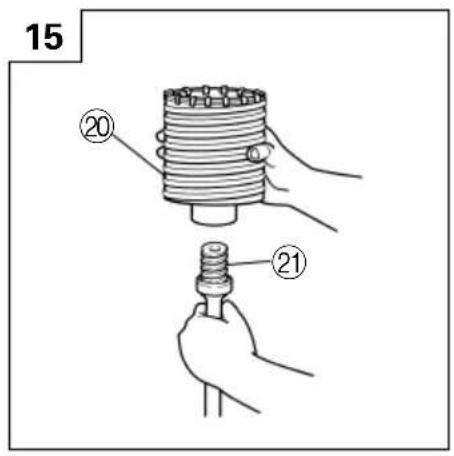

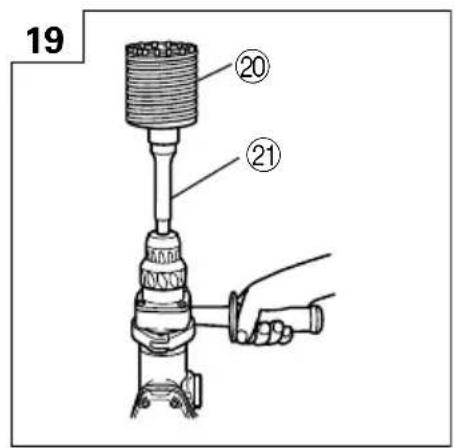

20	Core bit	Bohrkrone	Couronne	Corona
21	Core bit shank	Bohrkronenschenkel	Queue de couronne	Gambo della corona
22	Guide plate	Führengsplatte	Plaque de guidage	Piastra di guida
23	Center pin	Mittelstift	Goujon central	Perno ralla
24	Core bit tip	Bohrkronenspitze	Bout de couronne	Punta della corona

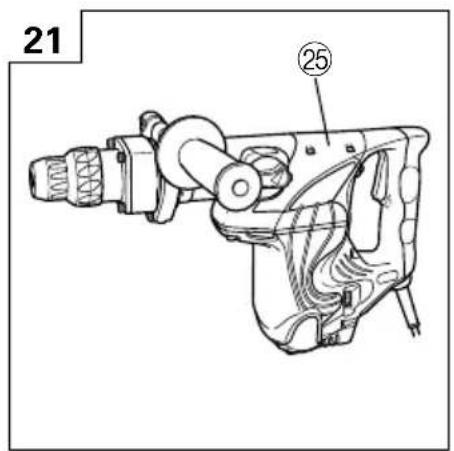

25	Crank cover	Kurbelabdeckung	Cache de carter	Coperchio manovella
26	Wear limit	Verschleißgrenze	Limite d'usure	Limite d'usura
27	No. of Carbon Brush	Nr. der Kohlebürste	No. de balai en carbone	Numero delle spazzole di carbone

	Nederlands Español	Português
1	Boorschacht	Barrena	Cabo de ferramenta
2	Smering	Grasa	Lubrificante
3	Gereedschap	Herramienta	Ferramenta
4	Onderdeel van SDS max schacht	Parte del SDS max vástago	Peça do cabo SDS max
5	Voorkap	Cubierta frontal	Tampa da frente
6	Greep	Sujetador	Mordente
7	Draaiknop	Dial	Dial
8	Knop	Botón	Botão
9	Keuzeschakelaar	Palanaca selectora	Seletor
10	Behuizing	Sujetador de palanca	Suporte da alavanca
11	Stopper	Tope	Tampão
12	Zijgreep	Mango lateral	Empunhadura lateral
13	Schachtadaptor	Adaptador de barrena ahusada	Adaptador de cabo cônico
14	Booreinde (vernauwde schacht)	Broca de barrena (barrena ahusada)	Broca
15	Indikatiegroef laat de standaard-diepte zien, die gelijk is aan de diameter van het anker voor boren.	Ranura indicadora que muestra la profundidad normal de coin-cidencia del diâmetro exterior del anclaje para taladrar.	A ranhura indicadora mostra a profundidade padrão correspondente ao diâmetro externo da âncora para perfuração.
16	Cotter	Chaveta	Cavilha
17	Steun	Apoyo	Suporte
18	Boorkop	Portabrocas	Mandril
19	Boorkopadaptor	Adaptador del portabrocas	Adaptador do mandril
20	Kernstuk	Barrena tubular	Coroa
21	Kernstukschacht	Espiga de barrena	Cabo de coroa
22	Plaatje	Placa guía	Placa-guia
23	Middenpin	Pasador central	Pino central
24	Top van kernstuk	Punta barrena tubular	Cabo da coroa
25	Krukafdekking	Cubierta de la manivela	Tampa da manivela
26	Slijtagelimiet	Límite de desgaste	Limite de desgaste
27	Nr. van koolborstels	No de escobilla de carbón	No da escova de carvão

	Symbols⚠ WARNINGThe following show symbols used for the machine. Be sure that you understand their meaning before use.	Symbole⚠ WARNUNGDie folgenden Symbole werden für diese Maschine verwendet. Achten Sie darauf, diese vor der Verwendung zu verstehen.	Symboles⚠ AVERTISSEMENTLes symboles suivants sont utilisés pour l’outil. Bien se familiariser avec leur signification avant d’utiliser l’outil.	Simboli⚠ AVVERTENZADi seguito mostriamo i simboli usati per la macchina. Assicurarsi di comprenderne il significato prima dell’uso.
	Read all safety warnings and all instructions.Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.	Lesen Sie sämtliche Sicherheitshinweise und Anweisungen durch.Wenn die Warnungen und Anweisungen nicht befolgt werden, kann es zu Stromschlag, Brand und/oder ernsthaftenVerletzungen kommen.	Lire tous les avertissements de sécurité et toutes les instructions.Tout manquement à observer ces avertissements et instructions peut engendrer des chocs électriques, des incendies et/ou des blessures graves.	Leggere tutti gli avvertimenti di sicurezza e tutte le istruzioni.La mancata osservanza degli avvertimenti e delle istruzioni potrebbe essere causa di scosse elettriche, incendi e/o gravi lesioni.
	Only for EU countriesDo not dispose of electric tools together with household waste material!In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.	Nur für EU-Länder Werfen Sie Elektrowerkzeuge nicht in den Hausmüll!Gemäss Europäischer Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte und Umsetzung in nationales Recht müssen verbrauchte Elektrowerkeuge getrennt gesammelt und einer umweltgerechten Wiederververtung zugeführt werden.	Pour les pays européens uniquementNe pas jeter les appareils électriques dans les ordures ménagères!Conformément à la directive européenne 2002/96/EG relative aux déchets d’équipements électriques ou électroniques (DEEE), et à sa transposition dans la législation nationale, les appareils électriques doivent être collectés à part et être soumis à un recyclage respectueux de l’environnement.	Solo per Paesi UENon gettare le apparecchiature elettriche tra i rifiuti domestici.Secondo la Direttiva Europea 2002/96/CE sui rifiuti di apparecchiature elettriche ed elettroniche e la sua attuazione in conformità alle norme nazionali, le apparecchiature elettriche esauste devono essere raccolte separatamente, al fine di essere reimpiegate in modo eco-compatibile.
	Symbolen⚠ WAARSCHUWINGHieronder staan symbolen afgebeeld die van toepassing zijn op deze machine. U moet de betekenis hiervan begrijpen voor gebruik.	Símbolos⚠ ADVERTENCIAA continuación se muestran los símbolos usados para la máquina. Asegúrese de comprender su significado antes del uso.	Símbolos⚠ AVISOA seguir aparecem os símbolos utilizados pela máquina. Assimile bem seus significados antes do uso.
	Lees alle waarschuwingen en instructies aandachtig door.Nalating om de waarschuwingen en instructies op te volgen kan in een elektrische schok, brand en/of ernstig letsel resulteren.	Lea todas las instrucciones y advertencias de seguridad.Si no se siguen las advertencias e instrucciones, podría producirse una descarga eléctrica, un incendio y/o daños graves.	Leia todas as instruções e avisos de segurança.Se não seguir todas as instruções e os avisos, pode provocar um choque eléctrico, incêndio e/ou ferimentos graves.
	Alleen voor EU-landen Geef elektrisch gereedschap niet met het huisvuil mee!Volgens de Europese richtlijn 2002/96/EG inzake oude elektrische en elektronische apparaten en de toepassing daarvan binnen de nationale wetgeving, dient gebruikt elektrisch gereedschap gescheiden te worden ingezameld en te worden afgevoerd naar een recycle bedrijf dat voldoet aan de geldende milieu-eisen.	Sólo para países de la Unión Europea¡No deseche los aparatos eléctricos junto con los residuos domésticos!De conformidad con la Directiva Europea 2002/96/CE sobre residuos de aparatos eléctricos y electrónicos y su aplicación de acuerdo con la legislación nacional, las herramientas eléctricas cuya vida útil haya llegado a su fin se deberán recoger por separado y trasladar a una planta de reciclaje que cumpla con las exigencias ecológicas.	Apenas para países da UE Não deite ferramentas eléctricas no lixo doméstico!De acordo com a directiva europeia 2002/96/CE sobre ferramentas eléctricas e electrónicas usadas e a transposição para as leis nacionais, as ferramentas eléctricas usadas devem ser recolhidas em separado e encaminhadas a uma instalação de reciclagem dos materiais ecológica.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

PRECAUTION

Keep children and infirm persons away.

When not in use, tools should be stored out of reach of children and infirm persons.

ROTARY HAMMER SAFETY WARNINGS

1. Wear ear protectors

Exposure to noise can cause hearing loss.

2. Use auxiliary handles supplied with the tool.

Loss of control can cause personal injury.

1. Do not touch the bit during or immediately after operation. The bit becomes very hot during operation and could cause serious burns.

2. Before starting to break, chip or drill into a wall, floor or ceiling, thoroughly confirm that such items as electric cables or conduits are not buried inside.

3. Always hold the body handle and side handle of the power tool firmly. Otherwise the counterforce produced may result in inaccurate and even dangerous operation.

4. Wear a dust mask Do not inhale the harmful dusts generated in drilling or chiseling operation. The dust can endanger the health of yourself and bystanders.

SPECIFICATIONS

Voltage (by areas)* (110V, 115V, 120V, 127V, 220V, 230V, 240V)
Power input 950 W*
Capacity Drill bit: 40 mm	Core bit: 105 mm
No load speed 240 – 480 min	-1
Full-load impact rate 1320 – 2650 min	-1
Weight (without cord, side handle) 6.5 kg

*Be sure to check the nameplate on product as it is subject to change by areas.

STANDARD ACCESSORIES

(1) Case (Molded plastic) 1

(2) Side Handle 1

(3) Stopper 1

(4) Hammer Grease A 1

Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES (sold separately)

1. Through-hole drilling (Rotation + Hammering)

(1) Drill bit (SDS max shank)

Outer diameter (mm)	Overall length (mm)
16	340, 540
19
22	320, 520
25
28	370, 570
32
38
40

1. Anchor hole drilling (Rotation + Hammering)

(1) Drill bit (taper shank) External dia.: 11, 12.3, 12.7, 14.3, 14.5, 17.5 mm

(2) Taper shank adapter (SDS max shank)

Taper shank adapter	Application drill bit
Morse taper Drill bit (taper shank)(No. 1) 11, 12.3, 12.7, 14.3, 14.5, 17.5 mm

(1) Drill bit (SDS-plus shank)

(2) Adapter for SDS-plus shank bit (SDS max shank)

1. Large dia. hole boring (Rotation + Striking)

(1) Center pin

●Applied to core bits from 38 mm to 105 mm

●Applied to core bits 32 mm and 35 mm NOTE:

Do not use core bits 25 mm or 29 mm.

(2) Core bit

●External dia. 25, 29, 32, 35, 38, 45, 54, 64, 79, 94, 105 mm (with guide plate, not applicable to cores 25 mm or 29 mm)

(3) Core bit shank

●Applied to core bits above 38 mm

●Applied to core bits below 35 mm

1. Drilling holes .... For drilling metal and wooden materials

Technical line drawing of a mechanical component with two views: one showing a threaded shaft and the other a cylindrical screw (no text or symbols)

13 mm drill chuck (13VLA)

Chuck adapter (SDS max shank)

Chuck wrench

1. Bolt placing operation with Chemical Anchor (Rotation + Hammering)

(Standard socket on the market)

(SDS max shank)

12.7 mm Chemical Anchor Adaptor

19 mm Chemical Anchor Adaptor

1. Crushing (Hammering)

(1) Bull point

Overall length: 280, 400 mm

1. Groove digging and edging (Hammering)

(1) Cold chisel

Overall length: 280, 400 mm

1. Asphalt cutting (Hammering)

(1) Cutter

1. Scooping Work (Hammering)

(1) Scoop

1. Surface Roughing (Hammering)

Technical line drawing of a mechanical component with two views: one showing a zigzag groove and the other a flat tool (no text or symbols)

(1) Bushing Tool

(2) Shank

1. Tamping (Hammering)

Technical line drawing of a mechanical component with a flanged shaft and circular housing (no text or symbols)

(1) Rammer 150 × 150 ~mm

(2) Shank

1. Syringe (for chip removal)

○Hammer grease A

500 g (in a can)

70 g (in a green tube)

30 g (in a green tube)

Optional accessories are subject to change without notice.

APPLICATIONS

○Drilling holes in concrete
○Drilling anchor holes
○Crushing concrete, chipping, digging, and squaring (by applying optional accessories)

PRIOR TO OPERATION

1. Power source

Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.

1. Power switch

Ensure that the power switch is in the OFF position. If the plug is connected to a power receptacle while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.

1. Extension cord

When the work area is removed from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.

1. How to install tool

NOTE:

For tools such as a bull point and a cold chisel, use only Hitachi genuine parts.

(1) Clean, then smear the tool shank with the grease provided in the green tube (Fig. 1).

(2) To attach the tool (SDS max shank), insert it into the hole until it contacts the innermost end of the hole as illustrated in Fig. 2.

If you continue to turn the tool with slight pressure, you can feel a spot where there is a hitch. At that spot, pull the grip to the direction of an arrow mark and insert the tool all the way until it hits the innermost end.

Releasing the grip reverts the grip and secures the tool in place.

(3) Pull the tool to make sure it is locked completely.
(4) To remove the tool, fully pull the grip in the direction of the arrow and pull out the tool.

5. Regulating the number of rotations and hammering (Fig. 3)

This Rotary Hammer is equipped with a built-in electronic control circuit that can adjust and regulate the number of rotations and times of hammering. This Rotary Hammer can be used by adjusting the dial, depending upon the contents of operation, such as boring holes into fragile materials, chipping, centering, etc.

The scale '1' of the dial is designed for a minimum speed with the number of 240 rotations per minute and 1320 times of blow per minute. The scale '6' is designed for a maximum speed with the number of 480 rotations per minute and 2650 times of blow per minute.

CAUTION:

Do not adjust the dial during operation. Doing so can result in injury because the Rotary Hammer must be held by only one hand, disabling the steady control of the Rotary Hammer.

HOW TO USE THE ROTARY HAMMER

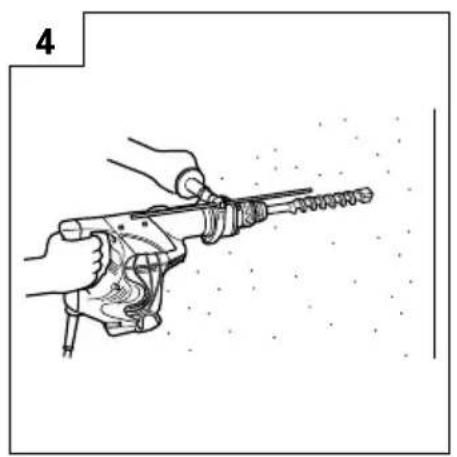

1. How to drill holes (Fig. 4)

(1) Pull the switch trigger after applying the drill bit tip to the drilling position.
(2) It is unnecessary to forcibly press the rotary hammer main body. It is sufficient to slightly press the rotary hammer to an extent that shavings are freely discharged.

CAUTION:

Although this machine is equipped with a safety clutch, if the drill bit becomes bound in concrete or other material, the resultant stoppage of the drill bit could cause the machine body to turn in reaction. Ensure that the main handle and side handle are gripped firmly during operation.

2. How to chisel or crush (Fig. 5)

By applying the drill bit tip to the chiseling or crushing position, operate the rotary hammer by utilizing its empty weight.

Forcible pressing or thrusting is unnecessary.

3. When drilling at "rotation + hammering": CAUTION:

If you switch the selector lever during motor rotation, the tool can start to rotate abruptly, resulting in unexpected accidents. Be sure to switch the selector lever when the motor is at a complete stop.

(1) Switching to "rotation + hammering"

(a) Push the button, release lock and turn the selector lever clockwise.
(b) Align ▲ of the selector lever and IT of the lever holder as illustrated in Fig. 6.
(c) Release the button to lock the selector lever.

NOTE:

Turn the selector lever (do not push the button) to check if it is completely locked and make sure that it does not turn.

4. When chipping and chiseling at "hammering": CAUTION:

☐If the selector lever is switched during motor rotation, the tool can start to rotate abruptly, resulting in unexpected accidents. Make sure to switch the selector lever when the motor is at a complete stop.
○If the bull point or cold chisel is used at the position of "rotation + hammering", the tool can start to rotate, resulting in unexpected accidents. Make sure that they are used at the position of "hammering".

(1) Switching to "hammering"

(a) Push the button, release lock and turn the selector lever counterclockwise.
(b) Align ▲ of the selector lever and T of the lever holder as illustrated in Fig. 7.
(c) Release the button to lock the selector lever.

NOTE:

Turn the selector lever (do not push the button) to check if it is completely locked and make sure that it does not turn.

(2) When fixing working positions of tools such as cold chisel, etc.,

(a) Push the button, release lock and turn the selector lever.

Align ▲ of the selector lever and Ⓗ of the lever holder as illustrated in Fig. 8.
(b) Release the button to lock the selector lever.
(c) Turn the grip as illustrated in Fig. 9 and fix the tool to the desired working direction.
(d) Switch the selector lever to "hammering" according to the procedures mentioned in the above item (1) and secure the position of the tool.

5. Install the stopper (Fig. 10)

(1) Loosen the side handle and insert the straight portion of the stopper into the handle bolt hole.
(2) Move the stopper to the specified position and rotate the grip of the side handle clockwise to fix the stopper.

6. Warming up (Fig. 11)

The grease lubrication system in this unit may require warming up in cold regions.

Position the end of the bit so makes contact with the concrete, turn on the switch and perform the warming up operation. Make sure that a hitting sound is produced and then use the unit.

CAUTION:

When the warming up operation is performed, hold the side handle and the main body securely with both hands to maintain a secure grip and be careful not to twist your body by the jammed drill bit.

DRILLING AND DRIVING-IN OPERATIONS FOR ANCHORS

1. When a taper shank adapter is used. (Fig. 12)

(1) Install drill bit with taper shank in the taper shank adapter.
(2) Turn the power on and drill a base hole to the depth sounded by indicating groove on the drill bit.
(3) After cleaning out dust with a syringe, attach the plug to the anchor tip and drive in the anchor with a manual hammer.

(4) To remove the drill bit (taper shank), insert the cotter into the slot of the taper shank adapter and strike the head of the cotter with a manual hammer supporting on a rest. (Fig. 13)

USING DRILL CHUCK, CHUCK ADAPTER

Note that this machine can be used at "rotation only" if separately sold parts such as drill chuck and chuck adapter are attached. Use it with the selector lever positioned at "rotation + hammering".

CAUTION:

During operation, be sure to grip the handle and the side handle firmly to prevent your body from swaying.

(1) Switching to "rotation + hammering"

For switching to "rotation + hammering", follow the same procedures mentioned in [3. When drilling at "rotation + hammering"].

(2) Attaching chuck adapter to drill chuck (Fig. 14)

(a) Attach the chuck adapter to the drill chuck.

(b) The SDS max shank of the chuck adapter is equivalent to the drill bit. Therefore, follow the same procedure as [How to install tool] for attaching and detaching.

(3) Drilling

(a) Even if you apply more-than-required pressure to the machine body, drilling can never be performed as quickly as you expect. Applying more force or pressure to the machine body than what is needed, on the contrary, damages the drill tip, resulting in the declined working efficiency and shortened life of this machine.

(b) A drill can snap sometimes when drilling is almost finished. It is important to relax your thrusting pressure when drilling is nearing the end.

HOW TO HANDLE A CORE BIT

When a core bit is used, large diameter holes and blind holes can be drilled. In this case, use optional accessories for core bits (such as a center pin and core bit shank) for more efficient operation.

1. Mounting

CAUTION:

Prior to mounting a core bit, always disconnect the plug from the power supply receptacle.

(1) Mount the core bit on the core bit shank. (Fig. 15) Before that, feed oil to the screw portion of core bit shank for easy dismounting.

(2) Mount the core bit shank on the main body in the same manner as in mounting the drill bit and the bull point. (Fig. 16)

(3) Insert the center pin into the guide plate until it reaches the extremity.

(4) Fit in the guide plate by aligning its concaved portion with the core bit tip. When the position of the concave is shifted by turning the guide plate right or left, the guide plate never slips off even when the drill is used in a downward direction. (Fig. 17)

2. Drilling holes

(1) Insert the plug into a receptacle.

(2) A spring is built in the center pin. By straightly and gently pressing it to the wall or floor surface, the entire surface of the core bit tip attains contact to start the hole drilling job. (Fig. 18)

(3) When the hole depth reaches approximately 5 mm, the hole position can be determined. Then remove the center pin and guide plate from the core bit and continue the hole drilling job.

CAUTION:

When removing the center pin and guide plate, always disconnect the plug from the receptacle.

3. How to dismount the core bit

○By holding the rotary hammer (with the core bit inserted) in an upward position, drive the rotary hammer to repeat impact operation two or three times, whereby the screw is loosened and the rotary hammer becomes ready for disassembly. (Fig. 19)

○Remove the core bit shank from the rotary hammer, hold the core bit with one hand, and strongly strike the head of the SDS max shank portion of the core bit shank with a manual hammer two or three times, whereby the round head screw is loosened and the rotary hammer is ready for disassembly. (Fig. 20)

HOW TO REPLACE GREASE

This machine is of full air-tight construction to protect against dust and to prevent lubricant leakage. Therefore, the machine can be used without lubrication for long periods. Replace the grease as described below.

1. Grease replacement period

After purchase, replace grease after every 6 months of usage. Ask for grease replacement at the nearest Hitachi Authorized Service Center. Proceed for replacement of grease.

2. Grease replenishment

CAUTION:

Before replenishing the grease, turn the power off and pull out the power plug.

(1) Remove the crank cover and wipe off the grease inside. (Fig. 21)

(2) Supply 30 g of Hitachi Electric Hammer Grease A (Standard accessory, contained in tube) to the crank case.

(3) After replenishing the grease, install the crank cover securely.

NOTE:

The Hitachi Electric Hammer Grease A is of the low viscosity type. If necessary purchase from an Hitachi Authorized Service Center.

MAINTENANCE AND INSPECTION

1. Inspecting the tool

Since use of a dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Inspecting the carbon brushes (Fig. 22)

The Motor employs carbon brushes which are consumable parts. When they become worn to or near the "wear limit", it could result in motor trouble. When an auto-stop carbon brush is equipped, the motor will stop automatically. At that time, replace both carbon brushes with new ones which have the same carbon brush Numbers shown in the figure. In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders.

5. Replacing carbon brushes

Loosen the two set screws and remove the tail cover. Remove the brush caps and carbon brushes. After replacing the carbon brushes, tighten the brush caps securely and install the tail cover with securely tightening two set screws.

6. Service parts list

A: Item No.

B: Code No.

C: No. Used

D: Remarks

CAUTION:

Repair, modification and inspection of Hitachi Power Tools must be carried out by an Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

NOTE:

Due HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.

IMPORTANT:

Correct connection of the plug

The wires of the main lead are coloured in accordance with the following code:

Blue: — Neutral

Brown: — Live

As the colours of the wires in the main lead of this tool may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire coloured blue must be connected to the terminal marked with the letter N or coloured black. The wire coloured brown must be connected to the terminal marked with the letter L or coloured red. Neither core must be connected to the each terminal. NOTE:

This requirement is provided according to BRITISH STANDARD 2769: 1984.

Therefore, the letter code and colour code may not be applicable to other markets except The United Kingdom.

Information concerning airborne noise and vibration The measured values were determined according to EN60745 and declared in accordance with ISO 4871.

Measured A-weighted sound power level: 103 dB (A). Measured A-weighted sound pressure level: 92 dB (A). Uncertainty KpA: 3 dB (A).

Wear hearing protection.

Vibration total values (triax vector sum) determined according to EN60745.

Hammer drilling into concrete:

Vibration emission value ah , HD = 15.7 m/s²

Uncertainty K = 1.5 m/s ^4

WARNING

○The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. ○To identify the safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Technical line drawing of a hexagonal bolt and a cylindrical tool (no text or symbols)

Technical line drawing of a mechanical component with a flanged shaft and circular housing (no text or symbols)

1. Broyage (Percussion)

(1) Point de broyage

1. Puisage (Percussion)

(1) Scoop

Technical line drawing of a twist drill bit and a cylindrical drill bit (no text or symbols)

(1) Punta del trapano (gambo conico) Diametro esterno: 11, 12,3, 12,7, 14,3, 14,5, 17,5 mm

Technical line drawing of a hexagonal bolt and a cylindrical tool (no text or symbols)

Technical line drawing of a mechanical component with a flanged shaft and circular housing (no text or symbols)

(1) Pestello 150 × 150 ~mm

(2) Gambo

Technical line drawing of a mechanical component with two views: one showing a zigzag edge and the other a conical tool (no text or symbols)

(1) Borstelhulpstuk

(2) Schacht

1. Aanstampen (Slaan)

Technical line drawing of a mechanical component with a flanged shaft and a square housing (no text or symbols)

(1) Heiblok 150 × 150 mm

(2) Schacht

Technical line drawing of a twist drill bit and a cylindrical drill bit (no text or symbols)

Technical line drawing of a hexagonal bolt and a cylindrical tool (no text or symbols)

(1) Desbastadora

(2) Barrena

Technical line drawing of a mechanical component with a flanged shaft and square base (no text or symbols)

(1) Pisón

(2) Barrena

150 × 150 mm

(1) Broca (cabo SDS-plus)

Technical line drawing of a mechanical component with threaded shaft and threaded end (no text or symbols)

Mandril de 13 mm (13 VLA)

Adaptador de mandril (cabo SDS max)

Chave de mandril

Technical line drawing of a hexagonal bolt and a cylindrical tool (no text or symbols)

(1) Ferramenta de embuchamento

(2) Cabo de ferramenta

1. Socadura (Martelamento)

Technical line drawing of a mechanical component with a flanged base and a cylindrical shaft (no text or symbols)

(1) Soquete 150 × 150 ~mm

(2) Cabo de ferramenta

COMO MANUSEAR UM NÚCLEO DE BROCA

Line drawing of a quill pen with inkwell (no text or symbols)

A	B	C	D
1 321-306	1
2 321-305	1
3 318-590	1
4 321-304	1
5 948-131	1
6 600-7DD	1	6007DDUAV2S
7 313-421	2	D8×20
8 321-286	1
9 313-396	1
10 321-287	1
11 321-303	1
12 321-302	1
13 981-942	4	M6×25
14 321-300	1
15 956-996	1	1AS-60
16 321-301	1
17 981-859	1
18 315-868	1
19 321-297	1
20 321-288	1
21 321-289	1
22 321-290	1
23 313-057	4	D6×6
24 321-291	1
25 321-298	1
26 321-299	1
27 321-293	1
28 321-274	1
29 321-292	1
30 310-420	1
31 321-295	1
32 986-104	1
33 321-284	1
34 980-708	1
35 321-285	1
36 321-296	1
38 ————	1
39 321-315	1
40 ————	1
41 321-314	1
42 939-540	1
43 321-275	1
44 944-109	1	3×3×8
45 620-3DD	1	6203DDCMPS2L
46 996-363	1	S-40
47 321-274	1
48 321-273	1
49 986-940	4	M6×45
50 944-109	1	3×3×8
51 321-279	1
52 313-050	1
53 600-2DD	1	6002DDCMPS2L
54 313-058	1
55 313-053	1
56 321-281	1
57 321-282	10
58 320-343	10
59 321-280	1
60 321-283	1
61 629-VVM	1	629VVC2PS2L
62 321-277	1	“11-22”
63 944-525	1
64 313-078	1

A	B	C	D
65	313-080	1
66	971-786	1
67	——	1
68	983-162	5 M4×12
69	313-079	1
70	321-309	1
71	311-229	1
72	321-308	1
73	321-307	1
74	873-095	1 P-16
75	321-310	1
76	321-311	1
77	321-312	1 D2×10
78	321-276	1
79	939-299	1 M661
80	321-319	1
81	620-1DD	1 6201DDCMPS2L
82	302-429	1
83	1 360-591U	1 110V-120V “87-90”
83	2 360-591E	1 220V-230V
83	3 360-591F	1 240V
85	953-174	2 D5×55
86	1 340-542C	1 110V “117, 118”
86	2 340-542G	1 120V “117, 118”
86	3 340-542E	1 220V-230V “117, 118”
86	4 340-542F	1 240F
87	982-631	1
88	608-VVM	1 608VVC2PS2L
89	321-320	1
90	930-703	2
92	321-322	1
93	321-318	1 “85, 86”
94	321-313	2 M6×22
95	935-829	2
96	999-073	2
97	971-001	2
98	321-321	1
99	877-839	2 M5×10
100	321-323	1
101	998-485	6 M5×14
102	313-093	1
103	321-324	1
104	301-653	2 D4×20
105	321-317	1
106	1 321-327	1 110V
106	2 321-326	1 120V
106	3 321-328	1 220V-240V
107	980-063	1
108	1 958-049	1 D8.2
108	2 940-778	1 D10.7
109	1 960-266	1
109	2 981-987Z	1 “SUI”
110	984-750	2 D4×16
111	——	1
112	959-141	1
113	938-307	1
501B	322-152	1
502	981-840	1 30G

Line drawing of a quill pen with inkwell (no text or symbols)

English		Nederlands
GUARANTEE CERTIFICATE1Model No.2Serial No.3Date of Purchase4Customer Name and Address5Dealer Name and Address(Please stamp dealer name and address)		GARANTIEBEWIJS1Modelnummer2Serienummer3Datum van aankoop4Naam en adres van de gebruiker5Naam en adres van de handelaar(Stempel a.u.b. naam en adres vande de handelaar)
Deutsch		Español
GARANTIESCHEIN1Modell-Nr.2Serien-Nr.3Kaufdaturn4Name und Anschrift des Kunden5Name und Anschrift des Händlers(Bitte mit Namen und Anschrift des Handlers abstempeln)		CERTIFICADO DE GARANTIA1Número de modelo2Número de serie3Fecha de adquisición4Nombre y dirección del cliente5Nombre y dirección del distribudor(Se ruega poner el sellú del distribudor con su nombre y dirección)
Français Português
CERTIFICAT DE GARANTIE1No. de modèle2No de série3Date d'achat4Nom et adresse du client5Nom et adresse du revendeur(Cachet portant le nom et l'adresse du revendeur)		CERTIFICADO DE GARANTIA1Número do modelo2Número do série3Data de compra4Nome e morada do cliente5Nome e morada do distribuidor(Por favor, carímbe o nome e morada do distribuidor)
Italiano
CERTIFICATO DI GARANZIA1Modello2N° di serie3Data di acquisto4Nome e indirizzo dell'acquirente5Nome e indirizzo del rivenditore(Si prega di apporre il timbro con questi dati)

HITACHI

1
2
3
4
5

Hitachi Koki

Hitachi Power Tools Europe GmbH

Siemensring 34, 47877 willich 1, F. R. Germany

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.de

Hitachi Power Tools Netherlands B. V.

Brabanthaven 11, 3433 PJ Nieuwegein, The Netherlands

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.nl

Hitachi Power Tools (U. K.) Ltd.

Precedent Drive, Rooksley, Milton Keynes, MK 13, 8PJ, United Kingdom

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.co.uk

Hitachi Power Tools France S. A. S.

Prac del' Eglantier 22, rue des Crerisiers Lisses, C. E. 1541,

91015 EVRY CEDEX, France

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.fr

Hitachi Power Tools Belgium N.V. / S.A.

Koningin Astridlaan 51, 1780 Wemmel, Belgium

Tel: [phone]

Fax: [phone]

URL http://www.hitachi-powertools.be

Hitachi Fercad Power Tools Italia S.p.A

Via Retrone 49-36077, Altavilla Vicentina (VI), Italy

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.it

Hitachi Power Tools Iberica, S.A.

C / Migjorn, s/n, Poligono Norte, 08226 Terrassa, Barcelona, Spain

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.es
