USER MANUAL HT 18V Li AL-KO
GB S
NL N
F FIN
E PL
I LT
SLO LV
HR RUS
CZ UA
SK H
INFORMATION | MANUALS | SERVICE
EN Operating Instructions...... 14
AL-KO KOBER GROUP Kötz, Germany
This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without the express permission of the AL-KO KOBER GROUP.
ORIGINAL OPERATING INSTRUCTIONS
Contents
About this handbook.... 14
Product description.... 14
Product overview....15
General safety instructions for electrical power tools....16
Assembly....18
Startup....19
Operation....19
Information on working....19
Maintenance and care.... 20
Storage....20
Disposal....20
Troubleshooting....20
Warranty....21
EC Declaration of Conformity.... 22
ABOUT THIS HANDBOOK
Read this documentation before starting up the machine. This is a precondition for safe working and flawless operation.
- Observe the safety warnings in this documentation and on the product.
This documentation is a permanent integral part of the product described and must be passed on to the new owner if the product is sold.
Explanation of symbols
CAUTION!
Following these safety warnings carefully can prevent personal injury and/or material damage.
Special instructions for greater ease of understanding and improved handling.
PRODUCT DESCRIPTION
Designated use
This appliance is intended for trimming a lawn in non-commercial applications. Any use not in accordance with this designated use shall be regarded as misuse.
Possible misuse
Safety equipment must not be removed or bypassed, e.g. by tying down the switches on the hand grips
Do not use the machine in the rain
Do not use the machine in the rain or on wet hedges and bushes
CAUTION!
The equipment is intended for domestic use only.
Safety and protective equipment
Child protection
The hole (5 mm) on the motor protection switch is provided for a padlock*. The padlock prevents the appliance from being switched on inadvertently.
* Not included in the scope of delivery
CAUTION!
Risk of injury!
Safety and protective devices should not be disabled.
Handguard
CAUTION!
Risk of injury if the handguard is not installed!
Never start up the machine without the handguard.
Two-hand operation
The hedge trimmer can only be operated using both hands at the same time.
Symbols on the machine
| Important! Take particular care during handling. | |
| Read the operating instructions before starting operation! | |
| Keep other people out of the danger area. | |
| Protect the appliance against rain and moisture | |
| Wear protective glasses and ear defenders. | |
 | Remove the battery before any adjustment or cleaning of the equipment is made or when the device is left unattended for a while. |
PRODUCT OVERVIEW

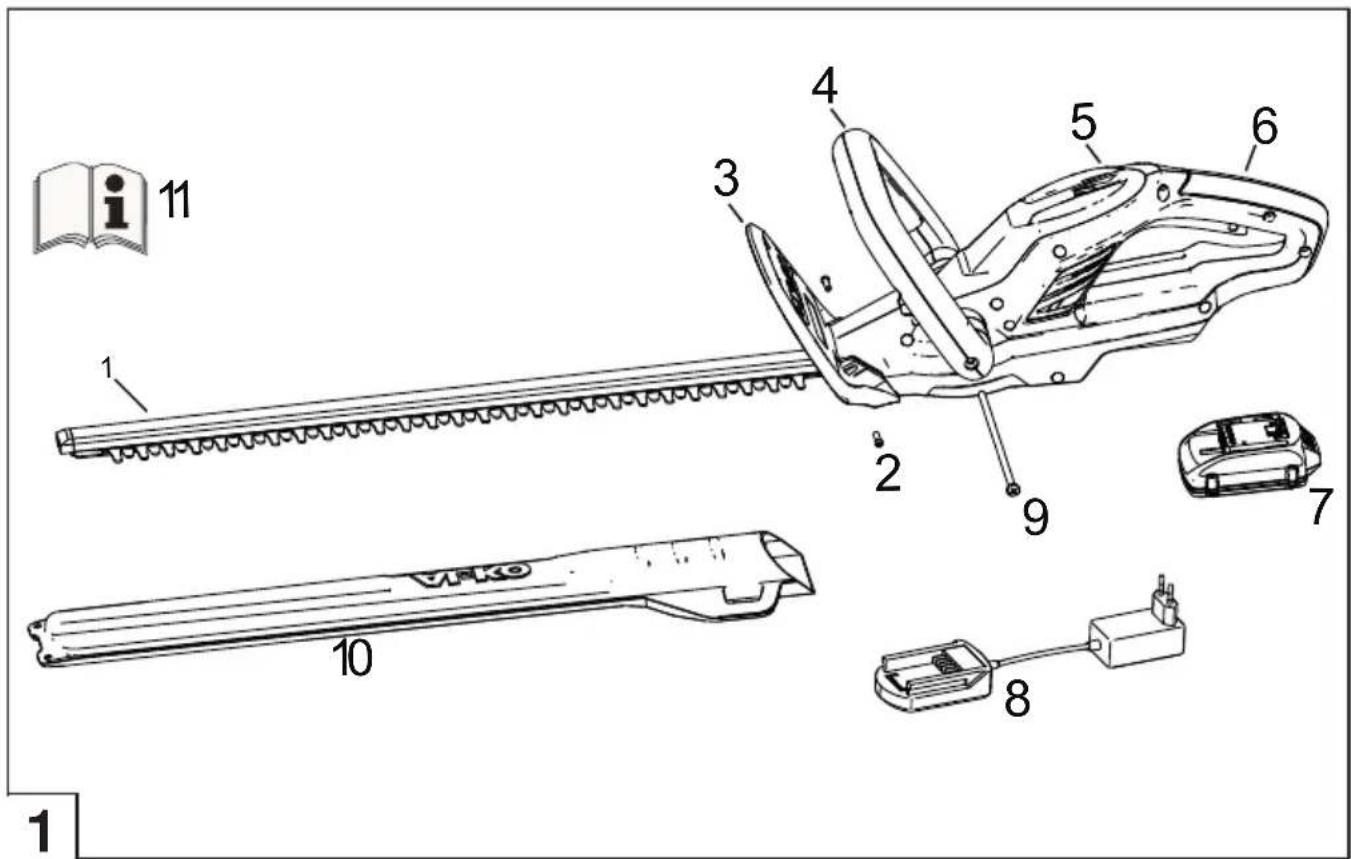

The product overview (1) provides an overview of the appliance.
| 1-1 | Blade |
| 1-2 | Screws for fastening the handguard |
| 1-3 | Handguard |
| 1-4 | Front hand grip with switch |
| 1-5 | Spirit level |
| 1-6 | Rear hand grip with switch |
| 1-7 | Battery with battery lock |
| 1-8 | Charger with mains plug |
| 1-9 | Clamping bolt |
| 1-10 | Blade cover |
| 1-11 | Operating instructions |
| HT 18V Li | |
| Blade length | 510 mm |
| Cutting thickness | 15 mm |
| Total weight | 2,8 kg |
| Vibrations measured at hand grip * | 4,8 m/s ^2 K ± 1,5 m/s ^2 |
| Insulation class | / III |
| Stroke rate at no load | 2200 min ^-1 |
| Noise level | LpA 90 dB(A) ± 2 dB(A) |
| Battery type lithium ion | |
| Voltage 18 V | |
| Battery rating | 1,3 Ah (lithium ion) |
| Charging time | 200 min |
| Run time per battery | appr. 25 min. |
| Battery charger | |
| Charging current | Input: 100-240V~50/60Hz 14WOutput: 20V 500mA |
| Allowable charging temperature range | 5 - 45 °C |
Technical data
Technical data acc. to the following standards: sound pressure and sound energy level acc. to DIN EN ISO 3744
Measurement of mechanical vibration at the hand grip acc. to EN 28662-1
The specified values have been established based on a standardised test process and can be used for comparing different electrical tools with one another. In addition, these values are suitable for estimating in advance the loads to which the user is exposed due to vibration.
WARNING!
The actual vibration values may differ from those specified, depending on what the electrical tool is used for.
Take measures to protect yourself against vibration loads. In doing so, take account of the entire working process, i.e. also times during which the electrical tool is operating without load, or is switched off.
Suitable measures include regular maintenance and care of the electrical tool and the tool attachments, keeping your hands warm, taking regular breaks and planning the working sequences effectively.
WARNING!
Wear ear defenders to prevent impairment of hearing.
CAUTION!
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
CAUTION!
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.
CAUTION!
Use the equipment only if it is in correct operating condition!
Before using, check the machine, cable and plug for damage; any damaged parts must be repaired or replaced at a specialised repair centre.
CAUTION!
Risk of injury!
Safety and protective devices should not be disabled.
CAUTION!
Gefahr durch Strom!
Immediately disconnect the plug from the mains if the cable is damaged or severed!
GENERAL SAFETY INSTRUCIONS FOR ELECTRICAL POWER TOOLS
Work area safety
- Keep work area clean and well lit. Cluttered and dark areas invite accidents.
Do not work with the power tool in a hazardous environment where are flammable liquids, gases or dusts. Power tools create sparks which may ignite the dust or fumes. - Keep children and bystanders away while operating a machine. Distractions can cause you to lose control.
Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with heart-hed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. . Water entering a power tool will increase the risk of electricshock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damagedor entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extensioncord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
■ Stay alert, watch what you are doing and use commonsense when operating a power tool. Do not use a powertool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can becaught in moving parts.
Use personal protective equipment. Always wear eyeprotection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
■ Prevent unintentional starting. Ensure the switch is inthe off-position before connecting to power sourceand/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
■ Remove any adjusting key or wrench before turning the power tool on. Remove any adjusting key or wrench before turning the power tool on.
Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reducedust-related hazards.
Power tool use and care
Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
■ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing powertools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power-tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained powertools.
- Keep cutting tools sharp and clean. Pro-
perly maintainedcutting tools with sharp cut-
ting edges are less likely to bindand are ea-
sier to control.
Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
Battery tool use and care
■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of batterypack may create a risk of fire when used with another battery-pack.
Use power tools only with specifically designated batterypacks. Use of any other battery packs may create arisk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Service
- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Hedge trimmer safety warnings
- Keep all parts of the body away from the cutter blade.Do not remove cut material nor hold material to be cutwhen blades are moving. Make sure the switch is offwhen clearing jammed material. A moment of inattention while operating the hedge trimmer may result in seriouspersonal injury.
Carry the hedge trimmer by the handle with the cutterblade stopped. When transporting or storing the hedgetrimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring or its own cord. Cutter blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
Safety notes for battery and charger
Safety notes for battery and charger
CAUTION!
Caution - Risk of fire and explosion!
Do not open the appliance. Danger of short circuit.
Do not put the appliance onto an open fire.
- Protect the appliance against heat and direct sunlight.
■ Each time before using the charger, check the housing, plug and cable for damage.
- Do not use the charger if it is damaged.
Do not open the charger! Renew the charger if it is defective.
■ Protect the appliance, battery and charger against moisture. Only charge indoors.
■ Only have electrical appliances repaired by qualified electricians, and only using genuine spare parts. This ensures that the appliance remains safe.
Safety instructions for operation
■ Always operate the appliance with two hands.
- Keep body and clothing away from cutting parts.
■ Make sure the motor is stopped before you remove any cuttings.
- When leaving unattended / transporting the machine:
Switch the machine off
■ Push on the safety cover
■ Remove the battery
■ Never hold the machine by the blade
■ Only carry the machine by the hand grip
Before starting work search for hidden objects, such as wire fences in the hedge to avoid injuries.
- Regularly check the appliance is in good working order.
Do not use any cleaning agents or solvents. They can cause irreparable damage to the appliance.
■ After use, remove the battery and check the machine for damage.
Electrical malfunctions are only allowed to be rectified by authorised specialist workshops.
WARNING!
The power tool generate a powerful electromagnetic field when in use. Under certain circumstances this electromagnetic field may influence active or passive implants.
To reduce the risk of serious or fatal injuries, we recommend persons with implants for medical reasons to consult the respective physician or the manufacturer of the medical device before using the power tool.
ASSEMBLY
CAUTION!
The machine must not be put in operation before it has been assembled completely.
CAUTION!
Do not insert the battery until the appliance has been completely assembled.
Mounting hand guard and grip

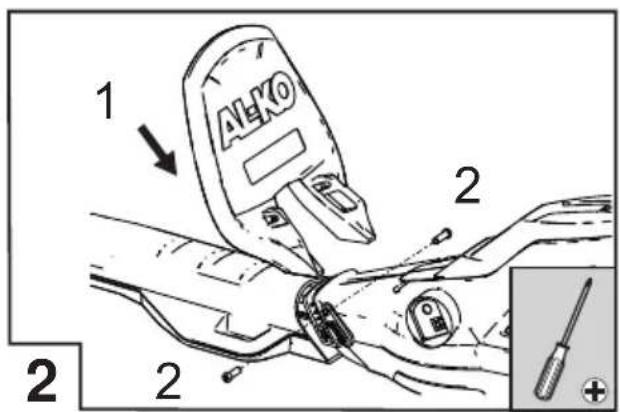

- Fasten handguard (2-1) with enclosed screws (2-2) on the housing.

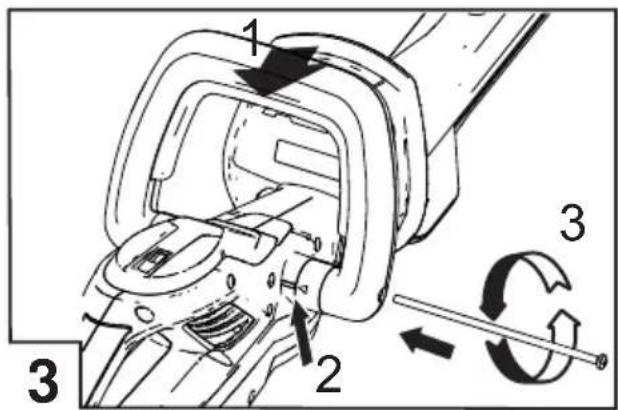

- Pull apart easily front hand grip (3-1) and put it on the housing. The interlocking (3-2) must snap.
- Pass clamping bolt through hand grip and housing and fasten it (3-3).
STARTUP
CAUTION!
Always perform a visual check prior to start-up.
CAUTION!
Do not use damaged batteries. Danger of fire!
CAUTION!
Danger of explosion and fire!
The charger heats up during charging. Do not place it on a flammable surface or in a flammable environment.
Charging the battery
The battery is supplied partially charged! Fully charge the battery before the first use.
The battery can be charged in any charge level. Interrupting charging does not damage the battery.
The battery is protected against excessive charging by a supply voltage control function, which means it can be left connected to the mains for some time.
- Connect the charger (1-5) to the mains without the battery (1-4). The LED on the mains adapter lights up green.
- Connect the battery to the charger. The LED on the mains adapter lights up red. Charging starts.
The temperature range for charging should be between 5 and +45 °C.
The charging time for a full charge is max. 200 minutes. If the operating time of the battery is significantly shorter in spite of full charging, this indicates the battery service life has expired and it must be replaced by a new, genuine battery.
- The charging process has finished when the LED on the mains adapter lights up green - the battery is fully charged.
- Disconnect the charger from the mains.
- Remove the battery from the charger.

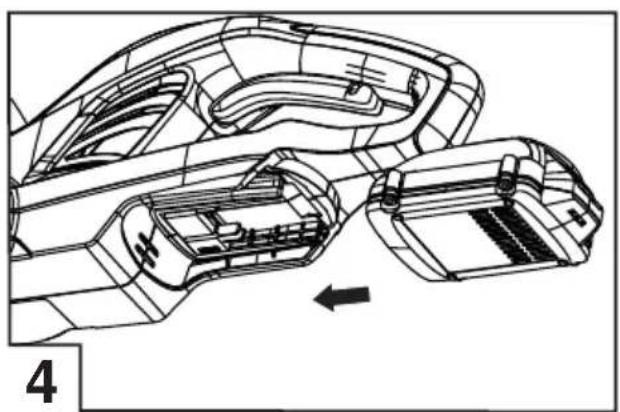

Inserting the battery
- Press the locking catch.
- Push the battery along the guide until the contact socket on the battery is firmly located on the contact plug of the appliance.
OPERATION
Starting the hedge trimmer
- Keep proper footing and balance.
- Grip the front hand grip with one hand, then grip the rear hand grip with the other hand.

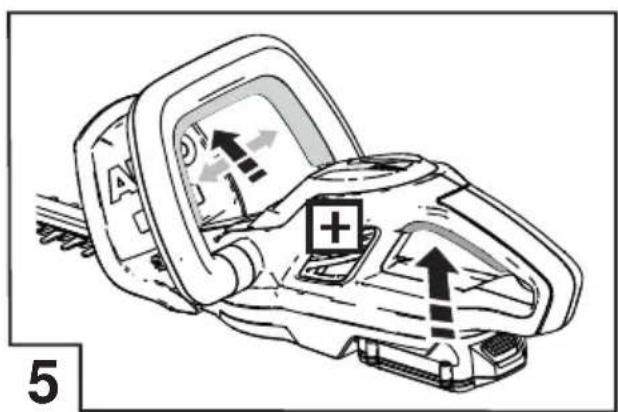

- Press the switches on both hand grips (5); the machine will start:
- Keep both switches pressed while working.
- The hedge trimmer will stop immediately if one of the switches is released.
INFORMATION ON WORKING

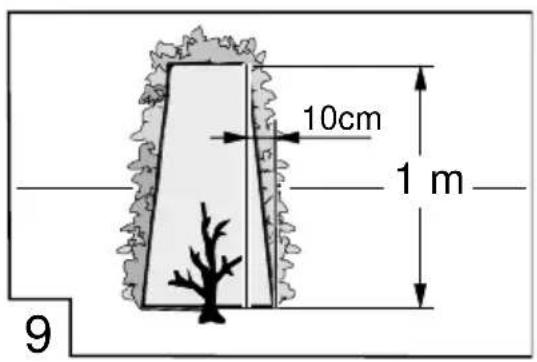

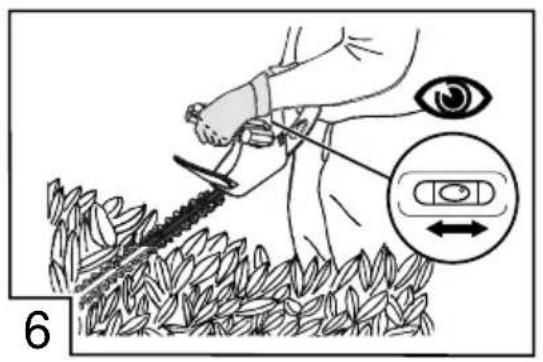

The built-in spirit level (1-5, 5) facilitates cutting along a straight line
■ Always cut both sides of the hedge first, before cutting the top. This will prevent cut material from falling into areas that have not yet been cut (9)
Hedges should always be cut in a trapezoid shape. This prevents the lower branches from becoming bare
■ Make sure the motor is stopped before you remove any cuttings.
When leaving unattended / transporting the machine:
■ Switch the machine off
■ Push on the safety cover
■ Remove the battery
After use, remove the battery and check the appliance for damage.
MAINTENANCE AND CARE
CAUTION!
Repair work may only be carried out by competent specialist workshops or our AL-KO Service Centres.
CAUTION!
Remove the battery before starting any work on the appliance.
CAUTION!
Danger – risk of injury!
Always wear protective gloves when carrying out maintenance or preventive maintenance work on the blade!
- Always clean the blade and housing with a brush or cloth after use. Do not use water and/or aggressive cleaning agents – risk of corrosion!
- Lightly oil the cutter bar with a suitable preservative oil.
- Check that all screws are tightened securely.
- Check blade regularly. Contact AL-KO Service Centre in the case of:
Defective blade
Blunt blade
Excessive wear
STORAGE
The blade cover can be used as a wall-mounted holder for the hedge trimmer (8).
Make sure that the screws are tightened securely!
- Clean the appliance and its accessories after each use.
■ Always attach the blade cover before storing the machine - Keep the appliance out of reach of children and unauthorised persons.
■ Store the appliance in a dry place protected against frost. - Secure the machine with a padlock*.
* Not supplied
Storing the battery and charger
- Store the battery in a dry place protected from frost, with an ambient temperature between 0 °C and +35 °C, and with the battery charged to approx. 40 - 60%
■ Completely recharge the battery for about 2 hours after 6 months in storage
Do not store the battery near metallic or acid-containing objects - these present a risk of short-circuit!
DISPOSAL
Do not dispose of old equipment, batteries or accumulators as householdwaste!
Product, packaging, and accessories were made with recyclable materials, and should be disposed of accordingly.
The user is obliged to return the batteries. Disposal can be handled by the retailer or at recycling centres.
- Do not dispose of the battery unless it is discharged.
TROUBLESHOOTING
| Fault Possible cause Solution | ||
| Motor protection switch has switched off | Motor protection switch has switched offMotor protection switch has switched off | Wait until the motor protection switch switches hedge trimmer back onCharge the battery |
| Machine cuts out intermittently | ON/OFF switch defectiveInternal fault | Contact AL-KO Service Centre |
| Fault Possible cause Solution | ||
| Motor runs but blades do not move | Internal fault | Contact AL-KO Service Centre |
| Blades get hot Insufficient lubrication | Blades bluntNotching on blades | Lightly oil bladesContact AL-KO Service CentreContact AL-KO Service Centre |
| Battery operating time is significantly shorter | Battery flat because not used for some timeBattery service life expired | Charge the batteryRenew the battery. Only use genuine accessories from the manufacturer |
| Battery charging not possible | Charge plug or contact socket contaminatedBattery or charger defective | Order spare parts acc. to the spare parts card |
In the case of faults that are not listed in this table, or faults that you cannot rectify without assistance, please contact our customer service department.
WARRANTY
If any material or manufacturing defects are found during the statutory customer protection period, we will either repair or replace the equipment, whichever we consider the more appropriate. This statutory period may vary according to the legislation in force in the country where the equipment was purchased.
Our warranty is valid only if:
The equipment has been used properly
The operating instructions have been followed
Genuine replacement parts have been used
The warranty is no longer valid if:
The equipment has been tampered with
■ Technical modifications have been made
The equipment was not used for its intended purpose
The following are not covered by warranty:
■ Paint damage due to normal wear
■ Wear parts identified by a border [xxx xxx (x)] on the spare parts list
Combustion motors (these are covered by a separate warranty from the manufacturer concerned)
The warranty period begins on the purchase by the first end user. Decisive is the date on the receipt. To make a claim under warranty, please take this statement of warranty and proof of purchase to the nearest authorised customer service centre. This warranty does not affect the usual statutory rights of the customer relative to the seller.
EC DECLARATION OF CONFORMITY
We hereby declare that this product, in the form marketed by us, meets the requirements of the harmonised EU directives, the EU safety standards and the product-specific standards.
Product Manufacturer Authorised representative
| Hedge trimmer with lithium ion bat-tery | AL-KO Geräte GmbH | Anton Eberle |
| Ichenhauser Str. 14 | Ichenhauser Str. 14 | |
| Type | D-89359 Kötz | D-89359 Kötz |
| HT 18V Li |
Serial number EU directives Harmonised standards
| G 2402405 | 2006/42/EC | EN 60745-1 |
| 2006/95/EC | EN 60745-2-15:2010-09 | |
| Sound power level measured / guaranteed | 2004/108/EC | ISO 10517:2012-01 |
| 2000/14/EC | EN 60335-1:2012-10 | |
| 90 / 92 dB(A) | EN 60335-2-29 |
Conformity assessment Kötz, 13.11.2012
2000/14/EC, Annex V
Antonio De Filippo
Managing Director
MODE D'EMPLOI ORIGINALE
Table des matières
INFORMATIONS SUR CE MANUEL
DÉCLARATION DE CONFORMITÉ CE
2000/14/ES, priloga V
Antonio De Filippo
Direktor družbe
IZVORNI UPUTE ZA UPORABU
Sadržaj
Uz ovaj priručnik.... 68
