USER MANUAL 1735 AA SKIL

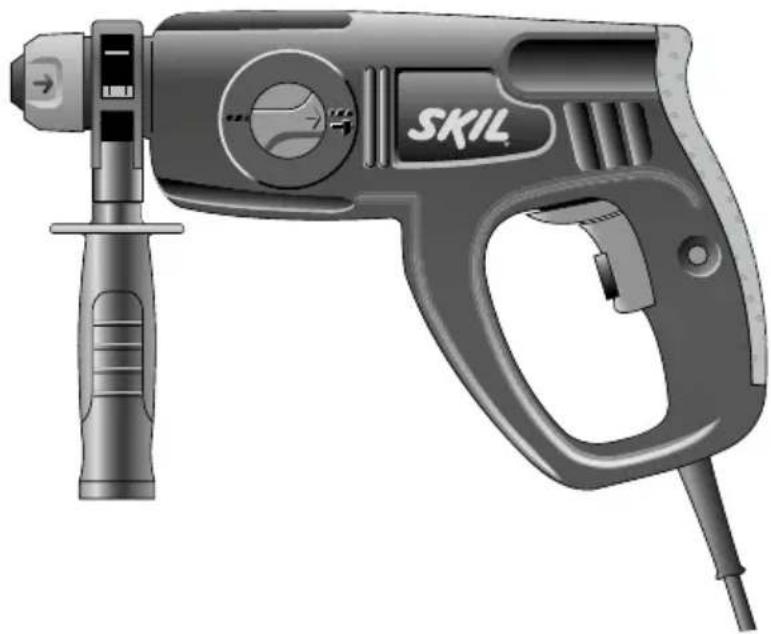

Illustration of a SKIL electric drill with handle and screwdriver (no text or symbols on the device itself)

GB ORIGINAL INSTRUCTIONS 6
F NOTICE ORIGINALE 9
D ORIGINALBETRIEBSANLEITUNG 12
NL ORIGINELE GEBRUIKSAANWIJZING 16
S BRUKSANVISNING I ORIGINAL 19
DK ORIGINAL BRUGSANVISNING 22
N ORIGINAL BRUKSANVISNING 26
FIN ALKUPERÄISET OHJEET 29
E MANUAL ORIGINAL 32
P MANUAL ORIGINAL 35
I ISTRUZIONI ORIGINALI 39
H EREDETI HASZNÁLATI UTASÍTÁS 42
CZ PŮVODNÍM NÁVODEM K POUŽÍVÁNÍ 46
TR ORİJİNAL İŞLETME TALİMATI 49
PL INSTRUKCJA ORYGINALNA 52
RU ПОДЛИННИК РУКОВОДСТВА ПО ЭКСПЛУАТАЦИИ 56

UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 60
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 64
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 68
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 71
SK PÔVODNÝ NÁVOD NA POUŽITIE 75
HR ORIGINALNE UPUTE ZA RAD 79
SRB ORIGINALNO UPUTSTVO ZA RAD 82
SLO IZVIRNA NAVODILA 85
EST ALGUPÄRANE KASUTUSJUHEND 88
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 91
LT ORIGINALI INSTRUKCIJA 95
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 98
AL UDHËZIMET ORIGJINALE 102
AR دليل الاستعمال 111
④ RAHENMAI AUSLI 109

www.skil.com

1 1735 550 Watt 2,4 kg EPTA 01/2003 n₀ 0-1300 /min SDS+ Fe 13 mm 16 mm 30mm 0-7150 p/min * 230 240 V~ 50-60 Hz

2 F E SKIL C G D B A

(6) SKIL ⑦

8 FWD A

REV A

10

11 SKL

Illustration of a SKIL electric drill with handle and screwdriver (no text or symbols on the device itself)

Diagram illustrating a mechanical device with directional arrows and safety symbols, showing correct and incorrect states of movement.

Diagram of a mechanical device with rotating parts and directional arrows indicating motion (no text or symbols)

13 PLASTICS

HSS

PHILLIPS

POZIDRIV

SLOTTED

14

15

Line drawing of hands using a SXYL electric drill putter with a light bulb nearby (no text or symbols)

TENNATG LED

18

19

ACCESSORIES → WWW.SKIL.COM

GB

Rotary hammer 1735

INTRODUCTION

• This tool is intended for impact drilling in concrete, brick and stone; for drilling in wood, metal and plastic as well as for screwdriving specific accessories should be used
• The hammering system in this tool outperforms any traditional ratcheting drill when drilling in concrete
• This tool is designed for use in combination with all standard SDS+ accessories
  • This tool is not intended for professional use
• Read and save this instruction manual ③

TECHNICAL DATA ①

*) Impact energy per stroke according to EPTA-Procedure 05/2009 -> value not available yet

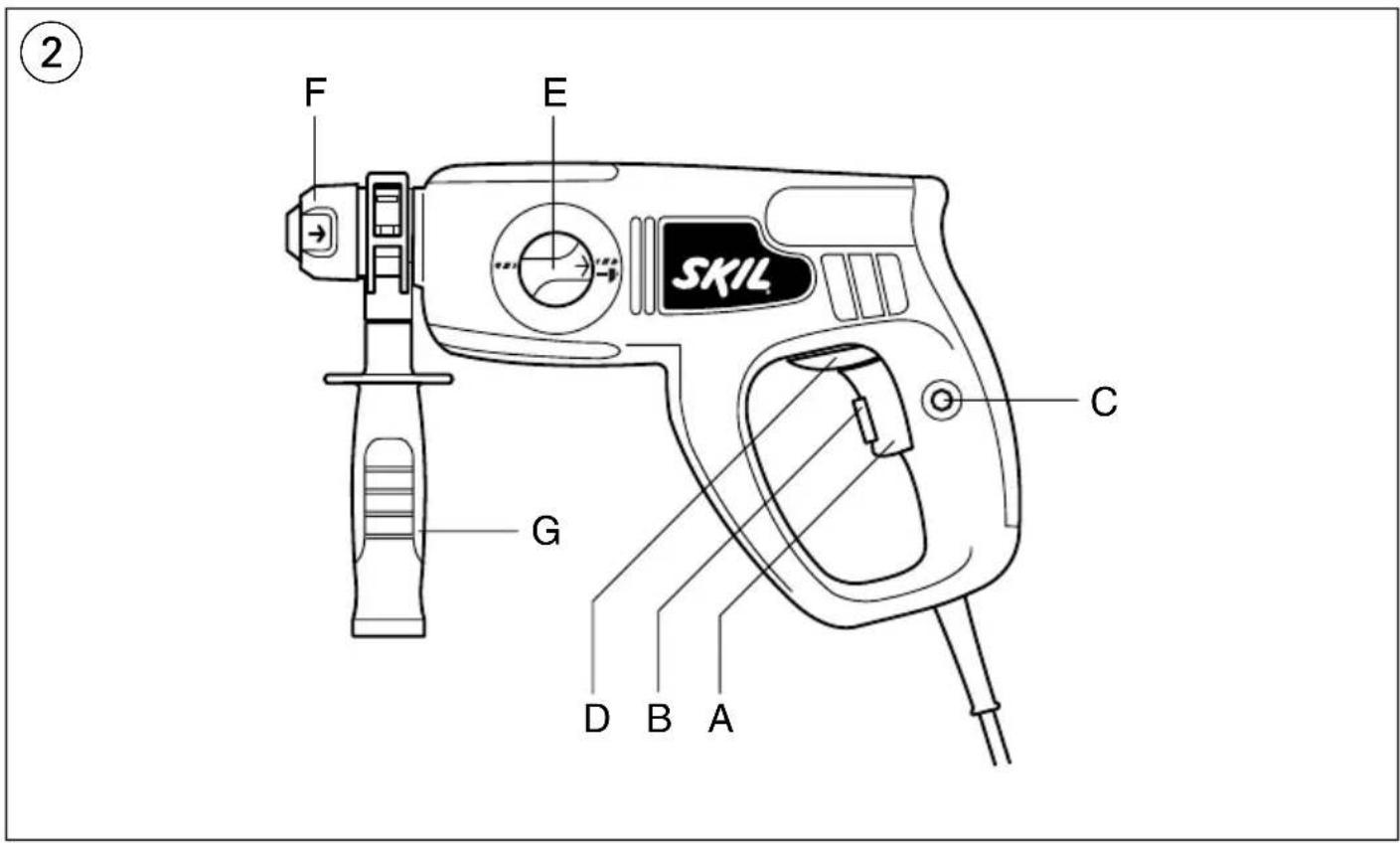

TOOL ELEMENTS ②

A Switch for on/off and speed control
B Wheel for maximum speed control
C Button for switch locking
D Lever for changing direction of rotation
E Switch for selecting operating mode
F Locking sleeve
G Auxiliary handle

SAFETY

GENERAL SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR HAMMERS

- Wear ear protectors (exposure to noise can cause hearing loss)

- Use auxiliary handle(s), if supplied with the tool (loss of control can cause personal injury)

- Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working

• Always keep the cord away from moving parts of the tool

- Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)

- When you put away the tool, switch off the motor and ensure that all moving parts have come to a complete standstill

- Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)

- In case of electrical or mechanical malfunction, immediately switch off the tool and disconnect the plug

- SKIL can assure flawless functioning of the tool only when original accessories are used

- Use only accessories with an allowable speed matching at least the highest no-load speed of the tool

- This tool should not be used by people under the age of 16 years

- Use suitable detectors to find hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock)

- Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord (a cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock)

• Do not work materials containing asbestos (asbestos is considered carcinogenic)
• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable
• Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable
• Follow the dust-related national requirements for the materials you want to work with
• If the cord is damaged or cut through while working, do not touch the cord, but immediately disconnect the plug
• Never use the tool when cord is damaged; have it replaced by a qualified person
• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool (tools with a rating of 230V or 240V can also be connected to a 220V supply)
• If the drill bit becomes unexpectedly jammed (causing a sudden, dangerous reaction), immediately switch off the tool
• Be aware of the forces that occur as a result of jamming (especially when drilling metals); always use auxiliary handle G ② and take a secure stance
  • Always disconnect plug from power source before making any adjustment or changing any accessory WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended

USE

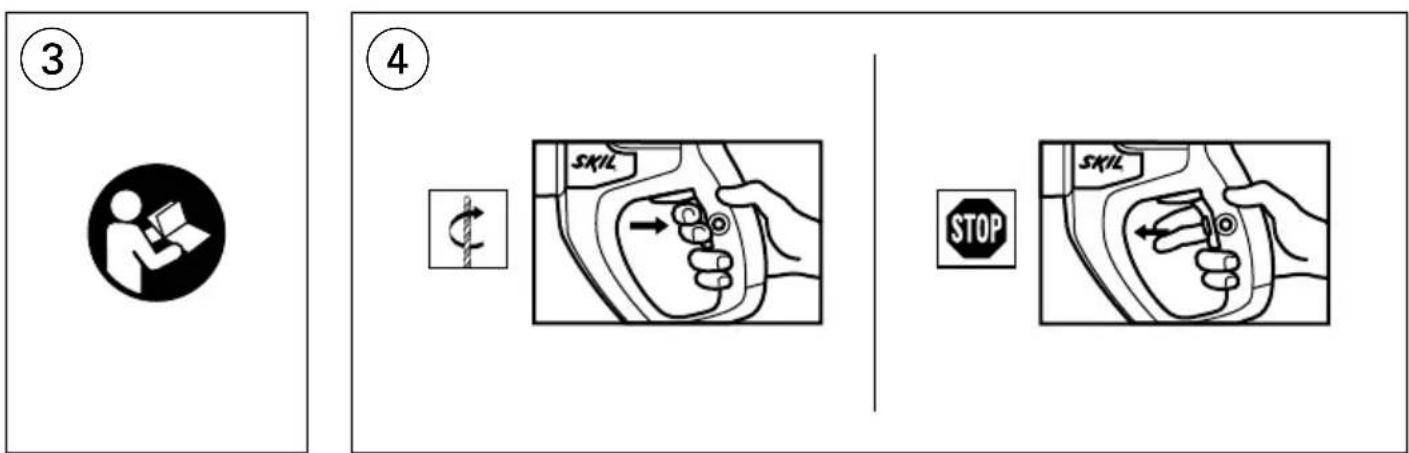

• On/off ④

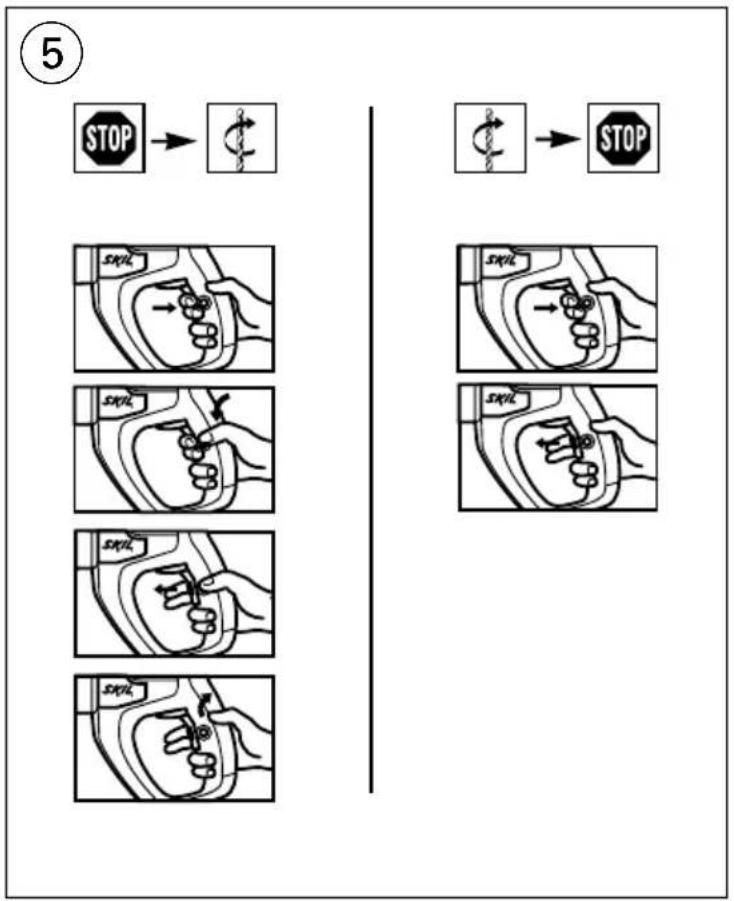

• Switch locking for continuous use ⑤

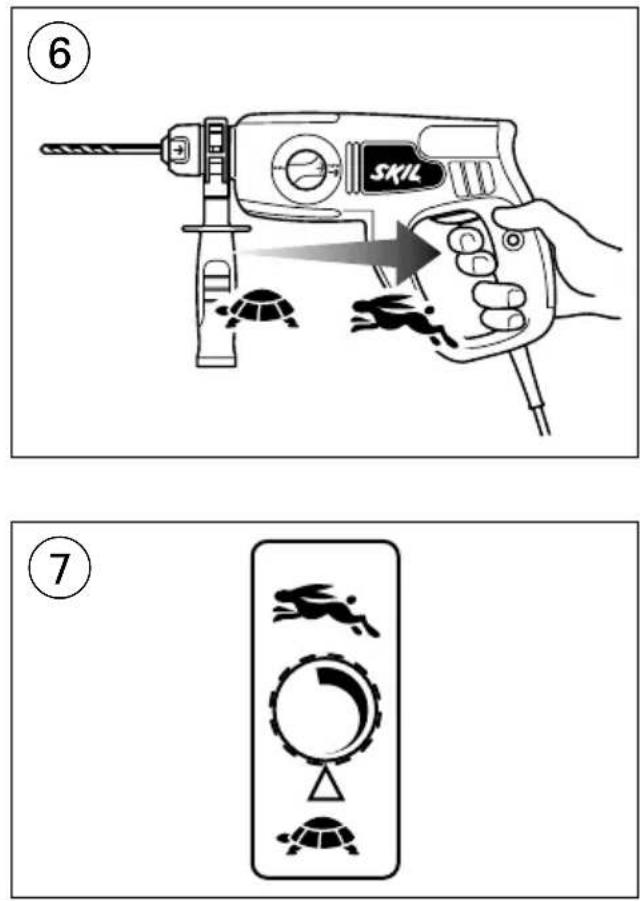

  • Speed control for smooth starting ⑥
  • Maximum speed control ⑦

With wheel B ② the maximum speed can be adjusted steplessly from minimum to maximum

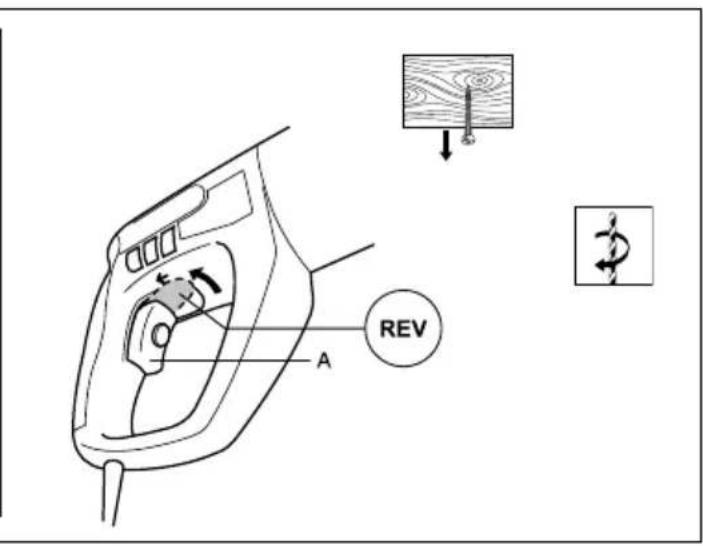

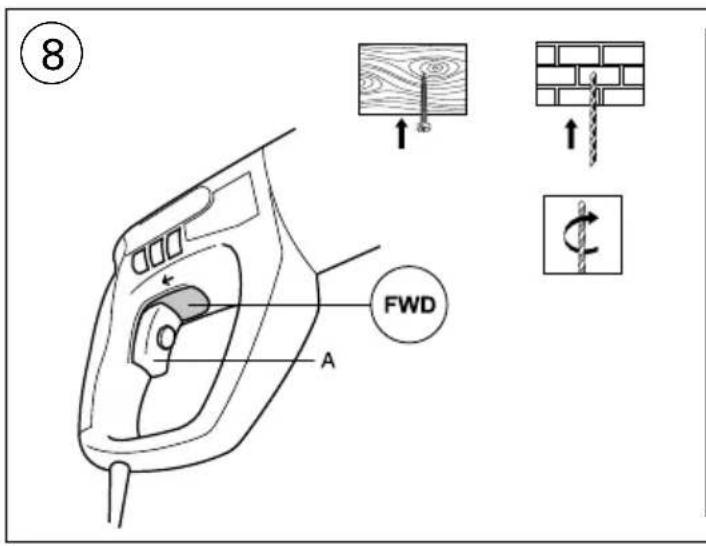

- Changing direction of rotation ⑧

• when not properly set in left/right position, switch A cannot be activated
• the tool functions at limited speed when set for left rotation

! change direction of rotation only when tool is at a complete standstill

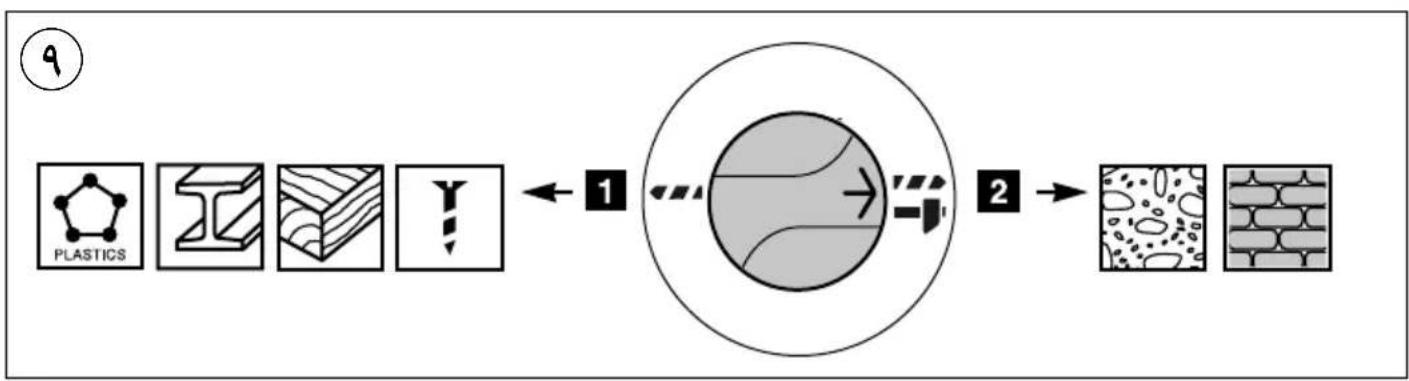

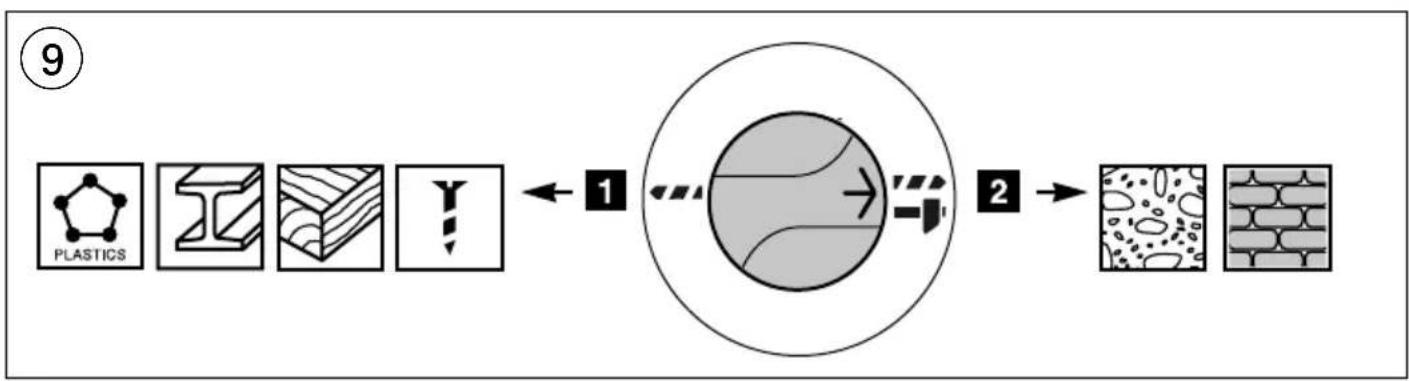

- Selecting operating mode ⑨

1 = normal drilling/screwdriving
2 = impact drilling

! select operating mode only when tool is switched off and plug is disconnected

• for drilling in wood, metal and plastic as well as for screwdriving the corresponding adapter should be used (see: Application Advice)

• the hammer mechanism is activated by applying a slight pressure on the tool when the drill bit is in contact with the workpiece

• it takes a short time for the hammer mechanism to reach full impact power

• best hammer drilling results can be obtained by only a slight pressure on the tool needed to keep the automatic clutch engaged; drilling performance will not improve by applying more pressure on the tool

- Changing bits ⑩

! clean and lightly lubricate the SDS+ accessory before insertion

- pull back locking sleeve F ^② and insert accessory in SDS+ chuck while turning and pushing it until it engages; the accessory locks in position automatically

- pull accessory to check that it is locked correctly

- remove accessory by pulling back locking sleeve F

! the SDS+ accessory requires freedom of movement which causes eccentricity when tool is off-load; however, the accessory automatically centres itself during operation without affecting drilling precision

! do not use bits with a damaged shank

- Safety clutch

If the accessory gets jammed, the drive to the spindle is interrupted (causing a rattling noise)

- immediately switch off tool

- remove the jammed accessory

- switch on tool again

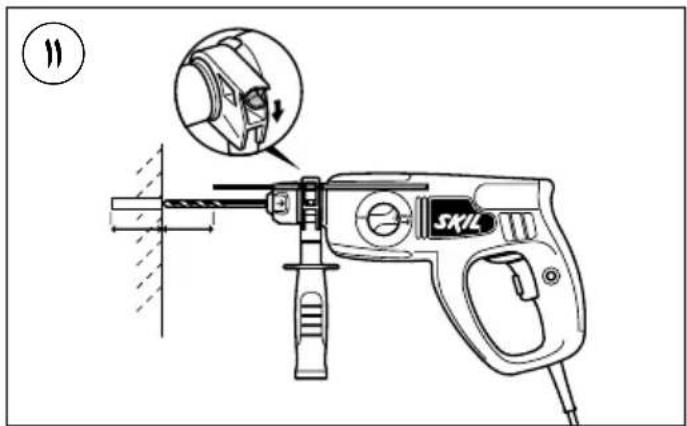

- Adjusting drilling depth ⑪

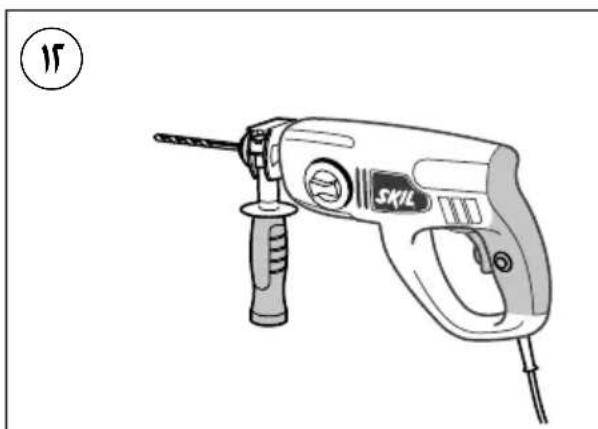

- Holding and guiding the tool ⑫

! while working, always hold the tool at the grey-coloured grip area(s)

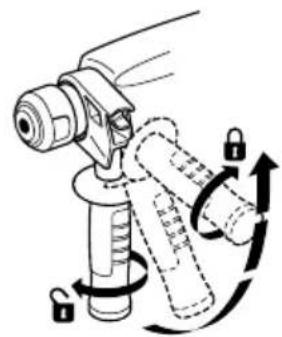

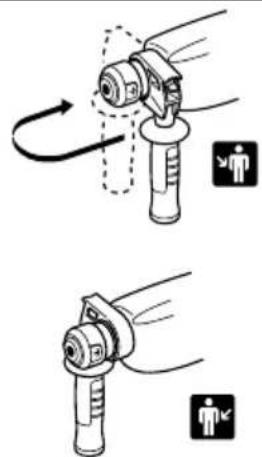

- always use auxiliary handle G ② (can be adjusted as illustrated)

- keep the ventilation slots uncovered

- do not apply too much pressure on the tool; let the tool do the work for you

APPLICATION ADVICE

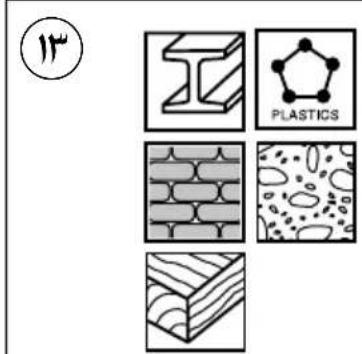

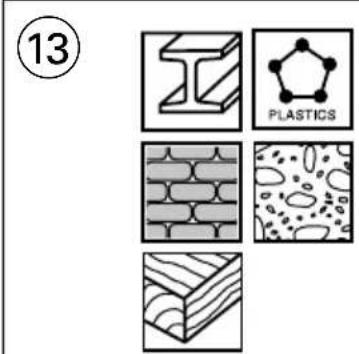

• Use the appropriate bits ⑬ ! only use sharp bits

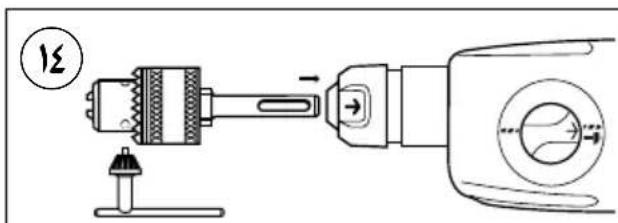

- For drilling in wood, metal and plastic as well as for screwdriving use the corresponding adapter (SKIL accessory 2610395660) ^14

- clean and lightly lubricate adapter before insertion

- pull back locking sleeve F ② and insert adapter in SDS+ chuck while turning and pushing it until it engages; the adapter locks in position automatically

- pull adapter to check whether is it locked correctly

- set switch E ② to normal drilling (only activate when tool is switched off and plug is disconnected)

- When drilling ferrous metals

- pre-drill a smaller hole, when a large hole is required

- lubricate drill bit occasionally with oil

- When turning in a screw at/near the cross cut end or an edge of wood, pre-drill a hole in order to avoid cracking of the wood

- Splinterfree drilling in wood ⑮

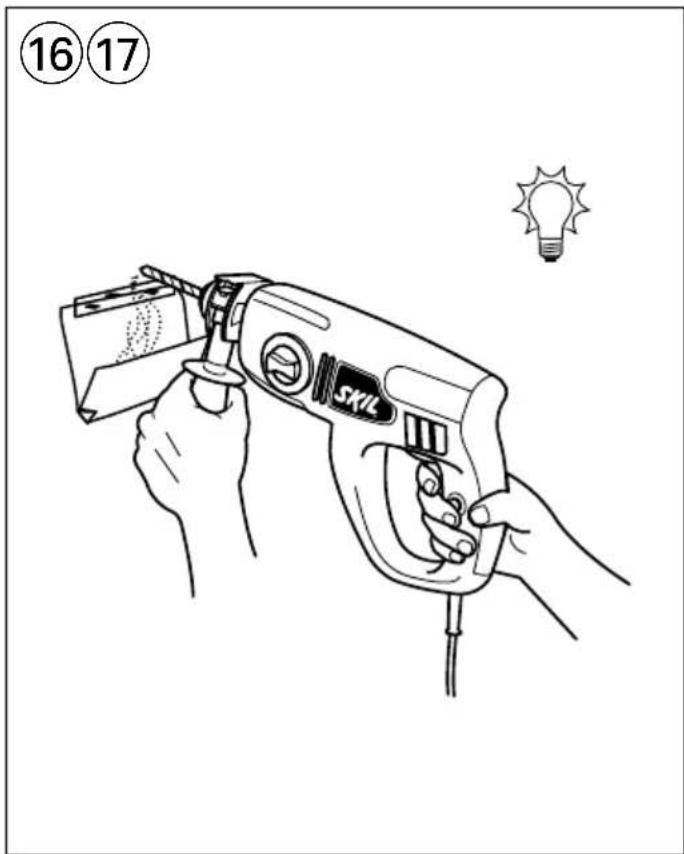

- Dustfree drilling in walls ⑯

• Dustfree drilling in ceilings ⑰

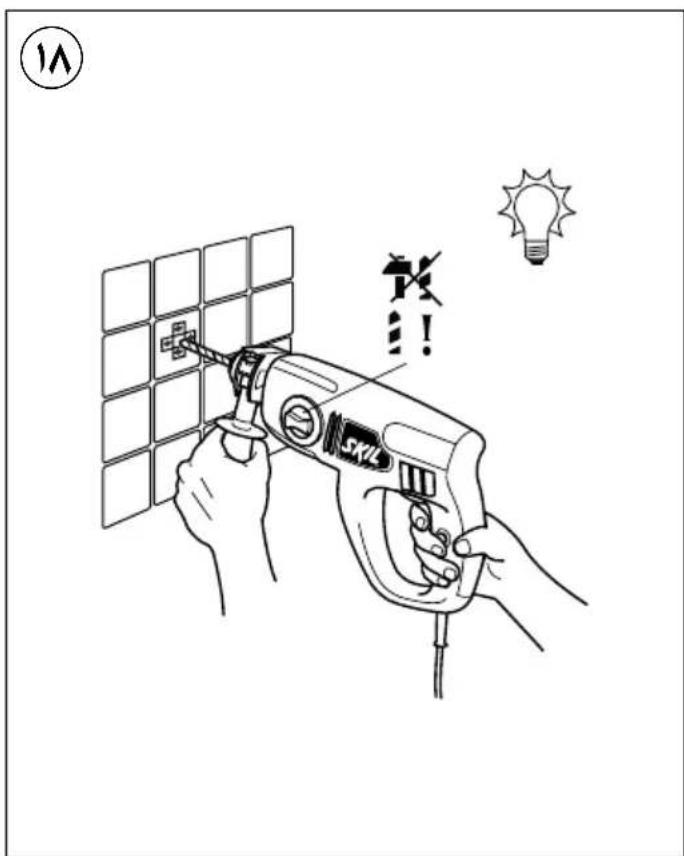

- Drilling in tiles without skidding ⑱

- For more tips see www.skil.com

MAINTENANCE / SERVICE

• This tool is not intended for professional use

- Always keep tool and cord clean (especially the ventilation slots)

! disconnect the plug before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

- in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ⑲ will remind you of this when the need for disposing occurs

DECLARATION OF CONFORMITY CE

- We declare under our sole responsibility that the product described under “Technical data” is in conformity with the following standards or standardization documents: EN 60745, EN 61000, EN 55014, in accordance with the provisions of the directives 2004/108/EC, 2006/42/EC, 2011/65/EU

• Technical file at: SKIL Europe BV (PT-SEU/ENG1), 4825 BD Breda, NL

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

NOISE/VIBRATION

• Measured in accordance with EN 60745 the sound pressure level of this tool is 91 dB(A) and the sound power level 102 dB(A) (standard deviation: 3 dB), and the vibration * (hand-arm method; uncertainty K = 1.5 m/s^2 ) * when hammer drilling in concrete 15.5 m/s ^2

- The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

- using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level
  ! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

GERÄUSCH/VIBRATION

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

LJUD/VIBRATION

1 = normal boring/skruning
2 = slagboring

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

ST∅J/VIBRATION

1 = normal boring/skruing

2 = slagboring

VEDLIKEHOLD / SERVICE

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

ST∅Y/VIBRASJON

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

ZAJ/REZGÉS

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

HLUČNOSTI/VIBRACÍ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

ШУМ/ВІБРАЦІЯ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

ZGOMOT/VIBRATII

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

BUCI/VIBRACIJAMA

• Mjereno prema EN 60745 prag zvučnog tlaka ovog električnog alata iznosi 91 dB(A) a jakost zvuka 102 dB(A) (standardna devijacija: 3 dB), a vibracija * m/s² (postupkom na šaci-ruci; nesigurnost K = 1,5 m/s²) * kod čekić bušenja u betonu 15,5 m/s²
• Razina emitiranja vibracija izmjerena je sukladno normiranom testu danom u EN 60745; ona se može koristiti za usporedbu jedne alatke s drugom, te preliminarnu procjenu izloženosti vibracijama pri uporabi alatke za navedene namjene
• uporaba ove alatke za druge namjene ili s drugim ili slabo održavanim nastavcima, može u značajnoj mjeri uvećati razinu izloženosti
• vrijeme tokom kojega je alatka isključena, ili je uključena ali se njome ne radi, može značajno umanjiti razinu izloženosti
  ! zaštitite se od posljedica vibracija održavanjem alatke i njezinih nastavaka, održavanjem Vaših ruku toplima, te organiziranjem Vaših obrazaca rada

Bušilica čekić 1735

UPUTSTVO

- Ovaj alat je namenjen bušenju sa udarcima u betonu, cigli i kamenu; bušenju u drvetu, metalu i plastici kao i uvrtanju uz pomoć specifičnog pribora

• Sistem bušenja sa čekićem koji ovaj alat poseduje omogućava prevazilaženje tradicionalnog mukotrpnog bušenje u betonu
• Ovaj alat podržava upotrebu svih standardnih SDS+ pribora
• Ovaj alat nije namenjen za profesionalnu upotrebu
• Pažljivo pročitajte i sačuvajte ova uputstva za rukovanje ③

TEHNIČKI PODACI ①

*) Jačina pojedinačnog udarca odgovara EPTA-Procedure 05/2009 -> vrednost još nije dostupna

ELEMENTI ALATA ②

A Prekidač za uključivanje/isključivanje i kontrolu brzine
B Točak za kontrolu maksimalne brzine
C Dugme za učvršćivanje prekidača
D Ručica za promenu smera rotacije
E Prekidač za biranje režima rada
F Stezna glava
G Pomoćna ručica

SIGURNOST

OPŠTA UPUTSTVA O SIGURNOSTI

PAŽNJA! Čitajte sva upozorenja i uputstva. Propusti kod pridržavanja upozorenja i uputstava mogu imati za posledicu električni udar, požar i/ili teške povrede. Čuvajte sva upozorenja i uputstva za budućnost. Pojam upotrebljen u upozorenjima “električni alat” odnosi se na električne alate sa radom na mreži (sa mrežnim kablom) i na električne alate sa radom na akumulator (bez mrežnog kabla).

1) SIGURNOST NA RADNOM MESTU

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

BUKA/VIBRACIJE

- Mereno u skladu sa EN 60745 nivo pritiska zvuka ovog alata iznosi 91 dB(A) a jačina zvuka 102 dB(A) (normalno odstupanje: 3 dB), a vibracija * m/s ^2 (mereno metodom na šaci-ruci; nesigurnost K = 1,5 m/s ^2 )

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

HRUP/VIBRACIJA

- Izmerjeno v skladu s predpisom EN 60745 je raven zvočnega pritiska za to orodje 91 dB(A) in jakosti zvoka 102 dB(A) (standarden odmik: 3 dB), in vibracija * m/s ^2 (metoda dlan-roka; netočnost K = 1,5 m/s ^2 )

* pri udarnem vrtanju s pnevmatskim mehanizmom v beton 15,5 m/s ^2

ÜLDISED OHUTUSJUHISED

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

MÜRA/VIBRATSIOON

APKALPOŠANA / APKOPE

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

TROKSNIS/VIBRĀCIJA

TECHNINIAI DUOMENYS ①

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

TRIUKŠMINGUMAS/VIBRACIJA

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

БУЧАВА/ВИБРАЦИИ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

ZHURMA/VIBRIMI

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

صدالارتعاشات

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

الضوضاء/الاهتاز

TENNATG LED

Diagram illustrating a solar panel being used with a tool, showing warning symbols and lightbulb icon

19

Diagram showing hand holding a lock mechanism with directional arrows and a tool, indicating lock operation or repair steps.

Technical diagram of a SML tool with labeled components and an inset showing a close-up view of the tool's internal structure.

Line drawing of a SKIL electric drill with handle and screwdriver (no text or symbols)

Diagram illustrating a mechanical device with directional arrows and safety symbols, showing correct and incorrect states of movement.

Diagram of a mechanical device with rotating parts and directional arrows indicating motion (no text or symbols)

Diagram showing five types of material and material symbols: I-beam, plastic, brick wall, porous material, and wooden blocks.

HSS

PHILLIPS

POZIDRIV

SLOTTED

13

Diagram illustrating electrical circuit breakers and lighting symbols, including a light bulb, switch, and plug-in socket.

Technical line drawing of a mechanical component with no visible text or symbols

Diagram illustrating a hand operating a SKIL tool with turtle icons and a control panel showing turtle, turtle, turtle, and turtle.

FWD A

REV A

1735

1

F E SKIL C G D B A

F

∑

SKIL

SKIL

Illustration of a SKIL electric drill with handle and screwdriver (no text or symbols on the device itself)

دليل الاستعمال

AR

راهنماي اصلی

FA

2610Z05103

08/13

سکیل أروبا ب.ق - کونینانبرج 60
