USER MANUAL 561 S-Plus Big Wheeler GUDE

Red and black lawn mower with visible tire, headlamp, and safety warning label (no text or symbols on the main body)

ENGLISH Please read the instructions carefully before starting the machine.

English TECHNICAL DATA | SPECIFIED CONDITIONS OF USE | SAFETY INSTRUCTIONS | MAINTENANCE | GUARANTEE | EC-DECLARATION OF CONFORMITY \_\_\_\_ 29

Français CARACTÉRISTIQUES TECHNIQUES | UTILISATION CONFORME À LA DESTINATION | CONSIGNES DE SÉCURITÉ | ENTRETIEN | GARANTIE | DÉCLARATION DE CONFORMITÉ CE \_\_\_\_ 34

Scanned document with Chinese text and a blue 'BUB' button, likely a software interface or report.

2 3 4 5 6

Close-up of a red tractor with attached plastic component and warning symbols, no readable text or labels present.

DE Montage SI Montaža

GB Assembly HR Montaža

FR Montage BG Монтаж

IT Montaggio RO Montaj

NL Montage BA Montaža

CZ Montáž

SK Montáž

HU Szerelés

1

2-4

Illustration of a red lawn mower with attached motors, accompanied by an open cardboard box (no text or symbols)

2 2 x

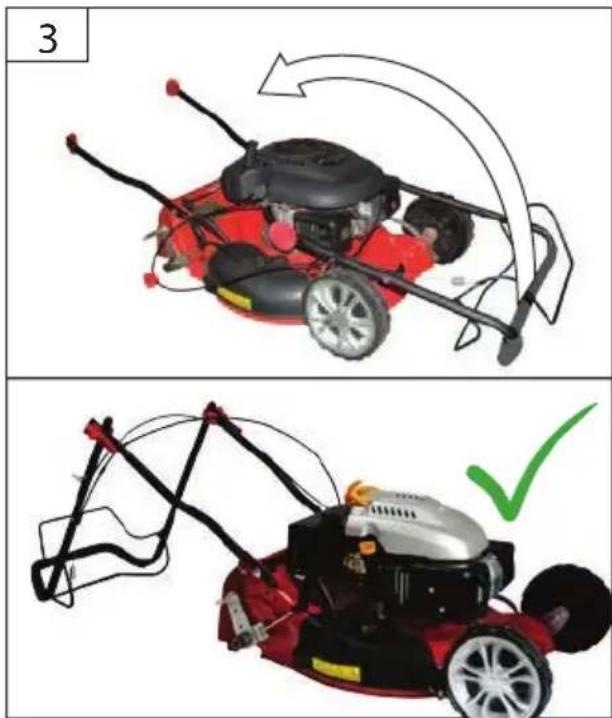

3

4 3 2 1 4 1

DE Montage
SI Montaža
GB Assembly
HR Montaža
FR Montage
BG Монтаж
IT Montaggio
RO Montaj
NL Montage
BA Montaža
CZ Montáž
SK Montáž
HU Szerelés

Red lawn mower with visible tire, mounted on a grassy vehicle (no text or symbols)

Close-up of a red agricultural tire assembly with visible wheel and mounting bracket (no text or symbols)

Close-up of a red tractor's wheel and gear assembly with a small mechanical component, no visible text or symbols

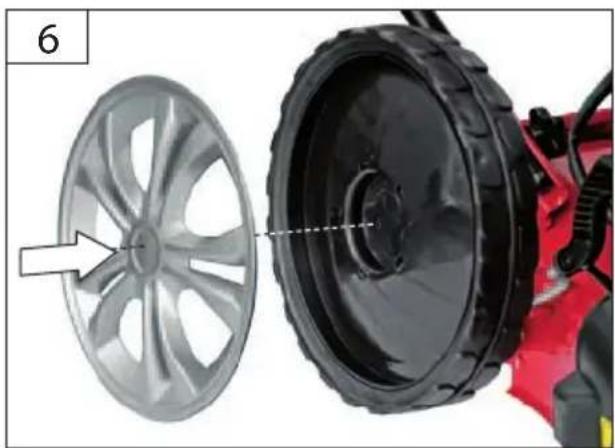

Close-up of a red tractor wheel rim and its side rotor, showing internal components and a white arrow indicating the blade (no text or symbols)

Close-up of a red car tire with a lock mechanism, no text or symbols visible

1	DE Montage	SI Montaža
	GB Assembly	HR Montaža
	FR Montage	BG Монтаж
	IT Montaggio	RO Montaj
	NL Montage	BA Montaža
	CZ Montáž
	SK Montáž
	HU Szerelés

Red and black lawn mower with attached power supply unit, shown with a close-up inset of the gear (no text or symbols visible)

DE Ölstand kontrollieren

GB Oil level inspection

GB Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary. Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Simple line drawing of a lawn mower with a checkmark indicating alignment (no text or symbols)

2

Close-up of a red tractor's wheel and gear assembly with warning labels (no readable text or symbols)

3D illustration of a mechanical component with an arrow pointing upward (no text or symbols)

2

DE Ölstand kontrollierenGB Oil level inspectionFR Contrôle du niveau d'huileIT Controllo livello d'olioNL Oliepeil controlerenCZ Kontrola stavu olejeSK Kontrola stavu olejaHU Olajszint ellenőrzése

SI Kontrola stanja oljaHR Kontrola razine uljaBG Контрол на състоянието на маслотоRO Verificarea stării uleiuluiBA Kontrola nivoa ulja

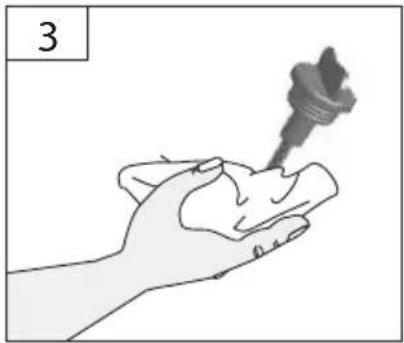

Illustration of a hand holding a small object with a dropper, labeled '3' in the top-left corner (no other text or symbols)

Diagram of a mechanical component with directional arrows and a numbered label '4' (no text or symbols on the diagram itself)

5 MAX 0,4 - 0,6 l MIN

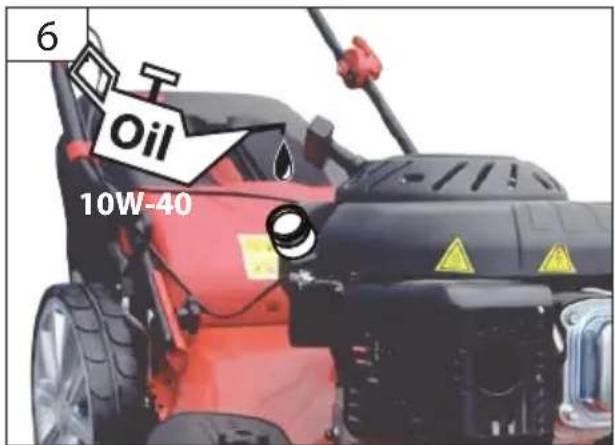

6 Oil 10W-40

Diagram of a mechanical component with a pin and zigzag motion arrow, no text or symbols present

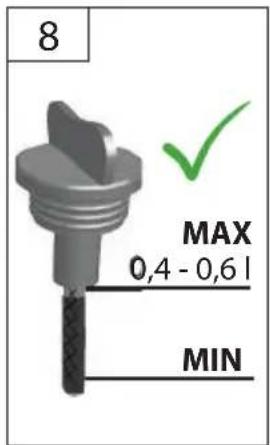

8 MAX 0,4 - 0,6 l MIN

DE Ölstand kontrollieren

GB Oil level inspection

GB To ensure quality, every piece of equipment is subject to a test operation and filled with motor oil. Oil is drained before transport; however, there can be some motor oil remains on the dip stick. Please check carefully the oil level and add motor oil again. → 5 - 6

Close-up of a car engine bay with a lock and red brake pad, no visible text or symbols

Safety warning illustration showing a hand pressing a device with a red X mark and warning symbol

min. 3,00 m START

GB Cutting height setting

Close-up of a car wheel with a black handle and red brake clip, no visible text or symbols

2

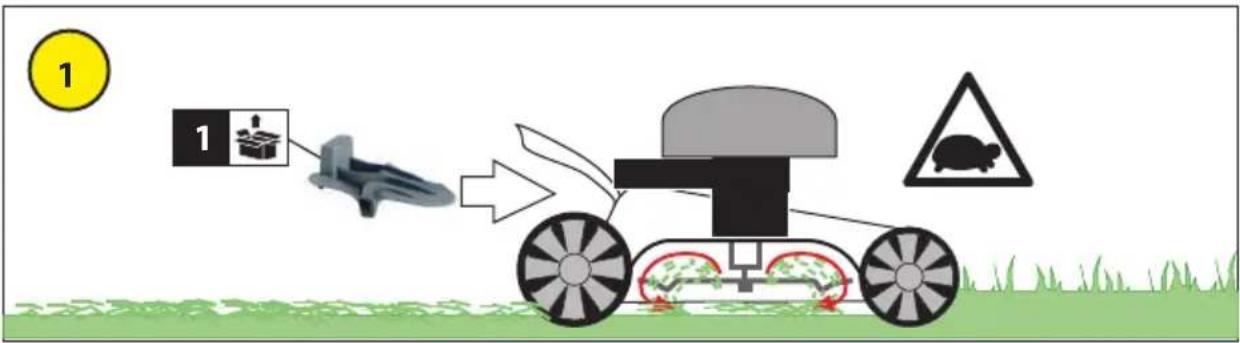

DE Mähen - MulchenGB mow - mulchingFR tondre - paillageIT falciare - pacciamaturaNL maaien - mulchingCZ sekat - mulčováníSK kosiť - mulčovanieHU szénaboglya - talajtakarás

SI kosite - mulčenjeHR kositi - zagrtanje biljakaBG koся - наторяванeRO cosi - mulcireBA kositi - zagrtanje biljaka

Red lawn mower with attached power tool and head-mounted sensors (no visible text or symbols)

Close-up of a red automotive body panel with visible cutouts and mounting holes (no text or symbols)

2 CLICK

DE Mähen - Sammeln

GB mow - collect

FR tondre - collecter

Diagram illustrating a grassy field with a tractor, showing directional movement and labeled components

Close-up of a mechanical component with a wrench and gear, showing internal structure and a circular arrow indicating rotation (no text or symbols)

1 Güde®

Close-up of a red manual lawn mower with visible tire and blade, alongside a black cover (no text or symbols)

Illustration of a red lawn mower with attached fan and blade, alongside a close-up of the blade's motion (no text or symbols)

4 Gude

2

DE Mähen - AuswerfenGB mow - ejectFR tondre - éjecterIT falciare - espellereNL maaien - uitwerpenCZ sekat - vyhnatSK kosit' - vyhnat'HU szénaboglya - kiadása

SI kosite - izmetHR kositi - izbacitiBG koся - изхвърлямRO cosi - evacuaBA kositi - izbaciti

Illustration of a small robot spraying water on grass, with red arrows indicating motion (no text or symbols)

Diagram showing a red robotic car with labeled parts and a close-up of the lock mechanism, annotated with steps 1 and 2.

DE Mähanweisungen

GB Cutting instructions

FR Consignes de tonte

Safety warning illustration showing a grass lawn mower with no litter and pollution symbols

Diagram illustrating lawn law enforcement with a grassy tractor and two pictograms showing incorrect and correct actions.

STOP

Safety warning illustration showing a person running with a red cross over a robot, indicating no hazard or failure.

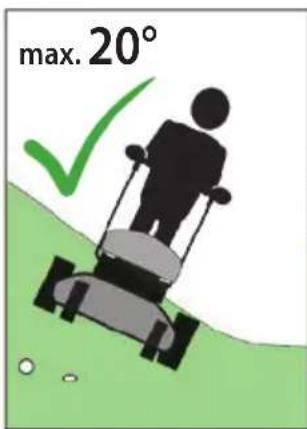

max. 20°

Illustration of a person pushing a cart with a red X mark, no text or symbols present

Safety warning illustration showing a worker using a power tool to avoid excessive hazard, with a warning sign and crossed-out red X mark.

i 3

DE Mähanweisungen

GB Cutting instructions

FR Consignes de tonte

1 ca. 2 m

2

Illustration showing a person using a lawn mower with safety symbols including a tool, warning sign, and turtle.

Bang

Safety warning symbols for vehicle maintenance, including a tool, checkmark, and pictogram of a person using a lawn.

Simple line drawing of a tree with a curved arrow below it, no text or symbols present.

Simple illustration of a white rock with a red curved arrow pointing downward (no text or symbols)

Simple graphic of a tree with a curved arrow, symbolizing environmental change (no text or symbols)

Diagram showing a red curved arrow moving along a gray path with scattered circular markers (no text or symbols)

DE Betrieb - START

GB Operation - START

Diagram of a medical or surgical tool with a curved tool and arrow indicating direction (no text or symbols)

L howitzer on a red lawn mower with warning symbols and a blue handle (no text or labels visible)

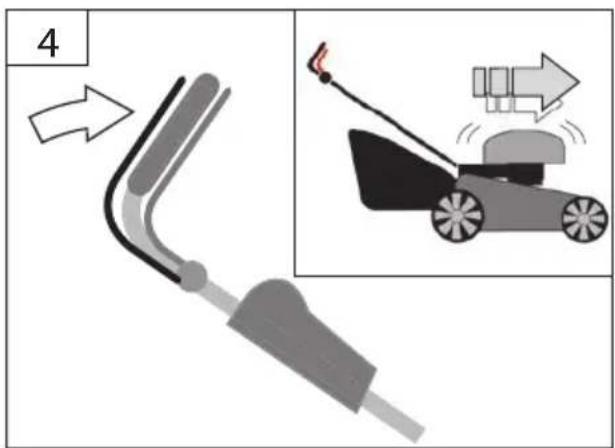

4

STOPP STOP STOP

5

DE Reinigung / WartungGB Cleaning / MaintenanceFR Nettoyage / EntretienIT Pulizia / ManutenzioneNL Schoonmaken / OnderhoudCZ Čištění / ÚdržbaSK Čistenie / ÚdrzbaHU Tisztítás / Karbantartás

SI Čiščenje / VzdrževanjeHR Čiščenje / OdržavanjeBG Чистене / ПоддръжкаRO Curățare / ÎntreținereBA Čiščenje / Održavanje

STOP

Illustration of a black container with green leafy material being poured into it (no text or symbols)

2 max. 30° !

3

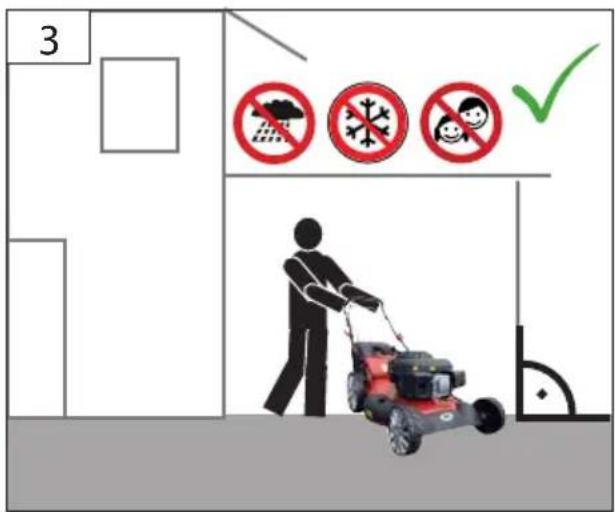

3 ✓

GB Cleaning / Maintenance

FR Nettoyage / Entretien

2 | S T A R T 10 min

3 ST O P STOP

4 °C

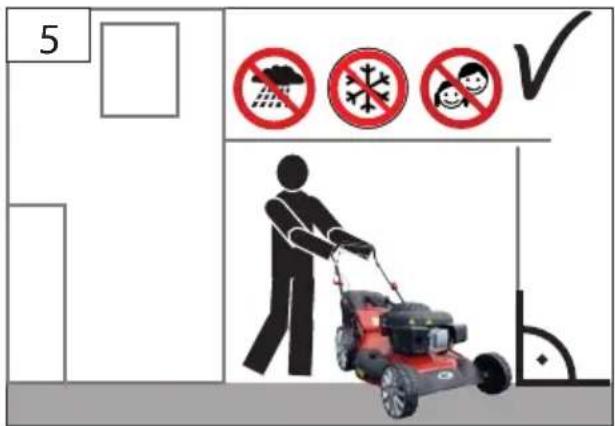

5 ✓ No Snow No Child L

5	DE Reinigung / Wartung	SI Čiščenje / Vzdrževanje
	GB Cleaning / Maintenance	HR Čiščenje / Održavanje
	FR Nettoyage / Entretien	BG Чистене / Поддръжка
	IT Pulizia / Manutenzione	RO Curățare / Întreținere
	NL Schoonmaken / Onderhoud	BA Čiščenje / Održavanje
	CZ Čištění / Údržba
	SK Čistenie / Údrzba
	HU Tisztítás / Karbantartás

GB Multi-purpose grease SI univerzalna mast

FR Graisse multi-usage HR Višenamjenska mast

IT Grasso multiuso BG TPEC

NL Universeelvet МНОГОФУНКЦИОНАЛНА

CZ Víceúčelové mazivo RO unsoare multifunctionala

SK Viacúčelový tuk BA Višenamjenska mast

Assembly of a red tractor wheel assembly with three views: wheel rim, tire, and wheel (no text or symbols visible)

2

3 H₂O °C 1 2 3

4 H₂O °C

5

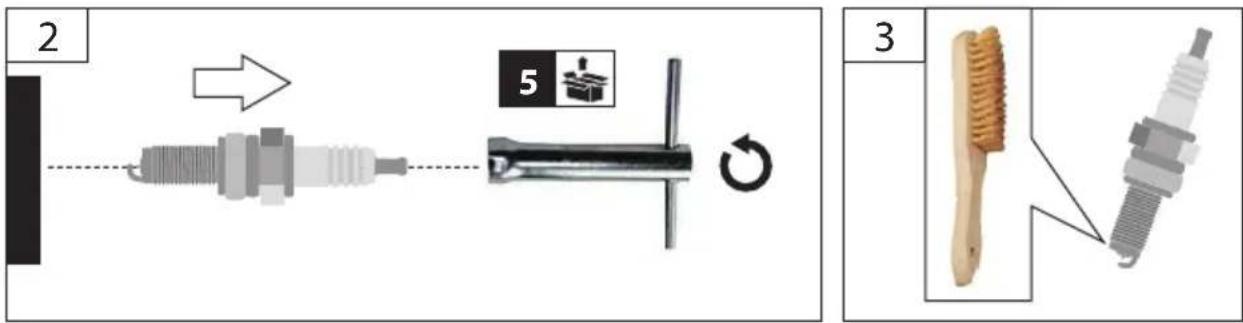

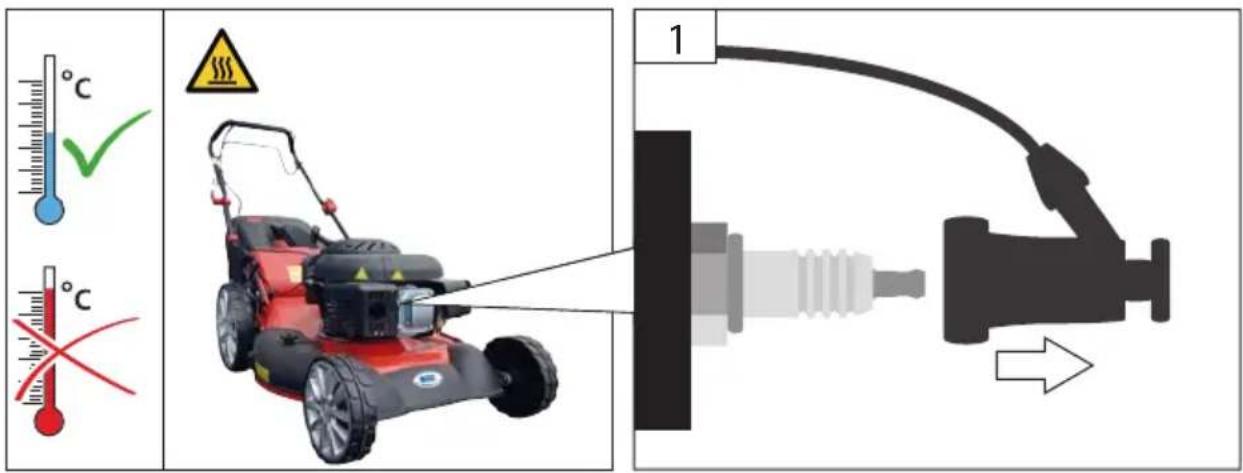

DE Zündkerze

GB Spark plug

Warning symbols including warning sign, electrical hazard symbol, cigarette crossed-out, no smoking, and lightning warning

Diagram illustrating a lawn mower system with temperature and humidity indicators, including a close-up of the motor and a connected device.

2 5 3

4 0,6-0,8 mm 5 5

5	DE Ölwechsel	SI Menjava olja
	GB Oil change	HR Zamjena ulja
	FR Remplacement d'huile	BG Смяна на маслото
	IT Cambio dell'olio	RO Înlocuirea uleiului
	NL Olieverversing	BA Zamjena ulja
	CZ Výměna oleje
	SK Výmena oleja
	HU Olajcsere

Four safety and hazard symbols: warning triangle, circuit switch, cigarette with flame, and no-smoking light.

Close-up of a red lawn mower with visible tire, wheels, and warning symbols (no text or labels)

Close-up of a mechanical component with a red and white arrow indicating a turning point (no text or symbols visible)

Close-up of a red and black lawn mower with visible tire, showing a pipe inserted into a basin (no text or symbols)

DE Luftfilter

GB Air filter

FR Filtre à air

IT Filtro d'aria

NL Luchtfilter

CZ Vzduchový filtr

SK Vzduchový filter

HU Levegőszűrő

SI Zračni filter

HR Zračni filtar

BG Въздушен филтър

RO Filtru de aer

BA Zračni filtar

Four safety and hazard symbols: warning triangle, circuit switch, cigarette with flame, and no-smoking light.

Close-up of a red tractor's front wheel with black and silver components, showing no visible text or symbols.

3a H₂O

4 5 1 2

1 2 1 2 3a 3b

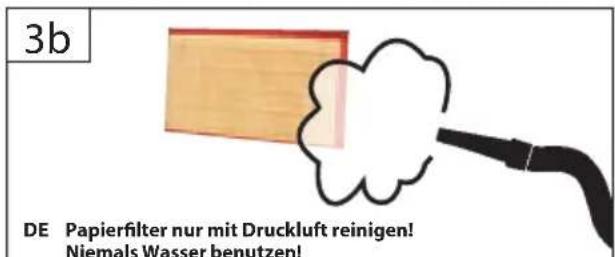

GB Paper filter to be cleaned with compressed air only! Never use water!

Rated speed 2850 min

Cutting width 550 mm

Cutting depth 25 - 75 mm

Collection bag capacity 65 l

Fuel tank capacity 1,2 l

Super/ Unleaded petrol/ E10

Weight 35,9 kg

Noise and Vibration Information

Sound pressure level L_PA^1) .....84,7 dB (A)

Measured sound power level L_WA^2 .....96,95 dB (A)

Guaranteed sound power level L_WA .....98 dB (A)

Wear ear protectors!

Vibration emission value a_h^3) 8,9 m/s

^1) Uncertainty K=3 dB (A), ^2) Uncertainty K=1,5 dB (A),

^3) Uncertainty K=1,5 m/s ^2

WARNING The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

This appliance is not intended for use by children.

The machine may not be used by persons with reduced physical, sensory or mental capabilities or persons with a lack of knowledge or experience unless they are supervised by a person responsible.

Children must be supervised in order not to play with the machine.

Specified Conditions Of Use

The mower has been designed for cutting grass and grass areas with a maximum climb of 20^ in private gardens around the house and in garden colonies.

Due to the physical danger to the user and other persons, the lawn mower may not be used for other purposes.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

⚠️ Use the appliance only outside, never use it in confined and bad ventilated areas.

The mower must not be used for cutting bushes, hedges and thickets, for cutting and mulching creepers or lawns on roofs or in balcony boxes. The mower must also not be used as a crusher for mulching tree cuttings and hedges or levelling any terrain roughness.

Requirements for operating staff

Never let children work with the appliance. Never let adults work with the appliance unless they have been properly trained.

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Residual risks

⚠️ Rotating blades may lead to serious injuries by cutting or amputating parts of the body.

Never touch under the housing body when the engine is running. Wear protective shoes. Never remove the collection bag when the machine is being operated.

⚠️ Thrown-off stones or soil may lead to injuries.

Before mowing, check the area to be mowed for any undesirable objects. Make sure the collection bag is properly suspended. Wear safety goggles when working.

⚠️ Poor lighting/light conditions represent a high safety risk.

Provide adequate lighting or good lighting conditions when working with the machine.

Emergency procedure

Danger of injury!

Never put your hands and feet near the rotating parts. Keep a distance from the ejection opening at all times.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

Caution!

Read the Operating Instructions

Switch the engine off and remove the socket plug before any work on the engine.

Caution! Blades run down. Wait until all rotating parts have stopped.

Warning! The blade is sharp! Keep a sufficient distance from the mower when being operated.

Caution, risk of drawing-in

Risk of explosion

Refuel the engine only when switched off.

Risk of poisoning!

Use the appliance only outside, never use it in confined and bad ventilated areas.

Prohibited smoking and open fire using.

Do not touch inside.

Always keep children and unauthorised persons out of reach of the appliance.

Do not expose the appliance to rain and do not use it in wet or moisture conditions.

Wear eye protective goggles! Wear ear protectors!

Safety gloves to be used!

Wear safety cut through resistant shoes with safety sole and steel toe!

Caution - hot surface! Danger of burns!

Warning against thrown-off items

Warning against hand injuries

Keep bystanders in safe distance from the appliance (at least 5m)

Warning against dangerous electric voltage

Protect against humidity

This side up

Safety Instructions

WARNING

Read all safety warnings and all instructions, including those given in the accompanying brochure.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 5 m.

Wear personal protective equipment.

Wear solid shoes and long trousers. Never use the appliance when barefooted or in light sandals.

Wear protective gloves if necessary.

Use the appliance in broad daylight or in a well-lit environment.

Check carefully the terrain where the appliance is being used and remove any items that could get caught and be thrown away.

Avoid operating the equipment in wet grass, where feasible;

Fuel is highly flammable.

Keep the fuel in suitable containers only.

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Refuel before starting the appliance. If the engine is running or still hot, it must not be refuelled or the tank cover opened.

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated.

Replace all fuel tank and container caps securely.

The engine must necessarily be filled with engine oil before being put into operation for the first time.

Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Carry out a visual inspection before any use to make sure the appliance, especially the cutting tools, fastening parts and the entire cutting unit are not damaged.

Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not blunt, worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance;

The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.

Do not start the engine before your feet are in a safe distance from the cutting tools.

Do not incline the appliance when being started.

Do not start the appliance when you are standing in front of the ejection opening.

Walk! Never run!

Make sure your posture is safe, especially on slopes. Do not cut on too steep slopes. Be particularly careful when changing travelling direction on slopes.

Pay maximum attention when turning around and pulling the appliance to you.

Switch the mower off whenever carrying or inclining it or when being outside a grass area. Wait until all rotating parts have stopped.

If an undesirable item is encountered or the appliance starts vibrating, the appliance must be switched off and the socket plug removed. Check whether the appliance is not damaged. Repair any damage.

Switch the appliance immediately off after finishing your work.

Stop the engine % and disconnect the spark plug wire, make sure that all moving parts have come to a complete stop and, where a key is fitted remove the key:

• To release a blocked blade.
- Check the machine if working perfectly after catching an undesirable object. Repairs must be executed before putting the machine into operation again.

• To lift the machine or take it away.

- To flip the mower over or carry it (e.g. from lawn to lawn or across a road).

- Clean the mower or do any other works before checking the mower.

ENGLISH

Do not store the appliance in enclosed places just after being switched off but let it cool down outdoors instead.

Never store the appliance with petrol in the tank inside a building where petrol fumes may potentially get in touch with open fire or sparks.

When the appliance is not going to be used for a long time, store it with an empty tank.

Replace any defective muffler.

Do not change the controlled engine setting and do not rev the engine up.

Disposal

Disposal notes are based on the icons placed on the machine or on its package.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Batteries, oil, and similar substances must not enter the environment.

Transport packaging disposal

The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children.

Risk of suffocation!

Keep parts of the packagings out of reach of children and dispose them as soon as possible.

Maintenance

Rotating blade

Switch the engine off and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped and the appliance has cooled down.

Keep the appliance, especially the tank and engine, clean at all times. Clean the ejection opening and cover at regular intervals.

Apply environment-friendly oil to all moving parts.

Check the collection bag at regular intervals for any wear and aging.

Refer all servicing to qualified service personnel.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If the fuel tank has to be drained, this should be done outdoors.

At the end of the season it is necessary to add an additive to the fuel/propellant and mix it with the fuel. → 17

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Inspection and maintenance plan

Regular servicing period Before any start-up			After 1 month	After 3 months	After 6 months	After 12 months	After 24 months
			5 Hours of operation	25 Hours of operation	50 Hours of operation	100 Hours of operation	250 Hours of operation
Engine oil (10W-40)	Inspection	√
	Change		√		√
Air filter Inspection		√
		Change			√
Spark plug Inspection Clean						√
		Change					√

Provide appropriate servicing upon the earlier of the following: in the given month or after the specified hours of operation have expired.

Defects searching

Defect	Cause	Measure
The motor does not start	Start-Stop lever has not been pressed Press the Start-Stop lever
	Primary pump has not been used Use the primary pump
	Lack of fuel Add some fuel
	Bowden cables are too long → 23	Adjust the Bowden cables using the coupling nut. → 23
	Wrong fuel, storing without petrol tank being drained	Drain the fuel tank and carburettor. Add fresh petrol.
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm
	The spark plug is wet from petrol (oversaturated engine).	Dry the spark plug out and refit it.
Unsteady running, strong vibrations	Blade is damaged Replace the blade
	Blade is loose Check and tighten the blade clamping
Poor mowing/catching performance	Blade is blunt Have the blade sharpened or replaced
	Collection bag is blocked	Empty the collection bag → 11
	Mowing height adjustment not regulated	Adjust the mowing height → 9
Grass is not collected	Blocked channel	Clean the ejection channel
	Full collection bag	Empty the collection bag
	Too wet grass	Cut in dry weather

Super/ Loodvrije benzine/ E10

Gewicht 35,9 kg

EC-DECLARATION OF CONFORMITY

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

DECLARATION CE DE CONFORMITE

PROHLASENI O SHODE EU

2006/95/EC 2004/108/EC

2009/105/EC 1907/2006/EC

2011/65/EC ROHS 2009/142/EC

89/686/EEC (PPE) 1935/2004/EC

□ □

2006/42/EC

Annex IV

Notified Body:

Type Ex. Cert.-No.:

2000/14/EC_2005/88/EC

Noise: guaranteed L_WA 98 dB (A)

97/6 8/EC_2004/26/EC

Emission No.: e1*97/68SN3-IA*2004/26SN3-IIA*0331*03
