AKS700W - Kitchen scale BESTRON - Free user manual and instructions

Product Type	Kitchen Scale
Brand	Bestron
Model	AKS700W
Power Supply	1 x CR2032 battery
Battery Life	Automatic shutdown after 2 minutes of inactivity
Main Functions	Weighing, tare, water and milk volume measurement
Display	LCD
Measurement Units	Grams (g), ounces (oz), milliliters (ml), fluid ounces (fl.oz)
Tare Function	Reset to zero for successive weighings
Water Volume Measurement	Specific mode with 'Water' indication
Milk Volume Measurement	Specific mode with 'Milk' indication
Maintenance	Clean with a damp cloth; do not use abrasive products
Safety	Use on a flat and stable surface; do not use in humid environment
Warranty	60 months (5 years) covering defects in materials and workmanship
Replaceable Parts	CR2032 battery
Usage	Household use only

Frequently Asked Questions - AKS700W BESTRON

How to change the battery of the Bestron AKS700W scale?

Open the battery compartment at the bottom of the device, remove the old battery and insert a new CR2032 battery. Close the compartment.

Why does my display show 'LO'?

'LO' means the battery is almost empty. Replace the CR2032 battery as soon as possible.

What does the 'Err' error on the screen mean?

'Err' indicates that the scale is overloaded. Remove some weight to avoid damaging the device.

How to use the tare function?

Place the first ingredient on the scale, note the weight, then press the on/off/zero button to reset the display to zero. Add the next ingredient, and so on.

How to measure water volume with this scale?

Place a bowl on the platform, turn on the scale, press the mode button until you see 'ml' and 'Water'. Pour the water; the screen displays the volume in milliliters or fluid ounces.

How to clean the scale?

Use a damp cloth to clean the device. Never use abrasive or harsh products. Dry thoroughly after cleaning.

What measurement units are available?

You can switch between grams (g), ounces (oz), milliliters (ml) and fluid ounces (fl.oz) by pressing the unit button.

Does the scale turn off automatically?

Yes, the scale automatically turns off after 2 minutes of inactivity to save battery.

What to do if the scale does not weigh correctly?

Make sure it is on a flat and stable surface. Check that the battery is sufficiently charged. If the problem persists, contact customer service.

Does the warranty cover accidental damage?

No, the 60-month warranty does not cover damage caused by misuse, accident, negligence, or repair by a third party.

USER MANUAL AKS700W BESTRON

Abstract black arrow symbol pointing right, no text or symbols present

BESTRON®

AKS700R/W/Z

Nederlands

Instruction manual kitchen scale

_

| _

一

1

Abstract line drawing with overlapping curves and a small mark (no text or symbols)

N. van de Vossenberg Quality control

Abstract line drawing with overlapping ovals and a diagonal line (no text or symbols)

N. van de Vossenberg Qualitätskontrolle

CONDITIONS DE GARANTIE

DÉCLARATION DE CONFORMITÉ CE

Abstract line drawing with overlapping curved shapes (no text or symbols)

Congratulations with the purchase of this stainless steel kitchen scale.

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully and retain them for reference.
• Use this appliance solely in accordance with these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - During use

• Never submerge the appliance in water or another liquid.
• We accept no liability for damage caused by incorrect usage or the ignoring of the regulations in this manual.

OPERATION - General

This appliance is intended only for domestic use, not for professional use.

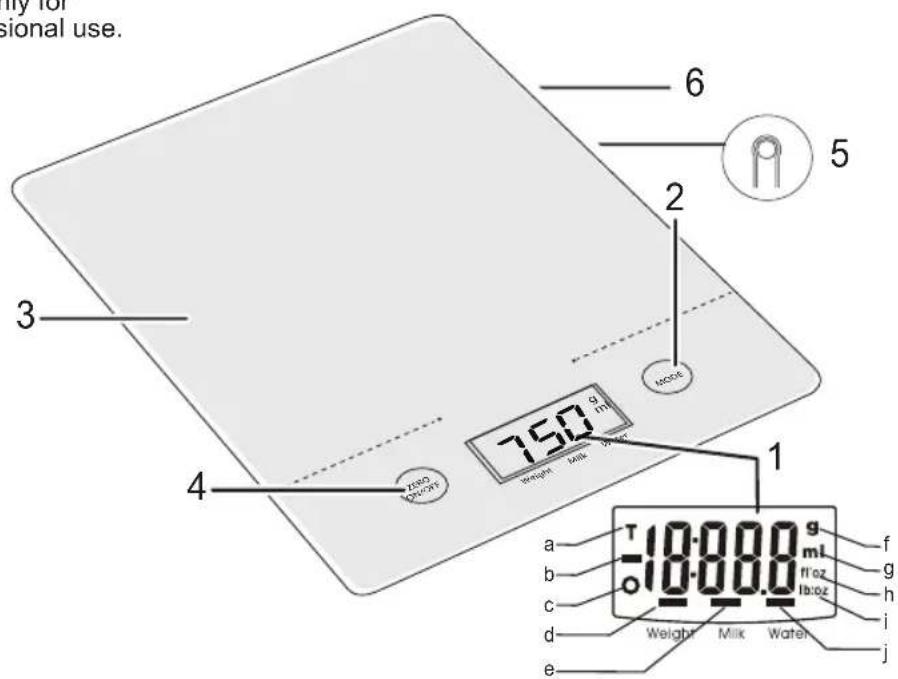

1. The LCD-display shows that
   a. the tare function is used
   b. a negative value is measured
   c. the normal weigh function is used
   d. the normal weigh function is used
   e. the volume function for milk is used
   f. the weight in grams is measured
   g. the volume in millilitres is measured

h. the volume is measured in fluid ounces

i. the weight is measured in ounces

j. the volume function for water is used

1. Mode button

2. Weighing platform

3. On/off button (also Zero-button for tare-function)

4. Unity button

5. Battery compartment

OPERATION - Placing the battery

The factory has already placed a battery in the appliance. If you want to replace the battery, please follow the following instructions:

1. Open the battery compartment (6) at the bottom of the appliance.

2. Remove the battery and insert the new battery (CR2032).

3. Close the battery compartment again.

4. Open the battery compartment (6) at the bottom of the appliance.

5. Remove the battery and insert the new battery (CR2032).
6. Close the battery compartment again.

1. Place the device on a solid flat surface.
2. Turn on the device by pressing the on/off button (4). Wait until the LCD-display has settled.
3. Select the weighing system of your choice by pressing the Unity-button (5). In the display (1) shows a dash alternating under g (European measuring system) and lb:oz (British/American measuring system).
4. You can turn off the device by pressing the on/off button.

The device switches itself off when it's not used for 2 minutes. The appliance will remember your choice of system after switch-off.

OPERATION - Weighing

1. Place the device on a solid flat surface.
2. Optionally, you can place a bowl on the weighing plateau (3) for adding all the ingredients. Always do this before you turn on the device.
3. Turn on the device by pressing the on/off button (4). Wait until the LCD-display has settled.
4. Start the weighing by placing the ingredients on the plateau (or bowl). The display shows the weight now.

OPERATION - Water volume measurement

1. Place the device on a solid flat surface.
2. Place a bowl on the weighing plateau (3) for adding the water. Always do this before you turn on the device.
3. Turn on the device by pressing the on/off button (4). Wait until the LCD-display has settled.
4. Press the mode button (2) until there are dashes under ml (fl. oz) and water.
5. Pour the water in the bowl. The display shows the amount of water now.

OPERATION - Milk volume measurement

1. Place the device on a solid flat surface.
2. Place a bowl on the weighing plateau (3) for adding the milk. Always do this before you turn on the device.
3. Turn on the device by pressing the on/off button (4). Wait until the LCD-display has settled.
4. Press the mode button until there are dashes under ml (fl. oz) and milk.
5. Pour the milk in the bowl. The display shows the amount of milk now.

OPERATION - TARE function

When you want to weigh multiple products after another without emptying the scales, you can use the tare function:

1. Place the device on a solid flat surface.
2. Optionally, you can place a bowl on the weighing plateau (3) for adding all the ingredients. Always do this before you turn on the device.
3. Turn on the device by pressing the on/off button (4). Wait until the LCD-display has settled.
4. Place the first ingredients on the weighing plateau (or in the bowl). The display shows the weight now.
5. Now press the Zero-button (4) to reset the value in the display to zero.
6. Repeat steps 4 and 5 until you have weighed all ingredients.

After you have removed everything from the weighing plateau, it will display a negative value. Press the Zero-button to reset the display. The appliance is now ready for use again.

Lo: Appears on the display when the batterie is low. You need to replace the batterie as soon as possible. Err: Appears on the display when the scale is overloaded. Remove a small amount to prevent damage.

CLEANING AND MAINTENANCE

• This kitchen scale is a precision instrument. Please avoid heavy striking. Do not keep it laden with weights for a long period.
• Wipe the base unit with a clean damp of cloth. Dry thoroughly afterwards.
• Don't use harsh or abrasive cleaning agents or solvents.

TECHNICAL DETAILS

Type: AKS700R/W/Z

Battery: 1 x CR2032

THE ENVIRONMENT

- Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers. When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

• The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.
• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.
2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).
3. All claims submitted under warranty must be accompanied by the original bill of sale.
4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.

5. The warranty is issued solely to the first purchaser and cannot be transferred.

6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.

b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.

d. Unauthorized modifications.

e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.

b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.

2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.

3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.

4. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

Bestron Service

Moeskampweg 20

5222 AW 's-Hertogenbosch

Tel: +31 (0) 73 - 623 11 21

Fax: +31 (0) 73 - 621 23 96

Email: [e-mail]

Internet: www.bestron.com

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

• EMC Directive 2004/108/EC
• Low Voltage Directive 2006/95/EC

Abstract line drawing with overlapping curved shapes (no text or symbols)

Digital kitchen scale with a digital display showing 750 degrees (no text or symbols on the device itself)

BESTRON®

AKS700R/W/Z

v16072012
