USER MANUAL PD5050D MARANTZ

Model PD5050D User Guide

Plasma Monitor

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Usually with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. This product may contain lead or mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

16. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
    A. The power supply cord or the plug has been damaged; or
    B. Objects have fallen, or liquid has been spilled into the appliance; or
    C. The appliance has been exposed to rain; or
    D. The appliance does not appear to operate normally or exhibits a marked change in performance; or
    E. The appliance has been dropped, or the enclosure damaged.

17. Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinets design.

18. Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

19. Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

20. Wall Mounting - The appliance should be mounted to a wall only as recommended by the manufacturer.

21. Power Lines - An outdoor antenna should be located away from power lines.

22. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

1. Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

PRÉCAUTIONS IMPORTANTES DE SÉCURITÉ

Limited Warranty for the Marantz SLIM SERIES PLASMA MONITOR

Who is covered?

You must have proof of purchase to receive warranty service.

What is covered?

1. Warranty coverage begins the day you purchase your Plasma Television, and continues for a period of one year.
2. Marantz America will provide in-home warranty repair.
3. Marantz America will incur all labor charges for repairs during the warranty period.
4. Marantz America will incur all freight charges for warranty repairs, both to Marantz and the return to the customer.

We suggest keeping all packing materials for any shipping that might be required.

1. All parts, including repaired and replaced parts are covered only for the original warranty period.

When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

What is excluded?

Your warranty does not cover:

1. Labor charges for installation or setup of the product, cleaning, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.
2. Improper installation, removal or maintenance, or failure to follow instructions supplied with the product.
3. Reception problems caused by signal conditions from cable or antenna systems outside the product.
4. Repair, attempted repair or modification performed by anyone other than an authorized Marantz America service center.
5. Any product, on which the serial number has been defaced, modified or removed.
6. Warranty is void if purchase was made from anyone other than an authorized Marantz dealer.
7. Warranty is void if purchased from outside The United States of America.
8. Warranty only valid in the United States of America.
9. Damage due to lightning or power line surges, spikes and brown outs, damages that occur during shipping or transit, or damage which is attributed to acts of God.

10. Incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.)

11. Commercial or institutional use.

12. Any other cause which does not relate to product defect.
13. Burns or residual images upon the phosphor of the tubes.

NOTE: Pixel defect

Plasma is one of the most advanced technologies for consumer products. The panel is made by high precision technology, however some pixel defects may be found on the Plasma display panel. We are trying our best to control the quality in order to reduce the number of defective pixels. It is almost impossible to have zero pixel defects, even using the most advanced technology. This is not a problem only for Marantz, but all Plasma manufacturers.

Therefore we have to note that the warranty does not cover the Plasma display panel for pixel defects. We appreciate your understanding.

Before requesting service:

Please check your User Guide before requesting service. Adjustments of the controls and hook up guidelines discussed there may save you a service call.

To get warranty service:

Repair must be performed by an authorized service center. If you do not know of a Marantz authorized Plasma Television service center, contact your dealer. If your dealer is an authorized service center, they will arrange for repair.

If your dealer is not a Marantz authorized Plasma Television service center, they will direct you to an authorized service center.

Optimum performance:

For optimum performance and picture quality, the Plasma monitor is only guaranteed up to 6,230 feet above see level.

Warning

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/ Data Processing Equipment ANSI/NFPA 75.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

NOTE:

When you connect a computer to this monitor, use an RGB cable including the ferrite core on both ends of the cable. And regarding HDMI and power cable, attach the supplied ferrite cores. If you do not do this, this monitor will not conform to mandatory FCC standards.

Attaching the ferrite cores:

Set the ferrite cores on both ends of the HDMI cable (not supplied), and both ends of the power cable (supplied).

Close the lid tightly until the clamps click.

Use the band to fasten the ferrite core (supplied) to the HDMI cable.

HDMI cable (not supplied)

band core (small) band core (small) Connector

Power cable (supplied)

core (large) core (large)

Caution

This model is for use with the following optional accessories. Use with other optional accessories is capable of resulting in instability causing possible injury.

Manufacturer's name: Marantz Japan, Inc.

Stand: AS4250 for PD4230V, PD4250D and PD5050D AS6150 for PD6150D

Please contact Marantz America, Inc. for approved optional accessories.

Recommendations importantes

Avertissement

Please read this User Guide carefully before using your plasma monitor and keep the User Guide handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warnings and Safety Precaution

This plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Please see the section "Plasma monitor cleaning procedure" on the next page.

The plasma display panel consists of fine picture elements (cells) with more than 99.99 percent active cells. There may be some cells that do not produce light or remain lit.

For operating safety and to avoid damage to the unit, read carefully and observe the following instructions. To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install the unit in a closed cabinet or shelves.

If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for 60 minutes to cool the monitor. If the problem persists, contact your dealer for service.

1. Do not use this unit's polarized plug with extension cords or outlets unless the prongs can be completely inserted.
2. Do not expose the unit to water or moisture.
3. Avoid damage to the power cord, and do not attempt to modify the power cord.
4. Unplug the power cord during electrical storms or if the unit will not be used over a long period.
5. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.
6. Do not attempt to service or repair the unit. The manufacturer is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized Service Centers.

To avoid damage and prolong operating life:

1. Use only with 100-240V 50/60Hz AC power supply. Continued operation at line voltages greater than 100-240 Volts AC will shorten the life of the unit, and might even cause a fire hazard.
2. Handle the unit carefully when installing it and do not drop.
3. Set the unit away from heat, excessive dust, and direct sunlight.
4. Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the power cord and have it serviced by an authorized Service Center.
5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.
6. For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.
7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.
8. To avoid sulfurization it is strongly recommended not to place the unit in a dressing room in a public bath or hot spring bath.
9. Do not use in a moving vehicle, as the unit could drop or topple over and cause injuries.
10. Do not place the unit on its side, upside-down or with the screen facing up or down, to avoid combustion or electric shock.

Plasma monitor cleaning procedure:

1. Use a soft dry cloth to clean the front panel and bezel area. Never use solvents such as alcohol or thinner to clean these surfaces.
2. Clean plasma ventilation areas with a vacuum cleaner with a soft brush nozzle attachment.
3. To ensure proper ventilation, cleaning of the ventilation areas must be carried out monthly. More frequent cleaning may be necessary depending on the environment in which the plasma monitor is installed.

Recommendations to avoid or minimize phosphor burn-in: Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to phosphor burn under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in phosphor burn if proper precautions are not taken. To protect your investment in this plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image burn:

* Always enable and use your computer's screen saver function during use with a computer input source.
* Display a moving image whenever possible.
* Change the position of the menu display from time to time.
* Always power down the monitor when you are finished using it.

If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of phosphor burn:

* Lower the Brightness and Contrast levels as much as possible without impairing image readability.

* Display an image with many colors and color gradations (i.e. photographic or photo-realistic images).
* Create image content with minimal contrast between light and dark areas, for example white characters on black backgrounds. Use complementary or pastel color whenever possible.
* Avoid displaying images with few colors and distinct, sharply defined borders between colors.

* Note: Burn-in is not covered by the warranty.

Contact your dealer for other recommended procedures that will best suit your particular application needs.

Recommendations importantes

Précautions

RISQUE D'ELECTROCUTION NE PAS OUVRIR

MISE EN GARDE: AFIN DE REDUIRE LES RISQUES D'ELECTRO-CUTION, NE PAS DEPOSER LE COUVERCLE, IL N'Y A AUCUNE PIECE UTILISABLE A L'INTERIEUR DE CET APPAREIL. NE CONFIER LES TRAVAUX D'ENTRETIEN QU'A UN PERSONNEL QUALIFIE.

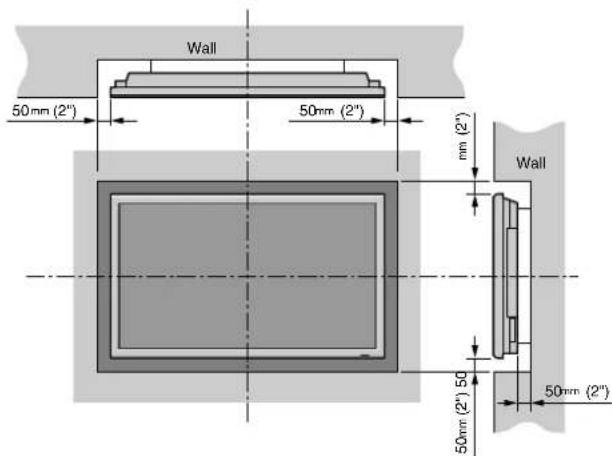

Ventilation Requirements for enclosure mounting ..... 10

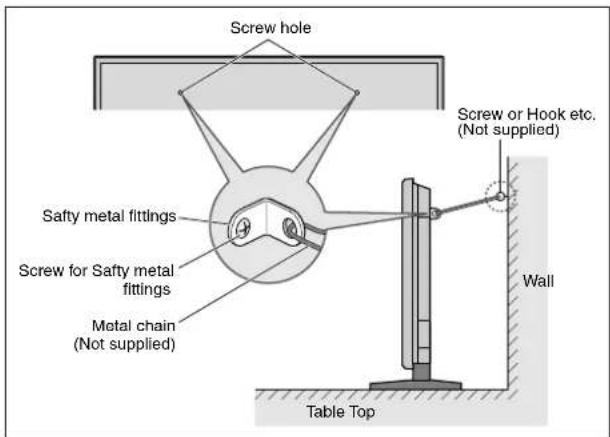

How to use the safety metal fittings and the screws for safety metal fittings 10

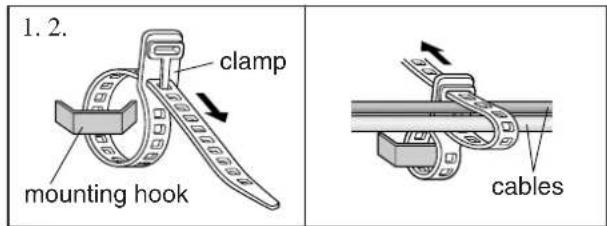

Cable Management.... 11

How to use the remote control.... 11

Battery Installation and Replacement 11

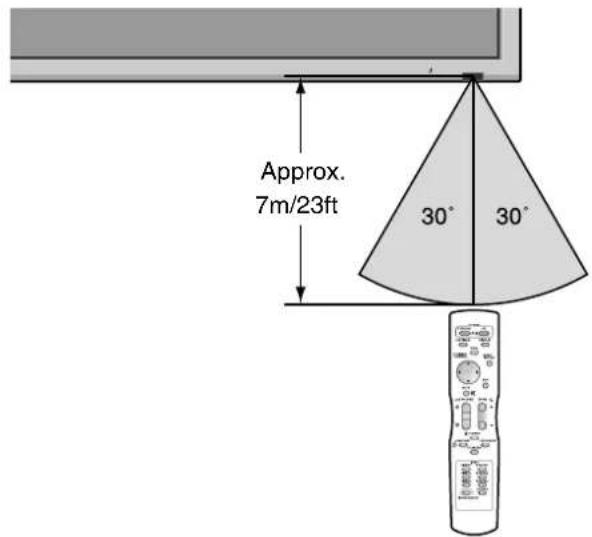

Operating Range 11

Handling the remote control.... 11

Part Names and Function 12

Front View 12

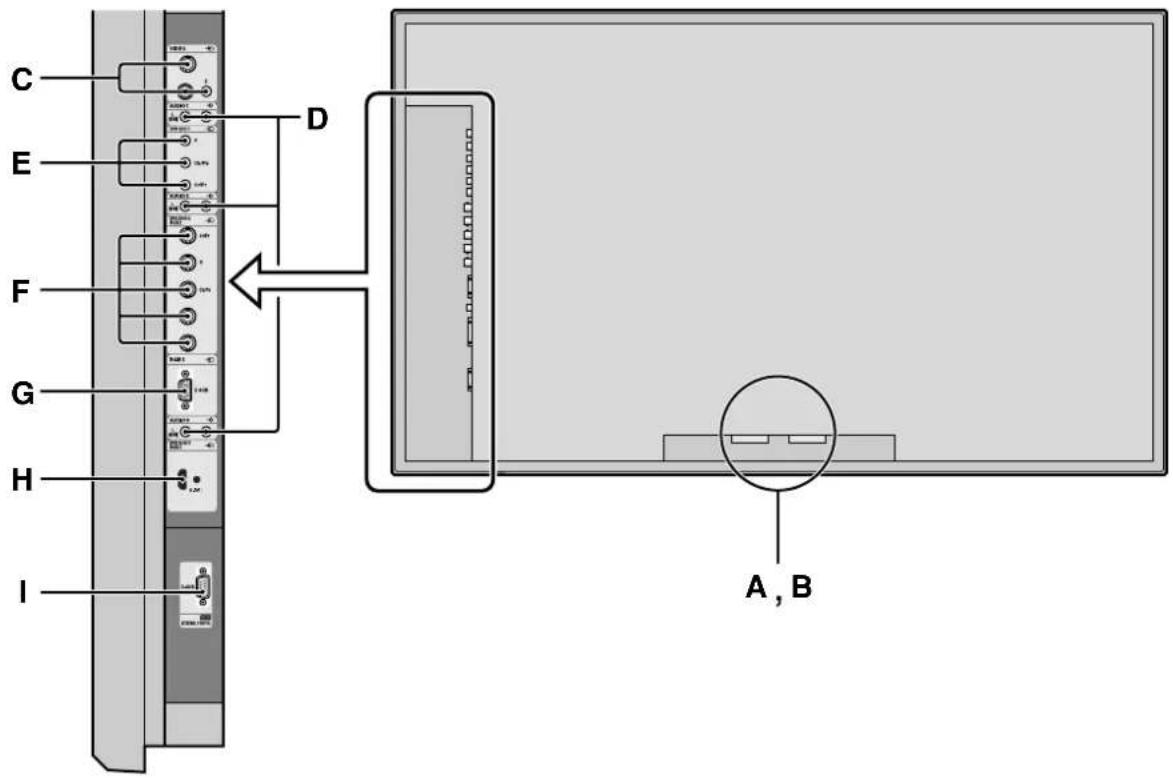

Rear View/ Terminal Board 13

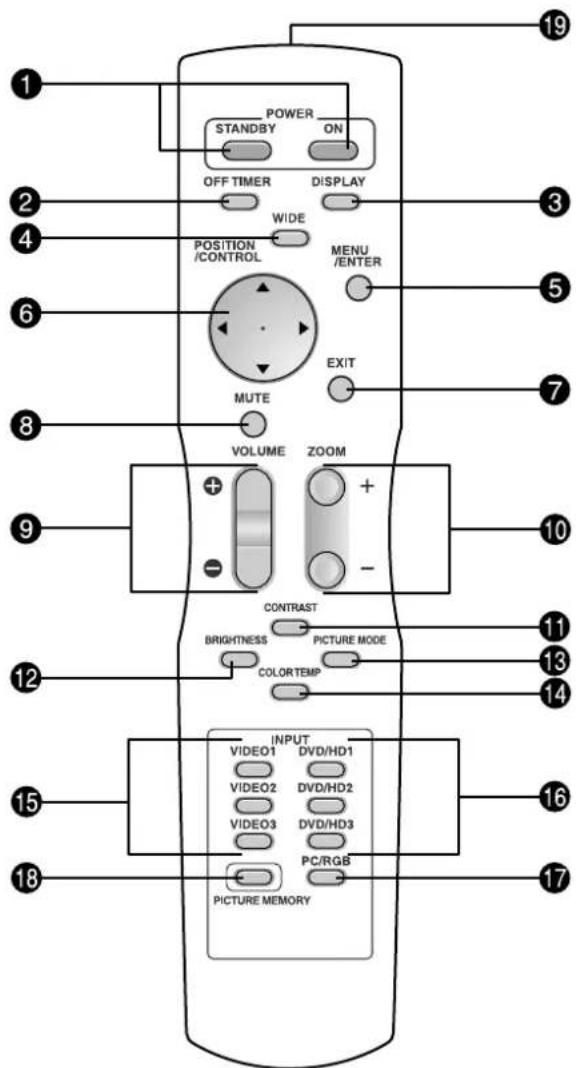

Remote Control 14

Basic Operations 15

POWER 15

To turn the unit ON and OFF: 15

VOLUME 15

To adjust the sound volume:.... 15

MUTE 15

To mute the audio: 15

DISPLAY 15

To check the settings: 15

DIGITAL ZOOM 15

OFF TIMER 15

To set the off timer: 15

To check the remaining time: 15

To cancel the off timer: 15

WIDE Operations 16

Wide Screen Operation (manual) 16

When viewing videos or digital video discs .... 16

Wide Screen Operation with Computer Signals ..... 17

OSM (On Screen Menu) Controls 18

Menu Operations 18

Menu Tree 19

Picture Settings Menu.... 21

Storing picture settings.... 21

Adjusting the picture 21

Reducing noise in the picture 21

Setting the color temperature 22

Adjusting the color to the desired level 22

Changing the Gamma Curve 22

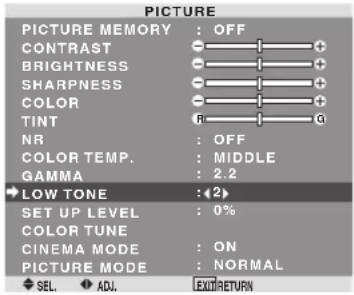

Making the Low Tone adjustments 22

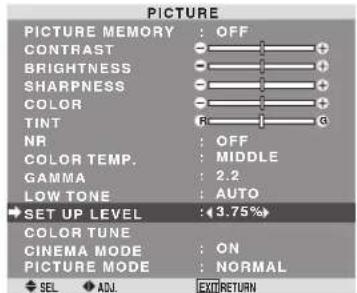

Adjusting the pedestal level (black level) 23

Adjusting the colors 23

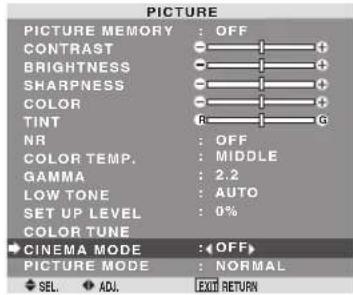

Setting the picture to suit the movie 23

Setting the picture mode according to the brightness of the room 23

Audio Settings Menu 24

Adjusting the treble, bass and left/right balance and audio input select 24

Setting the allocation of the audio connectors ..... 24

Image Adjust Settings Menu 24

Adjusting the Position, Size, Fine Picture, Picture ADJ. ... 24

SET UP Settings Menu 25

Setting the language for the menus.... 25

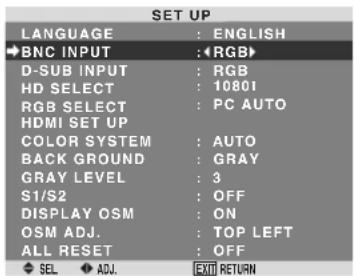

Setting the BNC connectors 25

Checking the signal being transmitted to RGB1 terminal 25

Setting high definition images to the suitable screen size 25

Setting a computer image to the correct RGB select screen 25

Setting the signal and black level for HDMI signal .... 26

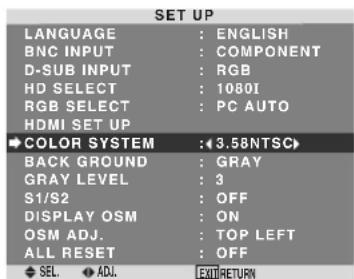

Setting the video signal format 26

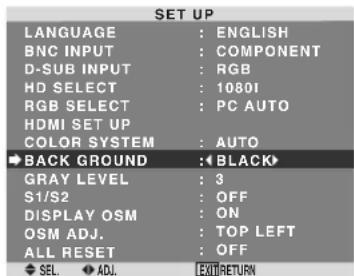

Setting the background color when no signal is being input 26

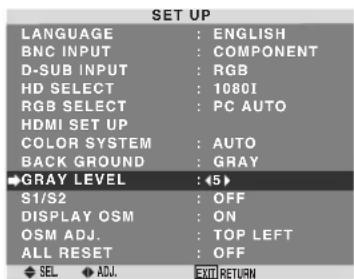

Setting the gray level for the sides of the screen ..... 27

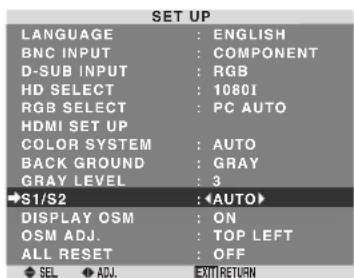

Setting the screen size for S1/S2 video input 27

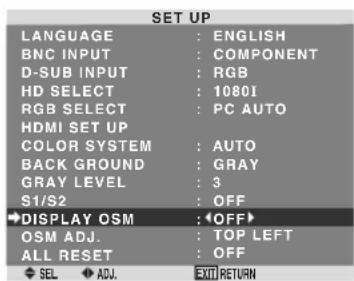

Turning on/off the menu display 27

Setting the position of the menu 27

Resetting to the default values 27

Function Settings Menu 28

Setting the power management for computer images ... 28

POWER/STANDBY indicator 28

Setting the Input Skip.... 28

Reducing burn-in of the screen 28

Setting Closed Caption 30

Reducing the brightness of Closed Caption 30

Signal Information Menu 30

Checking the frequencies, polarities of input signals, and resolution 30

External Control 31

Application 31

Connections 31

Type of connector: D-Sub 9-pin male 31

Communication Parameters 31

External Control Codes (Reference) 31

Pin Assignments 31

Specifications : PD5050D 35

Specifications : PD6150D 36

Table of Signals Supported 37

■ PD4230V Supported resolution 37

Computer input signals supported by this system ..... 37

Table of Signals Supported 38

■ PD4250D Supported resolution 38

Computer input signals supported by this system ..... 38

Table of Signals Supported 39

■ PD5050D/PD6150D Supported resolution ...... 39

Computer input signals supported by this system ..... 39

Contents of the Package

□ Plasma monitor

□ Power cord

□ Remote control with two AAA Batteries

□ User Guide

□ Safety metal fittings

□ Ferrite cores, bands

□ Cable clamps

* These are fittings for fastening the unit to a wall to prevent tipping due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws (see page 10).

Options

- Wall mount unit

- Ceiling mount unit

- Tilt mount unit

- Stand

You can attach your optional mounts or stand to the plasma monitor in one of the following two ways:

* While it is upright. (See Drawing A)
* As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.
* Do not touch or hold the screen face when carrying the unit.

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)
  * See page 9.
• For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.

Product warranty does not cover damage caused by improper installation.

* Use only the mounting kit or stand provided by manufacturer and listed under Options.

Drawing A Drawing B

Ventilation Requirements for enclosure mounting

To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.

Wall 50mm (2") 50mm (2") mm (2') Wall 50mm (2") 50 50mm (2")

How to use the safety metal fittings and the screws for safety metal fittings

These are fittings for fastening the unit to a wall to prevent tipping due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws.

Screw hole Safty metal fittings Screw for Safty metal fittings Metal chain (Not supplied) Screw or Hook etc. (Not supplied) Wall Table Top

Cable Management

Using the cable clamps provided with the plasma display, bundle at the back of the unit the signal and audio cables connected to the display.

Back of the unit mounting hooks

To attach

1. 2. clamp mounting hook cables

To detach

Diagram showing a mechanical clamp or spring with directional arrows indicating movement (no text or symbols)

How to use the remote control Battery Installation and Replacement

Insert the 2 "AAA" batteries, making sure to set them in with the proper polarity.

1. Press and open the cover.

Technical line drawing of a mechanical component with a knob and arrow indicator (no text or symbols)

1. Align the batteries according to the (+) and (−) indication inside the case.

Technical line drawing of a mechanical component with a handle and mounting holes (no text or symbols)

1. Replace the cover.

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Operating Range

* Use the remote control within a distance of about 7 m/23ft. from the front of the monitor's remote control sensor and at horizontal and vertical angles of up to approximately 30°. * The remote control operation may not function if the monitor's remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.

Approx. 7m/23ft 30° 30°

Handling the remote control

• Do not drop or mishandle the remote control.
• Do not get the remote control wet. If the remote control gets wet, wipe it dry immediately.
• Avoid heat and humidity.
• When not using the remote control for a long period, remove the batteries.
• Do not use new and old batteries together, or use different types together.
• Do not take apart the batteries, heat them, or throw them into a fire.

Part Names and Function

Front View

VOLUME MENU/ENTER DOWN UP LEFT/ RIGHT/+ INPUTSELECT /EXIT ⑦ ⑥ ⑤ ④ ① ③ ②

①Power

Turns the monitor's power on and off.

②Remote sensor window

Receives the signals from the remote control.

③POWER/STANDBY indicator

When the power is on .... Lights green. When the power is in the standby mode ... Lights red.

④INPUT SELECT / EXIT

Switches the input. The available inputs depend on the setting of "BNC INPUT", "RGB SELECT" and "HDMI SET UP". Functions as the EXIT buttons in the On-Screen Menu (OSM) mode.

⑤LEFT/- and RIGHT/+

Enlarges or reduces the image. Functions as the CURSOR (◀/▶) buttons in the On-Screen Menu (OSM) mode.

⑥VOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (▲/▼) buttons in the On-Screen Menu (OSM) mode.

⑦MENU/ENTER

Sets the On-Screen Menu (OSM) mode and displays the main menu.

WARNING

The Power on/off switch does not disconnect the plasma display completely from the supply mains.

Rear View/ Terminal Board

C E F G H I D A, B

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Connect speakers (optional) here. Maintain the correct polarity. Connect the positive) speaker wire to the EXT SPEAKER terminal and the negative) speaker wire to the EXT SPEAKER terminal on both LEFT and RIGHT channels. Please refer to your speaker's User Guide.

C VIDEO1, 2, 3 (BNC, RCA, S-Video)

Connect VCR's, DVD's or Video Cameras, etc. here.

D AUDIO1, AUDIO2, AUDIO3

These are audio input terminals. The input is selectable. Set which video image to allot them from the audio menu screen.

E DVD1 / HD1

Connect DVD's, High Definition or Laser Discs, etc. here.

F DVD2/ HD2, RGB2

DVD2/ HD2: You can connect DVDs, High Definition sources, Laser Discs, etc. here. This input can be set for use with an RGB or component source. (see page 25)

RGB2: You can connect an analog RGB signal and the synchronization signal.

G RGB1 (D-Sub)

Connect an analog RGB signal from a computer, etc. here.

H DVD3/HD3, RGB3 (HDMI)

Connect a digital signal (TMDS) from a source with a HDMI output. This input can be set for use with an RGB3 or DVD3/HD3 source. (see page 26)

| EXTERNAL CONTROL (D-Sub)

This terminal is used when operating and controlling the monitor externally (by external control).

Remote Control

POWER STANDBY ON OFF TIMER DISPLAY WIDE POSITION /CONTROL MENU /ENTER MUTE EXIT VOLUME ZOOM + + - CONTRAST BRIGHTNESS PICTURE MODE COLORTEMP INPUT VIDEO1 DVD/HD1 VIDEO2 DVD/HD2 VIDEO3 DVD/HD3 PC/RGB PICTURE MEMORY 19 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

① POWER ON/STANDBY

Switches the power on/standby.

(This does not operate when POWER/STANDBY indicator of the main unit is off.)

② OFF TIMER

Activates the off timer for the unit.

③ DISPLAY

Displays the source settings on the screen.

④ WIDE

Automatically detects the signal and sets the aspect ratio.

Wide button is not active for all signals.

⑤ MENU/ENTER

Press this button to access the OSM controls.

Press this button during the display of the main menu to go to the sub menu.

CURSOR (▲ / ▼ / ◀ / ▶)

Use these buttons to select items or settings and to adjust settings or switch the display patterns.

7 EXIT

Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub menu to return to the previous menu.

⑧ MUTE

Mutes the audio.

⑨ VOLUME (+ /−)

Adjusts the audio volume.

⑩ ZOOM (+/-)

Enlarges or reduces the image.

⑪ CONTRAST

Press this button to adjust contrast directly.

BRIGHTNESS

Press this button to adjust brightness directly.

PICTURE MODE

Press this button to adjust picture mode directly.

⑭ COLOR TEMP

Press this button to adjust color tone directly.

⑮ VIDEO1, 2, 3

Press this button to select VIDEO as the source. VIDEO can also be selected using the INPUT SELECT button on the monitor.

⑯ DVD/HD1, 2, 3

Press this button to select DVD/HD as the source. DVD/HD can also be selected using the INPUT SELECT button on the monitor.

17 PC/RGB

Press this button to select PC/RGB as the source. PC/RGB can also be selected using the INPUT SELECT button on the monitor.

18 PICTURE MEMORY

Switches sequentially between picture memory settings 1 to 6.

19 Remote control signal transmitter

Transmits the remote control signals.

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.
2. Press the Power button (on the unit).

The monitor's POWER/STANDBY indicator turns red and the standby mode is set.

1. Press the POWER ON button (on the remote control) to turn on the unit.

The monitor's POWER/STANDBY indicator will light up (green) when the unit is on.

1. Press the POWER STANDBY button (on the remote control) or the Power button (on the unit) to turn off the unit.

The monitor's POWER/STANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).

VOLUME

To adjust the sound volume:

1. Press and hold the VOLUME button (on the remote control or the unit) to increase to the desired level.
2. Press and hold the VOLUME ⏻ button (on the remote control or the unit) to decrease to the desired level.

MUTE

To mute the audio:

Press the MUTE button on the remote control to mute the audio; press again to restore.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is pressed.
2. If the button is not pressed for approximately three seconds, the menu turns off.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

1. Press the ZOOM (+ or -) button to display magnifying glass. ( 🔍 )

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture.

A press of the ZOOM- button will reduce the picture and return it to its original size.

To change the picture position:

Select the position with the ▲▼◀▶ buttons.

1. Press the EXIT button to delete the pointer.

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

1. Press the OFF TIMER button to start the timer at 30 minutes.
2. Press the OFF TIMER button to the desired time.
3. The timer starts when the menu turns off.

$$ \boxed {\rightarrow 3 0 \rightarrow 6 0 \rightarrow 9 0 \rightarrow 1 2 0 \rightarrow 0} $$

OFF TIMER 30

To check the remaining time:

1. Once the off timer has been set, press the OFF TIMER button once.
2. The remaining time is displayed, then turns off after a few seconds.
3. When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER 28

To cancel the off timer:

1. Press the OFF TIMER button twice in a row.
2. The off timer is canceled.

OFF TIMER 0

Note:

After the power is turned off with the off timer ...

A slight current is still supplied to the monitor. When you are leaving the room or do not plan to use the system for a long period of time, turn off the power of the monitor.

Wide Screen Operation (manual)

With this function, you can select one of six screen sizes.

When viewing videos or digital video discs

1. Press the WIDE button on the remote control.

2. Within 3 seconds ...

Press the WIDE button again.

The screen size switches as follows:

When a 720P or 1080I signal is input:

ANAMORPHIC ↔ 2.35:1

NORMAL size screen (4:3)

Geometric diagram with four circles arranged in a cross pattern, no text or symbols present

The normal size screen is displayed.

* The picture has the same size as video pictures with a 4 : 3 aspect ratio.

ANAMORPHIC size screen

Geometric diagram with four circles arranged in a cross pattern around a central circle (no text or symbols)

The image is expanded in the horizontal direction.

* Images compressed in the horizontal direction (“squeezed images”) are expanded in the horizontal direction and displayed on the entire screen with correct linearity. (Normal images are expanded in the horizontal direction.)

STADIUM size screen

Geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

The picture is expanded in the horizontal and vertical directions at different ratios.

* Use this for watching normal video programs (4:3) with a wide screen.

ZOOM size screen

Geometric diagram with concentric circles and semicircles, no text or symbols present

The picture is expanded in the horizontal and vertical direction, maintaining the original proportions.

* Use this for theater size (wide) movies, etc.

2.35:1 size screen

Original image

Pure geometric diagram with circles and diagonal lines inside a rectangle, no text or symbols present

Information is lost on both sides.

The squeezed film image is expanded to fulfill the entire screen at a ratio of 2.35:1. Black bands do not appear at the top and bottom but information is lost on the left and right margins.

- This feature is available when the input signal is video, component (480I, 480P, 576I, 576P, 720P, 1080I) or RGB (525P or 625P signal from a scan converter).

* If black bands appear on the top and bottom in the full size screen, select the 2.35:1 size screen to avoid phosphor burn-in.

14:9 size screen

Geometric diagram with a circle inscribed in a rectangle and two diagonal lines crossing at the center (no text or symbols)

The image is displayed at a 14:9 aspect ratio.

* This feature is available when the input signal is video, component (480I, 480P, 576I, 576P) or RGB (525P or 625P signal from a scan converter).

Note:

Do not allow the displayed in 4:3 mode for an extended period. This can cause a phosphor burn-in.

Wide Screen Operation with Computer Signals

Switch to the wide screen mode to expand the 4:3 image to fill the entire screen.

1. Press the WIDE button on the remote control.

2. Within 3 seconds ...

Press the WIDE button again.

The screen size switches as follows:

NORMAL size screen (4:3 or SXGA 5:4)

Geometric pattern with four circles and diagonal lines forming a cross (no text or symbols)

The picture has the same size as the normal computer image.

ANAMORPHIC size screen

Geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

The image is expanded in the horizontal direction.

ZOOM size screen

Geometric pattern with concentric circles and intersecting lines forming a symmetrical design (no text or symbols)

When wide signals are input.

ANAMORPHIC size screen

Pure geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

Information

■ Supported resolution

See page 37-39 for details on the display output of the various VESA signal standards supported by the monitor.

■ When 852 (848) dot × 480 line wide VGA* signals with a vertical frequency of 60 Hz and horizontal frequency of 31.7 (31.0) kHz are input

Select an appropriate setting for RGB SELECT mode referring to the "Table of Signals Supported" on page 37-39.

* "VGA", "SVGA" and "SXGA" are registered trademarks of IBM, Inc. of the United States.

Note:

Do not allow the displayed in 4:3 mode for an extended period. This can cause a phosphor burn-in.

Menu Operations

The following describes how to use the menus and the selected items.

1. Press the MENU/ENTER button on the remote control to display the MAIN MENU.

MAIN MENU PICTURE AUDIO IMAGE ADJ. SET UP FUNCTION SIGNAL INFO. SEL. MENSENTER OK EXIT EXIT

1. Press the cursor buttons ▲▼ on the remote control to highlight the menu you wish to enter.
2. Press the MENU/ENTER button on the remote control to select a sub menu or item.

PICTURE ● PICTURE MEMORY : OFF CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR : OFF COLOR TEMP. : MIDDLE GAMMA : 2.2 LOW TONE : AUTO SET UP LEVEL : 0% COLOR TUNE CINEMA MODE : ON PICTURE MODE : NORMAL SEL ADJ MEMADENTER OK EXITRETURN

1. Adjust the level or change the setting of the selected item by using the cursor buttons ◀ ▶ on the remote control.

CONTRAST 10

1. The adjustments or the settings that are stored in memory. The change is stored until you change it again.
2. Repeat steps 2 - 5 to adjust an additional item, or press the EXIT button on the remote control to return to the main menu.
   * When adjusting using the bar at the bottom of the screen, press the ◀ or ▶ button within 5 seconds. If not, the current setting is set and the previous screen appears.

Note: The main menu disappears by pressing the EXIT button.

Menu Tree

:Shaded areas indicate the default value.

-←→+: Press the ◀ or ▶ button to adjust. The default value is at the center.

Main menu Sub menu 2 Sub menu 3 Sub menu 4 RESET					REFERENCE
PICTURE PICTURE MEMORY OFF/MEMORY1-6 YES 21
	CONTRAST	-←→+ 0←52→72		YES	21
	BRIGHTNESS	-←→+ 0←32→64		YES	21
	SHARPNESS	-←→+ 0←16→32		YES	21
	COLOR	-←→+ 0←32→64		YES	21
	TINT	R←→G 0←32→64		YES	21
	NR	OFF/NR-1/NR-2/NR-3		YES 21
	COLOR TEMP.	LOW/MIDDLE LOW/MIDDLE/HIGH		YES	22
	WHITE BALANCE	GAIN RED	-←→+ 0←→70	YES	22
		GAIN GREEN	-←→+ 0←→70	YES	22
		GAIN BLUE	-←→+ 0←→70	YES	22
		BIAS RED	-←→+ 0←→70	YES	22
		BIAS GREEN	-←→+ 0←→70	YES	22
		BIAS BLUE	-←→+ 0←→70	YES	22
		RESET	OFF←→ON	YES	22
	GAMMA	2.1←2.2←2.3→2.4		YES	22
	LOW TONE	AUTO←→1←···→3		YES 22
	SET UP LEVEL	0%←→3.75%←→7.5%		YES	23
	COLOR TUNE	RED	Y←→M 0←→64	YES	23
		GREEN	C←→Y 0←→64	YES	23
		BLUE	M←→C 0←→64	YES	23
		YELLOW	G←→R 0←→64	YES	23
		MAGENTA	R←→B 0←→64	YES	23
		CYAN	B←→G 0←→64	YES	23
		RESET	OFF←→ON	YES	23
	CINEMA MODE	ON←→OFF		YES	23
	PICTURE MODE	DEFAULT/THEATER1/THEATER2/NORMAL/BRIGHT		YES	23
Main menu Sub menu 2 Sub menu 3 Sub menu 4 RESET					REFERENCE
AUDIO	BASS	-←→+ 0←13→26		YES	24
	TREBLE	-←→+ 0←13→26		YES	24
	BALANCE	L←→R -22←0→+22		YES	24
	AUDIO INPUT1	VIDEO 1-3 / HD/DVD 1-3 / RGB 1-3		YES 24
	AUDIO INPUT2	VIDEO 1-3 / HD/DVD 1-3 / RGB 1-3		YES 24
	AUDIO INPUT3	VIDEO 1-3 / HD/DVD 1-3 / RGB 1-3		YES 24
Main menu Sub menu 2 Sub menu 3 Sub menu 4 RESET					REFERENCE
IMAGE ADJUST	ASPECT MODE	ZOOM/NORMAL/ANAMORPHIC/STADIUM/14:9/2.35:1		NO	24
	V-POSITION	-←→+ -64←0→+64		YES	24
	H-POSITION	-←→+ -128←0→+127		YES	24
	V-HEIGHT	-←→+ 0←→64		YES	24
	H-WIDTH	-←→+ 0←→64		YES	24
	AUTO PICTURE	ON←→OFF*2		NO	24
	FINE PICTURE*1	-←→+ *2 0←→64		YES 24
	PICTURE ADJ.*1	-←→+ *2 0←→128		YES 24
Main menu Sub menu 2 Sub menu 3 Sub menu 4 RESET					REFERENCE
SET UP	LANGUAGE	ENGLISH/DEUTSCH/FRANÇAIS/ESPAÑOL/ITALIANO/SVENSKA中文/ēiēēāāa		NO	25
	BNC INPUT RGB←→COMPONENT		YES 25
	D-SUB INPUT	RGB		YES 25
	HD SELECT	1080I/1035I/540P		NO	25
	RGB SELECT AUTO/STILL/MOTION/WIDE1/WIDE2/WIDE3/DTV		YES 25
	HDMI SET UP	PLUG/PLAY PC←→STB/DVD		NO	26
		BLACK LEVEL LOW←→HIGH		NO	26
	COLOR SYSTEM	AUTO/PAL/PAL-M/PAL-N/PAL 60/SECAM/4.43 NTSC/3.58NTSC		NO	26
	BACK GROUND	BLACK/GRAY		YES	26
	GRAY LEVEL	0←···→3←···→15		YES 27
	S1/S2	AUTO←→OFF		YES	27
	DISPLAY OSM	ON←→OFF		YES	27
	OSM ADJ.	TOP LEFT←→TOP CENTER←→TOP RIGHT←→BTM LEFT←→BTM CENTER←→BTM RIGHT		YES	27
	ALL RESET	ON←→OFF		—	27
Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET				REFERENCE
FUNCTION POWER MGT. ON←→OFF YES 28
INPUT SKIP ON←→OFF YES 28
PDP SAVER MANUAL/AUTO YES 28
	PEAK BRIGHT 100%/75%/50%/25% YES 29
	ORBITER	OFF/AUTO1/AUTO2	YES 29
	INVERSE/WHITE	OFF/INVERSE/WHITE	YES 29
	SCREEN WIPER	ON/OFF	YES 29
	SOFT FOCUS	OFF/LEVEL1-4	YES 29
	OSM ORBITER	ON/OFF	YES 30
	OSM CONTRAST	LOW/NORMAL	YES 30
CLOSED CAPTION	OFF/CAPTION1-4/TEXT1-4		YES 30
CAPTION CONT	LOW/NORMAL		YES 30
Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET				REFERENCE
SIGNAL INFO.			—	30

*1 Only when AUTO PICTURE is OFF.
*2 RGB/PC only

Information

■ Restoring the factory default settings

Select “ALL RESET” under the SET UP menu. Note that this also restores other settings to the factory defaults.

Picture Settings Menu

Storing picture settings

This function allows you to store in memory the current input signal and PICTURE menu settings and to recall these settings when necessary.

There are six picture memories, and notes of up to 15 characters can be added to each.

Example: Storing picture settings at MEMORY1

On “PICTURE MEMORY” of “PICTURE” menu, select “MEMORY1”, then press the MENU/ENTER button.

The "PICTURE MEMORY" screen appears.

PICTURE MEMORY 1/2 MEMORY1 SET RESET INPUT : DVD/HD1 SIGNAL : 480P NOTE : DVD/STAR WARS MEMORY2 INPUT : — SIGNAL : — NOTE : — MEMORY3 INPUT : — SIGNAL : — NOTE : — NEXT PAGE SEL AD NOGENT OK RETURN

PICTURE MEMORY 2/2 PREVIOUS PAGE MEMORY4 SET RESET INPUT : — SIGNAL : — NOTE : — MEMORY5 INPUT : — SIGNAL : — NOTE : — MEMORY6 INPUT : — SIGNAL : — NOTE : — SEL ADJ. OK OUT RETURN

Information

■ PICTURE MEMORY Settings

OFF: Picture memory not used.

MEMORY1 to 6: Picture memory with the specified number used. Maximum memories are 6, not depending on inputs.

■ Setting the memory

• Use the ▲ and ▼ button to select the desired memory place, MEMORY1 to MEMORY6.
• Use the ◀ and ▶ buttons to select “SET”, then press the MENU/ENTER button.
• If necessary, input a note.

■ Resetting the memory

Use the ▲ and ▼ button to select the desired memory place, MEMORY1 to MEMORY6, then use the ◀ and ▶ buttons to select “RESET”, and finally press the MENU/ENTER button.

The memory is cleared, and “—” is displayed in the “INPUT”, “SIGNAL” and “NOTE” columns.

■ Inputting notes

• Use the ◀ and ▶ buttons to select "NOTE", then press the MENU/ENTER button.
• Input the note.

Use the ▲ and ▼ button to select the character.

Use the ◀ and ▶ buttons to move the cursor.

Use the EXIT button to delete the character at the cursor position.

- When you have finished inputting the note, press the MENU/ENTER button.

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be adjusted as desired.

Example: Adjusting the contrast

On “CONTRAST” of “PICTURE” menu, adjust the contrast.

PICTURE PICTURE MEMORY : OFF CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR : OFF COLOR TEMP. : MIDDLE GAMMA : 2.2 LOW TONE : AUTO SET UP LEVEL : 0% COLOR TUNE CINEMA MODE : ON PICTURE MODE : NORMAL SEL . AOL . Export RETURN

CONTRAST 10

Note: If "CAN NOT ADJUST" appears ...

When trying to enter the PICTURE submenu, make sure PICTURE MODE is not set to DEFAULT.

Information

■ Picture adjustment screen

CONTRAST: Changes the picture's white level.

BRIGHTNESS: Changes the picture's black level.

SHARPNESS: Changes the picture's sharpness.

Adjusts picture detail of VIDEO display.

COLOR: Changes the color density.

TINT: Changes the picture's tint. Adjust for natural colored skin, background, etc.

■ Adjusting the computer image

Only the contrast and brightness can be adjusted when a computer signal is connected.

■ Restoring the factory default settings

Select “DEFAULT” under the “PICTURE MODE” settings.

Reducing noise in the picture

Use these settings if the picture has noise due to poor reception or when playing video tapes on which the picture quality is poor.

Example: Setting "NR-3"

On "NR" of "PICTURE" menu, select "NR-3".

PICTURE PICTURE MEMORY : OFF CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR : (OFF) COLOR TEMP. : MIDDLE GAMMA : 2.2 LOW TONE : AUTO SET UP LEVEL : 0% COLOR TUNE CINEMA MODE : ON PICTURE MODE : NORMAL SEA . 30% RETURN

NR :NR-3

Information

NR

* "NR" stands for Noise Reduction.
* This function reduces noise in the picture.

■ Types of noise reduction

There are three types of noise reduction. Each has a different level of noise reduction.

The effect becomes stronger as the number increases (in the order NR-1 → NR-2 → NR-3).

OFF: Turns the noise reduction function off.

Setting the color temperature

Use this procedure to set color tone produced by the plasma display.

Example: Setting "HIGH"

On "COLOR TEMP." of "PICTURE" menu, select "HIGH".

PICTURE PICTURE MEMORY : OFF CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR : OFF COLOR TEMP. : ( HIGH ) GAMMA : 2.2 LOW TONE : AUTO SET UP LEVEL : 0% COLOR TUNE CINEMA MODE : ON PICTURE MODE : NORMAL SEL ADJ. EXTRETURN

Information

■ Setting the color temperature

LOW: Redder

MIDDLE LOW: Slightly red

MIDDLE: Standard (slightly bluer)

HIGH: Bluer

Adjusting the color to the desired level

Use this procedure to adjust the white balance for each color temperature to achieve the desired color quality.

Example: Adjusting the "GAIN RED" of "HIGH" color temperature

On “COLOR TEMP.” of “PICTURE” menu, select “HIGH”, then press the MENU/ENTER button.

The "WHITE BALANCE" screen appears.

On "GAIN RED", adjust the white balance.

WHITE BALANCE COLOR TEMP. HIGH GAIN RED GAIN GREEN GAIN BLUE BIAS RED BIAS GREEN BIAS BLUE RESET : OFF SEL ADJ EXIT RETURN

GAIN RED 20

Information

■ Adjusting the white balance

GAIN R/G/B: White balance adjustment for white level BIAS R/G/B: White balance adjustment for black level RESET: Resets settings to the factory default values. Use ◀ and ▶ buttons to select "ON", then press the MENU/ENTER button.

■ Restoring the factory default settings

Select "RESET" under the WHITE BALANCE menu.

Changing the Gamma Curve

This feature adjusts the brightness of the midtone areas while keeping shadows and highlights unchanged.

Example: Setting "2.3"

On "GAMMA" of "PICTURE" menu, select "2.3".

PICTURE PICTURE MEMORY : OFF CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR : OFF COLOR TEMP. : MIDDLE + GAMMA : 2.3> LOW TONE : AUTO SET UP LEVEL : 0% COLOR TUNE CINEMA MODE : ON PICTURE MODE : NORMAL SEL. ADJ. EXIT RETURN

Information

■ GAMMA settings

The picture becomes darker as the number increases (in the sequence of 2.1, 2.2, 2.3, 2.4).

* These values are approximate.

Making the Low Tone adjustments

This feature allows more detailed tone to be reproduced especially in the dark area.

Example: Setting "2"

On “LOW TONE” of “PICTURE” menu, select “2”.

PICTURE PICTURE MEMORY : OFF CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR : OFF COLOR TEMP. : MIDDLE GAMMA : 2.2 + LOW TONE : (2) SET UP LEVEL : 0% COLOR TUNE CINEMA MODE : ON PICTURE MODE : NORMAL SEL ADJ EXIT RETURN

Information

■ LOW TONE settings

AUTO: Will automatically appraise the picture and make adjustments.

1: Will apply the dither method suitable for still pictures.
2: Will apply the dither method suitable for motion pictures.
3: Will apply the error diffusion method.

Adjusting the pedestal level (black level)

This feature adjusts the video black level in a video image.

Example: Setting "3.75%"

On "SET UP LEVEL" of "PICTURE" menu, select "3.75%".

PICTURE PICTURE MEMORY : OFF CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR : OFF COLOR TEMP. : MIDDLE GAMMA : 2.2 LOW TONE : AUTO + SET UP LEVEL : 3.75%> COLOR TUNE CINEMA MODE : ON PICTURE MODE : NORMAL SEL ADJ. EXRETURN

Information

SET UP LEVEL settings

0%: Normal status

3.75%: 3.5% lower than normal

7.5%: 7.5% lower than normal

Adjusting the colors

Use this procedure to adjust hue and color density for red, green, blue, yellow, magenta and cyan.

You can accentuate the green color of trees, the blue of the sky, etc.

Example: Adjusting the color tune for blue

On "PICTURE" menu, select "COLOR TUNE", then press the MENU/ENTER button.

The "COLOR TUNE" screen appears.

On "BLUE" of "COLOR TUNE", adjust the color tune.

COLOR TUNE RED GREEN BLUE YELLOW MAGENTA CYAN RESET SEL ADJ. OFF RETURN

Information

■ COLOR TUNE settings

RED: Makes red's adjustment

GREEN: Makes green's adjustment

BLUE: Makes blue's adjustment

YELLOW: Makes yellow's adjustment

MAGENTA: Makes magenta's adjustment

CYAN: Makes cyan's adjustment

RESET: Resets settings to the factory default value.

Use ◀ and ▶ buttons to select "ON", then press the MENU/ENTER button.

Setting the picture to suit the movie

The film image is automatically discriminated and projected in an image mode suited to the picture.

[NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I (50Hz), 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only]

Example: Setting the "CINEMA MODE" to "OFF"

On "CINEMA MODE" of "PICTURE" menu, select "OFF".

PICTURE PICTURE MEMORY : OFF CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR : OFF COLOR TEMP. : MIDDLE GAMMA : 2.2 LOW TONE : AUTO SET UP LEVEL : 0% COLOR TUNE CINEMA MODE : OFF PICTURE MODE : NORMAL SEL ADJ EXIT RETURN

Information

CINEMA MODE

ON: Automatic discrimination of the image and projection in cinema mode.

OFF: Cinema mode does not function.

Setting the picture mode according to the brightness of the room

There are four picture modes that can be used effectively according to the environment in which you are viewing the display.

Example: Setting the "THEATER1" mode

On "PICTURE MODE" of "PICTURE" menu, select "THEATER1".

PICTURE PICTURE MEMORY : OFF CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR : OFF COLOR TEMP. : MIDDLE GAMMA : 2.2 LOW TONE : AUTO SET UP LEVEL : 0% COLOR TUNE CINEMA MODE : ON PICTURE MODE : NORMAL > SEL: ACV: BLUT RETURN

PICTURE MODE : THEATER

Information

■ Types of picture modes

THEATER1, 2: Set this mode when watching video in a dark room.

This mode provides darker, finer pictures, like the screen in movie theaters.

For a darker image, select THEATER2.

NORMAL: Set this mode when watching video in a bright room.

This mode provides dynamic pictures with distinct differences between light and dark sections.

BRIGHT: This mode provides brighter pictures than NORMAL.

DEFAULT: Use this to reset the picture to the factory default settings.

Audio Settings Menu

Adjusting the treble, bass and left/right balance and audio input select

The treble, bass and left/right balance can be adjusted to suit your tastes.

Example: Adjusting the bass

On "BASS" of "AUDIO" menu, adjust the bass.

AUDIO BASS TREBLE BALANCE AUDIO INPUT1 : VIDEO1 AUDIO INPUT2 : HD/DVD1 AUDIO INPUT3 : RGB1 SEL ADJ EXIT RETURN

Note : If "CAN NOT ADJUST" appears...

Set "AUDIO INPUT" on the AUDIO menu correctly.

Information

■ Audio settings menu

BASS: Controls the level of low frequency sound. TREBLE: Controls the level of high frequency sound. BALANCE: Controls the balance of the left and right channels.

Setting the allocation of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired input.

Example: Setting "AUDIO INPUT1" to "VIDEO 2"

On "AUDIO INPUT1" of "AUDIO" menu, select "VIDEO2".

The available sources depend on the settings of input.

AUDIO BASS TREBLE BALANCE AUDIO INPUT1 : AUDIO INPUT2 : HD/DVD1 AUDIO INPUT3 : RGB1 SEL ADJ EXIT RETURN

Information

AUDIO INPUT

A single audio input cannot be selected as the audio channel for more than one input terminal.

Image Adjust Settings Menu

Adjusting the Position, Size, Fine Picture, Picture ADJ.

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position in the normal mode

On "V-POSITION" of "IMAGE ADJUST" menu, adjust the position.

The mode switches as follows each time the ◀ or ▶ button is pressed:

NORMAL ANAMORPHIC

* The mode can also be switched by pressing the WIDE button on the remote control.
* The settings on the IMAGE ADJUST menu are not preset at the factory.

IMAGE ADJUST ASPECT MODE : NORMAL +V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE : OFF FINE PICTURE PICTURE ADJ. SEL: ACU: RETURN

V-POSITION -1 0 -30

Information

■ When "AUTO PICTURE" is "OFF"

IMAGE ADJUST ASPECT MODE : ANAMORPHIC V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE : OFF FINE PICTURE PICTURE ADJ. SEL ADJ. EXIT RETURN

When Auto Picture is off, the Fine Picture and the Picture ADJ. items are displayed so that you can adjust them.

■ Adjusting the Auto Picture

ON: The Picture ADJ., Fine Picture and Position adjustments are made automatically.

Not available for digital ZOOM.

OFF: The Picture ADJ., Fine Picture and Position adjustments are made manually.

* If FINE PICTURE can't be adjusted, set Auto Picture to OFF and adjust manually.

■ Adjusting the position of the image

V-POSITION: Adjusts the vertical position of the image.

H-POSITION: Adjusts the horizontal position of the image.

V-HEIGHT: Adjusts the vertical size of the image. (Except for STADIUM mode)

H-WIDTH: Adjusts the horizontal size of the image. (Except for STADIUM mode)

FINE PICTURE*: Adjusts for flickering.

PICTURE ADJ.*: Adjusts for striped patterns on the image.

* The Picture ADJ. and Fine Picture features are available only when the “Auto Picture” is off.

* The AUTO PICTURE, FINE PICTURE and PICTURE ADJ. are available only for RGB signals. But, these features are not available for moving pictures on VIDEO, HD/DVD or RGB.

SET UP Settings Menu

Setting the language for the menus

The menu display can be set to one of eight languages.

Example: Setting the menu display to "DEUTSCH"

On "LANGUAGE" of "SET UP" menu, select "DEUTSCH".

SET UP
LANGUAGE	: DEUTSCH
BNC INPUT	: COMPONENT
D-SUB INPUT	: RGB
HD SELECT	: 10801
RGB SELECT	: PC AUTO
HDMI SET UP
COLOR SYSTEM	: AUTO
BACK GROUND	: GRAY
GRAY LEVEL	: 3
S1/S2	: OFF
DISPLAY OSM	: ON
OSM ADJ.	: TOP LEFT
ALL RESET	: OFF
SEL ADJ.	EXIT RETURN

Information

■ Language settings

ENGLISH...... English ITALIANO ...... Italian

DEUTSCH .....German SVENSKA..... Swedish

FRANÇAIS ..... French 中文 ..... Chinese

ESPAÑOL ..... Spanish РУССКИЙ ..... Russian

Setting the BNC connectors

Select whether to set the input of the 5 BNC connectors to RGB and component.

Example: Set the BNC INPUT mode to "RGB"

On "BNC INPUT" of "SET UP" menu, select "RGB".

SET UP LANGUAGE : ENGLISH BNC INPUT : RGB D-SUB INPUT : RGB HD SELECT : 10801 RGB SELECT : PC AUTO HDMI SET UP COLOR SYSTEM : AUTO BACK GROUND : GRAY GRAY LEVEL : 3 S1/S2 : OFF DISPLAY OSM : ON OSM ADJ. : TOP LEFT ALL RESET : OFF SEL ADJ. EXIT RETURN

Information

■ BNC INPUT Settings

RGB: Use the 5BNC terminals for RGB input.

COMPONENT: Use the 3BNC terminals for component input.

Checking the signal being transmitted to RGB1 terminal

Use this to confirm the signal being transmitted to the RGB1 terminal.

It is set to RGB and can not be adjusted.

SET UP
LANGUAGE	: ENGLISH
BNC INPUT	: COMPONENT
+D-SUB INPUT	: RGB
HD SELECT	: 1080I
RGB SELECT	: PC AUTO
HDMI SET UP
COLOR SYSTEM	: AUTO
BACK GROUND	: GRAY
GRAY LEVEL	: 3
S1/S2	: OFF
DISPLAY OSM	: ON
OSM ADJ.	: TOP LEFT
ALL RESET	: OFF
CAN NOT ADJUST

CAN NOT ADJUST

Setting high definition images to the suitable screen size

Use this procedure to set whether the number of vertical lines of the input high definition image is 10801 or 10351 or 540P.

Example: Setting the "HD SELECT" mode to "1035I"

On "HD SELECT" of "SET UP" menu, select "1035I".

SET UP
LANGUAGE	: ENGLISH
BNC INPUT	: COMPONENT
D-SUB INPUT	: RGB
HD SELECT	:1035I
RGB SELECT	: PC AUTO
HDMI SET UP
COLOR SYSTEM	: AUTO
BACK GROUND	: GRAY
GRAY LEVEL	: 3
S1/S2	: OFF
DISPLAY OSM	: ON
OSM ADJ.	: TOP LEFT
ALL RESET	: OFF
SEL ADJ.	ROI RETURN

Information

HD SELECT modes

These 3 modes are not displayed in correct image automatically.

1080I: Standard digital broadcasts

1035l: Japanese "High Vision" signal format

540P: Special Digital broadcasts (for example : DTC100)

Setting a computer image to the correct RGB select screen

With the computer image, select the RGB Select mode for a moving image such as (video) mode, wide mode or digital broadcast.

Example: Setting the "RGB SELECT" mode to "MOTION"

On "RGB SELECT" of "SET UP" menu, select "MOTION".

SET UP
LANGUAGE	: ENGLISH
BNC INPUT	: COMPONENT
D-SUB INPUT	: RGB
HD SELECT	: 10801
RGB SELECT	: MOTION
HDMI SET UP	1024×768
COLOR SYSTEM	: AUTO
BACK GROUND	: GRAY
GRAY LEVEL	: 3
S1/S2	: OFF
DISPLAY OSM	: ON
OSM ADJ.	: TOP LEFT
ALL RESET	: OFF
SEL ADJ.	[EXIT] RETURN

Information

RGB SELECT modes

One of these 7 modes must be selected in order to display the following signals correctly.

PC AUTO: Select the suitable mode for the specifications of input signals as listed in the table "Computer input signals supported by this system" on page 38-40.

STILL: To display VESA standard signals. (Use this mode for a still image from a computer.)

MOTION: The video signal (from a scan converter) will be converted to RGB signals to make the picture more easily viewable. (Use this mode for a motion image from a computer.)

WIDE1: When an 852 dot × 480 line signal with a horizontal frequency of 31.7kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE1.

WIDE2: When an 848 dot × 480 line signal with a horizontal frequency of 31.0 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE2.

WIDE3: When an 1920 dot × 1200 line signal with a horizontal frequency of 74.0 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE3.

DTV: Set this mode when watching digital broadcasting (480P/720P/1080I/576P).

See page 38-40 for the details of the above settings.

Setting the signal and black level for HDMI signal

Choose the signal for the HDMI connector (PC or STB/DVD) and set the black level.

Example: Setting the "PLUG/PLAY" mode to "STB/DVD"

On “SET UP” menu, select “HDMI SET UP”, then press the MENU/ENTER button.

The "HDMI SET UP" screen appears.

On “PLUG/PLAY” of “HDMI SET UP” menu, select “STB/DVD”.

HDMI SET UP PLUG/PLAY : BLACK LEVEL : HIGH SEL ADJ EXIT RETURN

Information

■ PLUG/PLAY settings

PC: When connected to the PC signal.

BLACK LEVEL is set to "LOW" automatically.

STB/DVD: When connected to the SET TOP BOX, DVD etc.

BLACK LEVEL is set to "HIGH" automatically.

LOW: When connected to the PC signal.

HIGH: When connected to the SET TOP BOX, DVD etc. Change “HIGH” into “LOW” if the black level appears gray.

Setting the video signal format

Use these operations to set the color systems of composite video signals or Y/C input signals.

Example: Setting the color system to "3.58 NTSC"

On "COLOR SYSTEM" of "SET UP" menu, select "3.58NTSC".

SET UP LANGUAGE : ENGLISH BNC INPUT : COMPONENT D-SUB INPUT : RGB HD SELECT : 1080I RGB SELECT : PC AUTO HDMI SET UP COLOR SYSTEM : 3.58NTSC BACK GROUND : GRAY GRAY LEVEL : 3 S1/S2 : OFF DISPLAY OSM : ON OSM ADJ. : TOP LEFT ALL RESET : OFF SEL ADJ. EXIT RETURN

Information

■ Video signal formats

Different countries use different formats for video signals. Set to the color system used in your current country.

AUTO: The color systems are automatically identified and the format is set accordingly.

PAL: This is the standard format used mainly in the United Kingdom and Germany.

SECAM: This is the standard format used mainly in France and Russia.

4.43 NTSC, PAL60: This format is used for videos in countries using PAL and SECAM video signals.

3.58 NTSC: This is the standard format used mainly in the United States and Japan.

PAL-M: This is the standard format used mainly in Brazil.

PAL-N: This is the standard format used mainly in Argentina.

Setting the background color when no signal is being input

The color displayed on the background when there is no signal can be set to gray.

Example: Setting "BACK GROUND" to "BLACK"

On “BACK GROUND” of “SET UP” menu, select “BLACK”.

SET UP LANGUAGE : ENGLISH BNC INPUT : COMPONENT D-SUB INPUT : RGB HD SELECT : 10801 RGB SELECT : PC AUTO HDMI SET UP COLOR SYSTEM : AUTO BACK GROUND : BLACK GRAY LEVEL : 3 S1/S2 : OFF DISPLAY OSM : ON OSM ADJ. : TOP LEFT ALL RESET : OFF SEL. ADJ. EXIT RETURN

Information

■ BACK GROUND Settings

BLACK: Sets the background color to black.

GRAY: Sets the background color to gray.

Setting this makes it easier to see that there is no signal.

Setting the gray level for the sides of the screen

Use this procedure to set the gray level for the parts on the screen on which nothing is displayed when the screen is set to the 4:3 size.

Example: Setting "GRAY LEVEL" to "5"

On "GRAY LEVEL" of "SET UP" menu, select "5".

SET UP LANGUAGE : ENGLISH BNC INPUT : COMPONENT D-SUB INPUT : RGB HD SELECT : 1080I RGB SELECT : PC AUTO HDMI SET UP COLOR SYSTEM : AUTO BACK GROUND : GRAY GRAY LEVEL : <5> S1/S2 : OFF DISPLAY OSM : ON OSM ADJ. : TOP LEFT ALL RESET : OFF SEL ADJ. RETURN

Information

■ GRAY LEVEL settings

This adjusts the brightness of the black (the gray level) for the sides of the screen.

The standard is 0 (black). The level can be adjusted from 0 to 15. The factory setting is 3 (dark gray).

Setting the screen size for S1/S2 video input

If the S-video signal contains screen size information, the image will be automatically adjusted to fit the screen when this S1/S2 is set to AUTO.

This feature is available only when an S-video signal is input via the VIDEO3 terminal.

Example: Setting "S1/S2" to "AUTO"

On "S1/S2" of "SET UP" menu, select "AUTO".

SET UP LANGUAGE : ENGLISH BNC INPUT : COMPONENT D-SUB INPUT : RGB HD SELECT : 1080I RGB SELECT : PC AUTO HDMI SET UP COLOR SYSTEM : AUTO BACK GROUND : GRAY GRAY LEVEL : 3 +S1/S2 : AUTO> DISPLAY OSM : ON OSM ADJ. : TOP LEFT ALL RESET : OFF SEL ADJ. EXIT RETURN

Information

■ S1/S2 settings

AUTO: Adjusts the screen size automatically according to the S1/S2 video signal.

OFF: Turns the S1/S2 function off.

Turning on/off the menu display

When this is set to OFF, the menu will not displayed even if you press the MENU/ENTER button.

Example: Turning the DISPLAY OSM off

On "DISPLAY OSM" of "SET UP" menu, select "OFF".

SET UP LANGUAGE : ENGLISH BNC INPUT : COMPONENT D-SUB INPUT : RGB HD SELECT : 1080I RGB SELECT : PC AUTO HDMI SET UP COLOR SYSTEM : AUTO BACK GROUND : GRAY GRAY LEVEL : 3 S1/S2 : OFF DISPLAY OSM : OFF OSM ADJ. : TOP LEFT ALL RESET : OFF SEL ADJ. RETURN

Information

■ DISPLAY OSM settings

ON: The on-screen menu appears.

OFF: The on-screen menu does not appear.

If you press the DISPLAY button on the remote control for more than 3 seconds the main menu will appear and can be set (although it is not ON).

Setting the position of the menu

Adjusts the position of the menu when it appears on the screen.

Example: Set the position to "TOP CENTER"

On "OSM ADJ." of "SET UP" menu, select "TOPCENTER".

SET UP LANGUAGE : ENGLISH BNC INPUT : COMPONENT D-SUB INPUT : RGB HD SELECT : 1080I RGB SELECT : PC AUTO HDMI SET UP COLOR SYSTEM : AUTO BACK GROUND : GRAY GRAY LEVEL : 3 S1/S2 : OFF DISPLAY OSM : ON +OSM ADJ. :TOP CENTER> ALL RESET : OFF SEL. +ADJ. EXIT RETURN

Information

■ OSM ADJUST settings

TOP LEFT TOP CENTER TOP RIGHT BTM LEFT BTM CENTER BTM RIGHT

Resetting to the default values

Use these operations to restore all the settings (PICTURE, AUDIO, IMAGE ADJUST, SET UP, etc) to the factory default values.

Refer to page 19 for items to be reset.

On “ALL RESET” of “SET UP” menu, select “ON”, then press the MENU/ENTER button.

SET UP LANGUAGE : ENGLISH BNC INPUT : COMPONENT D-SUB INPUT : RGB HD SELECT : 1080I RGB SELECT : PC AUTO HDMI SET UP COLOR SYSTEM : AUTO BACK GROUND : GRAY GRAY LEVEL : 3 S1/S2 : OFF DISPLAY OSM : ON OSM ADJ. : TOP LEFT ALL RESET : ON# SEL . ADV . RETURN

ALL RESET SETTING NOW

When the “SETTING NOW” screen disappears, then all the settings are restored to the default values.

Function Settings Menu

Setting the power management for computer images

This energy-saving (power management) function automatically reduces the monitor's power consumption if no operation is performed for a certain amount of time.

Example: Turning the power management function on

On "POWER MGT." of "FUNCTION" menu, select "ON".

FUNCTION POWER MGT. : ON INPUT SKIP : OFF PDP SAVER : MANUAL CLOSED CAPTION : OFF CAPTION CONT : LOW SEL ADJ. EXTRRETURN

Information

■ Power management function

* The power management function automatically reduces the monitor's power consumption if the computer's keyboard or mouse is not operated for a certain amount of time. This function can be used when using the monitor with a computer.
* If the computer's power is not turned on or if the computer and selector tuner are not properly connected, the system is set to the off state.
* For instructions on using the computer's power management function, refer to the computer's operating instructions.

■ Power management settings

ON: In this mode the power management function is turned on.

OFF: In this mode the power management function is turned off.

■ Power management function and POWER/STANDBY indicator

The POWER/STANDBY indicator indicates the status of the power management function. See below for indicator status and description.

POWER/STANDBY indicator

Power management mode	POWER/ STANDBY Indicator	Power management operating status	Description	Turning the picture back on
On	Green	Not activated.	Horizontal and vertical synchronizing signals are present from the computer.	Picture already on.
Off	Red	Activated.	Horizontal and/or vertical synchronizing signals are not sent from the computer.	Operate the keyboard or mouse. The picture reappears.

Setting the Input Skip

When this is ON, signals which are not present will be skipped over and only pictures whose signals are being transmitted will be displayed.

This setting is valid only for the INPUT SELECT button on the unit.

Example: Set to "ON"

On "INPUT SKIP" of "FUNCTION" menu, select "ON".

FUNCTION POWER MGT. : OFF INPUT SKIP : ON PDP SAVER : MANUAL CLOSED CAPTION : OFF CAPTION CONT : LOW SEL ADJ EXIT RETURN

Information

■ INPUT SKIP settings

OFF: Regardless of the presence of the signal, scan and display all signals.

ON: If no input signal is present, skip that signal.

* "SETTING NOW" will appear during the input search.

Reducing burn-in of the screen

The brightness of the screen, the position of the picture, positive/negative mode and screen wiper are adjusted to reduce burn-in of the screen.

On “PDP SAVER” of “FUNCTION” menu, select “MANUAL”, then press the MENU/ENTER button.

The "PDP SAVER" screen appears.

PDP SAVER PEAK BRIGHT : 100% ORBITER : OFF INVERSE/WHITE : OFF SCREEN WIPER : OFF SOFT FOCUS : OFF OSM ORBITER : ON OSM CONTRAST : LOW SEL. ADJ. EXIT RETURN

Information

■ When set to AUTO

Set automatically, as described below.

PEAK BRIGHT: 100%

ORBITER: ON

INVERSE/WHITE: OFF

SCREEN WIPER: OFF

SOFT FOCUS: OFF

OSD ORBITER: ON

OSD CONTRAST: LOW

PEAK BRIGHT

Use this to activate the brightness limiter.

Example: Setting "PEAK BRIGHT" to "75%"

On "PEAK BRIGHT" of "PDP SAVER" menu, select "75%".

PDP SAVER PEAK BRIGHT : 75% ORBITER : OFF INVERSE/WHITE : OFF SCREEN WIPER : OFF SOFT FOCUS : OFF OSM ORBITER : ON OSM CONTRAST : LOW SEL ADJ EXIT RETURN

Information

■ PEAK BRIGHT settings

100%: The brightness of the screen is adjusted automatically to suit the picture quality.

75%, 50%, 25%: Sets maximum brightness.

The brightness level decreases in the order of 75%, 50%, 25%. 25% provides minimum brightness.

* These values are approximate.

ORBITER

Use this to set the picture shift.

Example: Setting "ORBITER" to "AUTO1"

On "ORBITER" of "PDP SAVER" menu, select "AUTO1".

PDP SAVER PEAK BRIGHT : 100% ORBITER : (AUTO1) INVERSE/WHITE : OFF SCREEN WIPER : OFF SOFT FOCUS : OFF OSM ORBITER : ON OSM CONTRAST : LOW SEL ADJ. EXTRETURN

Information

■ ORBITER settings

OFF: Orbiter mode does not function.

This is the default setting when RGB is input.

AUTO1: The picture moves around the screen intermittently, making the picture smaller. This is the default setting when a Video or a DVD/HD/DTV signal is input. Set to "OFF" when these signals are not used.

AUTO2: The picture moves around the screen intermittently, making the picture bigger.

* When a Video or a DVD/HD/DTV signal is input, the AUTO1 and 2 functions will affect only the moving picture and will not make the screen smaller or bigger.

INVERSE/WHITE

Use this to set the inverse mode or to display a white screen.

Example: Setting "INVERSE/WHITE" to "WHITE"

On “INVERSE/WHITE” of “PDP SAVER” menu, select “WHITE”.

PDP SAVER PEAK BRIGHT : 100% ORBITER : OFF INVERSE/WHITE : WHITE SCREEN WIPER : OFF SOFT FOCUS : OFF OSM ORBITER : ON OSM CONTRAST : LOW SEL ADJ. EX RETURN

Information

■ INVERSE/WHITE Settings

OFF: Inverse/white mode does not function.

INVERSE: The picture is displayed alternately between positive image and negative image.

WHITE: The entire screen turns white.

SCREEN WIPER

When this is set to ON, a white vertical bar moves repeatedly from the left and of the screen to the right end at a constant speed.

Example: Setting "SCREEN WIPER" to "ON"

On “SCREEN WIPER” of “PDP SAVER” menu, select “ON”.

PDP SAVER PEAK BRIGHT : 100% ORBITER : OFF INVERSE/WHITE : OFF SCREEN WIPER : ON SOFT FOCUS : OFF OSM ORBITER : ON OSM CONTRAST : LOW SEL ADJ. EXIT RETURN

Information

SCREEN WIPER

ON: The white vertical bar appears.

OFF: Screen wiper mode does not function.

SOFT FOCUS

Reduces edges and softens the image.

Example: Setting "SOFT FOCUS" to "LEVEL2"

On “SOFT FOCUS” of “PDP SAVER” menu, select “LEVEL2”.

PDP SAVER PEAK BRIGHT : 100% ORBITER : OFF INVERSE/WHITE : OFF SCREEN WIPER : OFF SOFT FOCUS : LEVEL2 OSM ORBITER : ON OSM CONTRAST : LOW SEL ADJ. EXIT RETURN

Information

■ SOFT FOCUS settings

OFF: Turns the SOFT FOCUS function off.

LEVEL1, 2, 3, 4: Activates the SOFT FOCUS setting. The higher numbers create a softer image.

“SHARPNESS” can not be adjusted on the “PICTURE” menu.

OSM ORBITER

Use this to set OSM menu shift.

Example: Setting "OSM ORBITER" to "OFF"

On “OSM ORBITER” of “PDP SAVER” menu, select “OFF”.

PDP SAVER PEAK BRIGHT : 100% ORBITER : OFF INVERSE/WHITE : OFF SCREEN WIPER : OFF SOFT FOCUS : OFF +OSM ORBITER :OFF OSM CONTRAST : LOW SEL ADJ. EXITRETURN

Information

OSM ORBITER settings

ON: The position of the menu will be shifted by eight dots each time OSM is displayed.

OFF: OSM will be displayed at the same position.

OSM CONTRAST

Use this to reduce the brightness of OSM menu.

Example: Setting "OSM CONTRAST" to "NORMAL"

On “OSM CONTRAST” of “PDP SAVER” menu, select “NORMAL”.

PDP SAVER PEAK BRIGHT : 100% ORBITER : OFF INVERSE/WHITE : OFF SCREEN WIPER : OFF SOFT FOCUS : OFF OSM ORBITER : ON OSM CONTRAST : NORMAL SEL ADJ. RETURN

Information

■ OSM CONTRAST settings

NORMAL: OSM brightness is set to normal.

LOW: OSM brightness is set to lower.

Setting Closed Caption

This function sets several closed caption modes that allows text to be superimposed on display.

Example: Setting "CAPTION2"

On “CLOSED CAPTION” of “FUNCTION” menu, select “CAPTION2”.

FUNCTION POWER MGT. : OFF INPUT SKIP : OFF PDP SAVER : MANUAL CLOSED CAPTION : CAPTION2 CAPTION CONT : LOW SEL ADJ. EXIT RETURN

Information

■ CLOSED CAPTION settings

OFF: This exits the closed caption mode.

CAPTION1\~4: Text is superimposed.

TEXT1\~4: Text is displayed in full screen.

A closed caption signal may not be decoded in the following signature;

1. when a video tape has been dubbed.
2. when the signal reception is weak.
3. when the signal reception is nonstandard.
   When using closed captioned channel or the text mode, the text screen always appears.

When there is no signal, however, the text screen will not display text characters.

Reducing the brightness of Closed Caption

Use this to reduce the brightness of Closed Caption.

Example: Setting "NORMAL"

On “CAPTION CONT” of “FUNCTION” menu, select “NORMAL”.

FUNCTION POWER MGT. : OFF INPUT SKIP : OFF PDP SAVER : MANUAL CLOSED CAPTION : OFF CAPTION CONT : NORMAL SEL. ADJ. EXIT RETURN

Information

■ CAPTION CONT settings

NORMAL: Closed Caption brightness is set to normal.

LOW: Closed Caption brightness is set to lower.

Signal Information Menu

Checking the frequencies, polarities of input signals, and resolution

Use this function to check the frequencies and polarities of the signals currently being input from a computer, etc. On “MAIN MENU”, select “SIGNAL INFO.”, then press the MENU/ENTER button.

The "SIGNAL INFORMATION" is displayed.

SIGNAL INFORMATION H. FREQUENCY : 48.4KHz V. FREQUENCY : 60.0Hz H. POLARITY : NEGATIVE V. POLARITY : NEGATIVE MEMORY : 24 RESOLUTION : 1024×768 SEL ADL EXE RETURN

PC: MEMORY will be displayed.

Others: MODE will be displayed.

External Control

Pin Assignments

Application

These specifications cover the communications control of the plasma monitor by external equipment.

Connections

Connections are made as described below.

Display

Connector on the plasma monitor side: EXTERNAL CONTROL connector.

Use a crossed (reverse) cable.

Type of connector: D-Sub 9-pin male

Pin No.	Pin Name	Pin No.	Pin Name
1	No Connection	6	DSR (DCE side ready)
2	RXD (Receive data)	7	RTS (Ready to send)
3	TXD (Transmit data)	8	CTS (Clear to send)
4	DTR (DTE side ready)	9	No connection
5	GND

Communication Parameters

(1) Communication system Asynchronous
(2) Interface RS-232C
(3) Baud rate 9600 bps
(4) Data length 8 bits
(5) Parity Odd
(6) Stop bit 1 bit
(7) Communication code Hex

External Control Codes (Reference)

FUNCTION CODE DATA

Power ON 9FH 80H 60H 4EH 00H CDH

OFF 9FH 80H 60H 4FH 00H CEH

Input Switch Video1 (BNC) DFH 80H 60H 47H 01H 01H 08H
	Video2 (RCA)	DFH 80H 60H 47H 01H 02H 09H
	Video3 (S-Video)	DFH 80H 60H 47H 01H 03H 0AH
	DVD1/HD1 (RCA)	DFH 80H 60H 47H 01H 05H 0CH
	DVD2/HD2 (BNC)	DFH 80H 60H 47H 01H 08H 0DH
	DVD3/HD3 (HDMI)	DFH 80H 60H 47H 01H 0EH 15H
	RGB1 (mini D-sub 15-pin)	DFH 80H 60H 47H 01H 07H 0EH
	RGB2 (SBNC) DFH 80H 60H 47H 01H 08H 0FH
	RGB3 (HDMI) DFH 80H 60H 47H 01H 0CH 13H
Audio Mute	ON	9FH 80H 60H 3EH 00H BDH
	OFF	9FH 80H 60H 3FH 0CH BEH
Picture Mode	NORMAL	DFH 80H 60H 0AH 01H 01H CBH
	THEATER 1	DFH 80H 60H 0AH 01H 02H CCH
	THEATER 2	DFH 80H 60H 0AH 01H 03H CDH
	DEFAULT	DFH 80H 60H 0AH 01H 04H CEH
	BRIGHT	DFH 80H 60H 0AH 01H 05H CFH
Screen Mode	STADIUM	DFH 80H 60H 51H 01H 02H 13H
	ZOOM	DFH 80H 60H 51H 01H 03H 14H
	NORMAL	DFH 80H 60H 51H 01H 04H 15H
	ANAMORPHIC	DFH 80H 60H 51H 01H 05H 16H
	14 : 9	DFH 80H 60H 51H 01H 09H 1AH
	2.35 : 1	DFH 80H 60H 51H 01H 0AH 1BH
Auto Picture	ON	DFH 80H 60H 7FH 03H 03H 09H 00H 4DH
	OFF	DFH 80H 60H 7FH 03H 03H 09H 01H 4EH
Cinema Mode	ON	DFH 80H 60H C1H 01H 01H 82H
	OFF	DFH 80H 60H C1H 01H 02H 83H

Note: Contact your local dealer for a full list of the External Control Codes if needed.

Pin No.	Signal (Analog)
1	Red
2	Green or sync-on-green
3	Blue
4	No connection
5	Ground
6	Red ground
7	Green ground
8	Blue ground
9	No connection
10	Sync signal ground
11	No connection
12	Bi-directional DATA (SDA)
13	Horizontal sync or Composite sync
14	Vertical sync
15	Data clock

HDMI connector (Digital)

The unit is equipped with a type of connector commonly used for digital.

(This cannot be used for an analog input.)

(TMDS can be used for one link only.)

Pin No.	Signal (Digital)
1	TMDS Data 2+
2	TMDS Data 2 Shield
3	TMDS Data 2-
4	TMDS Data 1+
5	TMDS Data 1 Shield
6	TMDS Data 1-
7	TMDS Data 0+
8	TMDS Data 0 Shield
9	TMDS Data 0-
10	TMDS Clock+
11	TMDS Clock Shield
12	TMDS Clock-
13	CEC
14	Reserved (in cable but N.C. on device)
15	SCL
16	SDA
17	DDC/CEC Ground
18	+5V Power
19	Hot Plug Detect

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Symptom	Checks	Remedy
Mechanical sound is heard.	· Maybe the sound from the cooling fans used to prevent over heating.
The unit emits a crackling sound.	· Are the image and sound normal?	· If there are no abnormalities in the image and sound, the noise is caused by the cabinet reacting to changes in temperature. This will not affect performance.
Picture is disturbed.Sound is noisy.Remote control operates erroneously.	· Is a connected component set directly in front or at the side of the display?	· Leave some space between the display and the connected components.
The remote control does not work.	· Are the remote control's batteries worn out?	· Replace both batteries with new ones.
Monitor's power does not turn on when the remote control's power button is pressed.	· Is the monitor's power cord plugged into a power outlet?	· Plug the monitor's power cord into a power outlet.
	· Are all the monitor's indicators off?	· Press the power button on the monitor to turn on the power.
	· Are the remote control's batteries worn out?	· Replace both batteries with new ones.
Monitor does not operate when the remote control's buttons are pressed.	· Is the remote control pointed at the monitor, or is there an obstacle between the remote control and the monitor?	· Point the remote control at the monitor's remote control sensor when pressing buttons, or remove the obstacle.
	· Is direct sunlight or strong artificial light shining on the monitor's remote control sensor?	· Eliminate the light by closing curtains, pointing the light in a different direction, etc.
	· Are the remote control's batteries worn out?	· Replace both batteries with new ones.
No sound or picture is produced.	· Is the monitor's power cord plugged into a power outlet?	· Plug the monitor's power cord into a power outlet.
Picture appears but no sound is produced.	· Is the volume set at the minimum?	· Increase the volume.
	· Is the mute mode set?· Are the speakers properly connected?	· Press the remote control's MUTE button.· Connect the speakers properly.
	· Is AUDIO INPUT set correctly?	· Set AUDIO INPUT on the AUDIO menu correctly.
Poor picture with VIDEO signal input.	· Improper control setting.Local interference.Cable interconnections.Input impedance is not correct level.	· Adjust picture control as needed.Try another location for the monitor.Be sure all connections are secure.
Poor picture with RGB signal input.	· Improper control setting.Incorrect 15 PIN connector pin connections.	· Adjust picture controls as needed.Check pin assignments and connections.
Tint is poor or colors are weak.	· Are the tint and colors properly adjusted?	· Adjust the tint and color (under PICTURE).
Nothing appears on screen.	· Is the computer's power turned on?	· Turn on the computer's power.
	· Is a source connected?	· Connect source to the monitor.
	· Is the power management function in the standby or off mode?	· Operate the computer (move the mouse, etc.).
Part of picture is cut off or picture is not centered.	· Is the position adjustment appropriate?	· Adjust the IMAGE ADJUST properly.
Image is too large or too small.	· Is the screen size adjustment appropriate?	· Press the WIDE button on the remote control and adjust properly.
Picture is unstable.	· Is the computer's resolution setting appropriate?	· Set to the proper resolution.
POWER/STANDBY indicator is lighted in red.	· Horizontal and / or vertical sync signal is not present when the Intelligent Power Manager control is on.	· Check the input signal.
POWER/STANDBY indicator is blinking in red.	· The temperature inside the main unit has become too high and has activated the protector.	· Promptly switch off the power of the main unit and wait until the internal temperature drops. See*1.
POWER/STANDBY indicator is blinking in green and red, or green.	——	· Prompty switch off the power of the main unit. See *2.

*1 Overheat protector
If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor to cool for 60 minutes. If the problem persists, contact your dealer.
*2 In the following case, power off the monitor immediately and contact your dealer or authorized Service Center.
The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit, plasma display panel, temperature sensor, or one or more fans have been damaged.

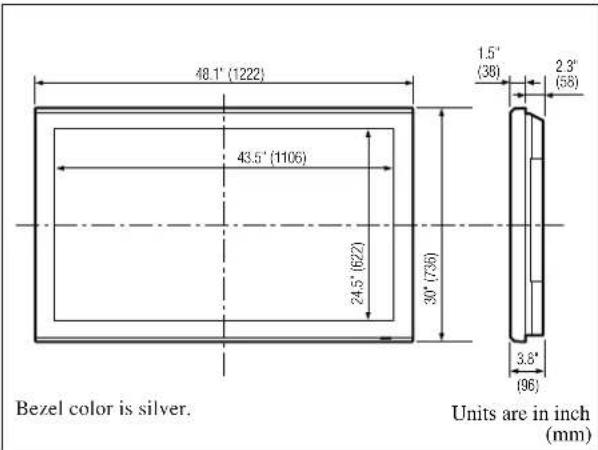

Screen Size	43.5"(H)×24.5"(V) inches
	1106(H)×622(V) mm
	diagonal 50"

Aspect Ratio 16:9

Resolution 1365(H) × 768(V) pixels

Pixel Pitch	0.032"(H)×0.032"(V) inches
	0.81(H)×0.81(V) mm

Color Processing 4,096 steps, 68.7 billion colors

Signals

Synchronization Range Horizontal : 15.5 to 110 kHz(automatic : step scan)Vertical : 50.0 to 120 Hz(automatic : step scan)

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),PAL60, SECAM, HD*, DVD*, DTV*1

Input Terminals

RGB
Visual 1 (Analog)	mini D-sub 15-pin×1
Visual 2 (Analog)	BNC (R, G, B, H/CS, V) × 1*2
Visual 3 (Digital)	HDMI × 1*3

Video

Visual 1 BNC×1

Visual 2 RCA-pin×1

Visual 3 S-Video: DIN 4-pin×1

DVD/HD/DTV

Visual 1	RCA-pin (Y, PB[CB], PR[CR]) × 1^ *
Visual 2	BNC (Y, PB[CB], PR[CR]) × 1^ * , ^*2
Visual 3 HDMI × 1^ *	3

Audio Stereo RCA×3 (Selectable)

External Control

D-sub 9-pin × 1 (RS-232C)

Sound output 9W+9W at 6 ohm

Power Supply AC100-240V 50/60Hz

Current Rating	7.6A (maximum)
Power Consumption	435W (typical)
Dimensions	48.1 (W)×30 (H)×3.8 (D) inches1222 (W)×736 (H)×96(D) mm
Weight	98.1 lbs / 44.5 kg (without stand)

Environmental Considerations

Operating Temperature		0°C to 40°C / 32°F to 104°F
	Humidity	20 to 80% (no condensation)
	Altitude	0 to 9180 feet / 0 to 2800 m
Storage	Temperature	-10°C to 50°C / 14°F to 122°F
	Humidity	10 to 90% (no condensation)
	Altitude	0 to 9840 feet / 0 to 3000 m

Front Panel User Controls

Power on/off, Input source select, Volume up/down/ OSM control

Remote Control Functions

Power on/off, Input source select, OSM control, Volume up/down, Cursor (UP, DOWN, LEFT, RIGHT), Zoom up/down, Split screen buttons

OSM Functions PICTURE (PICTURE MEMORY/CONTRAST/BRIGHTNESS/SHARPNESS/COLOR/TINT/NR/COLOR TEMP./WHITE BALANCE/GAMMA/LOW TONE/SET UP LEVEL/COLOR TUNE/CINEMA MODE/PICTURE MODE), AUDIO (BASS/TREBLE/BALANCE/AUDIO INPUT1/AUDIO INPUT2/AUDIO INPUT3), IMAGE ADJUST (ASPECT MODE/V-POSITION/H-POSITION/V-HEIGHT/H-WIDTH/AUTO PICTURE/FINE PICTURE/PICTURE ADJ.), SET UP (LANGUAGE*/BNC INPUT/D-SUB INPUT/HD SELECT/RGB SELECT/HDMI SET UP/COLOR SYSTEM/BACK GROUND/GRAY LEVEL/S1/S2/DISPLAY OSM/OSM ADJ./ALL RESET), FUNCTION (POWER MGT./INPUT SKIP/SUB. P DETECT/ZOOM NAV/PICTURE FREEZE/PDP SAVER [PEAK BRIGHT / ORBITER/INVERSE/WHITE/SCREEN WIPER / SOFT FOCUS / OSM ORBITER / OSM CONTRAST]/CLOSED CAPTION/CAPTION CONT), SIGNAL INFO.

48.1" (1222) 43.5" (1106) 24.5" (622) 30" (736) Bezel color is silver. Units are in inch (mm)

The features and specifications may be subject to change without notice.

*1HD/DVD/DTV input signals supported on this system
480P (60 Hz)	480I (60 Hz)	525P (60 Hz)
525I (60 Hz)	576P (50 Hz)	576I (50 Hz)
625P (50 Hz)	625I (50 Hz)	720P (60 Hz)
1035I (60 Hz)	1080I (50 Hz)	1080I (60 Hz)

*2The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input. Select one of them under "BNC INPUT".

*3 Compatible with HDCP.

Supported Signals

• 640×480P @ 59.94/60Hz
• 1920×1080I @ 50Hz
• 1280×720P @ 59.94/60Hz
• 720×576P @ 50Hz
  • 1920×1080I @ 59.94/60Hz • 1440 (720)×576P @ 50Hz
  • 720×480P @ 59.94/60Hz
  • 1440 (720)×480I @ 59.94/60Hz

Note: In some cases a signal on the plasma monitor may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc...). If you do experience such a problem please contact your authorized Marantz dealer and also the manufacturer of the source equipment.

	*English, German, French, Italian, Spanish, Swedish, Chinese, Russian
Other Features	Motion compensated 3D Scan Converter (NTSC, PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3 pull down Converter (NTSC, 480I, 525I, 1035I, 1080I (60Hz)), 2-2 pull down Converter (PAL, 576I, 625I, NTSC, 480I, 525I), Digital Zoom Function (100-900% Selectable), Self Diagnosis, Image Burn reduction tools (PEAK BRIGHT, INVERSE, WHITE, ORBITER, SCREEN WIPER), Color Temperature select (high/middle/ middle low/low, user has 4 memories), Auto Picture, Input Skip, Color Tune, Low Tone (3 mode), Gamma Correction (4 mode), Plug and play (DDC1, DDC2b, RGB3: DDC2b only), Split screen operations
Accessories	Remote control with two AAA batteries, Power cord, User Guide, Safety metal fittings, Ferrite cores, Bands, Cable clamps
Regulations	UL approved (UL60950, UL6500, CSA C22.2 No.60950-00, CAN/CSA-E60065-00) SEMKO Approved (EN60950, EN60065, IEC60950, IEC60065) Meets FCC Part 15 Class B DOC Canada requirements Meets AS/NZS CISPR 22:2002 Class B
OPTION STAND	AS5400

Table of Signals Supported

■ PD5050D Supported resolution

- When the screen mode is NORMAL, each signal is converted to a 1024 dots × 768 lines signal. (Except for *2,3,4)

- When the screen mode is TRUE, the picture is displayed in the original resolution.

- When the screen mode is FULL, each signal is converted to a 1365 dots × 768 lines signal. (Except for *3)

Computer input signals supported by this system

Model

Dots × lines

Vertical frequency (Hz)

Horizontal frequency (kHz)

Sync Polarity

Presence

Screen mode

RGB select*5

HDMI

Memory

Horizontal

Vertical

Horizontal

Vertical

NORMAL(4:3)

TRUE

FULL(16:9)

640×400

70.1

31.5

NEG

NEG

YES

YES

YES^*2

YES

YES

--

NO

4

IBM PC/AT*6 compatible computers

640×480

59.9

31.5

NEG

NEG

YES

YES

YES

YES

YES

STILL

YES

5

72.8

37.9

NEG

NEG

YES

YES

YES

YES

YES

--

YES

7

75.0

37.5

NEG

NEG

YES

YES

YES

YES

YES

STILL

YES

8

85.0

43.3

NEG

NEG

YES

YES

YES

YES

YES

--

YES

9

100.4

51.1

NEG

NEG

YES

YES

YES

YES

YES

--

YES

41

120.4

61.3

NEG

NEG

YES

YES

YES

YES

YES

--

YES

42

848×480

60.0

31.0

POS

POS

YES

YES

--

YES

YES

WIDE2

YES

19

852×480^*1

60.0

31.7

NEG

NEG

YES

YES

--

YES

YES

WIDE1

YES

17

800×600

56.3

35.2

POS

POS

YES

YES

YES

YES

YES

STILL

YES

11

60.3

37.9

POS

POS

YES

YES

YES

YES

YES

STILL

YES

12

72.2

48.1

POS

POS

YES

YES

YES

YES

YES

--

YES

13

75.0

46.9

POS

POS

YES

YES

YES

YES

YES

--

YES

14

85.1

53.7

POS

POS

YES

YES

YES

YES

YES

--

YES

15

99.8

63.0

POS

POS

YES

YES

YES

YES

YES

--

YES

43

120.0

75.7

POS

POS

YES

YES

YES

YES

YES

--

YES

44

1024×768

60.0

48.4

NEG

NEG

YES

YES

YES^*3

--

YES

STILL

YES

24

70.1

56.5

NEG

NEG

YES

YES

YES^*3

--

YES

--

YES

25

75.0

60.0

POS

POS

YES

YES

YES^*3

--

YES

STILL

YES

26

85.0

68.7

POS

POS

YES

YES

YES^*3

--

YES

--

YES

27

100.6

80.5

NEG

NEG

YES

YES

YES^*3

--

YES

--

YES

45

1152×864

75.0

67.5

POS

POS

YES

YES

YES

--

YES

STILL

YES

51

1280×768

56.2

45.1

POS

POS

YES

YES

--

--

YES

WIDE1

NO

52

59.8

48.0

POS

NEG

YES

YES

--

--

YES

WIDE3

YES

80

1280×768^*9

69.8

56.0

NEG

POS

YES

YES

--

--

YES

WIDE1

YES

66

1280×800^*9

60.0

49.7

NEG

NEG

YES

YES

--

--

YES

WIDE1

YES

21

1280×854^*9

60.0

53.1

NEG

NEG

YES

YES

--

--

YES

WIDE2

YES

37

1360×765

60.0

47.7

POS

POS

YES

YES

--

--

YES^*3

WIDE1

NO

22

1360×768

60.0

47.7

POS

POS

YES

YES

--

--

YES^*3

WIDE1

YES

22

1376×768

59.9

48.3

NEG

POS

YES

YES

--

--

YES

WIDE2

YES

53

1280×1024

60.0

64.0

POS

POS

YES

YES

YES^*4

--

YES

STILL

YES

29

75.0

80.0

POS

POS

YES

YES

YES^*4

--

YES

--

YES

30

85.0

91.1

POS

POS

YES

YES

YES^*4

--

YES

--

YES

40

100.1

108.5

POS

POS

YES

YES

YES^*4

--

YES

--

NO

47

1680×1050^*9

60.0

65.3

NEG

NEG

YES

YES

--

--

YES

WIDE4

YES

38

1600×1200

60.0

75.0

POS

POS

YES

YES

YES

--

YES

--

YES

54

65.0

81.3

POS

POS

YES

YES

YES

--

YES

--

NO

55

70.0

87.5

POS

POS

YES

YES

YES

--

YES

--

NO

56

75.0

93.8

POS

POS

YES

YES

YES

--

YES

--

NO

57

85.0

106.3

POS

POS

YES

YES

YES

--

YES

--

NO

58

1920×1200^*9

60.0

74.6

NEG

NEG

YES

YES

--

--

YES

WIDE2

--

81

1920×1200RB^*9

60.0

74.0

NEG

NEG

YES

YES

--

--

YES

WIDE3

YES

88

Apple Macintosh*8*8

640×480

66.7

35.0

Sync on G

Sync on G

--

--

YES

YES

YES

--

NO

6

832×624

74.6

49.7

Sync on G

Sync on G

--

--

YES

YES

YES

--

NO

16

1024×768

74.9

60.2

Sync on G

Sync on G

--

--

YES^*3

--

YES

WIDE1

NO

28

1152×870

75.1

68.7

Sync on G

Sync on G

--

--

YES

--

YES

WIDE1

NO

39

1440×900^*9

60.0

56.0

NEG

NEG

YES

YES

--

--

YES

--

YES

89

Work Station (EWS4800)*8

1280×1024

60.0

64.6

NEG

NEG

YES

YES

YES^*4

--

YES

--

YES

29

71.2

75.1

NEG

NEG

YES

YES

YES^*4

--

YES

--

YES

48

Work Station (HP)*8

1280×1024

72.0

78.1

--

--

--

--

YES^*4

--

YES

--

YES

59

Work Station (SUN)*8

1152×900

66.0

61.8

C Sync

C Sync

--

--

YES

--

YES

--

YES

60

76.0

71.7

C Sync

C Sync

--

--

YES

--

YES

--

YES

61

1280×1024

76.1

81.1

C Sync

C Sync

--

--

YES^*4

--

YES

--

YES

30

Work Station (SGI)

1024×768

60.0

49.7

--

--

--

--

YES^*3

--

YES

--

YES

62

1280×1024

60.0

63.9

--

--

--

--

YES^*4

--

YES

--

YES

29

IDC-3000G

PAL625P

768×576

50.0

31.4

NEG

NEG

YES

YES

YES^*7

--

YES^*7

--

NO

31

NTSC525P

640×480

59.9

31.5

NEG

NEG

YES

YES

YES^*7

--

YES^*7

MOTION

NO

32

*1 Only when using a graphic accelerator board that is capable of displaying 852×480.

*2 PD4230V : Display only 400 lines with the screen center of the vertical orientation located at the center. PD4250D : Display only 640 lines with the screen center of the vertical orientation located at the center. PD5050D : This signal is converted to a 1024 dots × 640 lines signal.

*3 The picture is displayed in the original resolution. The picture will be compressed for other signals (PD4230V/PD4250D).

*4 PD4230V : Aspect ratio is 5:4. This signal is converted to a 600 dots × 480 lines signal. PD4250D : Aspect ratio is 5:4. This signal is converted to a 720 dots × 768 lines signal. PD5050D : The aspect ratio is 5:4. This signal is converted to a 960 dots × 768 lines signal.

*5 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the RGB mode prepared for the input signals listed in the table above.

*6 To connect the monitor to Macintosh computer, use the monitor adapter (D-Sub 15-pin) to your computer's video port.

*7 Other screen modes (ZOOM and STADIUM) are available as well.

*8 When viewing a moving picture at a vertical frequency greater than 65Hz, the picture may sometimes be unstable (jumpy). If this occurs, please set the refresh rate of the external equipment to 60Hz. To view 480I@60Hz (480 interlaced lines, 60Hz refresh rate) or 576I@50Hz (567 interlaced lines, 50Hz refresh rate) when sync polarity is “Sync on Green”, set “RGB SELECT” to “MOTION”.

*9 CVT standard compliant.

NOTE:

- While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size of the picture or the fine picture because of errors in synchronization of your computer.

- When a 1280 dots × 1024 lines signal or 1600 dots × 1200 lines signal is input to the monitor, the picture will be compressed (PD5050D).

- PD4230V: This monitor has a resolution of 853 dots × 480 lines. It is recommended that the input signal should be VGA, wide VGA, or equivalent. PD4250D: This monitor has a resolution of 1024 dots × 768 lines. It is recommended that the input signal should be XGA, wide XGA, or equivalent. PD5050D: This monitor has a resolution of 1365 dots × 768 lines. It is recommended that the input signal should be XGA, wide XGA, or equivalent.

- With digital input some signals are not accepted.

- The sync may be disturbed when a nonstandard signal other than the aforementioned is input.

- If you are connecting a composite sync signal, use the HD terminal.

- "IBM PC/AT" and "VGA" are registered trademarks of International Business Machines, Inc. of the United States.

- “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

- HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDM2 licensing LLC.

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party:

Address:

Tel. No.:

Marantz America, Inc.

1100 Maplewood Drive,

Itasca, IL 60143, U.S.A.

630-741-0300

Type of Product:

Plasma Display

Equipment Classification:

Class B Peripheral

Models:

PD4230V/UIB, PD4250D/UIB, PD5050D/UIB, PD6150D/UIB

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

www.marantz.com
