USER MANUAL PD6140D MARANTZ

Introduction to the Plasma Monitor

Marantz's Plasma Monitor is a seamless blend of cutting-edge visual technology and sophisticated design. At each inch, with a 16:9 aspect ratio, the Plasma Monitor certainly makes a big impression. However, the monitor's sleek techno-art lines blend in well with your environment. Marantz Plasma Monitor's crisp, vivid image quality will transform data from any graphic medium from PCs to DVD players- into art. Marantz has made sure that a host of multimedia resources can be easily connected and displayed as brilliantly as intended on the Plasma Monitor.

The features you'll enjoy include:

• Color Filter and black matrix
- The enhanced display in red uses a two-stage filtering system.
- Flicker - and warp - free display provides excellent image geometry even in screen corners
- Not affected by magnetic fields, no color drift or edge distortion.
• VGA, SVGA, XGA, SXGA, UXGA computer signal compatibility
- NTSC, PAL, SECAM, composite and S-Video signal compatibility
• 480P, 1080I, 720P and HDTV signal compatibility
• PCs, VCRs, Laser Disc and DVD player source compatibility
- AccuBlend scan conversion automatically converts VGA, SVGA, XGA, SXGA and UXGA signals to the panel's native resolution.
- Advanced Mass Area Sampling Progressive Scan method is employed.
- RGB (3*), Video (3), DVD/HD (2*), Audio input (3), External Control input (1)
- AccuColor control system provides user selectable on-screen color temperature settings
- New Drive Technology
- Component video input terminal for DVD, 15.75kHz (Y, CB, CR)
• Digital broadcasting source compatibility
- OSM menu-driven on screen control system that makes image adjustments a snap
- Seven languages (English, German, French, Italian, Spanish, Swedish, and Chinese)
* You can set the 5BNC input to be used as an RGB or component input. When the 5BNC input is set for RGB, there are a total of three RGB inputs; when the 5BNC input is set for component there are a total of two DVD/HD inputs (see page 24).

Contents of the Package

□ Plasma monitor
□ Power cord
□ Remote control with two AAA Batteries
□ Manuals
□ Safety metal fitting parts*
□ Ferrite cores, bands
□ Cable clamps

* Contents will differ according to the model.

* These are fittings for fastening the unit to a wall to prevent tipping due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws (see page 1).

Options

- Wall mount unit

- Stand

Precautions

Please read this manual carefully before using your plasma monitor and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warnings and Safety Precaution

This plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Please see the section "Plasma monitor cleaning procedure" on the next page.

The plasma display panel consists of fine picture elements (cells) with more than 99.99 percent active cells. There may be some cells that do not produce light or remain lit.

For operating safety and to avoid damage to the unit, read carefully and observe the following instructions. To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install the unit in a closed cabinet or shelves.
   If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for 60 minutes to cool the monitor. If the problem persists, contact your Marantz dealer for service.
2. Do not use this unit's polarized plug with extension cords or outlets unless the prongs can be completely inserted.
3. Do not expose the unit to water or moisture.
4. Avoid damage to the power cord, and do not attempt to modify the power cord.
5. Unplug the power cord during electrical storms or if the unit will not be used over a long period.
6. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.
7. Do not attempt to service or repair the unit. The manufacturer is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized Marantz Service Centers.

To avoid damage and prolong operating life:

1. Use only with 120V 50/60Hz AC power supply. Continued operation at line voltages greater than 120 Volts AC will shorten the life of the unit, and might even cause a fire hazard.
2. Handle the unit carefully when installing it and do not drop.
3. Set the unit away from heat, excessive dust, and direct sunlight.
4. Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the power cord and have it serviced by an authorized Service Center.
5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.
6. For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.
7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.
8. To avoid sulfurization it is strongly recommended not to place the unit in a dressing room in a public bath or hot spring bath.

Plasma monitor cleaning procedure:

1. Use a soft dry cloth to clean the front panel and bezel area. Never use solvents such as alcohol or thinner to clean these surfaces.
2. Clean plasma ventilation areas with a vacuum cleaner with a soft brush nozzle attachment.
3. To ensure proper ventilation, cleaning of the ventilation areas must be carried out monthly. More frequent cleaning may be necessary depending on the environment in which the plasma monitor is installed.

Recommendations to avoid or minimize phosphor burn-in: Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to phosphor burn under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in phosphor burn if proper precautions are not taken. To protect your investment in this plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image burn:

* Always enable and use your computer's screen saver function during use with a computer input source.
* Display a moving image whenever possible.
* Change the position of the menu display from time to time.
* Always power down the monitor when you are finished using it.

If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of phosphor burn:

* Lower the Brightness and Contrast levels as much as possible without impairing image readability.
* Display an image with many colors and color gradations (i.e. photographic or photo-realistic images).
* Create image content with minimal contrast between light and dark areas, for example white characters on black backgrounds. Use complementary or pastel color whenever possible.
* Avoid displaying images with few colors and distinct, sharply defined borders between colors.

* Note: Burn-in is not covered by the warranty.

Contact Marantz Service Center for other recommended procedures that will best suit your particular application needs.

Recommendations importantes

Précautions

RISQUE D'ELECTROCUTION NE PAS OUVRIR

MISE EN GARDE: AFIN DE REDUIRE LES RISQUES

D'ELECTRO-CUTION, NE PAS DEPOSER LE COUVERCLE, IL N'Y A AUCUNE PIECE UTILISABLE A L'INTERIEUR DE CET APPAREIL. NE CONFIER LES TRAVAUX D'ENTRETIEN QU'A UN PERSONNEL QUALIFIE.

How to Attach Options to the Plasma Monitor .... 1

Ventilation Requirements for enclosure mounting ..... 1

How to use the safety metal fittings and the screws for safety metal fittings .... 1

Part Names and Function 2

Front View 2

Rear View / Terminal Board 3

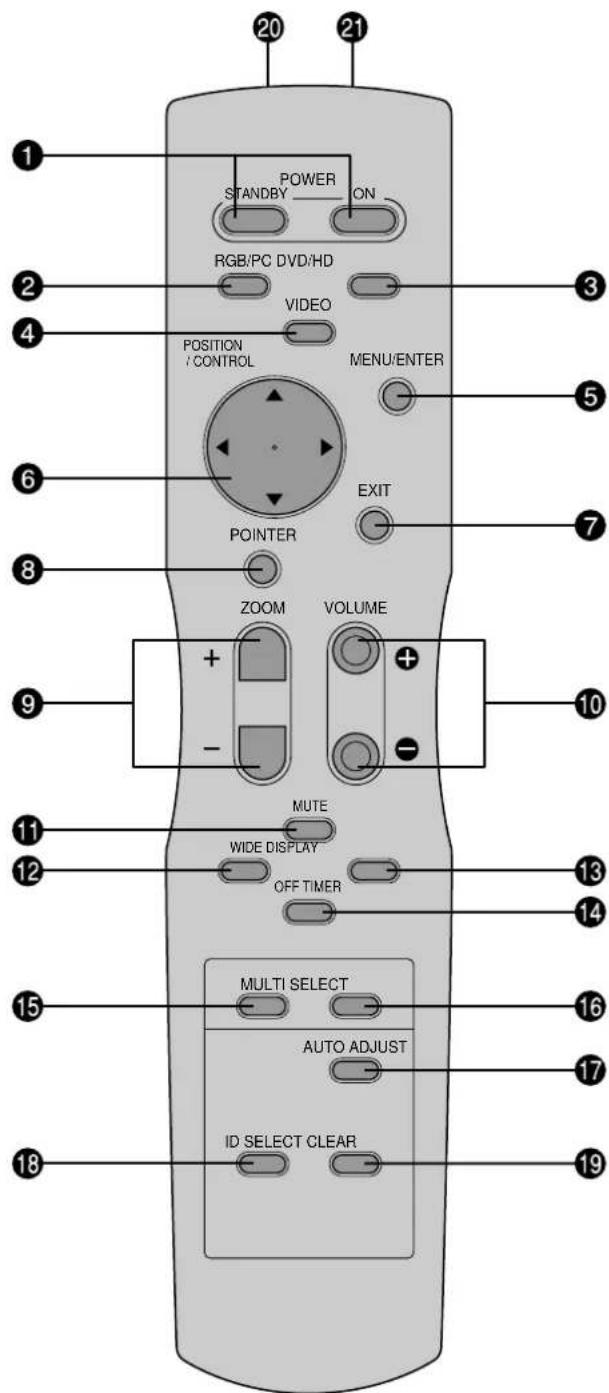

Remote Control 4

Battery Installation and Replacement 5

Using the wired remote control mode 6

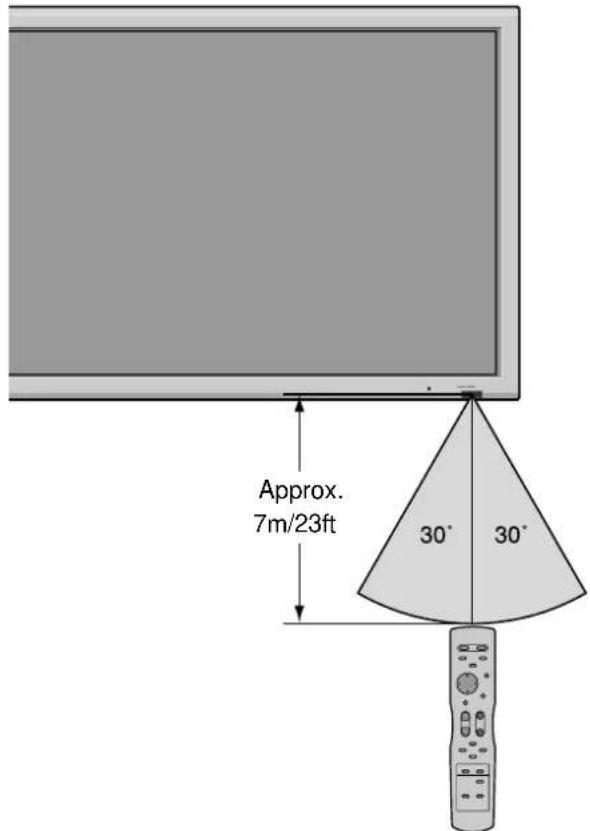

Operating Range 6

Handling the remote control....6

Installation 7

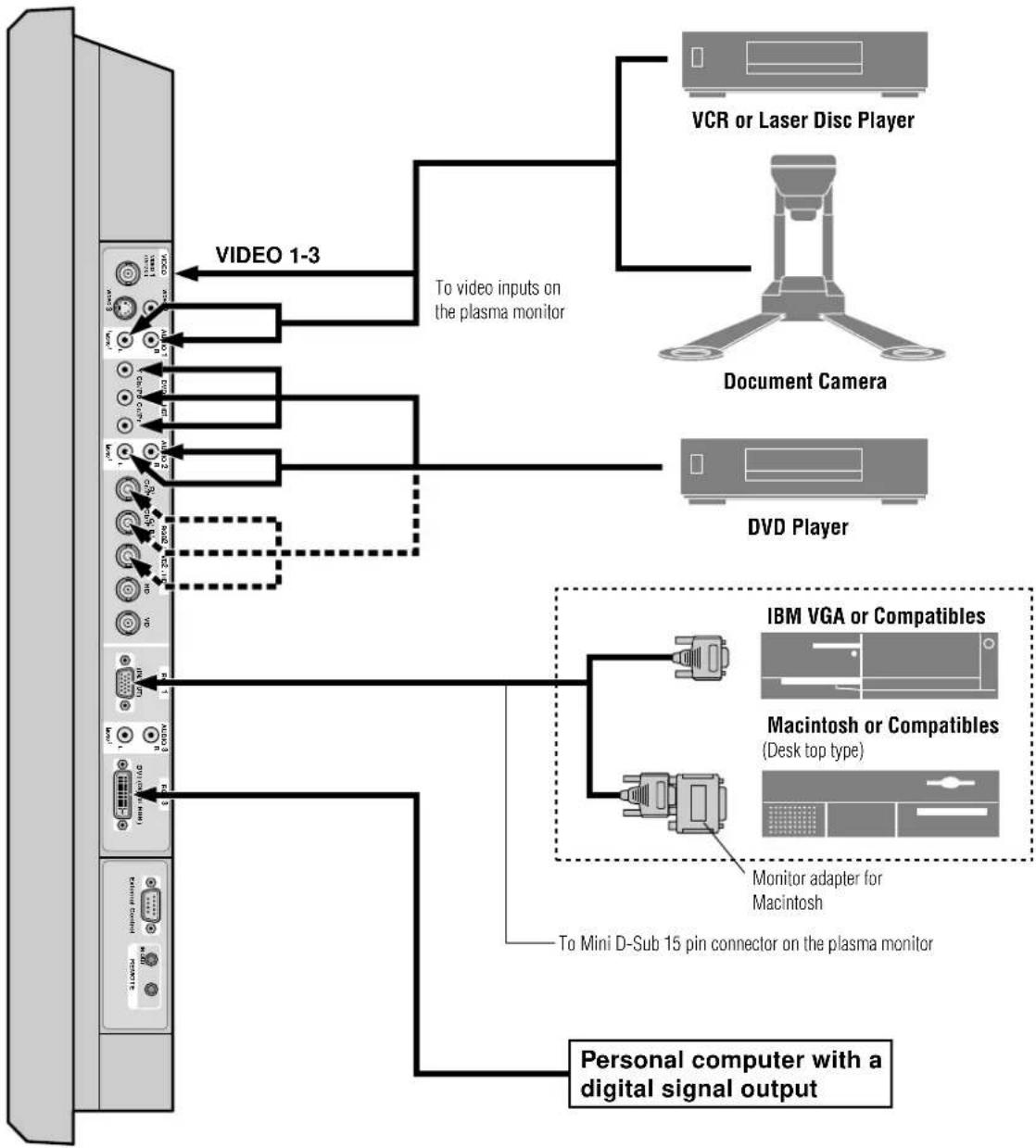

Connecting Your PC or Macintosh Computer 8

Connections with Equipment that have a Digital Interface ..... 8

Connecting Your Document Camera 8

Connecting Your VCR or Laser Disc Player.... 8

Connecting Your DVD Player 8

Pin Assignments and Signal Levels for 15 pin RGB (Analog) 9

Pin Configuration and Signal Levels of the RGB 3 Connector (DVI Connector) ...... 9

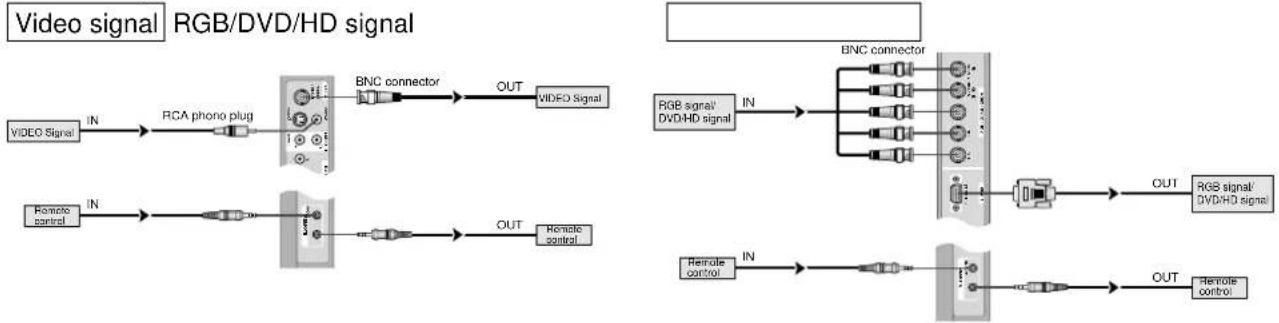

Creating a video wall 10

Cable Management.... 10

Basic Operations 11

POWER 11

To turn the unit ON and OFF: 11

VOLUME 11

To adjust the sound volume:.... 11

MUTE 11

To cancel the sound: 11

DISPLAY 11

To check the settings: 11

DIGITAL ZOOM 11

AUTO ADJUST 11

To adjust the size or quality of the picture automatically .... 11

OFF TIMER 12

To set the off timer: 12

To check the remaining time: 12

To cancel the off timer: 12

WIDE Operations 13

Wide Screen Operation (manual) 13

When viewing videos or digital video discs 13

Wide Screen Operation with Computer Signals ..... 14

When "PICTURE SIZE" is set to "OFF" 14

OSM Controls 15

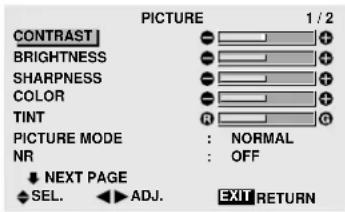

Menu Operations 15

Menu Tree 16

Picture Settings Menu.... 18

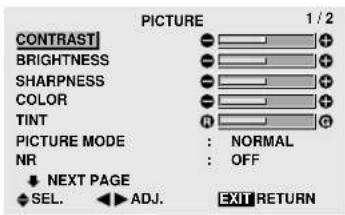

Adjusting the picture 18

Setting the picture mode according to the brightness of the room 18

Reducing noise in the picture 19

Setting the color temperature 19

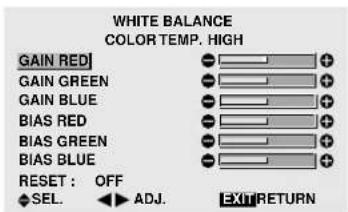

Adjusting the color to the desired level 19

Changing the Gamma Curve 20

Making the Low Tone adjustments 20

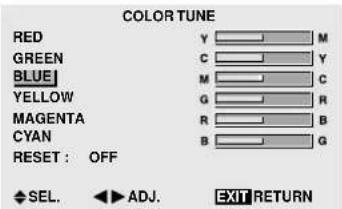

Adjusting the colors 21

Audio Settings Menu 21

Adjusting the treble, bass and left/right balance and audio input select.... 21

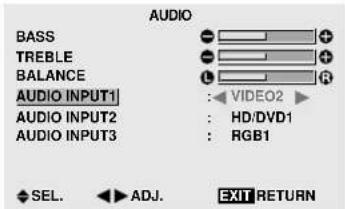

Setting the allocation of the audio connectors ..... 22

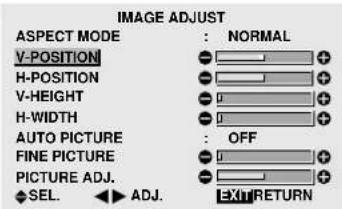

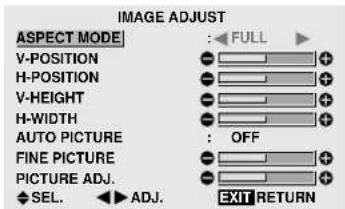

Image Adjust Settings Menu 22

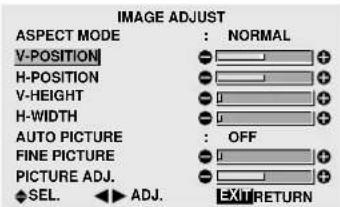

Adjusting the Position, Size, Fine Picture, Picture Adj ..... 22

Option1 Settings Menu 23

Setting the on-screen menu 23

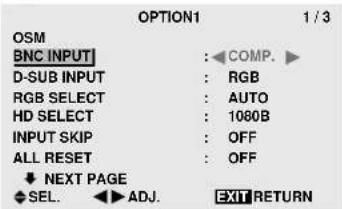

Setting the BNC connectors 24

Checking the signal being transmitted to RGB1 terminal .... 24

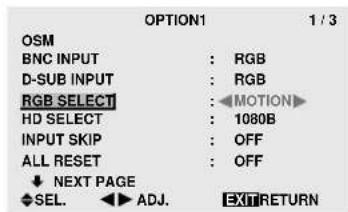

Setting a computer image to the correct RGB select screen 24

Setting high definition images to the suitable screen size 25

Setting the Input Skip.... 25

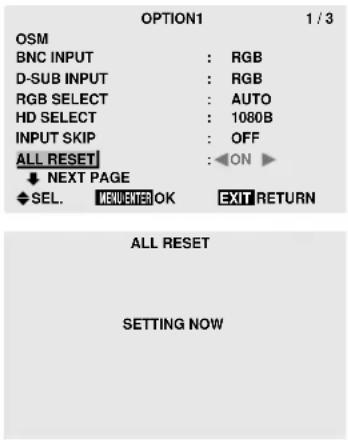

Resetting to the default values.... 26

Option2 Settings Menu 26

Setting the power management for computer images ...... 26

POWER/STANDBY indicator 27

Setting the picture to suit the movie 27

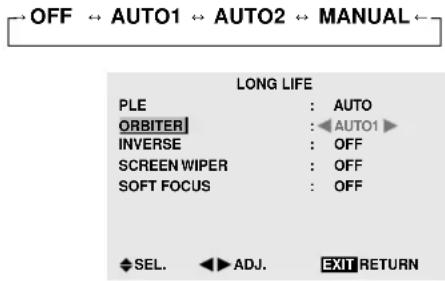

Reducing burn-in of the screen 27

Setting the gray level for the sides of the screen ..... 30

Setting the screen size for S1/S2 video input 30

Setting the picture size for RGB input signals ..... 31

Setting the signal and black level for DVI signal..... 31

Option3 Settings Menu 32

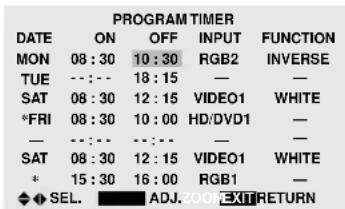

Using the timer 32

Setting the power on mode 33

Enabling/disabling the front panel controls 34

Enabling/disabling remote control wireless transmission 34

Loop Out setting 35

ID number setting 35

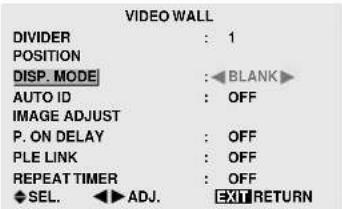

Video Wall setting 36

Advanced OSM Settings Menu 39

Setting the menu mode 39

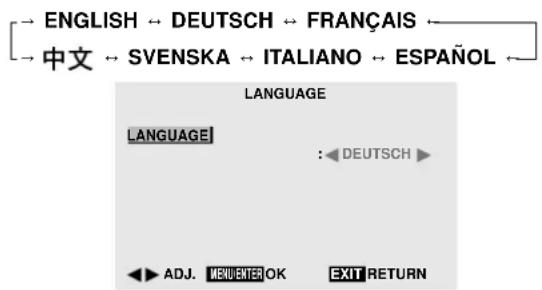

Language Settings Menu 40

Setting the language for the menus.... 40

Color System Settings Menu 40

Setting the video signal format 40

Source Information Menu 40

Checking the frequencies, polarities of input signals, and resolution 40

External Control 41

Troubleshooting.... 42

How to Attach Options to the Plasma Monitor

You can attach your optional mounts or stand to the plasma monitor in one of the following two ways:

* While it is upright. (See Drawing A)
* As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.
* Do not touch or hold the screen face when carrying the unit.

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)
  * See the inside of the cover page.
• For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.

Product warranty does not cover damage caused by improper installation.

* Use only the mounting kit or stand provided by manufacturer and listed under Options.

Drawing A Drawing B

Some models are equipped with handles.

When installing or carrying, use the handles attached to the upper back of the display.

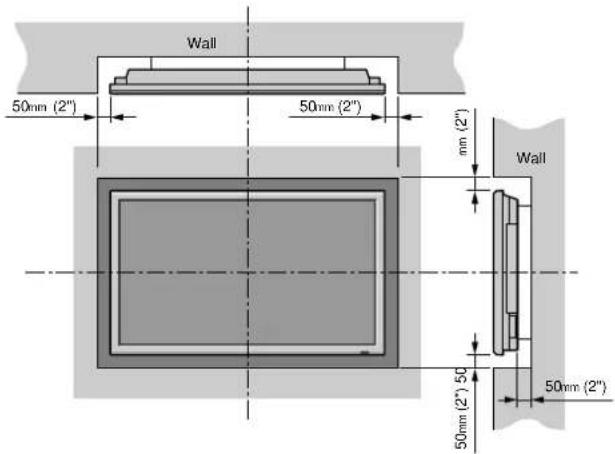

Ventilation Requirements for enclosure mounting

To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.

Wall 50mm (2") 50mm (2") mm (2') Wall 50mm (2") 50 50mm (2")

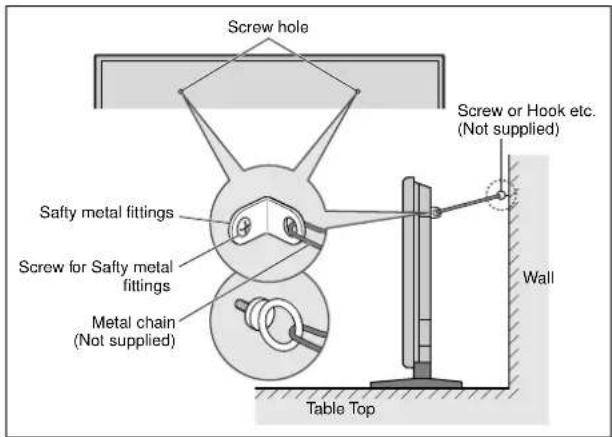

How to use the safety metal fittings and the screws for safety metal fittings

These are fittings for fastening the unit to a wall to prevent tipping due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws. * Safety metal fittings will differ according to the model.

Screw hole Safty metal fittings Screw for Safty metal fittings Metal chain (Not supplied) Screw or Hook etc. (Not supplied) Wall Table Top

Part Names and Function

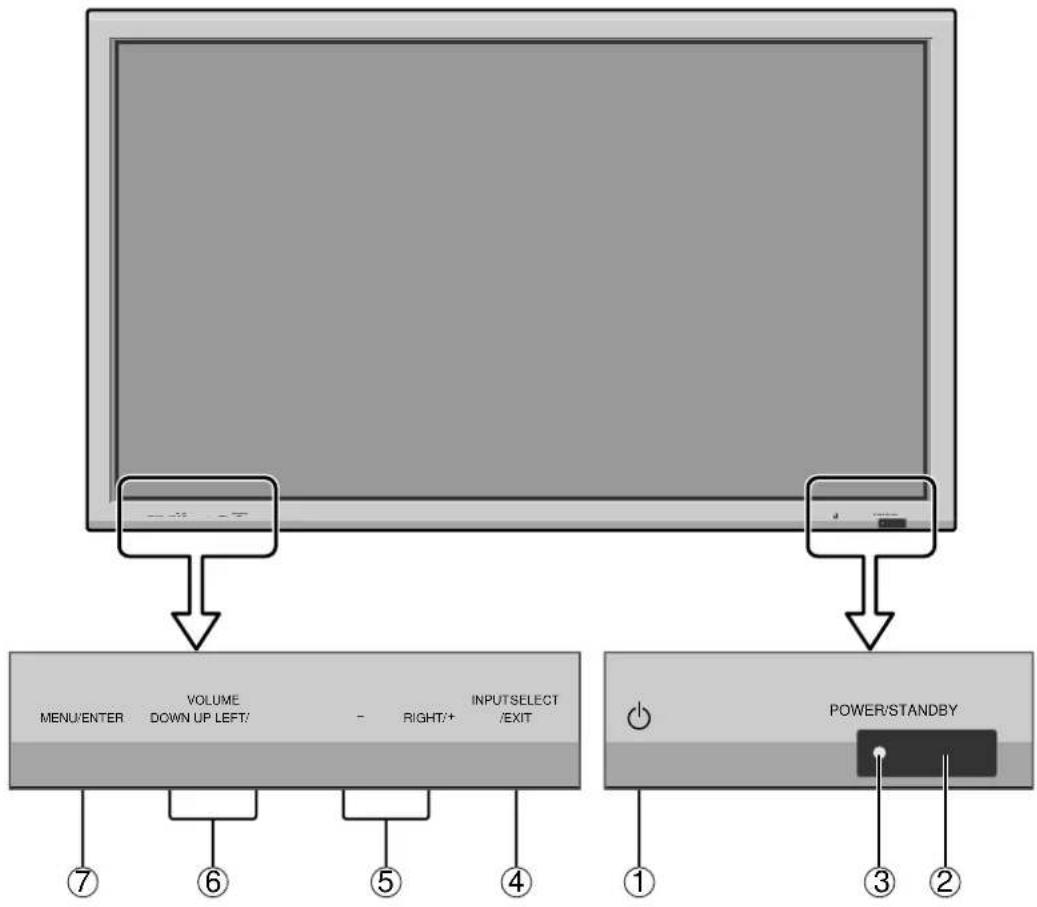

Front View

VOLUME MENU/ENTER DOWN UP LEFT/ INPUTSELECT - RIGHT/+ EXIT POWER/STANDBY ⑦ ⑥ ⑤ ④ ① ③ ②

①Power

Turns the monitor's power on and off.

②Remote sensor window

Receives the signals from the remote control.

③POWER/STANDBY indicator

When the power is on .... Lights green. When the power is in the standby mode ... Lights red.

* POWER/STANDBY letter is printed on model PD6140 and PD5040 only.

④INPUT SELECT / EXIT

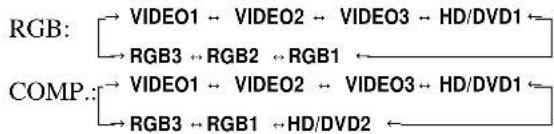

Switches the input, in the following order.

The available inputs depend on the setting of "BNC INPUT".

RGB: [ VIDEO1 VIDEO2 VIDEO3 HD/DVD/DTV RGB/PC3 RGB/PC2 RGB/PC1 ]

COMP.: [1 VIDEO2 VIDEO3 HD1/DVD1/DTV1 RGB/PC2 RGB/PC1 HD2/DVD2/DTV2]

Functions as the EXIT buttons in the On-Screen Menu (OSM) mode.

⑤LEFT/- and RIGHT/+

Enlarges or reduces the image. Functions as the CURSOR (◀/▶) buttons in the On-Screen Menu (OSM) mode.

⑥VOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (▲/▼) buttons in the On-Screen Menu (OSM) mode.

⑦MENU/ENTER

Sets the On-Screen Menu (OSM) mode and displays the main menu.

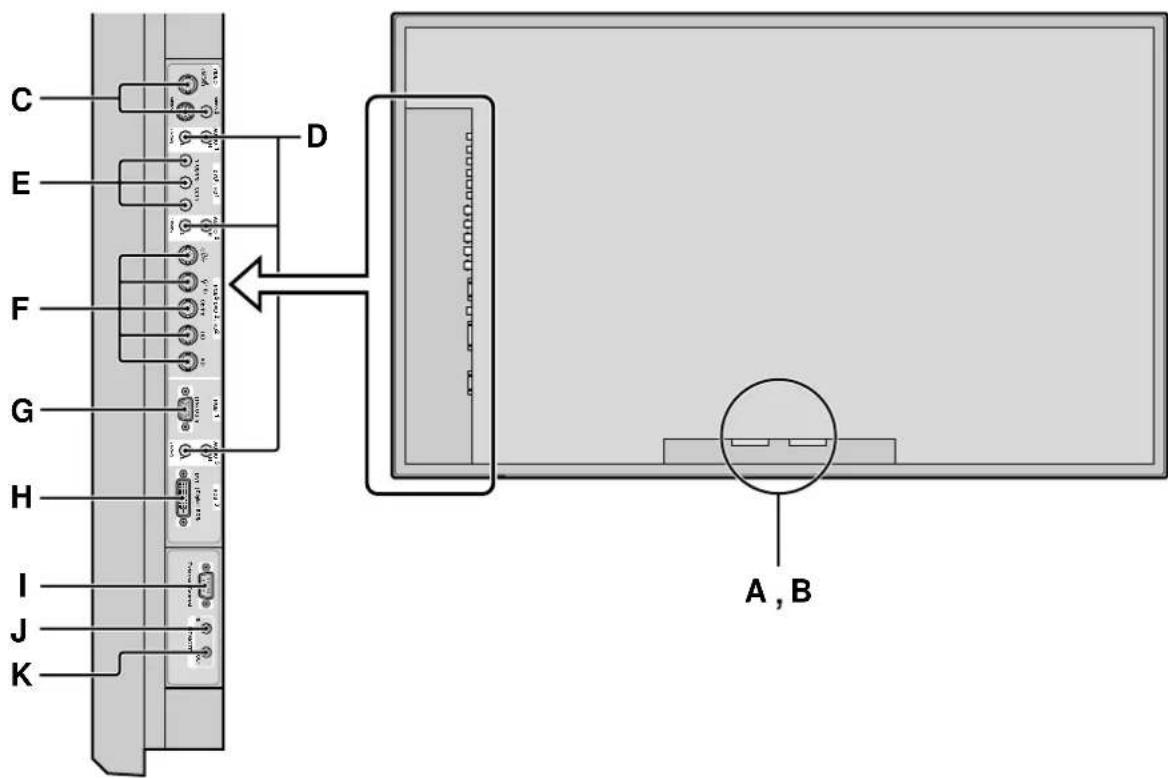

Rear View/ Terminal Board

C E F G H I J K 10000000000 12.5 32.5V 12.5 32.5V 12.5 32.5V 12.5 32.5V 12.5 32.5V 12.5 32.5V 12.5 32.5V 12.5 32.5V 12.5 32.5V 12.5 32.5V

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Connect speakers (optional) here. Maintain the correct polarity. Connect the ⊕ (positive) speaker wire to the ⊕ EXT SPEAKER terminal and the ⊖ negative) speaker wire to the ⊖ EXT SPEAKER terminal on both LEFT and RIGHT channels.

Please refer to your speaker's owner's manual.

C VIDEO1, 2, 3 (BNC, RCA, S-Video)

Connect VCR's, DVD's or Video Cameras, etc. here. VIDEO1 can be used for Input or Output (see page 10).

D AUDIO1, AUDIO2, AUDIO3

These are audio input terminals.

The input is selectable. Set which video image to allot them from the audio menu screen.

E DVD1 / HD1

Connect DVD's, High Definition or Laser Discs, etc. here.

F RGB2/ DVD2/ HD2

RGB2: You can connect an analog RGB signal and the synchronization signal.

DVD2/ HD2: You can connect DVDs, High Definition sources, Laser Discs, etc. here. This input can be set for use with an RGB or component source. (see page 24)

G RGB1 (mini D-Sub 15pin)

Connect an analog RGB signal from a computer, etc. here. This input can be used for Input or Output. (see page 10)

H RGB3 (DVI 24pin)

Connect a digital signal (TMDS) from a source with a DVI output. (see page 8)

| EXTERNAL CONTROL

This terminal is used when operating and controlling the monitor externally (by external control).

J REMOTE IN

Connect the remote cable* to the remote control's remote jack to obtain wired remote control.

K REMOTE OUT

Connect the remote cable* to the REMOTE IN jack of the other display monitor to obtain wired remote control.

Remote Control

1 20 21 POWER STANDBY ON RGB/PC DVD/HD VIDEO POSITION /CONTROL MENU/ENTER EXIT 8 POINTER ZOOM VOLUME + - MUTE WIDE DISPLAY OFF TIMER 10 11 12 13 14 15 MULTI SELECT AUTO ADJUST 16 17 18 ID SELECT CLEAR 19

① POWER ON/STANDBY

Switches the power on/standby.

(This does not operate when POWER/STANDBY indicator of the main unit is off.)

② RGB/PC

Press this button to select RGB/PC as the source. The available sources depend on the setting of "BNC INPUT".

RGB: RGB/PC1 RGB/PC2 RGB/PC3

COMP.: RGB/PC1 RGB/PC3

RGB/PC can also be selected using the INPUT SELECT button on the monitor.

③ DVD / HD

Press this button to select DVD/HD as the source. The available sources depend on the setting of "BNC INPUT".

RGB: HD/DVD/DTV

COMP.: HD1/DVD1/DTV1 → HD2/DVD2/DTV2

DVD/HD can also be selected using the INPUT SELECT button on the monitor.

④ VIDEO

Press this button to select VIDEO as the source.

VIDEO can also be selected using the INPUT SELECT button on the monitor.

⑤ MENU/ENTER

Press this button to access the OSM controls. Press this button during the display of the main menu to go to the sub menu.

⑥ CURSOR (▲ / ▼ / ◀ / ▶)

Use these buttons to select items or settings and to adjust settings or switch the display patterns.

⑦ EXIT

Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub menu to return to the previous menu.

8 POINTER

Press this button to display the pointer.

⑨ ZOOM (+ /−)

Enlarges or reduces the image.

⑩ VOLUME (+ /−)

Adjusts the audio volume.

⑪ MUTE

Mutes the sound.

⑫ WIDE

Automatically detects the signal and sets the aspect ratio.

Wide button is not active for all signals.

⑬ DISPLAY

Displays the source settings on the screen.

14 OFF TIMER

Activates the off timer for the unit.

⑮ MULTI

Not functional for the models covered in this manual.

16 SELECT

Not functional for the models covered in this manual.

⑰ AUTO ADJUST

Press this button to adjust Fine Picture, Picture ADJ, Position, and Contrast automatically, or to switch the screen size to ZOOM mode automatically with the superimposed caption displayed fully only when the picture contains dark areas above and below the picture.

18 ID SELECT

Set the ID number in the remote control. The remote control can then be used only for a display with the same ID number. When several displays are used together they can be controlled individually.

19 CLEAR

Clears the number set by the ID SELECT button.

20 Remote control signal transmitter

Transmits the remote control signals.

② Remote Jack

Insert the plug of the remote cable (The 1/8 Stereo Mini cable) here when using the supplied remote control in the wired condition.

Battery Installation and Replacement

Insert the 2 "AAA" batteries, making sure to set them in with the proper polarity.

1. Press and open the cover.

Diagram of a remote control panel with a button and arrow indicating rotation (no text or symbols)

1. Align the batteries according to the (+) and (−) indication inside the case.

Technical illustration of a remote control device with a black arrow indicating a component (no text or symbols present)

1. Replace the cover.

Technical line drawing of a mechanical clamp or tool component (no text or symbols)

Using the wired remote control mode

Connect the remote cable* to the remote control's remote jack and the "REMOTE IN" terminal on the monitor. When the cable is connected, the mode automatically switches to wired remote control. When the wired remote control mode is used, the remote control can be operated even if no batteries are loaded.

Remote Control Cable* To Remote Jack

* The 1/8 Stereo Mini cable must be purchased separately.

Operating Range

* Use the remote control within a distance of about 7 m/23ft. from the front of the monitor's remote control sensor and at horizontal and vertical angles of up to approximately 30°.
* The remote control operation may not function if the monitor's remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.

Approx. 7m/23ft 30° 30°

Handling the remote control

• Do not drop or mishandle the remote control.
• Do not get the remote control wet. If the remote control gets wet, wipe it dry immediately.
• Avoid heat and humidity.
• When not using the remote control for a long period, remove the batteries.
• Do not use new and old batteries together, or use different types together.
• Do not take apart the batteries, heat them, or throw them into a fire.
• When using the remote control in the wireless condition, be sure to unplug the remote cable from the REMOTE IN terminal on the monitor.

Connecting Your PC or Macintosh Computer

Connecting your PC or Macintosh computer to your plasma monitor will enable you to display your computer's screen image for an impressive presentation. The plasma monitor supports the signals described on page 7 of Model Information.

To connect a PC, Macintosh or compatible graphics adapter, simply:

1. Turn off the power to your plasma monitor and computer.
2. If your PC does not support SXGA/XGA/SVGA/VGA you will need to install an SXGA/XGA/SVGA/VGA graphics board. Consult your computer's owner's manual for your SXGA/XGA/SVGA/VGA configuration. If you need to install a new board, see the manual that comes with your new graphics board for installation instructions.
3. This plasma monitor provides signal compatibility up to VESA 1600×1200 (UXGA). However, it is not recommended to use this resolution due to image readability on the monitor's native pixel resolution panel.
4. Use the signal cable to connect your PC or Macintosh computer to the plasma monitor. For Macintosh, use the monitor adapter to connect to your computer's video port, if necessary.
5. Turn on the plasma monitor and the computer.
6. If the plasma monitor goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you've connected to the plasma monitor.

When using a Macintosh with the plasma monitor, the following four display standards are supported using the Macintosh adapter :

13" fixed mode
16" fixed mode
19" fixed mode
21" fixed mode

The 19" fixed mode is recommended for your monitor.

Connections with Equipment that have a Digital Interface

Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface) standard.

* Use a DVI 24-pin signal cable and the ferrite cores (supplied) when making connections to the RGB3 (DVI) connector of the main unit.

Note that the RGB3 (DVI) terminal does not support analog RGB input source.

Note:

1. Input TMDS signals conforming to DVI standards. The TMDS input corresponds to 1 link.
2. To maintain display quality, use a cable with a quality prescribed by DVI standards that is within 5 meters in length.

Connecting Your Document Camera

You can connect your plasma monitor to a document camera. To do so, simply:

1. Turn off the power to your plasma monitor and document camera.
2. Use a standard video cable to connect your document camera to the Video input on your plasma monitor.
3. Turn on the plasma monitor and the document camera.

Note: Refer to your document camera owner's manual for more information about your camera's video output requirements.

Connecting Your VCR or Laser Disc Player

Use common RCA cables (not provided) to connect your VCR or laser disc player to your plasma monitor. To make these connections, simply:

1. Turn off the power to your plasma monitor and VCR or laser disc player.

2. Connect one end of your RCA cable to the video output connector on the back of your VCR or laser disc player, connect the other end to the Video input on your plasma monitor. Use standard RCA audio patch cords to connect the audio from your VCR or laser disc player to your plasma monitor (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.

3. Turn on the plasma monitor and the VCR or laser disc player.

Note: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output requirements.

Connecting Your DVD Player

You can connect your plasma monitor to a DVD player. To do so, simply:

1. Turn off the power to your plasma monitor and DVD player.
2. Use a component video cable to connect your DVD player to the Y, Cb, and Cr inputs on your plasma monitor.
   Or use the DVD-player's S-Video output. Use a standard S-Video cable to connect to the S-Video input on the plasma monitor.
3. Turn on the plasma monitor and the DVD player.

Pin Assignments and Signal Levels for 15 pin RGB (Analog)

Pin No.	Signal (Analog)
1	Red
2	Green or sync-on-green
3	Blue
4	No connection
5	Ground
6	Red ground
7	Green ground
8	Blue ground
9	No connection
10	Sync signal ground
11	No connection
12	Bi-directional DATA (SDA)
13	Horizontal sync or Composite sync
14	Vertical sync
15	Data clock

Pin Configuration and Signal of the RGB 3 Connector (DVI Connector)

The unit is equipped with a type of connector commonly used for digital.

(This cannot be used for an analog input.)

(TMDS can be used for one link only.)

RGB 3

Pin No.	Signal (Digital)
1	T.M.D.S Data 2 -
2	T.M.D.S Data 2 +
3	T.M.D.S Data 2 Shield
4	No connection
5	No connection
6	DDC Clock
7	DDC Data
8	No connection
9	T.M.D.S Data 1 -
10	T.M.D.S Data 1 +
11	T.M.D.S Data 1 Shield
12	No connection
13	No connection
14	+5V Power
15	Ground
16	Hot Plug Detect
17	T.M.D.S Data 0 -
18	T.M.D.S Data 0 +
19	T.M.D.S Data 0 Shield
20	No connection
21	No connection
22	T.M.D.S Clock Shield
23	T.M.D.S Clock +
24	T.M.D.S Clock -

Creating a video wall

With built-in matrix display capability, you can create a 2·2 or 3·3 video wall.

- Connect signal cables and remote cables as shown below.

Video signal RGB/DVD/HD signal

    G["Remote control"] --> H["IN"]
    H --> I["Inverter"]
    I --> J["Out"]
    J --> K["Remote control"]

    L["RGB signal/ DVD/HD signal"] --> M["IN"]
    M --> N["BNC connector"]
    N --> O["Out"]
    O --> P["RGB signal/ DVD/HD signal"]

    Q["Remote control"] --> R["IN"]
    R --> S["Inverter"]
    S --> T["Out"]
    T --> U["Remote control"]

Note:

1. The VIDEO1 and RGB1 terminals can be used for either INPUT or OUTPUT. When LOOP OUT is ON, do not connect an OUTPUT signal from another unit, that will place an extraordinary load on the other unit and may damage it.
2. LOOP OUT can not be turned ON while signals are input to RGB1 terminal.
3. LOOP OUT can be turned ON while signals are input to RGB1 terminal if the POWER is switched ON.

Information

• To loop signals out to another plasma display, set the LOOP OUT to ON.
  • To create a video wall, set the VIDEO WALL menu items properly.
• To connect monitors, please use a 1\~2m (3.3\~6.6 feet) BNC cable (any commercially available cable).
• If the image quality is poor, do not use the monitor's out terminal. Use a distribution amplifier (any commercially available distribution amplifier) to connect the split signals to the respective monitor INPUT terminals.
• Being used as a video wall function, maximally 4-screen is rough-standard with lower than 1024 × 768 , 60Hz signal.
• A distribution amplifier is particularly recommended when using a 9-screen video wall.
• From the second monitor onward, connections require a BNC-RCA conversion cable or connector, a mini D-Sub 15 pin cable-BNC (×5) cable or a conversion connector.

Cable Management

Using the cable clamps provided with the plasma display, bundle at the back of the unit the signal and audio cables connected to the display.

* The cable clamp will differ according to the model.

Back of the unit mounting hooks/mounting holes

To attach To detach

1. 2. clamp mounting hook cables

To attach To detach

1. 2. clamp mounting hole cables

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.
2. Press the Power button (on the unit).

The monitor's POWER/STANDBY indicator turns red and the standby mode is set.

1. Press the POWER ON button (on the remote control) to turn on the unit.

The monitor's POWER/STANDBY indicator will light up (green) when the unit is on.

1. Press the POWER STANDBY button (on the remote control) or the Power button (on the unit) to turn off the unit.

The monitor's POWER/STANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).

VOLUME

To adjust the sound volume:

1. Press and hold the VOLUME Button (on the remote control or the unit) to increase to the desired level.
2. Press and hold the VOLUME button (on the remote control or the unit) to decrease to the desired level.

MUTE

To cancel the sound:

Press the MUTE button on the remote control to cancel the sound; press again to restore.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is pressed.
2. If the button is not pressed for approximately three seconds, the menu turns off.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

1. Press the POINTER button to display the pointer. ( )

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture.

The pointer will change to resemble a magnifying glass. ( 🔍 )

A press of the ZOOM- button will reduce the picture and return it to its original size.

To change the picture position:

Select the position with the ▲ ▼◀▶ buttons.

1. Press the POINTER button to delete the pointer.

AUTO ADJUST

To adjust the size or quality of the picture automatically:

Press the AUTO ADJUST button.

Information

■ AUTO ADJUST ON setting

When RGB (still picture) input

is selected .....Fine Picture, Picture ADJ, Position, and Contrast will be adjusted automatically.

When RGB (motion picture),

VIDEO, or Y/Pb/Pr (component) input

is selected .....The screen size switches to ZOOM mode automatically with the superimposed caption displayed fully only when the picture contains dark areas above and below the picture.

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

1. Press the OFF TIMER button to start the timer at 30 minutes.
2. Press the OFF TIMER button to the desired time.
3. The timer starts when the menu turns off.

OFF TIMER 30

To check the remaining time:

1. Once the off timer has been set, press the OFF TIMER button once.
2. The remaining time is displayed, then turns off after a few seconds.
3. When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER 28

To cancel the off timer:

1. Press the OFF TIMER button twice in a row.
2. The off timer is canceled.

OFF TIMER 0

Note:

After the power is turned off with the off timer ... A slight current is still supplied to the monitor. When you are leaving the room or do not plan to use the system for a long period of time, turn off the power of the monitor.

Wide Screen Operation (manual)

With this function, you can select one of six screen sizes.

When viewing videos or digital video discs

1. Press the WIDE button on the remote control.

2. Within 3 seconds ...

Press the WIDE button again.

The screen size switches as follows:

When a 720P or 1080I signal is input:

FULL ↔ 2.35:1

NORMAL size screen (4:3)

Geometric diagram with four circles and diagonal lines inside a rectangle (no text or symbols)

The normal size screen is displayed.

* The picture has the same size as video pictures with a 4 : 3 aspect ratio.

FULL size screen

Geometric diagram with four circles arranged in a cross pattern within a rectangle (no text or symbols)

The image is expanded in the horizontal direction.

* Images compressed in the horizontal direction (“squeezed images”) are expanded in the horizontal direction and displayed on the entire screen with correct linearity. (Normal images are expanded in the horizontal direction.)

STADIUM size screen

Geometric diagram with a central circle and four surrounding circles, no text or symbols present.

The picture is expanded in the horizontal and vertical directions at different ratios.

* Use this for watching normal video programs (4:3) with a wide screen.

ZOOM size screen

Geometric diagram with concentric circles and semicircles, no text or symbols present

The picture is expanded in the horizontal and vertical direction, maintaining the original proportions.

* Use this for theater size (wide) movies, etc.

2.35:1 size screen

Original image

Pure geometric diagram with circles and diagonal lines inside a rectangle, no text or symbols present

Information is lost on both sides.

The squeezed film image is expanded to fulfill the entire screen at a ratio of 2.35:1. Black bands do not appear at the top and bottom but information is lost on the left and right margins.

- This feature is available when the input signal is video, component (480I, 480P, 576I, 576P, 720P, 1080I) or RGB (525P or 625P signal from a scan converter).

* If black bands appear on the top and bottom in the full size screen, select the 2.35:1 size screen to avoid phosphor burn-in.

14:9 size screen

Geometric diagram with a circle and intersecting lines inside a rectangle (no text or symbols)

The image is displayed at a 14:9 aspect ratio.

* This feature is available when the input signal is video, component (480I, 480P, 576I, 576P) or RGB (525P or 625P signal from a scan converter).

Note:

Do not allow the displayed in 4:3 mode for an extended period. This can cause a phosphor burn-in.

Wide Screen Operation with Computer Signals

Switch to the wide screen mode to expand the 4:3 image to fill the entire screen.

1. Press the WIDE button on the remote control.

2. Within 3 seconds ...

Press the WIDE button again.

The screen size switches as follows:

NORMAL → FULL → ZOOM

NORMAL size screen (4:3 or SXGA 5:4)

Geometric pattern with four circles arranged in a square, no text or symbols present

The picture has the same size as the normal computer image.

FULL size screen

Geometric diagram with four circles arranged in a cross pattern within a rectangle (no text or symbols)

The image is expanded in the horizontal direction.

ZOOM size screen

Geometric pattern with concentric circles and intersecting lines forming a cross (no text or symbols)

When wide signals are input.

FULL size screen

Pure geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

When "PICTURE SIZE" is set to "OFF"

* This cannot be set in some models. "TRUE size" will not be displayed in such cases.

The screen size switches as follows:

→ TRUE → FULL → ZOOM

TRUE size screen (VGA, SVGA 4:3)

Symmetrical geometric pattern with four circles and intersecting lines inside a square (no text or symbols)

The image is true resolution.

FULL size screen

Geometric diagram with four circles and diagonal lines inside a rectangle (no text or symbols)

The image is expanded in the horizontal and vertical direction.

ZOOM size screen

Geometric pattern with concentric circles and intersecting lines forming a cross (no text or symbols)

When wide signals are input.

TRUE

The image is true resolution.

FULL

Pure geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

Information

■ Supported resolution

See page 7 of Model Information for details on the display output of the various VESA signal standards supported by the monitor.

■ "PICTURE SIZE" setting

When the setting of "PICTURE SIZE" is OFF, the size of RGB-input pictures will be TRUE in place of NORMAL.

■ When 852 (848) dot × 480 line wide VGA\* signals with a vertical frequency of 60 Hz and horizontal frequency of 31.7 (31.0) kHz are input

Select an appropriate setting for RGB SELECT mode referring to the "Table of Signals Supported" on page 7 of Model Information.

* "VGA", "SVGA" and "SXGA" are registered trademarks of IBM, Inc. of the United States.

Note:

Do not allow the displayed in 4:3 mode for an extended period. This can cause a phosphor burn-in.

Menu Operations

The OSM window is displayed with respect to the screen as shown on the diagram.

* Depending on the screen's mode, the OSM may be displayed differently.

In the explanation, the OSM section is shown close up.

MASSACH 1/2 FIGURED DRAWN CHECKED BY: APPROVED BY: ADJUSTED BY: 077 & INSERTOR OK SELECT OR INSERT

The following describes how to use the menus and the selected items.

1. Press the MENU/ENTER button on the remote control to display the MAIN MENU.

MAIN MENU 1 / 2 PICTURE AUDIO IMAGE ADJUST OPTION1 ADVANCED OSM : OFF ↓ NEXT PAGE SEL. MENENTER OK EXIT EXIT

MAIN MENU 2 / 2 ↑ PREVIOUS PAGE LANGUAGE COLOR SYSTEM SOURCE INFORMATION SEL. NEUETER OK EXIT EXIT

1. Press the cursor buttons ▲ ▼ on the remote control to highlight the menu you wish to enter.
2. Press the MENU/ENTER button on the remote control to select a sub menu or item.

PICTURE 1 / 2 CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE : NORMAL NR : OFF NEXT PAGE SEL. ADJ. EXIT RETURN

1. Adjust the level or change the setting of the selected item by using the cursor buttons ◀ ▶ on the remote control.

2. The adjustments or the settings that are stored in memory.

The change is stored until you change it again.

1. Repeat steps 2 - 5 to adjust an additional item, or press the EXIT button on the remote control to return to the main menu.

Note: The main menu disappears by pressing the EXIT button.

Information

■ Advanced menu mode

When “ADVANCED OSM” is set to “ON” in the main menu (1/2), full menu items will be shown.

MAIN MENU 1 / 2 PICTURE AUDIO IMAGE ADJUST OPTION1 OPTION2 OPTION3 ADVANCED OSM : ON ↓ NEXT PAGE SEL. NEMENTER OK EXIT EXIT

Menu Tree

:Shaded areas indicate the default value.
- ← → +: Press the ◀ or ▶ button to adjust. The default value is at the center.
☐:Menu items in a ruled box are available when the ADVANCED OSM is set to ON.

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET				REFERENCE
PICTURE CONTRAST — ← → + YES 18
BRIGHTNESS — ← → + YES 18
SHARPNESS — ← → +			YES	18
COLOR — ← → + YES 18
TINT — ← → + YES 18
PICTURE MODE BRIGHT/NORMAL/THEAT.1/THEAT.2/DEFAULT YES 18
NR OFF/NR-1/NR-2/NR-3			YES 19
COLOR TEMP	LOW/MID LOW/MID/HIGH		YES 19
WHITE BALANCE	GAIN RED — ← → +		YES	19
	GAIN GREEN — ← → +		YES	19
	GAIN BLUE — ← → +		YES	19
	BIAS RED — ← → +		YES	19
	BIAS GREEN — ← → +		YES	19
	BIAS BLUE — ← → +		YES	19
	RESET OFF ← → ON		YES	19
GAMMA	1 ← → 2 — ⋯→ 4		YES 20
LOW TONE	AUTO ← → 1 — ⋯→ 3		YES 20
COLOR TUNE	RED Y ← → M		YES	21
	GREEN C ← → Y		YES	21
	BLUE M ← → C		YES	21
	YELLOW G ← → R		YES	21
	MAGENTA R ← → B		YES	21
	CYAN B ← → G		YES	21
	RESET OFF ← → ON		YES	21

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET				REFERENCE
AUDIO	BASS	- +	YES	21
	TREBLE	- +	YES	21
	BALANCE	L R	YES	21
	AUDIO INPUT1	VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3	YES 22
	AUDIO INPUT2	VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3	YES 22
	AUDIO INPUT3	VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3	YES 22

Main menu Sub menu 2 Sub menu 3 Sub menu 4 RESET				REFERENCE
IMAGE ADJUST	ASPECT MODE	NORMAL/FULL/STADIUM/ZOOM/2.35:1/14:9	—	22
	V-POSITION	- +	YES	22
	H-POSITION	- +	YES	22
	V-HEIGHT	- +	YES	22
	H-WIDTH	- +	YES	22
	AUTO PICTURE	OFF ON ^*2	NO	22
	FINE PICTURE ^*1	- + ^*2	YES 22
	PICTURE ADJ. ^*1	- + ^*2	YES 22

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET						REFERENCE
OPTION1	OSM	DISPLAY OSM	OFF←→ON		YES	23
		OSM ADJ.	1----6		YES 23
		OSM ANGLE	H←→V		YES	23
		OSM ORBITER	OFF←→ON		YES	23
	BNC INPUT RGB←→COMP.			YES 24
	D-SUB INPUT	RGB			—	24
	RGB SELECT AUTO/STILL/MOTION/WIDE1/WIDE2/DTV			YES 24
	HD SELECT	1080B/1035I/1080A			NO	25
	INPUT SKIP	OFF←→ON			YES	25
	ALL RESET	OFF←→ON			—	26
OPTION2PWR. MGT. OFF←→ON YES 26CINEMA MODE OFF←→ON YES 27LONG LIFE PLE AUTO/LOCK 1/LOCK 2/LOCK 3 YES 27
	ORBITER AUTO 1			YES 28
		AUTO 2		YES 28
		MANUAL	H-DOT/V-LINE/TIME	YES 28
		OFF		YES 28
	INVERSE	OFF		YES 28
		ON	WORKING TIME/WAITING TIME	YES 28
		WHITE		YES 28
	SCREEN WIPER	OFF		YES 29
		ON	WORKING TIME/WAITING TIME/SPEED	YES 29
	SOFT FOCUS	OFF/1/2/3/4		YES 30
GRAY LEVEL 0←	⋯→3←⋯→15			YES 30
S1/S2	AUTO←→OFF			YES	30
PICTURE SIZE	OFF←→ON			YES	31
DVI SET UP	PLUG/PLAY	PC←→STB/DVD*3		NO	31
	BLACK LEVEL	LOW←→HIGH*4		NO	31

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET					REFERENCE
OPTION3	TIMER	PRESENT TIME	DAYLIGHT SAVING TIME OFF←→ON	NO	31
			DAY/HOUR/MINUTES	NO	31
		PROGRAM	OFF	YES 32
			ON DATE/ON/OFF(HOUR, MINUTE)/INPUT/FUNCTION	YES 32
	PWR. ON MODE	LAST / VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3		YES 33
	CONTROL LOCK	OFF←→ON		YES	34
	IR REMOTE	OFF←→ON		YES	34
	LOOP OUT	OFF←→ON		YES	35
	ID NUMBER	ALL←→1←···→256		YES 35
	VIDEO WALL DIVIDER	OFF/1/4/9		YES 36
		POSITION No.1←···→No.4/No.7←···→No.15		—	36
		DISP. MODE SPLIT←→BLANK		YES 37
		AUTO ID OFF←→ON		YES	37
		IMAGE ADJUST ASPECT MODE NORMAL/FULL/STADIUM/ZOOM/2.35:1/14:9		—	37
				YES	37
				YES	37
				YES	37
				YES	37
				NO	37
				YES 37
				YES 37
		P. ON DELAY OFF←→ON		YES	38
		PLE LINK OFF←→ON		YES	38
		REPEAT TIMER OFF		YES 39
		ON DIVIDER/SOURCE/WORK TIME		YES 39

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET			REFERENCE
ADVANCED OSM	OFF → ON	YES	39
LANGUAGE	ENGLISH/DEUTSCH/FRANÇAIS/ESPAÑOL/ITALIANO/SVENSKA中文	NO	40
COLOR SYSTEM	AUTO/3.58NTSC/4.43 NTSC/PAL/PAL 60/PAL-N/PAL-M/SECAM	NO	40
SOURCE INFORMATION	—	—	40

*1 Only when AUTO PICTURE is OFF

*2 RGB/PC only

*3 The default value is PC for model PD4220V.

*4 The default value is LOW for model PD4220V.

Picture Settings Menu

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be adjusted as desired.

Example: Adjusting the contrast

1. On the MAIN MENU, select "PICTURE", then press the MENU/ENTER button.

The "PICTURE" screen appears.

1. Use the ▲ and ▼ buttons to select "CONTRAST".

PICTURE 1/2 CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE : NORMAL NR : OFF NEXT PAGE SEL. ADJ. EXIT RETURN

1. Use the ◀ and ▶ buttons to adjust the contrast.

CONTRAST

* If neither the ◀ or ▶ button is pressed within 5 seconds, the current setting is set and the previous screen reappears.

Note: If "CAN NOT ADJUST" appears ...

When trying to enter the PICTURE submenu, make sure PICTURE MODE is not set to DEFAULT.

Information

■ Picture adjustment screen

CONTRAST .... Changes the picture's white level. BRIGHTNESS ..Changes the picture's black level. SHARPNESS ..Changes the picture's sharpness. Adjusts picture detail of VIDEO display.

COLOR ....Changes the color density. TINT ....Changes the picture's tint. Adjust for natural colored skin, background, etc.

■ Adjusting the computer image

Only the contrast and brightness can be adjusted when a computer signal is connected.

■ Restoring the factory default settings

Select "DEFAULT" under the "PICTURE MODE" settings.

Setting the picture mode according to the brightness of the room

There are four picture modes that can be used effectively according to the environment in which you are viewing the display.

Example: Setting the "THEAT. 1" mode

1. On the MAIN MENU, select "PICTURE", then press the MENU/ENTER button. The "PICTURE" screen appears.

2. Use the ▲ and ▼ buttons to select "PICTURE MODE".

1. To set to "THEAT. 1" ...

Use the ◀ and ▶ buttons to select "THEAT. 1". The mode switches as follows each time the ◀ or ▶ button is pressed:

BRIGHT → NORMAL → THEAT. 1 → THEAT. 2 → DEFAULT

PICTURE MODE : THEAT. 1

* If neither the ◀ or ▶ button is pressed within 5 seconds, the current selection is set and the previous screen reappears.

Information

■ Types of picture modes

THEAT. 1, 2.....Set this mode when watching video in a dark room.

This mode provides darker, finer pictures, like the screen in movie theaters.

For a darker image, select THEAT. 2.

NORMAL ....Set this mode when watching video in a bright room.

This mode provides dynamic pictures with distinct differences between light and dark sections.

BRIGHT ......This mode provides brighter pictures than NORMAL.

DEFAULT.....Use this to reset the picture to the factory default settings.

Reducing noise in the picture

Use these settings if the picture has noise due to poor reception or when playing video tapes on which the picture quality is poor.

Example: Setting "NR-3"

1. On the MAIN MENU, select "PICTURE", then press the MENU/ENTER button. The "PICTURE" screen appears.

2. Use the ▲ and ▼ buttons to select "NR".

PICTURE 1/2 CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE : NORMAL NR NEXT PAGE : OFF SEL. ADJ. EXIT RETURN

1. Use the ◀ and ▶ buttons to select "NR-3". The mode switches as follows each time the ◀ or ▶ button is pressed:

NR :← NR-3→

* If neither the ◀ or ▶ button is pressed within 5 seconds, the current selection is set and the previous screen reappears.

Information

NR

* "NR" stands for Noise Reduction. * This function reduces noise in the picture.

■ Types of noise reduction

There are three types of noise reduction. Each has a different level of noise reduction.

The effect becomes stronger as the number increases (in the order NR-1 → NR-2 → NR-3).

OFF ....Turns the noise reduction function off.

Setting the color temperature

Use this procedure to set color tone produced by the plasma display.

Example: Setting "HIGH"

1. On the MAIN MENU, select "PICTURE", then press the MENU/ENTER button. The "PICTURE" screen appears.
2. Use the ▲ and ▼ buttons to select "COLOR TEMP.".
3. Use the ◀ and ▶ buttons to select "HIGH". The mode switches as follows each time the ◀ or ▶ button is pressed:

LOW → MID LOW → MID → HIGH * See below to set "WHITE BALANCE".

PICTURE 2 / 2 ↑ PREVIOUS PAGE COLOR TEMP. : HIGH ▶ GAMMA : 2 LOW TONE : AUTO COLOR TUNE ◆SEL. ◀ ADJ. EXIT RETURN

* If neither the ◀ or ▶ button is pressed within 5 seconds, the current selection is set and the previous screen reappears.

Information

■ Setting the color temperature

LOW ....Redder MID LOW ....Slightly redder MID ....Standard (slightly bluer) HIGH ....Bluer

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Adjusting the color to the desired level

Use this procedure to adjust the white balance for each color temperature to achieve the desired color quality.

Example: Adjusting the "GAIN RED" of "HIGH" color temperature

Set "ADVANCED OSM" to "ON" in the main menu (1/2), then perform the following operations.

Perform Steps 1-3 of COLOR TEMP., then...

1. Press the MENU/ENTER button. The "WHITE BALANCE" screen appears.

2. Use the ▲ and ▼ buttons to select "GAIN RED".

WHITE BALANCE COLOR TEMP. HIGH GAIN RED GAIN GREEN GAIN BLUE BIAS RED BIAS GREEN BIAS BLUE RESET: OFF SEL. ▶ ADJ. EXIT RETURN

1. Adjust the white balance using the ◀ and ▶ buttons.

GAIN RED

* If neither the ◀ or ▶ button is pressed within 5 seconds, the current setting is set and the previous screen reappears.

Information

■ Adjusting the white balance

GAIN R/G/B ..... White balance adjustment for signal level

BIAS R/G/B ..... White balance adjustment for black level

RESET ......Resets settings to the factory default values. Use ◀ and ▶ buttons to select "ON", then press the MENU/ENTER button.

■ Restoring the factory default settings

Select "RESET" under the WHITE BALANCE menu.

Changing the Gamma Curve

This feature adjusts the brightness of the midtone areas while keeping shadows and highlights unchanged.

Example: Setting "3"

Set “ADVANCED OSM” to “ON” in the MAIN MENU (1/2), then perform the following operations.

1. On the MAIN MENU, select "PICTURE", then press the MENU/ENTER button.
   The "PICTURE" screen appears.

2. Use the ▲ and ▼ buttons to select "GAMMA".

3. Use the ◀ and ▶ buttons to select "3".

The mode switches as follows each time the ◀ or ▶ button is pressed:

PICTURE 2 / 2 ↑ PREVIOUS PAGE COLOR TEMP. : MID GAMMA : ◀3► LOW TONE : AUTO COLOR TUNE SEL. ◀▶ ADJ. EXIT RETURN

Information

■ GAMMA settings

The picture becomes darker as the number increases (in the sequence of 1, 2, 3, 4).

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Making the Low Tone adjustments

This feature allows more detailed tone to be reproduced especially in the dark area.

Example: Setting "2"

Set “ADVANCED OSM” to “ON” in the MAIN MENU (1/2), then perform the following operations.

1. On the MAIN MENU, select "PICTURE", then press the MENU/ENTER button.
   The "PICTURE" screen appears.

2. Use the ▲ and ▼ buttons to select "LOW TONE".

3. Use the ◀ and ▶ buttons to select "2".

The mode switches as follows each time the ◀ or ▶ button is pressed:

PICTURE 2 / 2 ↑ PREVIOUS PAGE COLOR TEMP. : MID GAMMA : 2 LOW TONE : ◀2 COLOR TUNE SEL. ▶ ADJ. EXIT RETURN

Information

■ LOW TONE settings

AUTO .....Will automatically appraise the picture and make adjustments.

1 ....Will apply the dither method suitable for still pictures.
2 ....Will apply the dither method suitable for motion pictures.
3......Will apply the error diffusion method.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Adjusting the colors

Use this procedure to adjust hue and color density for red, green, blue, yellow, magenta and cyan.

You can accentuate the green color of trees, the blue of the sky, etc.

Example: Adjusting the color tune for blue

Set "ADVANCED OSM" to "ON" in the MAIN MENU (1/2), then perform the following operations.

1. On the MAIN MENU, select "PICTURE", then press the MENU/ENTER button.

The "PICTURE" screen appears.

1. Use the ▲ and ▼ buttons to select "COLOR TUNE", then press the MENU/ENTER button.

The "COLOR TUNE" screen appears.

1. Use the ▲ and ▼ buttons to select "BLUE".

2. Adjust using the ◀ and ▶ buttons.

COLOR TUNE RED Y M GREEN C Y BLUE M C YELLOW G R MAGENTA R B CYAN B G RESET : OFF SEL. ▶ ADJ. EXIT RETURN

* If neither the ◀ or ▶ button is pressed within 5 seconds, the current selection is set and the previous screen reappears.

To continue making other adjustments...

Repeat from step 3.

Information

■ COLOR TUNE settings

RED ...... Makes red's adjustment

GREEN ...... Makes green's adjustment

BLUE......Makes blue's adjustment

YELLOW ...... Makes yellow's adjustment

MAGENTA ..... Makes magenta's adjustment

CYAN ...... Makes cyan's adjustment

RESET ....Resets settings to the factory default value. Use ◀ and ▶ buttons to select "ON", then press the MENU/ENTER button.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Audio Settings Menu

Adjusting the treble, bass and left/right balance and audio input select

The treble, bass and left/right balance can be adjusted to suit your tastes.

Example: Adjusting the bass

1. On the MAIN MENU, select "AUDIO", then press the MENU/ENTER button.

The "AUDIO" screen appears.

1. To adjust the bass ...

Use the ▲ and ▼ buttons to select "BASS".

1. Adjust the bass using the ◀ and ▶ buttons.

AUDIO BASS TREBLE BALANCE AUDIO INPUT1 : VIDEO1 AUDIO INPUT2 : HD/DVD1 AUDIO INPUT3 : RGB1 SEL. ADJ. EXITRETURN

To continue adjusting the audio ...

Repeat from step 2.

Note : If "CAN NOT ADJUST" appears...

Set "AUDIO INPUT" on the AUDIO menu correctly.

Information

■ Audio settings menu

BASS ....Controls the level of low frequency sound.

TREBLE ......Controls the level of high frequency sound.

BALANCE .....Controls the balance of the left and right channels.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Setting the allocation of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired input.

Example: Setting "AUDIO INPUT1" to "VIDEO 2"

1. On the MAIN MENU, select "AUDIO", then press the MENU/ENTER button. The "AUDIO" screen appears.

2. Use the ▲ and ▼ buttons to select "AUDIO INPUT1".

3. To set the AUDIO INPUT1 to "VIDEO2"... Use the ◀ and ▶ buttons to select "VIDEO2". The mode switches as follows each time the ◀ or ▶ button is pressed: The available sources depend on the setting of "BNC INPUT".

AUDIO BASS TREBLE BALANCE AUDIO INPUT1 AUDIO INPUT2 AUDIO INPUT3 VIDEO2 HD/DVD1 RGB1 SEL. ADJ. EXIT RETURN

Information

AUDIO INPUT

A single audio input cannot be selected as the audio channel for more than one input terminal.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Image Adjust Settings Menu

Adjusting the Position, Size, Fine Picture, Picture Adj

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position in the normal mode

1. On the MAIN MENU, select "IMAGE ADJUST", then press the MENU/ENTER button. The "IMAGE ADJUST" menu appears.

Default settings (when RGB/PC is selected)

IMAGE ADJUST ASPECT MODE : NORMAL V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE : OFF FINE PICTURE PICTURE ADJ. SEL. ADJ. EXIT RETURN

* The settings on the IMAGE ADJUST menu are not preset at the factory.

To select a mode ...

Use the ◀ and ▶ buttons to select a mode.

The mode switches as follows each time the ◀ or ▶ button is pressed:

NORMAL ↔ FULL

* The mode can also be switched by pressing the "WIDE" button on the remote control.

1. To adjust the vertical position ...

Use the ▲ and ▼ buttons to select "V-POSITION".

IMAGE ADJUST ASPECT MODE : NORMAL V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE : OFF FINE PICTURE PICTURE ADJ. SEL. ▶ ADJ. EXIT RETURN

1. Adjust using the ◀ and ▶ buttons.

V-POSITION

* If neither the ◀ or ▶ button is pressed within 5 seconds, the current setting is set and the previous screen reappears.

To continue making other computer image adjustments ...

Repeat from step 2.

Information

■ When "AUTO PICTURE" is "OFF"

IMAGE ADJUST ASPECT MODE : FULL V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE : OFF FINE PICTURE PICTURE ADJ. SEL. ADJ. EXIT RETURN

When Auto Picture is off, the Fine Picture and the Picture ADJ. items are displayed so that you can adjust them.

■ Adjusting the Auto Picture

ON......The Picture ADJ., Fine Picture and Position adjustments are made automatically.

Not available for digital ZOOM.

OFF ....The Picture ADJ., Fine Picture and Position adjustments are made manually.

* If FINE PICTURE won't be adjusted, set Auto Picture to OFF and adjust manually.

■ Adjusting the position of the image

V-POSITION ...Adjusts the vertical position of the image.

H-POSITION ...Adjusts the horizontal position of the image.

V-HEIGHT .....Adjusts the vertical size of the image. (Except for STADIUM mode)

H-WIDTH ....Adjusts the horizontal size of the image. (Except for STADIUM mode)

FINE PICTURE*..Adjusts for flickering.

PICTURE ADJ.* ... Adjusts for striped patterns on the image.

* The Picture ADJ. and Fine Picture features are available only when the “Auto Picture” is off.

* The AUTO PICTURE, FINE PICTURE and PICTURE ADJ. are available only for RGB signals.

But, these features are not available for moving pictures on VIDEO, HD/DVD or RGB.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults except for Auto Picture.

Option1 Settings Menu

Setting the on-screen menu

This sets the position of the menu, the display format (horizontal or vertical) etc.

Example: Turning the DISPLAY OSM off

1. On the MAIN MENU, select "OPTION1", then press the MENU/ENTER button. The "OPTION1" menu appears.

2. Use the ▲ and ▼ buttons to select "OSM", then press the MENU/ENTER button. The "OSM" menu appears.

3. Use the ▲ and ▼ buttons to select "DISPLAY OSM".

4. To set the DISPLAY OSM to "OFF"... Use the ◀ and ▶ buttons to select "OFF". The mode switches as follows each time the ◀ or ▶ button is pressed:

ON OFF

OSM DISPLAY OSM : OFF OSM ADJ. : 1 OSM ANGLE : H OSM ORBITER : OFF SEL. ADJ. EXIT RETURN

Information

■ DISPLAY OSM settings

ON......The on-screen menu appears.

OFF ......The on-screen menu does not appear.

If you press the DISPLAY button on the remote control for more than 3 seconds the main menu will appear and can be set (although it is not ON).

OSM ADJUST settings

Adjusts the position of the menu when it appears on the screen.

The position can be set between 1 to 6.

1	2	3
4	5	6

■ OSM ANGLE settings

Sets the display format (landscape "H" or portrait "V"). When the unit is installed vertically set the OSM ANGLE at "V".

“H”

"V"

■ OSM ORBITER settings

ON...... The position of the menu will be shifted by eight dots each time OSM is displayed.

OFF ..... OSM will be displayed at the same position.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults except for Auto Picture.

Setting the BNC connectors

Select whether to set the input of the 5 BNC connectors to RGB and component.

Example: Set the BNC INPUT mode to "COMP."

1. On the MAIN MENU, select "OPTION1", then press the MENU/ENTER button.

The "OPTION1" screen appears.

1. Use the ▲ and ▼ buttons to select "BNC INPUT".

2. To set the BNC INPUT mode to "COMP."...

Use the ◀ and ▶ buttons to select "COMP.".

The mode switches as follows each time the ◀ or ▶ button is pressed:

RGB COMP.

OPTION1 1 / 3 OSM BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE SEL. COMP. RGB AUTO 1080B OFF OFF ADJ. EXIT RETURN

Information

■ BNC INPUT Settings

RGB .....Use the 5BNC terminals for RGB input.

COMP......Use the 3BNC terminals for component input.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Checking the signal being transmitted to RGB1 terminal

Use this to confirm the signal being transmitted to the RGB1 terminal.

It is set to RGB and can not be adjusted.

	OPTION1	1 / 3
OSM
BNC INPUT	:	RGB
D-SUB INPUT	:	RGB
RGB SELECT	:	AUTO
HD SELECT	:	1080B
INPUT SKIP	:	OFF
ALL RESET	:	OFF
↓ NEXT PAGE
CAN NOT ADJUST

Setting a computer image to the correct RGB select screen

With the computer image, select the RGB Select mode for a moving image such as (video) mode, wide mode or digital broadcast.

Example: Setting the "RGB SELECT" mode to "MOTION"

1. On the MAIN MENU, select "OPTION1", then press the MENU/ENTER button.

The "OPTION1" screen appears.

1. Use the ▲ and ▼ buttons to select "RGB SELECT".

2. To set the RGB select mode to "MOTION" ...

Use the ◀ and ▶ buttons to select "MOTION".

The mode switches as follows each time the ◀ or ▶ button is pressed:

AUTO ↔ STILL ↔ MOTION ↔ WIDE1 ↔ WIDE2 ↔ DTV

OPTION1 1 / 3 OSM BNC INPUT : RGB D-SUB INPUT : RGB RGB SELECT : ◀MOTION► HD SELECT : 1080B INPUT SKIP : OFF ALL RESET : OFF ↓ NEXT PAGE ◆SEL. ◀▶ ADJ. EXITRETURN

Information

RGB SELECT modes

One of these 6 modes must be selected in order to display the following signals correctly.

AUTO ....Select the suitable mode for the specifications of input signals as listed in the table “Computer input signals supported by this system” on page 7 of Model Information.

STILL ......To display VESA standard signals. (Use this mode for a still image from a computer.)

MOTION......The video signal (from a scan converter) will be converted to RGB signals to make the picture more easily viewable. (Use this mode for a motion image from a computer.)

WIDE1......When an 852 dot×480 line signal with a horizontal frequency of 31.7kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE1.

WIDE2......When an 848 dot× 480 line signal with a horizontal frequency of 31.0 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE2.

DTV ....Set this mode when watching digital broadcasting (480P).

See page 7 of Model Information for the details of the above settings.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Setting high definition images to the suitable screen size

Use this procedure to set whether the number of vertical lines of the input high definition image is 1035 or 1080.

Example: Setting the "1080B" mode to "1035I"

1. On the MAIN MENU, select "OPTION1", then press the MENU/ENTER button.

The "OPTION1" screen appears.

1. Use the ▲ and ▼ buttons to select "HD SELECT".

2. To set the HD SELECT mode to "1035I" ...

Use the ◀ and ▶ buttons to select "1035I".

The mode switches as follows each time the ◀ or ▶ button is pressed:

+1080B 1035I 1080A

	OPTION1	1 / 3
OSM
BNC INPUT	:	RGB
D-SUB INPUT	:	RGB
RGB SELECT	:	AUTO
HD SELECT	:	1035I ▶
INPUT SKIP	:	OFF
ALL RESET	:	OFF
↓ NEXT PAGE
SEL.	ADJ.	EXIT RETURN

Information

■ HD SELECT modes

These 3 modes are not displayed in correct image automatically.

1080B ......Standard digital broadcasts

1035I ...... Japanese “High Vision” signal format

1080A ....Special Digital broadcasts (for example : DTC100)

Setting the Input Skip

When this is ON, signals which are not present will be skipped over and only pictures whose signals are being transmitted will be displayed.

This setting is valid only for the INPUT SELECT button on the unit.

Example: Set to "ON"

1. On the MAIN MENU, select "OPTION1", then press the MENU/ENTER button.

The "OPTION1" screen appears.

1. Use the ▲ and ▼ buttons to select "INPUT SKIP".

2. To set the INPUT SKIP mode to "ON"...

Use the ◀ and ▶ buttons to select "ON".

The mode switches as follows each time the ◀ or ▶ button is pressed:

OFF → ON

	OPTION1	1 / 3
OSM
BNC INPUT	:	RGB
D-SUB INPUT	:	RGB
RGB SELECT	:	AUTO
HD SELECT	:	1080B
INPUT SKIP	:	ON ▶
ALL RESET	:	OFF
↓ NEXT PAGE
SEL.	ADJ.	EXIT RETURN

Information

■ INPUT SKIP settings

OFF...... Regardless of the presence of the signal, scan and display all signals.

ON......If no input signal is present, skip that signal.

* "SETTING NOW" will appear during the input search.

■ Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Resetting to the default values

Use these operations to restore all the settings (PICTURE, AUDIO, IMAGE ADJUST, OPTION1\~3, etc) to the factory default values.

Refer to page 16 for items to be reset.

1. On the MAIN MENU, select "OPTION1", then press the MENU/ENTER button.

The "OPTION1" screen appears.

1. Use the ▲ and ▼ buttons to select "ALL RESET".

OPTION1 1 / 3 OSM BNC INPUT : RGB D-SUB INPUT : RGB RGB SELECT : AUTO HD SELECT : 1080B INPUT SKIP : OFF ALL RESET : OFF ▶ ▼ NEXT PAGE ◆ SEL. ◀ ADJ. EXIT RETURN

1. Use the ◀ and ▶ buttons to select "ON", then press the MENU/ENTER button.

OPTION1 1 / 3 OSM BNC INPUT : RGB D-SUB INPUT : RGB RGB SELECT : AUTO HD SELECT : 1080B INPUT SKIP : OFF ALL RESET : ON ▶ NEXT PAGE SEL. ⬤WETE:OK EXIT RETURN ALL RESET SETTING NOW

When the “SETTING NOW” screen disappears, then all the settings are restored to the default values.

Option2 Settings Menu

Setting the power management for computer images

This energy-saving (power management) function automatically reduces the monitor's power consumption if no operation is performed for a certain amount of time.

Example: Turning the power management function on

Set “ADVANCED OSM” to “ON” in the main menu (1/2), then perform the following operations.

1. On the MAIN MENU, select "OPTION2", then press the MENU/ENTER button.

The "OPTION2" screen appears.

1. Use the ▲ and ▼ buttons to select "PWR. MGT.".

2. To turn the power management function on ...

Use the ◀ and ▶ buttons to select "ON".

The mode switches as follows each time the ◀ or ▶ button is pressed:

ON ↔ OFF

OPTION2 2 / 3 ↑ PREVIOUS PAGE POWER MGT. : ON ▶ CINEMA MODE : ON LONG LIFE GRAY LEVEL : 3 S1/S2 : OFF ↓ NEXT PAGE SEL. ◀ ADJ. EXIT RETURN

Information

■ Power management function

* The power management function automatically reduces the monitor's power consumption if the computer's keyboard or mouse is not operated for a certain amount of time. This function can be used when using the monitor with a computer.
* If the computer's power is not turned on or if the computer and selector tuner are not properly connected, the system is set to the off state.
* For instructions on using the computer's power management function, refer to the computer's operating instructions.

■ Power management settings

ON...... In this mode the power management function is turned on.

OFF ..... In this mode the power management function is turned off.

■ Power management function and POWER/STANDBY indicator

The POWER/STANDBY indicator indicates the status of the power management function. See page 27 for indicator status and description.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

POWER/STANDBY indicator

Power management mode	POWER/ STANDBY Indicator	Power management operating status	Description	Turning the picture back on
On	Green	Not activated.	Horizontal and vertical synchronizing signals are present from the computer.	Picture already on.
Off	Red	Activated.	Horizontal and/or vertical synchronizing signals are not sent from the computer.	Operate the keyboard or mouse. The picture reappears.

Setting the picture to suit the movie

The film image is automatically discriminated and projected in an image mode suited to the picture. [NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I (50Hz), 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only]

Example: Setting the "CINEMA MODE" to "OFF"

Set "ADVANCED OSM" to "ON" in the main menu (1/2), then perform the following operations.

1. On the MAIN MENU, select "OPTION2", then press the MENU/ENTER button.
   The "OPTION2" screen appears.

2. Use the ▲ and ▼ buttons to select "CINEMA MODE".

3. To set the CINEMA MODE to "OFF" ...

Use the ◀ and ▶ buttons to select "OFF".

The mode switches as follows each time the ◀ or ▶ button is pressed:

ON ↔ OFF

OPTION2 2 / 3 ↑ PREVIOUS PAGE POWER MGT. : OFF CINEMA MODE : OFF▶ LONG LIFE GRAY LEVEL : 3 S1/S2 : OFF ↓ NEXT PAGE SEL. ▶ ADJ. EXIT RETURN

Information

CINEMA MODE

ON....Automatic discrimination of the image and projection in cinema mode.

OFF......Cinema mode does not function.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Reducing burn-in of the screen

The brightness of the screen, the position of the picture, positive/negative mode and screen wiper are adjusted to reduce burn-in of the screen.

Set “ADVANCED OSM” to “ON” in the main menu (1/2), then perform the following operations.

1. On the MAIN MENU, select "OPTION2", then press the MENU/ENTER button.
   The "OPTION2" screen appears.

2. Use the ▲ and ▼ buttons to select “LONG LIFE”, then press the MENU/ENTER button.

The "LONG LIFE" screen appears.

LONG LIFE PLE : AUTO ORBITER : OFF INVERSE : OFF SCREEN WIPER : OFF SOFT FOCUS : OFF SEL. ADJ. EXIT RETURN

1. Set the LONG LIFE mode using ▲▼◀ and ▶buttons. See page 27 to set PLE.

See page 28 to set ORBITER.

See page 28 to set INVERSE.

See page 29 to set SCREEN WIPER.

See page 30 to set SOFT FOCUS.

Information

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

PLE (Peak Luminance Enhancement)

Use this to activate the brightness limiter.

Example: Setting "PLE" to "LOCK1"

Perform Steps 1-2 of LONG LIFE, then...

1. Use the ▲ and ▼ buttons to select "PLE".

2. Use the ◀ and ▶ buttons to select "LOCK1".

The mode switches as follows each time the ◀ or ▶ button is pressed:

LONG LIFE PLE : ◀LOCK1► ORBITER : OFF INVERSE : OFF SCREEN WIPER : OFF SOFT FOCUS : OFF SEL. ◀ ADJ. EXIT RETURN

Information

PLE settings

AUTO ....The brightness of the screen is adjusted automatically to suit the picture quality.

LOCK1, 2, 3 ....Sets maximum brightness.

The brightness level decreases in the order of LOCK 1, 2, 3. LOCK 3 provides minimum brightness.

ORBITER

Use this to set the picture shift.

Example: Setting "ORBITER" to "AUTO1"

Perform Steps 1-2 of LONG LIFE, then...

1. Use the ▲ and ▼ buttons to select "ORBITER".

2. Use the ◀ and ▶ buttons to select "AUTO1".

The mode switches as follows each time the ◀ or ▶ button is pressed:

OFF ← AUTO1 ← AUTO2 ← MANUAL LONG LIFE PLE : AUTO ORBITER : AUTO1 INVERSE : OFF SCREEN WIPER : OFF SOFT FOCUS : OFF SEL. ← ADJ. EXIT RETURN

Information

■ ORBITER settings

OFF .....Orbiter mode does not function.

This is the default setting when RGB is input.

AUTO1 ......The picture moves around the screen intermittently, making the picture smaller. This is the default setting when a Video or a DVD/HD/DTV signal is input. Set to “OFF” when these signals are not used.

AUTO2 ......The picture moves around the screen intermittently, making the picture bigger.

MANUAL .....User can adjust the orbiter function (Horizontal Dot, Vertical Line and Time) manually.

See the following explanation.

* When a Video or a DVD/HD/DTV signal is input, the AUTO1 and 2 functions will affect only the moving picture and will not make the screen smaller or bigger.

Adjust the ORBITER function manually

Set the amount of shift and the time between movement.

Example: Setting so that the picture moves 2 dots horizontally and 3 lines vertically every 3 minutes.

Perform Steps 1-3 of ORBITER, then...

1. Use the ◀ and ▶ buttons to select "MANUAL", then press the MENU/ENTER button.

THE "ORBITER" screen appears.

1. Adjust the items using the ▲▼◀ and ▶ buttons.

The mode switches as follows each time the ◀ or ▶ button is pressed:

• H-DOT

$$ \rightarrow 1 \text { DOT } \leftrightarrow 2 \text { DOT } \leftrightarrow \dots \leftrightarrow 1 9 \text { DOT } \leftrightarrow 2 0 \text { DOT } \leftarrow $$

• V-LINE

$$ \cdot 1 \text { LINE } \leftrightarrow 2 \text { LINE } \leftrightarrow \dots \leftrightarrow 1 9 \text { LINE } \leftrightarrow 2 0 \text { LINE } $$

• TIME

$$ 1 \mathrm{M} \leftrightarrow 2 \mathrm{M} \leftrightarrow 3 \mathrm{M} \leftrightarrow 4 \mathrm{M} \leftrightarrow 5 \mathrm{M} $$

ORBITER H-DOT : 2 DOT V-LINE : 4 LINE TIME : 3 M SEL. ADJ. EXIT RETURN

Information

■ ORBITER Function settings

H-DOT......Moves from 1 to 20 dots in the horizontal direction.

V-LINE......Moves from 1 to 20 lines in the vertical direction.

TIME ....Interval of 1\~5 minutes (1 horizontal dot or 1 vertical line per interval).

INVERSE

Use this to set the inverse mode or to display a white screen.

Example: Setting "INVERSE" to "WHITE"

Perform Steps 1-2 of LONG LIFE, then...

1. Use the ▲ and ▼ buttons to select "INVERSE".

2. Use the ◀ and ▶ buttons to select "WHITE".

The mode switches as follows each time the ◀ or ▶ button is pressed:

LONG LIFE PLE : AUTO ORBITER : OFF INVERSE : WHITE SCREEN WIPER : OFF SOFT FOCUS : OFF SEL. ADJ. EXIT RETURN

Information

■ INVERSE Settings

ON...... The picture is displayed alternately between positive image and negative image.

You can set the time by pressing the MENU/ENTER button while "ON" is set.

OFF ..... Inverse mode does not function.

WHITE ...The entire screen turns white.

You can set the time by pressing the MENU/ENTER button while "ON" is set.

Setting the time for INVERSE/WHITE

Set a time duration.

Example: Setting to that the INVERSE mode starts in 2 hours and proceeds for one hour and a half.

Perform Steps 1-3 of INVERSE, then...

1. Use the ◀ and ▶ buttons to select "ON", then press the MENU/ENTER button.

THE "INVERSE/WHITE" screen appears.

1. Adjust the time using the ▲▼◀ and ▶ buttons.

The mode switches as follows each time the ◀ or ▶ button is pressed:

• WORKING TIME

- WAITING TIME

00H03M 00H06M 00H09M ... 12H42M 12H45M

INVERSE/WHITE WORKING TIME : 01H30M WAITING TIME : 02H00M SEL. ADJ. EXIT RETURN

Information

Setting the time

WORKING TIME ..... Set the time duration for "INVERSE/WHITE". When the WORKING TIME is set to "ON" the mode will stay on.

WAITING TIME.....Set the standby time until the "INVERSE/WHITE" mode starts.

* The “WAITING TIME” can not be set when the “WORKING TIME” is ON.
* THE "WORKING TIME" and "WAITING TIME" can be set for up to 12 hours and 45 minutes in units of 3 minutes.
* Ending a WORKING TIME function, the monitor will be STAND BY.

[Example]

WORKING TIME: 01H30M

WAITING TIME: 02H00M

|←---- 2 H ----→|←--- 1.5 H --→|←---- Start INVERSE/WHITE Start STAND BY

■ To select "ON" for the "WORKING TIME"...

Set the hours of the working time to 0H and the minutes to 0M. “ON” will be displayed.

SCREEN WIPER

When this is set to ON, a white vertical bar moves repeatedly from the left and of the screen to the right end at a constant speed.

Example: Setting "SCREEN WIPER" to "ON"

Perform Steps 1-2 of LONG LIFE, then...

1. Use the ▲ and ▼ buttons to select "SCREEN WIPER".
2. Use the ◀ and ▶ buttons to select "ON".

The mode switches as follows each time the ◀ or ▶ button is pressed:

OFF → ON

LONG LIFE PLE : AUTO ORBITER : OFF INVERSE : OFF SCREEN WIPER : ON SOFT FOCUS : OFF SEL. ADJ. EXIT RETURN

Information

■ SCREEN WIPER

ON...... The white vertical bar appears.

You can set the time by pressing the MENU/ENTER button while "ON" is set.

OFF ..... Screen wiper mode does not function.

Setting the time for SCREEN WIPER

Set a time duration and the speed.

Example: Setting to that the SCREEN WIPER mode starts in 30 minutes and proceeds for one hour and a half.

Perform Steps 1-3 of SCREEN WIPER, then...

1. Use the ◀ and ▶ buttons to select "ON", then press the MENU/ENTER button.

THE "SCREEN WIPER" screen appears.

1. Adjust the time and speed using the ▲▼◀ and ▶ buttons.

The mode switches as follows each time the ◀ or ▶ button is pressed:

- WORKING TIME

ON 00H03M 00H06M ..... 12H42M 12H45M

- WAITING TIME

-00H03M 00H06M 00H09M ... 12H42M 12H45M

- SPEED

→1 ↔ 2 ↔ 3 ↔ 4 ↔ 5←

SCREEN WIPER WORKING TIME : 01H30M WAITING TIME : 00H30M SPEED : 3 SEL. ADJ. EXIT RETURN

Information

Setting the time

WORKING TIME .... Set the time duration for “SCREEN WIPER”. When the WORKING TIME is set to “ON” the mode will stay on. WAITING TIME ..... Set the standby time until the “SCREEN WIPER” mode starts. SPEED ..... Set the moving speed for the “SCREEN WIPER”. The speed decreases as the number increases.

* The "WAITING TIME" can not be set when the "WORKING TIME" is ON.

* THE "WORKING TIME" and "WAITING TIME" can be set for up to 12 hours and 45 minutes in units of 3 minutes.

SOFT FOCUS

Reduces edges and softens the image.

Example: Setting "SOFT FOCUS" to "2"

Perform Steps 1-2 of LONG LIFE, then...

1. Use the ▲ and ▼ buttons to select "SOFT FOCUS".

2. Use the ◀ and ▶ buttons to select "2".

The mode switches as follows each time the ◀ or ▶ button is pressed:

LONG LIFE PLE : AUTO ORBITER : OFF INVERSE : OFF SCREEN WIPER : OFF SOFT FOCUS : 2 SEL. ADJ. EXIT RETURN

Information

■ SOFT FOCUS settings

OFF ....Turns the SOFT FOCUS function off. 1, 2, 3, 4 .....Activates the SOFT FOCUS setting. The higher numbers create a softer image. “SHARPNESS” can not be adjusted on the “PICTURE” menu.

Setting the gray level for the sides of the screen

Use this procedure to set the gray level for the parts on the screen on which nothing is displayed when the screen is set to the 4:3 size.

Example: Adjusting the "GRAY LEVEL"

Set "ADVANCED OSM" to "ON" in the main menu (1/2), then perform the following operations.

1. On the MAIN MENU, select "OPTION2", then press the MENU/ENTER button. The "OPTION2" screen appears.

2. Use the ▲ and ▼ buttons to select "GRAY LEVEL".

3. To adjust the "GRAY LEVEL"... Use the ◀ and ▶ buttons to adjust the GRAY LEVEL.

OPTION2 2 / 3 ↑ PREVIOUS PAGE POWER MGT. : OFF CINEMA MODE : ON LONG LIFE GRAY LEVEL : ◀5 ▶ S1/S2 : OFF ↓ NEXT PAGE SEL. ▶ ADJ. EXITRETURN

Information

■ GRAY LEVEL settings

This adjusts the brightness of the black (the gray level) for the sides of the screen.

The standard is 0 (black). The level can be adjusted from 0 to 15. The factory setting is 3 (dark gray).

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Setting the screen size for S1/S2 video input

If the S-video signal contains screen size information, the image will be automatically adjusted to fit the screen when this S1/S2 is set to AUTO.

This feature is available only when an S-video signal is input via the VIDEO3 terminal.

Example: Setting the "S1/S2" to "AUTO"

Set "ADVANCED OSM" to "ON" in the main menu (1/2), then perform the following operations.

1. On the MAIN MENU, select "OPTION2", then press the MENU/ENTER button. The "OPTION2" screen appears.

2. Use the ▲ and ▼ buttons to select "S1/S2".

3. Use the ◀ and ▶ buttons to select "AUTO". The mode switches as follows each time the ◀ or ▶ button is pressed:

OFF - AUTO

OPTION2 2 / 3 ↑ PREVIOUS PAGE POWER MGT. : OFF CINEMA MODE : ON LONG LIFE GRAY LEVEL : 3 S1/S2 : AUTO ↓ NEXT PAGE SEL. ▶ ADJ. EXIT RETURN

Information

■ S1/S2 settings

AUTO .....Adjusts the screen size automatically according to the S1/S2 video signal. OFF ..... Turns the S1/S2 function off.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Setting the picture size for RGB input signals

Use this procedure to switch the setting to "ON" or "OFF".

Example: Setting the "PICTURE SIZE" mode to "OFF"

Set “ADVANCED OSM” to “ON” in the main menu (1/2), then perform the following operations.

1. On the MAIN MENU, select "OPTION2", then press the MENU/ENTER button. The "OPTION2" screen appears.

2. Use the ▲ and ▼ buttons to select "PICTURE SIZE".

3. To set PICTURE SIZE mode to "OFF"...

Use the ◀ and ▶ buttons to select "OFF".

The mode switches as follows each time the ◀ or ▶ button is pressed:

ON ↔ OFF

OPTION2 2 / 3 ↑ PREVIOUS PAGE POWER MGT. : OFF CINEMA MODE : ON LONG LIFE GRAY LEVEL : 3 S1/S2 : OFF PICTURE SIZE : OFF DVI SET UP ↓ NEXT PAGE SEL. ▶ ADJ. EXIT RETURN

Information

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Setting the signal and black level for DVI signal

Choose the signal for the DVI connector (PC or STB/DVD) and set the black level.

Example: Setting the "PLUG/PLAY" mode to "STB/DVD"

Set “ADVANCED OSM” to “ON” in the main menu (1/2), then perform the following operations.

1. On the MAIN MENU, select "OPTION2", then press the MENU/ENTER button. The "OPTION2" screen appears.

2. Use the ▲ and ▼ buttons to select “DVI SET UP”, then press the MENU/ENTER button. The “DVI SET UP” screen appears.

3. To set PLUG/PLAY mode to "STB/DVD"... Use the ◀ and ▶ buttons to select "STB/DVD". The mode switches as follows each time the ◀ or ▶ button is pressed:

PLUG/PLAY: PC STB/DVD

BLACK LEVEL: LOW HIGH

DVI SET UP PLUG/PLAY : STB/DVD BLACK LEVEL : HIGH SEL. ADJ. EXIT RETURN

Information

■ PLUG/PLAY settings

PC ....When connected to the PC signal. BLACK LEVEL is set to “LOW” automatically.

STB/DVD ...When connected to the SET TOP BOX, DVD etc. BLACK LEVEL is set to “HIGH” automatically.

LOW ....When connected to the PC signal. HIGH ....When connected to the SET TOP BOX, DVD etc. Change “HIGH” into “OFF” if the black level appears gray.

Option3 Settings Menu

Using the timer

This function sets the monitor to turn ON/OFF automatically at a set time.

Set "ADVANCED OSM" to "ON" in the main menu (1/2), then perform the following operations.

1. On the MAIN MENU, select "OPTION3", then press the MENU/ENTER button. The "OPTION3" screen appears.

2. Use the ▲ and ▼ buttons to select "TIMER", then press the MENU/ENTER button. The "TIMER" screen appears.

TIMER PRESENT TIME PROGRAM : OFF SEL. EXIT Return

1. Set the TIMER using ▲▼◀ and▶ buttons. See page 32 to set PRESENT TIME. See page 33 to set PROGRAM.

Information

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

PRESENT TIME

This sets the day of the week and present time.

Example: Setting "WEDNESDAY", "22:05"

Perform Steps 1-2 of TIMER, then...

1. Use the ▲ and ▼ buttons to select "PRESENT TIME", then press the MENU/ENTER button. The "PRESENT TIME" screen appears.

PRESENT TIME RETURN DAYLIGHT SAVING TIME : OFF WEDNESDAY 13 : 00 : 00 SEL. ADJ. EXIT RETURN

1. Use the ▲ and ▼ buttons to select the item, then adjust using the ◀ and ▶ buttons.

PRESENT TIME RETURN DAYLIGHT SAVING TIME : OFF WEDNESDAY 22:05:00 SEL. ADJ. EXIT RETURN

The mode switches as follows each time the ◀ or ▶ button is pressed:

• DAYLIGHT SAVING TIME ON → OFF • Day →SUNDAY → MONDAY ← ..... → FRIDAY → SATURDAY← • Hour/Minutes →00:00 ← 00:01 ← 00:02 ← ..... → 23:58 ← 23:59←

1. Once the setting is completed...

Use the ▲ and ▼ buttons to select "SET", then press the MENU/ENTER button.

The adjustments are stored and return to the TIMER menu.

PRESENT TIME RETURN DAYLIGHT SAVING TIME : OFF WEDNESDAY 22:05:00 SET SEL. IENENTER OK EXIT RETURN

Information

■ PRESENT TIME settings

Use to set DAYLIGHT SAVING TIME. ON: The present time + 1 hour. OFF: Cancelled

Day......Set the day of the week (e.g. Sunday). Hour ......Set the hour in the 24-hour format (range 00 to 23).

Minutes ......Set the minutes (range 00 to 59).

* If you press the EXIT button instead of the MENU/ENTER button in step 5, the settings can not be mode.

PROGRAM TIMER

This sets the day and time at which the power will be switched ON/OFF as well as the input mode.

Example: Setting so that the power will be switched on at 8:30 A.M., Monday, displaying RGB2 source, and switched off at 10:30 A.M.

Perform Steps 1-2 of TIMER, then...

1. Use the ▲ and ▼ buttons to select "PROGRAM".

TIMER PRESENT TIME PROGRAM OFF SEL. ADJ. EXIT RETURN

1. Use the ◀ and ▶ buttons to select "ON", then press the MENU/ENTER button.
   The "PROGRAM TIMER" screen appears.

2. Adjust using the ▲▼◀ and ▶ buttons and ZOOM +/ - button.

PROGRAM TIMER DATE ON OFF INPUT FUNCTION MON 08:30 10:30 RGB2 INVERSE — ····· ····· ·— — — ····· ····· ·— — — ····· ····· ·— — — ····· ····· ·— — — ····· ····· ·— — ◆ SEL. ADJ. COOL EXIT RETURN

The mode switches as follows each time the ZOOM +/- button is pressed:

- Date

• ON/OFF Hour

- Minute

- INPUT

- FUNCTION

Information

■ PROGRAM TIMER settings

DATE ....Set the day of the week (e.g. Sunday).

ON (hour, minutes) .... Set the time at which the power will be turned on in the 24-hour format.

OFF (hour, minutes)... Set the time at which the power will be turned off in the 24-hour format.

INPUT .... Set the input mode that will be displayed when the timer is on.

FUNCTION ...... Set the LONG LIFE function.

■ To reset the program

Align the cursor with the DATE field that you wish to reset, then press the CLEAR button.

■ To reset the data

Align the cursor with the field (ON/OFF/INPUT/FUNCTION) that you wish to reset, then press the CLEAR button.

■ Special characters in the PROGRAM TIMER screen

PROGRAM TIMER DATE ON OFF INPUT FUNCTION MON 08:30 10:30 RGB2 INVERSE TUE --:-- 18:15 — — SAT 08:30 12:15 VIDEO1 WHITE *FRI 08:30 10:00 HD/DVD1 — — — --:-- --:-- — — SAT 08:30 12:15 VIDEO1 WHITE + 15:30 16:00 RGB1 — SEL. ADJ. LOGEXIT RETURN

- An asterisk “*” in the DATE field

An asterisk “*” means “every”. For example, “*FRI” means every Friday and “*” means everyday.

- A hyphen “-” in the ON field or OFF field

If any hyphen remains in the ON field or OFF field, the FUNCTION can not be set.

- A hyphen “-” in the FUNCTION field

A hyphen “-” means last mode (the mode that was last selected at the time the power was switched off).

Setting the power on mode

This function sets the input mode at the time the power is switched on.

Example: Setting "VIDEO2"

Set “ADVANCED OSM” to “ON” in the main menu (1/2), then perform the following operations.

1. On the MAIN MENU, select "OPTION3", then press the MENU/ENTER button.

The "OPTION3" screen appears.

1. Use the ▲ and ▼ buttons to select "PWR. ON MODE".

2. To set the PWR. ON MODE to "VIDEO2"...

Use the ◀ and ▶ buttons to select "VIDEO2".

The mode switches as follows each time the ◀ or ▶ button is pressed:

The available inputs depend on the setting of “BNC INPUT”.

OPTION3 3 / 3 ↑ PREVIOUS PAGE TIMER PWR. ON MODE : ◀VIDEO2 ▶ CONTROL LOCK : OFF IR REMOTE : ON LOOP OUT : OFF ID NUMBER : ALL VIDEO WALL SEL. ◀ ADJ. EXIT RETURN

Information

■ PWR. ON MODE settings

LAST ....Last mode (the mode that was last selected at the time the power was switched off).

VIDEO1, 2, 3....VIDEO input mode.

RGB1, 2, 3 ..... RGB input mode.

HD/DVD1, 2 .....HD/DVD input mode.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Enabling/disabling the front panel controls

This function enables/disables the front panel controls.

Example: Setting "ON"

Set "ADVANCED OSM" to "ON" in the main menu (1/2), then perform the following operations.

1. On the MAIN MENU, select "OPTION3", then press the MENU/ENTER button.
   The "OPTION3" screen appears.

2. Use the ▲ and ▼ buttons to select "CONTROL LOCK".

3. To set the CONTROL LOCK to "ON"...

Use the ◀ and ▶ buttons to select "ON", then press the MENU/ENTER button.

The mode switches as follows each time the ◀ or ▶ button is pressed:

OFF → ON

OPTION3 3 / 3 ↑ PREVIOUS PAGE TIMER PWR. ON MODE : LAST CONTROL LOCK : ON ▶ IR REMOTE : ON LOOP OUT : OFF ID NUMBER : ALL VIDEO WALL SEL. ▶ ADJ. EXIT RETURN

Information

■ CONTROL LOCK settings

ON..... Disables the buttons on the front panel. OFF .... Enables the buttons on the front panel.

* Even when the CONTROL LOCK is set, the POWER switch will not be locked.
* This becomes effective when the on-screen menu goes out.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Enabling/disabling remote control wireless transmission

This function enables/disables remote control wireless transmission.

Example: Setting "OFF"

Set "ADVANCED OSM" to "ON" in the main menu (1/2), then perform the following operations.

1. On the MAIN MENU, select "OPTION3", then press the MENU/ENTER button.
   The "OPTION3" screen appears.

2. Use the ▲ and ▼ buttons to select "IR REMOTE".

3. To set the IR REMOTE to "OFF"...

Use the ◀ and ▶ buttons to select "OFF", then press the MENU/ENTER button.

The mode switches as follows each time the ◀ or ▶ button is pressed:

OFF → ON

OPTION3 3 / 3 ↑ PREVIOUS PAGE TIMER PWR. ON MODE : LAST CONTROL LOCK : OFF IR REMOTE | : OFF > LOOP OUT : OFF ID NUMBER : ALL VIDEO WALL SEL. ▶ ADJ. EXIT RETURN

Information

■ IR REMOTE settings

ON..... Enables remote control wireless transmission. OFF .... Disables remote control wireless transmission. Set “OFF” to avoid unwanted control from other remote controls.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Loop Out setting

When this feature is set to ON, the received signal will be looped out.

Example: Setting "ON"

Set "ADVANCED OSM" to "ON" in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select "OPTION3", then press the MENU/ENTER button.

The "OPTION3" screen appears.

1. Use the ▲ and ▼ buttons to select "LOOP OUT".

2. To set the LOOP OUT to "ON"...

Use the ◀ and ▶ buttons to select "ON".

The mode switches as follows each time the ◀ or ▶ button is pressed:

OFF ↔ ON

OPTION3 3 / 3 ↑ PREVIOUS PAGE TIMER PWR. ON MODE : LAST CONTROL LOCK : OFF IR REMOTE : ON LOOP OUT : ON ▶ ID NUMBER : ALL VIDEO WALL SEL. ▶ ADJ. EXIT RETURN

Information

■ LOOP OUT settings

ON..... The received signal will be looped out via PC1 terminal or VIDEO1 terminal.

OFF .... The received signal will not loop out.

* Even if LOOP OUT is ON, signals won't be sent out if POWER is being turned off.

■ To connect another display...

See page 10.

■ If the RGB/PC1 signal is present at the time the power switched on...

The RGB/PC1 input will be displayed regardless of the setting of LOOP OUT.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

ID number setting

When using more than one of these displays, this function sets ID numbers so that operation of the remote control does not cause multiple monitors to operate at the same time.

Example: Setting "2"

Set "ADVANCED OSM" to "ON" in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select "OPTION3", then press the MENU/ENTER button.

The "OPTION3" screen appears.

1. Use the ▲ and ▼ buttons to select "ID NUMBER".

2. To set the ID NUMBER to "2"...

Use the ◀ and ▶ buttons to select "2".

The mode switches as follows each time the ◀ or ▶

button is pressed:

$$ \boxed {\rightarrow \text { ALL } \leftrightarrow 1 \leftrightarrow 2 \leftrightarrow \dots \leftrightarrow 2 5 5 \leftrightarrow 2 5 6 \leftarrow} $$

OPTION3 3 / 3 ↑ PREVIOUS PAGE TIMER PWR. ON MODE : LAST CONTROL LOCK : OFF IR REMOTE : ON LOOP OUT : OFF ID NUMBER : ◀2 ► VIDEO WALL SEL. ◀ ADJ. EXIT RETURN

* To reset back to ALL

Press the CLEAR button.

Information

ID NUMBER settings

ALL.....ID NUMBER will not be set.

1 to 256 ....ID NUMBER will be set.

■ When the ID NUMBER have been set

You can also set ID NUMBER for each remote control to operate the plasma display individually. To do so, see below.

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

To set the ID number for the remote control

Example: Setting "2"

1. Press the ID SELECT button on the remote control. The "ID SELECT" screen appears.

2. Use the ▲ and ▼ buttons to select "ID NUMBER".

3. To set the ID NUMBER to "2"...

Use the ◀ and ▶ buttons to select "2".

The mode switches as follows each time the ◀ or ▶ button is pressed:

$$ \boxed {\rightarrow \text { ALL } \leftrightarrow 1 \leftrightarrow 2 \leftrightarrow \dots \leftrightarrow 2 5 5 \leftrightarrow 2 5 6 -} $$

ID SELECT POSITION : 1 ID NUMBER : 2 ADJ. EXIT RETURN

* To reset back to ALL

Press the CLEAR button.

1. Once the setting is completed...

Press the EXIT button to delete the ID SELECT screen.

Video Wall setting

Use this feature to configure a 2·2 or 3·3 video wall.

Set "ADVANCED OSM" to "ON" in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select "OPTION3", then press the MENU/ENTER button. The "OPTION3" screen appears.

2. Use the ▲ and ▼ buttons to select "VIDEO WALL", then press the MENU/ENTER button. The "VIDEO WALL" screen appears.

VIDEO WALL
DIVIDER	: ◀1 ▶
POSITION
DISP. MODE	: SPLIT
AUTO ID	: OFF
IMAGE ADJUST
P. ON DELAY	: OFF
PLE LINK	: OFF
REPEAT TIMER	: OFF
SEL. ◀ADJ.	EXIT RETURN

1. Set the VIDEO WALL using ▲▼◀ and ▶ buttons.

See page 36 to set DIVIDER.

See page 36 to set POSITION.

See page 37 to set DISP. MODE.

See page 37 to set AUTO ID.

See page 37 to set IMAGE ADJUST.

See page 38 to set P. ON DELAY.

See page 38 to set PLE LINK.

See page 39 to set REPEAT TIMER.

1. Once the setting is completed...

Press the EXIT button to return to the OPTION3 menu.

Note: A contingency method of shutting off the electric power should be used in cases of emergency during video wall setup.

Information

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

DIVIDER

Set the 2·2 or 3·3 video wall.

Example: Setting "4"

Perform Steps 1-2 of VIDEO WALL, then...

1. Use the ▲ and ▼ buttons to select "DIVIDER".

2. Use the ◀ and ▶ buttons to select "4".

The mode switches as follows each time the ◀ or ▶ button is pressed:

VIDEO WALL DIVIDER : 4 POSITION DISP. MODE : SPLIT AUTO ID : OFF IMAGE ADJUST P. ON DELAY : OFF PLE LINK : OFF REPEAT TIMER : OFF SEL. ADJ. EXIT RETURN

Information

■ DIVIDER settings

OFF, 1 .....1 Screen (Matrix display function does not work)

4 ....4 Screens (2· 2 video wall)

9 ...... 9 Screens (3· 3 video wall)

* When you select "4" or "9", set the VIDEO WALL POSITION.

VIDEO WALL POSITION

Set the position of each display.

Example: Setting "4"

Perform Steps 1-2 of VIDEO WALL, then...

1. Use the ▲ and ▼ buttons to select "POSITION", then press the MENU/ENTER button. The "VIDEO WALL POSITION" screen appears.

2. Use the ◀ and ▶ buttons to select "NO. 4". The mode switches as follows each time the ◀ or ▶ button is pressed:

• 4 Screens

→ NO. 1 ← NO. 2 ← NO. 3 ← NO. 4 ←

• 9 Screens

→ NO. 7 ↔ NO. 8 ↔ ...... ↔ NO. 14 ↔ NO. 15 ←

VIDEO WALL POSITION POSITION NO. 4 ADJ. EXIT RETURN

Information

■ VIDEO WALL POSITION settings

1 Screen.....There is no need to set POSITION.

4 Screens

NO. 1	NO. 2
NO. 4	NO. 3

9 Screens

NO. 7	NO. 8	NO. 9
NO. 10	NO. 11	NO. 12
NO. 13	NO. 14	NO. 15

DISP. MODE

Select the screen mode from between two options (Splitting, Blanking).

Example: Setting "BLANK"

Perform Steps 1-2 of VIDEO WALL, then...

1. Use the ▲ and ▼ buttons to select "DISP. MODE".

2. Use the ◀ and ▶ buttons to select "BLANK".

The mode switches as follows each time the ◀ or ▶ button is pressed:

SPLIT BLANK

VIDEO WALL DIVIDER : 1 POSITION DISP. MODE : ◀BLANK▶ AUTO ID : OFF IMAGE ADJUST P. ON DELAY : OFF PLE LINK : OFF REPEAT TIMER : OFF SEL. ◀▶ADJ. EXIT RETURN

Information

■ DISP. MODE settings

SPLIT ......Combines enlarged screens and creates multiple screens.

BLANK ..... Corrects misalignment of combined screen portions and creates multiple screens

AUTO ID

This feature automatically sets the ID numbers of multiple displays connected to each other.

Example: Setting "ON"

Set the ID number for the No. 1 display on ID NUMBER menu.

Perform Steps 1-2 of VIDEO WALL, then...

1. Use the ▲ and ▼ buttons to select "AUTO ID".

2. Use the ◀ and ▶ buttons to select "ON", then press the MENU/ENTER button.

The mode switches as follows each time the ◀ or ▶ button is pressed:

OFF → ON

Information

■ AUTO ID settings

ON..... Enables Auto ID function. In the case shown below, display 1 will be set as ID 1, display 2 as ID2, etc.

OFF .... Disables Auto ID function.

IMAGE ADJUST

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position

Perform Steps 1-2 of VIDEO WALL, then...

1. Use the ▲ and ▼ buttons to select "IMAGE ADJUST", then press the MENU/ENTER button. The "IMAGE ADJUST" screen appears.

2. Use the ▲ and ▼ buttons to select "V-POSITION".

IMAGE ADJUST ASPECT MODE : NORMAL V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE : OFF FINE PICTURE PICTURE ADJ. SEL. ADJ. EXIT RETURN

1. Aduct using the ◀ and ▶ buttons.

V-POSITION

* If neither the ◀or▶ button is pressed within 5 seconds, the current setting is set and the previous screen reappears.

Information

■ IMAGE ADJUST settings

These are the same functions as the IMAGE ADJUST menu on page 22.

P. ON DELAY (Power on delay)

Use this function to activate power-on delay.

Turn on the AUTO ID before the following operations.

Example: Setting "ON"

Perform Steps 1-2 of VIDEO WALL, then...

1. Use the ▲ and ▼ buttons to select "P. ON DELAY".

2. Use the ◀ and ▶ buttons to select "ON".

The mode switches as follows each time the ◀ or ▶ button is pressed:

OFF ON

VIDEO WALL
DIVIDER	: 1
POSITION
DISP. MODE	: SPLIT
AUTO ID	: OFF
IMAGE ADJUST
P.ON DELAY	:ON ▶
PLE LINK	: OFF
REPEAT TIMER	: OFF
SEL. ADJ.	EXIT RETURN

Information

■ P. ON DELAY settings

ON..... Turns on the main power of each display after a delay time.

OFF .... Turns on the main power of all displays at the same time.

* Once this function has been set to "ON", POWER ON/OFF button on the remote control does not function except for the No.1 monitor.

By pressing the POWER ON button on the remote control the No.1 monitor will turn on and the others will be turned on one by one automatically.

* From the second monitor onward, neither the POWER button on the unit nor the POWER ON button on the remote control does function. However, by pressing and holding the POWER ON button for more than 3 seconds, the monitor will be turned on.

PLE LINK

Use this function to set a uniform brightness for each display.

Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9) before the following operations.

Example: Setting "ON"

Perform Steps 1-2 of VIDEO WALL, then...

1. Use the ▲ and ▼ buttons to select "PLE LINK".

2. Use the ◀ and ▶ buttons to select "ON", then press the MENU/ENTER button.

The mode switches as follows each time the ◀ or ▶ button is pressed:

OFF ON

VIDEO WALL
DIVIDER	: 1
POSITION
DISP. MODE	: SPLIT
AUTO ID	: OFF
IMAGE ADJUST
P. ON DELAY	: OFF
PLE LINK	:ON ▶
REPEAT TIMER	: OFF
SEL. ADJ.	EXIT RETURN

Information

■ PLE LINK settings

ON..... Sets a uniform brightness for each screen in a video wall.

OFF .... Sets the individual screen brightness for each screen in a video wall.

* When this function is set “ON”, connect your plasma displays with the remote cable (optional) in the order of the position numbers for the 2·2 video wall. See the drawing below.

* If there are changes in the DIVIDER or POSITION, the PLE LINK will automatically turn OFF.

* With the 3·3 video wall, connect the final display to the first display the same way as with 2·2 video wall.

Note: The remote control can be operated unless the IR REMOTE is set to "OFF".

REPEAT TIMER

Use this to set two timers. Each timer can use the DIVIDER, SOURCE and WORK TIME functions.

Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9) before the following operations.

Example:

TIMER1...VIDEO1 will be displayed for 3 minutes. TIMER2...RGB1 will be displayed for 6 minutes in a 2·2 video wall.

Perform Steps 1-2 of VIDEO WALL, then...

1. Use the ▲ and ▼ buttons to select "REPEAT TIMER".

VIDEO WALL
DIVIDER	: 1
POSITION
DISP. MODE	: SPLIT
AUTO ID	: OFF
IMAGE ADJUST
P. ON DELAY	: OFF
PLE LINK	: OFF
REPEAT TIMER	: OFF
SEL. ADJ. EXIT RETURN

1. Use the ◀ and ▶ buttons to select "ON", then press the MENU/ENTER button.

The "REPEAT TIMER" screen appears.

1. Aduct using the ▲▼◀ and ▶buttons.

The mode switches as follows each time the ◀ or ▶ button is pressed:

REPEAT TIMER
1 DIVIDER	: 1
SOURCE	: VIDEO1
WORK TIME	: 00H03M
2 DIVIDER	: 4
SOURCE	: RGB1
WORK TIME	: 00H06M
SEL. ADJ. EXIT RETURN

• DIVIDER

- SOURCE

The available sources depend on the setting of "BNC INPUT".

- WORK TIME

Information

■ REPEAT TIMER settings

If you set both timers, Timer 1 and Timer 2 run consecutively.

In the case of the Video wall, timer No.1 can be used to control all the displays simultaneously.

* This becomes effective when the on-screen menu goes out.

Advanced OSM Settings Menu

Setting the menu mode

This allows you to access full menu items.

When P. ON DELAY or PLE LINK is ON, this won't be turned OFF.

Example: Setting "ON"

1. On the MAIN MENU, select "ADVANCED OSM".

MAIN MENU 1 / 2 PICTURE AUDIO IMAGE ADJUST OPTION1 ADVANCED OSM : OFF ↓ NEXT PAGE ◆ SEL. ◀ ADJ. EXIT EXIT

1. To set the ADVANCED OSM to "ON"...

Use the ◀ and ▶ buttons to select "ON".

The mode switches as follows each time the ◀ or ▶ button is pressed:

OFF ON

MAIN MENU 1 / 2 PICTURE AUDIO IMAGE ADJUST OPTION1 OPTION2 OPTION3 ADVANCED OSM : ON ↓ NEXT PAGE ◆ SEL. ◀ ADJ. EXIT EXIT

Information

■ ADVANCED OSM settings

ON..... All of the main menu items are available for advanced users.

OFF .... Some of the main menu items are not available (e.g. OPTION2, OPTION3).

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Language Settings Menu Setting the language for the menus

The menu display can be set to one of seven languages: English, German, French, Swedish, Italian, Spanish or Chinese.

Example: Setting the menu display to "DEUTSCH"

1. On the MAIN MENU, select "LANGUAGE", then press the MENU/ENTER button.
   The "LANGUAGE" screen appears.

2. To select "DEUTSCH" ...

Use the ◀ and ▶ buttons to select “ DEUTSCH”.

The mode switches as follows each time the ◀ or ▶ buttons is pressed:

Information

■ Language settings

ENGLISH ......English

DEUTSCH.....German

FRANÇAIS ..... French

ESPAÑOL .....Spanish

ITALIANO ..... Italian

SVENSKA .....Swedish

中文 ……Chinese

Color System Settings Menu Setting the video signal format

Use these operations to set the color systems of composite video signals or Y/C input signals.

Example: Setting the color system to "3.58 NTSC"

1. On the MAIN MENU, select "COLOR SYSTEM", then press the MENU/ENTER button.
   The "COLOR SYSTEM" screen appears.

2. To select "3.58NTSC" ...

Use the ◀ and ▶ buttons to select “ 3.58NTSC ”.

The mode switches as follows each time the ◀ or ▶ button is pressed:

COLOR SYSTEM COLOR SYSTEM : 3.58NTSC ADJ. EXIT RETURN

Information

■ Video signal formats

Different countries use different formats for video signals. Set to the color system used in your current country.

AUTO ....The color systems are automatically identified and the format is set accordingly.

PAL......This is the standard format used mainly in the United Kingdom and Germany.

SECAM......This is the standard format used mainly in France and Russia.

4.43 NTSC,

PAL60 ......This format is used for videos in countries using PAL and SECAM video signals.

3.58 NTSC .....This is the standard format used mainly in the United States and Japan.

PAL-M ......This is the standard format used mainly in Brazil.

PAL-N......This is the standard format used mainly in Argentina.

Source Information Menu

Checking the frequencies, polarities of input signals, and resolution

Use this function to check the frequencies and polarities of the signals currently being input from a computer, etc.

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. On the MAIN MENU, select "SOURCE INFORMATION", then press the MENU/ENTER button.

2. The "SOURCE INFORMATION" is displayed.

SOURCE INFORMATION H. FREQ : 48.4KHZ V. FREQ : 60.0KHZ H. POLARITY : NEG. V. POLARITY : NEG. MEMORY : 24 RESOLUTION : 1024 768 EXIT RETURN

PC: MEMORY will be displayed.

Others: MODE will be displayed.

External Control

Application

These specifications cover the communications control of the plasma monitor by external equipment.

Connections

Connections are made as described below.

Connector on the plasma monitor side: EXTERNAL CONTROL connector.

Use a crossed (reverse) cable.

Type of connector: D-Sub 9-pin male

Pin No.	Pin Name
1	No Connection
2	RXD (Receive data)
3	TXD (Transmit data)
4	DTR (DTE side ready)
5	GND
6	DSR (DCE side ready)
7	RTS (Ready to send)
8	CTS (Clear to send)
9	No connection

Communication Parameters

(1) Communication system Asynchronous
(2) Interface RS-232C
(3) Baud rate 9600 bps
(4) Data length 8 bits
(5) Parity Odd
(6) Stop bit 1 bit
(7) Communication code Hex

External Control Codes (Reference)

FUNCTION CODE DATA

Power ON 9FH 80H 60H 4EH 00H CDH OFF 9FH 80H 60H 4FH 00H CEH

Input Switch Video1 (BNC) DFH 80H 60H 47H 01H 01H 08H
	Video2 (RCA)	DFH 80H 60H 47H 01H 02H 09H
	Video3 (S-Video)	DFH 80H 60H 47H 01H 03H 0AH
	DVD1/HDI (RCA)	DFH 80H 60H 47H 01H 05H 0CH
	DVD2/HDI2 (BNC)	DFH 80H 60H 47H 01H 06H 0DH
	RGB1 (min D-sub 15-pm)	DFH 80H 60H 47H 01H 07H 0EH
	RGB2 (58NC) DFH 80H 60H 47H 01H 08H CFH
	RGB3 (DVI)	DFH 80H 60H 47H 01H 0CH 13H
Audio Muto	ON	9FH 80H 60H 3EH 00H 3DH
	OFF	9FH 80H 60H 3FH 00H BEH
Picture Mode	NORMAL	DFH 80H 60H 0AH 01H 01H CBH
	THEAT. 1	DFH 80H 60H 0AH 01H 02H CCH
	THEAT. 2	DFH 80H 60H 0AH 01H 03H CDH
	DEFAULT	DFH 80H 60H 0AH 01H 04H CEH
Screen Mode	STADIUM	DFH 80H 60H 51H 01H 02H 13H
	ZOOM	DFH 80H 60H 51H 01H 03H 14H
	NORMAL	DFH 80H 60H 51H 01H 04H 15H
	FULL	DFH 80H 60H 51H 01H 05H 16H
	14 : 9	DFH 80H 60H 51H 01H 09H 1AH
	2.35 : 1	DFH 80H 60H 51H 01H 0AH 1BH
Audio Picture	ON	DFH 80H 60H 7FH 03H 03H 09H 00H 4DH
	OFF	DFH 80H 60H 7FH 03H 03H 09H 01H 4EH
Cinema Mode	ON	DFH 80H 60H C1H 01H 01H 82H
	OFF	DFH 80H 60H C1H 01H 02H 83H

Note: Contact your local dealer for a full list of the External Control Codes if needed.

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Symptom	Checks	Remedy
Mechanical sound is heard.	· Maybe the sound from the cooling fans used to prevent over heating.
The unit emits a crackling sound.	· Are the image and sound normal?	· If there are no abnormalities in the image and sound, the noise is caused by the cabinet reacting to changes in humidity. This will not affect performance.
Picture is disturbed.Sound is noisy.Remote control operates erroneously.	· Is a connected component set directly in front or at the side of the display?	· Leave some space between the display and the connected components.
The remote control does not work.	· Are the remote control's batteries worn out?	· Replace both batteries with new ones.
	· Is IR REMOTE set to ON?	· Set IR REMOTE OFF on OPTION3 menu.
	· Has an ID number been set for the main unit?	· Set an ID number with the ID SELECT button, or set the ID number to ALL.
Monitor's power does not turn on when the remote control's power button is pressed.	· Is the monitor's power cord plugged into a power outlet?	· Plug the monitor's power cord into a power outlet.
	· Are all the monitor's indicators off?	· Press the power button on the monitor to turn on the power.
	· Are the remote control's batteries worn out?	· Replace both batteries with new ones.
	· Is IR REMOTE set to ON?	· Set IR REMOTE OFF.
	· Has an ID number been set for the main unit?	· Set an ID number with the ID SELECT button, or set the ID number to ALL.
Monitor does not operate when the remote control's buttons are pressed.	· Is the remote control pointed at the monitor, or is there an obstacle between the remote control and the monitor?	· Point the remote control at the monitor's remote control sensor when pressing buttons, or remove the obstacle.
	· Is direct sunlight or strong artificial light shining on the monitor's remote control sensor?	· Eliminate the light by closing curtains, pointing the light in a different direction, etc.
	· Are the remote control's batteries worn out?	· Replace both batteries with new ones.
	· The remote cable is plugged into the REMOTE IN terminal (Wired).	· Unplug the remote cable from the monitor.
The front panel buttons of the main unit do not function.	· The front panel buttons do not function during Control Lock.	· Set the Control Lock to OFF.
No sound or picture is produced.	· Is the monitor's power cord plugged into a power outlet?	· Plug the monitor's power cord into a power outlet.
Picture appears but no sound is produced.	· Is the volume set at the minimum?	· Increase the volume.
	· Is the mute mode set?	· Press the remote control's MUTE button.
	· Are the speakers properly connected?	· Connect the speakers properly.
	· Is AUDIO INPUT set correctly?	· Set AUDIO INPUT on the AUDIO menu correctly.
Poor picture with VIDEO signal input.	· Improper control setting.Local interference.Cable interconnections.Input impedance is not correct level.	· Adjust picture control as needed.Try another location for the monitor.Be sure all connections are secure.
Poor picture with RGB signal input.	· Improper control setting.Incorrect 15 PIN connector pin connections.	· Adjust picture controls as needed.Check pin assignments and connections.
Tint is poor or colors are weak.	· Are the tint and colors properly adjusted?	· Adjust the tint and color (under PICTURE).
Nothing appears on screen.	· Is the computer's power turned on?	· Turn on the computer's power.
	· Is a source connected?	· Connect source to the monitor.
	· Is the power management function in the standby or off mode?	· Operate the computer (move the mouse, etc.).
	· Is LOOP OUT set to ON?	· Set LOOP OUT OFF.
Part of picture is cut off or picture is not centered.	· Is the position adjustment appropriate?	· Adjust the IMAGE ADJUST properly.
Image is too large or too small.	· Is the screen size adjustment appropriate?	· Press the WIDE button on the remote control and adjust properly.
Picture is unstable.	· Is the computer's resolution setting appropriate?	· Set to the proper resolution.
POWER/STANDBY indicator is lighted in red.	· Horizontal and / or vertical sync signal is not present when the Intelligent Power Manager control is on.	· Check the input signal.
POWER/STANDBY indicator is blinking in red.	· The temperature inside the main unit has become too high and has activated the protector.	· Promptly switch off the power of the main unit and wait until the internal temperature drops. See*1.
POWER/STANDBY indicator is blinking in green and red, or green.	——	· Prompty switch off the power of the main unit. See *2.

*1 Overheat protector

If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor to cool for 60 minutes. If the problem persists, contact your dealer.

*2 In the following case, power off the monitor immediately and contact your dealer or authorized Marantz Service Center.

The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit, plasma display panel, temperature sensor, or one or more fans have been damaged.

marantz®

Model PD6140D Information

Plasma Monitor

IMPORTANT SAFETY INSTRUCTIONS (PD6140D)

Read before operating equipment

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Usually with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. This product may contain lead or mercury. Disposal of these materials may be regulated due to environmental considerations.
    For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

16. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
    A. The power supply cord or the plug has been damaged; or
    B. Objects have fallen, or liquid has been spilled into the appliance; or
    C. The appliance has been exposed to rain; or
    D. The appliance does not appear to operate normally or exhibits a marked change in performance; or
    E. The appliance has been dropped, or the enclosure damaged.

17. Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinets design.

- Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

- Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

1. Wall Mounting - The appliance should be mounted to a wall only as recommended by the manufacturer.

2. Power Lines - An outdoor antenna should be located away from power lines.

3. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Figure below.

1. Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

PRÉCAUTIONS IMPORTANTES DE SÉCURITÉ (PD6140D)

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/ Data Processing Equipment ANSI/NFPA 75.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

NOTE:

When you connect a computer to this monitor, use an RGB cable including the ferrite core on both ends of the cable. And regarding DVI and power cable, attach the supplied ferrite cores. If you do not do this, this monitor will not conform to mandatory FCC standards.

Attaching the ferrite cores:

Set the ferrite cores on both ends of the DVI cable (not supplied), and both ends of the power cable (supplied). Close the lid tightly until the clamps click.

Use the band to fasten the ferrite core (supplied) to the DVI cable.

DVI cable (not supplied)

band core (small) band core (small) Connector

Power cable (supplied)

core (large) core (large)

Caution

PD6140D is for use with the following optional accessory. Use with other optional accessories is capable of resulting in instability causing possible injury.

Manufacturer's name: Marantz Japan, Inc.

Stand: AS6140

Please contact Marantz America, Inc. for approved optional accessories.

Recommendations importantes

Avertissement

Screen Size

53.2"(H)×29.9"(V) inches1351(H)×760(V) mmdiagonal 61"

Aspect Ratio 16:9

Resolution 1365(H) × 768(V) pixels
Pixel Pitch	0.039"(H) × 0.039"(V) inches
	0.99(H) × 0.99(V) mm

Color Reproduction 256 levels, 16,770,000 colors

Signals

Synchronization Range Horizontal : 15.5 to 110 kHz(automatic : step scan)Vertical : 50.0 to 120 Hz(automatic : step scan)

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),PAL60, SECAM, HD*1 , DVD*1 , DTV*1

Input Terminals (VIDEO1 and RGB1 can also be used as OUTPUT terminals)

RGB
Visual 1 (Analog)	mini D-sub 15-pin × 1
Visual 2 (Analog)	BNC (R, G, B, H/CS, V) × 1*2
Visual 3 (Digital)	DVI-D 24-pin × 1*3

Video

Visual 1 BNC × 1

Visual 2 RCA-pin × 1

Visual 3 S-Video: DIN 4-pin × 1

DVD/HD/DTV

Visual 1	RCA-pin (Y, PB[CB], PR[CR]) × 1*1
Visual 2	BNC (Y, PB[CB], PR[CR]) × 1*1,*2
Audio	Stereo RCA × 3 (Selectable)

External Control D-sub 9-pin × 1 (RS-232C)

Sound output 9W+9W at 6 ohm
Power Supply AC120V 50/60Hz
Current Rating	6.7A (maximum)
Power Consumption	540W (typical)
Dimensions	57.9 (W)×34.7 (H)×4.7 (D) inches1470 (W)×880 (H)×119(D) mm
Weight	134.5 lbs / 61.0 kg (without stand)

Environmental Considerations

Operating Temperature		0°C to 40°C / 32°F to 104°F
	Humidity	20 to 80% (no condensation)
	Altitude	0 to 9180 feet / 0 to 2800 m
Storage	Temperature	-10°C to 50°C / 14°F to 122°F
	Humidity	10 to 90% (no condensation)
	Altitude	0 to 9840 feet / 0 to 3000 m

Front Panel User Controls	Power on/off, Input source select, Volume up/down/ OSM control
Remote Control Functions	Power on/off, Input source select, OSM control,Volume up/down, Cursor (UP DOWN,LEFT, RIGHT), Pointer,Zoom up/down, Off timer, Wireless/ Wired remote control

OSM Functions

Picture (Contrast/Brightness/Sharpness/ Color/Tint/Picture mode/Noise reduction/Color temperature/White balance/Gamma/Low tone/Color tune), Audio (Bass/Treble/Balance/Audio input), Image Adjust (Aspect mode/V-Position /H-Position/V-Height /H-Width/Auto Picture/Fine picture/Picture adjustment), Option1 (OSM/BNC Input/D-Sub Input/RGB Select/HD Select/Input Skip/All Reset), Option2 (Power management/Cinema mode/Long life [PLE, Orbiter, Inverse, White, Screen wiper, Soft focus]/Gray level/S1/S2/Picture size/DVI Set up), Option3 (Timer Power on mode/Control lock/IR Remote/Loop out/ID number/Video wall [Divider, Position, Disp. mode, Auto ID, Image adjust, Power on delay, PLE link, Timer]), Advanced OSM, Language*, Color system, Source information*English, German, French, Italian, Spanish, Swedish, Chinese

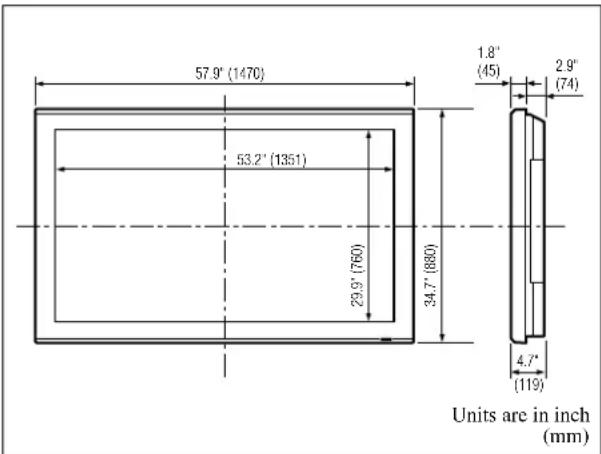

57.9" (1470) 53.2" (1351) 29.9" (760) 34.7" (880) 1.8" (45) 2.9" (74) 4.7" (119) Units are in inch (mm)

The features and specifications may be subject to change without notice.

*1HD/DVD/DTV input signals supported on this system
480P (60 Hz)	480I (60 Hz)	525P (60 Hz)
525I (60 Hz)	576P (50 Hz)	576I (50 Hz)
625P (50 Hz)	625I (50 Hz)	720P (60 Hz)
1035I (60 Hz)	1080I (50 Hz)	1080I (60 Hz)

*2The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input. Select one of them under "BNC INPUT".

^*3 Compatible with HDCP.

Supported Signals

• 640×480P @ 59.94/60Hz
• 1280×720P @ 59.94/60Hz
• 1920×1080I @ 59.94/60Hz
• 720×480P @ 59.94/60Hz
• 720×480I @ 59.94/60Hz

Note: In some cases a signal on the plasma monitor may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc...). If you do experience such a problem please contact Marantz Service Center, Inc. and also the manufacturer of the source equipment.

Other Features

Motion compensated 3D Scan Converter (NTSC, PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3 pull down Converter (NTSC, 480I, 525I, 1035I, 1080I (60Hz)), 2-2 pull down Converter (PAL, 576I, 625I, NTSC, 480I, 525I), Digital Zoom Function (100-900% Selectable), Video Wall 2-2/3-3 multi screen, Self Diagnosis, Anti Image Burn (PLE LOCK1~3, INVERSE, WHITE, ORBITER (Auto1,2/Manual), SCREEN WIPER), Color Temperature select (high/mid/mid low/low, user has 4 memories), Control lock (Except power SW), Auto Picture, Input Skip, Color Tune, Low Tone (3 mode), Auto ID, Programmable Timer, Gamma Correction (4 mode), Loop through interface, Plug and play (DDC1, DDC2b, RGB3: DDC2b only)

Accessories Remote control with two AAA batteries, Power cord, Manuals, Safety metal fitting parts, Ferrite cores, Bands, Cable clamps

Regulations UL Approved (UL 60950 and UL65000/CSA C22.2 No.60950-00/ CAN/CSA-E60065-00)DOC Canada requirementsMeets FCC Class B requirements

Table of Signals Supported

Supported resolution

• When the screen mode is NORMAL, each signal is converted to a 1024 dots × 768 lines signal. (Except for ^*2,3,4 )
• When the screen mode is TRUE, the picture is displayed in the original resolution.
• When the screen mode is FULL, each signal is converted to a 1365 dots × 768 lines signal. (Except for ^*3 )

Computer input signals supported by this system

Model

Dots × lines

Vertical frequency (Hz)

Horizontal frequency (kHz)

Sync Polarity

Presence

Screen mode

RGB select*5

DVI

Memory

Horizontal

Vertical

Horizontal

Vertical

NORMAL (4:3)

TRUE

FULL (16:9)

640×400

70.1

31.5

NEG

NEG

YES

YES

YES*2

YES

YES

--

NO

4

IBM PC/AT* compatible computers

640×480

59.9

31.5

NEG

NEG

YES

YES

YES

YES

YES

STILL

YES

5

72.8

37.9

NEG

NEG

YES

YES

YES

YES

YES

--

YES

7

75.0

37.5

NEG

NEG

YES

YES

YES

YES

YES

STILL

YES

8

85.0

43.3

NEG

NEG

YES

YES

YES

YES

YES

--

YES

9

100.4

51.1

NEG

NEG

YES

YES

YES

YES

YES

--

YES

41

120.4

61.3

NEG

NEG

YES

YES

YES

YES

YES

--

YES

42

848×480

60.0

31.0

POS

POS

YES

YES

--

YES

YES

WIDE2

YES

19

852×480*1

60.0

31.7

NEG

NEG

YES

YES

--

YES

YES

WIDE1

YES

17

800×600

56.3

35.2

POS

POS

YES

YES

YES

YES

YES

STILL

YES

11

60.3

37.9

POS

POS

YES

YES

YES

YES

YES

STILL

YES

12

72.2

48.1

POS

POS

YES

YES

YES

YES

YES

--

YES

13

75.0

46.9

POS

POS

YES

YES

YES

YES

YES

--

YES

14

85.1

53.7

POS

POS

YES

YES

YES

YES

YES

--

YES

15

99.8

63.0

POS

POS

YES

YES

YES

YES

YES

--

YES

43

120.0

75.7

POS

POS

YES

YES

YES

YES

YES

--

YES

44

1024×768

60.0

48.4

NEG

NEG

YES

YES

YES*3

--

YES

STILL

YES

24

70.1

56.5

NEG

NEG

YES

YES

YES*3

--

YES

--

YES

25

75.0

60.0

POS

POS

YES

YES

YES*3

--

YES

STILL

YES

26

85.0

68.7

POS

POS

YES

YES

YES*3

--

YES

--

YES

27

100.6

80.5

NEG

NEG

YES

YES

YES*3

--

YES

--

NO

45

1152×864

75.0

67.5

POS

POS

YES

YES

YES

--

YES

STILL

YES

51

1280×768

56.2

45.1

POS

POS

YES

YES

--

--

YES

WIDE1

NO

52

59.8

48.0

POS

NEG

YES

YES

--

--

YES

WIDE3

YES

80

1360×765

60.0

47.7

POS

POS

YES

YES

--

--

YES*3

WIDE1

NO

22

1360×768

60.0

47.7

POS

POS

YES

YES

--

--

YES*3

WIDE1

YES

22

1376×768

59.9

48.3

NEG

POS

YES

YES

--

--

YES

WIDE2

YES

53

1280×1024

60.0

64.0

POS

POS

YES

YES

YES*4

--

YES

STILL

YES

29

75.0

80.0

POS

POS

YES

YES

YES*4

--

YES

--

NO

30

85.0

91.1

POS

POS

YES

YES

YES*4

--

YES

--

NO

40

100.1

108.5

POS

POS

YES

YES

YES*4

--

YES

--

NO

47

1600×1200

60.0

75.0

POS

POS

YES

YES

YES

--

YES

--

NO

54

65.0

81.3

POS

POS

YES

YES

YES

--

YES

--

NO

55

70.0

87.5

POS

POS

YES

YES

YES

--

YES

--

NO

56

75.0

93.8

POS

POS

YES

YES

YES

--

YES

--

NO

57

85.0

106.3

POS

POS

YES

YES

YES

--

YES

--

NO

58

Apple Macintosh*6*8

640×480

66.7

35.0

Sync on G

Sync on G

--

--

YES

YES

YES

--

NO

6

832×624

74.6

49.7

Sync on G

Sync on G

--

--

YES

YES

YES

--

NO

16

1024×768

74.9

60.2

Sync on G

Sync on G

--

--

YES*3

--

YES

WIDE1

NO

28

1152×870

75.1

68.7

Sync on G

Sync on G

--

--

YES

--

YES

WIDE1

NO

39

Work Station (EWS4800)*8

1280×1024

60.0

64.6

NEG

NEG

YES

YES

YES*4

--

YES

--

YES

29

71.2

75.1

NEG

NEG

YES

YES

YES*4

--

YES

--

NO

48

Work Station(HP)*8

1280×1024

72.0

78.1

--

--

--

--

YES*4

--

YES

--

NO

59

Work Station (SUN)*8

1152×900

66.0

61.8

C Sync

C Sync

--

--

YES

--

YES

--

NO

60

76.0

71.7

C Sync

C Sync

--

--

YES

--

YES

--

NO

61

1280×1024

76.1

81.1

C Sync

C Sync

--

--

YES*4

--

YES

--

NO

30

Work Station (SGI)

1024×768

60.0

49.7

--

--

--

--

YES*3

--

YES

--

YES

62

1280×1024

60.0

63.9

--

--

--

--

YES*4

--

YES

--

YES

29

IDC-3000G

PAL625P

768×576

50.0

31.4

NEG

NEG

YES

YES*7

--

YES*7

--

NO

31

NTSC525P

640×480

59.9

31.5

NEG

NEG

YES

YES*7

--

YES*7

MOTION

NO

32

*1 Only when using a graphic accelerator board that is capable of displaying 852 × 480 .
*2 This signal is converted to a 1024 dots × 640 lines signal.
*3 The picture is displayed in the original resolution.
*4 The aspect ratio is 5:4. This signal is converted to a 960 dots × 768 lines signal.
*5 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the RGB mode prepared for the input signals listed in the table above.
*6 To connect the monitor to Macintosh computer, use the monitor adapter (D-Sub 15-pin) to your computer's video port.
*7 Other screen modes (ZOOM and STADIUM) are available as well.
*8 When viewing a moving picture at a vertical frequency greater than 65Hz, the picture may sometimes be unstable (jumpy). If this occurs, please set the refresh rate of the external equipment to 60Hz.
To view 480I@60Hz (480 interlaced lines, 60Hz refresh rate) or 576I@50Hz (567 interlaced lines, 50Hz refresh rate) when sync polarity is “Sync on Green”, set “RGB SELECT” to “MOTION”.

NOTE:

• While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size of the picture or the fine picture because of errors in synchronization of your computer.
• When a 1280 dots × 1024 lines signal or 1600 dots × 1200 lines signal is input to the monitor, the picture will be compressed.
• This monitor has a resolution of 1365 dots × 768 lines. It is recommended that the input signal should be XGA, wide XGA, or equivalent.
• With digital input some signals are not accepted.
• The sync may be disturbed when a nonstandard signal other than the aforementioned is input.
• If you are connecting a composite sync signal, use the HD terminal.

What is HDCP/HDCP technology?

HDCP is an acronym for High-bandwidth Digital Content Protection. High bandwidth Digital Content Protection (HDCP) is a system for preventing illegal copying of video data sent over a Digital Visual Interface (DVI).

If you are unable to view material via the DVI input, this does not necessarily mean the PDP is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital Content Protection, LLC).

- "IBM PC/AT" and "XGA" are registered trademarks of International Business Machines, Inc. of the United States.

- “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party:

Address:

Tel. No.:

Marantz America, Inc.

1100 Maplewood Drive,

Itasca, IL 60143, U.S.A.

630-741-0300

Type of Product:

Plasma Display

Equipment Classification:

Class B Peripheral

Models:

PD6140D

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

Printed on recycled paper

www.marantz.com

You can find your nearest authorized distributor or dealer on our website.

JAPAN

Marantz Japan, Inc.

35-1 Sagami Ohno 7-Chome, Sagamihara-shi, Kanagawa 228-8505, Japan

U.S.A. Marantz America, Inc. 1100 Maplewood Drive, Itasca, IL 60143, U.S.A.

EUROPE Marantz Europe B.V. P.O. Box 8744, 5605 LS Eindhoven, The Netherlands
