Product type	Washing machine
Brand	Fagor
Model	FET 6312
Washing capacity	6 kg
Maximum spin speed	800 rpm
Programs	Cotton, Synthetic, Delicates/Wool, Quick 30 min, Hand wash, Rinse, Spin
Options	Extra rinse, Easy iron, Drain, Stop with water full, Time reduction, Delayed start
Safety features	Lid lock, water level control, imbalance safety, anti-foam safety
Water pressure	0.1 - 1 MPa
Power supply	230 V, 50 Hz
Power consumption in off mode	< 0.5 W
Power consumption in standby mode	< 0.8 W
Pump filter	Cleanable
Drum type	Porthole opening

Frequently Asked Questions - FET 6312 FAGOR

What to do if the wash cycle does not start?

Check that you have pressed the start/pause ▶5 button. Ensure the appliance is plugged in, the circuit breaker has not tripped, and the water supply tap is open. Also check that the lid is properly closed.

What to do in case of water leakage around the machine?

Unplug the appliance immediately and close the water tap. Check that the drain hose is correctly positioned in the drain pipe and that the water supply hose connections are tight (presence of seals and proper tightening).

What to do in case of strong vibrations during spinning?

Ensure that all transit bolts have been removed (see chapter Removing the transit bolts). Check that the floor is level and that the machine is not resting on its front wheels. If the problem persists, distribute the laundry evenly in the drum.

What to do if the laundry is not spun or insufficiently spun?

Check that you have not selected a program without spinning (such as Drain). If the safety has detected an imbalance, open the machine, distribute the laundry evenly, and restart a spin cycle.

What to do if the machine does not drain?

Check that you have not programmed a stop with water full. Clean the pump filter (see manual) and ensure that the drain hose is neither kinked nor crushed.

What to do if the lid does not open?

The lid remains locked throughout the cycle for safety. Wait for the end of the program. If the problem persists, check that the machine is not in stop with water full and that the display indicates end of cycle (- ☐ -).

What to do if the display shows 'Water supply tap closed'?

Open the water supply tap. If the message persists, press the start/pause ▶5 button to restart the cycle. Also check the drain hose connection.

What to do if the display shows 'Pump filter clogged'?

Clean the pump filter by following the procedure described in the corresponding chapter, then press start/pause ▶5 to restart the cycle. Also check that the drain hose is not obstructed.

What to do if the display shows 'Lid not closed properly' or 'Drum blocked'?

For 'Lid not closed properly', close the lid correctly and press start/pause ▶5. For 'Drum blocked', check that no small garment (handkerchief, sock) has become trapped between the tub and the drum; access the bottom of the tub via the pump filter.

How to clean the pump filter?

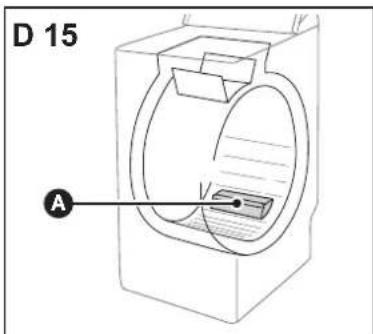

Open the drum doors. Unlock plastic part A by inserting a rod into the hole and pushing it to the right. Remove part A, then filter B. Clean it under the tap, put it back in place pushing it fully in, then re-clip part A by pushing it to the left.

USER MANUAL FET 6312 FAGOR

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning:

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

Página 48

Illustration of a hand cleaning a faucet with a spray can (no text or symbols)

• MOŽNÉ ZÁVADY

- Reset your machine on its feet by pushing the castor engagement lever to the right.

A Irányítópanel

D 8

D 9

D 10

D 11

D 12

• ELEKTROMOS BEKÖTÉS

Fontos:

Illustration of a hand cleaning a surface with a water tap (no text or symbols)

D 20

Diagram of a front-mounted device with directional arrows and labeled points (no text or symbols present)

D 19

D 21

- ESETLEGESEN BEKÖVETKEZŐ GÉPHIBA, ÜZEMZAVAR

A Ovládaci panel

Diagram showing airflow around a circular component with directional arrows, labeled D 13 (no text or symbols on diagram itself)

D 14

For this programme, the doses of detergent should be reduced by half.

- Ručné pranie

«Especially for sensitive and allergic skin»: adds an extra rinse to the washing cycle.

- Odkvapkanie (Odstred'ovanie poloha «100»)

Illustration of a hand cleaning a surface with a faucet and a sponge (no text or symbols)

Technical line drawing of a mechanical component with labeled point B (no text or symbols beyond label)

• PROBLÉMY, KTORÉ SA MÔŽU VYSKYTNÚŤ

A Bedienungstafel

Illustration of a hand cleaning a water bottle with a faucet (no text or symbols)

D 19

D 20

D 21

Removing the transport packing 40

Moving your machine 40

Connecting to the cold water supply ....40

Draining away the waste water 40

Connecting to the electricity supply ....41

Installing your machine ....41

Loading your washing 41

Loading the washing products ....41

Programming 42

Details of the programmes and options ....43

Modifying a washing programme ....44

Automatic safety systems ....44

Cleaning the pump filter 45

Maintaining your machine 45

Incidents that may arise ....46

Messages shown on the display ....46

Information concerning the EU regulations 1015/2010 ..... 47

• SAFETY ADVICE

Important:

This machine is only for domestic use and is designed to wash, and spin machine-washable textiles.

You must observe the following instructions. We refuse to accept any liability and the guarantee if you do not observe these recommendations since this could result in damage to equipment or physical injury.

— This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

— The machine must only be used in accordance with its normal method of operation in order to avoid damaging your washing and your machine. Only use washing and maintenance products certified for use in domestic washing machines.

— If you pre-treat your washing with stain removers, solvents or, in general, any inflammable or potentially highly explosive product, do not insert them into the machine immediately.

Furthermore, you are also recommended not to use solvents or products in aerosol cans near to your washing machine or any electrical appliance in general in a poorly ventilated room (risk of fire and explosion).

— If any incidents occur and you cannot resolve them using the remedies we recommend (see the section «INCIDENTS THAT MAY ARISE»), call in a qualified professional.

— If you have to open your machine during a cycle (for example, to add or remove washing), depending on the stage the programme is at (during washing essentially), be careful of the temperature inside the machine, which may be very high (risk of severe burns).

— When making a new installation, the machine must be connected to the water supply with a new hose: the old hose must not be re-used.

— Do not let children play with the machine and keep your pets away from it.

— You must immediately make any obsolete machine unusable. Disconnect and cut off the power cable flush with the machine. Close the water tap and remove the hose. Disable the door lock.

— If there is a risk of frost, disconnect the water hose and drain off any water that may remain in the drain hose by placing this as low as possible in a bowl.

• SAVING ENERGY

— Only programme a prewash when it is absolutely necessary: for example, for very dirty sports or working clothes, etc.

— A low temperature programme is sufficient for impeccable washing results when your washing is only slightly or moderately dirty.

— For washing that is only slightly dirty, select a short washing cycle. — Use the right amount of washing products for the hardness of the water, the amount of washing and how dirty it is and follow the instructions on the detergent packs.

• ENVIRONMENTAL PROTECTION

This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.

Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate that in countries that are a members of the European Union the used appliances should not be mixed with other waste.

This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment.

Contact your town hall or your retailer for the used appliance collection points closest to your home.

We thank you doing your part to protect the environment.

• DESCRIPTION OF YOUR MACHINE

A Control panel

B Handle for opening the lid (remains locked during the cycle)

C Lever for raising the machine on castors (depending on the model)

D Drain hose

E Cross clamp

F Water supply hose (not connected)

G Power supply cable

- REMOVING THE TRANSPORT CLAMPS

Important:

Before using the machine in any way, you must first perform the following operations.

These comprise removing all the components designed to immobilise the drum in your machine during transport.

These so-called «releasing» operations are necessary for your machine to operate correctly and to conform to the prevailing safety standards.

If they are not carried out completely, this could cause severe damage to your machine while it is operating.

— Remove the washing machine from its plinth (check that the wedge A supporting the motor is not still inserted in the machine) (Diagram D3)

— Remove the 4 screws Ⓑ with a screwdriver (Diagram D4)

— Remove the cross clamp by removing the 2 screws (Diagram D5) using a 10 or 13mm spanner (depending on the model). (Ensure that you remove the two plastic braces fixed on the cross clamp at the same time as the clamp itself).

— Replace the screws Ⓑ in their initial positions.

Warning:

You must block off the two holes using the hole covers provided E (supplied in the accessories bag) (Diagram D6)

— Remove the drum-tank assembly locking wedge (Diagram D7). To do this:

— Lift the lid on the machine

— Remove wedge F; — Remove wedge G;

— Release the drum doors, locked in the lower position, by pressing down on both eaves simultaneously.

Warning:

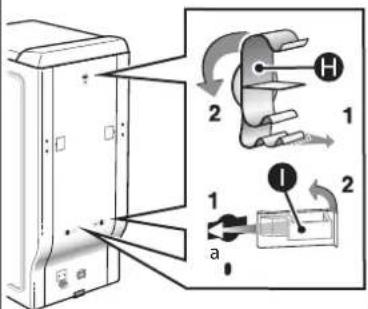

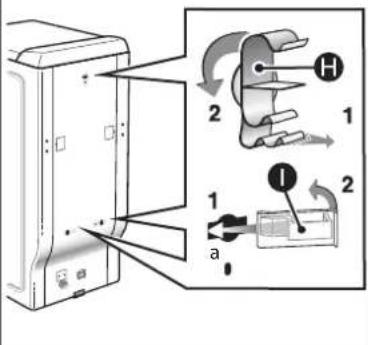

Remove the pipe support collars H You must block off the holes revealed with the hole covers supplied in the accessories bag (Diagram D8).

Advice:

We would recommend that you keep all the locking components since these must be refitted if you must subsequently transport your machine again.

Information:

Your machine has been scrupulously checked before it left the factory. You may therefore notice a little water still remaining in the tank or the products box.

• MOVING YOUR MACHINE

- Mounting it on castors

If your machine is equipped with removable castors, you will be able to move it quite easily.

To mount it on castors, swivel the lever on the bottom of the machine from the right to the far left (Diagram D9).

Important:

The machine must not rest on the «front» castors while it is

operating: remember to return the lever to its initial position.

• CONNECTING TO THE COLD WATER SUPPLY

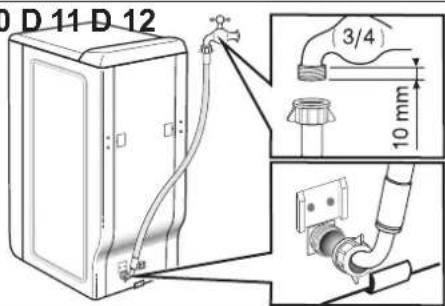

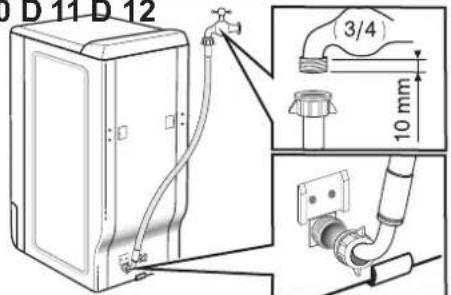

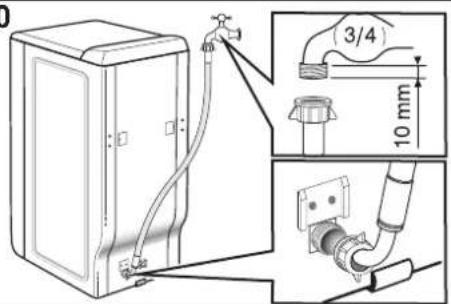

Connect the supply hose (Diagram D10):

— At one end to the connection on the back of the machine

— On the other end to a tap fitted with a threaded end 20mm dia. x 27 (3/4 BSP).

If you use a self-piercing tap, the useful aperture must have a minimum diameter of 6mm.

Water supply:

- Minimum water pressure: 0.1 MPa or 1 bar

- Maximum water pressure: 1 MPa or 10 bars

- Replacing a water supply hose

When replacing the hose, ensure that the hose is tightly fastened and that there is a seal at both ends.

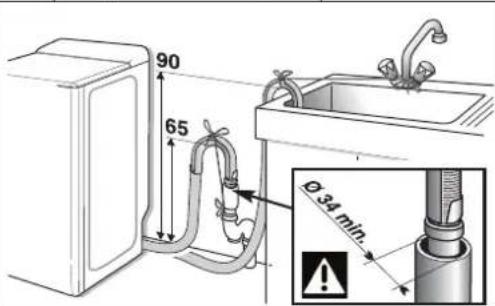

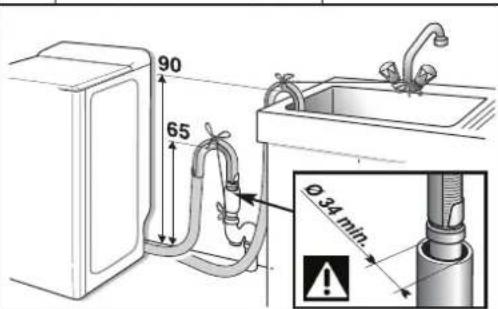

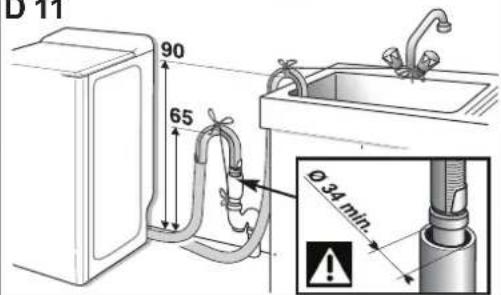

• DRAINING AWAY THE WASTE WATER

Fit the hose bracket provided inside your machine to the end of the drain hose and then connect the hose (Diagram D11):

— Either, temporarily, over a sink or a bathtub.

— Or permanently to a ventilated U-bend.

If your installation does not have a ventilated U-bend, check that the connection is not sealed. In fact, to avoid any waste water flowing back into the machine, you are strongly recommended to leave an air gap between the machine's drain hose and the drainpipe.

In any case, the drain hose bracket must be placed at a height of 65 to 90cm higher than the base of the machine.

Important:

Ensure that the drain hose is tied firmly in place with cord to

avoid the bracket coming loose during draining and causing a flood. For correct draining of the waste water, make sure that the drain hose is as straight as possible. In fact, the more bends the less effective the drain pump.

The waste water can be drained away to the ground provided that the drain hose passes through a point 65 to 90cm higher than the base of the machine (Diagram D12).

0 D 11 D 12

- CONNECTING TO THE ELECTRICITY SUPPLY

Important:

For your safety, you must comply with the instructions below.

— Before connecting your machine, you must ensure that your installation's electrical characteristics match those of your machine (see the details provided on the information plate affixed to the back of the machine). The electrical installation must comply with the prevailing standards and the Electricity Board's regulations in the country concerned, particularly as regards Earthing and installation in shower rooms. We cannot be held responsible for any incident caused by the machine being incorrectly earthed.

Advice:

Advice on the electrical installation of your machine

— Do not use an extension lead, adapter or multiple socket. — Never cut out the Earth wire. — The socket must be readily accessible but out of the reach of children. If in any doubt, please contact your installer.

Important:

Your machine conforms to European Directives

2006/95/CE (Low Voltage Directive) and 2004/108/CE (Electromagnetic Compatibility).

• INSTALLING YOUR MACHINE

Important:

If you are installing your machine next to another machine or a unit, we recommend that you leave a gap between them to allow for ir circulation.

Advice:

We also strongly recommend that you do NOT:

— Install your machine in a damp, poorly ventilated room. — Install your machine in an area where it could be subject to water splashes. — Install your machine on a carpeted floor. If you cannot avoid doing this, please take every precaution to avoid blocking air circulation at the bottom of the machine in order to ensure that the internal components are well ventilated.

• Levelling the machine:

Use a spirit level to check that the floor is horizontal: maximum slope 2^ , i.e. a discrepancy of approximately 1cm over the width and of 1.5cm over the depth of the machine.

- Adjustable feet

Some machines are fitted with two adjustable feet at the front to enable you to compensate for any unevenness in the floor. Proceed as follows to adjust the feet to level and stabilize your machine:

— Set the machine on its castors (or tilt it slightly backwards if it does not have retractable castors)

— Screw in or unscrew the feet to adjust the height to suit the shape of the floor (Diagram D13)

— Set the machine back on its feet and check that it is stable.

• TEXTILE MAINTENANCE CODES

— Washing ☑: Never exceed the indicated temperatures — Use of cold diluted bleach possible:

— Iron: Low Medium High — Dry clean: mineral spirit F, perchlorethylene P, all solvents A — NB: A crossed-out code indicates that it is forbidden ✗ ✗

- LOADING YOUR WASHING

Perform these actions in the following order:

- Open the machine

— Check that the Programme selector is correctly positioned on « ⏻ ». — Lift the opening handle on the front of the machine.

The lid will open.

— Open the drum by pressing the button on the front door.

- Insert your washing

For optimum washing performance, place your washing, preferably sorted and folded, in the drum, distributing it evenly without heaping it up. Mix large and small items to obtain an optimum, well-balanced spin.

- Close the drum

Ensure that the drum is correctly closed.

Important:

Check that the three hooks and the border of the button are fully visible.

- LOADING THE WASHING PRODUCTS

Important:

(Diagram D14)

- The «WASH» container may contain powder or liquid but liquid detergent should not be used for programmes WITH Prewash and/or WITH «Delayed Start» (depending on the model).

— Concentrated softener should be diluted with warm water.

— Concentrated bleach must be diluted.

— To fill the product containers correctly, place the lid fully open.

— Do not exceed the MAX level.

• Dispensing the detergent

The amount of detergent to be used depends on the hardness of the water, the extent to which your washing is soiled and the amount of washing to be washed.

Please refer to the dosing instructions on your pack of detergent. Warning: in most cases, the detergent manufacturer's recommendations apply to the drum filled to the maximum. Adjust the dosage correctly to the weight of the washing you have placed in the machine.

These recommendations will help you to avoid using too much detergent, which causes foam to be produced. Too much foam can reduce your machine's performance and increase the length of the washing cycle and the consumption of water.

• Detergents for woollens and delicate fabrics

You are recommended to use an appropriate detergent for washing these fabrics (avoid placing such detergents directly on the drum because they have an aggressive action on the metal).

• Before your first wash

Before making your first wash, we recommend that you carry out a «COTTON 90 wash without pre-wash» and with no washing in the drum, using a 1/2 measure of your usual detergent in order to eliminate any residues from manufacturing that may remain in your machine.

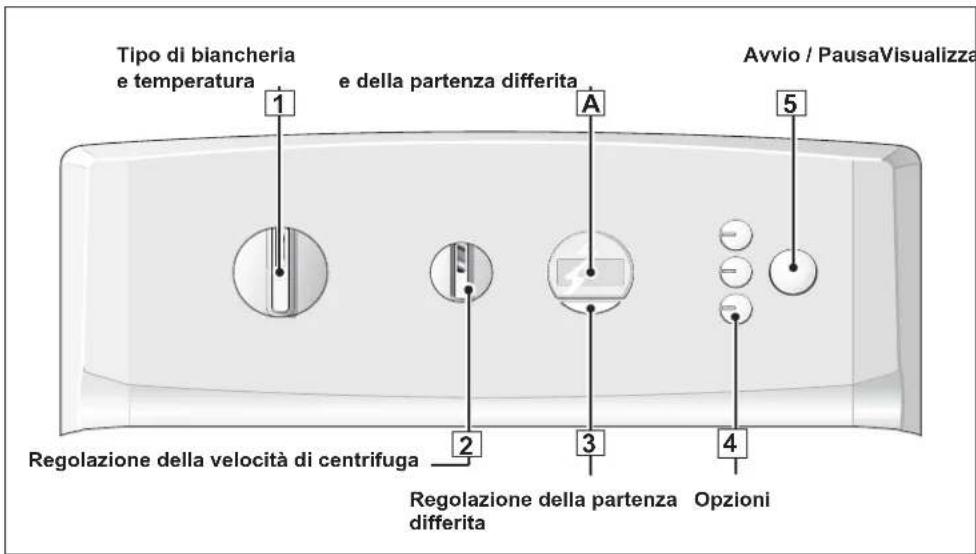

• PROGRAMMING

Nature of the washing and the temperature

Start/PauseDisplay of rem

Information:

All the buttons are on

amming time of microswitches and do not remain depressed.

In any case, the «start/pause» button cannot cancel a programme.

Important:

Before starting your machine, check that the power cable is plugged in and the water tap is open. Also ensure that the drum doors are closed correctly and the machine's lid is shut. During the «End of Cycle» phase, any action on one of the controls (the selectors or the buttons) returns you to «Programming» mode. As a safety measure, when the cycle is over, we recommend that you unplug the power cable and turn off the water tap.

• Programming a washing cycle:

— Turn the selector 1 to choose the most suitable programme and washing temperature for the type of fabric to be washed.NB: Turning the selector to any position other than « ⏻» provides power to the machine.

— Using the selector 2, choose:- Either a suitable spin speed for your type of washing.The spin speed is automatically restricted in the «Synthetics», «Delicates/Woollens» and «Hand wash» programmes.- Or drip dry.The cycle will finish with a gentle spin at 100 rpm.- Or stop with tub full of water.Your machine will stop with the tub full of water before the final spin.

— Use the buttons 4 to select any options you wish. Light(s) for the option(s) selected

— Select immediate start by pressing «strat/pause» |>5.

— ... or you can choose to delay the cycle, using button 3.You can select the time to elapse before the cycle starts.

Display and position of the selectors

In A display of the length of the selected programme
for example:	1:50

Selector 2 on

- Position «800» for example

- Position «100»

• Position

Countdown in A of the time remaining before the end of the cycle(the two dots flash throughout the whole of the cycle)

H02

• Adding or removing an item during the cycle (impossible during spin):

— Press the «strat/pause» button ▶5 to interrupt the cycle.

— Add or remove the items of laundry*.

(*) the time the lid remains locked depends on the temperature inside the machine and, for safety reasons, may take several minutes if you are interrupting a cycle at more than 40°C.

— Press the «strat/pause» button ▶5 to restart the cycle.

NB: If you have selected a delayed start, you can access the drum instantly at any time in the period before the washing cycle starts without having to interrupt and restart the cycle.

Countdown of the time is stopped in A (the displayed time flashes)
Resumption of the countdown in A (the two dots start flashing again)

134

• Cancelling while programming, washing or during a pause

Set the selector 1 to the «➊» position.This can be done at any time during the cycle or during programming, or even during a pause.NB:- In all cases, after cancelling you must reprogramme everything from the start.- If you have cancelled during the washing phase, remember to empty the water, if necessary.

• End of the cycle:

NB: After spinning, some models automatically position the drum opening at the top to provide easy access to the washing. This operation lasts at most 3 minutes.— Screen A then displays «- ☐ -», indicating that the cycle has finished.Set the selector 1 to the «➊» position.You can now open the lid and remove your washing.

Selector 1 set to « ⏻» All the indicator lights and the display are OFF

-0-

- Maintaining your machine's performance (Maintaining the pump filter):

You must clean the drain pump filter regularly (for how to do this, see the section «CLEANING THE PUMP FILTER»).

Important:

Your machine's performance can be affected if you do not clean the pump filter regularly.

For more details on the various functions, please refer to the sections «DETAILS OF THE PROGRAMMES» and «DETAILS OF THE OPTIONS».

Information:

After a power failure, when the power is restored, the washing cycle automatically resumes at the point where it was interrupted.

• SOME EXAMPLES OF PROGRAMMES

To select the most suitable programme for your type of washing, follow the instructions on the labels that most textiles bear.

Programmes table				[IMAGE]	[IMAGE]	[IMAGE]+	«100»	[IMAGE]
Programmes table		Temperature(°C)	Maximumweight of dryclothes(kg)	Reducingthe time	Anticreasing	Extra rinse	Drip-dry	Full drumstop
[IMAGE]	[IMAGE]			●	●	●	●	●
[IMAGE]	[IMAGE]	*		●	●	●	●	●
[IMAGE]	[IMAGE]	40 6.0		●	●	●	●	●
[IMAGE]	[IMAGE]	*-30 1.5				●	●	●
Special programmes
	OptiA 45 min 40 3.0					●	●	●
	Flash 30 min 40 2.5						●	●
[IMAGE]	[IMAGE]	*				●	●	●
Additional programmes
[IMAGE]	RINSING --						●	●
[IMAGE]	[IMAGE]	--					●

Special programmes

OptiA 45 min 40 3.0

Flash 30 min 40 2.5

Additional programmes

RINSING --

- : These functions can be used alone or in combinations: no illogical combinations can be made.

• TEST PROGRAMMES ACCORDING TO DELEGATED REGULATION (EU) No. 1061/2010

- Standard cotton programme at 60°C: cottons 60 °C : no option - max spin

- Standard cotton programme at 40°C: cottons 40 °C : no option - max spin

• DETAILS OF THE PROGRAMMES

The main programmes provided by the machine are as follows:

• COTTON

If your washing comprises hard-wearing white or coloured COTTONS.

Important:

When washing coloureds do not exceed a maximum temperature °C.

NB: During the first few minutes of the programme, your machine automatically evaluates the washing load you have introduced and adapts the water consumption and the length of the programme accordingly to provide a perfect wash.

• SYNTHETICS

If your washing comprises of DELICATE COLOURS, HARD-WEARING SYNTHETICS or MIXED FIBRES.

•PREWASH COTTON

Specially designed for heavily soiled washing (mud, blood, etc.).

A specific initial agitation in cold water precedes a phase of heating to 40^ . This agitation phase in cold water enables the particles soiling the washing to be removed before the water is heated.

Important:

Detergent must be placed in the « »| container in the products

• DELICATES / WOOLLENS

If your washing comprises NETTING, DELICATE FABRICS, FRAGILE TEXTILES or «MACHINE-WASHABLE WOOLLENS».

NB: A programme with agitation and spin phases specially adapted to these types of fabrics.

- OptiA 45 min

This 40^ C cycle washes a normal 3 kg load of cotton and mixed fabrics in 45 minutes, ensuring perfect washing results and maximum energy saving.

- Flash 30 min

This programme enables you to refresh a small load of 2.5 kg of lightly soiled washing composed of WHITES, COTTONS, COLOUREDS or HARD-WEARING SYNTHETICS.

The cycle time is restricted to around 30 minutes.

In this programme, the washing temperature is automatically programmed at 40^ C.

Important:

For this programme, the doses of detergent should be reduced off.

• HAND WASH

If your washing comprises SILK or PARTICULARLY DELICATE FABRICS.

NB: A programme with a very gentle mechanical action and no intermediate spins between rinses.

The cycle ends with a very gentle, progressive spin restricted to 600 rpm.

- Rinse

A separate rinse followed by a choice of:

— Either spin and drain

— Or drain only («Drip-dry» option)

— Or a stop with the drum full of water.

• DETAILS OF THE PROGRAMMES

- Spin

This allows a separate spin and drain.

Important:

In the case of «Rinse only» followed by a spin or «Spin only», ensure that you select a suitable spin speed for the type of washing in the machine.

• DETAILS OF THE OPTIONS

- Anti-creasing

This option washes your laundry more gently, but with an identical washing performance. The spin speed is slower so that your laundry creases less.

- Extra rinse

«Especially for sensitive and allergic skin»: adds an extra rinse to the washing cycle.

• Drip Dry (spin speed «100»)

This function, for very delicate linen, enables you to remove spinning and to pass directly to the draining of the washing machine.

• Full drum stop

This function enables you to remove the washing from your machine before the spin phase or to delay this phase with you washing remaining in water to prevent creasing.

NB: When the machine is stopped with the tub full of water, the display [A] shows alternately:

Then:

— If you want to drain after spinning, use the selector 2 to choose a suitable spin speed for your type of washing.

The programme will end automatically.

— If you just want to drain, turn the selecto? «100»).

- Reducing the time 🕒

Allows for a reduction in the cycle time according to 2 levels that can be accessed by pressing on the button several times. Level 1, reduces the average time by 20%. Level 2 reduces the average time by 40% for laundry that is only lightly soiled.

- Delayed start

You can delay the start of your programme by 1 to 19 hours so that you can benefit from cheap rate electricity or to have the cycle finish at a desired time.

To do this, select the time that must pass before the cycle starts by pressing successively on button 3(this is done hour by hour) and then press «start/pause» ▶5.

NB:

- Even if you forget to press the «start/pause» button ▶5 after selecting this option, your choice will still be accepted after a few seconds.

- The time remaining before the start of the cycle is counted down hour by hour from 19 hours to 1 hour.

- At the end of the waiting period, the programme starts and the display shows the duration of the selected cycle.

• MODIFYING A WASHING PROGRAMME

• During programming:

Anything can be changed before the «start/pause» button ▶5 is pressed.

• After the cycle has started:

You can change the type of textile (for example, switch from «COTTON» to «SYNTHETICS», etc.). In this case, check that the options you previously selected are still there.

You must confirm your new selection by pressing the «inicio/pausa» button ▶5.

The machine may then possibly drain off some of its water.

• Throughout the cycle:

Depending on your model, the following changes are possible without pressing the «start/pause» button ▶5.

— You can change the temperature for the same type of textile.

NB: If the temperature achieved by the washing cycle is higher than your new selection, heating the water stops immediately and the cycle continues.

— You can alter the spin speed throughout the cycle.

— You can select «drip dry» and «full drum stop».

— You can activate the «extra rinse» option until rinsing starts.

— You can deactivate all the options throughout the cycle provided that their action has not already finished.

• During delayed start:

Any kind of programme modification is accepted during a delayed start's waiting period.

— You can alter the length of a delayed start throughout the waiting period before the cycle effectively starts.

NB:

- During this period, selecting a new time cancels out the previous selection.

The new period selected is accepted based on the last selection made.

- If you want to cancel the delayed start completely during this period, first display «19h» using button 3.

Then press the button again and briefly press «start/pause» ▶5.

The cycle will start immediately.

- If you want to reduce the length of time of the delayed start, proceed in the same way but do not press the «start/pause» button ▶5.

Your machine is then ready for a new setting.

- When the cycle is over:

When the screen A shows «- 0 -», you can programme a new cycle without having to reset the selector 1 to the « 0 » position. For this, all you have to do is turn one of the selectors or press one of the buttons.

The screen shows the duration of the programme selected.

The machine is then ready to be reprogrammed.

• AUTOMATIC SAFETY SYSTEMS

• Lid opening safety system:

As soon as washing commences, the lid on your machine is locked. When the cycle is finished or when the machine has stopped with the drum full of water, the lid unlocks.

If you have programmed a «delayed start», the lid is not locked until the waiting period is over and the cycle starts.

If you wish to open the lid during the cycle, press button «start/pause» ▶5 briefly and wait 1-2 minutes for the safety system to unlock the lid.

Important:

Depending on when you wish to open the lid during the cycle, this time delay may be a little longer because a cooling down period may also have to be included.

In fact, to avoid your being severely burnt, the lid safety system will not open during the cycle unless the temperature inside the machine is below a certain threshold.

• Water safety system:

During operation, constant control of the water prevents any overflows.

- Spin safety system:

Your washing machine is fitted with a safety system that restricts the spin when poor load distribution is detected.

In this case, your washing may be insufficiently spun. Redistribute your washing in the drum and programme a new spin.

- Anti-foam system:

You machine can detect when too much foam is being produced during spinning.

At such times, spinning stops and the machine drains.

The cycle then restarts, adapting the spin rates and possibly adding an extra rinse.

• CLEANING THE PUMP FILTER

This filter collects the small objects you may have inadvertently left in your clothes and prevents them from disrupting the pump's operation.

To clean the filter, proceed as follows:

— Open the drum doors. At the back of the drum, you will see a plastic component A (Diagram D15)

— Release this (Diagram D16)

To do this:

- Insert a rod (a pencil or a screwdriver, for example) into the hole in the component A.

- Press down vertically with the rod, while pushing the component over to the right until it is released from its housing A.

— Remove the component A

— Turn the drum slightly towards the front of the machine, with the doors open (Diagram D17)

You can access the pump filter B through the openings freed by removing the plastic component A.

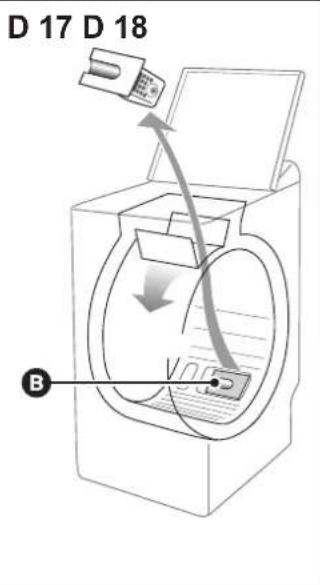

— Remove the filter from its housing (Diagram D17)

— Remove the various objects it may have in it

— Rinse it under the tap (Diagram D18)

— Re-insert it, pushing it firmly into its housing after checking that the housing is clean

— Re-insert the plastic component A ensuring that it is positioned correctly in the openings at the bottom of the drum and pushing it to the left until it is fully engaged (Diagram D19).

• CLEANING THE MACHINE

Important:

To clean the casing, the control panel and all the plastic parts

in general, use a sponge or a soft cloth dampened only with water and liquid soap.

In all cases, do not use:
— Abrasive powders
— Metal or plastic sponges
— Alcohol-based products (alcohol, thinners, etc.)

• CARE OF THE INTERNAL COMPONENTS

To ensure better hygiene, we recommend that you:

— Leave the lid open for a short time after washing.
— Clean the plastic and rubber access components to the tank approximately once a month using a slightly chlorinated product. Run a rinsing cycle to remove any residue of this product.
— Run a washing cycle at 90°C at least once a month.

• CLEANING THE PRODUCTS' BOX

Clean the products' box regularly.

To do this:

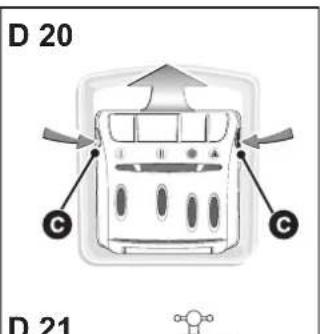

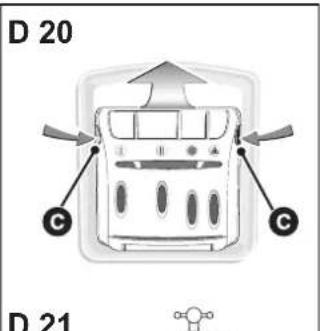

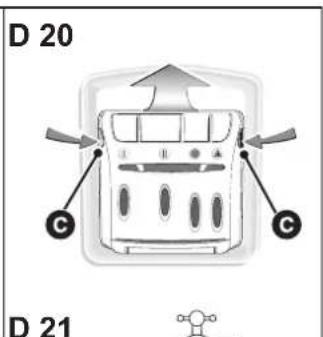

— Press the bosses Ⓐ on each side of the box simultaneously to extract it from its housing (Diagram D20)
— Remove the siphon D from the rear of the box E and separate the box from its front cover F (Diagram D21)
— Rinse everything under the tap (taking care to empty any excess water remaining inside the box)
— Refit all the box' components, ensuring that the box section itself is properly clipped into the cover and then re-insert the complete assembly into its location under the machine's lid.

• PERIODIC CHECKS

To avoid any water damage, we recommend that you regularly check the condition of the water and drain hoses. If you notice the slightest cracking, do not hesitate to replace the hoses with identical ones available from the manufacturer or his After-Sales Service. For how to replace the water supply hose, please refer to the section «CONNECTING TO THE COLD WATER SUPPLY».

• REPLACING THE POWER SUPPLY CABLE

Warning:

For your safety, the power cable and, depending on the model, the complete electric box and its associated cable must only be replaced by the manufacturer's After-Sales Service or a qualified electrician.

Line drawing of a hand cleaning a faucet with a spray can (no text or symbols)

• INCIDENTS THAT MAY OCCUR

• The cycle does not start

- You have not pressed the «start/pause» ▶5 button

– There is no power to the machine:

- Check that the plug is correctly in the socket

- Check the circuit breaker and the fuses.

– The water tap is closed

– The machine's lid is not closed properly

- A puddle of water forms around the machine

Warning:

First of all remove the plug and the fuse and shut off the water

supply tap.

While the machine is operating, the permanent level control prevents the water from overflowing. If, despite this, water comes out of your machine, it may be that:

– The drain hook is wrongly positioned in the drain pipe.

– The water supply hose is not sealed tightly at the machine or tap end:

- Check that the seals are in place and the connections are tight.

• Heavy vibration during spin

- All the transport materials have not been removed correctly from the machine:

- Check that all the transport wedges have been removed (see

«REMOVING THE TRANSPORT CLAMPS»).

– The floor is not level.

- Your machine is resting on its two «front» castors (depending on the model):

- Reset your machine on its feet by pushing the castor engagement lever to the right.

• The washing is not spun or not spun enough

You have selected a programme with no spin, for example «drip-dry»

- The spin safety system has detected poor distribution of the washing in the drum:

- Untangle the washing and programme a new spin.

• The machine does not drain

- You have programmed «Full drum stop»

– The pump filter is blocked:

- Clean it (see «CLEANING THE PUMP FILTER» for the relevant procedure)

– The drain hose is kinked or squashed

• The lid does not open

– The programme has not yet finished

The lid remains locked throughout the programme.

• The drum doors open very slowly

(On machines fitted with gently opening doors)

- Your machine has not operated for a long time

- It is located in too cold a position.

– Detergent residue (powder) is blocking the hinges

- In all cases, everything returns to normal after the doors have opened initially

Important :

As a general rule, whatever the anomaly detected, you should

stop the machine, unplug the power cable and shut off the water tap.

- NOTE ON OPERATION - THIS IS NOT AN INCIDENT:

•The programme time decreases or increases during the wash

This is not a fault. The length of time displayed at the start of the programme is updated according to the load in the machine (automatic weighing). This guarantees perfect washing results and water and energy consumption appropriate to the load. This is normal. The spin safety and anti-foam systems may extend the initial programme time displayed.

- MESSAGES SHOWN ON THE DISPLAY

- Incidents indicated, which you can rectify yourself

In this section, we explain how you can rectify these incidents very easily yourself.

Your machine automatically detects some operating incidents and indicates these by particular messages shown on the screen.

Messages Causes / Remedies

	The water tap is closed. Check that the water tap is open and then press the «start/pause» ▶5 button again to restart the cycle. This incident may also be caused by the drain hose being poorly connected (see the section «DRAINING AWAY THE WASTE WATER»).
	The pump filter is clogged. Clean the pump filter (for how to do this, see the section «CLEANING THE PUMP FILTER») and then press the «start/pause» ▶5 button again to restart the cycle.Also check the drain hose's position in the drain: the connection must not be airtight (see the section «DRAINING AWAY THE WASTE WATER»).
	Lid not closed properly. Check that the lid is closed and then press the «start/pause» ▶5 button again to restart the cycle.Drum blocked. Check that a small item of laundry (e.g. a handkerchief or a sock, etc.) has not slipped down between the tub and the drum and is stopping the drum from turning. To access the bottom of the tub, please refer to the section «CLEANING THE PUMP FILTER».

NB:

Before calling your breakdown engineer, we recommend that you do the following:

- Set the Programme selector to the « ⏻» position and remove the electrical plug for at least 10 seconds - Reconnect the plug and restart a washing cycle.

If the fault persists, call your breakdown engineer and remember to tell him which message is displayed.

Important:

Do not restart a washing cycle if the drum remains locked or if you notice water around your machine of if you notice a burning sme.

• AFTER-SALES SERVICE:

Possible maintenance on your washing machine should be undertaken by: — either your dealer,

— or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the complete reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to the rear of the equipment.

In accordance with EU regulation 1015/2010, below you will find additional product information. The purpose of this information is to provide details on the energy-saving directives to which all appliances sold in the EU must conform.

• WASHING YOUR CLOTHES CORRECTLY

Care labels on items of clothing specify appropriate detergents, temperatures and settings.

Type of cloth Programme Detergent
White cotton laundry		Cotton 20^ - 90^ max.	Detergent with a bleaching product
Coloured linen or cotton laundry		Cotton 20^ - 60^ max.	Detergent for coloured laundry without a bleaching product
Synthetic items	[3ZC0]	Synthetic items 20^ - 60^ max.	Colour/delicate detergent
Delicate fabrics	[Y3A0]—	Delicate/silk 20^ - 40^ max.	Detergent for delicate laundry
Wool	[27BK]—	Wool 20^ - 40^ max.	Detergent for woollen items

• PRODUCT INFORMATION

• Residual moisture of the laundry

To find the spin-drying efficiency of your appliance, consult its energy label and refer to the table below:

Spin drying efficiency class Residual moisture D in %
A (very efficient) D<45
B 45 ≤ D < 54
C 54 ≤ D < 63
D 63 ≤ D < 72
E 72 ≤ D < 81

- Programmes for tests defined by (EU) delegated regulation 1061/2010

These programmes are suitable for cleaning averagely soiled cotton cloth and are more efficient in terms of both energy and water consumption.

Class and maximum load according to your model	Maximum load of dry laundry (kg)
	5 kg 6 kg 7 kg
Program* Class/kWh/l		Lmin	Class/kWh/l	Lmin	Class/kWh/l	Lmin
Cotton 60°C full loa	A++ / 0.77 / 46	136	A+ / 1.10 / 50.5	173	A+ / 1.40 / 55	160
	A+++ / 0.71 / 47	151	A++ / 0.99 / 46	138	A++ / 1.11 / 48	149
			A+++ / 0.81 / 50	189
Cotton 60°C half load	A++ / 0.64 / 29	86	A+ / 0.71 / 35	105	A+ / 0.74 / 45	146
	A+++ / 0.54 / 29	99	A++ / 0.71 / 36	96	A++ / 0.80 / 42	121
			A+++ / 0.53 / 35	122
Cotton 40°C half load	A++ / 0.40 / 29	83	A+ / 0.43 / 35	109	A+ / 0.57 / 44.5	135
	A+++ / 0.34 / 29	91	A++ / 0.45 / 36	87	A++ / 0.59 / 40	129
			A+++ / 0.43 / 35	118

* Programme without options, max. spin.
For energy-saving purposes, the actual washing temperature can vary from the temperature of the selected programme.

• Electricity consumption in on and 'left-on' modes

Off-mode: < 0,5 W 'Left-on' mode: < 0,8 W

• SOMMAIRE

Page Page

D8D9

D 10 D 11 D 12

• ALIMENTATION ÉLECTRIQUE

Important:

Line drawing of a hand cleaning a surface with a faucet and cleaning tool (no text or symbols)

• INCIDENTS POUVANT SURVENIR

• INFORMATION PRODUIT

Pure mechanical diagram showing a rotating component with no text or symbols

D 13

D 14

① Vaschetta prelavaggio (polvere)

② || Vaschetta lavaggio (polvere o liquido)

③ Ammorbidente

④ cl Javel

: DETERSIVO IN POLVERE

: DETERSIVO LIQUIDO

• PROGRAMMAZIONE

If your washing comprises hard-wearing white or coloured COTTONS.

Importante:

Illustration of a hand cleaning a faucet with a spray can (no text or symbols)

• INCIDENTI CHE POSSONO ACCADERE

D 2

A Пульт управления

Diagram showing a mechanical component with an arrow indicating rotation, labeled D 13 D 14 (no text or symbols on the diagram itself)

• ЗАГРУЗКА БЕЛЬЯ

Illustration of a hand cleaning a faucet with a spray can (no text or symbols)

A Bedieningspaneel

D8D9

D 10

	OptiA 45 min 40 3.0					●	●	●
	SNEL 30' (Flash 30 min)	40 2.5					●	●
	HANDWAS	*	1.0			●	●	●
Extra programma's
	SPOELEN	-	-				●	●
	CENTRIFUGEREN	-	-				●

Illustration of a hand cleaning a water tap with a sponge (no text or symbols)

D 19

D 20

D 21

• MOGELIJKE INCIDENTEN
