VKG 511-570-571-581

DK Brugsanvisning

NO Bruksanvisning

SE Brugsanvisning

FI Käyttöohjeet

GB Instructions for use

Advarsel

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazard status.

ADVARSEL:

Technical line drawing of a structural joint or bracket (no text or symbols)

Omgivende temperatur

1 2 3 4 5 offset power temperature

Simple line drawing of a mechanical assembly with a knob and mounting bracket (no text or symbols)

Line drawing of a hand holding a cylindrical object against a metal bracket (no text or symbols)

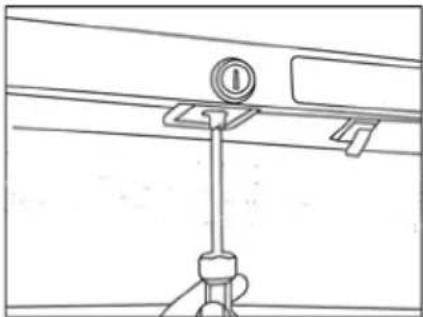

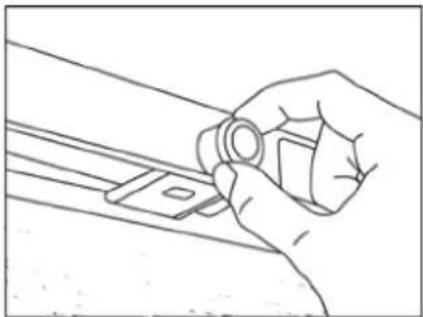

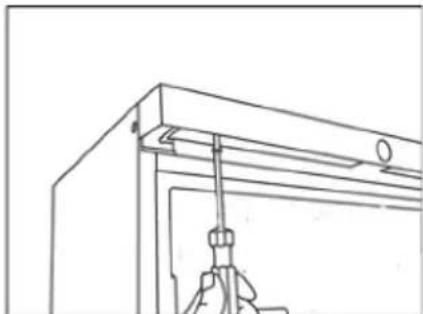

1. Træk läsehuset ud.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a hand inserting a component into a rectangular box (no text or symbols)

Line drawing of a hand using a tool to adjust or install components on a vehicle (no text or symbols visible)

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand using a tool to adjust or install a component, with no visible text or symbols.

Simple line drawing of a door with a curved arrow indicating rotation or motion (no text or symbols)

Line drawing of a hand holding a bottle with liquid, no text or symbols present

Line drawing of a hand holding a small mechanical component, with no visible text or symbols

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Line drawing of a hand holding a small electronic device with buttons (no text or symbols)

Line drawing of a hand inserting a small component into a battery (no text or symbols)

Line drawing of a hand gripping a small object on a surface (no text or symbols)

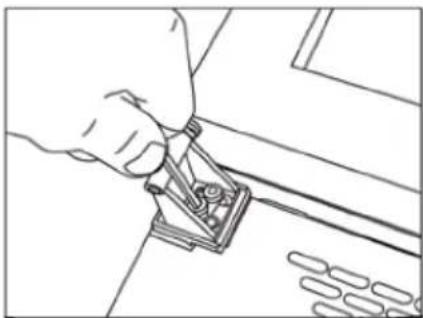

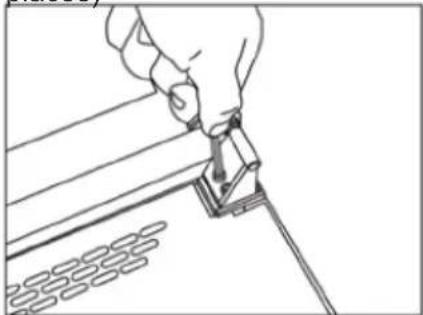

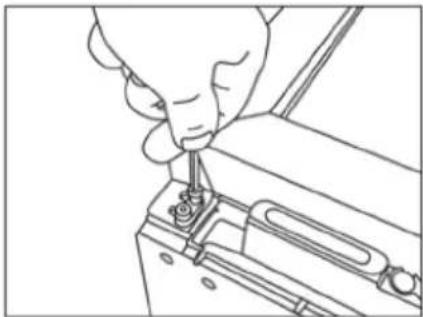

1. Rejs apparatet op igen. Klik toppanelet på plads (det skal sikret på tre steder)

Line drawing of a hand holding a screwdriver inside a cabinet (no text or symbols)

Line drawing of two hands holding a small object above a window frame (no text or symbols)

Technical line drawing of a structural joint or bracket with an arrow indicating direction (no text or symbols present)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

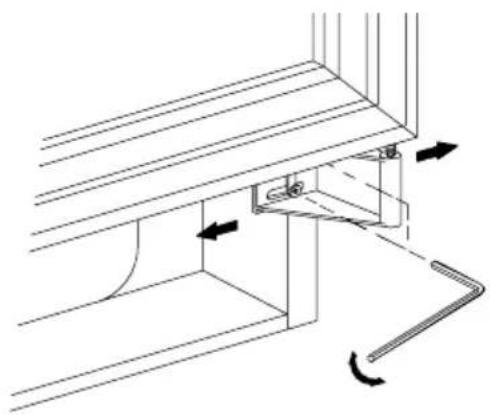

Justering af døren

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of a structural assembly with beams and supports (no text or symbols)

Technical line drawing of a structural beam with supports and a pulley (no text or symbols)

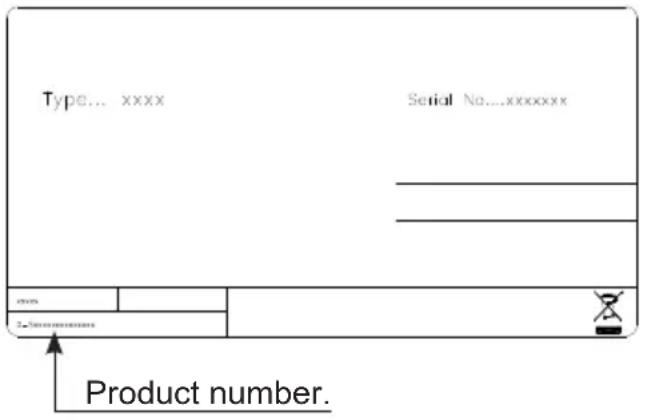

Reklamation, reservedele og service

Reklamationsretten

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

ADVARSEL:

Technical line drawing of a structural joint or bracket (no text or symbols)

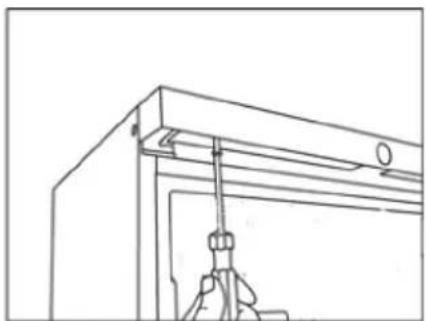

Romtemperaturen

1 2 3 4 5 adjust power temperature

Simple line drawing of a mechanical assembly with a circular component and mounting bracket (no text or symbols)

1. Fjern lässtiften med skrutrekker.

Line drawing of a hand holding a cylindrical object against a metal bracket (no text or symbols)

1. Trekk ut låshuset..

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a hand inserting a component into a rectangular box (no text or symbols)

Line drawing of a hand using a tool to adjust or install a component (no text or symbols visible)

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand using a tool to cut or mark a component, with no visible text or symbols

Simple line drawing of a door with a curved arrow indicating rotation or motion (no text or symbols)

Line drawing of a hand holding a bottle with liquid, no text or symbols present

Line drawing of a hand holding a small mechanical component, no text or symbols present

1. Fest bunnhengslet på den andre siden.

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

1. Flytt plastdørbeskytteren til den andre siden.

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Line drawing of a hand holding a small electronic component with three buttons (no text or symbols)

Line drawing of a hand inserting pins into a battery (no text or symbols)

Line drawing of a hand gripping a small object on a surface (no text or symbols)

Line drawing of a hand holding a screwdriver inside a cabinet (no text or symbols)

Line drawing of two hands holding a tool, no text or symbols present

Technical line drawing of a structural joint or bracket with an arrow indicating direction (no text or symbols present)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Justere døren

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of a structural connection with clamping equipment (no text or symbols)

Technical line drawing of a structural beam with supports and a hook, no text or symbols present

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazardous status.

WARNING:

Technical line drawing of a structural joint or bracket detail (no text or symbols)

Rumstemperaturen

1 2 3 4 5 adjust power temperature

Simple line drawing of a mechanical assembly with a knob and clamping bracket (no text or symbols)

Line drawing of a hand holding a small cylindrical object against a diagonal line (no text or symbols)

1. Dra ut låshuset.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a hand inserting a component into a rectangular box (no text or symbols)

Line drawing of a hand using a tool to adjust or install components on a mechanical device (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand using a tool to cut or install a component, with no visible text or symbols

Simple line drawing of a door with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a bottle with liquid, no text or symbols present

Line drawing of a hand using a tool to adjust or install a component, with no visible text or symbols.

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Line drawing of a hand holding a small electronic component with three buttons (no text or symbols)

Line drawing of a hand inserting a small component into a battery (no text or symbols)

Line drawing of a hand gripping a small object on a surface (no text or symbols)

Line drawing of a hand holding a screwdriver inside a cabinet (no text or symbols)

Line drawing of hands holding a tool near a window frame (no text or symbols)

Technical line drawing of a structural joint or bracket with an arrow indicating direction (no text or symbols present)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Justering av dörren

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of a structural assembly with beams and supports (no text or symbols)

Technical line drawing of a structural beam with supports and a pulley (no text or symbols)

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazard status.

VAROITUS:

Technical line drawing of a structural joint or bracket (no text or symbols)

1 2 3 4 5 adjust power temperature

Simple line drawing of a mechanical assembly with a handle and mounting bracket (no text or symbols)

Line drawing of a hand holding a small cylindrical object against a diagonal line (no text or symbols)

1. Irrota lukkopesä.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a hand inserting a component into a rectangular box (no text or symbols)

Line drawing of a hand using a tool to adjust or install a component (no text or symbols visible)

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand using a tool to cut or mark a component, with no visible text or symbols

Simple line drawing of a door with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a bottle with liquid, no text or symbols present

Line drawing of a hand holding a small mechanical component, with no visible text or symbols

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Line drawing of a hand holding a small electronic device with three buttons (no text or symbols)

Line drawing of a hand inserting a small component into a battery (no text or symbols)

Line drawing of a hand gripping a rectangular object with a small protrusion (no text or symbols)

Line drawing of a hand holding a screwdriver inside a cabinet (no text or symbols)

Line drawing of hands holding a tool near a window frame (no text or symbols)

Technical line drawing of a structural joint or bracket with an arrow indicating direction (no text or symbols present)

Pure technical line drawing of a structural beam with a hook and base (no text or symbols)

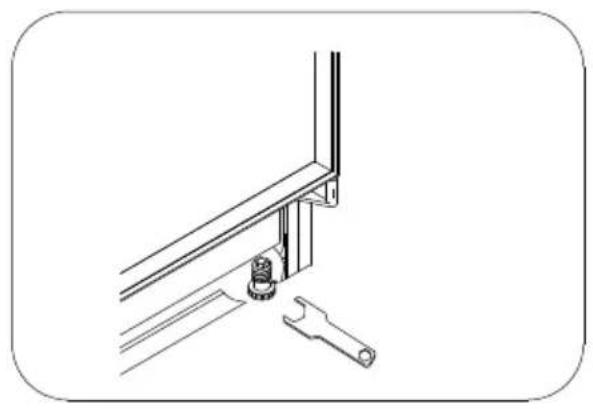

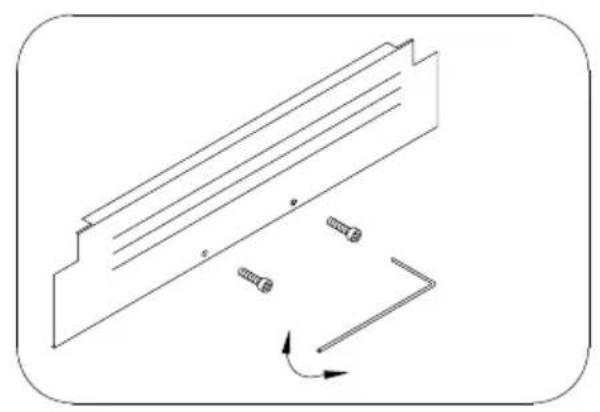

Oven säätö

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of a structural connection with clamping equipment (no text or symbols)

Technical line drawing of a structural beam with supports and a hook, no text or symbols present

Line drawing of a two-tiered refrigerator with doors and front panel (no text or symbols)

Technical line drawing of a mechanical component with threaded fasteners and a curved arrow indicating rotation (no text or symbols)

↓

Technical line drawing of a mechanical assembly with a wrench and workpiece (no text or symbols)

↓

Pure technical diagram showing intersecting lines and ground anchor points without any text or symbols

←

Technical diagram showing two cross-sectional views of a structural component with diagonal and horizontal lines, no text or symbols present.

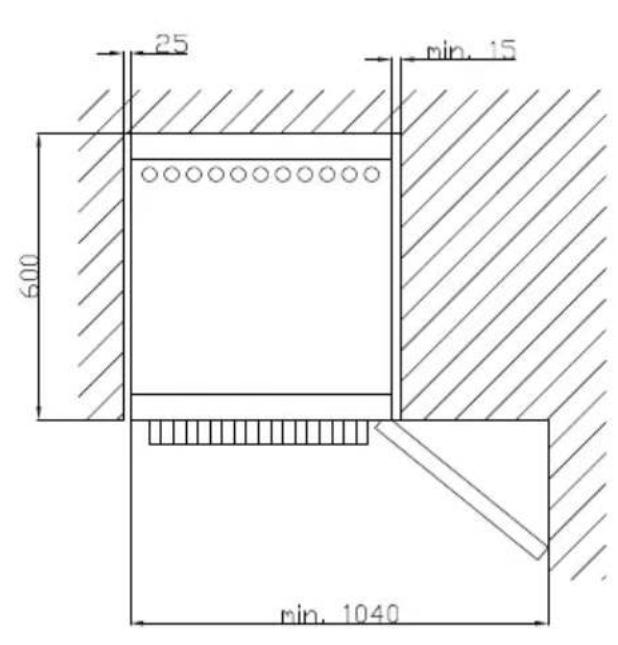

650 min.1700 / 2000 150 1550 / 1850

As the appliance contains a flammable refrigerant, it is essential to ensure that the refrigerant pipes are not damaged.

The quantity and type of the refrigerant used in your appliance is indicated on the rating plate.

Standard EN378 specifies that the room in which you install your appliance must have a volume of 1 m^3 per 8 g of hydrocarbon refrigerant used in the appliances. This is to avoid the formation of flammable gas/air mixtures in the room where the appliance is located in the event of a leak in the refrigerant circuit.

WARNING:

Keep ventilation openings in the appliance's cabinet or in the built-in structure clear of obstruction.

WARNING:

Do not use other mechanical devices or other means to accelerate the defrosting process than those recommended by the manufacturer.

WARNING:

Do not damage the refrigerant system

WARNING:

Do not use electrical appliances inside the refrigerated storage compartment, unless they are of a type recommended by the manufacturer.

WARNING:

Do not expose the appliance to rain.

WARNING:

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

WARNING:

Children must not play with, on, or around the appliance.

WARNING:

Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

WARNING:

Do not store explosives, such as aerosol cans with flammable propellants in the unit.

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazard status.

WARNING:

Danger risk of fire or explosion if flammable refrigerant are used. To be repaired only by trained personnel.

WARNING:

When positioning the appliance, ensure the power cord is not trapped or damaged.

WARNING:

Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• Always keep the keys in a separate place and out of reach of children
- Before servicing or cleaning the appliance, unplug the appliance from the mains or disconnect the electrical power supply

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard
• Relevant for Australia: Supply cord fitted with a plug complies with AS/NZS 3112.
• Frost formation on the interior evaporator wall and upper parts is a natural phenomenon. Therefore, the appliance should be defrosted during normal cleaning or maintenance.
• Please note that changes to the appliance construction will cancel all warranty and product liability
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons inorder to avoid a hazard
• Do not use extension cords.
• VKG wine: This appliance is intended to be used exclusively for the storage of wine.

CLASS 1 LED PRODUCT

Contents

Warning 2

Before starting the appliance....4

Savings in energy consumption in the use....4

Maintenance....4

Get to know your wine cooler: 5

Electrical connection....6

Installation 6

Has the appliance stopped working? .....7

Room temperature....7

Control panel 8

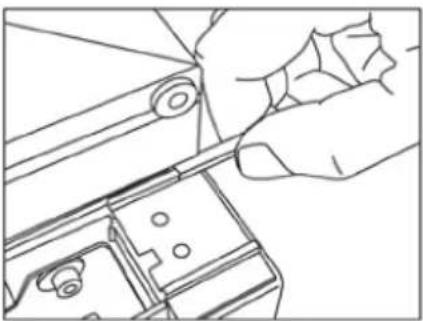

Reversing the door 9

Reversing the door for appliance with 2 doors ....10

Warranty, spare parts and service....12

Disposal....13

Maintenance

Switch off the appliance and pull out the plug when cleaning the cabinet.

Only use an unscented detergent when clea ning the cabinet inside.

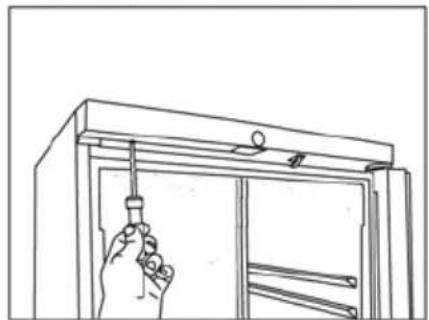

You may remove the top panel and wash it when cleaning the cabinet inside.

The kick panel can be removed to facilitate a vacuum-cleaning of the floor.

To make the cooling system work at its optimum it is necessary from time to time to clean the wire condensator and the compressor at the back of the cabinet by means of a brush or a vacuum cleaner. Remember to clean the drain.

Before starting the appliance

Check that the cabinet is undamaged. Please report any damage immediately to your dealer. Wash the cabinet and inner lining with a mild unscented detergent and wipe it dry. Do not use abrasive scouring powder, steel wool or similar.

Savings in energy consumption in the use

The energy consumption reduces ..

1)..the lower the ambient temperature is.

2)..the warmer thermostat set point is.

3)..the lower the number and the shorter the length of the door openings is.

Get to know your wine cooler:

Lock Top lighting Control panel Rating plate Shelf Door handle Glass door Kick plate Adjustable feet

Electrical connection

Wiring and connections in power supply systems must be all applicable (local and national) electrical codes. Consult these codes lengths and sizes prior to cabinet installation.

This device complies with relevant EU directives including Low Voltage Directive 2014/35/EU and Electromagnetic Compatibility Directive 2014/30/EU

The socket should be freely accessible.

Connect the appliance only to 220/240 V / 50Hz alternating current via a correctly installed earthed socket.

The socket must be fused with a 10-13 A fuse.

If the appliance is to be operated in a non-European country, check on the rating plate whether the indicated voltage and current type correspond to the values of your mains supply.

Information regarding voltage, current or power are given on the rating plate

The power cord may be replaced by a technician only.

The rating plate provides various technical information as well as type and serial number.

Technical line drawing of a structural joint or bracket (no text or symbols)

Installation

See drawings - page A - B

Install the cabinet in a dry place and so that it is not exposed to direct sunlight or any other sour ce of heat.

Place the cabinet in a level position. This is easily achieved by adjusting the adjustable feet at the front edge of the base.

The cabinet may not rest against a wall on its hinged side. When placing the cabinet on a carpet or on a wooden floor you should adjust it once more after some time as the cabinet might settle in soft foundations.

If you want to build the appliance into a cupboard you must consider 3 factors:

1. There must be space above the appliance in order to make the cooling system work satisfactorily.
2. When the door is opened the appliance takes up more room in the width and therefore the door must either be placed outside the cupboard or there must be a space of at least 1,5 cm at the hinge side.
3. The distance to the wall at the hinge side must be of a sufficient size.

Furthermore it is possible to build together two appliance. If one of these is a wine cabinet please observe a min. distance of 25mm between the cabinet in order to keep cooling performance intact.

It is safest to place the earthed wall socket abo ve the appliance and at least 2.0 m above the floor. Any local installation rules for appliances of this kind must be ob-served.

Room temperature

During a storm the electricity supply might be cut off.

You should be aware of this when installing the appliance in weekend cottages or elsewhere where you would not immediately observe that the power has been cut off. Construction and details in the accessories are subject to alteration without previous notice.

The climate class is stated on the rating plate. This specifies the optimum room temperature.

Climate class Permitted ambient temperature

SN +10 °C to +32 °C

N +16 °C to +32 °C

ST +16 °C to +38 °C

T +16 °C to +43 °C

Has the appliance stopped working?

Before calling a repairman, check that

• The plug is properly plugged into the wall socket.
• The fuse is intact.
• The power has not been cut off.
• All controls are correctly set.
• Switch off the cabinet for 15 minutes (for instance at the thermostat). Switch it on again and after 5 minutes check whether frost has formed on the evaporator.
• Do not open the cabinet unnecessarily.

Control panel

1 2 3 adjust power temperature 4 5

Connect the appliance to the socket outlet. A green light indicates that the appliance has been switched on.

The thermostat knob is adjustable from 0 (stop) to 7 (coldest). Find the position of the therm ostat which gives you the desired temperature. Start at position 4.

1. Lock (Not all Appliances has lock in top,)
2. Green light indicating power on
3. Thermometer
4. Thermostat button.
5. Light switch

The switch (5) on the top right of the control panel is for turning the top lighting on and off.

Shelf load

The wooden shelf can be loaded with 85 kg. If the wooden shelf loaded with 85 kg, a deflection of up to 5 mm expected. If more stability is desired, place 2 wooden shelves directly on top of each other and then stack the bottles.

Max. 85 kg.

Reversing the door

(Not all appliance have lock.)

OBS: The left top hinge is a spare part and must be ordered.

Simple line drawing of a mechanical assembly with a knob and lever (no text or symbols)

1. Remove the lock pin using a flat-headed screwdriver.

Line drawing of a hand holding a small cylindrical object against a diagonal line (no text or symbols)

1. Remove the lock housing.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

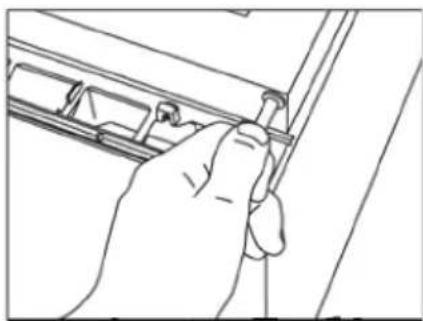

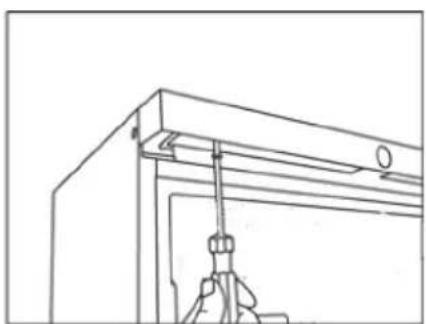

1. Loosen the top panel. Do not remove the screws, just loosen them.

Line drawing of a hand inserting a small object into a rectangular box (no text or symbols)

1. Tilt the top panel forwards to remove it (it is secured in tree places)

Line drawing of a hand using a tool to adjust or install a component (no text or symbols visible)

1. Lay the appliance on its back and remove the upper hinge, using the hex key.

Line drawing of a hand inserting a component into a device (no text or symbols)

1. Pull the torsion spring out of the door together with the hinge.

Line drawing of a hand using a tool to cut or mark a component, with no visible text or symbols

1. Remove the bottom hinge using the hex key.

Simple line drawing of a door with a curved arrow indicating rotation (no text or symbols)

1. Move the door handle to the opposite side.

Line drawing of a hand holding a bottle with liquid, no text or symbols present

1. Move the hinge pin to the opposite side of the bottom hinge.

Line drawing of a hand using a tool to adjust or install a component, with no visible text or symbols.

1. Refit the bottom hinge on the opposite side.

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

1. Move the palstic door guard to the opposite side.

Line drawing of a hand holding a tool near a window frame (no text or symbols)

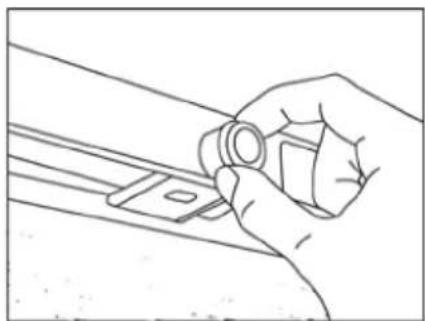

1. Insert the hinge pin and torsion spring into the top of the door on the opposite side.

Line drawing of a hand holding a small electronic component with three buttons (no text or symbols)

1. Fit the left-side top hinge (available as extra). Tighten the torsion spring approx. 1/2 turn (anticlockwise on left side, clockwise on right.)

Line drawing of a hand inserting a component into a battery (no text or symbols)

1. Secure the top hinge in position.

Line drawing of a hand gripping a rectangular object with a small o mark, no text or symbols present

1. Raise the appliance into uppight possession. Click the top panel into place (it is secured in three places.)

Line drawing of a hand holding a tool inside a cabinet (no text or symbols)

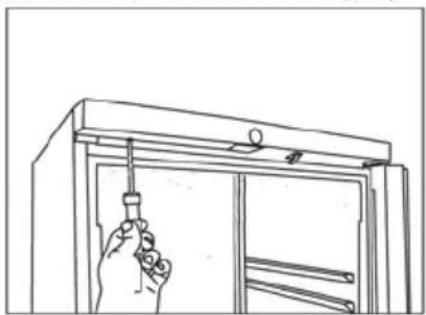

1. Retighten the top panel screws using a screwdriver.

Line drawing of two hands adjusting a small object on a surface, no text or symbols present

1. Refit the lock housing and lock pin.

2. After reversing the door, it is important to check that the sealing strip provides a tight seal all the way round. If it does not, carefully heat the strip all the way round using a hair dryer. Then ease the strip outwards slightly so that it forms a tight seal against the cabinet. Be careful not to heat the strip so much that it melts!

Reversing the door for appliance with 2 doors

• Dismount the middle hing pin and bushing.
• Dismount the door
• Cover for hinge hole is dismounted an remounted in opposite site.

Technical line drawing of a structural joint or bracket with an arrow indicating direction (no text or symbols present)

Pure technical line drawing of a structural bracket with no text or symbols

Adjustment of the door

Technical line drawing of a structural support bracket with mounting holes and arrows indicating direction (no text or symbols)

Mounting of lock for appliance with 1 door

(Optional extra.)

Mounting of lock for appliance with 2 doors

(Optional extra.)

Technical line drawing of a structural connection with beams and supports (no text or symbols)

Technical line drawing of a structural joint or bracket with diagonal braces and a small circular detail (no text or symbols)

Warranty, spare parts and service

Warranty disclaimer

Faults and damage caused directly or indirectly by incorrect operation, misuse, insufficient maintenance, incorrect building, installation or mains connection. Fire, accident, lightening, voltage variation or other electrical interference, including defective fuses or faults in mains installations.

Repairs performed by others than approved service centres and any other faults and damage that the manufacturer can substantiate are caused by reasons other than manufacturing or material faults are not covered by the warranty.

Please note that changes to the construction of the appliance or changes to the component equipment of the appliance will invalidate warranty and product liability, and the appliance cannot be used lawfully. The approval stated on rating plate will also be invalidated.

Transport damage discovered by the buyer is primarily a matter to be settled between the buyer and the distributor, i.e. the distributor must ensure that such complaints are resolved to the buyer's satisfaction.

Before calling for technical assistance, please check whether you are able to rectify the fault yourself. If your request for assistance is unwarranted, e.g. if the appliance has failed as a result of a blown fuse or incorrect operation, you will be charged the costs incurred by your call for technical assistance.

Spare parts

When ordering spare parts, please state the type, serial and product numbers of your appliance. This information is given on the rating plate. The rating plate contains various technical information, including type and serial numbers.

Type... xxxx Serial No....xxxxxxxxx Product number.

Disposal

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2012/19/EU and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union.

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol :

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.
