USER MANUAL KHD200 Koenic

Black KOENIC hair dryer with red handle and white base (no visible text or symbols on body)

Deutsch	4 - 7
Ελληνικά	8 - 11
English	12 - 15
Español	16 - 19
Français	20 - 23
Magyar	24 - 27
Italiano	28 - 31
Nederlands	32 - 35
Polski	36 - 39
Português	40 - 43
Русский	44 - 47
Svenska	48 - 51
Türkçe	52 - 55
汉语	56 - 59

Close-up of a wall socket with a black cable inserted, showing a red arrow pointing to the socket (no text or symbols)

Close-up of a black plug inserted into a square socket with a red arrow pointing to the outlet (no text or symbols)

Close-up of a black plastic connector with a looped tip and textured end (no text or symbols visible)

Formdüse Diffuser

Close-up of a black mechanical component with multiple holes and a red square marker (no text or symbols visible)

Close-up of a black and red object with a white border, possibly a device or component (no visible text or symbols)

Close-up of a black and red object with a white handle, possibly a device or tool (no visible text or symbols)

Close-up of a black control panel with a red knob and a small white object, no visible text or symbols.

Close-up of a dark, textured surface with a circular emblem and a red number 7 in the corner (no readable text or symbols)

Kaltlufttaste

DE

Close-up of a wall socket with a black cable inserted, showing a red arrow pointing to the socket (no text or symbols)

Close-up of a black plastic connector with a curved port and textured end (no text or symbols visible)

Επιστόμιο Διαχύτης

Close-up of a black plug inserted into a white socket with a red arrow pointing to the outlet (no text or symbols visible)

Close-up of a mechanical component with internal cavities and mounting holes (no visible text or symbols)

Close-up of a black mechanical component with a red highlighted section, labeled '5' in the corner (no readable text or symbols)

Ρύθμιση ροής αέρα

Close-up of a black and red object with a white side, possibly a device or tool (no visible text or symbols)

Close-up of a black remote control knob with red scroll and numeric keypad (no readable text or symbols)

Close-up of a black mechanical component with a circular button and a red number 7 marker (no readable text or symbols)

Κουμπί ψυχρού αέρα

EL

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

• Before connecting the appliance to a socket outlet, make sure the voltage indicated on the appliance corresponds to your local mains voltage.
• For safety reasons, this class II appliance is provided with double or reinforced insulation as indicated by the symbol ☐
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified persons in order to avoid hazard.
• The proximity of water presents a hazard even when the hair dryer is switched off. When using the appliance in bathrooms, unplug after use.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
• WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
• The appliance is only intended for drying scalp hair. Do not use the appliance for any other purpose than described in this manual, in order to avoid hazardous situations. Do not use the appliance on artificial hair.
• Regularly check if the supply cord, appliance or extension cable are defective. If found defective, do not put appliance into operation. Immediately pull the plug.
• Never carry or pull the appliance by the supply cord. Do not wrap the supply cord around the appliance.

• Always unplug the appliance after use.
- Do not use attachments other than recommended by the manufacturer or specified in this manual.
- When using attachments, make sure they are attached properly and securely.
- Do not leave the appliance unattended while turned on or plugged in. Always switch off the appliance before putting it down, even if it is just for a moment.
- Never pull the plug by the supply cord or with wet hands. Disconnect the mains plug in case of faults during use, before cleaning or moving the appliance, and after use.
- Never block the air inlet or outlet grilles. Risk of fire!
- The appliance features a safety function. If the appliance overheats, it switches off automatically. In such case, unplug the appliance and let it cool down for a few minutes. Before switching the appliances on again, check the grilles to make sure they are not blocked by fluff, hair, etc.
- Do not insert any objects into the appliance to avoid electric shock.
- Keep the appliance clean and free of dust, dirt and styling products such as mousse, spray and gel.
- WARNING: the polyethylene bags over the product or its packaging may be dangerous. Keep these bags out of the reach of babies and children. Never use them in cribs, children's beds, pushchairs or playpens. The thin film may cling to the nose and mouth and prevent breathing. A bag is not a toy.

- This unit has been equipped with a temperature cut-out. If the unit overheats, it will shut off automatically or will stop heating. If this happens, slide the switch on the unit's handle into the OFF position, unplug the unit and allow it to cool for 10 minutes. BEFORE using it again, make sure there is no hair or any other dirt in the unit's rear filter. Plug the unit in and switch it on. If it overheats again, stop using it immediately, switch it off and unplug it.

Intended use

This appliance is intended for drying scalp hair. Only use according to these instructions. Improper use is dangerous and will void any warranty claim. Observe the safety instructions.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Technical Data

Rated voltage: 220-240 V Rated power input: 2000 W Rated frequency: 50 Hz

English

Congratulations

Thanks for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Concentrator and diffuser

The hair dryer is supplied with a concentrator and a diffuser that can easily be fitted to or removed from the unit.

Drying

Switch on the appliance by setting the switch to the desired airflow setting:

0 To switch the device off
1 For drying short hair or for styling
2 For ultra-quick drying

Temperature

Set the temperature switch to the desired tempreature setting;

1 Low temperature
2 Mediate temperature
3 High temperature

lon function

Use the ion function to protect and sterilize hair and to reduce frizz and static electricity. Improves blood circulation and health.

0 To switch ion function off
1 To switch ion function on. Indicator light turns on.

\*Cool shot function

Press the cool shot button *or styling and gently drying hair that is almost dry. It will give the hair additional shine.

Close-up of a wall socket with a black cable inserted, showing a red arrow pointing to the socket (no text or symbols)

Before use, plug in the hair dryer.

Close-up of a black plug inserted into a square socket with a red arrow pointing to the outlet (no text or symbols)

After use, unplug the hair dryer.

Close-up of a black plastic object with a looped neck and textured surface (no text or symbols visible)

Concentrator Diffuser

Close-up of a black mechanical component with multiple protrusions and a red square marker (no text or symbols visible)

Close-up of a black and red object with a white handle, possibly a device or tool (no visible text or symbols)

Set temperatureSet airflow

Close-up of a black mechanical component with a red highlighted section, labeled '5' in the top-left corner (no other text or symbols)

4 1 0 ←

lon function switch

Close-up of a black mechanical component with a circular button and vertical seam, no visible text or symbols

Cool shot button

EN

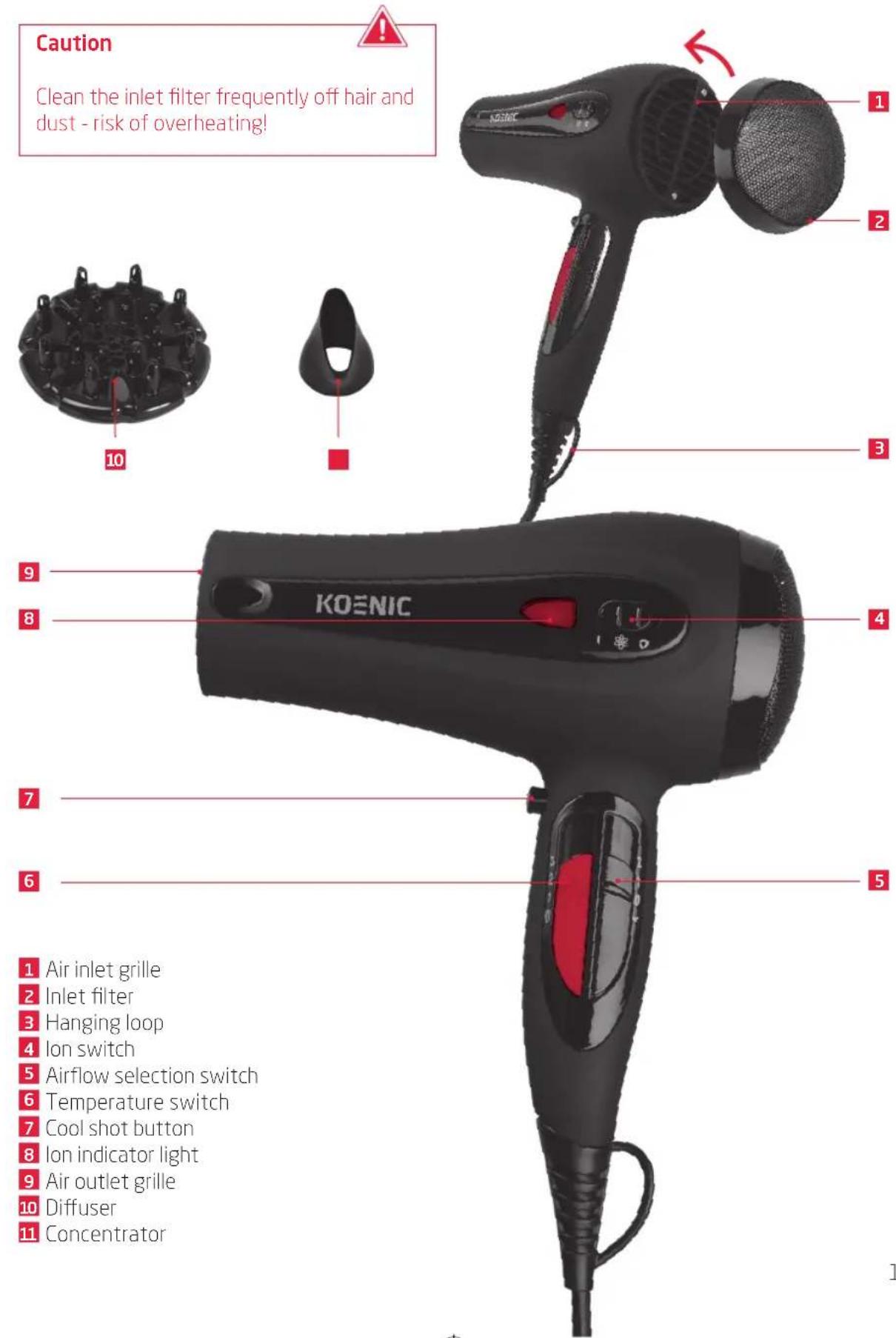

Caution Clean the inlet filter frequently off hair and dust - risk of overheating! KOENIC 1 2 3 4 5 6 7 8 9 10 Air inlet grille 2 Inlet filter 3 Hanging loop 4 Ion switch 5 Airflow selection switch 6 Temperature switch 7 Cool shot button 8 Ion indicator light 9 Air outlet grille 10 Diffuser 11 Concentrator

Close-up of a wall socket with a black cable inserted, showing a red arrow pointing to the socket (no text or symbols)

Close-up of a black plug inserted into a white socket with a red arrow pointing to the outlet (no text or symbols visible)

Close-up of a black plastic connector with a curved port and textured end (no text or symbols visible)

Concentrador de aire Difusor

Close-up of a black mechanical component with multiple protrusions and a red square marker (no text or symbols visible)

Close-up of a black mechanical component with a red highlighted section, labeled '5' in red (no text or symbols on the object itself)

Close-up of a black and red electronic device component with a red accent (no visible text or symbols)

Close-up of a black remote control with a red scroll and numeric keypad (no readable text or symbols)

Close-up of a black mechanical component with a circular button and a red number 7 in the corner (no visible text or symbols)

Botón de aire frío

ES

Atención Limpie el filtro de admisión de aire con regularidad de pelos y polvo - ¡peligro de sobrecalentamiento! KOENIC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

CONSIGNES DE SECURITE IMPORTANTES LIRE ATTENTIVEMENT ET CONSERVER POUR CONSULTATION ULTERIEURE.

Close-up of a wall socket with a black cable inserted, showing a red arrow pointing to the socket (no text or symbols)

Close-up of a black plug inserted into a white socket with a red arrow pointing to the outlet (no text or symbols visible)

Close-up of a black plastic funnel with a red label '11' in the corner (no other text or symbols)

Close-up of a black mechanical component with multiple protrusions and a red square marker (no text or symbols visible)

Close-up of a black and red object with a white oval, possibly a device or component (no visible text or symbols)

Close-up of a black and red object with a white handle, possibly a device or tool (no visible text or symbols)

Close-up of a black mechanical component with a circular button and vertical seam, no visible text or symbols

Bouton d'air froid

FR

Close-up of a wall socket with a black cable inserted, showing a red arrow pointing to the outlet (no text or symbols)

Close-up of a black electrical plug with a red arrow pointing to its outlet (no text or symbols visible)

Close-up of a black plastic funnel with a red label '11' in the corner (no other text or symbols)

Fúvócső Diffúzor

Close-up of a black mechanical component with multiple protrusions and a red square marker (no text or symbols visible)

Close-up of a black and red object with a glossy surface, possibly a device or tool (no visible text or symbols)

Close-up of a black mechanical component with a red highlighted section, labeled '5' in the corner (no readable text or symbols)

légáramot

Close-up of a black remote control knob with a red indicator light and a white display (no readable text or symbols)

Close-up of a dark mechanical component with a circular recess and a red number 7 in the corner (no visible text or symbols)

Húvös levegő gomb

HU

Close-up of a wall socket with a black cable inserted, showing a red arrow pointing to the outlet (no text or symbols present)

Close-up of a black plug inserted into a square socket with a red arrow pointing to the outlet (no text or symbols)

Close-up of a black plastic object with a curved neck and textured end, labeled '11' in red at top left (no other text or symbols)

Close-up of a black mechanical component with multiple protrusions and a red square marker (no text or symbols visible)

Close-up of a black and red object with a vertical seam, possibly a vehicle or device component (no text or symbols visible)

Close-up of a black and red object with a white handle, possibly a device or tool (no visible text or symbols)

Impostare la temperatura

Close-up of a black remote control knob with a red scroll wheel and numeric keypad (no readable text or symbols)

Close-up of a dark, textured surface with a circular emblem and a red number 7 in the corner (no readable text or symbols)

Close-up of a wall socket with a black plug inserted, showing a red arrow pointing to the outlet (no text or symbols visible)

Close-up of a black electrical plug with a red arrow pointing to it, no text or symbols visible

Close-up of a black plastic connector with a curved port and textured end (no text or symbols visible)

Blaaskop Diffuser

Close-up of a black mechanical component with multiple holes and internal cavities, partially cut by a red square marker (no text or symbols visible)

Close-up of a black mechanical component with a red highlighted section, labeled '5' in the corner (no readable text or symbols)

Close-up of a black and red object with a white handle, possibly a device or tool (no visible text or symbols)

Close-up of a black remote control with a red button and a small car icon, no readable text or symbols present.

Close-up of a dark, oval-shaped object with a small circular mark on the left side, against a white background (no text or symbols visible)

Cool shot-knop

Close-up of a wall socket with a black cable inserted, showing a red arrow pointing to the socket (no text or symbols)

Close-up of a black plug inserted into a white socket with a red arrow pointing to the outlet (no text or symbols)

Close-up of a black plastic connector with a curved port and textured end (no text or symbols visible)

Dysza Dyfuzor

Close-up of a black mechanical component with multiple protrusions and a red square marker (no text or symbols visible)

Temperatura

Close-up of a black mechanical component with a red highlighted section, labeled '5' in the corner (no readable text or symbols)

WU

Close-up of a black and red object with a white handle, possibly a device or tool (no visible text or symbols)

Close-up of a black mechanical component with a circular button and vertical seam, no visible text or symbols

Close-up of a black plastic mechanical component with multiple protrusions and mounting holes (no visible text or symbols)

10

9

8

7

6

Black hair dryer with a red accent, showing its head and body (no text or symbols visible)

1

2

3

4

5

INSTRUÇÕES DE SEGURANÇA IMPORTANTES. LEIA CUIDADOSAMENTE E GUARDE PARA UTILIZAÇÕES FUTURAS.

Close-up of a wall socket with a black cable inserted, showing a red arrow pointing to the socket (no text or symbols)

Antes de utilizar o secador de cabelo introduza a ficha.

Close-up of a black plug inserted into a white socket with a red arrow pointing to the outlet (no text or symbols visible)

Close-up of a black plastic connector with a red '11' logo in the corner (no text or symbols on the component itself)

Difusor Difusor

Close-up of a black mechanical component with multiple protrusions and a red square marker (no text or symbols visible)

Close-up of a black and red electronic device component with a white handle (no visible text or symbols)

Ajuste a temperatura Ajuste corrente

Close-up of a black mechanical component with a red highlighted section, labeled '5' in red (no text or symbols on the object itself)

4 1 0 ←

Close-up of a black mechanical component with a circular button and a red number 7 in the corner (no visible text or symbols)

Botão de ar frio

PT

Close-up of a wall socket with a black cable inserted, showing a red arrow pointing to the socket (no text or symbols)

Close-up of a black plug inserted into a white socket with a red arrow pointing to the outlet (no text or symbols)

Close-up of a black plastic connector with a curved port and textured end (no text or symbols visible)

Close-up of a black mechanical component with multiple holes and internal cavities, partially cut into a cylindrical housing (no text or symbols visible)

Close-up of a black mechanical component with a red highlighted section, labeled '5' in the corner (no readable text or symbols)

Close-up of a black and red object with a white handle, possibly a device or tool (no visible text or symbols)

Close-up of a black mechanical component with a circular button and vertical seam, no visible text or symbols

Кнопка "Cool shot"

RU

Close-up of a wall socket with a black cable inserted, showing a red arrow pointing to the socket (no text or symbols)

Close-up of a black plastic connector with a curved port and textured end (no text or symbols visible)

Koncentrator Diffusör

Close-up of a black plug inserted into a white socket with a red arrow pointing to the outlet (no text or symbols)

Close-up of a black mechanical component with multiple holes and internal cavities, partially cut by a red square marker (no text or symbols visible)

Close-up of a black mechanical component with a red highlighted section, labeled '5' in the corner (no readable text or symbols)

Close-up of a black and red object with a white handle, possibly a device or tool (no visible text or symbols)

Close-up of a black remote control knob with a red button and a small white icon, no readable text or symbols present.

Brytare till jonfunktion

Close-up of a black mechanical component with a circular button and vertical seam, no visible text or symbols

Knapp för kalluft

SV

Close-up of a wall socket with a black plug inserted, showing a red arrow pointing to the outlet (no text or symbols visible)

Close-up of a black electrical plug with a red arrow pointing to it, no text or symbols visible

Close-up of a black plastic funnel with a red label '11' in the corner (no other text or symbols)

Close-up of a black mechanical component with multiple protrusions and a red square marker (no text or symbols visible)

Close-up of a black and red object with a white side, possibly a device or tool (no visible text or symbols)

Close-up of a black mechanical component with a red highlighted section, labeled '5' in the corner (no readable text or symbols)

Close-up of a black remote control with a red indicator light and a small icon, no readable text or symbols present.

Close-up of a dark mechanical component with a circular button and a red number 7 in the corner (no visible text or symbols)

Soğuk hava düğmesi

TR

Close-up of a wall socket with a black cable inserted, showing a red arrow pointing to the outlet (no text or symbols)

使用前，插上电吹风。

Close-up of a black electrical plug with a red arrow pointing to its outlet (no text or symbols visible)

使用后，拔出电吹风。

Close-up of a black plastic connector with a curved port and textured end (no text or symbols visible)

聚风嘴扩散器

Close-up of a black mechanical component with multiple protrusions and a red square marker (no text or symbols visible)

Close-up of a black and red object with a curved side, possibly a device or tool (no visible text or symbols)

设置温度设置气流

Close-up of a black mechanical component with a red highlighted section, labeled '5' in the top-left corner (no other text or symbols)

Close-up of a control panel with a red indicator light and a small car icon, no readable text or symbols present.

离子功能开关

Close-up of a black mechanical component with a circular button and a red number 7 in the corner (no readable text or symbols)

冷风开关
