USER MANUAL Off-Road Twinny Load

Twinny Load® Swing C-XL Twinny Load® Off-Road

TWINNY LOAD

Installation and use instructions

For your own administration, write down the following:

Carrier type:

Traditional C

Traditional CK

□ Swing CK

□ Swing FK

Ergo CK

Ergo FE

Quattro

Off-Road

□

Serial number:

Purchase date: ____

Congratulations with the purchase of your new Twinny Load® bicycle carrier. You can now go touring carefree by car and bicycles. Simply staying active and discovering new routes. Good luck with your new bicycle carrier!

Technical line drawing of a mechanical bracket assembly with a blue arrow indicating a specific component (no text or symbols present)

Line drawing of hands using a tool to lift a curved pipe or cable (no text or symbols present)

Hand holding a tool interacting with a mechanical bracket (no text or symbols visible)

Line drawing of a hand using a tool to cut or adjust a metal bracket (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a blue tool interacting with a mechanical component, no text or symbols present

Line drawing of a hand inserting a component into a device (no text or symbols)

'KLIK'

TWINNY_LOAD

Illustration of hands performing a mechanical manipulation or tooling task with blue arrows indicating motion (no text or symbols present)

Diagram showing two mechanical components with blue arrows indicating motion or force direction (no text or symbols)

Illustration of a hand holding a tool with blue arrows indicating motion or force direction (no text or symbols)

Line drawing of a hand using a tool to interact with a device, showing blue directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical switch mechanism with rotating lever (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with a blue arrow indicating downward motion (no text or symbols present)

Technical line drawing of a mechanical device with a blue arrow indicating direction (no text or symbols)

Line drawing of a hand holding keys on a mechanical lock or bracket (no text or symbols)

Technical diagram of a mechanical component with blue arrows indicating directional movement (no text or symbols)

Line drawing of hands using a tool to adjust or install a component, with a blue arrow indicating direction (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Berg overtollige kabel op.

Illustration of hands performing a mechanical or electrical operation with blue arrows indicating direction (no text or symbols)

Line drawing of a hand using scissors to adjust or adjust mechanical parts, with a blue curved arrow indicating rotation (no text or symbols)

Line drawing of a hand operating a mechanical device with blue arrows indicating motion (no text or symbols)

Line drawing of a person using a bicycle to lift a vehicle (no text or symbols)

Technical line drawing of a mechanical bracket assembly with a blue arrow indicating a specific component (no text or symbols present)

Line drawing of a hand using a blue arrow to adjust a mechanical component (no text or symbols)

Line drawing of a person's seatbelt with a blue arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a hand fastening a component with blue arrows indicating motion direction (no text or symbols)

Line drawing of a hand operating a mechanical device with a blue arrow indicating rotation (no text or symbols present)

Line drawing of a hand turning a button into a vehicle intake manifold (no text or symbols)

Line drawing of a bicycle with two blue circular annotations highlighting the front wheel and side wheel (no text or symbols present)

Line drawing of a mechanical component with blue arrows indicating motion or force direction (no text or symbols)

Diagram of a bicycle with attached suspension system and blue directional arrows indicating motion (no text or symbols)

Abstract line drawing of a mechanical joint or bracket with a blue circular highlight (no text or symbols)

Diagram showing airflow or movement between two vertical structures with blue arrows indicating direction (no text or symbols)

Diagram of a mechanical joint or support structure with two blue arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with a blue arrow indicating a force or movement (no text or symbols present)

Technical line drawing of a mechanical assembly with blue directional arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

Diagram of a mechanical device with blue arrows indicating directional movement (no text or symbols)

Technical line drawing of a mechanical assembly with a hand operating a component (no text or symbols)

• 1 Sechskantschlüssel 6 mm
• 1 Gabelschlüssel 13 mm
• 2 Gabelschlüssel 10 mm

Technical line drawing of a mechanical bracket assembly with a blue arrow indicating a specific component (no text or symbols present)

Line drawing of hands using a tool to lift a curved pipe or component (no text or symbols present)

Hand holding a tool interacting with a mechanical bracket (no text or symbols visible)

Line drawing of a hand using a tool to cut or adjust a metal bracket (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a blue tool interacting with a mechanical component, no text or symbols present

Hand inserting a cable into a connector panel (no text or symbols visible)

'Klick'

TWINNY LOAD

Achtung!

Illustration of hands performing a mechanical manipulation or tooling task (no text or symbols present)

Diagram showing two mechanical components with blue arrows indicating motion or force direction (no text or symbols)

Illustration of a hand holding a tool with blue arrows indicating motion or force direction (no text or symbols)

Line drawing of a hand using a tool to interact with a device, showing blue directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical switch mechanism with rotation arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with a blue arrow indicating downward motion (no text or symbols present)

Line drawing of a mechanical device with a blue arrow indicating direction (no text or symbols)

Line drawing of a hand holding a key inserted into a mechanical lock (no text or symbols)

Technical diagram of a mechanical assembly with blue arrows indicating directional components (no text or symbols)

Line drawing of hands using a tool to adjust or install a component, with a blue arrow indicating the process (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of hands using a caliper to measure a small object with blue arrows indicating motion (no text or symbols)

Line drawing of a hand using scissors to adjust or adjust mechanical parts, with a blue curved arrow indicating rotation (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a person using a bicycle to lift a wheel, no text or symbols present

Technical line drawing of a mechanical bracket with a blue arrow indicating a specific component (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a mechanical assembly with a blue arrow indicating a specific component (no text or symbols present)

Line drawing of a mechanical component with blue arrows indicating direction (no text or symbols)

Line drawing of a hand adjusting a mechanical bracket with a blue arrow indicating rotation (no text or symbols)

Line drawing of a hand turning a valve with a blue circular arrow indicating rotation (no text or symbols)

Line drawing of a bicycle with two blue circular annotations highlighting the front wheel and side wheel (no text or symbols present)

Line drawing of a mechanical component with blue arrows indicating motion or force direction (no text or symbols)

Diagram of a bicycle with blue directional arrows indicating motion or force (no text or symbols)

Abstract line drawing of a mechanical joint or bracket with a blue circular highlight (no text or symbols)

Diagram showing a mechanical or structural component with blue arrows indicating motion or force direction (no text or symbols present)

Diagram of a mechanical joint or support structure with two blue arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with a blue arrow indicating a force or movement (no text or symbols present)

Technical line drawing of a mechanical component with blue directional arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with blue arrows indicating directional movement or force (no text or symbols present)

Technical line drawing of a vehicle's seat assembly with a hand operating the wheel (no text or symbols)

$$ D = \frac {9 , 8 1 G ^ {*} A}{\therefore (D \text { in kN:A und G in kg })} 1 0 0 0 (D + A) $$

The type plate of the towing hook indicates the maximum permissible ball pressure. The total combined weight of the bicycle carrier and bicycles may not be higher than this ball pressure and in no case may it be higher than 75 kg. The weight of the Twinny Load ^® Off-Road is 15,2 kg. You can find the weight of your bicycle in the supplied booklet or perhaps on the Internet.

Lighting

The lighting of the bicycle carrier is 12V.

Legal requirements

You will find the legal requirements that apply in Europe for the transport of bicycles on a bicycle carrier at www.twinnyload.com

Quality

All carriers are designed and produced in accordance with the highest quality standard. Stability, flexibility, ease of use, good driving behaviour and solidity are of paramount importance for us.

Cleaning

Clean the carrier after use and ensure that it is free from brine and diesel deposit.

Storage

Store the carrier at all times in dry condition.

Accessories

Various accessories are available for your bicycle carrier. For a complete overview go to www.twinnyload.com or obtain information at the sales address.

Tools

To install and set up the bicycle carrier you need:

• 1 x allen key 6 mm
• 1 x open-ended spanner 13 mm
• 2 x open-ended spanner 10 mm

Components of Twinny Load® Off-Road

• 1 x carrier
• 4 x nuts light bar
• 4 x bolts crank stands
• 4 x wheel rails
• 4 x washers light bar
• 1 x adapter plate
• 1 x padlock
• 2 x crank stands
• 4 x wing bolts
• 1 x light bar
• 2 x crank clamps
• 4 x flange nuts
• 2 x lichtunits
• 4 x swashers crank stands
• 2 x clamps
• 13/7-pole adapter (with 13-pole plug)
• 4 x nuts crank stands
• 2 x wedges
• 4 x bolts light bar
• 1 x allen key 6 mm
• guarantee card

Warnings

• Always degrease the ball of the towing hook before installing the bicycle carrier.
• The bicycle carrier must be assembled according to the installation instructions.
• The carrier and bicycle must be installed according to the use instructions.
• No changes may be made to the product.
• The lighting is intended for a 12V installation.
• After the first kilometres, check the attachment of the bicycle carrier and bicycles.
• Adjust your speed at speed ramps.
• Never use straps or ropes to fasten your bicycle. These can irreparably damage the frame of your bicycle.
• In principle, an electrical bicycle fits on a Twinny Load bicycle carrier. This depends on the brand and type of electrical bicycle. You will find a fitting table on the homepage of our website.
• Attention! When the fog rear light remains on constantly after connecting your bicycle carrier, the socket of the car is not connected in accordance with the DIN. Have this repaired by your garage.

Before driving, check that:

• the bicycle carrier is well attached to the towing hook;
• the lighting on the bicycle carrier functions properly;
• the two light units are set at the correct width and are clicked into the securing device;
• no cable is hanging loose;
• all wing bolts of the wheel rails are tightened;
• the clamps on the pedal arm of the bicycles are well tightened;
• all wheels have been fixed with the straps;
• the lock of the tilting mechanism is in the hole and blocked;
• no loose items are on the bicycles or bicycle carrier;
• the keys are removed from the locks;
• the fog rear light is in the left light unit.

Installation of crank stands

Technical line drawing of a mechanical bracket assembly with a blue arrow indicating a specific component (no text or symbols present)

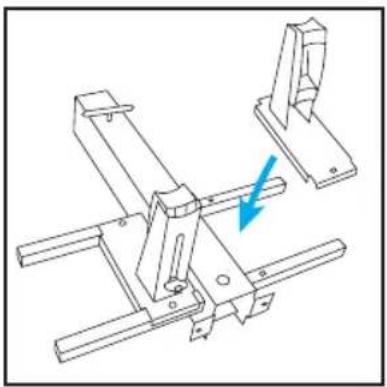

Place the 2 crank stands according to the drawing alternately on the carrier.

Line drawing of hands using a tool to lift a curved pipe or component (no text or symbols)

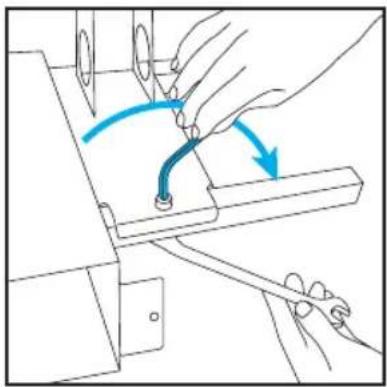

Attach the crank stands by tightening the 8 bolts with the open-ended spanner of 13 mm and the allen key of 6 mm.

Assembly of clamp

The clamps are used to attach the light unit in storage position.

12 cm 12 cm

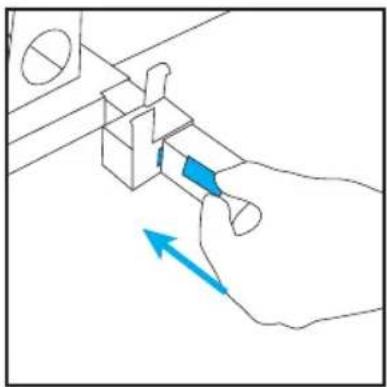

Slide the clamps onto the carrier at 12 cm distance from the centre member.

Hand holding a tool interacting with a mechanical bracket (no text or symbols visible)

Slide the wedges into the clamps in order to secure them.

Assembly of light bar

Line drawing of a hand using a tool to cut or adjust a metal bracket (no text or symbols present)

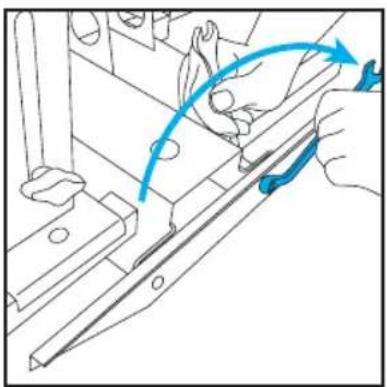

Place the adapter plate on the carrier. Tighten the bolts with the open-ended spanners of 2 mm.

Technical line drawing of a mechanical assembly with no visible text or symbols

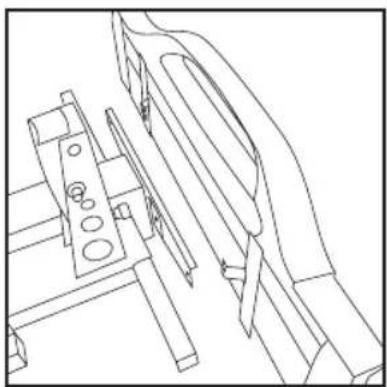

Place the light bar in front of the adapter plate.

Diagram showing a blue tool interacting with a mechanical component, no text or symbols present

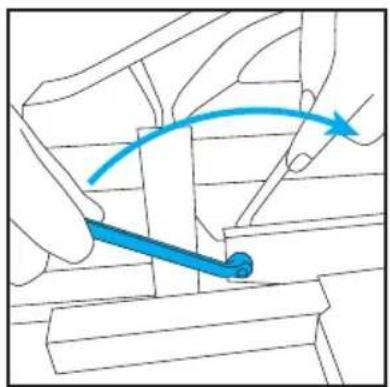

Attach the light bar to the adapter plate by tightening the bolts with the 2 open-ended spanners of 10 mm.

Installation of number plate

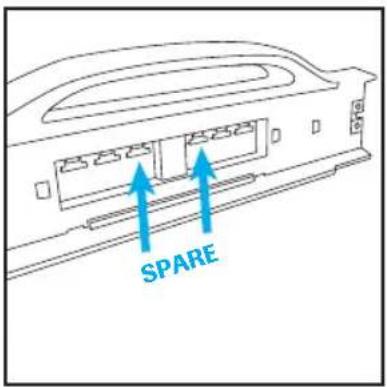

SPARE

Line drawing of a hand inserting a component into a wall, with a blue arrow indicating direction (no text or symbols)

'CLICK'

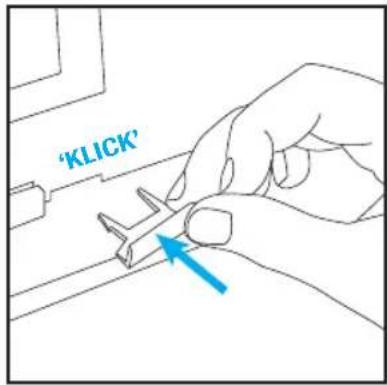

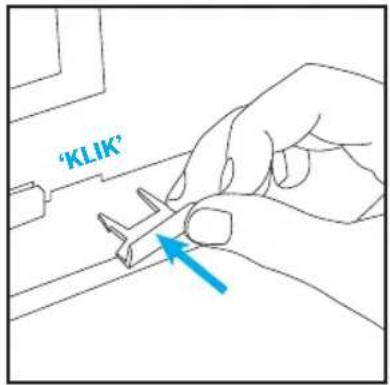

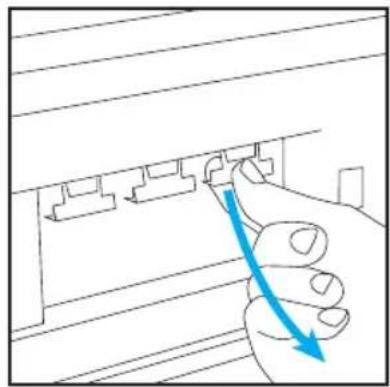

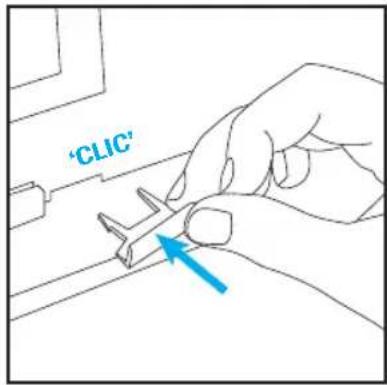

Break four lugs out of the light bar and place them in the cut-aways.

TWINNY_LOAD

Beware!

Slide short Belgian number plate up to the first stop. Austrian number plate can be installed without lugs.

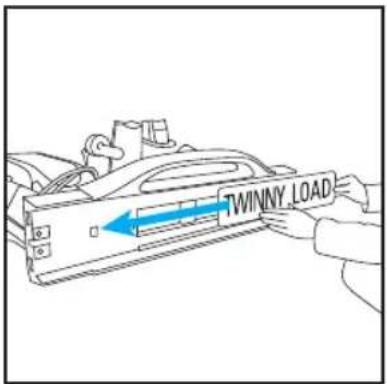

Slide the number plate into the light bar up to the second stop.

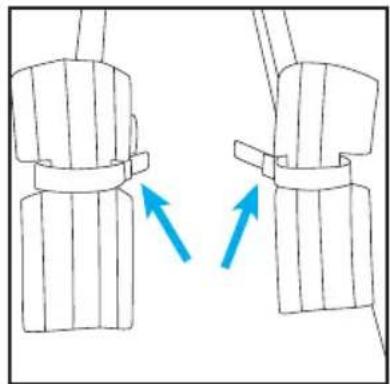

Installation of wheel rails

Illustration of hands performing a mechanical manipulation or tooling task (no text or symbols present)

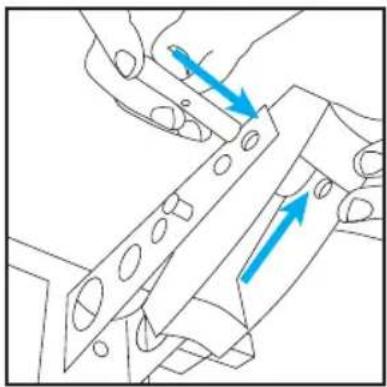

Diagram showing two mechanical components with blue arrows indicating motion or force direction (no text or symbols)

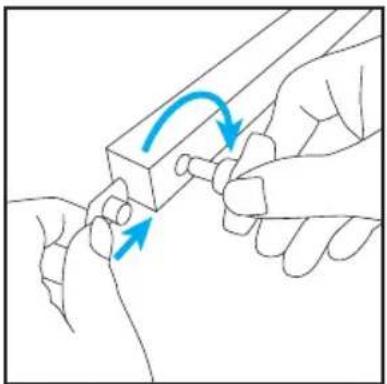

Insert the flange nut into the wheel rail and tighten the wing bolt on it.

Install the four wheel rails with the clips inwards.

Continued on the next page.

Cont. installation of wheel rails

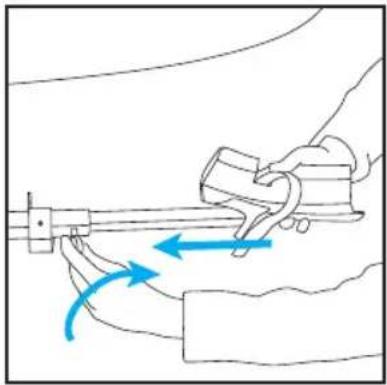

Illustration of a hand holding a tool with blue arrows indicating motion or force direction (no text or symbols)

Line drawing of a hand using a tool to interact with a device, showing blue directional arrows indicating motion (no text or symbols)

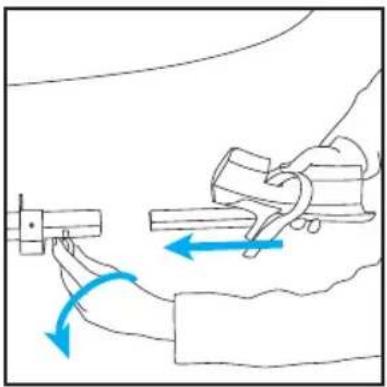

Pull on the wing bolt and loosen it until the rail fits into the tube. Slide in the wheel rail halfway and tighten the wing bolt.

Installation of bicycle carrier

Technical line drawing of a mechanical switch mechanism with rotation arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with a blue arrow indicating downward motion (no text or symbols present)

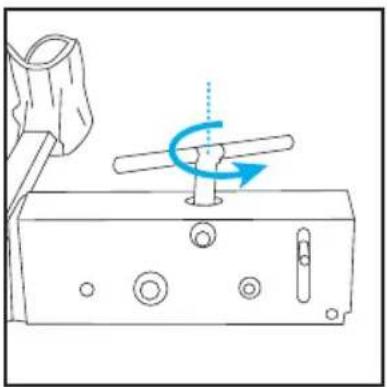

Open the spindle to such an extent that the clamp pieces can be pushed downwards with the catch on the side.

Line drawing of a mechanical device with a blue arrow indicating direction (no text or symbols)

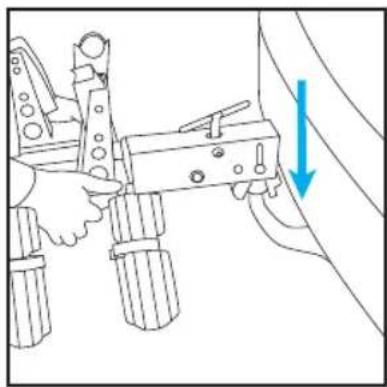

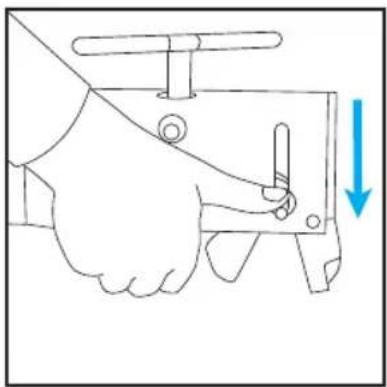

Place the bicycle carrier on the towing hook and push the carrier downwards.

MAX

Line drawing of a hand holding a key inserted into a mechanical lock (no text or symbols)

well. In doing so, hold the bicycle carrier horizontally.

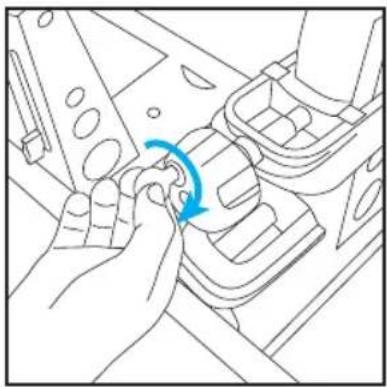

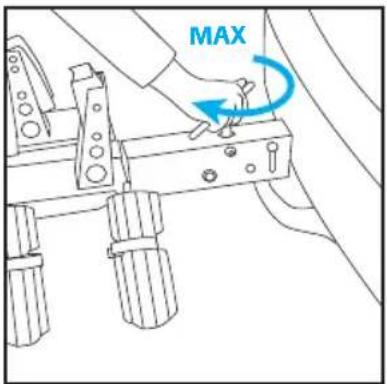

Lock the bicycle carrier.Fix it by tightening the spindle

Installation of light units

Technical diagram of a mechanical assembly with blue arrows indicating directional components (no text or symbols)

Place the light units in the light bar, press the red unlocking device and slide them inside.

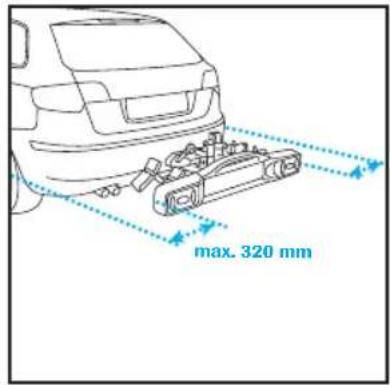

max. 320 mm

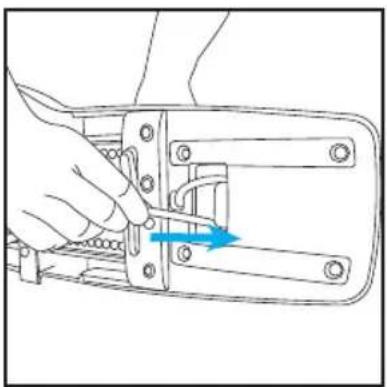

Width adjustment: press the red unlocking device and slide the light units out in steps of 1 cm.

Car width Slide out per side

Up to 1,80 m do not slide out

Up to 1,84 m 2

nd click

Up to 1,88 m 4

^th click

Up to 1,92 m 6

^th click

Up to 1,96 m 8

^th click

Up to 2,02 m 11

^th click (= max)

The width of your car is listed in the car's instruction manual.

Line drawing of hands using a tool to adjust or install a component, with a blue arrow indicating the process (no text or symbols present)

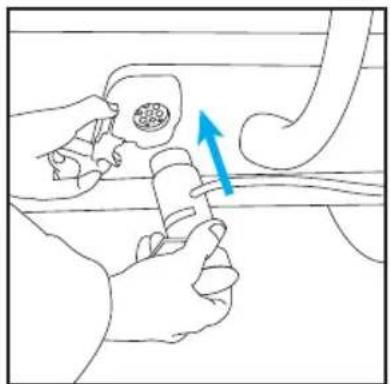

Connect the plug and check the lighting.

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Put away superfluous wiring.

Placing of bicycle

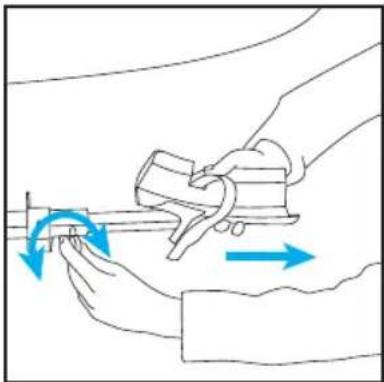

Illustration of hands performing a mechanical or electrical operation with blue arrows indicating direction (no text or symbols)

Slide out the wheel rails halfway and tighten them.

Line drawing of a hand using scissors to adjust or adjust mechanical parts, with a blue curved arrow indicating rotation (no text or symbols)

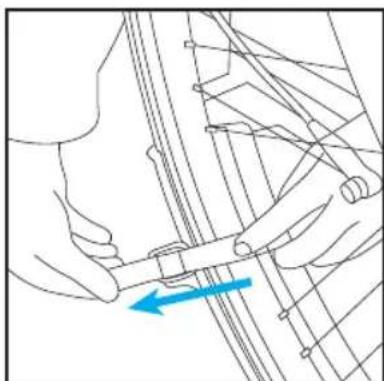

Loosen the straps and turn them downwards.

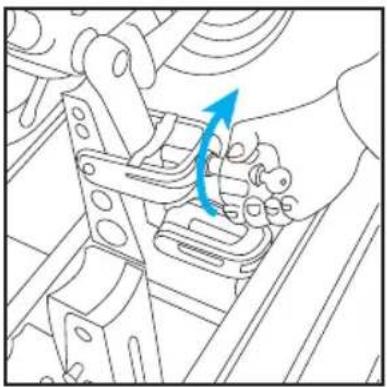

Line drawing of a hand operating a mechanical device with blue arrows indicating motion (no text or symbols)

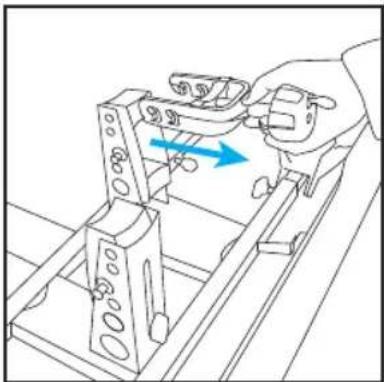

Remove the clamp from the holder.

Line drawing of a person using a bicycle to lift a vehicle (no text or symbols)

Place the first bicycle in the wheel rails closest to the car with the handlebars to the left and the pedal downwards.

Technical line drawing of a mechanical bracket assembly with a blue arrow indicating a specific component (no text or symbols present)

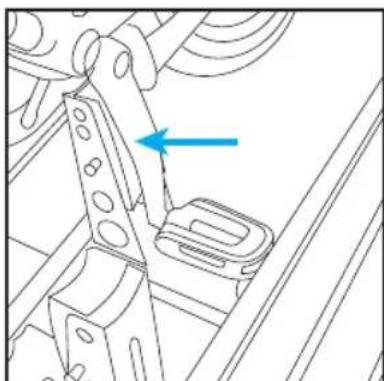

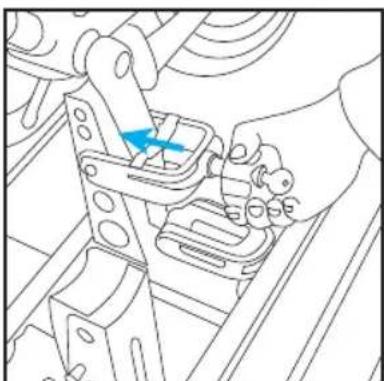

Position the pedal arm in front of the holder. Hook the clamp over the projecting steel lugs. Do not yet tighten it.

Line drawing of a hand using a blue arrow to adjust a mechanical component (no text or symbols)

the holder. Hook the clamp not yet tighten it.

1 cm

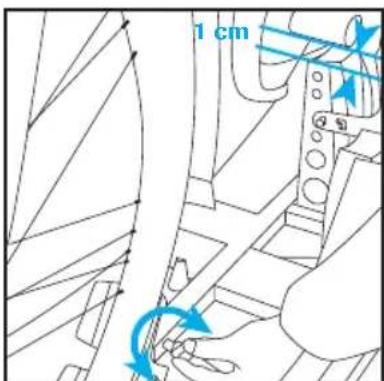

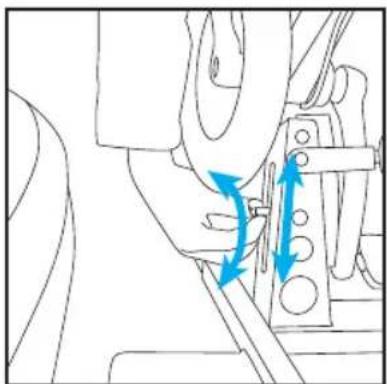

Adjust the wheel rails in such a way that the bicycle floats approximately 1 cm above the holder. Slide out = bicycle up; slide in = bicycle down.

Line drawing of a person's seatbelt with a blue arrow indicating direction (no text or symbols)

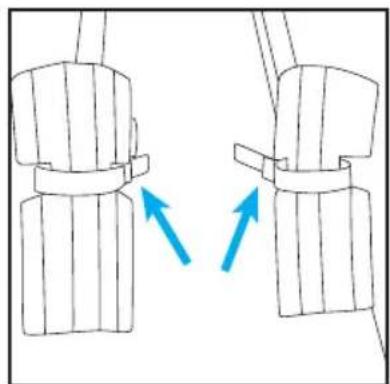

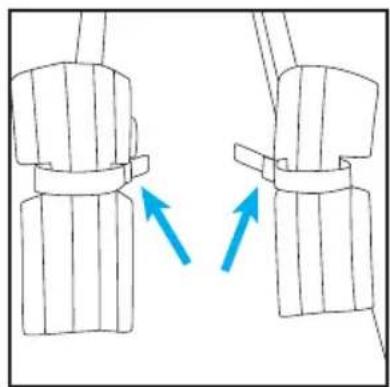

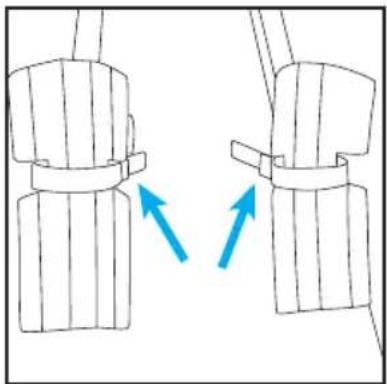

Fasten the straps. Adjust the holder in such a

Mechanical assembly diagram showing a hand fastening a component with blue arrows indicating motion direction (no text or symbols)

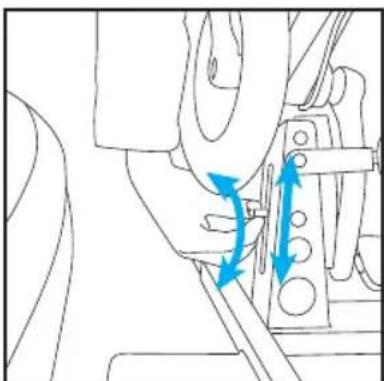

way that it rests against the pedal arm and the bicycle is upright.

Line drawing of a hand operating a mechanical component with a blue arrow indicating direction (no text or symbols present)

Line drawing of a hand holding a tool with a blue circular arrow indicating rotation (no text or symbols)

Place the second bicycle with the handlebars to the right and the left pedal downwards.

Tighten the clamp. Lock the clamp.

Extra setting

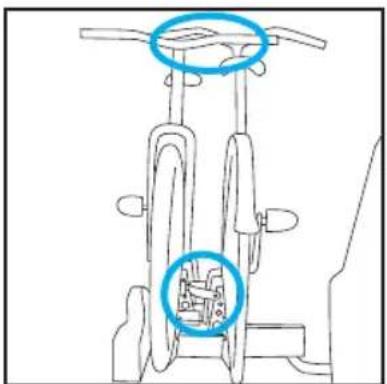

The bicycles touch each other. The bicycle touches the lid of the boot.

Line drawing of a bicycle with two highlighted components (no text or symbols)

Line drawing of a mechanical component with blue arrows indicating motion or force direction (no text or symbols)

Diagram of a bicycle with blue directional arrows indicating motion or force (no text or symbols)

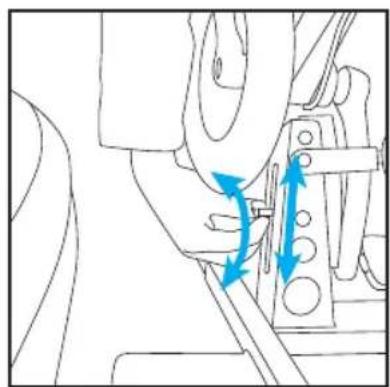

The bicycle touches the lid of the boot: adjust the holder in such way that the bicycle doesn't touch the lid of the boot.

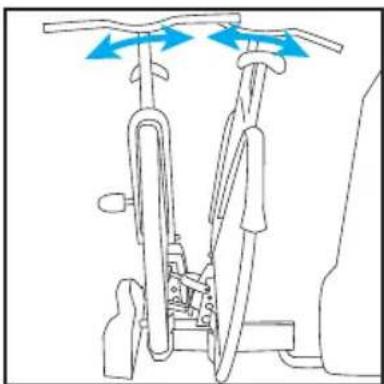

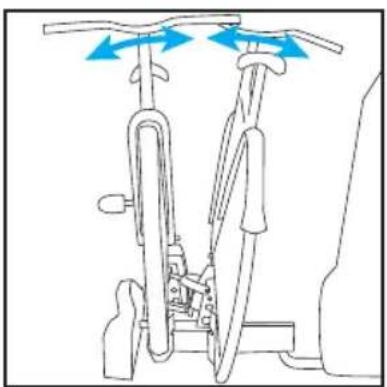

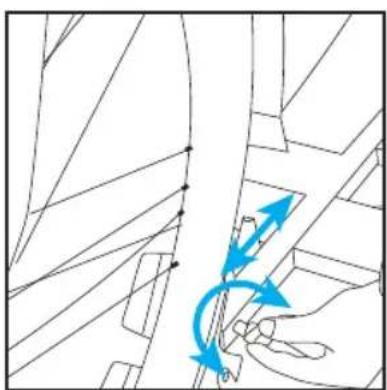

The bicycles touch each other: adjust the holders in such way that both bicycles stand obliquely outwards.

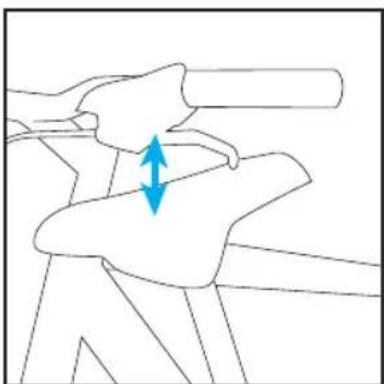

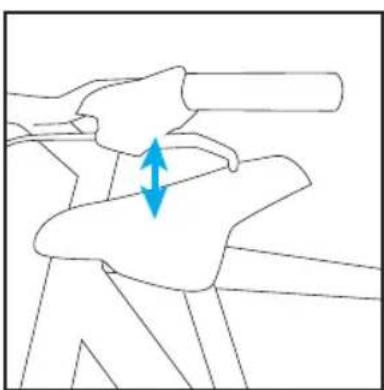

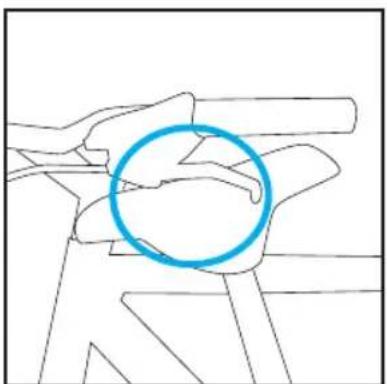

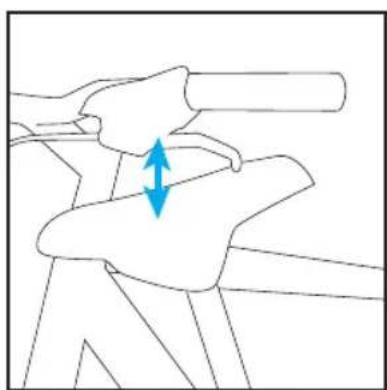

The handlebars touch the saddle of the other bicycle.

Pure mechanical diagram showing a blue circle highlighting a joint or component (no text or symbols)

Diagram showing a hand holding a tool with blue arrows indicating motion or force direction (no text or symbols present)

Diagram of a mechanical joint or support structure with blue directional arrows indicating movement or force (no text or symbols present)

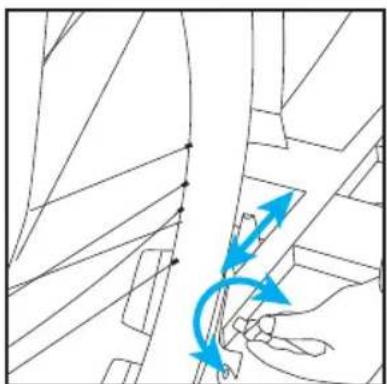

By adjusting the wheel rails in front and back a few cm, the bicycles will tilt slightly and no longer touch each other.

The pedal arm is too high, the clamp does not fit, the bicycle stand is in the way.

Technical line drawing of a mechanical component with a blue arrow indicating a force or movement (no text or symbols present)

Technical line drawing of a mechanical assembly with blue directional arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical assembly with a blue arrow indicating direction (no text or symbols)

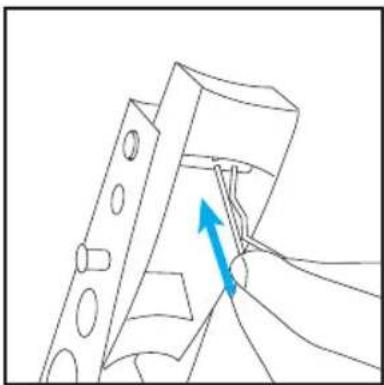

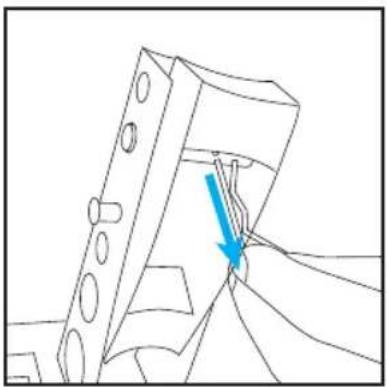

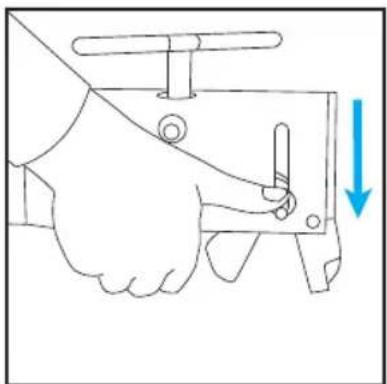

Install the holder one position higher by pulling the securing clip out of the axle and then installing the axle and support in the higher position and apply the securing clip again.

Storage of light unit

Diagram of a mechanical device with blue arrows indicating directional movement (no text or symbols)

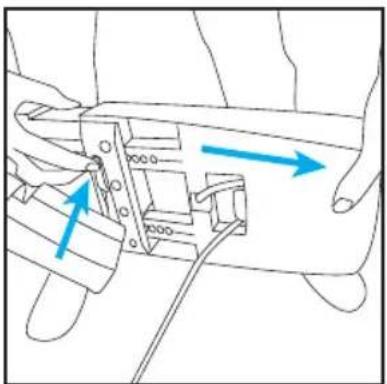

Push in the red unlocking device and slide the light unit out of the light bar.

Technical line drawing of a mechanical assembly with a hand operating a component (no text or symbols)

Position the projecting guides of the light unit in the back of the light bar.

'CLICK'

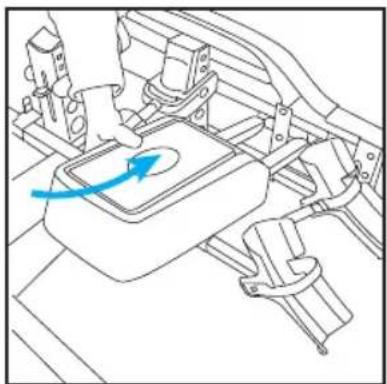

Push the light unit down into the clamp.

Guarantee

On presentation of the guarantee certificate and purchase ticket, Twinny Load gives a seven-year guarantee on the Twinny Load ^® bicycle carrier, counting from the date of purchase as listed on the purchase ticket.

The guarantee consists of free repair or replacement of parts in case of material and construction errors.

The guarantee is effective after you have activated the guarantee certificate on the Twinny Load website www.twinnyload.com or via sending the reply card supplied with the guarantee certificate.

Terms and conditions:

• The bicycle carrier must be assembled according to the supplied installation instructions.
• The bicycle carrier must be installed on the car according to the supplied use instructions.
• The bicycles must be placed and fixed on the bicycle carrier according to the supplied use instructions.
• No changes may be made to the product.
• Any responsibility for personal injury and/or damage to properties and ensuing asset loss that are caused by improper installation or improper use shall be excluded.
• There shall be no guarantee on defects that are caused by accidents, illegal and incompetent use of the vehicle or defects of the vehicle on which the bicycle carrier is installed.
• The term of guarantee shall not be extended or renewed due to performance of guarantee activities.
• Repair or replacement of the product within the specified term of guarantee shall only be possible for the original buyer in accordance with the purchase certificate.
• Claims should be submitted at the purchasing address listed on the purchase ticket. The bicycle carrier, including all supplied components, must be left behind at this address.
• The buyer is responsible for the costs of returning and collecting the product and/or parts at the purchasing address.
• The guarantee shall be cancelled if the bicycle carrier has been handled carelessly and improperly or poorly maintained, such at the discretion of Twinny Load.
• The guarantee shall be cancelled if the serial number has been changed, damaged or removed. The bicycle carrier must meet the technical specifications.
• The guarantee shall be cancelled if there is no purchase ticket, the ticket has been changed or is illegible.
• Defects as a result of wear due to normal use, such at the discretion of Twinny Load, shall not fall under the guarantee.

Disclaimer

The guarantee does not cover materials not installed by Twinny Load. The manufacturer's liability pursuant to the agreement is expressly limited to compliance with the guarantee obligations described in this certificate. Any claim for damages, except those in respect of non-compliance with guarantee obligations, is excluded. Taking into account the mandatory provisions of law concerning (product) liability, more rights can never derived with respect to any business or consequential loss, or (personal) loss of whatever nature, ensuing from defects to the materials or activities delivered by Twinny Load.

Généralités

Poids en flèche

Technical line drawing of a mechanical bracket assembly with a blue arrow indicating a specific component (no text or symbols present)

Line drawing of hands using a tool to lift a curved pipe or component (no text or symbols present)

Hand holding a tool interacting with a mechanical bracket (no text or symbols visible)

Line drawing of a hand using a tool to cut or adjust a metal bracket, with no visible text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a blue tool interacting with a mechanical component, no text or symbols present

Hand inserting a component into a wall-mounted device (no text or symbols visible)

'CLIC'

TWINNY LOAD

Attention!

Illustration of hands performing a mechanical manipulation or tooling task with blue arrows indicating motion (no text or symbols present)

Diagram showing two mechanical components with blue arrows indicating motion or force direction (no text or symbols)

Illustration of a hand holding a tool with blue arrows indicating motion or force direction (no text or symbols)

Line drawing of a hand using a tool to interact with a device, showing blue directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a rotating lever and adjustment knob (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with a blue arrow indicating downward motion (no text or symbols present)

Line drawing of a robotic arm with a blue arrow indicating force or movement (no text or symbols)

Line drawing of a hand holding a key inserted into a mechanical lock (no text or symbols)

Technical diagram of a mechanical assembly with blue arrows indicating directional components (no text or symbols)

Line drawing of a hand holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands performing a mechanical or electrical operation with blue arrows indicating direction (no text or symbols)

Line drawing of a hand using scissors to adjust or adjust mechanical parts, with a blue curved arrow indicating rotation (no text or symbols)

Line drawing of a hand operating a mechanical device with blue arrows indicating motion (no text or symbols)

Line drawing of a person using a bicycle to lift a vehicle (no text or symbols)

Technical line drawing of a mechanical bracket assembly with a blue arrow indicating a specific component (no text or symbols present)

Line drawing of a hand using a blue arrow to adjust a mechanical component (no text or symbols)

Line drawing of a person's seatbelt with a blue arrow indicating direction (no text or symbols)

Line drawing of a mechanical component with blue arrows indicating direction (no text or symbols)

Line drawing of a hand holding a mechanical component with a blue arrow indicating direction (no text or symbols)

Line drawing of a hand holding a small object with a blue arrow indicating rotation (no text or symbols)

Line drawing of a bicycle with two highlighted components (no text or symbols)

Line drawing of a mechanical component with blue directional arrows indicating motion or force (no text or symbols)

Diagram of a bicycle with blue directional arrows indicating motion or force (no text or symbols)

Pure mechanical diagram showing a blue circle highlighting a joint or component (no text or symbols)

Diagram showing a hand holding a tool with blue arrows indicating motion or force direction (no text or symbols present)

Diagram of a mechanical joint or support structure with two blue arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with a blue arrow indicating a force or movement (no text or symbols present)

Technical line drawing of a mechanical component with blue directional arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with blue arrows indicating directional flow or movement (no text or symbols present)

Technical line drawing of a vehicle seat assembly with a hand operating the wheel (no text or symbols)
