Product type	Camping tent
Brand	Vaude
Model	Mark XT 4P
Number of persons	4 persons
Outer tent	Polyamide 40D Ripstop PU, water column 5,000 mm
Inner tent	Polyester 30D Ripstop 285T
Floor	Polyamide 40D Ripstop 240T laminated PU, water column 10,000 mm
Poles	DAC and Yunan, supplied with repair tubes
Main features	Triple silicone coating, UV resistance, water-repellent effect, anti-tension system
Use	Mountain, camping, hiking
Care and cleaning	Hand wash with soft cloth and warm water; air dry before storage
Safety	Do not cook inside; do not block openings; be careful with tent pegs
Repairability	Repair tubes for poles, repair patches for fabric, silicone waterproofing
General information	Made by Vaude, Germany; bluesign® member

Frequently Asked Questions - Mark XT 4P Vaude

How to choose the location for my Vaude Mark XT 4P tent?

Set up the tent on flat ground and sheltered from the wind. Avoid depressions and exposed areas such as gorges or rocks. Orient the entrance away from the wind and stay away from water sources to limit condensation. Clear the ground of any sharp objects and use a protective groundsheet if necessary.

What is the material of the outer tent and floor?

The outer tent is made of Polyamide 40D Ripstop PU with a water column of 5,000 mm. The floor is made of Polyamide 40D Ripstop 240T laminated PU with a water column of 10,000 mm, providing excellent waterproofness.

How to properly set up the Mark XT 4P tent?

Spread the tent on the ground, assemble the poles by carefully joining them. Insert the ends into the floor sleeves, then tension the poles. Clip the inner tent onto the pole and attach the guylines. Drive the pegs at 45° for good hold. Consult the manual for specific steps.

How to maintain my Vaude tent?

Hand wash it with a soft cloth and warm water. Air dry it before storing. For stubborn stains, use diluted Nikwax Tech Wash. Waterproof with Nikwax Tent & Gear Solarproof after cleaning. Store in a cool, dry place away from chemicals.

What to do in case of a tear in the fabric?

Temporarily repair with a repair patch, then waterproof the seams with a silicone product. Have it permanently repaired by a specialist as soon as possible to prevent worsening.

How to repair a broken pole?

Use the supplied repair tube: slide it over the broken pole and secure with duct tape. Be careful not to force during assembly to avoid cracks.

Why is there condensation in my tent?

Condensation is normal, especially near water or in humid conditions. Ventilate the tent by opening the entrances and vents. Avoid storing wet items inside and choose a well-ventilated location.

Can I cook inside the tent?

It is not recommended due to fire and suffocation risks. If necessary, ensure sufficient ventilation and keep the stove away from the walls. You can partially fold down the inner tent.

How to store my tent in winter?

Let it dry completely before storing. If camping in snow, dig a thermal trench in the vestibule to trap cold air. Do not let snow accumulate on the tent.

What type of pegs to use for different ground?

For hard ground, use the supplied Y pegs driven at 45°. For snow or sand, use special VAUDE pegs driven vertically (soft ground) or horizontally (fresh snow).

USER MANUAL Mark XT 4P Vaude

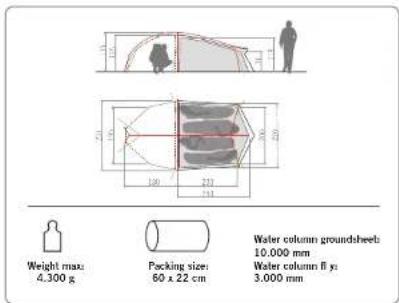

MARK XT 4P SIZES AND WEIGHT

DEUTSCH

15D Polyester 320T/20D Polyester Fine Mesh.

Endless freedom, adventure and summit thrills.

Mountains and nature as far as the eye can see.

Peace and excitement all in one.

That is the Spirit of Mountain Sports.

We here at VAUDE are passionate about mountain sports. This passion can be found in every single one of our VAUDE products.

As a modern family business we take our social and environmental responsibility very seriously: we have been a bluesign member since 2008, one of the most stringent ecological standards in the world. And as the first European outdoor outfitter we are also constantly improving our environmental performance through EMAS certification, the EU's eco-management and audit scheme.

So hope to see you soon up in the mountains...

Antje von Dewitz

CHooSing YoUr SiTE:

• Pitch your tent on level ground, in an area protected from wind and not in a hollow, where water can quickly collect when it rains.
• Take into account wind direction when pitching your tent – face the entrance downwind and sheltered if possible.
  • Take into account that camping near water sources could lead to condensation build up on your tent and belongings.
• Don't pitch your tent in dangerous places. This includes gorges, underneath cliffs or rocks, near glacier-fed rivers, in forests or near fire spots.
• Remove all pointy or sharp objects that could damage the tent floor.
• Use a tent footprint or groundsheet to protect the tent floor.
• If you are planning on camping in one spot for a longer period of time, make sure to pitch in shade or half shade – UV radiation accelerates the aging process of tent fabrics and coatings.
• When camping on snow and in freezing conditions, dig a pit in front of the tent door or in the vestibule in which cold air can collect.

- Avoid snow build up by regularly clearing snow off the surface of the tent.

- Cooking inside your tent should be avoided whenever possible due to the danger of fire or carbon dioxide poisoning. If you need to make an exception, make sure to ensure sufficient ventilation and keep the stove as far from the tent walls as possible. This might mean having to detach the inner tent and fold it back.

SET Up - gEnEral inSTrUCTionS:

VAUDE tents are well known for their simple set up. If any step in the process seems difficult, do not use force; take the time to find out what the problem is.

1. Spread out the tent on the ground. (Inner and outer tent are delivered attached to each other.) In windy conditions you should stake out the tent. Use guy lines to anchor it, for example, to a rock, backpack, etc.

2. Sort the poles and assemble the sections by sliding them into each other. Do not whip out the pole sections so they snap together. Make sure that each pole section is fully inserted into the next section; otherwise they may crack or break under pressure. Gently slide the poles through the pole sleeves. Do not pull them through.

3. Erect the tent and make sure that the entrance zip is not under undue tension or strain which could easily damage the zip. Use the releasing lock or hook at the bottom of the entrance.

4. Stakes should be driven in at a 45^ angle away from the tent (x).

The VAUDE Y-stakes that come with our tents are very durable and resistant to bending and especially suited for hard ground and grass. For extremely hard ground, we recommend the use of tent pegs or spikes. VAUDE offers special stakes for very soft ground, snow or sand. Hammer them in vertically for soft soil or bury them horizontally to anchor in sand or fresh powder snow (Y).

SETTING Up - "moDEI-SpECifiC":

Please follow these instructions step by step, the order is important.

1. Clear the ground of any sharp items (We recommend the use of a optional groundsheet protector).

2. Spread out the tent on the ground. Please note: Inner and outer tent are delivered attached to each other.

3. Lay out the poles and assemble them. Caution: pay attention to the correct positioning of the pole connectors. The long poles point downwards (A) and the short poles point upwards. The cross pole lies over the ridge pole (A1).

4. Insert the pole ends into the corresponding sockets (with the inner and outer socket one on top of the other). Tense the poles (B).

Assembly of the outer tent only: insert the pole ends into the sockets of the outer tent and tense the poles (B1). Continue with point 5.

Assembly of the inner tent only: insert the pole ends into the sockets of the inner tent and tense the poles (B2). Starting in the centre, clip the inner tent onto the poles (B3).

1. Push the tent cover onto the connectors and connect at the centre, front and back with the pegs (C).
2. Starting from the middle place the cords over the ridge pole and hook over the loop below. Then, moving from above to below, proceed to do the same with the other poles (D). Please note: the tension in the cords can be altered once the tent is erected (D1).
3. Anchor the base with tent pegs. The anchoring point can be varied by altering the length of the cord (E).
4. Anchor the porch and, if necessary, use guy ropes. Please note: It is best to wrap the webbings of the guy ropes around the poles (F).

TAKE DOWN - GENERAL INSTRUCTIONS:

• Remove everything from the tent's interior.
  • Freestanding tents can be gently shaken out to remove leaves, sand, and other debris.
• Turn the tent over with floor facing upward and allow it to dry a bit longer.
• If it's not possible to dry the tent completely before packing it, this should be done within 12 hours to prevent the risk of mold and mildew growth.
• As in the tent set up, never pull the poles out of the pole sleeves; rather push them through.
• When storing a tent in its stuff sack, make sure that stakes and poles don't press against the tent fabric and damage it.
• Before taking down your tent, close all zips and roll up the guy lines. That way you won't have to untangle them when it comes time to set the tent up again, and pitching is that much easier.

DiSmanTling - "moDEI-SpECifiC":

1. Pull out the tent pegs.
2. Unhook the ropes.
3. Remove first the ridge pole and then the other poles.
4. Fold up the poles and roll them up with the tent, if possible. Do not force the poles into the storage bag if it is full as this may cause damage to the storage bag and tent.

SToragE/CarE/rEpairS:

• As soon as the tent is dry and clean it can be stored in its pack sack in a well-ventilated, cool and dry place. Please do not store the tent near paints, adhesives, oils, plastics, or fuels (gas canisters, etc.)! The gasses emitted from these materials contain plasticizers that can damage your tent over time.
• Zips are always a weak point in a tent's structure. If they get dirty, clean them with a (tooth) brush and lubricate them with graphite (pencil lead), silicon or sewing machine oil. Apply carefully and remove excess oil with a soft cloth.
• Never store your tent when it's wet for a longer period of time. Unpack it as soon as you arrive and dry it out in a well-ventilated place. To do so, separate the inner and outer tents or use the poles to create space between the two.
• Do not whip out tent poles and snap the sections together. This can damage the pole ends as well as the anodization. Check the poles regularly for cracks or other potential damage. Wash the poles and use silicon spray at any sign of corrosion (from salt water, for example)
• VAUDE only uses poles from the renowned manufacturers DAC and Yunan. These tend to become slightly bent with use, helping to reduce fracturing. Please do not attempt to bend these back into shape. Although aluminum is extremely flexible this might damage or even break the poles. Every VAUDE tent comes with a Pole Doctor or repair sleeve. If a tent pole breaks while out on a trip, simply slide the repair sleeve over the broken section and then use tape to attach it (z).
• The tent should only be cleaned by hand, never in a washing machine! Use a soft cloth and luke warm water. Detergents or cleaning agents may harm

the tent's coating and waterproofing.

Use a brush to rub Nikwax Tech Wash in a 1:4 ratio with water on stubborn stains. Follow up with Nikwax Tent & Gear Solarproof waterproofing, applying generously to the area cleaned.

• When on the road, repair tears in the tent wall with repair tape and seal from the inside with a PU or silicon seam sealer. The seam should however be correctly repaired as soon as possible in order to prevent further tearing. Please contact your retailer to do this.
• Tent pole shock cords can be retightened if necessary (elasticity can wear out in very cold conditions or due to aging). To do this first remove the end cap and then untie the knot in the cord. Retie the knot further up the cord and replace the cap.

TECHNICAL DETAILS:

Depending on tent models, VAUDE tents feature the following:

FEATURES:

Siliconized:

• Increases tent life by 20% - a triple coating reflects damaging UV radiation to a much greater degree than standard treatments.
• 8-times greater tear resistance – siliconized fabrics attain a tear resistance of 8-11 kg compared to 1.3 kg of PU coated fabrics.
• Excellent water beading properties – water simply beads on the surface.
• Retensioning – the nylon carrier material swells up when damp or wet. The tent needs to be retensed if rain/snow initiate.
• Sealing – siliconized materials cannot be factory seam sealed (exception: VAUDE Silicon Seam Seal). When camping in extremely rainy conditions we recommend sealing all seams by hand with a silicon seam sealer.

FLY:

Tear-resistant 40D polyamide ripstop PU/SI; waterproof to 5,000 mm.

• High resistance to tearing due to light but tensile polyamide fabric with embedded strengthening fibres
• PU/SI - Polyurethane coating to the inner surfaces for maximum comfort due to reduced condensation build-up. Triple silicon coating to the outer

surfaces for increased tear-resistance, UV-resistance and water run-off.

INNER TENT:

30D Polyester Ripstop 285T.

- 285T – tightly woven ripstop polyester. Wind, sand and snow proof with high tear resistance and breathability.

15D Polyester 320T/20D Polyester Fine Mesh.

- Ultralight material blend made from highly breathable mesh and wind resistant, tightly woven polyester.

FLOOR:

40D Polyamide Ripstop 240T, PU laminated, water column 10,000 mm.

Tightly woven with reinforced cross threads, tear resistant polyamide floor with a laminated PU membrane; waterproof up to 10,000 mm.

SAFETY GUIDELINES:

- Please heed safety guidelines for all appliances used in the tent.

• Always keep exits and throughways as well as vent openings accessible.

- Find out what the rules and regulations are for the campsite you are on and heed fire safety precautions.

- Avoid hazardous materials inside the tent, such as stove or automobile fumes (for example in the Drive Base/Van).

- Wear your shoes around the tent. Stakes and other anchors can be very sharp.

- Do not stake out the guy lines over paths or trails. These can be easily tripped over in the dark.
