Product type	High-pressure cleaner
Brand	Bosch
Model	Aquatak 160
Power consumption	3000 W
Nominal pressure	150 bar
Maximum pressure	160 bar
Water flow rate	600 l/h
Max. feed temperature	60 °C
Min. feed water flow rate	17 l/h
Max. feed water pressure	1.5 - 6.0 bar
Detergent tank capacity	3.0 l
Weight	29.1 kg
Protection class	I / ±
Operating voltage	230 V ~ 50 Hz
Nozzles supplied	Fan jet nozzle and rotary jet nozzle
Recommended extension cord	1.5 mm² up to 20 m; 2.5 mm² up to 50 m
Frost protection	Drain water and store in a frost-free place
Maintenance	Clean the water filter regularly
Safety	Trigger lock, residual-current circuit breaker 30 mA recommended

Frequently Asked Questions - Aquatak 160 BOSCH

How to start the high-pressure cleaner?

Make sure the switch is off. Plug in the appliance, open the tap. Unlock the trigger, press until you get a steady jet. Switch on.

How to use detergent?

Fill the tank with diluted detergent according to instructions. Place the nozzle in low-pressure position (push forward on Aquatak 160). Adjust the flow via the regulator.

What to do if pressure is low?

Check the water filter (on the tap connection) and clean if clogged. Check that the nozzle is not blocked. Ensure the feed hose is not kinked.

How to clean the filter?

Unscrew the adapter from the tap connection, remove the filter with pliers, rinse it with clean water and replace. Never use the device without a filter.

Can I use an extension cord?

Yes, use an extension cord of suitable cross-section (1.5 mm² up to 20 m, 2.5 mm² up to 50 m) with protective conductor. The extension cord must be waterproof and suitable for outdoor use.

How to store the device after use?

Unplug, close the tap. Press the trigger to release pressure. Empty detergent tank. Clean the exterior with a cloth. Store in a frost-free place.

What to do in case of frost?

If the device has frozen, let the pump, hose and accessories thaw completely before use. Never force. Always drain water before winter.

How to change the nozzle?

Turn the current nozzle 90° counterclockwise to remove. Insert the new nozzle and lock by turning 90° clockwise (for models with clip) or screw it on.

The device stops during operation. What to do?

Check the fuse, mains voltage and motor protection. Let it cool for 5 minutes before restarting. Ensure water supply is sufficient.

Where to find spare parts?

Visit www.bosch-pt.com for exploded views and references. Contact Bosch after-sales service at 0 800 05 50 51 (France).

USER MANUAL Aquatak 160 BOSCH

Operating instructions

Illustration of three Bosch pressure hatchers with hoses and hoses, no text or symbols present

Deutsch

English

Français

Español

Português

Italiano

Nederlands

Dansk

Svenska

Norsk

Suomi

Ελληνικά

Türkçe

15

AQUATAK 150 PRO

Senior Vice President Head of Product

Engineering Certification

ppa. Aucuca i.v. Moyen

Robert Bosch GmbH, Power Tools Division

Before start-up please read these instructions!

Before using the machine please read the operating instructions for your unit and comply in particular with these safety instructions. Please keep the instructions safe for later use.

The warning and information signs attached to the unit provide important information for safe operation.

Apart from the information in the operating instructions comply with the general safety regulations and regulations for the prevention of accidents.

Never direct the water jet at people, animals, the unit or electric components.

Warning: High pressure jets can be dangerous if subject to misuse.

Power Supply

■The voltage indicated on the rating plate must correspond to the voltage of the power source.
■Class 1 units may only be connected to properly earthed power sources.
■We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residual current.
If an extension cord is used, the plug and socket must be of a water tight construction. Warning: Inadequate extension cords can be dangerous.
■Never touch the mains plug with wet hands.
■Do not run over, crush or pull the power supply cable or extension lead, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges.
■The extension lead must have a cross section in accordance with the operating instructions and be protected against splashed water. The connection must not be in water.

Water connection

■Comply with the regulations of your water supply company.
■All connecting hoses must have properly sealed joints.
■The high-pressure hose must not be damaged (danger of bursting). A damaged high-pressure hose must be replaced immediately. Only use hoses and connections recommended by the manufacturer.

Application

■Before use, check that the unit and operating equipment are in perfect condition and are safe to operate. Do not use the unit if it is not in perfect condition.
■Never draw in solvent-containing liquids, undiluted acids or solvents! This includes petrol, paint thinners heating oil. The sprayed vapour is highly flammable, explosive and toxic; also acetone, undiluted acids and solvents as these corrode the materials used on the unit.
■The appropriate safety regulations must be observed when using the unit in dangerous area (e.g. petrol stations). It is forbidden to operate the unit in potentially explosive locations.
■The unit must be placed in on solid base.

■Only use detergents recommended by the manufacturer and comply with the application, disposal and warning instructions of the detergent manufacturers.
■All current-conducting components in the working area must be protected against splashed water.
■The gun trigger must not be jammed in the "ON" position during operation.
■Suitable protective clothing must be worn if necessary to protect against splashing from some parts.
■Vehicle tyres/tyre valves may only be cleaned from a minimum distance of 30 cm, otherwise the vehicle tyre/tyre valve could be damaged by the high-pressure jet. The first indication of this is a discoloration of the tyre. Damaged vehicle tyres/tyre valves can be deadly dangerous.
■Materials containing asbestos and other materials which contain substances which are hazardous to your health must not be sprayed.
■Only use detergents which have been approved by the manufacturer of the unit.
■Detergents must not be used undiluted. The products are safe to use as they contain no acids, alkalis or substances which are detrimental to the environment. We recommend that the detergents are kept out of the reach of children. If detergent comes into contact with the eyes wash immediately with plenty of water and if swallowed contact a doctor immediately.

Operation

■The operator must use the unit in accordance with the regulations. He/she must take local conditions into account and be aware of other people, especially children, when operating the unit.
■Do not use the appliance within the range of persons, unless they wear protective clothing.
■Do not direct the jet against yourself or others in order to clean clothes or footwear.
■The unit may only be used by authorised persons who have received training or have demonstrated their ability to operate the unit. The unit must not be operated by children or juveniles (danger of accidents due to incorrect use of the unit).
■The unit must never be left unsupervised while the motor is running.
■The water jet from the high-pressure nozzle produces a recoil on the gun. You should therefore hold the gun and spray lance firmly.

Transport

■Switch off the motor and secure the unit before transporting.

Maintenance

■Remove the plug from the socket:
- whenever you leave the unit unattended for any period
- checking, cleaning or working on the unit
■Repairs may only be carried out by authorised BOSCH Service Centres.

Accessories and spare parts

■Only use accessories and spare parts which have been approved by BOSCH. Original accessories and spare parts guarantee that the unit can be operated safely and without any breakdowns.

Product Specification

Power washer AQUATAK 150 PRO AQUATAK 150 PRO X AQUATAK 160 PRO X

Part number 3 600 H77 A.. 3 600 H77 B.. 3 600 H77 C..
Rated power [W] 2 700 2 700 3 000
Supply Temperature max. [°C] 60 60 60
Supply rate min.	[l/h]	17	17	17
Supply pressure max.	[bar]	1.5–6.0	1.5–6.0	1.5–6.0
Working pressure	[bar]	140	140	150
Max. Operating pressure	[bar]	150	150	160
Flow rate	[l/h]	550	550	600
Detergent capacity	[l]	3.0	2 x 1.5	3.0
Weight	[kg]	26 27.5	29.1
Protection class		± / l	± / l	± / l
Serial Number	See serial No 15 (rating plate) on machine.

Intended Use

The product is intended for cleaning areas and objects outside the house, tools, vehicles and boats. Drainage pipes can be unclogged and rust or paint coatings can be removed, if the appropriate accessories such as cleaning agents approved by Bosch are used. This product should not be used for professional use.

Intended Use is related to operation within 0 °C and 40 °C ambient temperature.

Introduction

This manual gives instructions on the correct assembly and safe use of your machine. It is important that you read these instructions carefully.

When fully assembled the machine weighs approximately 26 - 29,1 kg. If necessary, obtain assistance to remove from packaging.

Delivered Items

Carefully remove the machine from its packaging and check that you have all the following items:

• Power washer
  – Power gun/high pressure hose
• Vario-jet-fan power lance
• Roto power lance

• Inlet connector

• Operating instructions

• Storage hooks (AQUATAK 150 PRO - 2x. AQUATAK 150 PRO X/160 PRO X - 1x)
• Hose reel handle (Aquatak 150 PRO X/160 PRO X only)
• Retaining screw (Aquatak 150 PRO X/160 PRO X only)

When parts are missing or damaged, please contact your dealer.

Operating Controls

1 Trigger safety lock
2 Trigger
3 High pressure hose
4 Hose drum (Aquatak 150 PRO X/160 PRO X only)
5 Handle (Aquatak 150 PRO X/160 PRO X only)
6 Detergent tank
7 Power gun
8 Storage hooks
9 Vario-jet-fan power lance
10 Main switch
11 Detergent adjustment knob
12 Pressure gauge
13 Water inlet connection
14 Roto power lance
15 Serial Number

Not all of the accessories illustrated or described are included as standard delivery.

For Your Safety

Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.

Electrical Safety

Your machine requires an earth connection. The operating voltage is 230 V AC, 50 Hz. (for non-EU countries 220 V, 240 V as applicable). Only use approved extension cables. Contact your Bosch Service Centre for details.

If you want to use an extension cable when operating your high pressure washer, only the following cable dimensions should be used:

1.5 mm ^2 – max length 20 m

2.5 mm ^2 – max length 50 m

Note: If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations.

If in doubt contact a qualified electrician or the nearest Bosch Service Centre.

WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use.

Cable connections should be kept dry and off ground.

It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it.

For products not sold in GB: WARNING: For safety, it is essential that the mains plug attached to the product is fitted to the power supply cable. The couplings of connection leads must be protected against splashes and the coupling sockets on the leads must be made of rubber or coated with rubber. Fixing means for the connection leads must be used.

If the supply cord is damaged, it must be replaced by a Bosch Service Centre.

Products sold in GB only: Your product is fitted with an approved 13 A (BS 1363/A) electric plug and is protected by a 13 A fuse (ASTA Approved to BS 1362).

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place.

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a 13 A socket elsewhere.

Assembly

Before use

A Assemble storage hook(s) 8 to handle. Push firmly to ensure hook is secure.

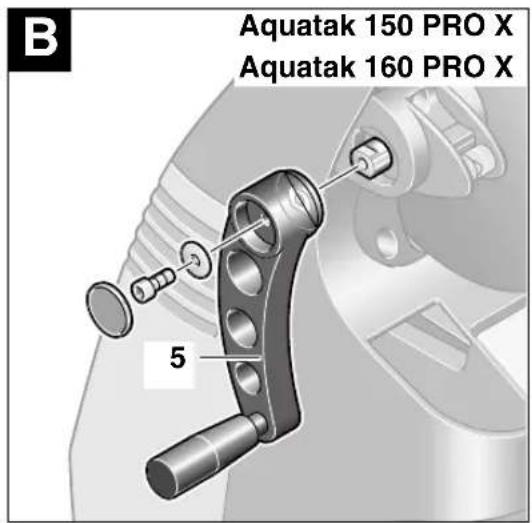

B Fit handle 5 to hose reel using supplied screw. (Aquatak 150 PRO X/160 PRO X only)

Water connection

C Screw inlet connector 16 onto machine water inlet connection 13.

Attach water supply hose (not supplied) to the mains water supply and machine.

Connecting high pressure water supply hose/nozzle

D / E securely screw high pressure hose 3 onto machine at connection 17 and to the power gun 7. (AQUATAK 150 PRO)
E Securely screw the high pressure hose 3 to the power gun 7. (AQUATAK 150 PRO X/160 PRO X)
G Inserting the vario-jet/fan power lance 9 into the power gun 7. Depress and turn the vario-jet/fan power lance 90° clockwise to lock in place. (AQUA-TAK 150 PRO/150 PRO X)

Screw the vario jet-fan power lance 9 into the power gun 7. (AQUATAK 160 PRO X)

F Unwind the pressure hose 3 off the hose drum 4. Never use the pressure washer with the high pressure hose 3 on the hose drum 4.

Adjustments and using different nozzles

Vario-jet-fan power lance

AQUATAK 150 PRO/150 PRO X

H Twist the front ring to adjust from a pencil to a fan jet and vice versa.
To apply the detergent twist the rear ring as shown from high pressure mode to low pressure mode.

To adjust the spray pattern twist the front ring.

Also refer to Advice on using pressure washer regarding the detergent suction rate.

AQUATAK 160 PRO X

J Twist the nozzle sleeve to adjust from a pencil to a fan jet and vice versa.
K To apply the detergent move the nozzle from high pressure mode to low pressure mode by pulling the nozzle forward.

To adjust the spray patten twist the nozzle.

Also refer to Advice on using pressure washer regarding the detergent suction rate.

Roto power lance

Turn the vario-jet/fan power lance 9 90° anticlockwise. Extract the vario-jet/fan power lance. (AQUATAK 150 PRO/150 PRO X)

Unscrew the vario jet-fan power lance 9 from the power gun 7. (AQUATAK 160 PRO X)

P Insert the roto-power lance 14 into the power gun 7. Depress and turn the roto-power lance 90° clockwise to lock in place. (AQUATAK 150 PRO/150 PRO X)

Screw the roto-power lance 14 into the power gun 7. (AQUATAK 160 PRO X)

Starting and Stopping

Starting

Connect the product to the mains supply ensuring that the mains switch is in the (○) position.

Open water tap.

R Press the safety lock 1 to release the trigger 2. Fully press the trigger 2 until there is a constant flow of water to clear the air from the machine and water supply hose. Release trigger 2. Press the trigger safety lock.

Turn on main switch 10.

Point the power gun 7 downwards. Press the trigger safety lock to release the trigger 2. Fully press the trigger 2.

Stopping

Release trigger 2. Press the trigger safety lock. The power gun is now locked and cannot be operated accidentally.

Turn off the main switch 10.

Close water tap. Unplug the machine from the electric supply.

Press the trigger safety lock 1 to release the trigger 2. Fully press the trigger 2 until there is no more water pressure in the machine. Release trigger 2. Press the trigger safety lock 1.

Disconnect water supply hose from machine and water supply.

Advice using pressure washer

General

Ensure that the machine is on level ground.

Do not overreach with the high pressure hose or move the pressure washer by pulling the hose, this could cause the machine to become unstable and fall over.

Do not kink or drive a motor vehicle over the high pressure hose. Do not expose the high pressure hose to sharp edges or corners.

Never use the roto nozzle to clean motor vehicles.

Operating with Detergents

Only use Bosch approved detergents. Unsuitable detergents may damage the unit and the object being cleaned.

M / N fill the detergent tank 6 with detergent, dilute as recommended. The tank(s) can be removed to aid filling and emptying.

I / Ko spray detergent move vario-jet-fan power lance to low pressure mode.

We recommend that you use detergent sparingly for the sake of the environment. Observe the recommended dilution on the detergent label.

By offering you an individualised range of cleaning and preserving agents, Bosch guarantees trouble-free operation of the unit.

L

Only Aquatak 150 PRO/160 PRO X

The product is fitted with one detergent tank. The detergent adjustment knob 11 is used to increase/decrease detergent flow.

Only Aquatak 150 PRO X

The product is fitted with two detergent tanks. The detergent adjustment knob 11 is used to switch the suction between detergent tanks and increase/decrease detergent flow.

Recommended cleaning method

Step 1: Loosening dirt

Spray on detergent sparingly and allow to react for a short time.

Step 2: Removing dirt

Spray off the loosened dirt with the high-pressure spray.

Note: When cleaning a vertical surface spray off dirt/detergent from the bottom and work in an upwards direction. Rinse from the top and work downwards.

Maintenance

Stop, remove plug from the power supply and disconnect from water supply.

Note: To ensure long and reliable service, carry out the following maintenance regularly.

Regularly check for obvious defects such as loose fixings, and worn or damaged components.

Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.

If the pressure washer should happen to fail despite the care taken in manufacture and testing, repair should be carried out by an authorised service agent for Bosch garden products.

For all correspondence and spare parts orders, always include the 10-digit part number (TYP) from the nameplate of the machine!

Cleaning/inspecting the strainer

S Expose the strainer 18 in the machine water inlet connection by removing the inlet connector 16.

The strainer 18 can be easily removed with long nose pliers. Rinse and replace. If damaged replace.

Never use the pressure washer without the strainer or a damaged strainer.

Transport

To move the machine use the top handle and roll the machine on the wheels.

To transport the unit up or down steps or over obstacles, it must be lifted by the top handle.

If the unit is to be stored or transported horizontally the detergent tank should be drained first.

After use storage

Clean the exterior of the machine thoroughly using a soft brush or cloth. Do not use water, solvents or polishes. Remove all debris, especially from the ventilation slots.

Frost will damage a pressure washer that has not been completely emptied of water. The machine should be stored in a frost free room.

Do not place other objects on top of the machine.

Ensure cables are not trapped when storing. Do not kink high pressure hose.

Fault Finding

The following table gives checks and actions that you can perform if your machine does not operate correctly. If these do not identify/remedy the problem, contact your service agent.

Warning: Switch off and remove plug from mains before investigating fault.

Symptom Possible Cause	Remedy
Motor refuses to start Plug	not connectedMains socket faultyFuse faulty/blownExtension cable damagedMotor protector has activatedFrozen	Connect plugUse another socketReplace fuseTry without extension cableAllow to cool for 5 minutesWait for pump/water supply hose/accessory to thaw
Motor stops Fuse faulty/blownWrong mains voltageMotor protector has activated		Replace fuseCheck that mains voltage corresponds to specifications on the model tagAllow to cool for 5 minutes
Fuses blow Fuses incorrectly rated Change to a mains supply higher thanthe pressure washer amp consumption
Excessive working pressure	Nozzle partly blocked Clean nozzle
Pressure pulsating Air in the inlet water supply hose/pumpInadequate water supplyWater strainer blockedWater supply hoses squeezedHigh pressure hose too long		Allow pressure washer to run with open spray handle and nozzle at low pressure until regular working pressure is obtained.Check that the water supply corresponds to specifications. The minimum specification for the water supply hose is 1/2" or 13 mm diameter.Clean water strainerStraighten out kinked water supply hosesDismount high pressure extension hose. Retry (extension hose max. 10 m)
Pressure too low, but steadyNote: Several types of accessory will normally deliver a lower pressure	Nozzle wornStart/stop valve worn	Change the nozzleActivate trigger five times in quick succession
Motor starts up but no working pressure	No water supplyWater strainer clogged upNozzle clogged up	Connect water supplyClean the water strainerClean nozzle
The pressure washer starts irregularly by itself	Pump/power gun leaky Contact your Bosch Service Centre
Water leaks from machine	Leaking pump 6 drops per minute are permissible. In case of more serious leakage, you should contact your Bosch Service Centre.

Environmental Protection

Chemicals dangerous to the environment must not be allowed to enter the ground, ground water or ponds, streams, etc.

For the use of cleaning agents, observe the instructions on the package and the prescribed concentration exactly.

For the cleaning of motor vehicles the local regulations should be observed: Do not allow oil sprayed off to enter into the ground water. Recycle raw materials instead of waste disposal.

Disposal

Power tools, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of power tools into household waste! According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national law, power tools

that are no longer suitable for use must be separately collected and sent for recovery in an environmental-friendly manner.

Service

Exploded views and information on spare parts can be found under: www.bosch-pt.com

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham-Uxbridge

Middlesex UB 9 5HJ

Service....+44 (0) 18 95 / 83 87 82

Fax Service +44 (0) 18 95 / 83 87 89

©Advice line....+44 (0) 18 95 / 83 87 91

Fax Advice....+44 (0) 18 95 / 83 87 93

Ireland

Beaver Distribution Ltd.

Greenhills Road

Tallaght-Dublin 24

Service....+353 (0)1 / 4 14 94 00

Fax +353 (0)1 / 4 59 80 30

Australia and New Zealand

Robert Bosch Australia Pty. Ltd.

RBAU/SPT

1555 Centre Road

P.O. Box 66

3168 Clayton/Victoria

① +61 (0)1 / 3 00 30 70 44

Fax +61 (0)1 / 3 00 30 70 45

www.bosch.com.au

Declaration of Conformity

Measured values determined according to 2000/14/EC (1 m distance away) and DIN 45 635.

Typically the A-weighted noise level of the product is: sound pressure level 78 dB (A) (AQUATAK 150 PRO/PRO X); 79 dB (A) (AQUATAK 160 PRO); sound power level 89 dB (A) (AQUATAK 150 PRO/PRO X); 92 dB (A) (AQUATAK 160 PRO).

The typical hand/arm vibration is below 2.5 m/s ^2 .

We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 60 335 according to the provisions of the directives 89/336/EEC, 98/37/EC, 2000/14/EC.

2000/14/EC: The guaranteed sound power level L_WA is lower than 91 dB (A) (AQUATAK 150 PRO/PRO X); 94 dB (A) (AQUATAK 160 PRO). Conformity assessment procedure according to Annex V.

Leinfelden, 01.01.2005.

Dr. Egbert Schneider Dr. Eckerhard Strötgen

Senior Vice President Head of Product

Engineering Certification

ppa. Aneka i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division

Subject to change without notice

Robert Bosch France S.A.S.

Service Après-vente/Outillage

Senior Vice President Head of Product

Engineering Certification

ppa. Amata i.v. Moyen

Robert Bosch GmbH, Power Tools Division

Senior Vice President Head of Product

Engineering Certification

ppa. Amata i.v. Moyen

Robert Bosch GmbH, Power Tools Division

Senior Vice President Head of Product

Engineering Certification

ppa. Amata i.v. Moyen

Robert Bosch GmbH, Power Tools Division

Senior Vice President Head of Product

Engineering Certification

ppa. A##ta i.v. Nu#yen

Robert Bosch GmbH, Power Tools Division

Stap 1: Vuil losmaken

Senior Vice President Head of Product

Engineering Certification

ppa. A##ka i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. Alacata i.v. Wuzyen

Robert Bosch GmbH, Power Tools Division

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. A##ca i.v. Mo#gen

Robert Bosch GmbH, Power Tools Division

Senior Vice President Head of Product

Engineering Certification

ppa. Amaka i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. A##ta i.v. Pu#yen

Robert Bosch GmbH, Power Tools Division

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. A##ka i.v. Pu#yen

Robert Bosch GmbH, Power Tools Division
