Product type	High-pressure cleaner
Brand	Bosch
Model	Aquatak 115 Plus
Reference number	3 600 H76 E..
Power consumption	1700 W
Nominal pressure	105 bar
Maximum pressure	115 bar
Water flow rate	380 l/h
Max. water supply temperature	40 °C
Water supply pressure	1.5 - 6.0 bar
Weight	7.0 kg
Protection class	II (double insulation)
Voltage / frequency	230 V ~ 50 Hz
Detergent tank capacity	0.75 l
Included accessories	Spray lance, high-pressure hose, fan jet tube, rotary jet tube, brush, connector
Main functions	Adjustable jet (fan/point), rotary jet, integrated detergent application system
Maintenance	Removable cleanable water filter, frost protection (drain after use)
Safety	Trigger lock, motor protection (thermal cut-out), 30 mA residual current circuit breaker recommended
After-sales service	Bosch-approved

Frequently Asked Questions - Aquatak 115 Plus BOSCH

How to start the Aquatak 115 Plus high-pressure cleaner?

Make sure the switch is off, plug in the device, open the water tap, unlock the trigger using the operating lock, press the trigger until water flows steadily, release the trigger, lock it, then turn the switch on. Finally, unlock and press the trigger to start cleaning.

What is the maximum pressure of the Aquatak 115 Plus?

The maximum pressure is 115 bar (nominal pressure 105 bar).

Can I use non-Bosch detergents?

It is recommended to use only detergents approved by Bosch. Inappropriate detergents may damage the device and the object to be cleaned. Never use solvents, acids, or flammable products.

What to do if the motor does not start?

Check that the plug is connected, the socket works, the fuse has not blown, and the extension cord is in good condition. If the motor is hot, let it cool down for 5 minutes (thermal protection). If the device has frozen, thaw the pump and hoses.

How to clean the water filter?

Unscrew the water inlet connection, remove the filter with pointed pliers, rinse it with clean water, then put it back. Never use the device without a filter or with a damaged filter.

What is the minimum distance for cleaning tires?

Keep a minimum distance of 30 cm between the nozzle and the tire to avoid damage. A change in tire color may indicate damage.

How to store the device after use?

After use, completely empty the water from the device by operating the trigger. Clean the exterior with a soft brush. Store the device in a frost-free location. Do not bend the high-pressure hose and do not place objects on it.

Can I use an extension cord?

Yes, but it must be approved for outdoor use, with a minimum cross-section of 1.5 mm² up to 20 m or 2.5 mm² up to 50 m. The extension cord must be protected against water splashes and ideally equipped with a 30 mA residual current circuit breaker.

What to do if the pressure is irregular?

This can be due to air in the circuit, a clogged filter, a twisted water hose, or an extension cord that is too long. Open the lance and let water flow until it runs steadily. Check the filter and the supply hose.

How to change the nozzle?

Turn the current nozzle 90° counterclockwise and remove it. Insert the new nozzle into the spray lance, then turn it 90° clockwise until it clicks into place.

USER MANUAL Aquatak 115 Plus BOSCH

Operating instructions

Illustration of two electric water levelers with hoses and a tool, no text or symbols present

Deutsch

English

Français

Español

Português

Italiano

Nederlands

Dansk

Svenska

Norsk

Suomi

Ελληνικά

Türkçe

Illustration of a hand holding a faucet with a handle, against a grid background (no text or symbols)

4·F016 L70 372·05.09

Mechanical assembly diagram showing a gear and housing with labeled parts (no readable text or symbols)

5·F016 L70 372·05.09

Sicherheitshinweise

Senior Vice President Head of Product

Engineering Certification

ppa. A##ca i.v. Mo#yen

Robert Bosch GmbH, Power Tools Division

Before start-up please read these instructions!

Before using the machine please read the operating instructions for your unit and comply in particular with these safety instructions.

The warning and information signs attached to the unit provide important information for safe operation.

Apart from the information in the operating instructions comply with the general safety regulations and regulations for the prevention of accidents.

Power Supply

Never direct the water jet at people, animals, the unit or electric components.

■The voltage indicated on the rating plate must correspond to the voltage of the power source.

■We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residual current.

■Only use or replace power supply cables for this unit which correspond to the types indicated by the manufacturer. See the operating instructions for the order no. and types.

■If the plug is damaged, pay attention to the following:

Plugs and sockets conforming to BS 4243 or BS 196 should be used wherever practicable. Domestic pattern plugs to BS 1363 are not recommended but if their use is essential those which have barriers or moulded channels inside should be selected so that if the earth continuity conductor is pulled out of its terminal it is unlikely to be able to touch the phase terminal of the fuse carrier. Domestic pattern plugs to BS 546 should not be used. The wiring of the plug should leave more slack in the earth continuity conductor than in the other cores, so that it is not the first core to be pulled out of its terminal should the cord grip fail. Plugs which have good grips capable of maintaining a firm hold on the cable sheath should be selected. In general, additional means should be provided to relieve stress on cable terminations in the plug. For example, additional cable clamps should be fitted or a substantial chain could be used to tether the machine to a fixed point.

Plugs and sockets situated near the work site or outdoors should be to class IP 55 of BS 5490 to provide adequate protection against ingress of water, etc. and cable entries require effective sealing. Rubber shrouds should be provided over cable glands. Drip-proof (class IP X2 of BS 5490) plugs and sockets to BS 4343 are suitable for use indoors where the plug is away from the water spray area where the appliance is in use.

■Never touch the mains plug with wet hands.

■Do not run over, crush or pull the power supply cable or extension lead, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges.

■The extension lead must have a cross section in accordance with the operating instructions and be protected against splashed water. The connection must not be in water.

■When replacing couplings on the power supply cable or extension lead the spray water guard and mechanical stability must remain intact.

Water connection

■Comply with the regulations of your water supply company.

■All connecting hoses must have properly sealed joints.

■The high-pressure hose must not be damaged (danger of bursting). A damaged high-pressure hose must be replaced immediately. Only use hoses and connections recommended by the manufacturer.

Application

■Before use, check that the unit and operating equipment are in perfect condition and are safe to operate. Do not use the unit if it is not in perfect condition.

■Never draw in solvent-containing liquids, undiluted acids or solvents! This includes petrol, paint thinners heating oil. The sprayed vapour is highly flammable, explosive and toxic; also acetone, undiluted acids and solvents as these corrode the materials used on the unit.

■The appropriate safety regulations must be observed when using the unit in dangerous area (e.g. petrol stations). It is forbidden to operate the unit in potentially explosive locations.

■The unit must be placed on solid base.

■Only use detergents recommended by the manufacturer and comply with the application, disposal and warning instructions of the detergent manufacturers.

■All current-conducting components in the working area must be protected against splashed water.

■The gun trigger must not be jammed in position during operation.

■Suitable protective clothing must be worn if necessary to protect against splashing from some parts.

■Vehicle tyres/tyre valves may only be cleaned from a minimum distance of 30 cm, otherwise the vehicle tyre/tyre valve could be damaged by the high-pressure jet. The first indication of this is a discoloration of the tyre. Damaged vehicle tyres/tyre valves can be deadly dangerous.

■Materials containing asbestos and other materials which contain substances which are hazardous to your health must not be sprayed.

■Only use detergents which have been approved by the manufacturer of the unit.

Detergents must not be used undiluted. The products are safe to use as they contain no acids, alkalis or substances which are detrimental to the environment. We recommend that the detergents are kept out of the reach of children. If detergent comes into contact with the eyes wash immediately with plenty of water and if swallowed contact a doctor immediately.

Operation

■The operator must use the unit in accordance with the regulations. He/she must take local conditions into account and be aware of other people, especially children, when operating the unit.

The unit may only be used by authorised persons who have received training or have demonstrated their ability to operate the unit. The unit must not be operated by children or juveniles (danger of accidents due to incorrect use of the unit).

■The unit must never be left unsupervised while the motor is running.

■The water jet from the high-pressure nozzle produces a recoil on the gun. You should therefore hold the gun and spray lance firmly.

Transport

■Switch off the motor and secure the unit before transporting.

Maintenance

■Switch off the unit prior to all cleaning and maintenance work and before replacing components. Pull out the mains plug if the unit is mains-operated.

■Repairs may only be carried out by authorised Bosch Service Centres.

Accessories and spare parts

■Only use accessories and spare parts which have been approved by Bosch. Original accessories and spare parts guarantee that the unit can be operated safely and without any breakdowns.

Product Specification

Power washer AQUATAK 110 AQUATAK 110 PLUS AQUATAK 115 PLUS

Part number 3 600 H76 C.. 3 600 H76 D.. 3 600 H76 E..
Rated power [W] 1 600 1 600 1 700
Supply Temperature max. [°C] 40 40			40
Supply rate min.	[l/h]	17	17	17
Supply pressure max.	[bar]	1.5–6.0	1.5–6.0	1.5–6.0
Working pressure	[bar]	100	100	105
Max. Operating pressure	[bar]	110	110	115
Flow rate	[l/h]	360	380	380
Detergent Bottle or Tank		Bottle	Tank	Tank
Detergent capacity	[l]	0.5	0.75	0.75
Weight	[kg]	7.0	7.0	7.0
Protection class		☐ / II	☐ / II	☐ / II

Serial Number See serial No 11 (rating plate) on product.

Intended Use

The product is intended for cleaning areas and objects outside the house, tools, vehicles and boats. Drainage pipes can be unclogged and rust or paint coatings can be removed, if the appropriate accessories such as cleaning agents approved by Bosch are used.

Intended Use is related to operation within 0 °C and 40 °C ambient temperature.

This product should not be used for professional use.

Introduction

This manual gives instructions on the correct assembly and safe use of your machine. It is important that you read these instructions carefully.

When fully assembled the machine weighs approximately 7.0 kg. If necessary, obtain assistance to remove from packaging.

Delivered Items

Carefully remove the machine from its packaging and check that you have all the following items:

• Power washer
  – Power gun/high pressure hose
• Detergent nozzle and bottle (AQUATAK 110 only)
• Vario-jet-fan power lance (red colour coded)
• Roto power lance (red colour coded)
• Inlet Connector
• Wash Brush (AQUATAK 110 PLUS/115 PLUS only)
• Operating instructions

When parts are missing or damaged, please contact your dealer.

Operating Controls

1 Trigger safety lock
2 Trigger
3 Power gun
4 Vario-jet-fan power lance
5 High pressure hose
6 Detergent nozzle and bottle (AQUATAK 110 only)
7 Roto power lance
8 Inlet Connector
9 Detergent Tank (AQUATAK 110 PLUS/115 PLUS only)
10 Main switch
11 Serial Number

Not all of the accessories illustrated or described are included as standard delivery.

For Your Safety

Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.

Electrical Safety

Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V, 240 V as applicable). Only use approved extension cables. Contact your Bosch Service Centre for details.

If you want to use an extension cable when operating your high pressure washer, only the following cable dimensions should be used:

1.5 mm ² – max length 20 m

2.5 mm ² – max length 50 m

Note: If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations.

If in doubt contact a qualified electrician or the nearest Bosch Service Centre.

WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use.

Cable connections should be kept dry and off ground.

It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it.

For products not sold in GB: WARNING: For safety, it is essential that the mains plug attached to the product is fitted to the power supply cable. The couplings of connection leads must be protected against splashes and the coupling sockets on the leads must be made of rubber or coated with rubber. Fixing means for the connection leads must be used.

If the supply cord is damaged, it must be replaced by a Bosch Service Centre.

Products sold in GB only: Your product is fitted with an approved 13 A (BS 1363/A) electric plug and is protected by a 13 A fuse (ASTA Approved to BS 1362).

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place.

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a 13 A socket elsewhere.

Assembly

Water connection

A Screw inlet connector 8 onto machine water inlet connection 12.

A/B attach water supply hose (not supplied) to the mains water supply and machine.

Connecting high pressure water supply hose/nozzle

C Securely screw high pressure hose 5 onto machine at connection 13.

D Inserting the vario-jet/fan power lance 4 into the power gun 3. Depress and turn the vario-jet/fan power lance 90° clockwise to lock in place.

Adjustments and using different nozzles

Vario-jet-fan power lance (red colour coded)

E Twist the front ring to adjust from a pencil to a fan jet and vice versa.

Roto power lance (red colour coded)

Turn the vario-jet/fan power lance 4 90° anticlockwise. Extract the vario-jet/fan power lance.

J Insert the roto-power lance 7 into the power gun 3. Depress and turn the roto-power lance 90° clockwise to lock in place.

Detergent nozzle and bottle

AQUATAK 110

Turn the power lance 90° anti-clockwise. Extract the power lance.

F Insert the detergent-nozzle 6 into the power gun 3. Depress and turn the detergent-nozzle 90° clockwise to lock in place.

AQUATAK 110 PLUS/115 PLUS

G To apply the detergent twist the rear ring as shown from high pressure mode to low pressure mode.

To adjust the spray pattern twist the front ring.

Starting and Stopping

Starting

Connect the product to the mains supply ensuring that the mains switch is in the (position.

Open water tap.

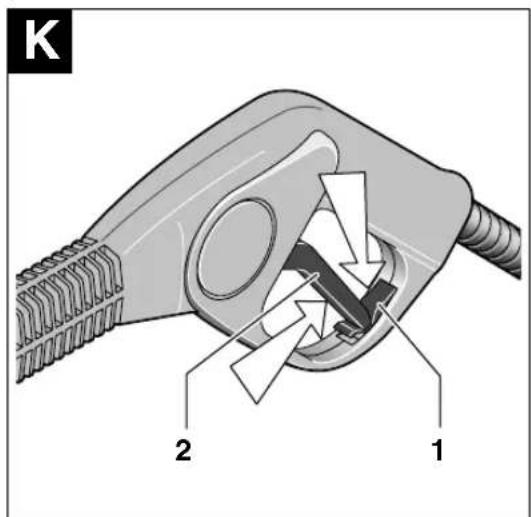

K Press the safety lock 1 to release the trigger 2. Fully press the trigger 2 until there is a constant flow of water to clear the air from the machine and water supply hose. Release trigger 2. Press the trigger safety lock.

Press button ( ) on main switch 10.

Point the power gun 3 downwards. Press the trigger safety lock to release the trigger 2. Fully press the trigger 2.

Stopping

Release trigger 2. Press the trigger safety lock. The power gun is now locked and can not be operated accidentally.

Press button (○) on the main switch 10.

Close water tap. Unplug the machine from the electric supply.

Press the trigger safety lock 1 to release the trigger 2. Fully press the trigger 2 until there is no more water pressure in the machine. Release trigger 2. Press the trigger safety lock 1.

Disconnect water supply hose from machine and water supply.

Advice using pressure washer

General

Ensure that the machine is on level ground.

Do not overreach with the high pressure hose or move the pressure washer by pulling the hose, this could cause the machine to become unstable and fall over.

Do not kink or drive a motor vehicle over the high pressure hose. Do not expose the high pressure hose to sharp edges or corners.

Never use the roto nozzle to clean motor vehicles.

Operating with Detergents

Only use Bosch approved detergents. Unsuitable detergents may damage the unit and the object being cleaned.

AQUATAK 110

Attach the detergent-nozzle to the spray gun.

Fill the detergent bottle with suitable detergent and screw the bottle back on the detergent-nozzle.

AQUATAK 110 PLUS/115 PLUS

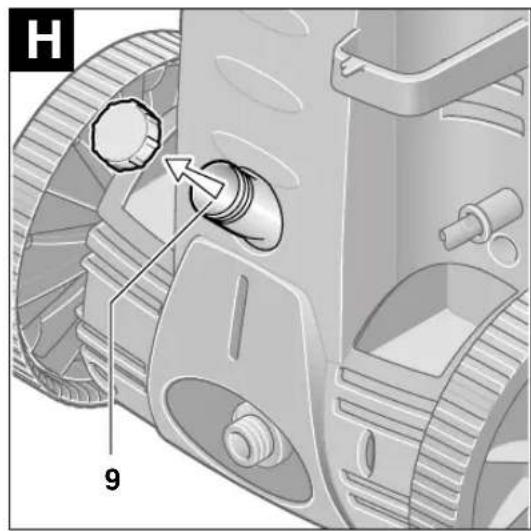

H Fill the detergent tank 9 with detergent, dilute as recommend.

G To spray detergent move vario-jet-fan power lance to low pressure mode.

We recommend that you use detergent sparingly for the sake of the environment. Observe the recommended dilution on the detergent label.

By offering you an individualised range of cleaning and preserving agents, Bosch guarantees trouble-free operation of the unit.

Recommended cleaning method

Step 1: Loosening dirt

Spray on detergent sparingly and allow to react for a short time.

Step 2: Removing dirt

Spray off the loosened dirt with the high-pressure spray using a jet fan.

Note: When cleaning a vertical surface spray off dirt/detergent from the bottom and work in a upwards direction. Rinse from the top and work downwards.

Maintenance

Stop, remove plug from the power supply and disconnect from water supply.

Note: To ensure long and reliable service, carry out the following maintenance regularly.

Regularly check for obvious defects such as loose fixings, and worn or damaged components.

Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.

If the pressure washer should happen to fail despite the care taken in manufacture and testing, repair should be carried out by an authorised service agent for Bosch garden products.

For all correspondence and spare parts orders, always include the 10-digit part number from the nameplate of the machine!

Cleaning/inspecting the strainer

L Expose the strainer 14 in the machine water inlet connection by removing the inlet connector 8.

The strainer 14 can be easily removed with long nose pliers. Rinse and replace. If damaged replace. Never use the pressure washer without the strainer or a damaged strainer.

Transport

To move the machine use the top handle and roll the machine on the wheels.

To transport the unit up or down steps or over obstacles, it must be lifted by the top handle.

If the unit is is be stored or transported horizontally the detergent tank should be drained first.

After use storage

Clean the exterior of the machine thoroughly using a soft brush or cloth. Do not use water, solvents or polishes. Remove all debris, especially from the ventilation slots.

Frost will damage a pressure washer that has not been completely emptied of water. The machine should be stored in a frost free room.

Do not place other objects on top of the machine.

Ensure cables are not trapped when storing. Do not kink high pressure hose.

Fault Finding

The following table gives checks and actions that you can perform if your machine does not operate correctly. If these do not identify/remedy the problem, contact your service agent.

Warning: Switch off and remove plug from mains before investigating fault.

Symptom Possible Cause	Remedy
Motor refuses to start Plug	not connectedMains socket faultyFuse faulty/blownExtension cable damagedMotor protector has activatedFrozen	Connect plugUse another socketReplace fuseTry without extension cableAllow to cool for 5 minutesWait for pump/water supply hose/accessory to thaw
Motor stops Fuse faulty/blownWrong mains voltageMotor protector has activated		Replace fuseCheck that mains voltage corresponds to specifications on the model tagAllow to cool for 5 minutes
Fuses blow Fuses	incorrectly rated Change to a mains supply higher than the pressure washer amp consumption
Excessive working pressure	Nozzle partly blocked Clean nozzle
Pressure pulsating Air in the inlet water supply hose/pumpInadequate water supplyWater strainer blockedWater supply hoses squeezedHigh pressure hose too long		Allow pressure washer to run with open spray handle and nozzle at low pressure until regular working pressure is obtained.Check that the water supply corresponds to specifications. The minimum specification for the water supply hose is 1/2" or 13 mm diameter.Clean water strainerStraighten out kinked water supply hosesDismount high pressure extension hose. Retry (extension hose max. 7 m)
Pressure too low, but steadyNote: Several types of accessory will normally deliver a lower pressure	Nozzle wornStart/stop valve worn	Change the nozzleActivate trigger five time in quick succession
Motor starts up but no working pressure	No water supplyWater strainer clogged upNozzle clogged up	Connect water supplyClean the water strainerClean nozzle
The pressure washer starts irregularly by itself	Pump/power gun leaky Contact your Bosch Service Centre
Water leaks from machine	Leaking pump 6 drops per minute are permissible. In case of more serious leakage, you should contact your Bosch Service Centre.

Environmental Protection

Chemicals dangerous to the environment must not be allowed to enter the ground, ground water or ponds, streams, etc.

For the use of cleaning agents, observe the instructions on the package and the prescribed concentration exactly.

For the cleaning of motor vehicles the local regulations should be observed: Do not allow oil sprayed off to enter into the ground water. Recycle raw materials instead of waste disposal.

Disposal

Product, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of the product into household waste! According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national law, products that

are no longer suitable for use must be separately collected and sent for recovery in an environmentally-friendly manner.

Service

Exploded views and information on spare parts can be found under: www.bosch-pt.com

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham-Uxbridge

Middlesex UB 9 5HJ

Service....+44 (0) 18 95 / 83 87 82

Fax Service +44 (0) 18 95 / 83 87 89

©Advice line.... +44 (0) 18 95 / 83 87 91

Fax Advice....+44 (0) 18 95 / 83 87 93

Ireland

Beaver Distribution Ltd.

Greenhills Road

Tallaght-Dublin 24

© Service....+353 (0)1 / 45 15 211

Fax +353 (0)1 / 45 17 127

Malaysia

Robert Bosch (SEA.) Pte. Ltd.

No. 8a, Jalan 13/6

Selangor Darul Ehsan

Petaling Jaya 46200

Malaysia

① [phone]

Fax (EW Dept.) [phone]

www.bosch.com.sg

Australia

Robert Bosch Australia Ltd.

RBAU/SPT2

1555 Centre Road

P.O. Box 66 Clayton

3168 Clayton/Victoria

+61 (0)1 / 800 804 777

Fax +61 (0)1 / 800 819 520

www.bosch.com.au

E-Mail: [e-mail]

New Zealand

Robert Bosch Limited

14-16 Constellation Drive

Mairangi Bay

Auckland

New Zealand

Declaration of Conformity

Measured values determined according to 2000/14/EC (1 m distance away) and DIN 45 635.

Typically the A-weighted noise level of the product is: sound pressure level 77 dB (A); sound power level 90 dB (A).

The typical hand/arm vibration is below 2.5 m/s ² .

We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 60 335 according to the provisions of the directives 89/336/EEC, 98/37/EC, 2000/14/EC.

2000/14/EC: The guaranteed sound power level L_WA is lower than 92 dB (A). Conformity assessment procedure according to Annex V.

Leinfelden, 01.09.2004.

Dr. Egbert Schneider Dr. Eckerhard Strötgen

Senior Vice President Head of Product

Engineering Certification

ppa. Amania i.v. Moyen

Robert Bosch GmbH, Power Tools Division

Subject to change without notice

Robert Bosch France S.A.S.

Service Après-vente/Outillage

Senior Vice President Head of Product

Engineering Certification

ppa. Amana i.v. Moyen

Robert Bosch GmbH, Power Tools Division

Senior Vice President Head of Product

Engineering Certification

ppa. Alacca i.v. Mozyu

Robert Bosch GmbH, Power Tools Division

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. A##u i.v. Nu#yen

Robert Bosch GmbH, Power Tools Division

Senior Vice President Head of Product

Engineering Certification

ppa. Amana i.v. Moyen

Robert Bosch GmbH, Power Tools Division

Stap 1: Vuil losmaken

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. Abuca i.v. Moyen

Robert Bosch GmbH, Power Tools Division

Senior Vice President Head of Product

Engineering Certification

ppa. Alacca i.v. Muoyen

Robert Bosch GmbH, Power Tools Division

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. Mauca i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division

Senior Vice President Head of Product

Engineering Certification

ppa. A##u i.v. Nu#yen

Robert Bosch GmbH, Power Tools Division

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product

Engineering Certification

ppa. A##u a i.v. M#y##

Robert Bosch GmbH, Power Tools Division

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. Alaceta i.v. Wuzyen

Robert Bosch GmbH, Power Tools Division

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

① +90 (0)212 / 335 06 00

Faks ....+90 (0)212 / 346 00 48 - 49

Uygunluk beyani

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. Amata i.v. Wuzyu

Robert Bosch GmbH, Power Tools Division
