USER MANUAL A104 FRITEL

Exterior view of a modern kitchen electric oven with a side panel and whisker (no visible text or symbols)

A101

Modern kitchen electric oven with a glass bowl filled with fried food, placed on top (no visible text or symbols)

A102

Modern kitchen electric fryer with a glass bowl containing fried food, placed on a white stand (no visible text or symbols)

A103

Exterior view of a modern white square kitchen with two electric fans containing fried food, no visible text or symbols.

A104

GEBRUIKSAANWIJZING

MODE D'EMPLOI

USER MANUAL

GEBRAUCHSANWEISUNG

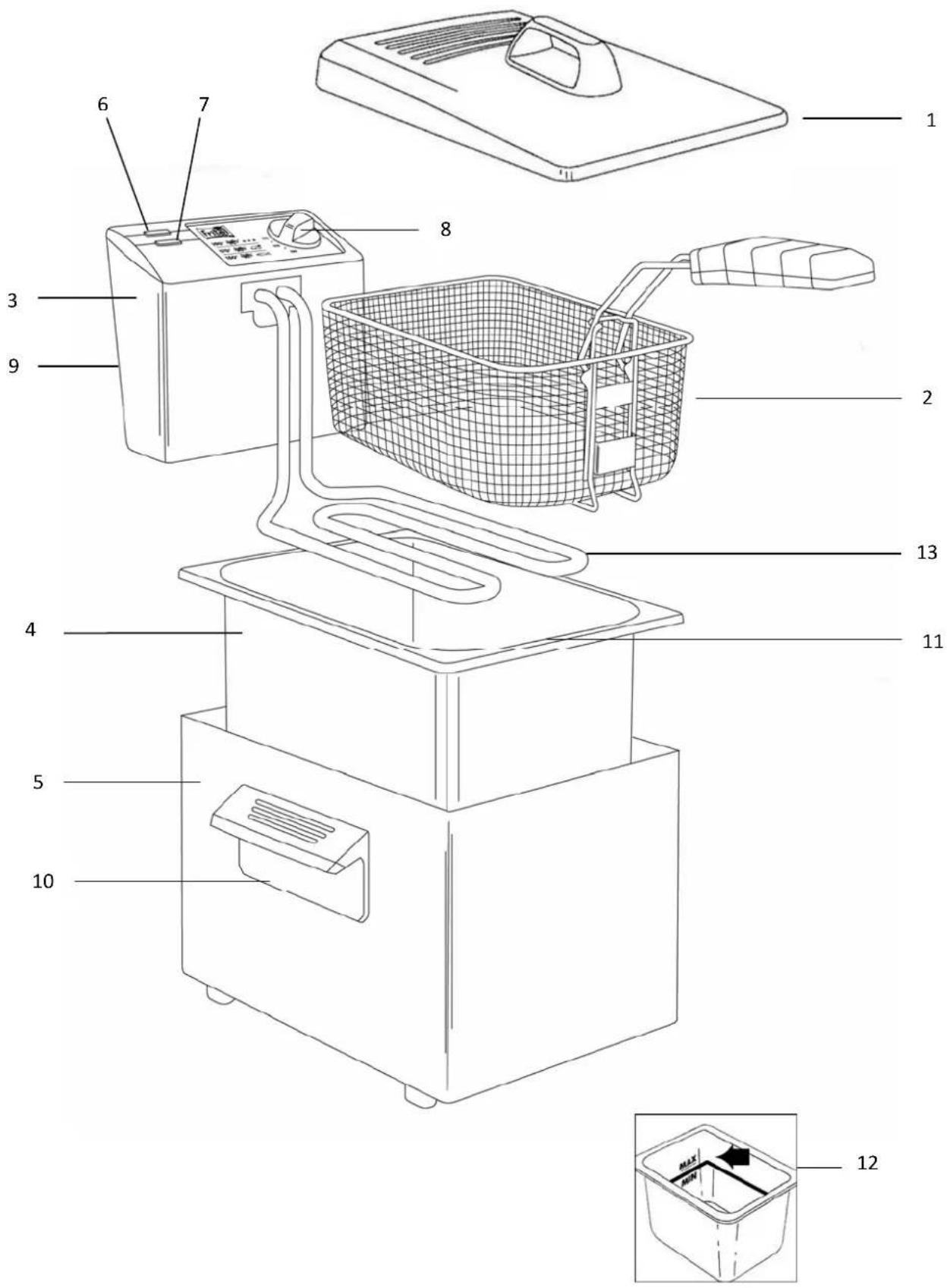

Technical diagram of a cooking appliance with numbered parts for identification and assembly reference.

BESCHRIJVING VAN HET TOESTEL	DESCRIPTION DE L’APPAREIL
1. Deksel2. Zeer grote korf met inklapbaar handvat3. Bedieningspancel4. Kuip5. Inox mantel6. Rood controlelampje7. Groen controlelampje8. Thermostaatknop9. Kabelvak en Reset knop10. Handvaten11.Haak voor de frituurkorf12.Olie/vet niveau indicator (min-max)13. VerwarmingselementDe fabrikant behoudt zich het recht voor om te allen tijde technische en andere wijzigingen aan te brengen.	1. Couvercle2. Très grand panier avec poignée escamotable3. Boîtier de commande4. Cuve5. Manteau en inox6. Lampe témoin rouge7. Lampe témoin verte8. Bouton de thermostat9. Compartiment de câble et bouton Reset10. Poignées11. Crochet pour le panier à frire12. Indicateur niveau d’huile/de graisse (min-max)13. Elément de chauffeLe fabricant se réserve à tout temps le droit d’apporter des modifications de type technique ou autre.
DESCRIPTION OF THE APPLIANCE	BESCHREIBUNG DES GERÄTES
1. Lid2. Very large basket with folding handles3. Control panel4. Bowl5. Stainless steel housing6. Red control lamp7. Green control lamp8. Thermostat button9. Cord storage and Reset button10. Handles11.Suspension hook for the frying basket12.Indicator for the oil/fat level (min-max)13.Heating elementThe manufacturer maintains the right to introduce technical and or other changes at any time.	1. Deckel2. Sehr großer Korb mit einklappendem Griff3. Bedienungsteil4. Topf5. Mantel aus Edelstahl6. Rote Kontrollampe7. Grüne Kontrolllampe8. Thermostatknopf9. Kabelfach und Reset Schalter10. Handgriffe11. Haken für den Fritierkorb12. Indikator für Öl/Fett Niveau (min-max)13. HeizelementDer Hersteller behält sich das Recht vor, am gerät technische oder andere Änderungen vorzunehmen.

Friteu® PROTECHYMPIN ANXIYMPIN FRESHMETHICS Anti-protective protein feedstock The green liquid was added to the enzyme, which is used in a chemical reaction. The enzyme was added to the enzyme.

V. NUTTIGE WENKEN BIJ STORINGEN

Congratulations! You just bought a high quality deep fryer that will guarantee you a lot of frying-fun. Please read the user manual carefully before you take the deep fryer into use. Save this manual carefully!

For further information and useful tips, we advise you to have a look at our website www.FRITEL.com.

All persons who have not read this user manual are not allowed to use this deep fryer.

Pay attention to the guarantee conditions!

I. SAFETY PRESCRIPTIONS

This deep fryer was built in accordance with the European CE-safety standards. As for all electrical household appliances all safety measures have to be taken, in order to prevent accidents and/or to avoid damages to your deep fryer.

- Only use the deep fryer with 230 V AC.

- In accordance with the legal safety standards, the deep fryer must always be plugged into an earthed socket.

- For your own safety, the deep fryer will only work if it has been assembled correctly (see point II). Check that all parts were correctly assembled.

- Only use the deep fryer for frying food.

- Only use the deep fryer for domestic purposes.

■ NEVER use the appliance outdoors.

- This appliance may be used by children of min. 8 years old, by persons with reduced physical, motor or mental capabilities or lack of experience and knowledge on condition that they are supervised and instructed to use the appliance in a safe way and understand the hazards involved. Children may not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

- NEVER leave the appliance unattended and NEVER move it when working.

■ NEVER place the power supply cord near heat sources such as cookers, heatings or ovens.

- ALWAYS place the appliance on a solid and flat base, such as a kitchen counter or table, so that the appliance won't move or turn over.

- NEVER place the appliance near curtains, wall decoration, clothing, towels or other inflammable objects.

- NEVER touch the hot surface of the deep fryer. Only touch the handles or the thermostat while the appliance is functioning.

- NEVER move the deep fryer when it is filled with hot oil or fat.

- The oil must be completely cooled off before folding in the handle or disassembling the deep fryer.

- After use remove the plug from the power point. Also make sure the appliance is unplugged when not in use, before cleaning and moving.

- NEVER pull the power cord, but only the plug. NEVER use extension cords or sockets. Place the appliance near a power point and connect it directly. ALWAYS completely unroll the power cord.

- NEVER turn the power cord around the deep fryer, NEVER bend it or squeeze it.

- NEVER let the cord hang over the edge of the table or the counter.

- NEVER use the appliance if it is damaged, fallen or shows a malfunction, or if the power cord or plug are damaged. In all these cases return the appliance to your sales point or authorized after sales service.

■ ALWAYS switch off the appliance and pull out the plug

* After use or when the appliance is not in use

* If the appliance doesn't work properly

* When cleaning the appliance

- NEVER immerse the control panel with heating element, power cord or plug in water or any other liquid.

They are only to be cleaned with a damp cloth. NEVER touch the power cord or plug with wet hands.

• NEVER use accessories or spare parts from other appliances or brands.
• Repairs may only be done by a recognized repairer or service center.

■ Remove all packagings and stickers.
■ Before using the deep fryer for the first time, clean the bowl and the basket (see point IV)
- Disassemble the deep fryer in this order: basket – control panel – bowl.
■ Clean the bowl and the basket
- Assemble the deep fryer in this order: bowl – control panel with heating element – basket
- !When placing the bowl back into the housing, the basket hook (inside bowl) must be positioned opposite to the control panel.
- Ensure that the voltage marked on the rating-plate is the same as your main voltage.

III. USE

1. Fill the bowl with oil or fat between the min MIN and MAX level.

! NEVER warm up the deep fryer without oil or with insufficient oil. If you do so, the deep fryer may get damaged permanently.

NEVER switch the deep fryer on before it is filled with enough oil or fat. NEVER leave water in the bowl when filling it with oil or fat. The oil must always be between MIN and MAX, otherwise the safety thermostat switches off.

We advise the use of frying oil. Should you nevertheless want to use fat, note this has some risks and you need to act cautiously!

First use

First melt the fat in a separate pan. When all the fat has melted, pour it into the fryer. Only then the fryer may be switched on. Turn the thermostat knob on the desired temperature. When the red control lamp switches off, the desired temperature is reached and the fryer is ready for use.

Following uses

A layer of fat covers the heating element in the bowl. Pierce the fat layer with the back of a spoon until you reach the heating element or the bottom of the bowl.

Gently turn the thermostat knob until you hear a ‘click’ and the red control lamp switches on. When the red control lamp switches off again, turn the thermostat knob again until you hear a ‘click’.

When the fat has completely melted, you can turn the thermostat knob to the desired temperature.

1. Before inserting the plug into the socket, first fold out the basket handle and suspend the basket on the hook. The green control lamp lights up.
2. Now turn the thermostat knob clockwise to the desired temperature. As soon as the selected temperature is reached, the red control lamp goes out and the fryer is ready for frying. When the oil temperature drops, the red control lamp will switch back on and will go out as soon as the selected temperature has been reached again.

3. Put the previously dried food in the basket (max. two third full). For an optimal frying result, we advise the following quantities:

4. Frozen French fries : Fill the basket max. 2/3

5. Fresh French fries : max. 150 gr./litre oil or per 900 gr. solid fat
6. Delicate dishes like croquettes, fish, ...: only cover the bottom of the bowl.

! Always remove all redundant icing-up in advance, again to avoid oil splashes.

! NEVER hang the basket, filled with frozen products above the oil as long as 130°C is not reached.

This causes dangerous splashes of the oil/fat.

1. Immerse the basket gently in the oil or fat to allow the water contained in the food to evaporate.

IMPORTANT: To avoid damage to the oil, NEVER add salt or spices during the frying. It's better not to

thaw out frozen portions, this way the quality will be much better.

1. Deep fryer with antidust lid : NEVER warm the deep fryer with the lid on + NEVER fry with the lid on Deep fryer with filter lid: frying with the lid on the fryer is allowed
2. After frying pull the basket up and suspend it on the hook.
3. Bring the thermostat knob back to the position of the lowest temperature and disconnect the plug. Allow complete cooling before emptying and cleaning the deep fryer. Only fold in the basket handle when the oil has completely cooled off. Put the cord into the cord case.

IV. MAINTENANCE

1. Remove the plug before disassembling the deep fryer. First remove the basket, then the control panel with heating element and the bowl. The microswitch automatically switches off the deep fryer when removing the control panel.
2. -NEVER immerse the control panel in water or any other liquid. Only clean it with a damp cloth.

-The housing and lid can be cleaned in the dishwasher or in hot water with detergent.

-The bowl is dishwasher proof. But we recommend to wash it by hand from time to time, as the shine could fade due to the aggressive detergents used in the dishwasher.

-We advise to clean the basket in hot water with detergent and a washing-up brush. NEVER let the basket soak in the water, as it could rust because of the aggressive detergents.

1. If you want to clean your deep fryer quickly, easily and safely, we advise you to use the FRITEL cleaner for fryers. Thanks to the FRITEL cleaner for fryers, this will all be done in no time. Fill the bowl of the deep fryer with warm water at +40°C and add about 10 caps of FRITEL cleaner for fryers. The product must soak in for +/- 20 minutes, then empty the bowl. Rinse thoroughly and wipe with a soft towel. The FRITEL cleaner for fryers contains natural enzymes. So it's environment-friendly, biodegradable and non-toxic. The FRITEL cleaner for fryers can be applied to all materials like stainless steel, synthetic, enamel, etc.

Fritel WATER FILTERS-AMBIQUES NETTANT POUR FRETUÈS BOUTER FRUITÉS WATER 500 ml

V. TROUBLE SHOOTING

Do not use the appliance, when damaged. First go through the following check-list:

1. The fuse blows :

- Let the deep fryer cool off first, then press the Reset button. The deep fryer is ready to be used again.

1. The deep fryer does not heat up :

- The safety thermostat is interrupted: Press the Reset button

1. The oil gives off smoke or boils over :

2. The oil/fat is old or degraded: Replace the oil/fat
   • The chosen temperature is too high : Choose a lower temperature

3. The fried food contains too much water or contains too much redundant ice.

4. The fried food is too greasy :

5. The oil/fat is old and degraded: Replace the oil/fat
   • The chosen temperature is too low : Choose a higher temperature

6. If the supply cord is damaged, immediately bring your deep fryer to your sales point.

7. If the supply cord is damaged, immediately bring your deep fryer to your sales point.

If you still haven't repaired the defect, please call your sales point.

The appliance has been developed for household use. For professional purposes, the conditions of

guarantee change. Any damage caused due to incorrect use (non-observance of this user manual) will cancel the guarantee.

VI. GUARANTEE CONDITIONS

Your guarantee starts on the day of purchase. Guarantee period: see packaging

• The guarantee covers every repair and / or replacement free of charge of the parts recognized defective by our technical department and for which the defects are caused by material-, contraction- or production defects.
• The guarantee is only valid for the original user.
• Carriage both ways is for the purchaser's account.

The guarantee only applies after submitting the purchasing invoice.

The guarantee does not apply in the following cases:

• Incorrect connection, e.g. electric voltages.
• Abnormal use, misuse handling or professional use.
• Lack of care.
• Modifications or repairs made to the appliance by persons not authorized by us as manufacturer.
• When reference numbers are altered or removed.
• When the instructions in this user manual are not followed.

VII. ENVIRONNEMENT

Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment.

VIII. LIABILITIES

All liabilities, towards both consumer(s) and third parties, which could result from not observing all the safety regulations prescribed in this user manual, can under no circumstances be charged to the manufacturer. In case of non observation of these safety regulations, the user of the appliance, or any other person not having observed these safety regulations, protects the manufacturer from all responsibilities that he could be charged with.

GB Frying time and temperature

Cooking temperatures and times in the table are approximate, and will vary according to the quantity of food being fried and to your individual tastes.

Potato dishes	Time	Temp.
French fries, pre fry	3 - 5 min.	150-170°C*
French fries, second fry	2 - 3 min.	190°C
Deep frozen French fries	2 - 4 min.	190°C
Potato chips/crisps	3 - 4 min.	190°C
Sweet dishes	Time	Temp.
Custard doughnuts, apple fritters	3 - 5 min.	190°C
Doughnuts	5 - 6 min.	190°C
*Frying temperature depends on the season and type of potatoes

Fish dishes	Time	Temp.
Filets of fish coated w. bread crumbs	3 - 4 min.	170°C
Sole	3 - 5 min.	180°C
Trout, cod	3 - 5 min.	180°C
Dishes coated w. bread crumbs	Time	Temp.
Potato croquettes	3 - 4 min.	190°C
Cheese croquettes	2 - 4 min.	190°C
Shrimp croquettes, Fish croquettes	3 - 4 min.	190°C
Meat balls	3 - 4 min.	190°C
