PSM1014 - Sander Ferm - Free user manual and instructions

Product type	Finishing sander
Brand	Ferm
Model	PSM1014
Mains voltage	230 V~
Mains frequency	50 Hz
Power	180 W
No-load speed	12 000 min⁻¹
Sanding surface (pad)	187 x 92 mm
Protection class	IP20
Weight	1.42 kg
Sound pressure (Lpa)	76 dB(A)
Sound power (Lwa)	90 dB(A)
Sound uncertainty (K)	3 dB(A)
Vibration	7.36 m/s²
Vibration uncertainty (K)	1.5 m/s²
Abrasive paper attachment	Hook-and-loop (Velcro) system or clamp attachment
Dust extraction connection	Yes, with adapter (ø 32 mm)
Switch	On/off with lock for continuous operation
Handle	Ergonomic handle
Compatible materials	Wood, metal, plastic, painted surfaces
Maintenance	Regular cleaning of the housing and ventilation slots
Safety	Double insulation, overload protection, locking device
Included accessories	Dust extraction adapter, abrasive paper (not specified)
Warranty	Full manufacturer warranty (see terms)

Frequently Asked Questions - PSM1014 Ferm

What type of sandpaper can I use on the Ferm PSM1014?

You can use abrasive paper with hook-and-loop (Velcro) system or clamp attachment. Ensure the perforations match those of the pad for optimal dust extraction.

How to replace the sandpaper on the PSM1014?

For hook-and-loop system: peel off the old paper and attach the new one aligning the perforations. For clamp system: open the clamps, insert the paper, fold the edges, and close the clamps.

How to connect a vacuum cleaner to the sander?

Insert the supplied extraction adapter into the dust extraction connection (6) then connect your vacuum cleaner hose to the adapter.

What is the rotation speed of the PSM1014?

The no-load speed is 12 000 min⁻¹.

What protective equipment should I wear?

Always wear safety glasses, hearing protection and a dust mask. Depending on the material, gloves and safety shoes may be necessary.

Can I use the sander on metal surfaces?

Yes, but be careful: remove nails and other metal objects from the workpiece. Use suitable abrasive paper and wear a mask to avoid inhaling metal particles.

How to clean the PSM1014 sander?

Unplug the tool before cleaning. Clean the housing with a soft cloth and dust the ventilation slots with a damp cloth if necessary. Clean the sanding pad regularly.

What is the power of the Ferm PSM1014 sander?

The rated power is 180 W.

Does the sander have a continuous operation mode?

Yes, press the on/off switch (1) and push the lock button (2) for continuous operation. Release the switch to stop.

What are the dimensions of the sanding pad?

The sanding pad measures 187 x 92 mm.

USER MANUAL PSM1014 Ferm

A

B

C

D

FINISHING SANDER PSM1024

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers.

All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty.

We hope you will enjoy using this product for many years to come.

SAFETY WARNINGS

WARNING

Read the enclosed safety warnings, the additional safety warnings and the instructions.

Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury.

Keep the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Risk of personal injury.

Risk of electric shock.

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Wear safety goggles. Wear hearing protection.

Wear a dust mask.

Double insulated.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

ADDITIONAL SAFETY WARNINGS FOR FINISHING SANDERS

Contact with or inhalation of dust coming free during use (e.g. lead-painted surfaces, wood and metal) can endanger your health and the health of bystanders. Always wear appropriate protective equipment, such as a dust mask. Always use proper dust extraction during use.

• Do not work materials containing asbestos. Asbestos is considered carcinogenic.
• Do not use the machine for sanding magnesium workpieces.
• Wear safety goggles, hearing protection and if necessary other protective means, such as safety gloves, safety shoes, etc.
• Be very careful when sanding painted surfaces.
• Before use, remove all nails and other metal objects from the workpiece.
• Make sure that the workpiece is properly supported or fixed.
• Only use sanding paper that is suitable for use with the machine.
• Only use sanding paper with the correct dimensions. Make sure that the sanding paper is properly mounted.
• Inspect the sanding paper before each use. Do not use sanding paper that is worn because of prolonged use.
• Never put the machine down on a table or a workbench before it has been switched off.

ELECTRICAL SAFETY

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.
• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5 mm^2 . If you use a extension cable reel, always fully unroll the cable.

Mains plug replacement (UK only)

If the moulded 3-pin plug attached to the unit is damaged and needs replacing, it is important that it is correctly destroyed and replaced by an approved BS 1363/3A fused plug and that the following wiring instructions are followed.

The wires in the mains cable are coloured in accordance with the following code:

blue neutral

brown live

As the colours of the wires in the mains cable of the unit may not correspond to the coloured markings identifying the terminals in the plug, proceed as follows:

- The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

- The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

TECHNICAL DATA
PSM1024

Mains voltage V~ 230
Mains frequency Hz 50
Power input W 180
No-load speed min	-1 12,000
Sanding surface mm 187 x 92
Protection class IP 20
Weight kg 1.42

NOISE AND VIBRATION

PSM1024
Sound pressure (Lpa)	dB(A)	76
Acoustic power (Lwa)	dB(A)	90
Uncertainty (K)	dB(A)	3
Vibration		m/s2	7.36
Uncertainty (K)	m/s	2	1.5

Wear hearing protection.

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

DESCRIPTION (FIG. A)

Your finishing sander has been designed for sanding wood, metal, plastics and painted surfaces.

1. On/off switch
2. Lock-on button

3. Sanding pad

4. Sanding paper clamp

5. Grip

6. Dust extraction connection

ASSEMBLY

Before assembly, always switch off the machine and remove the mains plug from the mains.

Mounting and removing the sanding paper (hook-and-loop system) (fig. B)

Mounting

- Mount sanding paper (7) with the required grain size onto the sanding pad (3). Make sure that the perforation in the sanding paper (7) corresponds with the perforation on the sanding pad (3).

Removing

- Remove the sanding paper (7) from the sanding pad (3).

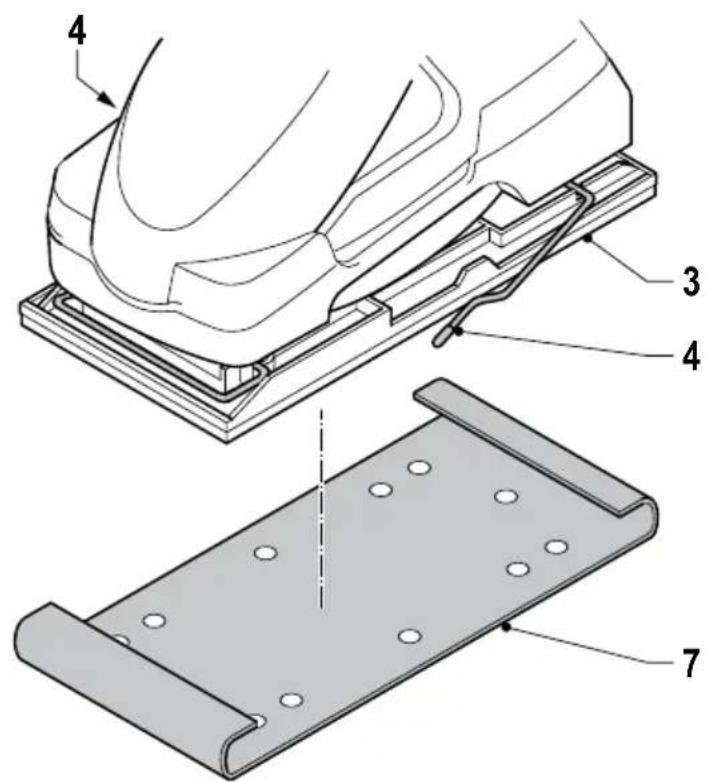

Mounting and removing the sanding paper (sanding paper clamps) (fig. C)

Mounting

• Open the sanding paper clamps (4).
• Mount sanding paper (7) with the required grain size onto the sanding pad (3). Make sure that the perforation in the sanding paper (7) corresponds with the perforation on the sanding pad (3).
• Fold the sanding paper (7) at both ends around the edges of the sanding pad (3).

- Close the sanding paper clamps (4) one by one. Make sure that the ends of the sanding paper (7) are clamped.

Removing

• Open the sanding paper clamps (4).
• Remove the sanding paper (7) from the sanding pad (3).
• Close the sanding paper clamps (4).

USE

Switching on and off (fig. A)

• To switch on the machine, press the on/off switch (1).
• To switch the machine to continuous mode, keep the on/off switch (1) pressed and simultaneously press the lock-on button (2).
• To switch off the machine, release the on/off switch (1).

Dust extraction (fig. D)

• Insert the dust extraction adapter (8) into the dust extraction connection (6).
• Connect the hose of a vacuum cleaner to the dust extraction adapter (8).

Hints for optimum use

• Clamp the workpiece.
  • Firmly hold the machine by the grip.
• Switch on the machine.
• Place the sanding pad with sanding paper on the workpiece.
• Slowly move the machine over the workpiece, firmly pressing the sanding pad against the workpiece.
• Do not apply too much pressure on the machine. Let the machine do the work.
• Switch off the machine and wait for the machine to come to a complete standstill before putting the machine down.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

• Regularly clean the housing with a soft cloth.
- Keep the ventilation slots free from dust and dirt. If necessary, use a soft, moist cloth to remove dust and dirt from the ventilation slots.
- Regularly clean the sanding pad to avoid inaccuracies during use.

Replacing the sanding paper (fig. B)

• To remove the old sanding paper (7), proceed as described in the section "Mounting and removing the sanding paper".
• To mount the new sanding paper (7), proceed as described in the section "Mounting and removing the sanding paper".

WARRANTY

Consult the enclosed warranty terms.

ENVIRONMENT

Disposal

The product, the accessories, and the packaging must be sorted for environmentally friendly recycling.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

VIBRATIONSSCHLEIFER PSM1024

BESCHRIJVING (FIG. A)

TECHNINIAI DUOMENYS
PSM1024

DECLARATION OF CONFORMITY

(GB) We declare under our sole responsibility that this product is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan, en in overeenstem ming is met, de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants:
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento:
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem:
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti:
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser:
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset:
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler:
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser:
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak:
(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami:

(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi:
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom:
(PL) Deklarujemy na własną odpowiedzialność, że tęprodukt spełnia wymogi zawarte w następujących normach i przepisach:
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka žemiau paminėtus standartus arba nuostatus:
(LV) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem:
(ET) Deklareerime meie ainuvastutusel, et see toode on vastavuses ja kooskõlas järgmiste standardite ja määrustega:
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive:
(HR) Izjavljujemo pod vlastitom odgovornol,šu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama:
(SR) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama:
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам:
(UK) На свою власну відповідальність заявляємо, що дане обладнання відповідає наступним стандартам і нормативам:
(EL) Δηλώνουμε υπεύθυνα ότι προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμο ύς και πρότυπα:
(BG) Ние заявяваме, по своя собствена отговорност, че този продукт отговаря на следните стандарти и директиви

EN 55014-1, EN 55014-2, EN 60745-1, EN 60745-2-4, EN 61000-3-2, EN 61000-3-3

2006/95/EC, 2004/108/EC, 2006/42/EC, 2002/96/EC, 2002/95/EC

Zwolle, 01-01-2011

I. Mönnink

CEO Ferm BV

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands

Spare parts list

Position	Description		No.
2	Dust adapter	400870
6	Switch	400871
8	Bearing 607ZZ	800607
11	Stator	400872
15	Carbon brush	400873
16	Rotor	400874
18	Bearing 627ZZ	800627
20	Bearing 6001ZZ	806001
21	Base plate	400875
23	Sanding foot	400876

Exploded view
