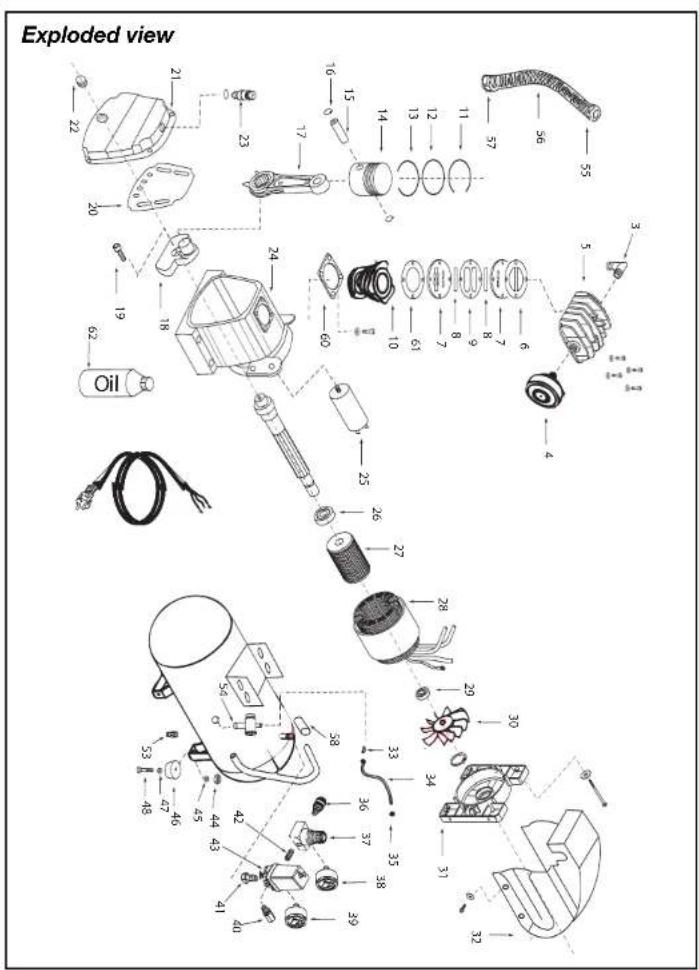

Exploded view 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Spare parts list FCO-1006

Ferm no. Description Position no.

700575 Knee coupling 3
700576 Air filter 4
700577 Cylinderhead 5
700563 Gasket set 6,9,60,61
700449 Valve assembly 7(2x),8(2x),9
700564 Cylinder 10
700565 Pistonrings (set) 11 till 13
700566 Piston complete 14,15,16(2x)
700567 Connecting rod	17
700570 Crank	18
700568 Carter gasket 20
700569 Carter cover	21
700475 Oil level indicator	22
700578 Oil filling cap	23
800025 Capacitor 25 uf	25
806203 Bearing 6203 zz		26
700572 Stator	28
806004 Bearing 6004 zz	29
700579 Fan		30
700451 Plastic cover	32
700574 Unloading pipe	33 till 35
205254 Quick coupler	36
208029 Reduce valve 37
700454 Reduce valve + manometer	36,37,38,42
CRA1005 Manometer 1/8" back		38
CRA1003 Manometer 1/4" backside		39
205915 Safety valve 1/4	40
700478 Connector auto-switch	41
205200 Double coupling 1/4'	42
700455 Automatic pressure switch	43
700458 Rubber foot	44 till 48
205888 Drain tap 1/4'	53
700580 Non-return valve	54
700581 Handle cover	58
700489 Bottle with oil (250ml)		62

COMPRESSOR OIL-BASED FCO-1006

The numbers in the following text correspond with the pitcures at page 2 - 3.

Carefully read this manual before using the machine. Make sure that you know how the machine functions and how to operate it. Maintain the machine in accordance with the instructions to make sure it functions properly. Keep this manual and the enclosed documentation with the machine.

Contents

1. Machine details
2. Safety instructions
3. Use
4. Faults
5. Maintenance

1. MACHINE DETAILS

Technical specifications

Voltage 230 V—

Frequency 50 Hz

Power 1.0 HP / 750 W

Idling speed 2850/min

IPClass IP 33

Tank contents 6.0 litre

Air intake 124 l/min

Max. outlet pressure

Weight

Sound power level

8.0 Bar

16.0 kg

95.0 dB (A)

The value of the noise level may rise from 1 to 10 dB(A) as a function of the environment in which the compressor will be installed.

Product information

Fig. 1

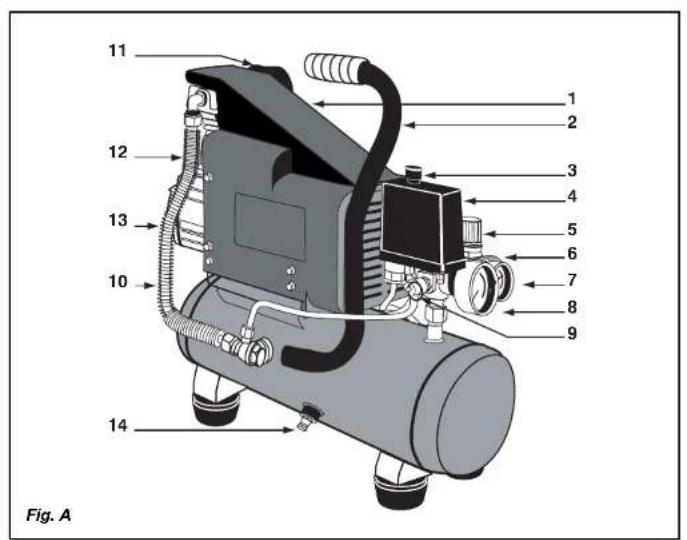

1 Cover
2. Handle
3. Switch
4. Automatic stop
5. Pressure regulator
6. Quick coupler (outlet)
7. Pressure gauge (pressure regulator)
8. Pressure gauge (tank)
9. Safety valve
10. Pressure pipe

1. Air filter
2. Oil cap
3. Sump
4. Drain cock

2.SAFETY INSTRUCTIONS

Explanation of symbols

The following symbols are used in these instructions for use:

Read the instructions.

In accordance with essential applicable safety standards of European directives.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Risk of electric shock.

Remove the plug from the mains

Attention: the compressor could start automatically in case of a black-out and subsequent reset

Caution: the compressor contains some parts with might reach high temperatures

Wear ear protection.

Sound power level

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Special safety instructions

• For proper operation of the machine with a full continuous load under maximum operating pressure, please make sure that the temperature of the working environment in an enclosed area is not more than +25°C.

• It is recommended to use the compressor with a maximum operation of 70% in one hour under full load, to allow for proper operation of the product over time.

• Check that the tank is fully decompressed before connections with the tank are unscrewed.

• It is prohibited to make holes in, or welds to, or purposely to distort the compressed air tank.
• Do not perform any actions on the compressor without first having taken the plug out of the plug socket.
• Do not aim water jets or jets of flammable liquids at the compressor.
• Do not place flammable objects near the compressor.
• Switch the pressure regulator to the "0" position (OFF = uit) during dwell time.
• Never aim the air jet at persons or animals (fig. 20).
• Do not transport the compressor with the tank pressurised.
• N.B.: some parts of the compressor such as the head and the feed-through pipes may reach high temperatures. Do not touch these parts to avoid burns (fig. 12-13).
• Transport the compressor by lifting it or by using the special grips or handles (fig. 5-6).
• Children and animals should be kept far away from the area of operation of the machine.
• If you use the compressor to spray paint:

a) Do not work in enclosed spaces or near naked flames.

b) Make sure that the environment in which you will be working has dedicated ventilation.

c) Protect your nose and mouth with a dedicated mask (fig. 21).

• Do not use the compressor when the electrical cable or the plug is damaged, and instruct an authorised Support Service to replace them with an original part.
• When the compressor is placed on a surface higher than the floor, it should be secured to prevent it from falling down during operation.
• Do not put objects or your hands in the protective covers to avoid physical damage and damage to the compressor.
• Do not use the compressor as a blunt instrument against persons, objects or animals in order to prevent serious damage.
• If the compressor is no longer in use, always take the plug out of the plug socket.
• Always make sure that compressed-air hoses are used for compressed air and which are characterised by a maximum pressure adjusted to that of the compressor. Do not try to repair the hose if it is damaged.

Electrical safety

Earthing regulations

This compressor has to be earthed while in use in order to protect the operator against electrical shocks. The compressor is provided with a two-core cable plus an earth. The electrical connection has to be made by a qualified technician. We recommend never disassembling the compressor and neither making any other connections into the pressure regulator. Repairs should be carried out by authorised Support Services or by other qualified centres.

Never forget that the earthing core is the green or the yellow/green wire. Never connect this green wire to a terminal under load.

Before replacing the plug of the feed, make sure that the earth cable is connected. If in doubt, please call in a qualified electrician and have the earthing checked.

CE KONFORMITETSERKLÆRING (DK)

Only use an extension cable with a plug and earth, so never use damaged or flattened extension cables. Check whether the extension cable is in a good condition. For this device the extension cable should have a diameter of at least 2.5 m (this applies to a maximum length of 20 metres). Always unroll extension cables fully before using them.

Electrical connection

Always check whether the input voltage of the motor corresponds to the mains voltage indicated on the specification plate. The compressors are supplied with an electrical cable and a two-pole plug + earth. It is important to connect the compressor with an earthed plug socket. (fig. 9)

Never use the earth-wire instead of the neutral (0-wire). The earthing should take place in accordance with accident prevention regulations (EN 60204).

3. USE

For homehold use only

NB: The information you will find in this manual has been written to assist the operator in the use and maintenance of the compressor. Some illustrations in this manual show details which may differ from those of your compressor.

Installation

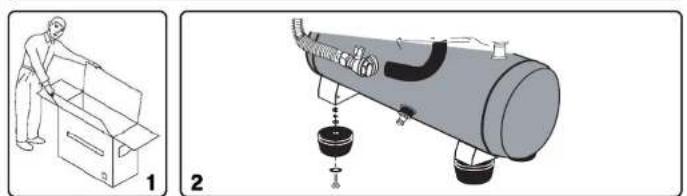

After having taken the compressor out of its packaging (fig. 1) and having checked that it is in perfect condition, and having noted that no damage occurred during transport, the following acts should be performed. If not yet fitted, fit the rubber feet on the tank according to the instructions represented in fig. 2. Place the compressor on a flat surface or at a maximum slope of 10^ (fig.3), in a well ventilated area, protected against atmospheric factors and not in explosive surroundings. If the surface area is sloping and smooth, make sure that the compressor will not move when in operation. If the surface area is a board or a shelf of a bookcase, just make sure that they cannot fall down by securing them properly. For proper ventilation and effective cooling, it is important that the compressor is positioned at least 100 cm from the wall (fig. 4).

Make sure that the compressor is transported in the right way, do not turn it upside down and don't lift it with hooks or ropes (fig. 5-6).

Important! Before commissioning

Remove the plastic cap from the sump lid. Fill the sump with the oil supplied. The gauge at the bottom of the sump indicates the oil level: this should now be level with the red dot (fig. 7 and 8).

Starting up

• Check whether the mains voltage corresponds to that indicated on the electrical specification plate (fig. 10), the permitted tolerance range should be within 5% .
• Press the switch situated on the upper part into the "0" position according to the pressure regulator type fitted on the device (fig. 11).
• Put the plug in the plug socket (fig. 9) and start the compressor up by putting the switch of the pressure regulator in the 'I' position. The operation of the compressor is fully automatic. The pressure regulator will stop the compressor when the maximum value has been reached and start it up when the pressure drops below the minimum value. Normally the difference in pressure is approx. 2 Bar/29 psi between the maximum and the minimum value. For instance - The compressor will stop when it reaches 8 Bar (116 psi) (this is the maximum operating pressure) and will start up automatically when the pressure within the tank has dropped to 6 Bar (87 psi).

The head/cylinder/transmission pipe assembly may reach high temperatures, so take care when working close to these parts and do not touch them to avoid burns (fig. 12 - 13).

Adjusting the operating pressure

Fig. 14

It is not necessary continuously to use the maximum operating pressure, the compressed-air tools often require less pressure. With regard to compressors supplied with a pressure reduction valve it is necessary to set the operating pressure properly. It is possible to set the operating pressure by using the turning knob on the reduction valve.

• By turning clockwise, the pressure will be increased.
• By turning anti-clockwise, the pressurewill be reduced.

The set pressure can be locked by turning the ring under the turning knob in the opposite direction from the turning knob thereby fixing the turning knob. The set pressure is visible on the manometer of the reduction valve.

4.FAULTS

Air loss

• May be caused by a poor seal of a connection.
• Check all connections by wetting them with soap and water.

The compressor runs but does not compress

Fig. 19

• May be caused by the valves (C-C2) or a gasket (B1-B2) being broken.
• Replace the damaged part.

The compressor will not start

If the compressor is difficult to start, check:

- whether the voltage of the mains corresponds to that on the specification plate (fig. 10)

The compressor does not shut off

If the compressor does not shut off when the maximum pressure has been reached, the safety valve of the tank will be activated. It is necessary to contact the nearest authorised Support Service for the repair.

5.MAINTENANCE

Maintenance

Make sure that the plug is removed from the mains when carrying out maintenance work on the motor.

The Ferm machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning. Beforeinterfering in any way whatsoever with the compressor, please make surethat:
- The general line switch is in the "0" position.
- The pressure regulator and the switches on the switch board are switched off in the "0" position.
• The air tank is fully decompressed.

Cleaning

Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Lubrication

It is recommended to disassemble the suction filter every 50 operating hours and to clean the filter element by blowing it with compressed air (fig. 15). It is recommended that the filter element is replaced at least once a year if the compressor is working in a clean environment; more often if the environment in which the compressor is situated is dusty. The compressor makes condensed water which collects in the tank. It is necessary to remove the condensed water in the tank at least once a week by opening the drain cock (fig. 16) under the tank. Take carewhen compressed air is in the bottle because the water can come out with some force. Recommended pressuremax. 1-2 Bar.

The condensed water of the oil lubricated compressor should not be disposed of in the sewers or be disposed of in the environment because it contains oil.

Replacing/topping up oil

The compressor has been supplied with synthetic oil "SAE 10W30". It is recommend to fully replace the oil of the pump system within the first 100 operating hours.

• Unscrew the drain plug (gauge) on the sump lid, let all the oil run out and screw back the plug (fig. 17).
• Fill the oil via the upper hole of the sump lid (fig.18) until the level indicated on the gauge (fig. 8) has been reached.

Check the oil level of the pump system every week and if necessary top up. For operation under ambient temperatures of -5^ to +35^ use synthetic oil “SAE 10W30”. The synthetic oil has the advantage that it does not lose its characteristics, either in summer or in winter periods.

You should not dispose of the used oil in the sewer or in the environment.

Forreplacement of oil the table below should be adhered to.

Oil type Operating hours

Multigrade oil SAE 10W30 100 or 6 months

Faults

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. In the back of this manual you find an exploded view showing the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Warranty

The warranty conditions can be found on the separately enclosed warranty card.

CE DECLARATION OF CONFORMITY (GB)

We declare under our sole responsibility that this product conforms with the following standards or standardised documents:

EN1021-1, EN60204-1, EN60335-1

in accordance with regulations:

98/37/EEC, 73/23/EEC, 89/336/EEC, 87/404/EEC, 2000/14/EEC

from 01-01-2006

ZWOLLE NL

W. Kamphof

Quality department

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM Zwolle • The Netherlands

KOMPRESSOR ÖLGESCHMIERT FCO-1006

CE ERKLÆRING AV ANSVARSFORHOLD (N)

98/37/ETY, 73/23/ETY, 89/336/ETY, 87/404/ETY

Voimassa 01-01-2006

ZWOLLE NL

W.Kamphof

Laadunvalvontaosasto

CE DÉCLARATION DE CONFORMITÉ (F)

98/37/CEE, 73/23/CEE, 89/336/CEE, 87/404/EEC

dès 01-01-2006

ZWOLLE NL

W. Kamphof

Quality department

98/37/CEE, 73/23/CEE, 89/336/CEE, 87/404/EEC

del 01-01-2006

ZWOLLE NL

W. Kamphof

Quality department
