USER MANUAL CoolFreeze CFX 65 WAECO

WAECO WRECO CFX 28 CFX 35 CFX 40 CFX 50 CFX 65, CFX 65 DZ

CoolFreeze CFX28, CFX35, CFX40, CFX50, CFX65, CFX65DZ

Technical diagram of an electronic device with labeled parts including a fuse, plug, and socket connection.

CFX28, CFX35, CFX40 CFX50, CFX65, CFX65DZ

3 1 3 4 5 6 72 SET -15°C - +

4

1 100-240V~AC 2 3 12/24V~DC

5

NORMAL USE 1 EMERGENCY OVERRIDE 2

6

Technical diagram showing three labeled components (A, B, C) of a mechanical device with an open lid and internal gear assembly.

CFX50, CFX65, CFX65DZ

Technical line drawing of a mechanical device with open lid and internal compartments (no text or symbols)

8 1 2

9 123 4 5 6 10 1. 2. 3.

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it.

The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

Contents

1 Explanation of symbols....28
2 Safety instructions....29
2.1 General safety 29
3 Scope of delivery....31
4 Accessories 31
5 Intended use....32
6 Function description 33
6.1 Scope of functions 33
6.2 Operating and display elements 34
7 Operation 35
7.1 Before initial use 35
7.2 Energy saving tips 36
7.3 Connecting the cooler 36
7.4 Using the battery monitor 37
7.5 Using the cooler 39
7.6 Setting the temperature 40
7.7 Using the emergency switch (where fitted) 41
7.8 USB port for power supply 41
7.9 Switching off the cooler 41
7.10 Defrosting the cooler 42
7.11 Replacing the device fuse 42
7.12 Replacing the plug fuse (12/24 V) 43
7.13 Replacing the light PCB 43
8 Cleaning and maintenance 44
9 Guarantee 44
10 Troubleshooting....45

11 Disposal 46

12 Technical data 46

1 Explanation of symbols

DANGER!

Safety instruction: Failure to observe this instruction will cause fatal or serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

▶ Action: This symbol indicates that action is required on your part. The required action is described step-by-step.

√This symbol describes the result of an action.

Fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3.

2 Safety instructions

2.1 General safety

DANGER!

- On boats: If the appliance is powered by the mains, ensure that the power supply has a residual current circuit breaker.

WARNING!

• Do not operate the device if it is visibly damaged.
• If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
• This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
• This device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the device safely and are aware of the resulting risks.
• Cleaning and user maintenance must not be carried out by children without supervision.
  ● Children must not play with the device.
  ● Children must be supervised to ensure that they do not play with the device.
  ● Always keep and use the device out of the reach of children under the age of 8 years.
• Do not store any explosive substances such as spray cans with a flammable propellant in the device.

CAUTION!

- Disconnect the device from the mains – before each cleaning and maintenance – after every use

- Food may only be stored in its original packaging or in suitable containers.

NOTICE!

• Check that the voltage specification on the type plate corresponds to that of the energy supply.
  ● Only connect the device as follows:

• With the DC cable to a DC plug socket in the vehicle (e. g. cigarette lighter)

• Or with the 230 V connection cable to the 230 V AC mains supply

● Never pull the plug out of the socket by the cable.
- If the cooler is connected to the DC socket: Disconnect the cooler and other power consuming devices from the battery before connecting the quick charging device.
- If the cooler is connected to the DC socket: Disconnect the cooler or switch it off when you turn off the engine. Otherwise you may discharge the battery.
- The cooling device is not suitable for transporting caustic materials or materials containing solvents.

2.2 Operating the device safely

DANGER!

- Do not touch exposed cables with your bare hands. This especially applies when operating the device with an AC mains power supply.

CAUTION!

- Before starting the device, ensure that the power supply line and the plug are dry.

NOTICE!

• Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose.
• Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
  ● Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.

● Ensure that the ventilation openings are not covered.

• Do not fill the inner container with ice or fluid.
  ● Never immerse the device in water.
• Protect the device and the cable against heat and moisture.

3 Scope of delivery

The scope of delivery is shown in fig. 1, page 3.

Item Quantity Description
1 1 Cooler
2	1	Connection cable for 12/24 V--- connection
3	1	Connection cable for 100 – 240 V~ connection
– 1 Operating manual

4 Accessories

Available as accessory (not included in scope of delivery):

Designation Item no. Model
Universal fixing kit (belt system) CFX-UFK 9105304041 suits all models
Quick release fixing kit CFX-QFK	9105306218 CFX28 only
Wireless display CFX-WD	9105304042 suits all models

5 Intended use

The cooler is suitable for cooling and freezing foods. The device is also suitable for use on boats.

The device is designed to be operated from a 12 V== or 24 V== onboard supply socket of a vehicle (e. g. cigarette lighter), boat or caravan as well as from a 100 – 240 V AC mains.

The cooling device is intended to be used in household and similar applications such as

● staff kitchen areas in shops, offices and other working environments
- farm houses
- clients in hotels, motels and other residential type environments
● bed and breakfast type environments
● catering and similar non-retail applications

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool.

6 Function description

The cooler can chill products, keep them cool as well as freeze them. A low maintenance refrigerant circuit with compressor provides the cooling. The generous insulation and powerful compressor ensure efficient and fast cooling.

The cooler is portable.

The cooler can withstand a constant heel (inclination) of 30^ , for example when used on boats.

6.1 Scope of functions

● Power supply with priority circuit for connecting to the AC mains
● Three-level battery monitor to protect the vehicle battery
- Display with temperature gauge in °C and °F switches off automatically at low battery voltage
● Temperature setting: With two buttons in steps of 1 °C (2 °F)
- Foldable carrying handles
- USB port for power supply
● Emergency switch (where fitted)
● Removable wire basket

6.2 Operating and display elements

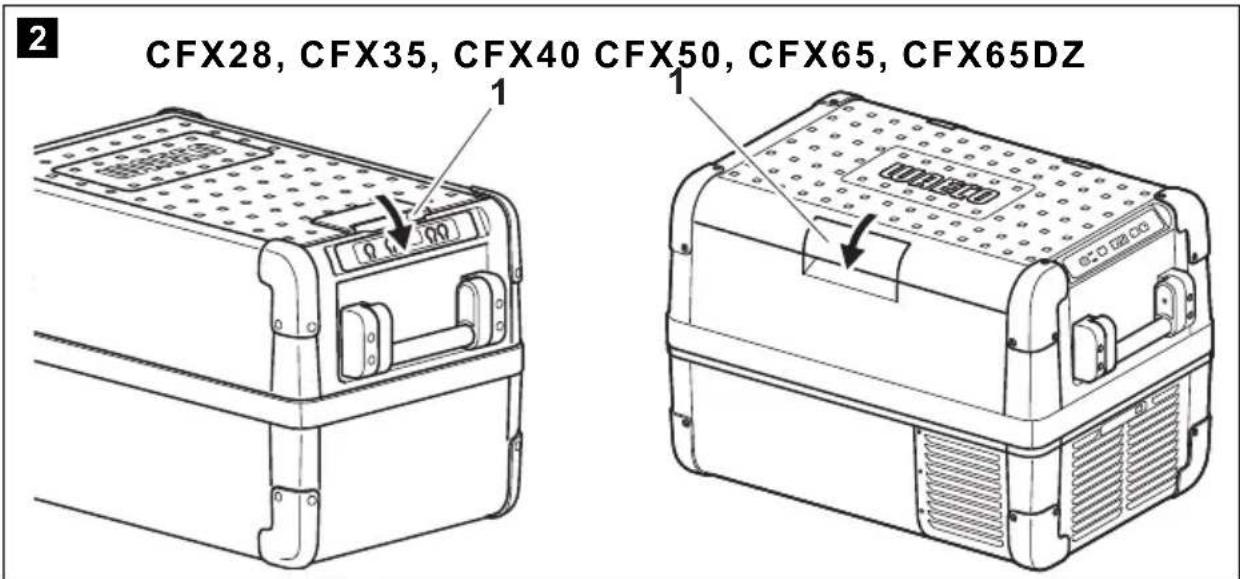

Latch for lid: fig. 2 1, page 3

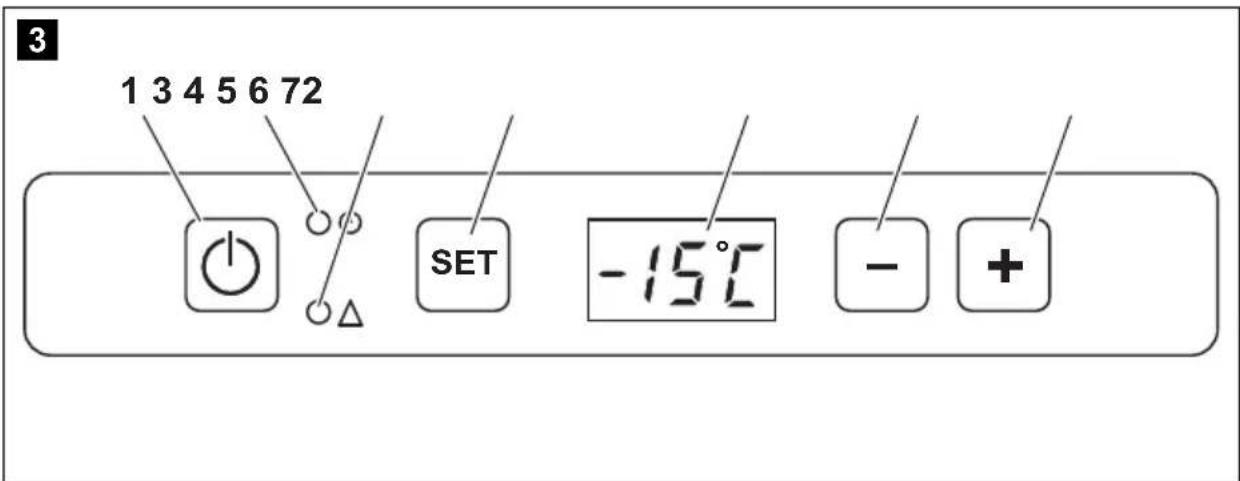

Operating panel (fig. 3, page 3)

Item Description Explanation
1	ON	Switches the cooler on or off when the button is pressed for between one and two seconds
	OFF
2	POWER “ ° ”	Status indication
		LED lights up green: Compressor is on
		LED lights up orange: Compressor is off
		LED flashes orange: display switched off automatically due to low battery voltage
3	ERROR LED flashes red: Device is switched on but not ready for operation
4	SET Selects the input mode– Temperature setting– Celsius or Fahrenheit display– Set battery monitor
5 –	Display, shows the information
6	DOWN –	Press once to decrease the value
7	UP +	Press once to increase the value

Connection sockets (fig. 4, page 4)

Item Description

1 Connection socket AC voltage supply

2 Fuse holder

3 Connection socket DC voltage supply

Emergency switch (when fitted) and USB port (fig. 5, page 4)

Item Description

1 Emergency switch
2 USB port for power supply

7 Operation

7.1 Before initial use

NOTE

Before starting your new cooler for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 44).

Reversing the lid opening direction

CFX50, CFX65, CFX65DZ

The lid hinges can be moved to the opposite side if you want to open the lid from the opposite direction. To do this, proceed as follows:

▶ Open the lid and remove it (fig. 6 A, page 4).
▶ Remove 3 screws per hinge (fig. 6 B, page 4) and take off hinges.
▶Remove plastic covers from new hinge positions with a small screwdriver and re-fit to old hinge positions.
▶Re-fit hinges in new positions.
▶ Insert the lid in the hinges on the opposite side (fig. 6 C, page 4).

Selecting the temperature units

Temperature display units can be switched between Celsius and Fahrenheit as follows:

▶Switch on the cooler.
▶ Press the "SET" button (fig. 3 4, page 3) twice.
▶ Use the “UP +” (fig. 3 7, page 3) or “DOWN -” (fig. 3 6, page 3) buttons to select Celsius or Fahrenheit.
√The selected temperature units then appear in the display for a few seconds. The display flashes several times before it returns to the current temperature.

7.2 Energy saving tips

• Choose a well ventilated installation location which is protected against direct sunlight.
• Allow warm food to cool down first before placing it in the device to keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooler unit open for longer than necessary.
  ● Defrost the cooler once a layer of ice forms.
• Avoid unnecessarily low temperatures.

7.3 Connecting the cooler

Connecting to a battery (Vehicle or boat)

The cooler can be operated with 12 V or 24 V==.

NOTICE! Danger of damage!

Disconnect the cooler and other consumer units from the battery before you connect the battery to a quick charging device.

Overvoltage can damage the electronics of the device.

For safety reasons the cooler is equipped with an electronic system to prevent the polarity reversal. This protects the cooler against short-circuiting when connecting to a battery.

▶ Plug the 12/24 V connection cable (fig. 1 2, page 3) into the device DC voltage socket and also into a 12 V or 24 V cigarette lighter socket.

Connecting to a 100–240 V AC mains (E.g. in the home or office)

DANGER! Danger of electrocution!

• Never handle plugs and switches with wet hands or if you are standing on a wet surface.
• If you are operating your cooler on board a boat from a mains connection of 100–240 V\~, you must install a residual current circuit breaker between the 100–240 V\~ mains and the cooler.
  Seek advice from a trained technician.

The coolers have an integrated multi-voltage power supply with priority circuit for connecting to an AC voltage source of 100–240 V. The priority circuit automatically switches the cooler to mains operation, if the device is connected to a 100–240 V AC mains, even if the 12/24 V connection cable is still attached.

▶ Plug the 100–240 V connection cable (fig. 1 3, page 3) into the device AC voltage socket and connect it to the 100–240 V AC voltage mains.

7.4 Using the battery monitor

The device is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the device is connected to the on-board 12/24 V supply.

If the cooler is operated when the vehicle ignition is switched off, the cooler switches off automatically as soon as the supply voltage falls below a set level. The cooler will switch back on once the battery has been recharged to the restart voltage level.

NOTICE! Danger of damage!

When switched off by the battery monitor, the battery will no longer be fully charged. Avoid starting repeatedly or operating current consumers without longer charging phases. Ensure that the battery is recharged.

In “HIGH” mode, the battery monitor responds faster than at the levels “LOW” and “MED” (see the following table).

Battery monitor mode LOW MED HIGH
Switch-off voltage at 12 V	10.1 V	11.4 V	11.8 V
Restartvoltage at 12 V	11.1 V	12.2 V	12.6 V
Switch-off voltage at 24 V	21.5 V	24.1 V	24.6 V
Restart voltage at 24 V	23.0 V	25.3 V	26.2 V

The battery monitor mode can be selected as follows:

▶Switch on the cooler.
▶ Press the "SET" button (fig. 3 4, page 3) three times.
▶ Use the “UP +” (fig. 3 7, page 3) or “DOWN -” (fig. 3 6, page 3) buttons to select the battery monitor mode.
√Digital display will be as follows: Lo (LOW), Nd (MED), Hi (HIGH)
√The selected mode then appears in the display for a few seconds. The display flashes several times before it returns to the current temperature.

NOTE

When the cooler is supplied by the starter battery, select the battery monitor mode "HIGH". If the cooler is connected to a supply battery, the battery monitor mode "LOW" will suffice.

7.5 Using the cooler

NOTICE! Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the heat that generated during operation can dissipate. Ensure that the ventilation slots are not covered. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.

▶Place the cooler on a firm foundation.

Make sure that the ventilation slots are not covered and that the heated air can dissipate.

NOTE

Place the cooler as shown (fig. 1, page 3). If you operate the box in a different orientation it can be damaged.

▶ Connect the cooler, see chapter “Connecting the cooler” on page 36.

NOTICE! Danger from excessively low temperature!

Ensure that the only those objects are placed in the cooler that are intended to be cooled at the selected temperature.

▶ Press the “ON/OFF” button (fig. 3 1, page 3) for between one and two seconds.

√ The LED "⏻" lights up (fig. 3 2, page 3).

√ The display (fig. 3 5, page 3) switches on and shows the current cooling temperature.

CAUTION! Health hazard!

CFX65DZ:

If the temperature in the freezer compartment (fig. 8 1, page 5) is very low ( -22 ^ ), the temperature range in the cooling department (fig. 8 2, page 5) can be below freezing as well.

NOTE

Displayed temperature

● CFX28, CFX35, CFX40, CFX50, CFX65:

The temperature displayed is that of the large interior compartment (e.g. CFX50, CFX65: fig. 7 1, page 5).

- CFX65DZ:

• With fridge/freezer divider in: The temperature displayed is that of the freezer compartment (fig. 8 1, page 5).
• With fridge/freezer divider out: The actual compartment temperature will be considerably warmer than the displayed temperature

√The cooler starts cooling the interior.

NOTE

When operating with the battery, the display switches off automatically if the battery voltage is low. The LED “⏻” flashes orange.

Latching the cooler lid

▶Close the lid.
▶ Press the latch (fig. 2 1, page 3) down, until it latches in place audibly.

7.6 Setting the temperature

▶ Press the "SET" button (fig. 3 4, page 3) once.
▶ Use the “UP +” (fig. 3 7, page 3) and “DOWN -” (fig. 3 6, page 3) buttons to select the cooling temperature.
√ The cooling temperature appears in the display for a few seconds. The display flashes several times and then the current temperature is displayed again.

7.7 Using the emergency switch (where fitted)

The emergency switch (fig. 5 1, page 4) is located below the control panel on all models except CFX28 where it is located above the power inlet sockets. For normal operation the switch is in the “NORMAL USE” position.

▶If an electronic control failure occurs, slide the switch to “EMERGENCY OVERRIDE” position

NOTE

If the switch is in the “EMERGENCY OVERRIDE” position, the cooler runs with full cooling capacity and may freeze.

7.8 USB port for power supply

USB port allows you to charge small devices like mobile phones and mp3-players.

To use your cooling box with any USB devices, simply connect a USB cable (not included) to your device.

NOTE

Ensure that any small device connected to the USB port is compatible with 5 V/500 mA operation.

7.9 Switching off the cooler

▶Empty the cooler.
▶Switch the cooler off.
▶Pull out the connection cable.

If you do not want to use the cooler for a longer period of time:

▶Leave the cover slightly open. This prevents odour build-up.

7.10 Defrosting the cooler

Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity. Defrost the device in good time to avoid this.

NOTICE! Danger of damage!

Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.

To defrost the cooler, proceed as follows:

▶Take out the contents of the cooling device.
▶If necessary, place them in another cooling device to keep them cool.
▶Switch off the device.
▶Leave the lid open.
▶Wipe off the defrosted water.

7.11 Replacing the device fuse

DANGER! Danger of electrocution!

Disconnect the power supply and the connection cable before you replace the device fuse.

▶Disconnect the power supply to the device.
▶Pull off the connection cable.
▶ Pry out the fuse insert (fig. 4 2, page 4) with a screwdriver.
▶ Replace the defective glass fuse with a new one that has the same rating (4A 250V).
▶Press the fuse insert back into the housing.
▶Reconnect the power supply to the device.

7.12 Replacing the plug fuse (12/24 V)

▶ Pull the adapter sleeve (fig. 9 4, page 5) off of the plug.
▶ Unscrew the screw (fig. 9 5, page 5) out of the upper half of the housing (fig. 9 6, page 5).
▶ Carefully lift the upper half of the housing off from the lower (fig. 9 1, page 5) half.
▶ Take out the contact pin (fig. 9 3, page 5).
▶ Replace the defective fuse (fig. 9 2, page 5) with a new fuse that has the same rating (10 A).
▶Re-assemble the plug in the reverse order.

7.13 Replacing the light PCB

▶Disconnect the power supply to the device.
▶ Pry out the transparent cover with a screwdriver (fig. 10 1, page 5).
▶ Unscrew the PCB mounting screws (fig. 10 2, page 5).
▶ Pull out the plug from the PCB (fig. 10 3, page 5).
▶Replace the defective light PCB with a new one.
▶Fit new PCB using reverse of removal instructions.
▶Press the transparent cover back into the housing.
▶Reconnect the power supply to the device.

8 Cleaning and maintenance

WARNING!

Always disconnect the device from the mains before you clean and service it.

NOTICE! Risk of damage

● Never clean the cooler under running water or in dish water.
- Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

▶Occasionally clean the device interior and exterior with a damp cloth.
▶Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.

9 Guarantee

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and guarantee processing, please include the following documents when you send in the device:

● A copy of the receipt with purchasing date
● A reason for the claim or description of the fault

10 Troubleshooting

Fault Possible cause Suggested remedy

Device does not function, LED does not glow.	There is no voltage present in the 12/24 V socket (cigarette lighter) in your vehicle.	The ignition must be switched on in most vehicles to apply current to the cigarette lighter.
	No voltage present in the AC voltage socket.	Try using another plug socket.
	The device fuse is defective.	Replace the device fuse, see chapter “Replacing the device fuse” on page 42.
	The integrated mains adapter is defective.	This can only be repaired by an authorised repair centre.
The device does not cool (plug is inserted, “POWER” LED is lit).	Defective compressor. This can only be repaired by an authorised customer services unit.
The device does not cool (plug is inserted, “POWER” LED flashes orange, display is switched off).	Battery voltage is too low.	Test the battery and charge it as needed.
When operating from the 12/24-V socket (cigarette lighter): The ignition is on and the device is not working and the LED is not lit.Pull the plug out of the socket and make the following checks.	The cigarette lighter socket is dirty. This results in a poor electrical contact.	If the plug of your cooler becomes very warm in the cigarette lighter socket, either the lighter socket must be cleaned or the plug has not been assembled correctly.
	The fuse of the 12/24 V plug has blown.	Replace the fuse (10 A) in the 12/24 V plug, see chapter “Replacing the plug fuse (12/24 V)” on page 43.
	The vehicle fuse has blown.	Replace the vehicle’s 12/24 V socket fuse (usually 15 A). Please refer to your vehicle’s operating manual.
The display shows an error message (e.g. “Err1”) and the appliance does not cool.	The appliance has switched off due to an internal fault.	This can only be repaired by an authorised repair centre.

11 Disposal

▶Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

12 Technical data

	CFX28 CFX35 CFX40
Item no. 9105305970 91	05304047 9105304048
Connection voltage:	12/24 V--- and 100-240 V~
Rated current:	12 V---: 6.5 A24 V---: 3.2 A100 V~: 0.75 A240 V~: 0.32 A	12 V---: 7.0 A24 V---: 3.2 A100 V~: 0.86 A240 V~: 0.42 A
Cooling capacity:	+10 °C to -22 °C (+50 °F to -8 °F)
Category: 1
Energy efficiency class:	A++ A++
Energy consumption:	61 kWh/annum	62 kWh/annum	64 kWh/annum
Gross volume:	28 l	34.5 l	41 l
Storage volume:	26 l	32 l	38 l
Climate class:	N, T
Ambient temperature:	+16°C to +43 °C
Noise emission:	34 dB(A)	45 dB(A)
USB:	5 V---, 500 mA
Dimensions (W x H x D) in mm (including handles):	620 x 425 x 342	692 x 411 x 398	692 x 461 x 398
Weight:	13 kg	17.5 kg	18.5 kg
	CFX50 CFX65	CFX65DZ
Item no. 9105304049 91	105304050 9105304051
Connection voltage:	12/24 V--- and 100-240 V~
Rated current:	12 V---: 7.8 A24 V---: 3.6 A100 V~: 0.95 A240 V~: 0.46 A	12 V---: 8.2 A24 V---: 3.8 A100 V~: 1.0 A240 V~: 0.48 A	12 V---: 5.5 A24 V---: 2.6 A100 V~: 0.75 A240 V~: 0.37 A
Cooling capacity:	+10 °C to -22 °C (+50 °F to -8 °F)
Category: 1
Energy efficiency class:	A++ A+
Energy consumption:	66 kWh/annum	69 kWh/annum	115 kWh/annum
Gross volume: 50 l 65 l with divider: 61 l			without divider: 65 l
Storage volume:	46 l	60 l	53 l
Climate class:	N, T
Ambient temperature:	+16°C to +43 °C
Noise emission:	45 dB(A)
USB:	5 V---, 500 mA
Dimensions (W x H x D) in mm (including handles):	725 x 471x 455	725 x 561 x 455	725 x 561 x 455
Weight:	20.4 kg	22.3 kg	23.2 kg

NOTE

If the ambient temperature is above +32^ C (+90 °F), the minimum temperature cannot be attained.

Test/certificates:

D 城国经济政策

The coolant circuit contains R134a.

● CFX28, CFX35, CFX40, CFX50, CFX65:

● CFX28, CFX35, CFX40, CFX50, CFX65:

- CFX28, CFX35, CFX40, CFX50, CFX65:

PASS PÅ! Fare for overoppheting!

- CFX28, CFX35, CFX40, CFX50, CFX65:

● CFX28, CFX35, CFX40, CFX50, CFX65:

● CFX28, CFX35, CFX40, CFX50, CFX65:

● CFX28, CFX35, CFX40, CFX50, CFX65:

● CFX28, CFX35, CFX40, CFX50, CFX65:

● CFX28, CFX35, CFX40, CFX50, CFX65:

● CFX28, CFX35, CFX40, CFX50, CFX65

Dometic Australia Pty. Ltd.

1 John Duncan Court

Varsity Lakes QLD 4227

1800 212121

[phone]

Mail: [e-mail]

AUSTRIA

Dometic Austria GmbH

The Gateway · 25 Canton Road,

Tsim Sha Tsui · Kowloon

[phone]

[phone]

Mail: [e-mail]

HUNGARY

Dometic Plc. Sales Office

Kerékgyártó u. 5.

H-1147 Budapest

[phone]

昌 [phone]

Dometic Italy S.r.l.

Via Virgilio, 3

I-47100 Forli

[phone]

[phone]

Mail: [e-mail]

NORWAY

Dometic Norway AS

Skolmar 24

N-3232 Sandefjord

[phone]

吕 [phone]

Mail: [e-mail]

POLAND

Dometic Poland Sp. z o.o.

Ul. Puławska 435A

02-801 Warszawa

[phone]

[phone]

Mail: [e-mail]

RUSSIA

Dometic RUS LLC

Komsomolskaya square 6-1

107140 Moscow

[phone]

[phone]

Mail: [e-mail]

SLOVAKIA

Dometic Slovakia Sales Office Bratislava

Nádražná 34/A

SK-900 28 Ivanka pri Dunaji

[phone]

Mail: [e-mail]

SPAIN

Dometic Spain S.L.

Avda. Sierra del Guadarrama, 16

E-28691 Villanueva de la Cañada

Madrid

[phone]

[phone]

Mail: [e-mail]

SWEDEN

Dometic Scandinavia AB

Gustaf Melins gata 7

Dometic Switzerland AG

Riedackerstrasse 7a

CH-8153 Rümlang (Zürich)

[phone]

吕 [phone]

Mail: [e-mail]

TAIWAN

WAECO Impex Ltd.

Taipei Office

9F.-10, No. 1180, Zhongzheng Rd.,

Zhonghe Dist., New Taipei City 23586

[phone]

昌 [phone]

Mail: [e-mail]

UNITED KINGDOM

Dometic UK Ltd.

Dometic House · The Brewery

Blandford St. Mary

Dorset DT11 9LS

[phone]

昌 [phone]

Mail: [e-mail]

UNITED ARAB EMIRATES

Dometic Middle East FZCO

P. O. Box 17860

S-D 6, Jebel Ali Freezone

Dubai

[phone]

[phone]

Mail: [e-mail]

UNITED STATES OF AMERICA

Dometic Marine Division

2000 N. Andrews Ave. Extension

Pompano Beach, FL 33069 USA

[phone]

[phone]

Mail: [e-mail]
