USER MANUAL KS 9825 SEVERIN

Warning symbol of a flame inside a triangle (no text or numbers)

Technical diagram of a refrigerator with numbered parts for identification

Vor Inbetriebnahme

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with an inset showing a magnified detail (no text or symbols)

ok Bubb ... Bubb ... Brr ... Brr ...

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

- Do not operate this unit by means of a transformer.

- To prevent noise vibration, ensure that the power cord does not touch any part of the rear of the unit

General information

● This appliance is a compressor refrigerator, designed for short-term storage of food.
- Refrigeration appliances are classified into certain climate classes. Please refer to the product data sheet for information on the classification for this unit.
● This appliance is intended for domestic or similar applications, such as in

• shops, offices and other similar working environments,
  -agriculturalareas,
• hotels, motels etc. and similar establishments,

• bed and breakfast type environments.

• This appliance is not intended for commercial use, nor for use in the catering business or similar wholesale environments.

• No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

Important safety instructions

• To prevent the risk of personal injury or damage to the unit, it must only be transported while in its original packaging.
• This appliance is not intended for use by any persons (including children) with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  ● Children should be supervised to ensure that they do not play with the appliance.
• Caution: Keep any packaging materials well away from children: there is a risk of suffocation.
• The cooling circuit in this appliance contains the refrigerant isobutane (R600a), a natural gas with a high level of environmental compatibility, which is nevertheless flammable. Ensure, therefore, that none of the components of the refrigerant circuit become damaged during transportation and installation of the appliance. If damage to the cooling circuit does occur, do not switch on or connect the appliance to the mains

power. In the case that there is an open fire or any other sources of ignition in the vicinity of the refrigerant gas, make sure it is removed immediately from this area and that the room is then

Warning symbol of a flame inside a triangle (no text or numbers)

thoroughly ventilated.

- Warning: Do not damage the cooling circuit. Any escaping refrigerant causes damage to the eyes; there is also a danger of the gas igniting.

- Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Sufficient ventilation must be ensured at all times.

- Warning: Do not use any external device (e.g.; heaters or heating fans) to accelerate de-frosting; follow only the methods recommended in this manual.

- Warning: Do not operate any electrical appliances (e.g. ice makers) inside the storage compartment that are not specifically permitted in these instructions.

- Before it is connected to the mains power, the unit must be thoroughly checked for transport damage, including its power cord. In the event of any such damage being found, the appliance must not be connected to the mains.

- The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.

- To avoid the risk of fire, do not place any thermo-electric appliances on top of the unit. Do not place liquid containers on top of the unit, to prevent any leaking or escaping liquid damaging the electrical insulation.

● This unit is designed for storing food only.

● Alcoholic substances may be stored only in properly sealed containers and in upright positions.

- This appliance is not designed for the storage of explosive substances such as aerosol cans with a flammable propellant.

● To avoid the risk of food poisoning, do not consume food after its storage time has expired.

- Do not lean or put undue weight on the shelves, compartments, door etc.

- Protect the inside of the refrigerator at all times from open flames and any other sources of ignition.

- Remove the plug from the wall socket

- in case of any malfunction,

- beforede-frosting,

- duringcleaning,

- before maintenance or repair work is carried out.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- In order to comply with safety regulations and to avoid hazards, any repairs or modifications to this unit must be carried out by our authorised service personnel, including the replacement of the power cord.

● We reserve the right to introduce technical modifications.

- If the unit is not used for an extended period of time, we recommend keeping the door open.

- If the unit is sold, handed over to a third party or disposed of at a suitable recycling facility, attention must be drawn to the presence of the insulation agent ‘cyclopenthane’ as well as to the refrigerant R600a.

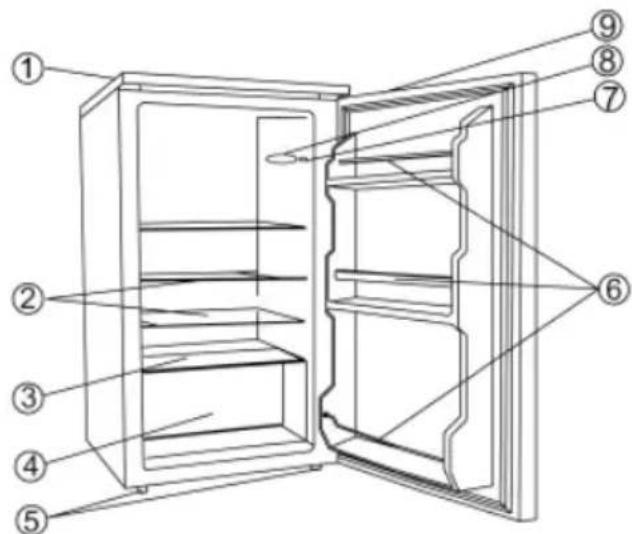

Familiarisation

1. Top panel
2. Glass shelves
3. Lower glass enclosure
4. Vegetable compartment
5. Adjustable feet
6. General and bottle storage
7. Temperature control
8. Interior lighting
9. Grip recess

Technical diagram of an open refrigerator with numbered labels pointing to different compartments

Before using for the first time

• Remove any exterior and interior packaging materials completely, including the adhesive strips.
• Before it is connected to the mains, the unit must be thoroughly checked for transport damage, including its power cord.
  ● Clean the unit as described in the section De-frosting and cleaning.
• To ensure proper functioning, wait for about 2 hours before connecting the unit and switching it on after it has been positioned.
• When the unit is first switched on, a slight 'new' smell may be noticed. However, this will disappear once the cooling process has begun.

Installation

● The appliance should be set up in a well-ventilated, dry room.
- It should be operated in conditions where the relative humidity is no more than 70 %.
- The product data sheet contains details of the ambient temperature range suitable for this appliance.
- Do not use the appliance outdoors.
● Ensure that the plug is accessible and can be removed from the wall socket at any time.
- Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be in installed between the heat source and the unit.
- The unit must not be installed inside a cabinet, nor directly below a hanging cupboard, shelf or similar object.
- Ensure that the door can swing open to an angle of 160^ .
- In the case of uneven floors, the adjustable feet on the unit can be used to compensate and ensure optimum stability.

Ventilation

Ensure that there is enough space around the unit so that the air circulation round and behind it is not obstructed. (Rear and sides 5 cm, top 10 cm.)

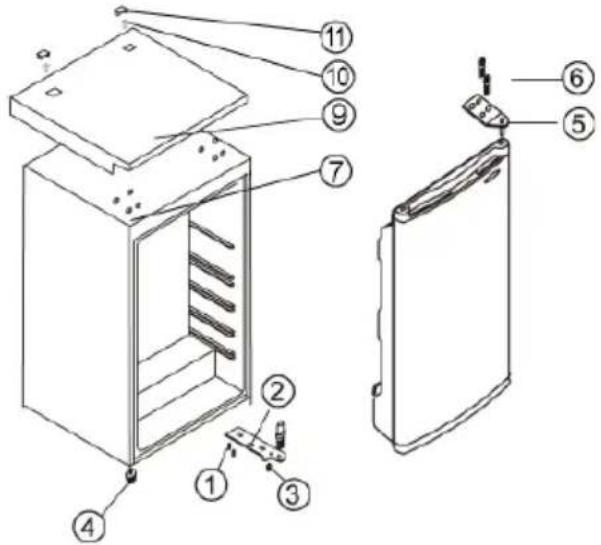

Reversible door

If required, the door may be reversed, i.e. from right-hinged (default installation) to left-hinged.

Warning: Always disconnect the unit from the mains before any maintenance or repair work is carried out.

1. Remove the two screw covers (11) and the screws (10).

2. Remove the entire top panel (9).

3. Remove the three threaded bolts (6) securing the upper hinge plate (5) on the right-hand side.

4. Carefully lift up the door and place it on a suitable surface to protect it from scratches.

5. Take off the protective corner-piece (7) and re-fit it in the groove on the right-hand side, pushing it firmly down.

6. Remove the hinge pin from the upper hinge plate (5) and screw it back in from the opposite side.

7. Remove the two screws from the left-hand side in the upper hinge plate mounting and re-fit them on the right.

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

1. Remove the three screws (1) holding the lower hinge plate (2) on the right-hand side.

2. Remove the hinge pin from the lower hinge plate and re-fit it in the next hole.

3. Remove the adjustable foot (4) from the left-hand side and re-fit it on the right.

4. Attach the lower hinge plate (2). Do not tighten the screws for the moment.

5. Replace the door in its new position. Ensure that the hinge pin is inserted into the guide bushing (hole) on the lower part of the door frame.

6. Attach the upper hinge plate (5) (removed earlier in step 3) on the left-hand side. Ensure that the hinge pin is inserted into the guide bushing (hole) on the upper part of the door frame. Do not tighten the screws for the moment.

7. Adjust the closed door to its proper position and tighten the screws of the upper and lower hinge plates.

8. Replace the top panel (9).

9. Replace the screws (10) and the screw covers (11) in the top panel (9).

10. Put the unit back in its intended position and wait for about two hours before connecting it to the mains.

Temperature control

The unit is re-activated by connecting it to the mains. It is only switched off completely when the plug is removed from the wall socket.

The temperature in the refrigerator cabinet can be adjusted by setting the temperature control. Turning the control clockwise will decrease the temperature, while turning it anti-clockwise will increase it.

- After switching on, the temperature control should be set to its maximum setting.

- After 30 minutes, the setting should be changed to a medium setting, usually sufficient for home use.

Following a power interruption, or if the unit has been switched off on purpose, it may take 3 to 5 minutes before it switches on again.

In position ‘0’, the cooling function is switched off, though the appliance is still connected to the mains.

Interior lighting

Changing the light bulb:

- Remove the plug from the wall socket.

- Use a suitable screw-driver to remove the screw holding the light cover and take the cover off to the back.

- Take out the defective bulb and fit a new one (max. 15 W).

- Slide the cover back into position, replace the screw and tighten it.

- Connect the unit to the mains power. It may take 3 to 5 minutes before it switches on again.

Storing food

- The temperature inside the refrigerator depends mainly on the ambient temperature, the temperature control setting and the amount of food stored.

- Different areas of the refrigerator cabinet are affected differently by the cooling effect. The warmest area is around the door in the higher part of the cabinet, the coldest around the rear wall and in the lower part of the cabinet.

- The food should therefore be stored as follows:

- On main cabinet shelves (from top to bottom): bakery items, ready meals, dairy products, meat, fish and cold meats/sausages.

- In the vegetable compartment: vegetables, salad and fruit.

- In the door (from top to bottom): butter, cheese, eggs, tubes (eg mustard), small bottles, large bottles, milk and fruit-juice tetra-packs.

- Initially, the temperature control should be set to position 4. If the cooling effect is too strong, lower it to position 1-3; if it is insufficient, raise it to 5-7.

If you notice frost on the rear wall, the most likely cause is that the door has been left open for too long, or that warm food has been placed inside the refrigerator or that the temperature control has been set too high.

- Liquid or strong-smelling food, or food which is likely to absorb strong odours (e.g. cheese, fish, butter), should be stored separately or in hermetically sealed containers.

- Warm food should be left to cool down to room temperature before being placed in the refrigerator.

- Always ensure that the door is properly closed and that the seal is not obstructed by food stored inside the cabinet or door.

De-frosting and cleaning

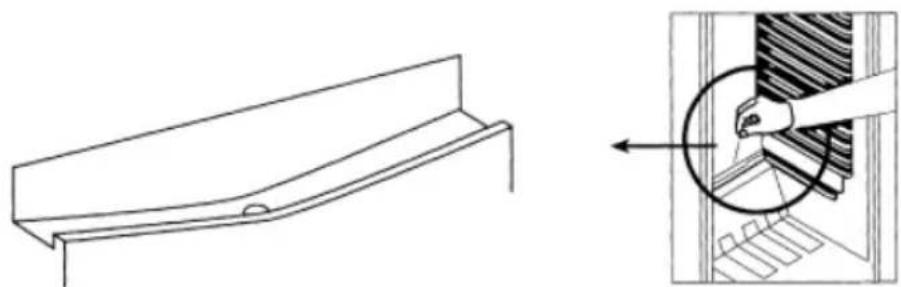

The integral vapouriser is sealed in foam in the rear wall; you may therefore notice a build-up of frost around the rear area. This layer of frost will start melting when the compressor is not working. Through a system of hoses, the melt-water drains into the collection tray below the compressor, where it will be absorbed into the surrounding air. The unit does not therefore require de-frosting, but only proper cleaning instead.

To enable the melt-water to drain freely, always ensure that the channel and discharge opening in the cabinet are free of any blockage.

Technical line drawing of a mechanical component with an inset showing a close-up of a component (no text or symbols present)

- Always remove the plug from the wall socket before cleaning.

• For frequent cleaning we recommend the use of warm water with some mild detergent. To prevent any unpleasant odour within the refrigerator, it should be cleaned about once a month.
• Any accessories should be cleaned separately with soapy water. Do not put them in a dishwasher.
• Do not use abrasives or harsh cleaning solutions or any cleaning agents that contain alcohol.
• After cleaning, thoroughly clean all surfaces with fresh water before wiping them completely dry. When re-inserting the plug into the wall socket ensure that you have dry hands.
• To save energy and to ensure optimum performance, the condenser (at the rear) as well as the compressor should be cleaned at least twice a year with a broom or a vacuum cleaner.
• Take care not to remove or damage the rating plate inside the cabinet during cleaning.

Trouble-shooting

Certain typical sounds can be heard when the appliance is switched on. These sounds are:

- caused by the electrical motor within the compressor assembly; during compressor start-up the sound level will be slightly higher for a limited period of time.

– caused by the cooling agent flowing through the circuit.

ok blubb ... blubb ... Brr ... Brr ...

The following table lists possible malfunctions and their probable caus es and solutions. In the event of operational problems, check first whether a solution can be found using this table. If the problem persists, disconnect the appliance from the mains power and contact our Customer Service Department.

Problem Possible cause and solution
The appliance is not working at all.	- There is a power failure- The main fuse has blown.- The temperature control is set to ‘0’.- The fuse in the wall socket (if applicable) has blown. This can be checked by connecting another electrical device to the socket and checking for function.
The normal operating sound changes or becomes louder.	- Check for proper positioning (uneven floor?).- Are any adjacent objects affected by the running of the cooling unit (i.e. causing them to vibrate?)- Are there any objects on top of the unit which might be vibrating?
Water is collecting on the bottom of the unit.	The melt-water drain system is blocked. Remove the blockage and clean the system.

Transporting the appliance

The unit must only be transported in its vertical position.

Do not tilt it any more than 45^ . To ensure optimum performance, wait a minimum of 2 hours after transporting the unit before connecting it to the mains.

During transport, ensure that the unit is properly secured and protected against shock, vibration and shifting.

Disposal

This appliance has been manufactured from recyclable materials. After removing the plug from the wall socket, the unit should be rendered unusable by cutting off the power cord before disposing of it through special waste collection points in accordance with local regulations. The refrigerant and the chemical agent in the insulation foam must be disposed of through a competent agency. Take special care not to damage the cooling circuit before the unit is handed over for such disposal.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

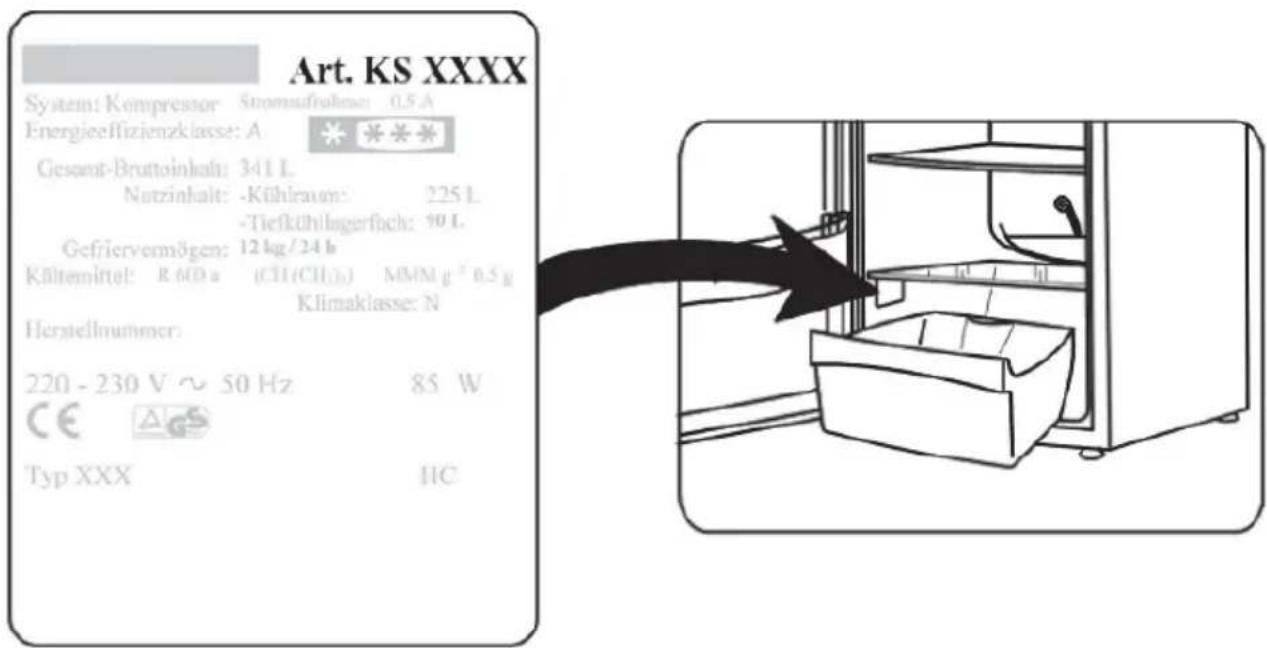

Information needed by the Customer Service Department

Should repairs to the appliance become necessary, please contact our Customer Service Department, providing a detailed fault description and quoting the model number KS ... on the rating plate of the appliance (see picture). This information will help us to handle your request efficiently.

In case of any malfunction or other problem, please contact our Customer Services Department. The address can be found in the appendix to this manual.

Product data sheet

Art. no. KS 9835 KS 9825
Product category Refrigerator
Energy efficiency classification A+ A++
Energy consumption in kWh/year 120 92
The actual consumption depends on the pattern of use and the location of the appliance
Usable refrigerator capacity (litres) 130 130
Usable capacity * *** - Freezer unit (litres)	---
Frost-free : refrigeration unit / freezer unit yes / --	yes / --
Safe storage time in case of malfunction, hrs -- --
Freezing capacity, kg/24h -- --
Climate classification	N	N,ST,T
Ambient temperature range, °C	16-32°C	16-43°C
Noise emission	43 dB(a) 43 dB(a)
Dimensions (H x W x D) in mm 845 x 545 x 570	845 x 545 x 570
Weight (kg)	34	34
Electrical specifications	See rating plate

Chère cliente, Cher client,

Warning symbol of a flame inside a triangle (no text or numbers)

Technical diagram of a refrigerator with numbered parts for identification

Technical line drawing of a mechanical component with an inset showing a hand holding a circular object (no text or symbols present)

ok Buck ... Burs ... Brr ... Brr ...

Warning symbol of a flame inside a triangle (no text or numbers)

Technical diagram of a refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Technical line drawing of a structural component with an inset showing a hand holding a circular object (no text or symbols present)

ok bbb ... bbb ... Brr ... Brr ...

Warning symbol of a flame inside a triangle (no text or numbers)

Technical diagram of an open refrigerator with numbered labels pointing to different compartments

Puesta en marcha

Technical diagram of an open refrigerator with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Technical diagram of a refrigerator with numbered parts for identification

Al primo utilizzo

Technical diagram of an electronic device with numbered components for assembly or maintenance reference.

Technical line drawing of a mechanical component with an inset showing a magnified detail (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Technical diagram of a refrigerator with numbered parts for identification

Før brug

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with an inset showing a magnified detail (no text or symbols)

-bed-and-breakfastus.

Warning symbol of a flame inside a triangle (no text or numbers)

Technical diagram of an open refrigerator with numbered labels pointing to internal compartments

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with an inset showing a hand holding a circular object (no text or symbols present)

Warning symbol of a flame inside a triangle (no text or numbers)

Technical diagram of a refrigerator with numbered parts for identification

Technical line drawing of a mechanical component with an inset showing a close-up of a component (no text or symbols present)

Warning symbol of a flame inside a triangle (no text or numbers)

Technical diagram of an open refrigerator with numbered labels pointing to different compartments

Technical diagram of an open refrigerator with numbered parts for identification and assembly reference.

Regulator temperature

Technical line drawing of a structural component with an inset showing a hand holding a circular object (no text or symbols present)

ok Brisb ... Brisb ... Brisb ...

Warning symbol of a flame inside a triangle (no text or numbers)

Technical diagram of a refrigerator with numbered parts for identification

Technical diagram of an oven with numbered components for identification and assembly reference.

Technical line drawing of a structural component with an inset showing a magnified detail (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Technical diagram of an open refrigerator with numbered parts for identification

Technical diagram of an open refrigerator with numbered parts for identification and assembly reference.

Technical line drawing of a structural component with an inset showing a magnified detail of a component (no text or symbols present)

Kuressaare: Toomas Teder FIE, Pikk 1B,

tel: [phone]

Philippos Business Center

Agias Anastasias & Laertou, Pilea

Service Post of Thermi

570 01 Thessaloniki, Greece

Tel.: [phone]

Iran

IRAN-SEVERIN KISH CO. LTD.

No. 668, 7th. Floor

Bahar Tower

Ave. South Bahar

TEHRAN - IRAN

Tel.:[phone]

Fax:[phone]

[e-mail]

www.iranseverin.com

Israel

Eatay Agencies

109 Herzel St.

Haifa

Phone: [phone]

Email: [e-mail]

Italia

via Dino Col 52r-54r-56r,

I - 16149 Genova

Green Number: 800240279

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

Jordan

F.A. Kettaneh

P.O. Box 485

Amman, 11118, Jordan

Tel: [phone]

e-mail: [e-mail]

Korea

Jung Shin Electronics co., Ltd.

501, Megaventuretower 77-9,

Moonrae-Dong 3ga, Yongdeungpo-Gu

Seoul, Korea

Tel: [phone]\~7

Fax: [phone]

Service Hotline: [phone]

Latvia

SERVO Ltd.

Mr. Janis Pivovarenoks

Tel: [phone]

[e-mail]

Lebanon

Khoury Home

7th Floor, Cité Dora 3 Building, Dora

P.O.Box 70611

Antelias, Lebanon

Telephone [phone], Fax [phone]

eMail: [e-mail]

Internet: www.khouryhome.com

Luxembourg

Ser-Tec

Sc. 2 Et.1, Ap. 27, Sector 1

Bucuresti

Tel: [phone]

[phone]

[phone]

Fax: [phone]

[phone]

E-mail: offi [e-mail]

Web site: www.forbrands.ro

Schweiz

VB Handels Sàrl GmbH

Postfach 306

1040 Echallens

Tel: [phone]

Fax: [phone]

mail: [e-mail]

Serbia

SMIL doo

Pasiceva 28, Novi Sad

Serbia and Montenegro

tel: [phone]

tel: [phone]

fax: [phone]

Slowak Republic

PREMT,s.r.o.

Skladová 1

917 01 Trnava

Tel: [phone]

Finland

Oy Harry Marcell Ab

Rälssitie 6, PL 63

01511 Vantaa

Tel.: 00358 / 2 07 599 860

Fax: 00358 / 2 07 599 803

Svenska

Rakspecialisten HS

Möllevångsgatan 34

214 20 Malmö

Tel.: [phone]

Fax: [phone]

Slovenia

SEVTIS d.o.o.

Smartinska 130

1000 Ljubljana

Tel: [phone]

Fax: [phone]

Stand: 03.2010

SEVERIN
