By reading these instructions, you will quickly be informed of all possibilities that this device offers. You will find information for your safety and the maintenance of the device.

This user manual discusses different refrigerator models. It is possible that certain options or accessories do not apply to your appliance.

Keep the operating- and installation instructions.

Any subsequent user of this appliance may also benefit from this.

Introduction

Introduction 5

Safety

Caution! 6

Energy and environmental tips 7

Assemble

The choice of space 8

Description

Appliance Description 9

Use

Operation 10

Storing food 12

Places for food 14

Ice tray (if any) 15

Maintenance

Clean 16

Defrost 16

Lighting 17

Faults

Fault list 18

Appendix

Drain 19

Your new refrigerator is intended for domestic purposes. The appliance is suitable for storing food. In the freezer (if applicable), you can also freeze fresh food.

The shelf life strongly depends on the quality of the food.

This appliance does not contain any CFCs. The cooling circuit contains R600a (Isobutane). Isobutane is a natural gas that has no impact on the environment, but it is flammable. It is therefore necessary to check the pipes of the cooling circuit for damage.

Caution!

The domestic installation that you connect your appliance to, must comply with national and local regulations.

• Connect the appliance to a wall outlet installed according to current regulations.
• Check if the voltage on the type plate corresponds with the voltage in your home.
• Keep ventilation openings in the unit open and ensure that with installation the required ventilation openings are not sealed in the installed unit.
• Never bend cooling pipes.
• To prevent damage to the cooling system, you may never clean the appliance with sharp objects. At damage to the cooling system, where coolant is released, you should ventilate the room. Then call Customer Service immediately!
• Never step on base, drawers and shelves.
• Never allow children to play with the appliance. Ensure that children are never left unattended in the vicinity of the unit.
  • Repairs may only be done by a qualified technician.
• If you have received a faulty refrigerator, please contact your supplier immediately.
• Never use an extension cord to connect the appliance.
• Remove the electric plug from the socket during repairs and cleaning.
• Never pull the plug at the cord from the socket. Grasp the plug itself and pull this directly out of the socket.
• Never store any explosive and flammable substances in the freezer. Alcohol and fluids with a high alcohol content must be stored sealed and upright.
• User the cooling section only for storing fresh food and the freezer section (if applicable) only for storing deep-freezing products, freezing fresh food and making ice cubes.

• Do not store any liquid in glass containers in the freezer section (if applicable) because it can burst.

• Do not touch the cooling plates when in operation, especially not with moist or wet hands, because your skin can remain stuck on it.

• Make the appliance unusable at time of discarding by cutting the power cable. Remove the doors and shelves to prevent kids from locking themselves in and being in a life threatening situation.
• If the plug or cord is damaged, it must be replaced by the manufacturer or an authorized dealer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or who lack experience or knowledge of the appliance, unless they receive instructions during use or are accompanied by the person responsible for their safety.
• Keep packaging away from children!

Energy and environmental tips

• Do not open the door of the refrigerator more often than necessary. That applies particularly in hot and humid weather. Open the door of the refrigerator (especially the freezer) as quick as possible.
• Check the aeration and venting of the appliance now and then (free circulation of air behind the unit). Do not cover ventilation openings!
• Turn the thermostat knob to a higher or lower setting when the use of the appliance and the conditions require so.
• Before placing hot food in the refrigerator, this should be cooled down to room temperature.
• Frost or ice in the freezer compartment increases power consumption. Therefore, remove this regularly as soon as it is 3-5 mm thick.
• An incorrect or non-sealing door rubber can increase the power consumption, therefore it must be timely and professionally replaced.
• The condenser at the back of the unit must always be kept clean and free of dust and foreign matter.
• Failure to comply with any instructions from the chapters on installation and energy saving, may result in a higher power consumption.

The choice of space

• Put the appliance in a dry and well-ventilated room. The permissible ambient temperature for proper operation of the appliance, depends on the model (classification) of the appliance, that is indicated on the type plate of the unit. Do not place the appliance near heat sources, such as a gas-stove, heater, boiler, etc and do not expose to direct sunlight.
• The refrigerator must be installed at least 3 cm from the electric-or gas-stove or 30 cm from the heater or furnace. For smaller distances, please use an insulation board.
• The distance to the wall, or the open area behind the unit, must be approximately 200 cm ^2 . A kitchen cabinet above the refrigerator must have a space at the back of at least 5 cm. This ensures sufficient cooling of the condenser.

Climate classification Ambient temperature

N (normal) +16°C to +32°C

T (tropical) +16°C to +43°C

Appliance Description

Model with freezer

Labeled diagram of an open refrigerator with numbered parts for identification

Model without freezer

Labeled diagram of an open refrigerator with numbered parts for identification

1. Carrier platform
2. Glass plate vegetable container
3. Vegetable drawer
4. Levelers
5. Thermostat and interior lighting
6. Freezer rack
7. egg shelve
8. Bottle rack
9. Door racks
10. Butter compartment
11. Butter compartment lid
12. Ice tray

Operation

Setting the thermostat

Pure mechanical component diagram with concentric rings and curved lines, no text or symbols present

The thermostat automatically regulates the temperature inside the refrigerator and freezer compartment (if present).

• The normal temperature setting is position 3. At position 0, the refrigerator is off.
• Set a higher temperature by turning the tuning knob to setting 1 or 2.
• Set a lower temperature by turning the tuning knob to setting 4 or 5.

Caution!

The temperature inside the refrigerator (and freezer) is affected by the ambient temperature, the temperature of not yet chilled foods and how often the door is opened. The setting of the thermostat must be adjusted according to these factors.

If you use the appliance for the first time, only fill it when the desired temperature is reached.

If the appliance is switched off, you must wait at least 5 minutes before switching it on again. This prevents damage to the compressor.

Your refrigerator can be equipped with or without freezer.

The refrigerator cools between 4-6°C. At this setting, the temperature in the freezer is -18°C or lower.

There can probably be a foul smell when you switch on the appliance for the first time. This disappears when the appliance starts cooling.

"Door open" indication (for refrigerators with freezer)

A

The "door open" indicator (A) at the end of the freezer door indicates if the door is shut properly.

• Door not shut properly; indicator is visible
• Door shut properly; indicator is not visible

Always make sure that the freezer door is shut properly. This prevents food in the freezer from defrosting and causing excessive ice formation. It also prevents unnecessary energy consumption.

Storing food

Refrigerator

The refrigerator is used for storing fresh food for a few days.

• Do not place any food directly against the back of the refrigerator. Leave a little space between the different foods to ensure ventilation.
• Do not put very hot food or evaporating fluids in the refrigerator.
  • Always cover food (airtight).
• Always cover bottles and cans. This prevents excessive moisture and ice formation in the refrigerator.
• It is recommended to keep meat (products) packaged on the glass sheet above the vegetable drawer, where it is coldest.
• Vegetables and fruit can be stored open in the vegetable drawer.
• To prevent cold air from escaping, do not open the door longer or more often than strictly necessary.

Type of food

Shelf life (in days)

1

2

3

4

5

6

7

8

9

1

0

1

1

1

Butter + + + + + + + =

=

=

=

=

E g g s +

+

+

+

+

+

+

+

+

+

=

=

=

=

Meat: raw - piece minced meat + =

+

+

=

Smoked + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + +

Fish + =

Marinade + + + + + + +

+

+

+

+

=

=

=

=

Carrots + + + + + + + + + = = = = =

Cheese + + + + = = = = = = = = = = = =

Pastry

+ +

= = = =

Fruit

+ +

= = = = = =

=

=

=

Prepared meals

+

+

=

=

Legend: + the recommended storage period

= the possible storage period

Freezer (if applicable)

The freezer is used for freezing fresh food and to store frozen foods. Check the maximum storage period indicated on the packaging. The freezer can also be used for making ice cubes.

• Make sure food to be frozen is leak-free and airtight packing. Special freezer bags are ideal.
• Caution! Do not let foods to be frozen come into contact with already frozen foods.
• Always note the content and the freezing date on the packaging and do not exceed the storage period.
• In the event of a power failure or malfunction, the freezer will remain cold enough to store food for some time. However, then avoid opening the door of the freezer as much as possible to prevent an increase in temperature.
• Place frozen foods in the freezer as soon as possible after purchase. Once food is defrosted, do not freeze again.
• Never put hot food in the freezer.
• Check the packaging of food for damage before freezing it.
• For the freezing of fresh food (max. 2 kg) adjust the thermostat to the highest setting (max. 24 hours). Adjust the thermostat back to its normal setting as soon as the food is frozen.

Places for food

A B C D E F

• Storage platform position A Can be used for various types of food (cooked dishes) and drinks.
  • Storage platform position B Can be used for among other fish and meat.
  • Vegetable drawers C Can be used for vegetables and fruit.
• Dairy shelf D Can be used for small dairy products, such as butter, margarine, yoghurt, cheese or whipped cream.
• Door rack E Can be used for among other bottles, milk cartons, etc.
• Freezer rack F (if any) Can be used for frozen products.

Caution; storing vegetables with a high water content may lead to condensation on the glass shelves of the vegetable- and fruit drawer: this does not affect the proper functioning of the appliance.

Ice tray (if any)

If your appliance is equipped with a freezer, you can make ice cubes with the ice tray:

• Fill the ice tray with 2/3 water.
• Put the ice tray in the freezer.
• Remove the ice tray from the freezer, once the water is frozen. Bend the ice tray a little to let the cubes fall out of the tray.

Illustration showing three steps of a hand holding an abacus with a tool, no text or symbols present

Clean

Disconnect the appliance before starting with cleaning.

• Clean the refrigerator with a regular, non-aggressive cleaning agent and lukewarm water.
• Clean accessories separately with a cleaning agent and water. Do not put these parts in the dishwasher.
• Do not use harsh or abrasive agents. Rinse the parts after cleaning with clean water and dry it thoroughly.

Defrost

Refrigerator

The refrigerator defrosts automatically from time to time. The presence of water drops on the back wall at the inside of the refrigerator indicates that the appliance is busy defrosting automatically. The defrost water runs through the drainage spout to a receptacle where it evaporates.

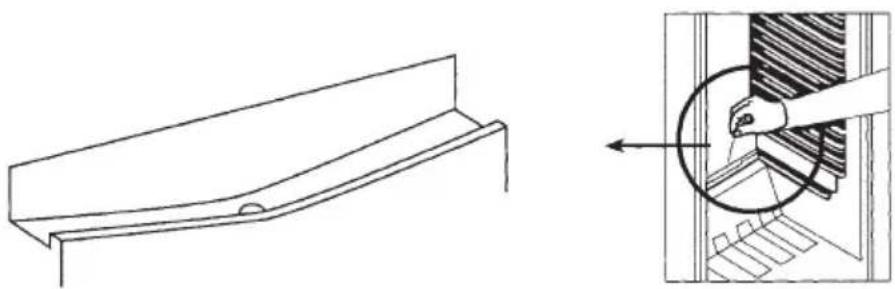

Ensure that the drain outlet is clean. You can clean a clogged drain with a satay stick, for example.

Technical line drawing of a mechanical component with an inset showing a circular component being inserted (no text or symbols present)

Freezer (if any)

Defrost the freezer when the ice layer reaches a thickness of 5 mm.

Adjust the thermostat at a very high setting a day before defrosting is done, so that foods are frozen as solidly as possible.

Lighting

• Remove the frozen products. Store the frozen products during defrosting in a cold place wrapped in blankets or newspapers.
• Switch the refrigerator/freezer off by turning the thermostat to the '0' setting.
• Defrost the freezer.
• Clean and dry the freezer.
• Switch the refrigerator/freezer back on.
• Put the frozen products back in the freezer.

You can accelerate defrosting by placing a bowl of hot water in the freezer.

Warning

Never remove ice layer with sharp objects, defrosting sprays, a hairdryer, an electric heater or something similar. This can be unsafe and cause irreparable damage to the appliance.

Replace lamp

In case of defects, you can replace the lamp of the inside lamp yourself.

Line drawing of a mechanical device with no visible text or symbols

• Disconnect the appliance.
• Press the hooks at the side of the lid inside and remove it.
• Replace the lamp (15 W).
• Put the lid back on.

Fault list

When in doubt on the proper operation of your appliance, this does not automatically mean there is a defect. Always check the following points in table below.

Symptom Possible cause Solution
The refrigerator emits a slight odour when used for the first time.	New appliance. This is normal and disappears when the appliance starts cooling.
The appliance does nothing; the lamp is not lit.	Plug not in socket. Thermostat at '0' setting.	Insert the plug in the socket. Adjust the thermostat to the correct setting.
Temperature inside refrigerator too high or too low.	Thermostat setting incorrect. Adjust the thermostat properly.
Water runs from the refrigerator.	Defrost water drain clogged. Clean defrost water drain (see "Defrost").
Appliance makes a noise. Incorrect positioning of food in the refrigerator (or freezer).		Place foods in the proper manner in the refrigerator or freezer.
	There is an object against the appliance.	Remove the object.
Light not lit. Lamp faulty. Replace the lamp (see "Lighting").

Comment:

It is normal for the cooling circuit to make gurgling or expansion noises.

Drain

Packaging and appliance disposal

Sustainable materials were used in manufacturing this appliance. This appliance must be disposed of properly at the end of its life cycle. The government can provide you with information in this regard.

The packaging of the appliance can be recycled. These materials might be used:

• cardboard;
  • polyethylene film (PE);
  • CFC-free polystyrene (PS-rigid foam).

These materials must be disposed of properly and in accordance with government regulations.

Warning symbol for a trash bin with crossed and unshaded lines indicating no waste or discharge

To indicate the separate disposal of electrical household appliances, the product is marked with a crossed-out dustbin. This means that the appliance may not be placed with regular garbage at the end of its life cycle. The appliance must be taken to a special municipal centre for separated waste collection or to a dealer providing this service.

The separate disposal of a household appliance prevents possible negative effects on the environment and health that occur as a result of inappropriate disposal. It ensures that the material that appliance consists of, can be recovered to obtain a significant saving of energy and raw materials.

Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.
