GSR Professional 14 4 V-LI - Drill BOSCH - Free user manual and instructions

Product Type	Cordless drill/driver
Brand	Bosch
Model	GSR Professional 14.4 V-LI
Category	Drill
Rated voltage	14.4 V
No-load speed (1st gear)	0 – 450 rpm
No-load speed (2nd gear)	0 – 1450 rpm
Max. torque hard/soft screwdriving	50 / 22 Nm
Max. drilling diameter (steel)	13 mm
Max. drilling diameter (wood)	32 mm
Max. screw diameter	7 mm
Chuck clamping range	1.5 – 13 mm
Spindle thread	1/2"
Weight (according to EPTA 01:2014)	1.6 – 1.9 kg
Battery type	Lithium-ion (GBA 14.4V...)
Recommended charger	AL 18... / GAL 3680
Sound pressure level	71 dB(A)
Uncertainty K (noise)	3 dB
Vibration (metal drilling)	a_h = 2.5 m/s², K = 1.5 m/s²
Vibration (screwdriving)	a_h = 1.5 m/s², K = 1.5 m/s²
Temperature range (charging)	0 °C … +45 °C
Temperature range (operation)	−20 °C … +50 °C
Chuck capacity	Automatic
Number of gears	2 (mechanical)
Torque preselection	20 positions
Brake	Yes
Automatic spindle lock	Yes (Auto-Lock)
Thermal overload protection	Yes
Battery charge indicator	3 green LEDs

Frequently Asked Questions - GSR Professional 14 4 V-LI BOSCH

How to charge the battery of the Bosch GSR 14.4 V-LI drill?

Use only the recommended charger (AL 18... or GAL 3680). Plug the charger into the mains, insert the battery into the charger. Charging is automatic; the LEDs indicate the status. A new battery must be fully charged before first use.

What is the approximate charging time?

The charging time depends on the charger and battery condition. Generally, 30 to 60 minutes for a full charge with a standard charger.

How to change the direction of rotation?

Use the direction selector switch (item 7). Push it to the left for clockwise rotation (drilling/screwdriving), to the right for counterclockwise rotation (unscrewing). Only switch when the tool is at a standstill.

How to set the screwdriving torque?

Turn the torque preselection ring (item 2) to the desired number of clicks (20 positions). A low setting allows screwdriving without damaging the screw or material. For drilling, set the ring to the drill symbol (last click).

Can I use 13 mm drill bits in steel?

Yes, the maximum drilling diameter in steel is 13 mm. Use sharp HSS drill bits and lubricate if necessary.

What to do if the drill stops suddenly?

This may be due to overload or excessive temperature. Let the tool cool down. If the battery is discharged, recharge it. Also check that the drill bit is not jammed.

How to maintain the drill?

Regularly clean the ventilation slots with a dry brush. Remove the battery before any cleaning. Do not use water. Store the tool in a dry, moderate place.

What type of battery can I use?

Use only Bosch lithium-ion batteries from the GBA 14.4 V series (e.g., GBA 14.4V...). Do not use other brands or voltages.

How to check if the battery is charged?

Press the button (item 10) when the tool is off. The 3 green LEDs indicate the level: 3 LEDs = ≥2/3, 2 LEDs = ≥1/3, 1 LED = <1/3, 1 LED flashing = reserve. If no LED, the battery is defective.

What is the warranty of this tool?

Bosch offers a legal 2-year warranty. The exact conditions are provided with the tool. Keep the invoice. For repairs, contact Bosch after-sales service.

USER MANUAL GSR Professional 14 4 V-LI BOSCH

OBJ_BUCH-565-008.book Page 1 Friday, September 30, 2016 10:57 AM

Robert Bosch Power Tools GmbH

70536 Stuttgart

GERMANY

www.bosch-pt.com

1609 92A 2D5 (2014.10) AS / 194 EURO

1609 92A 2D5

GSR Professional

14.4V-LI|18V-LI

BOSCH

OBJ_BUCH-565-008.book Page 2 Friday, September 30, 2016. 10:37 AM

21

Deutsch.... Seite 6

English Page 12

Français Page 18

OBJ_BUCH-565-008.book Page 3 Wednesday, September 28, 2016 12:00 PM

3

GBA 14,4 V..

GBA 18 V.. GBA 18 V... W

AL 1820 CV (14,4/18 V)

AL 1860 CV (14,4/18 V)

2 608 572 182 (1,5 - 13 mm)

2 608 438 692 (L-BOXX 136)

1 609 92A 2D5 | (28.9.16) Bosch Power Tools

OBJ_BUCH-565-008.book Page 4 Wednesday, September 28, 2016 12:00 PM

4

1 609 92A 2D5 | (28.9.16) Bosch Power Tools

1609 92A 2D5 | (28.9.16) Bosch Power Tools

OBJ_BUCH-565-008.book Page 5 Wednesday, September 28, 2016 12:00 PM

6|Deutsch

Deutsch

Sicherheitshinweise

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montage

Akku laden

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings

and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  ▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

English | 13

• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  ▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Warnings for Drills and Screwdrivers

Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory or fastener may contact hidden wiring. Cutting accessory and fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
▶ Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage.
Switch off the power tool immediately when the tool insert jams. Be prepared for high reaction torque that can cause kickback. The tool insert jams when: —the power tool is subject to overload or —it becomes wedged in the workpiece.

▶ Hold the machine with a firm grip. High reaction torque can briefly occur while driving in and loosening screws.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
- Keep your workplace clean. Blends of materials are particularly dangerous. Dust from light alloys can burn or explode.
▶ Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.
▶ Do not open the battery. Danger of short-circuiting.
Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Use the battery only in conjunction with your Bosch power tool. This measure alone protects the battery against dangerous overload.

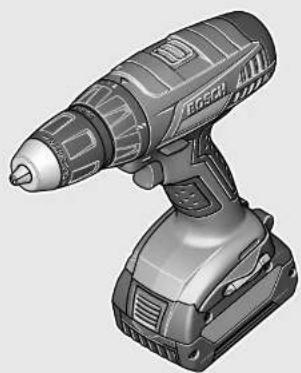

Product Description and Specifications

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

While reading the operating instructions, unfold the graphics page for the machine and leave it open.

Intended Use

The machine is intended for driving in and loosening screws as well as for drilling in wood, metal, ceramic and plastic. The light of this power tool is intended to illuminate the power tool's direct area of working operation and is not suitable for household room illumination.

Product Features

The numbering of the product features refers to the illustration of the machine on the graphics page.

1 Keyless chuck
2 Torque presetting ring
3 Gear selector
4 Screwdriver bit*
5 Battery unlocking button
6 Battery pack
7 Rotational direction switch
8 On/Off switch
9 Handle (insulated gripping surface)

10 Button for charge-control indicator*

14| English

11 Battery charge-control indicator*

12 Universal bit holder*

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Cordless Drill/Driver GSR 14,4 V-LI GSR 18 V-LI
Article number	3 601 ... H60 4.. H60 3..
Rated voltage	V= 14.4 18
No load speed
- 1 s t g e a r	min 1	0 - 450	0 - 5 0 0
- 2 n d g e a r	min 1	0 - 1450	0 - 1 6 0 0
Max. torque for hard/soft screwdriving application according to ISO 5393	Nm 50/22" 56/26"
Max. drilling dia.
- Steel	mm	13	13
- Wood	mm	32	35
Max. screw dia.	mm	7	8
Chuck clamping range	mm	1.5 - 13	1.5 - 13
Drill spindle thread		1/2"	1/2"
Weight according to EPTA-Procedure 01:2014	kg	1.6 - 1.9"	1.7 - 2.2"
Permitted ambient temperature
- during charging	°C	0...+45	0...+45
- during operation and during storage	°C	-20...+50	-20...+50
Recommended batteries		GBA 18V...	GBA 18V... W
		AL 18...	GAL 3680
Recommended chargers		AL 18...	GAL 18V... W***

*depending on the battery pack being used
** limited performance at temperatures <0 °C
" only for wireless charging batteries

Noise/Vibration Information

Sound emission values determined according to EN 60745-2-1.

Typically the A-weighted sound pressure level of the product is 71 dB(A). Uncertainty K = 3 dB.

The noise level when working can exceed 80 dB(A). Wear hearing protection!

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745:

Drilling into metal: a_h = 2.5 m/s² , K = 1.5 m/s² . Screwdriving: a_h = 1.5 m/s² , K = 1.5 m/s² .

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is

poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Declaration of Conformity CE

We declare under our sole responsibility that the product described under "Technical Data" is in conformity with all relevant provisions of the directives 2009/125/EC (Regulation 1194/2012), 2011/65/EU, 2014/30/EU, 2006/42/EC including their amendments and complies with the following standards: EN 60745-1, EN 60745-2-1, EN 60745-2-2, EN 50581.

English | 15

Technical file (2006/42/EC) at:

Robert Bosch Power Tools GmbH, PT/ECS,

70538 Stuttgart, GERMANY

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Assembly

Battery Charging

▶ Use only the battery chargers listed on the accessories page. Only these battery chargers are matched to the lithium-ion battery of your power tool.

Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

The lithium-ion battery is protected against deep discharging by the "Electronic Cell Protection (ECP)". When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates.

▶ Do not continue to press the On/Off switch after the machine has been automatically switched off. The battery can be damaged.

Observe the notes for disposal.

Removing the battery

The battery 6 is equipped with two locking levels that should prevent the battery from falling out when pushing the battery unlocking button 5 unintentionally. As long as the battery is inserted in the power tool, it is held in position by means of a spring.

To remove the battery 6, press the unlocking button 5 and pull out the battery toward the front. Do not exert any force.

Battery Charge-control Indication (see figure A)

The three green LEDs of the battery charge-control indicator 11 indicate the charge condition of the battery 6. For safety reasons, it is only possible to check the status of the charge condition when the machine is at a standstill.

Press button 10 to indicate the charge condition. This is also possible when the battery 6 is removed.

LED Capacity

Continuous lighting 3 x green	≥ 2/3
Continuous lighting 2 x green	≥ 1/3
Continuous lighting 1 x green	< 1/3
Flashing light 1 x green	Reserve

When no LED lights up after pushing button 10, then the battery is defective and must be replaced.

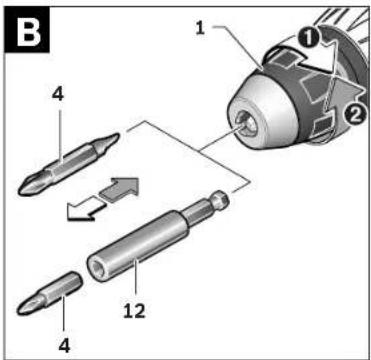

Changing the Tool (see figure B)

Before any work on the machine (e.g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.

The drill spindle is locked when the On/Off switch 8 is not pressed. This makes quick, convenient and easy changing of the tool in the drill chuck possible.

Open the keyless chuck 1 by turning in rotation direction ①, until the tool can be inserted. Insert the tool.

Firmly tighten the collar of the keyless chuck 1 by hand in rotation direction ② until the locking action ("click") is no longer heard. This automatically locks the chuck.

The locking is released again to remove the tool when the collar is turned in the opposite direction.

Dust/Chip Extraction

▶ Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.

Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.

- Provide for good ventilation of the working place.

- It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the materials to be worked.

Operation

Starting Operation

Inserting the battery

▶ Use only original Bosch lithium-ion batteries with the voltage listed on the nameplate of your power tool.

Using other batteries can lead to injuries and pose a fire hazard.

16| English

Set the rotational direction switch 7 to the centre position to protect the power tool against accidental starting.

Insert the charged battery 6 from the front into the base of the power tool. Push the battery completely into the base until the red stripe can no longer be seen and the battery is securely locked.

Reversing the rotational direction (see figure C)

The rotational direction switch 7 is used to reverse the rotational direction of the machine. However, this is not possible with the On/Off switch 8 actuated.

Right Rotation: For drilling and driving in screws, push the rotational direction switch 7 left to the stop.

Left Rotation: For loosening and unscrewing screws and nuts, press the rotational direction switch 7 through to the right stop.

Setting the torque

The required torque can be preselected in 20 steps with the torque preselection ring 2. With the correct setting, the insert tool is stopped as soon as the screw is screwed flush into the material or when the set torque is reached.

Select a higher setting when driving out screws, or set to the symbol "Drilling".

Gear selection, mechanical

The gear selector 3 can be actuated at standstill or when the machine is running. However, this should not be done while operating at full load or maximum speed.

Two speed ranges can be preselected with the gear selector 3.

Gear I:

Low speed range; for screwdriving or working with large drilling diameter.

Gear II:

High speed range; for working with small drilling diameter. If the gear selector 3 cannot be pushed through to the stop, lightly turn the drill chuck with drill bit.

Switching On and Off

To start the machine, press the On/Off switch 8 and keep it pressed.

To switch off the machine, release the On/Off switch 8.

To save energy, only switch the power tool on when using it.

Adjusting the Speed

The speed of the switched-on power tool can be variably adjusted, depending on how far the On/Off switch 8 is pressed. Light pressure on the On/Off switch 8 results in a low rotational speed. Further pressure on the switch results in an increase in speed.

Fully automatic spindle locking (Auto-lock)

When the On/Off switch 8 is not pressed, the drill spindle and thus the tool holder are locked.

This enables screws to be screwed in, even when the battery is empty and allows for the machine to be used as a screwdriver.

Run-on Brake

When the On/Off switch 8 is released, the chuck brakes to a stop, thus preventing the run-on of the tool.

When driving in screws, wait until the screw is screwed in flush with the material and then release the On/Off switch 8. By doing so, the head of the screw does not penetrate into the material.

Temperature Dependent Overload Protection

When using as intended for, the power tool cannot be subject to overload. When the load is too high or the allowable battery temperature of 65° C is exceeded, the electronic control switches off the power tool until the temperature is in the optimum temperature range again.

Working Advice

▶ Apply the power tool to the screw only when it is switched off. Rotating tool inserts can slip off.

When the power tool is electrostatically charged, the built-in electronic control switches it off. To restart the power tool, press the On/Off switch 8 again.

Tips

After longer periods of working at low speed, allow the machine to cool down by running it for approx. 3 minutes at maximum speed with no load.

For drilling in metal, use only perfectly sharpened HSS drill bits (HSS=high-speed steel). The appropriate quality is guaranteed by the Bosch accessories program.

Before screwing larger, longer screws into hard materials, it is advisable to predrill a pilot hole with the core diameter of the thread to approx. 2/3 of the screw length.

Recommendations for Optimal Handling of the Battery

Protect the battery against moisture and water.

Store the battery only within a temperature range between -20°C and 50°C . As an example, do not leave the battery in the car in summer.

Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

Observe the notes for disposal.

Maintenance and Service

Maintenance and Cleaning

Before any work on the machine itself (e.g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the power tool. There is danger of injury when unintentionally actuating the On/Off switch.

For safe and proper working, always keep the machine and ventilation slots clean.

English | 17

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax:[phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone:[phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Power Tools 1 609 92A 2D5 | (30.9.16)

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.

Disposal

The machine, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EC countries:

According to the European Guideline 2012/19/EU, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Li-ion:

Please observe the instructions in section "Transport", page 17.

Subject to change without notice.

18|Français

Français

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montage

Robert Bosch (France) S.A.S.

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

i.v. h=mc

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montaje

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

i.v. h·w—

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montagem

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montaggio

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montage

Accu opladen

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

i.v. h·w—

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Bosch Power Tools 1 609 92A 2D5 | (30.9.16)

52 | Dansk

Montering

Opladning af akku

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

54|Svenska

Transport

Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montage

Batteriets laddning

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Transport

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montering

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

i.v. h·w—

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Asennus

Akun lataus

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

i.v. h=mc

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Συναρμολόγηση

Φόρτιση μπαταρίας

Executive Vice President

Head of Product Certification PT/ECS

Engineering

i.v. k-m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Bosch Power Tools 1 609 92A 2D5 | (30.9.16)

80|Türkçe

Montaj

Akünün şarjı

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Bosch Uzman Ekibi [phone]

Isiklar LTD.STI

Kizilay Cad. No: 16/C Seyhan

Adana

Tel.: [phone]

Tel.: [phone]

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montaż

Robert Bosch Sp. z o.o.

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montáž

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

i.v. h·w

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montáž

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Összeszerelés

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Сборка

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

i.v. h=m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Монтаж

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

i.v. k=m

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Жинау

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montare

Tel. service scule electrice: [phone]

Fax: [phone]

E-Mail: [e-mail]

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Монтиране

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Монтажа

Srpski|149
6 Akumulator

7	Preklopnik smera okretanja
8	Prekidač za uključivanje-isključivanje
9	Drška (izolovana površina za prihvat)

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

i.v. h=mc

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montaža

Punjenje akumulatora

Koristite samo uredjaje za punjenje koji su navedeni na strani sa priborom. Samo ovi uredjaji za punjenje su usaglašeni sa Li-jonskim akumulatorom koji se koristi u Vašem električnom alatu.

Uputstvo: Akumulator se isporučuje delimično napunjen. Da bi osigurali punu snagu akumulatora, punite akumulator pre prve upotrebe u aparatu za punjenje.

Li-jonski akumulator može da se puni u svako doba, a da ne skraćujemo životni vek. Prekidanje radnje punjenja ne šleti akumulatoru.

Li-jonski akumulator je zaštićen od prevelikog pražnjenja sa „Electronic Cell Protection (ECP)“. Kod ispražnjenog akumulatora isključuje se električni alat preko zaštitne veze. Upotrebljeni alat se više ne pokreće.

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

i.v. k-m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montaža

Polnjenje akumulatorske baterije

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY Stuttgart 01 01 2017

Stuttgart, 01.01.2017

Montaža

Punjenje aku-baterije

- Koristite samo punjače navedene na stranici sa priborom. Samo su ovi punjači prilagođeni Li-ionskoj aku-bateriji koja se koristi u vašem električnom alatu.

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

i.v. h·w—

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

1609 92A 2D5 (30.9.16) Bosch Power Tools

Eesti|167

Montaž

Aku laadimine

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montāža

Akumulatora uzlādes ierīce

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montavimas

Henk Becker Senior Vice President Engineering

Helmut Heinzelmann Head of Product Certification

PT/ECS

Aur Beo i.V. H.W.C

Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

التركيب

شمن المركم

إورة على صفحة

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Aur Beo i.v. h:m

Robert Bosch Power Tools GmbH,

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

اجزاء دستگاه
