USER MANUAL DLA-HD950BE JVC

TO OUR VALUED CUSTOMER

THANK YOU FOR PURCHASING THIS JVC PRODUCT. WE WANT TO HELP YOU ACHINEVE A PERFECT EXPERIENCE.

NEED HELP ON HOW TO HOOK UP?
NEED ASSISTANCE ON HOW TO OPERATE?
NEED TO LOCATE A JVC SERVICE CENTER?
LIKE TO PURCHASE ACCESSORIES?

JVC® IS HERE TO HELP!

TOLL FREE: 1(800)252-5722

http://www.jvc.com

Remember to retain your Bill of Sale for Warranty Service.

DO not attempt to service the product yourself

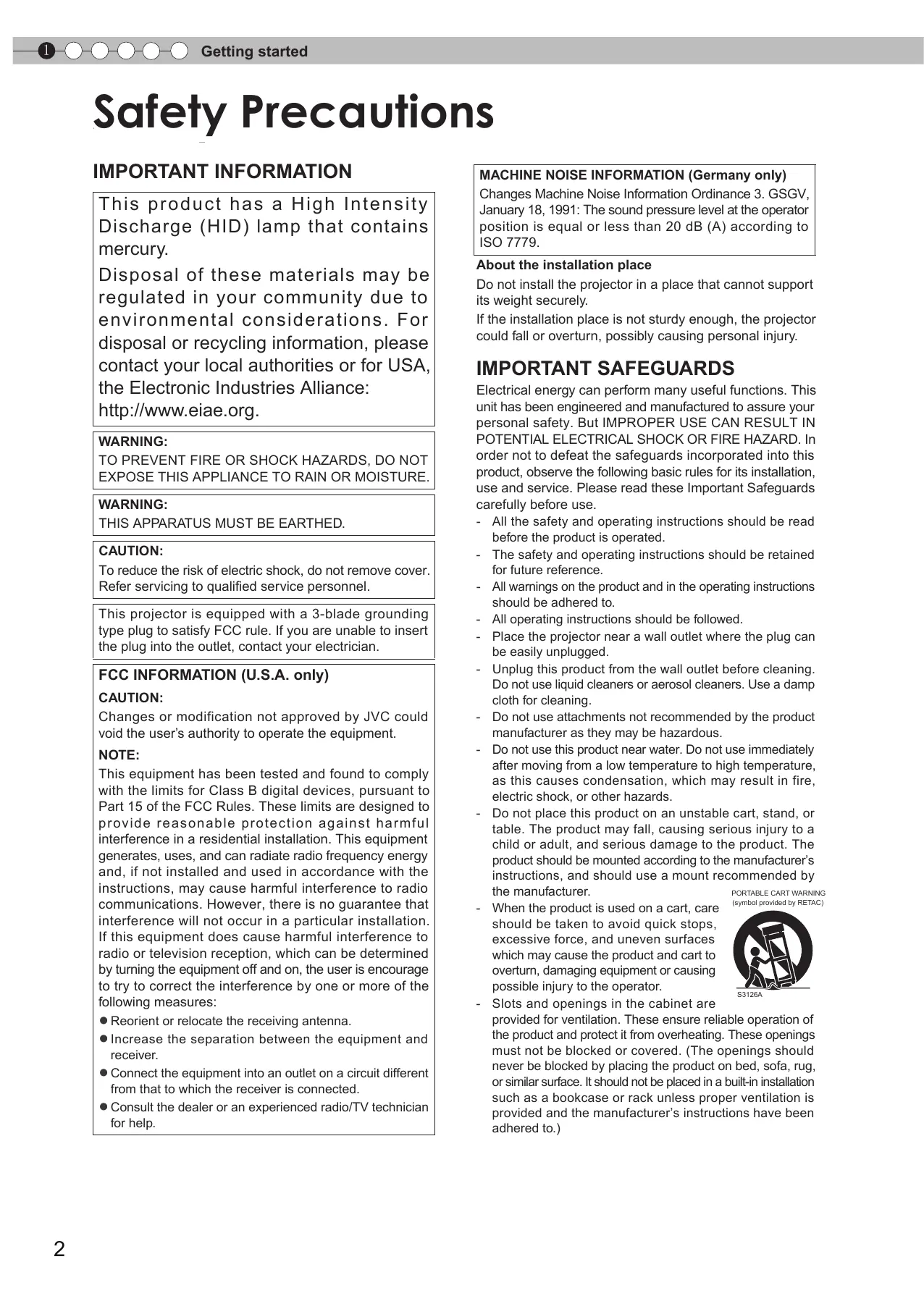

Caution

To prevent electrical shock,do not open the cabinet.

There are no user serviceable parts inside.

Please refer to qualified service personnel for repairs.

JVC

DLA-HD950
DLA-HD990

D-ILA PROJECTION PROJECTION D-ILA PROJECTION

DLA-HD950/DLA-HD990

D-ILA PROJECTOR

PROJECTEUR D-ILA

PROYECTOR D-ILA

DLA-HD950/DLA-HD990

HIGHEDEFINITIONMULTIMEDIAINTERFACE

THX

For Customer use :

Enter below the serial No. which is located on the side of the cabinet. Retain this information for future reference.

Model No.

DLA-HD950
DLA-HD990

Serial No.

This product has a High Intensity Discharge (HID) lamp that contains mercury.

Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities or for USA, the Electronic Industries Alliance: http://www.eiae.org.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

WARNING:

THIS APPARATUS MUST BE EARTHED.

CAUTION:

To reduce the risk of electric shock, do not remove cover. Refer servicing to qualified service personnel.

This projector is equipped with a 3-blade grounding type plug to satisfy FCC rule. If you are unable to insert the plug into the outlet, contact your electrician.

FCC INFORMATION (U.S.A. only)

CAUTION:

Changes or modification not approved by JVC could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

MACHINE NOISE INFORMATION (Germany only)

Changes Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 20 dB (A) according to ISO 7779.

About the installation place

Do not install the projector in a place that cannot support its weight securely.

If the installation place is not sturdy enough, the projector could fall or overturn, possibly causing personal injury.

IMPORTANT SAFEGUARDS

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this product, observe the following basic rules for its installation, use and service. Please read these Important Safeguards carefully before use.

• All the safety and operating instructions should be read before the product is operated.
• The safety and operating instructions should be retained for future reference.
• All warnings on the product and in the operating instructions should be adhered to.
• All operating instructions should be followed.
• Place the projector near a wall outlet where the plug can be easily unplugged.
• Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
• Do not use attachments not recommended by the product manufacturer as they may be hazardous.
• Do not use this product near water. Do not use immediately after moving from a low temperature to high temperature, as this causes condensation, which may result in fire, electric shock, or other hazards.
• Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. The product should be mounted according to the manufacturer's instructions, and should use a mount recommended by the manufacturer.
• When the product is used on a cart, care should be taken to avoid quick stops, excessive force, and uneven surfaces which may cause the product and cart to overturn, damaging equipment or causing possible injury to the operator.
• Slots and openings in the cabinet are

PORTABLE CART WARNING symbol provided by RETAC)
S3126A

provided for ventilation. These ensure reliable operation of the product and protect it from overheating. These openings must not be blocked or covered. (The openings should never be blocked by placing the product on bed, sofa, rug, or similar surface. It should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer's instructions have been adhered to.)

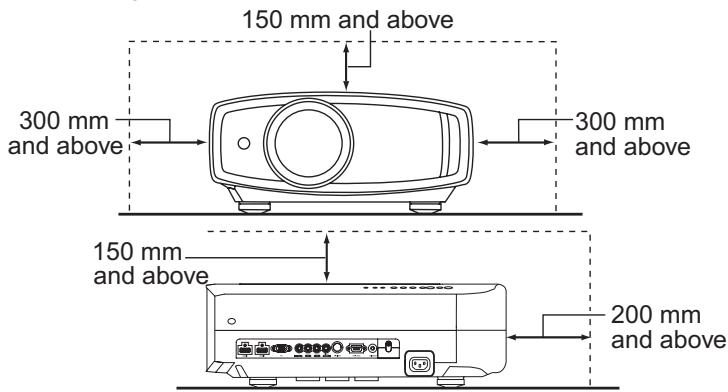

• To allow better heat dissipation, keep a clearance between this unit and its surrounding as shown below. When this unit is enclosed in a space of dimensions as shown below, use an air-conditioner so that the internal and external temperatures are the same. Overheating can cause damage.

• power source indicated on the label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
• This product is equipped with a three-wire plug. This plug will fit only into a grounded power outlet. If you are unable to insert the plug into the outlet, contact your electrician to install the proper outlet. Do not defeat the safety purpose of the grounded plug.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at doors, plugs, receptacles, and the point where they exit from the product.
• For added protection of this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power line surges.
• Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock.
• Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
• Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltages and other hazards. Refer all service to qualified service personnel.
• Unplug this product from the wall outlet and refer service to qualified service personnel under the following conditions:

a) When the power supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen on the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the Operation Manual, as an improper adjustment of controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.
e) If the product has been dropped or damaged in any way.
f) When the product exhibits a distinct change in performance - this indicates a need for service.

• When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or with same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

• Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

• The product should be placed more than one foot away from heat sources such as radiators, heat registers, stoves, and other products (including amplifiers) that produce heat.
• When connecting other products such as VCR's, and DVD players, you should turn off the power of this product for protection against electric shock.
• Do not place combustibles behind the cooling fan. For example, cloth, paper, matches, aerosol cans or gas lighters that present special hazards when over heated.
• Do not look into the projection lens while the illumination lamp is turned on. Exposure of your eyes to the strong light can result in impaired eyesight.
• Do not look into the inside of this unit through vents (ventilation holes), etc. Do not look at the illumination lamp directly by opening the cabinet while the illumination lamp is turned on. The illumination lamp also contains ultraviolet rays and the light is so powerful that your eyesight can be impaired.
• Do not drop, hit, or damage the light-source lamp (lamp unit) in any way. It may cause the light-source lamp to break and lead to injuries. Do not use a damaged light source lamp. If the light-source lamp is broken, ask your dealer to repair it. Fragments from a broken light-source lamp may cause injuries.
• The light-source lamp used in this projector is a high pressure mercury lamp. Be careful when disposing of the light-source lamp. If anything is unclear, please consult your dealer.
• Do not ceiling-mount the projector to a place which tends to vibrate; otherwise, the attaching fixture of the projector could be broken by the vibration, possibly causing it to fall or overturn, which could lead to personal injury.
• Use only the accessory cord designed for this product to prevent shock.

*DO NOT allow any unqualified person to install the unit.

Be sure to ask your dealer to install the unit (e.g. attaching it to the ceiling) since special technical knowledge and skills are required for installation. If installation is performed by an unqualified person, it may cause personal injury or electrical shock.

Safety Precautions (Continued)

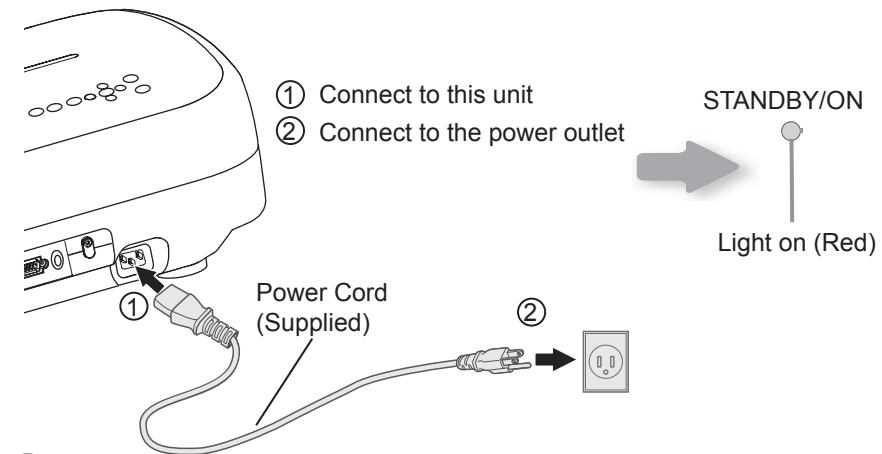

POWER CONNECTION

For USA and Canada only

Use only the following power cord.

Power cord

The power supply voltage rating of this product is AC110V – AC240V. Use only the power cord designated by our dealer to ensure Safety and EMC.

Ensure that the power cable used for the projector is the correct type for the AC outlet in your country. Consult your product dealer.

Power cord
For United Kingdom

For European continent countries

WARNING:

Do not cut off the main plug from this equipment.

If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter or consult your dealer.

If nonetheless the mains plug is cut off, dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the main supply. If a new main plug has to be fitted, then follow the instruction given below.

WARNING:

THIS APPARATUS MUST BE EARTHED.

IMPORTANT (Europe only):

The wires in the mains lead on this product are colored in accordance with the following cord:

Green-and-yellow : Earth

Blue : Neutral

Brown :Live

As these colors may not correspond with the colored making identifying the terminals in your plug, proceed as follows:

The wire which is colored green-and-yellow must be connected to the terminal which is marked M with the letter E or the safety earth or colored green or green-and-yellow.

The wire which is colored blue must be connected to the terminal which is marked with the letter N or colored black.

The wire which is colored brown must be connected to the terminal which is marked with the letter L or colored red.

POWER CONNECTION (United Kingdom only)

HOW TO REPLACE THE FUSE:

When replacing the fuse, be sure to use only a correctly rated approved type, re-fit the fuse cover.

IF IN DOUBT — CONSULT A COMPETENT ELECTRICIAN.

Open the fuse compartment with the blade screwdriver, and replace the fuse.

(* An example is shown in the illustration below.)

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

European representative of Victor Company of Japan, Limited is:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Germany

ENGLISH

Information for Users on Disposal of Old Equipment and Batteries

Products

Battery

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

DEUTSCH

Merk: Tegnet Pb under symbolet for batterier, viser at batteriet inneholder bly.

CBeHeHnI IaIIOJIb3OBATeJeI IO yTNIIN3aUIN cTaporo o6OpyIDoBaHnI 6aTapei

U3denn

BaTapea

[Tonbko dЯЕbponeckoro co103a]

Данные симьлы указыагот на TO,чTO obopydobAHne,Ha KOTOPoe OHI haHecehbl, He Должны yтUNIN3ирOBaTBсЯ,Кak obblHbe 6bITOBIE OTXOdbI.При Heo6xOДIMOCtN yTUNIN3ирOBaTB takoe ИЗделпе ИлбБаТаpeю obpaTITeCB Cпeциальнь ПУНКТ c6opa dЯnx habnexашпперapabotkn.

YBeDomJIeHne: HAnncb Pb nOc CmBOJOM 6aTapey yKa3bIbAeT Ha To, UTo DaHHa 6bTapey coepKNT CBHeU.

CESKY

THX Ltd. was founded by filmmaker George Lucas to improve the cinema and home entertainment experience through strict engineering standards and breakthrough technologies. THX has leveraged more than 25 years of filmmaking, cinema design and post-production expertise to partner with JVC to engineer a best-in-class home theater projector.

With a strict focus on image quality and signal processing performance, THX certification promises that this JVC projector is capable of presenting a wide range of video content at maximum resolutions with the correct color and luminance levels. In addition, THX has created a battery of signal processing tests that challenge the projector's scaling, motion conversion and de-interlacing capabilities. This type of in-depth analysis predicts how the projector will present a variety of high definition and standard definition content.

The JVC projector also features THX Movie Mode, a pre-calibrated video setting for watching movies on DVD, Blu-ray HD or broadcast television. This playback feature is designed to recreate the cinema experience at home by setting the display's gamma, luminance, color temperature and other settings to mirror those used by filmmakers in post-production. THX Movie Mode also ensures projector brightness is optimal for large screen viewing.

For detail information about ISF, please refer web site http://www.imagingscience.com/

Contents

Getting started

Safety Precautions. 2

THX Certification. 9

isf information. 9

Contents 10

How to Read this Manual/Accessories/

Optional Accessories 11

About this Manual. 11

Check the Accessories 11

Optional Accessories. 11

Controls and features. 12

How to Use the Remote control. 15

Loading Batteries. 15

Effective Range of Remote Control Unit............15

Preparation

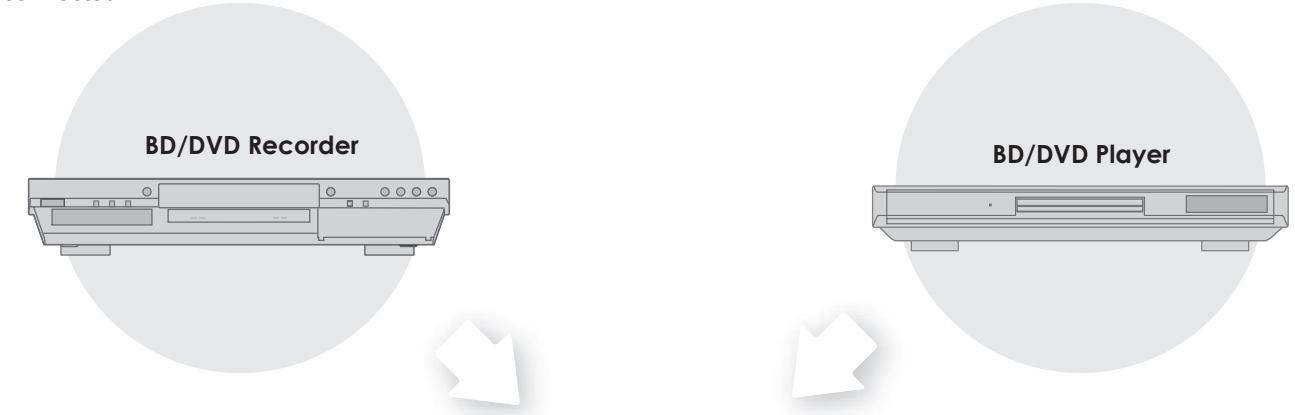

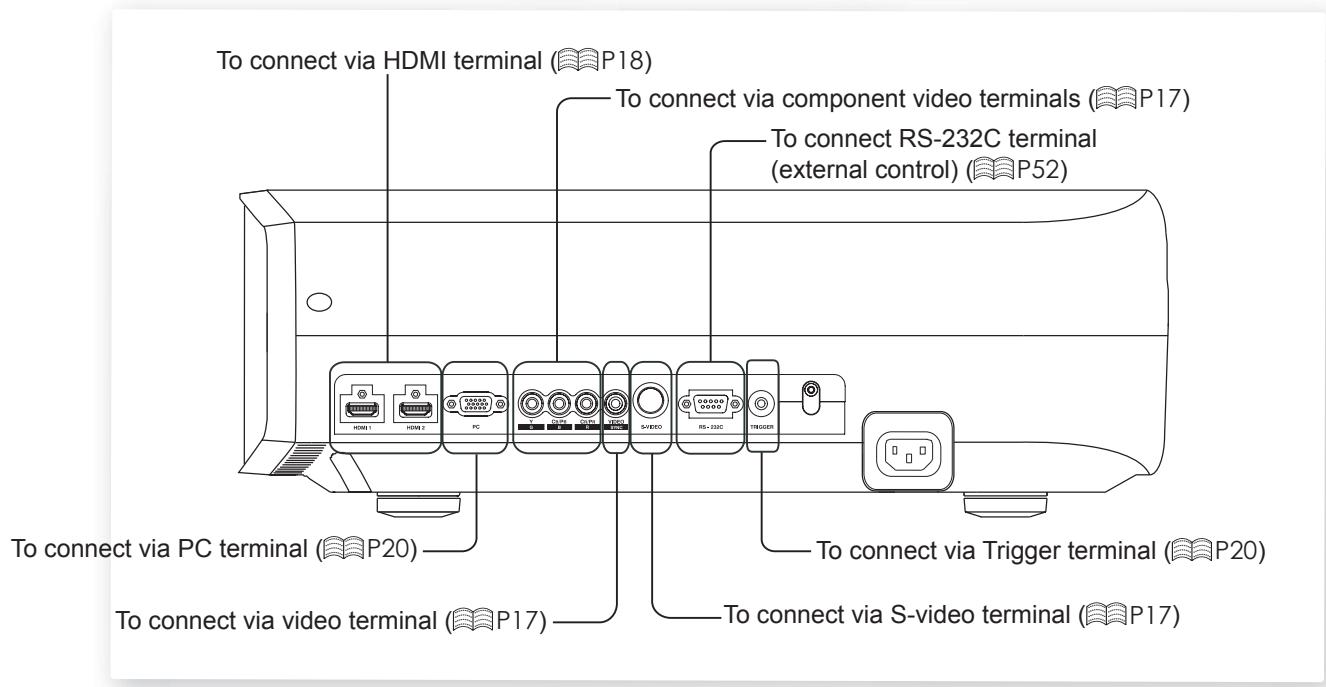

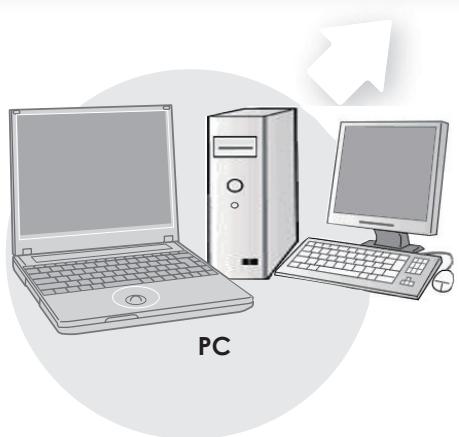

Selecting Connecting Devices. 16

Connecting. 17

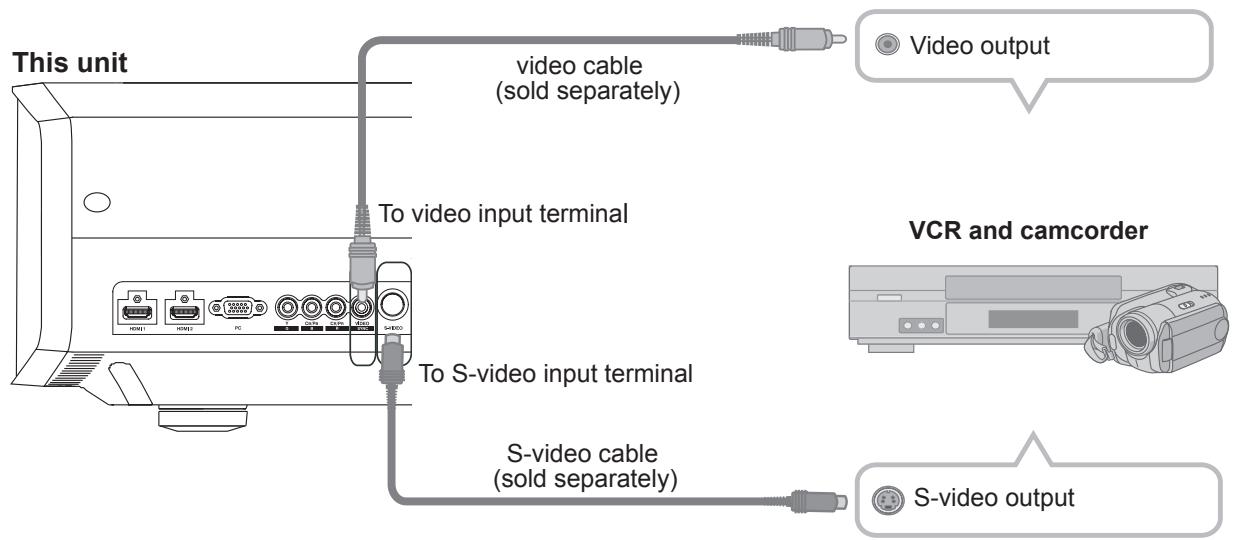

Connecting via Video Cable and S-Video

Cable. 17

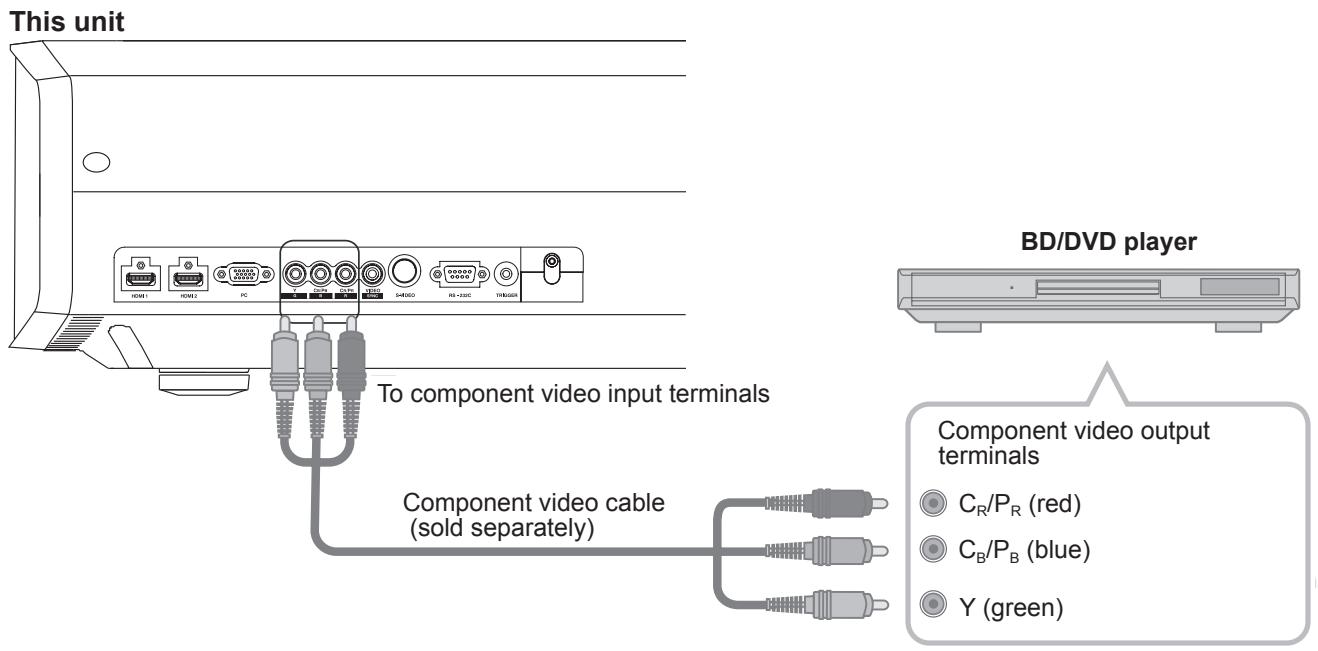

Connecting via Component Video Cable......17

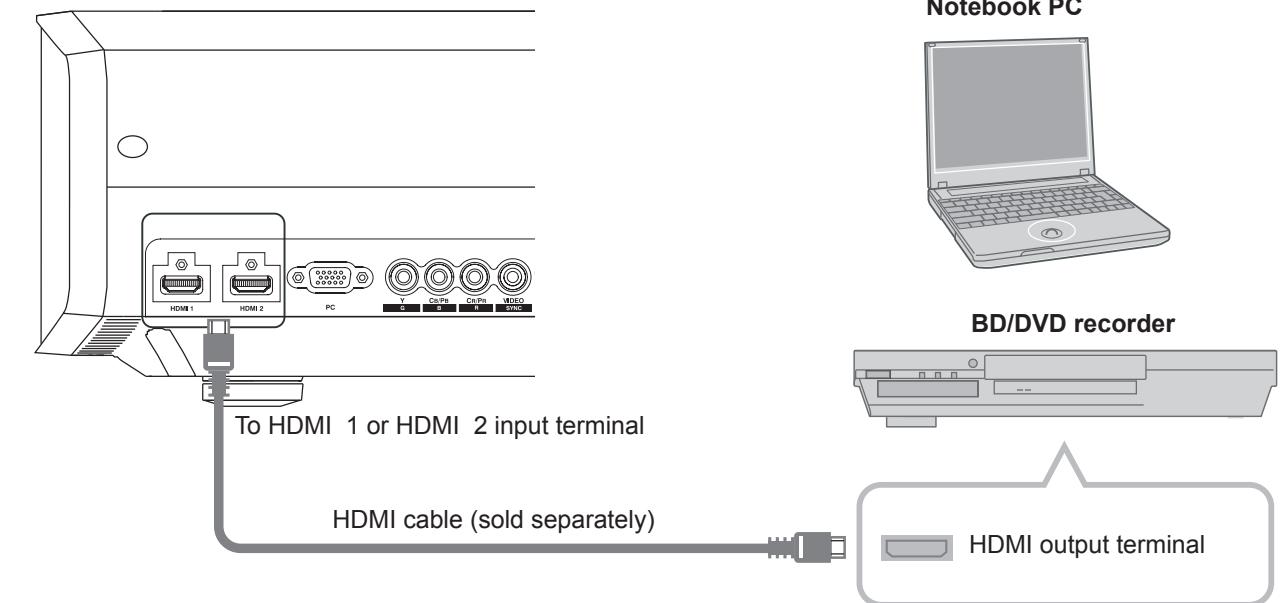

Connecting via HDMI Cable............18

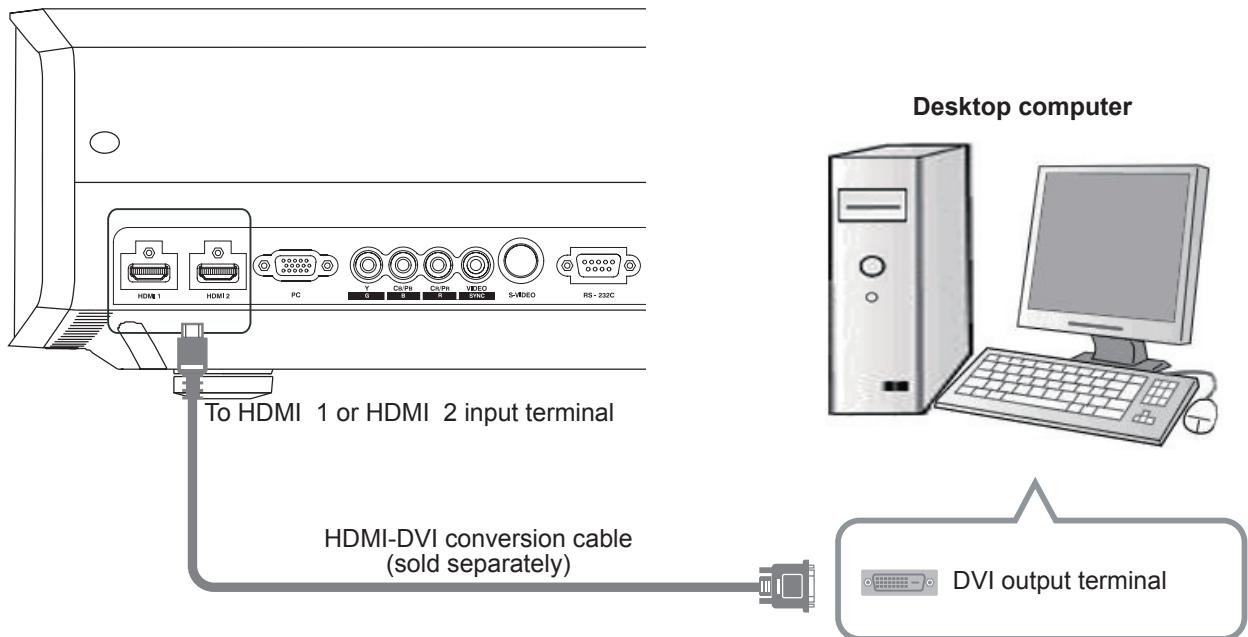

Connecting via HDMI-DVI Conversion Cable...18

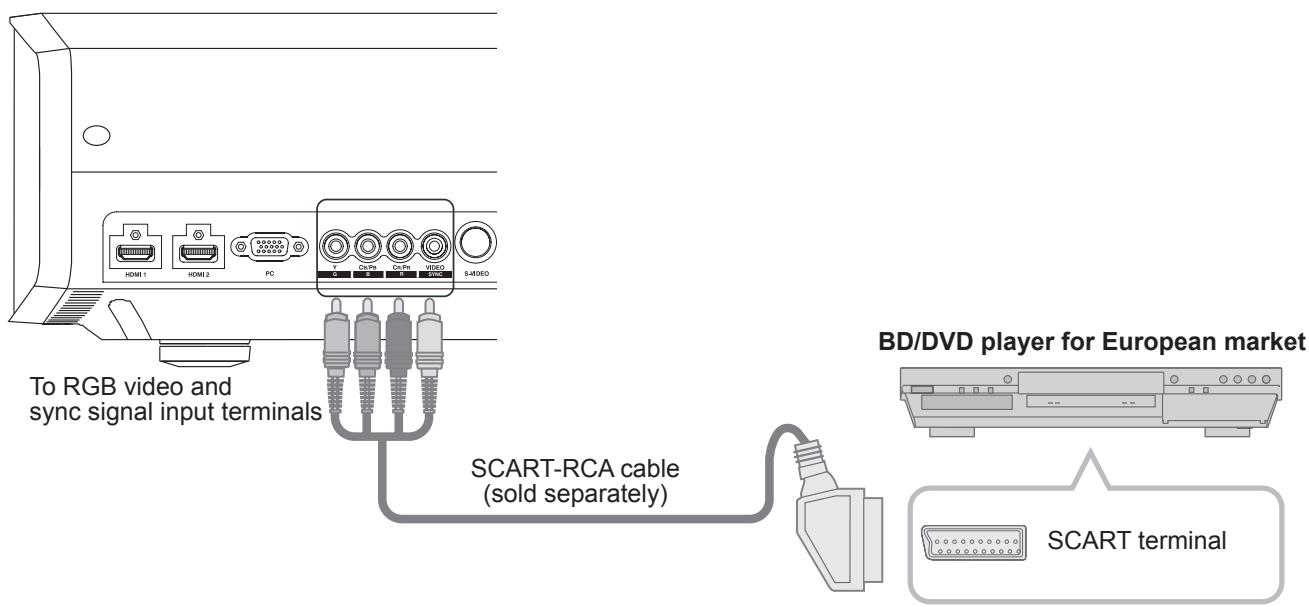

Connecting via SCART-RCA Cable............19

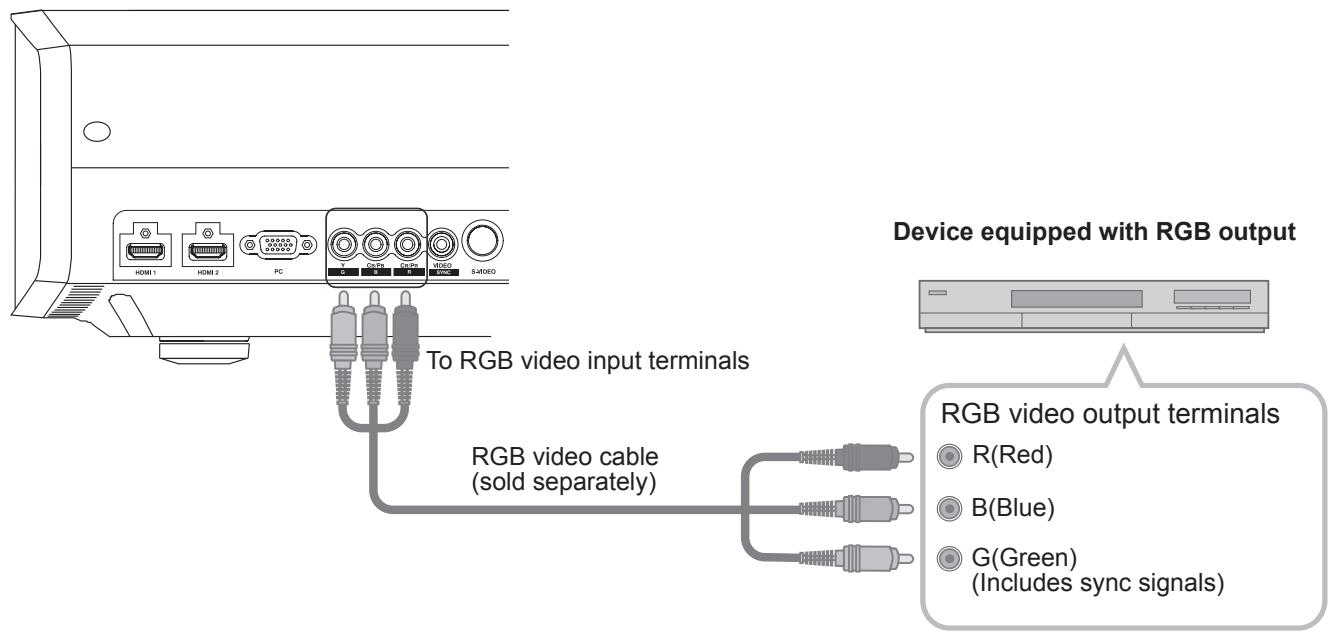

Connecting via RGB Video Cable............19

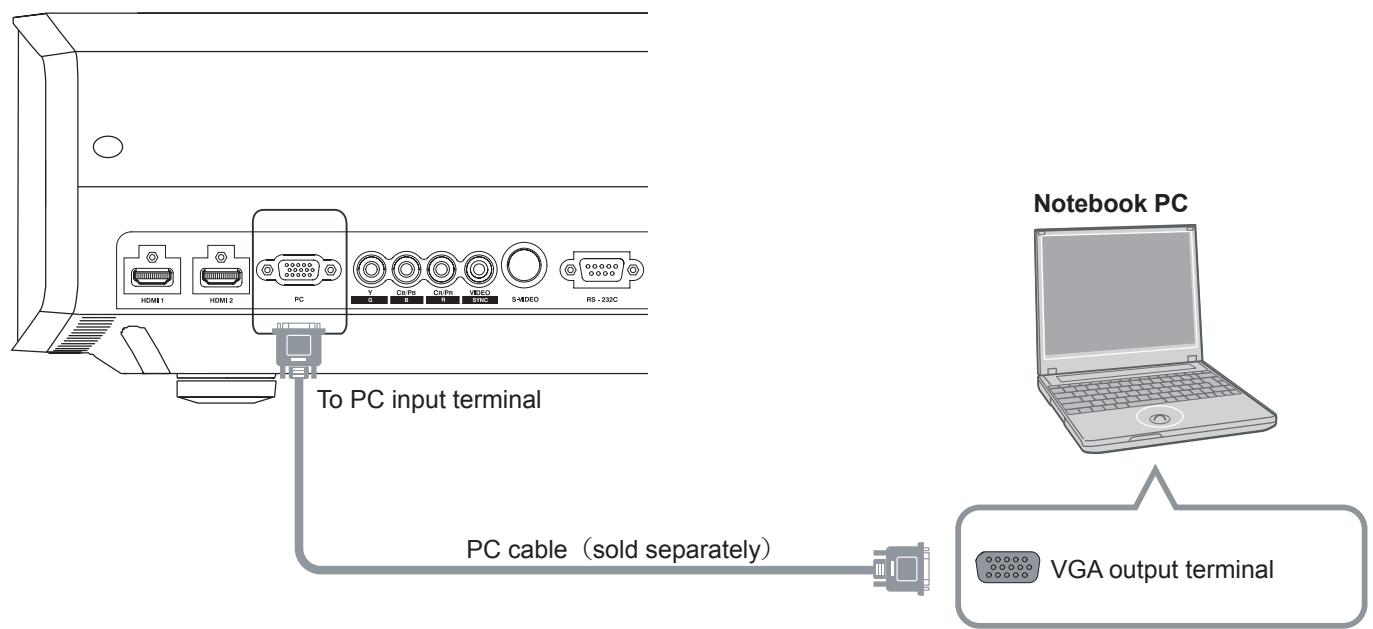

Connecting via PC Cable............20

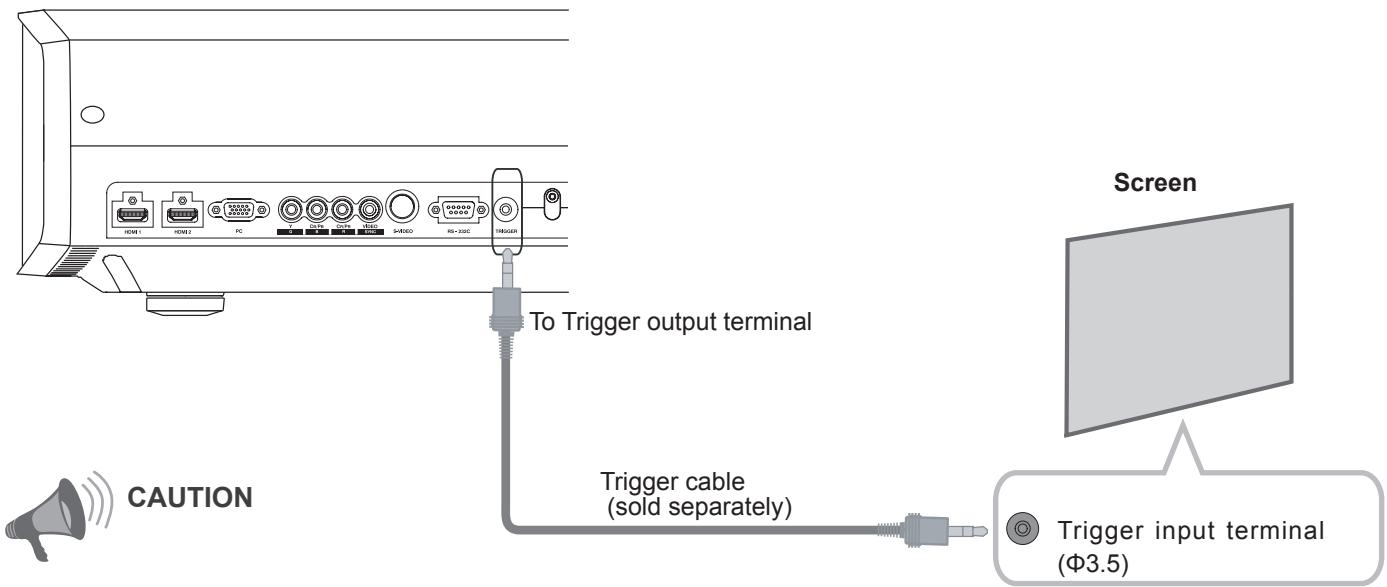

Connecting via Trigger Cable. 20

Installing the Projector and Screen 21

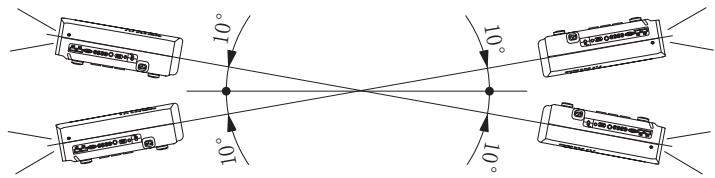

Set Angle 21

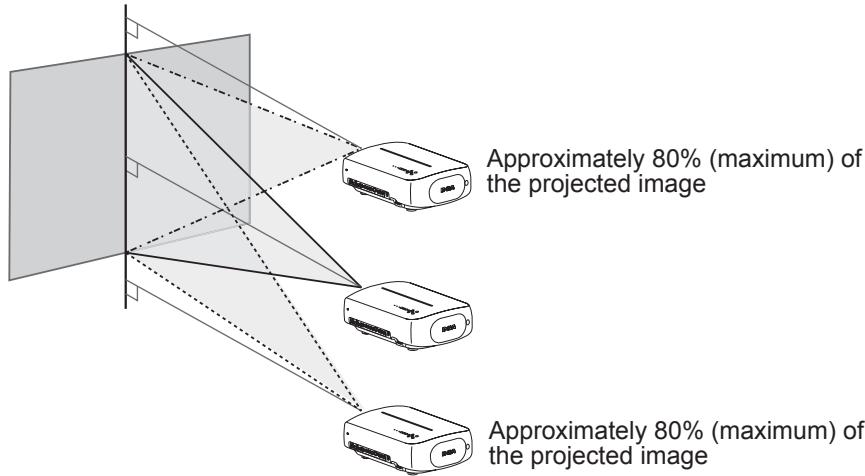

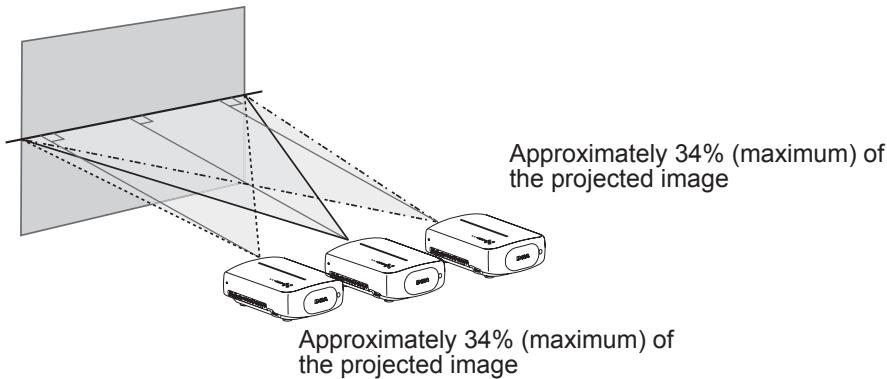

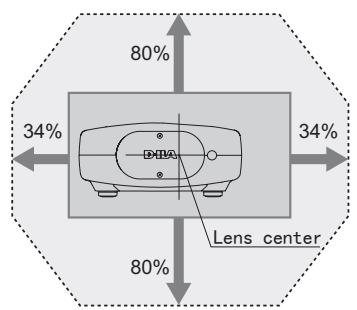

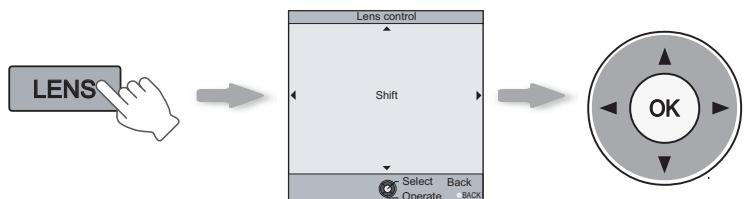

Shift 21

Screen Size and Projection Distance 22

Basic Operation

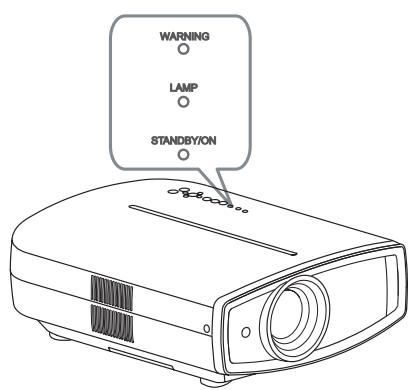

Projecting Image 24

Convenient Features during Projection 26

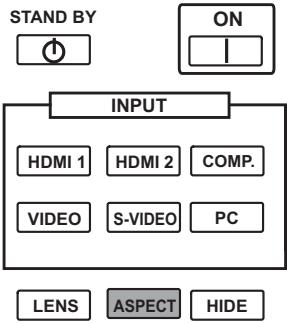

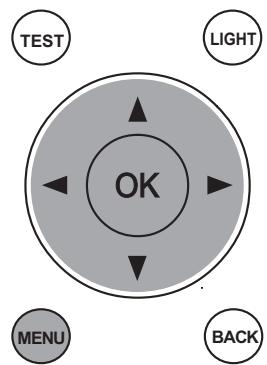

Setting the Screen Size 26

Masking the Surrounding Area of an Image....26

Settings

The structure of the Settings menu 28

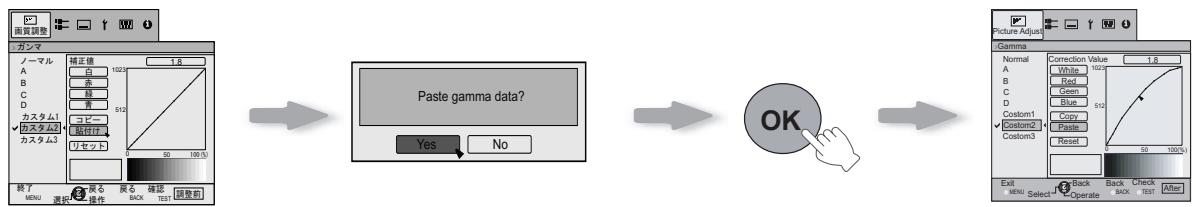

Setting Menu 30

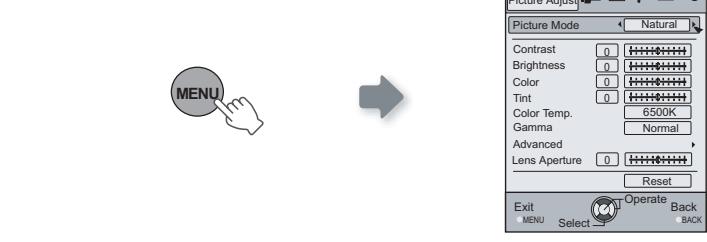

Procedures for Menu Operation 30

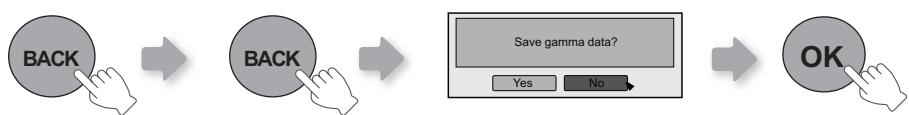

Setting Menu 31

Customizing Projected Images 42

Changing the Initial Setting of Picture Mode.42

Registering User-defined Picture Mode. 43

Registering User-defined Picture Mode from the

Menu 43

Troubleshooting

Troubleshooting 44

What to Do When these Messages

Are Displayed. 46

About Warning Indicators 47

Actions to Be Taken for Warning Mode............47

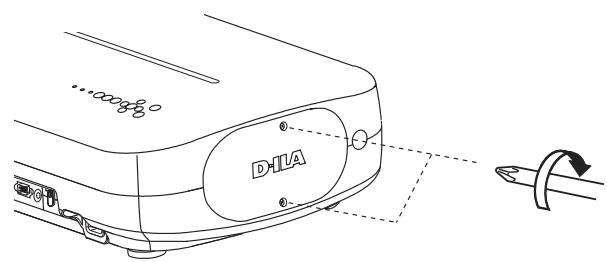

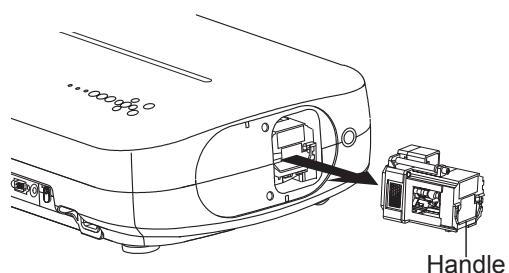

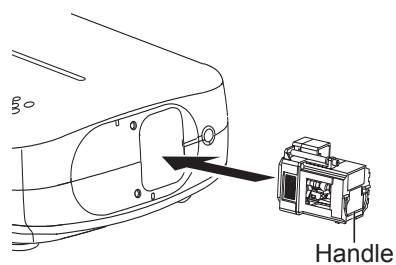

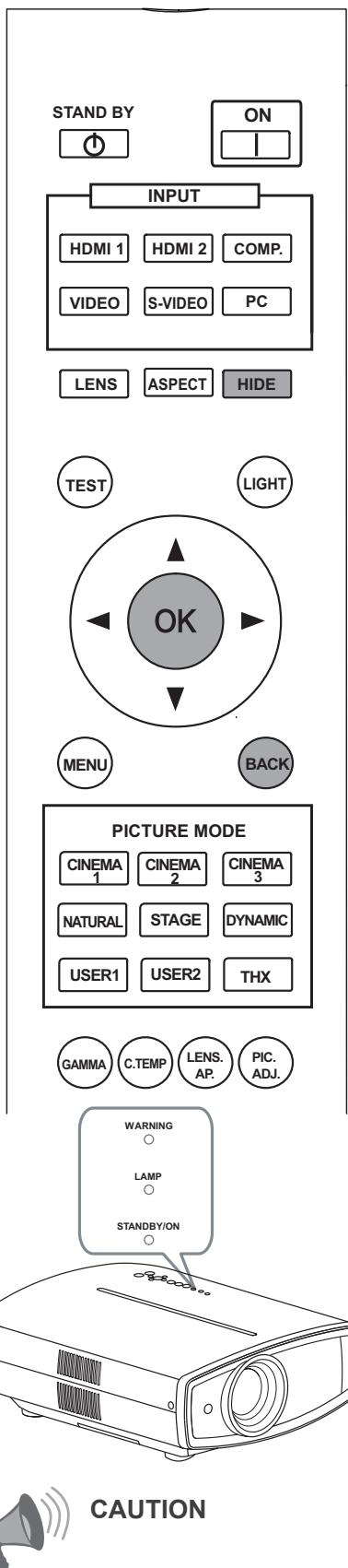

Replacing the Lamp 48

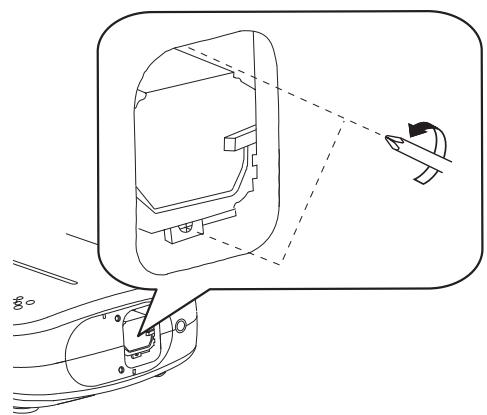

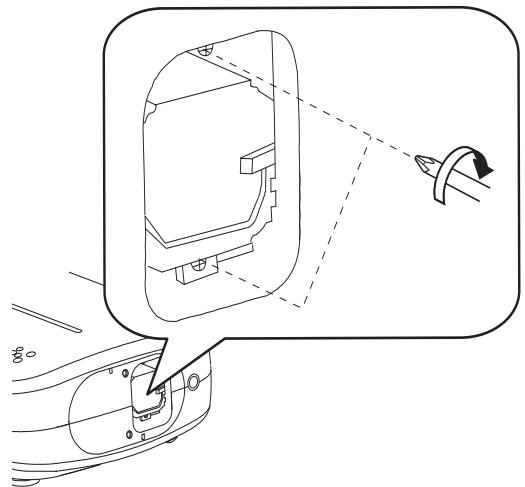

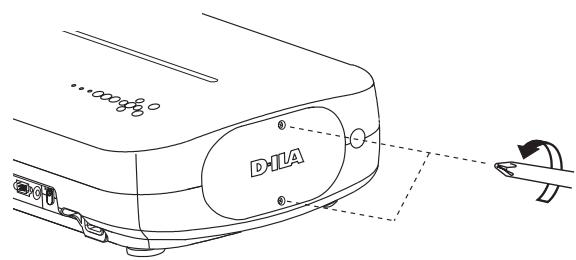

Procedure for Lamp Replacement 48

Resetting Lamp Time 50

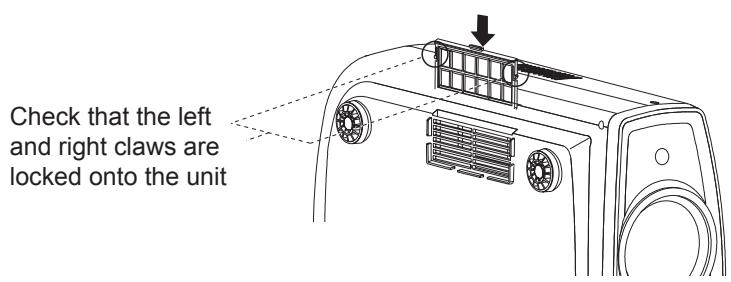

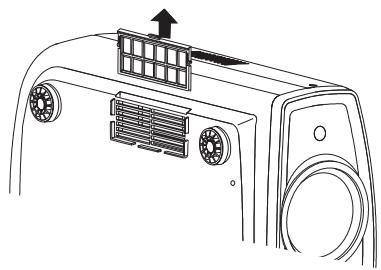

Cleaning and Replacing the Filter............51

Others

RS-232C Interface 52

RS-232C Specifications 52

Command Format 52

RS-232C Communication Examples 55

Copyright and Caution 56

About Trademarks and Copyright 56

Caution. 56

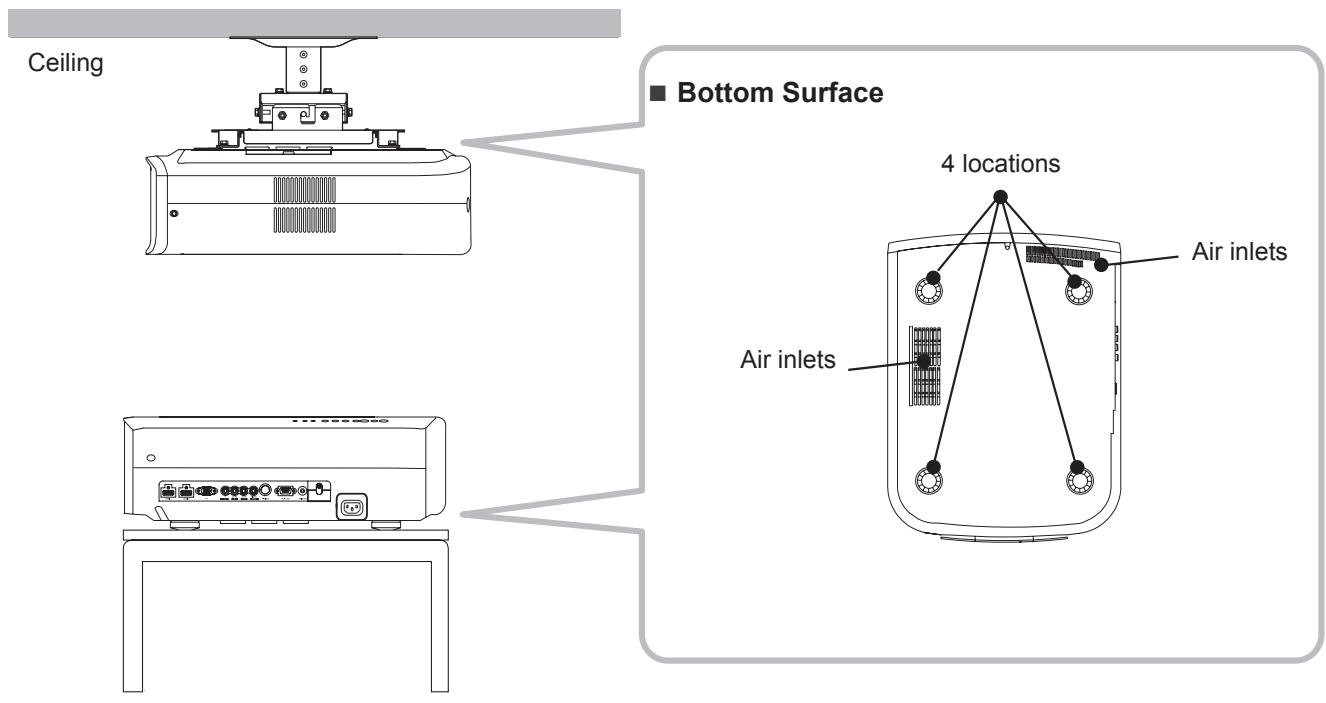

Mounting this Unit 57

Specifications 58

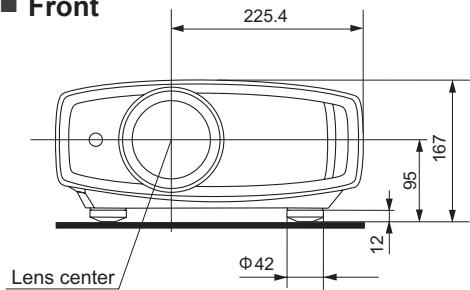

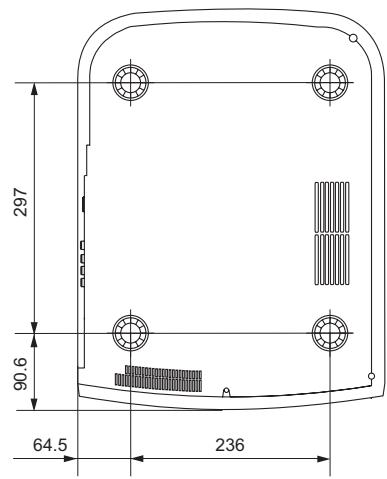

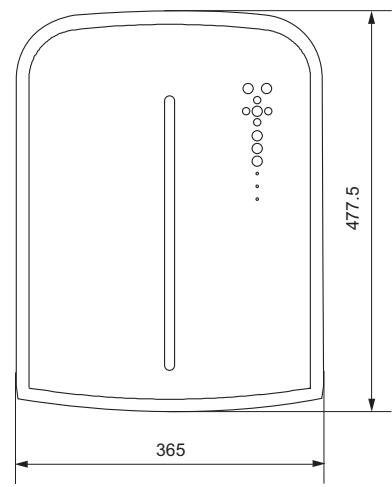

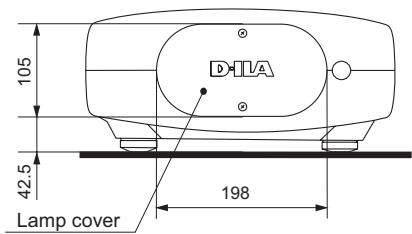

Dimensions 60

Index 61

How to Read this Manual/ Accessories/Optional Accessories

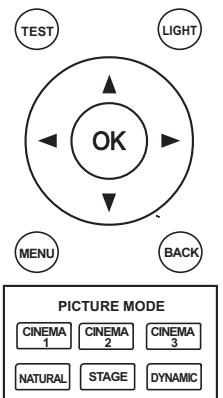

About this Manual

This manual mainly describes the operating method using the remote control.

• Buttons on the remote control are described as [Button Name].
• Items on the menu are described as "Selection Item".

Conventions in this manual

Describes the limitations of the functions or usage.

Indicates good-to-know information.

Describes operational precautions.

Buttons to be used are colored in a darker shade.

Indicates relevant pages for reference.

Check the Accessories

Remote Control 1 piece

AAA size Batteries (for operation confirm) 2 pieces

Power Cord For the US market (2 m) 1 piece

Power Cord For the EU market (2 m) 1 piece

Power Cord For the UK market (2 m) 1 piece

• Instruction manual, warranty card and other printed material are also included.

Optional Accessories

Please check with your authorized dealer for details.

• Replacement Lamp: BHL5010-S (Lamp Unit)
• Replacement Filter (black in appearance): PB006560999 (Inner Filter)

Controls and features

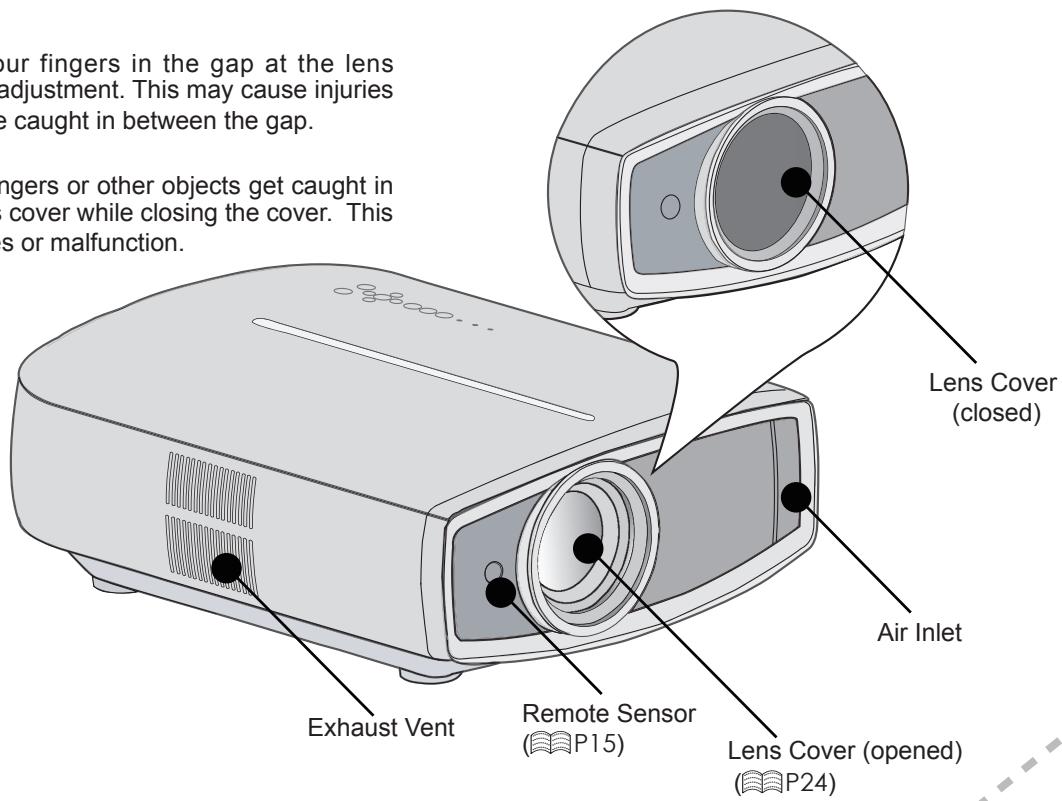

Front Side/Left Side

CAUTION

• Do not place your fingers in the gap at the lens during lens shift adjustment. This may cause injuries if your fingers are caught in between the gap. (P25)
• Do not let your fingers or other objects get caught in between the lens cover while closing the cover. This can cause injuries or malfunction.

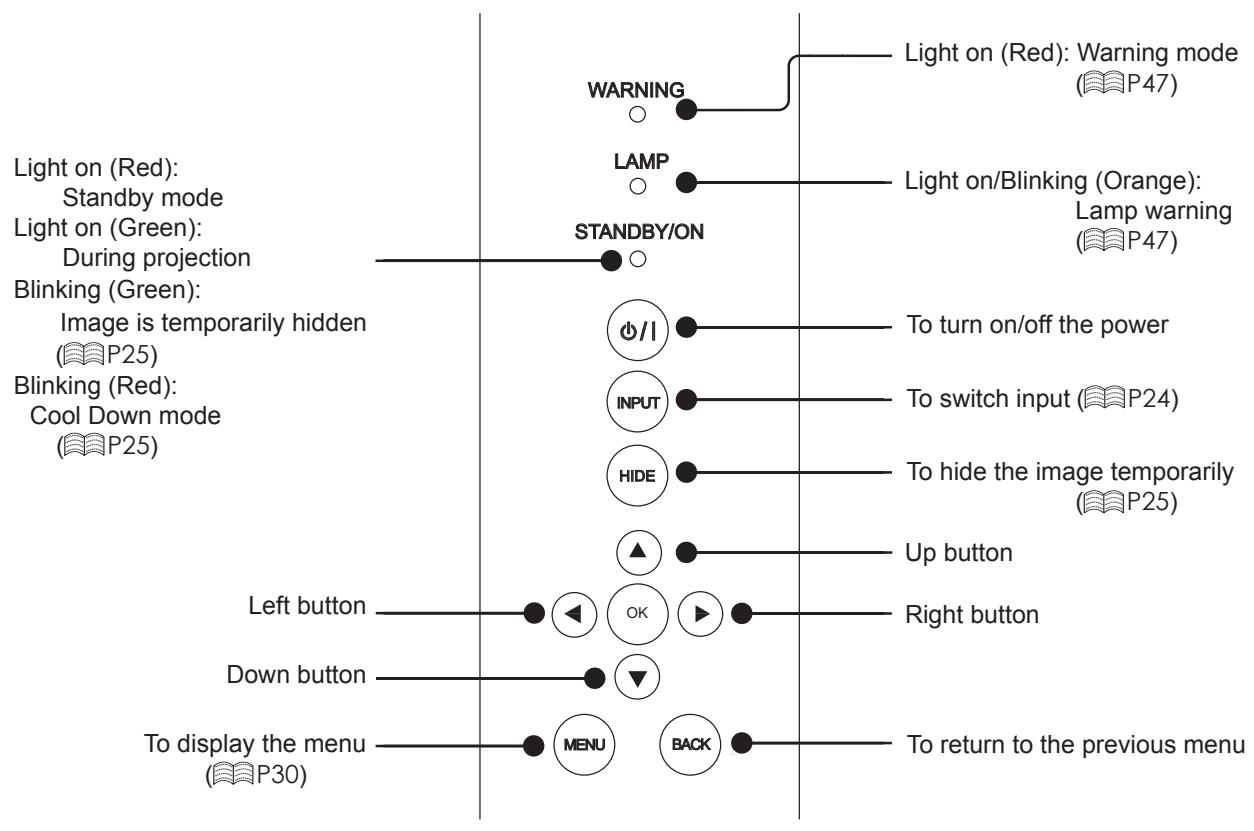

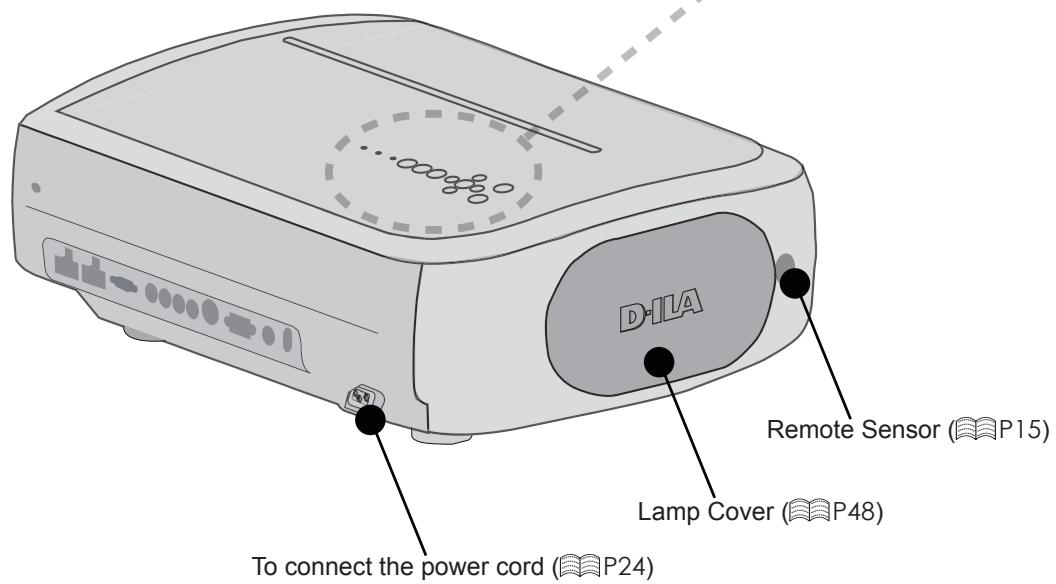

Rear Side/Top Side/Right Side

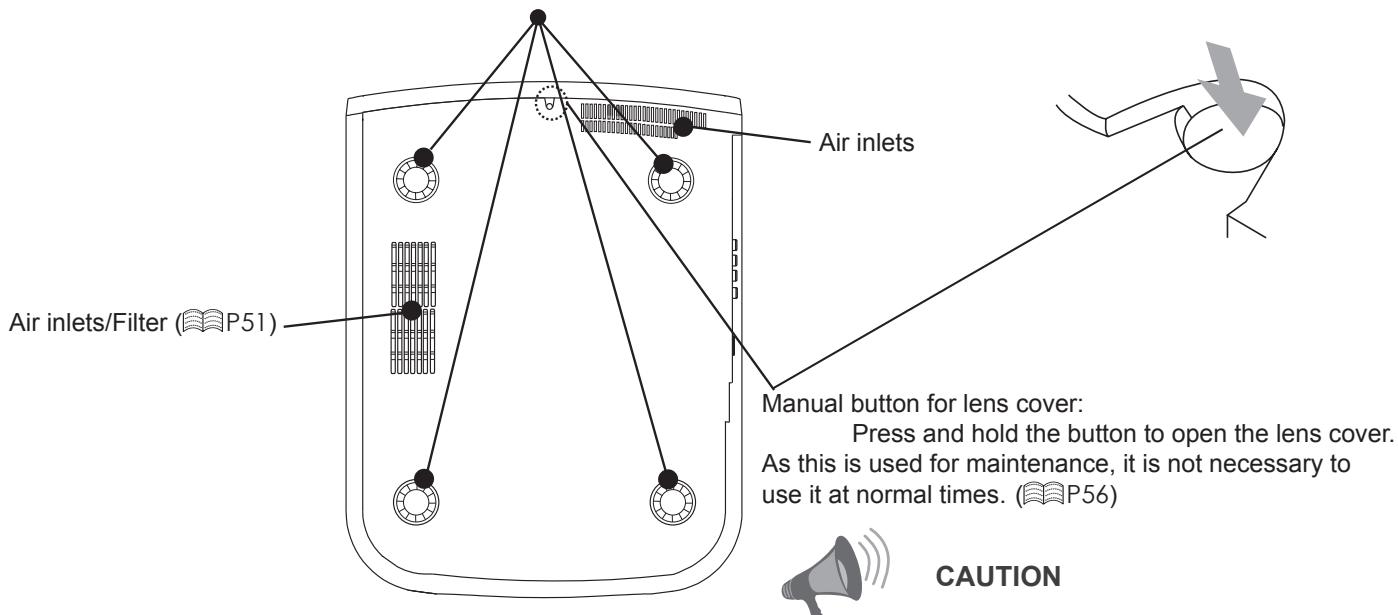

Bottom Surface

Feet: The height (0 to 5 mm) can be adjusted by turning the foot.

• Do not close lens cover when projecting. Otherwise it will cause malfunction, heat and fire.

Controls and features (continued)

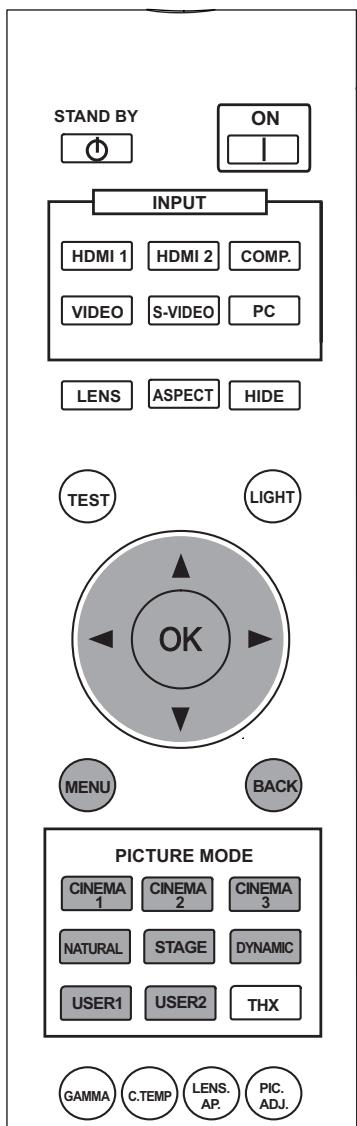

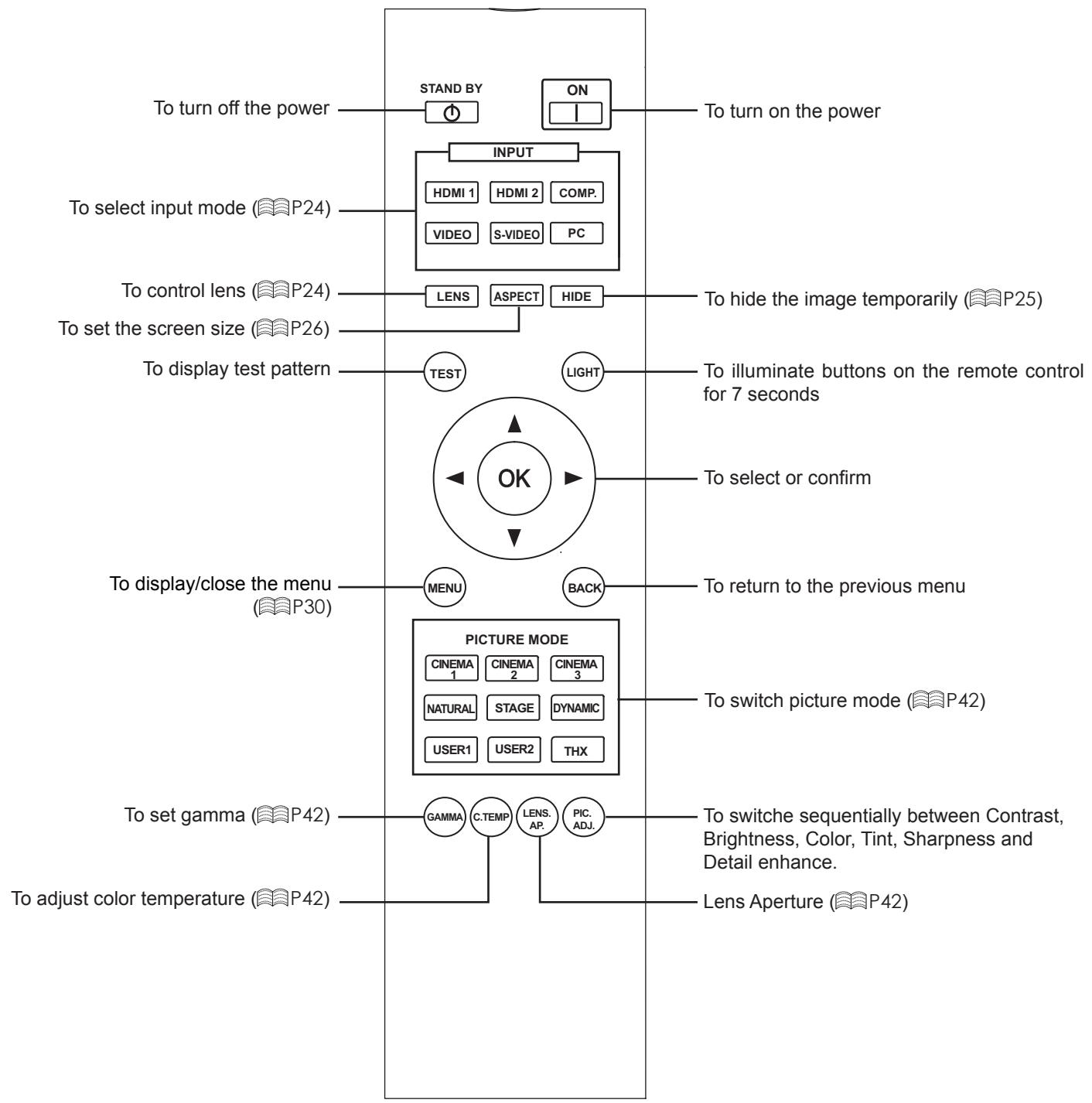

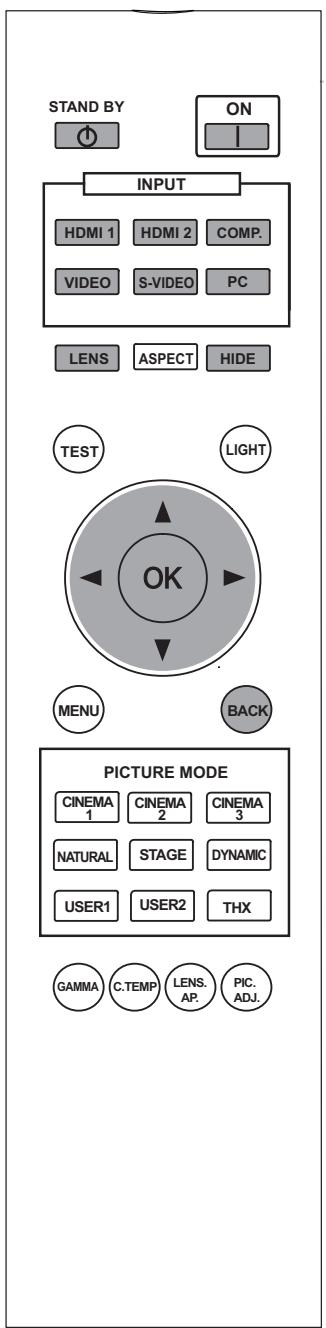

Remote Control

How to Use the Remote control

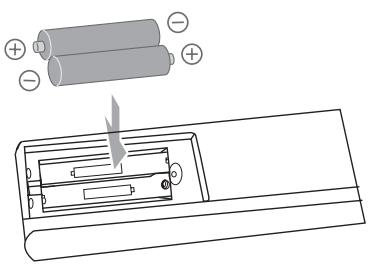

Loading Batteries

(1)

(2)

(3)

• If the remote control has to be brought closer to the projector to operate, it means that the batteries are wearing out. When this happens, replace the batteries. Insert the batteries according to the marks.
• Be sure to insert the end first.
• If an error occurs when using the remote control, remove the batteries and wait for 5 minutes. Load the batteries again and operate the remote control.

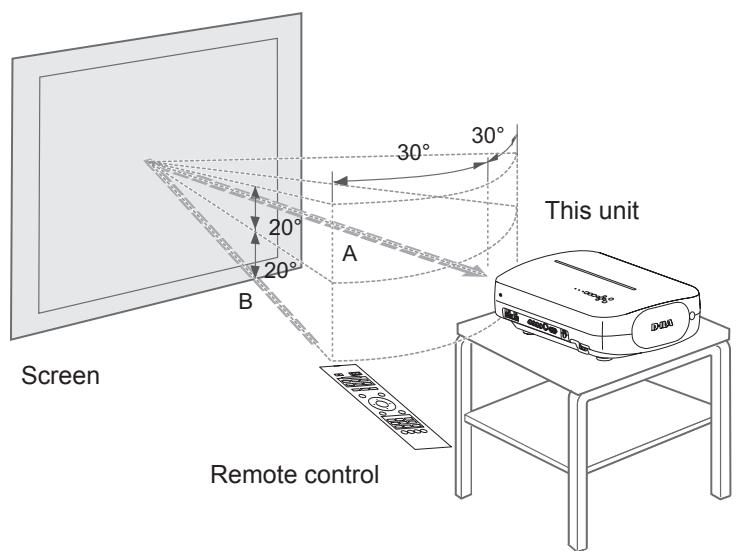

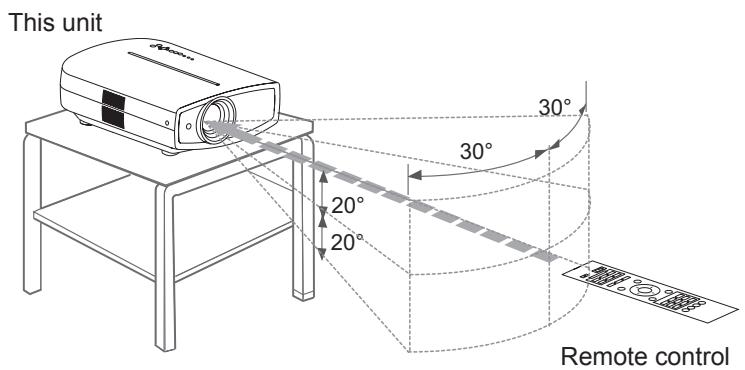

Effective Range of Remote Control Unit

- When directing the remote control toward this unit

• When aiming the remote control towards the remote sensor on this unit, ensure that the distance to the sensor in front or at the rear of this unit is within 7m .
• If the remote control fails to work properly, move closer to this unit.

When reflecting off a screen

• Ensure that the total of distance A between this unit and screen and distance B between remote control and screen is within 7m .
• As the efficiency of signals reflected from the remote control unit differ with the type of screen used, operable distance may decrease.

Selecting Connecting Devices

• Do not turn on the power until connection is complete.
• The connection procedures differ according to the device used. For details, refer to the instruction manual of the device to be connected.
• This device is used for image projection. Connect to an audio output device such as amplifier and speaker for audio output from the connected device.
• The images may not be displayed depending on the devices and cables to be connected.

For HDMI cable (sold separately), only use one that is HDMI-approved.

• It may not be possible to connect to this unit depending on the dimension of the connector cover of the cables to be connected.

Connecting

Connecting via Video Cable and S-Video Cable

Connecting via Component Video Cable

- Set "COMP." in the setting menu to "Y Pb/Cb Pr/Cr". (P36 - 12)

Connecting(Continued)

Connecting via HDMI Cable

This unit

• If noise is produced, take PCs (Notebook PC) away from this unit.
• Use only HDMI-approved equipment.
• Reducing the length of the cable is recommended if there is no picture.

Connecting via HDMI-DVI Conversion Cable

This unit

• If noise is produced, take PCs (desktop computer) away from this unit.
• Reducing the length of the cable is recommended if there is no picture.

Connecting via SCART-RCA Cable

This unit

- Set "COMP." in the setting menu to "SCART".(P36 - 12)

Connecting via RGB Video Cable

This unit

- Set "COMP." in the setting menu to "RGB".(P36 - 12)
- For information on compatible input signals, see "Specifications". (P58)

Connecting(Continued)

Connecting via PC Cable

This unit

- For information on supported input signals, please refer to "Specifications". (P58)

Connecting via Trigger Cable

This unit

- Do not supply the power to the other devices.
- Do not connect audio terminals of the other devices such as headphones etc. Otherwise, this may cause a malfunction of the other devices or injury.
- Using beyond the rated value will cause malfunction.
- Exercise adequate caution to prevent short circuit as the trigger terminal outputs a voltage of 12V .

Installing the Projector and Screen

While installing, please place this unit and the screen perpendicular to each other. Failing to do so may increase trapezoidal distortion. Please refer to "Keystone". (P39 - 25)

Set Angle

• The angle range which can be set for this unit is ± 10^ .

• Malfunctions may occur if the angle is not set within the above-mentioned range.

Shift

Left/Right position

• 0% up/down position (center)

Up/Down position

• 0% left/right position (center)

- Shifting range of projected image

Lens shift correlation chart:

Left-Right Shift(%)	0%	5%	10%	15%	20%	25%	30%	34%
Up-Down Shift(%)	80%	74%	66%	57%	47%	34%	18%	0%

• Maximum Up-Down shift varies with the amount of Left-Right shift. Likewise, maximum Left-Right shift varies with the amount of Up-Down shift.
• The values on the chart are intended to act as a guide. Use them for reference during installation.

Installing the Projector and

Screen(Continued)

Screen Size and Projection Distance

Determine the distance from the lens to the screen to achieve your desired screen size.

This unit uses a 2.0x power zoom lens for projection.

■ Relationship Between Projection Screen Size and Projection Distance

Projection Screen Size (Diagonal Length) Aspect Ratio 16:9	Approximate Projection Distance W(Wide) to T(Tele)
60" (Approx. 1.52m)	Approx. 1.78m to Approx. 3.66m
70" (Approx. 1.78m)	Approx. 2.09m to Approx. 4.28m
80" (Approx. 2.03m)	Approx. 2.40m to Approx. 4.89m
90" (Approx. 2.29m)	Approx. 2.70m to Approx. 5.51m
100" (Approx. 2.54m)	Approx. 3.01m to Approx. 6.13m
110" (Approx. 2.79m)	Approx. 3.31m to Approx. 6.75m
120" (Approx. 3.05m)	Approx. 3.62m to Approx. 7.36m
130" (Approx. 3.30m)	Approx. 3.92m to Approx. 7.98m

Projection Screen Size (Diagonal Length) Aspect Ratio 16:9	Approximate Projection Distance W(Wide) to T(Tele)
140" (Approx. 3.56m)	Approx. 4.23m to Approx. 8.60m
150" (Approx. 3.81m)	Approx. 4.53m to Approx. 9.22m
160" (Approx. 4.06m)	Approx. 4.84m to Approx. 9.84m
170" (Approx. 4.32m)	Approx. 5.14m to Approx. 10.45m
180" (Approx. 4.57m)	Approx. 5.45m to Approx. 11.07m
190" (Approx. 4.83m)	Approx. 5.75m to Approx. 11.68m
200" (Approx. 5.08m)	Approx. 6.06m to Approx. 12.30m

• The projection distances in the table are provided only as a guide. Use them as a reference during installation.
• To adjust the installation, use a projected image of aspect ratio 16:9.

MEMO

Projecting Image

This section describes the basic operations to project input images on the screen.

Preparation

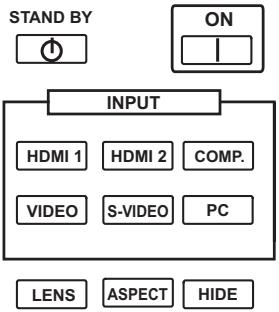

1 Insert the power plug to the power outlet

2 Turn on the power

STANDBY/ON

Light on (Green)

• You can also press / button on the unit to turn on the power. (图P13)
  The lens cover will be opened.

Project the image

1 Select input mode

• You can also select the input mode by pressing the INPUT button on the

unit. (P13)

HDMI 1→HDMI 2→COMP. →Video→S-Video →PC

2 Play back the selected device

4 Adjusts image focus, size (zoom), and position (shift).

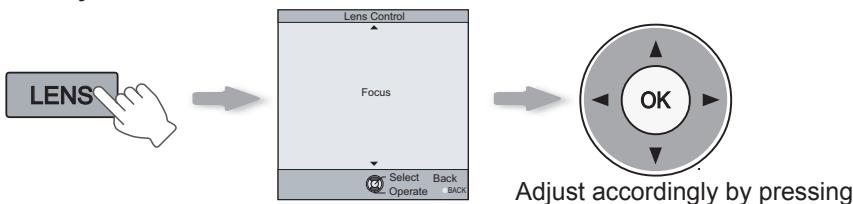

1 Adjust the focus

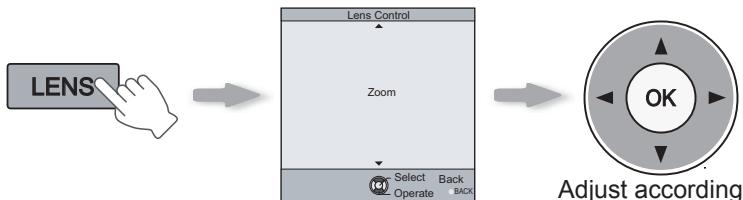

2 Adjust the image size (zoom)

Adjust accordingly by pressing the up/down buttons

3 Adjust image position (shift).

Adjust accordingly by pressing the up/down buttons

• After adjusting the image position, it may be necessary to select "Pixel Adjust" from the Settings menu "Installation".
  （P38-23）
• Every time the LENS button is pressed, the adjustment item will be switched among "Focus", "Zoom" and "Shift".

4 To end

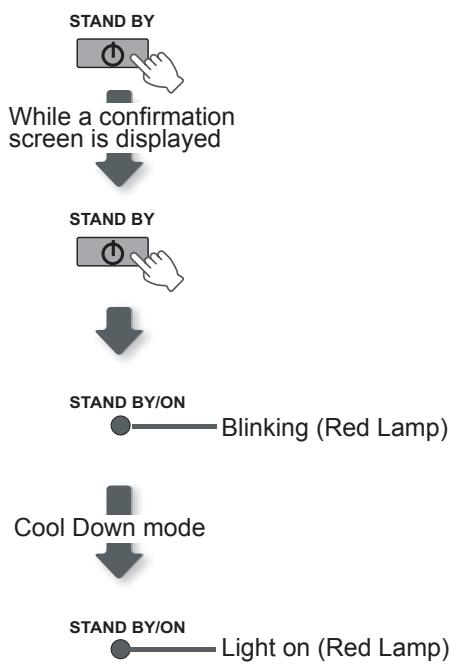

5 Turn off the power

• When power off, the lens cover will be closed.
• The power cannot be turned off within approximately 90 seconds after it has been turned on. Start operation only after 90 seconds time.
• You can also press the ( /1) button on the unit to turn off the power. (P13)
• Pull out the power plug when the unit will not be used for a prolonged time.

TIPS

You can hide the image temporarily

You can hide the image temporarily.

• Press the button again to display image.
• The power cannot be turned off when the image is temporarily hidden.

MEMO

About Cool Down mode

• The Cool Down mode is a function to cool down the lamp for approximately 60 seconds after projection is complete. This function prevents the internal parts of the unit from deformation or damage due to overheating of the lamp. It also prevents lamp blowout and premature shortening of lamp life.
• During Cool Down mode, the [STANDBY/ON] indicator blinks in red.
• After the Cool Down mode is complete, the unit automatically returns to standby mode.
• Do not pull out the power plug during Cool Down mode. This may shorten the lamp life and cause a malfunction.

Convenient Features during Projection

You can change the screen size of the projected image or hide the surrounding area of an image for which quality at the outer area has deteriorated.

Setting the Screen Size

The projected image can be set to a most appropriate screen size (aspect ratio).

• The screen size can also be set from "Aspect(Video)" of the setting menu.

• When PC signals are input, the "Aspect(Computer)" setting will be available instead. (P37 - 17)
  ■ Input Image and Projected Image by Different Screen Size Settings

Input Image	Screen Size
	4:3	16:9	Zoom
SDTV (4:3)	Aspect Ratio: Same Most appropriate screen size	Aspect Ratio: Landscape Image is stretched horizontally	Aspect Ratio: Same Top and bottom of the image are missing
SDTV(4:3) Image recorded in landscape (black bands on top and bottom) of DVD software	Aspect Ratio: Same Small image is projected	Aspect Ratio: Landscape Image is stretched horizontally	Aspect Ratio: Same Most appropriate screen size

• Depending on the input image, selecting "4:3" may result in a vertically stretched image, while selecting "16:9" provides you with the most appropriate screen size.

Masking the Surrounding Area of an Image

Images for which quality at the outer area has deteriorated can be projected by masking (hiding) the surrounding area of the projected image.

1 Project the image

Image for which quality at the outer area has deteriorated.

2 Mask the image

1 Display the setting menu

2 Select "Input Signal" "Mask"

①Select

3 Set a mask value

①Select

Example:

When the "Mask" value is

changed from "Off" "5%"

3 To end

MEMO

• Masking is available only when high definition images are input.

The structure of the Settings menu

The menu for this device is structured as follows:

CAUTION

• There are items that cannot be modified without entry.

Picture Adjust
01 Picture Mode	Adjusts the pattern of the projected image.
	Setting: Cinema 1, Cinema 2, Cinema 3, Natural, Stage, Dynamic, User 1, User 2, THX
02 Contrast	Adjusts the contrast of the projected image.
	Setting: -50 to 50
03 Brightness	Adjusts the brightness of the projected image.
	Setting: -50 to 50
04 Color	Adjusts the color density of the projected image.
	Setting: -50 to 50
05 Tint	Adjusts the hue of the projected image.
	Setting: -50 to 50
06 Color Temp.	Sets the color temperature of the projected image.
	Setting: 5800K, 6500K, 7500K, 9300K, High Bright, Custom 1, Custom 2, Custom 3
07 Gamma	Sets the gradation characteristics of the projected image.
	Setting: Normal, A, B, C, D, Custom 1, Custom 2, Custom 3
08 Advanced	Adjusts the contours of the image and detailed composition of the image.
	Setting: Sharpness, NR, CTI, Color Management, Clear Motion Drive

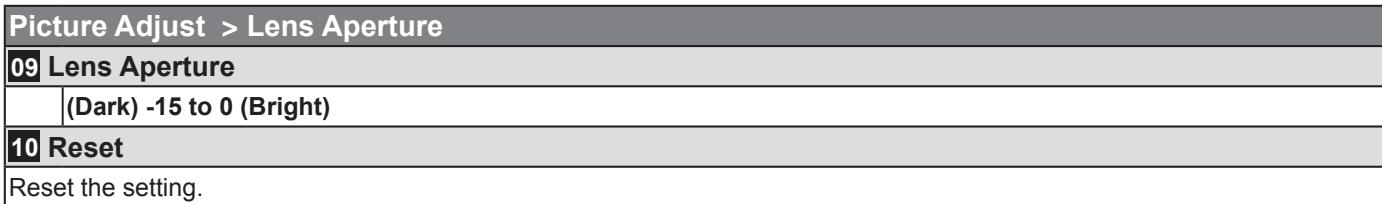

09 Lens Aperture	Sets the lens aperture.
	Setting: -15 to 0
10 Reset	Reset the setting.

Input Signal
11 HDMI	Configs HDMI input signal.
	Setting: Input, Color Space, Control with HDMI
12 COMP.	Configs the input signal for the component video input terminals.
	Setting: Y Pb/Cb Pr/Cr, RGB, SCART
13 Video/S-Video	Configs the Video/S-Video input signals.
	Setting: NTSC, Setup Level, Color System
14 PC	Configs PC input.
	Setting: Auto Alignment, Tracking, Phase, Picture Position
15 Picture Position	Adjusts the horizontal/vertical position of the projected image.
16 Aspect (Video)	Configs the screen size of the projected image.
	Setting: 4:3, 16:9, Zoom
17 Aspect (Computer)	Configs the screen size of the projected image.
	Setting: Auto, 1:1, Full

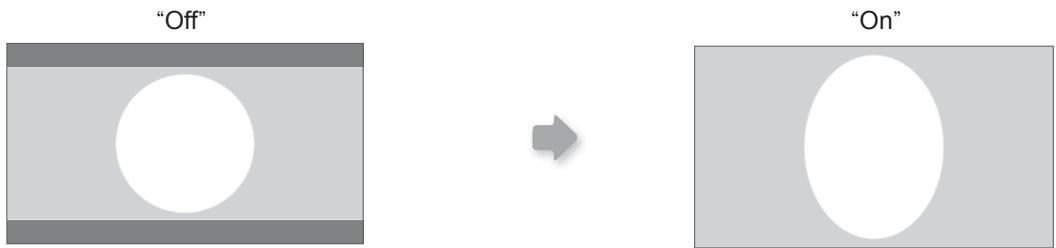

18 V-Stretch	When set to “On”, the projected 2.35:1 image will be stretched vertically to the panel resolution.
	Setting: On, Off
19 Over Scan	Selects whether or not to set over scan for the SD video signal.
	Setting: On, Off
20 Mask	Masks (Hides) the outer area of the projected image.
	Setting: 2.5, 5, Off
21 Film Mode	Selects this to view movies shot on film.
	Setting: Auto, film, Off
Installation
22 Lens Control	Controls the individual motorized function of the lens when setting up the projector.
	Setting: Focus, Zoom, shift, Image pattern, Lock
23 Pixel Adjust	Makes fine adjustments of 1 pixel unit for each minor color shift in the horizontal/vertical direction of the image.
	Setting: horizontal and vertical
24 Installation Style	Flips the image to the left or right, up or down according to the projection state of the projector.
	Setting: Front, Ceiling Mount (F), Rear Ceiling Mount (R)
25 Keystone	Compensates for trapezoidal distortion caused by installation.
26 Screen Adjust	Corrects skewed white balance derived from the reflective characteristics of the screen.
	Setting: Off, A, B, C

Display Setup
27 Back Color	Configs the screen color displayed when there is no input signal.
	Setting: Blue, Black
28 Menu Position	Sets the display position of the menu. The possible positions for displaying the menu are at the four corners or at center of the screen.
29 Menu Display	Sets the duration for displaying the menu.
	Setting: 15sec, On
30 Line Display	Sets whether to display the input setting when switching the input.
	Setting: 5 sec, Off
31 Source Display	Sets whether to display the source of input signals when changing the input.
	Setting: On, Off
32 Logo	Sets whether to display “Logo” during startup.
	Setting: On, Off
33 Language	Sets the language of the menu display (12 languages).

Function
34 Lamp Power	Configs the output of the light-source lamp.
	Setting: Normal, High
35 Trigger	Configs the output of Trigger terminal.
	Setting: Off, On(Power), On(V-Stretch)
36 Test Pattern	Display 6 types of test patterns.
37 Off Timer	Automatically powers off when there is no operation for a certain duration.
	Setting: 1 hour, 2 hours, 3 hours, 4 hours
38 High Altitude Mode	Selects this when using the projector in a location of low atmospheric pressure (higher than 900 meters above sea level).
	Setting: On, Off

Information

Input Image Connector, Input Source Name, PC resolution, PC H Frequency, PC V Frequency, Deep Color Depth, and Lamp Use are displayed.

Setting Menu

Projected images can be adjusted to a desired view by changing the initial settings.

Procedures for Menu Operation

Example:

When changing "Aspect(Video)" from "4:3" to "16:9"

1 Display the setting menu

2 Select "Input Signal" "Aspect(Video)"

3 Set to "16:9"

4 To end

Setting Menu

Item values shown in are factory settings.

• Items that can be configured differ according to the input signals.

CAUTION

• There are items that cannot be modified without entry.

Picture Adjust

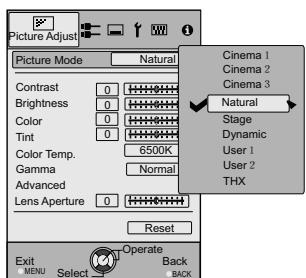

01 Picture Mode
Selects Picture Mode(Cinema 1, Cinema 2, Cinema 3, Natural, Stage, Dynamic, User 1, User 2 and THX).
	Cinema 1	This is the picture setting closest to film. It is best suited for general movie viewing.
	Cinema 2	This is the picture setting for vivid hues based on HDTV standards. It is best suited for viewing action movies and movies with vivid colors.
	Cinema 3	This is the picture setting best suited for viewing animated movies.
	Natural	This is the picture setting for natural hues and tones. It is best suited for viewing dramas and video.
	Stage	This is the picture setting best suited for watching live concerts and stage performances.
	Dynamic	This is the picture setting best suited for viewing the picture in a room that cannot be made completely dark.
	THX	This is the picture setting certified by THX Ltd.
02 Contrast
Adjusts the contrast of the projected image.
	(Black) -50 to 50 (White)
03 Brightness
Adjusts the brightness of the projected image.
	(Darken) -50 to 50 (Brighten)
04 Color
Adjusts the color density of the projected image.
	(Lighten) -50 to 50 (Darken)
05 Tint
Adjusts the hue of the projected image.
	(Red) -50 to 50 (Green)

Setting Menu (Continued)

Picture Adjust > Color Temp.

06 Color Temp.
Sets the color temperature of the projected image. (Cannot set when the "Picture Mode" in "THX".)
	5800K	Select this to give a reddish tinge to the image.		Only offset can be set.
	6500K	Select this to have a balanced image.
	7500K	Select this to give a bluish tinge to the image.
	9300K	Select this to give a greater bluish tinge than 7500K.
	High Bright	Select this to get the brightest image.
	Custom 1	Correction Value	Based on this selection of Correction Value (5800K, 6500K, 7500K, 9300K, H.B.), adjusts the following Gains and Offsets.
		Gain (Bright part)	Red	(Less red) -50 to 50 (More red)
			Green	(Less green) -50 to 50 (More green)
			Blue	(Less blue) -50 to 50 (More blue)
		Offset (Dark part)	Red	(Less red) -50 to 50 (More red)
			Green	(Less green) -50 to 50 (More green)
			Blue	(Less blue) -50 to 50 (More blue)
	Custom 2	Correction Value	Based on this selection of Correction Value (5800K, 6500K, 7500K, 9300K, H.B.), adjusts the following Gains and Offsets.
		Gain (Bright part)	Red	(Less red) -50 to 50 (More red)
			Green	(Less green) -50 to 50 (More green)
			Blue	(Less blue) -50 to 50 (More blue)
		Offset (Dark part)	Red	(Less red) -50 to 50 (More red)
			Green	(Less green) -50 to 50 (More green)
			Blue	(Less blue) -50 to 50 (Moreblue)
	Custom 3	Correction Value	Based on this selection of Correction Value (5800K, 6500K, 7500K, 9300K, H.B.), adjusts the following Gains and Offsets.
		Gain (Bright part)	Red	(Less red) -50 to 50 (More red)
			Green	(Less green) -50 to 50( More green)
			Blue	(Less blue) -50 to 50 (More blue)
		Offset (Dark part)	Red	(Less red) -50 to 50 (More red)
			Green	(Less green) -50 to 50 (More green)
			Blue	(Less blue) -50 to 50 (More blue) (More blue)

• The red, green and blue colors can be adjusted and registered respectively.
• This setting can also be configured from the remote control. (P14)

Picture Adjust > Gamma
07 Gamma
Sets the gradation characteristics of the projected image. (Cannot set when the “Picture Mode” in “THX”).
	Normal	For normal circumstances, select this setting.	This is the setting for Standard Tones.
	A	Set gamma to “A”.	This is the setting for expressing rich dark tones.
	B	Set gamma to “B”.	This is the setting for the characteristic tonal qualities of film.
	C	Set gamma to “C”.	This setting provides even richer darker tones than setting B.
	D	Set gamma to “D”.	This setting provides brighter midtones.
	Custom 1 Custom 2 Custom 3 (Gamma Setup)	Three different kinds of gamma can be set according to your preferences.
		Correction Value	The coefficient (1.8 to 2.6) of the gamma curve can be selected.
		Gamma Adjustment*	The gamma curve for the colors (Red, Green, Blue) can be adjusted separately. Adjusting “White” will adjust for all “Red, Green, Blue” values. The gamma curve displays the value for “Green”.
		Copy	Copy the adjusted gamma data.
		Paste	Paste the copied gamma data.
		Reset	Return the gamma coefficients to the values 2.2 set by “Correction Value”.

• "Normal" is suitable for normal circumstances but other settings can be selected according to your preferences.

• This setting can also be configured from the remote control. (P14)

• "Gamma Adjustment"

① Select the reference gamma curve coefficient (1.8 ~ 2.6) in “Correction Value”.
② Select the color to be adjusted in the gamma adjustment screen.

③ Adjust the gamma curve in the gamma curve adjustment screen.

Select the point where the gradation (brightness) is to be adjusted with the / buttons.

Adjust the gradation (brightness) with the / buttons.

• You can switch between "Before" and "After" using the [TEST] button of the remote control.

④ To end

• If gamma curve is adjusted repeatedly, calculation errors will be accumulated and the gamma curve may not be able to revert back to its original form. In that case, select "Reset".

Setting Menu (Continued)

• Regarding "Copy" and "Paste"

① Copies the Gamma Adjustment data.

Select copy using the / buttons.

② Pastes the copied data.

Select Paste using the / and / buttons.

• Gamma Adjustment data can be copied in all modes, but it is only possible to paste in Custom 1, Custom 2, and Custom 3.

Picture Adjust
08 Advanced
Adjusts the contours of the image, detailed composition of the image and image color. (Cannot set when the "Picture Mode" in "THX").
	Sharpness	Sharpness	(Soft) 0 to 100 (Sharp)		Adjusts the outline of image.
		Detail Enhancement	(Soft) -50 to 50 (Strong)		Emphasizes the details of image.
	NR*	RNR	(Soft) 0 to 16 (Strong)		Adjusts the intensity of removing image noise.
		MNR	(Soft) 0 to 16 (Strong)		Adjusts the intensity of removing mosquito noise.
		BNR	On		Reduces block noise.
			Off		Input signal remains unchanged.
	CTI*	Off		Input signal remains unchanged.
		Low		Reduces color smear. (Color Contour Correction)
		Middle
		High
* In case of HD signals or PC signals, NR and CTI cannot be set. • Abbreviations NR: Noise Reduction RNR: Random Noise Reduction MNR: Mosquito Noise Reduction BNR: Block Noise Reduction CTI: Color Transient Improvement
Color Management*		Off	The image color cannot be adjusted.
		Custom 1 Custom 2 Custom 3	Pause	Off	Video mode
				On	Still mode
			Color Management Adjustment*	Values of each color can be adjusted ("Red, Yellow, Green, Cyan, Blue and Magenta").
			All Reset	Return to the factory settings.
Clear Motion Drive*	Off			Improves fast-moving pictures to a clear image with little residual image.
	Low
	High
* With regard to "Clear Motion Drive", it is not possible to set the PC signal. Furthermore, depending on the scene, the picture may be distorted. In this case, please select "off".

• About "Color Management Adjustment"

① Set the picture mode of the color management.
② Select the color to be adjusted by color management.

(3) Select color adjustment.

④ Select the “Hue”, “Saturation” or “Brightness” using the / button.
⑤ Use the / button to adjust.

• You can switch between "Before" and "After" using the [TEST] button of the remote control.

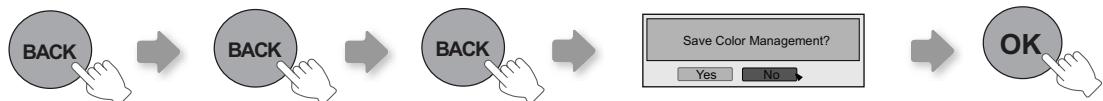

  (6) To end

• After selecting "Cinema 1", "Cinema 2", or "Cinema 3" from "Picture Mode", and after adjusting "Advanced", adjustment of brightness in each "Color Management" mode is not possible.

Input Signal > HDMI
11 HDMI
Configs HDMI input signal.
	Input	Auto	Automatically configures the input signals.
		Standard	Select this when the dynamic range of the input images is 16-235.
		Enhanced	Select this when the dynamic range of the input images is 0-255.
	Color Space	Auto	Automatically configures the input signals.
		YCbCr(4:4:4)	Select this when the Y Cb Cr(4:4:4) video signals are input.
		YCbCr(4:2:2)	Select this when the Y Cb Cr(4:2:2) video signals are input.
		RGB	Select this when the RGB video signals are input.
	Control with HDMI	On	Enables CEC communications.
		Off	Disables CEC communications.

• The setting is available only if the HDMI terminal is selected.
• For some source devices, "Auto (input)" will not function properly. In such cases, please use Standard Mode or Enhanced Mode.
• Abbreviation CEC: Consumer Electronics Control

Setting Menu (Continued)

Input Signal > COMP.

12 COMP.

Configures the input signal for the component video input terminals.

Color Space	Y Pb/Cb Pr/Cr	Select this when the component video signals are input.
	RGB	Select this when the RGB video signals are input.
	SCART	Select this when RGB video signals and sync signals are input via the SCART interface for European markets.

• The setting is available only if the component video terminals are selected.

Input Signal > Video/S-Video

13 Video/S-Video

Configures the Video/S-Video input signals.

NTSC Setup Level	0IRE	Adjusts the gradation for signals without the 7.5 IRE setup.
	7.5IRE	Adjusts the gradation for signals with the 7.5 IRE setup.

• Adjust this only when NTSC signals are input via Video or S-Video terminal.

Color System	Auto	Configs the color system automatically.
	NTSC	Select this when the color system is NTSC.
	NTSC4.43	Select this when the color system is NTSC4.43.
	PAL	Select this when the color system is PAL.
	PAL-M	Select this when the color system is PAL-M.
	PAL-N	Select this when the color system is PAL-N.
	SECAM	Select this when the color system is SECAM.

• The setting is available only when the Video or S-Video input image is projected.

Input Signal > PC

14PC

Configs PC input.

	Auto Alignment	Automatically adjusts “Tracking”, “Phase” and “Picture Position”.
	Tracking	Adjust the horizontal size and display area of the image. (This may vary depending on the signal, but does not usually require adjustment.)
	Phase	Adjust flickering and blurred images. (This may vary depending on the signal, but does not usually require adjustment.)
	Picture Position	Adjust the display position of the image.

• This can be set only when selecting PC input terminal.

Input Signal > Picture Position

15 Picture Position

Adjusts the horizontal/vertical position of the projected image.

• The position of the image varies depending on the input signals. The image of some signals may not be fully displayed. Adjust the position of image using this menu to display the image properly.

Input Signal > Aspect (Video)
16 Aspect (Video)
Configs the screen size of the projected image.
	4:3	Sets the screen size of the projected image as 4:3.
	16:9	Sets the screen size of the projected image as 16:9.
	Zoom	Zooms the images. (This item cannot be selected in the case of HD signals.)

• This setting can also be configured from the remote control. (P14)
• The items cannot be set in the case of PC signals.

Input Signal > Aspect (Computer)
17 Aspect (Computer)
Configs the screen size of the projected image.
	Auto	Enlarges the PC signal horizontally/vertically until it fits the panel height, and displays it in the original aspect ratio.
	1:1	Displays the PC signal corresponding to the panel at one dot per pixel ratio. The PC screen can be shown in the original size.
	Full	Enlarges the PC signal horizontally/vertically.

• This setting can also be configured from the remote control. (P14)
• This setting cannot be set in the case of SD or HD signals.

Input Signal > V-Stretch (when HD or SD video signals are input)
18 V-Stretch
When set to “On”, the projected 2.35:1 image will be stretched vertically to the panel resolution.
	On	The projected 2.35:1 image will be stretched vertically to the panel resolution.
	Off	Projects the 2.35:1 image as-is. (Black bands will be displayed on the top and bottom.)

• This setting cannot be set in the case of PC signals.

Input Signal > Over Scan
19 Over Scan
Selects whether or not to set over scan for the SD video signal.
	On	Over scan the top, left, bottom and right at 2.5% each.
	Off	Do not over scan.

• This setting is not available when HD signal or PC signal is input.

Setting Menu (Continued)

Input Signal > Mask
20 Mask
Masks (Hides) the outer area of the projected image.
	2.5%	Mask 2.5% of the screen.
	5%	Mask 5% of the screen.
	Off	No masking.

• Masking is available only when high definition images are input.

Input Signal > Film Mode
21 Film Mode
Selects this to view movies shot on film.
	Auto	After determining if the picture is 24 frame film or 60 frames (50 frames) video, changes the setting to the optimal progressive conversion.
	Film	Corrects unnatural movement of material pulldown processed from 24 frames to 60 frames (50 frames) and returned to 24 frames.
	Off	Sets the appropriate progressive conversion for video.

• Only 480i/576i/1080i may be selected.
• Select "Auto" or "Off" if it begins to function improperly. Particularly, with video it does not operate properly.

Installation > Lens Control
22 Lens Control
Controls the individual motorized function of the lens when setting up the projector
	Focus	Function for adjusting the lens focus.
	Zoom	Function for adjusting the lens zoom.
	Shift	Function for adjusting lens shift. (Press the up/down/left/right button to shift the screen).
	Image Pattern
		Displays the image pattern in conjunction with the above setting items. Display for “Zoom” and “Shift”: Display for “Focus”: (Picture of big green grids) (Picture of small green grids)
	Off	Without displaying the image pattern, displays the external input signal.
	Lock
		Disables lens adjustment. A warning message appears when the [LENS] button on the remote control is pressed.
	Off	Enables lens adjustment.

Installation > Pixel Adjust
23 Pixel Adjust
Makes fine adjustments of 1 pixel unit for each minor color shift in the horizontal/vertical direction of the image.
	Horiz. Red	(Move red to left) 1 to 7 (Move red to right)
	Horiz. Green	(Move green to left) 1 to 7 (Move green to right)
	Horiz. Blue	(Move blue to left) 1 to 7 (Move blue to right)
	Vert. Red	(Move red down) 1 to 5 (Move red up)
	Vert. Green	(Move green down) 1 to 5 (Moves green up)
	Vert. Blue	(Move blue down) 1 to 5 (Move blue up)

• The horizontal and vertical directions are reversed when the image is flipped to the left or right, or flipped up or down.
• To adjust, use still images with distinct outlines.
• As the adjustments are minor, the effect may be difficult to see for some images.

Installation > Installation Style
24 Installation Style
Flips the image to the left or right, up or down according to the projection state of the projector.
Installation > Keystone
25 Keystone

	Front	Select this for tabletop front projection.
	Ceiling Mount (F)	Select this for ceiling front projection.
	Rear	Select this for tabletop rear projection.
	Ceiling Mount (R)	Select this for ceiling rear projection.

Compensates for trapezoidal distortion caused by installation.

• If the "Shift Adjustment" is excepting 0% , the image may be projected on the screen incorrectly when trapezoidal distortion is compensated. (P21)

Installation > Screen Adjust
26 Screen Adjust
Corrects skewed white balance derived from the reflective characteristics of the screen.
Display Setup > Back Color

	Off	Makes no correction. (Normally set to “off”)
	A	Corrects to slightly reddish.
	B	Corrects to slightly greenish.
	C	Corrects to slightly bluish.

Back Color
Configures the screen color displayed when there is no input signal.
Display Setup > Menu Position
28 Menu Position

Blue	Sets screen color to “Blue”.
Black	Sets screen color to “Black”.

Sets the display position of the menu. The possible positions for displaying the menu are at the four corners or at center of the screen.

Upper-left Upper-right Center Lower-rightLower-left

This can also be displayed by the remote control. (P14)

Display Setup > Menu Display
29 Menu Display
Sets the duration for displaying the menu.

15 sec	Display for 15 seconds.
On	Always display.

Setting Menu (Continued)

Display Setup > Line Display
30 Line Display
Sets whether to display the input setting when switching the input.
	5 sec	Display for 5 seconds.
	Off	Do not display.

Display Setup > Source Display
31 Source Display
Sets whether to display the source of input signals when changing the input.
	On	Display the source of input signals.
	Off	Do not display.

Display Setup > Logo
32 Logo
Sets whether to display “Logo” during startup.
	On	Display for 5 seconds.
	Off	Do not display.

Display Setup > Language
33 Language
Sets the language of the menu display.
	日本語	Japanese
	English	English
	Deutsch	German
	Espanol	Spanish
	Italiano	Italian
	François	French
	Portuguès	Portuguese
	Nederlands	Dutch
	Svenska	Swedish
	Norsk	Norwegian
	Russkii	Russian
	中文	Chinese

Function > Lamp Power
34 Lamp Power
Configs the output of the light-source lamp.
	Normal	For normal circumstances, select this setting. (150W)
	High	Select this when it is difficult to see the image in a bright room. (200W)

• The setting cannot be changed within approximately 90 seconds after this unit has been turned on.
• Settings cannot be changed within approximately 60 seconds after they are made.

Function > Trigger

35 Trigger

Configures the output of Trigger terminal.

Off	Do not activate.
On(Power)	Move the screen UP/DOWN in conjunction with the power.
On(V-Stretch)	Operate the anamorphic lens in conjunction with the “V-Stretch”.

Function > Test Pattern

36 Test Pattern

Display 6 types of test patterns. For checking the color condition and tone, and the pixel size. Use whenever necessary.

This can also be displayed by the remote control. (P14)

Function > Off Timer

37 Off Timer

Automatically powers off when there is no operation for a certain duration.

Off Disables the off timer.

1 hour Auto power off after 1 hour.
2 hours Auto power off after 2 hours.
3 hours |Auto power off after 3 hours.
4 hours Auto power off after 4 hours.

Function > High Altitude Mode

38 High Altitude Mode

Selects this when using the projector in a location of low atmospheric pressure (higher than 900 meters above sea level).

On Enable.

Off Disable.

Information

	Input	Displays the currently selected video input.
	Source	Displays the type of the current video input signal. (If PC signal is input, this item cannot be displayed)
	Resolution	In the case of PC signal, the resolution is displayed.
	H Frequency	In the case of PC signal, the horizontal frequency is displayed.
	V Frequency	In the case of PC signal, the vertical frequency is displayed.
	Deep Color	Displays the bit depth (color depth) of the video signals input from the HDMI terminals. [Deep Color is not displayed when YCbCr (4:2:2) is input.]
	Lamp Time	Displays the accumulated hours of usage of the light-source lamp.

Customizing Projected Images

You can adjust the projected image to a desired image quality and register the adjusted value. (Picture Mode) Besides the five default "Cinema 1", "Cinema 2", "Cinema 3", "Natural", "Stage", "Dynamic" and "THX" settings, there are 2 more types of user-defined settings for Picture Mode.

Changing the Initial Setting of Picture Mode

"Contrast", "Brightness", "Color", "Tint", "Color Temp.", "Gamma", "Sharpness", "NR", "CTI", "Lens aperture" and "Clear Motion Drive" are registered in the Picture Mode.

1 Select picture mode

2 Adjust picture quality

Example: To adjust "Contrast"

1 Display the setting menu

2 Select "Picture Adjust" "Contrast"

3 Adjust the setting

4 To end the adjustments

Other items can also be adjusted

4 To end

• "Color Temp.", "Gamma", and "Lens aperture" can also be adjusted from the remote control. (P14)

Registering User-defined Picture Mode

1 Select the picture mode

USER1

USER2

2 Adjust picture quality

• See "Changing the initial setting of picture Mode" for procedures on adjusting the picture quality. (P42)

3 To end

Registering User-defined Picture Mode from the Menu

1 Adjust picture quality

• See "Changing the Initial Setting of Picture Mode" for procedures on adjusting the picture quality. (P42)

Display the setting menu

3 Select "Picture Adjust" "Picture Mode" "Natural"

4 Register the setting

CAUTION

• Adjustment settings of image quality will not be registered if other picture mode is selected before registering these settings.

Troubleshooting

Before sending the unit to your authorized dealer for repair, please check the following points.

The following situations are not malfunctions.

■ You do not need to worry about the following situations if there is no abnormality on the screen.

• Part of the top surface or front of the unit is hot.
• A creaking sound is heard from the unit.
• An operating sound is heard from the inside of the unit.
  Color smear occurs on some screens.

■ Perform the following operations when the unit is unable to operate normally due to external static or noise.

① When the unit is in standby mode, please pull out the power plug, then insert again.
② Press the power button on the unit to turn on the power again.

A sound may be heard when the lamp is off but there is no danger.
D-ILA device is manufactured using high-precision technology but there may be some missing pixels or pixels that remain permanently lit up.

Power is not supplied
Is the power cord disconnected?	Insert the power cord (plug) firmly.	P24
Is the lamp cover properly shut?	Remove the power plug when the unit is in standby mode and close the lamp cover properly. After that, insert the plug again.	P49
Is the lamp in Cool Down mode?	After the Cool Down mode is complete, turn on the power again.	P25

Projected image is dark
Is the lamp near exhaustion?	Check the lamp time on the information menu. Prepare a new lamp unit or replace as soon as possible when the lamp is near exhaustion.	P48 to 50

The unit works when power is turned on but stops abruptly after a few minutes
Are the air inlets and exhaust vent blocked?	Remove the power plug when the unit is in standby mode and remove any blocking object. After that, insert the plug again.	P12 to 13
Is the filter dirty?	Clean the filter.	P51

Video image does not appear
Is the correct external input selected?	Select the correct external input.	P24
Is the AV device properly connected?	Connect the AV device properly.	P16 to 20
Is the power of the AV device turned on?	Turn on the power of the AV device and play the video.	P24
Are the correct signals being output from the AV device?	Set the AV device properly.	P16 to 20
Is the setting of the input terminal correct?	Set “COMP.” and “HDMI” in the setting menu according to the input signal.	P35 - 11 P36 - 12
Is the video image temporarily hidden?	Press the [HIDE] button to display the video image again.	P25

The picture cannot be projected
Will the picture flicker and become invisible with HDMI input?	Please use a short HDMI cable.	P18
The image cannot output by HDMI terminal
Is the setup of “Control with HDMI” function “Off”?	Set up the “Control with HDMI” function to “Off”.	P35 - 11

• Even if the "Control with HDMI" function is "On", there are still some devices cannot reveal image normally.

Color does not appear or looks strange
Is the image correctly adjusted?	Adjust “Color” and “Tint” in the setting menu.	P31 - 04 05

Video image is fuzzy
Is the focus correctly adjusted?	Adjust the focus.	P24
Is the unit placed too near or too far away from the screen?	Set the unit at a correct distance from the screen.	P21 to 22

Video images are missing
Has setting been performed for screen mask?	Set “Mask” in the setting menu to “Off”.	P27, 38 - 20
Is the display out of position?	Alter the “Picture Position” value in the setting menu to ensure that images are not missing.	P36 - 15

Remote control does not work
Are batteries installed correctly?	Match the polarities (⊕ or ⊙) correctly when inserting the batteries.	P15
Are batteries exhausted?	Replace with new batteries.	P15
Is there an obstructive object between the remote control and remote sensor?	Remove any obstructive objects.	P15
Is the remote control held too far away from the unit?	Hold the remote control closer to the sensor when using.	P15

Power is cut off suddenly
Has setting been performed for off timer?	Set “Off Timer” in the setting menu to “Off”.	P41 - 37

What to Do When these Messages Are Displayed

Message	Cause (Details)
COMP.	No device is connected to the input terminal. The input terminal is connected but there is no signal.
No Input	→Input the video signals.
COMP.	A video signal that cannot be used in this unit has been input. →Input video signals that can be used. * The names of input terminals such as COMP. will be displayed in yellow.
Lamp replacement Back BACK	This message is displayed when the accumulated lamp time has exceeded 2900 hours. To clear the message, press the [Back] button. →Get ready a new lamp unit and replace as soon as possible. Reset the lamp time after replacing the lamp. (P48 to 50)

About Warning Indicators

The accumulated lamp time or warning mode of this unit is displayed by the indicators.

For information on indicator display during normal operation, see "Controls and Features". (P12)

No.	Indicator			Blinking Time	Blinking Frequency	Interval between Blinks	Content
	WARNING	LAMP	STANDBY/ON
1	-	-	Light on (Red)	-	-	-	During standby	Indicator display in normal conditions.
2	-	-	Light on (Green)	-	-	-	When the power on (Hide Off)
3	-	-	Blinking (Green)	0.5 second	continuous	-	When the power on (Hide On)
4	-	-	Blinking (Red)	0.5 second	continuous	-	During cool down
5	-	Light on (orange)	-	-	-	-	Lamp replacement is near (P48 to 50) (When accumulated lamp time has exceeded 2900 hours)
6	-	Light on (orange)	-	-	-	-	Lamp has reached the end of life (P48 to 50) (When accumulated lamp time has exceeded 3000 hours)
7	Light on (Red)	Blinking (orange)	-	0.25 second	1 time	0.75 second	Lamp does not light up and unit is unable to project
8				0.25 second	2 times	0.75 second	Lamp is turned off during projection
9				0.25 second	3 times	0.75 second	Lamp cover is removed
10	Blinking (Red)	-	-	0.25 second	1 time	0.75 second	Abnormalities in the power supply
11				0.25 second	2 times	0.75 second	Cooling fan stops (cooling fan gets caught)
12				0.25 second	3 times	0.75 second	Internal temperature is too high (abnormal internal temperature)
13				0.25 second	4 times	0.75 second	External temperature is too high (abnormal external temperature)
14		Blinking (orange)		0.25 second	1 time	0.75 second	Abnormal electrical circuit (abnormal startup of drive circuit)
15				0.25 second	2 times	0.75 second	Abnormal electrical circuit (abnormal communication of the drive circuit)
16				0.25 second	3 times	0.75 second	Abnormal electrical circuit (abnormal drive circuit of image)
17				0.25 second	4 times	0.75 second	Abnormalities in the automatic lens cover

Actions to Be Taken for Warning Mode

When the unit enters into warning mode (No. 7 to 17), it will automatically stop projection, and run the cooling fan for about 60 seconds.

After the cooling fan has stopped, pull out the power plug from the power outlet.

Then, follow the procedures below.

No.	Check	Action
7	● Check that an impact shock has not occurred during operation. ● Check that the lamp unit and lamp cover are correctly installed. ● Check that nothing is blocking the auto lens cover.	Turn on the power again.
8
9
17
10	● Check that nothing is blocking the air inlets. ● Check that the external temperature is normal.	Leave the unit until it cools down. After that, turn on the power again.
11
12
13
14
15
16

If the warning indication is displayed again, please wait for the cooling fan stopped, then pull out the power plug from the power outlet.

Then call your authorized dealer for repair.

Replacing the Lamp

The lamp is a consumable item. If the image is dark or the lamp is turned off, replace the lamp unit.

• When the lamp replacement time approaches, a message is displayed on the screen and the condition is indicated by the indicator. (P46, 47)

CAUTION

• Pull the power plug from the power outlet. Failure to do so may cause injuries or electric shocks.
• Do not replace the lamp immediately after the unit has been used, and allow a cooling period of 1 hour or more before replacement. The temperature of the lamp is still high and this may cause a burn.
• Do not apply shock to the lamp unit. It may cause lamp blowout.
• Do not use flammable air duster to clean the internal parts of the unit. This may cause fire.

MEMO

Usable Lamp Life

• When using the "Lamp Power" set at "Normal", the lifetime of the lamp will be approximately 3000 hours. This is an average lifetime and cannot be guaranteed.
• The lamp life may not reach 3000 hours depending on the operating conditions.
• When the lamp has reached the end of its usable life, deterioration progresses rapidly.
• If the picture becomes dark, the tint becomes strange, or the image flickers, promptly the lamp unit for a new one.

Purchasing the Lamp Unit

Please consult your authorized dealer.

Lamp Unit

Part No.: BHL5010-S

Procedure for Lamp Replacement

1 Remove the lamp cover

• Remove the screws with a screwdriver.

2 Loosen the screws on the lamp unit

• Loosen the screws with a screwdriver.

3 Pull out the lamp unit

• Grasp the handle and pull out the lamp unit.

4 Install the new lamp unit

5 Tighten the screws of the new lamp unit

• Tighten the screws with a screwdriver.

6 Attach the lamp cover

• Insert the top part (with 2 claws) of the lamp cover into the unit.
• Fasten the screws with a screwdriver.

CAUTION

• Use only genuine replacement parts for the lamp unit. Also, never attempt to reuse an old lamp unit. This may cause a malfunction.
• Do not touch the surface of a new lamp. This may shorten the lamp life and cause lamp blowout.

MEMO

After Replacing the Lamp

• Do not place the removed lamp unit at locations that is reachable by children or near combustible items.
• Dispose used lamp units in the same way as fluorescent lamps. Follow your local community rules for disposal.

Replacing the Lamp (Continued)

• Reset the lamp time only when you have replaced the lamp.
• Never reset the service time when the lamp is still in use. Otherwise, the approximate standard for gauging replacement time may be inaccurate and lamp blowout may occur.

Resetting Lamp Time

After replacing the lamp, reset the lamp time.

1 Insert the power plug to the power outlet

2 Must operate with the remote control in the standby mode (the projector is powered, but is not turned on).

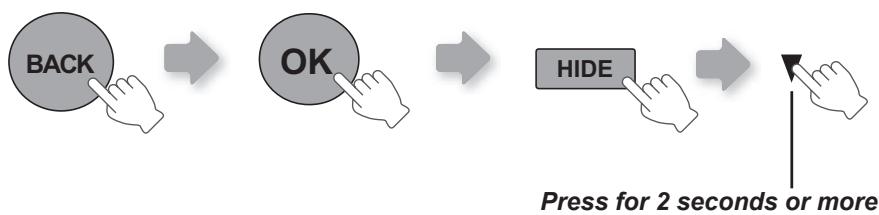

• Press in the order as shown.
• Press each button within 2-second intervals and press the last button for 2 seconds or more.

• [STANDBY/ON] indicator and [LAMP] indicator blink alternately for 3 seconds. After that, the unit switches to standby mode.

Cleaning and Replacing the Filter

Clean the filter regularly or air intake efficiency may deteriorate and malfunction may occur.

1 Remove the inner filter

Lift up while pushing the claw

2 Clean the filter

• Wash the filter with water and dry it in a shaded area.
• In extremely soiled cases, using a neutral detergent is recommended. Put on rubber gloves when using a neutral detergent.
• After washing the filter with water, make sure that it is completely dry before reinstalling. Otherwise electric shock or malfunctions may occur.
• Do not clean the filter with a vacuum cleaner or air duster. The filter is soft and may be damaged.

3 Reinstall the inner filter

CAUTION

• Pull the power plug from the power outlet.

MEMO

If the filter is damaged or too dirty to be cleaned

• Replace with a new filter. A dirty filter will dirty the internal parts of the unit and cause shadows on the video image.
• To purchase a new filter or when it is dirty in the internal parts, consult your authorized dealer.

Inner Filter Part No.: Replacement Filter: the appearance is black PB006560999 (Inner Filter)

RS-232C Interface

Control of this unit via a computer is possible by connecting the computer to this unit with a RS-232C cross cable (D-Sub 9 pin).

RS-232C Specifications

This unit

Pin No.	Signal	Function	Signal Direction
2	RxD	Receive data	PC→This unit
3	TxD	Transmit data	This unit→PC
5	GND	Signal ground	-
1,4,6 - 9	N/C	-	-

• PC refers to the controller such as a personal computer.

Mode	Non-synchronous
Character Length	8 bit
Parity	None
Start Bit	1
Stop Bit	1
Data rate	19200 bps
Data format	Binary

Command Format

The command between this unit and the computer consists of "Header", "Unit ID", "Command", "Data" and "End".

• Header (1 byte), Unit ID (2 bytes), Command (2 bytes), Data (n bytes), End (1 byte)

■Header

This binary code indicates the start of communication.

Binary code	Type	Description
21	Operating command	PC→This unit
3F	Reference command	PC→This unit
40	Response command	This unit→PC
06	ACK	This unit→PC (When the command is accepted without error, it returns to PC)

Unit ID

This code specifies the unit. The binary code is fixed at "8901".

Command and data

Operating command and data (Binary code)

Command	Type	Data description
0000	Connection check	Check whether communication is available between this unit and the PC during standby.
5057	Power supply	During standby 31: Turn on the power. During power on 30: Turn off the power. (Standby mode)
4950	Input	During power on 30: S-VIDEO 31: VIDEO 32: COMP. 33: VGA 36: HDMI 1 37: HDMI 2
5243	Remote Control	Sends the same code as the supplied remote control. ● “Remote control code” (P54)

Reference command and data (Binary code)

Command	Type	Data description
5057	Power supply	During standby or power on 30: Standby mode 31: Power-on mode 32: During Cool Down mode 34: Warning mode
4950	Input	During power on 30: S-VIDEO 31: VIDEO 32: COMP. 36: HDMI 1 37: HDMI 2

End

This code indicates the end of communication. The binary code is fixed at "0A".

RS-232C Interface (Continued)

Remote control code

• Binary code is sent during communication.

Remote control button name	Binary code
▲	37 33 30 31
▼	37 33 30 32
BACK	37 33 30 33
ON	37 33 30 35
STAND BY	37 33 30 36
HIDE	37 33 31 44
LENS.AP.	37 33 32 30
MENU	37 33 32 45
OK	37 33 32 46
LENS	37 33 33 30
▲	37 33 33 34
▲	37 33 33 36
MENU POSITION	37 33 34 32
PC	37 33 34 36
VIDEO	37 33 34 41
S-VIDEO	37 33 34 42
COMP.	37 33 34 43

Remote control button name	Binary code
TEST	37 33 35 39
CINEMA 3	37 33 36 36
STAGE	37 33 36 37
CINEMA 2	37 33 36 38
CINEMA 1	37 33 36 39
NATURAL	37 33 36 41
DYNAMIC	37 33 36 42
USER 1	37 33 36 43
USER 2	37 33 36 44
THX	37 33 36 46
HDMI 1	37 33 37 30
HDMI 2	37 33 37 31
PIC.ADJ.	37 33 37 32
GAMMA	37 33 37 35
C.TEMP	37 33 37 36
ASPECT	37 33 37 37

RS-232C Communication Examples

This section shows the communication examples of RS-232C.

Operating command

Type	Command									Description
Connection check	PC→This unit: 21 89 01 00 00 0A This unit→PC: 06 89 01 00 00 0A									Connection check
Power (On)	PC→This unit: 21 89 01 50 57 31 0A This unit→PC: 06 89 01 50 57 0A									When power is turned on from standby mode
Power (Off)	PC→This unit: 21 89 01 50 57 30 0A This unit→PC: 06 89 01 50 57 0A									When power is turned off (standby mode) from power-on mode
Input (COMP.)	PC→This unit: 21 89 01 49 50 32 0A This unit→PC: 06 89 01 49 50 0A									When video input is set to component
Remote Control (MENU)	PC→This unit: 21 89 01 52 43 37 33 32 45 0A This unit→PC: 06 89 01 52 43 0A									When the same operation as pressing the [MENU] button on the remote control is made

Reference command

Type	Command	Description
Power (On)	PC→This unit: 3F 89 01 50 57 0A This unit→PC: 06 89 01 50 57 0A This unit→PC: 40 89 01 50 57 31 0A	When information of power-on mode is acquired
Input (S-VIDEO)	PC→This unit: 3F 89 01 49 50 0A This unit→PC: 06 89 01 49 50 0A This unit→PC: 40 89 01 49 50 30 0A	When information of S-VIDEO input is acquired

Copyright and Caution

About Trademarks and Copyright

• HDMI, HDMI logo and high definition multimedia interface are trademarks or registered trademarks of HDMI Licensing LLC.

Caution

D-ILA Device Characteristics

Do not project still pictures or pictures that have still segments for a long period of time. The still parts of the picture may remain on the screen.

Take special notice of images on the screens of video games and computer programs. There is no problem when playing normal video images such as movies.

When Unit is Unused for a Long Time

Prolonged disuse of the unit may effect an error on the functions. Turn on the power occasionally and operate the unit.

Usage Environment

• Avoid direct exposure of screen to direct sunlight and illumination. Block light using a curtain. Images can be well projected by darkening the brightness of the room.
• Do not use this unit in rooms with cigarette smoke or oily smoke. This may cause the unit to malfunction.

Parts Replacement

This unit contains parts (optical part, cooling fan, etc.) that require replacement to maintain its functioning. The estimated time for parts replacement varies greatly depending on the usage and environment. Please consult your authorized dealer for replacement.

Maintenance Procedures

Dirt on the cabinet

• Gently clean dirt on the cabinet with a soft cloth. In the case of heavy soiling, soak a cloth in water, wring dry and wipe, followed by wiping again with a dry cloth. Pay attention to the following as the cabinet may deteriorate in condition or paint may come off.

• Do not wipe with thinner or benzene.

• Do not spray with volatile chemicals like insecticide.

• Do not allow prolonged contact with rubber or plastic products.

Dirt in the air inlets

• Use a vacuum cleaner to suck up the dirt. Otherwise, use a cloth to wipe off the dirt. If dirt is allowed to accumulate in the air inlets, the internal temperature cannot be adjusted and this may cause a malfunction.

Dirt on the lens

• Clean the dirt using commercial blowers or lens cleaning papers for cleaning glasses and cameras. Do not use fluid-type cleaning agents. This may lead to peeling of the surface coating film. (P13)

Mounting this Unit

Measures to prevent the unit from toppling or dropping should be taken for safety reasons and accident prevention during emergencies including earthquakes.

When mounting this unit on a pedestal or ceiling, remove the 4 feet on the bottom surface and use all the 4 screw holes (M5 screws) to mount.

Precautions for Mounting

• Special expertise and techniques are required for mounting this unit. Be sure to ask your dealer or a specialist to perform mounting.
• Depth of the screw holes (screw length) is 23mm . Use screws shorter than 23mm but longer than 13mm .

Using other screws will result in malfunctioning or cause the unit to drop.

• When mounting to a pedestal, ensure sufficient space (foot height of 10mm or higher) around the unit so that the air inlets are not blocked.

• Do not tilt this unit more than ± 5 degrees from side to side when using.

• Regardless whether the unit is still under guarantee, JVC is not liable for any product damage caused by mounting the unit with non-JVC ceiling fittings or when the environment is not suitable for ceiling-mount.

• When using the unit hanging from a ceiling, pay attention to the surrounding temperature. When a heater is in use, temperature around the ceiling is higher than expected.

Specifications

Product Name		D-ILA Projector
Model Name		DLA-HD950 / DLA-HD990
Display Panel/Size		D-ILA device"1"2" / 0.7" (1920pixels x 1080pixels) x 3 (Total no. of pixels: Approx. 6.22million)
Projection Lens		2.0 x power zoom lens (1.4:1 to 2.8:1)(Zoom/Focus: Power)
Light-source Lamp		200 W Ultra-high pressure mercury lamp [Part No.: BHL5010-S] Average lifespan: 3000 hours (normal mode)
Screen Size		Approx. 60" to 200" (Aspect ratio: 16:9)
objection Distance		Approx. 1.8m to 12m
Color System		NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM (Auto/Manual switch)
Analog Video Input Format		480i, 480p, 576i, 576p, 720p/50Hz, 720p/60Hz, 1080i/50Hz, 1080i/60Hz
Digital Video Input Format		480i, 480p, 576i, 576p, 720p/50Hz, 720p/60Hz, 1080i/50Hz, 1080i/60Hz, 1080p/24Hz, 1080p/50Hz, 1080p/60Hz, PC compatible signals (P59)
Resolution		1920 dots x 1080 dots
Color Management		Featured
Terminals
Video Input (VIDEO)		1-line, RCA pin jack x 1 1.0V(p-p), 75Ω
S-video Input (S-VIDEO)		1-line, mini DIN 4 pin x 1 Y: 1.0V(p-p), 75Ω C: 0.286V(p-p), 75Ω(NTSC); 0.3V(p-p), 75Ω(PAL)
Component Video Input (COMPONENT)		1-line, RCA pin jack x 3 Y: 1.0V(p-p), 75Ω CB/PR, CR/PR: 0.7V(p-p), 75Ω
HDMI Input (HDMI 1, HDMI 2)		2-line, HDMI 19 pin x 2(HDCP compliant)*3 Compatible with the HDMIv1.3a standard
PC Input		1-line, D-Sub 15 pin VGA
Trigger Output		12V 100mA
Power Requirements		AC 110V-240V 50/60 Hz
Power Consumption		310W (Standby mode: 0.7W)
Operation Environment		Temperature: 5℃ to 35℃ Humidity: 20% to 80% (No condensation) (Storage Temperature: -10℃ to 60℃)
Installation Height		Below 1524m
Dimensions (Size x Height x Depth)		365mm X 167mm X 477.5mm
Mass		11.2kg
Accessories		(See P11)

1 D-ILA is the abbreviation for Direct drive Image Light Amplifier.
2 D-ILA devices are manufactured using extremely high-precision technology. Pixel effectiveness is 99.99%. Only 0.01% or less of the pixels are either missing or would remain permanently lit up.
*3 HDCP is the abbreviation for High-bandwidth Digital Content Protection system.

The image of HDMI input terminal may not be displayed due to HDCP specification change.

• Design and specifications are subject to change without prior notice.
• Please note that some of the pictures and illustrations may have been abridged, enlarged or contextualized in order to aid comprehension. Images may differ from the actual product.

PC compatible signals

HDMI

No.	Designation	Resolution	fh [kHz]	fv [Hz]	Dot CLK [MHz]	Polarity		Total No. of dots [dot]	Total No. of lines [line]	No. of effective dots [dot]	No. of effective lines [line]
						H	V
1	VGA 60	640 X 480	31.500	60.000	25.200	-	-	800	525	640	480
2	VGA 59.94	640 X 480	31.469	59.940	25.175	-	-	800	525	640	480
3	SVGA 60	800 X 600	37.879	60.317	40.000	+	+	1,056	628	800	600
4	XGA 60	1024 X 768	48.363	60.004	65.000	-	-	1,344	806	1,024	768
5	WXGA 60	1280 X 768	47.760	60.000	79.998	-	+	1,675	796	1,280	768
6	WXGA +60	1440 X 900	55.919	59.999	106.470	-	+	1,904	932	1,440	900
7	SXGA 60	1280 X 1024	63.981	60.020	108.000	+	+	1,688	1,066	1,280	1,024
8	WSXGA +60	1680 X 1050	65.222	60.002	147.140	-	+	2,256	1,087	1,680	1,050
9	WUXGA 60	1920 X 1200	74.038	59.95	154.000	+	-	2,080	1,235	1,920	1,200

Images may not be displayed if the above timings are not met.

PC (D-sub 3-lines 15 pins)

No.	Designation	Resolution	fh [kHz]	fv [Hz]	Dot CLK [MHz]	Polarity		Total No. of dots [dot]	Total No. of lines [line]	No. of effective dots [dot]	No. of effective lines [line]
						H	V
1	VGA 60	640 X 480	31.500	60.000	25.175	-	-	800	525	640	480
2	VGA 72	640 X 480	37.900	72.000	31.500	-	-	832	520	640	480
3	VGA 75	640 X 480	37.500	75.000	31.500	-	-	840	500	640	480
4	VGA 85	640 X 480	43.300	85.000	36.000	-	-	832	509	640	480
5	SVGA 56	800 X 600	35.200	56.000	36.000	+	+	1024	625	800	600
6	SVGA 60	800 X 600	37.900	60.000	40.000	+	+	1056	628	800	600
7	SVGA 72	800 X 600	48.100	72.000	50.000	+	+	1040	666	800	600
8	SVGA 75	800 X 600	46.900	75.000	49.500	+	+	1056	625	800	600
9	SVGA 85	800 X 600	53.700	85.000	56.250	+	+	1048	631	800	600
10	XGA 60	1024 X 768	48.400	60.000	65.000	-	-	1344	806	1024	768
11	XGA 70	1024 X 768	56.500	70.000	75.000	-	-	1328	806	1024	768
12	XGA 75	1024 X 768	60.023	75.029	78.750	+	+	1312	800	1024	768
13	XGA 85	1024 X 768	68.700	85.000	94.500	+	+	1376	808	1024	768
14	WXGA 60	1280 X 768	47.760	60.000	79.998	-	+	1675	796	1280	768
15	WXGA+ 60	1440 X 900	55.919	59.999	106.470	-	-	1904	932	1440	900
16	SXGA 60	1280 X 1024	63.981	60.020	108.000	+	+	1688	1066	1280	1024
17	SXGA+ 60	1400 X 1050	64.740	59.950	101.000	+	+	1560	1080	1400	1050
18	WSXGA+ 60	1680 X 1050	65.222	60.002	147.140	-	-	2256	1087	1680	1050
19	1920x1080 60	1920 X 1080	67.500	60.00	148.500	+	+	2200	1125	1920	1080
20	MAC13"	640 X 480	35.000	66.667	30.240	-	-	864	525	640	480
21	MAC16"	832 X 624	49.107	75.087	55.000	-	-	1120	654	832	624
22	MAC19"	1024 X 768	60.241	74.927	80.000	-	-	1328	804	1024	768

Images may not be displayed if the above timings are not met.

Specifications(Continued)

Dimensions

Top Surface

Bottom Surface

(Unit: mm)

Front

Back Surface

Index

HDMI

Standard Page 58

Connecting. Page 18

Settings Page 35

LED

Warning Page 47

Screen size

Distance Chart Page 22

Settings. Page 26

Mask

Settings Page 27

Batteries

Types . Page 11

Shift

Shift Amount...... Page 21

Adjustment. Page 25

Zoom

Adjustment Page 24

Installation

Angle............Page 21

Settings. Page 28

Caution. Page 2

Ceiling Mount Page 2,57

Settings Menu

Structure . Page 28

Projection Distance

Distance Chart Page 22

Input Signal

PC Compatibility.. Page 59

Video Compatibility Page 58

Filter

Air Intake Filter.. Page 13

Replacement Filter Number ....... Page 11,51

Cleaning and Replacement......Page 51

Focus

Adjustment Page 24

Message

Meaning Page 46

Lamp

Replacement. Page 48

Replacement Lamp Number......Page 11,48

Resetting the Time Page 50

Notes of Caution . Page 3

Remote Control

Instructions......Page 14,15

MEMO

MANUEL D'INSTRUCTIONS

PROJECTEUR D-ILA

DLA-HD950/DLA-HD990

PORTABLE CART WARNING symbol provided by RETAC)

S3126A

REEMPLACEMENT DU FUSIBLE:

Information for Users on Disposal of Old Equipment and Batteries

Products

Battery

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

DEUTSCH

Merk: Tegnet Pb under symbolet for batterier, viser at batteriet ineholder bly.

CBeHeHna Ira nOJIb3OBaTeJe IIO yTNIIN3aIIN cTaporo o6OpyIDoBaHnI 6aTapei

U3denn

Batapea

[Tonbko dπε Ebponeηckoro co1o3a]

Данные симьлы указьагот на TO,чTO obopydobaine, Ha KOTOPOE OHI haHeceHbI, He Должны yTNJIN3npoBaTbCЯ, кak obbyHbIe 6bITOBIe OTxOdbI. Пин Heo6xOДIMOCtN yTNJIN3npoBaTb takoe ИЗделпе ИЛБаТаpeЮ obpaTntecbВ cneциальньpyHKT c6opa dЯnx habпжашенперapabotkn.

YBeOMJIeHne: HApnBc Pb nOc CmBOJOM 6aTapey yKa3bIbAeT Ha To, UTo DaHHa 6aTapey copejKNT CBHeU.

CESKY

Raccordements (Suite)

Raccordements (Suite)

Interface RS-232C (suite)

Signification. Page 46

Lampe

Remplacement Page 48

Numero de la lampe de Page 11,48

Remplacement. Page 50
