USER MANUAL CD-1588 AudioSonic

Black Radio Benomic portable radio with two large speakers and control knobs (no visible text or symbols on the device body)

INSTRUCTION MANUAL

GEBRUIKERSHANDLEIDING

BEDIENUNGSANLEITUNG

MODE D'EMPLOI

MANUAL DE INSTRUÇÕES

INSTRUKCJE OBSŁUGI

SAFETY INFORMATION

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DANGER

Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

WARNING

To prevent fire or shock hazard, do not expose this appliance to rain or moisture. To avoid electrical shock, do not open the cabinet, refer servicing to qualified personnel only.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

PRECAUTIONS

Please read these precautions before operating this player.

Power Cord Protection

To avoid any malfunctions of the player, and to protect against electric shock, fire or personal injury, please observe the following.

• Hold the plug firmly when connecting or disconnecting the AC power cord.
• Do not connect or disconnect the AC power cord when your hands are wet.
• Keep the AC power cord away from heating appliances.
• Never put any heavy object on the AC power cord.
• Do not attempt to repair or reconstruct the AC power cord in any way.
• Remove dust, dirt, etc. on the plug at regular intervals.

Placement

Avoid placing the player in areas of:
- direct sunlight or heating radiators, or closed automobiles
• high temperature (over 35°C) or high humidity (over 90%)
• excessive dust
- vibration, impact or where the surface is tilted as the internal parts may be seriously damaged.

Non-use periods

When left unused for a long period of time, the player should be unplugged from the household AC outlet.

No fingers or other objects inside

• Touching internal parts of this player is dangerous, and may cause serious damage to the player. Do not attempt to disassemble the player.
• Do not put any foreign object on the disc tray.

Keep away from water and magnetic object

• Keep the player away from flower vases, tubs, sinks, etc. If liquids are spilled into the player, serious damage could occur.
• Keep magnetic objects such as speakers, at a distance from the player.

Stacking

• Place the player in a horizontal position, and do not place anything heavy on it.
• Do not place the player on amplifiers or other equipment which may become hot.

Condensation

moisture may form on the lens in the following conditions:

• immediately after a heater has been turned on.
• in a steamy or very humid room.
• when the player is moved from a cold environment to a warm one.

If moisture forms inside this player, it may not operate properly. In this case, turn off the power and wait about one hour for the moisture to evaporate.

Caution:

• To avoid electric shock, this unit must not be exposed to dripping water or water splash.
• Minimum distances around the apparatus for sufficient ventilation
- The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
- No naked flame sources, such as lighted candles, should be placed on the apparatus.
• The use of apparatus in tropical and/or moderate climates.
- Before scrapping the appliance, remove the batteries and place them in the appropriate battery collection container.

PORTABLE CD/MP3 DISC PLAYER STEREO RADIO WITH USB&SD/MMC CARD READER

Please read and follow these instructions before using your unit.

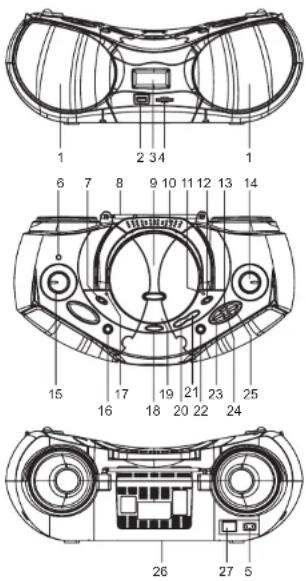

1 2 3 4 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 26 27 5

LOCATION OF CONTROLS

1. SPEAKERS

2. USB PORT

3. LCD DISPLAY

4. SD/MMC CARD SLOT

5. AC SOCKET

6. AUX IN JACK

7. FUNCTION SWITCH

8. FM TELESCOPIC ANTENNA

9. CD DOOR

10. HANDLE

11. FM ST. INDICATOR

12. BAND SWITCH

13. MODE BUTTON

14. TUNING CONTROL

15. VOLUME CONTROL

16. USB/CARD BUTTON

17. POWER INDICATOR

18. CD DOOR OPEN BUTTON

19. CD DOOR PUSH CLOSE AREA

20. STOP BUTTON

21. PLAY/PAUSE BUTTON

22. +10/ALBUM BUTTON

23. SKIP/SEARCH DOWN BUTTON

24. EQ/PROGRAM BUTTON

25. SKIP/SEARCH UP BUTTON

26. BATTERY COMPARTMENT

27. MAINS POWER SWITCH

(OPTIONAL)

POWER SUPPLY

□ BATTERY OPERATION

1. Remove the battery compartment cover gently.
2. Install 8 x 'C' size batteries (UM-2 or equivalent) taking care that the correct polarities are observed.
3. Replace the battery compartment cover.

NOTE:

● The AC line cord must be removed for battery operation.
- To avoid damage which may result from leaking batteries, remove the batteries when they become weak or when the unit is not to be used for long period of time.

□ AC OPERATION

Insert one end of the AC power cord to the socket located at the rear of the player, and the other end to the wall outlet.

PLAY THE RADIO

1. Slide the FUNCTION switch to the RADIO position, the POWER Indicator will light up.

2. Select the desired band with the BAND switch

3. Tune to the desired station by rotating the TUNING control. (Move the control back and forth until you get the strongest clearest sound).

4. The built-inAM (MW) antenna and external FM TELESCOPICANTENNAare directional.

5. When receiving an FM broadcast, fully extend the TELESCOPIC ANTENNA and position for the best reception.
   ● For AM (MW) broadcasts, rotate the whole set until the best reception is heard.

6. Adjust the volume level to a comfortable listening level.

7. To turn off the radio, slide the FUNCTION switch to the OFF position.

NOTES:

• If a particular FM (STEREO) station is weak, or you hear too much background noise, try moving the position of the band selector switch to the FM (MONO) position. This can often result in a much clearer reception.
• When the band selector switch is set to FM STEREO and a stereo broadcast is being received, the FM STEREO indicator will be lit.

HANDLE AND MAINTAIN A COMPACT DISC.

Follow the instructions below to handle and maintain your disc in order that long time and trouble free performance can possibly be obtained:

- Ensure not to caress the rain bow side of the disc; handle the disc by the edge.

• Long time exposure to sunshine, high temperatures and humidity will damage the disc. Keep the storage area clean.
• Avoid sticking labels on both sides of a disc. Writing with pointed articles on the disc should be strictly avoided.
• Clean the disc wiping the centre and then working out to the edge with a dry & soft cloth or a disc brush. Avoid any cleansing lotion or chemical eradicator.
  ● Store them in their cases when they are not to be used.

1. Slide the FUNCTION switch to the CD/MP3 position.
   NOTE: If slide the FUNCTION switch to CD/MP3 position, please make sure other external devices should be disconnected.
2. Open the CD door
3. Insert a disc with the label side facing upward (if the disc is upside down, the display will show "NO DISC").
4. Close the CD door by hand.
   NOTE: Never touch the laser lens inside the CD compartment. If it ever gets dirty, clean it with a CD cleaner disc.

REMOVE A DISC

1. Make sure the CD/MP3 disc is not playing. If it is, press the CD STOP button.
2. Open the CD door
3. Gently remove the disc.
4. Close the CD door by hand.
5. Replace the disc in its protective storage box.

PLAY A CD

1. Make sure the power is connected, slide the FUNCTION switch to CD/MP3 position, POWER indicator will light.
2. Load a disc into the CD compartment. Close the CD door, the disc will begin to spin.
3. Adjust the VOLUME to the desired volume level.
4. To stop playing temporarily, press the PLAY/PAUSE button.
5. The elapsed time of the current track flashes and an icon of "PAUSE" appears on the bottom of the LCD to indicate the player is in pause mode.
6. Resume normal play by pressing PLAY/PAUSE button again.
7. To stop playing, press the STOP button. The total tracks' number and whole playing time with an icon "STOP" on the bottom will be shown on the display.
8. To turn off the player, slide the FUNCTION switch to OFF position.

EQ SELECTION

Press EQ/Program button continuously during disc playback mode to select EQ sound effects among NORMAL, POP, ROCK, CLASSIC, JAZZ and BASS.

SKIP TRACKS AND SEARCH FOR A SPECIFIC POINT TO PLAY

1. Press once the SKIP/SEARCH up button in music play to skip to the next track. To skip to a specific track ahead, press this button several times.
2. Press once the SKIP/SEARCH down button in music play to skip to last track. To skip to a specific track at back, press this button several times.
3. Press +10/ALBUM button once in play to skip to the track 10 tracks ahead, twice to skip to the track 20 tracks ahead. You can reach the last track of the disc using this button.
4. Hold the SKIP/SEARCH up button in music play to search forward at quick rate for a Specific point to play.
5. Hold the SKIP/SEARCH down button in music play to search backward at quick rate for a specific point to play.

PROGRAMMED PLAY

Programmed play is that tracks on the disc can be edited for playback in a preferred order with the use of PROGRAM button.

In CD stop mode, press EQ/PROGRAM button once, "PROG" shows in the LCD with a flickering track number and the program sequence indication "P-01", select the first track to be programmed using SKIP/SEARCH buttons, and press EQ/PROGRAM button again to store and advance to the next programming step. The program sequence indication changes to "P-02" waiting for your next input.

Repeat the steps above to program more tracks. A maximum of 20 tracks can be programmed in memory in a preferred order.

Press PLAY/PAUSE button to begin programmed play in the preferred order after you are done with programming. The player stops automatically after all programmed tracks are played.

You may press STOP button to terminate programmed playback. In program stop mode, press STOP button again to clear the programming; press PLAY/PAUSE button to begin the programmed playback with the programming order identical with the previous one done.

REPEAT A SINGLE TRACK

To repeat a preferred track in playback, press MODE button once, the LCD shows the icon for single track repeat. Then select the preferred track using SKIP/SERCH buttons or +10/ALBUM button. The player will repeat the chosen track until you press STOP button.

REPEAT ALL TRACKS

To repeat all tracks, press MODE button twice in play mode, the LCD shows the icon for all tracks repeat. The player will repeat all tracks until you press STOP button.

RANDOM PLAY

Random play is that tracks on the disc are played by the player at random. Press MODE button three times to enter this mode during play, "RAN" shows in the LCD. Press Play/Pause button or SKIP buttons to begin Random playback. Tracks on the disc will be selected at random for playback and the player stops automatically after all tracks are played. Press MODE button once more to exit random.

INTRODUCTION PLAY

Introduction play is that the first ten seconds of each track are played in a sequential order. Press MODE button four times to enter this mode during play, "INTRO" shows in the LCD. Press Play/Pause button to begin Introduction play from Track NO.1. Press SKIP up button to begin INTRO playback from the track immediately after the current track and SKIP down button to begin INTRO playback from the track before STOP button in Intro playback to exit Introduction play mode and press play/pause button to resume normal music play.

MP3-CD (WMA) PLAYBACK

This player is capable of MP3-CDs. It takes longer time for this player to read an MP3-CD than it does CD-DA. Wait patiently while it is reading. After an MP3-CD is successfully read, the total number of albums and tracks show on the LCD. And a second later, playback begins from the first track of the first album with the Mp3 icon.

LOCATE A TRACK OR ALBUM AND SEARCH FOR A SPECIFIC POINT TO PLAY

1. Press once the SKIP/SEARCH up button in music play to skip to the next track. To skip to a specific track ahead, press this button several times.
2. Press once the SKIP/SEARCH down button in music play to skip to the last track. To skip to a specific track at back, press this button several times.
3. Press +10/ALBUM button once in play to skip to the track 10 tracks ahead, twice to skip to the track 20 tracks ahead. You can reach the last track of the current album using this button.
4. Hold the SKIP/SEARCH up button in music play to search forward at quick rate for a specific point to play.
5. Hold the SKIP/SEARCH down button in music play to search backward at quick rate for a specific point to play.
6. Hold the +10/ALBUM button, the album number will flash; press the Skip/Search button to select the desired album, press and hold the ALBUM button again for 2 seconds to confirm this album selection, the track number flickers for your input; select the desired track of the chosen album using the SKIP/SEARCH buttons. Finally, press PLAY/PAUSE button again to begin playing this chosen track.

REPEAT A SINGLE TRACK

To repeat a preferred track in playback, press MODE button once, the LCD shows the icon for single track repeat. Then select the preferred track using SKIP/SERCH buttons. The player will repeat the chosen track until you press STOP button.

REPEAT ALL TRACKS

To repeat all tracks, press MODE button twice in play mode, the LCD shows the icon for all tracks repeat. The player will repeat all tracks until you press STOP button.

REPEAT AN ALBUM

To repeat a preferred album in playback, press MODE button thrice, the LCD shows the icon for album repeat. Then select the preferred track using the +10/Album and Skip buttons together. The player will repeat the chosen album until you press STOP button.

RANDOM PLAY

Random play is that tracks on the disc are played by the player at random. Press MODE button four times to enter this mode during play, "RAN" shows in the LCD. Press Play/Pause button or SKIP buttons to begin Random playback. Tracks on the disc will be selected at random for playback and the player stops automatically after all tracks are played. Press MODE button once more to exit random and return to normal playback from the track it's reached.

INTRODUCTION PLAY

Introduction play is that the first ten seconds of each track are played in a sequential order. Press MODE button five times to enter this mode during play, "INTRO" shows in the LCD. Press Play/Pause button to begin Introduction play from Track NO.1. Press SKIP up button to begin INTRO playback from the track immediately after the current track and SKIP down button to begin INTRO playback from the previous track. Press Play/Pause button again in Intro playback to exit Introduction play mode and normal music play resumes.

PROGRAMMED PLAY

Programmed play is that tracks on the disc can be edited for playback in a preferred order with the use of PROGRAM button.

In MP3 stop mode, press EQ/PROGRAM button once, "PROG" shows in the LCD with a flickering album number and the program sequence indication "P-01"; select the album number to be programmed using SKIP/SEARCH buttons or +10/ALBUM button, and press PROGRAM button again to store; the track number flickers waiting for your selection. Choose the desired track with SKIP/SEARCH buttons or +10/ALBUM button. Press PROGRAM button again to confirm the first programming and advance to the next programming step. The program sequence indication changes to "P-02" waiting for your next input.

Repeat the steps above to program more tracks. A maximum of 99 tracks can be programmed in memory in a preferred order.

Press PLAY/PAUSE button to begin programmed play in the preferred order after you are done with programming. The player stops automatically after all programmed tracks are played.

You may press STOP button to terminate programmed playback. In program stop mode, press STOP button again to clear the programming; press PLAY/PAUSE button to begin the programmed playback with the programming order identical with the previous one done.

EXTERNAL MEMORY MEDIA OPERATION (USB, SD/MMC)

Prepare the player for external memory media operation. Insert a USB data traveller into the USB port OR insert a SD/MMC card into the card slot; Slide FUNCTION switch to USB/AUX mode and playback will start from the first track. NOTE: You may press the USB/CARD button to switch between USB and SD/MMC modes

VARIOUS PLAY MODES

SKIPPING TRACKS AND SEARCHING BETWEEN TRACKS

Press the SKIP UP button once to skip the current track and play the next track, press this button continuously to go to corresponding tracks ahead.

Press the SKIP DOWN button once to skip to the last track, press this button continuously to go back to previous tracks.

Press and hold the +10/ALBUM button for 2 seconds during play, the album number flashes; select the desired album using the SKIP/SEARCH buttons; Press and hold the ALBUM button again for 2 seconds to confirm this album selection, the track number flickers for your input; select the desired track of the chosen album using the SKIP/SEARCH buttons. Finally, press PLAY/PAUSE button again to begin playing this chosen track.

Hold the SKIP/SEARCH up button in music play to search forward at quick rate for a specific point to play.

Hold the SKIP/SEARCH down button in music play to search backward at quick rate for a specific point to play.

REPEAT MODES

Press the MODE button once in play mode to repeat the current track; the LCD shows the icon for single track repeat.

Press the button for the twice time to repeat tracks stored on this storage media (USB/MMC card) as a whole; the LCD shows the icon for all tracks repeat.

Press the button thrice to repeat tracks in current directory as a whole. The LCD shows the icon for album repeat.

RANDOM PLAY

Press MODE button for the fourth time in play to activate random playback; the player will pick up tracks in a random sequence for playback after PLAY/PAUSE is pressed. You may press this button once again to exit random play mode and return to normal playback.

INTROSCAN PLAY

Press MODE button for the fifth time in play mode to activate introscan playback immediately; the player will pick up tracks for playback of the first 10 seconds of each track in a sequential order after PLAY/PAUSE button is pressed. You may press PLAY/PAUSE button once again to exit introscan play mode and return to normal playback from the track it's arrived at.

PROGRAMMED PLAY

In USB, SD/MMC card mode, there is also a programmed play function. A maximum of 99 tracks can be programmed.

Take the USB programmed play as an example:

Discs can be edited for playback in a preferred order with the use of the PROGRAM button. In stop mode, press the PROGRAM button once, "PROG USB" shows in the LCD with a flickering album number and the program sequence indication "P-01"; select the album number to be programmed using the SKIP/SEARCH or +10/ALBUM buttons, and press PROGRAM again to store; the track number flickers waiting for your selection. Choose the desired track with SKIP/SEARCH buttons or +10/ALBUM button. Press PROGRAM button again to confirm the first programming and advance to the next programming step. The program sequence indication changes to "P-02" waiting for your next input.

Repeat the steps above to program more tracks. A maximum of 99 tracks can be programmed in memory in a preferred order.

Press the PLAY/PAUSE button to begin programmed play in the preferred order after you are done with programming. The player stops automatically after all programmed tracks are played.

You may press STOP to terminate programmed playback. In program stop mode, press STOP again to clear the programming; press PLAY/PAUSE to begin the programmed playback with the programming order identical with the previous one done.

AUXILIARY IN

Your player can be used as a power amplifier to playback the programs from portable radio, TV set or MP3 player or whatever provide this appliance is so designed that audio signal may be produced through a LINE-OUT jack or the like. Observe the following steps to connect the player to another appliance:

1. Power the player on using the supplied AC Power Cord.

2. Slide the FUNCTION button to USB/AUX position.

3. Connect the appliance into the player's AUX in jack with LINE- OUT cable of the appliance.

4. Power on the appliance and begin play.

At this time you will be able to hear the sound produced from the programs the connected appliance is broadcasting.

IMPORTANT NOTES:

This player is subject to any change in electronics and cosmetics without advance notice or taking any responsibilities as we follow a policy of constant development and improvement on this product. We are sorry if this will cause or has caused any inconvenience to you.

IMPORTANT

Note: Although this CD player can read CD-R, CD-RW and MP3 discs - in addition to normal CD's - the playability of CD-R, CD-RW and MP3 discs may be affected by the type of software that was used to create the discs, as well as the quality and condition of the blank media you are using. 100% playability cannot be guaranteed. This is not an indication of a problem with the player.

IMPORTANT

The USB port of this product is fully compatible with the USB 1.1 and 2.0 standard. If MP3 players connected to this port are not written in compliance with the official USB 1.1 or 2.0 standard it may occur that those MP3 players do not work on this port. This is not a defective of this product. The MP3 player does not comply with the official USB 1.1 or 2.0 standard.

WARNING

1. No flame sources, such as lighted candles, should be placed on the apparatus.
2. Do not place the product in closed bookcases or racks without proper ventilation.
3. The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
4. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
5. It shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
6. Do not connect FM antenna to outside antenna.
7. The unit should not be exposed to direct sunlight, very high or low temperature, moisture, vibrations or placed in dusty environment.
8. Do not use abrasive, benzene, thinner or other solvents to clean the surface of the unit. To clean, wipe it will mild non-abrasive detergent solution and clean soft cloth.
9. Never attempt to insert wires, pins or other such objects into the vents or opening of the unit.

Do not dispose of the device with the household waste. This product must be disposed of according to EU directive 2002/96/EC-WEEE (Waste Electrical and Electronic equipment). Return the device to a collection point. Observe the applicable regulations. Contact your municipality, if in doubt.

CAUTION

• Danger of explosion if battery is incorrectly replaced.
• Replace only with the same or equivalent type of battery.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Attention should be drawn to the environmental aspects of battery disposal.

REPEAT ALLE TRACKS (MP3/USB/SD/MMC)

INTRODUCTIE AFSPELEN (MP3/USB/SD/MMC)

GEPROGRAMMEERD AFSPELEN (MP3/USB/SD/MMC)

VERSCHIEDENE WIEDERGABEMODI

TITEL ÜBERSPRINGEN UND ZWISCHEN TITELN SUCHEN

Black triangular warning symbol with a white lightning bolt and downward arrow (no text)

PRECAUCIÓN

RIESGO DE DESCARGA ELÉCTRICA NO ABRA

Black triangular warning symbol with exclamation mark (no text or numbers)

REPETIR UM ÁLBUM (MP3/USB/SD/MMC)

Black triangular warning symbol with a white lightning bolt and downward arrow (no text)

UWAGA

ZAGROŻENIE PORAŻENIEM PRADEM ELEKTRYCZNYM NIE OTWIERAĆ OBUDOWY

Black triangular warning symbol with an exclamation mark (no text or numbers)

UWAGA: CELEM ZMNIEJSZENIA ZAGROŻENIA PORAŻENIEM PRĄDEM ELEKTRYCZNYM NIE NALEŻY ZDEJMOWAĆ OBUDOWY (LUB TYLNEJ ŚCIANKI). WEWNĄTRZ URZĄDZENIA NIE MA ŻADNYCH CZĘŚCI, KTÓRYCH NAPRAWY MÓGŁBY DOKONAĆ UŻYTKOWNIK. NAPRAWY NALEŻY ZLECAĆ WYKWALIFIKOWANYM PRACOWNIKOM PUNKTÓW SERWISOWYCH.
