USER MANUAL AR-X100 FUJIFILM

Thank you for your purchase of this product. This manual describes how to use your FUJIFILM FinePix X100 digital camera and install the supplied software. Be sure that you have read and understood its contents before using the camera.

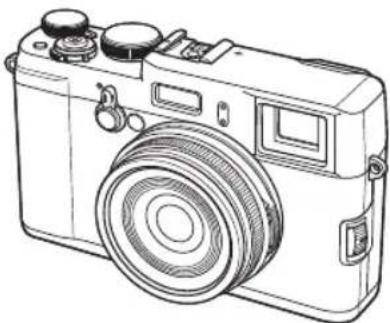

Line drawing of a vintage camera with lens and adjustment knobs (no text or symbols)

For information on related products, visit our website at http://www.fujifilm.com/products/digital_cameras/index.html

For more information on the X100, visit http://www.finepix-x100.com/

BL01285-202

Before You Begin

First Steps

Taking Photographs

More on Photography

Viewing Pictures

Menus

Connections

Technical Notes

Troubleshooting

Appendix

Exif Print

HDMI® HIGH-DEFINITION MULTIMEDIA INTERFACE

ForYourSafety

IMPORTANT SAFETY INSTRUCTIONS

• Read Instructions: All the safety and operating instructions should be read before the appliance is operated.
• Retain Instructions: The safety and operating instructions should be retained for future reference.
• Heed Warnings: All warnings on the appliance and in the operating instructions should be adhered to.
• Follow Instructions: All operating and use instructions should be followed.

Installation

Power Sources: This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For video products intended to operate from battery power, or other sources, refer to the operating instructions.

Grounding or Polarization: This video product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Alternate Warnings: This video product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.

Overloading. Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

Ventilation: Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface.

This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to. This video product should never be placed near or over a radiator or heat register.

Attachments: Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

Water and Moisture: Do not use this video product near water—for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

Power-Cord Protection: Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

Accessories: Do not place this video product on an unstable cart, stand, tripod, bracket, or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video product. Any mounting of the appliance should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Antennas

Outdoor Antenna Grounding: If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE

Ground Clamp Electric Service Equipment Ground Clamps Antenna Lead in Wire Antenna Discharge Unit (NEC SECTION 810-20) Grounding Con

Power Service Grounding Electrode System (NEC ART 250, PART H)
Grounding Conductors (NEC SECTION 810-21)

Power Lines: An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Use

Cleaning: Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Object and Liquid Entry: Never push objects of any kind into this video product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

Lightning: For added protection for this video product receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power-line surges.

Service

Servicing: Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Damage Requiring Service: Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power-supply cord or plug is damaged
• If liquid has been spilled, or objects have fallen into the video product.
  • If the video product has been exposed to rain or water.
• If the video product has been dropped or the cabinet has been damaged.

If the video product does not operate normally follow the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

When the video product exhibits a distinct change in performance — this indicates a need for service.

Replacement Parts: When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

Safety Check: Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.

Be sure to read these notes before use

Safety Notes

• Make sure that you use your camera correctly. Read these safety notes and your Owner's Manual carefully before use.
• After reading these safety notes, store them in a safe place.

About the Icons

The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the information indicated by the icon is ignored and the product is used incorrectly as a result.

WARNING

This icon indicates that death or serious injury can result if the information is ignored.

CAUTION

This icon indicates that personal injury or material damage can result if the information is ignored.

The icons shown below are used to indicate the nature of the instructions which are to be observed.

Triangular icons tell you that this information requires attention ("Important").

Circular icons with a diagonal bar tell you that the action indicated is prohibited ("Prohibited").

Filled circles with an exclamation mark indicate an action that must be performed ("Required").

WARNING

from power socket

If a problem arises, turn the camera off, remove the battery, and disconnect and unplug the AC power adapter. Continued use of the camera when it is emitting smoke, is emitting any unusual odor, or is in any other abnormal state can cause a fire or electric shock. Contact your FUJIFILM dealer.

Do not allow water or foreign objects to enter the camera. If water or foreign objects get inside the camera, turn the camera off, remove the battery, and disconnect and unplug the AC power adapter. Continued use of the camera can cause a fire or electric shock. Contact your FUJIFILM dealer.

WARNING

Do not use the camera in the bathroom or shower. This can

Do not use in the bathroom or shower

cause a fire or electric shock.

Never attempt to change or take apart the camera (never open the case). Failure to observe this precaution can cause fire or electric shock.

Do not disas- semble

Should the case break open as the result of a fall or other accident, do not touch the exposed parts. Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts. Remove the battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.

Do not touch internal parts

Do not change, heat or unduly twist or pull the connection cord and do not place heavy objects on the connection cord. These actions could damage the cord and cause a fire or electric shock. If the cord is damaged, contact your FUJIFILMi dealer.

Do not place the camera on an unstable surface. This can cause the camera to fall or tip over and cause injury.

Never attempt to take pictures while in motion. Do not use the camera while walking or driving. This can result in you falling down or being involved in a traffic accident.

Do not touch any metal parts of the camera during a thunderstorm. This can cause an electric shock due to induced current from the lightning discharge.

Do not use the battery except as specified. Load the battery as shown by the indicator.

Do not heat, change or take apart the battery. Do not drop or subject the battery to impacts. Do not store the battery with metallic products. Any of these actions can cause the battery to burst or leak and cause fire or injury as a result.

Use only batteries or AC power adapters specified for use with this camera. Do not use voltages other than the power supply voltage shown. The use of other power sources can cause a fire.

For Your Safety

WARNING
	If the battery leaks and fluid gets in contact with your eyes, skin or clothing, flush the affected area with clean water and seek medical attention or call an emergency number right away.
	Do not use the charger to charge batteries other than those specifi ed here. The supplied charger is for use only with batteries of the type supplied with the camera. Using the charger to charge conventional batteries or other types of rechargeable batteries can cause the battery to leak, overheat or burst.
	When carrying the battery, install it in a digital camera or keep it in the hard case. When storing the battery, keep it in the hard case. When discarding, cover the battery terminals with insulation tape. Contact with other metallic objects or batteries could cause the battery to ignite or burst.
	Keep memory cards out of the reach of small children. Because memory cards are small, they can be swallowed by children. Be sure to store memory cards out of the reach of small children. If a child swallows a memory card, seek medical attention or call an emergency number.

CAUTION
	Do not use this camera in locations aff ected by oil fumes, steam, humidity or dust. This can cause a fi re or elec-tric shock.
	Do not leave this camera in places subject to extremely high temperatures. Do not leave the camera in locations such as a sealed vehicle or in direct sunlight. This can cause a fi re.
	Keep out of the reach of small children. This product could cause injury in the hands of a child.
	Do not place heavy objects on the camera. This can cause the heavy object to tip over or fall and cause injury.
	Do not move the camera while the AC power adapter is still connected. Do not pull on the connection cord to disconnect the AC power adapter. This can damage the power cord or cables and cause a fi re or electric shock.
	Do not cover or wrap the camera or the AC power adapter in a cloth or blanket. This can cause heat to build up and distort the casing or cause a fi re.

	CAUTION
	When you are cleaning the camera or you do not plan to use the camera for an extended period, remove the battery and disconnect and unplug the AC power adapter. Failure to do so can cause a fi re or electric shock.
	When charging ends, unplug the charger from the power socket. Leaving the charger plugged into the power socket can cause a fi re.
	Using a fi ash too close to a person's eyes may temporarily aff ect the eyesight. Take particular care when photo-graphing infants and young children.
	When a memory card is removed, the card could come out of the slot too quickly. Use your finger to hold it and gently release the card. Injury could result to those struck by the ejected card.
	Request regular internal testing and cleaning for your camera. Build-up of dust in your camera can cause a fi re or electric shock. Contact your FUJIFILM dealer to request internal cleaning every two years. Please note that this service is not free of charge.
	Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

The Battery and Power Supply

Note: Check the type of battery used in your camera and read the appropriate sections.

The following describes the proper use of batteries and how to prolong their life. Incorrect use can shorten battery life or cause leakage, overheating, fire, or explosion.

Li-ion Batteries

Read this section if your camera uses a rechargeable Li-ion battery.

The battery is not charged at shipment. Charge the battery before use. Keep the battery in its case when not in use.

■ Notes on the Battery

The battery gradually loses its charge when not in use. Charge the battery one or two days before use.

Battery life can be extended by turning the camera off when not in use.

Battery capacity decreases at low temperatures; a depleted battery may not function at when cold. Keep a fully charged spare battery in a warm place and exchange as necessary, or keep the battery in your pocket or other warm place and insert it in the camera only when shooting. Do not place the battery in direct contact with hand warmers or other heating devices.

■ Charging the Battery Charge the battery in the supplied battery charger. Charging times will increase at ambient temperatures below +10 °C (+50 °F) or above +35 °C (+95 °F). Do not attempt to charge the battery at temperatures above 40 °C (+104 °F); at temperatures below 0 °C (+32 °F), the battery will not charge. Do not attempt to recharge a fully charged battery. The battery does not however need to be fully discharged before charging. The battery may be warm to the touch immediately after charging or use. This is normal.

■ Battery Life At normal temperatures, the battery can be recharged about 300 times. A noticeable decrease in the length of time the battery will hold a charge indicates that it has reached the

end of its service life and should be replaced.

Storage

Performance may be impaired if the battery is left unused for extended periods when fully charged. Run the battery flat at before storing it.

If the camera will not be used for an extended period, remove the battery and store it in a dry place with an ambient temperature of from +15 °C to +25 °C (+59 °F to +77 °F). Do not store in locations exposed to extremes of temperature.

■ Cautions: Handling the Battery

• Do not transport or store with metal objects such as necklaces or hairpins.
• Do not expose to flame or heat.
• Do not disassemble or modify.
• Use with designated chargers only.
• Dispose of used batteries promptly.
• Do not drop or subject to strong physical shocks.
• Do not expose to water.
• Keep the terminals clean.
  • The battery and camera body may become warm to the touch after extended use. This is normal.

AA Alkaline/Rechargeable Ni-MH Batteries

Read this section if your camera uses AA alkaline or rechargeable AA Ni-MH batteries. Information on compatible battery types may be found elsewhere in the camera manual.

■ Cautions: Handling the Batteries

• Do not expose to water, flame, or heat, or store in warm or humid conditions.
• Do not transport or store with metal objects such as necklaces or hairpins.
• Do not disassemble or modify the batteries or battery casing.
• Do not subject to strong physical shocks.
• Do not use batteries that are leaking, deformed, or discolored.
• Keep out of reach of infants and small children.
• Insert in the correct orientation.
• Do not mix old and new batteries, batteries with different charge levels, or batteries of different types.
• If the camera will not be used for an extended period, re-

move the batteries. Note that the camera clock will be reset. • The batteries may be warm to the touch immediately after use. Turn the camera off and allow the batteries to cool before handling.
- Battery capacity tends to decrease at low temperatures. Keep spare batteries in a pocket or other warm place and exchange as necessary. Cold batteries may recover some of their charge when warmed.
- Fingerprints and other stains on the battery terminals can impair battery performance. Thoroughly clean the terminals with a soft, dry cloth before inserting them in the camera.

If the batteries leak, clean the battery compartment thoroughly before inserting new batteries.

If fluid from the battery comes into contact with skin or clothing, fluid the affected area with water. If fluid enters your eyes, immediately flush the affected area with water and seek medical attention. Do not rub your eyes. Failure to observe this precaution could result in permanent visual impairment.

Ni-MH Batteries

The capacity of Ni-MH batteries may be temporarily reduced when new, after long periods of disuse, or if they are repeatedly recharged before being fully discharged. This is normal and does not indicate a malfunction. Capacity can be increased by repeatedly discharging the batteries using the discharge option in the camera setup menu and recharging them using a battery charger.

① CAUTION: Do not use the discharge option with alkaline batteries.

The camera draws a small amount of current even when off. Ni-MH batteries that have been left in the camera for an extended period may be drawn down to the point that they no longer hold a charge. Battery performance may also drop if the batteries are run down in a device such as a flashlight. Use the discharge option in the camera setup menu to discharge Ni-MH batteries. Batteries that no longer hold a charge even after repeatedly being discharged and recharged have reached the end of their service life and must be replaced.

Ni-MH batteries can be recharged in a battery charger (sold separately). Batteries may become warm to the touch after charging. Refer to the instructions provided with the charger for more information. Use the charger with compatible batteries only. NI-MH batteries gradually lose their charge when not in use.

■ Disposal

Dispose of used batteries in accord with local regulations.

AC Power Adapters (Available Separately)

This section applies to all camera models. Use only FUJIFILM AC power adapters designated for use with this

camera. Other adapters could damage the camera.
• The AC power adapter is for indoor use only.
- Be sure the DC plug is securely connected to the camera.
- Turn the camera off before disconnecting the adapter. Disconnect the adapter by the plug, not the cable.
- Do not use with other devices.
- Do not disassemble.
- Do not expose to high heat and humidity.
- Do not subject to strong physical shocks.
- The adapter may hum or become hot to the touch during use. This is normal.
- If the adapter causes radio interference, reorient or relocate the receiving antenna.

For Your Safety

Using the Camera

Do not aim the camera at extremely bright light sources, such as the sun in a cloudless sky. Failure to observe this precaution could damage the camera image sensor.

Take Test Shots

Before taking photographs on important occasions (such as at weddings or before taking the camera on a trip), take a test shot and view the results to ensure that the camera is functioning normally. FUJIFILM Corporation can not accept liability for damages or lost profits incurred as a result of product malfunction.

Notes on Copyright

Unless intended solely for personal use, images recorded using your digital camera system cannot be used in ways that infringe copyright laws without the consent of the owner. Note that some restrictions apply to the photographing of stage performances, entertainments, and exhibits, even when intended purely for personal use. Users are also asked to note that the transfer of memory cards containing images or data protected under copyright laws is only permissible within the restrictions imposed by those copyright laws.

Handling

To ensure that images are recorded correctly, do not subject the camera to impact or physical shocks while images are being recorded.

Liquid Crystal

In the event that the display is damaged, care should be taken to avoid contact with liquid crystal. Take the urgent action indicated should any of the following situations arise:

• If liquid crystal comes in contact with your skin, clean the area with a cloth and then wash thoroughly with soap and running water.
• If liquid crystal enters your eyes, flush the affected eye with clean water for at least 15 minutes and then seek medical assistance.
• If liquid crystal is swallowed, rinse your mouth thoroughly with water. Drink large quantities of water and induce vomiting, then seek medical assistance.

Although the display is manufactured using extremely high-precision technology, it may contain pixels that are always lit or that do not light. This is not a malfunction, and images recorded with the product are unaffected.

Trademark Information

xD-Picture Card and 3D are trademarks of FUJIFILM Corporation. The typefaces included herein are solely developed by DynaComware Taiwan Inc. Macintosh, QuickTime, and Mac OS are trademarks of Apple Inc. in the U.S.A. and other countries. Windows 7, Windows Vista, and the Windows logo are trademarks of the Microsoft group of companies. Adobe and Adobe Reader are either trademarks or registered trademarks of Adobe Systems Incorporated in the U.S.A. and/or other countries. The SDHC and SDXC logos are trademarks of SD-3C, LLC. The HDMI logo is a trademark. YouTube is a trademark of Google Inc. All other trade names mentioned in this manual are the trademarks or registered trademarks of their respective owners.

Electrical Interference

This camera may interfere with hospital or aviation equipment. Consult with hospital or airline staff before using the camera in a hospital or on an aircraft.

Color Television Systems

NTSC (National Television System Committee) is a color television telecasting specification adopted mainly in the U.S.A., Canada, and Japan. PAL (Phase Alternation by Line) is a color television system adopted mainly in European countries and China.

Electrical Interference

Exif Print is a newly revised digital camera file format in which information stored with photographs is used for optimal color reproduction during printing.

IMPORTANT NOTICE: Read Before Using the Software

Direct or indirect export, in whole or in part, of licensed software without the permission of the applicable governing bodies is prohibited.

NOTICES

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

Please read the "Safety Notes" and make sure you understand them before using the camera.

Perchlorate Material—special handling may apply. See http://www.disc.ca.gov/hazardouswaste/perchlorate.

For Customers in the U. S. A.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• You are cautioned that any changes or modifications not expressly approved in this manual could void the user's authority to operate the equipment.

Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifi Im-specific ed ferrite-core A/V cable, USB cable, and DC supply cord.

For Customers in Canada

CAUTION: This Class B digital apparatus complies with Canadian ICES-003.

Disposal of Electrical and Electronic Equipment in Private Households

In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

This symbol on the batteries or accumulators indicates that those batteries shall not be treated as household waste.

If your equipment contains easy removable batteries or accumulators please dispose these separately according to your local requirements.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.

EC Declaration of Conformity

We

Name: FUJIFILM Electronic Imaging Europe GmbH

Address: Benzstrasse 2 47533 Kleve, Germany declare that the product

Product Name: FUJIFILM DIGITAL CAMERA FinePix X100

Manufacturer's

Name: FUJIFILM Corporation

Manufacturer's 7-3, AKASAKA 9-CHOME, MINATO-KU,

conforms to the following Standards:

Safety: EN60065: 2002 + A1: 2006 + A11: 2008

EMC: EN55022: 2006 + A1: 2007 Class B

EN55024: 1998 + A1: 2001 + A2: 2003

EN61000-3-2: 2006

EN61000-3-3: 1995 + A1: 2001 + A2: 2005

following the provision of the EMC Directive (2004/108/EC) and Low Voltage Directive (2006/95/EC).

February 1, 2011 Kieve, Germany

Place Date Signature, Managing

Director

About This Manual

Before using the camera, read this manual and the warnings in "For Your Safety" (☐ ii). For information on specific topics, consult the sources below.

Task Index ix

Know what you want to do but don't know the name for it? Find the answer in the "Task Index."

Table of Contents...... xii

The "Table of Contents" gives an overview of the entire manual. The principal camera operations are listed here.

Troubleshooting.... 105

Having a specific problem with the camera? Find the answer here.

Warning Messages and Displays.... 109

Find out what's behind that flashing icon or error message in the display.

Glossary 113

The meanings of some technical terms may be found here.

Restrictions on Camera Settings.... 120

See page 120 for restrictions on the options available in each shooting mode.

Memory Cards

Pictures can be stored in the camera's internal memory or on optional SD, SDHC, and SDXC memory cards (15), referred to in this manual as "memory cards."

TaskIndex

Find items by task.

■ Taking Photographs

The optical viewfinder 6,18

Power management 23

Shutter sounds 22

The self-timer 44

■ Choosing Image Quality and Size

Image size 69

Image quality 70

RAW images 56

Color space 86

■ Focusing

Focus mode 48

Focus frame selection 50

Focus lock 46

Manual focus 48

■ Adjusting Exposure

ISO sensitivity 51

Auto ISO 84

Metering....52

Shutter speed and aperture 28

Program autoexposure 24

Shutter priority autoexposure 25

Aperture priority autoexposure 26

Manual exposure 27

Long time exposures 29

Exposure lock 46

Exposure compensation 30

■ Adjusting Colors to the Light Source

White balance 35

Film simulation 54

Dynamic range 70

Color/tone/sharpness....70,71

Task Index

- Choosing a Drive Mode

Burst photography.... 37

Bracketing 38

Panoramas 39

Movies 42

■ Using the Flash

The built-in flash.... 2,32

Flash photography 32

Flash mode 32

Flash compensation 71

Optional flash units 71, 100

■ Custom Settings

Assigning a role to the Fn button 53

Saving and recalling settings 55

Caring for the Camera

For continued enjoyment of your camera, use a soft, dry cloth to clean the camera body after each use. Do not use alcohol, thinner, or other volatile chemicals, which could discolor or deform the leather on the camera body. Any liquid on the camera should be removed immediately with a soft, dry cloth. Use a blower to remove dust from the lens and monitor, then gently wipe with a soft, dry cloth. Any remaining stains can be removed by wiping gently with a piece of FUJIFILM lens-cleaning paper to which a small amount of lens-cleaning fluid has been applied. Care should be taken to avoid scratching the lens or monitor.

Table of Contents

For Your Safety....ii

IMPORTANT SAFETY INSTRUCTIONS......ii

Safety Notes......iii

NOTICES......vii

About This Manual......viii

Task Index ix

Caring for the Camera....xi

Before You Begin

Symbols and Conventions....1

Supplied Accessories....1

Parts of the Camera....2

The Command Dial 4

The Command Control....5

Camera Displays....6

Shooting: Optical Viewfinder ....6

Shooting: Electronic Viewfinder....7

Shooting: LCD Monitor....7

Playback: Electronic Viewfinder/LCD Monitor......8

First Steps

Attaching the Strap 9

Charging the Battery 11

Inserting the Battery and a Memory Card....12

Compatible Memory Cards....15

Turning the Camera on and Off 16

Basic Setup 17

Choosing a Display 18

Using the Hybrid Viewfinder 19

Focusing the Viewfinder 19

The DISP/BACK Button 20

Optical Viewfinder: Shooting 20

Electronic Viewfinder: Shooting....20

LCD Monitor: Shooting....20

Electronic Viewfinder/LCD Monitor: Playback......21

Choosing a Shutter Sound 22

Power Management....23

OVF POWER SAVE MODE....23

ON QUICK START MODE 23

Taking Photographs

Program AE (P)....24

Shutter-Priority AE (S) 25

Aperture-Priority AE (A) 26

Manual Exposure (M)......27

Shutter Speed and Aperture 28

Long Time-Exposures (T/B) 29

Time (T)....29

Bulb (B)....29

Exposure Compensation....30

Focusing and Taking Pictures 31

More on Photography

Using the Flash (Super-Intelligent Flash)....32

Macro Mode (Close-ups)....34

White Balance 35

Continuous Shooting (Burst Mode) 37

Bracketing....38

Panoramas....39

Recording High-Definition (HD) Movies....42

Before Recording 43

Using the Self-Timer 44

Focus/Exposure Lock 46

Focus Mode 48

Focus Frame Selection 50

Sensitivity 51

Metering 52

The Fn Button....53

Film Simulation 54

Saving Settings....55

The RAW Button 56

The ND Filter 57

Viewing Pictures

Viewing Pictures Full Frame 58

Playback Zoom 59

Multi-Frame Playback....60

Viewing Movies 61

Image Search....62

PhotoBook Assist....63

Creating a PhotoBook....63

Viewing Photobooks 64

Editing and Deleting Photobooks....64

Viewing Panoramas....65

Viewing Pictures Taken in a Single Burst....66

Deleting Pictures....67

Creating JPEG Copies of RAW Pictures....68

Table of Contents

Menus

Using the Menus: Shooting Mode....69

Shooting Menu Options....69

SELF-TIMER....69

ISO ISO 69

← IMAGE SIZE....69

IMAGE QUALITY 70

D-Rng DYNAMIC RANGE....70

FILM SIMULATION 70

ND ND FILTER....70

R_WB WB SHIFT....70

Color COLOR 70

\$ SHARPNESS....71

HIGHLIGHT TONE....71

SHADOW TONE 71

NOISE REDUCTION....71

AF MODE....71

FLASH....71

EXTERNAL FLASH 71

SELECT CUSTOM SETTING 72

EDIT/SAVE CUSTOM SETTING....72

DISP. CUSTOM SETTING 72

Using the Menus: Playback Mode....73

Playback Menu Options 73

PHOTOBOOK ASSIT....73

IMAGE SEARCH....73

ERASE 73

MARK FOR UPLOAD TO 74

SLIDE SHOW 75

RAW RAW CONVERSION 75

RED EYE REMOVAL....75

oT PROTECT 76

CROP....76

RESIZE 77

? IMAGE ROTATE....77

COPY COPY 78

PRINT ORDER (DPOF) 78

DISP ASPECT....78

Table of Contents

The Setup Menu....79

Using the Setup Menu....79

Setup Menu Options 80

DATE/TIME 80

TIME DIFFERENCE....80

e 言語/LANG. 80

SILENT MODE....80

RESET....80

FORMAT....81

☑ IMAGE DISP....81

No! FRAME NO. 82

OPERATION VOL....82

SHUTTER VOLUME 82

SHUTTER SOUND 82

PLAYBACK VOLUME 82

LCD BRIGHTNESS....83

AUTO POWER OFF 83

MF FOCUS CHECK....85

O1 FOCUS RING....85

FOCUS SCALE UNITS 85

FRAMING GUIDLINE 86

COLOR SPACE....86

LONG EXPOSURE NR 86

SAVE ORG IMAGE 87

AUTOROTATE PB 87

BACKGROUND COLOR 87

GUIDANCE DISPLAY....87

RF CORRECTED AF FRAME 87

Table of Contents

Connections

Viewing Pictures on TV 88

Printing Pictures via USB 89

Connecting the Camera 89

Printing Selected Pictures 89

Printing the DPOF Print Order 90

Creating a DPOF Print Order....91

WITH DATE ℃/WITHOUT DATE 92

RESET ALL....93

Viewing Pictures on a Computer....94

Windows: Installing MyFinePix Studio 94

Macintosh: Installing FinePixViewer....96

Connecting the Camera....98

Technical Notes

Optional Accessories....100

Accessories from FUJIFILM....100

Attaching Adapter Rings and Lens Hoods....101

Connecting the Camera to Other Devices....102

Caring for the Camera 103

Storage and Use 103

Cleaning 104

Traveling....104

Troubleshooting

Problems and Solutions ....105

Warning Messages and Displays....109

Appendix

Glossary 113

Internal Memory/Memory Card Capacity....114

Specifications....115

Restrictions on Camera Settings 120

Before You Begin

Symbols and Conventions

The following symbols are used in this manual:

① This information should be read before use to ensure correct operation.
Additional information that may be helpful when using the camera.
Other pages in this manual on which related information may be found.

Menus and other text in the displays are shown in bold. In the illustrations in this manual, displays may be simplified for explanatory purposes.

Supplied Accessories

The following items are included with the camera:

NP-95 rechargeable battery BC-65N battery charger Lens cap USB cable

CD-ROM Clip attaching tool Metal strap clips (×2)

• Owner's Manual (this manual)
• Shoulder strap
• Protective covers (× 2)

Parts of the Camera

For more information, refer to the page listed to the right of each item.

Labeled diagram of a digital camera with numbered parts and an inset showing internal components

Labeled diagram of a digital camera with numbered parts for identification

1 Shutter button ....31
2 Exposure compensation dial ....30
3 Shutter speed dial....24, 25, 27
4 Hot shoe 71,102
5 Flash 32
6 Microphone (L) 42
7 Viewfinder window 18,19
8 Strap eyelet 9
9 Focus mode selector 48
10 Aperture ring....24, 26, 27
11 Focus ring 48

12 Lens 104
13 Front ring 101
14 AF-assist illuminator 85
Self-timer lamp 45
15 Viewfi nder selector ....19
16 Microphone (R) 42
17 ON/OFF switch....16
18 Fn (Function) button....53
19 Battery latch....12, 14
20 Memory card slot....13
21 Battery chamber 12

22 Eye sensor ....18
23 Command control ....5
24 Connector cover....88, 89, 98
25 Cable channel cover for DC coupler
26 Battery-chamber cover latch ....12
27 Battery-chamber cover 12
28 Tripod mount
29 Speaker 61
30 LCD monitor....7,8
31 USB connector 89, 98
32 HDMI mini connector....88

Labeled diagram of a digital camera with numbered parts for identification

33 Diopter adjustment control....19

34 ▶ ( playback) button....58

35 AE (autoexposure) button ....52

⊕ ( playback zoom in) button .....59, 60

36 AF (autofocus) button ....50

Q ( playback zoom out) button ....59, 60

37 VIEW MODE button 18

38 AFL/AEL (focus lock/exposure) button .....46, 48

39 Indicator lamp (see below)

40 MENU/OK button....4

41 Command dial 4

42 RAW button ....56

43 DISP (display)/BACK button 20

The Indicator Lamp

The indicator lamp shows camera status as follows:

Indicator lamp	Camera status
Glows green Focus	locked.
Blinks green Blur, focus, or exposure warning. Picture can be taken.
Blinks green and orange	Recording pictures. Additional pictures can be taken.
Glows orange Recoding pictures. No additional pictures can be taken at this time.
Blinks orange Flash charging; flash will not fire when picture is taken.
Blinks red Lens or memory error.

Indicator lamp

Front view of a digital camera with no visible text or symbols on the device body

Warnings may also appear in the display (109)

The Command Dial

Rotate the command dial or press it up (①), right (②), down (③), or left (④) to highlight items and press MENU/OK (⑤) to select.

MENU OK ① ⑤ ④ ② U B ③ MENU OK

The command dial also serves as the following buttons:

①: (delete) button (58)/DRIVE button (37)
②: ↓ (flash) button (📖 32)
③: WB (white balance) button (☐ 35)
④: 🎨 (macro) button (📖 34)

You can also rotate the command dial to choose a combination of shutter speed and aperture (program shift; 24) or to adjust shutter speed in increments of 13 EV (25,27).

Control Lock

To lock the RAW button and prevent the command dial being used as a DRIVE, flash, white balance, or macro button, press MENU/OK until is displayed. This prevents accidental operation of these controls during shooting. The controls can be unlocked by pressing MENU/OK until is no longer displayed.

The Command Control

Pressing the command control left or right performs the same function as pressing the command dial left or right. It can also be used to choose a combination of shutter speed and aperture in place of the command dial (program shift; 24) or to adjust aperture in increments of 13 EV (26, 27).

Diagram of a digital camera with an inset showing internal components (no text or symbols)

You can also press the center of the command dial to zoom in on the focus area selected for manual focus in the electronic viewfinder or LCD monitor, or to zoom in on the active focus point during playback or (if CONTINUOUS is selected for IMAGE DISP. in the setup menu; 81) image review (press again to cancel zoom).

Camera Displays

The following types of indicator may be displayed during shooting and playback. Indicators vary with camera settings.

■ Shooting:OpticalViewfinder

① ② ③ ④ ⑤ ⑥ ⑦ 12 8 9 10 11 1400 100 F 100 F 12 13 14 15 16 22 21 0.1 0.5 1.0 1.5 2.0 3.0 5.0 10m R 2000 F5.6 180 200 20 19 18

* IN: indicates that no memory card is inserted and that pictures will be stored in the camera's internal memory (13).

1 Manual focus indicator ....48
2 Flash mode 32
3 Metering....52
4 White balance....35
5 Film simulation....54
6 Dynamic range ....70
7 ND (Neutral Density) fi Iter indicator ....57
8 Internal memory indicator *
9 Number of available frames .....114
10 Image quality and size....69, 70
11 Battery level 16
12 Focus frame 46,50

13 Virtual horizon 72
14 Temperature warning .....112
15 Bright frame
16 Distance indicator 48, 85
17 Sensitivity ....51
18 Aperture 24, 26, 27
19 Shutter speed 24, 25, 27
20 Shooting mode.... 24, 25, 26, 27
21 Histogram 21
22 Exposure compensation/exposure indicator 27,30

■ Shooting: ElectronicViewfinder

1 2 3 4 5 6* 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 MF D OFF IN L F 400 AF ND P 2000 F5.6 200

* IN: indicates that no memory card is inserted and that pictures will be stored in the camera's internal memory (13).

1 Manual focus indicator ....48
2 Metering....52
3 Continuous mode 37
4 Silent mode indicator 22
5 Virtual horizon....72
6 Internal memory indicator *
7 Focus warning ......31, 109
8 Number of available frames ....114
9 Temperature warning......112
10 Image quality and size....69,70
11 Dynamic range ....70
12 Film simulation ....54
13 White balance 35
14 Battery level 16
15 ND (Neutral Density) fi Iter indicator .....57

16 Distance indicator....48, 85
17 Sensitivity ....51
18 Blur warning ....109
19 Aperture....24, 26, 27
20 Shutter speed 24, 25, 27
21 Shooting mode 24
22 Histogram 21
23 Exposure compensation/ exposure indicator 27, 30
24 Self-timer indicator 44
25 Macro (close-up) mode....34
26 Flash mode 32
27 Depth-of-fi eld preview 26
28 Focus frame 46,50

■ Shooting: LCD Monitor

1 2 3 4 5 6 7* 000 100 8 9 L F 400 11 12 13 14 P 1/2000 F5.6 200c 15 16 17

*IN: indicates that no memory card is inserted and that pictures will be stored in the camera's internal memory (图13).

1 Flash mode 32
2 Macro (close-up) mode....34
3 Metering....52
4 Continuous mode ....37
5 Silent mode indicator 22
6 ND (Neutral Density) filter indicator ....57
7 Internal memory indicator *
8 Number of available frames ....114
9 Temperature warning....112
10 Image quality and size....69,70
11 Dynamic range 70
12 Film simulation 54

13 White balance 35
14 Battery level 16
15 Sensitivity ....51
16 Aperture....24, 26, 27
17 Focus frame/focus point 46,50
18 Shutter speed 24, 25, 27
19 Shooting mode 24
20 Focus mode 48
21 Self-timer indicator 44
22 Exposure compensation/ exposure indicator 27,30

■ Playback: Electronic Viewfinder/LCD Monitor

10 9 8 7 YouTube 12 / 31 / 2050 10 : 00AM 6 1/1000 F4.5 -1½ 200 IN 100-0001 L 3:2F 400

1 Rating....58 6 Playback mode indicator....58
2 Red-eye removal indicator....75 7 Mark for upload to....74
3 Silent mode indicator....22 8 Photobook assist indicator....63
4 Gift image....58 9 DPOF print indicator....90
5 Frame number....82 10 Protected image....76

First Steps

Attaching the Strap

Attach the strap clips to the camera and then attach the strap.

1 Open a strap clip.

Use the clip attaching tool to open a strap clip as shown.

Illustration of a hand holding a helmet with a black arrow indicating rotation (no text or symbols)

① Keep the tool in a safe place. You will need it to open the strap clips when removing the strap.

2 Place the strap clip on an eyelet.

Hook the strap eyelet in the clip opening. Remove the tool, using the other hand to keep the clip in place.

Illustration of a mechanical device with two views showing a handle and clasp mechanism (no text or symbols)

3 Pass the clip through the eyelet.

Rotate the clip fully through the eyelet until it clicks closed.

4 Attach a protective cover.

Place a protective cover over the eyelet as shown, with the black side of the cover toward the camera. Repeat Steps 1–4 for the second eyelet.

Diagram showing a device being adjusted to form a separate view (no text or symbols present)

Attaching the Strap

5 Insert the strap.

Insert the strap through a protective cover and strap clip.

6 Fasten the strap.

Fasten the strap as shown. Repeat Steps 5–6 for the second eyelet.

Diagram of a rope knot with arrows indicating direction (no text or symbols)

① To avoid dropping the camera, be sure the strap is correctly secured.

Charging the Battery

The battery is not charged at shipment. Charge the battery before use.

1 Place the battery in the supplied battery charger.

Insert the battery in the orientation indicated by the ⊖①⊕ labels.

Charge lamp Battery Arrow label Battery charger

The camera uses an NP-95 rechargeable battery.

- Attach the supplied adap before charging the battery (the adapter is attached at shipment).

er Adapter

2 Plug the charger in.

Plug the charger into a power outlet. The charging indicator will light.

The Charging Indicator

The charging indicator shows battery charge status as follows:

Charging indicator	Battery status	Action
Off	Battery not inserted.	Insert the battery.
	Battery fully charged.	Remove the battery.
On	Battery charging.	—
Blinks	Battery fault.	Unplug the charger and remove the battery.

3 Charge the battery.

Remove the battery when charging is complete. See the specifications (118) for charging times (note that charging times increase at low temperatures).

① Unplug the charger when it is not in use.

Inserting the Battery and a Memory Card

Although the camera can store pictures in internal memory, optional SD, SDHC, and SDXC memory cards (sold separately) can be used to store additional pictures. After charging the battery, insert the battery and memory card as described below.

1 Open the battery-chamber cover.

Diagram showing two views of a device with labeled parts, including a close-up and a close-up with an arrow indicating rotation or assembly.

Be sure the camera is off before opening the battery-chamber cover.

① Do not open the battery-chamber cover when the camera is on. Failure to observe this precaution could damage image files or memory cards.
① Do not use excessive force when handling the battery-chamber cover.

2 Insert the battery.

Insert the battery as shown inside the battery chamber, using the battery to keep the battery latch pressed to one side.

Arrow Battery latch

① Insert the battery in the correct orientation. Do not use force or attempt to insert the battery upside down or backwards. The battery will slide in easily in the correct orientation.

3 Insert the memory card.

Holding the memory card in the orientation shown at right, slide it in until it clicks into place at the back of the slot.

Click

① SD/SDHC/SDXCmemory cards can be locked, making it impossible to format the card or to record or delete images.

Write-protect switch

Before inserting a memory card, slide the write-protect switch to the unlocked position.

4 Close the battery-chamber cover.

Diagram showing two views of a camera with labeled parts and directional arrows indicating assembly or operation.

① Be sure card is in the correct orientation; do not insert at an angle or use force. If the memory card is not correctly inserted or no memory card is inserted, IN will appear in the display and internal memory will be used for recording and playback.

Removing the Battery and Memory Card

Before removing the battery or memory card, turn the camera off and open the battery-chamber cover.

To remove the battery, press the battery latch to the side, and slide the battery out of the camera as shown.

Battery latch

To remove the memory card, press it in and release it slowly. The card can then be removed by hand. When a memory card is removed, the card could come out of the slot too quickly. hold it and gently release the card.

Illustration of a hand inserting a device into a car wheel (no text or symbols visible)

Use your finger to

① Batteries

• Remove dirt from the battery terminals with a clean, dry cloth. Failure to observe this precaution could prevent the battery from charging.
• Do not affi x stickers or other objects to the battery. Failure to observe this precaution could make it impossible to remove the battery from the camera.
• Do not short the battery terminals. The battery could overheat.
• Read the cautions in "The Battery and Power Supply" (iv).
• Use only battery chargers designated for use with the battery. Failure to observe this precaution could result in product malfunction.
• Do not remove the labels from the battery or attempt to split or peel the outer casing.
  • The battery gradually loses its charge when not in use. Charge the battery one or two days before use.

■ Compatible Memory Cards

FUJIFILM and SanDisk SD, SDHC, and SDXC memory cards have been approved for use in the camera. A complete list of approved memory cards is available at http://www.fujifilm.com/support/digital_cameras/compatibility/. Operation is not guaranteed with other cards. The camera can not be used with xD-Picture Cards or MultiMediaCard (MMC) devices.

① Memory Cards

• Do not turn the camera off or remove the memory card while the memory card is being formatted or data are being recorded to or deleted from the card. Failure to observe this precaution could damage the card.
• Format memory cards before first use, and be sure to reformat all memory cards after using them in a computer or other device. For more information on formatting memory cards, see page 81.
• Memory cards are small and can be swallowed; keep out of reach of children. If a child swallows a memory card, seek medical assistance immediately.

• miniSD or microSD adapters that are larger or smaller than the standard dimensions of an SD/SDHC/SDXC card may not eject normally; if the card does not eject, take the camera to an authorized service representative. Do not forcibly remove the card.

• Do not affi x labels to memory cards. Peeling labels can cause camera malfunction.

• Movie recording may be interrupted with some types of SD/SDHC/SDXC memory card. Use a CLASS ^4 card or better when shooting HD movies.
• The data in internal memory may be erased or corrupted when the camera is repaired. Please note that the repairer will be able to view pictures in internal memory.
• Formatting a memory card or internal memory in the camera creates a folder in which pictures are stored. Do not rename or delete this folder or use a computer or other device to edit, delete, or rename image fi les. Always use the camera to delete pictures from memory cards and internal memory; before editing or renaming fi les, copy them to a computer and edit or rename the copies, not the originals. Renaming the fi les on the camera can cause problems during playback.

Turning the Camera on and Off

Rotate the ON/OFF switch to ON to turn the camera on. Select OFF to turn the camera off.

ON- OFF+

◆ Press the ▶ button to start playback. Press the shutter button halfway to return to shooting mode.
The camera will turn off automatically if no operations are performed for the length of time selected for AUTO POWER OFF (83). To reactivate the camera after it has turned off automatically, press the shutter button halfway or turn the ON/OFF switch to OFF and then back to ON.
For information on other power saving and startup options, see page 23.
① Fingerprints and other marks on the lens or viewfinder can affect pictures or the view through the viewfinder. Keep the lens and viewfinder clean.

Battery Level

After turning the camera on, check the battery level in the display.

Indicator	Description
(white) Battery partially discharged.
(white) Battery more than half discharged
(red) Low battery. Charge as soon as possible.
(blinks red)	Battery exhausted. Turn camera off and recharge battery.

Blank white image with a small black button labeled 'C#' and a gray square at the bottom (no text or symbols beyond the button)

BasicSetup

A language-selection dialog is displayed the first time the camera is turned on. Set up the camera as described below (you can reset the clock or change languages at any time using the DATE/TIME or 言語/LANG. options in the setup menu; for information on displaying the setup menu, see page 80).

1 Choose a language.

Press DISP/BACK to skip the current step. Any steps you skip will be displayed the next time the camera is turned on.

2 Set the date and time.

DATE/ TIME NOT SET 2013 2012 YY. MM. DD 2011 1. 1 12:00 AM 2010 2009 OK BACK NOS

Press the command dial left or right to highlight the year, month, day, hour, or minute and press up or down to change. To change the order in which the year, month, and day are displayed, highlight the date format and press the command dial up or down. Press MENU/OK to exit to shooting mode when settings are complete.

If the battery is removed for an extended period, the camera clock will be reset and the language-selection dialog will be displayed when the camera is turned on.

Choosing a Display

The camera is equipped with a hybrid optical/electronic viewfinder (OVF/EVF) and an LCD monitor (LCD). Press VIEW MODE to choose a display.

VIEW MODE

Automatic Display Selection

In this mode, the viewfinder turns on automatically when you put your eye to the viewfinder, and the LCD monitor turns on when you take your eye away (note that the eye sensor may respond to objects other than your eye or to light shining directly on the sensor).

Eye sensor

Using the Hybrid Viewfinder

Use the viewfi nder selector to choose between optical and electronic viewfi nders.

Two cropped images showing a square object on a monitor and a magnified view with measurement annotations and date stamp.

Optical viewfi nder display Electronic viewfi nder display

Focusing the Viewfinder

The camera is equipped with diopter adjustment (-2 - + 1m^-1 (dpt)) to accommodate individual differences in vision. Rotate the diopter adjustment control until the viewfinder display is in sharp focus.

Diagram showing a device with a screen and a camera, connected by arrows indicating rotation or movement (no text or symbols present)

Choosing a Display

Choose a display according to the task.

Display	Description
Optical viewfinder (OVF)	This display is immune from digital video effects and allows the subject to be viewed directly with no display lag. Subjects are always in focus, allowing you to check their expression at any time, while a fi eld of view slightly larger than that of the lens makes it easier to locate your subject without removing your eye from the viewfinder. The viewfinder window is however at a slight distance from the lens, with the result that the display in the viewfinder may differ slightly from the final photograph due to parallax.
Electronic viewfinder (EVF)	This display shows the view through the lens and has exactly the same field of view, allowing you to frame your subjects precisely and preview focus, depth of fi eld, exposure, and white balance (although there may be a slight display lag). It can also be used to view photographs after shooting.
LCD monitor	This display is identical to the electronic viewfinder, except that its large size makes it easier to view shooting indicators and the view through the lens. It may however be difficult to see in bright light.

The DISP/BACK Button

The DISP/BACK button controls the display of indicators in the viewfinder and LCD monitor.

■ Optical Viewfinder: Shooting

Technical diagram showing a 2D coordinate system and its corresponding linear regression plot with zoomed-in detail

Standard display Custom display

ElectronicViewfinder:Shooting

2000 F5.6 200 P 2000 F5.6 200 100 P 2000 F5.6 200

Standard display Custom display

■ LCD Monitor: Shooting

Custom display

Custom Display
Choose items for display using 📄 DISP. CUSTOM SETTING in the shooting menu (72):

Framing grid	Exposure compensation/exposure indicator	Dynamic range
Virtual horizon	Metering	Number of exposures remaining/media
Autofocus distance	Flash mode	Image quality and size
Histogram	White balance	Battery level
Exposure (shutter speed, aperture, and sensitivity)	Film simulation

See pages 6–7 for the locations of these items in the displays.

Electronic Viewfinder/LCD Monitor: Playback

Indicators displayed Indicators hidden Favorites Photo information

① The optical viewfinder can not be used for playback.

Histograms

Histograms show the distribution of tones in the image. Brightness is shown by the horizontal axis, the number of pixels by the vertical axis.

No. of pixels Shadows Highlights Pixel brightness

Optimal exposure: Pixels are distributed in an even curve throughout the tone range.

Overexposed: Pixels are clustered on the right side of the graph.

Underexposed: Pixels are clustered on the left side of the graph.

Choosing a Shutter Sound

Use the Ⓞ SHUTTER SOUND item in the setup menu to choose the sound made by the shutter.

1 Press MENU/OK to display the menus.
2 Press the command dial left to select the tab for the current menu.

P SHOOTING MENU SELF-TIMER OFF ISO 200 IMAGE SIZE 3 : 2 IMAGE QUALITY F DYNAMIC RANGE FILM SIMULATION BACK EXIT

3 Highlight the setup menu tab (SET) and press the command dial right to place the cursor in the setup menu.

4 Highlight 📋 SHUTTER SOUND and press the command dial right.

SET-UP IMAGE FRAME OPPER SHUTT SHUTT PLAYS SOUND 1 SOUND 2 SOUND 3

5 Highlight one of the following options and press MENU/OK.

• ♪1: A leaf shutter sound.
• ♪2: A focal plane shutter sound.
• ♪3: A mirror refl ex sound.

6 Press DISP/BACK to return to shooting mode.

Silent Mode

In situations in which camera sounds or lights may be unwelcome, press the DISP/BACK button for a second, or select ON for SILENT MODE in the setup menu (80; note that silent mode is not available during movie playback). The camera speaker, flash, and AF-assist illuminator/self-timer lamp turn off and flash and volume settings can not be adjusted.

Diagram showing a camera module with a 'NEW BACK' button and an arrow pointing to it, alongside its side view.

PowerManagement

The setup menu contains the following power management options. For information on using the setup menu, see the previous page.

OVF POWER SAVE MODE

Selecting ON for OVF OVF POWER SAVE MODE approximately doubles the number of photographs that can be taken with a fully-charged battery.

Selecting ON increases the time required for autofocus to about 0.4 seconds, compared to about 0.2 seconds when OFF is selected (the time required to focus varies with the subject).
When power saving is in effect, shooting information is not displayed until the shutter button is pressed halfway.

① Power saving is available only when the optical viewfinder is used.

QUICK START MODE

To reduce camera startup time, select ON for

QUICK START MODE.

ON reduces startup time to about 0.7 seconds, compared to about 2.2 seconds when OFF is selected.
① The camera will need 2.2 seconds to start up if it left off for more than about 20 minutes.
① The camera requires slightly longer to start up when a short focus distance is selected for manual focus.

① Selecting ON increases the drain on the battery, reducing the number of pictures that can be taken on a single charge.

Taking Photographs

Program AE (P)

To allow the camera to adjust both shutter speed and aperture for optimal exposure, rotate the aperture ring and shutter speed dial to A. P will appear in the display.

① If the subject is outside the metering range of the camera, the shutter speed and aperture displays will show “— — —”.

Technical diagram showing camera control panel, display screen, and LCD screen with settings like 2000 F5.6 200 and 2000 F5.6 200

Optical viewfinder EVF/LCD

Program Shift

If desired, you can rotate the command dial or press the command control left or right to other combinations of shutter speed and aperture without altering exposure (program shift). Program shift is not available when a flash is used, AUTO is selected for D-Ring DYNAMIC RANGE in the shooting menu (70), or ON is selected for ISO ISO AUTO CONTROL in the setup menu (84).

Shutter-Priority AE (S)

To adjust shutter speed manually while letting the camera select aperture for optimal exposure, rotate the aperture ring to A and use the shutter speed dial. S will appear in the display.

① If the correct exposure can not be achieved at the selected shutter speed, aperture will be displayed in red when the shutter button is pressed halfway. Adjust shutter speed until the correct exposure is achieved.

① If the subject is outside the metering range of the camera, the aperture display will show "----".

Shutter speed can also be adjusted in increments of EV by rotating the command dial.

Technical diagram showing camera control panel, display screen, and LCD screen (no readable text or symbols)

Optical viewfinder EVF/LCD

Command dial

Aperture-Priority AE (A)

To adjust aperture manually while letting the camera select shutter speed for optimal exposure, rotate the shutter speed dial to A and use the aperture ring. A will appear in the display.

① If the correct exposure can not be achieved at the selected aperture, the shutter speed will be displayed in red when the shutter button is pressed halfway. Adjust aperture until the correct exposure is achieved.
① If the subject is outside the metering range of the camera, the shutter speed display will show “— —”.
① The slowest shutter speed available when ON is selected for OVF POWER SAVE MODE is 14 s (☐ 23).

Aperture can also be adjusted in increments of EV by pressing the command control left or right.

Optical viewfinder EVF/LCD

Command control

Depth of Field

The aperture ring can be used to adjust aperture before recording begins. Choose a low f-numbers to soften background details. The effect can be heightened by increasing the distance between your subject and the background.

Top-down view of a portable electronic device with indicator lights and ports (no visible text or symbols)

Previewing Depth of Field

When ⚫ PREVIEW DEPTH OF FIELD is selected for Fn Fn BUTTON (☐ 53) in the set-up menu, pressing the Fn button stops aperture down to the selected setting, allowing depth of fi eld to be previewed in the electronic viewfi nder or LCD monitor.

Manual Exposure (M)

Exposure can be altered from the value suggested by the camera by rotating both the shutter speed dial and aperture ring to settings other than A. M will appear in the display.

The command dial and command control can be used to adjust shutter speed and aperture by ± 2/3 EV from the selected value in steps of 1/3 EV. Use the command dial to adjust shutter speed, the command control to adjust aperture.

Command dial Command control

The manual exposure display includes an exposure indicator that shows the amount the picture would be under- or over-exposed at current settings.

Technical diagram showing camera mode, display screen, and control panel (no readable text or symbols)

Optical viewfinder EVF/LCD

Camera LCD screen showing a small square lens and a thermometer, with no visible text or symbols on the main screen area.

Shutter Speed and Aperture

Because the camera uses a lens-internal shutter, fast shutter speeds may not be available at large apertures. If the selected combination of shutter speed and aperture is unavailable, shutter speed or aperture will be displayed in red and the desired exposure may not be achieved.

Aperture	Shutter speed
	14000 S	12000 S	11000 s or slower
F2	Not available	Not available	Available
F2.8
F4		Available
F5.6
F8 or above	Available

LongTime-Exposures(T/B)

Select a shutter speed of T (time) or B (bulb) for long time-exposures.

Use of a tripod is recommended to prevent the camera from moving during the exposure.
To reduce "noise" (mottling) in long time-exposures, select ON for LONG EXPOSURE NR in the set-up menu. Note that this may increase the time needed to record images after shooting.

Time (T)

1 Rotate the shutter speed dial to T.

2 Rotate the command dial to choose a shutter speed between 12 s and 30 s in steps of 13 EV.

Camera LCD screen showing a blank square on the left and a numeric display with '1'' and 'F5.6 200' at bottom (no readable text or symbols on screen)

3 Press the shutter button all the way down to take a picture at the selected shutter speed.

Bulb (B)

1 Rotate the shutter speed dial to B.

2 Press the shutter button all the way down. The shutter will remain open for up to 60 minutes while the shutter button is pressed.

- Rotating the aperture ring to A fixes shutter speed at 30 s.

Using a Remote Release

A remote release (available from third-party suppliers) can be used for long time-exposures.

ExposureCompensation

Rotate the exposure compensation dial to adjust exposure when photographing very bright, very dark, or high-contrast subjects. The effect is visible in the LCD monitor and electronic viewfinder; when using the optical viewfinder, use the exposure indicator to check exposure.

Exposure compensation indicator

OVF EVF LCD

Choose positive values (+) to increase exposure

Black-and-white photo of a duck-like animal resting on rocks (no visible text or symbols)

Choose negative values (−) to reduce exposure

Black-and-white photo of a bird perched on rocks, no visible text or symbols

Black-and-white photo of a bird resting on ground, no visible text or symbols

Choosing an Exposure Compensation Value

- Backlit subjects: Choose values from +213EV to +113EV (for an explanation of the term "EV", see the Glossary on page 113).

• Highly reflective subjects or very bright scenes (e.g., snowfields): +1 EV

• Scenes that are mostly sky: +1 EV
• Spotlit subjects (particularly if photographed against dark backgrounds): -2/3 EV
• Subjects with low reflectivity (pine trees or dark-colored foliage): -213 EV

Focusing and Taking Pictures

Press the shutter button halfway to focus and the rest of the way down to shoot.

1 Focus.

Frame the picture with your subject in the center focus area and press the shutter button halfway to focus.

If the subject is poorly lit, the AF-assist illuminator may light (85).

If the camera is able to focus, it will beep twice and focus area will glow green. Focus and exposure will lock while the shutter button is pressed halfway.

If the camera is unable to focus, the focus frame will turn red, and !AF will be displayed.

2 Shoot.

Smoothly press the shutter button the rest of the way down to take the picture.

More on Photography

Using the Flash (Super-Intelligent Flash)

When the flash is used, the camera's Super-Intelligent Flash system instantly analyzes the scene based on such factors as the brightness of the subject, its position in the frame, and its distance from the camera. Flash output and sensitivity are adjusted to ensure that the main subject is correctly exposed while preserving the effects of ambient background lighting, even in dimly-lit indoor scenes. Use the flash when lighting is poor, for example when shooting at night or indoors under low light.

To choose a flash mode, press the command dial right (✗) to display the following options, then rotate the dial or press it left or right to highlight an option and press MENU/OK to select.

Mode	Description
AUTO (AUTO FLASH)/ (RED EYE REDUCTION)*	The flash fires when required. Recommended in most situations.
(FORCED FLASH)/ 1 (FORCED FLASH)*	The flash fires whenever a picture is taken. Use for backlit subjects or for natural coloration when shooting in bright light.
3 (SUPPRESSED FLASH)	The flash does not fire even when the subject is poorly lit. Use of a tripod is recommended.
(SLOW SYNCHRO)/ 6 (RED-EYE & SLOW)*	Capture both the main subject and the background under low light (note that brightly lit scenes may be overexposed).

* Red-eye removal (AUTO, 📋, or 📋) is available in these modes when ON is selected for 📋 RED EYE REMOVAL in the setup menu (84). Red-eye removal minimizes "red-eye" caused when light from the flash is reflected from the subject's retinas as shown in the illustration at right.

AUTO AUTO FLASH According to shooting conditions

If 🎩 is displayed when the shutter button is pressed halfway, the flash will fire when the photo is taken.
The flash may fire several times with each shot. Do not move the camera until shooting is complete.
Remove lens hoods to prevent shadows in photos taken with the flash.

Flash is not fired in silent mode.

Aperture, Sensitivity, and Flash Range

Flash range varies with sensitivity and aperture.

Aperture at sensitivity of						Range
200	400	800	1600	3200	6400	m	ft.
—	—	—	—	—	2	0.5-18	1.6-59
—	—	—	—	2	2.8	0.5-13	1.6-42
—	—	—	2	2.8	4	0.5-9.0	1.6-29
—	—	2	2.8	4	5.6	0.5-6.4	1.6-20
—	2	2.8	4	5.6	8	0.5-4.5	1.6-14
2	2.8	4	5.6	8	11	0.5-3.2	1.6-10
2.8	4	5.6	8	11	16	0.5-2.3	1.6-7.5
4	5.6	8	11	16	—	0.5-1.6	1.6-5.2
5.6	8	11	16	—	—	0.5-1.1	1.6-3.6
8	11	16	—	—	—	0.5-0.8	1.6-2.6

Flash Sync Speed

The flash will synchronize with the shutter at a shutter speed of 12 ,000 s.

Optional Flash Units

The camera can be used with optional EF-20 and EF-42 flash units.

Macro Mode (Close-ups)

To focus at distances as close as 10 cm/4 in., press the command dial left (💡) and select 🔒. If the optical viewfinder is on, the camera will automatically switch to the electronic viewfinder (because of parallax, the camera will not focus at distances of less than 80 cm/2.6 ft. when the optical viewfinder is used). To exit macro mode, press the command dial left and select OFF.

+ OFF OFF P

The LCD monitor and electronic viewfinder can be used to focus at short ranges when macro mode is not selected, but the time needed to focus increases.
The shadow cast by the lens may appear in photographs taken with the flash at distances under 50 cm/19.6 in. Turn the flash off or increase the distance to the subject.

WhiteBalance

For natural colors, press the command dial down (WB) to display the following options, then rotate the dial or press it up or down to highlight an option that matches the light source and press MENU/OK to select (for an explanation of "white balance," see the Glossary on page 113).

Option	Description
AUTO	White balance adjusted automatically.
	Measure a value for white balance (36).
	Selecting this option displays a list of color temperatures (36); highlight a temperature and press MENU/OK.
	For subjects in direct sunlight.
	For subjects in the shade.

Option	Description
	Use under "daylight" fl uorescent lights.
	Use under "warm white" fl uorescent lights.
	Use under "cool white" fl uorescent lights.
	Use under incandescent lighting.
	Reduces the blue cast typically associated with underwater lighting.

WHITE BALANCE AUTO AUTO AUTO AUTO

White balance is adjusted for flash lighting only in AUTO and 📄 modes. Turn the flash off using other white balance options.
Results vary with shooting conditions. Play pictures back after shooting to check colors.

: Custom White Balance

Choose ☐ to adjust white balance for unusual lighting conditions. White balance measurement options will be displayed; frame a white object so that it fills the display and press the shutter button all the way down to measure white balance.

• If "COMPLETED!" is displayed, press MENU/OK to set white balance to the measured value.
• If "UNDER" is displayed, raise exposure compensation (📖 30) and try again.
• If "OVER" is displayed, lower exposure compensation and try again.

K: Color Temperature

Color temperature is an objective measure of the color of a light source, expressed in Kelvin (K). Light sources with a color temperature close to that of direct sunlight appear white; light sources with a lower color temperature have a yellow or red cast, while those with a higher color temperature are tinged with blue. You can match color temperature to the light source as shown in the following table, or choose options that differ sharply from the color of the light source to make pictures “warmer” or “colder.”

Choose for redder light sources or "colder" pictures

Choose for bluer light sources or "warmer" pictures

2,000K

5,000K

Candlelight

Direct sunlight

Sunset/sunrise Shade

15,000K

Blue sky

Continuous Shooting (Burst Mode)

Capture motion in a series of pictures.

1 Press the command dial up (DRIVE) to display drive options, then rotate the dial or press it up or down to highlight 🔒 (TOP (RAW)). The option below will be displayed.

-5 fps > 3fps TOP (RAW)

2 Press the command dial left or right to highlight an option and press MENU/OK to select.

Option	Description
5 fps	At shutter speeds faster than 1/100 s, the camera takes pictures at 5 frames per second (fps).
3 fps	At shutter speeds faster than 1/10 s, the camera will take pictures at 3 fps.

3 Press the shutter button halfway to focus.

4 Press the shutter button the rest of the way down to start shooting. Shooting ends when the shutter button is released, after ten JPEG or eight RAW pictures have been taken, memory is full.

Focus and exposure are determined by the fi frame in each series. The fl ash turns off automatically; the previously-selected fl ash mode is restored when burst shooting is turned off.

Frame rate varies with shutter speed.

Additional time may be required to record picture when shooting ends; to cancel recording and take next pictures immediately, press DISP/BACK.

If file numbering reaches 999 before shooting is complete, the remaining pictures will be recorded to a new folder (82).

rst

Bracketing

Automatically vary settings over a series of pictures.

1 Press the command dial up (DRIVE) to display drive options and rotate the dial or press it up or down to highlight one of the following:

Option	Description
AE BKT	Press the command dial left or right to highlight a bracketing amount. Each time the shutter button is pressed, the camera will take three shots at up to about 5 fps: one using the metered value for exposure, the second overexposed by the selected amount, and the third underexposed by the same amount (regardless of the amount selected, exposure will not exceed the limits of the exposure metering system).
ISO BKT	Press the command dial left or right to highlight a bracketing amount. Each time the shutter is released, the camera will take a picture at the current sensitivity (51) and process it to create two additional copies, one with sensitivity raised and the other with sensitivity lowered by the selected amount (regardless of the amount selected, sensitivity will not exceed ISO 6400 or fall below ISO 200).
FILMSIMULATIONBKT	Each time the shutter is released, the camera takes one shot and processes it to create three copies with different film simulation settings (54): PROVIA/STANDARD for the first, Velvia/VIVID for the second, and ASTIA/SOFT for the third.
DYNAMICRANGE BKT	Each time the shutter button is pressed, the camera takes three shots with different dynamic ranges (70): 100% for the first, 200% for the second, and 400% for the third. The shots are taken at rates of up to about 5 fps. While dynamic range bracketing is in effect, sensitivity will be restricted to a minimum of ISO 800; the sensitivity previously in effect is restored when bracketing ends.

主 123 123 AE BKT

Press MENU/OK to select the highlighted option.

2 Take photographs.

Panoramas

Follow an on-screen guide to create a panorama.

1 Press the command dial up (DRIVE) to display drive options. Rotate the dial or press it up or down to highlight (MOTION PANORAMA) a MENU/OK.

MOTION PANORAMA

2 To select the angle through which you will pan the camera while shooting, press the command dial left. Press the dial left or right to highlight an angle and press MENU/OK.

SWITCH DEGREES OF ANGLE 120 -120 180 MOTION PANORAMA 120

3 Press the command dial right to view a choice of pan directions. Press the dial it left or right to highlight a pan direction and press MENU/OK.

SWITCH DIRECTION FROM LEFT TO RIGHT

4 Press the shutter button all the way down to start recording. There is no need to keep the shutter button pressed during recording.

Panoramas

5 Pan the camera in the direction shown by the arrow. Shooting ends automatically when the camera is panned to the end of the guides and the panorama is complete.

180 ANGLE DIRECTION

- Shooting ends if the shutter button is pressed all the way down during shooting. No panorama will be recorded if the shutter button is pressed before the camera has been panned through 120°.

① Panoramas are created from multiple frames; exposure for the entire panorama is determined by the first frame. The camera may in some cases record an greater or lesser angle than selected or be unable to stitch the frames together perfectly. The last part of the panorama may not be recorded if shooting ends before the panorama is complete.

① Shooting may be interrupted if the camera is panned too quickly or too slowly. Panning the camera in a direction other than that shown cancels shooting.

① The desired results may not be achieved with moving subjects, subjects close to the camera, unvarying subjects such as the sky or a fi eld of grass, subjects that are in constant motion, such as waves and waterfalls, or subjects that undergo marked changes in brightness. Panoramas may be blurred if the subject is poorly lit.

The size of the completed panorama varies with the angle and pan direction.

Angle	Pan direction	Size (W × H)
120°	Horizontal	5,120×1,440/ 7.3 M
	Vertical	2,160×5,120/11.1 M
180°	Horizontal	7,680×1,440/11.1 M
	Vertical	2,160×7,680/16.6 M

For Best Results

For best results, prop your elbows against your sides and move the camera slowly in a small circle at a steady speed, keeping the camera horizontal and being careful only to pan in the direction shown by the guides. Use a tripod for best results. If the desired results are not achieved, try panning at a different speed.

Recording High-Definition (HD) Movies

Record short high-definition (1,280 × 720) movies at a frame rate of 24 fps. Sound is recorded in stereo via the built-in microphone; during recording, do not cover the microphone or use the viewfinder selector, which is located next to the microphone.

1 Press the command dial up (DRIVE) to display drive options. Rotate the dial or press it up or down to highlight 🎨 (MOVIE) and press MENU/OK.

MOVIE

① If the optical viewfinder is on, the camera will automatically switch to the electronic viewfinder.

2 Press the shutter button all the way down to start recording.

3 Press the shutter button all the way down again to end recording. Recording ends automatically after ten minutes or when memory is full.

Focus, exposure, and white balance are adjusted automatically throughout recording. The color and brightness of the image may vary from those displayed before recording begins.

The indicator lamp lights while movies are being recorded.

① The microphone may pick up lens noise and other sounds made by the camera during recording.

① Vertical or horizontal streaks may appear in movies containing very bright subjects. This is normal and does not indicate a malfunction.

Before Recording

Before recording, adjust aperture (26), white balance (35), film simulation (54), and exposure compensation (30) and select a focus mode (48).

To increase zoom by 3× for a focal length equivalent to 105 mm (35 mm format), press the 🔒 button before recording begins. Press 🔒 to cancel zoom.

① Continuous AF is used whAF-S is selected for focus mode.

① Aperture control and manual focus are not available during recording.

Using the Self-Timer

Use the timer for self-portraits or to prevent blur caused by camera shake.

1 Press MENU/OK in shooting mode to display the shooting menu. Press the command dial up or down to highlight ⚙ SELF-TIMER and press MENU/OK.

2 Press the command dial up or down to highlight one of the following options and press MENU/OK to select.

Option	Description
10 SEC	The shutter is released ten seconds after the shutter button is pressed. Use for photographs in which you wish to appear yourself.
2 SEC	The shutter is released two seconds after the shutter button is pressed. Use to reduce blur caused by the camera moving when the shutter button is pressed.
OFF Self-timer off .

3 Press the shutter button halfway to focus.

① Stand behind the camera when using the shutter button. Standing in front of the lens can interfere with focus and exposure.

SHOOTING MENU SELF-TIMER OFF ISO 200 IMAGE SIZE 3 : 2 IMAGE QUALITY F DYNAMIC RANGE FILM SIMULATION BACK EXIT

P SHOOTING MENU SELF: 200 3 F 10 SEC 2 SEC OFF

4 Press the shutter button the rest of the way down to start the timer. The display in the monitor shows the number of seconds remaining until the shutter is released. To stop the timer before the picture is taken, press DISP/BACK.

The self-timer lamp on the front of the camera will blink immediately before the picture is taken. If the two-second timer is selected, the self-timer lamp will blink as the timer counts down.

The self-timer turns off automatically when the camera is turned off.

ON OFF 109

Diagram illustrating camera lensing process with magnified views and final camera view

Focus/ExposureLock

To compose photographs with off -center subjects:

1 Focus: Position the subject in the focus frame and press the shutter button halfway to lock focus and exposure. Focus and exposure will remain locked while the shutter button is pressed halfway (AF/AE lock).

P: 2000 F5.6

Depending on the option selected for AE/AF-LOCK BUTTON in the setup menu (85), focus and/or exposure can also be locked by pressing the AFL/AEL button; focus and/or exposure will remain locked even if the shutter button is pressed. Choose AE LOCK ONLY to lock exposure but not focus, AF LOCK ONLY to lock focus but not exposure, or AE/AF LOCK to lock both focus and exposure. In manual focus mode (48), the camera will focus automatically with the AFL/AEL button.

2 Recompose: Keep the shutter button pressed halfway or keep the AFL/AEL button pressed.

If AE&AF ON/OFF SWITCH is selected for AE-1 AE/AF-LOCK MODE (85), focus and/or exposure lock when the AFL/AEL button is pressed and remain locked until the button is pressed again.

P: 2000 F5

3 Shoot: Press the button all the way down.

P 2000 F5

Autofocus

Although the camera boasts a high-precision autofocus system, it may be unable to focus on the subjects listed below.

• Very shiny subjects such as mirrors or car bodies.

- Fast-moving subjects.

Front view of a modern sedan with white trim and headlights (no visible text or symbols)

Cartoon illustration of a person riding a motorcycle with motion lines indicating speed (no text or symbols)

• Subjects photographed through a window or other reflective object.
• Dark subjects and subjects that absorb rather than reflect light, such as hair or fur.
  • Insubstantial subjects, such as smoke or flame.
• Subjects that show little contrast with the background (for example, subjects in clothing that is the same color as the background).
• Subjects positioned in front of or behind a high-contrast object that is also in the focus frame (for example, a subject photographed against a backdrop of highly contrasting elements).

FocusMode

Use the focus mode selector to choose how the camera focuses.

• AF-S (Single AF): Focus locks while the shutter button is pressed halfway. Choose for stationary subjects.
• AF-C (Continuous AF): Focus is continually adjusted to reflect changes in the distance to

the subject even when the shutter button is not pressed halfway (note that this increases the drain on the battery).

- MF (Manual): Focus manually using the focus ring. Rotate the ring left to reduce the focus distance, right to increase. The manual focus indicator indicates how closely the focus distance matches the distance to the subject in the focus brackets (the red bar indicates the focus distance, the white bar the depth of field, or in other words the distance in front of and behind the focus point that appears to be in focus); you can also check focus visually in the electronic viewfinder or LCD monitor. Choose for manual control of focus or in situations in which the camera is unable to focus using autofocus (47).

Reduce focus distance Increase focus distance

Manual focus mode icon 2000-F6.8-200 Manual focus indicator

Focus distance (red bar) 1.0 1.5 2.0 3.05 Depth of field (white bar)

Use the Ⓐ1 FOCUS RING option in the setup menu (☐ 85) to reverse the direction of rotation of the focus ring.
The camera will not focus if the focus ring is rotated past infinity.
To focus using autofocus, press the AFL/AEL button. This can be used to quickly focus on a chosen subject in manual focus mode.
The camera can show focus distance in meters or feet. Use the FOCUS SCALE UNITS option in the setup menu (85) to choose the units used.

Manual Focus

If ON is selected for MF FOCUS CHECK in the setup menu (85), pressing the center of the command control magnifi es the view in the electronic viewfi nder or LCD monitor for precise focus. To scroll to other areas of the frame, press the AF button and rotate the com- mand dial.

01:55:04:28:03:00.00 M 2000 F5.6 200 M 2000 F5.6 200

Focus Frame Selection

When ⬤ AREA is selected for Ⓛ AF MODE in the shooting menu and AF-S is selected for focus mode, the electronic viewfinder and LCD monitor offer a choice of 49 focus points and the optical viewfinder a choice of 25, allowing photographs to be composed with the main subject positioned almost anywhere in the frame. To position the focus frame, press the AF button and use the command dial (the focus frame can be returned to the center by pressing MENU/OK).

① When you switch to the optical viewfinder, the camera will select the focus frame closest to that selected in the electronic viewfinder or LCD monitor.

When framing pictures in the electronic viewfinder or LCD monitor, you can choose the size of the focus frame for AF-S by pressing the AF button and pressing the command control left or right. Press the control left to reduce the frame by up to 50%, right to enlarge it by up to 150%. The setting takes effect when you release the AF button.

AF + Focus point 2000 F5.6 200 Focus frame

OVF EVF/LCD

AF + 2000 F5.6 200

EVF/LCD

Sensitivity

"Sensitivity" refers to the camera's sensitivity to light. Choose from values between L(100) (ISO 100) and H(12800) (ISO 12800). Higher values can be used to reduce blur when lighting is poor, while lower values allow slower shutter speeds or wider apertures in bright light; note, however, that mottling may appear in pictures taken at high sensitivities, particularly at H(12800), while choosing L(100) reduces dynamic range. Values of from ISO 200 to ISO 6400 are recommended in most situations.

1 Press MENU/OK in shooting mode to display the shooting menu. Press the command dial up or down to highlight ISO ISO and press MENU/OK.

- At default settings, ISO options can also be displayed by pressing the Fn button.

2 Press the command dial up or down to highlight the desired option and press MENU/OK to select.

Camera LCD screen showing a blank square on the left and a control panel labeled 'P 2000 F5.6 200' at bottom (no readable text or symbols on main screen)

SHOOTING MENU SELF-TIMER OFF ISO 200+ IMAGE SIZE 3:2 IMAGE QUALITY F DYNAMIC RANGE FILM SIMULATION EXIT EXIT

P SHOOTING MENU OFF 500 ISO 400 F 320 L(100)

• Sensitivity is not reset when the camera is turned off.
  Sensitivities of L (100) and H (12800) are respectively reset to ISO 200 and 6400 when RAW, FINE+RAW, or NORMAL+RAW is selected for image quality (☐ 56, 70). For more information on the settings available with L (100) and H (12800), see page 120.
  If ON is selected for ISO ISO AUTO CONTROL in the setup menu (84), the camera will automatically adjust sensitivity if optimal exposure can not be achieved at current settings. The currently selected value is shown until the shutter button is pressed halfway, when the camera shows the adjusted value.

Metering

To choose how the camera meters exposure, press the AE button and rotate the command dial (you can also select the metering method by pressing the AE button and pressing the command control left or right). The following options are available:

Mode	Description
(MULTI)	The camera instantly determines exposure based on an analysis of composition, color, and brightness distribution. Recommended in most situations.
(SPOT)	The camera meters lighting conditions in an area at the center of the frame equivalent to 2% of the total. Recommended when the background is much brighter or darker than the main subject; due to parallax, not recommended when pictures are framed in the optical view-finder.
(AVERAGE)	Exposure is set to the average for the entire frame. Provides consistent exposure across multiple shots with the same lighting, and is particularly effective for landscapes and portraits of subjects dressed in black or white.

AE + OVF PHOTOMETRY MULTI OVF EVF/LCD

The setting takes effect when you release the AE button.

The Fn Button

The role played by the Fn button can be selected using the FnFN BUTTON option in the setup menu (83). The options available include depth-of-field preview (26), the self-timer (44), sensitivity (51), image size (69), image quality (70), dynamic range (70), film simulation (54), ND filter (57), AF mode (71), movie recording (42), and custom settings (55).

Diagram of a digital camera with a close-up view showing the right side of the camera's face (no text or symbols present)

The Fn Button menu can also be displayed by pressing and holding the Fn button.

FilmSimulation

Simulate the effects of different kinds of fi lm, including black-and-white (with or without color fi lters).

1 Press MENU/OK in shooting mode to display the shooting menu. Press the command dial up or down to highlight 📄 FILM SIMULATION and press MENU/OK.

SHOOTING MENU SELF-TIMER OFF ISO 200 IMAGE SIZE 3 : 2 IMAGE QUALITY F DYNAMIC RANGE FILM SIMULATION BACK EXIT

2 Press the command dial up or down to highlight one of the following options and press MENU/OK to select.

Option	Description
(PROVIA/STANDARD)	Standard color reproduction. Suited to a wide range of subjects, from portraits to landscapes.
(Velvia/VIVD)	A high-contrast palette of saturated colors, suited to nature photos.
(ASTIA/SOFT)	A soft-toned palette of less saturated colors.
(MONOCHROME)	Take pictures in standard black and white.
(MONOCHROME + Ye FILTER)	Take black-and-white pictures with slightly increased contrast. This setting also slightly tones down the brightness of the sky.
(MONOCHROME + R FILTER)	Take black-and-white pictures with increased contrast. This setting also tones down the brightness of the sky.
(MONOCHROME + G FILTER)	Soften skin tones in black-and-white portraits
(SEPIA)	Take pictures in sepia.

Film simulation options can be combined with tone and sharpness settings (71).

SavingSettings

Save up to three sets of custom camera settings for commonly-encountered situations. Saved settings can be recalled using the ⚠ SELECT CUSTOM SETTING option in the shooting menu.

1 Press MENU/OK in shooting mode to display the shooting menu. Press the command dial up or down to highlight ⚠ EDIT/SAVE CUSTOM SETTING and press MENU/OK.

SHOOTING MENU NOISE REDUCTION STD AF MODE FLASH ± 0 EXTERNAL FLASH OFF SELECT CUSTOM SETTING EDIT GAVE CUSTOM SETTING BACK EXIT

2 Highlight a custom settings bank and press MENU/OK to select. Adjust the following as desired and press DISP/BACK when adjustments are complete: ISO ISO, D-Ring DYNAMIC RANGE, Film SIMULATION, WB WHITE BALANCE, Color COLOR, Hone HIGHLIGHT TONE, Stone SHADOW TONE, SHARPNESS, and NOISE REDUCTION.

CUSTOM 1 SAVE CURRENT SETTINGS ISO 200 DYNAMIC RANGE FILM SIMULATION WHITE BALANCE AUTO COLOR MID BACK EXIT

To replace the settings in the selected bank with the settings currently selected with the camera, select SAVE CURRENT SETTINGS and press MENU/OK.

3 A confirmation dialog will be displayed; highlight OK and press MENU/OK.

SAVE CUSTOM SETTING CUSTOM 1 SET OK? OK CANCEL OK OK

The RAW Button

Press the RAW button toggle RAW image quality on or off for a single shot. If a JPEG option is currently selected for image quality, pressing the RAW button temporarily selects the equivalent JPEG+RAW option. If a JPEG+RAW option is currently selected, pressing the RAW button temporarily selects the equivalent JPEG option, while if RAW is selected, pressing the RAW button temporarily selects FINE. Taking a picture or pressing the RAW button again restores the previous setting.

Diagram showing a DSLR camera with a labeled 'RAW' button, alongside its dashed outline view.

RAW images record raw, unprocessed data from the camera image sensor. JPEG copies of RAW images can be created using the RAW RAW CONVERSION option in the playback menu, or RAW images can be viewed on a computer using the RAW File Converter application that is installed with the software on the supplied CD (94, 96).
Sensitivities of L (100) and H (12800) are not available when RAW image quality is on (☐ 51).
Control lock (☐4) disables the RAW button. To enable the RAW button, press MENU/OK until the ON icon clears from the display.

The ND Filter

The camera is equipped with a Neutral Density (ND) filter that reduces exposure by the equivalent of 3 EV. This allows slower shutter speeds or wider apertures to be used with brightly lit subjects, making it possible to blur motion or soften background details without risk of overexposure.

1 Press MENU/OK in shooting mode to display the shooting menu. Press the command dial up or down to highlight ND ND FILTER and press MENU/OK.

SHOOTING MENU NO FILTER OFF WB SHIFT COLOR MID SHARPNESS STD HIGHLIGHT TONE STD SHADOW TONE STD BACK EXIT

2 Press the command dial up or down to highlight ON and press MENU/OK to select.

Viewing Pictures

Viewing Pictures Full Frame

Pictures can be viewed in the electronic viewfinder or LCD monitor. When taking important pictures, take a test shot and check the results.

To view pictures full frame, press ▶.

Diagram showing a DSLR camera with adjustment interface and a photo of a smiling girl, alongside its video frame metadata.

Additional pictures can be viewed by pressing the command dial left or right. Press the dial right to view pictures in the order recorded, left to view pictures in reverse order. Keep the command dial pressed to scroll rapidly to the desired frame.

Pictures taken using other cameras are indicated by a 📄 ("gift image") icon during playback.

Favorites: Rating Pictures

To rate the current picture, press DISP/BACK and press the command dial up and down to select from zero to five stars.

Deleting Pictures

To delete the current picture, press the command dial up (☑). The following dialog will be displayed.

ERASE OK? OK CANCEL OK SET

To delete the picture, highlight OK and press MENU/OK. To exit without deleting the picture, highlight CANCEL and press MENU/OK.

Pictures can also be deleted from the playback menu (67).

Creating JPEG Copies of RAW Pictures

Pressing the RAW button during playback displays RAW conversion options (68).

Photo Information

Photo information can be viewed by pressing the command control right.

D-RANGE : AUTO COLOR : STD HIGH LIGHT TONE : STD SHADOW TONE : STD SHARPNESS : STD FILM SIM. : PROVIA WHITE BALANCE : AUTO

Press the control left or right to view additional information.

The active focus point is shown by a "+" icon.

Zooming in on the Focus Point

Press the center of the command control to zoom in on the focus point. Press the center of the command control again to return to full-frame playback.

Black-and-white portrait of a smiling person wearing a hat (no visible text or symbols)

PlaybackZoom

Press 🔒 to zoom in on the current picture, 🔒 to zoom out. When the picture is zoomed in, the command dial can be used to view areas of the image not currently visible in the display. Press DISP/BACK or MENU/OK to exit zoom.

Black-and-white portrait of a smiling woman wearing a wide-brimmed hat, with a small icon in the corner (no text or symbols)

Zoom indicator

Navigation window shows portion of image currently displayed

The maximum zoom ratio varies with image size (69). Playback zoom is not available with cropped or resized copies saved at a size of 640.

Multi-FramePlayback

To change the number of images displayed, press Ⓞ when a picture is displayed full frame.

Press 🔒 to view more images.

Black-and-white portrait of a smiling woman wearing a hat, with no visible text or symbols in the background.

Black-and-white photo collage showing a framed portrait of a woman in a circular frame, with no visible text or symbols.

Black-and-white photo collage showing a person in a frame, with no visible text or symbols.

Grid of black-and-white photos arranged in 3x3 grid, showing various human and family subjects (no text or symbols visible)

Grid of grayscale images showing various scenes with no visible text or symbols

Press + to view fewer images.

Use the command dial to highlight images and press MENU/OK to view the highlighted image full frame. In the nine- and hundred-frame displays, press the command dial up or down to view more pictures.

ViewingMovies

During playback, movies are displayed as shown at right. The following operations can be performed while a movie is displayed:

Movie icon

Operation	Description
Start/pause playback	Press the command dial down to start playback. Press again to pause. While playback is paused, you can press the selector left or right to rewind or advance one frame at a time.
End playback	Press the command dial up to end playback.
Adjust speed	Press the command dial left or right to adjust playback speed during playback. Speed is shown by the number of arrows (▶ or ◀).
Adjust volume	Press MENU/OK to pause playback and display volume controls. Press the command dial up or down to adjust the volume; press MENU/OK again to resume playback.

100-006 PLAY

Progress is shown in the display during playback.

① Do not cover the speaker during playback.
① Sound is not played back in silent mode.

Progress bar

15 s STOP PAINT

ImageSearch

Follow the steps below to search for pictures.

1 Press MENU/OK during playback to display the playback menu. Press the command dial up or down to highlight 🎨 IMAGE SEARCH and press MENU/OK.
2 Highlight an option and press MENU/OK.

Option	Description
BY DATE Search by date.
BY FACE Search for pictures that include faces.
BY ★ FAVORITES Search by rating.
BY TYPE OF DATA	Find all still pictures, all movies, all pictures taken in burst mode, or all RAW pictures.
BY UPLOAD MARK Find all pictures selected for upload to a specifi ed destination.

3 Select a search condition. Only pictures that match the search condition will be displayed. To delete or protect selected pictures or to view the selected pictures in a slide show, press MENU/OK and choose from the options at right.

Option	See page
ERASE	67
PROTECT	76
SLIDE SHOW	75

4 To end the search, select EXIT SEARCH.

PhotoBook Assist

Create books from your favorite photos.

Creating a PhotoBook

1 Select NEW BOOK for 📄 PHOTOBOOK ASSIST in the playback menu (📖 73) and choose from the following options:

• SELECT FROM ALL: Choose from all available pictures.
• SELECT BY IMAGE SEARCH: Choose from pictures matching selected search conditions (📖 62).
  Neither photographs 640 or smaller nor movies can be selected for photobooks.

2 Scroll through the images and press the command dial up to select or deselect. To display the current image on the cover, press the command dial down. Press MENU/OK to exit when the book is complete.

The first picture selected becomes the cover image. Press the command dial down to select a different image for the cover.

3 Select COMPLETE PHOTOBOOK (to select all photos or all photos matching the specified search conditions for the book, choose SELECT ALL). The new book will be added to the list in the photobook assist menu.

① Books can contain up to 300 pictures.
① Books that contain no photos are automatically deleted.

PhotoBook Assist

Viewing Photobooks

Highlight a book in the photobook assist menu and press MENU/OK to display the book, then press the command dial left or right to scroll through the pictures.

Editing and Deleting Photobooks

Display the photobook and press MENU/OK. The following options will be displayed; select the desired option and follow the on-screen instructions.

• EDIT: Edit the book as described in "Creating a PhotoBook" (63).
• ERASE: Delete the book.

Photobooks

Photobooks can be copied to a computer using the supplied MyFinePix Studio software.

Viewing Panoramas

If you press the command dial down when a panorama is displayed full frame, the camera will play back the picture from left to right or from bottom to top. Press the command dial down to pause and resume playback, or press the dial up to return to full-frame playback. To rewind or advance one frame at a time, press the command dial left or right while playback is paused.

Silhouette of a city skyline with a bridge and river, no visible text or symbols

STOP PAID

Viewing Pictures Taken in a Single Burst

When a picture taken in continuous shooting mode is displayed full frame, the first picture in the current burst can be viewed by pressing the command dial down (burst mode playback). Press the dial right to view pictures in the order recorded, left to view pictures in reverse order. Keep the dial pressed to scroll rapidly to the desired frame. To exit, press DISP/BACK.

Position in burst/total number of pictures in burst

PLAY CONTINUOUS SHOTS

BACK PLAY NORMAL 1/10

First picture in burst

• Pressing the command dial right when the last picture in the burst is displayed displays the first picture in the burst; similarly, pressing the dial left when the first picture is displayed displays the last picture.
  Deletion (58), rotation (77), protect (76), and copy (78) operations applied during burst mode playback apply only to the current picture. In contrast, if these operations are performed when a picture taken in continuous shooting mode is displayed in single-frame playback, all images in the same burst will be affected.

Bursts That Cross Folders

If a single burst is spread across multiple folders, the pictures in each folder will be treated as separate bursts.

Viewing Photo Information

To view photo information for a picture taken in continuous shooting mode, display it in burst mode playback. Photo information for pictures taken in continuous shooting mode can not be viewed during single-frame playback.

Deleting Pictures

The ☐ ERASE option in the playback menu can be used to delete individual pictures, multiple selected pictures, or all pictures. Note that deleted pictures can not be recovered. Copy important pictures to a computer or other storage device before proceeding.

Press MENU/OK during playback to display the playback menu, then press the command dial up or down to highlight ☐ ERASE and press right to display the following options. Press the dial up or down to highlight an option and press MENU/OK to select.

PLAYBACK MENU PHOTO IMAG ERASE MARINE SLIDE RAW BACK FRAME SELECTED FRAMES ALL FRAMES

Option	Description
FRAME	Press the command dial left or right through pictures and press MENU/OK to delete the current picture (a con-fi rmation dialog is not displayed)
SELECTED FRAMES	Highlight pictures and press MENU/OK to select or deselect (pictures that in a photobook or print order are shown by ☐). When the operation is complete, press DISP/BACK to display a confirmation dialog, then high-light OK and press MENU/OK.
ALL FRAMES	A confirmation dialog will be displayed; highlight OK and press MENU/OK to delete all unprotected pictures. Pressing DISP/BACK cancels deletion; note that any pictures deleted before the button was pressed can not be recovered.

When a memory card is inserted, pictures will be deleted from the memory card; otherwise, pictures will be deleted from internal memory.
◆ Protected pictures can not be deleted. Remove protection from any pictures you wish to delete (76).
If a message appears stating that the selected images are part of a DPOF print order, press MENU/OK to delete the pictures.

Creating JPEG Copies of RAW Pictures

RAW pictures store information on camera settings separately from the data captured by the camera image sensor. Using the RAW RAW CONVERSION option in the playback menu, you can create JPEG copies of RAW pictures using different options for the settings listed below. The original image data are unaffected, allowing a single RAW image to be processed in a multitude of different ways.

1 Press MENU/OK during playback to display the playback menu, then press the command dial up or down to highlight RAW RAW CONVERSION and press MENU/OK to display the settings listed in the table at right.

2 Press the command dial up or down to highlight a setting and press the dial right to select. Press the dial up or down to highlight the

RAW CONVERSION REFLECT SHOOTING COND.* PUSH/PULL PROCESSING DYNAMIC RANGE FILM SIMULATION WHITE BALANCE WB SHIFT RAW CREATE BACK CANCEL

desired option and press MENU/OK to select and return to the settings list. Repeat this step to adjust additional settings.

3 Press the RAW button to preview the JPEG copy. Press MENU/OK to save the copy or press DISP/BACK to return to Step 2.

OK SET BACK CANCEL

Setting	Description
REFLECTSHOOTING COND.	Create a JPEG copy using the settings in effect at the time the photo was taken.
PUSH/PULLPROCESSING	Adjust exposure by -1 EV to +3 EV in increments of 12 EV ( 30).
DYNAMIC RANGE	Enhance details in highlights for natural contrast ( 70).
FILM SIMULATION	Simulate the effects of different types of film ( 54).
WHITE BALANCE Adjust white balance ( 35).
WB SHIFT Fine-tune white balance ( 70).
COLOR Adjust color density ( 70).
SHARPNESS Sharpen or soften outlines ( 71).
NOISE REDUCTION Process the copy to reduce mottling ( 71).
HIGHLIGHT TONE Adjust highlights ( 71).
SHADOW TONE Adjust shadows ( 71).
COLOR SPACE	Choose the color space used for color reproduction ( 86).

Menus

Using the Menus: Shooting Mode

The shooting menu is used to adjust settings for a wide range of shooting conditions. To display the shooting menu, press MENU/OK in shooting mode. Highlight items and press the command dial right to view options, then highlight an option and press MENU/OK. Press DISP/BACK to exit when settings are complete.

SHOOTING MENU SELF-TIMER OFF ISO 200 IMAGE SIZE 3 : 2 IMAGE QUALITY F DYNAMIC RANGE FILM SIMULATION BACK EXIT

Shooting Menu Options

SELF-TIMER (defaults to OFF)

Take pictures with the self-timer (44).

ISO ISO (defaults to 200)

Control the camera's sensitivity to light (51).

IMAGESIZE (defaults to 3:2)

Choose the size and aspect ratio at which still pictures are recorded.

Aspect Ratio

Pictures with an aspect ratio of 3:2 have the same proportions as a frame of 35 mm film, while an aspect ratio of 16:9 is suited to display on High Definition (HD) devices.

IMAGE SIZE is not reset when the camera is turned off or another shooting mode is selected.

Option	Prints at sizes up to
L 3:2	36×24 cm (14×9.5 in.)
L 16:9	36×20 cm (14×8 in.)
M 3:2	26×17 cm (10×7 in.)
M 16:9	26×15 cm (10×6 in.)
S 3:2	18×12 cm (7.5×5 in.)
S 16:9	17×9 cm (7×3.5 in.)

IMAGEQUALITY

(defaults to FINE)

Choose a file format and compression ratio. Select FINE or NORMAL to record JPEG images, RAW to record RAW images, or FINE+RAW or NORMAL+RAW to record both JPEG and RAW images. FINE and FINE+RAW use lower JPEG compression ratios for higher-quality JPEG images, while NORMAL and NORMAL+RAW user higher JPEG compression ratios to increase the number of images that can be stored.

D-Rng DYNAMIC RANGE

(defaults to R100)

Control contrast. Choose lower values to increase contrast when shooting indoors or under overcast skies, higher values to reduce loss of detail in highlights and shadows when photographing high-contrast scenes. Higher values are recommended for scenes that include both sunlight and deep shade, for such high-contrast subjects as sunlight on water, brightly-lit autumn leaves, and portraits taken against a blue sky, and for white objects or people wearing white; note, however, that mottling may appear in pictures taken at higher values.

If AUTO is selected, shutter speed and aperture will be displayed when the shutter button is pressed halfway.
200% 200% is available at sensitivities of ISO 400 and above, 400% at sensitivities of ISO 800 and above.

FILMSIMULATION

(defaults to STD)

Simulate the effects of different types of film (54).

ND ND FILTER

(defaults to OFF)

Turn the ND filter on or off (57).

WB WB SHIFT

Press the command dial up or down to fine-tune white balance on the selected color axis (Red-Cyan or Blue-Yellow) by +9 to -9 in increments of one. Press MENU/OK to select.

WB SHIFT Red > R Blue Cyan > Cy Y6 Yellow OK BACK CANCELS

Color COLOR

(defaults to MID)

Adjust color density.

Using the Menus: Shooting Mode

$ SHARPNESS	( defaults to STANDARD)
Sharpen or soften outlines.
HIGHLIGHT TONE	( defaults to STANDARD)
Adjust the appearance of highlights.
SHADOW TONE	( defaults to STANDARD)
Adjust the appearance of shadows.
NOISE REDUCTION	( defaults to STANDARD)
Reduce noise in pictures taken at high sensitivities.
AF MODE	( defaults to AREA)

Choose how the camera selects the focus area when in AF-S focus mode.

• • MULTI: When the shutter button is pressed halfway, the camera detects high-contrast subjects and selects the focus area automatically.
    • AREA: Choose the focus area manually (50).

FLASH (defaults to ±0)

Adjust flash brightness. Choose from values between +3 EV and -3 EV. Note that the desired results may not be achieved depending on shooting conditions and the distance to the subject.

EXTERNAL FLASH (defaults to OFF)

Choose ON when using an optional third-party flash unit mounted on the camera hot shoe, or ON (COMMANDER) to control optional remote flash units using the camera's built-in flash. No adjustment is required with optional FUJIFILM flash units.

See the documentation provided with the flash unit for details. The camera can be used with flash units that provide aperture adjustment, external metering, and sensitivity control. Some flash units that are designed specifically for other cameras can not be used.

SELECT CUSTOM SETTING

Recall settings saved with Ⓞ EDIT/SAVE CUSTOM SETTING.

EDIT/SAVE CUSTOM SETTING

Save settings (55).

DISP. CUSTOM SETTING

Choose the items displayed in the optical viewfinder or in the electronic viewfinder and LCD monitor (20). The following items can be displayed: framing grid (you can also select the grid type as described on page 86), virtual horizon, autofocus distance (focus distance is always displayed in manual focus mode), histogram, exposure (shutter speed, aperture, and sensitivity), exposure compensation/exposure indicator, metering, flash mode, white balance, film simulation, dynamic range, number of exposures remaining, image size and quality, and battery level. See pages 6 – 7 for the locations of these items in the displays.

1 Highlight OVF or EVF/LCD and press MENU/OK.
2 Press the command dial up or down to highlight items and press MENU/OK to select or deselect. Press DISP/BACK to exit when settings are complete.

Virtual Horizon

Selecting ELECTRONIC LEVEL displays a virtual horizon. The camera is level when the two lines overlap.

The virtual horizon may not be displayed if the camera lens is pointed up or down.

Simple geometric diagram with a rectangle and diagonal line intersecting a horizontal line (no text or symbols)

Using the Menus: Playback Mode

To display the playback menu, press MENU/OK in playback mode. Highlight items and press the command dial right to view options, then highlight an option and press MENU/OK. Press DISP/BACK to exit when settings are complete.

PLAYBACK MENU PHOTOBOOK ASSIST IMAGE SEARCH ERASE MARK FOR UPLOAD TO SLIDE SHOW RAW CONVERSION BACK EXIT

Playback Menu Options

PHOTOBOOK ASSIT

Create books from your favorite photos (📖 63).

IMAGESEARCH

Search for pictures (62).

ERASE

Delete all or selected pictures (📖 67).

MARK FOR UPLOAD TO

Select pictures for upload to YouTube or Facebook using MyFinePix Studio (Windows only).

1 Select YouTube to choose movies for upload to YouTube, FACEBOOK to choose photos and movies for upload to Facebook.
2 Press the command dial left or right to display pictures and press MENU/OK to select or deselect. Press DISP/BACK to exit when all the desired pictures are selected.

Only movies can be selected for upload to YouTube.

During playback, selected pictures are marked with YouTube or FACEBOOK indicators.
Choose RESET ALL to deselect all pictures. If the number of pictures affected is very large, a message will be displayed while the operation is in progress. Press DISP/BACK to exit before the operation is complete.

Uploading Pictures (Windows Only)

Selected pictures can be uploaded using the YouTube/Facebook Upload option in MyFinePix Studio. For information on installing MyFinePix Studio and connecting the camera to a computer, see "Viewing Pictures on a Computer" (94).

Select with camera

Upload from computer

SLIDESHOW

View pictures in an automated slide show. Choose the type of show and press MENU/OK to start. Press DISP/BACK at any time during the show to view on-screen help. The show can be ended at any time by pressing MENU/OK.

Option	Description
NORMAL	Press the command dial left or right to go back or skip ahead one frame. SelectFADE-INfor fade transitions between frames.
FADE-IN
NORMAL [●]	As above, except that camera automatically zooms in on faces.
FADE-IN [●]
MULTIPLE D	splay several pictures at once.

The camera will not turn off automatically while a slide show is in progress.

RAW RAW CONVERSION

Create JPEG copies of RAW pictures (68).

RED EYE REMOVAL

Remove red-eye from portraits. The camera will analyze the image; if red-eye is detected, the image will be processed to create a copy with reduced red-eye.

1 Display the desired picture.

2 Select 📄 RED EYE REMOVAL in the playback menu.

3 Press MENU/OK.

Red eye may not be removed if the camera is unable to detect a face or the face is in profile. Results may differ depending on the scene. Red eye can not be removed from pictures that have already been processed using red-eye removal or pictures created with other devices.

The amount of time needed to process the image varies with the number of faces detected.

Copies created with 📄 RED EYE REMOVAL are indicated by a 📄 icon during playback.

◆ Red eye removal can not be performed on RAW images.

oT PROTECT

Protect pictures from accidental deletion. Highlight one of the following options and press MENU/OK.

- FRAME: Protect selected pictures. Press the command dial left or right to view pictures and press MENU/OK to select or deselect. Press DISP/BACK when the operation is complete.

- SET ALL: Protect all pictures.

- RESET ALL: Remove protection from all pictures.

① Protected pictures will be deleted when the memory card or internal memory is formatted (81).

CROP

Create a cropped copy of the current picture.

1 Display the desired picture.

2 Select CROP in the playback menu.

3 Use the 🔒 and 🔒 buttons to zoom in and out and press the command dial up, down, left, or right to scroll the picture until the desired portion is displayed.

4 Press MENU/OK to display a confirmation dialog.

5 Press MENU/OK again to save the cropped copy to a separate file.

Larger crops produce larger copies; all copies have an aspect ratio of 3:2. If the size of the final copy will be 640, OK will be displayed in yellow.

RESIZE

Create a cropped copy of the current picture.

1 Display the desired picture.
2 Select 📄 RESIZE in the playback menu.
3 Highlight a size and press MENU/OK to display a confirmation dialog.
4 Press MENU/OK again to save the resized copy to a separate file.
The sizes available vary with the size of the original image.

# IMAGE ROTATE

Rotate pictures.

1 Display the desired picture.
2 Select 🔒 IMAGE ROTATE in the playback menu.
3 Press the command dial down to rotate the picture 90 ° clockwise, up to rotate it 90 ° counterclockwise.
4 Press MENU/OK. The picture automatically be displayed in the selected orientation whenever it is played back on the camera.
◆ Protected pictures can not be rotated. Remove protection before rotating pictures (76).
The camera may not be able to rotate pictures created with other devices.
Pictures taken with AUTOROTATE PB are automatically displayed in the correct orientation during playback (87).

COPY COPY

Copy pictures between internal memory and a memory card.

1 Highlight one of the following options and press the command dial right.

• IN INTERNAL MEMORY → SD CARD: Copy pictures from internal memory to a memory card.
- SD CARD → IN INTERNAL MEMORY: Copy pictures from a memory card to internal memory.

2 Highlight one of the following options and press MENU/OK.

• FRAME: Copy selected pictures. Press the command dial left or right to view pictures and press MENU/OK to copy the current picture.
• ALL FRAMES: Copy all pictures.
  ◆ Copying ends when the destination is full.
  DPOF print information is not copied (91).

PRINT ORDER (DPOF)

Select pictures for printing on DPOF- and PictBridge-compatible devices (90, 91).

DISP ASPECT

Choose how High Defi nition (HD) devices display pictures with an aspect ratio of 3:2 (this option is available only when an HDMI cable is connected). Select 16:9 to display the image so that it fills the screen with its top and bottom cropped out, 3:2 to display the entire image with black bands at either side.

3:2 16:9

16:9 3:2

The Setup Menu

Using the Setup Menu

1 Display the setup menu.

1.1 Press MENU/OK to display the menu for the current mode.

1.2 Press the command dial left to highlight the tab for the current menu.

1.3 Press the command dial down to highlight SET.

SET-UP DATE/TIME TIME DIFFERENCE ENGLISH SILENT MODE OFFSET RESET FORMAT EXIT Tab

1.4 Press the command dial right to place the cursor in the setup menu.

2 Adjust settings.

Highlight items and press the command dial right to view options, then highlight an option and press MENU/OK. Press DISP/BACK to exit when settings are complete.

The Setup Menu

Setup Menu Options

DATE/TIME

Set the camera clock (17).

TIME DIFFERENCE

(defaults to 📋)

Switch the camera clock instantly from your home time zone to the local time at your destination when traveling. To specify the difference between local time and your home time zone:

1 Highlight + LOCAL and press the command dial right.

2 Use the command dial to choose the time difference between local time and your home time zone. Press MENU/OK when settings are complete.

To set the camera clock to local time, highlight + LOCAL and press MENU/OK. To set the clock to the time in your home time zone, select ⏻ HOME. If + LOCAL is selected, + will be displayed for three seconds when the camera is turned on.

言語/LANG.

Choose a language (17).

SILENT MODE

(defaults to OFF)

Select ON to disable the speaker, flash, and illuminator in situations in which camera sounds or lights may be unwelcome.

RESET

Reset all settings except Ⓒ DATE/TIME, +TIME DIFFERENCE, and 📄 BACKGROUND COLOR to default values. Press the command dial right to display a confirmation dialog, then highlight OK and press MENU/OK.

FORMAT

If a memory card is inserted in the camera, this option will format the memory card. If no memory card is inserted, this option will format internal memory. Select OK to begin formatting.

① All data—including protected pictures—will be deleted from the memory card or internal memory. Be sure important files have been copied to a computer or other storage device.
① Do not open the battery-chamber cover during formatting.

IMAGE DISP.

(defaults to 1.5 SEC)

Choose how long images are displayed after shooting. Colors may differ slightly from those in the final image and "noise" mottling may be visible at high sensitivities.

Option	Description
CONTINUOUS	Pictures are displayed until the MENU/OK button is pressed or the shutter button is pressed halfway. To zoom in on the active focus point, press the center of the command control; press again to cancel zoom.
1.5 SEC	Pictures are displayed for three seconds (3 SEC) or 1.5 seconds (1.5 SEC) or until the shutter button is pressed halfway.
3 SEC
OFF Pictures are not displayed after shooting.

OFF has no effect in continuous shooting mode.

The Setup Menu

FRAME NO. (defaults to CONTINUOUS)
New pictures are stored in image fi les named using a four-digit fi le number assigned by adding one to the last file number used. The file number is displayed during playback as shown at right. FRAME NO. controls whether fi le numbering is reset to 0001 when a new memory card is inserted or the current memory card or internal memory is formatted.
Option	Description
CONTINUOUS	Numbering continues from the last file number used or the first available file number, whichever is higher.Choose this option to reduce the number of pictures with duplicate fi le names.
RENEW	Numbering is reset to 0001 after formatting or when a new memory card is inserted.

The Setup Menu

LCD BRIGHTNESS	(defaults to 0)
Control the brightness of the displays.
AUTO POWER OFF	(defaults to2 MIN)
Choose the length of time before the camera turns off automatically when no operations are performed. Shorter times reduce the drain on the battery; ifOFFis selected, the camera must be turned off manually. Note that in some situations the camera turns off automatically even whenOFFis selected.
OVF POWER SAVE MODE	(defaults to OFF)
Select ON to reduce the drain on the battery, roughly doubling the number of pictures that can be taken on a single charge (23).
QUICK START MODE	(defaults to OFF)
Select ON to reduce the time needed to restart the camera after it has been turned off to about 0.7 seconds (23).
Fn BUTTON	(defaults to ISO ISO)
Choose the role played by the Fn button (53).

ISO ISO AUTO CONTROL

Choose whether the camera automatically adjusts sensitivity if optimal exposure can not be achieved at current settings. Selecting ISO AUTO CONTROL displays the settings listed in the table below; press the command dial up or down to highlight a setting and press the dial right to display options for the highlighted item, then highlight the desired option and press MENU/OK.

When ISO AUTO CONTROL is on, the upper limit for sensitivity is fixed at the value selected for MAX. SENSITIVITY. The camera will not exceed this limit even if underexposure would result.

Option	Description	Default
ISO AUTO CONTROL	If ON is selected, the camera will automatically adjust sensitivity if optimal exposure can not be achieved at current settings.	ON
MAX. SENSITIVITY	Choose the upper limit for auto sensitivity from ISO 400, 800, 1600, and 3200 (the lower limit is fixed at ISO 200).	800
MIN. SHUTTER SPEED	When the shutter speed dial is rotated to A and ISO AUTO CONTROL is ON, the camera will adjust sensitivity only as required to prevent shutter speed from being slower than this value.	1/60 SEC

In shutter-priority AE and manual exposure modes, the camera will automatically adjust sensitivity if optimal exposure can not be achieved at the shutter speed selected by the user.
◆ Sensitivity is automatically adjusted for optimal flash output when a flash is used.
Shutter speed, aperture, and the current sensitivity are displayed when the shutter button is pressed halfway.

RED EYE REMOVAL

(defaults to OFF)

Choose ON to remove red-eye effects caused by the flash.

◆ Red-eye reduction is performed only when a face is detected.
◆ Red-eye removal is not available with RAW images.

AF ILLUMINATOR (defaults to ON)

If ON is selected, the AF-assist illuminator will light to assist autofocus.

The AF-assist illuminator turns off automatically in silent mode.
① The camera may be unable to focus using the AF-assist illuminator in some cases. If the camera is unable to focus in macro mode, try increasing the distance to the subject.
① Avoid shining the AF-assist illuminator directly into your subject's eyes.

AE/AF-LOCK MODE (defaults to AE & AF ON WHEN PRESSING)

If AE & AF ON WHEN PRESSING is selected, exposure and/or focus will lock while the AFL/AEL button is pressed. If AE & AF ON/OFF SWITCH is selected, exposure and/or focus will lock while the AFL/AEL button is pressed and remain locked until the button is pressed again.

AE/AF-LOCKBUTTON (defaults to AE LOCK ONLY)

Choose the role played by the AFL/AEL button (☐ 46).

WF FOCUS CHECK (defaults to ON)

If ON is selected, the center of frame will be magnified in the display to assist focus when the center of the command control is pressed in manual focus mode (☐ 48,49).

FOCUS RING (defaults to CW)

Choose the direction in which the focus ring is rotated to increase the focus distance.

FOCUS SCALE UNITS (default to METERS)

Choose the units used for the focus distance indicator (☐ 6,7).

The Setup Menu

FRAMING GUIDLINE (defaults to GRID 9)
Choose the type of framing grid available in shooting mode.
GRID 9		GRID 24	HD HD FRAMING
For "rule of thirds" composition. A six-by-four grid. Frame HD pictures in the crop shown by the lines at the top and bottom of the display.
COLOR SPACE (defaults to sRGB)
Choose the gamut of colors available for color reproduction.
Option	Description
sRGB Recommended in most situations.
Adobe RGB For commercial printing.
LONG EXPOSURE NR (defaults to ON)
Select ON to reduce mottling in long time-exposures (29).

The Setup Menu

ON	OFF
Focus frame	Focus frame for focus distance of infi nity Focus frame for focus distance of about 80 cm (2.6 ft)

Connections

Viewing Pictures on TV

To show pictures to a group, connect the camera to a TV using an HDMI cable (available separately from third-party suppliers; note that the TV can only be used for playback, not shooting).

1 Turn the camera off.

2 Connect the cable as shown below.

Insert into HDMI connector Insert into HDMI mini connector

Be sure the connectors are fully inserted.

3 Tune the television to the HDMI input channel. See the documentation supplied with the television for details.

4 Turn the camera on and press ▶ button. The camera monitor turns off and pictures and movies are played back on the TV. Note that the camera volume controls have no effect on sounds played on the TV; use the television volume controls to adjust the volume.

The USB cable can not be used while an HDMI cable is connected.

Some televisions may briefly display a black screen when movie playback begins.

Printing Pictures via USB

If the printer supports PictBridge, the camera can be connected directly to the printer and pictures can be printed without first being copied to a computer. Note that depending on the printer, not all the functions described below may be supported.

Connecting the Camera

1 Connect the supplied USB cable as shown and turn the printer on.

Illustration of a digital camera connected to a compact device via cable (no text or symbols)

2 Turn the camera on and press ▶ button. ✉ USB will be displayed in the monitor, followed by the PictBridge display shown below at right.

USB PICTBRIDGE TOTAL: 00000 00 SHEETS FRAME OK OK SET DISP

Printing Selected Pictures

1 Press the command dial left or right to display a picture you wish to print.

To print one copy of the current picture, proceed directly to Step 3.

2 Press the command dial up or down to choose the number of copies (up to 99). Repeat steps 1–2 to select additional pictures.

3 Press MENU/OK to display a confirmation dialog.

PRINT THESE FRAMES TOTAL: 9 SHEETS OK BACK CANCELY

4 Press MENU/OK to start printing.

Printing Pictures via USB

Pictures can be printed from internal memory of memory card that has been formatted in the camera.
Page size, print quality, and border selections are made using the printer.

Printing the Date of Recording

To print the date of recording on pictures, press DISP/BACK in the PictBridge display and select PRINT WITH DATE (to print pictures without the date of recording, select PRINT WITHOUT DATE). To ensure that the date is correct, set the camera clock before taking pictures. Some printers do not support date printing. See the printer manual for details.

Printing the DPOF Print Order

To print the print order created with PRINT ORDER (DPOF) in the playback menu (91):

1 In the PictBridge display, press DISP/BACK to open the PictBridge menu.
2 Press the command dial up or down to highlight 📄 PRINT DPOF.

PICTBRIDGE PRINT WITH DATE PRINT WITHOUT DATE PRINT DPOF

3 Press MENU/OK to display a confirmation dialog.

PRINT DPOF OK? TOTAL: 9 SHEETS OK BACK CANCELY

4 Press MENU/OK to start printing.

During Printing

The message shown at right is displayed during printing. Press DISP/BACK to cancel before all pictures are printed (depending on the printer, printing may end before the current picture has printed).

PRINTING BACK CANCEL

If printing is interrupted, turn the camera off and then on again.

Disconnecting the Camera

Confirm that the above message is not displayed and turn the camera off. Disconnect the USB cable.

Creating a DPOF Print Order

The 📄 PRINT ORDER (DPOF) option in the playback menu can be used to create a digital "print order" for PictBridge-compatible printers or devices that support DPOF.

DPOF

DPOF (Digital Print Order Format) is standard that allows pictures to be printed from "print orders" stored in internal memory or on a memory card. The information in the order includes the pictures to be printed number of copies of each picture.

WITH DATE ⓒ/WITHOUT DATE

To modify the DPOF print order, select 📄 PRINT ORDER (DPOF) in the playback menu and press the command dial up or down to highlight WITH DATE 📋 or WITHOUT DATE.

PLAYBACK MENU PRINT DISP A WITH DATE CB WITHOUT DATE RESET ALL

WITH DATE ☐: Print date of recording on pictures.

WITHOUT DATE: Print pictures without date.

Press MENU/OK and follow the steps below.

1 Press the command dial left or right to display a picture you wish to include in or remove from the print order.

2 Press the command dial up or down to choose the number of copies (up to 99). To remove a picture from the order, press the command dial down until the number of copies is 0.

PRINT ORDER (DPOF) DPOF: 00001 Total number of prints Number of copies SHEETS OK SETR

3 Repeat steps 1–2 to complete the print order. Press MENU/OK to save the print order when settings are complete, or DISP/BACK to exit without changing the print order.

4 The total number of prints is displayed in the monitor. Press MENU/OK to exit.

The pictures in the current print order are indicated by a icon during playback.

Blank white image with a small circular icon in the top-left corner and a play button at the bottom (no text or symbols)

RESET ALL

To cancel the current print order, select RESET ALL for

PRINT ORDER (DPOF). The confirmation shown at right will be displayed; press MENU/OK to remove all pictures from the order.

RESET DPOF OK? OK BACK CANCELYE

Remove the memory card to create or modify a print order for the pictures in internal memory.

Print orders can contain a maximum of 999 pictures.

If a memory card is insert containing a print order created by another camera, the message shown at right will be displayed. Pressing MENU/OK cancels the print order; a new print order must be created as described above.

RESET DPOF OK? OK BACK NOY

Viewing Pictures on a Computer

The supplied software can be used to copy pictures to a computer, where they can be stored, viewed, organized, and printed. Before proceeding, install the software as described below. Do not connect the camera to the computer until installation is complete.

Windows: Installing MyFinePix Studio

1 Confirm that the computer meets the following system requirements:

	Windows 71	Windows Vista1	Windows XP1
CPU	3 GHz Pentium 4 or better(2.4GHz Core 2 Duo or better)2		2 GHz Pentium 4 or better(2.4 GHz Core 2 Duo or better)2
RAM	1 GB or more		512 MB or more(1 GB or more)2
Free disk space	15 GB or more		2 GB or more
Video	• 1024 × 768 pixels or more with 24-bit color or better• A graphics processing unit (GPU) that supports DirectX 7 or later
Other	• Built-in USB port recommended. Operation is not guaranteed with other USB ports.• Internet connection (broadband recommended) required to install .NET Framework (if necessary), to use auto update feature, and when performing such tasks as sharing pictures on-line or via e-mail.

1 Other versions of Windows are not supported. Only pre-installed operating systems are supported; operation is not guaranteed on home-built computers or computers that have been upgraded from earlier versions of Windows.

2 Recommended when displaying HD movies.

2 Start the computer. Log in to an account with administrator privileges before proceeding.

3 Exit any applications that may be running and insert the installer CD in a CD-ROM drive.

Windows 7/Windows Vista

If an AutoPlay dialog is displayed, click SETUP.EXE. A "User Account Control" dialog will then be displayed; click Yes (Windows 7) or Allow (Windows Vista).

The installer will start automatically; click Install MyFinePix Studio and follow the on-screen instructions to install MyFinePix Studio and RAW FILE CONVERTER.

If the Installer Does Not Start Automatically

If the installer does not start automatically, select Computer or My Computer from the Start menu, then double-click the FINEPIX CD icon to open the FINEPIX CD window and double-click setup or SETUP.EXE.

4 If prompted to install Windows Media Player, DirectX, or .NET Framework, follow the on-screen instructions to complete installation.
5 Remove the installer CD from the CD-ROM drive when installation is complete. Store the installer CD in a dry location out of direct sunlight in case you need to re-install the software.

Installation is now complete. Proceed to "Connecting the Camera" (98).

Macintosh: Installing FinePixViewer

1 Confirm that the computer meets the following system requirements:

CPU Power	PC or Intel (Core 2 Duo or better)
OS	Pre-installed copies of Mac OS X version 10.3.9–10.6(visit http://www.fujifilm.com/support/digital_cameras/compatibility/for more information)
RAM 256 MB or more (1 GB or more)
Free disk space	A minimum of 200 MB required for installation with 400 MB available when FinePixViewer is running
Video 800 × 600 pixels or more with thousands of colors or better
Other Built-in USB port recommended. Operation is not guaranteed with other USB ports.

* Recommended when displaying HD movies.

2 After starting the computer and quitting any applications that may be running, insert the installer CD in a CD-ROM drive and double-click Installer for Mac OS X.

3 An installer dialog will be displayed; click Installing FinePixViewer to start installation. Enter an administrator name and password when prompted and click OK, then follow the on-screen instructions to install FinePixViewer. Click Exit to quit the installer when installation is complete.

To install RAW FILE CONVERTER, double-click SILKYRFCEXInstaller. RAW FILE CONVERTER is used to view RAW images on your computer.

4 Remove the installer CD from the CD-ROM drive. Note that you may be unable to remove the CD if Safari is running; if necessary, quit Safari before removing the CD. Store the installer CD in a dry location out of direct sunlight in case you need to re-install the software.

5 MacOS X 10.5 or earlier: Open the "Applications" folder, start Image Capture, and select Preferences... from the Image Capture application menu. The Image Capture preferences dialog will be displayed; choose Other... in the When a camera is connected, open menu, then select FPVBridge in the "Applications/FinePixViewer" folder and click Open. Quit Image Capture.

Mac OS X 10.6: Connect the camera and turn it on. Open the "Applications" folder and start Image Capture. The camera will be listed under DEVICES; select the camera and choose FPVBridge from the Connecting this camera opens menu and click Choose. Quit Image Capture.

Installation is now complete. Proceed to "Connecting the Camera" (98).

Connecting the Camera

1 If the pictures you wish to copy are stored on a memory card, insert the card into the camera (☐ 13). If no card is inserted, pictures will be copied from internal memory.

Windows users may require the Windows CD when starting the software for the first time.

① Loss of power during transfer could result in loss of data or damage to internal memory or the memory card. Insert a fresh or fully-charged battery before connecting the camera.

2 Turn the camera off and connect the supplied USB cable as shown, making sure the connectors are fully inserted. Connect the camera directly to the computer; do not use a USB hub or keyboard.

Illustration of a digital camera connected to a laptop via cable (no text or symbols)

3 Turn the camera on. MyFinePix Studio or FinePixViewer will start automatically; follow the on-screen instructions to copy pictures to the computer. To exit without copying pictures, click Cancel.

① If the software does not start automatically, it may not be correctly installed. Disconnect the camera and reinstall the software.

For more information on using the supplied software, start the application and select the appropriate option from the Help menu.

① If a memory card containing a large number of images is inserted, there may be a delay before the software starts and you may be unable to import or save images. Use a memory card reader to transfer pictures.
① Make sure that the computer does not display a message stating that copying is in progress and that the indicator lamp is out before turning the camera off or disconnecting the USB cable (if the number of images copied is very large, the indicator lamp may remain lit after the message has cleared from the computer display). Failure to observe this precaution could result in loss of data or damage to internal memory or the memory card.
① Disconnect the camera before inserting or removing memory cards.
① In some cases, it may not be possible to access pictures saved to a network server using the supplied software in the same way as on a standalone computer.
① The user bears all applicable fees charged by the phone company or Internet service provider when using services that require an Internet connection.

Disconnecting the Camera

After confirming that the indicator lamp is out, turn the camera off and disconnect the USB cable.

Uninstalling the Supplied Software

Only uninstall the supplied software when it is no longer required or before beginning reinstallation. After quitting the software and disconnecting the camera, drag the "FinePixViewer" folder from "Applications" into the Trash and select Empty Trash in the Finder menu (Macintosh), or open the control panel and use "Programs and Features" (Windows 7/Windows Vista) or "Add or Remove Programs" (Windows XP) to uninstall MyFinePix Studio. Under Windows, one or more confirmation dialogs may be displayed; read the contents carefully before clicking OK.

Technical Notes

OptionalAccessories

The camera supports a wide range of accessories from FUJIFILM and other manufacturers.

Accessories from FUJIFILM

The following optional accessories are available from FUJIFILM. For the latest information on the accessories available in your region, check with your local FUJIFILM representative or visit http://www.fujifilm.com/products/digital_cameras/index.html.

Rechargeable Li-ion batteries	NP-95: Additional large-capacity NP-95 rechargeable batteries can be purchased as required.
Battery chargers	BC-65N: Replacement battery chargers can be purchased as required. The BC-65N charges an NP-95 battery in about 210 minutes at +20 °C (+68 °F).
Flash units	Shoe Mount Flash EF-20: This clip-on flash unit (powered by two AA batteries) has a Guide Number of 20/66 (ISO 100, m/ft.) and supports TTL flash control. The flash head can be rotated upwards 90° for bounce lighting.
	Shoe Mount Flash EF-42: This clip-on flash unit (powered by four AA batteries) has a Guide Number of 42/138 (ISO 100, m/ft.) and supports TTL flash control and auto power zoom in the range 24–105 mm (35 mm format equivalent). The flash head can be rotated 90° up, 180° left, or 120° right for bounce lighting.
Leather cases	LC-X100: This leather case, exclusively for use with the X100, combines practicality with the luxury of leather and comes with a shoulder strap made of the same material. Pictures can be taken with the camera still in its case.
Lens hoods	LH-X100: This aluminum lens hood, exclusively for use with the X100, comes with an AR-X100 adapter ring made of the same material. The adapter ring is required when attaching the hood.
Adapter rings	AR-X100: An aluminum adapter ring exclusively for use with the X100. It is used when attaching the LH-X100 lens hood or φ49 mm filters available from third-party suppliers.

Attaching Adapter Rings and Lens Hoods

1 Remove the front ring.

Diagram of a camera with a rotating lens and ring, showing rotational motion (no text or symbols)

If you have trouble removing the front ring, grip the entire ring and rotate it as shown.

Illustration of a hand holding a handheld device with a button (no text or symbols visible)

2 Attach the adapter ring as shown, with the projections facing out.

Diagram of a camera with a circular ring and directional arrow (no text or symbols)

3 Align the male and female threads as shown and place the lens hood on the adapter ring. Rotate the lens hood as shown.

Three-step diagram showing a camera lens assembly process: adding, adjusting, and finally adding (no text or symbols present)

• Keep the front ring and lens cap in a safe place when not in use.
• Attach the adapter ring before attaching filters from third-party suppliers.

Connecting the Camera to Other Devices

* Available separately from FUJIFILM.
† Available separately from third-party suppliers.

Caring for the Camera

To ensure continued enjoyment of the product, observe the following precautions.

Storage and Use

If the camera will not be used for an extended period, remove the battery and memory card. Do not store or use the camera in locations that are:

• exposed to rain, steam, or smoke
  • very humid or extremely dusty
• exposed to direct sunlight or very high temperatures, such as in a closed vehicle on a sunny day
  • extremely cold
• subject to strong vibration
• exposed to strong magnetic fields, such as near a broadcasting antenna, power line, radar emitter, motor, transformer, or magnet
• in contact with volatile chemicals such as pesticides
• next to rubber or vinyl products

Water and Sand

Exposure to water and sand can also damage the camera and its internal circuitry and mechanisms. When using the camera at the beach or seaside, avoid exposing the camera to water or sand. Do not place the camera on a wet surface.

Condensation

Sudden increases in temperature, such as occur when entering a heated building on a cold day, can cause condensation inside the camera. If this occurs, turn the camera off and wait an hour before turning it on again. If condensation forms on the memory card, remove the card and wait for the condensation to dissipate.

Cleaning

Use a blower to remove dust from the lens and monitor, then gently wipe with a soft, dry cloth. Any remaining stains can be removed by wiping gently with a piece of FUJIFILM lens-cleaning paper to which a small amount of lens-cleaning fluid has been applied. Care should be taken to avoid scratching the lens or monitor. The camera body can be cleaned with a soft, dry cloth. Do not use alcohol, thinner, or other volatile chemicals, which can discolor the leather on the camera body.

Traveling

Keep the camera in your carry-on baggage. Checked baggage may suffer violent shocks that could damage the camera.

Troubleshooting

Problems and Solutions

Power and Battery

Problem	Solution
The camera does not turn on.	The battery is exhausted: Charge the battery (11) or insert a fully-charged spare battery (12).The battery is inserted incorrectly: Reinsert in the correct orientation (12).The battery-chamber cover is not latched: Latch the battery-chamber cover (13).
The battery runs down quickly.	The battery is cold: Warm the battery by placing it in a pocket or other warm place and reinsert it in the camera immediately before taking a picture.There is dirt on the battery terminals: Clean the terminals with a soft, dry cloth.AF-C is selected for focus mode: Select a different focus mode 48).The battery has been charged many times: The battery has reached the end of its charging life. Purchase a new battery.
The camera turns off suddenly.	The battery is exhausted: Charge the battery (11) or insert a fully-charged spare battery (12).
Charging does not start.	Reinsert the battery in the correct orientation and make sure that the charger is plugged in (11).
Charging is slow.	Charge the battery at room temperature (118).
The charging lamp lights, but the battery does not charge.	There is dirt on the battery terminals: Clean the terminals with a soft, dry cloth.The battery has been charged many times: The battery has reached the end of its charging life. Purchase a new battery. If the battery still fails to charge, contact your FUJIFILM dealer.

Menus and Displays

Problem	Solution
Display is not in English.	Select ENGLISH for 📋 言語/LANG. (☐ 80).

Shooting

Problem	Solution
No picture is taken when the shutter button is pressed.	Memory is full: Insert a new memory card or delete pictures (13, 58, 67).Memory is not formatted: Format the memory card or internal memory (81).There is dirt on the memory card contacts: Clean the contacts with a soft, dry cloth.The memory card is damaged: Insert a new memory card (13).The battery is exhausted: Charge the battery (11) or insert a fully-charged spare battery (12).The camera has turned off automaticallyTurn the camera on (16).The indicator lamp was orange when you attempted to record a panorama: Wait until the indicator lamps turns off (3).
Mottling ("noise") appears in the monitor or electronic viewfi nder when the shutter button is pressed halfway.	Gain is increased to aid composition when the subject is poorly lit and aperture is stopped down, which may result in noticeable mottling when images are previewed in the displays. Images taken with the camera are unaffected.
The display goes dark after shooting.	The display may darken while the flash charges. Wait for the flash to charge.
The camera does not focus.	The subject is close to the camera: Select macro mode (34).The subject is far away from the camera: Cancel macro mode (34).The subject is not suited to autofocus: Use focus lock (46) or manual focus (48).
The flash does not fi re.	The flash can not be used at current settings See the list of the settings that can be used with the flash (120).The flash is off ☑): Choose a different flash mode (32).The battery is exhausted: Charge the battery (11) or insert a fully-charged spare battery (12).The camera is in continuous mode: Select a different drive mode (37).The camera is in silent mode: Turn silent mode off (22, 80).
Some flash modes are not available.	The camera is in silent mode. Turn silent mode off (22, 80).
The flash does not fully light the subject.	The subject is not in range of the flash Position the subject in range of the flash 33).The flash window is obstructed Hold the camera correctly.Shutter speed is faster than 12,000 S : Choose a slower shutter speed (25, 27).
Pictures are blurred.	The lens is dirty: Clean the lens ( xi, 104).The lens is blocked: Keep objects away from the lens.AF is displayed during shooting and the focus frame is displayed in red Check focus before shooting ( 31).is displayed during shooting: Use the flash or mount the camera on a tripod 32).
Pictures are mottled.	Shutter speed is slow and the ambient temperature is high: This is normal and does not indicate a malfunction.The camera has been used continuously at high temperatures or a temperature warning is displayed Turn the camera off and wait for it to cool down.

Playback

Problem	Solution
Pictures are grainy.	The pictures were taken with a different make or model of camera.
Playback zoom is unavailable.	The pictures were created using RESIZE or with a different make or model of camera.
No sound in movie playback.	·Playback volume is too low: Adjust playback volume (82). · The microphone was obstructed: Hold the camera correctly during recording (2,42). · The speaker is obstructed: Hold the camera correctly during playback (2,61). · The camera is in silent mode: Turn silent mode off 22,80).
Selected pictures are not deleted.	Some of the pictures selected for deletion are protected. Remove protection using the device with which it was originally applied (76).
File numbering is unexpectedly reset.	The battery-chamber cover was opened while the camera was on. Turn the camera off before opening the battery-chamber cover (12,16).

Problems and Solutions

Connections/Miscellaneous

Problem	Solution
No picture or sound.	The camera is not properly connected: Connect the camera properly (88). Note that once the camera is connected, pictures will be displayed on the TV instead of in the camera monitor.Input on the television is set to "TV": Set input to "HDMI".The volume on the TV is too low: Use the controls on the television to adjust the volume.
The computer does not recognize the camera.	Be sure the camera and computer are correctly connected (98).
Can not transfer RAW or JPEG fi les to computer.	Use the bundled software to transfer pictures (94).
Pictures can not be printed.	The camera is not properly connected: Connect the camera correctly (89).The printer is off: Turn the printer on.
Only one copy is printed/the date is not printed.	The printer is not PictBridge compatible.
The camera is unresponsive.	Temporary camera malfunction: Remove and reinsert the battery (12).The battery is exhausted: Charge the battery (11) or insert a fully-charged spare battery (12).
The camera does not function as expected.	Remove and reinsert the battery (12). If the problem persists, contact your FUJIFILM dealer.
No sound.	Turn silent mode off (22,80).

Warning Messages and Displays

The following warnings appear in the display.

Warning	Description
(red)	Low battery. Charge the battery (11) or insert a fully-charged spare battery (12).
(blinks red)	Battery exhausted. Charge the battery (11) or insert a fully-charged spare battery (12).
	Slow shutter speed. Pictures may be blurred; use the flash or a tripod.
!AF(displayed in red with red focus frame)	The camera can not focus. Try one of the following solutions:Use focus lock to focus on another subject at the same distance, then recompose the picture (46).Use macro mode to focus when taking close-ups (34).
Aperture or shutter speed displayed in red	The subject is too bright or too dark and the picture will be over- or under-exposed. If the subject is dark, use the flash (32).
FOCUS ERROR	Camera malfunction. Turn the camera off and then on again. If the message persists, contact a FUJIFILM dealer.
TURN OFF THE CAMERA AND TURN ON AGAIN
LENS CONTROL ERROR
BUSY	The memory card is incorrectly formatted. Use the camera to format the card (81).
CARD NOT INITIALIZED	The memory card or internal memory is not formatted or the memory card has been formatted in a computer or other device: Format the memory card or internal memory using the FORMAT option in the camera setup menu (81).The memory card contacts require cleaning: Clean the contacts with a soft, dry cloth. If the message is repeated, format the card (81). If the message persists, replace the card.Camera malfunction: Contact a FUJIFILM dealer.

Warning Messages and Display

Warning	Description
PROTECTED CARD	The memory card is locked. Unlock the card (13).
CARD ERROR	The memory card is not formatted for use in the camera: Format the card (81).The memory card contacts require cleaning or the memory card is damaged: Clean the contacts with a soft, dry cloth. If the message is repeated, format the card (81). If the message persists, replace the card.Incompatible memory card: Use a compatible card (15).Camera malfunction: Contact a FUJIFILM dealer.
MEMORY FULL	The memory card or internal memory is full and pictures can not be recorded or copied. Delete pictures (58, 67) or insert a memory card with more free space (13).
MEMORY FULL
INTERNAL MEMORY IS FULL INSERT A NEW CARD
NO CARD	No memory card inserted when COPY COPY is selected. Insert a memory card.
WRITE ERROR	Memory card error or connection error: Reinsert the card or turn the camera off and then on again. If the message persists, contact a FUJIFILM dealer.Not enough memory remaining to record additional pictures: Delete pictures (58, 67) or insert a memory card with more free space (13).The memory card or internal memory is not formatted: Format the memory card or internal memory (81).
READ ERROR	The fi le is corrupt or was not created with the camera The fi le can not be viewed.The memory card contacts require cleaning: Clean the contacts with a soft, dry cloth. If the message is repeated, format the card (81). If the message persists, replace the card.Camera malfunction: Contact a FUJIFILM dealer.
FRAME NO. FULL	The camera has run out of frame numbers (current frame number is 999-9999). Format the memory card and select RENEW for 📄 FRAME NO. Take a picture to reset frame numbering to 100-0001, then select CONTINUOUS for 📄 FRAME NO. (82).
TOO MANY FRAMES	A search has returned more than 30,000 results: Choose a search that returns fewer results.More than 999 images are selected for deletion: Choose fewer images.
PROTECTED FRAME	An attempt was made to delete or rotate to a protected picture. Remove protection and try again (76).
PRESS AND HOLDTHE DISP BUTTON TODEACTIVATE SILENT MODE	An attempt was made to adjust the volume with the camera in silent mode. Exit silent mode before adjusting the volume (22,80).
CAN NOT CROP	The picture is damaged or was not created with the camera.
CANNOT EXECUTE	Red-eye removal can not be applied to pictures created with other devices.
CANNOT EXECUTE	Red-eye removal can not be applied to movies.
CAN NOT ROTATE	The selected picture can not be rotated.
CAN NOT ROTATE	Movies can not be rotated.
SD NO IMAGE	The source selected for COPY contains no images. Select a different source.
NO IMAGE

Warning Messages and Display

Warning	Description
DPOF FILE ERROR	The DPOF print order on the current memory card contains more than 999 images. Copy the pictures to internal memory and create a new print order.
CAN NOT SET DPOF	The picture can not be printed using DPOF.
CAN NOT SET DPOF	Movies can not be printed using DPOF.
COMMUNICATION ERROR	A connection error occurred while pictures were being printed or copied to a computer or other device. Confirm that the device is turned on and that the USB cable is connected.
PRINTER ERROR	Printer out of paper or ink, or other printer error. Check printer (see printer manual for details). To resume printing, turn the printer off and then turn it back on.
PRINTER ERROR RESUME?	Printer out of paper or ink, or other printer error. Check printer (see printer manual for details). If printing does not resume automatically, press MENU/OK to resume.
CANNOT BE PRINTED	An attempt was made to print a movie, a picture not created with the camera, or a picture in a format not supported by the printer. Movies, RAW images, and some pictures created with other devices can not be printed; if the picture is a still picture created with the camera, check the printer manual to confirm that the printer supports the JFIF-JPEG or Exif-JPEG format. If it does not, the pictures can not be printed.
!	Turn the camera off and wait for it to cool. Mottling may increase in pictures taken when this warning is displayed.

Appendix

Glossary

DPOF (Digital Print Order Format): A standard that allows pictures to be printed from "print orders" stored in internal memory or on a memory card. The information in the order includes the pictures to be printed and the number of copies of each picture.

EV (Exposure Value): The exposure value is determined by the sensitivity of the image sensor and the amount of light that enters the camera while the image sensor is exposed. Each time the amount of light doubles, EV increases by one; each time the amount of light is halved, EV decreases by one. The amount of light entering the camera can be controlled by adjusting aperture and shutter speed.

Exif Print: A standard for storing information with pictures for optimal color reproduction during printing.

HDMI (High-Definition Multimedia Interface): An interface standard for the transmission of images and sound that adds audio input to the DVI interface used to connect computers to displays.

JPEG (Joint Photographic Experts Group): A compressed file format for color images. The higher the compression rate, the greater the loss of information and more noticeable drop in quality when the picture is displayed.

MOV: A movie file format (extension ".mov") developed by Apple, Inc., and viewed using QuickTime Player. This format is popular on the Internet.

White balance: The human brain automatically adapts to changes in the color of light, with the result that objects that appear white under one light source still appear white when the color of the light source changes. Digital cameras can mimic this adjustment by processing images according to the color of the light source. This process is known as "white balance."

Internal Memory/Memory Card Capacity

The following table shows the recording time or number of pictures available at different image sizes. All fi gures are approximate; fi le size varies with the scene recorded, producing wide variations in the number of fi les that can be stored. The number of exposures or length remaining may not diminish at an even rate. A limited number of test pictures can be taken when no memory card is inserted.

Medium		Internal memory (approx. 20 MB)		4 GB		8 GB
		FINE	NORMAL	FINE	NORMAL	FINE	NORMAL
Photographs	L 3:2	4	7	820	1300	1640	2620
	L 16:9	5	8	960	1530	1940	3070
	M 3:2	7	14	1260	2470	2530	4970
	M 16:9	8	16	1490	2950	2990	5920
	S 3:2	14	28	2470	4760	4970	9570
	S 16:9	21	32	3750	5630	7540	11310
Motion panorama	180°(Vertical)	2	5	480	960	970	1940
	180°(Horizontal)	3	8	720	1440	1460	2890
	120°(Vertical)	3	8	720	1440	1460	2890
	120°(Horizontal)	6	12	1080	2130	2180	4290
RAW		1		210		420
Movies	HD 1280*	18 sec.		50 min.		100 min.

* Use a CLASS④ card or better. Individual movies can not exceed 10 minutes in length.

Specifications

System
Model	FinePix X100 digital camera
Eff ective pixels	12.3 million
Image sensor	23.6 mm × 15.8 mm (APS-C format) CMOS (complementary metal-oxide semiconductor) image sensor with square pixels and primary color fi Iter
Storage media	• Internal memory (approx. 20 MB) • SD/SDHC/SDXC memory cards
File system	Compliant with Design Rule for Camera File System (DCF), Exif 2.3, and Digital Print Order Format (DPOF)
File format	• Still pictures: Exif 2.3 JPEG (compressed); RAW (original RAF format, special-purpose software required); RAW+JPG available• Movies: H.264 standard with stereo sound (MOV)
Image size	• 3:2: 4,288 × 2,848 • M 3:2: 3,072 × 2,048 • S 3:2: 2,176 × 1,448• 16:9: 4,288 × 2,416 • M 16:9: 3,072 × 1,728 • S 16:9: 1,920 × 1,080• Motion panorama 180: 2,160 × 7,680 (Vertical) / 7,680 × 1,440 (Horizontal)• Motion panorama 120: 2,160 × 5,120 (Vertical) / 5,120 × 1,440 (Horizontal)
Lens	FUJINON fi xed focal length lens
Focal length	f=23 mm (35 mm format equivalent: 35 mm)
Maximum aperture	F2.0
Aperture	F2.0 – F16 in steps of 13 EV (9-blade diaphragm)
Focus range(distance from front of lens)	Approx. 80 cm (2.6 ft.)—∞• Macro (mode): 10 cm (3.9 in.)– 2.0 m (6.6 ft.)
Sensitivity	Standard output sensitivity equivalent to ISO 200 – 6400 in increments of 13 EV; extended output sensitivity equiv-alent ISO 100 or 12800; auto sensitivity control available
Metering	256-segment through-he-lens (TTL) metering; MULTI, SPOT, AVERAGE
Exposure control	Programmed AE (with program shift); shutter-priority AE; aperture-priority AE; manual exposure
Exposure compensation	-2 EV – +2 EV in increments of 13 EV

Specifications

System
Shutter speed (combined mechanical and electronic shutter)	·Pmode: 1⁄4 sec. to 1⁄4,000 sec.* ·All other modes: 30 sec. to 1⁄4,000 sec.*·Bulb: Max. 60 min.* 1⁄4,000 sec at F2, and 1⁄4,000 sec at F8 or smaller aperture
Continuous	Up to 10 JPEG, 8 RAW, or 8 RAW+JPEG images at 5 or 3 fps
Focus	·Mode: Single or continuous AF; manual focus with focus ring·Focus-area selection Multi, area with focus area size selection (fi ve steps)·Autofocus system Contrast-detect TTL AF with AF-assist illuminator
White balance	Custom, color temperature selection, auto, direct sunlight, shade, daylight fluorescent, warm white fluorescent, cool white fluorescent, incandescent, underwater
Self-timer	Off, 2 sec., 10 sec.
Flash	Auto flash; effective range at ISO 1600 is approx. 50 cm - 9 m/1.6 ft. - 29.5 ft.; accessory shoe with TTL contacts
Mode	Auto, fi ll fl ash, off, slow sync (red-eye removal off); auto with red-eye removal, fi ll fl ash with red-eye removal, off, slow sync with red-eye removal (red-eye removal on)
Hybrid viewfinder	·Optical viewfinder Reverse Galilean viewfinder with electronic bright frame display and approx. 0.5 × magnifi cations; frame coverage approx. 90%·Electronic viewfinder 0.47-in., 1,440k-dot color LCD viewfinder; diopter adjustment -2 - +1 mi (dpt); eye point approx. 15 mm; frame coverage approx. 100%
LCD monitor	2.8-in., 460k-dot color LCD monitor; frame coverage approx. 100%
Movies	HD (1,280 × 720); 24 fps; stereo sound; maximum length 10 minutes
Languages	Arabic, Bulgarian, Simplifi ed Chinese, Traditional Chinese, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hebrew, Hungarian, Indonesian, Italian, Japanese, Kazakh, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese

Input/output terminals
HDMI output	HDMI mini connector
Digital input/output	USB 2.0 High-Speed
Power supply/other
Power supply	NP-95 rechargeable battery
Battery life (approximate number of frames that can be taken with a fully-charged battery)	Battery type	Approximate number of frames
	NP-95 (type supplied with camera)	300
	CIPA standard, measured using battery supplied with camera and SD memory card.Note: Number of shots that can be taken with battery varies with battery charge level and will decline at low temperatures.
Camera size (W × H × D)	126.5 mm × 74.4 mm × 53.9 (31.0*) mm / 5.0 in. × 2.9 in. × 2.1 (1.2*) in.* Excluding projecting parts, measured at the thinnest part
Camera weight	Approx. 405 g / 14.3 oz., excluding battery, accessories, and memory card
Shooting weight	Approx. 445 g / 15.7 oz., including battery and memory card
Operating conditions	Temperature: 0°C to +40°C/+32°F to +104°F Humidity: 10%–80% (no condensation)

Specifications

NP-95 rechargeable battery
Nominal voltage	DC 3.6 V
Nominal capacity	1,800 mAh
Operating temperature	0 °C to +40 °C/+32 °F to +104 °F
Dimensions (W × H × D)	35.2 mm × 49.5 mm × 10.8 mm / 1.3 in. × 1.9 in. × 0.4 in.
Weight	Approx. 39 g / 1.3 oz.
BC-65N battery charger
Rated input	100 V – 240 V AC, 50/60 Hz
Input capacity	15 VA
Rated output	4.2 V DC, 650 mA
Supported batteries	NP-95 rechargeable batteries
Chargingtime	Approx. 210 minutes (+20 °C/+68 °F)
Operatingtemperature	0 °C to +40 °C/+32 °F to +104 °F
Dimensions (W × H × D)	65 mm × 25.3 mm × 80 mm/2.5 in. × 0.9 in. × 3.1 in., excluding projections
Weight	Approx. 59 g/2.0 oz., excluding battery

Weight and dimensions vary with the country or region of sale. Labels, menus, and other displays may differ from those on the actual camera.

Notices

• Specifications subject to change without notice; for the latest information, visit http://www.fujifilm.com/products/digital_cameras/index.html. FUJIFILM shall not be held liable for damages resulting from errors in this manual.
• Although the electronic viewfinder and LCD monitor are manufactured using advanced high-precision technology, small bright points and anomalous colors may appear, particularly in the vicinity of text. This is normal for this type of LCD display and does not indicate a malfunction; images recorded with the camera are unaffected.
• Digital cameras may malfunction when exposed to strong radio interference (e.g., electric fields, static electricity, or line noise).
• Due to the type of lens used, some distortion may occur at the periphery of images. This is normal.

Restrictions on Camera Settings

The options available in each shooting mode are listed below.

Option			P	S	A	M
(Macro Mode)		OFF	√	√	√	√	√1	√1
			√	√	√	√
(Flash)	OFF	AUTO	√
		∅	√	√	√	√
		S∅	√		√
		∅	√	√	√	√
	ON	AUTO	√
		∅∅	√	√	√	√
		∅SLOW	√		√
		∅	√	√	√	√
WB (White Balance)			√	√	√	√	√	√
(Continuous)		5 fps	√	√	√	√
		3 fps	√	√	√	√
Bracketing			√	√	√	√
		ISO	√	√	√	√
			√	√	√	√
		DR	√	√	√	√
Metering			√	√	√	√	√2	√2
			√	√	√	√
			√	√	√	√
Focus Mode		AF-C	√	√	√	√	√	√
		AF-S	√	√	√	√	√	√3
		MF	√	√	√	√	√	√
Exposure Compensation			√	√	√		√	√

Option		P	S	A	M
SELF-TIMER		√	√	√	√
ISO ISO	H (12800)	√	√	√	√
	6400	√	√	√	√	√
	5000	√	√	√	√	√
	4000	√	√	√	√	√
	3200	√	√	√	√	√
	2500	√	√	√	√	√
	2000	√	√	√	√	√
	1600	√	√	√	√	√
	800	√	√	√	√	√
	640	√	√	√	√	√
	500	√	√	√	√	√
	400	√	√	√	√	√
	200	√	√	√	√	√
	L (100)	√	√	√	√
IMAGE SIZE	L	√	√	√	√
	M	√	√	√	√
	S	√	√	√	√	√
IMAGE QUALITY	FINE	√	√	√	√	√
	NORMAL	√	√	√	√	√
	FINE+RAW	√	√	√	√
	NORMAL+RAW	√	√	√	√
	RAW	√	√	√	√
D-Ring DYNAMIC RANGE	AUTO	√	√	√		√
	R100	√	√	√	√	√
	R200	√	√	√	√	√
	R400	√	√	√	√	√
FILMSIMULATION	STO	√	√	√	√	√	√
	VI	√	√	√	√	√	√
	SE	√	√	√	√	√	√
	BI	√	√	√	√	√	√
	BY	√	√	√	√	√	√
	BR	√	√	√	√	√	√
	BG	√	√	√	√	√	√
	BR	√	√	√	√	√	√
ND ND FILTER		√	√	√	√
WB WB SHIFT		√	√	√	√
Color COLOR		√	√	√	√
SHARPNESS		√	√	√	√
HIGHLIGHT TONE		√	√	√	√
SHADOW TONE		√	√	√	√
NOISE REDUCTION		√	√	√	√
AF MODE	+	√	√	√	√	√5
	+	√	√	√	√	√5
FLASH		√	√	√	√
EXTERNAL FLASH		√	√	√	√
SELECT CUSTOM SETTING		√	√	√	√
EDIT/SAVE CUSTOM SETTING		√	√	√	√

Option		P	S	A	M
DISP. CUSTOM SETTING	FRAMING GUIDLINE	√	√	√	√		√
	ELECTRONIC LEVEL	√	√	√	√		√
	AF DISTANCE INDICATOR	√	√	√	√
	HISTOGRAM	√	√	√	√		√
	APERTURE/ S-SPEED/ISO	√	√	√	√
	EXP. COMPENSATION	√	√	√	√		√
	PHOTOMETRY	√	√	√	√
	FLASH	√	√	√	√
	WHITE BALANCE	√	√	√	√		√
	FILM SIMULATION	√	√	√	√		√
	DYNAMIC RANGE	√	√	√	√
	FRAMES REMAINING	√	√	√	√
	BATTERY LEVEL	√	√	√	√		√
	IMAGE SIZE/ QUALITY	√	√	√	√
QUICK START MODE		√	√	√	√	√	√

Restrictions on Camera Settings

Option		P	S	A	M
ISO ISO AUTOCONTROL	ISO AUTOCONTROL	√	√	√	√	√
	MAX. SENSITIVITY	√	√	√	√	√
	MIN. SHUTTERSPEED	√		√		√
RED EYE REMOVAL		√	√	√	√
AF	AF ILLUMINATOR	√	√	√	√	√
MF	FOCUS CHECK	√	√	√	√
O1	FOCUS RING	√	√	√	√	√	√
L	COLOR SPACE	√	√	√	√	√	^6
FET	LONG EXPOSURE NR	√	√	√	√

1 Fixed at OFF.
2 Fixed at Ⓞ (multi).
3 Continuous AF is used when AF-S is selected for focus mode.
4 Fixed at S.
5 Center focus area selected automatically.
6 Automatically optimized for selected shooting mode.

Memo

FUJIFILM

FUJIFILM Corporation

http://www.fujifilm.com/products/digital_cameras/index.html
