USER MANUAL UX-EP25 JVC

U X = E P 2 5 — Consists of CA-UXEP25 and SP-UXEP25

Warnings, Cautions and Others IMPORTANT for the UK. DO NOT cut off the mains plug from this equipment. the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. BE SURE to replace the fuse only with an identical approved type, as originallyfitted Hnontheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. this product is not supplied fitted with a mains plug then follow the instructions given below: IMPORTANT: DO NOT make any connection to the terminal which is marked with the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wires in the mains lead on this product are coloured in accordance with the following code: Blue: Neutral Brown: Live As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L'or coloured red. IF IN DOUBT - CONSULT À COMPETENT ELECTRICIAN. Caution — ()/| STANDBY/ON button! Disconnect the mains plug to shut the power off completely (all lamps and indications go off).The </ISTANDBY/ON button in any position does not disconnect the mains line. + _ When the unit is on standby, the STANDBY lamp lights red. + When the unit is turned on, the STANDBY lamp goes off. The power can be remote controlled. Caution: Proper Ventilation To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows: 1 Front: No obstructions and open spacing. 2 Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below. 3 Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more. About the cooling fan A cooling fan is mounted on the right side of the unit to prevent abnormal temperature inside the unit, thus assuring normal operation of the unit. The cooling fan automatically starts rotating to intake external cool air when the volume is increased up to more than a certain level. G-1 CAUTION To reduce the risk of electric shocks, fire, etc.: 1 Do not remove screws, covers or cabinet. 2 Do not expose this appliance to rain or moisture. . : iE L. I Tue |

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user

serviceable parts inside the Unit, leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open

and interlock failed or defeated. Avoid direct exposure to beam.

lower uspluoncen um [onu ocueuex mu Memeeree ME (om es re 20 nor M DR GB HUE Font DEreroe, ÉrRoreMEq MALE onu Rentee a, l'E 20% al EE ir pue soon LE EUS 0 Sn | LE Ds CAUTION 1 Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc. the heat may not be able to get out.) Do not place any naked flame sources, such as lighted candles, on the apparatus. When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictiy. Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of Victor Company of Japan, Limited is: JVCTechnology Centre Europe GmbH PO. Box 10 05 52 61145 Friedberg Germany

SAFETY INSTRUCTIONS “SOME DOS AND DON'TS ON THE SAFE USE OF EQUIPMENT” This equipment has been designed and manufactured to meet international safety standards but, like any electrical equip- ment, care must be taken if you are to obtain the best results and safety is to be assured.

CPETEET . CPELEEEEELEELEEES . CEELEEEEELEELEEES

Do read the operating instructions before you attempt to use the equipment. Do ensure that all electrical connections [including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains plug when making or changing connections. Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. Do be careful with glass panels or dors on equipment. DONT continue to operate the equipment if you are in any doubt about it working normally, or ifitis damaged in any way-switch off, withdraw the mains plug and consult your dealer. DONT remove any fixed cover as this may expose dangerous voltages. DONT leave equipment switched on when itis unattended unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family know how to do this. Special arrangements may need to be made for infirm or handicapped people. DONT use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety. It is illegal to watch television whilst driving. DONT listen to headphones at high volume as such use can permanently damage your hearing. DONT obstructthe ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten the lie of the equipment. DONT use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fitthe manufactur- ers approved stand or legs with the fixings provided according to the instructions. DONT allow electrical equipment to be exposed to rain or moisture. ABOVE ALL — NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case - this could result in a fatal electrical shock. — NEVER guess or take chances with electrical equipment of any kind. Itis better to be safe than sorry! Information for Users on Disposal of Old Equipment [European Union] This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-fe. Instead, Ihe product should be handed over to the applicable collection paint for ne recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance wih your national legislation. By disposing of this product correctly you will help to conserve natural resources and wi help prevent potential negative effets on ie environment and human health which could otherwise be caused by inappropriate waste handling of this product. For mare information about collection point and recycling of this product, [| please contact your local municipal ofice, your household waste disposal service er the shop where you purchased the product. Attention: Penalties may be applicable for incorrect disposal of this waste, in accordance This symbol is oniy "il retonal legislation valid in the (Business users) European Union. if you wish to dispose of this product, please visit our web page wwwjvc- europe.com to obtain information about the take-back of the product. LOther Countries outside the European Union] If you wish to dispose of this product, please do so in accordance with applicable nätional legislation or other rules in your country for the treatment of old electrical and electronic equipment.

[| Contents Introduction … Precautions… How to Read This Manual . Getting Started Step 1: Unpack Step 2: Prepare the Remote Control. Step 3: Hook Up. To assemble and connect the AM loop antenna To connect the speaker cords.. Before Operating the System …. Daily Operations— Playback — Listening to the Radio... Playing Back a Disc. Playing back from iPod. Playing Back from the USB mass storage class devic Playing Back from the PI Playing Back from Other Equipment. Receiving FM Stations with Radio Data Systei Daily Operations — Sound & Other Adjustments —… Adjusting the Volume Adjusting the Sound ææ. Changing the Display Brightness — DIMMER Settingthe Clock æms … Turning Offthe Power Automatically =: Advanced Disc/USB mass storage class device Operations … Programming the Playing Order — Program Play æmæ> Playing at Random — Random Play 2, Playing Repeatedly — Repeat Play æm> Timer Operations . Settingthe Timer Additional Information... Learning More about This System... Troubleshooting Maintenance . Specifications. Parts Index.

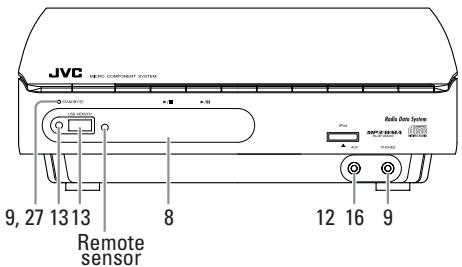

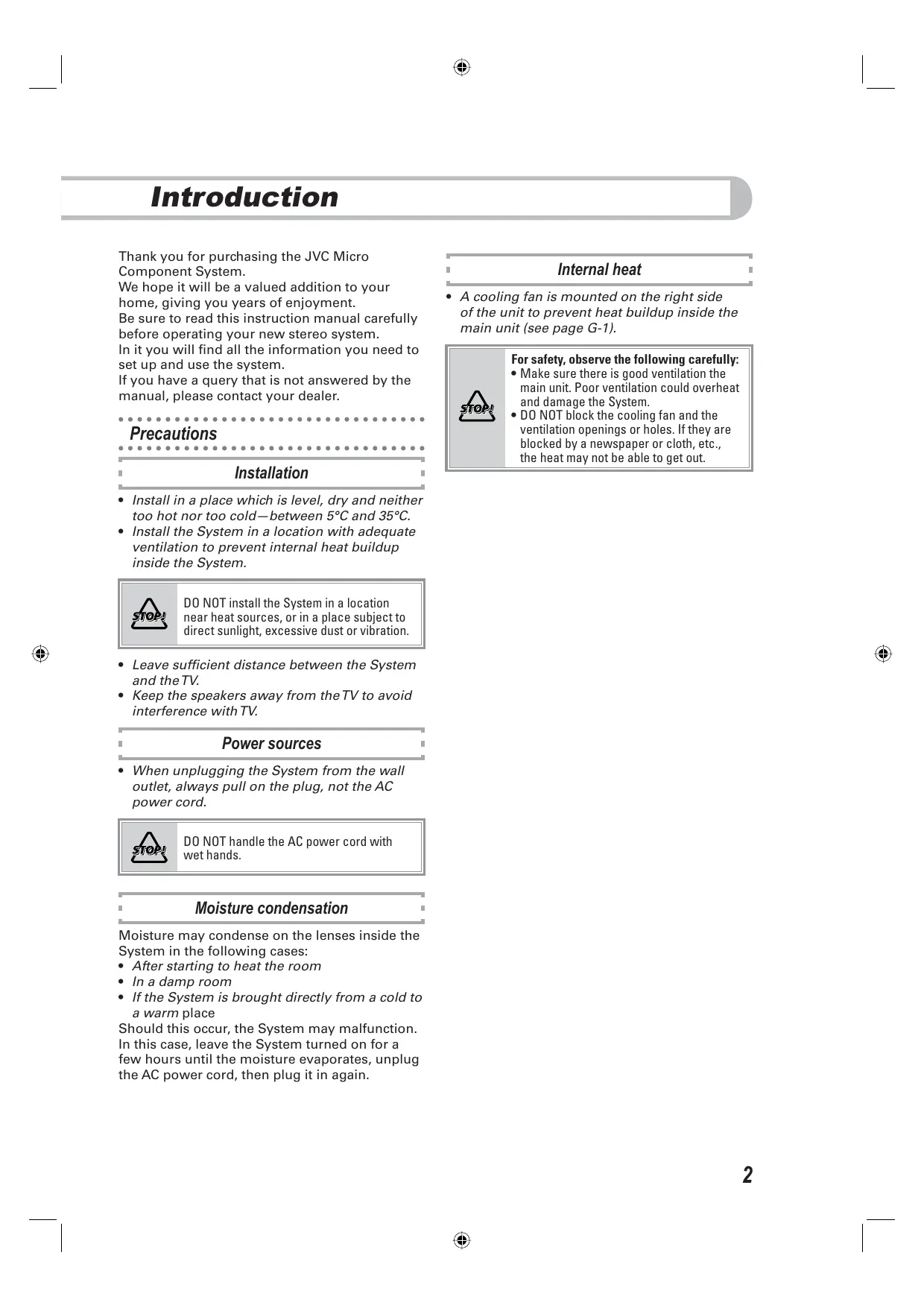

Introduction Thank you for purchasing the JVC Micro Component System. We hope it will be a valued addition to your home, giving you years of enjoyment. Be sure to read this instruction manual carefully before operating your new stereo system. In it you will find all the information you need to set up and use the system. If you have a query that is not answered by the manual, please contact your dealer. Precautions . Installation . Install in a place which is level, dry and neither too hot nor too cold— between 5°C and 35°C. Install the System in a location with adequate ventilation to prevent internal heat buildup inside the System.

+ Leave sufficient distance between the System and the TV. + Keep the speakers away from the TV to avoid interference with TV. DO NOT install the System in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration. . Power sources . + When unplugging the System from the wall outlet, always pull on the plug, not the AC power cord.

. Moisture condensation . DO NOT handle the AC power cord with wet hands. Moisture may condense on the lenses inside the System in the following cases: + After starting to heat the room + In a damp room +_Ifthe System is brought directly from a cold to a warm place Should this occur, the System may malfunction. In this case, leave the System turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again. . Internal heat + A cooling fan is mounted on the right side ofthe unit to prevent heat buildup inside the main unit (see page G-1). For safety, observe the following carefully: + Make sure there is good ventilation the main unit, Poor ventilation could overheat and damage the System. + DO NOT block the cooling fan and the ventilation openings or holes. they are blocked by a newspaper or cloth, etc.,

the heat may not be able to get out.

n Others : Should any metallic object or liquid fall into the System, unplug the AC power cord and consult your dealer before operating any further. Indicates that you press the button briefly. Indicates that you press the button briefly and repeatedly until an option you want is selected. DO NOT disassemble the System since there are no user serviceable parts inside.

Indicates that you press one of the buttons. If you are not going to operate the System for an extended period of time, unplug the AC power cord from the wall outlet. If anything goes wrong, unplug the AC power cord and consult your dealer. How to Read This Manual To make this manual as simple and easy-to- understand as possible, we have adapted the following methods: + Button and control operations are explained as listed in the table below. In this manual, the operations using the remote control is mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks. Some related tips and notes are explained later in the sections “Learning More about This System” and “Troubleshooting,” but not in the same section explaining the operations. If you want to know more about the functions, or if you have a doubt about the functions, go to these sections and you will find the answers. Indicates that you press and hold the button for specified seconds. + The number above indicates the period of press (in this example, 2 seconds). + If no number is indicated,press and hold until the entire procedure is complete or until you get a result you want. Indicates that this operation is only possible using the remote control.

CO] Getting Started Step 1: Unpack the package and check the accessories. Step 2: Prepare the remote control. Step 3: Hook up the components such as AM/FM antennas, speakers, etc. (see pages 5 to 7). Finally plug the AC power cord. Now you can operate the System.

Step 1: Unpack After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied. FM antenna (1) AM loop antenna (1) Speaker cords (2) Remote control (1) Batteries (2) iPod connection cable (1) iPod stand (1) Ifany item is missing, consult your dealer immediately. Step 2: Prepare the Remote Control | Insert the batteries into the remote control by matching the polarity (+ and -) correctly.

+ DO NOT use an old battery together with a new one. + DO NOT use different types of batteries together. + DO NOT expose batteries to heat or #h flame + DO NOT leave the batteries in the battery compartment when you are not going to use the remote control for an extended period of time. Otherwise, the remote control will be damaged from battery leakage.

Hook Up I you need more detailed information, see page 7. Illustrations of the input/output terminals below are typical examples. When you connect other components, refer also to their manuals since the terminal names actually printed on the rear may vary. offto all components before connection For better FM/AM reception Outdoor FM antenna {not supplied) % Vynil-covered wire (not supplied) à Extend it horizontally. LL d AM loop antenna Keep it connected. Disconnectthe supplied FM antenna, and connect to an outdoor FM antenna using a 75 Q wire with coaxial type connector. To a wall outlet Plug the AC power cord only after all connections are complete.

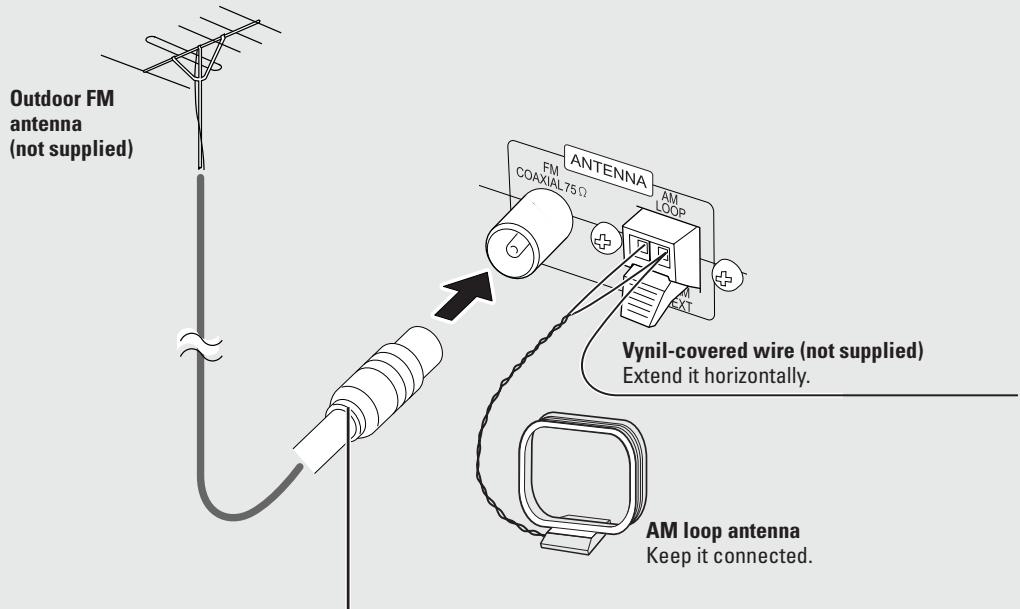

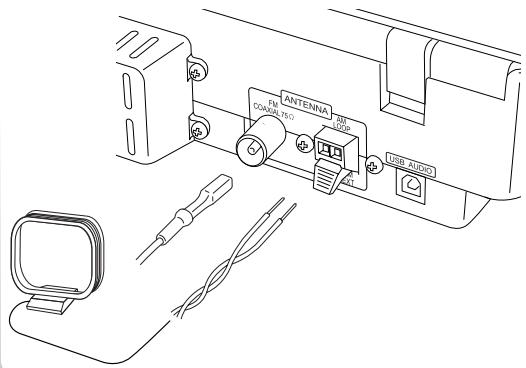

FM antenna (supplied) Extend it so that you can obtain the best reception. AM loop antenna (supplied) Turn it until the best reception is obtained. Speaker cord (supplied) Connect the black cord to the black (-) terminal. Speaker cord (supplied) Connect the white cord to the red (+) terminal.

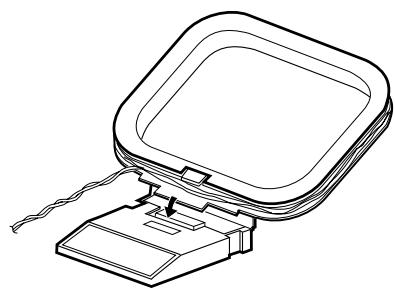

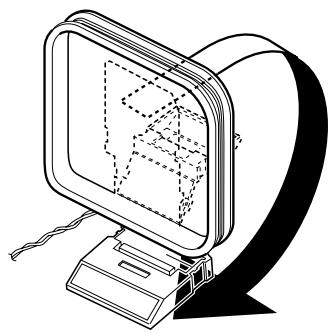

To assemble and connect the AM loop To connect the AM loop antenna antenna encens essessssesseseesesseseee. Make sure to connect the wire correctly. To assemble the AM loop antenna

DES Ifthe AM loop antenna wire or speaker cords are covered with vinyl, remove the vinyl to expose the tip of the antenna by twisting the vinyl. Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor reception. To connect the speaker cords RONDE LEELÉEES CNT EE CEE EE EEE [O] Make sure the both speakers are connected correctly and firmily. CO] When connecting the speaker cords, match the polarity of the speaker terminals. Red (+) terminal _: white cord of the speaker cord Black (-) terminal : black cord of the speaker cord + DO NOT connect more than one speaker to each terminal. #h + DO NOT allow the conductor ofthe speaker cords to be in touch with the metalli parts of the System.

Before Operating the System The indications on the display teach you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display. ‘Indications on the main display While listening to radio: While selecting USB While receiving Radio Band — Date System signal Source name Eu R USB AUDIO a1 88,38 MHz ë ON NECT Current status Frequency Preset station number While playing a CD: While selecting AUX: CD 81 AUX | gg: EE Track number Elapsed playing time While playing an MP3*: Current track number While selecting iPod: Source name

NPS 1124 1 Pod LE ÉONAECT Elapsed playing time While selecting USB MEMORY (WMA*): Current track number Current status una T &3 à: 42 Data type Elapsed playing time While disc play is stopped: CD 16 61:20 Total track nbosr Total playing time MP3/WMA: «While in “TRACK" mode <While in “GROUP” mode: To group rumber LL 123) [nps 6 12 125

1° Main display 2 FM reception indicators + ST (stereo): Lights while an FM stereo station with sufficient signal strength is tuned in. + MONO: Lights while the FM monaural mode is activated. 3 Play mode indicators + PRGM (program): Lights when Program Play mode is activated. + RND: Lights when Random Play mode is activated. + D: Lights when Repeat mode is activated. — D : Repeats the current track. (in GROUP mode): Repeats all tracks in the current group. — ALL: Repeats all tracks on the disc. AHB PRO (Active Hyper Bass Pro) indica- tor + Lights when the AHB PRO is activated (see ®& page 20). D) Radio Data System indicators + TA (Traffic Announcement): Lights when the Radio Data System mode (TA) is activated. + News: Lights when the Radio Data System mode (News) is activated. + Info: Lights when the Radio Data System mode (Info) is activated. A (auto). STANDBY indicator + Lights when Auto Standby is activated. + Flashes when disc playback stops with Auto Standby activated. Timer indicators + SLEEP: Lights when the SleepTimer is acti- vated. + @: Lights when Daily Timer stands by: flashes while working. + STANDBY/G): Flashes slowly when the timer is ON. Indications on the main unit Total track number Total track number

• When you start playing an MP3/WMA source, the group number, track number, track name, (and ID3 Tag for MP3) will be shown before the elapsed playing time appears.

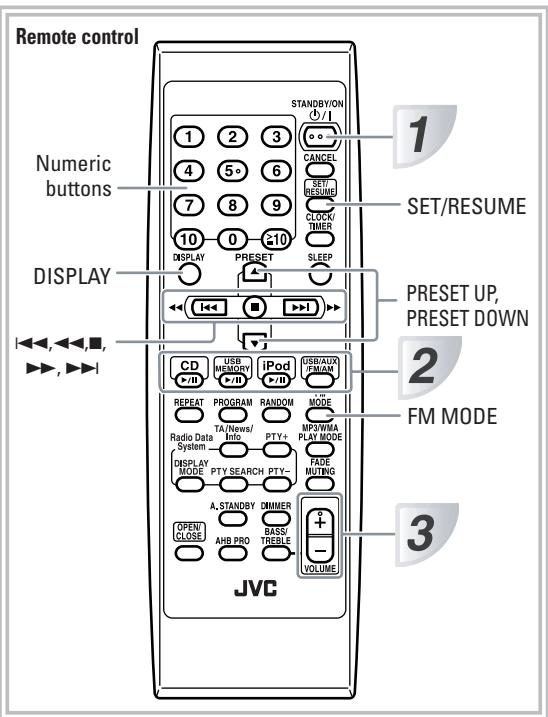

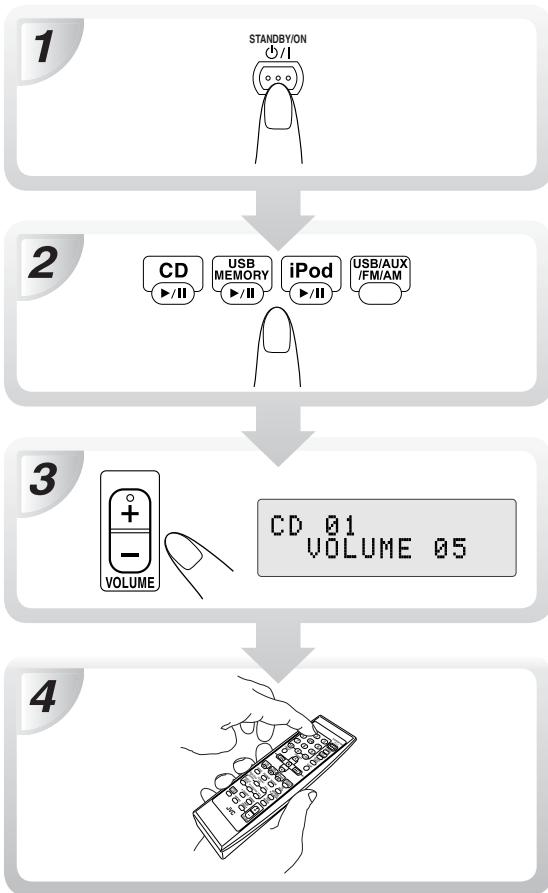

Daily Operations Remote control Numeric buttons SET/RESUME DISPLAY PRESET UP, PRESET DOWN > [2 Dr MT. FM MODE ETS Me pre res 1 "en" (CD ) bis [iPod (AU MoichAcoRe) — Playback — 1° Turn on the power. The STANDBY lamp on the main unit turns off. + Without pressing STANDBY/ONO/1, the System turns on by pressing one of the source selecting buttons in the next step. 2° Select the source. Playback automatically starts if the se- lected source is ready to start. + If you press USB MEMORY, iPod or USB/AUX/FM/AM, start playback source on the external component. 3” Adjust the volume. 4” Operate the target source as explained later. To turn off (stand by) the System sex The STANDBY lamp on the main L2 (Go) it lights up. TV + A small amount of power is al- ways consumed even while on standby. + The STANDBY lamp blinks slowly when the timer is on. For private listening Connect a pair of headphones to the PHONES jack on the main unit, The sound will no longer come out of the speakers. Be sure to turn down the volume before connecting or putting the headphones. + Disconnecting the headphones will activate the speakers again. DO NOT turn off (stand by] the System with the volume set to an extremely high level: otherwise, the sudden blast of sound can damage your hearing, speakers and/or

headphones when you turn on the System or start playback.

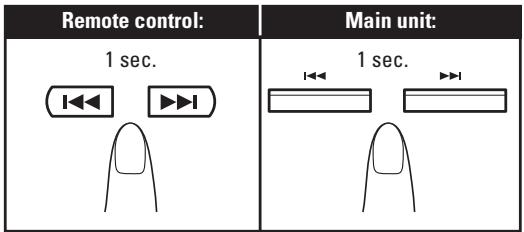

= = I the received FM station is hard to listen &@.> To display the clock indication 4 ” While the System is turned on... DISPLAY CD G2 iF:52 [> Mono STEREO MONO: Reception will improve though stereo effect is lost. MONO indicator lights up. STEREO: Normally select this. Stereo effect will be resumed. + Press the button again, to return to the source information. Listening to the Radio To restore the stereo effect, press the button To select the band (FM or AM) again (the MONO indicator goes off). To preset the stations 4» You can preset 30 FM and 15 AM stations. 17 Tune in to a station you want to preset. ® (Es USB AUDIO <— aux = 2” Activate the preset number entry mode. & : : SET To tune in to a station While FM or AM is selected... Remote control: Main unit: 1sec. Isec. + Finish the following process while the indica- tion on the display is flashing. 3° Select a preset number for the station — — you store. Examples: To select preset number 5, press 5. To select preset number 15, press 210 > 1 5. To select preset number 20, Frequency starts changing on the display. When a station (frequency) with sufficient signal strength is tuned in, the frequency stops changing. + When you repeatedly press the button, the press 210 > 2 > 0. frequency changes step by step. To stop searching manually, press either button. la] 4 Store the station.

To tune in to a preset station #7» 17 Select a band (FM or AM). FM —> AM Css aunro <— aux = 2° Select a preset number for the station you store. A/Y. + You can also use the PRESET Playable media and files This system can playback following types of media and files. Media Audio CD, CD-R/RW, USB mass storage class device File format | MP3, WMA Audio CD CD-R CD-RW +_ This System may not playback some USB mass storage class devices and does not support DRM (Digital Rights Management). «This system may not playback some files even though their formats are listed above. +_ Caution for DualDisc playback The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side ot a DualDisc on this product may not be recommended.

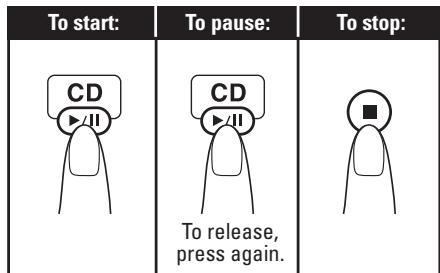

Playing Back a Disc This System can playback the following discs— regular CD and CD-R/CD-RW (recorded either in the audio CD, MP3, or WMA format). To set a disc You can set a disc while playing another source. Press the OPEN/CLOSE button. Main unit: Remote control: OPEN/GLOSE Gently press the disc ®& until it snaps into place. 7 To close the disc cover, press the OPEN/CLOSE button again. + When the cover is open, pressing CDe1u closes the cover and the playback starts. To start: To pause: To stop:

• For details about the group selection, see “For MPS/WMA playback” on page 14.

CO] To locate a particular portion While playing a disc, press and hold until the portion you want is reached. Fast-reverses the track. >» Fast-forwards the track. To locate a track directly and startplay Examples: To select track number 5, press 5. To select track number 15, press 210 > 1 5. To select track number 20, press 210 > 2 > 0. ra To select track number 125

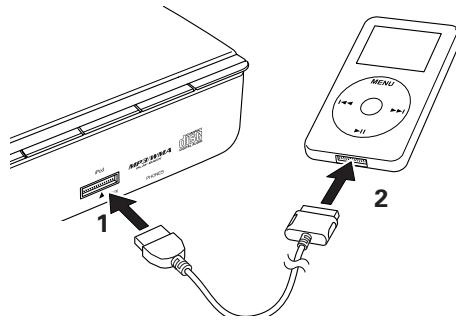

{for MP3/WMA only), press 210-126. Pla, back from iPod This system is equipped with an iPod® terminal on the front panel. You can connect your iPod to this terminal and enjoy the sound from your iPod. + Remember you cannot send any data to your iPod from this system. The iPod battery is charged while the System is turned on. See the iPod instruction manual about battery charging. you connect an iPod to the iPod terminal and a USB mass storage class device to the USB MEMORY terminal at the same time, the system might be overloaded. Sound distortion may oceur when playing back audio sources with high recording levels. Adjusting the iPod's equalizer to “flat” is recommended. For information on operating the iPod, see the iPod instruction manual. JVC is not responsible for any loss of or damage to iPod that might result from the use of this product. When you connect your iPod to the cable, make sure it connects all the way in. Do not cany the System with iPod connected. You might drop it down or it might cause damages to the connector part.

+ Do not touch or hitthe iPod terminal pins or the connecter pins directly. It might cause damages to the connector part. Remove the iPod from the cable when you do not use. Compatible iPod types: iPod nano 1G/2G/4G iPod mini iPod (4th Generation) 20G/40G iPod photo (4th Generation) 20G/30G/40G/60G iPod video (5th Generation) 30G/60G I the iPod does not play correctiy, please update your iPod Software to the latest version. - For details about updating your iPod, check on the Apple web site <htip:/www.apple.com>. iPod is a trademark of Apple Computer, Inc, registered inthe U.S. and other countries. To Connect iPod & Connect the iPod to the System using the supplied cable. Make sure the System is turned off when you connect it. Connect the arrow of iPod terminal and the arrow of the connector facing each other. You can place the iPod on the supplied iPod stand.

When disconnecting the iPod, make sure that the System is turned off. To remove the connector from your iPod, squeeze the buttons on the sides and pull. To pause: iPod) To select a track Decrease the track numbers 144 DD }— Increase the track numbers Search... Press and hold -@-<« or mp1. OFF... Press and hold »/1 | Playing Back from the USB mass stor. age class device This System is equipped with a USB MEMORY terminal on the front panel. You can connect a USB mass storage class device such as a USB flash memory device, Digital Audio Player (DAP), etc. to this System.This System cannot recognize a USB mass storage class device whose rating exceeds 5V/500mA. + Remember you cannot send any data to your USB mass storage class device from this System.

Always set volume to “VOLUME MIN” when connecting or disconnecting the other equipment. Connectthe USB mass stotrage class device directly to the system. Using a USB hub may result n malfunction. Coded or encrypted tracks in a special method cannot be played on the un The USB mass storage device's battery is charged while the System is turned on.

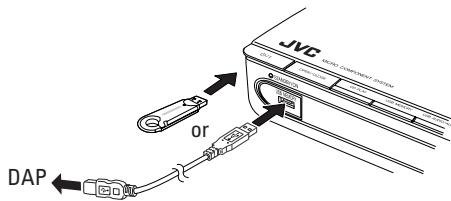

To connect the USB mass storage class device When connecting a USB mass storage class device, refer also to its manual. DAP + When disconnecting the USB mass storage & class device, make sure that the System is in d the stop condition. To playback sounds on the USB mass storage class device > IMPORTANT + An iPod does not play on the USB MEMORY terminal. “RESTRICT” appears on the display when an iPod is connected to the USB MEMORY terminal while USB MEMORY is selected for the source. + The USB MEMORY lamp on the left of the USB MEMORY terminal flashes while USB MEMORY is selected for the source.

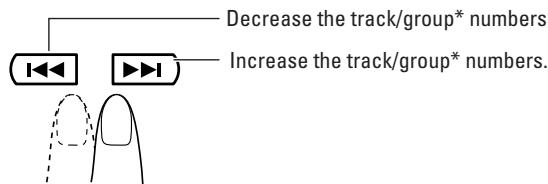

CO] To select a track/group* D Decrease the track/group* numbers. 144 PI )— Increase the track/group” numbers.

• For details about the group selection, see “For MPSWMA playback” on this page.

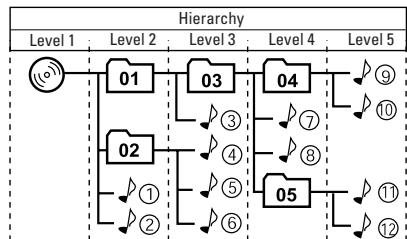

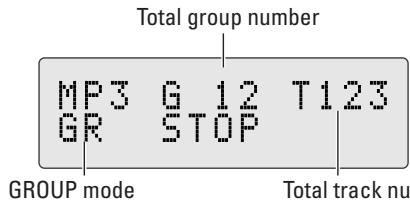

For MP3/WMA playback According to the MP3/WMA playback mode, 4 / »»1 or number buttons work for the group selection or the track selection. Examples: When the MP3 play back mode is “GROUP: Total group number GROUP mode Total track number You can change the MP3/WMA MP3/WMA playback mode by pressing MP3/ PLAY MODE WMA PLAY MODE. + Each time you press the button, the MPS/WMA playback mode changes as follows:

GROUP MODE TRACK: @4/»»1, and number buttons work for the track selection of the MP3/WMA. GROUP: 44 /»»1, and number buttons work for the group selection ofthe MP3/WMA. MP3/WMA groups/tracks configuration This System plays back MP3WMA tracks as follows. The play order in the figure is for MP3WMA tracks on the disc. MP3/WMA tracks on USB mass storage class device may be played back differentiy. Hierarchy, Tvelt Level; levels Level | levels Group uith its play order 20 MP3WMAtrack with its play order

Resume Play for MP3/WMA If you press m while playing MP3/WMA, the number of the track where you have stopped playback will be memorized by the unit. By pressing CD »/Mt or USB MEMORY »/1, you can start playback again from the beginning of the same track. To activate/cancel resume play #7.)

+ Pressing OPEN/CLOSE (for Disc), or disconnecting the USB mass storage class device will erase the track number for resume play. To play back from the first track while resume play is activated, press m twice during playback. Playing Back from the PC This System is equipped with a USB terminal on the rear panel. You can connect your PC to this terminal and enjoy the sound out of your PC. When you connect your PC for the first time, follow the procedure below. + Remember you cannot send any signal or data to your PC from this System. PORTANT + Always set volume to “VOLUME MIN” when connecting or disconnecting the other equipment. " How to install the USB drivers : 1 Turmon your PC and start running Win- dows® 98, Windows® 98SE, Windows® Me, Windows® 2000, or Windows® XP. + Ifthe PC has been turned on, quit all the ap- plications running.

2° Select USB AUDIO for the source. FM —> AM USB AUDIO <— aux <= 3° Connect the System to the PC using a USB cable (not supplied). + Use “USB series À plug to B plug” cable. 4° The USB drivers are installed automati- cally. To play back sounds on the PC . Refer to the manuals supplied with the sound

eproducing application installed in the PC.

• Microsoft”, Windows® 98, Windows® 98SE, Windows® Me, Windows” 2000 and Windows® XP are registered trademarks of Microsoft corporation. DO NOT turn off the unit or disconnect the USB cable while installing the drivers and for several seconds while your PC is recognizing the receiver. Use a full speed USB cable (version 1.1). Recommended cord length is shorter than approximately 2 m. If your PC does not recognize the unit, disconnect the USB cable and connect it again. If it does not work yet, restart Windows. The installed drivers can be recognized only when the USB cable is connected between the unit and your PC. The sound may not be played back correctly— interrupted or degraded—due to your PC settings and PC specifications.

CO] Playing Back from Other Equipment To connect other equipment By using a stereo mini plug cord (not supplied), you can connect other equipment with analog audio output jacks, such as Digital Audio Player, aTV, etc. Stereo mini plug cord (not supplied) > Portable audio device, Game machine, etc. AUX (front panel) H the audio output on the other equipment is not stereo mini plug type, Use a plug adapter to convert the stereo mini plug to the corresponding plug to the audio output. + Refer to the manuals supplied with the other equipment. S IMPORTANT + Always set volume to “VOLUME MIN” when connecting or disconnecting the other equipment. To select other equipment for the source FM —> AM Css aunio <— aux =] To adjust the sound input level from other equipment You can adjust the sound input level from the connected equipment, if the incoming signal is too small or too large. 1 Select AUX for the source.

2° Adjust the input level. 2 sec. LEVEL 1 LEVEL2 LEVEL 1: Decreased input level. Suitable for equipment with high output level (such as a DVD player). LEVEL 2: Ordinary input level (factory setting). Suitable for equipment with low output level (such as a portable audio device). Receiving FM Stations with Radio Data System Radio Data System allows FM stations to send additional signals with their regular program & signals. For example, the stations send their d station names, and information about what type of program they broadcast, such as sports or music, etc. This unit can receive the following types of Radio Data System signals: PS (Program Service): shows commonly known station names. PTY (Program Type): shows types of broadcast program. RT (Radio Text}: shows text messages the station sends. To show Radio Data System signals on the display Select an FM station with Radio Data System signals. If a station contains the signals, “PS” and “R” appear on the display. DISPLAY MODE

LT “Sraion Frequency

PS (Program Service): The station name appears. “NO PS” appears if no signal is sent. PTY (Program Type): The broadcast program type appears. “NO PTY” appears if no signal is sent. RT (Radio Text): The text message sent by the station appears. “NO RT appears if no signal is sent. Station Frequency: The frequency of the selected station appears on the display. + If searching finishes at once, “PS”, “PTY’ and “AT will not appear on the display. + If you press DISPLAY MODE while listening to an AM (MW) station, the display only shows station frequency. To search for a program by the PTY codes One of the advantages of the Radio Data System service is that you can locate a particular kind of program by specifying the PTY codes. Q To search for a program using PTY codes: 1 While listening to an FM station, activate PTY search. PTY SEARCH © On characters displayed When the display shows PS, PTY or RT text, the display cannot show accented letters; For example, “A” may represent accented “As” like “À, À, À, À, À and À’.

2° Select a desired PTY code while “SE- LECT PTY’ is blinking. PTY+ \

PTY— [eæ) © à Each time you press the button, the display shows a PTY category in the following order:

3” Start searching while the selected PTY code is blinking. PTY SEARCH While searching, “SELECT PTY” and the selected PTY code (ex. NEWS) alternately appear on the display. The receiver searches 30 preset FM stations, stops when it finds the one you have selected, and tunes in to that station. + lfno program is found, “NOT FOUND" appears on the display. + To stop searching any time during search, press PTY SEARCH. To continue searching after it stops on an unwanted station While the indications on the display are flashing, press PTY SEARCH again. (@) Descriptions of the PTY Codes NEWS: News AFFAIRS: Topical programs expanding on the current news or affairs INFO: Programs on medical service, weather forecasts, etc. SPORT: Sports events EDUCATE: Educational programs DRAMA: Radio plays CULTURE: _ Programs on national or regional culture SCIENCE: Programs on natural sciences and technology VARIED: Other programs like comedies or ceremonies POP M: Pop music ROCK M: Rock music EASY M: Middie-of-the road music (usually called “easy listening’) LIGHT M: Light music CLASSICS: Classical music OTHER M: Other music WEATHER: Weather information

FINANCE: Reports on commerce, trading, the Stock Market, etc. CHILDREN: Entertainment programs for children SOCIAL: Programs on social activities RELIGION: _ Programs dealing with any aspect of belief or faith, or the nature of existence or ethics PHONE IN: _ Programs where people can express their views either by phone or in a public form TRAVEL: Programs about travel destinations, package tours, and travel ideas and opportunities LEISURE: Programs concerned with recreational activities such as gardening, cooking, fishing, etc. JAZZ: Jazz music COUNTRY: Country music NATION M: Current popular music from another nation region, in that country language OLDIES: Classic pop music FOLK M: Folk music DOCUMENT: Programs dealing with factual matters, presented in an n investigative style ® TEST: Broadcasts for testing emergency broadcast equipment or unit ALARM: Emergency announcement NONE: No program type, undefined program, or difficult to categorize into particular types To temporarily switch to a broadcast program of your choice (Enhanced Other Networks) Another convenient feature of Radio Data System is to switch automatically from the current station to the type of program you have selected (TA, NEWS or INFO). When the program is finished, the unit automatically returns to the previous station. This function is called the Enhanced Other Networks. + The Enhanced Other Networks function is only applicable to the preset stations. See page 10. +_lfan FM station does not broadcast Enhanced Other Networks information, the Enhanced Other Networks function cannot be activated.

Q To select a program type While listening to an FM station, activate the Enhanced Other Networks function. TA/News/ Info

C7 oré(Frequency <— — TA: Traffic Announcement NEWS: News INFO: Programs on medical service, weather forecast, etc. OFF (Frequency): Radio Data System mode off + The Radio Data System indicator on the display (TA, News or Info) turns on and the unit enters the Enhanced Other Networks standby mode. Q How Enhanced Other Networks works H no station is broadcasting the type of program you have selected: + The unit continues to receive the current station. When the selected type of program starts on a different station, the unit automatically switches to the station and the indicator on the display starts blinking. When the program is finished, the unit returns to the previous station and the indicator on the display turns on (standby mode). H there is a station broadcasting the type of program you have selected: + The unit switches to the station and the indicator on the display starts blinking. When the program is finished, the unit returns to the previous station and the indicator on the display turns on (standby mode).

(@) To cancel Enhanced Other Networks Press TA/News/Info to select “OFF (Frequency). The Enhanced Other Networks standby mode remains activated if you change the source to CD, USB MEMORY or USB/AUX. If you select AM for the source, the Enhanced Other Networks standby mode is disabled temporarily. While listening to a program tuned in with Enhanced Other Networks function, the program frequency is locked. lf you try to change its frequency, “LOCK” appears on the display.

Jvc BASS/TREBLE Main unit H&@/»»i VOLUME +/- — Sound & Other Adjustments — Adjusting the Volume You can adjust the volume level from level 0 (VOLUME-MIN) to level 30 (VOLUME-MAX). Remote control: VOLUME VOLUME + © To drop the volume in a moment 4» FADE To restore the volume, press MUTNG again, or adjust the volume level. Adjusting the Sound #4» Q To reinforce the bass sound — AHB PRO Æ.) You can reinforce the bass sound to maintain rich, full bass at low volume. AHB PRO

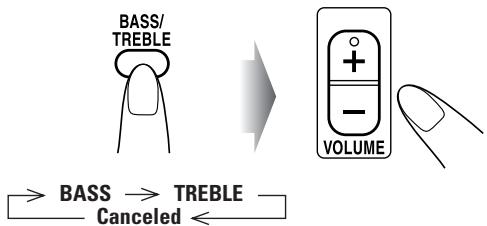

AHB PRO OFF (Canceled) 2 To adjust the tone — BASS/TREBLE #9») You can adjust the bass and treble level from 0 to +5/-5. © To adjust the bass BASS/

© To adjust the treble BASS/

Setting the Clock Æ®: Without setting the built-in clock, you cannot use the Daily Timer and sleep Timer (see page 26). + To exit from the clock setting, press CLOCK/ TIMER as required. + 70 go back to the previous step, press CANCEL. 17 Activate the clock setting mode. CLOCK/ TIMER CLOCK ADJUST

HT ÉG + If you have already adjusted the clock before, press the button repeatedly until the clock setting mode (see page 26) is selected. 2° Adjust the hour. RESUME

3° Adjust the minute. A: ) The built-in clock starts working. Q To check the current time during play DISPLAY CLOCK Source information pa Q ffthere is a power failure The clock loses its setting and blinks. You need to set the clock again.

Turning Off the Power Automatically

To turn off the System after playback is over — Auto Standby This function works only when the source is CD. A. STANDBY Êù ASTANDEY M Canceled <1 When Auto Standby is in use, the A.STANDBY indicator lights on the display. When the disc playback stops, the A.STANDBY indicator starts flashing. I no operation is done for about 3 minutes while the indicator is flashing, the System turns off {stands by) automatically.

To turn off the System after a certain period of time — Sleep Timer 17 Specify the time (in minutes). SLEP pt> 20 —> 30 —> 60 OFF <— 120 <— 90 2° Wait until the set time goes off. Q To check the time remaining before the shut-off time SLEEP

+ If you press the button repeatedly, you can change the shutoff time.

Advanced Disc/USB mass storage class device Operations Remote control 2° Select tracks you want for Program Play. For CD CD Î GR AP F Îl T A 1——Track number Numeric CANCEL program step buttons For MP3WMA Select the group first, then the track. 144 mm MP3 PECGRAN CD USB MEMORY F LG Gi T ÆAË-—Tracknumber on ra] PROGRAM se RL quoou | Pommier Gapmmer esse (Es D = Le Examples: ee = (@) To select track number 5, press 5. To select track number 15, ress 210 > 1-5.

ED) & À 3 Repeat steps 2 to program the other tracks. Programming the Playing Order — Pro- g PI > yng 4° Start playback. RUN ES Ce) You can arrange the playing order of the tracks CD CD {up to 32) before you start playback. or *_ You can repeat all the programmed tracks by pressing REPEAT. 17 Before starting playback, press PRO- The tracks you have selected are played back in GRAM. the order you have programmed. PROGRAM () CD PROGRAM ca & | ê For MP3/WMA ' or USB

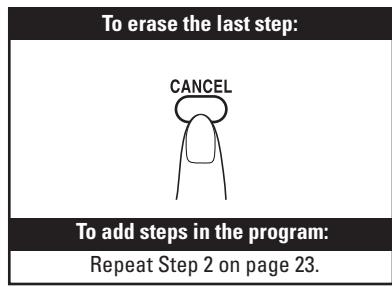

CO] To check the programmed contents While the PRGM indicator is shown on the display and before play back... p——— In the reverse order. 144] [ww )— inthe programmed order. To modify the program While the PRGM indicator is shown on the display and before play back... To erase the last step: CANCEL To add steps in the program: Repeat Step 2 on page 23. To exit from Program Play While the PRGM indicator is shown on the display... PROGRAM To erase the entire program While the PRGM indicator is shown on the display and before play back... Press stop button or open CD door. Playing at Random — Random Play

You can play back all the tracks on the disc and the USB mass storage class device at random. RANDOM Playback starts in random order. Random Play ends when all tracks are played. (CD) L Ly

(CD To release, press again.

+ Pressing #4 goes to the beginning of the current track. + You can repeat All tracks ( D AII) by pressing REPEAT. To exit from Random Play While the RND indicator is shown on the display... RANDOM

Playing Repeatedly — Repeat Play

You can repeat playback. REPEAT ER] Cr. 2— ?DALL Canceld (No indication) = cD Repeats the current MP3WMA |track. {Track mode) D |MP3WMA | Repeats all the tracks (Group mode) | in the current group {for MP3WMA playback mode in “GROUP” only). CD Repeats all the tracks.

Timer Operations Remote control STANDBY/ON CANCEL SET/RESUME CLOCK/ TIMER Hd / D» Setting th Using Daily Timer, you can wake up with music, etc. + To exit from the timer setting, press CLOCK/ TIMER repeatedly until the current status {normal operation) is displayed. To correct a misentry during the process, press CANCEL. You can return to the previous step.

How Daily Timer actually works Once the Daily Timer has been set, the timer indicator @) are lit on the display. DailyTimer is activated at the same time everyday until the timer is turned off manually (see the next column). Q When the on-time comes The System turns on, tunes in to the selected source, and sets the volume level to the preset level. + When selecting “FM (AM) --" the last tuned station will be selected for Daily Timer. + While Daily Timer is working, the timer indicator @) flashes on the display. + The timer setting remains in memory until you change it. + Without canceling the Daily Timer, you can change the source or adjust the volume after Daily Timer starts playback. 17 Select the timer setting. Current timer settings —> Timer setting Canceled (normal display) <— Clock setting (see page 21) TIM &

2° Make the timer setting as you want. © Set the hour then the minute for on-time. @ Set the hour then the minute for off-time in the same manner. ® Select the playback source —"TUNER FM,” “TUNER AM," “CD,” ‘USB MEMORY,” “AUX” or “Pod”. C«<] En)

When selecting tuner: Select a preset number or “FM (AM) ——" by pressing #4 / »pi then press SET/RESUME. When you want to listen to sound from other equipment, you cannot use the Daily timer function to start playback on any equipment other than this product.

© Set the volume. + “SET OK” appears on the display fol- lowed by the timer settings you have entered. Turn off the System (on standby) i 3 ff the S) f you have set the timer with the System turned on. STANDBVION o/1

Display is turned off. The STANDBY lamp blinks slowly until the setting time comes. CO]

To turn off the Timer after its setting is done Since Daily Timer is activated at the same time everyday, you may need to cancel it on some particular days. 17 Select the Timer setting. CLOCK/ TIMER Current timer settings —> Timer Setting age a] Coancoted {normal display) <-Clock setting (see p: 2° Turn off the Timer. CANCEL

The timer indicator © turns off on the display and DailyTimer is canceled. To turn on the Timer again, select “Current timer settings” in step 1 and press SET/RESUME.

Additional Information Learning More about This System Daily Operations—Playback (see pages 9 to 19) Listening to the Radio: + If you store a new station into an occupied preset number, the previously stored station in that number will be erased. + When you unplug the AC power cord or if a power failure occurs, the preset stations will be erased in a few days. fthis happens, preset the stations again. Playing Back a Disc/USB mass storage class device: + This System cannot play “packet write” discs. + For MP3/WMA playback... — MP3/WMA discs are required a longer readout time than regular CDs. (It depends on the complexity of the group/file configuration.) Some MP3/WMA files cannot be played back and will be skipped. This result from their recording processes and conditions. When making MP3/WMA discs, use ISO 9660 Level 1 for the disc format. — This System can play back MP3/WMA files with the extension code <.mp3> or <wma> (regardless of the letter case—upper/lower). — Some characters or symbols will not be shown correctly on the display. The maximum character number shown on the display is 32 (without the extension code) for files, and 30 for ID3 tag. Ît is recommended that you make each MP3 file at a sampling rate of 44.1 kHz and at a bit rate of 128 kbps. Similarly each WMA file at a sampling rate of 44.1 kHz and at a bit rate of 96 kbps. This System can recognize the total of 999 tracks and of 500 groups. Those exceeding the maximum number cannot be recognized. Playback order of MP3/WMA tracks may be different from the one you have intended while recording. If a folder does not include MP3/WMA tracks, they are ignored. Receiving FM stations with Radio Data System: + Ifan“Alarm (Emergency) signal is received from a station while listening to the FM station with Radio Data System, the system automatically switches to the station broadcasting the “Alarm l” signal, except when you are listening to non-Radio Data System stations (all AM and some FM stations). Daily Operations — Sound & Other Adjustments (see pages 20 to 22) Adjusting the Volume: + Be sure to turn down the volume before connecting or putting the headphones. Adjusting the Sound: + This function also affects the sound through the headphones. Setting the Clock: + The clock blinks on the display until you set the clock. + The clock may gain or lose 1 to 2 minutes per month. If this happens, reset the clock. Advanced Disc/USB mass storage class device Operations (see pages 23 to 25) Programming the Playing Order — Program Play: + If you try to program a 32nd track, “FULL MEMORY" appears on the display. While programming steps... Your entry will be ignored if you have tried to program an item number that does not exist & on the disc (for example, selecting track 14 on d a disc that only has 12 tracks).

Timer Operations (see pages 26 to 27) + When you unplug the AC power cord or if a power failure occurs, the timer settings you entered will remain only a couple of days. If the timer settings are erased, you need to set the clock first, then the timer again. If you activate Sleep Timer, Daily Timer, and Auto Standby simultaneously, the function that is set for the earliest time will be performed. The on-time and off-time of the Daily Timer cannot be set to the same time.

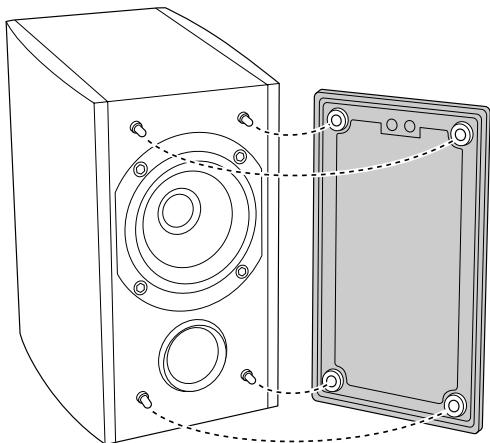

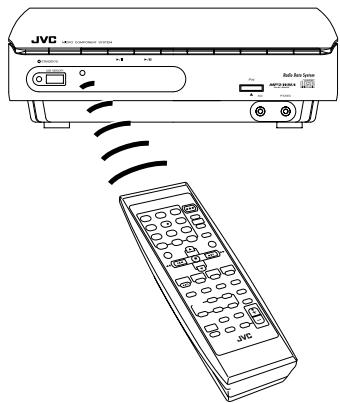

To remove the speaker grilles Troubleshooting If you are having a problem with your System, check this list for a possible solution before calling for service. Q General: Adjustments or settings are suddenly canceled before you finish. S There is a time limit. Repeat the procedure again. Operations are disabled. The built-in microprocessor may malfunction due to external electrical interference. Unplug the AC power cord and then plug it back in. Unable to operate the System from the remote control. < The path between the remote control and the remote sensor on the System is blocked. © Point it at the remote sensor on the font panel. S Signals cannot reach the remote sensor. More closer to the System. < The batteries are exhausted.

No sound is heard from the speakers. Speaker connections are incorrect or loose (see page 7). + Headphones are connected (see page 9). Sound from PC connected with a USB cable has some noise. (See page 15) PC is subjected to excessive load due to using other applications. Close the applications you do not use. + PC is connected via USB Hub. Connect the PC directly to the main unit with a USB cable. Radio Operations: Hard to listen to broadcasts because of noise (see pages 4 to 7). Antennas connections are incorrect or loose. The AM loop antenna is too close to the System. The FM antenna is not properly extended and positioned. Disc/iPod/USB mass storage class device Operations: The disc does not play. S The disc is placed upside down. Place the disc with the label side up. MP3/WMA tracks do not play. S Track names have the initial letter “”. The disc sound is discontinuous. S The disc is scratched or dirty. The disc cover does not open or close. The AC power cord is not plugged in. The iPod doesn't playback although the display indicates CONNECT. < The battery is empty. Let stand for more than approximately ten minutes on the connecting condition. Timer Operations: Daily Timer does not work. The System has been turned on when the on- time comes. Timer starts working only when the System is turned off. < There might have been a power failure. Set the clock first, then the timer again.

Maintenance To get the best performance of the System, keep your discs, and mechanism clean. Handling discs + When removing the disc from its case, hold it at the edge while pressing the center hole lightly. Do not touch the shiny surface of the disc, or bend the disc. + Putthe disc back in its case after use to prevent warping. + Be careful not to scratch the surface of the disc. Avoid exposure to direct sunlight, temperature extremes, and moisture. Q To clean the disc: Wipe the disc with a soft cloth in a straight line from center to edge. Cleaning the System + Stains should be wiped off with a soft cloth. If the System is heavily stained, wipe it with a cloth soaked in water-diluted neutral detergent and wrung well, then wipe clean with a dry cloth. Since the System may deteriorate in quality, it become damaged or get its paint peeled o be careful about the following: - DO NOT wipe it with a hard cloth. - DO NOT wipe it strongly. - DO NOT wipe it with thinner or benzine. - DO NOT apply any volatile substance such as insecticides to it. - DO NOT allow any rubber or plastic to remain in contact for a long time.

Specifications Amplifier Output Power Terminals 5W per channel, min. RMS, driven into 60 at 1kHz, with no more than 10% total harmonic distortion (IEC268-3) Input Sensitivity/Impedance (1 kHz) AUX IN USB Audio USB Host Compatible device Compatible file system Bus power supply Compatible iPod types Bus power supply Speaker terminals Phones CD Player Dynamic Range Signal-To-Noise Ratio Wow And Flutter Tuner FMTuner Tuning Range AM Tuner Tuning Range Unit Dimensions Mass LEVEL1 500 mV/47 kQ LEVEL2 125 mV/47 kO ver. 1.1 ver. 1.1 Mass Storage Class FAT16, FAT32 Max. 5V/500 mA See Page 12 Max. 5V/500 mA 6Q-16Q 32Q-1kQ 15 mW/ch output into

85 dB 85 dB Unmeasurable

135 Hz - 18 kHz 83 dB/W+m 118 mm x 197 mm x 165 mm (W/H/D) Approx. 1.3 kg See page 4 AC 230 V 50 Hz 35 W (power on mode) 1.5W (in Standby mode) Design and specifications are subject to change without notice.
