USER MANUAL RX-5050B JVC

Line drawing of a JVC audio workstation front and right (no text or symbols on device body)

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.

ATTENTION

Disconnect the mains plug to shut the power off completely. The STANDBY/ON ⏻/1 button in any position does not disconnect the mains line. The power can be remote controlled.

Attention—Commutateur STANDBY/ON ⏻/!!

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

For Canada/pour le Canada

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND.

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED "DIGITAL APPARATUS," ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.

CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR; "APPAREILS NUMERIQUES", NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

Parts Identification 2

Getting Started.... 4

Before Installation 4

Checking the Supplied Accessories 4

Putting Batteries in the Remote Control 4

Connecting the FM and AM Antennas 4

Connecting the Speakers and Subwoofer 5

Connecting Audio/Video Components 6

■ Analog Connections ...... 6

■ Digital Connections 8

Connecting the Power Cord 8

Basic Operations 9

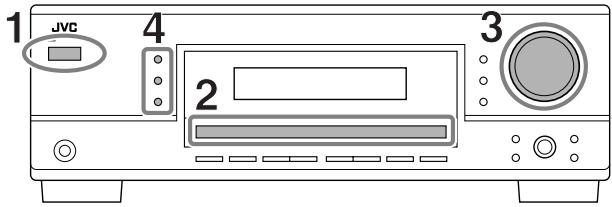

Daily Operational Procedure 9

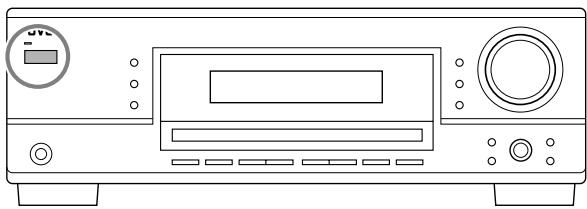

Turning On the Power 9

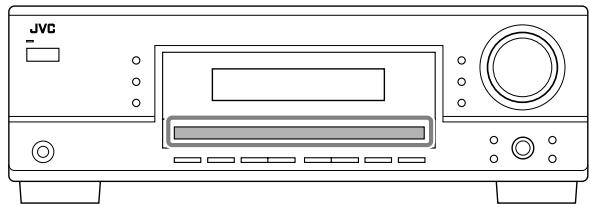

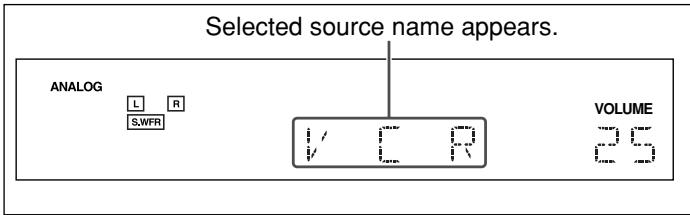

Selecting the Source to Play 9

Adjusting the Volume ...... 10

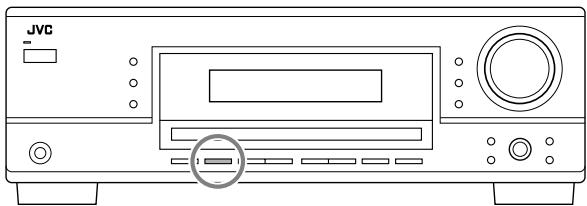

Turning On and Off the Subwoofer Sound 11

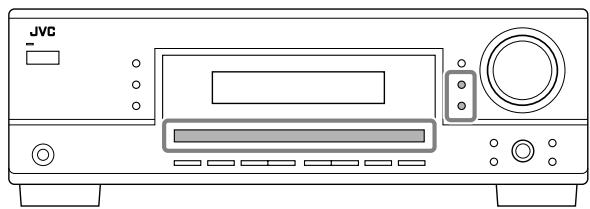

Selecting the Analog or Digital Input Mode .... 11

Changing the Display Brightness 12

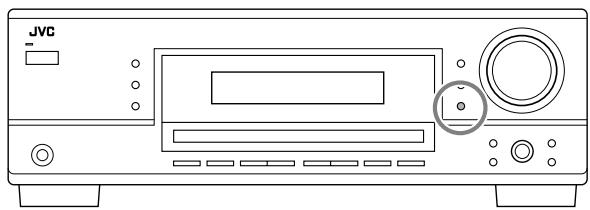

Attenuating the Input Signal 12

Changing the Source Name 12

Muting the Sound 13

Using the Sleep Timer 13

Receiving Radio Broadcasts 14

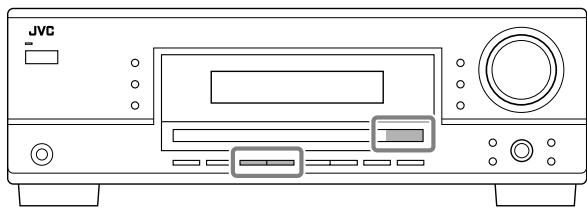

Tuning in to Stations Manually 14

Using Preset Tuning 14

Selecting the FM Reception Mode 15

Basic Settings.... 16

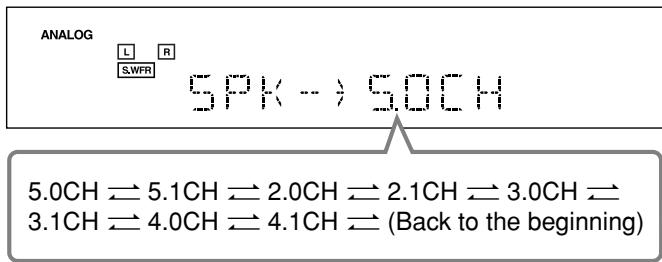

Quick Speaker Setup 16

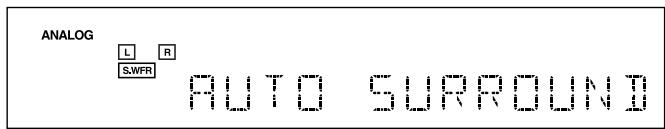

Basic Setting Items 17

Basic Procedure ...... 17

■ Setting the Speakers .... 18

■ Setting the Speaker Distance .... 18

■ Setting the Bass Sounds .... 18

■ Selecting the Main or Sub Channel 19

■ Setting for Easy and Effective Surround Operations ...... 20

■ Setting the Digital Input Terminals ...... 20

Adjusting Sound 21

Basic Adjustment Items.... 21

Basic Procedure 21

■ Adjusting the Equalization Patterns ...... 22

■ Adjusting the Speaker Output Levels 22

■ Adjusting the Sound Parameters for the Surround and DSP Modes .... 22

Using the Surround Modes 23

Reproducing Theater Ambience 23

Introducing the Surround Modes ...... 23

Activating the Surround Modes ...... 25

Using the DSP Modes 26

Reproducing the Sound Field 26

Introducing the DSP Modes 26

Activating the DSP Modes 27

Operating JVC's Audio/Video Components ... 28

Operating Audio Components 28

Operating Video Components 29

Operating Other Manufacturers' Video Equipment 30

Troubleshooting 32

Specifications.... 33

This mark indicates that ONLY the remote control CAN be used for the operation explained.

This mark indicates that the remote control CANNOT be used for the operation explained. Use the buttons and controls on the front panel.

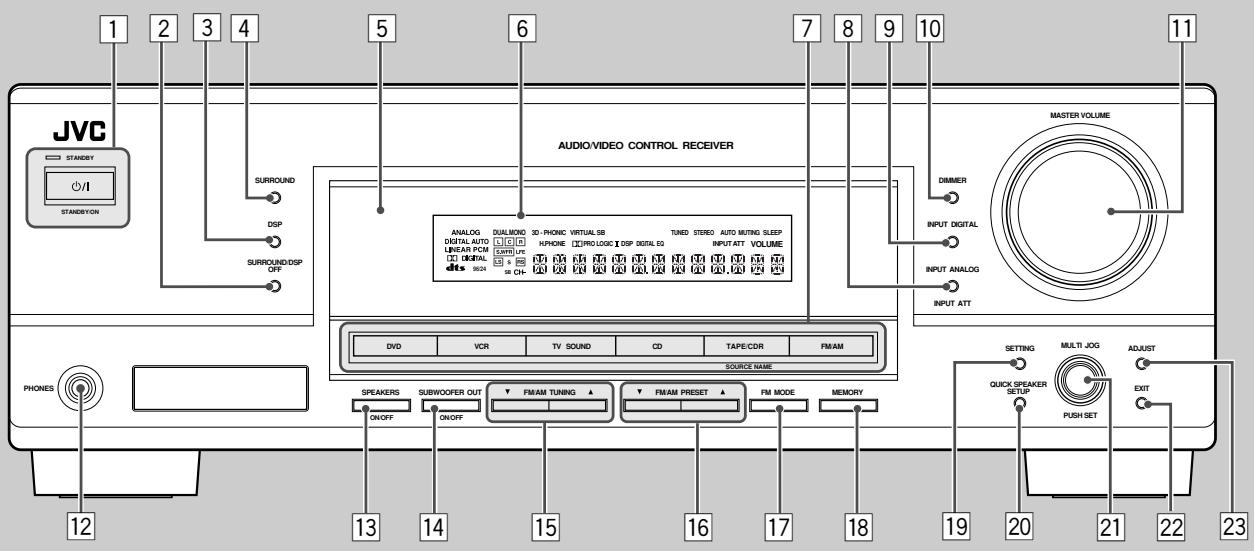

Front Panel

JVC STANDSY I/ STANDSYON 1 2 3 4 5 6 7 8 9 10 11 SURROUND DSP SURROUND/DSP OFF AUDIO/VIDEO CONTROL RECEIVER ANALOG DUALMOND 3D-PHOMIC VIRTUAL SB TUNED STEREO AUTO MUTING SLEEP DIGITAL AUTO HUPHONE PROLOGIC DISP DIGITAL G INPUT ATT VOLUME LINEAR PCM LATH FV DIGITAL S S dits 2024 CH MASTER VOLUME DIMMER INPUT DIGITAL INPUT ANALOG INPUT ATT DVD VCR TV SOUND CD TAPE/CDR FMAM SOURCE NAME SPEAKERS SUBWOOFER OUT FMAM TUNING ▲ FMAM PRESET ▲ FM MODE MEMORY ON/OFF ON/OFF 12 13 14 15 16 17 18 19 20 21 22 23 QUICK SPEAKER SETUP PUSH SET ADJUST EXIT

See pages in parentheses for details.

1 STANDBY/ON ⏻/I button and STANDBY lamp (9)
2 SURROUND/DSP OFF button (25, 27)
3 DSP button (26, 27)
4 SURROUND button (25)
5 Remote sensor
6 Display (For details, see “Display” below.)

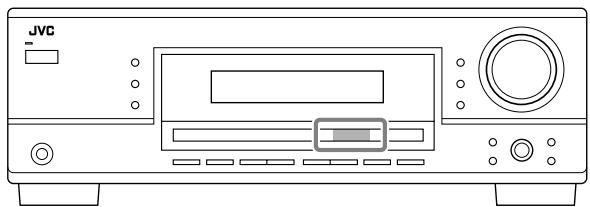

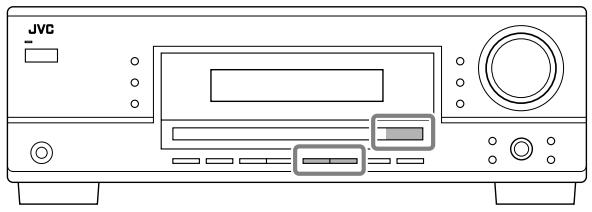

7 Source selection buttons (9, 12) DVD, VCR, TV SOUND, CD, TAPE/CDR (SOURCE NAME), FM/AM
8 INPUT ANALOG button (12) INPUT ATT button (12)
9 INPUT DIGITAL button (11)

10 DIMMER button (12)

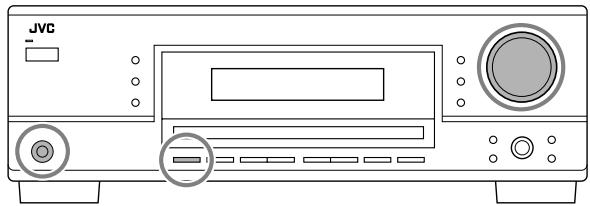

11 MASTER VOLUME control (10)

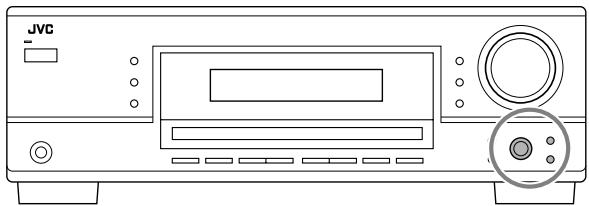

12 PHONES jack (11)
13 SPEAKERS ON/OFF button (11)
14 SUBWOOFER OUT ON/OFF button (11)

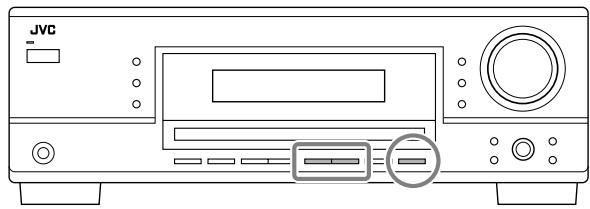

15 FM/AM TUNING ▲/▼ buttons (14)
16 FM/AM PRESET ▲/▼ buttons (14)

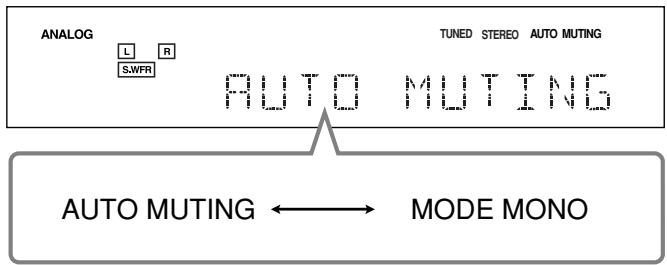

17 FM MODE button (15)
18 MEMORY button (14)
19 SETTING button (17)

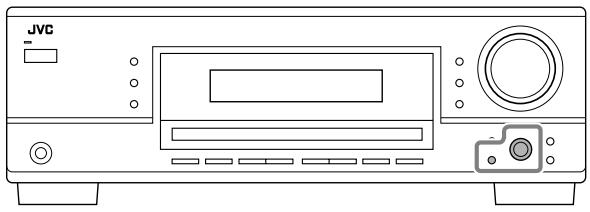

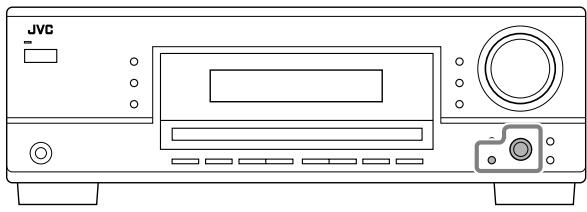

20 QUICK SPEAKER SETUP button (16)
21 MULTI JOG (PUSH SET) dial (16, 17, 21)
22 EXIT button (17, 21)
23 ADJUST button (21)

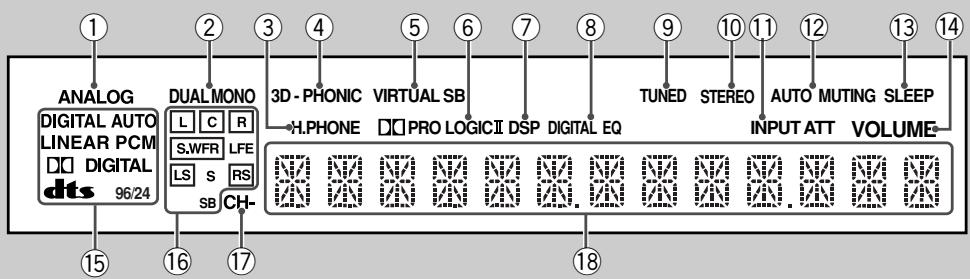

Display

ANALOG DIGITAL AUTO LINEAR PCM DIGITAL dts 96/24 DUAL MONO L C R S.WFR LFE LS S RS SB CH- 3D - PHONIC VIRTUAL SB H. PHONE PRO LOGIC II DSP DIGITAL EQ TUNED STEREO AUTO MUTING SLEEP INPUT ATT VOLUME- VOLUME-

See pages in parentheses for details.

① ANALOG indicator (12)
② DUAL MONO indicator (24)
③ H.PHONE indicator (11, 24, 26)
④ 3D-PHONIC indicator (24, 26, 27)

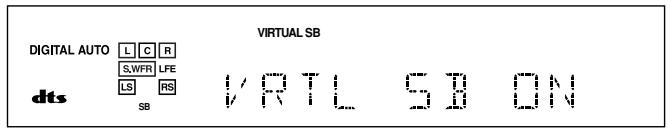

⑤ VIRTUAL SB indicator (20)
⑥ PRO LOGIC II indicator (23, 26)

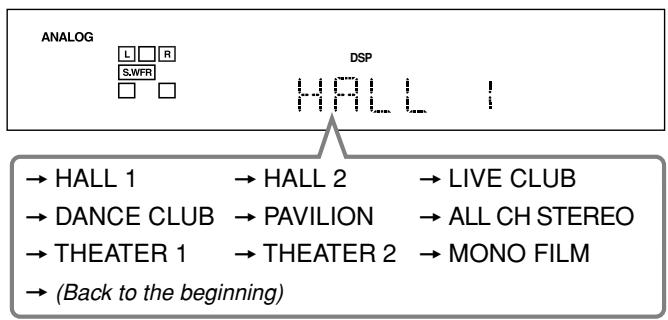

⑦ DSP indicator (26, 27)
⑧ DIGITAL EQ indicator (22)
⑨ TUNED indicator (14)

⑩ STEREO indicator (14)
⑪ INPUT ATT indicator (12)
⑫ AUTO MUTING indicator (15)
⑬ SLEEP indicator (13)
⑭ VOLUME indicator (9)
⑮ Digital signal format indicators (11)
⑯ Speaker indicators and signal indicators (10)

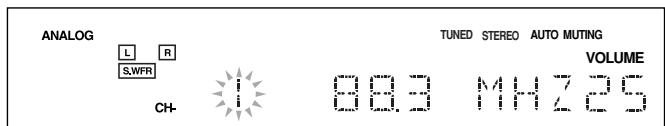

⑰ CH- indicator (14)
⑱ Main display

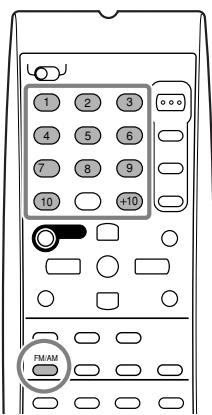

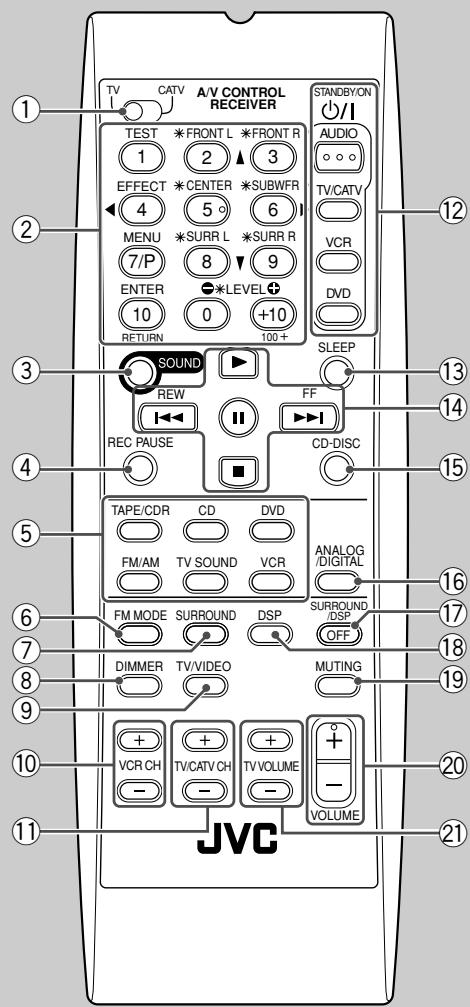

Remote Control

TV CATV A/V CONTROL RECEIVER STANDBY/ON I/ AUDIO TV/CATV VCR DVD SLEEP 12 TEST *FRONT L *FRONT R 1 2 3 EFFECT *CENTER *SUBWFR 4 5 6 MENU *SURR L *SURR R 7/P 8 9 ENTER LEVEL+ 10 0 +10 RETURN 100+ 3 SOUND REF FF REC PAUSE CD-DISC 5 TAPE/CDR CD DVD FM/AM TV SOUND VCR ANALOG/ /DIGITAL 6 FM MODE SURROUND DSP SURROUND /DSP OFF 7 DIMMER TV/VIDEO MUTING 8 VCR CH TV/CATV CH TV/VOLUME - - - - - - - - - - - - - - - - - - - - - - - - - - - - JVC

See pages in parentheses for details.

① TV/CATV selector (30)
② 10 keys for selecting preset channels (15, 28) 10 keys for sound adjustment (22, 28) 10 keys for operating audio/video components (28 – 30)

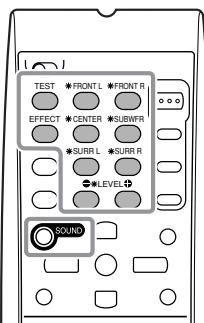

③ SOUND button (22, 28)

④ REC PAUSE button (29, 31)

⑤ Source selection buttons (9, 10) TAPE/CDR, CD, DVD, FM/AM, TV SOUND, VCR

⑥ FM MODE button (15, 28)

⑦ SURROUND button (25, 28)

⑧ DIMMER button (12, 28)

⑨ TV/VIDEO button (29, 30)

⑩ VCR CH +/- buttons (29, 31)

⑪ TV/CATV CH +/- buttons (29, 30)

⑫ STANDBY/ON Ⓗ/1 buttons (9, 28 – 31) AUDIO, TV/CATV, VCR, DVD

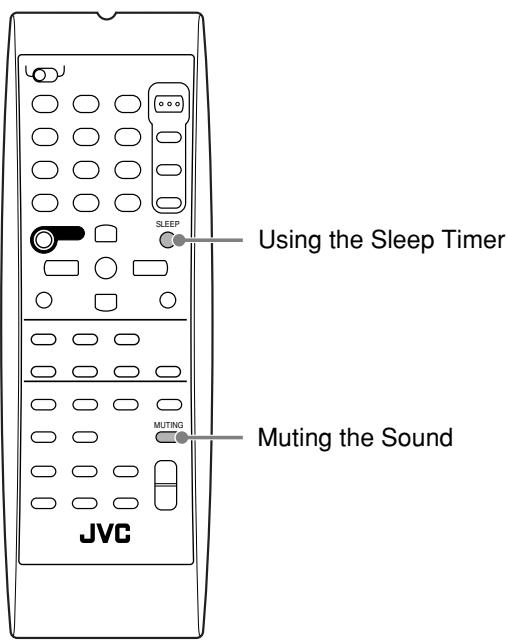

⑬ SLEEP button (13, 28)

⑭ Operating buttons for audio/video components ▶, □, ■, ▶▶▶/▶◀◀, FF/REW (28, 29, 31)

⑮ CD-DISC button (29)

⑯ ANALOG/DIGITAL button (11, 12, 28)

⑰ SURROUND/DSP OFF button (25, 27, 28)

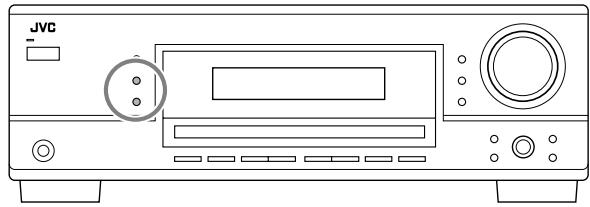

⑱ DSP button (26 - 28)

⑲ MUTING button (13, 28)

⑳ VOLUME +/- button (10, 28)

② TV VOLUME +/- buttons (29, 30)

Note:

When you press the one of the audio source selection buttons—TAPE/CDR, CD, and FM/AM—on the remote control, the receiver automatically turns on.

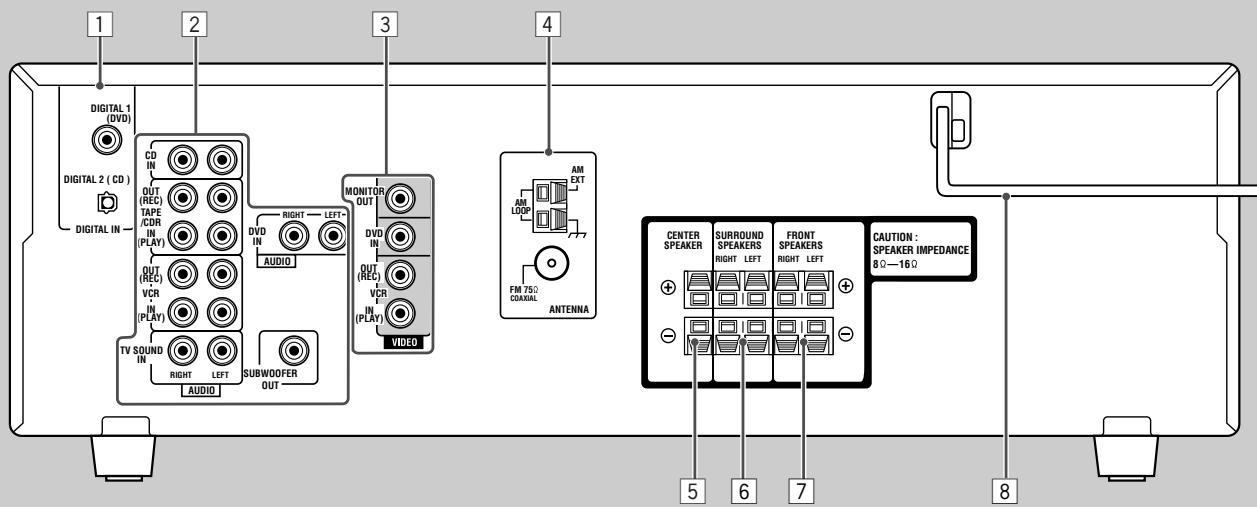

Rear Panel

DIGITAL 1 (DVD) DIGITAL 2 (CD) DIGITAL IN OUT (REC) TAPE ICDR IN (PLAY) OUT (REC) VCR IN (PLAY) TV SOUND IN RIGHT LEFT AUDIO SUBWOOFER OUT MONITOR OUT DVD IN AUDIO VIDEO AM LOOP FM 75Ω COARIAL ANTENNA CENTER SPEAKER SURROUND SPEAKERS RIGHT LEFT FRONT SPEAKERS RIGHT LEFT CAUTION : SPEAKER IMPEDANCE 8Ω—16Ω

See pages in parentheses for details.

1 DIGITAL IN terminals (8)

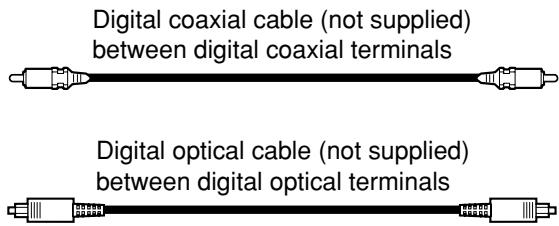

• Coaxial: DIGITAL 1 (DVD)

• Optical: DIGITAL 2 (CD)

2 AUDIO input/output jacks (6, 7)

- Input: CD IN, TAPE/CDR IN (PLAY), VCR IN (PLAY), TV SOUND IN, DVD IN

- Output: TAPE/CDR OUT (REC), VCR OUT (REC), SUBWOOFER OUT

3 VIDEO input/output jacks (7)

- Input: DVD IN, VCR IN (PLAY)

• Output: MONITOR OUT, VCR OUT (REC)

4 ANTENNA terminals (4, 5)

5 CENTER SPEAKER terminals (5)

6 SURROUND SPEAKERS terminals (5)

7 FRONT SPEAKERS terminals (5)

8 AC power cord (8)

This section explains how to connect audio/video components and speakers to the receiver, and how to connect the power supply.

Before Installation

General Precautions

• Be sure your hands are dry.
• Turn the power off to all components.
• Read the manuals supplied with the components you are going to connect.

Locations

• Install the receiver in a location that is level and protected from moisture and dust.
- The temperature around the receiver must be between -5^ and 35^ (23°F and 95°F).
- Make sure there is good ventilation around the receiver. Poor ventilation could cause overheating and damage the receiver.

Handling the receiver

• Do not insert any metal object into the receiver.
• Do not disassemble the receiver or remove screws, covers, or cabinet.
• Do not expose the receiver to rain or moisture.

Checking the Supplied Accessories

Check to be sure you have all of the following items, which are supplied with the receiver.

The number in the parentheses indicates quantity of the pieces supplied.

• Remote Control (1)
• Batteries (2)
  • AM Loop Antenna (1)
• FM Antenna (1)

If anything is missing, contact your dealer immediately.

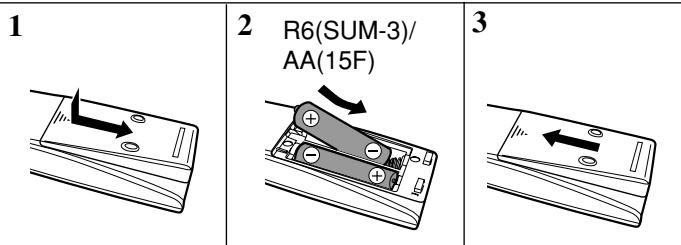

Putting Batteries in the Remote Control

Before using the remote control, insert the two supplied batteries first.

1 Press and slide the battery cover on the back of the remote control.

2 Insert the batteries.

- Make sure to match the polarity: (+) to (+) and (−) to (−).

3 Replace the cover.

If the remote control cannot transmit signals or operate the receiver correctly, replace the batteries. Use two R6(SUM-3)/AA(15F) type dry-cell batteries.

Notes:

• Supplied batteries are for the initial setup. Replace for continued use.
• After replacing the batteries, set the manufacturers' codes again (see pages 30 and 31).

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity: (+) to (+) and (−) to (−).
• Use the correct type of batteries. Batteries that look similar may differ in voltage.
  • Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.

Connecting the FM and AM Antennas

FM antenna connections

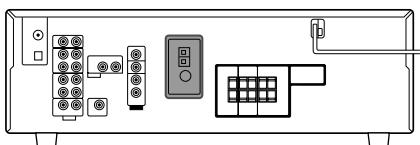

Back view diagram of a device chassis with ports, connectors, and a central control panel (no text or labels)

A 100Ω 200Ω 300Ω 400Ω 500Ω 600Ω 700Ω 800Ω 900Ω 1000Ω 1100Ω 1200Ω 1300Ω 1400Ω 1500Ω 1600Ω 1700Ω 1800Ω 1900Ω 2000Ω 2100Ω 2200Ω 2300Ω 2400Ω 2500Ω 2600Ω 2700Ω 2800Ω 2900Ω 3000Ω 3100Ω 3200Ω 3300Ω 3400Ω 3500Ω 3600Ω 3700Ω 3800Ω 3900Ω 4000Ω 4100Ω 4200Ω 4300Ω 4400Ω 4500Ω 4600Ω 4700Ω 4800Ω 4900Ω 5000Ω

B 3D 1/2 R1 R2 R3 R4 R5 R6 R7 R8 R9 R10 R11 R12 R13 R14 R15 R16 R17 R18 R19 R20 R21 R22 R23 R24 R25 R26 R27 R28 R29 R30 R31 R32 R33 R34 R35 R36 R37 R38 R39 R40 R41 R42 R43 R44 R45 R46 R47 R48 R49 R50 R51 R52 R53 R54 R55 R56 R57 R58 R59 R60 R61 R62 R63 R64 R65 R66 R67 R68 R69 R70 R71 R72 R73 R74 R75 R76 R77 R78 R79 R80 R81 R82 R83 R84 R85 R86 R87 R88 R89 R90 R91 R92 R93 R94 R95 R96 R97 R98 R99 AUXED

Extend the supplied FM antenna horizontally.

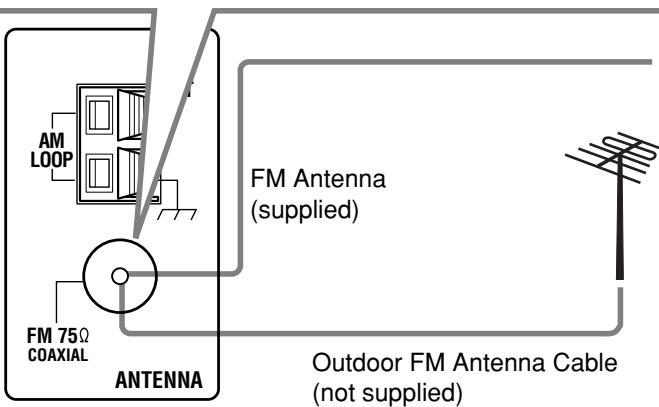

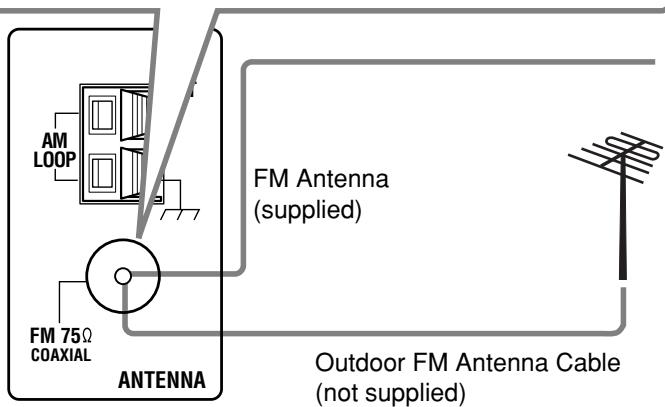

AM LOOP FM 75Ω COAXIAL ANTENNA FM Antenna (supplied) Outdoor FM Antenna Cable (not supplied)

Connect the supplied FM antenna as temporary measure to the FM 75 Ω COAXIAL terminal—Ⓐ

If reception is poor, connect the outdoor FM antenna (not supplied)—®

1 Disconnect the supplied FM antenna.
2 Connect a 75 Ω coaxial cable (with the standard type connector).

AM antenna connections

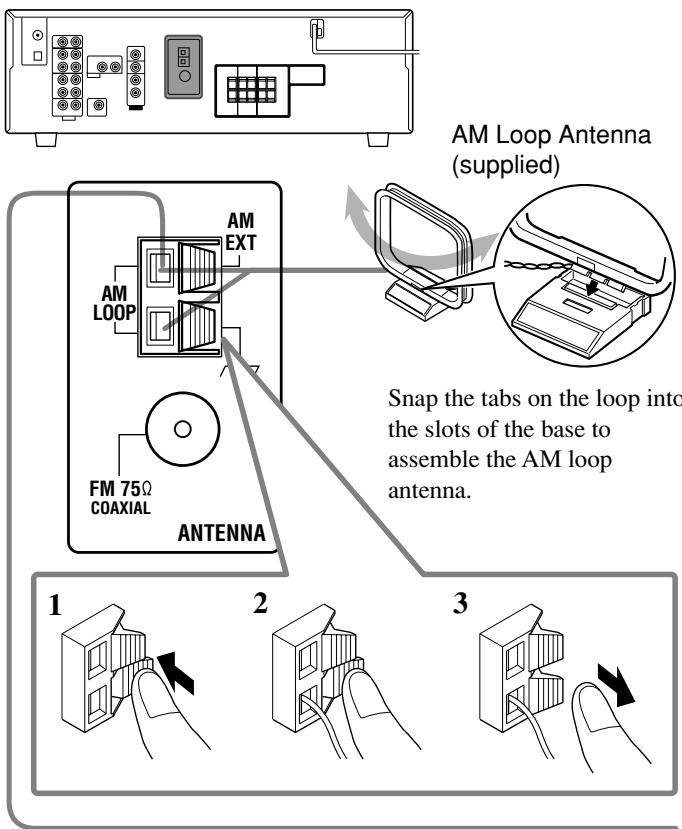

AM Loop Antenna (supplied) AM EXT AM LOOP FM 75Ω COAXIAL ANTENNA Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna. 1 2 3

Outdoor single vinyl-covered wire (not supplied)

Turn the loop until you have the best reception.

Notes:

• If the AM loop antenna wire is covered with vinyl, remove the vinyl by twisting it as illustrated.
• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception.
• If reception is poor, connect an outdoor single vinyl-covered wire (not supplied) to the AM EXT terminal. (Keep the AM loop antenna connected.)

Connecting the Speakers and Subwoofer

You can connect five speakers (a pair of front speakers, a center speaker, and a pair of surround speakers) and a subwoofer.

CAUTIONS:

• Use only the speakers of the SPEAKER IMPEDANCE indicated by the speaker terminals.
• Do not connect more than one speaker to each speaker terminal.

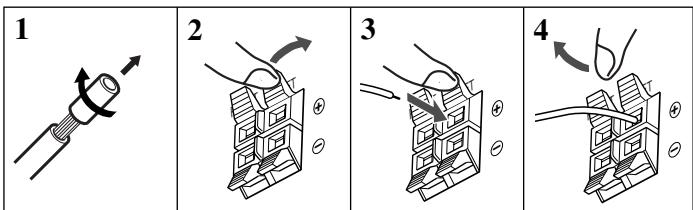

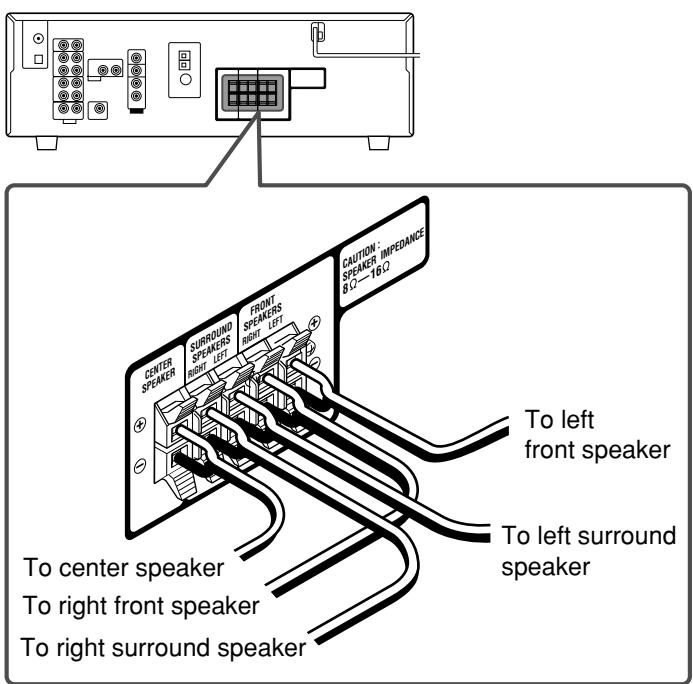

Connecting the speakers

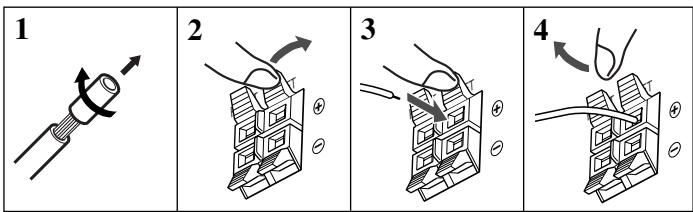

1 2 3 4

1 Twist and remove the insulation at the end of each speaker cord.
2 Press and hold the clamp of the speaker terminal.
3 Insert the speaker cord.
4 Release the finger from the clamp.

For each speaker (except for a subwoofer), connect the (+) and (−) terminals on the rear panel to the (+) and (−) terminals marked on the speakers.

CENTER SPEAKER SURROUND SPEAKERS RIGHT LEFT FRONT SPEAKERS RIGHT LEFT CAUTION : SPEAKERS' IMPEDANCE 8Ω—16Ω To left front speaker To left surround speaker To center speaker To right front speaker To right surround speaker

Connecting the subwoofer

You can enhance the bass by connecting a subwoofer.

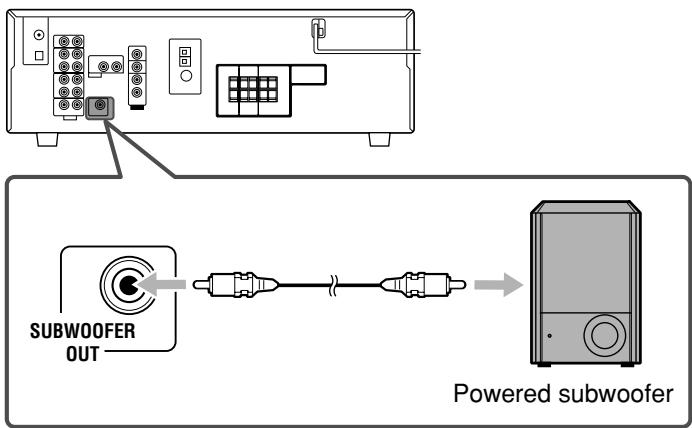

Connect the input jack of a powered subwoofer to the rear panel, using a cable with RCA pin plugs (not supplied).

SUBWOOFER OUT Powered subwoofer

Placing speakers

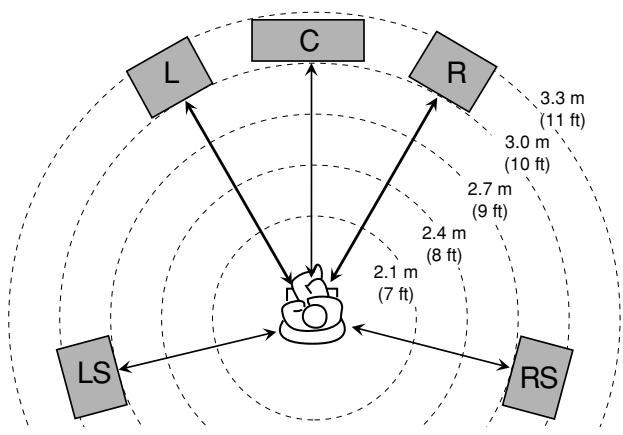

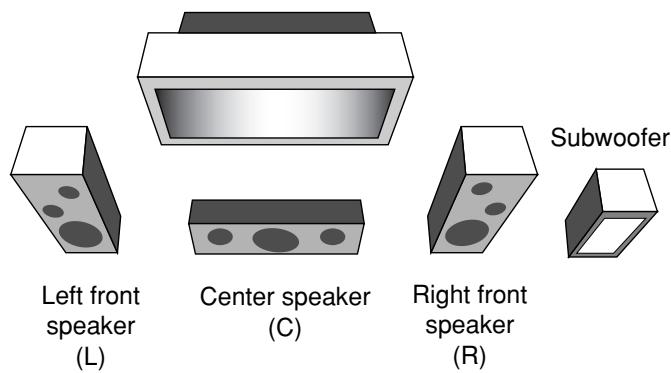

Front speakers (L/R) and center speaker (C)

• Place these speakers at the same height from the floor, at or near ear level.
• Array across the front of the viewing area.

Surround speakers (LS/RS)

• Place these speakers alongside and slightly to the rear of (but not behind) the listening position; well above ear level (60 cm (2 ft) to 90 cm (3 ft) higher).
• Point these speakers directly across the listening area, but not at the listener's ears.

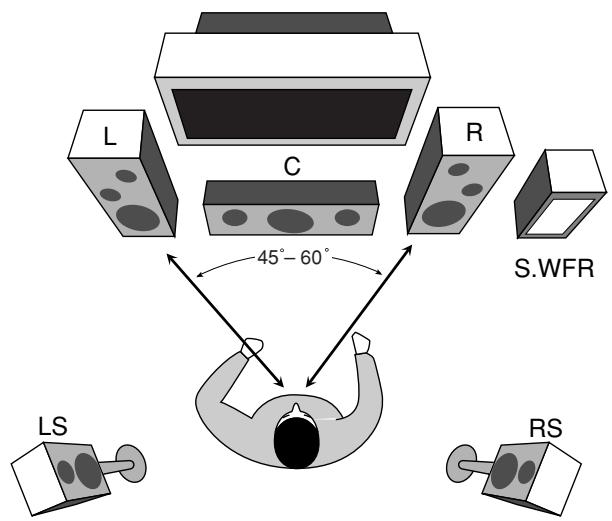

Subwoofer (S.WFR)

- You can place it wherever you like since bass sound is non-directional. Normally place it in front of you.

L C R S.WFR 45°-60° LS RS

After connecting the speakers, set the speaker installation information properly. You can use Quick Speaker Setup for it (see page 16).

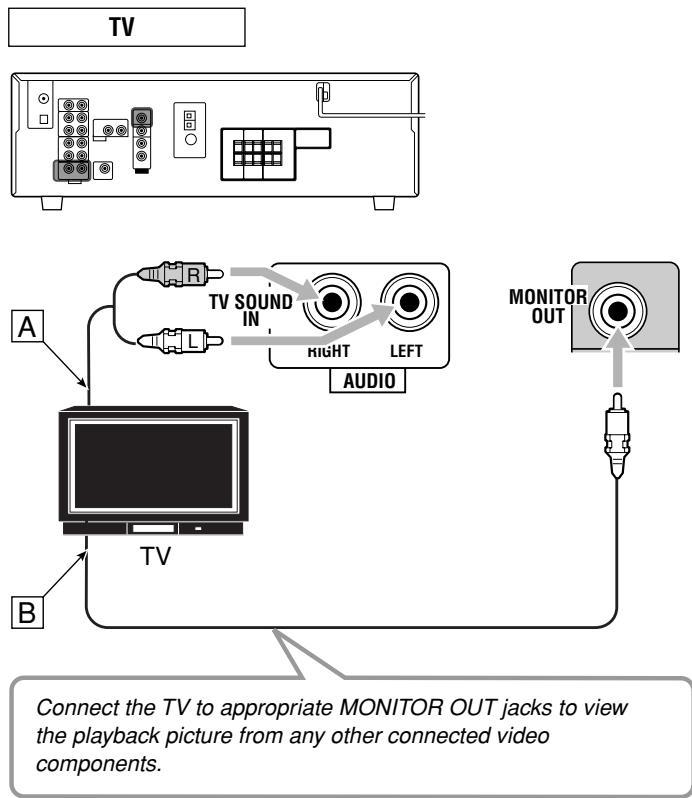

Connecting Audio/Video Components

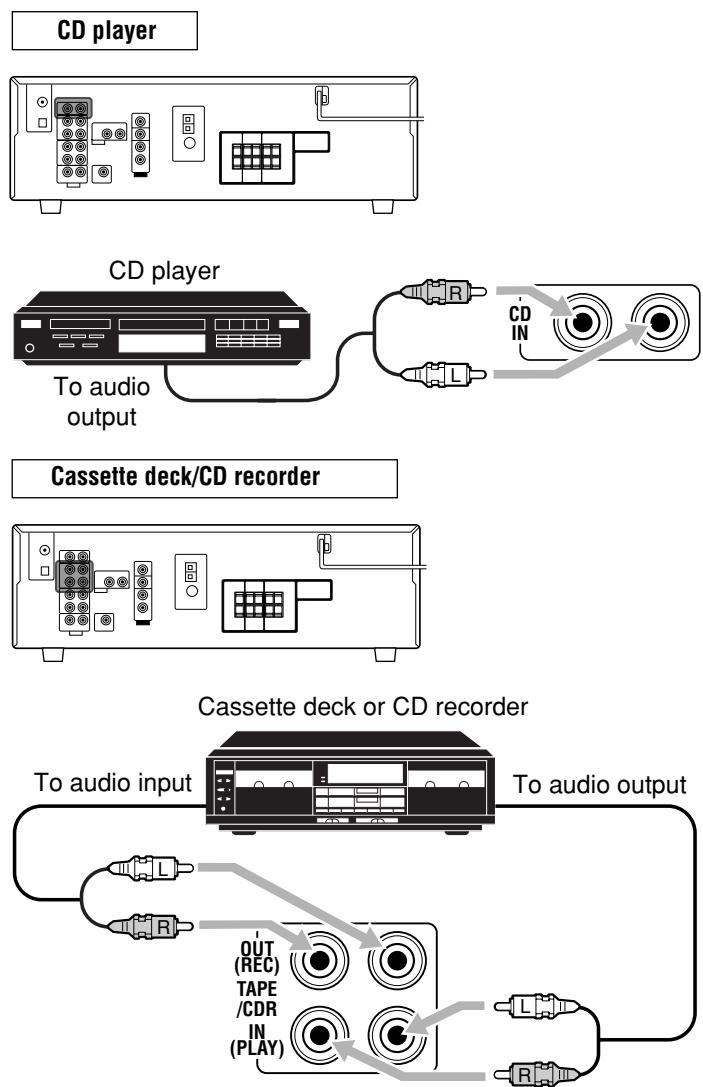

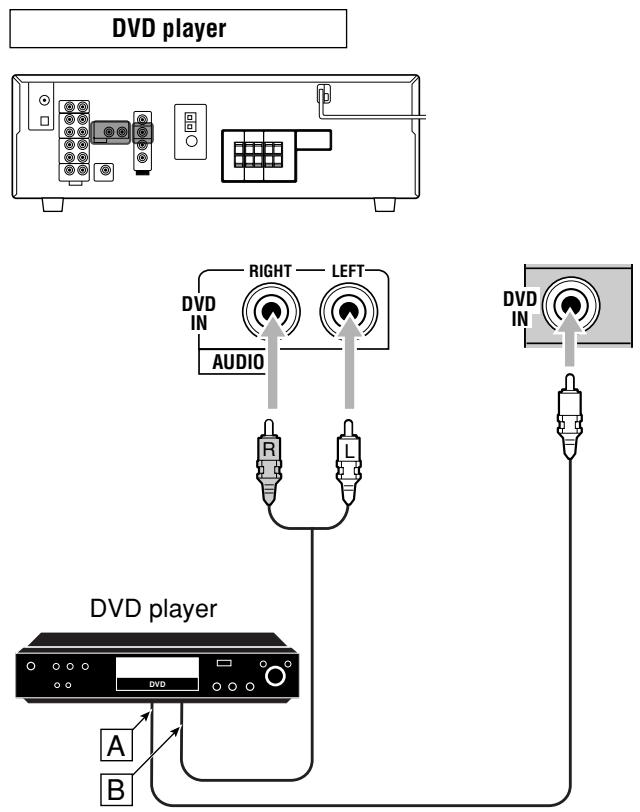

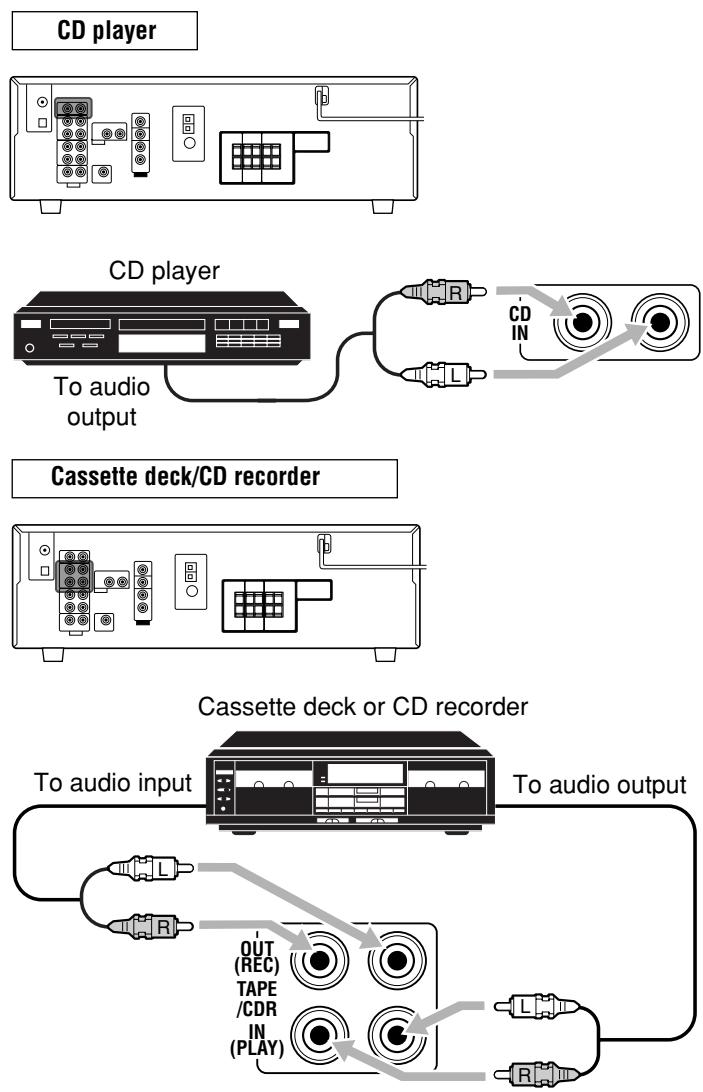

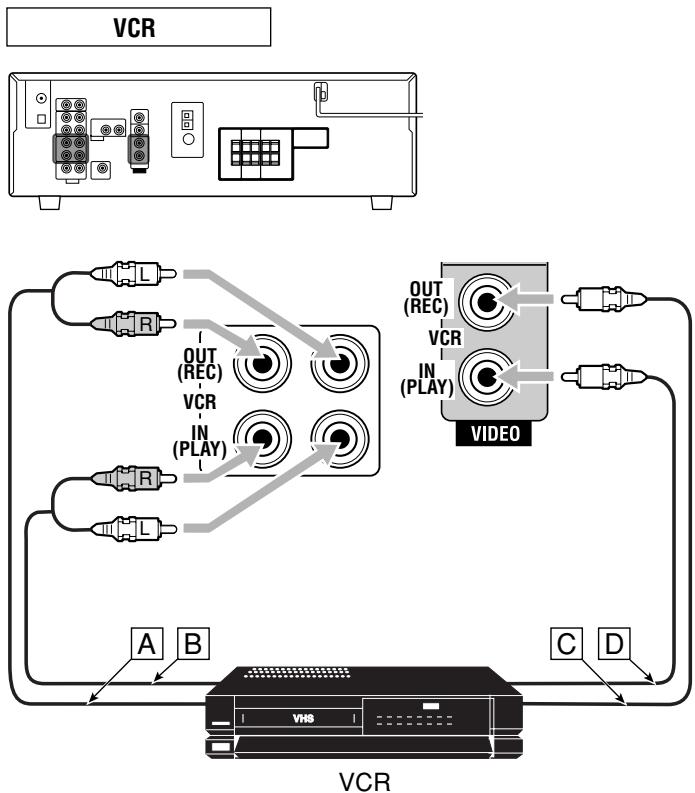

When connecting individual components, refer also to the manuals supplied with them.

■ Analog Connections

Audio component connections

Use the cables with RCA pin plugs (not supplied).

- Connect the white plug to the audio left jack, and the red plug to the audio right jack.

CAUTION:

If you connect a sound-enhancing device such as a graphic equalizer between the source components and this receiver, the sound output through this receiver may be distorted.

CD player CD player To audio output CD IN Cassette deck/CD recorder Cassette deck or CD recorder To audio input To audio output L R OUT (REC) TAPE /CDR IN (PLAY)

Note:

When connecting a CD recorder to the TAPE/CDR jacks, change the source name to "CDR," which will be shown on the display when it is selected as the source. See page 12 for details.

Video component connections

Use the cables with RCA pin plugs (not supplied).

Connect the white plug to the audio left jack, the red plug to the audio right jack, and the yellow plug to the video jack.

A To audio input
B To audio output
C To composite video input
D To composite video output
    note1["Connect the TV to appropriate MONITOR OUT jacks to view the playback picture from any other connected video components."]

A To audio output
B To composite video input

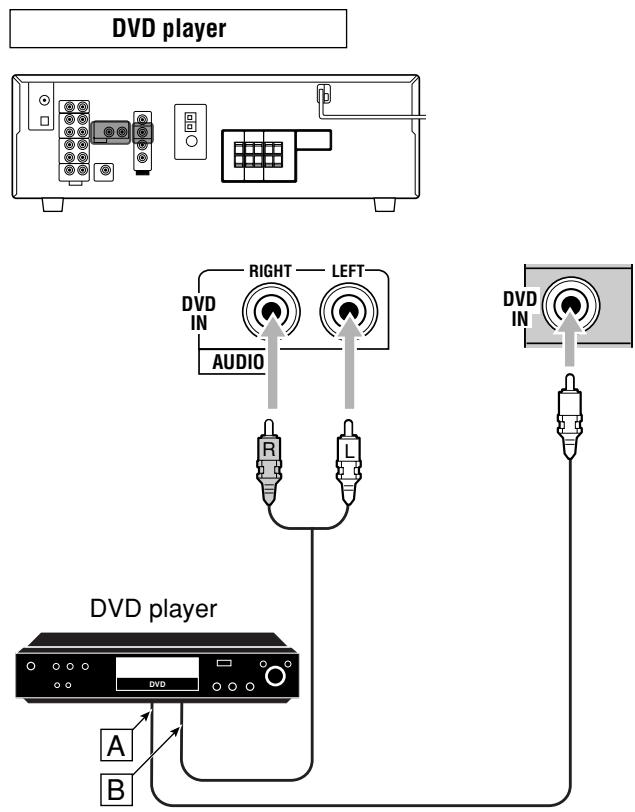

DVD player RIGHT LEFT DVD IN AUDIO R L DVD player DVD A B

A To composite video output
B To left/right front channel audio output (or to audio-mixed output if necessary)

Note:

To enjoy Dolby Digital and DTS multi-channel software (including Dual Mono software), connect the DVD player through the digital input/output terminals.

Digital Connections

By connecting the receiver and the source component through the digital terminals, sound reproduction quality will be much improved. In addition, you can enjoy multi-channel reproduction and some other convenient functions.

IMPORTANT:

• When connecting a video component using the digital terminals, you also need to connect it to the video jacks on the rear. Without connecting it to the video jacks, you can view no playback picture.
• After connecting the components using the DIGITAL IN terminals, set the following correctly if necessary.
• Set the digital input (DIGITAL IN) terminal setting correctly. For details, see “Setting the Digital Input Terminals” on page 20.
• Select the digital input mode correctly. For details, see "Selecting the Analog or Digital Input Mode" on page 11.

Digital input terminals

You can connect any digital components having coaxial or optical digital output terminal.

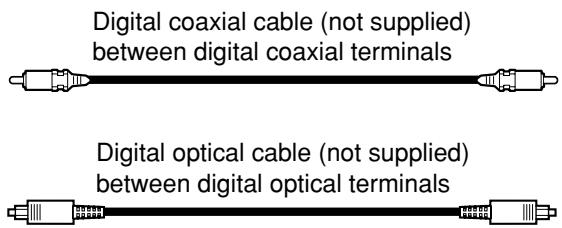

Digital coaxial cable (not supplied) between digital coaxial terminals Digital optical cable (not supplied) between digital optical terminals

When the component has a digital coaxial output terminal, connect it to the DIGITAL 1 (DVD) terminal, using a digital coaxial cable (not supplied).

When the component has a digital optical output terminal, connect it to the DIGITAL 2 (CD) terminal, using a digital optical cable (not supplied).

DIGITAL 1 (DVD) DIGITAL 2 (CD) DIGITAL IN

Before connecting a digital optical cable, unplug the protective plug.

Note:

When shipped from the factory, the DIGITAL IN terminals have been set for use with the following components:

– DIGITAL 1 (coaxial): For DVD player
- DIGITAL 2 (optical): For CD player

Connecting the Power Cord

Before plugging the receiver into an AC outlet, make sure that all connections have been made.

Plug the power cord into an AC outlet.

Illustration of a plug with an open socket connected to its side panel (no text or symbols)

Keep the power cord away from the connecting cables and the antenna. The power cord may cause noise or screen interference.

Note:

The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases:

• When you unplug the power cord.
• When a power failure occurs.

CAUTIONS:

• Do not touch the power cord with wet hands.
• Do not pull on the power cord to unplug the cord. When unplugging the cord, always grasp the plug so as not to damage the cord.

The following operations are commonly used when you play any sound sources.

Operations hereafter will be explained using the buttons on the front panel.

You can also use the buttons on the remote control for the same functions if they have the same and similar names/marks.

Daily Operational Procedure

JVC 1 4 2 3

1 Turn on the power.

• See “Turning On the Power” below.

2 Select the source.

- See “Selecting the Source to Play” to the right.

3 Adjust the volume.

• See “Adjusting the Volume” on page 10.

4 Select the Surround or DSP modes.

- See “Activating the Surround Modes” (page 25) and “Activating the DSP Modes” (page 27).

Turning On the Power

Line drawing of a CD-ROM front panel with control buttons and a display (no text or symbols)

Press STANDBY/ON Ⓗ/1 (or STANDBY/ON Ⓗ/1 AUDIO on the remote control).

The STANDBY lamp goes off.

Current source name appears.

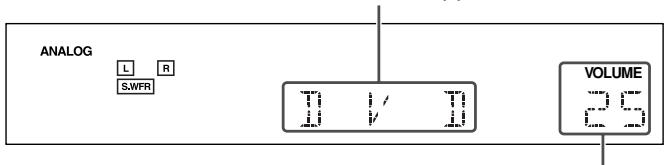

ANALOG L R SWFR 1 1 / 10 VOLUME 5.5

Current volume level appears.

To turn off the power (into standby mode),

press STANDBY/ON Ⓧ/l (or STANDBY/ON Ⓧ/l AUDIO on the remote control) again.

The STANDBY lamp lights up.

Note:

A small amount of power is consumed in standby mode. To turn off the power completely, unplug the AC power cord.

Selecting the Source to Play

When you have connected digital source components using the digital terminals, first change the input mode for these components to the digital input mode (see page 11).

Line drawing of a JVC audio workstation (no text or symbols on the device body)

Press one of the source selection buttons.

Selected source name appears. ANALOG L R S.WFR V C R VOLUME 25

SOURCE NAME

On the front panel

On the remote

Note:

When connecting a CD recorder to the TAPE/CDR jacks, change the source name shown on the display. For details, see page 12.

Speaker and signal indicators on the display

By checking the following indicators, you can easily confirm which speakers you are activating and which signals are coming into this receiver.

Speaker indicators

L C R S.WFR LFE LS S RS

SB

Signal indicators

L C R S.WFR LFE LS S RS

SB

What speaker indicators light depends on the speaker setting (for details, see “Setting the Speakers” on page 18).

• The frames of “L,” “C,” “R,” “LS,” and “RS” light up, when the corresponding speakers are set to “LARGE” or “SMALL.” Sounds come out of the speakers whose speaker indicators is lit on the display.
• The S.WFR indicator lights up when the subwoofer is activated (see pages 11 and 18).

The signal indicators light up to show the incoming signals.

L: • When digital input is selected: Lights up when the left channel signal comes in.
- When analog input is selected: Always lights up.
R: • When digital input is selected: Lights up when the right channel signal comes in. • When analog input is selected: Always lights up.

C: Lights up when the center channel signal comes in.

LFE: Lights up when the LFE channel signal comes in.

LS: Lights up when the left surround channel signal comes in.

RS: Lights up when the right surround channel signal comes in.

S: Lights up when the monaural surround channel signal comes in.

SB: Lights up when the surround back channel signal comes in.

How to understand the speaker and signal indicator illumination

Ex. No sound comes out of the center speaker and surround speakers though center channel and surround channel signals are coming into this receiver.

Selecting different sources for picture and sound

While watching pictures from a video source, you can listen to sound of an audio source.

- Once you have selected a video source, pictures of the selected source are sent to the TV until you select another video source.

Press one of the audio source selection buttons while viewing the picture from a video component such as the VCR or DVD player, etc.

On the front panel

On the remote

Adjusting the Volume

Line drawing of a JVC audio workstation with buttons and speaker (no text or symbols)

On the front panel:

To increase the volume, turn MASTER VOLUME clockwise. To decrease the volume, turn it counterclockwise.

On the remote control:

To increase the volume, press VOLUME +. To decrease the volume, press VOLUME -.

CAUTION:

Always set the volume to the minimum before starting any sources. If the volume is set at its high level, the sudden blast of sound energy can permanently damage your hearing and/or ruin your speakers.

Note:

The volume level can be adjusted within the range of "0" (minimum) to "50" (maximum).

Listening with headphones:

You can enjoy not only stereo software but also multi-channel software through the headphones. (Sounds are down-mixed to the front channels while playing multi-channel software.)

1 Press SPEAKERS ON/OFF to deactivate the speakers. "HEADPHONE" appears for a while, and the H.PHONE indicator lights on the display.
- If the Surround or DSP mode has been activated, “3D H PHONE” appears for a while (and the DSP indicator also lights up on the display)—3D Headphone Mode (3D H PHONE). For details, see pages 24 and 26.

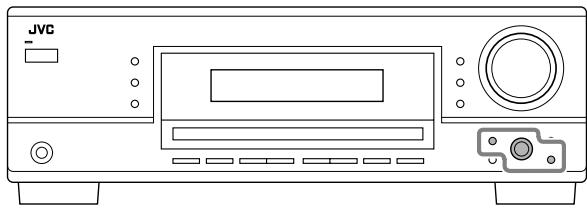

2 Connect the headphones to the PHONES jack on the front panel.
- If you do not deactivate the speakers, no sound comes out of the headphones.

After using the headphones, disconnect the headphones, then press SPEAKERS ON/OFF again to activate the speakers.

CAUTION:

Be sure to turn down the volume....

• Before connecting or putting on headphones, as its high volume can damage both the headphones and your hearing.
• Before turning on speakers again, as its high volume may come out of the speakers.

Turning On and Off the Subwoofer Sound

You can cancel the subwoofer output even though you have connected a subwoofer and have set “SUBWOOFER” to “SUBWOOFER YES” (see page 18).

Line drawing of a JVC audio workstation CD with control panel and speaker (no text or symbols)

Press SUBWOOFER OUT ON/OFF to cancel the subwoofer output.

Each time you press the button, subwoofer output is deactivated (“SUBWOOFER OFF”) and activated (“SUBWOOFER ON”) alternately.

- When subwoofer output is canceled, the S.WFR indicator goes off. Bass sounds (and LFE signals) will be emitted through the front speakers.

Notes:

• When subwoofer output is activated, you can also adjust the subwoofer output level. For details, see page 22.
• You cannot deactivate the subwoofer output when you set "SMALL" for the front speakers on the speaker size setting (see page 18) or using Quick Speaker Setup (see page 16).
• You cannot activate the subwoofer output when you have set "SUBWOOFER" to "SUBWOOFER NO" (see page 18).
• When you change the "SUBWOOFER" setting from "SUBWOOFER NO" to "SUBWOOFER YES" (see page 18), subwoofer output is automatically activated.

Selecting the Analog or Digital Input Mode

When you have connected digital source components using the both analog and digital terminals (see pages 6 to 8), you can select the input mode—either digital or analog—for these components.

Line drawing of a JVC audio workstation front panel with control buttons and speaker grille (no text or symbols)

Before you start, remember...

The digital input terminal setting should be correctly done for the sources you want to select the digital input mode (see “Setting the Digital Input Terminals” on page 20).

1 Press one of the source selection buttons (DVD, TV SOUND, CD, TAPE/CDR*) for which you want to change the input mode.

* If "TAPE" is selected as the source, digital input mode is not available. To change the source name, see "Changing the Source Name" on page 12.

2 Press INPUT DIGITAL to select "DIGITAL AUTO."

The DIGITAL AUTO indicator lights up on the display.

- When using the remote control, press ANALOG/DIGITAL. Each time you press the button, the analog (ANALOG) and digital (DIGITAL AUTO) input modes alternate.

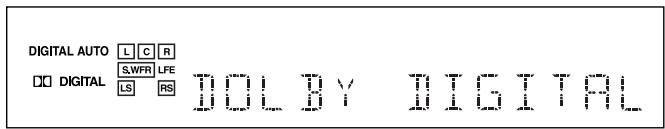

DIGITAL AUTO L C R S,WFR LFE LS RS DIGITAL AUTO

- When selecting “DIGITAL AUTO,” the following indicators indicate the digital signal format of the incoming signal.

LINEAR PCM	: Lights up when Linear PCM signals come in.
☐ DIGITAL	: Lights up when Dolby Digital signals come in.
dts	: Lights up when conventional DTS signals come in.
dts 96/24	: Lights up when DTS 96/24 signals come in.

No indicator lights up when the receiver cannot recognize the digital signal format of the incoming signals.

Note:

For details about the digital signal formats, see pages 23 and 24.

When playing software encoded with Dolby Digital or DTS, the following symptoms may occur:

• Sound does not come out at the beginning of playback.
• Noise comes out while searching for or skipping chapters or tracks.

In this case, press INPUT DIGITAL repeatedly to select “DOLBY DIGITAL” or “DTS SURROUND.”

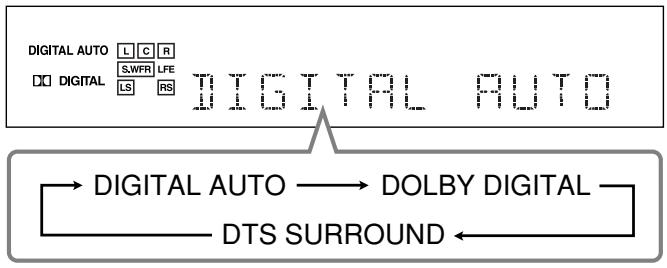

• Each time you press INPUT DIGITAL, the input mode changes as follows:
        RS["RS"]
    end
    subgraph Digital AUTO AUTO
        A1[" "] --> B1["DOLBY DIGITAL"]
    end

When “DOLBY DIGITAL” or “DTS SURROUND” is selected, the DIGITAL AUTO indicator goes off, and the corresponding digital signal format indicator lights up on the display.

- If the incoming signal does not match the selected digital signal format, the indicator of the selected signal format will flash.

Note:

When you turn off the power or select another source, "DOLBY DIGITAL" and "DTS SURROUND" settings are canceled and the digital input mode is automatically reset to "DIGITAL AUTO."

To select the analog input mode

Press INPUT ANALOG (or ANALOG/DIGITAL on the remote control repeatedly until “ANALOG” appears on the display). The ANALOG indicator lights up.

ANALOG L R S.WFR PANHLLOG

Changing the Display Brightness

You can dim the display.

Line drawing of a JVC audio workstation (no text or symbols on the device body)

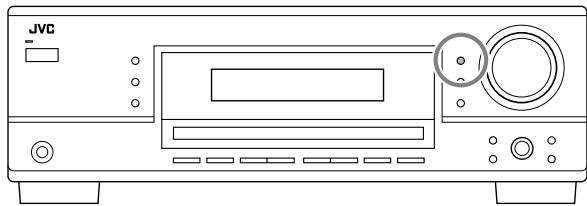

Press DIMMER.

• Each time you press the button, the display dims and brightens alternately.

Attenuating the Input Signal

When the input level of the analog source is too high, the sounds will be distorted. If this happens, you need to attenuate the input signal level to prevent the sound distortion.

- Once you have made adjustment, it is memorized for each analog source.

Front view line drawing of a JVC audio workstation (no text or symbols on device body)

Press and hold INPUT ATT (INPUT ANALOG) so that the INPUT ATT indicator lights up on the display.

- Each time you press and hold the button, the input attenuator mode turns on (“INPUT ATT ON”) and off (“INPUT NORMAL”).

Changing the Source Name

When you have connected a CD recorder to the TAPE/CDR jacks on the rear panel, change the source name which will be shown on the display.

Line drawing of a JVC audio workstation front panel with control buttons and speaker grille (no text or symbols)

When changing the source name from “TAPE” to “CDR”:

1 Press TAPE/CDR (SOURCE NAME).

- Make sure “TAPE” appears on the display.

2 Press and hold SOURCE NAME (TAPE/CDR) until "ASSIGN CDR" appears on the display.

ANALOG L R SWFR P5G SIGN LED

To change the source name back to “TAPE,” repeat the same procedure above.

Note:

Without changing the source name, you can still use the connected components. However, there may be some inconvenience.

• “TAPE” will appear on the display when you select the CD recorder.
• You cannot use the digital input (see page 11) for the CD recorder.

The following basic operations are possible only using the remote control.

SLEEP Using the Sleep Timer MUTING Muting the Sound JVC

Muting the Sound

Press MUTING to mute the sound through all speakers and headphones connected.

“MUTING” appears on the display and the volume turns off (the VOLUME indicator and its level indication go off).

To restore the sound, press MUTING again.

- Turning MASTER VOLUME on the front panel or pressing VOLUME +/- on the remote control also restores the sound.

Using the Sleep Timer

Using the Sleep Timer, you can fall asleep while listening to music. When the shut-off time comes, the receiver turns off automatically.

Press SLEEP repeatedly.

The SLEEP indicator lights up on the display, and the shut-off time changes in 10 minutes intervals:

To check or change the time remaining until the shut-off time:

Press SLEEP once.

The remaining time until the shut-off time appears in minutes.

- To change the shut-off time, press SLEEP repeatedly.

To cancel the Sleep Timer:

Press SLEEP repeatedly until “SLEEP OFF” appears on the display. The SLEEP indicator goes off.

- Turning off the power also cancels the Sleep Timer.

Recording a source

You can record any sources playing through the receiver to a cassette deck (or a CD recorder) connected to the TAPE/CDR jacks and the VCR connected to the VCR jacks at the same time.

While recording, you can listen to the selected sound source at whatever sound level you like without affecting the sound levels of the recording.

Note:

The output volume level, Midnight Mode (see page 19), Equalization patterns (see page 22), Surround modes and DSP modes (see pages 23 to 26) cannot affect the recording.

Basic adjustment auto memory

This receiver memorizes sound settings for each source—

• when you turn off the power,
• when you change the source,
• when you change the analog/digital input modes, and
• when you assign the source name (see page 12).

When you change the source, the memorized settings for the newly selected source are automatically recalled.

The following can be stored for each source:

• Analog/digital input mode (see page 11)
• Input attenuator mode (see page 12)
  • Equalization pattern (see page 22)
• Speaker output levels (see page 22)
• Surround and DSP mode selection (see pages 23 and 26)

Notes:

• If the source is FM or AM, you can assign a different setting for each band.
• A sound setting assigned for a digital component is valid for both the analog and digital input modes.

You can browse through all the stations or use the preset function to go immediately to a particular station.

Tuning in to Stations Manually

Line drawing of a JVC audio workstation front panel with control buttons and speaker grille (no text or symbols)

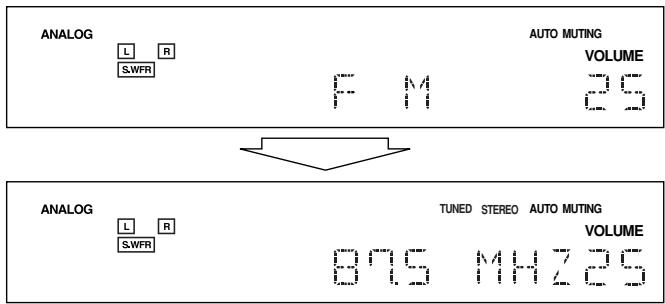

1 Press FM/AM to select the band (FM or AM).

Each time you press the button, the band alternates between FM and AM.

ANALOG L R SWFR AUTO MUTING VOLUME P M 3.5 ANALOG L R SWFR TUNED STEREO AUTO MUTING VOLUME B09 MHz/2.5

The last received station of the selected band is tuned in.

2 Press FM/AM TUNING ▲ or ▼ repeatedly until you find the frequency you want.

• Pressing FM/AM TUNING ▲ increases the frequency.
• Pressing FM/AM TUNING ▼ decreases the frequency.

ANALOG L R SWFR TUNED STEREO AUTO MUTING VOLUME 0.3 MHz 2.5

Notes:

• When a station of sufficient signal strength is tuned in, the TUNED indicator lights up on the display.
• When an FM stereo program is received, the STEREO indicator also lights up.
• When you hold and then release the button in step 2, the frequency keeps changing until a station is tuned in.

Using Preset Tuning

Line drawing of a JVC audio workstation with control panel and buttons (no text or symbols)

Once a station is assigned to a channel number, the station can be quickly tuned in. You can preset up to 30 FM and 15 AM stations.

To store the preset stations

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 2 again.

1 Tune in the station you want to preset (see "Tuning in to Stations Manually").

- If you want to store the FM reception mode for this station, select the FM reception mode you want. See “Selecting the FM Reception Mode” on page 15.

2 Press MEMORY.

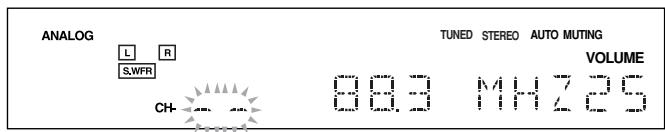

ANALOG L R SWFR CH TUNED STEREO AUTO MUTING VOLUME 0.03 MHz/2.05

The channel number position starts flashing on the display for about 5 seconds.

3 Press FM/AM PRESET ▲ or ▼ to select a channel number while the channel number position is flashing.

ANALOG L R S,WFR CH- TUNED STEREO AUTO MUTING VOLUME 08.3 MHz 725

4 Press MEMORY again while the selected channel number is flashing on the display.

The selected channel number stops flashing.

The station is assigned to the selected channel number.

5 Repeat steps 1 to 4 until you store all the stations you want.

To erase a stored preset station

Storing a new station on a used number erases the previously stored one.

To tune in a preset station

On the front panel:

Line drawing of a JVC audio workstation CD with control panel and buttons (no text or symbols)

1 Press FM/AM to select the band (FM or AM).

Each time you press the button, the band alternates between FM and AM.

2 Press FM/AM PRESET ▲ or ▼ until you find the channel you want.

• Pressing FM/AM PRESET ▲ increases the number.
• Pressing FM/AM PRESET ▼ decreases the number.

On the remote control:

1 2 3 4 5 6 7 8 9 10 +10 FM/AM

1 Press FM/AM to select the band (FM or AM).

The last received station of the selected band is tuned in.

• Each time you press the button, the band alternates between FM and AM.

2 Press the 10 keys to select a preset channel number.

• For channel number 5, press 5.
• For channel number 15, press +10 then 5.
• For channel number 20, press +10 then 10.
• For channel number 30, press +10, +10, then 10.

Note:

When you use the 10 keys on the remote control, be sure that they are activated for the tuner, not for the CD and others. (See page 28.)

Selecting the FM Reception Mode

Line drawing of a JVC audio workstation front panel with control buttons and speaker grille (no text or symbols)

When an FM stereo broadcast is hard to receive or noisy, you can change the FM reception mode while receiving an FM broadcast.

- You can store the FM reception mode for each preset station (see page 14).

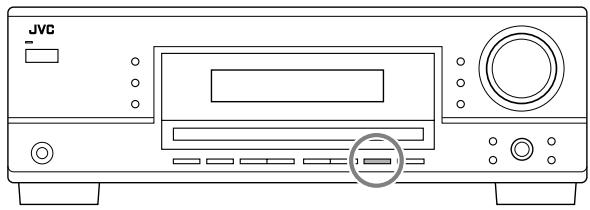

While listening to an FM station, press FM MODE.

- Each time you press the button, the FM reception mode alternates between “AUTO MUTING” and “MODE MONO.”

AUTO MUTING: Normally select this.

When a program is broadcasted in stereo, you will hear stereo sound; when in monaural, you will hear monaural sounds. This mode is also useful to suppress static noise between stations. The AUTO MUTING indicator lights up on the display. (Initial setting)

MODE MONO: Select this to improve the reception (but stereo effect will be lost). In this mode, you will hear noise while tuning in to the stations. The AUTO MUTING indicator goes off from the display (the STEREO indicator goes off).

Note:

After you operate any source other than the tuner using the remote control, the FM MODE button on the remote control does not work. In this case, press FM/AM on the remote control, then press FM MODE.

Some of the following settings are required after connecting and positioning your speakers while others will make operations easier. You can use QUICK SPEAKER SETUP to easily set up your speaker configuration.

Quick Speaker Setup

Quick Speaker Setup helps you to easily and quickly register the speaker size and speaker distance according to your listening room to create the best possible surround effect.

- You can also register each speaker's information manually. For details, see page 18.

Line drawing of a JVC audio workstation front panel with buttons and speaker (no text or symbols on the device body)

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

1 Press QUICK SPEAKER SETUP.

“SPK→” and the initial speaker channel number (5.0CH) appear.

2 Turn MULTI JOG to select an appropriate number of the connected speakers (speaker channel number).

As you turn the jog, the speaker channel number changes as follows.

- For the details of speaker channel number, see “Speaker channel number and the size.”

ANALOG L R SWFR 5PK → 5.0CH 5.0CH ⇌ 5.1CH ⇌ 2.0CH ⇌ 2.1CH ⇌ 3.0CH ⇌ 3.1CH ⇌ 4.0CH ⇌ 4.1CH ⇌ (Back to the beginning)

3 Press in MULTI JOG (PUSH SET).

“ROOM SIZE→” and the initial room size setting appear.

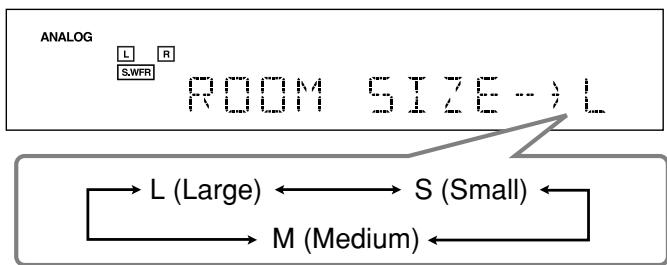

4 Turn MULTI JOG to select an appropriate room size to match to your listening room.

As you turn the jog, the room size changes as follows.

- To select your appropriate room size, see “Room size and speaker distance/output level.”

ANALOG L R S.WFR ROOM SIZE -> L L (Large) ← S (Small) ← M (Medium)

5 Press in MULTI JOG (PUSH SET).

“COMPLETE” appears on the display, then goes back to the source indication.

Note:

This procedure will not be completed if you stop in the middle of the setting process.

Speaker channel number and speaker size

You can find how each of the speaker size is defined according to the number of connected speakers (speaker channel “CH” number) you select.

- Subwoofer (S.WFR) is counted as 0.1 channel.

CH	The size of the connected speakers
	L/R	C	LS/RS	S.WFR
2.0CH	LARGE	NONE	NONE	NO
2.1CH	SMALL	NONE	NONE	YES
3.0CH	LARGE	SMALL	NONE	NO
3.1CH	SMALL	SMALL	NONE	YES
4.0CH	LARGE	NONE	SMALL	NO
4.1CH	SMALL	NONE	SMALL	YES
5.0CH	LARGE	SMALL	SMALL	NO
5.1CH	SMALL	SMALL	SMALL	YES

Room size and speaker distance/output level

According to the selected room size, speaker distance and speaker output level for each activated speaker is set as follows:

Room size	Speaker	Distance	Output level
L (Large)	L/R	3.0 m (10 ft)	0 dB
	C	3.0 m (10 ft)	0 dB
	LS/RS	3.0 m (10 ft)	0 dB
M (Medium)	L/R	2.7 m (9 ft)	0 dB
	C	2.4 m (8 ft)	-2 dB
	LS/RS	2.1 m (7 ft)	-3 dB
S (Small)	L/R	2.4 m (8 ft)	0 dB
	C	2.1 m (7 ft)	-2 dB
	LS/RS	1.5 m (5 ft)	-4 dB

Notes:

• In the tables above, “L” stands for the left front speaker, “R” for the right front speaker, “C” for the center speaker, “LS” for the left surround speaker, “RS” for the right surround speaker, and “S.WFR” for the subwoofer.
• Once Quick Speaker Setup is performed, the speaker output levels are also set to appropriate values automatically (common to all sources). If you want to set the speaker output levels separately for each source, see “Adjusting the Speaker Output Levels” on page 22.

Basic Setting Items

On the following pages, you can adjust the following items:

- You can only select the items currently available. For details, see the explanation of each item.

Items	To do	See page
SUBWOOFER*	Register your subwoofer.	18
FRNT SPEAKERS*	Register your front speaker size.	18
CNTR SPEAKER*	Register your center speaker size.	18
SURR SPEAKERS*	Register your surround speaker size.	18
DISTANCE UNIT	Select the measuring unit for the speaker distance.	18
FRONT L DIST*	Register the distance from the left front speaker to your listening point.	18
FRONT R DIST*	Register the distance from the right front speaker to your listening point.	18
CENTER DIST*	Register the distance from the center speaker to your listening point.	18
SURR L DIST*	Register the distance from the left surround speaker to your listening point.	18
SURR R DIST*	Register the distance from the right surround speaker to your listening point.	18
SUBWOOFER OUT	Select the type of the sounds emitted from the subwoofer.	18
CROSSOVER	Select the cutoff frequency to the subwoofer.	19
LFE ATTENUATE	Attenuate the bass (LFE) sounds.	19
MIDNIGHT MODE	Reproduce a powerful sound at night.	19
DUAL MONO	Select the Dual Mono sound channel.	19
AUTO SURROUND	Turn on or off Auto Surround.	20
VIRTUAL SBACK	Turn on or off Virtual Surround Back.	20
DIGITAL IN	Select the component connected to digital input terminal.	20

Note:

* These items can be set using Quick Speaker Setup.

Basic Procedure

Line drawing of a JVC audio workstation front panel with buttons and speaker grille (no text or symbols)

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Ex. When setting Auto Surround to "AUTO SURR ON."

1 Press SETTING.

The last selected item appears on the display.

ANALOG L R SWFR GNDW00FP-ER

2 Turn MULTI JOG until an item you want appears on the display.

- In this example, select “AUTO SURROUND.” For available items, see the list “Basic Setting Items.”

ANALOG L R S.WFR AUTO SURROUND

3 Press in MULTI JOG (PUSH SET).

The current setting for the selected item appears on the display.

ANALOG L R S,WFR AUTO SURP OFF

4 Turn MULTI JOG until a setting you want appears on the display.

ANALOG L R S.WFR AUTO SURR ON

5 Press in MULTI JOG (PUSH SET).

6 Repeat steps 2 to 5 to set other items if necessary.

7 Press EXIT.

The source indication resumes on the display.

Setting the Speakers

To obtain the best possible surround effect from the Surround and DSP modes, register the setting about the speaker arrangement after all connections are completed.

- If you have used Quick Speaker Setup on page 16, this setting is not required.

- Subwoofer setting—SUBWOOFER

Select whether you have connected a subwoofer or not.

SUBWOOFER YES: Select when a subwoofer is connected.

SUBWOOFER NO: Select when no subwoofer is used.

Note:

If you have selected "SUBWOOFER NO" for the subwoofer, you cannot use the SUBWOOFER OUT ON/OFF button on the front panel.

● Speaker size—FRNT SPEAKERS, CNTR SPEAKER, SURR SPEAKERS

Select the size for each connected speaker.

LARGE:	Select when the speaker size is relatively large.
SMALL:	Select when the speaker size is relatively small.
NONE:	Select this when you have not connected a speaker. (Not selectable for the front speakers)

Notes:

• Keep the following comments in mind as reference when adjusting.
• If the size of the cone speaker unit built in your speaker is larger than 12 cm ( 4^3/4 inches), select "LARGE," and if it is smaller than 12 cm ( 4^3/4 inches), select "SMALL."
• If you have selected "SUBWOOFER NO" for the subwoofer setting, you can only select "LARGE" for the front speakers.
• If you have selected "SMALL" for the front speakers, you cannot select "LARGE" for the center and surround speakers.

Setting the Speaker Distance

The distance from your listening point to the speakers is another important element to obtain the best possible sound of the Surround and DSP modes. Set the distance from your listening point to the speakers.

By referring to the speaker distance setting, this unit automatically sets the delay time of the sound through each speaker so that sounds through all the speakers can reach you with the same timing.

- If you have used Quick Speaker Setup on page 16, this setting is not required.

● Measuring unit—DISTANCE UNIT

Select which measuring unit you use.

UNIT METER: Select to set the distance in meters.

UNIT FEET: Select to set the distance in feet.

● Speaker distance—FRONT L DIST, FRONT R DIST, CENTER DIST, SURR L DIST, SURR R DIST

Set the distance from the listening point within the range of 0.3 m (1 ft) to 9.0 m (30 ft), in 0.3 m (1 ft) intervals.

- When shipped from the factory, distance for each speaker is set to “3.0m (10FT).”

Note:

You cannot set the speaker distance for the speakers you have selected "NONE."

Ex. In the above case, set the speaker distance as follows:

Front speakers: 3.0m (10FT)

Center speaker: 3.0m (10FT)

Surround speakers: 2.7m (9FT)

Setting the Bass Sounds

You can adjust subwoofer and bass sounds precisely according to your preference.

- Subwoofer output—SUBWOOFER OUT

You can select the type of the signal which can be transmitted through the subwoofer. In other words, you can determine whether or not the bass elements of the front speaker channels are transmitted through the subwoofer regardless of the front speaker size setting (either “SMALL” or “LARGE”).

Select one of the following:

SWFR LFE: Select to emit only the LFE signals (while playing Dolby Digital and DTS software) or the bass elements of the “SMALL” front speakers (while playing any source other than the above).

SWFR LFE+MAIN: Select to always emit the bass elements of the front speaker channels (MAIN). While playing Dolby Digital and DTS software, the bass element and the LFE signals are both emitted.

Note:

If you have selected "SUBWOOFER NO" for the subwoofer, this function is not available.

● Crossover frequency—CROSSOVER

You can select the crossover frequency for the small speakers used. The signals below the preset frequency level will be sent to and be reproduced by the subwoofer (or by “LARGE” speakers when “SUBWOOFER” is set to “SUBWOOFER NO”).

Select one of the crossover frequency levels according to the size of the small speaker connected.

CROSS 80HZ:	Select when the cone speaker unit built in the speaker is about 12 cm ( 4^3/_4 inches).
CROSS 100HZ:	Select when the cone speaker unit built in the speaker is about 10 cm ( 3^15/_16 inches).
CROSS 120HZ:	Select when the cone speaker unit built in the speaker is about 8 cm ( 3^3/_16 inches).
CROSS 150HZ:	Select when the cone speaker unit built in the speaker is about 6 cm ( 2^3/_8 inches).
CROSS 200HZ:	Select when the cone speaker unit built in the speaker is about 5 cm (2 inches).

Notes:

• If you have selected "LARGE" for all activated speakers (see page 18), this function is fixed to "CROSS OFF."
• Crossover frequency is not valid for "HEADPHONE" and "3D H PHONE."

● Low frequency effect attenuator—LFE ATTENUATE

If the bass sound is distorted while playing back software encoded with Dolby Digital or DTS, set the LFE level to eliminate distortion.

- This function takes effect only when the LFE signals come in.

Select one of the following:

LFE ATT 0dB: Normally select this.

LFE ATT -10dB: Select when the bass sound is distorted.

● Midnight mode—MIDNIGHT MODE

You can enjoy a powerful sound at night using Midnight Mode.

Select one of the following:

MIDNIGHT 1:	Select when you want to reduce the dynamic range a little.
MIDNIGHT 2:	Select when you want to apply the compress effect fully (useful at midnight).
MIDNIGHT OFF:	Select when you want to enjoy playback with its full dynamic range (no effect applied).

■ Selecting the Main or Sub Channel

You can select the playback sound (channel) you want while playing digital software recorded (or broadcast) in Dual Mono mode (see page 24), which includes two monaural channels separately.

- Dual Mono—DUAL MONO

Select the playback sounds (channel).

MONO MAIN: Select to play back the main channel (Ch 1).*Signal indicator “L” lights up while playing back this channel.

MONO SUB: Select to play back the sub-channel (Ch 2).*Signal indicator “R” lights up while playing back this channel.

MONO ALL: Select to play back both the main and sub-channels (Ch 1/Ch 2).*Signal indicators “L” and “R” light up while playing back these channels.

Notes:

• The Dual Mono format is not identical with bilingual broadcasting or the MTS (Multichannel Television Sound) format used for TV programs. So this setting does not take effect while watching bilingual or MTS programs.
  * Dual Mono signals can be heard from the following speakers—L (left front speaker), R (right front speaker), and C (center speaker)—with respect to the current Surround setting.

Dual Mono Setting	Without Surround		With Surround Activated
			Center speaker setting
			SMALL/LARGE			NONE
	L	R	L	C	R	L	R
MAIN	Ch 1	Ch 1	—	Ch 1	—	Ch 1	Ch 1
SUB	Ch 2	Ch 2	—	Ch 2	—	Ch 2	Ch 2
ALL	Ch 1	Ch 2	—	Ch 1+Ch 2	—	Ch 1+Ch 2	Ch 1+Ch 2

Setting for Easy and Effective Surround Operations

● Auto Surround—AUTO SURROUND

Auto Surround works when the unit detects the incoming digital signal. In other words, it works...

• When you select the digital source (the source with digital input selected for it), and
• When you change the input mode from analog to digital.

Select "AUTO SURR ON" to activate Auto Surround.

AUTO SURR ON:

• When multi-channel signal is detected, an appropriate Surround mode will be turned on.
• When Dolby Digital 2-channel with surround signals is detected, “PLII MOVIE” will be selected.
• When Dolby Digital 2-channel without surround signals is detected, “SURROUND OFF” will be selected.
• When Linear PCM signal is detected, nothing will change.

AUTO SURR OFF: Select to deactivate Auto Surround.

Notes:

• This function does not take effect in the following cases:
– While playing an analog source,
- While selecting any of DSP modes (see page 26), or one of the fixed digital input mode—“DOLBY DIGITAL” or “DTS SURROUND” (see page 12), and
- While listening with the headphones—"HEADPHONE" or "3D H PHONE" (see pages 11 and 24).
- If you select another Surround mode or DSP mode (or deactivate the Surround/DSP mode) manually, Auto Surround, if in use, will be canceled temporarily for the currently selected source.
Auto Surround setting will be restored in the following cases:
- When you turn the receiver off and on,
- When you change the source,
- When you change the analog/digital input, and
- When you select "AUTO SURR ON" again.

● Virtual Surround Back—VIRTUAL SBACK

You can enjoy the surround back channel while playing back Dolby Digital Surround EX software or DTS-ES software without the surround back speakers. This function creates the great surround effect from the behind as if you have connected the surround back speakers.

Select "VRTL SB ON" to activate Virtual Surround Back.

VRTL SB ON: While you play Dolby Digital Surround EX software or DTS-ES software, the VIRTUAL SB (Surround Back) indicator lights up.

VRTL SB OFF: Select to deactivate Virtual Surround Back.

Notes:

• When you have set "NONE" for "SURR SPEAKERS," this function is not available.
• While playing back DTS-ES Matrix software with DTS 96/24, DTS 96/24 processing will not be performed with Virtual Surround Back activated. To apply the processing, deactivate Virtual Surround Back.
  • Virtual Surround Back may not be applied to some software.
• Virtual Surround Back only works for Surround modes (see page 25). This function does not work when activating the DSP mode (see page 27).

Setting the Digital Input Terminals

When you use the digital input terminals, register which components you have connected to the digital input terminals.

● Digital Input terminal—DIGITAL IN

Set the components connected to the digital terminals.

- As you rotate MULTI JOG, the digital input terminals are set to used for the following digital components:

1DVD 2CD ⇌ 1DVD 2TV ⇌ 1DVD 2CDR ⇌

1CD 2DVD ⇌ 1CD 2TV ⇌ 1CD 2CDR ⇌

1TV 2DVD ⇌ 1TV 2CD ⇌ 1TV 2CDR ⇌

1CDR 2DVD ⇌ 1CDR 2CD ⇌ 1CDR 2TV ⇌

(back to the beginning)

You can make sound adjustment to your preference after completing basic settings.

Basic Adjustment Items

On the following pages, you can adjust the following items:

- You can adjust only the items applicable to the current sound mode.

Items	To do	See page
DEQ 63HZ	Adjust equalizer pattern at 63 Hz.	22
DEQ250HZ	Adjust equalizer pattern at 250 Hz.	22
DEQ 1KHZ	Adjust equalizer pattern at 1 kHz.	22
DEQ 4KHZ	Adjust equalizer pattern at 4 kHz.	22
DEQ16KHZ	Adjust equalizer pattern at 16 kHz.	22
SUBWFR LEVEL	Adjust the subwoofer output level.	22
FRONT L LEVEL	Adjust the left front speaker output level.	22
FRONT R LEVEL	Adjust the right front speaker output level.	22
CENTER LEVEL	Adjust the center speaker output level.	22
SURR L LEVEL	Adjust the left surround speaker output level.	22
SURR R LEVEL	Adjust the right surround speaker output level.	22
EFFECT^*1	Adjust the effect level.	22
PANORAMA CTRL^*2	Add “wraparound” sound effect with side-wall image.	22

Notes:

*1 Adjustable when one of the DAP modes or Mono Film (see pages 26 and 27) is in use.

*2 Adjustable when Pro Logic II Music is in use.

Basic Procedure

Line drawing of a JVC audio workstation front panel with buttons and speaker (no text or symbols)

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Ex. When adjusting the subwoofer level to “-3.”

1 Press ADJUST.

The last selected item appears on the display.

ANALOG L R S.WFR I/O 6.3Hz

2 Turn MULTI JOG until an item you want appears on the display.

- In this example, select “SUBWFR LEVEL.” For available items, see the list “Basic Adjustment Items.”

ANALOG L R SWFR SUIWPR LEVEL

3 Press in MULTI JOG (PUSH SET).

The current setting (or level) for the selected item appears on the display.

ANALOG L R SWFR SUIWPR 0

4 Turn MULTI JOG to select a setting you want or to make an adjustment as you like.

ANALOG L R S.WFR Q/QWPR ...

5 Press in MULTI JOG (PUSH SET).

6 Repeat steps 2 to 5 to set other items if necessary.

7 Press EXIT.

The source indication resumes on the display.

■ Adjusting the Equalization Patterns

You can adjust the equalization patterns to your preference.

- Once you have made adjustment, it is memorized for each source.

● Equalization adjustment—DEQ 63HZ, DEQ250HZ, DEQ 1KHZ, DEQ 4KHZ, DEQ16KHZ

You can adjust five frequencies (63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz) within the range of -8 dB to +8 dB in 2 dB steps.

- When adjustment is made, the DIGITAL EQ indicator lights up on the display.

To flat the equalization pattern, set all the frequencies to “0 (0 dB)” in step 4 of “Basic Procedure” (on page 21). The DIGITAL EQ indicator goes off from the display.

Note:

The equalization patterns affect the front speaker sounds only.

■ Adjusting the Speaker Output Levels

You can adjust the speaker output levels.

- Once you have made adjustment, it is memorized for each source.

- Adjustable speakers—SUBWFR LEVEL, FRONT L LEVEL, FRONT R LEVEL, CENTER LEVEL, SURR L LEVEL, SURR R LEVEL

You can adjust the connected speakers' output levels within the range of -10 dB to +10 dB.

Note:

If you have deactivated a speaker (see page 18), the output level adjustment for the speaker is not adjustable.

■ Adjusting the Sound Parameters for the Surround and DSP Modes

You can adjust the Surround and DSP sound parameters to your preference. (For Surround and DSP modes, see pages 23 and 26.)

● Adjustable parameters

You can adjust the following parameters:

For DAP modes and Mono Film

- Once you have made adjustment, it is memorized for each mode.

EFFECT:

Adjust the effect level. As the number increases, the effect becomes stronger. (Adjustable range: 1 to 5. Normally select “3.”)

For Pro Logic II Music only

PANORAMA CTRL: Select “PANORAMA ON” to add “wraparound” sound effect with side-wall image. • To cancel it, select “PANORAMA OFF.”

You can also use the remote control for adjusting the speaker output level using the test tone.

- You can also adjust the effect level for DAP modes and Mono Film.

To adjust the speaker output level:

1 Press SOUND.

The 10 keys are activated for sound adjustments.

TEST • FRONT L • FRONT R EFFECT • CENTER • SUBWFR • SURR L • SURR R • LEVEL + SOUND

2 Press TEST to check if you can hear the sounds through all the speakers at equal level.

Test tone (TEST TONE) comes out of the speakers in the following order.

- No test tone comes out of the speakers for which the speaker setting is set to “NONE” (or “SUBWOOFER NO” for the subwoofer).

L (Left front) → C (Center) → R (Right front) → RS (Right surround) → LS (Left surround) → SW (Subwoofer) → (Back to the beginning)

3 Adjust the speaker output level (-10 dB to +10 dB).

• For the left front speaker: Press FRONT L, then LEVEL +/-
• For the center speaker: Press CENTER, then LEVEL +/-.
• For the right front speaker: Press FRONT R, then LEVEL +/-.
• For the right surround speaker: Press SURR R, then LEVEL +/-.
• For the left surround speaker: Press SURR L, then LEVEL +/-.
• For the subwoofer: Press SUBWFR, then LEVEL +/-.

Note:

When you press LEVEL +/- once, the current level for the selected speaker appears on the display, and the test tone comes out of the selected speaker. If no adjustment is done for about 4 seconds, the adjustment mode for the selected speaker is canceled.

4 Press TEST again to stop the test tone.

To adjust the effect level:

1 Press SOUND.

The 10 keys are activated for sound adjustments.

2 Press EFFECT repeatedly to select the effect level (EFFECT 1 to EFFECT 5).

The source indication resumes about 4 seconds after the adjustment.

This unit activates a variety of Surround modes automatically. The basic settings and adjustments stored (see pages 16 to 22) are applied automatically.

Reproducing Theater Ambience

In a movie theater, many speakers are located on the walls to reproduce impressive multi-surround sounds, reaching you from all directions.

With these many speakers, sound localization and sound movement can be expressed.

Surround modes built in this receiver can create almost the same surround sounds as you can feel in a real movie theater—with only a limited number of the speakers.

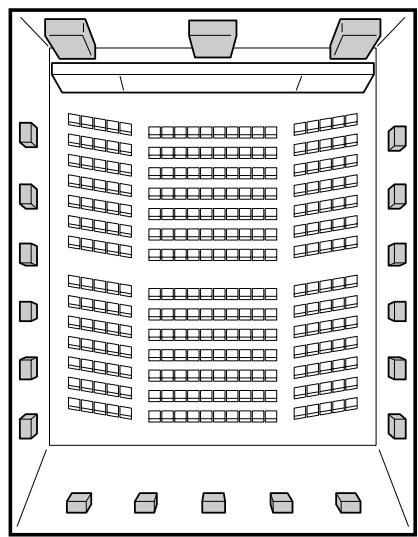

Diagram of a server rack with multiple slots and mounting brackets (no text or labels)

Left surround speaker (LS)

Right surround speaker (RS)

Introducing the Surround Modes

Dolby Digital\*1

Dolby Digital is a digital signal compression method, developed by Dolby Laboratories, and enables multi-channel encoding and decoding (1ch up to 5.1ch).

- When Dolby Digital signal is detected through the digital input, the ☐ DIGITAL indicator lights up on the display.

Dolby Digital 5.1CH

Dolby Digital 5.1CH (DOLBY DIGITAL) encoding method records and digitally compresses the left front channel, right front channel, center channel, left surround channel, right surround channel, and LFE channel signals (total 6 channels, but the LFE channel is counted as 0.1 channel. Therefore, called 5.1 channel). Dolby Digital enables stereo surround sounds, and sets the cutoff frequency of the surround treble at 20 kHz, compared to 7 kHz for Dolby Pro Logic. As such, the sound movement and “being-there” feeling are enhanced much more than Dolby Pro Logic.

Another digital surround encoding format introduced by Dolby Laboratories is Dolby Digital EX, which adds the third surround channels, called “surround back.”

Compared to the conventional Dolby Digital 5.1CH, these newly added surround back channels can reproduce more detailed movements behind you while viewing the video software. In addition, surround sound localization will become more stable.

- You can use Virtual Surround Back (see page 20) when playing back Dolby Digital Surround EX software. This function creates the great surround effect from the behind as if you have connected the surround back speakers.

Dolby Pro Logic II

Dolby Pro Logic II is a multi-channel playback format to convert 2-channel software into 5-channel (plus subwoofer). The matrix-based conversion method used for Dolby Pro Logic II makes no limitation for the cutoff frequency of the surround treble and enables stereo surround sound.

- This receiver provides two types of Dolby Pro Logic II modes—Pro Logic II Movie (PLII MOVIE) and Pro Logic II Music (PLII MUSIC). When Dolby Pro Logic II is activated, the ☐☐ PRO LOGIC II indicator lights up on the display.

PLII MOVIE:

Suitable for playing any Dolby Surround encoded software. You can enjoy a sound field very close to the one created with discrete 5.1-channel sounds.

PLII MUSIC:

Suitable for playing any 2-channel stereo software. You can enjoy wide and deep sounds.

*1 Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories.

DTS\*2

DTS is another digital signal compression method, developed by Digital Theater Systems, Inc., and enables multi-channel encoding and decoding (1ch up to 6.1ch).

- When DTS signal is detected through the digital input, the dts indicator lights up on the display.

DTS Digital Surround

DTS Digital Surround (DTS SURROUND) is another discrete 5.1-channel digital audio format available on CD, LD, and DVD software.

Compared to Dolby Digital, the DTS Digital Surround format has a lower audio compression rate which enables it to add breadth and depth to the sounds reproduced. As such, DTS Digital Surround features natural, solid, and clear sound.

Another multi-channel digital encoding format introduced by Digital Theater Systems, Inc. is DTS Extended Surround (DTS-ES).

It greatly improves the 360-degree surround impression and space expression by adding the third surround channel—surround back channel.

DTS-ES includes two signal formats with different surround signal recording methods—DTS-ES Discrete 6.1ch and DTS-ES Matrix 6.1ch.

- You can use Virtual Surround Back (see page 20) when playing back DTS-ES software. This function creates the great surround effect from the behind as if you have connected the surround back speakers.

DTS 96/24

In recent years, there has been increasing interest in higher sampling rates both for recording and for reproducing at home. Higher sampling rates allow wider frequency range and greater bit depths provide extended dynamic range.

DTS 96/24 is a multi-channel digital signal format (fs 96 kHz/24 bits) introduced by Digital Theater Systems, Inc. to deliver “better-than-CD sound quality” into the home.

- When DTS 96/24 signal is detected, the dts 96/24 indicator lights up. You can enjoy its 5.1-channel sound with full-quality.

What is Linear PCM?

Uncompressed digital audio data used for DVDs, CDs and Video CDs.

DVDs support 2 channels with sampling rates of 48/96 kHz, at quantization of 16/20/24 bits. On the other hand, CDs and Video CDs are limited to 2 channels with 44.1 kHz at 16 bits.

- When Linear PCM signal is detected, the indicator lights up.

What is Dual Mono?

Dual Mono can be easily understood when you think of the bilingual broadcast or the MTS (Multichannel Television Sound) format used for TV programs (however, the Dual Mono format is not identical with those analog formats).

This format is now adopted in Dolby Digital, DTS, and so on. It allows two independent channels (called main channel and sub-channel) to be recorded separately.

- When Dual Mono signal is detected, the DUAL MONO indicator lights up. You can select either channel you want to listen to (see page 19).

When using the Surround mode, the sounds come out of the activated speakers which the Surround mode requires.

• If either the surround speakers or center speaker is set to “NONE” in the speaker setting, the corresponding channel signals are allocated to and emitted through the front speakers.
• If both the surround speakers and center speaker are set to “NONE” in the speaker setting, JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.

3D Headphone Mode—3D H PHONE

If you activate Surround when the front speakers are deactivated, 3D Headphone Mode is activated without respect to the type of software played back. "3D H PHONE" appears on the display and the DSP and H.PHONE indicators also light up.

Activating the Surround Modes

Available Surround modes vary depending on the incoming signals.

Activating one of the Surround modes for a source automatically recalls the memorized settings and adjustments (see pages 16 to 22).

■ Activating the Surround Modes Automatically

You can enjoy the Surround mode simply by selecting the source (with digital input selected for that source).

- Auto Surround also works when the input mode changes from analog to digital.

To activate Auto Surround, see page 20.

ANALOG L R SWFR AUTO SURR ON

■ Activating the Surround Modes Manually

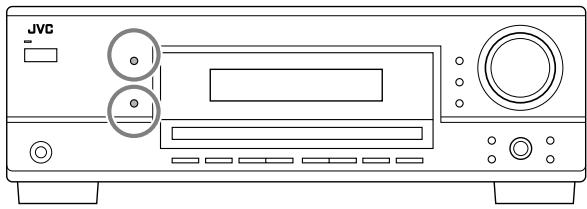

Line drawing of a JVC audio workstation front panel with buttons and dials (no text or symbols)

1 Select and play any source.

- Make sure you have selected the analog or digital input mode correctly.

2 Press SURROUND to activate the Surround mode.

- For Dolby Digital multi-channel digital software (except 2-channel and Dual Mono software), incoming signals are automatically detected and “DOLBY DIGITAL” is activated.

DIGITAL AUTO L C R □ DIGITAL S,WFR LFE LS RS TOLLARY DIGITAL

- For DTS multi-channel digital software (except 2-channel and Dual Mono software), incoming signals are automatically detected and “DTS SURROUND” is activated.

DIGITAL AUTO L C R S.WFR LFE LS RS dts ITS SURROUND

Note:

When the Dolby Digital or DTS multi-channel digital signal stops coming in, "PLII MOVIE" will be activated.

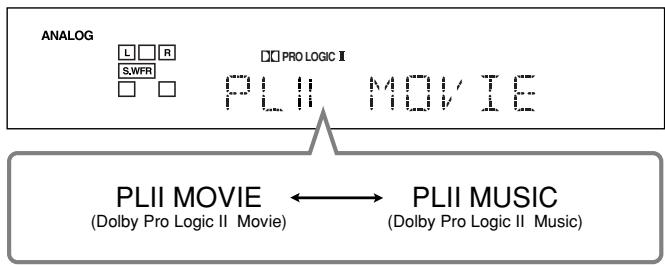

- For analog sources and digital 2-channel software, you can select one of the following Surround modes. Each time you press SURROUND, Surround modes change as follows:

- For Dual Mono software, you can select the channel you listen to. (See page 19.)

DUAL MONO DIGITAL AUTO L □ □□ DIGITAL DUAL MONO

To adjust the speaker output level, see page 22.

To cancel the Surround mode

Press SURROUND/DSP OFF.

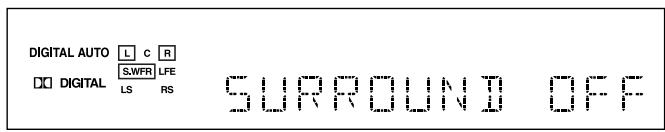

DIGITAL AUTO L C R DIGITAL S.WFR LFE LS RS SURROUND OFF

When playing Dolby Digital Surround EX or DTS-ES software You can enjoy Virtual 6.1-channel playback using Virtual Surround Back.

To activate Virtual Surround Back, see page 20.

VIRTUAL SB DIGITAL AUTO L C R S.WFR LFE LS RS dts SB /R T L 98 ON

This unit activates a variety of DSP modes automatically. The basic settings and adjustments stored (see pages 16 to 22) are applied automatically.

Reproducing the Sound Field

The sound heard in a concert hall, club, etc. consists of direct sound and indirect sound—early reflections and reflections from behind. Direct sounds reach the listener directly without any reflection. On the other hand, indirect sounds are delayed by the distances of the ceiling and walls. These direct sounds and indirect sounds are the most important elements of the acoustic surround effects. DSP modes can create these important elements, and give you a real “being there” feeling.

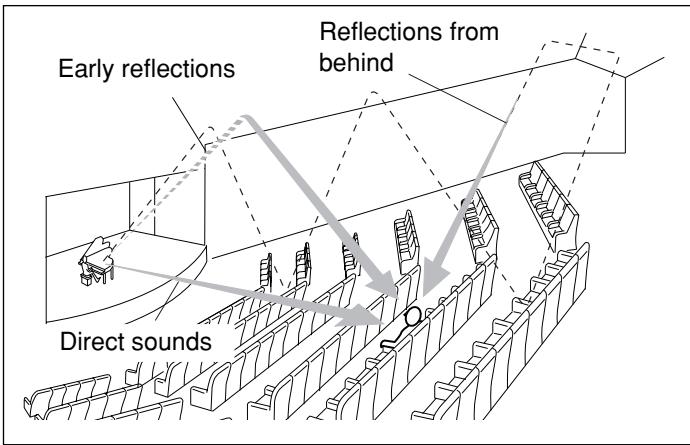

Early reflections Reflections from behind Direct sounds

Introducing the DSP Modes

DSP modes include the following modes—

• Digital Acoustic Processor (DAP) modes—HALL 1, HALL 2, LIVE CLUB, DANCE CLUB, PAVILION, THEATER 1, THEATER 2
• ALL CH STEREO
• MONO FILM—Used for all types of 2-channel signals (including Dual Mono signal)

3D Headphone Mode—3D H PHONE

If you press DSP when the front speakers are deactivated, 3D Headphone Mode is activated without respect to the type of software played back. “3D H PHONE” appears on the display and the DSP and H.PHONE indicators light up.

To use DSP modes, press DSP so that the DSP modes change as follows.

The DSP indicator also lights up on the display.

→ HALL 1 → HALL 2 → LIVE CLUB→ DANCE CLUB → PAVILION → ALL CH STEREO

→ THEATER 1 → THEATER 2 → MONO FILM→ (Back to the beginning)□ : Suitable for audio sources□ : Suitable for video sources

Digital Acoustic Processor (DAP) modes

You can use the following DAP modes in order to reproduce a more acoustic sound field in your listening room.

HALL 1:	Reproduces the spatial feeling of a large shoebox-shaped hall designed primarily for classical concerts. (Its seating capacity is about 2000.)
HALL 2:	Reproduces the spatial feeling of a large vineyard-shaped hall designed primarily for classical concerts. (Its seating capacity is about 2000.)
LIVE CLUB:	Reproduces the spatial feeling of a live music club with a low ceiling.
DANCE CLUB:	Reproduces the spatial feeling of a rocking dance club.
PAVILION:	Reproduces the spatial feeling of an exhibition hall with a high ceiling.
THEATER 1*:	Reproduces the spatial feeling of a large theater where the seating capacity is about 600.
THEATER 2*:	Reproduces the spatial feeling of a small theater where the seating capacity is about 300.

* The built-in Dolby Pro Logic II decoder is activated when playing back 2-channel analog or digital source. The ☐☐ PRO LOGIC II indicator lights up.

When using the DAP mode, the sounds come out of all the connected and activated speakers.

- If surround speakers are set to “NONE” in the speaker setting, JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.

All Channel Stereo

This mode can reproduce a larger stereo sound field using all the connected (and activated) speakers.

- If the surround speakers are set to “NONE,” you cannot select “ALL CH STEREO.”

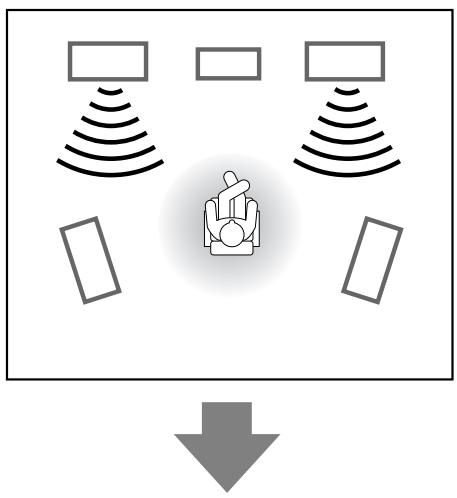

Sound reproduced from normal stereo

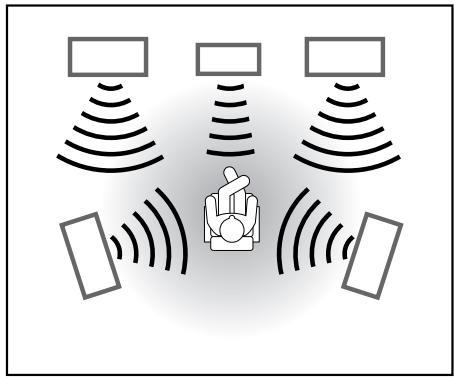

Sound reproduced from All Channel Stereo mode

Diagram illustrating wireless signal transmission between three devices with a central user icon and multiple input signals.

Mono Film

In order to reproduce a more acoustic sound field in your listening room while viewing monaural sound video software (analog and 2-channel digital signals), you can use this mode.

The surround effect will be added, and the sound localization of actor's words will be improved. This mode cannot be used for multi-channel digital signals.

When “MONO FILM” is used, the sounds come out of all the connected and activated speakers.

• If surround speakers are set to “NONE” in the speaker setting, JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.
• If incoming signals change from 2-channel digital signal to another digital signal type, “MONO FILM” is canceled and an appropriate Surround mode is activated.

Activating the DSP Modes

Activating one of the DSP modes for a source automatically recalls the memorized settings and adjustments (see pages 16 to 22).

Line drawing of a JVC audio workstation (no text or symbols on the device body)

1 Select and play any source.
2 Press DSP repeatedly until the DSP mode you want appears on the display.

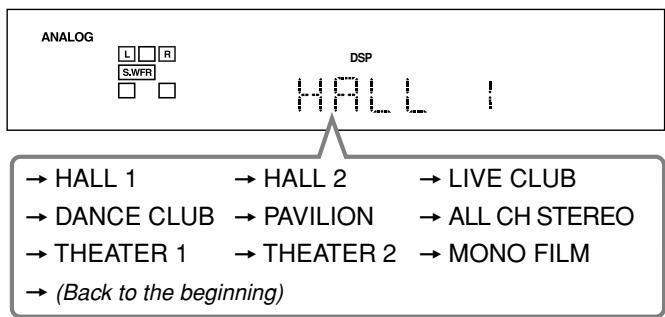

• Each time you press the button, the DSP modes change as follows:

Note:

When the surround speakers are set to “NONE,” the 3D-PHONIC processing is applied to the DSP modes (the 3D-PHONIC indicator also lights up).

To adjust the effect level (except All Channel Stereo), see page 22.

To cancel the DSP mode

Press SURROUND/DSP OFF.

ANALOG L R SWFR SURROUND OFF

You can operate JVC's audio and video components with this receiver's remote control, since control signals for JVC's components are preset in the remote control.

IMPORTANT:

To operate JVC's audio and video components using the supplied remote control:

• When using the remote control, aim the remote control directly at the remote sensor on each component, not on the receiver.
• Refer also to the manuals supplied with your components.
• Some JVC's VCRs can accept two types of the control signals—remote code “A” and “B.” Before using this remote control, make sure that the remote control code of the target VCR is set to code “A.”

Operating Audio Components

Sound control section (Amplifier)

You can always perform the following operations:

STANDBY/ON ⏻/I AUDIO:

Turn on or off the receiver.

VOLUME +/-: Adjust the volume level.

MUTING: Turn on or off sound muting.

ANALOG/DIGITAL: Switch the analog and digital input alternately.

DIMMER: Dim or brighten the display.

SLEEP: Set the Sleep Timer.

SURROUND: Turn on and select Surround modes.

DSP: Turn on and select DSP modes.

SURROUND/DSP OFF:

Turn off the Surround and DSP mode.

After pressing SOUND, you can perform the following operations by using the 10 keys:

FRONT L then LEVEL +/-: Adjust the left front speaker output level.

FRONT R then LEVEL +/-: Adjust the right front speaker output level.

CENTER then LEVEL +/-: Adjust the center speaker output level.

SURR L then LEVEL +/-: Adjust the left surround speaker output level.

SURR R then LEVEL +/-: Adjust the right surround speaker output level.

SUBWFR then LEVEL +/-: Adjust the subwoofer output level.

EFFECT: Adjust the effect level.

TEST: Turn on or off test tone output.

Note:

After adjusting sounds, press the corresponding source selection button to operate your target source by using the 10 keys; otherwise, the 10 keys cannot be used for operating your target source.

Tuner

You can always perform the following operations:

FM/AM: Alternate between FM and AM.

After pressing FM/AM, you can perform the following operations on a tuner:

1 - 10, +10: Select a preset channel number directly.

For channel number 5, press 5.

For channel number 15, press +10, then 5.

For channel number 20, press +10, then 10.

FM MODE: Change the FM reception mode.

CD player

After pressing CD, you can perform the following operations on a CD player:

▶: Start playing.

|◀◀: Return to the beginning of the current (or previous) track.

▶▶l: Skip to the beginning of the next track.

■: Stop playing.

II: Pause playing. To resume, press ▶.

1 - 10, +10: Select a track number directly.

For track number 5, press 5.

For track number 15, press +10, then 5.

For track number 20, press +10, then 10.

For track number 30, press +10, +10, then 10.

CD changer

After pressing CD-DISC, you can perform the following operations on a CD changer:

▶: Start playing.

|◀◀: Return to the beginning of the current (or previous) track.

▶▶l: Skip to the beginning of the next track.

■: Stop playing.

II: Pause playing. To resume, press ▶.

1 - 6, 7/P: Select the number of a disc installed in a CD changer.

After pressing CD, you can perform the following operations on a CD changer:

1 - 10, +10: Select a track number directly.

For track number 5, press 5.

For track number 15, press +10, then 5.

For track number 20, press +10, then 10.

For track number 30, press +10, +10, then 10.

Example:

- Selecting disc number 4, track number 12, and starting playback.

1 Press CD-DISC, then press 4.

2 Press CD, then press +10, 2.

If your CD changer is of 200-disc loading capability (except for XL-MC100 and XL-MC301), you can do the following operations using the 10 keys after pressing CD.

1 Select a disc number.

2 Then select a track number (always enter two digits).

3 Press ▶ to start playback.

Examples:

- Selecting disc number 3, track number 2, and starting playback. Press 3, then, 0, 2, then ▶.

- Selecting disc number 10, track number 5, and starting playback. Press 1, 0, then, 0, 5, then ▶.

- Selecting disc number 105, track number 12, and starting playback.

Press 1, 0, 5, then 1, 2, then ▶.

Note:

It is required to press each button within 4 seconds in the above procedure.

Operating Video Components

VCR

You can always perform the following operations:

STANDBY/ON ⏻/IVCR: Turn on or off the VCR.

VCR CH +/-: Change the TV channels on the VCR.

After pressing VCR, you can perform the following operations on the VCR:

▶: Start playing.

REW: Rewind the tape.

FF: Fast-forward the tape.

■: Stop playing, recording, rewind and fast forward.

II: Pause playing and recording. To resume, press ▶.

REC PAUSE: Enter recording pause.

To start recording, press this button then ▶.

DVD player

You can always perform the following operation:

STANDBY/ON ⏻/I DVD: Turn on or off the DVD player.

After pressing DVD, you can perform the following operations on the DVD player:

▶: Start playing.

◀◀: Return to the beginning of the current (or previous) chapter.

▶▶: Skip to the beginning of the next chapter.

■: Stop playing.

II: Pause playing. To resume, press ▶.

After pressing DVD, these buttons can be used for the DVD menu operations.

Note:

For detailed menu operations, refer to the instructions supplied with the discs or the DVD player.

MENU

ENTER

TV

Set TV/CATV selector to "TV."

You can always perform the following operations:

STANDBY/ON ⏻/I TV/CATV: Turn on or off the TV.

TV/CATV CH +/-: Change the channels.

TV VOLUME +/-: Adjust the volume.

TV/VIDEO: Set the input mode (either TV or VIDEO).

After pressing TV SOUND, you can perform the following operations on the TV:

1 - 9, 0, 100+ (+10): Select the channels.

RETURN (10): Alternate between the previously selected channel and the current channel.

Operating Other Manufacturers' Video Equipment

This remote control supplied for the receiver can transmit control signals for other manufacturers' TVs, CATV converters, VCRs and DVD players.

When operating the other manufacturers' components, refer also to the manuals supplied with them.

- After replacing batteries for the remote control, you need to set the manufactures' codes again.

To change the transmittable signals for operating another manufacturer's TV

1 Set the TV/CATV selector to "TV."
2 Press and hold STANDBY/ON 📋/TV/CATV.
3 Press TV SOUND.
4 Enter a manufacturer's code using buttons 1 - 9, and 0.

Manufacturer	Codes
JVC	01*
Hitachi	10
Magnavox	02
Mitsubishi	03
Panasonic	04, 11
RCA	05
Samsung	12
Sanyo	13
Sharp	06
Sony	07
Toshiba	08
Zenith	09

* “01” is the initial setting.

5 Release STANDBY/ON ⏻/TV/CATV.

Now you can perform the following operations on the TV:

STANDBY/ON ⏻/I TV/CATV: Turn on and off the TV.

TV/CATV CH +/-: Change the channels.

TV VOLUME +/-: Adjust the volume.

TV/VIDEO: Set the input mode (either TV or VIDEO).

After pressing TV SOUND, you can perform the following operations on the TV:

1 - 9, 0, 100 + (+10):

Select the channels.

The 10 (ENTER) button will function as the ENTER button if your TV requires pressing ENTER after selecting a channel number.

Notes:

• All the functions listed above may not be assigned to the buttons for some TVs.
• If you cannot change the channels of some TVs by pressing the 10 keys, press TV/CATV CH +/- for changing the channels.

6 Try to operate your TV by pressing STANDBY/ON ⏻/TV/CATV.

When your TV turns on or off, you have entered the correct code.

If there are more than one code listed for your brand of TV, try each one until the correct one is entered.

To change the transmittable signals for operating a CATV converter

1 Set the TV/CATV selector to "CATV."
2 Press and hold STANDBY/ON 📋/TV/CATV.
3 Press TV SOUND.
4 Enter a manufacturer's code using buttons 1 - 9, and 0.

Manufacturer	Codes
Echostar	01*
General Instrument	02, 03, 04, 05, 06, 07, 08, 09
Hamlin	16, 17, 18, 19
Pioneer	14, 15
RCA	20
Scientific Atlanta	10, 11
Sony	21
Zenith	12, 13

* “01” is the initial setting.

5 Release STANDBY/ON ⏻/TV/CATV.

Now you can perform the following operations on the CATV converter:

STANDBY/ON ⏻/I TV/CATV:

Turn on and off the CATV converter.

TV/CATV CH +/-: Change the channels.

After pressing TV SOUND, you can perform the following operations on the CATV converter:

$$ 1 - 9, 0, 1 0 0 + (+ 1 0): $$

Select the channels.

The 10 (ENTER) button will function as the

ENTER button if your CATV converter

requires pressing ENTER after selecting a

channel number.

6 Try to operate your CATV converter by pressing STANDBY/ON ⏻/TV/CATV.

When your CATV converter on or off, you have entered the correct code.

If there are more than one code listed for your brand of CATV converter, try each one until the correct one is entered.

Manufacturers' codes are subject to change without notice. If they are changed, this remote control cannot operate the equipment.

To change the transmittable signals for operating another manufacturer's VCR

1 Press and hold STANDBY/ON ⏻/VCR.
2 Press VCR.
3 Enter a manufacturer's code using buttons 1 - 9, and 0.

Manufacturer	Codes
JVC	01*, 02, 03
Emerson	10, 22
Gold Star	11
Hitachi	04
Mitsubishi	12
NEC	21
Panasonic	07, 13
Philips	09
RCA	05, 06
Samsung	20
Sanyo	17, 18, 19
Sony	14, 15, 16
Zenith	08

* “01” is the initial setting.

4 Release STANDBY/ON ⏻/I VCR.

Now you can perform the following operations on the VCR:

STANDBY/ON ⏻/IVCR: Turn on and off the VCR.

VCR CH +/-: Change the TV channels on the VCR.

After pressing VCR, you can perform the following operations on the VCR:

▶: Start playing.

REW: Rewind the tape.

FF: Fast-forward the tape.

■: Stop playing or recording.

II: Pause playing. To resume, press ▶.

REC PAUSE: Enter recording pause.

To start recording, press this button then ▶.

5 Try to operate your VCR by pressing STANDBY/ON ⏻/1 VCR.

When your VCR turns on or off, you have entered the correct code.

If there are more than one code listed for your brand of VCR, try each one until the correct one is entered.

To change the transmittable signals for operating another manufacturer's DVD player

1 Press and hold STANDBY/ON 📍/ DVD.
2 Press DVD.
3 Enter a manufacturer's code using buttons 1 - 9, and 0.

Manufacturer	Codes
JVC	01*
Panasonic	02
Philips	04
Pioneer	03
Sony	05
Toshiba	06
Yamaha	07

* “01” is the initial setting.

4 Release STANDBY/ON 📍/ DVD.

Now you can perform the following operations on the DVD player:

STANDBY/ON ⏻/I DVD: Turn on and off the DVD player.

After pressing DVD, you can perform the following operations on the DVD player:

▶: Start playing.
|◀◀: Return to the beginning of the current (or previous) chapter (or fast reverse for some models).
▶▶: Skip to the beginning of the next chapter (or fast forward for some models).
■: Stop playing.
II: Pause playing. To resume, press ▶.

After pressing DVD, these buttons can be used for the DVD menu operations.

Note:

For detailed menu operations, refer to the instructions supplied with the discs or the DVD player.

MENU

ENTER

5 Try to operate your DVD player by pressing STANDBY/ON ⏻/I DVD.

When your DVD player turns on or off, you have entered the correct code.

Manufacturers' codes are subject to change without notice. If they are changed, this remote control cannot operate the equipment.

Use this chart to help you solve daily operational problems. If there is any problem you cannot solve, contact your JVC's service center.

PROBLEM	POSSIBLE CAUSE	SOLUTION
The display does not light up.	The power cord is not plugged in.	Plug the power cord into an AC outlet.
No sound from speakers.	Speaker signal cables are not connected.	Check speaker wiring and reconnect if necessary.(See page 5.)
	The SPEAKERS ON/OFF button is not set correctly.	Press SPEAKERS ON/OFF so that the sounds come out of the speakers. (See page 11.)
	An incorrect source is selected.	Select the correct source.
	Muting is activated.	Press MUTING to cancel the mute. (See page 13.)
	An incorrect input mode (analog or digital) is selected.	Select the correct input mode (analog or digital).(See pages 11 and 12.)
“NO SUBWOOFER” appears on the display.	The SUBWOOFER ON/OFF button is pressed while “SUBWOOFER” is set to “SUBWOOFER NO.”	If subwoofer is connected, set “SUBWOOFER YES” so that the SUBWOOFER ON/OFF button works.
Continuous hiss or buzzing during FM reception.	Incoming signal is too weak.	Connect an outdoor FM antenna or contact your dealer. (See page 4.)
	The station is too far away.	Select a new station.
Noise is heard during FM/AM reception.	An incorrect antenna is used.	Check with your dealer to be sure you have the correct antenna.
	Antennas are not connected properly.	Check connections. (See pages 4 and 5.)
	Ignition noise from automobiles.	Move the antenna farther from automobile traffic.
“OVERLOAD” starts flashing on the display.	Speakers are overloaded because of high volume.	1. Press STANDBY/ON ♂/l on the front panel to turn off the receiver.2. Stop the playback source.3. Turn on the receiver again, and adjust the volume.
	Speakers are overloaded because of short circuit of speaker terminals.	Press STANDBY/ON ♂/l on the front panel to turn off the receiver, then check the speaker wiring.If “OVERLOAD” does not disappear, unplug the AC power cord, then plug it back again.If speaker wiring is not short-circuited, contact your dealer.
“DSP NG” appears on the display.	The built-in microcomputer is not functioning correctly.	Press STANDBY/ON ♂/l on the front panel to turn off the receiver. After unplugging the AC power cord, contact your dealer.
The STANDBY lamp lights up after turning on the power, and soon the receiver turns off again (into standby mode).	The receiver is overloaded because of a high voltage.	Press STANDBY/ON ♂/l on the front panel to turn off the receiver. After unplugging the AC power cord, contact your dealer.
Remote control does not work.	There is an obstruction between the remote sensor on the receiver and the remote control.	Remove the obstruction.
	Batteries are weak.	Replace batteries. (See page 4.)
Remote control does not work as you intend.	An incorrect remote control operation mode is selected.	Select the correct remote control operation mode.(See pages 28 to 31.)

Amplifier

Output Power

At Stereo operation
	Front channels:	100 W per channel, min. RMS, driven into 8 Ω,40 Hz to 20 kHz with no more than 0.8% total harmonic distortion.
At Surround operation
	Front channels:	100 W per channel, min. RMS, driven into 8 Ω, at 1 kHz with no more than 0.8% total harmonic distortion.
	Center channel:	100 W, min. RMS, driven into 8 Ω, at 1 kHz with no more than 0.8% total harmonic distortion.
	Surround channels:	100 W per channel, min. RMS, driven into 8 Ω, at 1 kHz with no more than 0.8% total harmonic distortion.

Audio

Audio Input Sensitivity/Impedance (1 kHz)
CD, TAPE/CDR, VCR, TV SOUND, DVD:		220 mV/47 kΩ
Audio Input (DIGITAL IN)*
Coaxial	DIGITAL 1 (DVD):	0.5 V(p-p)/75 Ω
Optical	DIGITAL 2 (CD):	-21 dBm to -15 dBm (660 nm ±30 nm)
* Corresponding to Linear PCM, Dolby Digital, and DTS Digital Surround (with sampling frequency—32 kHz, 44.1 kHz, 48 kHz)
Recording Output Level	TAPE/CDR, VCR:	220 mV
Signal-to-Noise Ratio ('66 IHF/'78 IHF)
CD, TAPE/CDR, VCR, TV SOUND, DVD:		87 dB/74 dB
Frequency Response (8 Ω)
CD, TAPE/CDR, VCR, TV SOUND, DVD:		20 Hz to 50 kHz (+1 dB, -3 dB)
Equalization (5 bands)	63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz:	±8 dB (in 2 dB steps)

Video

Video Input Sensitivity/ImpedanceComposite video	DVD, VCR:	1 V(p-p)/75 Ω
Video Output LevelComposite video	VCR, MONITOR OUT:	1 V(p-p)/75 Ω
Synchronization:		Negative
Signal-to-Noise Ratio:		45 dB

FM tuner (IHF)

Tuning Range:		87.5 MHz to 108.0 MHz
Usable Sensitivity	Monaural:	12.8 dBf (1.2 μV/75 Ω)
50 dB Quieting Sensitivity	Monaural:	16.0 dBf (1.7 μV/75 Ω)
	Stereo:	37.5 dBf (20.5 μV/75 Ω)
Stereo Separation at OUT (REC):		35 dB at 1 kHz

AM tuner

Tuning Range:

530 kHz to 1 710 kHz

General

Power Requirements:	AC 120V~, 60 Hz
Power Consumption:	200 W/260 VA (at operation)2 W (in standby mode)
Dimensions (W x H x D):	435 mm x 146.5 mm x 369.5 mm(17 ^3 / _16 in. x 5 ^13 / _16 in. x 14 ^5 / _8 in.)
Mass:	7.5 kg (16.6 lbs)

Designs and specifications are subject to change without notice.

JVC®

LIMITED WARRANTY

AUDIO-2

JVC COMPANY OF AMERICA (JVC) warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL RETAIL PURCHASER to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original purchase for the period shown below. ("The Warranty Period")

PARTS

2 YRS

LABOR

2 YRS

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN THE COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective within the warranty period, JVC will repair or replace defective parts with new or rebuilt equivalents at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products may be brought to a JVC authorized service center on a carry-in basis. Color televisions with a screen size of 27" or greater qualify for in-home service. In such cases, a technician will come to your home and either repair the TV there or remove and return it if it cannot be repaired in your home.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

Please do not return your product to the retailer

Instead, return your product to the JVC authorized service center nearest you. If shipping the product to the service center, please be sure to package it carefully, preferably in the original packaging, and include a brief description of the problem(s). Please call 1-800-252-5722 to locate the nearest JVC authorized service center. Service locations can also be obtained from our website http://www.jvc.com. If your product qualifies for in-home service, the service representative will require clear access to the product.

If you have any questions concerning your JVC Product, please contact our Customer Care Center at 800-252-5722

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to render such service, or if affixed to any attachment not provided with the products, or if the model or serial number has been altered, tampered with, defaced or removed;

2. Initial installation, installation and removal from cabinets or mounting systems.

3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;
4. Damage that occurs in shipment, due to act of God, and cosmetic damage;
5. Signal reception problems and failures due to line power surge;
6. Video Pick-up Tubes/CCD Image Sensors are covered for 90 days from the date of purchase;
7. Accessories;
8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase);
9. Products used for commercial purposes, including, but not limited to rental.

There are no express warranties except as listed above.

THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR ANY LOSS OF USE OF THE PRODUCT, INCONVIENCE, OR ANY OTHER DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

JVC COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP.

1700 Valley Road

Wayne, NJ 07470

http://www.jvc.com

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAIL OF REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.:

Serial No.:

Purchase date :

Name of dealer :

TO OUR VALUED CUSTOMER

THANK YOU FOR PURCHASING THIS JVC PRODUCT.

WE WANT TO HELP YOU ACHIEVE A PERFECT EXPERIENCE.

NEED HELP ON HOW TO HOOK UP? NEED ASSISTANCE ON HOW TO OPERATE? NEED TO LOCATE A JVC SERVICE CENTER? LIKE TO PURCHASE ACCESSORIES?

JVC® IS HERE TO HELP!

TOLL FREE: 1(800)252-5722 http://www.jvc.com

Remember to retain your Bill of Sale for Warranty Service.

Do not attempt to service the product yourself

Caution

To prevent electrical shock, do not open the cabinet.

There are no user serviceable parts inside.

Please refer to qualified service personnel for repairs.

JVC

Line drawing of a JVC audio workstation front and right (no text or symbols on the device body)

INSTRUCTIONS

MANUEL D'INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.

ATTENTION

Disconnect the mains plug to shut the power off completely. The STANDBY/ON ⏻/1 button in any position does not disconnect the mains line. The power can be remote controlled.

Attention—Commutateur STANDBY/ON ⏻/!!

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

For Canada/pour le Canada

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND.

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED "DIGITAL APPARATUS," ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.

CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR; "APPAREILS NUMERIQUES", NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

Parts Identification 2

Getting Started.... 4

Before Installation 4
Checking the Supplied Accessories 4
Putting Batteries in the Remote Control 4
Connecting the FM and AM Antennas 4
Connecting the Speakers and Subwoofer 5
Connecting Audio/Video Components 6
■ Analog Connections ...... 6
■ Digital Connections 8
Connecting the Power Cord 8

Basic Operations 9

Daily Operational Procedure 9
Turning On the Power 9
Selecting the Source to Play 9
Adjusting the Volume ...... 10
Turning On and Off the Subwoofer Sound 11
Selecting the Analog or Digital Input Mode .... 11
Changing the Display Brightness 12
Attenuating the Input Signal 12
Changing the Source Name 12
Muting the Sound 13
Using the Sleep Timer 13

Receiving Radio Broadcasts 14

Tuning in to Stations Manually 14
Using Preset Tuning 14
Selecting the FM Reception Mode 15

Basic Settings.... 16

Quick Speaker Setup 16
Basic Setting Items 17
Basic Procedure ...... 17
■ Setting the Speakers .... 18
■ Setting the Speaker Distance .... 18
■ Setting the Bass Sounds .... 18
■ Selecting the Main or Sub Channel .... 19
■ Setting for Easy and Effective Surround Operations ...... 20
■ Setting the Digital Input Terminals ...... 20

Adjusting Sound 21

Basic Adjustment Items.... 21
Basic Procedure 21

■ Adjusting the Equalization Patterns ...... 22
■ Adjusting the Speaker Output Levels 22
■ Adjusting the Sound Parameters for the Surround and DSP Modes .... 22

Using the Surround Modes 23

Reproducing Theater Ambience 23
Introducing the Surround Modes ...... 23
Activating the Surround Modes ...... 25

Using the DSP Modes 26

Reproducing the Sound Field 26
Introducing the DSP Modes 26
Activating the DSP Modes 27

Operating JVC's Audio/Video Components ... 28

Operating Audio Components 28
Operating Video Components 29

Operating Other Manufacturers' Video Equipment 30

Troubleshooting 32

Specifications.... 33

This mark indicates that ONLY the remote control CAN be used for the operation explained.

This mark indicates that the remote control CANNOT be used for the operation explained. Use the buttons and controls on the front panel.

Front Panel

JVC STANDSY I/ STANDSYON 1 2 3 4 5 6 7 8 9 10 11 SURROUND DSP SURROUND/DSP OFF AUDIO/VIDEO CONTROL RECEIVER ANALOG DUALMOND 3D-PHOMIC VIRTUAL SB TUNED STEREO AUTO MUTING SLEEP DIGITAL AUTO HUPHONE PROLOGIC DISP DIGITAL G INPUT ATT VOLUME LINEAR PCM LATH FV DIGITAL S S dits 2024 CH MASTER VOLUME DIMMER INPUT DIGITAL INPUT ANALOG INPUT ATT DVD VCR TV SOUND CD TAPE/CDR FMAM SOURCE NAME SPEAKERS SUBWOOFER OUT FMAM TUNING ▲ FMAM PRESET ▲ FM MODE MEMORY ON/OFF ON/OFF 12 13 14 15 16 17 18 19 20 21 22 23 QUICK SPEAKER SETUP PUSH SET ADJUST EXIT

See pages in parentheses for details.

1 STANDBY/ON ⏻/I button and STANDBY lamp (9)
2 SURROUND/DSP OFF button (25, 27)
3 DSP button (26, 27)
4 SURROUND button (25)
5 Remote sensor
6 Display (For details, see “Display” below.)
7 Source selection buttons (9, 12) DVD, VCR, TV SOUND, CD, TAPE/CDR (SOURCE NAME), FM/AM
8 INPUT ANALOG button (12) INPUT ATT button (12)
9 INPUT DIGITAL button (11)

10 DIMMER button (12)
11 MASTER VOLUME control (10)
12 PHONES jack (11)
13 SPEAKERS ON/OFF button (11)
14 SUBWOOFER OUT ON/OFF button (11)
15 FM/AM TUNING ▲/▼ buttons (14)
16 FM/AM PRESET ▲/▼ buttons (14)
17 FM MODE button (15)
18 MEMORY button (14)
19 SETTING button (17)
20 QUICK SPEAKER SETUP button (16)
21 MULTI JOG (PUSH SET) dial (16, 17, 21)
22 EXIT button (17, 21)
23 ADJUST button (21)

Display

ANALOG DIGITAL AUTO LINEAR PCM DIGITAL dts 96/24 DUAL MONO L C R S.WFR LFE LS S RS SB CH- 3D - PHONIC VIRTUAL SB H. PHONE PRO LOGIC II DSP DIGITAL EQ TUNED STEREO AUTO MUTING SLEEP INPUT ATT VOLUME- VOLUME-

See pages in parentheses for details.

① ANALOG indicator (12)
② DUAL MONO indicator (24)
③ H.PHONE indicator (11, 24, 26)
④ 3D-PHONIC indicator (24, 26, 27)
⑤ VIRTUAL SB indicator (20)
⑥ PRO LOGIC II indicator (23, 26)
⑦ DSP indicator (26, 27)
⑧ DIGITAL EQ indicator (22)
⑨ TUNED indicator (14)

⑩ STEREO indicator (14)
⑪ INPUT ATT indicator (12)
⑫ AUTO MUTING indicator (15)
⑬ SLEEP indicator (13)
⑭ VOLUME indicator (9)
⑮ Digital signal format indicators (11)
⑯ Speaker indicators and signal indicators (10)
⑰ CH- indicator (14)
⑱ Main display

Remote Control

TV CATV A/V CONTROL RECEIVER STANDBYON I/ AUDIO TV/CATV VCR DVD SLEEP 1 2 3 4 5 6 7/P 8 9 10 0 +10 100+ EFFECT * CENTER *SUBWFR MENU *SURR L *SURR R ENTER *LEVEL+ RETURN SOUND REF FF REC PAUSE CD-DISC TAPE/CDR CD DVD FM/AM TV SOUND VCR ANALOG/ /DIGITAL FM MODE SURROUND DSP SURROUND DSP OFF DIMMER TV/VIDEO MUTING + + - + + VCR CH TV/CATV CH + - TV/VOLUME - - VOLUME JVC

See pages in parentheses for details.

① TV/CATV selector (30)
② 10 keys for selecting preset channels (15, 28) 10 keys for sound adjustment (22, 28) 10 keys for operating audio/video components (28 – 30)

③ SOUND button (22, 28)

④ REC PAUSE button (29, 31)

⑤ Source selection buttons (9, 10) TAPE/CDR, CD, DVD, FM/AM, TV SOUND, VCR

⑥ FM MODE button (15, 28)

⑦ SURROUND button (25, 28)

⑧ DIMMER button (12, 28)

⑨ TV/VIDEO button (29, 30)

⑩ VCR CH +/- buttons (29, 31)

⑪ TV/CATV CH +/- buttons (29, 30)

⑫ STANDBY/ON ⏻/I buttons (9, 28 – 31) AUDIO, TV/CATV, VCR, DVD

⑬ SLEEP button (13, 28)

⑭ Operating buttons for audio/video components ▶, □, ■, ▶▶▶/▶◀◀, FF/REW (28, 29, 31)

⑮ CD-DISC button (29)

⑯ ANALOG/DIGITAL button (11, 12, 28)

⑰ SURROUND/DSP OFF button (25, 27, 28)

⑱ DSP button (26 - 28)

⑲ MUTING button (13, 28)

⑳ VOLUME +/- button (10, 28)

②1 TV VOLUME +/- buttons (29, 30)

Note:

When you press the one of the audio source selection buttons—TAPE/CDR, CD, and FM/AM—on the remote control, the receiver automatically turns on.

Rear Panel

DIGITAL 1 (DVD) DIGITAL 2 (CD) DIGITAL IN OUT (REC) TAPE ICDR IN (PLAY) OUT (REC) VCR IN (PLAY) TV SOUND IN RIGHT LEFT AUDIO SUBWOOFER OUT MONITOR OUT DVD IN AUDIO VIDEO AM LOOP FM 75Ω COARIAL ANTENNA CENTER SPEAKER SURROUND SPEAKERS RIGHT LEFT FRONT SPEAKERS RIGHT LEFT CAUTION : SPEAKER IMPEDANCE 8Ω—16Ω

See pages in parentheses for details.

1 DIGITAL IN terminals (8)

• Coaxial: DIGITAL 1 (DVD)

• Optical: DIGITAL 2 (CD)

2 AUDIO input/output jacks (6, 7)

- Input: CD IN, TAPE/CDR IN (PLAY), VCR IN (PLAY), TV SOUND IN, DVD IN

- Output: TAPE/CDR OUT (REC), VCR OUT (REC), SUBWOOFER OUT

3 VIDEO input/output jacks (7)

- Input: DVD IN, VCR IN (PLAY)

• Output: MONITOR OUT, VCR OUT (REC)

4 ANTENNA terminals (4, 5)

5 CENTER SPEAKER terminals (5)

6 SURROUND SPEAKERS terminals (5)

7 FRONT SPEAKERS terminals (5)

8 AC power cord (8)

This section explains how to connect audio/video components and speakers to the receiver, and how to connect the power supply.

Before Installation

General Precautions

• Be sure your hands are dry.
• Turn the power off to all components.
• Read the manuals supplied with the components you are going to connect.

Locations

• Install the receiver in a location that is level and protected from moisture and dust.
- The temperature around the receiver must be between -5^ and 35^ .
- Make sure there is good ventilation around the receiver. Poor ventilation could cause overheating and damage the receiver.

Handling the receiver

• Do not insert any metal object into the receiver.
• Do not disassemble the receiver or remove screws, covers, or cabinet.
• Do not expose the receiver to rain or moisture.

Checking the Supplied Accessories

Check to be sure you have all of the following items, which are supplied with the receiver.

The number in the parentheses indicates quantity of the pieces supplied.

• Remote Control (1)
• Batteries (2)
  • AM Loop Antenna (1)
• FM Antenna (1)

If anything is missing, contact your dealer immediately.

Putting Batteries in the Remote Control

Before using the remote control, insert the two supplied batteries first.

1 Press and slide the battery cover on the back of the remote control.

2 Insert the batteries.

- Make sure to match the polarity: (+) to (+) and (−) to (−).

3 Replace the cover.

If the remote control cannot transmit signals or operate the receiver correctly, replace the batteries. Use two R6(SUM-3)/AA(15F) type dry-cell batteries.

Notes:

• Supplied batteries are for the initial setup. Replace for continued use.
• After replacing the batteries, set the manufacturers' codes again (see pages 30 and 31).

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity: (+) to (+) and (−) to (−).
• Use the correct type of batteries. Batteries that look similar may differ in voltage.
  • Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.

Connecting the FM and AM Antennas

FM antenna connections

Diagram of a device rear panel with ports, connectors, and a central control panel (no text or labels)

A

RE ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On On O3C010000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Extend the supplied FM antenna horizontally.

B

M R BRASER ANTenna

AM LOOP FM 75Ω COAXIAL ANTENNA FM Antenna (supplied) Outdoor FM Antenna Cable (not supplied)

Connect the supplied FM antenna as temporary measure to the FM 75 Ω COAXIAL terminal—Ⓐ

If reception is poor, connect the outdoor FM antenna (not supplied)—®

1 Disconnect the supplied FM antenna.
2 Connect a 75 Ω coaxial cable (with the standard type connector).

AM antenna connections

AM Loop Antenna (supplied) AM EXT AM LOOP FM 75Ω COAXIAL ANTENNA Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna. 1 2 3

Outdoor single vinyl-covered wire (not supplied)

Turn the loop until you have the best reception.

Notes:

• If the AM loop antenna wire is covered with vinyl, remove the vinyl by twisting it as illustrated.
• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception.
• If reception is poor, connect an outdoor single vinyl-covered wire (not supplied) to the AM EXT terminal. (Keep the AM loop antenna connected.)

Connecting the Speakers and Subwoofer

You can connect five speakers (a pair of front speakers, a center speaker, and a pair of surround speakers) and a subwoofer.

CAUTIONS:

• Use only the speakers of the SPEAKER IMPEDANCE indicated by the speaker terminals.
• Do not connect more than one speaker to each speaker terminal.

Connecting the speakers

1 2 3 4

1 Twist and remove the insulation at the end of each speaker cord.
2 Press and hold the clamp of the speaker terminal.
3 Insert the speaker cord.
4 Release the finger from the clamp.

For each speaker (except for a subwoofer), connect the (+) and (−) terminals on the rear panel to the (+) and (−) terminals marked on the speakers.

CENTER SPEAKER SURROUND SPEAKERS RIGHT - LEFT FRONT SPEAKERS RIGHT - LEFT CAUTION : SPEAKER IMPEDANCE 8Ω—16Ω To left front speaker To left surround speaker To center speaker To right front speaker To right surround speaker

Connecting the subwoofer

You can enhance the bass by connecting a subwoofer.

Connect the input jack of a powered subwoofer to the rear panel, using a cable with RCA pin plugs (not supplied).

SUBWOOFER OUT Powered subwoofer

Placing speakers

Front speakers (L/R) and center speaker (C)

• Place these speakers at the same height from the floor, at or near ear level.
• Array across the front of the viewing area.

Surround speakers (LS/RS)

• Place these speakers alongside and slightly to the rear of (but not behind) the listening position; well above ear level (60 cm to 90 cm higher).
• Point these speakers directly across the listening area, but not at the listener's ears.

Subwoofer (S.WFR)

- You can place it wherever you like since bass sound is non-directional. Normally place it in front of you.

L C R S.WFR 45°-60° LS RS

After connecting the speakers, set the speaker installation information properly. You can use Quick Speaker Setup for it (see page 16).

Connecting Audio/Video Components

When connecting individual components, refer also to the manuals supplied with them.

■ Analog Connections

Audio component connections

Use the cables with RCA pin plugs (not supplied).

- Connect the white plug to the audio left jack, and the red plug to the audio right jack.

CAUTION:

If you connect a sound-enhancing device such as a graphic equalizer between the source components and this receiver, the sound output through this receiver may be distorted.
    linkStyle 0 stroke:#000,stroke-width:2px
    linkStyle 1 stroke:#000,stroke-width:2px
    linkStyle 2 stroke:#000,stroke-width:2px
    linkStyle 3 stroke:#000,stroke-width:2px
    linkStyle 4 stroke:#000,stroke-width:2px
    linkStyle 5 stroke:#000,stroke-width:2px
    linkStyle 6 stroke:#000,stroke-width:2px
    linkStyle 7 stroke:#000,stroke-width:2px
    linkStyle 8 stroke:#000,stroke-width:2px
    linkStyle 9 stroke:#000,stroke-width:2px
    linkStyle 10 stroke:#000,stroke-width:2px
    linkStyle 11 stroke:#000,stroke-width:2px
    linkStyle 12 stroke:#000,stroke-width:2px
    linkStyle 13 stroke:#000,stroke-width:2px
    linkStyle 14 stroke:#000,stroke-width:2px
    linkStyle 15 stroke:#000,stroke-width:2px
    linkStyle 16 stroke:#000,stroke-width:2px
    linkStyle 17 stroke:#000,stroke-width:2px
    linkStyle 18 stroke:#000,stroke-width:2px
    linkStyle 19 stroke:#000,stroke-width:2px
    linkStyle 20 stroke:#000,stroke-width:2px

Note:

When connecting a CD recorder to the TAPE/CDR jacks, change the source name to "CDR," which will be shown on the display when it is selected as the source. See page 12 for details.

Video component connections

Use the cables with RCA pin plugs (not supplied).

Connect the white plug to the audio left jack, the red plug to the audio right jack, and the yellow plug to the video jack.

A To audio input
B To audio output
C To composite video input
D To composite video output
    note1["Connect the TV to appropriate MONITOR OUT jacks to view the playback picture from any other connected video components."]

A To audio output
B To composite video input

DVD player RIGHT LEFT DVD IN AUDIO R L DVD player DVD A B

A To composite video output
B To left/right front channel audio output (or to audio-mixed output if necessary)

Note:

To enjoy Dolby Digital and DTS multi-channel software (including Dual Mono software), connect the DVD player through the digital input/output terminals.

Digital Connections

By connecting the receiver and the source component through the digital terminals, sound reproduction quality will be much improved. In addition, you can enjoy multi-channel reproduction and some other convenient functions.

IMPORTANT:

• When connecting a video component using the digital terminals, you also need to connect it to the video jacks on the rear. Without connecting it to the video jacks, you can view no playback picture.
  • After connecting the components using the DIGITAL IN terminals, set the following correctly if necessary.
• Set the digital input (DIGITAL IN) terminal setting correctly. For details, see “Setting the Digital Input Terminals” on page 20.
• Select the digital input mode correctly. For details, see "Selecting the Analog or Digital Input Mode" on page 11.

Digital input terminals

You can connect any digital components having coaxial or optical digital output terminal.

Digital coaxial cable (not supplied) between digital coaxial terminals Digital optical cable (not supplied) between digital optical terminals

When the component has a digital coaxial output terminal, connect it to the DIGITAL 1 (DVD) terminal, using a digital coaxial cable (not supplied).

When the component has a digital optical output terminal, connect it to the DIGITAL 2 (CD) terminal, using a digital optical cable (not supplied).

DIGITAL 1 (DVD) DIGITAL 2 (CD) DIGITAL IN

Before connecting a digital optical cable, unplug the protective plug.

Note:

When shipped from the factory, the DIGITAL IN terminals have been set for use with the following components:

• DIGITAL 1 (coaxial): For DVD player
• DIGITAL 2 (optical): For CD player

Connecting the Power Cord

Before plugging the receiver into an AC outlet, make sure that all connections have been made.

Plug the power cord into an AC outlet.

Illustration of a plug with a wall socket inserted, showing the plug's internal structure (no text or symbols)

Keep the power cord away from the connecting cables and the antenna. The power cord may cause noise or screen interference.

Note:

The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases:

• When you unplug the power cord.
• When a power failure occurs.

CAUTIONS:

• Do not touch the power cord with wet hands.
• Do not pull on the power cord to unplug the cord. When unplugging the cord, always grasp the plug so as not to damage the cord.

The following operations are commonly used when you play any sound sources.

Operations hereafter will be explained using the buttons on the front panel.

You can also use the buttons on the remote control for the same functions if they have the same and similar names/marks.

Daily Operational Procedure

JVC 1 4 2 3

1 Turn on the power.

• See “Turning On the Power” below.

2 Select the source.

- See “Selecting the Source to Play” to the right.

3 Adjust the volume.

• See “Adjusting the Volume” on page 10.

4 Select the Surround or DSP modes.

- See “Activating the Surround Modes” (page 25) and “Activating the DSP Modes” (page 27).

Turning On the Power

Line drawing of a CD-ROM front panel with control buttons and a display (no text or symbols)

Press STANDBY/ON Ⓧ/l (or STANDBY/ON Ⓧ/l AUDIO on the remote control).

The STANDBY lamp goes off.

Current source name appears.

ANALOG L R SWFR 1 1 / 10 VOLUME 5.5

Current volume level appears.

To turn off the power (into standby mode),

press STANDBY/ON Ⓧ/l (or STANDBY/ON Ⓧ/l AUDIO on the remote control) again.

The STANDBY lamp lights up.

Note:

A small amount of power is consumed in standby mode. To turn off the power completely, unplug the AC power cord.

Selecting the Source to Play

When you have connected digital source components using the digital terminals, first change the input mode for these components to the digital input mode (see page 11).

Line drawing of a JVC audio workstation (no text or symbols on the device body)

Press one of the source selection buttons.

Selected source name appears. ANALOG L R S.WFR V C R VOLUME 25

On the front panel

On the remote

Note:

When connecting a CD recorder to the TAPE/CDR jacks, change the source name shown on the display. For details, see page 12.

Speaker and signal indicators on the display

By checking the following indicators, you can easily confirm which speakers you are activating and which signals are coming into this receiver.

Speaker indicators

L C R S.WFR LFE LS S RS

SB

Signal indicators

L C R S.WFR LFE LS S RS

SB

What speaker indicators light depends on the speaker setting (for details, see “Setting the Speakers” on page 18).

• The frames of “L,” “C,” “R,” “LS,” and “RS” light up, when the corresponding speakers are set to “LARGE” or “SMALL.” Sounds come out of the speakers whose speaker indicators is lit on the display.
• The S.WFR indicator lights up when the subwoofer is activated (see pages 11 and 18).

The signal indicators light up to show the incoming signals.

L: • When digital input is selected: Lights up when the left channel signal comes in.
- When analog input is selected: Always lights up.
R: • When digital input is selected: Lights up when the right channel signal comes in.
- When analog input is selected: Always lights up.
C: Lights up when the center channel signal comes in.
LFE: Lights up when the LFE channel signal comes in.
LS: Lights up when the left surround channel signal comes in.
RS: Lights up when the right surround channel signal comes in.
S: Lights up when the monaural surround channel signal comes in.
SB: Lights up when the surround back channel signal comes in.

How to understand the speaker and signal indicator illumination

Ex. No sound comes out of the center speaker and surround speakers though center channel and surround channel signals are coming into this receiver.

Selecting different sources for picture and sound

While watching pictures from a video source, you can listen to sound of an audio source.

- Once you have selected a video source, pictures of the selected source are sent to the TV until you select another video source.

Press one of the audio source selection buttons while viewing the picture from a video component such as the VCR or DVD player, etc.

On the front panel

On the remote

Adjusting the Volume

Line drawing of a JVC audio workstation with buttons and speaker (no text or symbols)

On the front panel:

To increase the volume, turn MASTER VOLUME clockwise. To decrease the volume, turn it counterclockwise.

On the remote control:

To increase the volume, press VOLUME +. To decrease the volume, press VOLUME -.

CAUTION:

Always set the volume to the minimum before starting any sources. If the volume is set at its high level, the sudden blast of sound energy can permanently damage your hearing and/or ruin your speakers.

Note:

The volume level can be adjusted within the range of "0" (minimum) to "50" (maximum).

Listening with headphones:

You can enjoy not only stereo software but also multi-channel software through the headphones. (Sounds are down-mixed to the front channels while playing multi-channel software.)

1 Press SPEAKERS ON/OFF to deactivate the speakers. "HEADPHONE" appears for a while, and the H.PHONE indicator lights on the display.
- If the Surround or DSP mode has been activated, “3D H PHONE” appears for a while (and the DSP indicator also lights up on the display)—3D Headphone Mode (3D H PHONE). For details, see pages 24 and 26.
2 Connect the headphones to the PHONES jack on the front panel.
- If you do not deactivate the speakers, no sound comes out of the headphones.

After using the headphones, disconnect the headphones, then press SPEAKERS ON/OFF again to activate the speakers.

CAUTION:

Be sure to turn down the volume....

• Before connecting or putting on headphones, as its high volume can damage both the headphones and your hearing.
• Before turning on speakers again, as its high volume may come out of the speakers.

Turning On and Off the Subwoofer Sound

You can cancel the subwoofer output even though you have connected a subwoofer and have set “SUBWOOFER” to “SUBWOOFER YES” (see page 18).

Line drawing of a JVC audio workstation CD with control panel and speaker (no text or symbols)

Press SUBWOOFER OUT ON/OFF to cancel the subwoofer output.

Each time you press the button, subwoofer output is deactivated (“SUBWOOFER OFF”) and activated (“SUBWOOFER ON”) alternately.

- When subwoofer output is canceled, the S.WFR indicator goes off. Bass sounds (and LFE signals) will be emitted through the front speakers.

Notes:

• When subwoofer output is activated, you can also adjust the subwoofer output level. For details, see page 22.
• You cannot deactivate the subwoofer output when you set "SMALL" for the front speakers on the speaker size setting (see page 18) or using Quick Speaker Setup (see page 16).
• You cannot activate the subwoofer output when you have set "SUBWOOFER" to "SUBWOOFER NO" (see page 18).
• When you change the "SUBWOOFER" setting from "SUBWOOFER NO" to "SUBWOOFER YES" (see page 18), subwoofer output is automatically activated.

Selecting the Analog or Digital Input Mode

When you have connected digital source components using the both analog and digital terminals (see pages 6 to 8), you can select the input mode—either digital or analog—for these components.

Line drawing of a JVC audio workstation front panel with control buttons and speaker grille (no text or symbols)

Before you start, remember...

The digital input terminal setting should be correctly done for the sources you want to select the digital input mode (see “Setting the Digital Input Terminals” on page 20).

1 Press one of the source selection buttons (DVD, TV SOUND, CD, TAPE/CDR*) for which you want to change the input mode.

* If "TAPE" is selected as the source, digital input mode is not available. To change the source name, see "Changing the Source Name" on page 12.

2 Press INPUT DIGITAL to select "DIGITAL AUTO."

The DIGITAL AUTO indicator lights up on the display.
- When using the remote control, press ANALOG/DIGITAL. Each time you press the button, the analog (ANALOG) and digital (DIGITAL AUTO) input modes alternate.

- When selecting “DIGITAL AUTO,” the following indicators indicate the digital signal format of the incoming signal.

LINEAR PCM

: Lights up when Linear PCM signals come in.

DIGITAL

: Lights up when Dolby Digital signals come in.

dts

: Lights up when conventional DTS signals come in.

dts

: Lights up when DTS 96/24 signals come in.

No indicator lights up when the receiver cannot recognize the digital signal format of the incoming signals.

Note:

For details about the digital signal formats, see pages 23 and 24.

When playing software encoded with Dolby Digital or DTS, the following symptoms may occur:

• Sound does not come out at the beginning of playback.
• Noise comes out while searching for or skipping chapters or tracks.

In this case, press INPUT DIGITAL repeatedly to select “DOLBY DIGITAL” or “DTS SURROUND.”

• Each time you press INPUT DIGITAL, the input mode changes as follows:
        RS["RS"]
    end
    subgraph Digital AUTO AUTO
        A1[" "] --> B1["DOLBY DIGITAL"]
    end

When “DOLBY DIGITAL” or “DTS SURROUND” is selected, the DIGITAL AUTO indicator goes off, and the corresponding digital signal format indicator lights up on the display.

- If the incoming signal does not match the selected digital signal format, the indicator of the selected signal format will flash.

Note:

When you turn off the power or select another source, "DOLBY DIGITAL" and "DTS SURROUND" settings are canceled and the digital input mode is automatically reset to "DIGITAL AUTO."

To select the analog input mode

Press INPUT ANALOG (or ANALOG/DIGITAL on the remote control repeatedly until “ANALOG” appears on the display). The ANALOG indicator lights up.

ANALOG L R S.WFR PANHLLOG

Changing the Display Brightness

You can dim the display.

Line drawing of a JVC audio workstation with buttons and speaker (no text or symbols)

Press DIMMER.

• Each time you press the button, the display dims and brightens alternately.

Attenuating the Input Signal

When the input level of the analog source is too high, the sounds will be distorted. If this happens, you need to attenuate the input signal level to prevent the sound distortion.

- Once you have made adjustment, it is memorized for each analog source.

Front view line drawing of a JVC audio workstation (no text or symbols on device body)

Press and hold INPUT ATT (INPUT ANALOG) so that the INPUT ATT indicator lights up on the display.

- Each time you press and hold the button, the input attenuator mode turns on (“INPUT ATT ON”) and off (“INPUT NORMAL”).

Changing the Source Name

When you have connected a CD recorder to the TAPE/CDR jacks on the rear panel, change the source name which will be shown on the display.

Line drawing of a JVC audio workstation front panel with control buttons and speaker grille (no text or symbols)

When changing the source name from “TAPE” to “CDR”:

1 Press TAPE/CDR (SOURCE NAME).

- Make sure “TAPE” appears on the display.

2 Press and hold SOURCE NAME (TAPE/CDR) until "ASSIGN CDR" appears on the display.

ANALOG L R SWFR P5G SIGN LED

To change the source name back to “TAPE,” repeat the same procedure above.

Note:

Without changing the source name, you can still use the connected components. However, there may be some inconvenience.

• “TAPE” will appear on the display when you select the CD recorder.
• You cannot use the digital input (see page 11) for the CD recorder.

The following basic operations are possible only using the remote control.

SLEEP Using the Sleep Timer MUTING Muting the Sound JVC

Muting the Sound

Press MUTING to mute the sound through all speakers and headphones connected.

“MUTING” appears on the display and the volume turns off (the VOLUME indicator and its level indication go off).

To restore the sound, press MUTING again.

- Turning MASTER VOLUME on the front panel or pressing VOLUME +/- on the remote control also restores the sound.

Using the Sleep Timer

Using the Sleep Timer, you can fall asleep while listening to music. When the shut-off time comes, the receiver turns off automatically.

Press SLEEP repeatedly.

The SLEEP indicator lights up on the display, and the shut-off time changes in 10 minutes intervals:

To check or change the time remaining until the shut-off time:

Press SLEEP once.

The remaining time until the shut-off time appears in minutes.

- To change the shut-off time, press SLEEP repeatedly.

To cancel the Sleep Timer:

Press SLEEP repeatedly until “SLEEP OFF” appears on the display. The SLEEP indicator goes off.

- Turning off the power also cancels the Sleep Timer.

Recording a source

You can record any sources playing through the receiver to a cassette deck (or a CD recorder) connected to the TAPE/CDR jacks and the VCR connected to the VCR jacks at the same time.

While recording, you can listen to the selected sound source at whatever sound level you like without affecting the sound levels of the recording.

Note:

The output volume level, Midnight Mode (see page 19), Equalization patterns (see page 22), Surround modes and DSP modes (see pages 23 to 26) cannot affect the recording.

Basic adjustment auto memory

This receiver memorizes sound settings for each source—

• when you turn off the power,
• when you change the source,
• when you change the analog/digital input modes, and
• when you assign the source name (see page 12).

When you change the source, the memorized settings for the newly selected source are automatically recalled.

The following can be stored for each source:

• Analog/digital input mode (see page 11)
• Input attenuator mode (see page 12)
  • Equalization pattern (see page 22)
• Speaker output levels (see page 22)
• Surround and DSP mode selection (see pages 23 and 26)

Notes:

• If the source is FM or AM, you can assign a different setting for each band.
• A sound setting assigned for a digital component is valid for both the analog and digital input modes.

You can browse through all the stations or use the preset function to go immediately to a particular station.

Tuning in to Stations Manually

Line drawing of a JVC audio workstation front panel with control buttons and speaker grille (no text or symbols)

1 Press FM/AM to select the band (FM or AM).

Each time you press the button, the band alternates between FM and AM.

ANALOG L R SWFR AUTO MUTING VOLUME P M 3.5 ANALOG L R SWFR TUNED STEREO AUTO MUTING VOLUME B09 MHz/2.5

The last received station of the selected band is tuned in.

2 Press FM/AM TUNING ▲ or ▼ repeatedly until you find the frequency you want.

• Pressing FM/AM TUNING ▲ increases the frequency.
• Pressing FM/AM TUNING ▼ decreases the frequency.

ANALOG L R SWFR TUNED STEREO AUTO MUTING VOLUME 0.03 MHz/2.05

Notes:

• When a station of sufficient signal strength is tuned in, the TUNED indicator lights up on the display.
• When an FM stereo program is received, the STEREO indicator also lights up.
• When you hold and then release the button in step 2, the frequency keeps changing until a station is tuned in.

Using Preset Tuning

Line drawing of a JVC audio workstation with control panel and buttons (no text or symbols)

Once a station is assigned to a channel number, the station can be quickly tuned in. You can preset up to 30 FM and 15 AM stations.

To store the preset stations

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 2 again.

1 Tune in the station you want to preset (see "Tuning in to Stations Manually").

- If you want to store the FM reception mode for this station, select the FM reception mode you want. See “Selecting the FM Reception Mode” on page 15.

2 Press MEMORY.

ANALOG L R SWFR CH TUNED STEREO AUTO MUTING VOLUME 0.03 MHz/2.05

The channel number position starts flashing on the display for about 5 seconds.

3 Press FM/AM PRESET ▲ or ▼ to select a channel number while the channel number position is flashing.

ANALOG L R S,WFR CH- TUNED STEREO AUTO MUTING VOLUME 08.3 MHz 725

4 Press MEMORY again while the selected channel number is flashing on the display.

The selected channel number stops flashing.

The station is assigned to the selected channel number.

5 Repeat steps 1 to 4 until you store all the stations you want.

To erase a stored preset station

Storing a new station on a used number erases the previously stored one.

To tune in a preset station

On the front panel:

Line drawing of a JVC audio workstation CD with control panel and buttons (no text or symbols)

1 Press FM/AM to select the band (FM or AM).

Each time you press the button, the band alternates between FM and AM.

2 Press FM/AM PRESET ▲ or ▼ until you find the channel you want.

• Pressing FM/AM PRESET ▲ increases the number.
• Pressing FM/AM PRESET ▼ decreases the number.

On the remote control:

1 2 3 4 5 6 7 8 9 10 +10 FM/AM

1 Press FM/AM to select the band (FM or AM).

The last received station of the selected band is tuned in.

• Each time you press the button, the band alternates between FM and AM.

2 Press the 10 keys to select a preset channel number.

• For channel number 5, press 5.
• For channel number 15, press +10 then 5.
• For channel number 20, press +10 then 10.
• For channel number 30, press +10, +10, then 10.

Note:

When you use the 10 keys on the remote control, be sure that they are activated for the tuner, not for the CD and others. (See page 28.)

Selecting the FM Reception Mode

Line drawing of a JVC audio workstation front panel with control buttons and speaker grille (no text or symbols)

When an FM stereo broadcast is hard to receive or noisy, you can change the FM reception mode while receiving an FM broadcast.

- You can store the FM reception mode for each preset station (see page 14).

While listening to an FM station, press FM MODE.

- Each time you press the button, the FM reception mode alternates between “AUTO MUTING” and “MODE MONO.”

AUTO MUTING: Normally select this.

When a program is broadcasted in stereo, you will hear stereo sound; when in monaural, you will hear monaural sounds. This mode is also useful to suppress static noise between stations. The AUTO MUTING indicator lights up on the display. (Initial setting)

MODE MONO: Select this to improve the reception (but stereo effect will be lost). In this mode, you will hear noise while tuning in to the stations. The AUTO MUTING indicator goes off from the display (the STEREO indicator goes off).

Note:

After you operate any source other than the tuner using the remote control, the FM MODE button on the remote control does not work. In this case, press FM/AM on the remote control, then press FM MODE.

Some of the following settings are required after connecting and positioning your speakers while others will make operations easier. You can use QUICK SPEAKER SETUP to easily set up your speaker configuration.

Quick Speaker Setup

Quick Speaker Setup helps you to easily and quickly register the speaker size and speaker distance according to your listening room to create the best possible surround effect.

- You can also register each speaker's information manually. For details, see page 18.

Line drawing of a JVC audio workstation (no text or symbols on the device body)

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

1 Press QUICK SPEAKER SETUP.

“SPK→” and the initial speaker channel number (5.0CH) appear.

2 Turn MULTI JOG to select an appropriate number of the connected speakers (speaker channel number).

As you turn the jog, the speaker channel number changes as follows.

- For the details of speaker channel number, see “Speaker channel number and the size.”

ANALOG L R SWFR 5PK → 5.0CH 5.0CH ⇌ 5.1CH ⇌ 2.0CH ⇌ 2.1CH ⇌ 3.0CH ⇌ 3.1CH ⇌ 4.0CH ⇌ 4.1CH ⇌ (Back to the beginning)

3 Press in MULTI JOG (PUSH SET).

“ROOM SIZE→” and the initial room size setting appear.

4 Turn MULTI JOG to select an appropriate room size to match to your listening room.

As you turn the jog, the room size changes as follows.

- To select your appropriate room size, see “Room size and speaker distance/output level.”

ANALOG L R S.WFR ROOM SIZE -> L L (Large) ← S (Small) ← M (Medium)

5 Press in MULTI JOG (PUSH SET).

“COMPLETE” appears on the display, then goes back to the source indication.

Note:

This procedure will not be completed if you stop in the middle of the setting process.

Speaker channel number and speaker size

You can find how each of the speaker size is defined according to the number of connected speakers (speaker channel “CH” number) you select.

- Subwoofer (S.WFR) is counted as 0.1 channel.

CH	The size of the connected speakers
	L/R	C	LS/RS	S.WFR
2.0CH	LARGE	NONE	NONE	NO
2.1CH	SMALL	NONE	NONE	YES
3.0CH	LARGE	SMALL	NONE	NO
3.1CH	SMALL	SMALL	NONE	YES
4.0CH	LARGE	NONE	SMALL	NO
4.1CH	SMALL	NONE	SMALL	YES
5.0CH	LARGE	SMALL	SMALL	NO
5.1CH	SMALL	SMALL	SMALL	YES

Room size and speaker distance/output level

According to the selected room size, speaker distance and speaker output level for each activated speaker is set as follows:

Room size	Speaker	Distance	Output level
L (Large)	L/R	3.0 m (10 ft)	0 dB
	C	3.0 m (10 ft)	0 dB
	LS/RS	3.0 m (10 ft)	0 dB
M (Medium)	L/R	2.7 m (9 ft)	0 dB
	C	2.4 m (8 ft)	-2 dB
	LS/RS	2.1 m (7 ft)	-3 dB
S (Small)	L/R	2.4 m (8 ft)	0 dB
	C	2.1 m (7 ft)	-2 dB
	LS/RS	1.5 m (5 ft)	-4 dB

Notes:

• In the tables above, “L” stands for the left front speaker, “R” for the right front speaker, “C” for the center speaker, “LS” for the left surround speaker, “RS” for the right surround speaker, and “S.WFR” for the subwoofer.
• Once Quick Speaker Setup is performed, the speaker output levels are also set to appropriate values automatically (common to all sources). If you want to set the speaker output levels separately for each source, see “Adjusting the Speaker Output Levels” on page 22.

Basic Setting Items

On the following pages, you can adjust the following items:

- You can only select the items currently available. For details, see the explanation of each item.

Items	To do	See page
SUBWOOFER*	Register your subwoofer.	18
FRNT SPEAKERS*	Register your front speaker size.	18
CNTR SPEAKER*	Register your center speaker size.	18
SURR SPEAKERS*	Register your surround speaker size.	18
DISTANCE UNIT	Select the measuring unit for the speaker distance.	18
FRONT L DIST*	Register the distance from the left front speaker to your listening point.	18
FRONT R DIST*	Register the distance from the right front speaker to your listening point.	18
CENTER DIST*	Register the distance from the center speaker to your listening point.	18
SURR L DIST*	Register the distance from the left surround speaker to your listening point.	18
SURR R DIST*	Register the distance from the right surround speaker to your listening point.	18
SUBWOOFER OUT	Select the type of the sounds emitted from the subwoofer.	18
CROSSOVER	Select the cutoff frequency to the subwoofer.	19
LFE ATTENUATE	Attenuate the bass (LFE) sounds.	19
MIDNIGHT MODE	Reproduce a powerful sound at night.	19
DUAL MONO	Select the Dual Mono sound channel.	19
AUTO SURROUND	Turn on or off Auto Surround.	20
VIRTUAL SBACK	Turn on or off Virtual Surround Back.	20
DIGITAL IN	Select the component connected to digital input terminal.	20

Note:

* These items can be set using Quick Speaker Setup.

Basic Procedure

Line drawing of a JVC audio workstation front panel with buttons and speaker grille (no text or symbols)

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Ex. When setting Auto Surround to "AUTO SURR ON."

1 Press SETTING.

The last selected item appears on the display.

ANALOG L R SWFR GNDW00FP-ER

2 Turn MULTI JOG until an item you want appears on the display.

- In this example, select “AUTO SURROUND.” For available items, see the list “Basic Setting Items.”

ANALOG L R S.WFR AUTO SURROUND

3 Press in MULTI JOG (PUSH SET).

The current setting for the selected item appears on the display.

ANALOG L R S,WFR AUTO SURP OFF

4 Turn MULTI JOG until a setting you want appears on the display.

ANALOG L R S.WFR AUTO SURR ON

5 Press in MULTI JOG (PUSH SET).

6 Repeat steps 2 to 5 to set other items if necessary.

7 Press EXIT.

The source indication resumes on the display.

Setting the Speakers

To obtain the best possible surround effect from the Surround and DSP modes, register the setting about the speaker arrangement after all connections are completed.

- If you have used Quick Speaker Setup on page 16, this setting is not required.

- Subwoofer setting—SUBWOOFER

Select whether you have connected a subwoofer or not.

SUBWOOFER YES: Select when a subwoofer is connected.

SUBWOOFER NO: Select when no subwoofer is used.

Note:

If you have selected "SUBWOOFER NO" for the subwoofer, you cannot use the SUBWOOFER OUT ON/OFF button on the front panel.

● Speaker size—FRNT SPEAKERS, CNTR SPEAKER, SURR SPEAKERS

Select the size for each connected speaker.

LARGE:	Select when the speaker size is relatively large.
SMALL:	Select when the speaker size is relatively small.
NONE:	Select this when you have not connected a speaker. (Not selectable for the front speakers)

Notes:

• Keep the following comments in mind as reference when adjusting.
• If the size of the cone speaker unit built in your speaker is larger than 12 cm, select "LARGE," and if it is smaller than 12 cm, select "SMALL."
• If you have selected "SUBWOOFER NO" for the subwoofer setting, you can only select "LARGE" for the front speakers.
• If you have selected "SMALL" for the front speakers, you cannot select "LARGE" for the center and surround speakers.

Setting the Speaker Distance

The distance from your listening point to the speakers is another important element to obtain the best possible sound of the Surround and DSP modes. Set the distance from your listening point to the speakers.

By referring to the speaker distance setting, this unit automatically sets the delay time of the sound through each speaker so that sounds through all the speakers can reach you with the same timing.

- If you have used Quick Speaker Setup on page 16, this setting is not required.

● Measuring unit—DISTANCE UNIT

Select which measuring unit you use.

UNIT METER: Select to set the distance in meters.

UNIT FEET: Select to set the distance in feet.

● Speaker distance—FRONT L DIST, FRONT R DIST, CENTER DIST, SURR L DIST, SURR R DIST

Set the distance from the listening point within the range of 0.3 m (1 ft) to 9.0 m (30 ft), in 0.3 m (1 ft) intervals.

- When shipped from the factory, distance for each speaker is set to “3.0m (10FT).”

Note:

You cannot set the speaker distance for the speakers you have selected "NONE."

Ex. In the above case, set the speaker distance as follows:

Front speakers: 3.0m (10FT)

Center speaker: 3.0m (10FT)

Surround speakers: 2.7m (9FT)

Setting the Bass Sounds

You can adjust subwoofer and bass sounds precisely according to your preference.

- Subwoofer output—SUBWOOFER OUT

You can select the type of the signal which can be transmitted through the subwoofer. In other words, you can determine whether or not the bass elements of the front speaker channels are transmitted through the subwoofer regardless of the front speaker size setting (either “SMALL” or “LARGE”).

Select one of the following:

SWFR LFE: Select to emit only the LFE signals (while playing Dolby Digital and DTS software) or the bass elements of the “SMALL” front speakers (while playing any source other than the above).

SWFR LFE+MAIN: Select to always emit the bass elements of the front speaker channels (MAIN). While playing Dolby Digital and DTS software, the bass element and the LFE signals are both emitted.

Note:

If you have selected "SUBWOOFER NO" for the subwoofer, this function is not available.

● Crossover frequency—CROSSOVER

You can select the crossover frequency for the small speakers used. The signals below the preset frequency level will be sent to and be reproduced by the subwoofer (or by “LARGE” speakers when “SUBWOOFER” is set to “SUBWOOFER NO”).

Select one of the crossover frequency levels according to the size of the small speaker connected.

CROSS 80HZ:	Select when the cone speaker unit built in the speaker is about 12 cm.
CROSS 100HZ:	Select when the cone speaker unit built in the speaker is about 10 cm.
CROSS 120HZ:	Select when the cone speaker unit built in the speaker is about 8 cm.
CROSS 150HZ:	Select when the cone speaker unit built in the speaker is about 6 cm.
CROSS 200HZ:	Select when the cone speaker unit built in the speaker is about 5 cm.

Notes:

• If you have selected "LARGE" for all activated speakers (see page 18), this function is fixed to "CROSS OFF."
• Crossover frequency is not valid for "HEADPHONE" and "3D H PHONE."

● Low frequency effect attenuator—LFE ATTENUATE

If the bass sound is distorted while playing back software encoded with Dolby Digital or DTS, set the LFE level to eliminate distortion.

- This function takes effect only when the LFE signals come in.

Select one of the following:

LFE ATT 0dB:	Normally select this.
LFE ATT -10dB:	Select when the bass sound is distorted.

● Midnight mode—MIDNIGHT MODE

You can enjoy a powerful sound at night using Midnight Mode.

Select one of the following:

MIDNIGHT 1:	Select when you want to reduce the dynamic range a little.
MIDNIGHT 2:	Select when you want to apply the compress effect fully (useful at midnight).
MIDNIGHT OFF:	Select when you want to enjoy playback with its full dynamic range (no effect applied).

■ Selecting the Main or Sub Channel

You can select the playback sound (channel) you want while playing digital software recorded (or broadcast) in Dual Mono mode (see page 24), which includes two monaural channels separately.

- Dual Mono—DUAL MONO

Select the playback sounds (channel).

MONO MAIN: Select to play back the main channel (Ch 1).*Signal indicator “L” lights up while playing back this channel.

MONO SUB: Select to play back the sub-channel (Ch 2).*Signal indicator “R” lights up while playing back this channel.

MONO ALL: Select to play back both the main and sub-channels (Ch 1/Ch 2).*Signal indicators “L” and “R” light up while playing back these channels.

Notes:

• The Dual Mono format is not identical with bilingual broadcasting or the MTS (Multichannel Television Sound) format used for TV programs. So this setting does not take effect while watching bilingual or MTS programs.
  * Dual Mono signals can be heard from the following speakers—L (left front speaker), R (right front speaker), and C (center speaker)—with respect to the current Surround setting.

Dual Mono Setting	Without Surround		With Surround Activated
			Center speaker setting
			SMALL/LARGE			NONE
	L	R	L	C	R	L	R
MAIN	Ch 1	Ch 1	—	Ch 1	—	Ch 1	Ch 1
SUB	Ch 2	Ch 2	—	Ch 2	—	Ch 2	Ch 2
ALL	Ch 1	Ch 2	—	Ch 1+Ch 2	—	Ch 1+Ch 2	Ch 1+Ch 2

Setting for Easy and Effective Surround Operations

● Auto Surround—AUTO SURROUND

Auto Surround works when the unit detects the incoming digital signal. In other words, it works...

• When you select the digital source (the source with digital input selected for it), and
• When you change the input mode from analog to digital.

Select "AUTO SURR ON" to activate Auto Surround.

AUTO SURR ON:

• When multi-channel signal is detected, an appropriate Surround mode will be turned on.
• When Dolby Digital 2-channel with surround signals is detected, “PLII MOVIE” will be selected.
• When Dolby Digital 2-channel without surround signals is detected, “SURROUND OFF” will be selected.
• When Linear PCM signal is detected, nothing will change.

AUTO SURR OFF: Select to deactivate Auto Surround.

Notes:

• This function does not take effect in the following cases:
– While playing an analog source,
- While selecting any of DSP modes (see page 26), or one of the fixed digital input mode—“DOLBY DIGITAL” or “DTS SURROUND” (see page 12), and
- While listening with the headphones—"HEADPHONE" or "3D H PHONE" (see pages 11 and 24).
- If you select another Surround mode or DSP mode (or deactivate the Surround/DSP mode) manually, Auto Surround, if in use, will be canceled temporarily for the currently selected source.
Auto Surround setting will be restored in the following cases:
- When you turn the receiver off and on,
- When you change the source,
- When you change the analog/digital input, and
- When you select "AUTO SURR ON" again.

● Virtual Surround Back—VIRTUAL SBACK

You can enjoy the surround back channel while playing back Dolby Digital Surround EX software or DTS-ES software without the surround back speakers. This function creates the great surround effect from the behind as if you have connected the surround back speakers.

Select "VRTL SB ON" to activate Virtual Surround Back.

VRTL SB ON: While you play Dolby Digital Surround EX software or DTS-ES software, the VIRTUAL SB (Surround Back) indicator lights up.

VRTL SB OFF: Select to deactivate Virtual Surround Back.

Notes:

• When you have set "NONE" for "SURR SPEAKERS," this function is not available.
• While playing back DTS-ES Matrix software with DTS 96/24, DTS 96/24 processing will not be performed with Virtual Surround Back activated. To apply the processing, deactivate Virtual Surround Back.
  • Virtual Surround Back may not be applied to some software.
• Virtual Surround Back only works for Surround modes (see page 25). This function does not work when activating the DSP mode (see page 27).

Setting the Digital Input Terminals

When you use the digital input terminals, register which components you have connected to the digital input terminals.

● Digital Input terminal—DIGITAL IN

Set the components connected to the digital terminals.

- As you rotate MULTI JOG, the digital input terminals are set to used for the following digital components:

1DVD 2CD ⇌ 1DVD 2TV ⇌ 1DVD 2CDR ⇌

1CD 2DVD ⇌ 1CD 2TV ⇌ 1CD 2CDR ⇌

1TV 2DVD ⇌ 1TV 2CD ⇌ 1TV 2CDR ⇌

1CDR 2DVD ⇌ 1CDR 2CD ⇌ 1CDR 2TV ⇌

(back to the beginning)

You can make sound adjustment to your preference after completing basic settings.

Basic Adjustment Items

On the following pages, you can adjust the following items:

- You can adjust only the items applicable to the current sound mode.

Items	To do	See page
DEQ 63HZ	Adjust equalizer pattern at 63 Hz.	22
DEQ250HZ	Adjust equalizer pattern at 250 Hz.	22
DEQ 1KHZ	Adjust equalizer pattern at 1 kHz.	22
DEQ 4KHZ	Adjust equalizer pattern at 4 kHz.	22
DEQ16KHZ	Adjust equalizer pattern at 16 kHz.	22
SUBWFR LEVEL	Adjust the subwoofer output level.	22
FRONT L LEVEL	Adjust the left front speaker output level.	22
FRONT R LEVEL	Adjust the right front speaker output level.	22
CENTER LEVEL	Adjust the center speaker output level.	22
SURR L LEVEL	Adjust the left surround speaker output level.	22
SURR R LEVEL	Adjust the right surround speaker output level.	22
EFFECT^*1	Adjust the effect level.	22
PANORAMA CTRL^*2	Add “wraparound” sound effect with side-wall image.	22

Notes:

*1 Adjustable when one of the DAP modes or Mono Film (see pages 26 and 27) is in use.
*2 Adjustable when Pro Logic II Music is in use.

Basic Procedure

Line drawing of a JVC audio workstation (no text or symbols on the device body)

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Ex. When adjusting the subwoofer level to “-3.”

1 Press ADJUST.

The last selected item appears on the display.

ANALOG L R S,WFR 16.0 6:34.7

2 Turn MULTI JOG until an item you want appears on the display.

- In this example, select “SUBWFR LEVEL.” For available items, see the list “Basic Adjustment Items.”

ANALOG L R S.WFR SUIWFR LEVEL

3 Press in MULTI JOG (PUSH SET).

The current setting (or level) for the selected item appears on the display.

ANALOG L R S.WFR SUIWFR 0

4 Turn MULTI JOG to select a setting you want or to make an adjustment as you like.

ANALOG L R S.WFR 5U,1W,2W ...

5 Press in MULTI JOG (PUSH SET).

6 Repeat steps 2 to 5 to set other items if necessary.

7 Press EXIT.

The source indication resumes on the display.

■ Adjusting the Equalization Patterns

You can adjust the equalization patterns to your preference.

- Once you have made adjustment, it is memorized for each source.

● Equalization adjustment—DEQ 63HZ, DEQ250HZ, DEQ 1KHZ, DEQ 4KHZ, DEQ16KHZ

You can adjust five frequencies (63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz) within the range of -8 dB to +8 dB in 2 dB steps.

- When adjustment is made, the DIGITAL EQ indicator lights up on the display.

To flat the equalization pattern, set all the frequencies to “0 (0 dB)” in step 4 of “Basic Procedure” (on page 21). The DIGITAL EQ indicator goes off from the display.

Note:

The equalization patterns affect the front speaker sounds only.

■ Adjusting the Speaker Output Levels

You can adjust the speaker output levels.

- Once you have made adjustment, it is memorized for each source.

- Adjustable speakers—SUBWFR LEVEL, FRONT L LEVEL, FRONT R LEVEL, CENTER LEVEL, SURR L LEVEL, SURR R LEVEL

You can adjust the connected speakers' output levels within the range of -10 dB to +10 dB.

Note:

If you have deactivated a speaker (see page 18), the output level adjustment for the speaker is not adjustable.

■ Adjusting the Sound Parameters for the Surround and DSP Modes

You can adjust the Surround and DSP sound parameters to your preference. (For Surround and DSP modes, see pages 23 and 26.)

● Adjustable parameters

You can adjust the following parameters:

For DAP modes and Mono Film

- Once you have made adjustment, it is memorized for each mode.

EFFECT:

Adjust the effect level. As the number increases, the effect becomes stronger. (Adjustable range: 1 to 5. Normally select “3.”)

For Pro Logic II Music only

PANORAMA CTRL: Select “PANORAMA ON” to add “wraparound” sound effect with side-wall image. • To cancel it, select “PANORAMA OFF.”

You can also use the remote control for adjusting the speaker output level using the test tone.

- You can also adjust the effect level for DAP modes and Mono Film.

To adjust the speaker output level:

1 Press SOUND.

The 10 keys are activated for sound adjustments.

TEST • FRONT L • FRONT R EFFECT • CENTER • SUBWFR • SURR L • SURR R • LEVEL + SOUND

2 Press TEST to check if you can hear the sounds through all the speakers at equal level.

Test tone (TEST TONE) comes out of the speakers in the following order.

- No test tone comes out of the speakers for which the speaker setting is set to “NONE” (or “SUBWOOFER NO” for the subwoofer).

L (Left front) → C (Center) → R (Right front) → RS (Right surround) → LS (Left surround) → SW (Subwoofer) → (Back to the beginning)

3 Adjust the speaker output level (-10 dB to +10 dB).

• For the left front speaker: Press FRONT L, then LEVEL +/-
• For the center speaker: Press CENTER, then LEVEL +/-.
• For the right front speaker: Press FRONT R, then LEVEL +/-.
• For the right surround speaker: Press SURR R, then LEVEL +/-.
• For the left surround speaker: Press SURR L, then LEVEL +/-.
• For the subwoofer: Press SUBWFR, then LEVEL +/-.

Note:

When you press LEVEL +/- once, the current level for the selected speaker appears on the display, and the test tone comes out of the selected speaker. If no adjustment is done for about 4 seconds, the adjustment mode for the selected speaker is canceled.

4 Press TEST again to stop the test tone.

To adjust the effect level:

1 Press SOUND.

The 10 keys are activated for sound adjustments.

2 Press EFFECT repeatedly to select the effect level (EFFECT 1 to EFFECT 5).

The source indication resumes about 4 seconds after the adjustment.

This unit activates a variety of Surround modes automatically. The basic settings and adjustments stored (see pages 16 to 22) are applied automatically.

Reproducing Theater Ambience

In a movie theater, many speakers are located on the walls to reproduce impressive multi-surround sounds, reaching you from all directions.

With these many speakers, sound localization and sound movement can be expressed.

Surround modes built in this receiver can create almost the same surround sounds as you can feel in a real movie theater—with only a limited number of the speakers.

Diagram of a server rack with multiple slots and mounting feet (no text or labels)

Left surround speaker (LS)

Right surround speaker (RS)

Introducing the Surround Modes

Dolby Digital\*1

Dolby Digital is a digital signal compression method, developed by Dolby Laboratories, and enables multi-channel encoding and decoding (1ch up to 5.1ch).

- When Dolby Digital signal is detected through the digital input, the ☐ DIGITAL indicator lights up on the display.

Dolby Digital 5.1CH

Dolby Digital 5.1CH (DOLBY DIGITAL) encoding method records and digitally compresses the left front channel, right front channel, center channel, left surround channel, right surround channel, and LFE channel signals (total 6 channels, but the LFE channel is counted as 0.1 channel. Therefore, called 5.1 channel). Dolby Digital enables stereo surround sounds, and sets the cutoff frequency of the surround treble at 20 kHz, compared to 7 kHz for Dolby Pro Logic. As such, the sound movement and “being-there” feeling are enhanced much more than Dolby Pro Logic.

Another digital surround encoding format introduced by Dolby Laboratories is Dolby Digital EX, which adds the third surround channels, called “surround back.”

Compared to the conventional Dolby Digital 5.1CH, these newly added surround back channels can reproduce more detailed movements behind you while viewing the video software. In addition, surround sound localization will become more stable.

- You can use Virtual Surround Back (see page 20) when playing back Dolby Digital Surround EX software. This function creates the great surround effect from the behind as if you have connected the surround back speakers.

Dolby Pro Logic II

Dolby Pro Logic II is a multi-channel playback format to convert 2-channel software into 5-channel (plus subwoofer). The matrix-based conversion method used for Dolby Pro Logic II makes no limitation for the cutoff frequency of the surround treble and enables stereo surround sound.

- This receiver provides two types of Dolby Pro Logic II modes—Pro Logic II Movie (PLII MOVIE) and Pro Logic II Music (PLII MUSIC). When Dolby Pro Logic II is activated, the ☐☐ PRO LOGIC II indicator lights up on the display.

PLII MOVIE:

Suitable for playing any Dolby Surround encoded software. You can enjoy a sound field very close to the one created with discrete 5.1-channel sounds.

PLII MUSIC:

Suitable for playing any 2-channel stereo software. You can enjoy wide and deep sounds.

*1 Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories.

DTS\*2

DTS is another digital signal compression method, developed by Digital Theater Systems, Inc., and enables multi-channel encoding and decoding (1ch up to 6.1ch).

- When DTS signal is detected through the digital input, the dts indicator lights up on the display.

DTS Digital Surround

DTS Digital Surround (DTS SURROUND) is another discrete 5.1-channel digital audio format available on CD, LD, and DVD software.

Compared to Dolby Digital, the DTS Digital Surround format has a lower audio compression rate which enables it to add breadth and depth to the sounds reproduced. As such, DTS Digital Surround features natural, solid, and clear sound.

Another multi-channel digital encoding format introduced by Digital Theater Systems, Inc. is DTS Extended Surround (DTS-ES).

It greatly improves the 360-degree surround impression and space expression by adding the third surround channel—surround back channel.

DTS-ES includes two signal formats with different surround signal recording methods—DTS-ES Discrete 6.1ch and DTS-ES Matrix 6.1ch.

- You can use Virtual Surround Back (see page 20) when playing back DTS-ES software. This function creates the great surround effect from the behind as if you have connected the surround back speakers.

DTS 96/24

In recent years, there has been increasing interest in higher sampling rates both for recording and for reproducing at home. Higher sampling rates allow wider frequency range and greater bit depths provide extended dynamic range.

DTS 96/24 is a multi-channel digital signal format (fs 96 kHz/24 bits) introduced by Digital Theater Systems, Inc. to deliver “better-than-CD sound quality” into the home.

- When DTS 96/24 signal is detected, the dts 96/24 indicator lights up. You can enjoy its 5.1-channel sound with full-quality.

What is Linear PCM?

Uncompressed digital audio data used for DVDs, CDs and Video CDs.

DVDs support 2 channels with sampling rates of 48/96 kHz, at quantization of 16/20/24 bits. On the other hand, CDs and Video CDs are limited to 2 channels with 44.1 kHz at 16 bits.

- When Linear PCM signal is detected, the LINEAR PCM indicator lights up.

What is Dual Mono?

Dual Mono can be easily understood when you think of the bilingual broadcast or the MTS (Multichannel Television Sound) format used for TV programs (however, the Dual Mono format is not identical with those analog formats).

This format is now adopted in Dolby Digital, DTS, and so on. It allows two independent channels (called main channel and sub-channel) to be recorded separately.

- When Dual Mono signal is detected, the DUAL MONO indicator lights up. You can select either channel you want to listen to (see page 19).

When using the Surround mode, the sounds come out of the activated speakers which the Surround mode requires.

• If either the surround speakers or center speaker is set to “NONE” in the speaker setting, the corresponding channel signals are allocated to and emitted through the front speakers.
• If both the surround speakers and center speaker are set to “NONE” in the speaker setting, JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.

3D Headphone Mode—3D H PHONE

If you activate Surround when the front speakers are deactivated, 3D Headphone Mode is activated without respect to the type of software played back. "3D H PHONE" appears on the display and the DSP and H.PHONE indicators also light up.

Activating the Surround Modes

Available Surround modes vary depending on the incoming signals.

Activating one of the Surround modes for a source automatically recalls the memorized settings and adjustments (see pages 16 to 22).

■ Activating the Surround Modes Automatically

You can enjoy the Surround mode simply by selecting the source (with digital input selected for that source).

- Auto Surround also works when the input mode changes from analog to digital.

To activate Auto Surround, see page 20.

ANALOG L R SWFR AUTO SURR ON

■ Activating the Surround Modes Manually

Line drawing of a JVC audio workstation front panel with buttons and dials (no text or symbols)

1 Select and play any source.

- Make sure you have selected the analog or digital input mode correctly.

2 Press SURROUND to activate the Surround mode.

- For Dolby Digital multi-channel digital software (except 2-channel and Dual Mono software), incoming signals are automatically detected and “DOLBY DIGITAL” is activated.

DIGITAL AUTO L C R □ DIGITAL S,WFR LFE LS RS TOLLARY DIGITAL

- For DTS multi-channel digital software (except 2-channel and Dual Mono software), incoming signals are automatically detected and “DTS SURROUND” is activated.

DIGITAL AUTO L C R S.WFR LFE LS RS dts ITS SURROUND

Note:

When the Dolby Digital or DTS multi-channel digital signal stops coming in, "PLII MOVIE" will be activated.

- For analog sources and digital 2-channel software, you can select one of the following Surround modes. Each time you press SURROUND, Surround modes change as follows:

- For Dual Mono software, you can select the channel you listen to. (See page 19.)

DUAL MONO DIGITAL AUTO L □ □□ DIGITAL DUAL MONO

To adjust the speaker output level, see page 22.

To cancel the Surround mode

Press SURROUND/DSP OFF.

DIGITAL AUTO L C R DIGITAL S.WFR LFE LS RS SURROUND OFF

When playing Dolby Digital Surround EX or DTS-ES software You can enjoy Virtual 6.1-channel playback using Virtual Surround Back.

To activate Virtual Surround Back, see page 20.

VIRTUAL SB DIGITAL AUTO L C R S.WFR LFE LS RS dts SB /R T L 98 ON

This unit activates a variety of DSP modes automatically. The basic settings and adjustments stored (see pages 16 to 22) are applied automatically.

Reproducing the Sound Field

The sound heard in a concert hall, club, etc. consists of direct sound and indirect sound—early reflections and reflections from behind. Direct sounds reach the listener directly without any reflection. On the other hand, indirect sounds are delayed by the distances of the ceiling and walls. These direct sounds and indirect sounds are the most important elements of the acoustic surround effects. DSP modes can create these important elements, and give you a real “being there” feeling.

Early reflections Reflections from behind Direct sounds

Introducing the DSP Modes

DSP modes include the following modes—

• Digital Acoustic Processor (DAP) modes—HALL 1, HALL 2, LIVE CLUB, DANCE CLUB, PAVILION, THEATER 1, THEATER 2
• ALL CH STEREO
• MONO FILM—Used for all types of 2-channel signals (including Dual Mono signal)

3D Headphone Mode—3D H PHONE

If you press DSP when the front speakers are deactivated, 3D Headphone Mode is activated without respect to the type of software played back. “3D H PHONE” appears on the display and the DSP and H.PHONE indicators light up.

To use DSP modes, press DSP so that the DSP modes change as follows.

The DSP indicator also lights up on the display.

→ HALL 1 → HALL 2 → LIVE CLUB→ DANCE CLUB → PAVILION → ALL CH STEREO→ THEATER 1 → THEATER 2 → MONO FILM→ (Back to the beginning)□ : Suitable for audio sources□ : Suitable for video sources

Digital Acoustic Processor (DAP) modes

You can use the following DAP modes in order to reproduce a more acoustic sound field in your listening room.

HALL 1:	Reproduces the spatial feeling of a large shoebox-shaped hall designed primarily for classical concerts. (Its seating capacity is about 2000.)
HALL 2:	Reproduces the spatial feeling of a large vineyard-shaped hall designed primarily for classical concerts. (Its seating capacity is about 2000.)
LIVE CLUB:	Reproduces the spatial feeling of a live music club with a low ceiling.
DANCE CLUB:	Reproduces the spatial feeling of a rocking dance club.
PAVILION:	Reproduces the spatial feeling of an exhibition hall with a high ceiling.
THEATER 1*:	Reproduces the spatial feeling of a large theater where the seating capacity is about 600.
THEATER 2*:	Reproduces the spatial feeling of a small theater where the seating capacity is about 300.

* The built-in Dolby Pro Logic II decoder is activated when playing back 2-channel analog or digital source. The ☐☐ PRO LOGIC II indicator lights up.

When using the DAP mode, the sounds come out of all the connected and activated speakers.

- If surround speakers are set to “NONE” in the speaker setting, JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.

All Channel Stereo

This mode can reproduce a larger stereo sound field using all the connected (and activated) speakers.

- If the surround speakers are set to “NONE,” you cannot select “ALL CH STEREO.”

Sound reproduced from normal stereo

Sound reproduced from All Channel Stereo mode

Diagram illustrating wireless signal transmission between three devices with a central user icon and multiple input/output signals.

Mono Film

In order to reproduce a more acoustic sound field in your listening room while viewing monaural sound video software (analog and 2-channel digital signals), you can use this mode.

The surround effect will be added, and the sound localization of actor's words will be improved. This mode cannot be used for multi-channel digital signals.

When “MONO FILM” is used, the sounds come out of all the connected and activated speakers.

• If surround speakers are set to “NONE” in the speaker setting, JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.
• If incoming signals change from 2-channel digital signal to another digital signal type, “MONO FILM” is canceled and an appropriate Surround mode is activated.

Activating the DSP Modes

Activating one of the DSP modes for a source automatically recalls the memorized settings and adjustments (see pages 16 to 22).

Line drawing of a JVC audio workstation front panel with buttons and speaker grille (no text or symbols)

1 Select and play any source.
2 Press DSP repeatedly until the DSP mode you want appears on the display.

• Each time you press the button, the DSP modes change as follows:

Note:

When the surround speakers are set to “NONE,” the 3D-PHONIC processing is applied to the DSP modes (the 3D-PHONIC indicator also lights up).

To adjust the effect level (except All Channel Stereo), see page 22.

To cancel the DSP mode

Press SURROUND/DSP OFF.

ANALOG L R SWFR SURROUND OFF

Operating JVC's Audio/Video Components

You can operate JVC's audio and video components with this receiver's remote control, since control signals for JVC's components are preset in the remote control.

IMPORTANT:

To operate JVC's audio and video components using the supplied remote control:

• When using the remote control, aim the remote control directly at the remote sensor on each component, not on the receiver.
• Refer also to the manuals supplied with your components.
• Some JVC's VCRs can accept two types of the control signals—remote code “A” and “B.” Before using this remote control, make sure that the remote control code of the target VCR is set to code “A.”

Operating Audio Components

Sound control section (Amplifier)

You can always perform the following operations:

STANDBY/ON ⏻/I AUDIO:

Turn on or off the receiver.

VOLUME +/-: Adjust the volume level.

MUTING: Turn on or off sound muting.

ANALOG/DIGITAL: Switch the analog and digital input alternately.

DIMMER: Dim or brighten the display.

SLEEP: Set the Sleep Timer.

SURROUND: Turn on and select Surround modes.

DSP: Turn on and select DSP modes.

SURROUND/DSP OFF:

Turn off the Surround and DSP mode.

After pressing SOUND, you can perform the following operations by using the 10 keys:

FRONT L then LEVEL +/-: Adjust the left front speaker output level.

FRONT R then LEVEL +/-: Adjust the right front speaker output level.

CENTER then LEVEL +/-: Adjust the center speaker output level.

SURR L then LEVEL +/-: Adjust the left surround speaker output level.

SURR R then LEVEL +/-: Adjust the right surround speaker output level.

SUBWFR then LEVEL +/-: Adjust the subwoofer output level.

EFFECT: Adjust the effect level.

TEST: Turn on or off test tone output.

Note:

After adjusting sounds, press the corresponding source selection button to operate your target source by using the 10 keys; otherwise, the 10 keys cannot be used for operating your target source.

Tuner

You can always perform the following operations:

FM/AM: Alternate between FM and AM.

After pressing FM/AM, you can perform the following operations on a tuner:

1 - 10, +10: Select a preset channel number directly.

For channel number 5, press 5.

For channel number 15, press +10, then 5.

For channel number 20, press +10, then 10.

FM MODE: Change the FM reception mode.

CD player

After pressing CD, you can perform the following operations on a CD player:

▶: Start playing.

|◀◀: Return to the beginning of the current (or previous) track.

▶▶l: Skip to the beginning of the next track.

■: Stop playing.

II: Pause playing. To resume, press ▶.

1 - 10, +10: Select a track number directly.

For track number 5, press 5.

For track number 15, press +10, then 5.

For track number 20, press +10, then 10.

For track number 30, press +10, +10, then 10.

CD changer

After pressing CD-DISC, you can perform the following operations on a CD changer:

▶: Start playing.

|◀◀: Return to the beginning of the current (or previous) track.

▶▶l: Skip to the beginning of the next track.

■: Stop playing.

II: Pause playing. To resume, press ▶.

1 - 6, 7/P: Select the number of a disc installed in a CD changer.

After pressing CD, you can perform the following operations on a CD changer:

1 - 10, +10: Select a track number directly.

For track number 5, press 5.

For track number 15, press +10, then 5.

For track number 20, press +10, then 10.

For track number 30, press +10, +10, then 10.

Example:

- Selecting disc number 4, track number 12, and starting playback.

1 Press CD-DISC, then press 4.

2 Press CD, then press +10, 2.

If your CD changer is of 200-disc loading capability (except for XL-MC100 and XL-MC301), you can do the following operations using the 10 keys after pressing CD.

1 Select a disc number.

2 Then select a track number (always enter two digits).

3 Press ▶ to start playback.

Examples:

- Selecting disc number 3, track number 2, and starting playback. Press 3, then, 0, 2, then ▶.

- Selecting disc number 10, track number 5, and starting playback. Press 1, 0, then, 0, 5, then ▶.

- Selecting disc number 105, track number 12, and starting playback.

Press 1, 0, 5, then 1, 2, then ▶.

Note:

It is required to press each button within 4 seconds in the above procedure.

Operating Video Components

VCR

You can always perform the following operations:

STANDBY/ON ⏻/IVCR: Turn on or off the VCR.

VCR CH +/-: Change the TV channels on the VCR.

After pressing VCR, you can perform the following operations on the VCR:

▶: Start playing.

REW: Rewind the tape.

FF: Fast-forward the tape.

■: Stop playing, recording, rewind and fast forward.

II: Pause playing and recording. To resume, press ▶.

REC PAUSE: Enter recording pause.

To start recording, press this button then ▶.

DVD player

You can always perform the following operation:

STANDBY/ON ⏻/I DVD: Turn on or off the DVD player.

After pressing DVD, you can perform the following operations on the DVD player:

▶: Start playing.

◀◀: Return to the beginning of the current (or previous) chapter.

▶▶: Skip to the beginning of the next chapter.

■: Stop playing.

II: Pause playing. To resume, press ▶.

After pressing DVD, these buttons can be used for the DVD menu operations.

Note:

For detailed menu operations, refer to the instructions supplied with the discs or the DVD player.

MENU

ENTER

TV

Set TV/CATV selector to "TV."

You can always perform the following operations:

STANDBY/ON ⏻/I TV/CATV: Turn on or off the TV.

TV/CATV CH +/-: Change the channels.

TV VOLUME +/-: Adjust the volume.

TV/VIDEO: Set the input mode (either TV or VIDEO).

After pressing TV SOUND, you can perform the following operations on the TV:

1 - 9, 0, 100+ (+10): Select the channels.

RETURN (10): Alternate between the previously selected channel and the current channel.

Operating Other Manufacturers' Video Equipment

This remote control supplied for the receiver can transmit control signals for other manufacturers' TVs, CATV converters, VCRs and DVD players.

When operating the other manufacturers' components, refer also to the manuals supplied with them.

- After replacing batteries for the remote control, you need to set the manufactures' codes again.

To change the transmittable signals for operating another manufacturer's TV

1 Set the TV/CATV selector to "TV."
2 Press and hold STANDBY/ON ⏻/TV/CATV.
3 Press TV SOUND.
4 Enter a manufacturer's code using buttons 1 - 9, and 0.

Manufacturer	Codes
JVC	01*
Hitachi	10
Magnavox	02
Mitsubishi	03
Panasonic	04, 11
RCA	05
Samsung	12
Sanyo	13
Sharp	06
Sony	07
Toshiba	08
Zenith	09

* “01” is the initial setting.

5 Release STANDBY/ON ⏻/TV/CATV.

Now you can perform the following operations on the TV:

STANDBY/ON ⏻/I TV/CATV: Turn on and off the TV.

TV/CATV CH +/-: Change the channels.

TV VOLUME +/-: Adjust the volume.

TV/VIDEO: Set the input mode (either TV or VIDEO).

After pressing TV SOUND, you can perform the following operations on the TV:

1 - 9, 0, 100+ (+10):

Select the channels.

The 10 (ENTER) button will function as the ENTER button if your TV requires pressing ENTER after selecting a channel number.

Notes:

• All the functions listed above may not be assigned to the buttons for some TVs.
• If you cannot change the channels of some TVs by pressing the 10 keys, press TV/CATV CH +/- for changing the channels.

6 Try to operate your TV by pressing STANDBY/ON 📋/TV/CATV.

When your TV turns on or off, you have entered the correct code.

If there are more than one code listed for your brand of TV, try each one until the correct one is entered.

To change the transmittable signals for operating a CATV converter

1 Set the TV/CATV selector to "CATV."
2 Press and hold STANDBY/ON 📍/TV/CATV.
3 Press TV SOUND.
4 Enter a manufacturer's code using buttons 1 - 9, and 0.

Manufacturer	Codes
Echostar	01*
General Instrument	02, 03, 04, 05, 06, 07, 08, 09
Hamlin	16, 17, 18, 19
Pioneer	14, 15
RCA	20
Scientific Atlanta	10, 11
Sony	21
Zenith	12, 13

* “01” is the initial setting.

5 Release STANDBY/ON ⏻/TV/CATV.

Now you can perform the following operations on the CATV converter:

STANDBY/ON ⏻/I TV/CATV:

Turn on and off the CATV converter.

TV/CATV CH +/-: Change the channels.

After pressing TV SOUND, you can perform the following operations on the CATV converter:

$$ 1 - 9, 0, 1 0 0 + (+ 1 0): $$

Select the channels.

The 10 (ENTER) button will function as the

ENTER button if your CATV converter

requires pressing ENTER after selecting a

channel number.

6 Try to operate your CATV converter by pressing STANDBY/ON ⏻/TV/CATV.

When your CATV converter on or off, you have entered the correct code.

If there are more than one code listed for your brand of CATV converter, try each one until the correct one is entered.

Manufacturers' codes are subject to change without notice. If they are changed, this remote control cannot operate the equipment.

To change the transmittable signals for operating another manufacturer's VCR

1 Press and hold STANDBY/ON ⏻/VCR.
2 Press VCR.
3 Enter a manufacturer's code using buttons 1 - 9, and 0.

Manufacturer	Codes
JVC	01*, 02, 03
Emerson	10, 22
Gold Star	11
Hitachi	04
Mitsubishi	12
NEC	21
Panasonic	07, 13
Philips	09
RCA	05, 06
Samsung	20
Sanyo	17, 18, 19
Sony	14, 15, 16
Zenith	08

* “01” is the initial setting.

4 Release STANDBY/ON ⏻/I VCR.

Now you can perform the following operations on the VCR:

STANDBY/ON ⏻/IVCR: Turn on and off the VCR.

VCR CH +/-: Change the TV channels on the VCR.

After pressing VCR, you can perform the following operations on the VCR:

▶: Start playing.

REW: Rewind the tape.

FF: Fast-forward the tape.

■: Stop playing or recording.

II: Pause playing. To resume, press ▶.

REC PAUSE: Enter recording pause.

To start recording, press this button then ▶.

5 Try to operate your VCR by pressing STANDBY/ON ⏻/VCR.

When your VCR turns on or off, you have entered the correct code.

If there are more than one code listed for your brand of VCR, try each one until the correct one is entered.

To change the transmittable signals for operating another manufacturer's DVD player

1 Press and hold STANDBY/ON 📍/ DVD.
2 Press DVD.
3 Enter a manufacturer's code using buttons 1 - 9, and 0.

Manufacturer	Codes
JVC	01*
Panasonic	02
Philips	04
Pioneer	03
Sony	05
Toshiba	06
Yamaha	07

* “01” is the initial setting.

4 Release STANDBY/ON 📍/ DVD.

Now you can perform the following operations on the DVD player:

STANDBY/ON ⏻/I DVD: Turn on and off the DVD player.

After pressing DVD, you can perform the following operations on the DVD player:

▶: Start playing.
|◀◀: Return to the beginning of the current (or previous) chapter (or fast reverse for some models).
▶▶▶: Skip to the beginning of the next chapter (or fast forward for some models).
■: Stop playing.
II: Pause playing. To resume, press ▶.

After pressing DVD, these buttons can be used for the DVD menu operations.

Note:

For detailed menu operations, refer to the instructions supplied with the discs or the DVD player.

MENU

ENTER

5 Try to operate your DVD player by pressing STANDBY/ON ⏻/I DVD.

When your DVD player turns on or off, you have entered the correct code.

Manufacturers' codes are subject to change without notice. If they are changed, this remote control cannot operate the equipment.

Use this chart to help you solve daily operational problems. If there is any problem you cannot solve, contact your JVC's service center.

PROBLEM	POSSIBLE CAUSE	SOLUTION
The display does not light up.	The power cord is not plugged in.	Plug the power cord into an AC outlet.
No sound from speakers.	Speaker signal cables are not connected.	Check speaker wiring and reconnect if necessary.(See page 5.)
	The SPEAKERS ON/OFF button is not set correctly.	Press SPEAKERS ON/OFF so that the sounds come out of the speakers. (See page 11.)
	An incorrect source is selected.	Select the correct source.
	Muting is activated.	Press MUTING to cancel the mute. (See page 13.)
	An incorrect input mode (analog or digital) is selected.	Select the correct input mode (analog or digital).(See pages 11 and 12.)
“NO SUBWOOFER” appears on the display.	The SUBWOOFER OUT ON/OFF button is pressed while “SUBWOOFER” is set to “SUBWOOFER NO.”	If subwoofer is connected, set “SUBWOOFER YES” so that the SUBWOOFER OUT ON/OFF button works.
Continuous hiss or buzzing during FM reception.	Incoming signal is too weak.	Connect an outdoor FM antenna or contact your dealer. (See page 4.)
	The station is too far away.	Select a new station.
Noise is heard during FM/AM reception.	An incorrect antenna is used.	Check with your dealer to be sure you have the correct antenna.
	Antennas are not connected properly.	Check connections. (See pages 4 and 5.)
	Ignition noise from automobiles.	Move the antenna farther from automobile traffic.
“OVERLOAD” starts flashing on the display.	Speakers are overloaded because of high volume.	1. Press STANDBY/ON ♂/l on the front panel to turn off the receiver.2. Stop the playback source.3. Turn on the receiver again, and adjust the volume.
	Speakers are overloaded because of short circuit of speaker terminals.	Press STANDBY/ON ♂/l on the front panel to turn off the receiver, then check the speaker wiring. If “OVERLOAD” does not disappear, unplug the AC power cord, then plug it back again. If speaker wiring is not short-circuited, contact your dealer.
“DSP NG” appears on the display.	The built-in microcomputer is not functioning correctly.	Press STANDBY/ON ♂/l on the front panel to turn off the receiver. After unplugging the AC power cord, contact your dealer.
The STANDBY lamp lights up after turning on the power, and soon the receiver turns off again (into standby mode).	The receiver is overloaded because of a high voltage.	Press STANDBY/ON ♂/l on the front panel to turn off the receiver. After unplugging the AC power cord, contact your dealer.
Remote control does not work.	There is an obstruction between the remote sensor on the receiver and the remote control.	Remove the obstruction.
	Batteries are weak.	Replace batteries. (See page 4.)
Remote control does not work as you intend.	An incorrect remote control operation mode is selected.	Select the correct remote control operation mode.(See pages 28 to 31.)

Amplifier

Output Power

At Stereo operation

Front channels:

100 W per channel, min. RMS, driven into 8 Ω, 40 Hz to 20 kHz with no more than 0.8% total harmonic distortion.

At Surround operation

Front channels:

100 W per channel, min. RMS, driven into 8 Ω, at 1 kHz with no more than 0.8% total harmonic distortion.

Center channel:

100 W, min. RMS, driven into 8 Ω, at 1 kHz with no more than 0.8% total harmonic distortion.

Surround channels:

100 W per channel, min. RMS, driven into 8 Ω, at 1 kHz with no more than 0.8% total harmonic distortion.

Audio

Audio Input Sensitivity/Impedance (1 kHz)

CD, TAPE/CDR, VCR, TV SOUND, DVD:

220 mV/47 kΩ

Audio Input (DIGITAL IN)*

Coaxial

DIGITAL 1 (DVD):

0.5 V(p-p)/75 Ω

Optical

DIGITAL 2 (CD):

-21 dBm to -15 dBm (660 nm ±30 nm)

* Corresponding to Linear PCM, Dolby Digital, and DTS Digital Surround (with sampling frequency—32 kHz, 44.1 kHz, 48 kHz)

Recording Output Level

TAPE/CDR, VCR:

220 mV

Signal-to-Noise Ratio ('66 IHF/'78 IHF)

CD, TAPE/CDR, VCR, TV SOUND, DVD:

87 dB/74 dB

Frequency Response (8 Ω)

CD, TAPE/CDR, VCR, TV SOUND, DVD:

20 Hz to 50 kHz (+1 dB, -3 dB)

Equalization (5 bands)

63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz:

±8 dB (in 2 dB steps)

Video

Video Input Sensitivity/Impedance

Composite video

DVD, VCR:

1 V(p-p)/75 Ω

Video Output Level

Composite video

VCR, MONITOR OUT:

1 V(p-p)/75 Ω

Synchronization:

Negative

Signal-to-Noise Ratio:

45 dB

FM tuner (IHF)

Tuning Range:		87.5 MHz to 108.0 MHz
Usable Sensitivity	Monaural:	12.8 dBf (1.2 μV/75 Ω)
50 dB Quieting Sensitivity	Monaural:	16.0 dBf (1.7 μV/75 Ω)
	Stereo:	37.5 dBf (20.5 μV/75 Ω)
Stereo Separation at OUT (REC):		35 dB at 1 kHz

AM tuner

Tuning Range:

530 kHz to 1 710 kHz

General

Power Requirements:	AC 120V~, 60 Hz
Power Consumption:	200 W/260 VA (at operation)2 W (in standby mode)
Dimensions (W x H x D):	435 mm x 146.5 mm x 369.5 mm
Mass:	7.5 kg

Designs and specifications are subject to change without notice.

JVC
