Product type	Audio-video receiver
Brand	JVC
Model	KWM780BT
Dimensions (W × H × D)	180 mm × 100 mm × 75 mm (main unit)
Weight	1.2 kg (main unit)
Power supply	12 V DC (car battery)
Display	6.75-inch wide touchscreen (800 × 480 pixels)
Connectivity	Bluetooth V4.2, USB 2.0 (Type A), HDMI (Type D), AV-IN inputs, front/rear camera
Supported audio formats	MP3, WMA, WAV, AAC, FLAC
Supported video formats	MPEG1, MPEG2, MPEG4, H.264, WMV, MKV
Supported image formats	JPEG, PNG, BMP
Radio	FM/AM with RDS, presetting 5 stations per band
Smartphone functions	Apple CarPlay, Android Auto, USB Mirroring, Bluetooth hands-free calling
SiriusXM	Compatible with SiriusXM Connect Vehicle tuner (sold separately)
Audio output	4 × 50 W max, 4 V preamp, 13-band equalizer
Maintenance	Clean the screen with a soft dry cloth; avoid chemical products
Safety	Do not use while driving; set volume to a safe level; installation by a professional
Spare parts and repairability	Parts available from JVC after-sales service; some operations require a technician
Included accessories	Remote control RM-RK258, installation sleeve, cables, GPS antenna

Frequently Asked Questions - KWM780BT JVC

How to connect my iPhone to Apple CarPlay?

Connect your iPhone to the USB port using the Lightning to USB cable. Make sure the iPhone is unlocked. The source automatically switches to Apple CarPlay. You can also manually select Apple CarPlay from the source selection screen.

How to pair Bluetooth with a smartphone?

On the home screen, go to System > Bluetooth > Pairing. Enable Bluetooth on your smartphone and search for the device KW-M780BT. Confirm the pairing request on both devices. The default PIN code is 0000.

Can I watch videos while driving?

No, for safety reasons, video playback is disabled when the parking brake is not engaged. You can only listen to the sound. To watch videos, park in a safe place and engage the parking brake.

How to set the date and clock?

Press the HOME button, then touch the clock on the home screen. You can choose GPS-SYNC for automatic synchronization or Manual for manual adjustment. Use the ▲/▼ buttons to adjust and SET to confirm.

How to connect a USB device?

Plug your USB flash drive or external hard drive (FAT16/32/exFAT format) into the USB port on the back of the panel. The source automatically switches to USB. You can also select USB from the source screen. Limit: 5000 files and 250 folders.

How to use the hands-free function?

Make sure your phone is connected via Bluetooth. When receiving a call, touch Answer on the screen. To make a call, open the phone screen from the home screen and choose a method: history, directory, direct dial, or voice.

What to do if the screen displays 'Reading' in a loop?

Disconnect the USB device, turn the unit off and on, then reconnect the device. If the problem persists, format the device to FAT32 and try again.

How to reset the device to factory settings?

Go to System > Initialization and select Reset. Confirm with Yes. This will erase all personal data, including contacts and preset stations.

Can I use a rearview camera with this device?

Yes, connect the rearview camera to the REVERSE (reverse wire) and AV-IN or Camera inputs. Then, in the Camera settings, enable Rear Camera. The image automatically displays when you shift into reverse.

How to adjust the equalizer?

From the source control screen, touch the Equalizer icon. You can choose a preset or manually adjust the 13 frequency bands (62.5 Hz to 16 kHz). Adjust the gain from -9 to +9 dB for each band.

USER MANUAL KWM780BT JVC

MANUEL D'INSTRUCTIONS

JVCKENWOOD Corporation

KW-M788BH

KW-M780BT

Installation et raccordements 55

Pacific Time (Réglage initial)/Central Time/Mountain Time/Eastern Time, etc.

[AV Off] Met hors service la source AV.

[PTY] (Pour les stations FM RDBS)

avez choisi, la station est accorded.

2 Activez la suscription.

OFF (Réglage initial)/Low/Middle/High

Image LR (Front)/Sound Image LR (Rear).

SRC Choisit la source.

ATT Attenue/retablit le son.

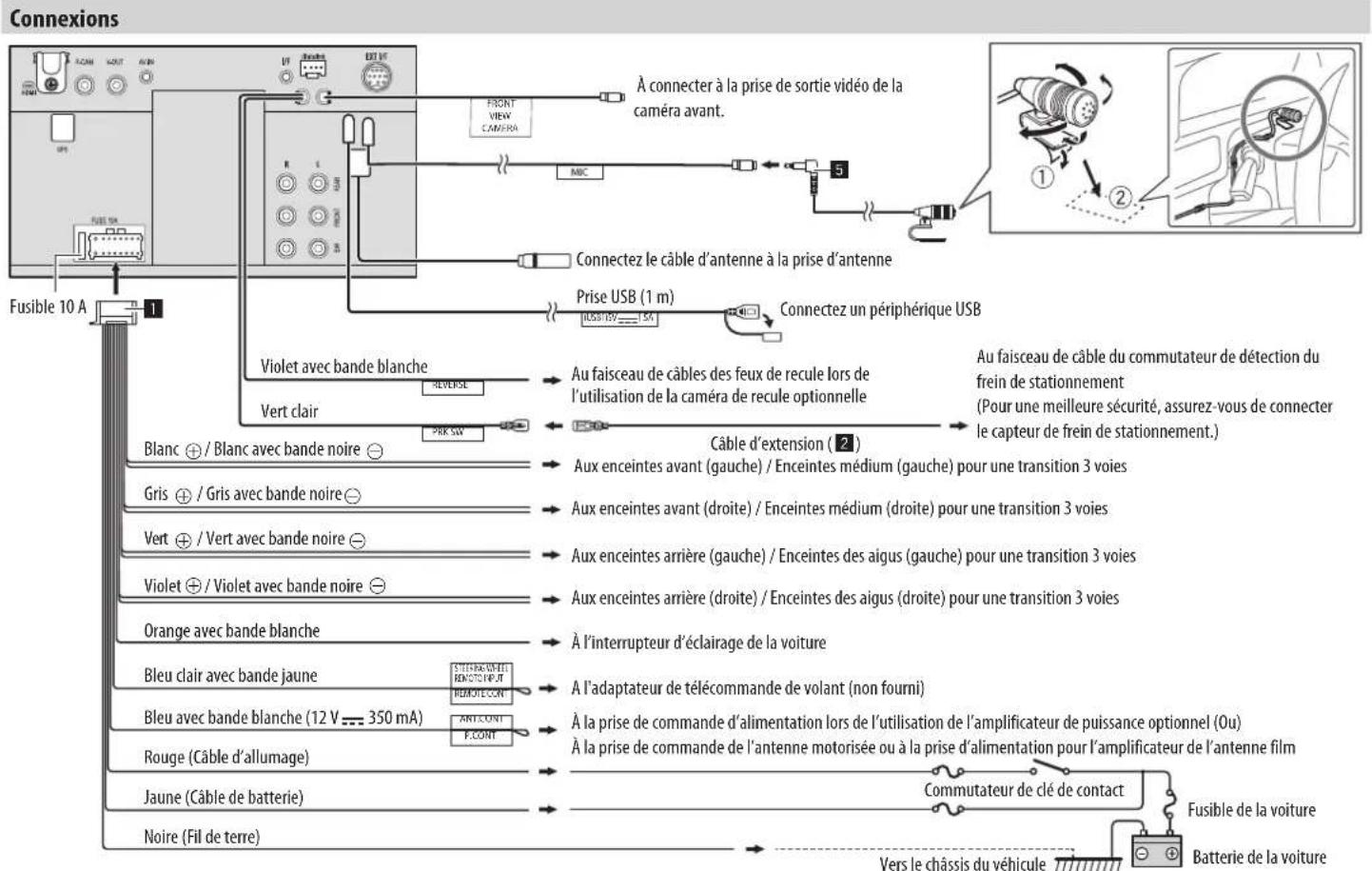

Installation et raccordements

Installation et raccordements

Installation et raccordements

Références

Entretien

Audio: MP1, MP2, MP3, AAC-LC, AC3, LPCM

Video:MPEG1,MPEG2

-MPEG4:

Audio:MP3,AAC

Vidéo:MPEG4

-1264

Audio: MP3, AAC

Vidéo:H.264

-MKV:

Audio: MP3, AC3, LPCM, AAC-LC/HE, AAC, Cook

Vidéo:H.264,MPEG-4AVC,MPEG4WMV

-WMV:

Audio : WMA

-MPEG1:176×144,352×240,720×480(30fps)

-MPEG2:176×144,352×288,320×240,720×480

720× 576,1440× 1080,1280× 720,1920× 1080,

1280×720

-H.264:1920x1080(30fps)

WMV:1280×720(60fps),1920×1080(30fps)

-MPEG4:1920x1080(30fps)

http://www.apple.com/ios/featuresavailability/#applecarplay-applecarplay

A propos de Android Auto

"SXM Subscription Updated - Press Return to

Continue" apparait.

Level>,,<Noise Reduction

Level> (page 11).

Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.
- Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
Apple, iPhone, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
- Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.
App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
- IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
- Google, Android, Android Auto, Google Maps and other marks are trademarks of Google LLC.
- To use Android Auto on your car display, you'll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 6.0 or higher, an active data plan, and the Android Auto app.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVCKENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
  SiriusXM and all related marks and logos are trademarks of Sirius XM Radio, Inc. All rights reserved.
• HD Radio Technology manufactured under license from iBiquity Digital Corporation, U.S. and Foreign Patents. For patents see http://dts.com/patents. HD Radio™ and the HD, HD Radio, and "ARC" logos are registered trademarks or trademarks of iBiquity Digital Corporation in the United States and/or other countries.
• The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
• Font for the this product is RT Font designed and sold by Ricoh Industrial Solutions Inc.
  Linux is the registered trademark of Linus Torvalds in the U.S. and other countries.
  THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVCVIDEO") AND/OR (ii) DECODE AVCVIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVCVIDEO. NO LICENSE IS GRAntED OR SHALL BE IMPILED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, LLC.SEE HTTP://WWW.MPEGLA.COM

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4VIDEO") AND/OR (j) DECODING MPEG-4VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM
THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD ("VC-1VIDEO") AND/OR (ii) DECODE VC-1VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE VC-1VIDEO. NO LICENSE IS GRanted OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

Important Notice on Software

Software License on This Product

The software embedded in this product comprises a number of independent software components, each of which is copyrighted by JVCKENWOOD Corporation or by a third party.

This product uses software components that are based on an End-User License Agreement (hereinafter called "EULA") stipulated by JVCKENWOOD Corporation and by third parties.

The EULA dictates the availability of the source codes of free-software components as a prerequisite to distributing them in executable form under the terms of the GNU General Public License or the Lesser General Public License (hereinafter called "GPL/LGPL"). To get information about the software components that are subject to the terms of the GPL/LGPL, please visit the following Website:

Website URL https://www3.jvckenwood.com/english/download/gpl/

Queries concerning the contents of the source code or the like will not be accepted.

Please note that software components based on a EULA that is not subject to the terms of the GPL/LGPL or those that have been developed or created by JVCKENWOOD Corporation will be excluded from the scope of source code disclosure.

Because licenses to use software components distributed under the GPL/LGPL are offered to the customers for free of charge, no warranty is granted to the customers, whether explicitly or implicitly, to the extent of the applicable laws.

Unless otherwise stipulated by the applicable laws or agreed upon in writing, the copyright holders or those who are entitled to modify and redistribute the software components are not held responsible for any and all damages resulting from their use or from inability to use them. For more information about the terms of use of the software components, required items of compliance and so on, please refer to the GPL/LGPL.

Customers wishing themselves to use a software component that is subject to the GPL/LGPL embedded in this product are encouraged to read the terms of the corresponding license before use. Because each individual license is prescribed by a third party other than JVCKENWOOD Corporation, the original (English) of the license is presented.

EULA

Software License Agreement

JVCKENWOOD Corporation (hereinafter called "Licensor") holds either the copyright to the embedded software or the right to sublicense it. This agreement establishes the conditions under which the customer uses this "Licensed Software."

The customer shall agree to the terms of this license agreement before proceeding to use Licensed Software.

This agreement is deemed to have taken effect when the customer (hereinafter called "User") has used a product implementation of Licensed Software.

The Licensed Software may contain software licensor has been licensed to use by third parties directly or indirectly. Some third parties may have terms of use prescribed for their customers, apart from this Software License Agreement. This agreement does not apply to such software. Be sure to consult "Important Notice on Software" as presented separately.

Article 1 (General)

Licensor grants to User a non-exclusive, non-assignable right of use Licensed Software within the country where the User purchases the Product (hereinafter the "Country") (except for the exception provided for in Paragraph 1, Article 3).

Article 2 (Right of Use)

1. The rise of use granted under this agreement is the right to use Licensed Software in this product.
2. User may not duplicate, copy, modify, add to, translate or otherwise alter, or loan licensed Software and the associated literature in whole or in part.
3. Use of Licensed Software is limited to a private extent, and Licensed Software may not be distributed, licensed or sublicensed for any purposes whatsoever, including commercial use.
4. User shall use Licensed Software as per the instruction manual or instructions given in the help file and may not use or duplicate data in violations of the regulations of the Copyright Law or other governing laws by using Licensed Software in whole or in part.

Article 3 (Terms of License)

1. In assigning this product, User may not retain the original copy of the embedded Licensed Software (including associated literature, updates and upgrades) and any duplicates and associated literature with regard to the license to use Licensed Software. User may transfer Licensed Software only to the condition of binding the assignee to abide by the terms of this Software License Agreement.
2. User may not reverse-engineer, disassemble, decompile or otherwise analyze the source code of Licensed Software.

Article 4 (Rights to Licensed Software)

All rights to Licensed Software and the associated literature, including copyrights, shall reside with Licensee or the original right holder who has granted the Right of Use and right to sublicense to Licensee (hereinafter referred to as "Original Right Holder"), and User does not have any rights other than Right of Use granted hereunder with regard to Licensed Software and the associated literature.

Article 5 (Exemption Granted to Licensor)

1. Licensor and Original Right Holder do not assume any responsibility for damages caused to User or third parties resulting from the exercise by User of the license granted hereunder, unless otherwise provided by any law to the contrary.
2. Licensor does not warrant Licensed Software to be merchantable, compatible and fit for specific purposes.

Article 6 (Responsibility for Third Parties)

If disputes over the infringement of third parties' intellectual property rights, such as copyrights and patent rights, arise out of the use of Licensed Software by User, User shall resolve these disputes at User's own expenses while keep Licensor and Original Right Holder harmless.

Article 7 (Secrecy Obligation)

User shall keep confidential Licensed Software provided hereunder, information contained in the associated literature or the like and those provisions of this agreement not yet in public knowledge and may not disclose or leak these to third parties without prior written consent from Licensor.

Article 8 (Cancellation of the Agreement)

Licensor reserves the right to cancel this agreement forthwith and claim compensation from User for the damages caused by such cancellation when User: (1) Breaches any of the provisions of this agreement, or (2) Has received a petition for seizure, provisional seizure, provisional disposition or any other kind of compulsory execution.

Article 9 (Destruction of Licensed Software)

If this agreement is terminated under the provision of the foregoing paragraph, User shall destroy Licensed Software, along with all associated literature and its duplicates, within two (2) weeks from the date of termination.

Article 10 (Copyright Protection)

1. Copyrights and all other intellectual property rights relating to Licensed Software shall reside with Licensor and Original Right Holder and in no circumstances with User.
2. User shall abide by the laws relating to copyrights and intellectual property rights in using Licensed Software.

Article 11 (Export Control)

1. Licensed Software and the associated literature or the like may not be exported to places outside the Country (including transmission outside the Country over the Internet or the like).
2. User agrees that Licensed Software is subject to export controls imposed by the Country and the United States of America.
3. User agrees to comply with all the international and domestic laws that apply to this software (U.S. Export Administration Regulations and regulations established by the U.S., the Country and their governmental agencies regarding usage by end users and export destinations).

Article 12 (Miscellaneous)

1. Even if this agreement is invalidated in part by law, all other provisions shall remain in effect.
2. Licensee and User shall consult each other in good faith to resolve any matters not provided for in this agreement or questions arising from the interpretation of this agreement.
3. Licensor and User agree that this agreement is governed by the law of Japan and that all dispute involving claims and obligations that may arise out of this agreement will be settled by arbitration at the Tokyo District Court as the court of first instance.
