USER MANUAL KS 500 DELONGHI

Instructions for use

Mode d'emploi

Gebrauchsanweisung

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below.

WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard. With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer.

The colour of the correct replacement fuse cover is that as marked on the base of the plug.

B) If your appliance is not fitted with a plug, please follow the instructions provided below:

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Blue:

Neutral

Brown:

Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Fig.6

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

ITALIANO

DESCRIZIONE DELL'APPARECCHIO

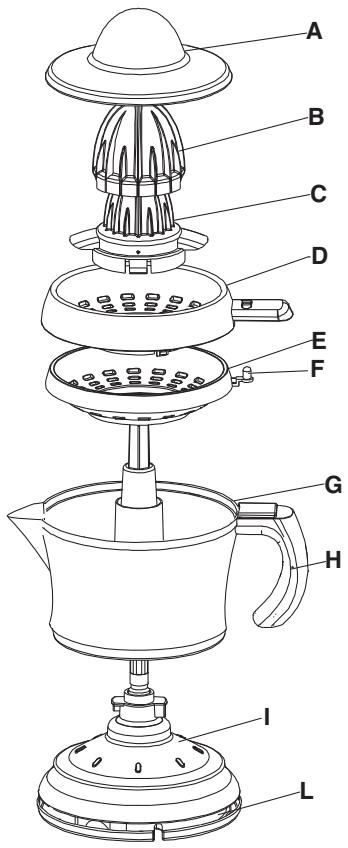

DESCRIPTION OF THE APPLIANCE

A) Lid
B) Juicing cone for large citrus fruit
C) Juicing cone for small citrus fruit
D) Upper sieve
E) Lower sieve
F) Adjusting slider
G) Juicer collector
H) Handle
1) Motor base
L) Cable winder

FRANÇAIS

DESCRIPTION DE L'APPAREIL

• After having removed the appliance from the packaging, make sure that it is complete in all of its components. If there is any doubt, do not use the appliance and return it to be checked by qualified personnel.
  The plastic bag containing the appliance should be kept away from children as it may represent a suffocation hazard.
  In the case that the plug is not compatible with the electrical outlet being used, have it substituted with a suitable one by qualified personnel. The use of adapters, multi-way plugs, and/or extension cords is not recommended. Wherever their use might become necessary, use simple or multiple adapters and/or extension cords conforming to the safety laws, taking care to not exceed the power limits marked on the adapter or the extension cord.
• Should the appliance stop working, go to an authorised service centre.
  The appliance should be destined exclusively to the use for which it has been created. Any other use is to be considered inappropriate and therefore dangerous. The maker cannot be held responsible for any damage caused by improper, erroneous or irresponsible use and/or by repairs made by unqualified personnel.

Note the following fundamental safety rules:

• Do not touch the appliance with wet or damp hands.
• Do not use the appliance with bare or wet feet.
• Do not unplug the appliance by pulling the plug out of the outlet by the cord.
• Do not the leave the appliance exposed to atmospheric agents (rain, sun, freezing temperatures, etc.)
  The appliance is not intended for use

by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Children should not be allowed to play with this appliance
• Remove the plug from the electrical outlet when the appliance is not in use.
• Do not leave the appliance on when not in use as this may potentially be hazardous.
• Do not immerse the appliance in water.
  In the case that the cord is damaged, have it repaired immediately by service centre personnel.
  Before beginning any cleaning or maintenance procedures, disconnect the plug of the appliance from the electrical outlet.
  In case of malfunction and/or breakdown, turn the appliance off without touching it. For eventual repairs, go to a qualified service centre requesting the use of original parts or accessories.
  Should it be decided to eliminate the appliance definitively, after having disconnected the plug from the electrical outlet, it is recommended that the appliance be rendered useless by cutting the power cord.
• Keep these instructions for further reference.
• The electrical cord of this appliance must never be substituted by the user, insofar as the substitution requires the use of special utensils. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent in order to avoid a hazard.
  Materials and accessories coming into contact with food conform to EC regulation 1935/2004.

BEFORE USING THE APPLIANCE, PLEASE READ

Check that the voltage of the electrical outlet corresponds to that which is indicated on the label on the appliance. Before using the appliance for the first time, carefully wash and dry the juicing cones, the filter and the juice collecting container.

HOW TO USE

• Position the juice collector (G) onto the motor (I) (Fig. 1) and turn it clockwise until it clicks into place (Fig. 2).
• Attach the lower sieve (E) to the upper sieve (D) (Fig. 3), making sure to insert the adjusting slider (F) into the corresponding slot on the handle of the upper filter (D).
• Put the filter into the carafe and then the juicing cone in a way that the teeth on the cone line up with the grooves in the filter and make sure that the filter tightly grips the juice collecting container.
• Insert the plug into the electrical outlet.
• By simply placing the citrus fruit onto the cone and pressing slightly, the appliance will begin to operate and extract juice into the collecting container.
• According to the type of fruit to be juice-ced, either the smaller or larger cone can be used. The larger cone is suitable for grapefruits, the smaller one for oranges. To use the larger cone, simply place it on top of the smaller one (fig.5).
• The motor is equipped to rotate in either direction to obtain optimal juicing effect; press the fruit intermittently and the motor will invert its rotational direction.

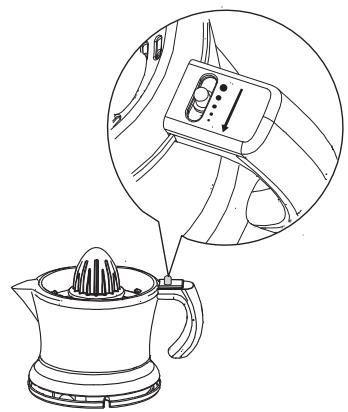

• The quantity of pulp in the juice can be regulated by adjusting the filter regulator (F) to reduce or enlarge the holes in the filter (see fig. 6). To reduce the quantity of pulp, move the regulator (F) as far as it will go to the left. To increase the pulp, move the regulator (F) in the opposite direction.

Important: Do not operate the Citrus Juicer continuously for more than 1 minute. If much quantity of citrus need to be extrac

ted, the juicer shall operate 15 seconds and pause 15 seconds. The total running time shall not exceed 5 minutes.

CLEANING- MAINTENANCE- SUGGESTIONS

• All cleaning and maintenance procedures should be done when the appliance is unplugged from the electrical outlet.
• Remove the filter by lifting it off. Detach the cone from the filter.
• Proceed to eliminate the bits of pulp and fruit remaining and clean the various components.
• In order to avoid having the remainders dry on the appliance and be therefore difficult to remove, disassemble the appliance and clean the components immediately following use.
• Wash the juice collecting container, filter, juicing cones and the lid in lukewarm water with mild detergent.
• The motor and its components should be cleaned only with a damp cloth.

Important information for correct disposal of the product in accordance with EC Directive 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately

avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
