USER MANUAL SRT 43FD4003 STRONG

LED TV with DVB-T2/C/S2

SRT 43FD4003

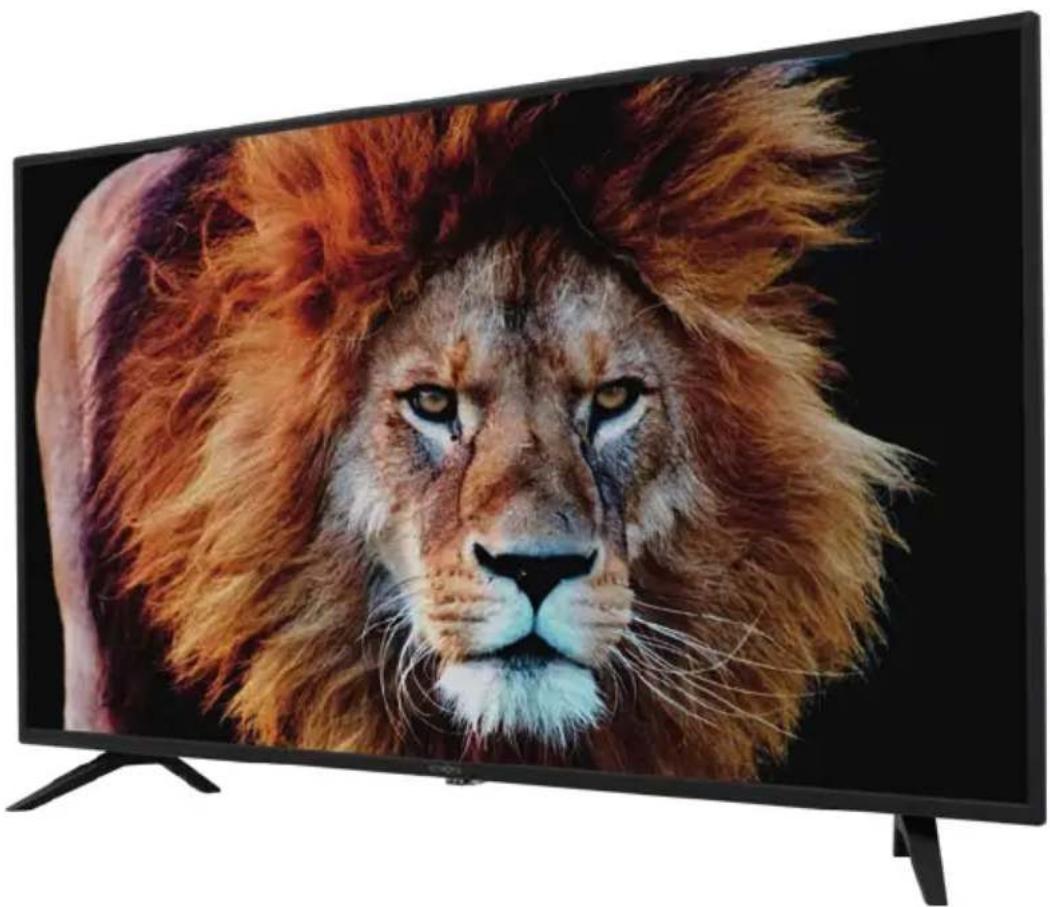

Modern black TV displaying a lion's face with vibrant brushstrokes (no text or symbols visible)

User Manual Bedienungsanleitung Manuel utilisateur Manual del Usuario Инструкции за употреба Uživatelská příručka Korisnički priručnik Használati útmutató Manuale utente Gebruiksaanwijzing

Technical line drawing of a device rear panel with two vertical supports and internal components (no text or symbols)

Fig. 1c

Pure diagram of a horizontal device with vertical supports and two vertical posts, no text or symbols present.

Fig. 2

2 1 3 2

Fig. 3

SCART 5 1 COAXIAL 4 SAT IN 2 ANT IN COMMON INTERFACE(CI) HDMI1 HDMI2 USB MINI AV IN MINI YPbPr IN EARPHONE 6 7 8 9 10 11

Fig. 4

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33-35 HOLD REVE SIZE HOLD AVI AUDIO STROONG

Fig. 5

1 2 3

SERVICE CENTER

AT [e-mail] 0820 400 150 (€ 0,12/Min. österr. Festnetz) BG [e-mail] [phone] CZ [e-mail] 844 44 44 90 DE [e-mail] 0180 501 49 91 (€ 0,14/Min. deutsches Festnetz) (€ 0,42/Min. max. Mobilfunknetze) DK [e-mail] ES [e-mail] [phone] FR [e-mail] HR [phone]

HU [e-mail] [phone] [e-mail] 199 404 032 Da rete fissa 24,8 cent. al min. 12,5 cent. scatto alla risposta Da rete mobile max 49 cent. al min. 15,6 cent. scatto alla risposta NL [e-mail] PL [e-mail] 801 702 017 [e-mail] [phone] [e-mail] 0850 15 05 50 SL [phone] [e-mail] [phone]

www.strong.tv

Licenses

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL

ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

This product contains one or more programs protected under international and U.S. copyright laws as unpublished works. They are confidential and proprietary to Dolby Laboratories. Their reproduction or disclosure, in whole or in part, or the production of derivative works therefrom without the express permission of Dolby Laboratories is prohibited. Copyright 2003-2009 by Dolby Laboratories. All rights reserved.

SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, STRONG declares that the device SRT 43FD4003 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.strong.tv/en/doc Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc in the United States and other countries. All product names are trademarks or registered trademarks of their respective owners. © STRONG 2022. All rights reserved.

To obtain the best performance and safety, please read this manual carefully. Please keep this manual for future reference.

TABLE OF CONTENTS

1.0 INSTRUCTION 3

1.1 Safety Instructions 3
1.2 Storage 4
1.3 Accessories 4
1.4 Equipment set-up 4

2.0 INSTALLATION 5

2.1 Default PIN code: 1234 5
2.2 Front panel/underside 5
2.3 Rear Panel 5
2.4 Remote control 5
2.5 Installing the batteries 6
2.6 Using the remote control 7

3.0 FIRST TIME INSTALLATION 7

3.1 DVB-S/S2 installation 7
3.2 DVB-T/T2 installation 8
3.3 DVB-C installation 8

4.0 ELECTRONIC PROGRAMME GUIDE (EPG) 9

5.0 MENU SETTINGS

5.1 Menu control (DTV mode) 9
5.2 Picture 9
5.3 Sound 10
5.4 Channels 11
5.5 Time 13
5.6 Setup 14
5.7 Lock 15

6.0 MEDIA

6.1 Reminder when using the USB player 16
6.2 USB 16

7.0 TROUBLESHOOTING

8.0 SPECIFICATIONS

1.0 INSTRUCTION

1.1 Safety Instructions

Read all of the instructions before operating the set. Keep these instructions well for later use.

■ Only use attachments/accessories specified or provided by the manufacturer (such as the exclusive supply adapter, battery etc.).
■ Please refer to the information on the exterior back enclosure for electrical and safety information before installing or operating the apparatus.
■ To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
The ventilation should not be impeded by covering the ventilation openings with items, such as newspaper, table-cloths, curtains, etc.
■ The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

■ The mark indicates a risk of electric shock. The external wires must be installed by an instructed person or ready-made leads or cords must be used.

■ To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

■ Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent types.

■ The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

■ Excessive sound pressure from earphones and earphones can cause hearing loss.

■ Listening to music at high volume levels and for extended durations can damage one's hearing.

In order to reduce the risk of damage to hearing, one should lower the volume to a safe, comfortable level, and reduce the amount of time listening at high levels.

The mains plug or appliance coupler is used as disconnect device, it shall remain readily operable. When not in use and during movement, please take care of the power cord set, e.g. tie up the power cord set with cable tie or something like that. It shall be free from sharp edges or similar which can cause abrasion of the power cord set. When put into use again, please make sure the power cord is not damaged. In case of damages, please get the power cord replaced by a similar one with the same specifications. The absence of a light indication on

■ the apparatus does not mean that it is fully disconnected from the mains. To disconnect the apparatus completely, the mains plug must be pulled out.

■ Attention should be drawn to environmental aspects of battery disposal.
■ No naked flame sources, such as lighted candles, should be placed on the apparatus.

To prevent the spread of fire, keep candles or other open flames away from this product at all times.

■ A USB terminal can provide a maximum of 500 mA.

■ Equipment with this symbol is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

Operating Environment

■ Do not install this equipment in a confined space such as a bookcase or similar unit.
■ Do not use the set near damp, and cold areas, protect the set from overheating.
- Keep away from direct sunlight.
■ Do not use the set near dust place.

- Do not attach candle to accessible opening area, to avoid flammable foreign material from entering the TV.

WEEE Directive

Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the

return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

1.2 Storage

Your device has been carefully checked and packed before shipping. When unpacking it, make sure that all the parts are included and keep the packaging away from children. We recommend that you keep the carton during the warranty period, to keep your device perfectly protected in the event of repair or warranty.

1.3 Accessories

■ 1x installation instructions
■ 1x safety instructions/warranty cards
■ 1x remote control
■ 2x AAA batteries

1.4 Equipment set-up

Fig. 1a

Install the display on a solid horizontal surface such as a table or desk. For ventilation, leave a space of at least 10 cm free all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set. This apparatus can be used in tropical and/or moderate climates.

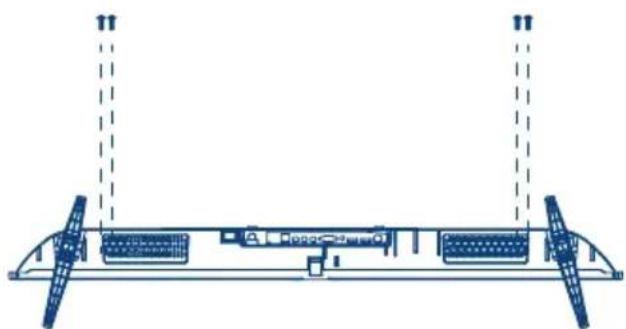

Stand assembly instruction

Fig. 1b

1. Carefully place the TV with its front side facing down on a cushioned flat surface in order to protect the TV and the TV screen from damage.
2. Take out the 2x feet and assemble them to the TV.
3. Fasten the feet to the bottom of the TV using the 4xPA4x14mm screws.

Fig. 1c

This user manual provides complete instructions for installing and using this TV. The symbols serve as follows.

WARNING Indicates warning information.

NOTE Indicates any other additional important or helpful information.

MENU Represents a button on the remote control or the TV.

(Bold characters)

Move to Represents a menu item within a window. (Italic characters)

2.0 INSTALLATION

2.1 Default PIN code: 1234

2.2 Front panel/underside

Fig. 2

NOTE: The graphics are for representation only.

1. Power indicator /remote sensor
2. Speakers
3. Buttons: Standby/ON.

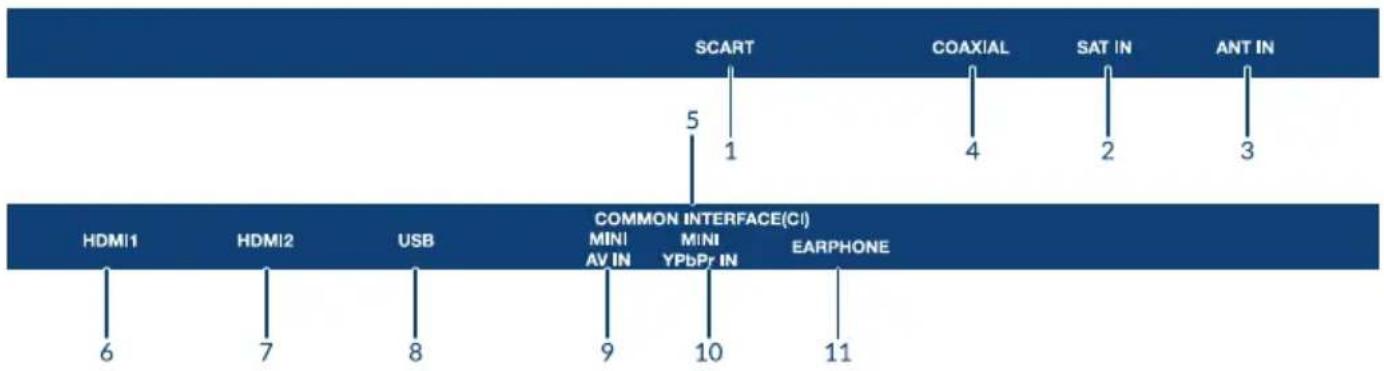

2.3 Rear Panel

Fig. 3

NOTE: The graphics are for representation only.

1. SCART Connect devices like DVD or VCR using SCART cable.
2. SAT IN Connect a satellite dish to the TV for searching programmes.
3. ANT/CABLE IN Connect a terrestrial antenna or cable connection from your provider to the TV for searching programmes.

4. S/PDIF (coax. output) Use an RCA cable to connect your TV to a compatible digital amplifier or Home theatre set.

5. COMMON INTERFACE (CI) Connect a Conditional Access Module (CAM).

6. HDMI 1 Connect HDMI input signal from a signal source such as DVD, Blu-ray player or game console.

7. HDMI 2 Connect HDMI input signal from a signal source such as DVD, Blu-ray player or game console.

8. USB Connect a USB device for playback of multimedia files.

9. Mini AV IN To connect your video camera or other device using 3.5 mm AV cable to your TV to play videos on your TV screen.

10. Mini YPbPr Connect YPbPr sources.

11. HEADPHONE Speakers will be muted when earphones are plugged in and earphones selected.

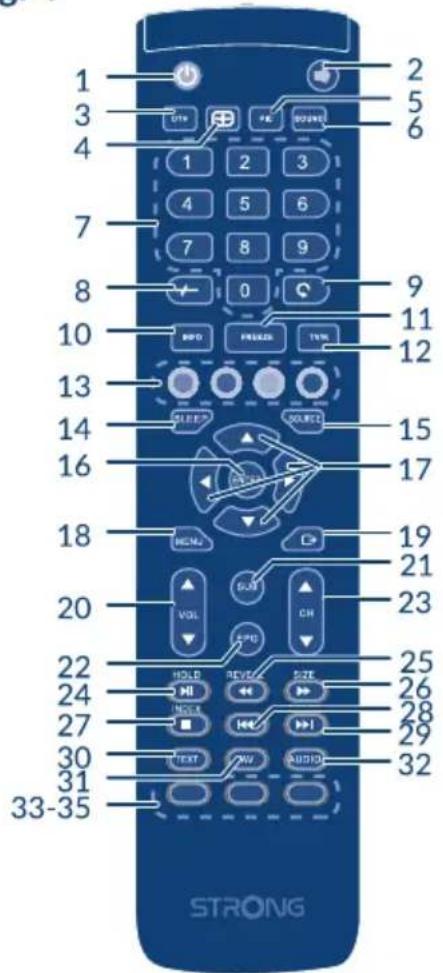

2.4 Remote control

Fig. 4

1. ⏻ Press to turn the TV on or standby.
2. ☑ Press to mute or restore the volume.
3. DTV Press to go back to Digital TV.
4. (ASPECT) Change aspect ratio.
5. (PICTURE) PIC Change picture mode.

6. SOUND Change sound mode.

7. 0\~9 Choose channel directly.

8. -/-- Change the maximum input programme digit.
9. ☑ Press to go back to previous viewed channel.
10. INFO Display information about the current source.
11. FREEZE Press to hold the picture.
12. TV/R Switch between TV and radio.
13. COLOUR BUTTONS
    Press to execute the prompt function in TV or DTV menu mode.
14. SLEEP Select the sleep time, such as 10 min, 20 min etc.
15. SOURCE Press to change signal source.
16. ENTER Confirm the selection.
17. ▲▼ ◀▶ Navigate the menu.
18. MENU Open the menu options. Step back in some menu options.
19. Exit the current menu.
20. VOL +/- Adjust the volume up or down.
21. (SUB.PAGE) SUB.P

Press this button to enter or exit subpage mode (if subpage is available. Press the ◀▶ buttons to select a subpage.

1. EPG Press to display the current EPG information in DTV mode.
2. CH +/- Change programmes up or down. Big steps in Channel list.
3. HOLD Press to hold the teletext page on screen without update and changes. Press again to release the hold state.
4. (REVEAL) TIP In teletext mode, press to reveal the hidden information.
5. SIZE Enlarge the teletext display. Press this button once to enlarge upper half of the screen. Press this button again to enlarge lower half of the screen. Press this button again to resume to normal screen size.
6. INDEX Press this button to display index page.
7. Press to play the previous file.
8. ▶▶▶ Press to play the next file.
9. TEXT Press to enter or exit the teletext menu.
10. FAV Press to view your assigned favourite list or main list channels. Press ▲▼ to cycle through your assigned favourite channels, press OK to confirm.
11. AUDIO Press to select available audio languages. Selecting audio description, a narrator will describe what is happening on the screen for blind or visually impaired viewers. Press again to turn it off (depending on broadcast).
    33-35. No function.

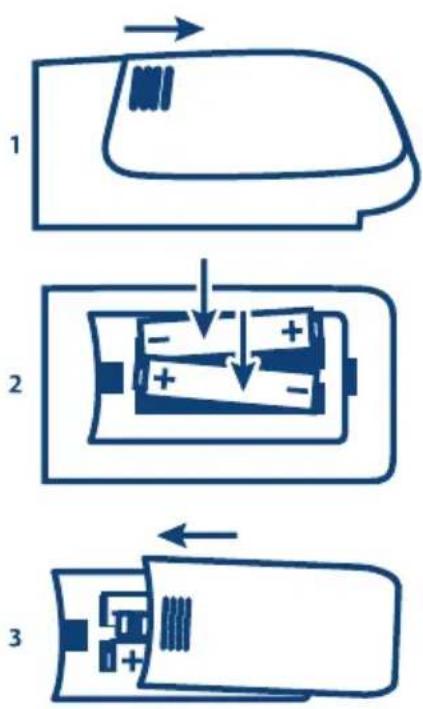

2.5 Installing the batteries

Fig. 5

Place 2x AAA batteries in the battery compartment of the remote control. Make sure to match the polarity markings inside the compartment.

NOTE: Pictures are only for reference. Actual items may differ.

1. Open the cover.
2. Put 2x AAA batteries in the compartment and make sure the polarity is correct.
3. Close the cover.

Precautions for using the battery.

Improper using of the battery will cause leakage. Carefully follow these instructions.

1. Please note the batteries' polarity to avoid short circuit.
2. When the battery's voltage is insufficient which affect the use range, you should replace it with a new battery. Remove the batteries from the remote control unit if you do not intend to use it for a long time.
3. Do not use different types of batteries (for example Manganese and Alkaline batteries) together.
4. Do not put the battery into fire, and charge or decompose the battery.
5. Please dispose batteries abide by relevant environmental protection regulation.

2.6 Using the remote control

■ Use the remote control by pointing it towards the remote sensor. Items between the remote control and the remote sensor could block normal operation.
- Do not cause the remote control to vibrate violently. Also, do not splash liquid on the remote control, also do not put the remote control in a high humidity place.
- Do not place the remote control under direct sunlight which will cause deformation of the unit by heat.
- When the remote sensor is under direct sunlight or strong lighting, the remote control will not work. If so, please change the lighting or TV's position, or operate the remote control closer to the remote sensor.

3.0 FIRST TIME INSTALLATION

After all connections have been properly made, switch on your TV. The language selection will appear on screen. Use ◀▶ to select the OSD Language of your preference. Press ▼ and then use ◀▶ to select the country where you will use this TV. This is important to set settings as time zone and text character correctly.

Press ENTER for next step to go to Tuning setup.

In Tuning setup selection you select which tuner input source you like to use.

Tuner Type If you still have analogue signals in DVB-T or DVB-C. Select here between

options DTV (Digital) or ATV (Analogue) systems. To perform both tunings select DTV+ATV.

Digital type

DVB-S (Satellite) to receive satellite broadcasts if you are equipped with a satellite dish).

DVB-T (Terrestrial) to receive terrestrial broadcasts with indoor or outdoor antenna.

DVB-T (Terrestrial) to receive terrestrial broadcasts with indoor or outdoor antenna.

DVB-C (Cable) to receive cable broadcasts if you have cable connection from local provider.

Next step is depending on your choice in Tuner setup.

3.1 DVB-S/S2 installation

Satellite

Press ▼ to select Satellite and use ◀▶ to highlight the satellite your dish is aimed at. Use ▲▼ ◀▶ to highlight the options of choice and press ENTER to start the channel search.

Satellite	Press ◀▶ to choose the satellite your dish is aimed at.
Scan Mode	Choose between Default (recommended), Blind Scan, Network and Fast Scan.
Channel type	Select Free to search Free-To-Air channels only Free + Scrambled to search FTA and Encrypted channels or Scramble to search Encrypted channels only.
Service Type	Select All to search DTV channels and Radio. Select RADIO to search radio channels only or DTV for only Digital TV channels.
Dish Setup	Press ▶ button to access the Dish Setup menu in this menu it is possible to access the advanced settings such as if it is necessary to set the DiSEqC. For more information see chapter 5.4.8 Dish Setup.

It is recommended to use the default settings.

NOTE:

the function FAST SCAN, selectable on menu Scan Mode, it is only available in some countries.

3.2 DVB-T/T2 installation

Terrestrial Setting

Press ENTER to start directly searching for digital channels. Optional you can search also for analogue channels.

Press ▲ and select the Tune Type.

By pressing ◀▶ select DTV, ATV or DTV+ATV (DTV to search digital broadcasts and ATV to search analogue broadcasts).

3.3 DVB-C installation

Cable Setting

Press ▲▼ ◀▶ to highlight your settings.
Scan type	You can select Network Scan, Blind scan or Full.
Network ID	The default setting is Auto. To enter your own value press ◀▶ and enter (with 0 ~ 9) the used Network ID from your provider.
Frequency	The default setting is Auto. To enter your own value press ◀▶ and enter (with 0 ~ 9) the main frequency used by your provider in KHz.
Symbol Rate	The default setting is Auto. To enter your own value press ◀▶ and enter (with 0 ~ 9) the used Symbol Rate from your provider. (Ks/s) most used values are 6900 or 6875.

Optional you can search also for analogue channels. Press ▲ select the Tune Type.

By pressing ◀▶ select DTV, ATV or DTV+ATV (DTV to search digital broadcasts and ATV to search analogue broadcasts).

NOTE:

Please, check the settings for your cables system used by your provider! Full can will have a duration of approximately 20 minutes, depending on your cable network.

Press ENTER to start searching for digital channels.

4.0 ELECTRONIC PROGRAMME GUIDE (EPG)

EPG stands for Digital Electronic Programme Guide. It is supplied by the programme providers and offers information on broadcasted programmes. You can access it in digital mode by pressing EPG on the remote control. Press EPG to bring up the EPG interface. Use ▲▼ to select a channel.

Press ▶ to switch to overview from one channel EPG. Use ▲▼ to select event where you like to know more details. These details are displayed on top of this EPG banner or press INFO button for full screen. Press EXIT to stop and return to viewing modes.

Then press the COLOUR BUTTONS for entering the required settings.

GREEN

Set a reminded to event or set even Timer function. Pressing the key once the selected program will activate the reminder once. By pressing the key twice, the program will be remembered daily. Pressing the key three times the program will be remembered weekly.

YELLOW Overview of previous day.

BLUE Overview of next day.

5.0 MENU SETTINGS

Below items depend on if they are available of select input source. Use SOURCE to select other source.

Selections are Satellite, DTV, ATV, SCART, AV, Component, HDMI1, HDMI2 and USB.

5.1 Menu control (DTV mode)

Press MENU to enter the main menu. Press ▲▼ to select an item. Press ENTER or ▶ to access the submenus. Use ▲▼ to select the various options contained and ENTER to select them. Press MENU to exit the item.

5.2 Picture

Picture Mode Select one of the automatic picture control modes. Available choices are

Dynamic, Standard, Mild. Select Personal to adjust Contrast, Brightness, Color and Sharpness as you like.

Color Temperature

Select the overall color tone of the picture. Available choices are Cool, Medium, Warm.

Noise Reduction

Eliminates noise in the picture. Available choices are Off, Low, Middle, High and Default.

Aspect Ratio

Available choices are: Auto, 4:3, 16:9, Zoom1, Zoom2, Point To Point and Full (last two settings are available only with HDMI source).

HDMI Mode

Available choice are: Auto, Video and Graphic.

NOTE:

the item HDMI Mode can only be selected in the presence of a device connected via HDMI.

5.2.1 Picture Mode

If Picture Mode is set to Personal you can change the following settings. Press ▲▼ to select an option, then press ◀▶ to adjust.

Backlight Adjust the brightness of the screen backlight.

Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Brightness Adjust the optical fiber output of the entire picture, it will affect the dark region of the picture.

Color Adjust the saturation of the color based on your own preference.

TintNofunction.

Sharpness Adjust the peaking in the image detail.

5.2.2 Colour Temperature

In this menu you can change the overall colour cast of the picture.

Press ▲▼ to select Colour Temperature, then press ENTER to enter a sub-menu. Press ▲▼ to select the relevant picture effect (DEFAULT: Cold Normal Warm).

Cold Increase the blue tone for the white.

Normal Increase the neutral colours for the white.

Warm Increase the red colour for the white.

5.2.3 Noise Reduction

In this menu you can filter out and reduce the image noise and improve picture quality. Press ▲▼ to select Noise Reduction, then press ENTER to enter a sub-menu.

Off Select to turn off video noise detection.

Low Detect and reduce low video noise.

Middle Detect and reduce moderate video noise.

High Detect and reduce enhanced video noise.

Default Set as Default.

5.2.4 Aspect Ratio

Change in this option the picture format from displayed video on the screen. Press ENTER to display the options, ◀▶ to select and ENTER to confirm. Available choices are: Auto, 4:3, 16:9, Zoom1, Zoom2, Point To Point and Full (last two settings are available only with HDMI source).

5.2.5 HDMI Mode

This menu is for adapting the video data transmission via the HDMI connection. This menu is only available when an active device is connected to one of the HDMI input. Available choice is: Auto, Video and Graphic.

5.3 Sound ♪

Sound Mode

Select your favourite sound mode for each input. Choices are Standard, Music, Movie, Sports and Personal.

Enjoy Music The available options are ON and OFF.

Auto Volume Adjust the volume corresponding to the input audio level. Options are On and Off.

S/PDIF Type If you have connected S/PDIF output to digital home audio system. You can select Auto to output Dolby audio automatically. If channel have this audio channel. Select PCM to output only stereo audio or OFF to switch output off.

AD Switch Turn on the Audio description, you can activate the setting of AD volume. When turn on the audio description, a narrator will describe what is happening on the screen for blind or visually impaired viewers. To activate this item, press ENTER button and use ◀▶ to set it ON or OFF. If it is activated, it is also possible to set the AD volume. Press ▼ and adjust the volume with ◀▶.

(This item is only available in Satellite and DTV mode.)

NOTE: The availability of the audio description service depends on the broadcast provider.

5.3.1 Sound Mode

If Sound Mode is set to Personal you can change the following settings. Press ▲▼ to select an option, then press ◀▶ to adjust.

Treble Adjust higher audio frequencies.

Bass Adjust the lower audio frequencies.

Balance This function allows you to change the output of the audio speakers. Press

the ▲▼ buttons to select Balance and change the settings with the ◀▶ buttons.

5.4 Channels

Press MENU to display the main menu. Press ▲▼ to select Channels in the main menu. Press ENTER to access the submenu and ▲▼ to select the option you wish to adjust.

Press ENTER again to adjust. After finishing your adjustment, press MENU to save and return to the previous menu. Below items depend on if they are available of select input source. Use SOURCE to select other source.

5.4.1 Auto Tuning

Press ▲▼ to select Auto Tuning. If the TV uses DVB-T or DVB-C tuner, please refer to chapters 3.2 and 3.3; for Satellite (DVB-S) tuner please refer to chapter 3.1.

5.4.2 ATV Manual Tuning (in DVB-T and DVB-C mode only)

For searching and manually storing analogue programs. Press ▲▼ to select ATV Manual Tuning, then press ENTER to access the sub-menu.

Press ▲▼ to select Current CH 1 (or a channel of your choice), and subsequent other options. Once you have set the desired values, select Search and press ▶ button to search on high frequencies or press ◀ to search on lower frequencies. The search stops as soon as a program is found which will be saved on the selected channel on Current CH. To stop the search, press EXIT.

Current CH Set the channel number.

Colour System Select the colour system (Available: AUTO, PAL, NTSC and SECAM).

Sound System Select the Sound system.

Fine-Tune Adjust the frequency of the channel.

Search Start the channel search.

5.4.3 DTV Manual Tuning (in DVB-T and DVB-C mode only)

Search and store programmes manually. Press ▲▼ to select DTV Manual Tuning. Then press ENTER to enter the sub-menu.

Press ◀▶ to select a Channel No., and then press ENTER to start the search. The search stops when a programme is found, and this programme will be stored in the current channel position. Press MENU to exit.

5.4.4 CADTV Manual Tuning (in DVB-C mode only)

For searching and manually storing digital programs. Press ▲▼ to select CADTV Manual Tuning then press ENTER to enter the sub-menu.

In this menu it is possible to manually enter specific frequencies (usually provided by the service provider). In this case, the insertion of a specific frequency, Symbol Rate and QAM Type is required. Use ▲▼ to select the desired option and use the numeric keys to enter the required values. Instead, use ◀▶ to set the QAM Type.

Select ENTER to start the search.

5.4.5 Programme Edit

Programme Edit for editing the programmes. You can press the COLOUR BUTTONS on the remote control to skip, move or delete programmes. Here below the description of the color buttons:

Red To delete the selected channel. Press RED button and use ◀ to confirm or ▶ to exit.

Yellow To move the selected channel at the top or bottom of the channel list. Select the channel, press YELLOW button and use the ▲▼ button to move the channel. It is also possible to enter the channel number to which to transfer the selected channel. Press YELLOW button and use 0-9 buttons to insert the channel number and confirm with ENTER.

Blue The Skip function allows you to hide a channel from the channel list. Press BLUE button, a logo is displayed next to the selected channel. From now on the channel no longer appears on the channel list. To restore it just remove the selection.

5.4.6 Signal Information

Signal Information shows the information of current DTV channel. Only available with DTV signal.

5.4.7 CI Information

In case you use a CI Module for decoding encoded channels, this menu shows the internal menu of the card and/or CAM.

5.4.8 Dish Setup

If you use Satellite as input source, and you use an DiSEqC device or a motor to manage the movement of the dish, the Dish Setup menu allows you to set all the parameters necessary for an optimal attitude.

When a satellite is selected (on the left side of the screen), the color buttons described at the bottom of the screen, allow you to Edit GREEN, Add YELLOW or Delete RED one or more satellite in the list.

By pressing EPG button is possible to display the Transponder list belonging to the selected satellite. Also, in this case the colored buttons allow you to modify these frequencies. It is also possible to scan only a part of the frequencies contained in the transponder list. Press ENTER on each frequency/ transponder you want to tune (a red v will appear next to the selected frequencies), at the end press the blue button to start scanning. With this procedure the TV will only tune the selected frequencies.

On the right side of the screen, you will find all the settings to adapt the scan to the various connections. Use the ▲▼ to move the selection from side to side. At the top there is the name of the satellite on which the changes will be made.

Finally, after making all the necessary settings, press the BLUE button and adjust the latest settings as follows:

Scan Mode	Choose between Default (recommended), Blind Scan, Network and Fast Scan.
Channel type	Select Free to search Free-To-Air channels only Free + Scrambled to search FTA and Encrypted channels or Scramble to search Encrypted channels only.
Service Type	Select All to search DTV channels and Radio. Select RADIO to search radio channels only or DTV for only Digital TV channels.

Once all settings have been made, press ENTER button to start tuning.

5.5 Time

Press MENU to display the main menu. Press ▲▼ to select TIME in the main menu. Press ENTER to access the sub-menu and ▲▼ to do further adjustments. Press ENTER to confirm or Press MENU to return.

Clock The time is automatically obtained from the channel transmission and does not have to be set manually.

Time Zone	Press ▲▼ to select Time Zone if you like to change to another zone.
Off Time	This item allows you to turn off the TV at a preset time. Press ◀▶ to choose between OFF, Once, Every Day, Mon.-Fri, Mon-Sat, Sat-Sun, or Sun. Press ▼ to set the time and use ◀▶ to set hour and minutes.

On Time This item allows you to turn on the TV and to set the program and volume for switching on at a preset time. Press ◀▶ to choose between OFF, Once, Every Day, Mon.-Fri, Mon-Sat, Sat-Sun, or Sun. Press ▼ to set the time, Source, channel, and volume. Use ◀▶ to set the various options available.

Sleep Timer Press ▲▼ to select Sleep Timer. Available Options: Off, 15 min., 30 min., 45 min., 60 min., 90min., 120 min. and 240 min..

Auto Standby This function allows you to set the automatic shutdown of your TV. Choose between 3H, 4H, 5H or Off to disable this function.

OSD Timer This function allows you to choose how long the channel list banner is displayed. Choose between 5s, 15s or 30s.

NOTE:

the difference between the Sleep Timer and Auto Standby functions are that the first turns off the TV regardless of the user's reactions, while the second turns off the TV after the preset time but the count starts from the last reaction made by the user.

5.6 Setup

OSD Language	Select the Menu language of your choice. The default setting is English. Press ▲▼ to select the menu language and confirm with ENTER.
TXT Languages	Press ▲▼ to select correct character type belong to language to display correct the TXT. Selections are: West, East, Russian, Arabic or Farsi.
Audio Languages	Press ◀▶ to select Primary for main audio track or Secondary next audio channel if first is not available. Press ▲▼ to select your chosen Audio Language, then press ENTER to confirm.
Subtitles Languages	Press ◀▶ to select Primary for main subtitle track or Secondary next subtitles channel if first is not available. Press pq to select your chosen Subtitles Language, then press ENTER to confirm.
Hearing Impaired	If you like to have extra subtitles support then select this function to On.
Subtitle	To enable the subtitle display select this function to On.
Blue Screen If you select an input with no signal and like to have Blue colour screen instead black. Select this function to On.
Soundbar	The available options are On and Off.
Software Update (USB)	If a new software release for this model is available on our website and you have copied the unzipped file to an empty USB device, formatted in FAT32, you can upgrade the system software of this TV. After successfully update a message appears on screen. Power off by removing the main power connector. Remove USB device and power ON.
HDMI Auto Switch	The available options are Auto, Manual and Off.
SW Version	This item shows the data relating to the software installed.
Reset	This option allows you to restore the TV to the initial factory conditions. This means that all the set data and channel lists will be cleared. At the end of the reset, the TV restarts displaying the first installation menu. To reconfigure the TV, see chapter 3. Select Yes to reset or No to exit. To start the reset the PIN code is required.

NOTE: NEVER disconnect the USB device from the TV, the TV from the main or switch OFF power during the update procedure. It can damage your device and warranty will void!
NOTE: This option allows you to restore the TV to the initial factory conditions. This means that all the set data and channel lists will be cleared. At the end of the reset, the TV restarts displaying the first installation menu. To reconfigure the tv see chapter 3.

5.7 Lock

Press MENU to display the main menu. Press ▲▼ to select the Lock menu settings, and ENTER to access the sub-menu. To unblock this menu, it is necessary to enter the PIN code (default:1234) and set the selection to On. Then press ▲▼ to select the options. The following options are available:

System Lock This option allows you to enable or disable the password protection. Press

ENTER then insert the PIN code to set this function On or Off.

Change Password

The default password is 1234, to customize the password press ENTER and follow the instruction within the menu.

Channel Lock This option allows you to prevent viewing of one or more channels. Press

ENTER to display the channel list and select with ▲▼ the channel you want to be locked. Press GREEN to lock it. Consider the same procedure to lock or unlock other channels if needed.

Parental Guidance

Press ENTER to enter and set the age for suitable programmes for children, then press ▲▼.

Key Lock

This option allows you to Lock the TV buttons. Press ▲▼ to select Off or On to lock.

NOTE: When Hotel Mode is available, the TV react following the settings enabled of disabled contained in the menu.

Options contained in the HOTEL MODE menu:

Hotel Mode

To enable or disable this function by setting On or Off using ◀▶ or ENTER.

Source Lock

This option allows to enable or disable the sources available: Satellite, DTV, ATV, AV, PC, SCART, Component, HDMI and USB. Press ENTER to access the source list and ▲▼ to select the sources. Press ENTER to enable or disable one or more. Please note that it is necessary to keep more than 1 source un-Locked. Press MENU to back to the previous menu.

Default Source

Here is possible to select the source that will be displayed every time that the TV is turned on. Press ENTER to access the sources list and select one of them by pressing ENTER. Press MENU to back to the previous menu.

Digital Type

Here it is possible to select the channel that will be displayed when the TV is turned on.

Default Prog

Here it is possible to select the channel that will be displayed when the TV is turned on. The program is available only when the source selected in Default Source contain channels and it is selected in view mode. Use ◀▶ to set a channel of your choice.

Default Volume

This option allows to set the default volume when the TV is turned on. Press

ENTER to display the volume bar, use ◀▶ to adjust the volume. Press MENU to back to the previous menu.

Max Volume

To set the Max volume press ENTER to display the volume bar, use ◀▶ to adjust the volume. Press MENU to back to the previous menu.

Import Database

Press ENTER to Import the Database from a compatible TV.

Export Database

Press ENTER to Export the Database to a compatible TV.

Clear Lock

Press ENTER to reset all functions set in this menu.

NOTE:

For the Import Database and Export Database functions you need to connect a USB device formatted in FAT32.

6.0 MEDIA

6.1 Reminder when using the USB player

1. Some USB storage devices may not be compatible to operate smoothly with this TV.
2. Back up all the data in the USB storage device in case data is lost due to an unexpected accident. STRONG does not assume any liability for the losses by misuse or malfunction. Data backup is consumer's responsibility.
3. For large file sizes, the loading speed may be slightly longer.
4. The recognition speed of a USB storage device may depend on each device.
5. When connecting or disconnecting the USB storage device, make sure the TV is not in USB mode otherwise the USB storage device or the files stored in it may be damaged.
6. Please use only a USB storage device which is formatted in FAT16, FAT32, NTFS (playback only) file system provided with the Windows operating system. In case of a storage device formatted as a different utility programme which is not supported by Windows, it may not be recognized.
7. For Software Updates and Database functions it is recommended to use USB-Sticks (keys) in FAT16 or.32.
8. When using a USB Hard Disk Drive which is not powered independently, ensure its power does not exceed 500 mA. Otherwise, the TV system will change into standby mode, and you must pull out the USB Hard Disk and restart the TV system.
9. An "Unsupported File" message will be displayed if the file format is unsupported, or the file is corrupted.
10. FHD big picture needs longer time to process, which is not caused by the TV. Please be patient.
11. This TV may not support some multimedia files changed and upgraded as the change of the encoding format or other technical aspects advances.
12. Please refer to chapter 9. Appendix for a list of supported file formats for USB playback.

6.2 USB

Press SOURCE and select USB. You can view movie, music, and photo files from your USB storage devices. Connect a USB storage device to the USB input terminal and select the types of media on the home page: Photo, Music, and Movie. Press ENTER, the screen will show the connected USB device, press ENTER again to view the file folders and files. Press ▲▼ or ◀▶ to select a folder, press ENTER to open the folder and select the files. Highlight the one you want to watch and press ENTER to play. Press ■ to stop playing and return to upper lever folder. Continuously press RETURN to go back to upper-level folder. Repeat again to select and play another media type.

NOTE:

By choosing one of the three media types, for example Movie, the folders inside will display only video files and no other formats.

6.2.1 Play movies

During playback, press INFO or ENTER to display the menu bar and EXIT to exit. Press the USB CONTROL BUTTONS on the remote control to do relevant operations.

Play & Pause/Stop/Prev./Next

	Press PLAY II to play or pause the playback. Press ■ to stop playing. Press ◀◀▶▶ to play the previous or the next video file. Press INFO and use ◀▶ to highlight the corresponding icon on the control bar, then press ENTER. The TV will response accordingly.
Fast Reverse/Fast Forward	Press ◀◀▶ to advance or rewind the movie playback, then press PLAY II to start the playing from the new position. The speed of forward or rewind depends on the number of times the key is pressed (x2, x4, x8, x16 and x32).
Repeat	Highlight the corresponding icon and press ENTER to switch to another repeat mode. You can select 3 different modes: None to disable the function, 1 to repeat one track only and All to repeat the entire list once it is finished.
Play List	Highlight the corresponding icon and press ENTER to display the recent movie list.
Information	Highlight the corresponding icon and press ENTER to view the information of the playing video. In this screen it is also possible to select a different audio track (if available) and to activate subtitles (if available).
Capture	Highlight the corresponding icon and press ENTER to display the recent movie list. This option offers the possibility to take a screen shot of the film being played. The image file will be saved in the CAPTURE folder.

6.2.2 Play music

Press INFO or ENTER to display from the menu bar and EXIT to exit. Press the USB CONTROL BUTTONS on the remote control to do relevant operations.

Play & Pause/Stop/Previous/Next

	Press ▶ II to play or pause the playback. Press ■ to stop playing. Press ◀◀▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▲▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶>
Fast Forward/Fast Reverse	Press ◀◀▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶>
	Press ◀◀▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶>
Repeat	Highlight the icon and press ENTER. You can select 3 different modes: None to disable the function, 1 to repeat one track only and All to repeat the entire list once it is finished.
Play List	Highlight the corresponding icon and press ENTER to display the recent movie list.
Information	Highlight the icon and press ENTER to check the information of the playing music.

NOTE:

■ This menu only shows supported files.
■ Files with other file extensions are not displayed, even if they are saved on the same USB storage device.
■ An over-modulated mp3 file may cause some sound distortion during playback.

6.2.3 Browse photos

Press during viewing INFO or ENTER to display from the menu bar and EXIT to exit. Press the USB CONTROL BUTTONS on the remote control to do relevant operations.

Play & Pause/Stop/Previous/Next

Press ▶ II to play or pause the playback. Press ■ to stop playing. Press ◀◀◀◀ to show the previous or the next picture. Press ◀◀▶ to highlight the icon on the control bar, and then press ENTER. The TV will response accordingly.

Music If inside the folder containing the photos, there are also audio files, this function allows you to play them while viewing the photos.

Left/Right This option allows you to rotate the photos displayed 90 degrees at a time (left or right).

Info Highlight the icon and press ENTER to check the information of the photo displayed.

Zoom In/Zoom Out Highlight the icon on the menu bar and press ENTER to zoom in or zoom out of the image.

Move View When the image is magnified, use this function for convenient check.

Highlight this icon, press ENTER, then press ◀▶ ▲▼ to move the image.

NOTE: The move function

is only available when the image is enlarged.

6.2.4 Software update via USB

From time to time, you can check if there is an improved software version available. This can be viewed and downloaded from our website www.strong.tv. Search the model number on our website's service support section. If there is an improved software version, you can download the file and copy it to the root of a USB device. Then press ▲▼ button to select Software Update (USB) from the SETUP menu on your TV. Afterwards plug your USB device into the USB slot and press ENTER to update the respective software. Confirm with Yes using ◀▶. When the update is completed, remove the USB stick, disconnect your device from the main power supply and plug in again.

7.0 TROUBLESHOOTING

There may be various reasons for abnormal operation of your TV set. Check your TV set according to the general procedures shown below. Additionally, we strongly recommend reading the detailed troubleshooting of your TV set in the full user manual available on our website www.strong.tv. If your TV set does not work properly after checking the general and detailed troubleshooting, please contact your dealer, the local Service Hotline, or send an email to our support via www.strong.tv. DO NOT try to open or disassemble your TV set. It may cause a dangerous situation and the warranty will be void.

Problem Possible cause and solution
The LED/Standby indicator does not light up	1. Check whether the power connector is completely plugged at the TV and into power socket.2. Make sure that the switch on multipoint connectors is switched ON as well.3. The electrical outlet may be damaged.4. STBY LED is defective.
No Signal 1. The TV is not connected to a signal source (DVB-C, DVB-S/S2 or DVB-T/T2) or the antenna (terrestrial or satellite antenna) is maybe not aligned correctly respectively the according connection and distribution equipment might show malfunction, incompatibility, or defectives.2. DVB-T/T2: Active antennas need antenna power switched ON or external power connected.Antenna is maybe out of digital signal reception in your area. Check reference from service providers about coverage.3. DVB-S/S2: Incorrect values of some tuner parameters (e.g. one or some channel(s) changed to another transponder or are no longer emitted).4. Incorrect values of LNB parameters.
The picture and sound remain frozen, or macro blocks or similar distortion are visible on the screen.	DVB-S/S2, DVB-T/T2: The reception signal is too weak or disturbed by electromagnetic, high-frequency, or other interference signals. DVB-T/ T2: Disturbances caused by signal reflections.DVB-C, DVB-S/S2: The connection cables at the signal source are too long (too high attenuation).DVB-T/T2, DVB-S/S2: The antenna is not properly adjusted or got misaligned after storm etc.
Any other reception or signal related problems	Generally, cables might have loosened. Moisture might have entered cables or connectors. There is heavy rain or heavy storm at present (DVB-S/S2 and -T/T2). Check the cable connections. DVB-S/S2 and -T/T2: Check all equipment connected between the reception point and the TV.Wait until heavy rain/thunderstorm passed. If no solution, ask a local satellite specialist for advice.DVB-S/S2: The satellite dish is NOT aligned to the (correct) satellite(s). Ask a local satellite specialist for advice.DVB-S/S2: Satellite dish is too small. Trees or buildings are in path. Ask a local satellite specialist for advice.DVB-S/S2: Signal is too strong, maybe need to be attenuated.Ask a local satellite specialist for advice.
No colour 1. Devices are not properly connected (SCART, RCA sockets) or wrong/bad cables are used.Adjust the saturation.Switch TV on another channel. It is possible that the current programme is broadcast in black and white.
No picture, normal sound	Adjust the brightness and contrast.Radio channel is tuned to, or the programme is not transmitting Video signals or another broadcasting interference/failure.
Normal picture, no sound	1. Press the volume up button to increase the volume level.2. Audio is muted, press ⓤ to restore the sound.3. If external devices are used to loop the sound through, make sure to select correct sources and correct sound mode, for details also check advice in User Manuals from connected devices.4. Maybe a channel w/o audio is tuned to (demo) or the programme is not transmitting audio signals or there is some5. other transmission interference/failure.
Playback of video is causing picture freeze/macro blocks or similar distortion, especially on HD content.	Read/write speed of your USB device could be too low. Make sure to use a USB storage device with sufficient speed and space. Pen drives (USB sticks) may not support sufficient speed.
The remote control does not work	1. Change the batteries. If you are using rechargeable ones take care to use such with low self-discharge.2. The batteries are not installed correctly, or the types have been mixed.3. IR Sensor is blocked or maybe interfered from bright light.
The TV switches off after a certain time	Switch ON the TV and check settings for automatic STBY function, by default the TV switches OFF after 4 hours to fulfil European low power regulations and help you to save energy.

NOTE: If the problem persists after these solutions, please contact your local support centre or send a support mail via our website www.strong.tv.

8.0 SPECIFICATIONS

Audio:

Audio Output: 8 W + 8 W

Video:

DVB-T: Reception range: VHF (50MHz \~ 230MHz),

UHF (474MHz \~ 862MHz)

Inputimpedance:75Ω

ChannelBandwidth:7MHz/8MHz

Modulation: DVB-T: COFDM 2K/8K QPSK, 16QAM, 64QAM

DVB-S/S2: QPSK,8PSK

DVB-T2: QPSK, 16QAM, 64QAM, 256QAM

DVB-C: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM

Video System:

MPEG-2 MP@ML, MPEG-2 MP@HL, H.2 Main/Main-

10 profile, @L4.1, Support 8-bit/10-bit color depth,

1920x1080@60fps

Sound System:

MPEG-1-layer 1/2

System:

DTV: DVB-T2, DVB-S2, DVB-C, DVB-T, DVB-S

ATV: PAL/SECAM/NTSC

AV: PAL, NTSC

Connectors:

1x HDMI 1.4 (CEC)
1x HDMI 1.4 (ARC)
1x USB 2.0
1x Mini AV IN
1x Mini YPbPr
1x COMMON INTERFACE (CI)
1x HEADPHONES
1x SCART
1x S/PDIF (coax.)
1x SAT IN
1x ANT/CABLE IN

General Data:

Operating voltage: 110 \~ 240 V AC 50/60 Hz

Power consumption: max. 50 W, typ. 41 W

Power consumption in standby: <0.5 W

Operating temperature: -15°C \~ +45°C

Storage temperature: -15 °C \~ +45 °C

Operating humidity: 0% \~ 89% RH, non-condensing

Storage humidity: 0% \~ 85% RH, non-condensing

Dimensions (WxDxH) in mm: 967.5 x 50.2 x 560

Net-weight: 6.8 kg
