SRT 24HY1003W - TV STRONG - Free user manual and instructions

Product Type	LED TV
Brand	STRONG
Model	SRT 24HY1003W
Screen Size	24 inches (61 cm)
Resolution	1366 x 768 (HD Ready)
Display Technology	LED
Refresh Rate	60 Hz
Dimensions (with stand)	550 x 370 x 150 mm
Dimensions (without stand)	550 x 330 x 80 mm
Weight (with stand)	3.5 kg
Weight (without stand)	3.2 kg
Power Consumption (max)	35 W
Standby Power	<0.5 W
Input Voltage	100-240 V AC, 50/60 Hz
Tuner	DVB-T/T2/C/S/S2 (triple tuner)
HDMI Ports	2 x HDMI
USB Ports	1 x USB 2.0
Composite Video Input	1 x AV (shared with component)
Headphone Output	1 x 3.5 mm jack
Audio Output	1 x optical (SPDIF)
Ethernet	1 x RJ45
Wi-Fi	Built-in (802.11 b/g/n)
USB Media Playback	Video, audio, photo formats
EPG	7-day electronic program guide
VESA Mount	100 x 100 mm
Remote Control	IR remote included

Frequently Asked Questions - SRT 24HY1003W STRONG

How do I connect my STRONG SRT 24HY1003W TV to the internet?

You can connect via Wi-Fi or Ethernet. Go to Settings > Network and select your connection type. For Wi-Fi, choose your network and enter the password.

What remote control codes work with this TV?

The TV uses standard IR codes. Common universal remote codes for STRONG TVs include 0178, 0189, and 1234. Refer to your remote's manual for setup.

Why is there no sound from my TV?

Check if the TV is muted or volume is low. Ensure audio cables are connected properly. Try a different source to rule out input issues. If using external speakers, verify they are powered on.

Can I mount this TV on a wall?

Yes, the TV supports VESA 100x100 mm wall mounts. Use a mounting kit compatible with TVs up to 3.5 kg. Ensure the wall can support the weight.

How do I perform a factory reset?

Go to Settings > System > Reset or Factory Default. Confirm the reset. This will erase all settings and restore the TV to original state.

What file formats can I play via USB?

The TV supports common formats: MP4, AVI, MKV for video; MP3, WMA for audio; JPEG, PNG for photos. Some codecs may not be supported.

How do I scan for TV channels?

Press Menu on the remote, go to Channel > Auto Tuning. Select your antenna type (DVB-T/T2 or DVB-C) and start the scan. The TV will find available channels.

The TV turns off by itself. What should I do?

Check Sleep Timer and Auto Power Off settings. If enabled, disable them. Also ensure the TV is not overheating. If problem persists, try a factory reset.

How do I clean the screen of my STRONG TV?

Use a soft, dry microfiber cloth. Gently wipe the screen in circular motions. Do not use water, chemicals, or abrasive materials. For stubborn stains, slightly dampen the cloth.

Is the STRONG SRT 24HY1003W compatible with a soundbar?

Yes, you can connect a soundbar via HDMI (ARC) or optical audio output. Use the TV's remote to control volume if connected via ARC.

USER MANUAL SRT 24HY1003W STRONG

LED TV with DVB-T/T2/C/S/S2

SRT 24HY1003W

SRT 32HY1003W

Modern flat-screen TV displaying a group of smiling women in colorful outfits against a bokeh background (no text or symbols visible on screen)

User Manual Bedienungsanleitung Manuel utilisateur Manuale utente Manual del Usuario Manual do Utilizador Gebruiksaanwijzing Instrukcja obsługi Uživatelská příručka

Používatel'ská príručka Korisnički priručnik Uputsvo za rukovanje Használati útmutató Инструкции за употреба Manual de Utilizare Руководство пользователя Посібник користувача

Fig. 1

10 cm 10 cm 10 cm 10 cm

Fig. 2

USB SERVICE PCM/CA

Fig. 3

1 2 3 4 5 6 7 LNB AIR/CABLE ANTENNA IN HDMI1 HDMI2 SCART

Fig. 4

POWER 1 2 3 5 4 SUBTITLE EPG FAV 6 7 1 2 3 9 4 5 6 7 8 9 CHN LIST 0 BACK RETURN 10 11 MENU SOURCE 12 13 14 ENTER 14 15 14 16 T/WARD EXIT 17 18 VOL NONE PP - 20 REC. RLEEP INFO 21 PRELAX REVEAL MIX 22 GANCEL SIZE SUB-PAGE 23 24 30 NICAM HOLD 33 31 TEXT FREEZE PRIST 34 35 QUICK AD SD 36 STRONG

Fig. 5

1 2 3

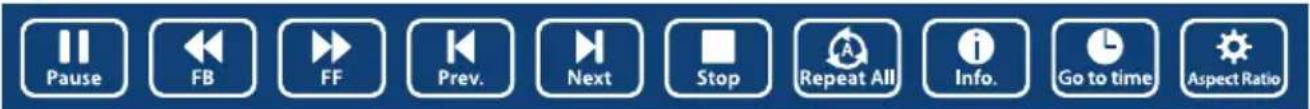

Fig. 6

Pause FB FF Prev. Next Stop Repeat All Info. Go to time Aspect Ratio

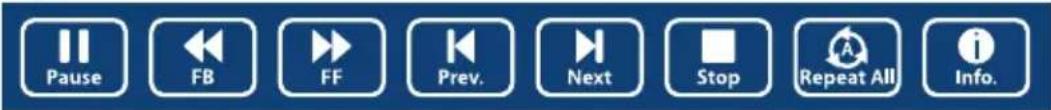

Fig. 7

Pause FB FF Prev. Next Stop Repeat All Info.

Fig. 8

Pause Prev. Next Stop Repeat All Rotate Rotate

Info. Zoom In Aspect Ratio Move View

www.strong.tv

Supplied by STRONG & Co, Japan

Represented by STRONG Ges.m.b.H.

Franz-Josefs-Kai 1

1010 Vienna, Austria

Email: [e-mail]

LICENSES

ANY USE OF THIS PRODUCT IN ANY MANNER OTHER THAN PERSONAL USE THAT COMPLIES WITH THE MPEG-2 STANDARD FOR ENCODING VIDEO INFORMATION FOR PACKAGED MEDIA IS EXPRESSLY PROHIBITED WITHOUT A LICENSE UNDER APPLICABLE PATENTS IN THE MPEG-2 PATENT PORTFOLIO, WHICH LICENSE IS AVAILABLE FROM MPEG LA, LLC, 6312 S. Fiddlers Green Circle, Suite 400E, Greenwood Village, Colorado 80111 U.S.A.

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

This product contains one or more programs protected under international and U.S. copyright laws as unpublished works. They are confidential and proprietary to Dolby Laboratories. Their reproduction or disclosure, in whole or in part, or the production of derivative works therefrom without the express permission of Dolby Laboratories is prohibited. Copyright 2003-2009 by Dolby Laboratories. All rights reserved.

THIS PRODUCT IS SOLD WITH A LIMITED LICENSE AND IS AUTHORIZED TO BE USED ONLY IN CONNECTION WITH HEVC CONTENT THAT MEETS EACH OF THE THREE FOLLOWING QUALIFICATIONS: (1) HEVC CONTENT ONLY FOR PERSONAL USE; (2) HEVC CONTENT THAT IS NOT OFFERED FOR SALE; AND (3) HEVC CONTENT THAT IS CREATED BY THE OWNER OF THE PRODUCT. THIS PRODUCT MAY NOT BE USED IN CONNECTION WITH HEVC ENCODED CONTENT CREATED BY A THIRD PARTY, WHICH THE USER HAS ORDERED OR PURCHASED FROM A THIRD PARTY, UNLESS THE USER IS SEPARATELY GRANTED RIGHTS TO USE THE PRODUCT WITH SUCH CONTENT BY A LICENSED SELLER OF THE CONTENT. YOUR USE OF THIS PRODUCT IN CONNECTION WITH HEVC ENCODED CONTENT IS DEEMED ACCEPTANCE OF THE LIMITED AUTHORITY TO USE AS NOTED ABOVE.

To obtain the best performance and safety, please read this manual carefully. Please keep this manual for future reference.

TABLE OF CONTENT

1.0 INSTRUCTION 3	5.0 MENU SETTINGS	9
1.1 Safety Instructions 3	5.1 Menu control (DTV mode)	9
1.2 WEEE Directive 4	5.2 Picture menu	9
1.3 Storage 4	5.3 Sound menu	9
1.4 Accessories 4	5.4 Channel	10
1.5 Equipment set-up 4	5.5 Lock	12
2.0 INSTALLATION 5	6.0 USB	12
2.1 Default PIN code: 0000 5	6.1 Reminder when using the USB player	12
2.2 Side panel 5	6.2 USB menu 12
2.3 Rear panel 5
2.4 Remote control 5	7.0 TROUBLESHOOTING	14
2.5 Installing the batteries 7
2.6 Using the remote control 7	8.0 SPECIFICATIONS	16
3.0 FIRST TIME INSTALLATION 7	9.0 APPENDIX	17
3.1 DVB-S installation	8
3.2 DVB-T installation	8
3.3 DVB-C installation	8
4.0 ELECTRONIC PROGRAMME GUIDE (EPG)	8
4.1 Info	9
4.2 Schedule	9
4.3 Remind 9

STRONG declares that the equipment complies with the European Directive 2004/108/CE (EMC) and the Low Voltage Directive 2006/95/CE (LVD) in accordance with the following technical standards:

ELECTROMAGNETIC COMPATIBILITY

EN55013:2001 + A1:2003 + A2:2006; EN55020:2002 + A1:2003 + A2:2005; EN61000-3-2:2000 + A2:2005;

EN61000-3-3:1995 + A1:2001 + A2:2005

LOW VOLTAGE

EN60065:2002 + Amd.1:2006

It also complies with the Ministerial Decree no. 548.1 dated Aug. 28th, 1995 concerning the frequencies used in Italy by broadcast receivers and complies with RoHS Directive 2002/95/EC.

This equipment is manufactured in compliance with the provisions stated in the Ministerial Decree 26/03/92, in particular with Article 1 of the same, and it also complies with the Circular 97/D dated Apr. 29th, 1999.

Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. All product names are trademarks or registered trademarks of their respective owners. © STRONG 2016. All rights reserved.

1.0 INSTRUCTION

1.1 Safety Instructions

Read all of the instructions before operating the set. Keep these instructions well for later use.

■ Only use attachments/accessories specified or provided by the manufacturer (such as the exclusive supply adapter, battery etc.).
■ Please refer to the information on the exterior back enclosure for electrical and safety information before installing or operating the apparatus.
■ To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
■ The ventilation should not be impeded by covering the ventilation openings with items, such as newspaper, table-cloths, curtains, etc.
■ The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

■ The mark indicates a risk of electric shock. The external wires must be installed by an instructed person or ready-made leads or cords must be used.
■ To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
■ Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent types.
■ The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
■ Excessive sound pressure from earphones and headphones can cause hearing loss. Listening to music at high volume levels and for extended durations can damage one's hearing.
In order to reduce the risk of damage to hearing, one should lower the volume to a safe, comfortable level, and reduce the amount of time listening at high levels.
■ The mains plug or appliance coupler is used as disconnect device, it shall remain readily operable. When not in use and during movement, please take care of the power cord set, e.g. tie up the power cord set with cable tie or something like that. It shall be free from sharp edges or similar which can cause abrasion of the power cord set. When put into use again, please make sure the power cord is not damaged. In case of damages, please get the power cord replaced by a similar one with the same specifications. The absence of a light indication on the apparatus does not mean that it is fully disconnected from the mains. To disconnect the apparatus completely, the mains plug must be pulled out.

■ Attention should be drawn to environmental aspects of battery disposal.
■ No naked flame sources, such as lighted candles, should be placed on the apparatus.

event the spread of fire, keep candles or other open flames away from this product at all times.

■ A USB terminal can provide a maximum of 500 mA.

active earthing terminal. An apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.

Operating Environment

■ Do not install this equipment in a confined space such as a bookcase or similar unit.

■ Do not use the set near damp, and cold areas, protect the set from overheating.
- Keep away from direct sunlight.

■ Do not use the set near dust place.

- Do not attach candle to accessible opening area, to avoid flammable foreign material from entering the TV.

1.2 WEEE Directive

Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

1.3 Storage

Your device has been carefully checked and packed before shipping. When unpacking it, make sure that all the parts are included and keep the packaging away from children. We recommend that you keep the carton during the warranty period, to keep your device perfectly protected in the event of repair or warranty.

1.4 Accessories

■ 1x Installation instructions
■ 1x stand assembly instruction
■ 1x remote control
■ 2x AAA batteries
■ 1x main power cable
■ 2 x bases (feet)
2x T4X18 screws

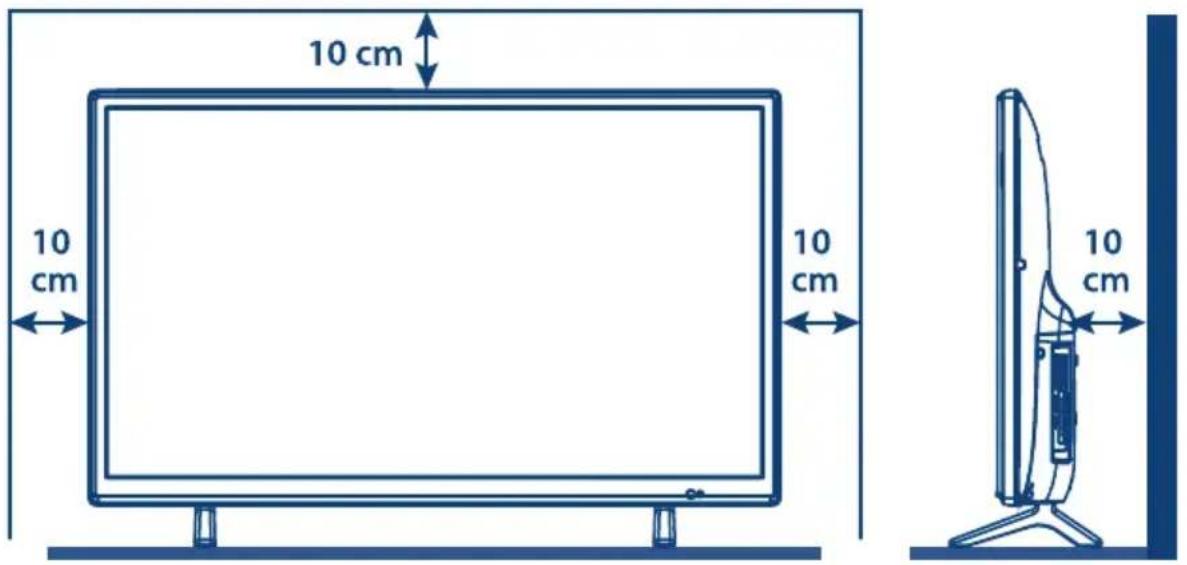

1.5 Equipment set-up

Fig. 1

Install the display on a solid horizontal surface such as a table or desk. For ventilation, leave a space of at least 10 cm free all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set. This apparatus can be used in tropical and/or moderate climates.

This user manual provides complete instructions for installing and using this TV. The symbols serve as follows.

WARNING: Indicates warning information.

NOTE: Indicates any other additional important or helpful information.

MENU Represents a button on the remote control or the TV.

(Bold characters)

Move to

Represents a menu item within a window.

(Italic characters)

2.0 INSTALLATION

2.1 Default PIN code: 0000

2.2 Side panel

Fig. 2

NOTE: The graphics are for representation only.

1. USB: USB port.
2. 📄: Headphone or Earphone audio output, speakers will be muted when earphone is plugged in and headphone selected.
3. SERVICE: Service port.
4. PCMCIA: Connect a Conditional Access Module (CAM).

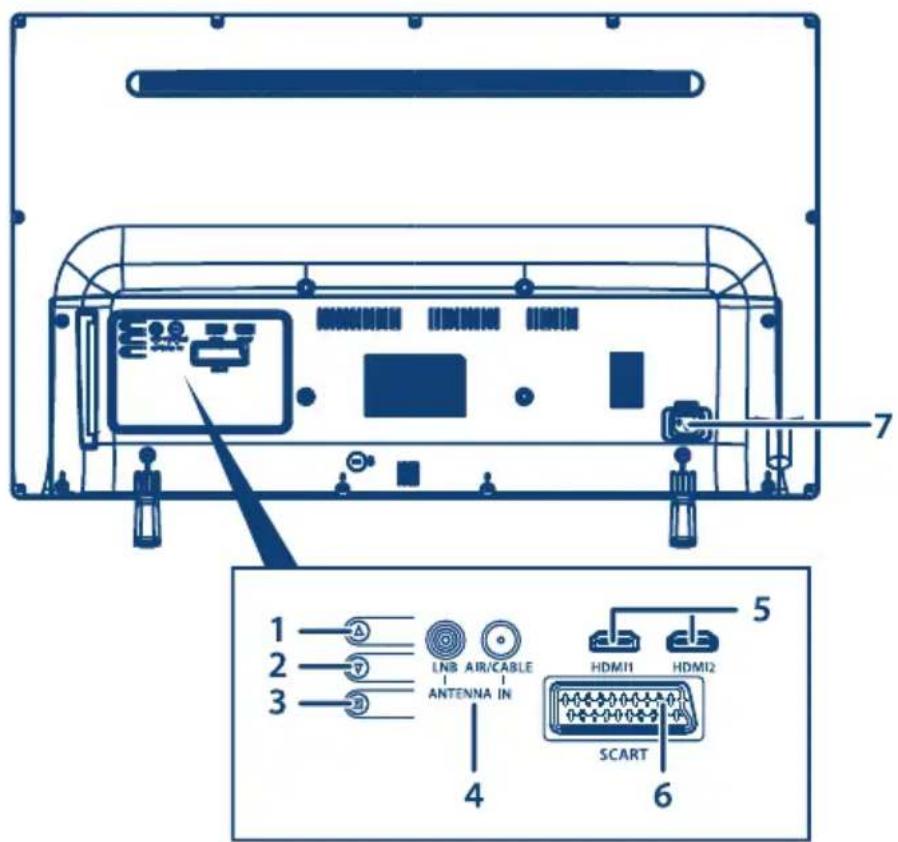

2.3 Rear panel

Fig. 3

NOTE: The graphics are for representation only.

1. ▲ Programme up button
2. ▼ Programme down button
3. ☐ Switch on the TV, main menu and Standby mode.
4. ANTENNA (AIR/CABLE/LNB) IN: Connect an antenna, cable, satellite dish to the TV for searching and receiving programmes.
5. HDMI1/HDMI2: Connect HDMI input signal from a signal source such as DVD, Blu-ray player or game console.
6. SCART: Connect devices like DVD or VCR using SCART cable.
7. POWER: Connect the main power cable

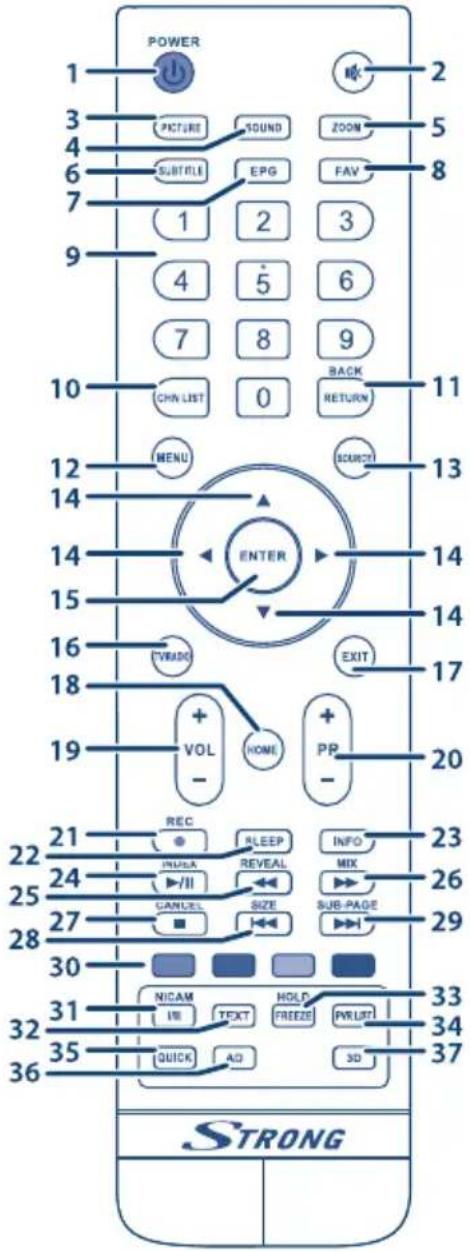

2.4 Remote control

Fig. 4

1. ⏻

Press to turn the TV on or standby.

Press to mute or restore the volume.

1. PICTURE

Change picture mode.

1. SOUND

Change sound mode.

1. ZOOM

Change aspect ratio.

1. SUBTITLE

Enable/disable subtitles in DTV/USB mode.

1. EPG

Press to display the current EPG information in DTV mode.

1. FAV

Press to view your assigned favourite channels. Press

1. 0\~9

▲▼ to cycle through your assigned favourite channels, press ENTER to confirm.

1. CHN LIST

Choose channel directly.

1. RETURN

Press to enter into the channel list.

1. MENU

Press to back to previous viewed channel.

Open the menu options.

1. SOURCE Select the input source mode.

2. ▲▼◀▶ Navigate the menu.

3. ENTER Confirm the selection.

4. TV/RADIO Switch between TV and radio.

5. EXIT Exit the current menu.

6. HOME Enter the home desktop. If your TV doesn't have HOME function, this button will not work.

7. VOL +/- Adjust the volume up or down.

8. PR +/- Change programmes up or down.

9. No function.

10. SLEEP Select the sleep time, such as 10 min, 20 min etc.

11. INFO Display information about the current source.

12. ▶/II Press to pause playback, press again to continue playback.

13. ◀️ Press to fast reverse.

14. ▶▶ Press to fast forward.

15. ■ Press to stop playback.

16. Press to play the previous file.

17. ▶▶ Press to play the next file.

18. COLOUR BUTTONS Press to execute the prompt function in TV or DTV mode.

19. I/II Press to select sound output depending on the broadcasting channel.

20. TEXT Press to enter or exit the teletext menu.

21. FREEZE Freeze the picture on the screen (not available in USB mode).

22. PVR LIST Display the recording file list.

23. QUICK No function.

24. AD Press to turn on audio description, a narrator will describe what is happening on the screen for blind or visually impaired viewers. Press again to turn it off. (depending on broadcast)

25. 3D No function.

Teletext control buttons

■ HOLD	Press to hold the teletext page on screen without update and changes. Press again to release the hold state.
■ SIZE	Enlarge the teletext display. Press this button once to enlarge upper half of the screen. Press this button again to enlarge lower half of the screen. Press this button again to resume to normal screen size.
■ REVEAL	Press this button to display concealed information, such as solutions to riddles or puzzles. Press again to remove the information from the display.
■ MIX	Press this button to superimpose the teletext over the TV programme. Press again to return to normal teletext mode.
■ SUB-PAGE	Press this button to enter or exit subpage mode (if subpage is available). Press the RED or GREEN buttons to select a subpage.v
■ INDEX	Press this button to display index page.
■ CANCEL	Press this button to return to TV programme temporarily while searching for a Teletext page. When the search is done, the page number will be displayed on the upper left of the screen. Press again to return to the Teletext page.

2.5 Installing the batteries

Fig. 5

Place 2x AAA batteries in the battery compartment of the remote control. Make sure to match the polarity markings inside the compartment.

NOTE: Pictures are only for reference. Actual items may differ.

1. Slide the cover horizontally.
2. Put 2x AAA batteries in the compartment and make sure the polarity is correct.
3. Slide horizontally to close the cover.

Precautions for using the battery

Improper using of the battery will cause leakage. Carefully follow these instructions.

1. Please note the batteries' polarity to avoid short circuit.
2. When the battery's voltage is insufficient which affect the use range, you should replace it with a new battery. Remove the batteries from the remote control unit if you do not intend to use it for a long time.
3. Do not use different types of batteries (for example Manganese and Alkaline batteries) together.
4. Do not put the battery into fire, and charge or decompose the battery.
5. Please dispose batteries abide by relevant environmental protection regulation.

2.6 Using the remote control

■ Use the remote control by pointing it towards the remote sensor. Items between the remote control and the remote sensor could block normal operation.
■ Do not cause the remote control to vibrate violently. Also, do not splash liquid on the remote control, also do not put the remote control in a high humidity place.
■ Do not place the remote control under direct sunlight which will cause deformation of the unit by heat.
- When the remote sensor is under direct sunlight or strong lighting, the remote control will not work. If so, please change the lighting or TV's position, or operate the remote control closer to the remote sensor.

3.0 FIRST TIME INSTALLATION

After all connections have been made properly, switch on your TV. The language selection will appear on screen. Use ▲▼◀▶ to select the OSD Language of your preference. Confirm with ENTER on your remote control. After the language selection, press ▲▼◀▶ to highlight the country that you want to install and confirm with ENTER.

Then the next screen appears with the tuner selection. Choose the one you like to use.

Scan type

Select which input source you want to use: DVB-S to receive satellite broadcasts (and if you are equipped with a satellite dish), DVB-T to receive terrestrial broadcasts or DVB-C to receive cable broadcasts.

3.1 DVB-S installation

Satellite Setting

Press ▲▼ to highlight the satellite your dish is aimed at. The signal quality bar on the bottom of the screen allows you to fine tune the alignment of your antenna for optimum reception. Adjust your antenna for maximum possible signal quality. When the signal cannot be improved anymore, fix the dish on this position and press the BLUE Scan button to continue.

Channel Search

Press ▲▼◀▶ to highlight the options of choice and press ENTER to start the channel search.

Scan Mode Choose between Fast Scan (recommended), Blind Scan and Network

Crypted Select FTA Channels to search Free-To-Air channels only or All Channels to search FTA and Encrypted channels

Service Type Select DTV to search DTV channels only, RADIO to search radio channels only or All for a complete search.

It is recommended to use the default settings.

3.2 DVB-T installation

Terrestrial Setting

First select the Tune Type by pressing ◀▶ to select DVB-T, ATV or DVB-T+ATV (DVB-T to search digital broadcasts and ATV to search analogue broadcasts). Press ▼ to continue. Press ▲ ▼ ◀▶ to highlight the country that you want to install, then press ENTER to start searching.

NOTE: If you have an active antenna, turn it on by following the instructions in paragraph 5.4.5 and then repeat the scan.

3.3 DVB-C installation

Cable Setting

First select the Tune Type by pressing ◀▶ to select DVB-C, ATV or DVB-C+ATV (DVB-C to search digital broadcasts and ATV to search analogue broadcasts). Press ▼ to continue. Press ▲▼◀▶ to highlight the country that you want to install, then press ENTER to start searching.

4.0 ELECTRONIC PROGRAMME GUIDE (EPG)

EPG stands for Digital Electronic Programme Guide. It is supplied by the programme providers and offers information on broadcasted programmes. You can access it in digital mode by pressing EPG on the remote control.

Press EPG to bring up the EPG interface. The second bar from the top will display the current date and time. On the list below, the channel you are currently watching will be highlighted. Before you can view any EPG information, you have to 'activate' every channel for which you want to view programme information. To do this, use ▲▼ to select a channel, then press ENTER to confirm.

To check programmes which will be broadcasted on a future date, scroll up to the date field with ▲. Use ▶ to select the date you want to check. Press ▶/□ to scroll up to the top bar in the display, then

press ◀▶ to select the Channel List. The second bar will then display one of your available channels. Go to the channel for which you want to view information using ◀▶. After a brief moment, the programme information will appear. Use ▲▼ to scroll through the time slots. Press MENU to exit the EPG menu.

4.1 Info

Press the GREEN button to show information about the selected programme.

4.2 Schedule

Press the YELLOW button to display the Schedule List. Press ▲▼ to select an event, press the RED button to delete an event.

4.3 Remind

Press the BLUE button to display a reminder menu. Press ▲▼ to select an item and ◀▶ to change the setting. Press ENTER to add the reminder event to the schedule list.

An updated schedule list will be shown.

5.0 MENU SETTINGS

5.1 Menu control (DTV mode)

Press MENU to enter the main menu. Press ◀▶ to select an item. Press ENTER to enter the item. Press ▲▼◀▶ and ENTER to select the submenus. Press MENU to exit the item.

5.2 Picture menu

Picture Mode	Select the automatic picture control mode. Available choices are Dynamic, Standard, Mild and User.
Colour Temperature	Select the overall colour tone of the picture. Available choices are Cool, Medium, Warm and User.
Aspect Ratio	Select the aspect ratio (display proportions) according to your video signal type or preference. Available choices are Auto 16:9, 4:3, Just Scan, Zoom1 and Zoom2.

NOTE: Some options may not be available under some sources.

Noise Reduction Eliminates noise in the picture. Available choices are Off, Low, Middle and High.

MPEG NR Eliminates noise generated while creating digital picture signals. Available choices are Off, Low, Middle and High.

In the User mode, settings can be changed for Brightness, Contrast, Colour, Tint and Sharpness.

5.3 Sound menu

Sound Mode Select your favourite sound mode for each input. Choices are Standard, Music, Movie, Sports and User.

Bass Adjusts the lower frequency of the sound.

Treble Adjusts the higher frequency of the sound.

Balance Control the sound balance between the right and left loudspeaker (earphone).

Auto Volume Adjust the volume corresponding to the input audio level. Options are On and Off.

Surround Sound Turns on the Sound Retrieval System.

AD Switch Turn on the Audio description, you can activate the setting of AD volume. When turn on the audio description, a narrator will describe what is happening on the screen for blind or visually impaired viewers. (Only available In DTV mode.)

5.4 Channel

5.4.1 Auto Tuning (in DVB-T/C mode only)

First select the Tune Type by pressing ◀▶ to select DVB-T, ATV or DVB-T+ATV (DVB-T to search digital broadcasts and ATV to search analogue broadcasts). Press ▼ to continue. Press ▲ ▼◀▶ to highlight the country that you want to install, then press ENTER to start searching.

NOTE:

If you have an active antenna, turn it on in the Channel menu and then start the scan.

5.4.2 Advanced Tuning (in DVB-S mode only)

Access the satellite settings essential for searching programmes through DVB-S sources.

Satellite Dish Settings

A set of satellite dish settings must be configured for each wanted satellite before performing a channel scan.

Satellite Select the satellite for this TV.

LNB Type Make sure the LNB type is corresponding to your dish.

LNB Power: Set the power supply for the LNB (usually 13/18 V).

22KHz Select the 22KHz to set 22K switch to ON/OFF. The Auto mode (recommended) is used to switch 22KHz on or off depending on the LNB type.

DISEqC1.0/1.1 Select the DiSEqC mode for the selected LNB.

Highlight Satellite and press ENTER to access the satellite list and select one. Highlight LNB Type and press ENTER to select the LNB type. Make sure the 22KHz, DISEqC1.0/1.1 switch is corresponding to the selected satellite. After the above steps are finished, press the BLUE button to search for channels.

5.4.3 DTV Manual Tuning (in DVB-T/C mode only)

Search and store programmes manually.

Select the source type DVB-T or DVB-C and search digital programmes manually. In the Channel menu, select DTV Manual Tuning and press ENTER to access. Press ◀▶ to select a Channel No., and then press ENTER to start the search. The search stops when a programme is found and this programme will be stored in the current channel position. If you want to stop the search, press MENU.

5.4.4 ATV Manual Tuning (in DVB-T/C mode only)

First select the source type of ATV. Then in the Channel menu, select ATV Manual Tuning and press ENTER to access. Highlight and press ▲▼ to select Storage To 1 (maybe other number), Sound System and Channel No.. Then select search and press ENTER to start the search. Press ▶ for the unit to search towards higher frequency. Press ◀ for the unit to search towards lower frequency. The search stops when a programme is found and this programme will be stored in the current channel position. If you want to stop the search, press MENU.

Fine-Tune

Use this option to make small adjustments to tuning of an individual channel. Fine-tune is not necessary under normal conditions. However, in area of inferior broadcast conditions where adjustments is necessary for a better picture and sound, use fine-tune. Select a channel that you want to fine tune. In the Channel menu, select ATV Manual Tuning and press ▼ to highlight Fine-Tune. Press ◀▶ to fine tune until the best possible picture and sound are obtained.

5.4.5 Channel settings

Programme Edit Edit the programmes. You can press the COLOUR BUTTONS on the remote control to skip programmes, rename and delete programmes or move programmes, and add programmes to the favourite list by pressing FAV.

Signal Information Showing the information of current DTV channel.

CI information Enables the user to select from the CAM-provided menu. Select the CI menu based on the menu PC card.

5 V Antenna Power This option is only available in DVB-T source, select On to supply power for the TV's antenna. Select Off to turn off this function.

5.4.6 Options

OSD Language Select the OSD language.

Audio Languages/Subtitle Languages

Select as you prefer.

TTX Language Select TTX language for different regions.

Time Can setup Auto Sync, Clock, Time Zone, Summer Time, Sleep Timer and Auto Sleep.

HDMI CEC Press to enter into submenus.

HDMI CEC: Turn on or off HDMI CEC function.

	Auto	Standby: Turn the TV to standby automatically.
	Device List: When HDMI CEC is ON, you can check the list of connected devices.
PVR File System	Personal Video Record setting. This function only works when receiving a digital TV programme and when a USB disk is connected.
Factory Reset	Restore user setting to the default.
SW Version	Displays the current software version and the model name.
Software Update (USB)	Connect a USB device with upgrading software to upgrade the TV system.

NOTE:

■ Audio Languages, Subtitle languages and PVR File System only works under DVB-S/DVB-C/DVB-T mode.

■ User data on this TV will be completely lost after operating this feature.

■ Do not power off the TV during the software upgrading process, otherwise the TV may not work, and STRONG does not assume liability.

5.5 Lock

Lock system Switch the lock system between On and Off.

Set Password Reset the password (the original password is 0000)

Block Programme Set the blocked programmes as you prefer.

Parental Guidance Set it to guide the programmes for children to watch.

Export Database To save all user database (such as channel list or settings) on a USB device.

Import Database To import user database.

6.0 USB

6.1 Reminder when using the USB player

1. Some USB storage devices may not be compatible to operate smoothly with this TV.

2. Back up all of the data in the USB storage device in case data is lost due to an unexpected accident. STRONG does not assume any liability for the losses by misuse or malfunction. Data backup is consumer's responsibility.

3. For large file sizes, the loading speed may be slightly longer.

4. The recognition speed of a USB storage device may depend on each device.

5. When connecting or disconnecting the USB storage device, make sure the TV is not in USB mode otherwise the USB storage device or the files stored in it may be damaged.

6. Please use only a USB storage device which is formatted in FAT16, FAT32, NTFS (playback only) file system provided with the Windows operating system. In case of a storage device formatted as a different utility programme which is not supported by Windows, it may not be recognized.

7. When using a USB Hard Disk Drive which is not powered independently, ensure its power does not exceed 500 mA. Otherwise the TV system will change into standby mode, and you must pull out the USB Hard Disk and restart the TV system.

8. An "Unsupported File" message will be displayed if the file format is unsupported or the file is corrupted.

9. FHD big picture needs longer time to process, which is not caused by the TV. Please be patient.

10. This TV may not support some multimedia files changed and upgraded as the change of the encoding format or other technical aspects advances.

11. Please refer to chapter 9. Appendix for a list of supported file formats for USB playback.

6.2 USB menu

Press SOURCE and select USB. You can view movie, music and photo files from your

USB storage devices. Connect a USB storage device to the USB input terminal and select the types of media on the home page: Movie, Music and Photo. Press ENTER, the screen will show the connected USB device, press ENTER again to view the file folders and files. Press ▲▼ to select a folder, press ENTER to open the folder and select the files, then press ENTER to tick them. Highlight the one you want to play first, press ▶/□ to start playing or select a file and press ▶/□ to start playing directly. Press ■ to stop

playing and return to upper lever folder. Continuously press RETURN to go back to upper level folder. Repeat again to select and play another media type.

NOTE:

By choosing one of the three media types, for example Movie, the folders inside will display only video files and no other formats.

6.2.1 Play movies

Fig. 6

Press INFO to display/exit from the menu bar (Fig. 6). Press the USB control buttons on the remote control to do relevant operations.

Play & Pause/Stop/Prev./Next

Press ▶/□ to play or pause the playback. Press ■ to stop playing. Press ◀/▶ to play the previous or the next video file. Press INFO and use ◀ to highlight the corresponding icon on the control bar, then press ENTER. TV will response accordingly.

Fast Reverse/Fast Forward

Press and hold ◀/▶ for seconds to draw the playing progress as your desire, then press ▶/□ to start the playing from the new position.

Play Mode

Highlight the corresponding icon and press ENTER to switch to another play mode.

Information

Highlight the corresponding icon and press ENTER to view the information of the playing video.

Go to time Skip to specific

point by input time. Highlight the corresponding icon and press ENTER to open the Input search time screen. Press ◀▶ to move the cursor and use the number buttons to insert the time. Press ENTER, the TV will start playing from the set time.

Aspect Ratio

Highlight the button and press ENTER to select the display mode.

6.2.2 Play music

Fig. 7

Press INFO to display/exit from the menu bar (Fig. 7). Press the USB control buttons on the remote control to do relevant operations.

Play & Pause/Stop/Previous/Next

Press ▶/□ to play or pause the playback. Press ■ to stop playing. Press ◀◀/▶◀ to play the previous or the next music file. Press ◀◀ to highlight the corresponding icon on the control bar, and then press ENTER. The TV will response accordingly.

Fast Forward/Fast Reverse

Press and hold ◀/▶ for seconds to draw the playing progress as you wish, then press ▶/□ on the remote control to start playing from the new position.

Repeat

Highlight the icon and press ENTER. You can select 3 different modes: None to disable the function, 1 to repeat one track only and All to repeat the entire list once it is finished.

Information

Highlight the icon and press ENTER to check the information of the playing music.

NOTE:

If one (or more) file(s) of the play list is selected, the buttons ◀/▶ will play only selected files.

This menu only shows supported files.
■ Files with other file extensions are not displayed, even if they are saved on the same USB storage device.
■ An over-modulated mp3 file may cause some sound distortion during playback.
This TV supports lyrics display (in English). The maximum number of characters per line is 48.

The file name of music and lyrics must be the same in order to display lyrics while the music is playing.

If you want to show the associated lyrics on the screen with the music, you must store these in the same folder using the same file name with ".lrc" file extensions.

6.2.3 Browse photos

Fig. 8

Press INFO or ▼ to display/exit from the menu bar (Fig. 8). Press the USB control buttons on the remote control to do relevant operations.

Play & Pause/Stop/Previous/Next

Press ▶/□ to play or pause the playback. Press ■ to stop playing. Press ◀/▶ to show the previous or the next picture. Press ◀ to highlight the icon on the control bar, and then press ENTER. The TV will response accordingly.

Repeat

Highlight the icon and press ENTER. You can select 3 different modes: None to disable the function, 1 to repeat one track only and All to repeat the entire list once it is finished.

Info

Highlight the button and press ENTER to check the information of the shown photo.

Rotate

Highlight the icon in the menu bar and press ENTER to rotate the picture 90 degrees clockwise or counter clockwise.

Zoom In/Zoom Out

Highlight the icon on the menu bar and press ENTER to zoom in or zoom out of the image.

Move View When the image is magnified, use this function for convenient check.

Highlight this icon, press ENTER, then press ◀▶▲▼ to move the image.

NOTE: The move function

is only available when the image is enlarged.

7.0 TROUBLESHOOTING

Before calling a service technician, review following information for possible causes and solutions for the problem you are experiencing. If the TV does not work properly after checking it, please contact your local service line or STRONG dealer. Alternatively you can send a support mail via our website www.strong.tv.

Problem Possible cause and solution
No picture,no sound 1. Check if the fuse or circuit breaker is working.2. Plug another electrical device into the outlet to make sure it is working or turned on.3. The power plug is in bad contact with the outlet4. Check the signal source.
No colour 1. Change the colour system.2. Adjust the saturation.3. Try another channel. Black-white programme may be received.
The remote control does not work	1. Change the batteries.2. The batteries are not installed correctly.3. Main power is not connected.
No picture, normal sound	1. Adjust the brightness and contrast.2. Broadcasting failure may happen.
Normal picture, no sound	1. Press the volume up button to increase the volume.2. The volume is set to mute, press to restore the sound.3. Change the sound system.4. Broadcasting failure may happen.
Unorderly ripples on the picture	It is usually caused by local interference, such as cars, daylight lamps and hair driers. Adjust the antenna to minimize the interference.
Snowy dots, blocking and interference	If the antenna is located in the fringe area of a television signal where the signal is weak, the picture may be marred by dots, show blocking or break-ups. When the signal is extremely weak, it may be necessary to install a special antenna to improve the reception.1. Adjust the position and orientation of the indoor/outdoor antenna.2. Check the connection of the antenna.3. Fine tune the channel.4. Try another channel. Broadcasting failure may happen.
Ghost Ghosts are caused by the television signal following two paths. One is the direct path, the other is reflected from tall buildings, hills, or other objects. Changing the direction or position of the antenna may improve the reception.
Radio frequency interference	This interference produces moving ripples or diagonal streaks, and in some case, loss of contrast in the picture. Find out and remove the radio interference source.
Playback of video (or Timeshift) is causing picture freeze/macro blocks or similar distortion, especially on HD content.	Read/write speed of your USB device could be too low. Make sure to use a USB storage device with sufficient speed and space. Pen drives (USB sticks) may not support sufficient speed.
No signal or weak signal, intermittent reception.	1. Cables might have loosened; moisture might have entered into cables or connectors, heavy rain at present or heavy storm at present.Check the cable connections, LNB and other equipment connected between the LNB and the receiver, or peak the dish.Wait for rain/storm to subside. Ask a local satellite specialist for advice.2. The satellite dish is not pointing at the (correct) satellite(s).Adjust the dish. Ask a local satellite specialist for advice.3. Satellite dish is too small, trees or buildings in path.Change to a larger dish or change position of dish.4. Signal is too strong, dish is oversized.Connect a signal attenuator to the LNB input. Ask a local satellite specialist for advice.
Bad picture / blocking error during heavy rain.	Heavy rain will attenuate satellite signals, below a certain level blocking will occur. Make sure your dish installation is up to standards to minimize rain effects. When in doubt, ask a local satellite specialist for advice.

NOTE: If the problem persists after these solutions, please contact your local support centre or send a support mail via our website www.strong.tv.

8.0 SPECIFICATIONS

Audio

Audio Output: 6 W + 6 W

Video

Channel coverage: DVB-T/T2:174 MHz - 230 MHz; 470 MHz - 860 MHz

DVB-C: 50 - 858 MHz

DVB-S/S2: 950 MHz - 2150 MHz

System: DTV: DVB-T/T2, DVB-S/S2, DVB-C

ATV: PAL/SECAM (BG/DK/1)

AV: PAL, NTSC

Connectors

1 x AIR/CABLE
1 x LNB
2 x HDMI
1 x TV SCART
1 x headphones
1 x USB
1 x Cl+ slot
1 x main power cable

General Data

Operating voltage: 100 \~ 240 V AC 50/60 Hz

Power consumption: 24": max. 40 W, typ. 27 W

32": max. 65 W, typ. 36 W

43": max. 100 W, typ. 61 W

Power consumption in standby: 24", 32": <0.5 W

Operating temperature: +5 °C \~ +35 °C

Storage temperature: -15°C \~ +45°C

Operating humidity: 20% \~ 80% RH, non-condensing

Storage humidity: 10% \~ 90% RH, non-condensing

Dimensions (WxHxD) in mm: 24": 562 x 132 x 371

32":738×163×488

Net-weight: 24": 3.4 kg

32": 4.4 kg

9.0 APPENDIX

USB file playback support.

Video

File Type/(Ext Name) Video Type Audio Type Remark
MP4, MOV/(.mp4, .rnov, .m4v)	Motion JPEGMPEG-4 SP/ASP (XviD)	MPEG-AUDIO
AVI/(.avi) MotionJPEG	MPEG-4 SPIASP (XviD)	LPCM MPEG-AUDIO
ASFI(.wmv3, .xvid) MPEG-4	SPIASP (XviD) MS-AD	PCM, Intel-ADPCM
MKVI(.mkv,.xvid)	MPEG-4 SPIASP (XviD)	MPEG-AUDIO
TSI(.tsltrp)		LPCM MPEG-AUDIO
DAT, MPG,MPEG/(.dat,. mpg,mpeg)		LPCM MPEG-AUDIO
VOB/(.vob)		LPCM MPEG-1 Layer 2

Music

File Type/(Ext Name)	File Extension	Version support	Remark
Mpeg-1 Layer 3	Wma, mp3	LPCM	WMA 7-9.1 la WMA2
MPEG-1/2 Layer 1/2	n/a (included in the video only)	MPEG1/2
LPCM	n/a (included in the video only)
AAC	Aac, mp4, M4A		AAC variable bit rate : just forward speed 1.5x-2x m4a can’t FF/FR ADIF can’t FF/FR ADTS can FF/FR


File Type	File Extension	Version support	Remark
JPEG	jpg/jpeg
BMP	bmp		support all modes
PNG	png	MPEG1/2	support interlace does not support animation mode
