USER MANUAL AT-COMP150SR Atlona

Component Video with 2 Channel Mono Audio Extender AT-COMP150SR

Sender

COMPONENT INPUT ZDH MOND INPUT

FCCCE SYSTEM OUT AVIOE® POWER 200000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Receiver

COMPONENT OUTPUT 30H MOND OUTPUT

FCCE AUDIO MODE SYSTEM IN

User Manual

TABLE OF CONTENTS

1. Introduction 2

2. Features 2

3. Package Contents 2

4. Specifications 3

5. Panel Description 4

5.1. Sender Unit: AT-COMP150S 4

5.1.1. Input Panel 4

5.1.2. Output Panel 4

5.2. Receiver Unit: AT-COMP150R 5

5.2.1. Input Panel 5

5.2.2. Output Panel 5

1. Connection and Installation 6

2. Notice 7

3. Performance Guide 7

4. Safety Information 8

5. Warranty 9

6. Atlona Product Registration 10

INTRODUCTION

Atlona Technologies AT-COMP150SR can easily extend component (YPbPr) or composite (CVBS) video with 2ch mono audio over only one CAT5/6 cable. The AT-COMP150SR lets you extend signals to cover the distance up to 330m(1,000ft). The devices are composed of a transmitter and a receiver. The transmitter is installed near the video signal source, and the receiver is placed near the desired display, up to impressive 330m (1,000ft) away for composite (CVBS) video and analog 2ch mono audio. The AT-COMP150SR does nonteed external power supply which is easier for installation.

FEATURES

• Passive and no power required
• Supports component (YPbPr) and composite (CVBS) video and 2 channel mono audio
• Supports resolutions up to 720p/1080i (NTSC/PAL)
• Transmission range up to 1,000 feet
- Wall mountable

Note: The length depends on the characteristics and quality of the cables. Higher resolutions and longer transmission distances require low skew cables (<25ns/100m) for best performance. Unshielded CAT6 with metal RJ45 connectors is recommended

PACKAGE CONTENT

• 1 x AT-COMP150SR (Sender unit and Receiver unit)
• 1 x User's manual

SPECIFICATIONS

Technical
Role of usage Sender (TX) Receiver (RX)
Video support Up to 720p60, 1080i60, 1080p30
Audio support 2 Channel mono analog audio
Transmission HD 720p/1080i - 185m (600ft)
		480i - 330m (1,000ft)
Input 5x RCA 1x RJ45
Output 1x RJ45 5x RCA
RCA connector 75Ω female
RJ45 connector WE/SS 8P8C
Mechanical
Housing Metal enclosure
Dimensions [L x W x H] Model [TX/RX] 54 x 85 x 26mm [2.1" x 3.3" x 1"]
Package 141 x 198 x 74mm [5.5" x 7.8" x 2.9"]
Weight Model [TX/RX] 170g [6oz]
Package	750g [1.7 lbs]
Fixedness	Wall-mount case with screws
Power supply	None
Power consumption	0.1 Watt [max]
Operation temperature	0~40°C [32~104°F]
Storage temperature	-20~60°C [-4~140°F]
Relative humidity	20~90% RH [no condensation]

PANEL DESCRIPTION

1. COMPONENT INPUT: Connect to a component video source.

2. AUDIO INPUT: Connect to an analog audio source.

1.2. Output Panel

ATCONPISEK FCCE SYSTEM OUT AUDIO MODE 3 4

1. AUDIO MODE: See next section for more detail.
2. SYSTEM OUT: Connect a CAT5e/6 cable and link to the SYSTEM IN port on the Receiver unit.

2. Receiver Unit: AT-COMP150R

2.1. Input Panel

AT-CCNPT1608 AT-LON FCCE AUDIO MODE SYSTEM IN 5 6

1. AUDIO MODE: See next section for more detail.

2. SYSTEM IN: Connect a CAT5e/6 cable and link to the SYSTEM OUT port on the Sender unit.

2.2. Output Panel

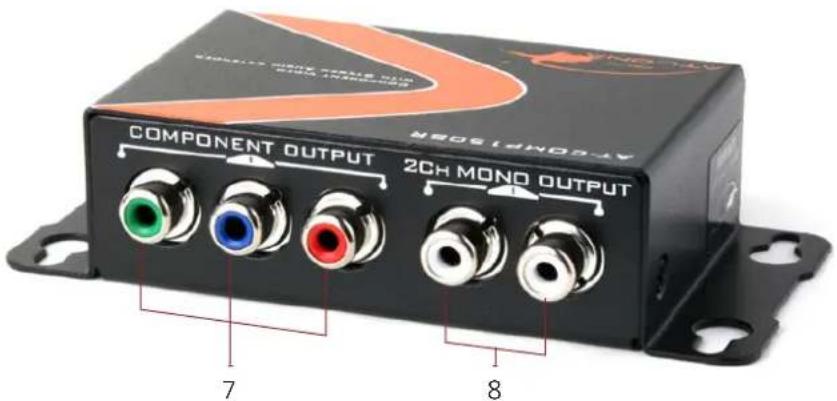

AT-605908 COMPONENT OUTPUT 2CH MONO OUTPUT 7 8

1. COMPONENT OUTPUT: Connect to a component video display.
2. AUDIO OUTPUT: Connect to analog audio speakers.

DIP Switch Position Audio Description

Pin1 Pin2

ON (↓) ON ( ) 2Ch Mono Set dip switch position on Sender unit and Receiver unit to “ON” to output two channel mono audio. This is the factory default.

1. Do not change the dip switch settings as this will result in poor audio quality.
2. Use shielded or even double shielded cables to get better audio quality

CONNECTION AND INSTALLATION

1. Switch off all devices, including monitors.
2. Connect the Sender unit of AT-COMP150SR to the video and audio sources.
3. Connect the Receiver unit of AT-COMP150SR to compen tor composite display(s) and speakers.
4. Power on the displays and speakers.
5. Power on the audio and video sources.

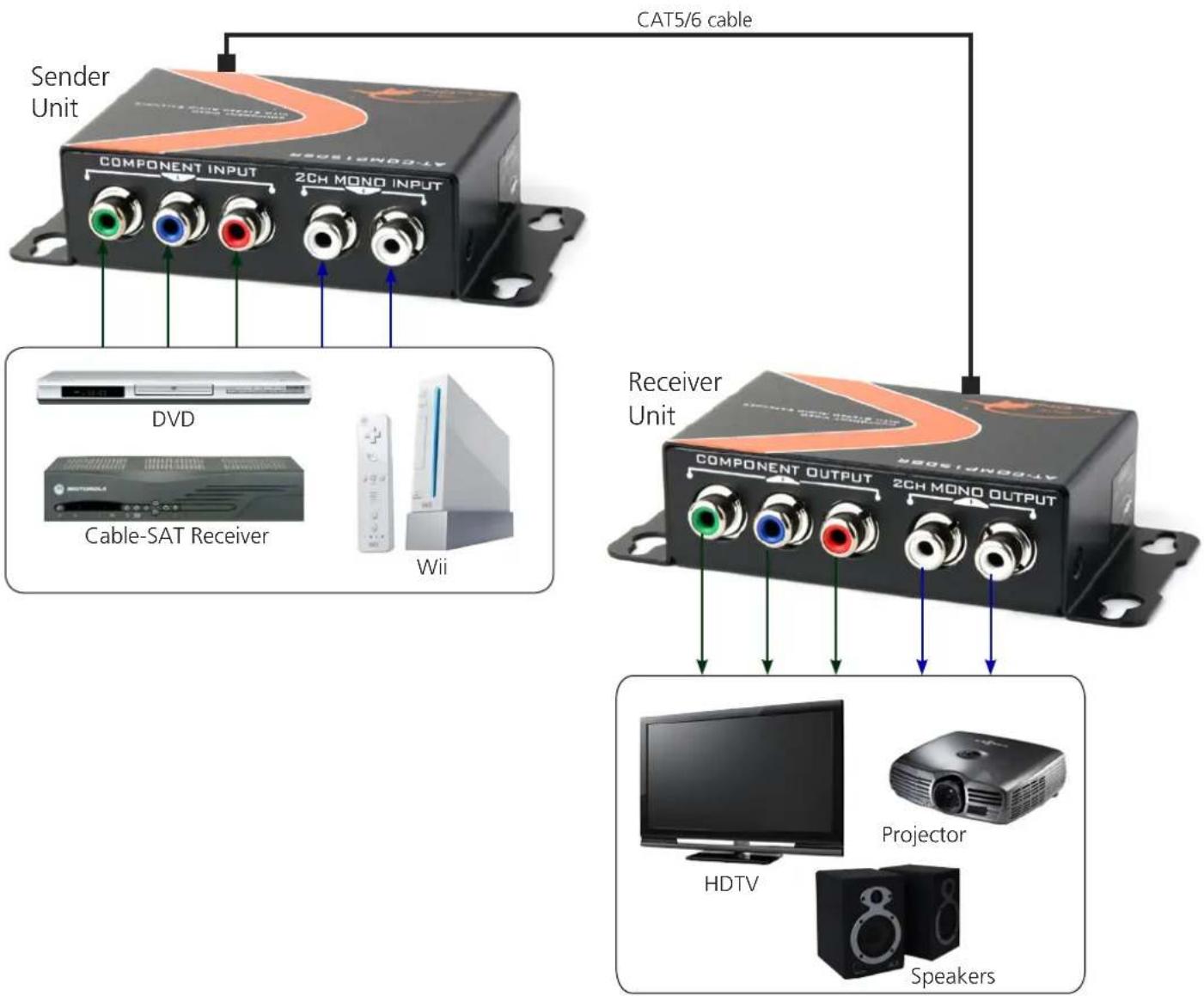

CAT5/6 cable Sender Unit COMPONENT INPUT 2CH MONO INPUT DVD Cable-SAT Receiver Wii Receiver Unit COMPONENT OUTPUT 2CH MONO OUTPUT HDTV Projector Speakers

NOTICE

1. All component/composite over CAT5 transmission distcaens are measured usign Belden 1583A CAT5e 125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C.

2. The transmission length is largely affected by the type of category cables. The testing result shows solid UTP cables (usually in the form of 1000ft bulk cables) can transmit a lot longer signals than stranded UTP cables (usually in the form of fixed length patch cords). A solid UTP CAT5e cable shows longer transmission length than stranded STPC AT6 cable. For long extension users, solid CAT5e/6 cables are your only choice.

3. EIA/TIA-568-B termination (T568B) for CAT5e/6 cables is recommended.

4. To reduce the interference among the unshielded twisted pairs of wires in UTP cable, double shielded STP cables are better suited than unshielded UTP cables to improve EMI problems, which is worse in long transmission.

5. Because the quality of the CAT5e/6 cables has the major effects in how long transmission distance will be made and how good is the received display, the actual transmission length is subject to the choice of your CAT5e/6 cables.

6. Increase in distance and resolution will generally result in loss of image sharpness or drop in video sync.

PERFORMANCE GUIDE

Performance rating Type of category cable
Wiring Shielding CAT5 CAT5e CAT6
Solid Unshielded (UTP)	*** **** ****
Shielded (STP)	*** *** ****
Stranded Unshielded (UTP)	* ** **
Shielded (STP)	*	* **
Termination	Please use EIA/TIA-568-B termination (T568B) at any time

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture void the warranty and safety features. Do not modify the wall plug. Doing so will

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket. be easily accessible in the case it requires this equipment should be installed near the socket outlet and the device should disconnection.

Precautions

FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.

In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.

Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols.

Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.

Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-COMP-150SR. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.
