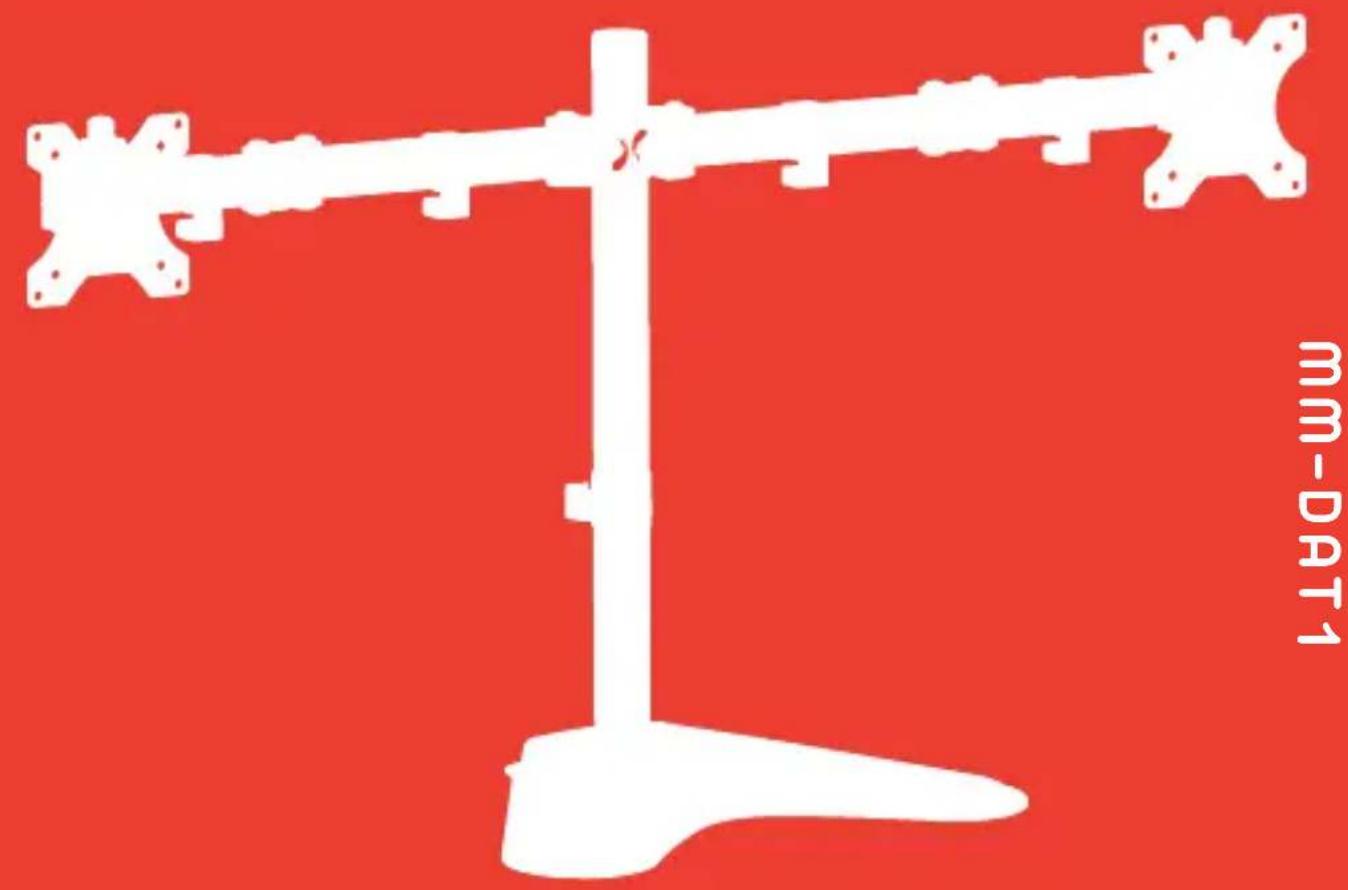

Dual-Monitor Tabletop Mount

for 13 to 32 in. Computer Monitors

Thank you for choosing Helder

Helder's Dual-Monitor Tabletop Mount provides customizable articulating support for two monitors and offers adjustable height, tilt and swivel angles for optimal viewing. The sturdy steel construction accommodates computer monitors with screen sizes measuring 13 to 32 inches with a maximum weight of 17 pounds per arm and features easy to remove VESA mounts. This stand is quick to set up so you can easily move your setup from your desk to another tabletop.

If you have safety concerns about installing this product, contact a qualified professional or installation contractor. If this product is missing hardware or there are defective parts, call Customer Service at 212-594-2353.

Product Specifications

Compatible Computer

Monitor Sizes:

13 to 32 in. (33 to 81.3 cm)

Max Height:

18.3 in. (46.5 cm)

Max Weight Capacity:

17.6 lb. (8 kg) per arm

VESA Mounting

Patterns:

75×75 mm

100×100 mm

Weight:

8.6 lb. (3.9 kg)

Base Diameter:

15.4 × 11 in. (39 × 28 cm)

Material:

Steel, plastic

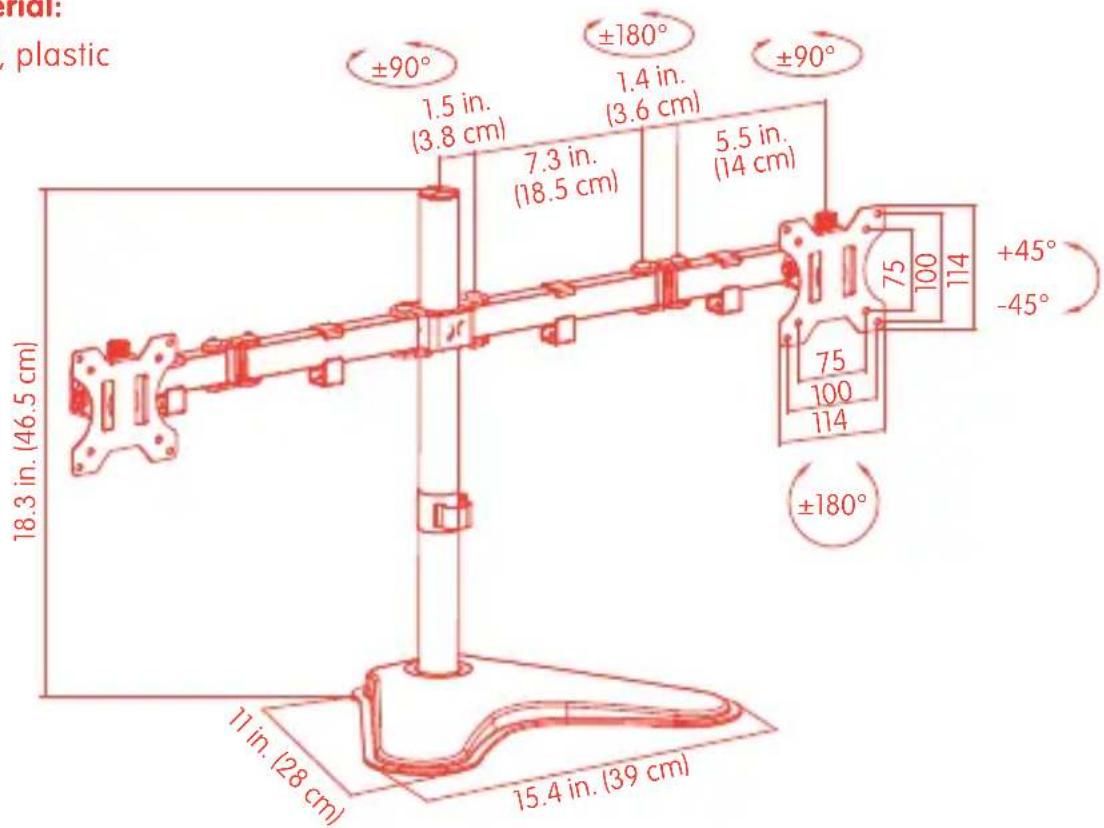

final: plastic ±90° 1.5 in. (3.8 cm) 7.3 in. (18.5 cm) ±180° 1.4 in. (3.6 cm) 5.5 in. (14 cm) ±90° 18.3 in. (46.5 cm) +45° -45° ±180° 11 in. (28 cm) 15.4 in. (39 cm)

Safety Warnings

When installing this product, be sure to refer to the assembly instructions detailed in this manual; failure to abide by the assembly instructions may void the product's warranty.

Do not use this product for any computer monitor other than what it is intended for; the exact specification, size parameters, and weight limits are found both on the product box and in the instruction manual.

It is recommended that at least 2 people perform the installation process to prevent injury from mishandling or dropping the product and/or flat-screen device.

Make sure your fingers are protected and support the display when raising and lowering the riser column.

Do not use the monitor mount on an uneven surface.

This product may contain small parts which can pose a choking hazard; keep out of reach of children and pets.

Excessive exposure to liquids may damage the finish of this product; when cleaning this product, use only a mild detergent solution, and quickly wipe dry with a soft cloth.

Helder takes no responsibility for any product damage or personal injury resulting from mishandling, incorrect mounting, faulty assembly, or improper use of this product.

All images are for illustrative purposes only.

Parts List

A. (×2) Required Tools Phillips screwdriver B. (×1) C. (×1) D. (×1) E. (×1) F. (×1) G. (×2) H. (×2) I. (×3) J. (×1) 4 mm K. (×1) 6 mm m-A (×8) M4 × 12 mm m-B (×8) M4 × 16 mm m-C (×8) M5 × 12 mm m-D (×8) M5 × 16 mm m-E (×8) D5 m-F (×8)

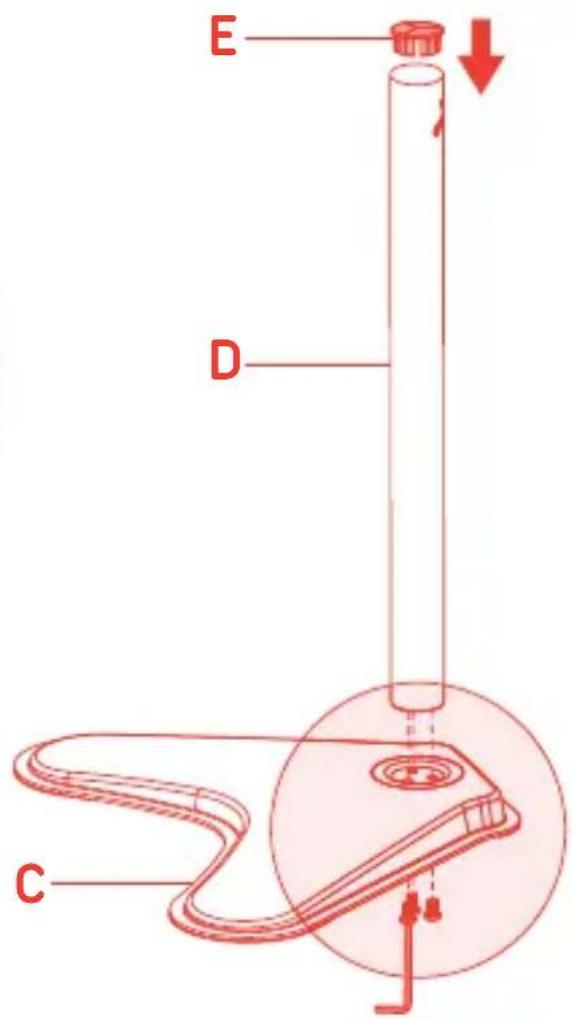

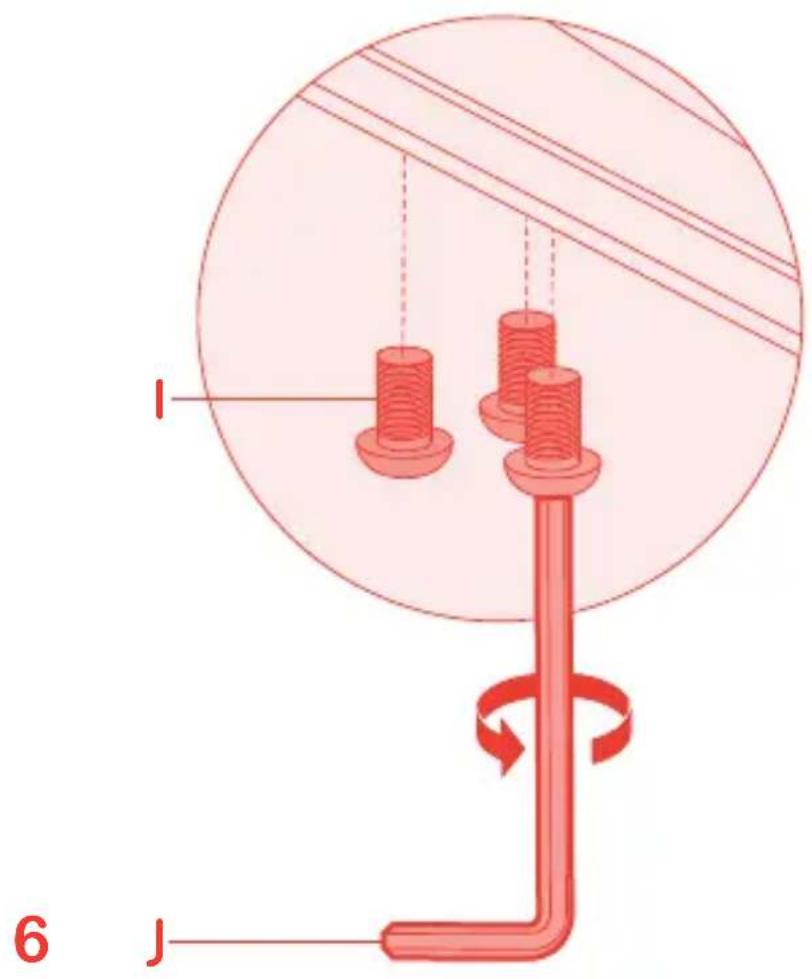

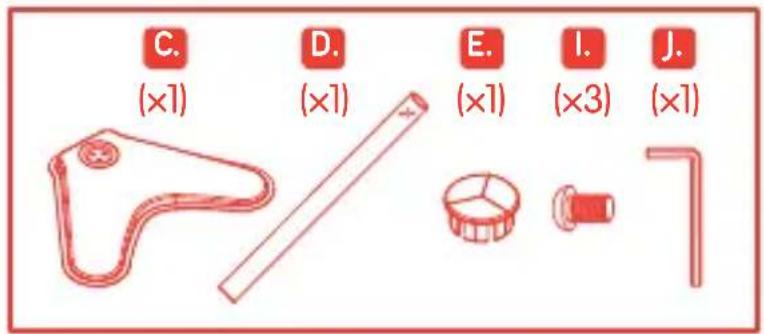

Assembling the Base

C. (×1) D. (×1) E. (×1) I. (×3) J. (×1)

I J 6

E D C

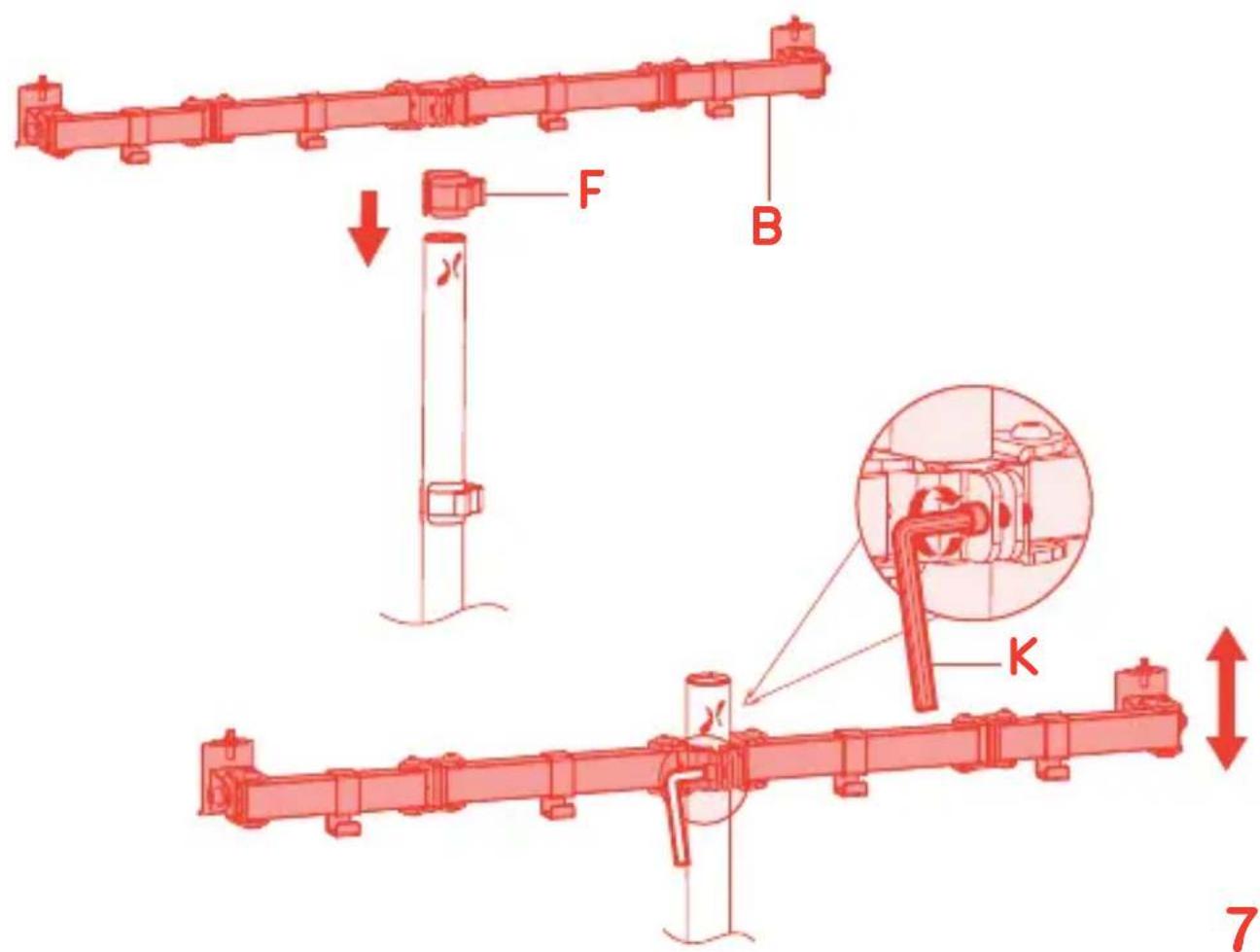

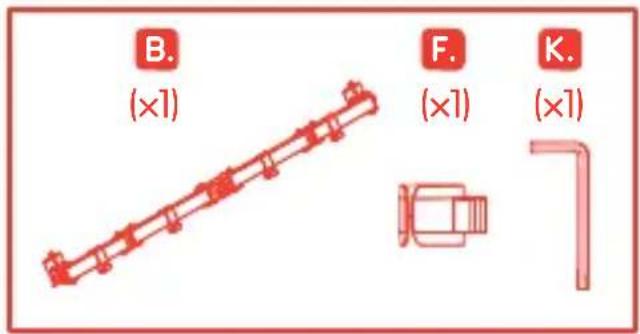

Attaching the Monitor Mount

B. (×1) F. (×1) K. (×1)

F B K 7

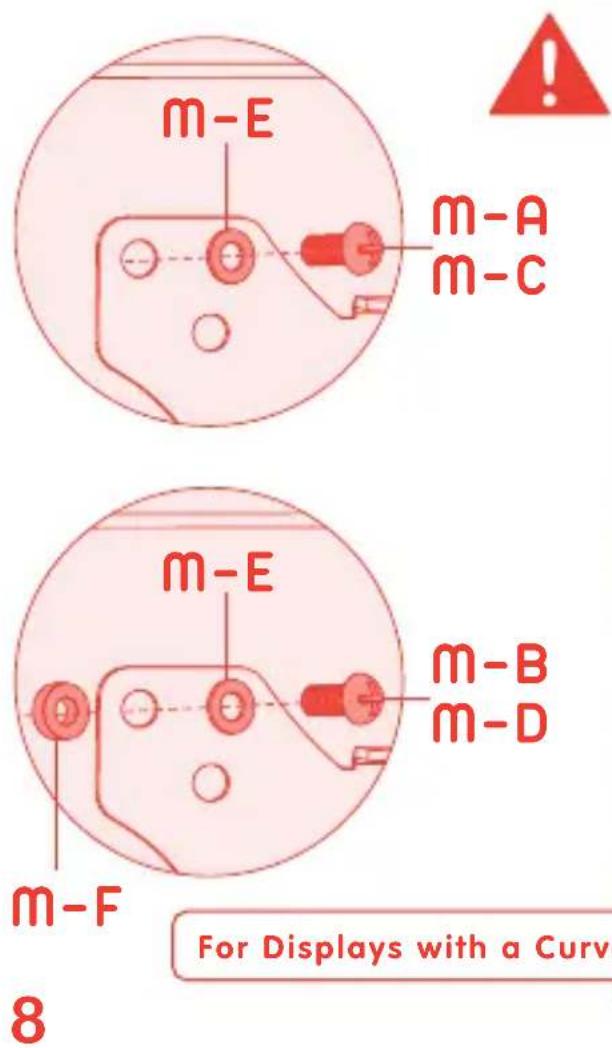

Installing the VESA Mounts

A. A. m-B. m-C. m-D. m-FE. (×8)(×2×8) (×8×8) (×8) (×8)

m-E m-A m-C m-E m-B m-D m-F For Displays with a Curv 8

Too short / too long / crooked

Diagram showing checkmark and cross symbols with TV labels, likely indicating a rating or status indicator.

Red Back

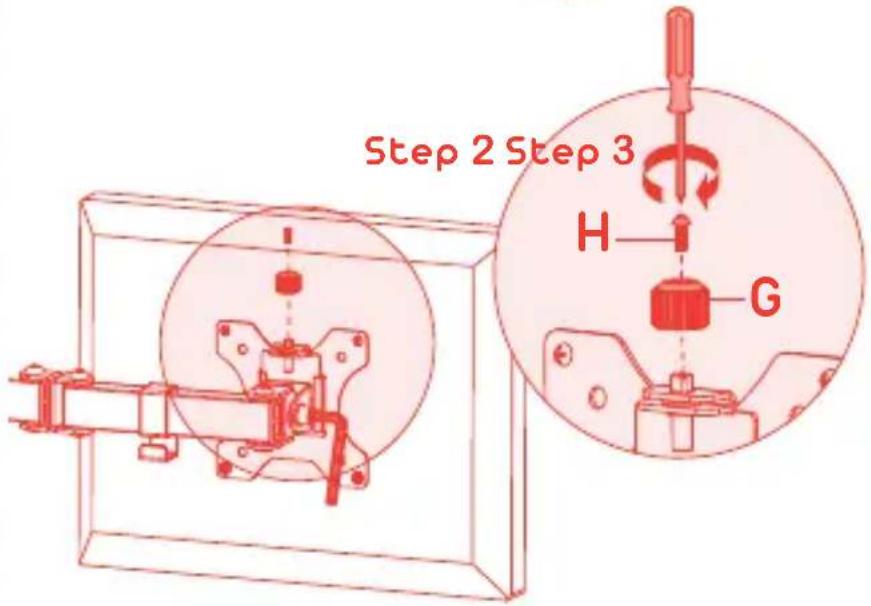

Attaching the Monitors

G. (×2)(×2) (×1)

Step 1

Step 2 Step 3 H G

K—9

Monitor Adjustment

Tilt

+45°

-45°

Pure mechanical assembly diagram showing a rotating shaft and housing with no text or symbols

Swivel

+90°

-90°

Diagram of a mechanical switch or lever system inside a frame, with red arrows indicating direction (no text or symbols)

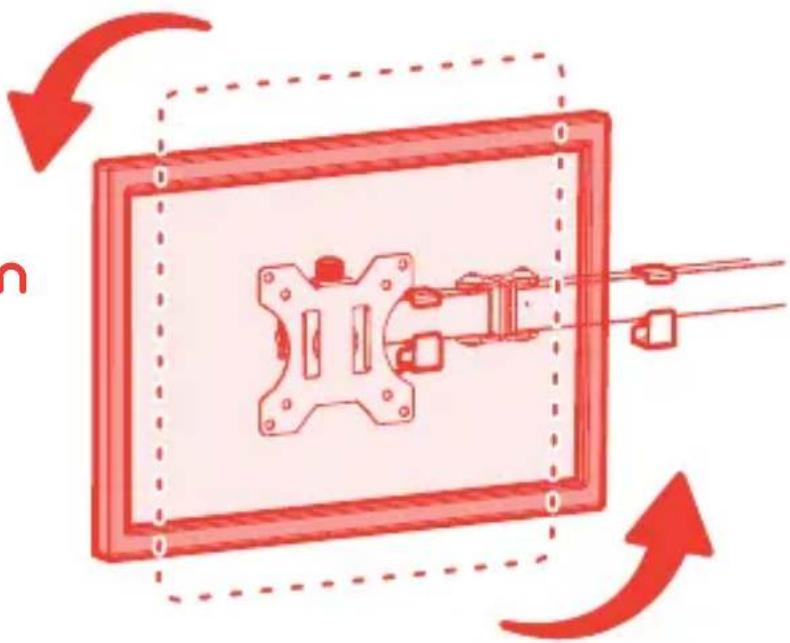

Rotation

+180°

-180°

Diagram of a mechanical assembly inside a frame with red arrows indicating rotational motion (no text or symbols)

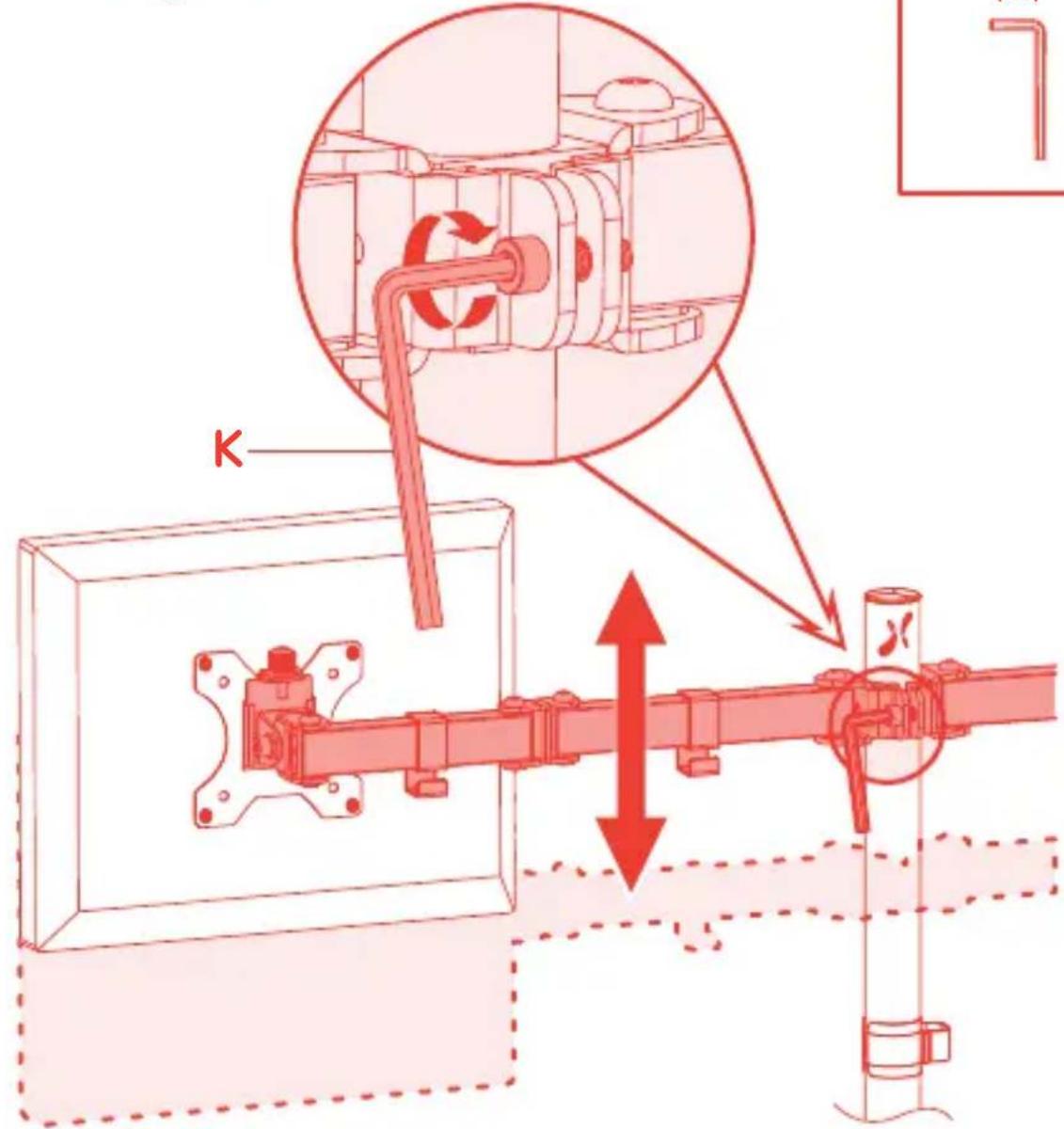

Height

Technical diagram showing a mechanical assembly with a magnified inset illustrating the process of rotating a tool or component.

Arm Height

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or movement.

K.
(×1)
7

Arm Articulation

Correct Alignment Options

Diagram of a mechanical lifting device with pulleys and conveyor system (no text or labels)

Warning

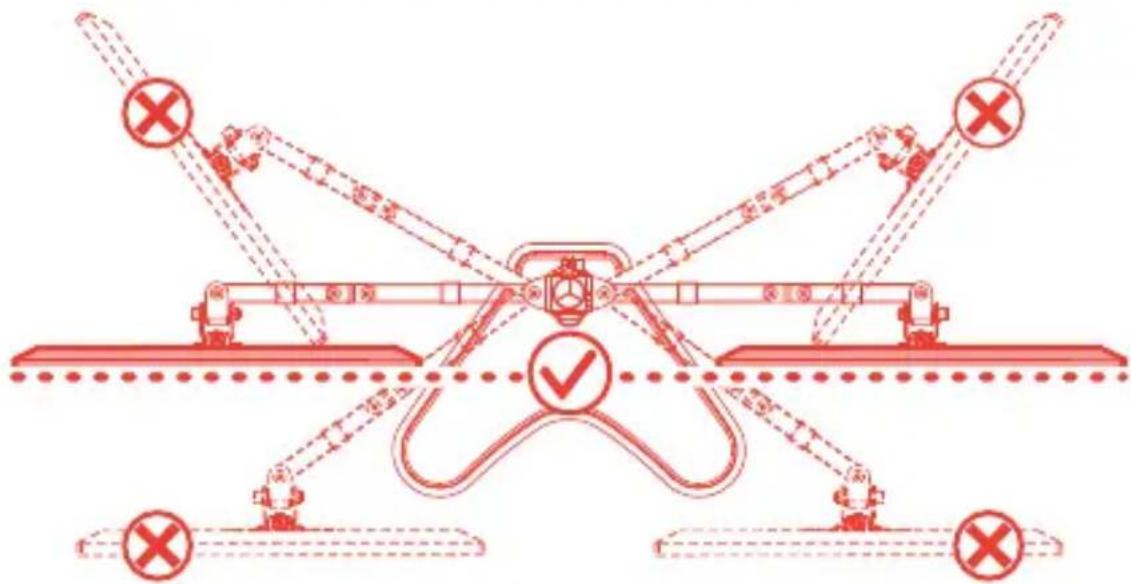

Weight Distribution of each monitor should be balanced across the center line

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, including checkmarks and crosses indicating failure or status.

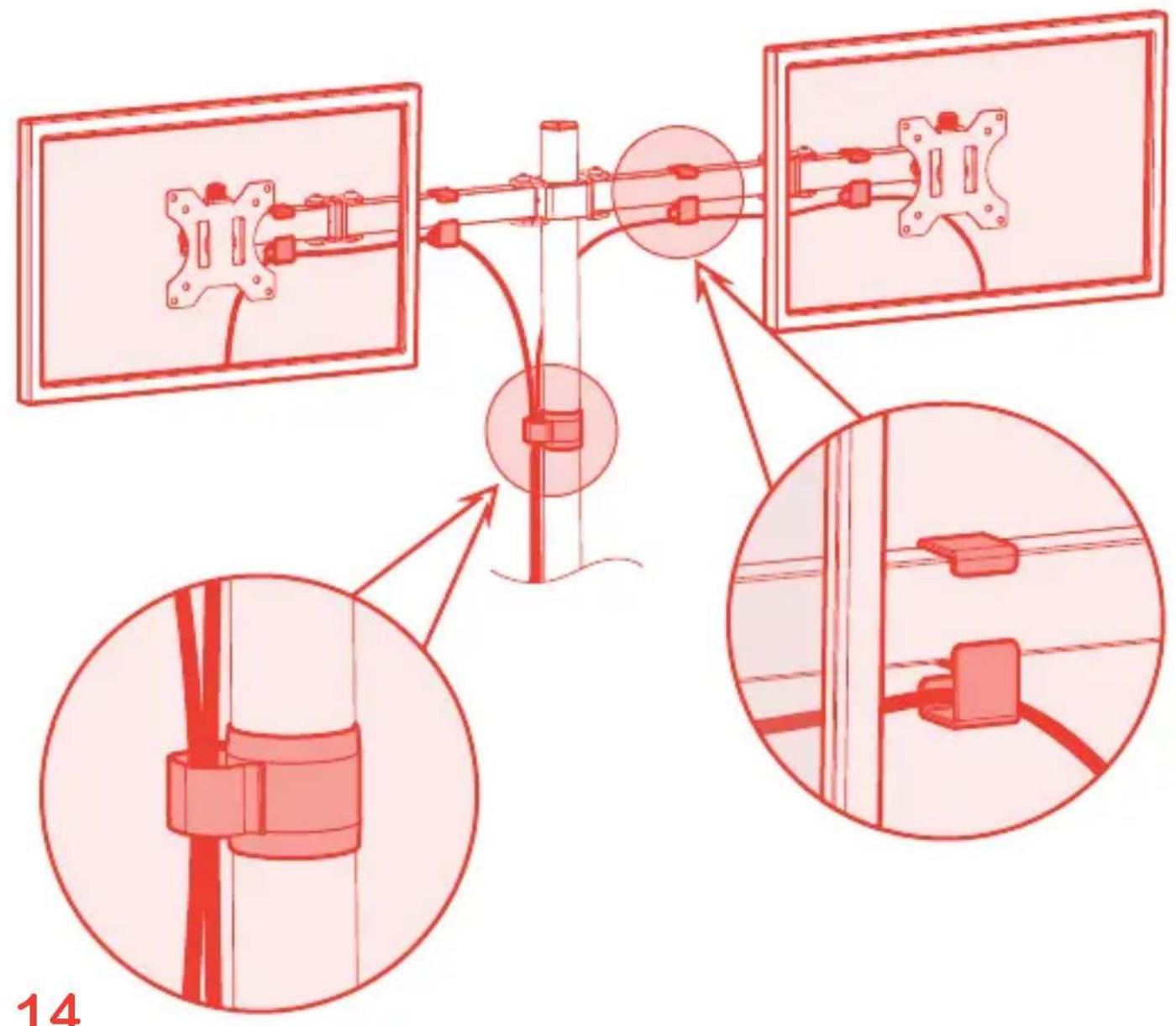

Cable Management

Technical diagram showing cable installation and connection details with labeled components and magnified views

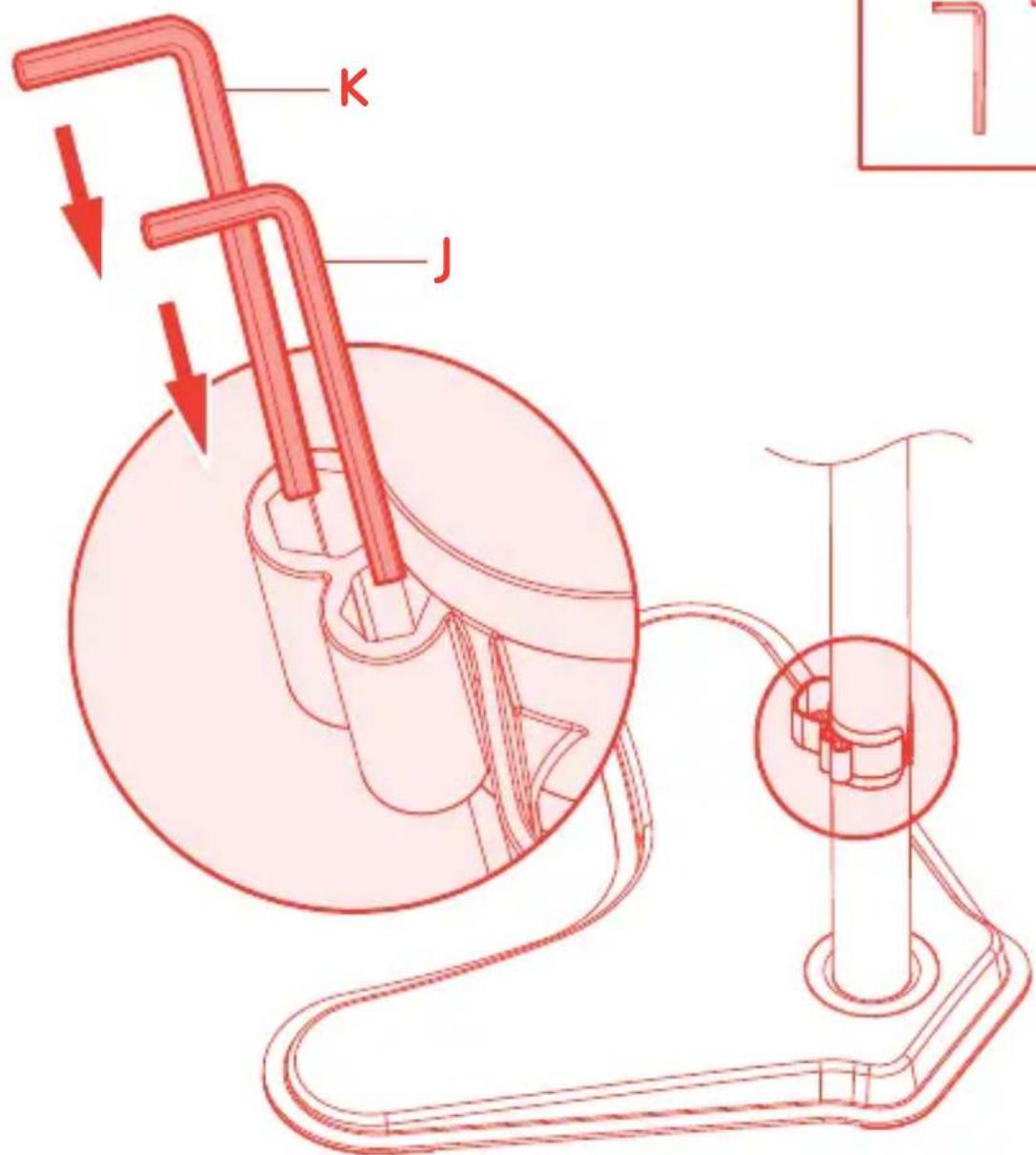

Tool Storage
