MM-DST1 - Support pour écran plat Helder - Free user manual and instructions

Product Type	Flat screen wall mount
Brand	Helder
Model	MM-DST1
Compatible Screen Sizes	32" to 65"
Maximum Weight Capacity	50 kg (110 lbs)
VESA Compatibility	200x200 to 600x400 mm
Material	Heavy-duty steel
Mount Type	Fixed
Distance from Wall	50 mm (2 inches)
Level Adjustment	±5° tilt, swivel not available
Installation Hardware Included	Yes, screws and anchors
Power Supply	Not required (passive mount)
Cleaning Instructions	Wipe with a dry cloth; avoid harsh chemicals
Safety Features	Level lock, safety screws
Spare Parts Availability	Contact Helder customer service
Repair Information	Refer to manual; do not disassemble
Warranty	2 years

Frequently Asked Questions - MM-DST1 Helder

What is the maximum TV size and weight this mount can hold?

The Helder MM-DST1 supports flat screens from 32 to 65 inches and up to 50 kg (110 lbs).

What VESA patterns are compatible?

This mount fits VESA patterns from 200x200 mm up to 600x400 mm.

Does this mount tilt or swivel?

It is a fixed mount with a slight ±5° tilt adjustment. Swivel is not available.

How far from the wall will my TV be?

The distance from the wall is approximately 50 mm (2 inches).

What material is the mount made of?

The mount is made of heavy-duty steel for strength and durability.

Is installation hardware included?

Yes, the package includes all necessary screws and wall anchors for standard drywall.

Can I install this mount on concrete or brick wall?

Yes, but you may need special anchors not included. Ensure the wall can support the weight.

How do I clean the mount?

Wipe with a dry or slightly damp cloth. Avoid using abrasive cleaners or solvents.

What safety features does it have?

The mount includes a level lock and safety screws to prevent accidental detachment.

How can I get spare parts or service?

Contact Helder customer service for spare parts or repair inquiries. Do not disassemble the mount.

USER MANUAL MM-DST1 Helder

Abstract red logo design with stylized curved shapes inside a rounded square (no text or symbols)

HELDER®

White vertical pole with two small animal-like symbols on one end, set against a solid red background (no text or labels)

mm-DST1

Dual-Monitor Vertical Tabletop Mount

for 13 to 32 in. Computer Monitors

Thank you for choosing Helder

Helder's Dual-Monitor Vertical Tabletop Mount provides a stacked monitor layout with support for two monitors and offers adjustable height, tilt and swivel angles for optimal viewing. The sturdy steel construction accommodates computer monitors with screen sizes measuring 13 to 32 inches with a maximum weight of 17 pounds per mount and features easy to remove VESA mounts. This stand is quick to set up so you can easily move your setup from your desk to another tabletop.

If you have safety concerns about installing this product, contact a qualified professional or installation contractor. If this product is missing hardware or there are defective parts, call Customer Service at 212-594-2353.

Product Specifications

Compatible Computer

Monitor Sizes:

13 to 32 in. (33 to 81.3 cm)

Max Height:

35.6 in. (90.5 cm)

Material:

Steel, plastic

Max Weight Capacity:

17.6 lb. (8 kg) per mount

VESA Mounting

Patterns:

75×75 mm

100×100 mm

Weight:

8 lb. (3.6 kg)

Base Diameter:

15.4 × 11 in. (39 × 28 cm)

1.5 in. (3.8 cm) 2 in. (5 cm) ±90° 75 100 +45° -45° 75 100 ±180° 35.6 in. (90.5 cm) 11 in. (28 cm) 15.4 in. (39 cm) 3

Safety Warnings

When installing this product, be sure to refer to the assembly instructions detailed in this manual; failure to abide by the assembly instructions may void the product's warranty.

Do not use this product for any computer monitor other than what it is intended for; the exact specification, size parameters, and weight limits are found both on the product box and in the instruction manual.

Make sure your fingers are protected and support the display when raising or lowering the riser mount.

It is recommended that at least 2 people perform the installation process to prevent injury from mishandling or dropping the product and/or flat-screen device.

Do not use the monitor mount on an uneven surface.

This product may contain small parts which can pose a choking hazard; keep out of reach of children and pets.

Excessive exposure to liquids may damage the finish of this product; when cleaning this product, use only a mild detergent solution, and quickly wipe dry with a soft cloth.

Helder takes no responsibility for any product damage or personal injury resulting from mishandling, incorrect mounting, faulty assembly, or improper use of this product.

All images are for illustrative purposes only.

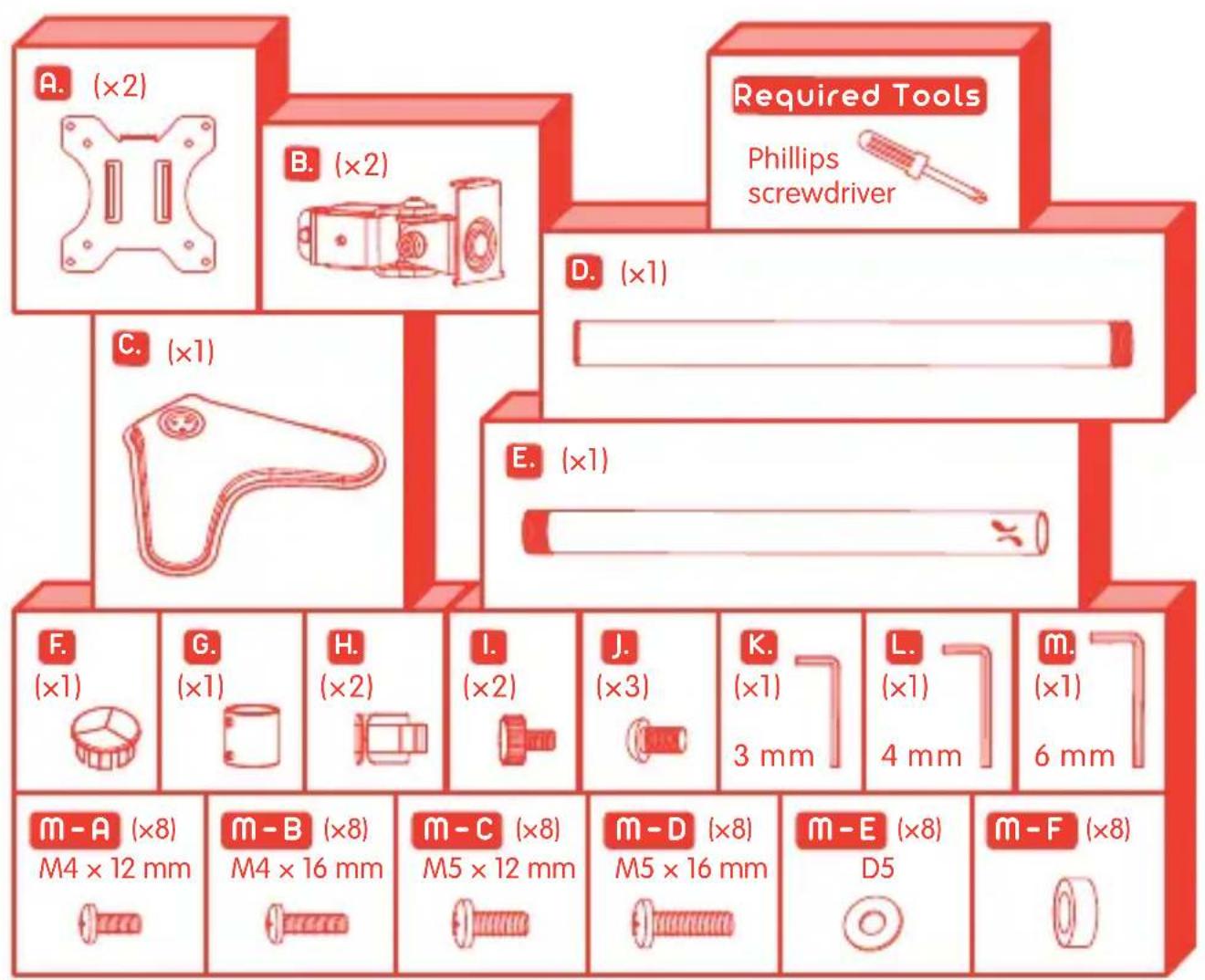

Parts List

A. (×2) B. (×2) C. (×1) D. (×1) E. (×1) F. (×1) G. (×1) H. (×2) I. (×2) J. (×3) K. (×1) L. (×1) m. (×1) m-A (×8) m-B (×8) m-C (×8) m-D (×8) m-E (×8) m-F (×8) M4 × 12 mm M4 × 16 mm M5 × 12 mm M5 × 16 mm D5

Assembling the Base

C. (×1) D. (×1) J. (×3) L. (×1)

Diagram of a mechanical or electrical component with two bolts and a curved pipe, no text or symbols present.

D C

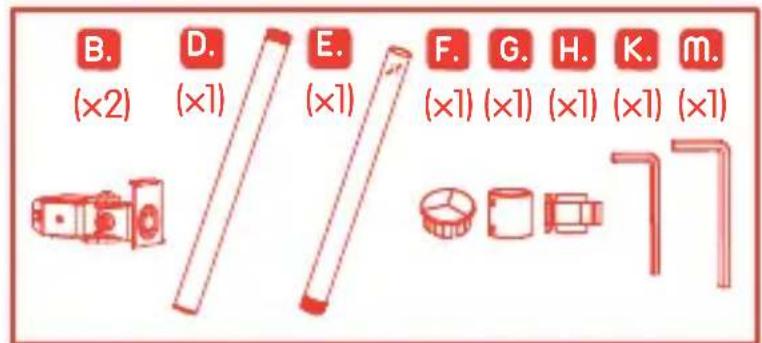

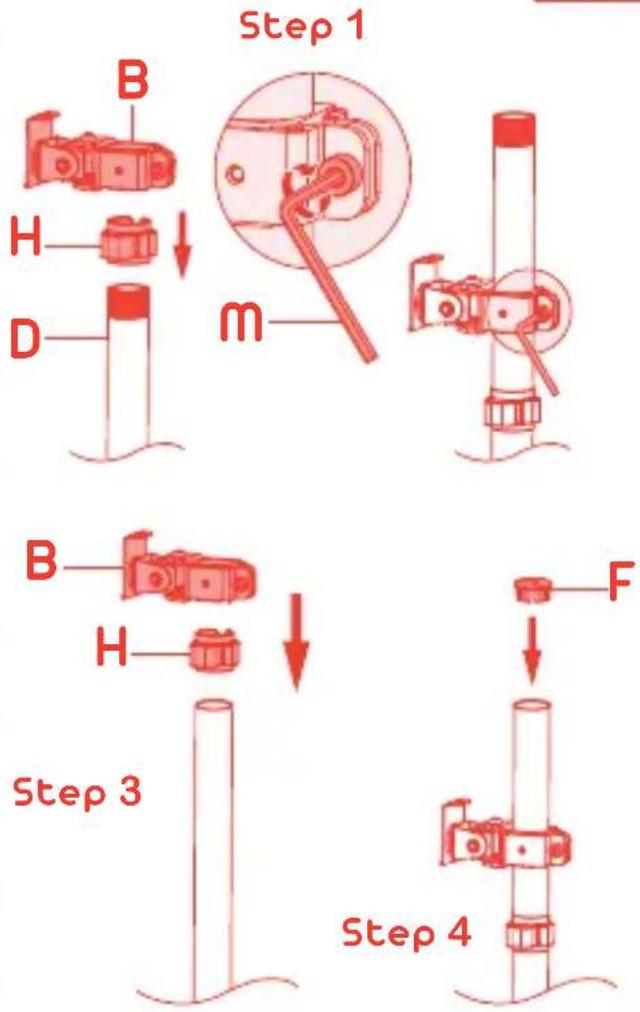

Assembling the Mounting Column

B. (×2) D. (×1) E. (×1) F. G. H. K. m. (×1) (×1) (×1) (×1) (×1)


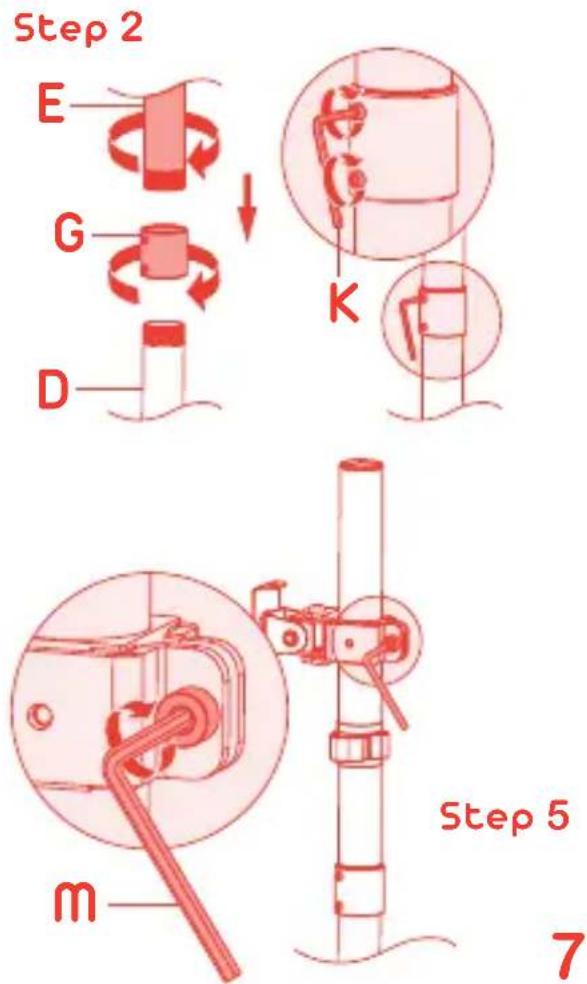

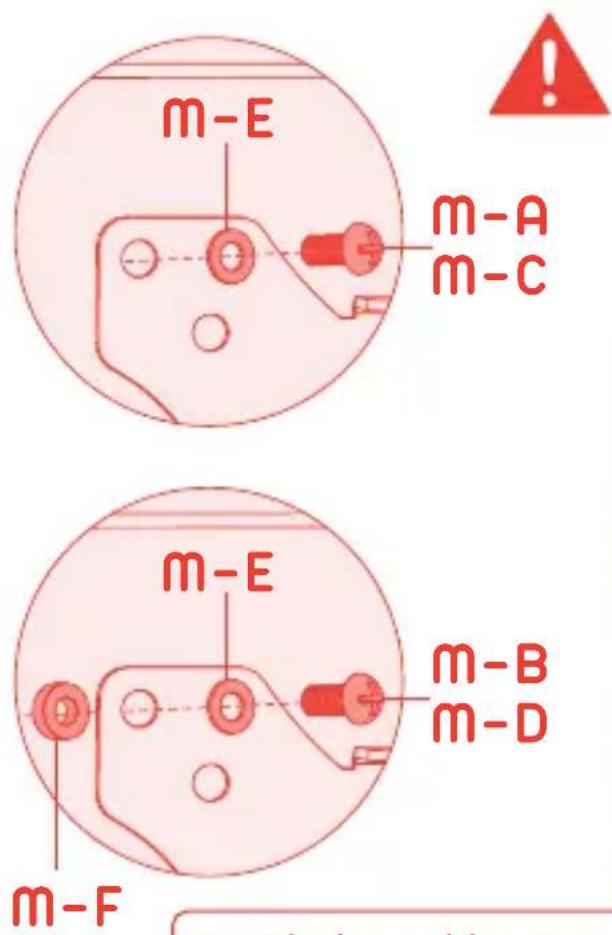

Installing the VESA Mounts

A. A. m-B. m-C. m-D. m-FE. (×8)(×2×8) (×8×8) (×8) (×8)

m-E m-A m-C m-E m-B m-D m-F

Too short / too long / crooked

✓ × TV TV TV

Red Back

For Displays with a Curved Back

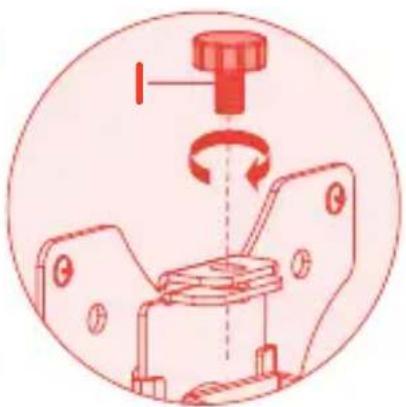

Attaching the Monitors

Mechanical assembly diagram showing a rotating component with a handle and base (no text or symbols)

I. (×2)

Two-step diagram showing a mechanical assembly with red arrows indicating downward motion, no text or symbols present.

Diagram showing a mechanical device mounted on a vertical pole, with an arrow indicating direction (no text or symbols present)

Monitor Adjustment

Tilt

+45°

-45°

Diagram showing a mechanical component with red arrows indicating rotational motion (no text or symbols)

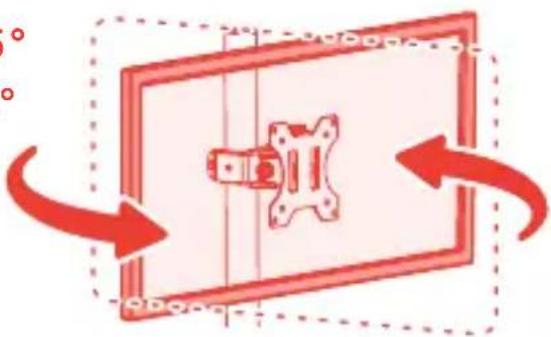

Swivel

+45°

-45°

Diagram showing a mechanical component with red arrows indicating rotational motion (no text or symbols)

Rotation

+180° -180°

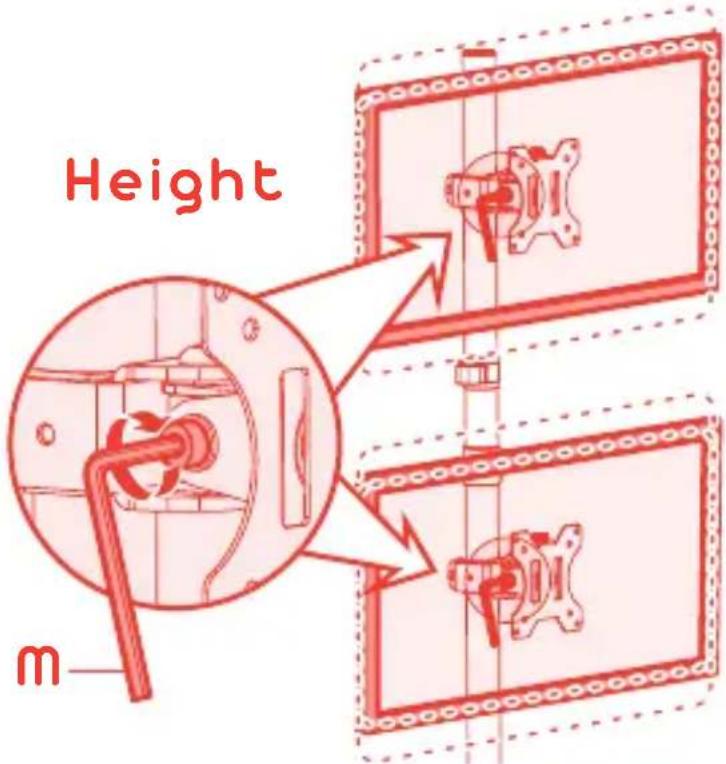

Height m

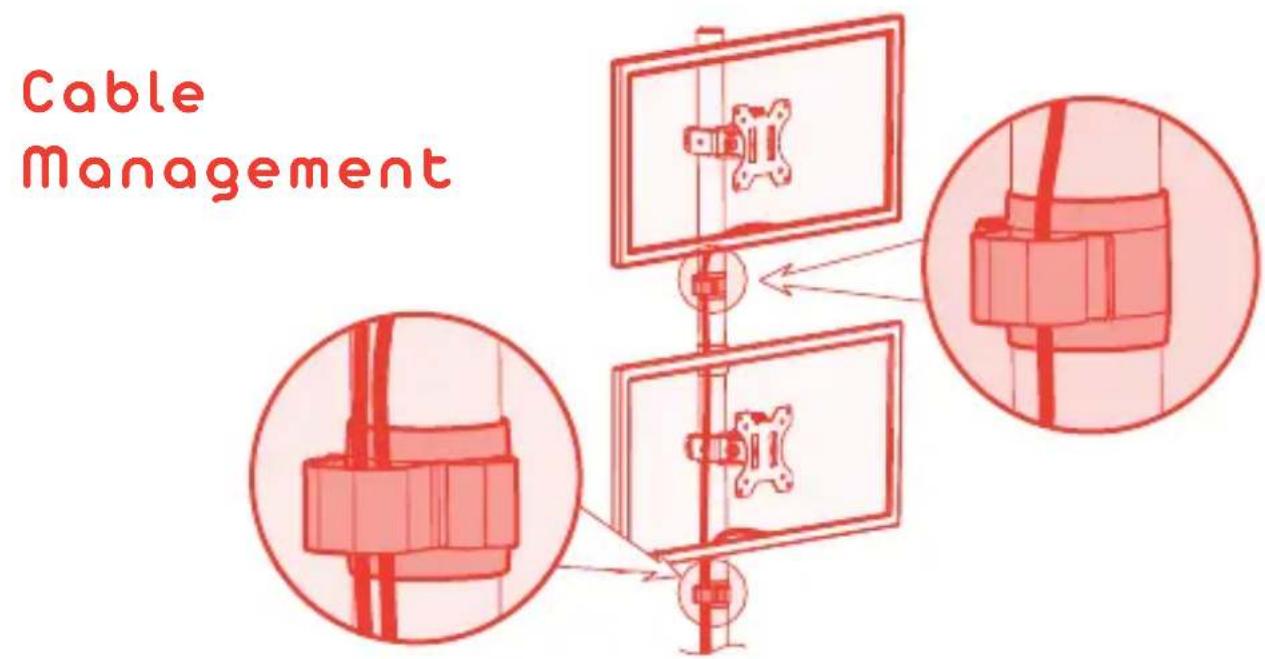

Cable Management

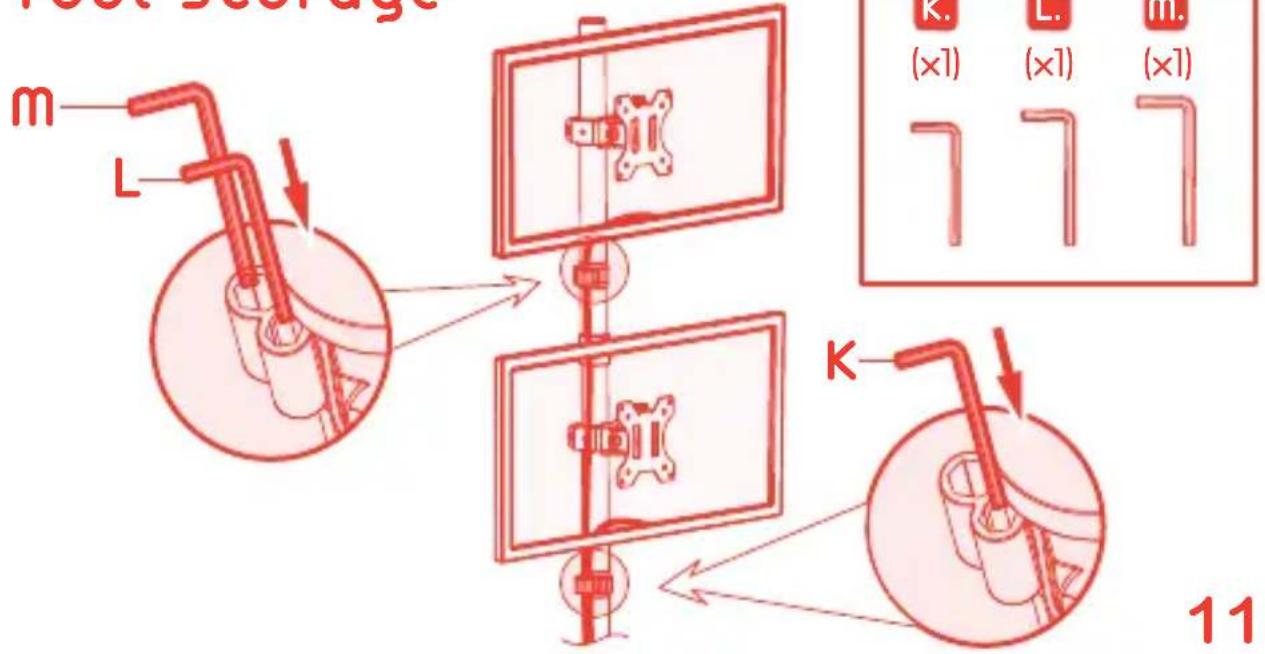

Tool Storage

Foot Deoage m L K (×1) L (×1) III. (×1) K 11

One-Year Limited Warranty

This Helder product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of One (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Helder Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Helder along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.clearashelder.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

Helder is a registered trademark of the Gradus Group.

© 2024 Gradus Group LLC. All Rights Reserved. GG2

HELDER®

A Gradus Group Brand
