USER MANUAL FPTM-70-2 Helder

Abstract red logo design with stylized curved shapes inside a rounded square (no text or symbols)

HELDER®

Portable Tripod Stand with TV Mount

for 37 to 70 in. Displays

Thank you for choosing Helder

The Helder Portable Tripod Stand with TV Mount provides adjustable height and tilt angles to offer the optimal view of a flat-panel display in a conference room, department store, or trade show. It accommodates displays with screen sizes measuring 37 to 70 inches and features universal VESA mounting. The sturdy steel construction supports a maximum weight of 77 pounds and is secured by two locking knobs and a security pin. This stand is quick to set up and take down so you can easily move your display from one location to another.

If you have safety concerns about installing this product, contact a qualified professional or installation contractor. If this product is missing hardware or there are defective parts, call Customer Service at 212-594-2353.

Product Specifications

Compatible Flat Panel Display Size:

37 to 70 in. (94 to 177.8 cm)

Max Height:

73.3 in. (186.2 cm)

Min Height:

48 in. (121.9 cm)

Max Weight Capacity:

77 lb. (34.9 kg)

Material:

Steel

VESA Mounting Patterns:

200×200 mm

300×300 mm

400×200 mm

400×400 mm

600×400 mm

Weight:

11.2 lb. (5.1 kg)

Base Diameter:

48 in. (121.9 cm)

Safety Warnings

When installing this product, be sure to refer to the assembly instructions detailed in this manual; failure to abide by the assembly instructions may void the product's warranty.

Do not use this product for any flat panel display other than what it is intended for; the exact specification, size parameters, and weight limits are found both on the product box and in the instruction manual.

Make sure the tripod legs are set to the widest position for stability and utilize tripod weights or sandbags if you're using a screen larger than 37 inches.

Do not use the tripod in a windy environment or place it on an uneven surface.

It is recommended that at least 2 people perform the installation process to prevent injury from mishandling or dropping the product and/or flat-screen device.

Make sure your fingers are protected and support the display when raising and lowering the riser column.

This product may contain small parts which can pose a choking hazard; keep out of reach of children and pets.

Excessive exposure to liquids may damage the finish of this product; when cleaning this product, use only a mild detergent solution, and quickly wipe dry with a soft cloth.

Helder takes no responsibility for any product damage or personal injury resulting from mishandling, incorrect mounting, faulty assembly, or improper use of this product.

All images are for illustrative purposes only.

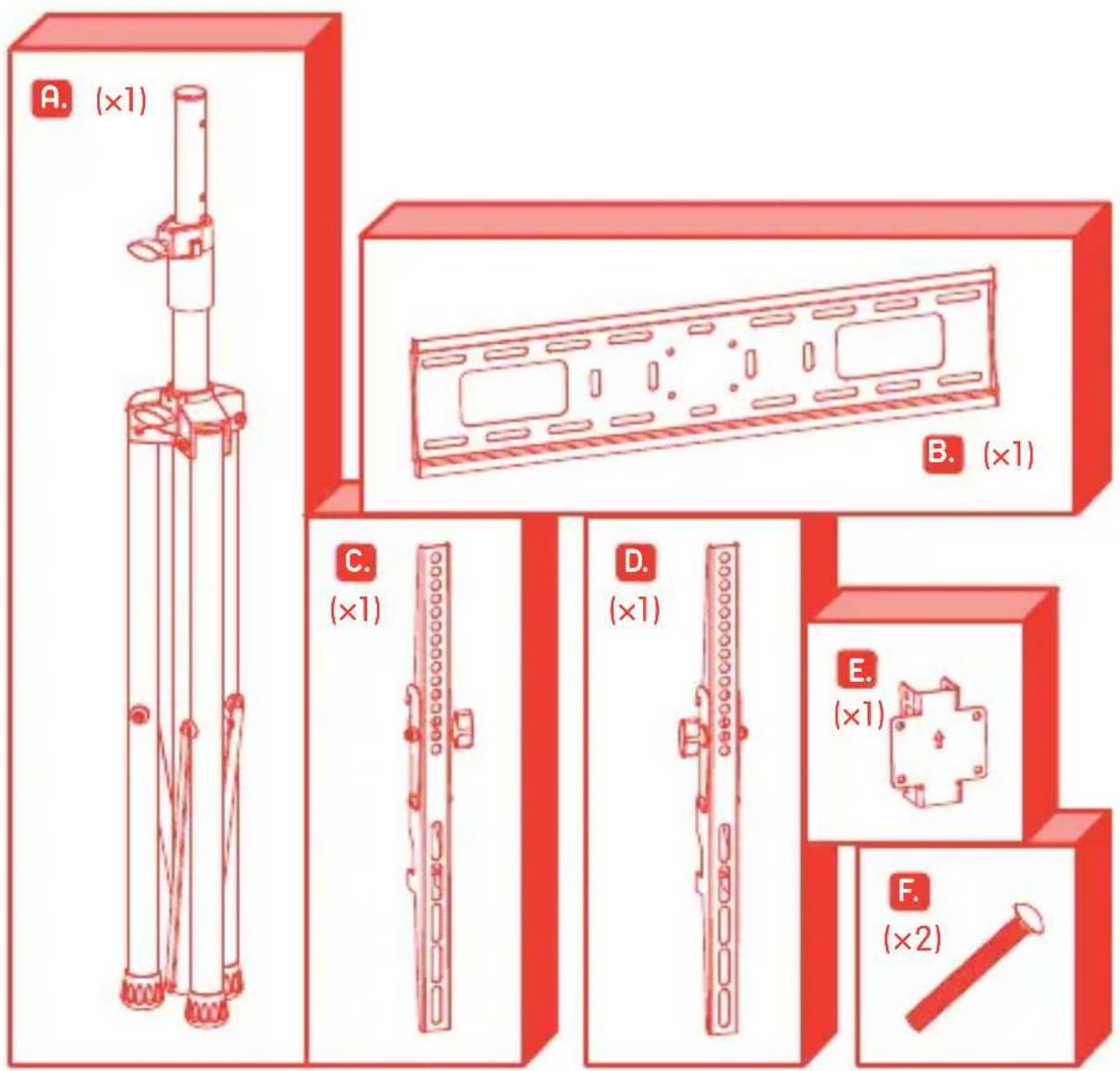

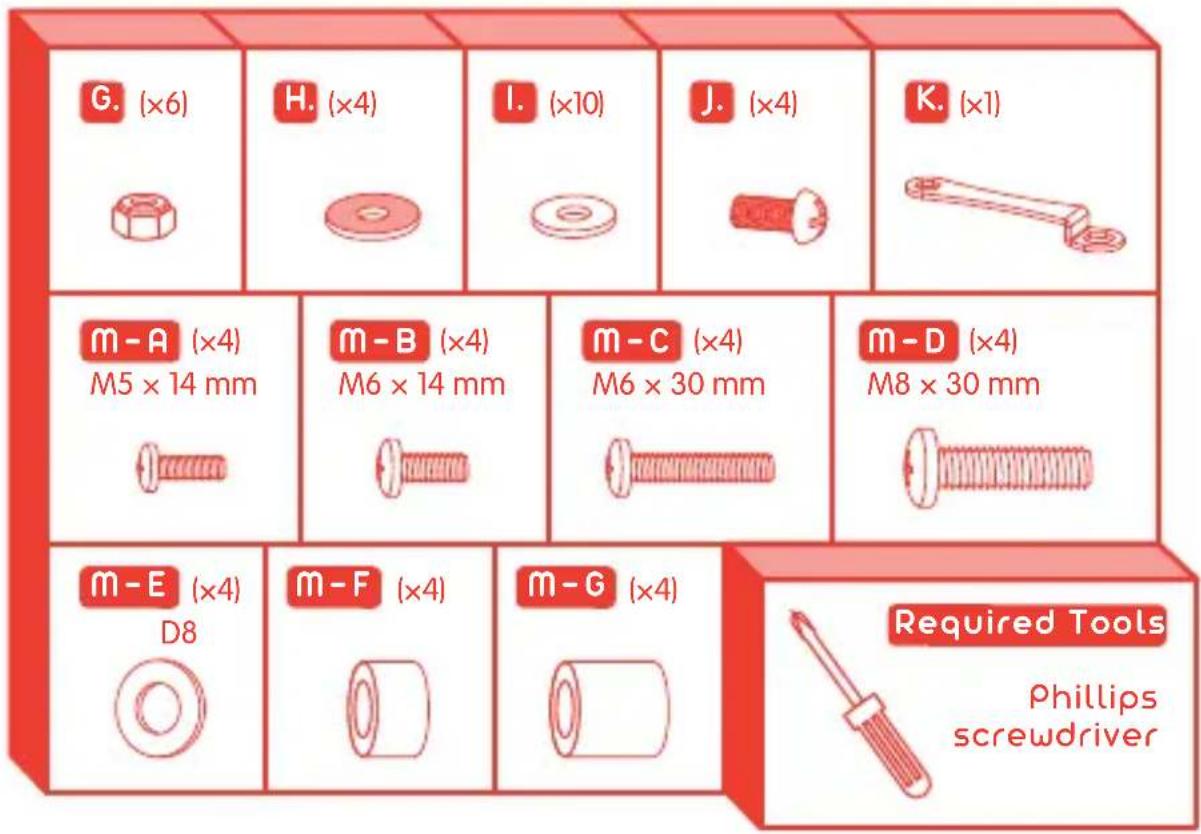

Parts List

A. (×1) B. (×1) C. (×1) D. (×1) E. (×1) F. (×2)

G. (×6) H. (×4) I. (×10) J. (×4) K. (×1) m-A (×4) M5 × 14 mm m-B (×4) M6 × 14 mm m-C (×4) M6 × 30 mm m-D (×4) M8 × 30 mm m-E (×4) D8 m-F (×4) m-G (×4) Required Tools Phillips screwdriver

Setting Up the Tripod

Red mechanical device with vertical rods and a labeled section 'A.' (no text or symbols on the device itself)

Technical diagram illustrating the assembly of a mechanical device with labeled components and directional arrows indicating motion or assembly.

Diagram illustrating a mechanical assembly process with three stages: vertical rod, valve mechanism, and circular component assembly.

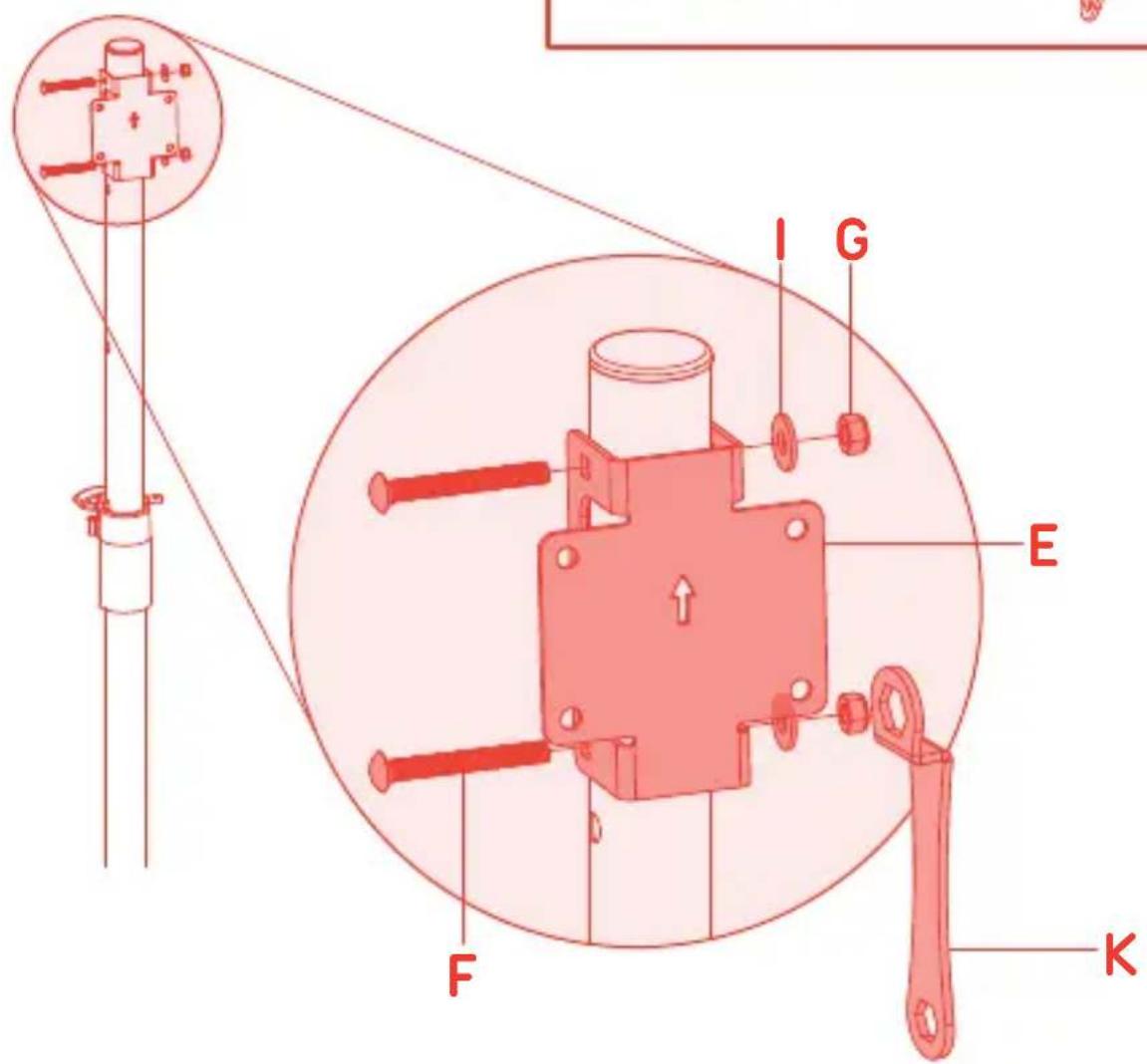

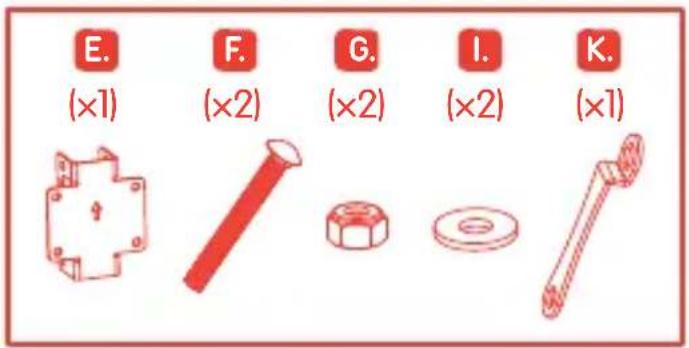

Installing the Display Mount

E. (×1) F. (×2) G. (×2) I. (×2) K. (×1)

I G E F K

B. (×1) G. (×4) H. (×4) I. (×8) J. (×4) K. (×1) B H I J 11

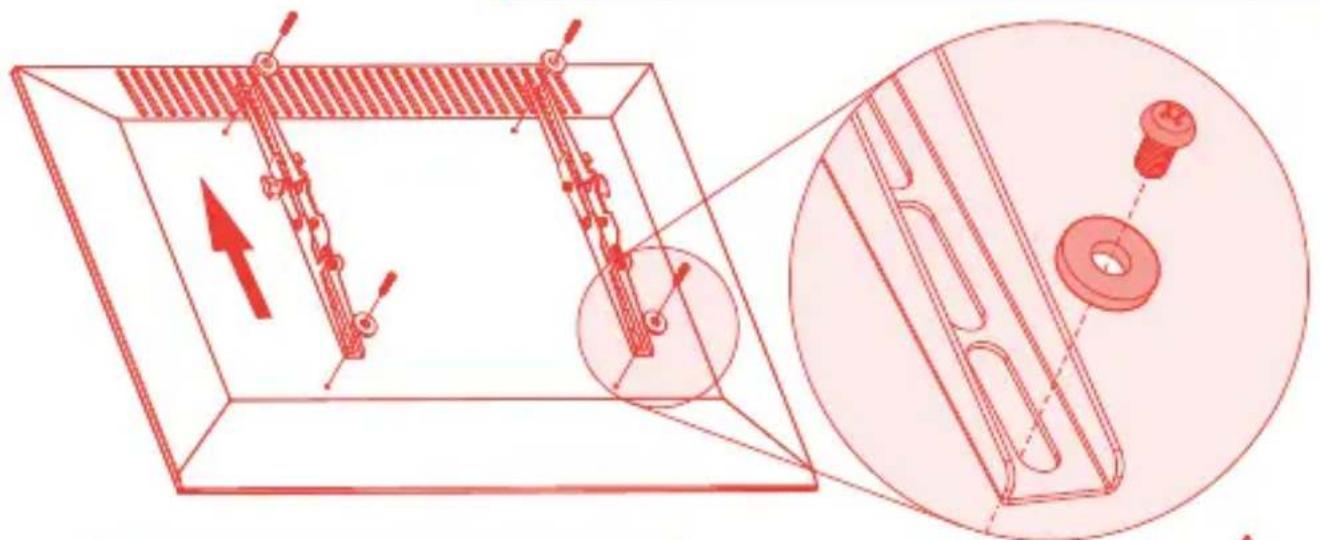

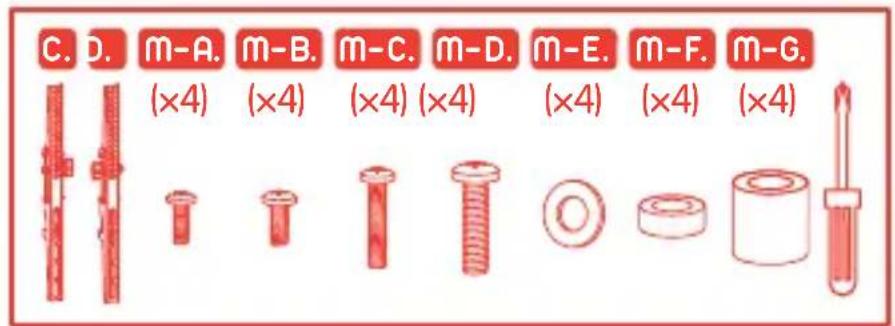

Attaching the Display Brackets

C. D. m-A. m-B. m-C. m-D. m-E. m-F. m-G. (×4) (×4) (×4) (×4) (×4) (×4) (×4) (×4)

Technical diagram showing mechanical assembly with labeled parts and directional arrows (no text or symbols)

For Displays with a Curved Back

Illustration of a mechanical device with attached components, no text or symbols present

OR

With combined spacers

Too short Too long

Mounting the Display

Important!

We recommend that two people perform these steps.

Simple line drawing of a screwdriver with a pointed tip and threaded shaft (no text or symbols)

Step 1

Step 1 Step 2 Safety Screw 13

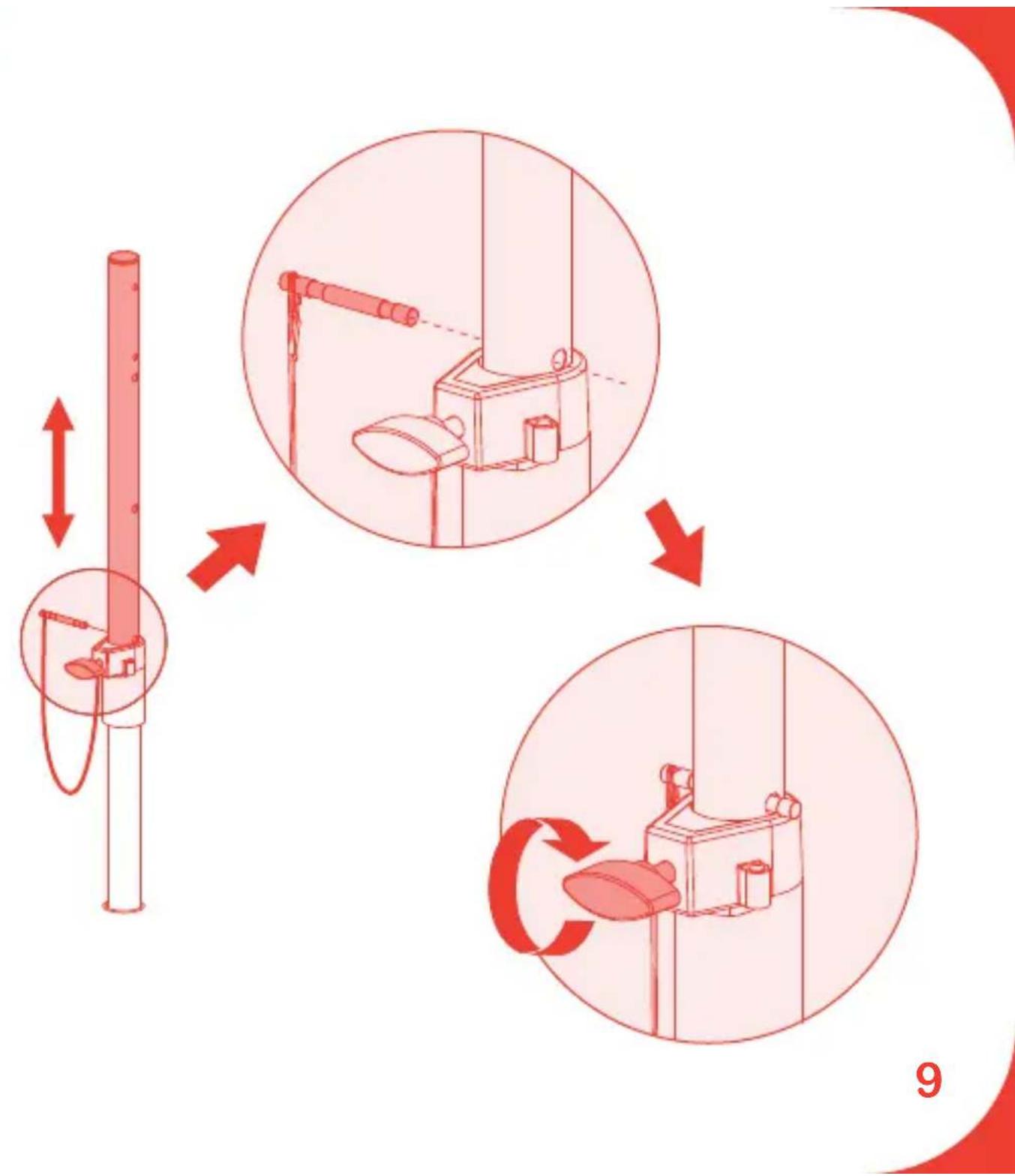

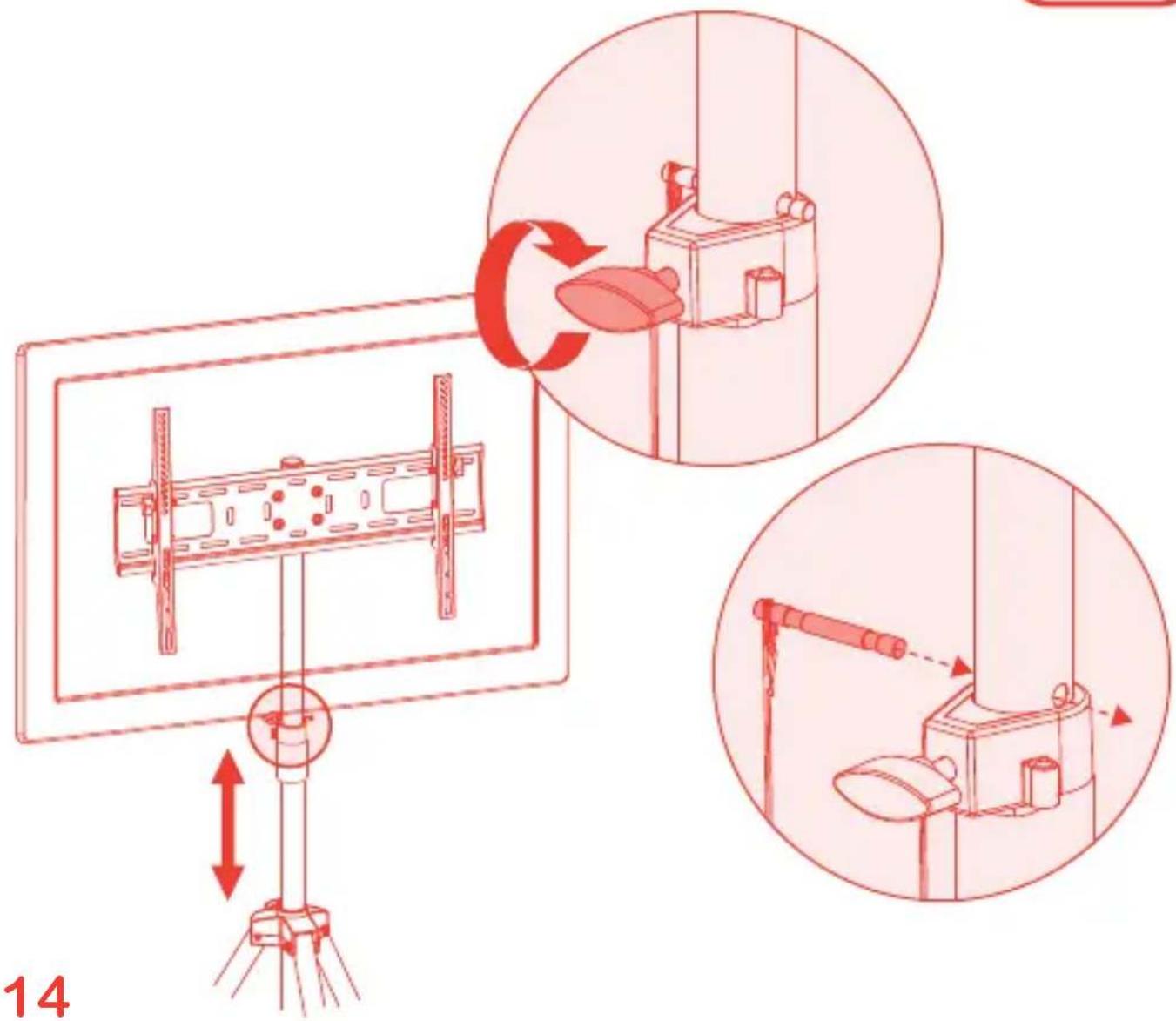

Height Adjustment

Simple line icon of two stylized human figures exchanging a document, enclosed in a rounded square (no text or symbols)

Illustration of a mechanical device with three views showing assembly and alignment (no text or symbols)

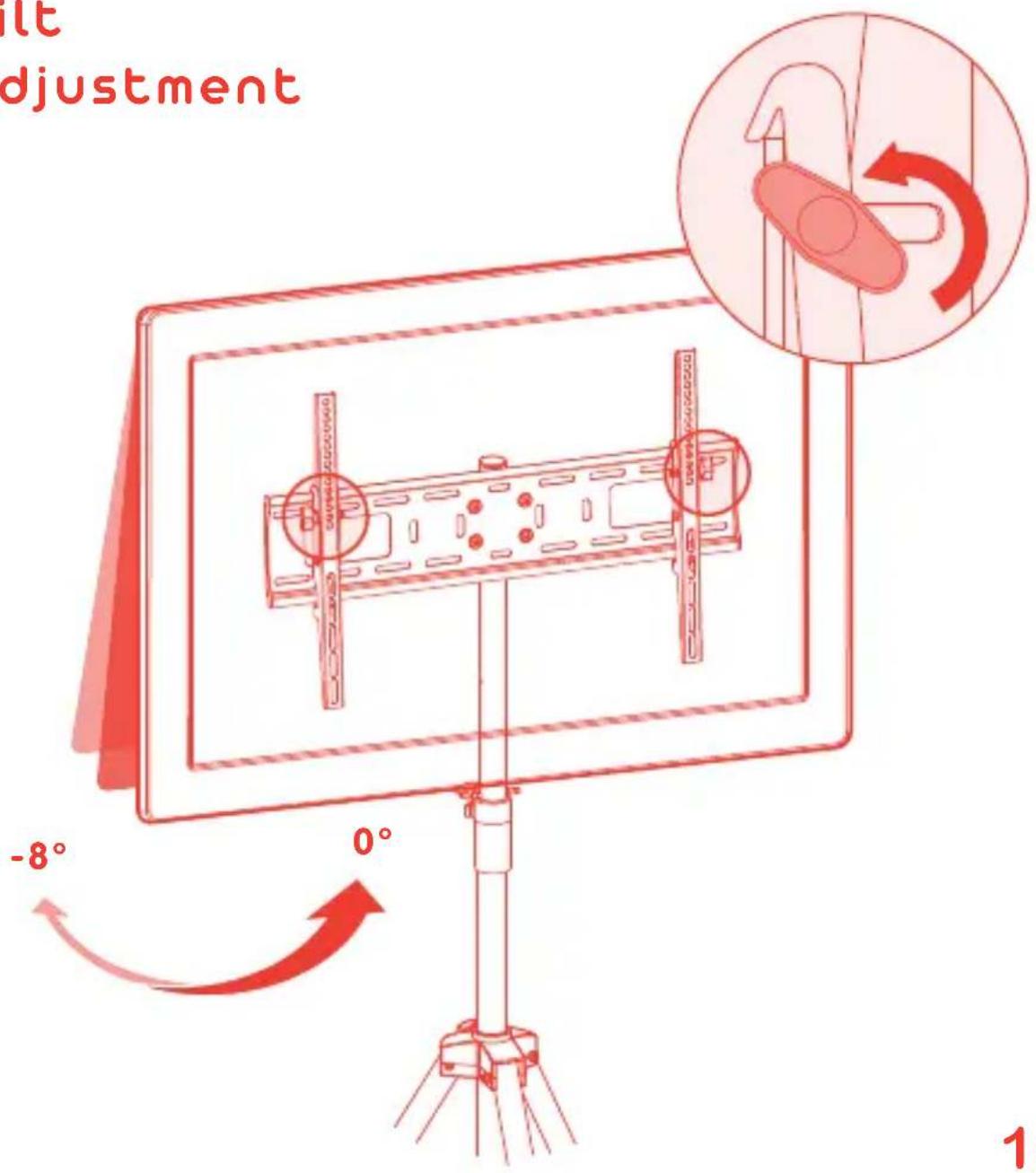

Tilt Adjustment

ilt adjustment -8° 0°

One-Year Limited Warranty

This Helder product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of One (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Helder Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Helder along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.clearashelder.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

Helder is a registered trademark of the Gradus Group.

© 2024 Gradus Group LLC. All Rights Reserved. GG2
