USER MANUAL DELV-2LCD7-4K Delvcam

with Full HD Resolution, 3RU rack mount design.

User Manual

DELV-2LCD7-4K

Exterior view of a modern office building (no signage)

IMPORTANT SAFETY INSTRUCTIONS:

• Please read User Guide before using this product.
• Please keep User Guide for future reference.

FEATURES:

➢ 160° Wide viewing angles;
▶ High resoluon: 1920×1200;
▶ High brightness: 400cd/m²;
▶ High contrast: 2000:1;
▶ Faster response me;
▶ TALLY interface with indicang light;
Firm & thin design.

CAUTIONS:

1. Please do not place the display screen towards the ground.
2. Please avoid heavy impact or drop onto the ground.
3. Please do NOT use chemical solutions to clean this product. Please wipe with a clean so cloth to maintain the brightness of the surface.
4. Please do not block any vent hole.
5. Please follow the instrucons and trouble-shoongs to adjust the product. Other improper adjustment may result in damage. Any further adjustment must be performed or conducted by a qualified technician.
6. Please unplug the power if long-term no-use, or thunder weather.

Contents

1. PRODUCT DESCRIPTION ....4
2. MENU SETTING ....5
3. PARAMETERS....15
4. ACCESSORIES....16
5. 3D LUT Loading Demo ....17
6. Remote Terminal Instrucons ....20
7. TROUBLE SHOOTING 22

1. PRODUCT DESCRIPTION

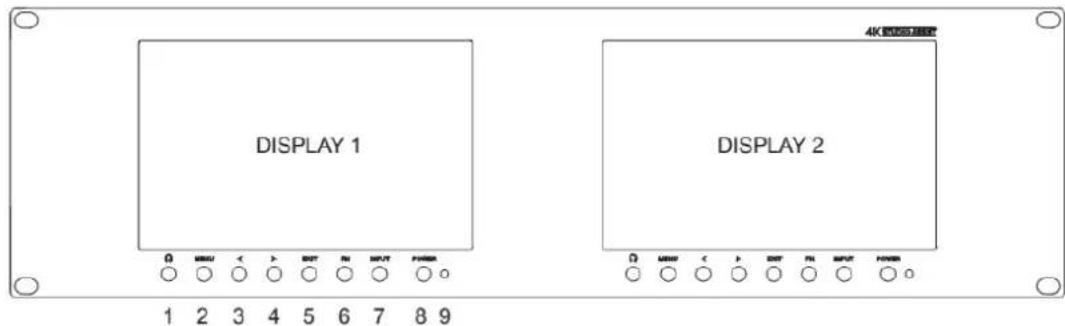

- Front Housing

DISPLAY 1 4K 100000000 DISPLAY 2 1 2 3 4 5 6 7 8 9

1. Earphone
2. MENU: To acvate OSD (on-screen display) menu. Press “◀ / ▶” buon to switch among the picture, marker, funcon, waveform, audio, system.
3. ◀ Le selecon buon: to select item on OSD menu and adjust its value; Press to decrease the value of brightness, sharpness, contrast, saturaon and Tint.
4. ▶ Right selecon buon: to select item on OSD menu, adjust its value and confirm it; Press to increase the value of brightness, sharpness, contrast, saturaon and Tint.

Note: When press ◀ or ▶” buon, then press MENU buon, it will acvate user-denable menu OSD(Brightness, Contrast, Saturaon, Sharpness, Volume, Back light, Peaking Level). User can select the shortcut item based on dierent demand. Volume is default.

1. EXIT
2. FN: Customized Funcon buon; to launch funcon menu quickly. Peaking as default.
3. INPUT: circularly switch among of HDMI, SDI.
4. POWER on/o buon
5. Power indicator light

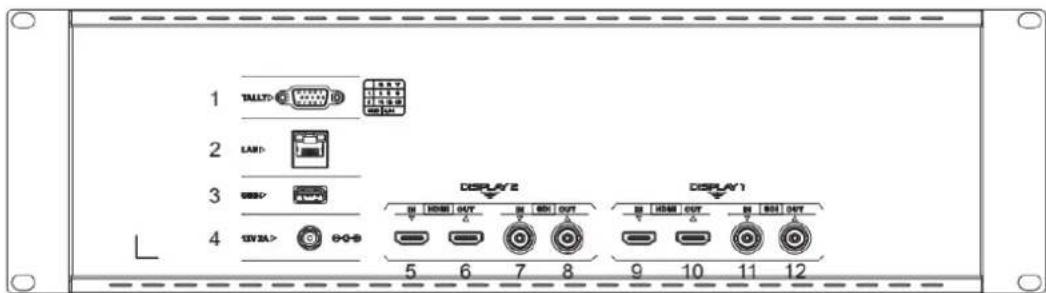

- Back Housing

1 TALYD 2 LAN 3 SIV3A 4 DISPLAY 2 5 6 7 8 DISPLAY 1 9 10 11 12

Note: The interfaces within DISPLAY 1 provide signal source for le monitor. The interfaces within DISPLAY 2 provide signal source for right monitor.

1.

TALLY interface and interface definition.

2.

LAN port. (Connected to PC network interface for funcon adjustment.)

3.

USB Input – LUT Loading and factory use.

4.

1. & 9.

HDMI input.

1. & 11.

SDI input

1. & 10.

HDMI output.

1. & 12.

SDI output.

2. MENU SETTING

Before seng the funcons, please make sure the device is connected correctly.

2.1 FN user-denable funcon buon:

Press FN buon to pop up the default opons, Use “◀ / ▶” buons to adjust the value of selected item.

Long press FN buon for 3-5 seconds to pop up shortcut menu directly. As

Center Marker

Aspect Marker

Safety Marker

Overscan

Scan

Aspect

Camera Log

Check Field

H/V Delay

Freeze

Color Bar

Peaking

False Color

Exposure

Histogram

TimeCode

shown in right Figure (default menu is displayed in white font).

Use “◀ / ▶” buons to select the desired item.

Funcons of FN buon can be customized: Center Marker, Aspect Marker, Safety Marker, Overscan, scan, Aspect, Camera Log, Check eld, H/V delay, Freeze, Color Bar, Peaking, False color, Exposure, Histogram, TimeCode, Mute, Level Meter.

2.2 MENU Operaon

Press "MENU" buon on the device aer power on. The menu used for seng funcon will display on the screen.

Press ◀/▶ buons to select the sub-menu; then press MENU buon to confirm it; aer that, press EXIT buon to return to main menu.

2.2.1 PICTURE

SDI Mode

HDMI Mode


	Brightness	50
	Contrast	50
	Saturation	50
	Tint	50
	Sharpness	0
	Camera Log	Off
	Def: Log	SLog3ToLB-709
	User Log	User1
	SDI

Brightness	50
Contrast	50
Saturation	50
Tint	50
Sharpness	0
HDMI EDID	4K
Camera Log	Off
HDMI

- Brightness

Control the degree of brightness between 0-100.

- Contrast

Control contrast rao between 0-100.

- Saturaon

Adjust the color intensity between 0-100.

Tint

Adjust nt between 0-100.

- Sharpness

Control sharpness of the image between 0-100.

- RGB Range

Use this item to choose the RGB range of the HDMI input: [Full], [Limited].

- HDMI EDID

Select the HDMI EDID from between [4K] and [2K]. This item enables PC or other devices to recognize the property of this monitor and makes the images look excellent on the screen.

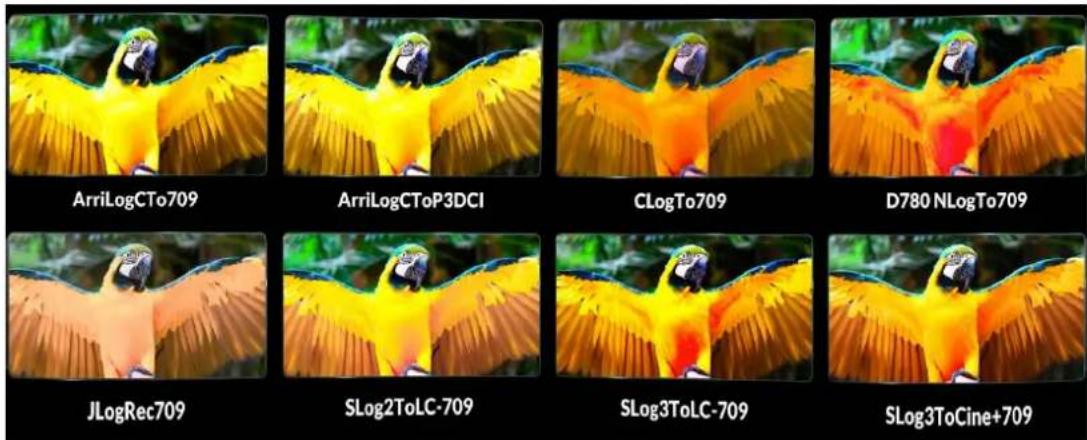

- Camera Log

Use this item to choose one of the camera Log modes:

- [O]: Turn o Camera Log.

- [Def. Log]: Use this item to choose one of the Camera Log modes as the following sequence: [SLog2ToLC-709], [SLog2ToLC-709TA], [SLog2ToSLog2-709], [SLog2ToCine+709], [SLog3ToLC-709], [SLog3ToLC-709TA], [SLog3ToSLog2-709], [SLog3ToCine+709], [ArriLogCTo709], [ArriLogCToP3DCI], [CLogToV709], [VLogToV709], [JLog To709], [JLogTo709HLG], [JLogTo709PQ], [Z7 NLogTo709], [D780 NLog To709].

- [User Log]: Use this item to choose one of the User Log modes (1-6). Please install the User Log as following steps:

The User Log must be named with. cube in the sux. Please note: the device only supports the format of User Log: 17x17x17 / 33x33x33; Data order is BGR; Table order is BGR. If the format does not meet the requirement, please use tool "Lut Tool.exe" to transform it. Naming the User Log as User1-User6.cube, then copy the user Log into USB ash disk. Insert the USB ash disk to the device, the User Log is saved to the device automatically at the rst me.

- Back Light

Adjust the level of the back light from 0 to 100.

- Color Temp.

Use this item to choose one of the color temperature presets: [6500K], [7500K], [9300K], [User].

Note: Only available under [User] mode to adjust R/G/B Gain and Oset.

- R/G/B Gain

Adjust the R/G/B Gain of the current Color Temperature from 0 to 255. Default value: 128.

- R/G/B Oset

Adjust the R/G/B Oset of the current Color Temperature from 0 to 511. Default value: 256.

2.2.2 MARKER

MARKER

Center Marker	off
Aspect Marker	off
Safety Marker	off
Marker Color	Red
Aspect Mat.	off
Thickness	2

SDI

- Center Marker

Select [On] to display the center marker "+" and [O] not to display it.

- Aspect Marker

Select the aspect rao of the marker: [O], [16:9], [1.85:1], [2.35:1], [4:3], [3:2], [1.3X], [1.5X], [2.0X], [2.0X MAG].

A bird in flight with wings spread across a grassy landscape (no text or symbols visible)

2.35:1

Bird in flight over a grassy landscape with mountains in the background (no text or symbols visible)

1.85:1

A bird in flight with wings spread across a grassy field under a cloudy sky (no text or symbols visible)

4:3

Bird in flight over a green landscape with hills in the background (no text or symbols visible)

3:2

- Safety Marker

- Select the size of the safety markers: [95%], [93%], [90%], [88%], [85%], [80%].

Note: When this item is used with the aspect marker, it is only in aspect marker.

- Marker Color

Select the color of marker displayed on the screen: [Red], [Green], [Blue], [White], [Black].

- Aspect Mat.

When acvated, it can be selected from 1-7 (Step value is 1).

A bird in flight with wings spread over a green landscape background (no text or symbols visible)

aspect mat 7

A bird in flight with wings spread across a grassy field under a cloudy sky (no text or symbols visible)

aspect mat 6

A bird in flight with wings spread over a grassy field under a cloudy sky (no text or symbols visible)

aspect mat 4

A bird in flight with wings spread across a grassy field under a cloudy sky (no text or symbols visible)

aspect mat 2

- Thickness

Adjust the thickness of all the marker lines from 1-7 (Step value is 1).

2.2.3 FUNCTION

FUNCTION
	Scan	Aspect
	Aspect	Full
	Overscan	Off
	H/V Delay	Off
	Check Field	Off
	Zoom	50%
	Freeze	Off
	HDMI

- Scan

Adjust the scan mode among [Aspect], [Pixel To Pixel], [Zoom].

Note: Aspect and Overscan funcons only can be adjusted under [Aspect] mode. Both of them cannot be adjusted in [Zoom] and [Pixel To Pixel] modes.

- Aspect

Select the aspect of the image among [Full], [16:9], [1.85:1], [2.35:1], [4:3], [3:2], [1.3X], [1.5X], [2.0X], [2.0X MAG].

Sunset over water with a large Ferris wheel in the sky (no text or symbols visible)

2.0X

Sunset over a waterfront with a large Ferris wheel and a rainbow visible in the sky (no text or symbols)

2.0X MAG

Sunset over a river with a large Ferris wheel in the sky and a distant building on the water (no visible text or symbols)

2.35:1

Sunset over a cityscape with a large Ferris wheel and a rainbow arching in the sky (no text or symbols visible)

1.85:1

Sunset over the Cape of London with a large Ferris wheel and city skyline in the background (no visible text or symbols)

3:2

Sunset over the Cape of London featuring a large Ferris wheel and city skyline under a dramatic cloudy sky (no text or symbols visible)

4:3

- Overscan

Use this item to acvate or deacvate overscan.

● H/V Delay

Select one of the H/V modes: [OFF], [H], [V], [H/V]. When H/V Delay on, the blanking porons of the input signal will be displayed horizontally and vertically.

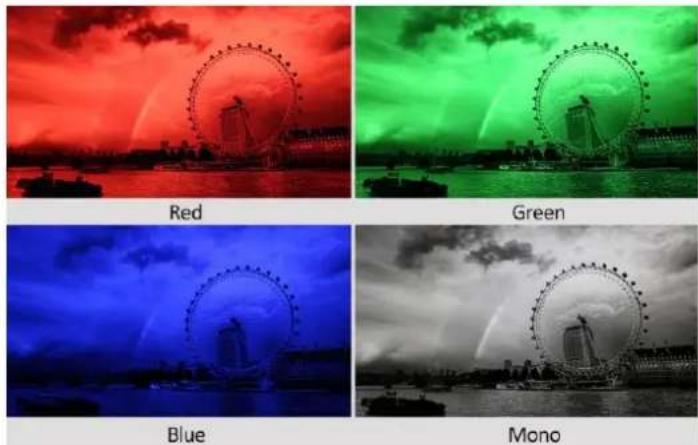

- Check Field

Select one of check eld modes: [O], [Red], [Green], [Blue], [Mono].

- Zoom

Select zoom scale from 10% to 90% (Step value is 10%).

- Freeze

Choose [On] to capture one frame of current image on the screen, and choose [O] to close freeze funcon.

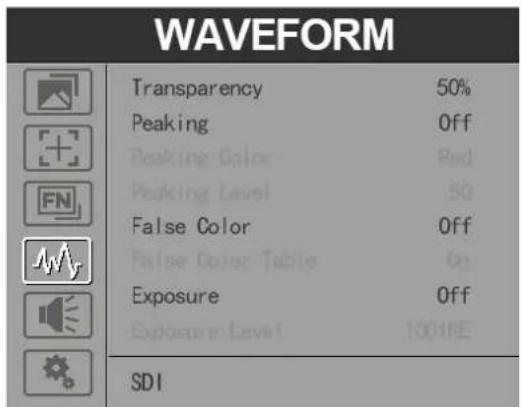

2.2.4 WAVEFORM

WAVEFORM Transparency 50% Peaking Off Peaking Color Red Peaking Level 50 False Color Off False Color Table On Exposure Off Exposure Level 100%RE SDI

- Transparency

Adjustment of transparency can support histogram, audio vector, level meter. Transparency can be selected from among [O], [25%], and [50%].

• [O] : The background of waveform is shown at black.
• [25%]: The background of waveform is shown at 25% intensity.
• [50%]: The background of waveform is shown at 50% intensity.

- Peaking

Use this item to acvate or deacvate the peaking funcon.

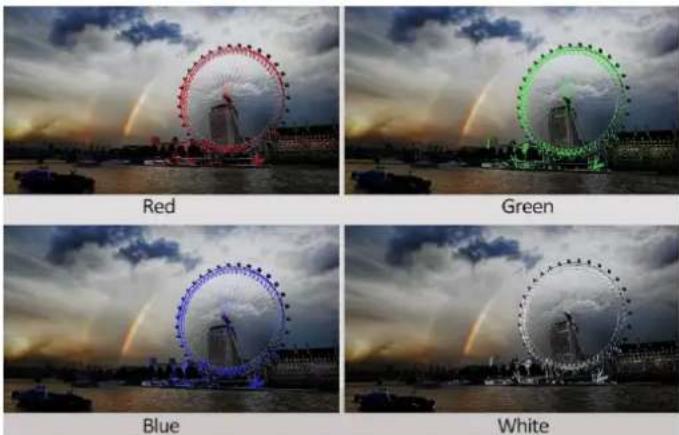

- Peaking Color

Select one of the peaking colors: [Red], [Green], [Blue], [White], [Black].

- Peaking Level

Use this item to adjust the level of peaking from 1-100. The higher peaking level is, the more obvious peaking eect is.

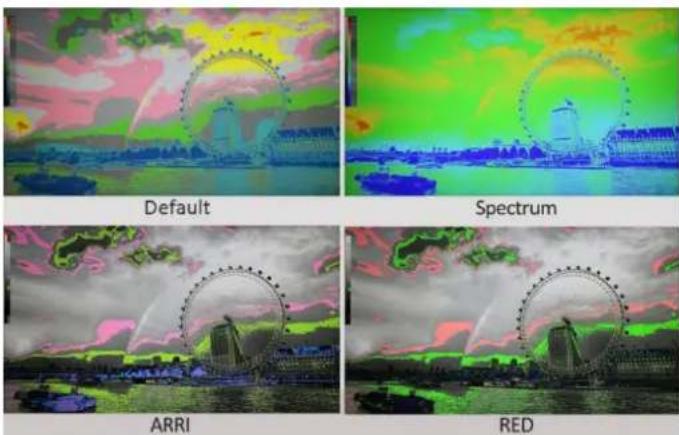

- False Color

Use this item to acvate or deacvate the false color funcon.

When acvated, [Default], [Spectrum], [ARRI], [RED] are for oponal.

- False Color Table

Use this item to acvate or deacvate the false color table.

- Exposure

Use this item to acvate or deacvate the exposure funcon.

When acvated, exposure works if the input signal exceeds the designated exposure level.

- Exposure Level

Use this item to adjust the level of exposure between 50-100 IRE.

Two photos showing a bird perched on a lotus flower, labeled Exposure Level 50 and Exposure Level 100, with numbered annotations (1-4) indicating exposure levels.

- Histogram

Use this item to acvate or deacvate histogram. When acvated, [Y], [RGB], [Color] are for oponal.

• [Y]: Display Y histogram.
• [RGB]: Display RGB mixed histogram.
• [Color], Display RGB separated histogram.

Abstract color gradient image with no text or symbols

RGB

Color

Abstract black-and-white graphic with sharp white peaks and vertical lines (no text or symbols)

Y

- Time Code

Use this item to acvate or deacvate the Time Code. When acvated, [LTC], [VITC] are for oponal.

Note: Time code is only available under SDI mode.

2.2.5 AUDIO

AUDIO Volume 50 Level Meter On Audio On SDI

Volume

Adjust the volume among 0-100.

- Level Meter

Select whether to acvate or deacvate level meter.

- Audio Ch

In HDMI mode, select one of the audio channel from among 1-8.

2.2.6. SYSTEM

SYSTEM Language English Color Bar 0ff OSD Timer 10s OSD H Position 50 OSD V Position 50 DHCP 0n IP Address 0 0 0 0 Sub Mask 0 0 0 0 SDI

- Language

Opon: [English], [Chinese].

- Color Bar

Turn on/o color bar. When the color bar on, it can be selected: [100%], [75%].

- OSD Timer

Opon: [10s], [20s], [30s].

- OSD H Posion

Opon: 0-100. Default: 50.

- OSD V Posion

Opon: 0-100. Default: 50.

DHCP

- [On]: The monitor will automatically get an IP address from network for remote control via various programs. - [O]: Manually congregate IP address.

IP Address

Manually congure IP address: 0.0.0.0

Note: When [DHCP] on, IP address cannot be manually set.

- Sub Mask

Manually congure Sub net Mask: 0.0.0.0

Note: When [DHCP] on, Sub net Mask cannot be manually set.

- Gateway

Manually congure Gateway: 0.0.0.0

Note: When [DHCP] on, Gateway cannot be manually set.

- Reset Opon: [O], [On]

3. PARAMETERS

Panel	2×7"
Physical Resoluon	1920×1200
Brightness	400 cd/m2
Contrast	2000: 1
Viewing Angle	160° / 160° (H/V)
Input Voltage	DC 12V
Input Signal	HDMI, SDI, LAN, TALLY, USB
Power Consumpon	≤18W
Operang Temperature	-20°C ~ 60°C
Storage Temperature	-30°C ~ 70°C
Dimension (LWD)	480×131.6×29.3mm
Weight	2.2KG

4. ACCESSORIES

Black electronic device with cable and connector, no visible text or symbols

Exterior view of a gray electrical connector (no text or symbols visible)

1. DC 12V Power Adapter
   1 piece
2. TALLY Connector
   1 piece
3. User Manual Card
   1 piece

5. 3D LUT Loading Demo

5.1. Format Requirement

- LUT format

Type: .cube

3D Size: 17x17x17

Data Order: BGR

Table Order: BGR

- USB ash disk version

USB: 2.0

System: FAT32

Size: <16G

● Color calibraon document: lcd.cube
- User Log: User1.cube \~User6.cube

5.2. LUT Format conversion

The format of LUT should be transformed if it doesn't meet monitor's requirement. It can be transformed by using Lut Converter (V1.3.30).

5.3. Soware user demo

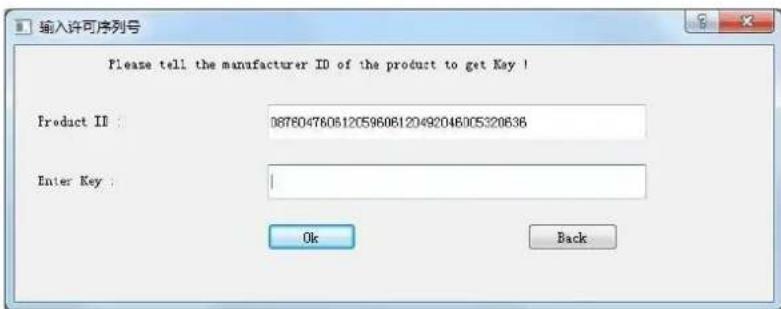

5.3.1. Acvate Lut converter

输入许可序列号 Please tell the manufacturer ID of the product to get Key ! Product ID : 087604760612C596061204920460C5320636 Enter Key : Ok Back

One individual Product ID for one computer. Please send the ID number to Sales to get an Enter Key. Then the computer gets the permission of the Lut Tool aer input the Enter Key.

5.3.2. Enter the LUT Converter interface aer input the Enter Key.

Lut Converter (v1.3.30) Input File File Name Type Default Order ✓ Data Order RGB Table Order NGR 3D Size 1D Size Financien Output File File Path Type cube 3D Size 17 Default Order ✓ Data Order NGR Table Order NGR 语言/Language: English Generate Lut

5.3.3. Click Input File, then select \*LUT.

Lut Converter (v1.3.3D) Input File File Name /ColorSpace Image cube Type cube Default Order ✓ Data Order RGB Table Order BGE 3D Size 17 1D Size 0 Dimension 2D Output File File Path Type cube 3D Size 17 Default Order ✓ Data Order BGE Table Order BGE 语言/Language: English Generate List

5.3.4. Click Output File, choose the le name.

Lut Converter (v1.3.30) Input File File Name /ColorSpace Image .cube Type .cube Default Order ✓ Data Order RGB Table Order IQR 3D Size 17 ID Size 0 Dimension SD Output File File Path Type .cube 3D Size 17 Default Order ✓ Data Order IQR Table Order IQR 语言/Language: English Generate .Lut

5.3.5. Click Generate Lut buon to nish.

5.4. USB Loading

Copy the needed les to the root directory of the USB ash disk.

Note! LUT files aer conversion must be named "User1", "User2", "User3", "User4", "User5" or "User6".

Plug the USB ash disk into USB port of the device aer power on. Click "Yes" on the pop-up prompt window (If the device doesn't pop-up the prompt window, please check if the LUT document name or the USB ash disk version meets monitor's requirement.), then press Menu buon to update automacally. It will pop-up a prompt message if the update completed.

6. Remote Terminal Instrucons

Remotely control the device by Remote Terminal applicaon.

- Home Screen

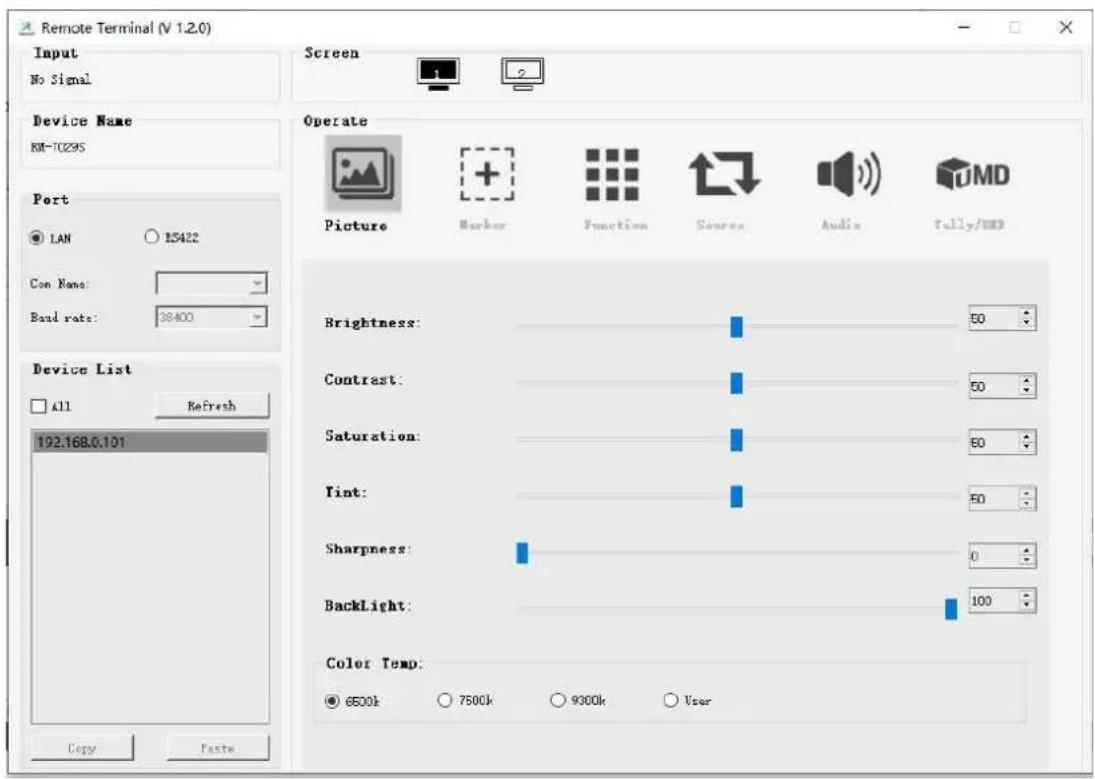

Remote Terminal (V 1.2.0) Input No Signal Device Name RM-TC295 Port ● LAN ○ 15422 Con Name: Band rate: 38400 Device List □ All Refresh 192.168.0.101 Copy Paste Screen Operate Picture Marker Function Source Audio Tally/WD Brightness: 50 Contrast: 50 Saturation: 50 Tint: 50 Sharpness: 0 Backlight: 100 Color Temp. ● 6500k ○ 7500k ○ 9300k ○ User

Picture: The home screen of the applicaon

• Input: Display the signal format of the connected device. For example, there is "No Signal" when no device is connected or no signal is input.
  ● Device Name: Display the Model No. of the connected device.
• Port: Select the conneccon way of the port when connecng a device, and support LAN communicaon protocol.
  ● Device List: Display all of the found peripheral device.
• Screen: Display the number of screens for the selected device and the current screen index.
• Operate: Operate the items for the device.
  ● Control Screen: The control rules for the device.

- Funcon

- Port Selecon: Select the specific conncon port according to the device interface and click "LAN" to switch.

● Device Search: Click "Refresh" buon to search devices aer configuring the port. There are all of the found devices in the device list aer a successful search.

- Screen Choice: The “Screen” shows the number of the screens for the current device. For the device with mulple screens, use le mouse buon to click the screen icon to select the corresponding screen for operaon; use right mouse buon to click the screen icon to copy the screen.

● Device Control: Click the icons of [Picture], [Marker], [Funcon], [Source], [Audio] and [UMD] to switch the control page of the corresponding funcon.

- Acvate "All": Simultaneously control all of the devices in the device list if there is two or more devices with the same model aer acvang "All".

- Device Copy Funcon: If there are two or more devices with the same model in the device list, click one of them and click "Copy" buon to copy the source device, and then click the target device and click "Paste" buon to copy the conguraon of the source device to the target one.

7. TROUBLE SHOOTING

1. Only black-and-white display:

Check whether the color saturaon is properly set up or not.

1. Power on but no pictures:

Check whether the cables of HDMI, SDI are correctly connected or not. Please use the standard power adapter equipped with the product package. Improper power input may cause damage.

1. Wrong or abnormal colors:

Check whether the cables are correctly and ghtly connected or not. Broken or loose pins of the cables may cause a bad conncon.

1. When power on, the picture shows size error:

Press “MENU → DISPLAY → Overscan” to zoom in/out pictures automatically when receiving HDMI signals

1. Other problems:

Please press "MENU" button and choose "SYSTEM→ Manufacturer Default →ON", then press "ENTER" buon to conrm it.

Note: due to constant eort to improve products and product features, specicaons may change without prior noce.
