ACPBM-77Y - Unknown CRUX - Free user manual and instructions

Product Type	Smart-Play Integration System
Brand	CRUX
Model	ACPBM-77Y
Compatibility	BMW vehicles with CIC infotainment system (E- and F-series, 2004-2013)
Smartphone Compatibility	Apple iOS (wireless CarPlay); Android 8+ (wired Android Auto)
Wireless Connectivity	Bluetooth and Wi-Fi for Apple CarPlay
Video Inputs	Front camera input (Smart-Play) and rear camera input (aftermarket or OEM)
Camera Support	Adds aftermarket rear view camera input; retains OEM camera output with parking sensor graphics
Trigger Output	1 x +12V max 1A (Pink wire) for Smart-Play module or camera power
Audio Connection	Vehicle AUX input via 3.5mm jack; uses SMART-LINK audio output (sold separately)
Power Supply	12V DC vehicle electrical system
Dimensions (approx.)	4.7 x 3.1 x 1.2 in (120 x 80 x 30 mm)
Weight (approx.)	7.0 oz (200 g)
LED Indicators	Solid blue, green, red LEDs indicate proper operation
OSD Menu	On-screen display for input settings, camera configuration, and display adjustments
DIP Switches	3 switches to set monitor size (6.5", 7", 8.8", 10") and vehicle trim (E- or F-series)
Installation Type	Behind factory head unit; requires removal of dashboard panels and connection to iDrive knob (F-series)
Included Parts	ACPBM-77Y module, Power/CAN harness (E- and F-series), Vehicle harness, LVDS cables (2), Microphone, 3.5mm-to-RCA adapter
Display Modes	Full, 16:9, Zoom, AV+LVDS (split-screen) depending on monitor type
Rear Camera Graphics	Picture-in-picture combining aftermarket camera with OEM parking sensor graphics

Frequently Asked Questions - ACPBM-77Y CRUX

Which BMW models are compatible with the ACPBM-77Y?

Compatible with BMW vehicles equipped with the CIC infotainment system, including 1 Series, 3 Series, 5 Series, 6 Series, 7 Series, X Series, and Z4 models from 2004 to 2013. See the vehicle applications list in the manual for specific model years and body styles.

How do I set the DIP switches for my vehicle?

Use DIP switches 1-3 on the interface box to match your monitor size and vehicle trim. For example, CIC-E (E-series) with 6.5" monitor: DIP 1=OFF, DIP 2=OFF, DIP 3=OFF. After changing, power-cycle the interface. Refer to the DIP switch table in the manual for all configurations.

What do the LED colors on the interface indicate?

The interface must show solid blue, green, and red LEDs for proper operation. If any LED is missing or flashing, check connections and power.

How do I enable an aftermarket rear view camera?

In the OSD menu, set REARCAM (RVC) to ON. Also configure the trigger output for the camera. For camera power, use the Pink wire (POWER OUT 1) with setting CAN or RGEAR. Connect camera video to the REAR CAM input on the module.

How do I connect the audio for Smart-Play?

Connect the audio output of the SMART-LINK module to the vehicle AUX input using a 3.5mm jack (adapter included). On the factory system, select AUX as the audio source. Avoid Bluetooth interference by disabling automatic phone-to-car Bluetooth pairing.

Why isn't my Android phone connecting wirelessly?

Android devices require a wired USB connection. Use the smartphone's OEM charger/data cable and plug into the USB port on the ACPBM-77Y. The phone must run Android 8 or newer.

What should I do if there is no rear camera image when reversing?

Check that REARCAM (RVC) in the OSD menu is set to ON (for aftermarket) or OEM (for factory). Verify the camera video connection and trigger wire (Pink). Ensure the parking logic setting (e.g., RGEAR) is correct. Also confirm the DIP switches are set for your monitor size.

How do I adjust the display brightness, contrast, and saturation?

From the Smart-Play home screen, select the settings icon, then choose the Display submenu. Adjust brightness, contrast, and saturation to your preference. These settings are retained per video input. On some monitors, you can also change picture format via long press of the OPTION button.

Can I keep the factory backup camera when installing this module?

Yes. In the OSD menu, set REARCAM (RVC) to OEM. The interface will display the factory camera and parking sensor graphics in a picture-in-picture mode when reverse gear is engaged.

How do I enter the OSD menu?

While in the factory infotainment menu, press and hold the MENU button for 3-5 seconds to enter forced view mode. Then use the iDrive knob to navigate the OSD. A short press of MEDIA cycles through video inputs.

USER MANUAL ACPBM-77Y CRUX

• Smart-Play Integration system allows connection of Android and other devices to the iDrive infotainment system.
• Control Apps using smartphone's voice control feature or the factory iDrive Knob.
• Adds aftermarket rear view camera input.
• Picture-in-picture mode combining after-market rear-view picture with factory parking sensor graphics.
• Built-in on-screen display and setup.
• 1 trigger output (+12V max. 1A) for the camera power.
• Smartphone Mirroring
• Integrate wireless CarPlay/Android Auto

* NOTE: Android Phones must have a firmware version of 8 and above.

* NOTE: Vehicle must have factory AUX input

PARTS INCLUDED:

ACPBM-77Y Module Power/CAN Harness 1 (E-Series) Power/CAN Harness 2 (F-series)

ACPBM-77Y Vehicle Harness 3.5mm to RCA Adapter Smart-Play Interface Module

LVDS 2 Cable (to radio)

Coiled black cable with two connectors (no text or symbols visible)

LVDS 1 Cable (to vehicle) Microphone

NOTE:

This kit has two separate POWER/CAN harnesses. Only use the harness that's designed for your vehicle.

POWER/CAN 1 - E-Series Trims

POWER/CAN 2 - F-Series Trims

INSTALLATION DIAGRAM:

DIP SWITCH SETTINGS:

Setting the DIP switches of the Interface Box.

DIPs 1 and 2 on the back of the interface-box is used to set the monitor size.

After each change of the DIP switch settings you have to execute a power reset of the Interface box!

Vehicle/ navigation	DIP 1	DIP 2	DIP 3
CIC-E (E-series), 6.5" monitor – version 1	OFF	OFF	OFF
CIC-E (E-series), 6.5" monitor – version 2	ON	OFF	ON
CIC-E (E-series), 8.8" monitor	OFF	ON	OFF
CIC-F (F-series), 7" monitor	ON	OFF	OFF
CIC-F (F-series), 8.8" monitor	OFF	ON	OFF
CIC-F (F-series), 10" monitor – version 1	ON	ON	OFF
CIC-F (F-series), 10" monitor – version 2	ON	OFF	ON

LED's of the interface-box

NOTE: Must have solid BLUE, GREEN, RED, LEDs for part to work..

OSD SETTINGS:

OSD Menu

Use the following buttons to enter the ACPBM-77Y OSD Menu:

NOTE: Must be in factory infotainment menu to trigger full OSD menu

To ensure that Smart-Play works, make sure these input settings are in effect:

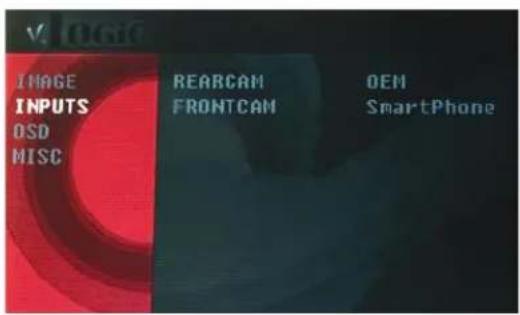

FRONTCAM (FVC) = SmartPhone

To retain the factory Back-Up Camera:

REARCAM (RVC) = OEM

To activate an aftermarket Back-Up Camera:

REARCAM (RVC) = ON

IDRIVE CONTROL

Controlling of the connected SMART-LINK module

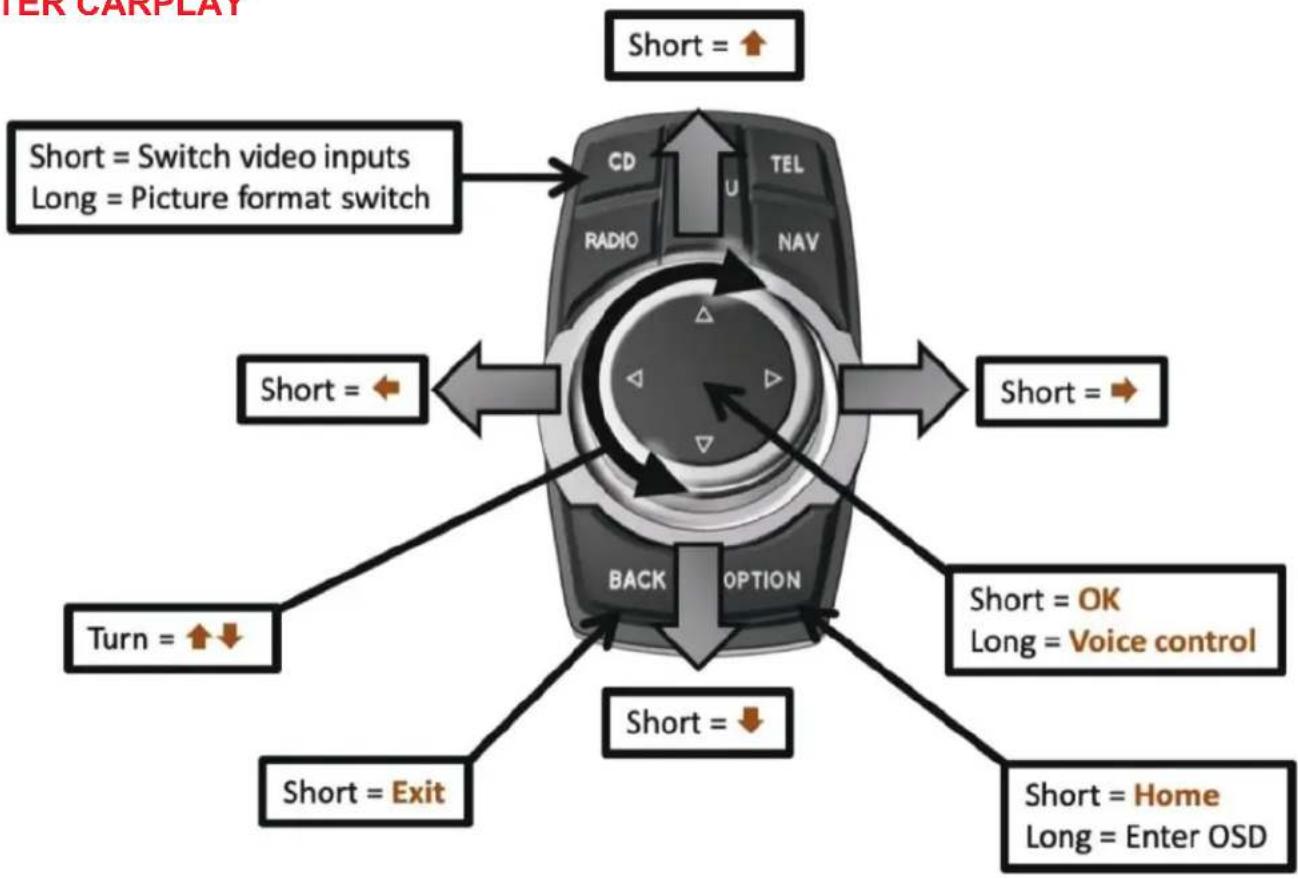

The picture shows which functions of the connected SMART-LINK module can be executed by iDrive control panel. Once the FVC/SmartPhone input is activated the iDrive control panel action will execute the function described in the picture.

ENTER CARPLAY

CONFIGURING THE TRIGGER OUTPUTS

You can configure the +12V trigger outputs in the OSD menu. The PINK wire (12V OUTPUT 1) in for the SMARTPLAY module. Power Out 2 is for the Cameras.

^* =Recommended

OSD-menu	Menu item	Setting		Description
OPTION	POWER OUT 1 (PINK)	CAN	*	Smart-Play power on power off
		OFF
	POWER OUT 2 (GREEN)	CAN	*	+12V when the interface is on (red LED on)
		ACC		+12V when ignition is on
		CAM		+12V when the rear-view camera input is activated
		RGEAR	*	+12V when reverse gear is engaged
		OFF		Trigger output deactivated

Tip: We recommend for all cameras to use power out setting "CAN" or RGEAR and for Smart-Play, power out setting of "CAN"

SETTINGS FOR INPUT AND OPTIONS

OSD-menu	Menu item	Setting	Description
INPUT	FVC	OFF	No front camera/SMART-LINK connected
		SMARTPHONE	Enables the " FRONT CAM" input and control for the SMART-LINK set
		PDC	For vehicles with PDC button. Enabled while parking process and up to 20 km/h or together with PDC if existing
OPTION	PARK LOGIC	RGearOnly	Enabled while parking process
		RGearSpeep	Enabled while parking process and up to 20 km/h
		RGearTime	Enabled while parking process and up to 20 second
	RVC GRAPHICS	PIP1	OEM PDC display of the vehicle
		LINES Interactive lane lines activated

Note: You can deactivate the enabled parking process by pressing the iDrive or by enabling other modes (e.g. radio). After deactivation you can't enable the parking process again until the vehicle is diving faster than 20km/h, the ignition is switched off and on or the PDC will be disabled and enabled again, if existing.

SETTINGS FOR OEM REAR-VIEW CAMERA

OSD-menu	Menu item	Setting	Description
INPUT	RVC	OEM	If a factory rear-view camera is existing!The interface turns off, if PDC or reverse gear is enabled and it displays factory rear-view camera and/or PDC-display
OPTION	PARK LOGIC	PDC	For vehicles with PDC button. Enabled while parking process and up to 20 km/h or together with PDC if existing

6 of 17

rev.091322

SMART-LINK AUDIO CONNECTIONS

By using an audio cable (sold separately), connect the audio output of the SMARTLINK module to the vehicle AUX input.

NOTE:

Make sure the audio source on the factory system is set to AUX mode (not AM/FM/Bluetooth). Also, if your smartphone is set to automatically connect to your factory bluetooth, make sure you void the connection. One way is to forget the device (your vehicle) on your phone. This will avoid Smart-Play connection interferences. If you are using the wireless feature and notice degraded audio or video quality, switch to the wired alternative, for it is a higher quality connection, unlike bluetooth.

CONNECTING THE SMART-PLAY INTERFACE:

The ACPBM-77Y utilizes wireless technology for Apple devices. Android devices are required to be plugged in to the USB port using the smartphone's OEM charger/data cable. The USB port on the ACPBM-77Y can be used to charge the Apple device or play videos or music from a USB thumb drive In the vehicle's Media menu, activate AUX Input to get the Smart-Play sound through the vehicle's audio

Using the ACPBM-77Y Input Selection

Switch the vehicle's audio source to the AUX source. This will allow us to hear the Smart-Play audio through the audio system. Hold the "MENU" button for 3-5 seconds to enter forced view mode.

A short press of the "MEDIA" button will toggle through the video sources. Each short press will toggle to the next enabled input. If all inputs are enabled the order is:

Rear CAM > Video Input (Smart-Play) > Repeat ...

To exit the Smart-Play menu, hold the "Menu" button for 3-5 sec

1. Picture above shows the HOME screen of the Smart-Play interface. Music and Video is used in conjunction with a USB thumb drive plugged into the USB port.

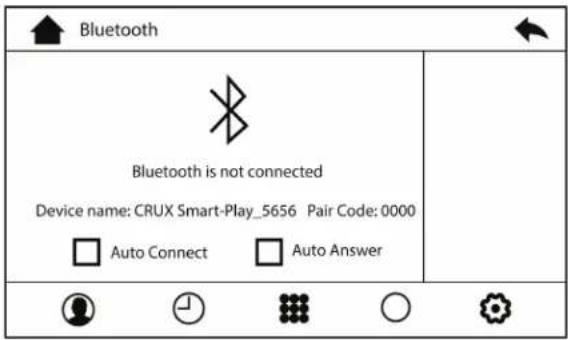

1. Go to the 'Settings' then 'Bluetooth' on your Apple device and connect to /CRUX Smart-Play_XXXX'

1. Use the iDrive knob to navigate the cursor to the 'Back' button

1. Using the iDRIVE knob of the vehicle, navigate the cursor to the Bluetooth icon (scrolling right). Image above will appear on the screen the BT device name and pairing code (0000)

1. Once the ACPBM-77Z has connected via Bluetooth, it will also connect to Wi-Fi automatically.

1. Image above shows the 'Home Screen' once the smartphone is connected.

Display settings for Smart-Play

Adjust brightness, contrast, and saturation for a more defined image.

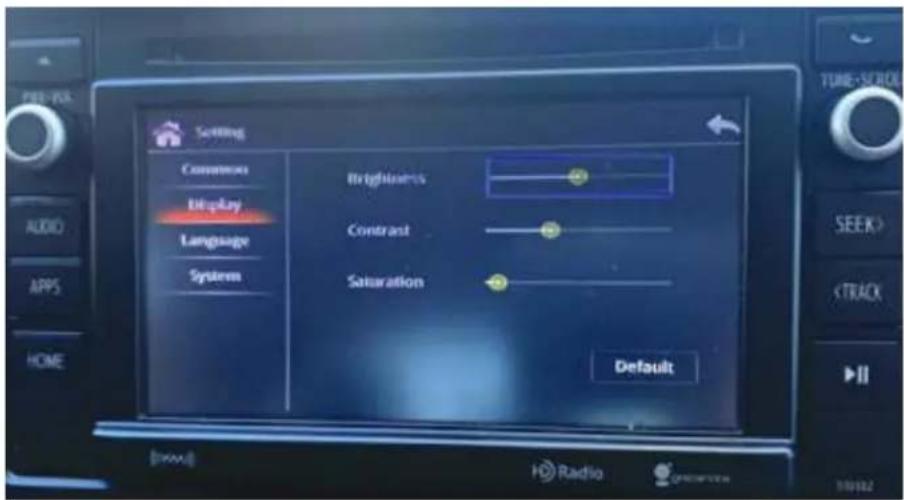

To get to the Display menu, scroll to the SETTING icon in the Smart-Play HOME menu, and select it.

Once in the SETTING menu, scroll to the Display submenu and adjust the brightness, contrast, and saturation to your desired values.

- Brightness - Contrast - Saturation • Hue - Sharpness  Note: The picture settings will be retained for each video input separately. The picture format can be changed in the SMART-LINK video level by long pressing the OPTION -button). \- 8.8" and 10.2" 24:10 ultrawide monitor: -FULL = 24:10 video full screen mode -16:9 = 16:9 video in the center -AV+LVDS = 16:9 video on left side, factory picture on right side  \- 6.5" and 7" 16:9 monitor: -FULL = 16:9 video full screen mode -ZOOM = 16:9 video full screen mode - zoom

OSD Settings

You can change the basic configurations of the interface in the OSD (on screen display).

OSD Menu M	Menu Item	Setting	Description
OSD	POS. X 0-xxx		Horizontal position of the OSD
	POS. Y 0-xxx		Vertical position of the OSD
	Size	Small Small OSD menu window
		Large Large OSD menu windows
	Osd TimeOut 2	-20	Time setting for automatic OSD shutoff
Info Version X	.XX.XX Displays	the current SW-version
Option 1	Factory Reset		Reset to factory default settings

 10 of 17 rev.091322

INSTALLATION INSTRUCTIONS:

 1. Installation is done behind the front panel.

Close-up of hands cleaning a car airfoil with a red tool (no visible text or symbols)

2. Carefully remove the dashboard front panel using a trim removal tool.  3. Carefully remove the hazard/door-unlock panel and unplug the harness.

Close-up of hands adjusting a mechanical component with no visible text or symbols

4. Remove the push-to-start panel and its connector to fully take off the front panel.

Close-up of hands operating a camera mode control panel with a red tab (no visible text or symbols)

5. Remove the A/C control panel using a trim removal tool, along with the cables connected to it.

Close-up of a hand inserting a CD into a car air conditioner unit (no visible text or symbols)

6. Carefully remove the Headunit panel.

Interior view of a computer case with visible wiring and components (no readable text or symbols)

7. Remove the 4 screws bracing the Headunit.

Close-up of hands installing or adjusting a device into a machine (no visible text or symbols)

8. Remove the Headunit to gain access to its backside.

Hand holding a small metal wire component with visible traces and connectors (no text or symbols)

9. Unplug the Quadlock connector from behind the radio.

Close-up of a hand holding a black connector with wires, next to an electrical plug (no visible text or symbols)

10. Unplug the 2-pin fiber optic cable from the factory Quadlock connector.

Close-up of hands connecting wires to a small electronic component (no visible text or symbols)

11. Plug in the 2-pin fiber optic connector to the ACPBM-77Y harness (Female side).

Close-up of hands installing or adjusting a small electronic component with wires and components (no visible text or symbols)

12. Plug the factory Quadlock connector in to the male side of the ACPBM-77Y harness.

Close-up of a hand holding wires connected to an electronic device (no visible text or symbols)

13. Plug in the female side of the ACPBM-77Y harness to the Headunit.

Close-up of a black plastic connector with multicolored wires and a visible label (no readable text or symbols)

14. Connect the male 8-pin connector from the ACPBM-77Y to the female 8-pin connector on the Power/CAN harness.

Close-up of a mechanical component with a pink connector inserted into a black housing (no visible text or symbols)

15. Unplug the PINK LVDS factory cable from the Headunit.

Close-up of electronic equipment with colored connectors and cables (no visible text or symbols)

16. Connect the LVDS 2 cable in place of the PINK LVDS factory cable.

Close-up of a computer interface with a cable and connector (no visible text or symbols)

17. Connect the factory PINK LVDS cable to the male end of the LVDS 1 cable (CYAN colored connector).

Close-up of a hand holding a small electronic device with colorful components, no visible text or symbols

18. Plug the otherside of the LVDS 1 cable into to the LVDS OUT port on the ACPBM-77Y module. And plug the otherside of the LVDS 2 cable into the LVDS IN port on the same module. 19. If your vehicle is an F-series trim, we will need to access the CAN data from beneath the iDrive knob. This only applies to you if you are using the Power/CAN 2 Harness. If you are installing on an E-series trim (Power/CAN 1) you can skip steps 23 - 28. Refer to P. 16 for the wiring diagram for the F-series if needed.

Close-up of a hand holding a white cloth over a car interior, with a textured surface visible (no text or symbols)

20. Carefully remove the center trim using a trim removal tool to get underneath the iDrive knob.

Close-up of a small electronic component with wires and connectors, no visible text or symbols

21. Your vehicle may have a 4-pin or 10-pin connector for the iDrive knob. Remove the iDrive connector.

Close-up of hands holding a small electronic component with wires and a small display (no visible text or symbols)

22. Using a pin removal tool, remove the Green(CAN LO Pin 4) and Orange/Green(CAN HI Pin 3) wires from the iDrive connector. Both 4 & 10 pin connectors have the same pin positions.

Close-up of a car gear shift lever with visible wiring and sensor (no text or symbols)

23. Insert the two pins (Orange/Green --> Pin1 & Green --> Pin2) into the empty 2-pin connector attached to the Yellow/Black & Blue/Black wires from the Power/CAN 2 harness.

Close-up of a hand holding a wire with multicolored wires, next to a blurred electronic device (no visible text or symbols)

24. Insert the Yellow (CAN HI) --> Pin3 and Blue (CAN LO) --> Pin4 wires into the 4-pin iDrive connector (inplace of the Green & Orange/Green wires removed earlier).

Close-up of a black mechanical component with red wires and a textured beige surface, no visible text or symbols.

25. Plug in the modified iDrive connector back into the port underneath the iDrive knob.  26. Plug the Video Out from the Smart-Play Power/Video harness into the FRONT CAM input on the module.

Close-up of hands holding a black electronic device with a yellow cable and connector, no visible text or symbols

27. Plug the otherside of the LVDS 1 cable into to the LVDS OUT port on the ACPBM-77Y module. And plug the otherside of the LVDS 2 cable into the LVDS IN port on the same module. 28. If installing an aftermarket back-up camera, plug the camera's video out to the REAR CAM input on ACPBM-77Y module. Use the PINK power output 1 wire provided on the Power/CAN harness to power the camera. An image is displayed in step 26. If retaining an OEM camera or if you're not installing a back-up camera, skip steps 25 and 26.

Close-up of a hand holding a pink cable with wires, no visible text or symbols

29. Connect the red power wire to the PINK power output 1 wire.

Close-up of a hand inserting a cable to a car's steering wheel, showing red and white connectors (no text or symbols visible)

30. Connect the audio out RCAs from the Power/Video harness to the RCA inputs on the 3.5mm to RCA adapter.  31. Plug in the 3.5mm jack into the vehicle's factory AUX input.

Close-up of a car's rearview mirror and side mirror (no visible text or symbols)

32. Mount the microphone to a location of your choice.

Close-up of a hand holding a black cable with wires, no visible text or symbols

33. Connect the 3.5mm microphone jack to the MIC input on the Power/Video harness.

Hand holding a black electronic device with labeled ports (RGB, LVD, UART) and wiring, no readable text or symbols beyond labels.

34. Connect the white wire with the 4-pin connector from the Power/CAN harness to the UART port on the Smart-Play module.

Close-up of a hand holding a small black USB connector on a car steering wheel (no visible text or symbols)

35. Route the USB cable to a desired location and connect it to your smartphone's lightning cable.

Close-up of hands holding a black electronic device with visible wiring and labels (no readable text or symbols)

36. Connect the Power/Video harness to the POWER/VIDEO port on the Smart-Play module.

Close-up of a black electronic device with illuminated ports and wiring (no visible text or symbols)

37. Test the communication. Turn on the ignition and check if LEDs are on. 38. Check the OSD settings and make sure they match those on the next page. Test the Back-Up camera. Put gear in reverse and check for rear camera image on screen. Go to Smart-Play mode and test for functionality. Once the cameras and Smart-Play validation is complete, mount the ACPBM-77Y and Smart-Play modules. And finally, reinstall all the components to their original set-up.

F-SERIES CAN CONNECTION

1. Remove the iDrive from the centre console and unplug the existing flat female 10pin or 4pin cable connector. 2. Remove pin 3 green/orange CAN-high and pin 4 green CAN-low of vehicle harness from the female cable connector. 3. Pin yellow (blue) pin of Power/Can harness into pin 3 CAN-high (pin 4 CAN-low) of the female cable connector. 4. Pin the green/orange cable CAN-high (green cable CAN-low) of the vehicle harness into pin 1 of the included female 2pin AMP connector. 5. Connect female 2pin AMP connector to 2pin AMP connector (yellow/black and blue/black cable) of Power/Can harness.

VEHICLE APPLICATIONS:

BMW

1 SERIES		6 Series
2007 - 2011	1 Series 3-door hatchback	2011-Up	6 Series
2007 - 2013	1 Series 2-door Coupe (1M)	2011-Up	6 Series Convertible
2004 - 2012	1 Series (5-door)
2008 - Up	1 Series Convertible	7 Series
		2008-Up	7 Series
		2009-Up	7 Series long wheel
3 SERIES
2005 - 2011	3 Series Sedan
2005 - 2011	3 Series Wagon	X SERIES
2006 - 2013	3 Series Coupe	2009 - Up	X1 Sports Vehicle
2007 - Up	3 Series Convertible	2012-Up	X3 Sports Vehicle
2005 - 2011	3 Series Sedan	2007 - 2013	X5 Sports Activity Vehicle
2005 - 2011	3 Series Wagon	2008 - 2011	X6 Sports Activity Coupe
2006 - 2013	3 Series Coupe
2007 - Up	3 Series Convertible

5 SERIES

2011-Up	5 Series
2012-Up	5 Series Sports Wagon

Z SERIES

2009 - Up

Z4 Roadster

 Your vehicle must have this CIC infotainment system to use this product.
