USER MANUAL Bastion Azza
USER MANUALUSER MA
- Specifications
- Chassis Parts
- Control Panel Functions
- 3.5"/2.5" HDD/SSD Installation
- Cooling System Installation
| Model | |
| Model Name | Bastion |
| Model Number CSAZ-120 | |
| Specifications | |
| Type Micro ATX Mid Tower | |
| Color Black/Black(interior) | |
| Side Panel Window | Left Side panel: Magnetic Tempered Glass Door |
| Max CPU Cooler Height UP to 175mm | |
| Max Video Card Length Up to 340mm long video card | |
| Power Supply Not Included | |
| Motherboard Compatibility | Micro ATX、ITX |
| Expansion | |
| External 5.25" Drive Bays 0 | |
| Internal 2.5" Drive Bays Up to 4 | |
| Internal 3.5" Drive Bays Up to 2 | |
| Expansion Slots 4 | |
| Top Ports | Power button, reset button,Led button, HD Audio, USB 3.0 x 1, USB2.0x2 |
| Physical Specifications | |
| Dimensions (HxWxD) | 390x230x400mm/15.4x9.1x15.7 inches |
| Weight 4.2kg /9.26lbs | |
| Features | |
| Tempered Glass Side Window | High-quality tempered glass side window allows for clear visuals to inner components |
| Available Fan Ports | 2x120mm or 2x140mm or 1x200mmFan ports in the front2x120mm or 2x140mm Fan ports on the top1x120mm or 1x140mm Fan port in the rear(1x140mm Fan included for model CSAZ-120) |
| Water Cooling | Supports radiator up to 240/280mm in the FrontSupports radiator up to 240mm on the Top |
| Dust Filters | Removable (magnetic) dustproof net on the top , iron net on bottom of chassis. |
| Power Supply Support | Bottom mounted ATX Power Supply |


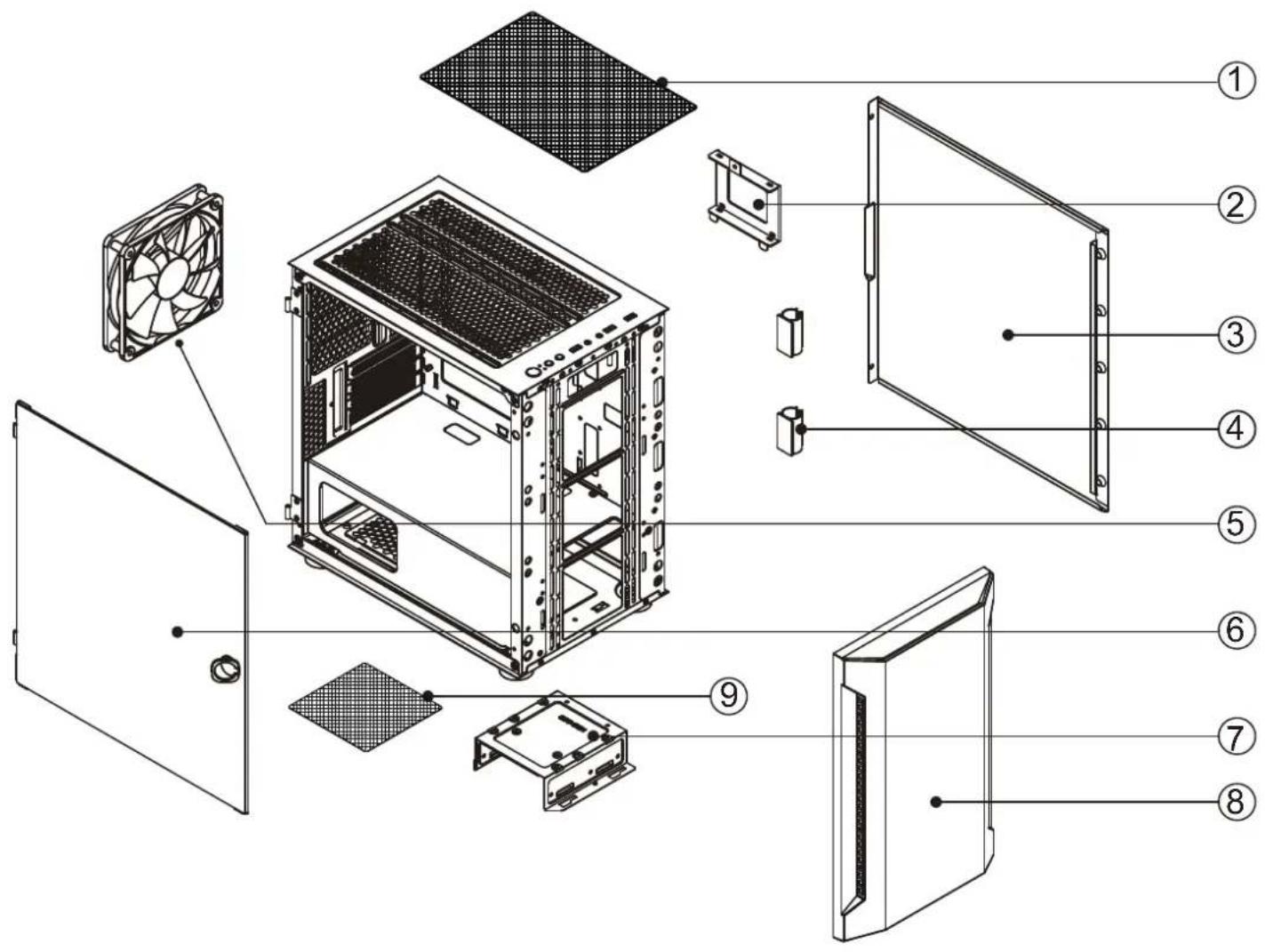

Exploded view diagram of a desktop computer with labeled components in Chinese| 1 | Removable (magnetic) dustproof mesh |
| 2 | SSD tray |
| 3 | Right side panel |
| 4 | Cable clip |
| 5 1 | 4cm fan x1 |
| 6 | Left magnetic tempered glass door |
| 7 | HDD tray |
| 8 | Front panel |
| 9 | iron mesh |


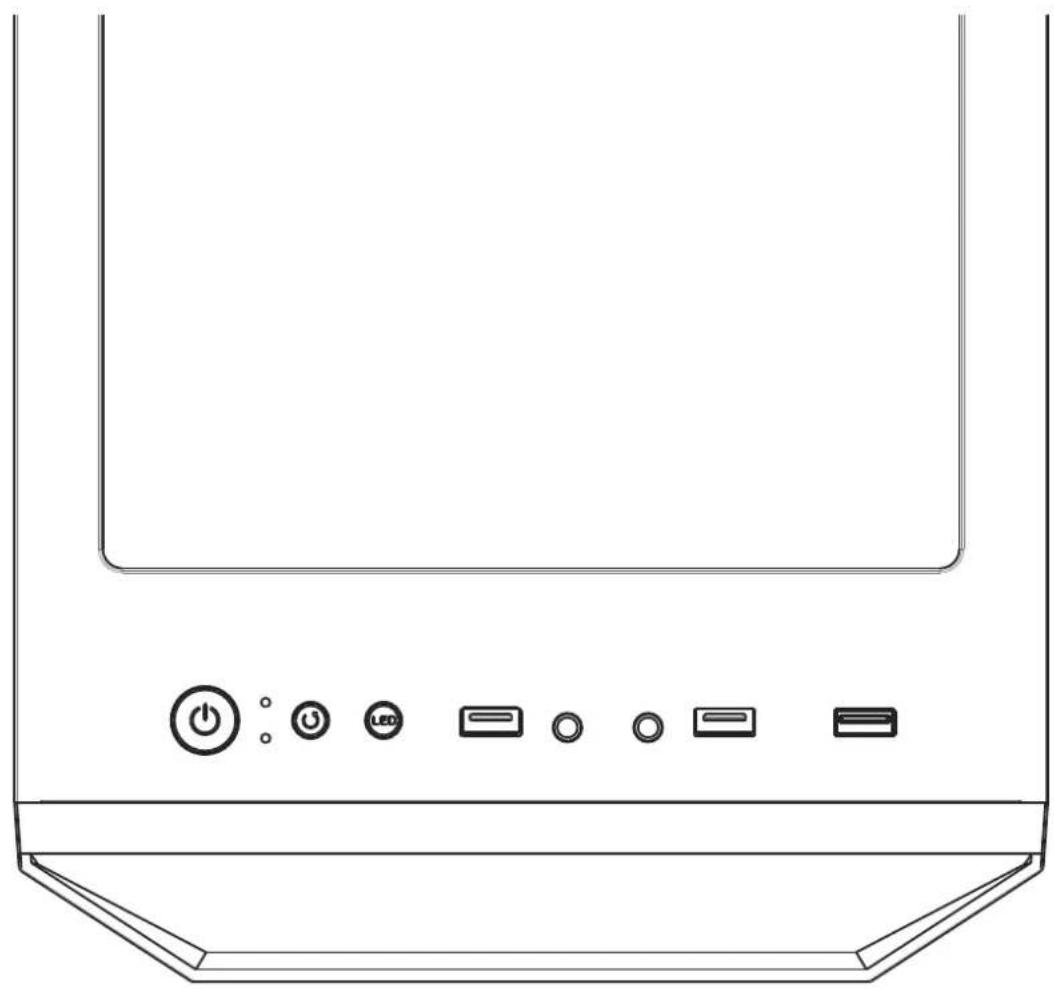

Line drawing of a computer monitor front panel with control buttons and indicator lights (no text or symbols)| POWER | |
| RESET | |
| LED | |
| Audio |
| USB 3.0 (Blue) | |
| USB 2.0 (Black) | |
| Mic |


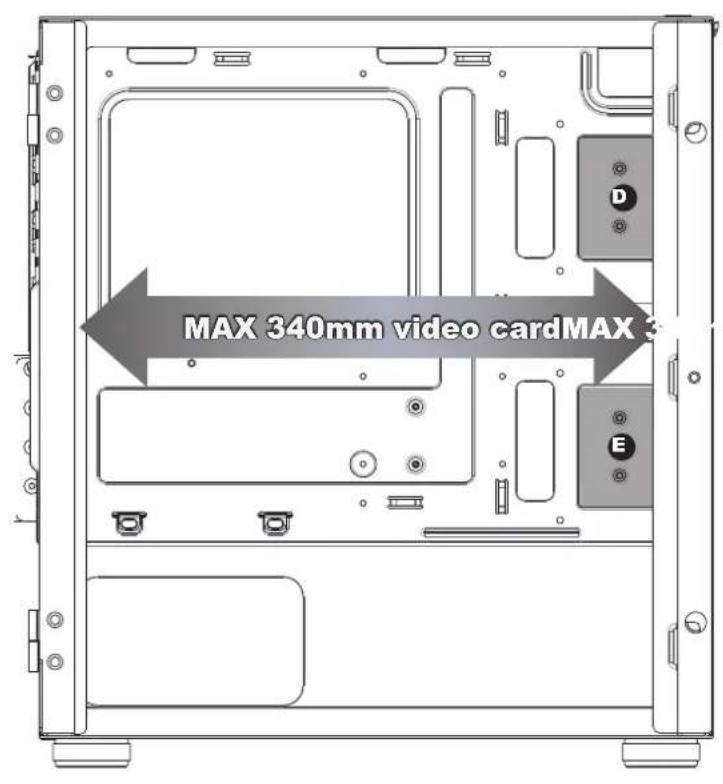

MAX 340mm video cardMAX D E- Supports up to 340mm long video cards.
-Supports 2.5" SSD X4 (C D E F)

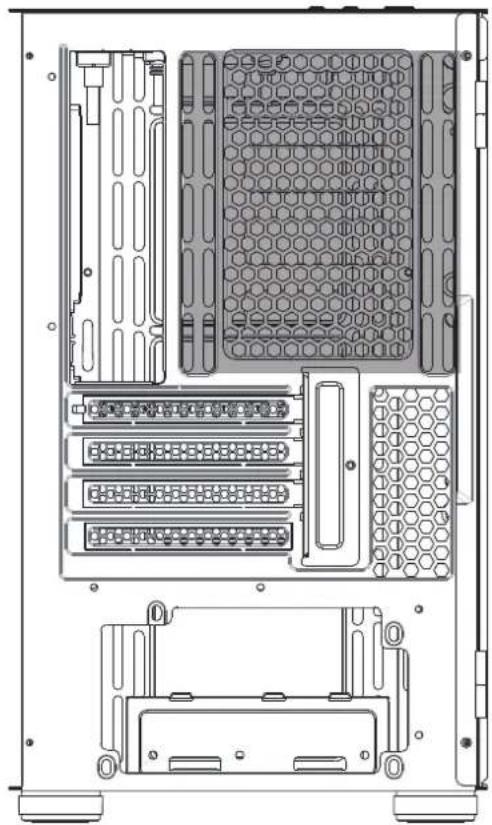

Front
280 mm


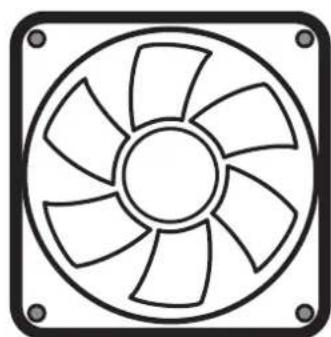

Line drawing of a fan with six blades, no text or symbols presentor
Front
Rear
or
Top
or

