USER MANUAL MX6 Kogan

Line drawing of a vacuum cleaner with long handle and control panel (no text or symbols)

MX6 CORDLESS 22.2V STICK VACUUM CLEANER

KAVACSTM06X

SAFETY & WARNINGS

• Ensure to read the instructions in this user guide thoroughly. Store the user guide for future use.
  • Use the appliance on a stable, flat, heat-resistant surface.
• Never immerse any part of the plug or the main unit in water or other liquids.
  • Never leave the appliance unattended while in use.
• Ensure the power supply voltage is as per the rated voltage.
• Remove the battery pack when not in use or for maintenance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way by the person responsible for their safety, and understand the hazards involved.
• This appliance is suitable for children 8 years and older. Pay close attention to children's safety when they are near the appliance. Do not let children play with the appliance to avoid accidents.
  • Do not let the pets go near the appliance.
• This appliance is for domestic use only. It should not be used for any purpose other than its intended use.
• Do not use this appliance to suck liquid, sharp objects such as nails, pushpins, etc.
• Do not hang the power cord at the edge of the desk or counter. Do not let it touch any heat source. Do not pull the power cord to avoid damage to the power cord.
  • If the power cord is damaged, cease use immediately and contact Kogan.com
• Do not disassemble or repair this appliance. Contact Kogan.com or the Kogan.com recommended professionals to repair the appliance.
  • Use this appliance with the Kogan.com recommended accessories.
  • In the event of a malfunction, cease use immediately and contact Kogan.com

COMPONENTS

Line drawing of a vacuum cleaner device (no text or symbols)

Main Unit

Aluminium Tube

Simple line drawing of a bottle with a ring, enclosed in a rounded square frame (no text or symbols)

Wall Bracket

Charger

Accessories

Line drawing of a vacuum cleaner (no text or symbols)

Electric Brush

2-in 1 Brush

OVERVIEW

Technical diagram of a vacuum cleaner with numbered parts for identification

1 Main Unit
2 Dust Cup Lock
3 Tube Lock
4 Charging Port
5 On/Off Switch
6 Handle

7 Dust Cup
8 Dust Release Button
9 Aluminium Tube
10 Brush Lock
11 Electric Brush
12 Speed Control Button

ASSEMBLY

1. Choose an accessory according to your cleaning requirement.

2. Insert the aluminium tube into the main unit until it clicks into the place.

Technical line drawings of two mechanical components (no text or symbols)

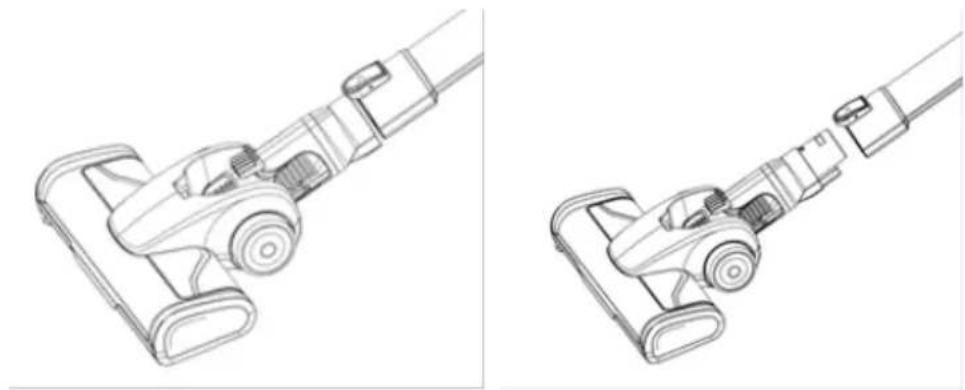

1. Insert the accessory you have chosen into the aluminium tube.

Technical line drawing of a mechanical device with two views (top and side), no text or symbols present.

1. Make sure the installation is firm before you use it.

2. To remove the aluminium tube, press and hold the tube lock. To remove the accessory, press and hold the brush lock.

OPERATION

1. Press the on/off switch, the appliance will start to work in the low speed mode.

Technical line drawing of a mechanical device with no visible text or symbols

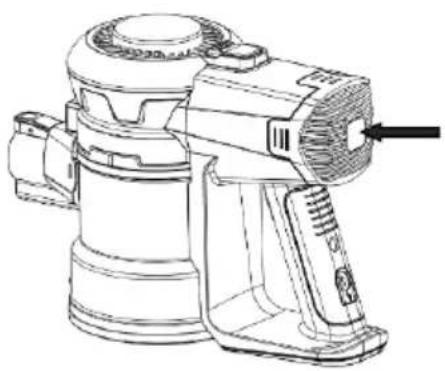

1. Press the speed control button, the appliance will work in the high speed mode.

2. Press the speed control button again to return to the low speed mode.

Line drawing of a mechanical device with no visible text or symbols

Note:

• When using, do not exceed the maximum line indicator in the dust cup.
  • This appliance is for dry suction only.
• Ensure there is no clogging in any of the openings to avoid motor overheating and damage.

Charging

1. Connect the charger to the charging port and turn on the power supply to start charging.
2. When charging, you can see the blue light gradually flash and then it becomes solid when it is fully charged.

WARNING: Charge the appliance only with the charger supplied with it to avoid damage.

CLEANING & CARE

• Never immerse the main unit in water or any liquid.
- Only use a soft, slightly damp cloth to clean the main unit. Do not allow any liquid to enter the main unit.
- Except the main unit, other parts can be washed with warm soapy water. After cleaning, it must be thoroughly dried.
• Do not use any corrosive chemicals or abrasives.
• Do not use when the filter is damaged or worn out.

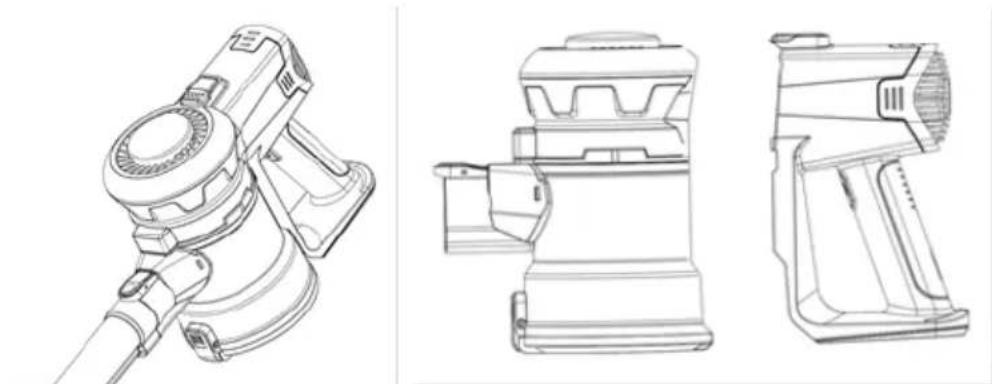

Cleaning Dust Cup

Note: Empty the dust cup and clean the filter every time it is used.

1. Press and hold the dust cup lock to separate the dust cup from the main unit.

Technical line drawings of three different types of household appliances (no text or symbols present)

1. Press and hold the dust release button to empty the dust from the dust cup.

Technical line drawings of two mechanical devices, one with a handle and arrow indicator, the other with a lever mechanism (no text or symbols)

Cleaning Filter

1. Separate the upper part of the dust cup and the dust cup.

Technical line drawings of two mechanical components, one showing a rotating mechanism and the other a flanged housing (no text or symbols)

1. Remove the filter and the air inlet filter. Wash them in warm water.
2. Dry the filter for 24 hours before placing it back into the dust cup.

Note:

• Do not dry the filter with drying equipment. Dry naturally.
- Do not clean it with other cleaning equipment. Follow the instructions in this section.
- Replace the filter every three months (depending on the usage) to ensure the best performance.

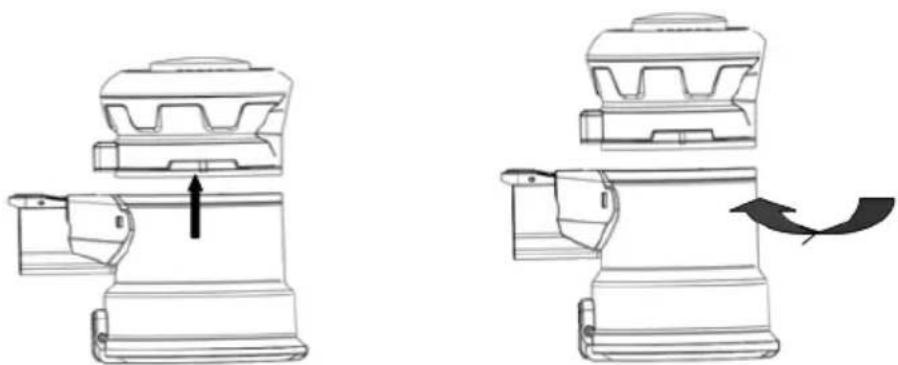

Re-installing Filter and Dust Cup

1. Place the filter and air inlet filter in the dust cup.
2. Insert the upper section of the cup into the dust cup. Ensure it is inserted into the "Lock" position.

Technical line drawing of a mechanical component with two views showing internal structure and rotation (no text or symbols)

1. Insert the dust cup back into the main unit.

TROUBLESHOOTING

Problem	Cause	Possible Solution
Weak Suction Power	Dust cup and filters are full of dust.	Clean the dust cup and filters regularly.
	The brush head is blocked by hair.	Clean the brush.
Abnormal Sounds	The aluminium tube is blocked	Clean the blockage inside of the aluminium tube. If there are any abnormalities, contact Kogan.com
Charging Indicator Light Flashes	The brush or dust cup is blockage has caused the current increase	Clean the blockage. See the Cleaning & Care section if this user guide.
	Ambient temperature is too high or too low, causing the battery humidity to be too high or too low	Ensure the appliance is operated at a right temperature (0 - 55 °C).
	A different charger is used to charge the battery.	Charge the battery using the charger supplied with the appliance.
Brush is Not Working	The brush head is blocked by hair.	Clean the brush.
Appliance is Not Working	The battery power is low.	Charge the battery. See the Operation section of this user guide.
	The aluminium tube nozzle is blocked.	Clean the aluminium tube nozzle.

Disposal

This marking indicates that this appliance should not be disposed with other house-hold wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

SPECIFICATIONS

Battery Configuration	Lithium-ion 2000mAh 22.2V
Rated Power	120W
Input Power	AC 100-240V, 50/60Hz 0.5A
Output Power	DC 26.5V, 0.5A
Charging Time	4-5 Hours
Operating Time	Maximum of 28-30 minutes (when the battery is fully charged)
Protection Class	II
