USER MANUAL WVINS-07 CRUX

• Enables wireless (Wi-Fi) Audio/Video mirroring from mobile devices to the OEM display screen for shared linking of functions from most Smartphones to the OEM Screen.
• Provides an Audio/Video input that can also be used for a camera.
• Includes a USB input to play Audio and Video files.
• Provides a virtual remote control via a smartphone wifi connection.
• Dual band (5GHz and 2.4GHz) Wifi capability for clear connection.
• Includes HMDI output for high quality video.
• Works with Facetime, Navigation apps, Skype, E-mail, text, and other apps.
• Streams Youtube® videos.

WORKS WITH:

iOS 7 and newer

OS 4.2 and newer

PARTS INCLUDED:

Coiled black cable with various connectors and connectors, no visible text or symbols

WVINS-07 SWC Module WVINS-07 Harness

CRUX® Wi-Fi Video Interface with HDMI Out WVI-H

WVI-H WiFi Module Power Harness

Black cable with multiple colored connectors (red, yellow, black) attached to a white background, no text or symbols visible.

Close-up of a black cable with two yellow connectors and red connectors attached (no text or symbols visible)

Dual Antennas WiFi AV Out Harness AV In / Video Out Harness

Coiled black cable with multiple colored connectors (no text or symbols visible)

Extension AV Cable IR Extension IR Remote Control

rev.1105201 of 5

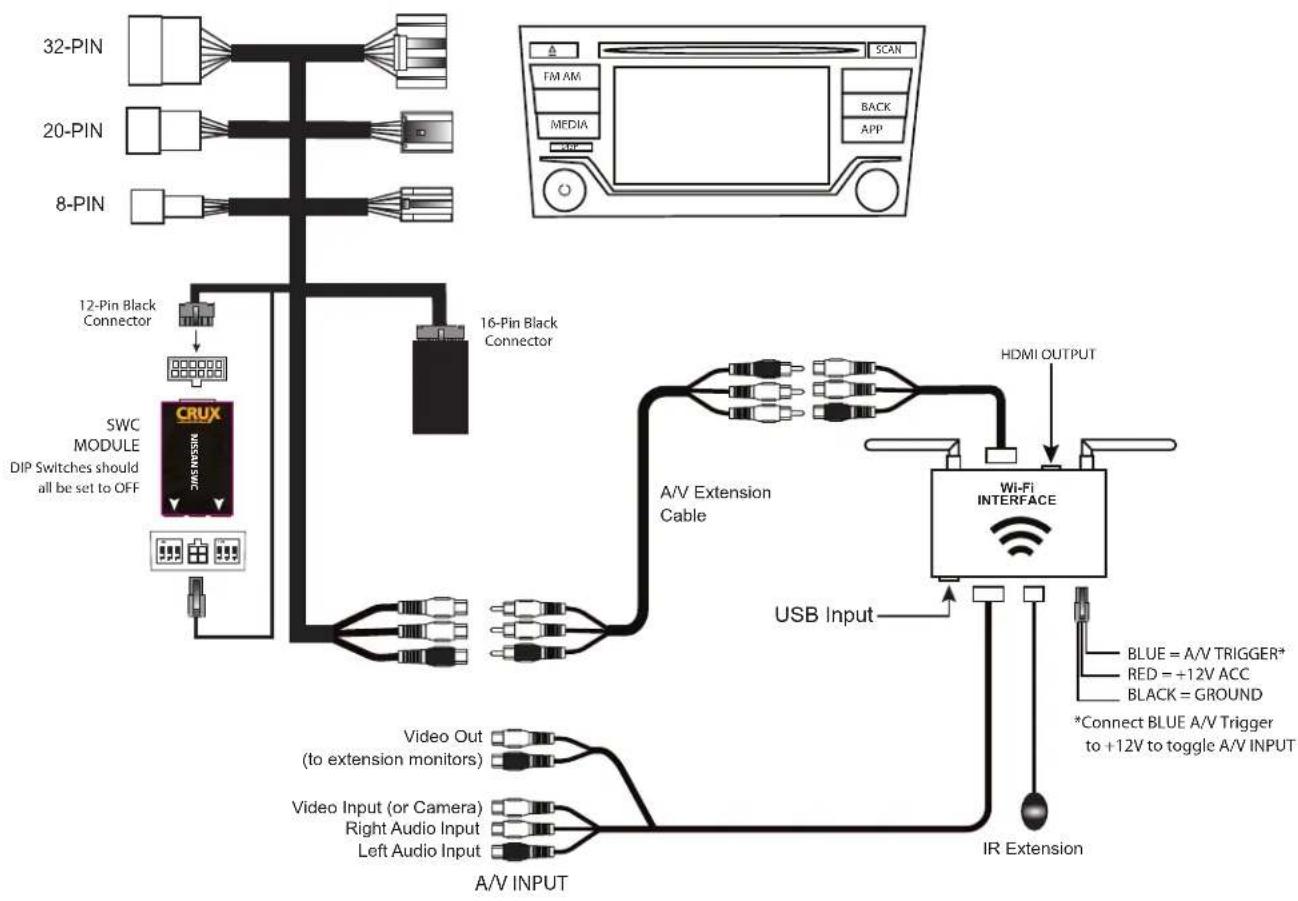

INSTALLATION DIAGRAM:

INSTALLATION INSTRUCTIONS:

THE AV INTERFACE:

1. Remove the factory radio from the dashboard and unplug the factory connectors from behind the radio.
2. Mate the T-Harness connections to the factory connectors. (Make sure all connectors are properly seated into the interface and into the radio.)
3. Connect the audio and video source to the female RCAs on the WVINS-07 T-Harness.
4. Test the system before putting back the radio.

THE WIFI INTERFACE:

1. Connect the 18-Pin power/video cable to the Wi-Fi Interface module.
2. Connect the antenna leads to the module.
3. Connect the RED power lead to +12V ACC and the BLACK wire to Ground.
4. Connect the BLUE wire to +12V to trigger the optional video input feature. The video input can be connected to a camera source. A toggle switch (not included), wired between the BLUE wire and +12V can be used to switch ON or OFF the video input feature.
5. An HDMI video output is available for HD video resolution. Connect to a screen that has an HDMI input. The HDMI cable is not included in the kit.
6. If the USB input feature will be used, you can use the virtual remote control on your smartphone to control the USB functions. See VIRTUAL REMOTE section for details. Extended the USB cable to an easily accessible location.
7. Plug in the Composite RCA output of the WVI-H harness to the WVINS-07 AV input.
8. Set the Wifi Module to either 5GHz or 2.4GHz by pressing the MODE button on the Wifi module. You can see which band you are using at the lower left hand side of the screen while in the home screen (with Crux logo). Test which band works well in your vehicle.

SETTING YOUR DEVICE:

With the WVI-H module ON and READY:

For iOS devices:

Open settings > Select Wi-Fi > Under 'Choose Network' Select "Crux WiFi ***"

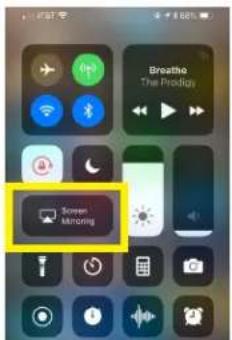

After connecting to Crux Wifi, select "SCREEN MIRRORING" from the Control Center and tap Crux Wifi ***. To access Control Center, on iPhone X, pull down from the upper right corner of the screen, on other iPhone models, pull up from the bottom of the screen.

NOTES:

1. Does not support Netflix and any DRM protected files on iOS devices due to Restrictions by Apple.

CRUX INTERFACING SOLUTIONS Cron Wi-Fi 321 Ready for concrete Produce 9550-7686 CRUX

Breathe The Prodigy Screen Mirroring

For Android devices:

From the drop down drawer, press "Quick Connect" > Select "Crux Wifi ***"

Notes:

1) Make sure the "Power Saving Mode" is turned off.
2) Make sure Quick Connect is updated to the latest version.

VIRTUAL REMOTE CONTROL:

The WVI-H comes with a Virtual Remote Control via a Wifi connection. To access the virtual remote control, make sure that the phone is connected to Crux Wifi *** . Open your web browser and type in the following on the address bar: 192.168.59.254

The Virtual Remote control will open. Use the virutal remote control to PLAY, PAUSE, STOP, TRACK UP/DOWN, VOLUME UP/DOWN, etc.

192 468.00 254 3/25 300 300 300 300 300

Plug in a USB thumb drive to the USB cable port of the WVI-H. Tap OPTIONS on the Virtual Remote Control to select MOVIES, PHOTOS, MUSIC, etc. Use the remote to play/pause or skip tracks.

Footnotes List Preview Sort By Name Sort By Date All Media Movies Photos Music

Tap SETUP to change settings on VIDEO, SYSTEM, NETWORK, and AUDIO. We recommend NOT to change any SYSTEM settings as this would interfere with the WVI-H functionality.

CRUX Setup File Edit Network Audio To System 40% Connect to User Control to 80% +80% 25% 0%

MIRRORING:

The mirroring connection uses a direct Wi-Fi connection to transfer the Audio and Video from your device to the WVI-H module. This does not require an active network. If your smartphone has the Screen Time Out enabled and your display goes to sleep mode, you will no longer see the image on the screen. Deactivate this feature for continuous viewing

OPERATING INSTRUCTIONS:

1. Turn on the radio and select AUX mode.
2. Press the "END CALL" button on the Steering Wheel Controls for 2 to 3 seconds to toggle VIDEO IN.
3. Video will now be playing on the screen and audio will be heard from the speakers.
4. Install the radio back into the dashboard.

Close-up of a car's interior showing the Nissan Airbag with a red circle highlighting the button (no text or symbols on the car itself)

Press and hold the END CALL button for 2 to 3 seconds to toggle VIDEO IN.

FLU-AM [we] MEGA D-SP VOL OFF 1 Time 2 3 4 5 6 OFF MAIN BACK ON/OFF OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MAIN OFF MINI

Video will now play and audio will be heard from the speakers.

VEHICLE APPLICATIONS:

NISSAN

2014 - 2015

Frontier

2014 - 2015

NV200

2014 - 2015

Sentra Versa

2014 - 2015

Xterra
