Product Type Ultra-short throw projector
Brand OPTOMA
Model W307USTI
Display Technology DLP®
Native Resolution WXGA (1280 x 800)
Screen Size 80.2” - 96.6” (diagonal, 16:10 format)
68” - 81.9” (diagonal, 4:3 format)
Projection Distance 517 mm - 759 mm (WXGA)
522 mm - 802 mm (XGA)
Throw Ratio 0.35 (WXGA) / 0.43 (XGA)
Keystone Correction ±15° (vertical)
Weight 8 kg
Dimensions (W x D x H) 357 x 367 x 135 mm (without mirror)
357 x 367 x 231 mm (with mirror)
Power Supply AC 100-240 V, 50-60 Hz
Power Consumption 350 W (Normal mode)
290 W (ECO mode)
Connectivity 1x HDMI, 2x VGA input, 1x VGA output, 1x S-Video, 1x Composite, 2x 3.5 mm Audio, 2x RCA Audio, 1x 3.5 mm Microphone, 1x LAN (RJ45), 1x RS232, 1x Mini USB B, 1x DC 12 V
Special Features 3D, interactive (IR stylus), network management via Web, password security, keystone correction
Box Contents Projector, remote control, CR2025 battery, power cord, VGA cable
Maintenance Optional dust filter cleaning every 500 hours
Safety Auto power off, password, automatic shutdown
Repairability Replaceable lamp and dust filter

Frequently Asked Questions - W307USTI OPTOMA

How to turn on the projector?
Plug in the power cord, then press the Ⓦ (power) button on the control panel or remote. The power LED turns blue.
How to turn off the projector?
Press the Ⓦ button, confirm by pressing again, then wait for complete cooling (about 90 seconds) before unplugging the power cord.
How to adjust the image sharpness?
Rotate the focus ring on the lens until the image is sharp.
How to correct keystone distortion?
Go to the OSD menu (press Menu), select Display > V Keystone, and adjust with the arrow keys. You can also use the Keystone buttons on the remote.
How to replace the lamp?
Turn off the projector, wait 60 minutes for cooling, unplug the cord. Remove the lamp cover, unscrew the two screws, pull the lamp by the handle. Replace the lamp, put the cover back, then in the OSD menu go to Options > Lamp Settings > Reset Lamp Hours.
The projector does not turn on. What to do?
Check that the power cord is plugged in and the outlet works. Check the LED indicators: if the Lamp LED is solid red, the lamp is defective and must be replaced. If the Temperature LED is red, the projector is overheating: ensure the vents are not blocked.
How to connect a computer to the projector?
Use a VGA cable between the computer's VGA output and the projector's VGA 1 or VGA 2 input. For better quality, use an HDMI cable. Then turn on the projector and select the corresponding source with the Source button.
How to use the 3D function?
Enable 3D in the OSD menu: go to 3D > 3D and select On. Choose the appropriate 3D format (e.g., Side-by-Side) according to your source. Wear DLP Link 3D glasses to see the effect.
How to clean the dust filter?
Turn off the projector and unplug it. Pull the filter latch, remove the filter, clean it with compressed air or replace it. Reinsert the filter, then in the OSD menu go to Options > Dust Filter Reminder > Filter Cleaning and select Yes to reset the counter.
How to reset to factory settings?
Go to the OSD menu: Settings > Reset and select Yes. All settings will be restored to default values.

User questions about W307USTI OPTOMA

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Ultra short projector in PDF format for free! Find your manual W307USTI - OPTOMA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. W307USTI by OPTOMA.

USER MANUAL W307USTI OPTOMA

natural_image Line drawing of a portable electronic device with front panel and control panel (no text or symbols)

Projecteur

OPTOMA W307USTI - 1
Télécommande

OPTOMA W307USTI - 2
Pile

OPTOMA W307USTI - 3

natural_image Line drawing of a cord with two connectors and two terminal plugs (no text or symbols)
natural_image Pure electrical circuit lines without any symbols

Câble VGA

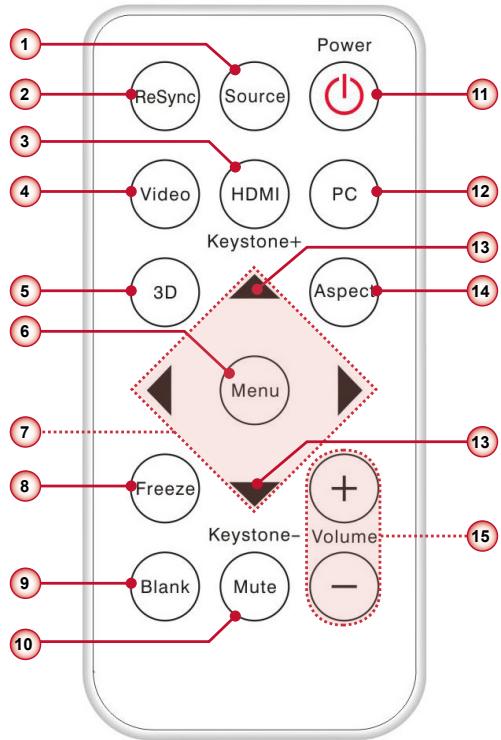

Aperçu du produit

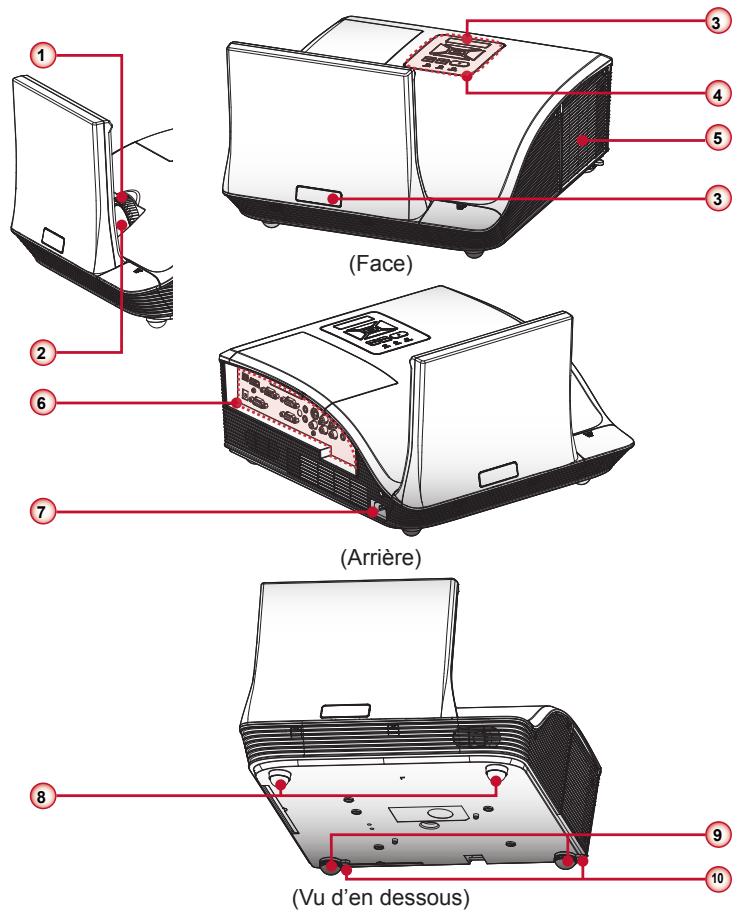

Unité principale
Cathode 2.00

OPTOMA W307USTI - Aperçu du produit - 2
natural_image Diagram of a mechanical component with a downward force arrow and labeled part 1 (no text or symbols on the diagram itself)

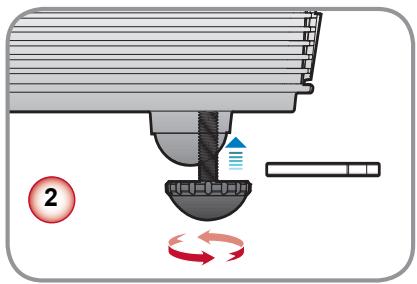

Diagram illustrating fluid flow around a mechanical component with labeled parts and directional arrows

natural_image Technical line drawing of a mechanical component with no visible text or symbols
natural_image Line drawing of a hand holding a small object with red arrows indicating direction (no text or symbols)

? Image has slanted sides :

Power Off? Press power key again.

Erreur ventilateur

OPTOMA W307USTI - ? Image has slanted sides : - 1

Warning! FAN LOCKED

OPTOMA W307USTI - Warning! FAN LOCKED - 1

The projector will switch off automatically.

  1. Make sure air in and outlets are not blocked.
  2. Make sure the environment temperature is under 40 degree C.

Technical diagram showing a machine with labeled components and red arrows indicating motion or flow directions.

Projector Return (Pass) : P

Projector Return (Fail) : F

XX=00-99, projector's ID,

XX=00 is for all projectors

SEND to projector

232 ASCII Code307UST CodeFunctionDescription
~XX00 17E 30 30 30 30 20 31 0DPower ON
~XX00 07E 30 30 30 30 20 30 0DPower OFF
~XX01 17E 30 30 30 31 20 31 0DResync
~XX02 17E 30 30 30 32 20 31 0DAV Mute(Blank)On
~XX02 07E 30 30 30 32 20 30 0DOff
~XX03 17E 30 30 30 33 20 31 0DMuteOn
~XX03 07E 30 30 30 33 20 30 0DOff
~XX04 17E 30 30 30 34 20 31 0DFreeze
~XX04 07E 30 30 30 34 20 30 0DUnfreeze
~XX05 17E 30 30 30 35 20 31 0DZoom Plus
~XX06 17E 30 30 30 36 20 31 0DZoom Minus
~XX12 17E 30 30 31 32 20 31 0DDirect SourceHDMI
~XX12 57E 30 30 31 32 20 35 0DVGA 1
~XX12 67E 30 30 31 32 20 36 0DVGA 2
~XX12 97E 30 30 31 32 20 39 0DS-Video
~XX12 107E 30 30 31 32 20 31 30 0DVideo
~XX20 17E 30 30 32 30 20 31 0DColor ModeBright
~XX20 27E 30 30 32 30 20 32 0DPC
~XX20 37E 30 30 32 30 20 33 0DMovie
~XX20 47E 30 30 32 30 20 34 0DGame
~XX20 57E 30 30 32 30 20 35 0DUser
~XX21 n7E 30 30 32 31 20 a 0DBrightnessn = 0 (a=30) ~ 100 (a=31 30 30)
~XX22 n7E 30 30 32 32 20 a 0DContrastn = 0 (a=30) ~ 100 (a=31 30 30)
~XX23 n7E 30 30 32 32 20 a 0DSharpnessn = 0 (a=30) ~ 31 (a=33 31)
~XX60 17E 30 30 36 30 20 31 0DFormat(aspect ratio)4:3
~XX60 27E 30 30 36 30 20 32 0D16:9
~XX60 37E 30 30 36 30 20 33 0D16:10
~XX60 77E 30 30 36 30 20 37 0DAUTO
~XX66 n7E 30 30 36 36 20 a 0DKeystonen = -15/15
~XX70 17E 30 30 37 30 20 31 0DLanguageEnglish
~XX70 27E 30 30 37 30 20 32 0DGerman
~XX70 37E 30 30 37 30 20 33 0DFrench
~XX70 47E 30 30 37 30 20 34 0DItalian
~XX70 57E 30 30 37 30 20 35 0DSpanish
~XX70 67E 30 30 37 30 20 36 0DPortuguese
~XX70 77E 30 30 37 30 20 37 0DPolish
~XX70 87E 30 30 37 30 20 38 0DDutch
~XX70 97E 30 30 37 30 20 39 0DSwedish
~XX70 107E 30 30 37 30 20 31 30 0DNorwegian/Danish
~XX70 137E 30 30 37 30 20 31 33 0DTraditional Chinese
~XX70 147E 30 30 37 30 20 31 34 0DSimplified Chinese
~XX70 157E 30 30 37 30 20 31 35 0DJapanese
~XX70 167E 30 30 37 30 20 31 36 0DKorean
~XX70 177E 30 30 37 30 20 31 37 0DRussian
~XX70 207E 30 30 37 30 20 32 30 0DArabic
~XX70 227E 30 30 37 30 20 32 32 0DTurkish
~XX71 17E 30 30 37 31 20 31 0DProjection(ceiling M)Front-Desktop
~XX71 27E 30 30 37 31 20 32 0DRear-Desktop
~XX71 37E 30 30 37 31 20 33 0DFront-Ceiling
~XX71 47E 30 30 37 31 20 34 0DRear-Ceiling
~XX72 17E 30 30 37 32 20 31 0DMenu LocationTop Left
~XX72 27E 30 30 37 32 20 32 0DTop Right
~XX72 37E 30 30 37 32 20 33 0DCentre
~XX72 47E 30 30 37 32 20 34 0DBottom Left
~XX72 57E 30 30 37 32 20 35 0DBottom Right
~XX80 n7E 30 30 38 30 20 a 0DMuten = 1/0 (On/Off)
~XX81 n7E 30 30 38 31 20 a 0DVolumen = 0 (a=30) ~ 20 (a=32 30)
~XX101 n7E 30 30 31 30 31 20 a 0DHigh Altituden = 0/1 (a=30/31)
~XX106 n7E 30 30 31 30 36 20 a 0DAuto Power Off (min)n = 0 (a=30) ~ 120 (a=31 32 30), step=1
~XX318 n7E 30 30 33 31 38 20 a 0DMicrophone Volumen = 0 (a=30) ~32 (a=33 32)
~XX112 17E 30 30 31 31 32 20 31 0DResetYes
~XX140 107E 30 30 31 34 30 20 31 30 0D Up
~XX140 117E 30 30 31 34 30 20 31 31 0D Left
~XX140 137E 30 30 31 34 30 20 31 33 0D Right
~XX140 147E 30 30 31 34 30 20 31 34 0D Down
~XX140 157E 30 30 31 34 30 20 31 35 0D Keystone+
~XX140 167E 30 30 31 34 30 20 31 36 0D Keystone-
~XX140 177E 30 30 31 34 30 20 31 37 0D Volume-
~XX140 187E 30 30 31 34 30 20 31 38 0D Volume+
~XX140 207E 30 30 31 34 30 20 32 30 0D Menu
~XX140 297E 30 30 31 34 30 20 32 39 0D Source

READ from projector

232 ASCII CodeHX3070U CodeFunctionProjector ReturnDescription
~XX121 17E 30 30 31 32 31 20 31 0DInput Source(curr. src)OKnn : 0/2/3/5/4/7 = None / VGA1 / VGA2 / Video / S-Video / HDMI
~XX122 17E 30 30 31 32 32 20 31 0DSoftware VersionOKdddddd: FW version
~XX123 17E 30 30 31 32 33 20 31 0DDisplay ModeOKnn: 1/2/3/4/5 = Bright/PC/Movie/Game/User
~XX127 17E 30 30 31 32 37 20 31 0DAspect RatioOKnn: 1/2/3/7 = 4:3 / 16:9 / 16:10 / AUTO
~XX150 17E 30 30 31 35 30 20 31 0DInformationOkabbbbccddddee
