| Product Type | Ultra-short throw projector |
| Brand | OPTOMA |
| Model | W307UST |
| Native resolution | WXGA (1280x800) / XGA (1024x768) |
| Screen size (diagonal) | 70" - 100" (WXGA) / 60" - 90" (XGA) |
| Projection distance | 517 mm - 759 mm (WXGA) / 522 mm - 802 mm (XGA) |
| Keystone correction | ±15 degrees (vertical) |
| Throw ratio | 0.35 (WXGA) / 0.43 (XGA) |
| Weight | 8 kg (17.64 lb) |
| Dimensions (W x D x H) | 357 x 367 x 135 mm (without mirror) / 357 x 367 x 231 mm (with mirror) |
| Power supply | AC 100-240 V, 50-60 Hz |
| Power consumption | 350 W (normal mode) / 290 W (ECO mode) / < 0.5 W (standby) |
| Connectors | HDMI x1, VGA input x2, VGA output x1, S-Video x1, Composite x1, LAN (RJ45) x1, RS232 x1, USB mini B x1, 3.5mm audio input x2, RCA audio L/R x2, 3.5mm microphone x1, 12V trigger x1 |
| Main features | 3D, interactive (stylus), network management (Web), keystone correction, digital zoom, preset image modes |
| Security | Admin password, start-up lock |
| Maintenance | Dust filter cleaning every 500h, lamp replacement |
| Box contents | Projector, remote control, CR2025 battery, power cord, VGA cable |
Frequently Asked Questions - W307UST OPTOMA
How to turn the projector on and off?
To turn on, plug in the power cord, then press the Power button (â“€) on the control panel or remote control. The LED turns blue. To turn off, press the button again, confirm by pressing again, the projector cools for 90 seconds (red LED flashing), then enters standby (steady red). You can then unplug.
What to do if no image is displayed?
Check that all cables are properly connected. Make sure the lamp is installed. Check that the Blank (hide) function is not activated. If the image is partial, press Resync on the remote control. On a PC, make sure the display resolution is less than or equal to 1080p and that the projector is selected as the secondary display.
How to replace the lamp?
Turn off the projector and let it cool for at least 60 minutes. Unplug the power cord. Unscrew the lamp cover, then the two screws on the hatch. Pull the lamp out by the handle. Replace with a new one (same part number) and screw back. After replacement, go to the menu Options > Lamp Settings > Reset Lamp Hours to reset the counter to zero.
How to clean the dust filter?
The filter must be cleaned every 500 hours of use (more often in dusty environments). Turn off the projector, unplug it. Pull the filter latch, remove the filter, clean it (or replace it) and put it back. In the menu Options > Dust Filter Reminder, select Yes to reset the counter.
The remote control does not work, what to do?
Make sure you are within 7 meters and within ±30° angle from the projector's IR receiver. Ensure there is no obstacle. Check that the CR2025 battery is inserted correctly (+ side up). If the battery is depleted, replace it.
How to adjust the sharpness of the image?
Turn the focus ring on the lens until the image is clear. If necessary, also adjust the zoom (not available on this model). In the OSD menu, you can also adjust sharpness via Image > Sharpness (from 0 to 31).
How to use keystone correction?
Press the Keystone ▼/△ button on the remote control or go to the menu Display > V Keystone. Use the directional keys to adjust vertical distortion by ±15 degrees.
How to set up the LAN network?
Connect an RJ45 cable to the projector. In the LAN menu, enable DHCP for automatic IP address assignment, or manually configure the IP address, mask and gateway. Validate with Store. You can then access the web management interface via a browser by entering the projector's IP address.
How to enable password security?
In the Settings > Security menu, select On. Then go to Change Password and enter a 6-digit code (default is 000000). At each startup, the projector will ask for this password. If you forget, contact customer service.
How to switch between input sources?
Press the Source button on the remote control to cycle through active inputs (HDMI, VGA1, VGA2, S-Video, Composite). You can also use the direct HDMI or PC (for VGA) keys on the remote control. In the menu Options > Input, you can enable/disable specific sources.
User questions about W307UST OPTOMA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Ultra short projector in PDF format for free! Find your manual W307UST - OPTOMA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. W307UST by OPTOMA.
USER MANUAL W307UST OPTOMA
Line drawing of a portable electronic device with front panel and control panel (no text or symbols)Projecteur

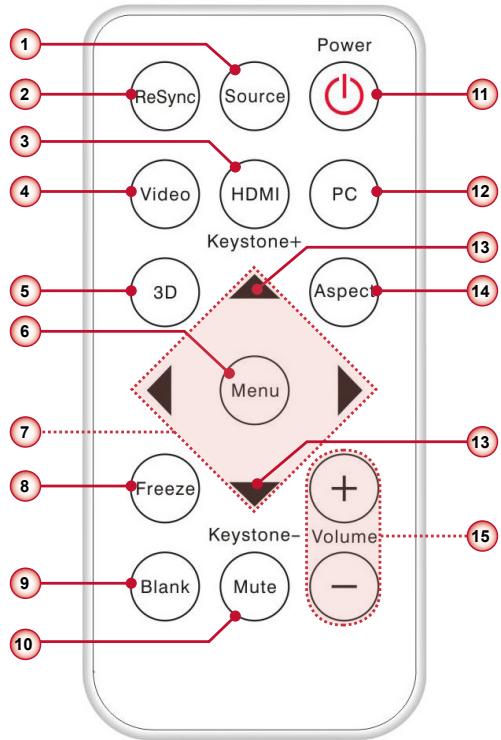

Télécommande
Pile
Pure electrical circuit lines without any symbolsCâble VGA

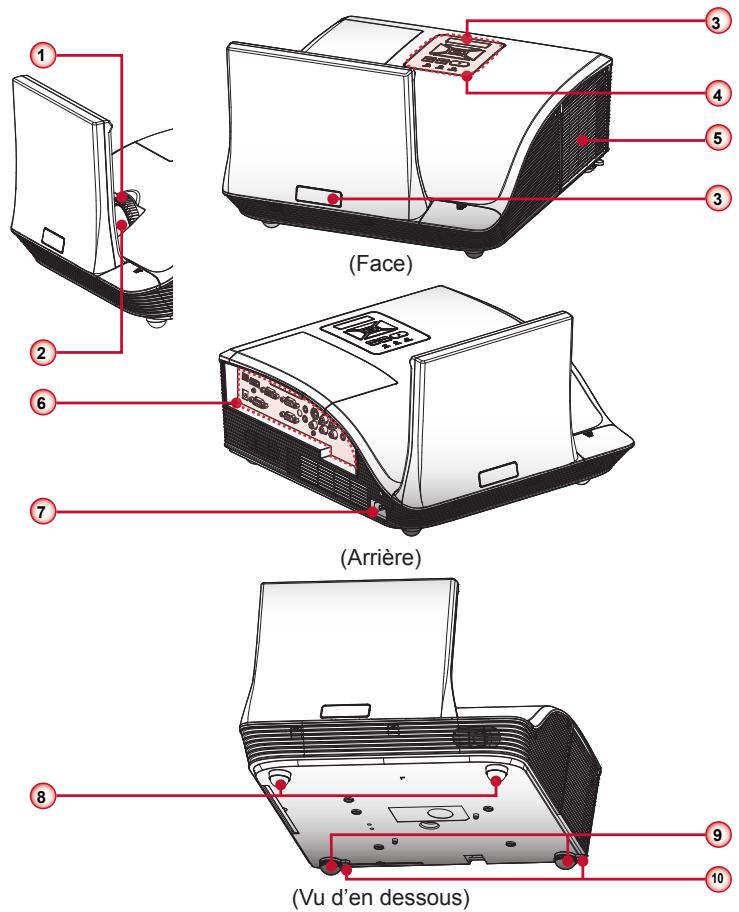

Aperçu du produit
Unité principale
Power Off? Press power key again.natural_image
Diagram of a mechanical component with a downward force arrow and labeled part 1 (no text or symbols on the diagram itself)

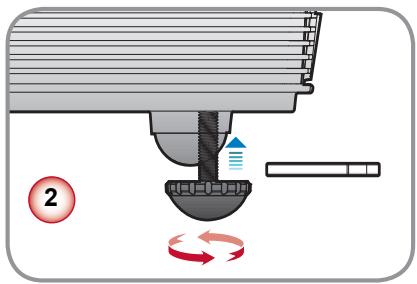

Technical line drawing of a mechanical component with no visible text or symbolsnatural_image
Line drawing of a hand holding a small object with red arrows indicating direction (no text or symbols)text_image
Close 3.25%
General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 100 100 100 Subnet mask: 25 25 25 25 Default gateway: 80 80 80 80text_image
General Security Privacy Content Connections Programs Advanced To set up an Internet connection, click Setup... Dial-up and Virtual Private Network settings Add... Remove... Choose Settings if you need to configure a proxy server for a connection. Never dial a connection. Dial whenever a network connection is not present Always dial my default connection. Current None Set Default... Local Area Network (LAN) settings LAN Settings do not apply to dial-up connections. Choose Settings above for dial-up settings. LAN Settingstext_image
Automatic configuration Automatic configuration may override manual settings. To ensure the use of manual settings, disable automatic configuration. Automatically detect settings Use automatic configuration script Address: http://192.168.1-4proxy.pac Proxy servers Use a proxy server for your LAN (These settings will not apply to dial-up or VPN connections). Address: 192.168.1.4 Port: 3128 Advanced... Browse proxy server for local addresses OK Canceltext_image
Web Management Projector Information Model Name: Projector Projector Name: Projector Location: Contact Status: Lamp ON Lamp Hours: 0 hr Operation Hours: 0 hr IP Address: 192.168.10.100 MAC Address: 00/60/E9/0C/6A.B2 Admin Password: Not Set! Language English Submittext_image
Web Management Projector Information LAN Setting Projector Status and Control E-mail Setting Security Setting Security Setting Please set your password if you enable this feature for first-time. If password is set, you will require to enter with your password upon you connect to the Web Management. Administrator Password Enable Disable Submit New Password: Confirm Password: Submittext_image
Web Management Welcome to Web Management. Administrator Password: Login Projector Information Projector Name: D21211 IP Address: 192.168.0.100? Image has slanted sides :
Power Off? Press power key again.
Erreur ventilateur
Warning! FAN LOCKED
The projector will switch off automatically.
- Make sure air in and outlets are not blocked.
- Make sure the environment temperature is under 40 degree C.
Diagram showing a device's internal structure with a numbered annotation indicating component 1
Warning! Dust Filters The usage time of the dust filter is reached. Please clean the dust filters for better performance.text_image
Diagram showing a device interior with labeled parts and red arrows indicating movement or change, likely illustrating a mechanical or electronic assembly.Projector Return (Pass) : P
Projector Return (Fail) : F
XX=00-99, projector's ID,
XX=00 is for all projectors
SEND to projector
| 232 ASCII Code | 307UST Code | Function | Description | |
| ~XX00 1 | 7E 30 30 30 30 20 31 0D | Power ON | ||
| ~XX00 0 | 7E 30 30 30 30 20 30 0D | Power OFF | ||
| ~XX01 1 | 7E 30 30 30 31 20 31 0D | Resync | ||
| ~XX02 1 | 7E 30 30 30 32 20 31 0D | AV Mute(Blank) | On | |
| ~XX02 0 | 7E 30 30 30 32 20 30 0D | Off | ||
| ~XX03 1 | 7E 30 30 30 33 20 31 0D | Mute | On | |
| ~XX03 0 | 7E 30 30 30 33 20 30 0D | Off | ||
| ~XX04 1 | 7E 30 30 30 34 20 31 0D | Freeze | ||
| ~XX04 0 | 7E 30 30 30 34 20 30 0D | Unfreeze | ||
| ~XX05 1 | 7E 30 30 30 35 20 31 0D | Zoom Plus | ||
| ~XX06 1 | 7E 30 30 30 36 20 31 0D | Zoom Minus | ||
| ~XX12 1 | 7E 30 30 31 32 20 31 0D | Direct Source | HDMI | |
| ~XX12 5 | 7E 30 30 31 32 20 35 0D | VGA 1 | ||
| ~XX12 6 | 7E 30 30 31 32 20 36 0D | VGA 2 | ||
| ~XX12 9 | 7E 30 30 31 32 20 39 0D | S-Video | ||
| ~XX12 10 | 7E 30 30 31 32 20 31 30 0D | Video | ||
| ~XX20 1 | 7E 30 30 32 30 20 31 0D | Color Mode | Bright | |
| ~XX20 2 | 7E 30 30 32 30 20 32 0D | PC | ||
| ~XX20 3 | 7E 30 30 32 30 20 33 0D | Movie | ||
| ~XX20 4 | 7E 30 30 32 30 20 34 0D | Game | ||
| ~XX20 5 | 7E 30 30 32 30 20 35 0D | User | ||
| ~XX21 n | 7E 30 30 32 31 20 a 0D | Brightness | n = 0 (a=30) ~ 100 (a=31 30 30) | |
| ~XX22 n | 7E 30 30 32 32 20 a 0D | Contrast | n = 0 (a=30) ~ 100 (a=31 30 30) | |
| ~XX23 n | 7E 30 30 32 32 20 a 0D | Sharpness | n = 0 (a=30) ~ 31 (a=33 31) | |
| ~XX60 1 | 7E 30 30 36 30 20 31 0D | Format(aspect ratio) | 4:3 | |
| ~XX60 2 | 7E 30 30 36 30 20 32 0D | 16:9 | ||
| ~XX60 3 | 7E 30 30 36 30 20 33 0D | 16:10 | ||
| ~XX60 7 | 7E 30 30 36 30 20 37 0D | AUTO | ||
| ~XX66 n | 7E 30 30 36 36 20 a 0D | Keystone | n = -15/15 | |
| ~XX70 1 | 7E 30 30 37 30 20 31 0D | Language | English | |
| ~XX70 2 | 7E 30 30 37 30 20 32 0D | German | ||
| ~XX70 3 | 7E 30 30 37 30 20 33 0D | French | ||
| ~XX70 4 | 7E 30 30 37 30 20 34 0D | Italian | ||
| ~XX70 5 | 7E 30 30 37 30 20 35 0D | Spanish | ||
| ~XX70 6 | 7E 30 30 37 30 20 36 0D | Portuguese | ||
| ~XX70 7 | 7E 30 30 37 30 20 37 0D | Polish | ||
| ~XX70 8 | 7E 30 30 37 30 20 38 0D | Dutch | ||
| ~XX70 9 | 7E 30 30 37 30 20 39 0D | Swedish | ||
| ~XX70 10 | 7E 30 30 37 30 20 31 30 0D | Norwegian/Danish | ||
| ~XX70 13 | 7E 30 30 37 30 20 31 33 0D | Traditional Chinese | ||
| ~XX70 14 | 7E 30 30 37 30 20 31 34 0D | Simplified Chinese | ||
| ~XX70 15 | 7E 30 30 37 30 20 31 35 0D | Japanese | ||
| ~XX70 16 | 7E 30 30 37 30 20 31 36 0D | Korean | ||
| ~XX70 17 | 7E 30 30 37 30 20 31 37 0D | Russian | ||
| ~XX70 20 | 7E 30 30 37 30 20 32 30 0D | Arabic | ||
| ~XX70 22 | 7E 30 30 37 30 20 32 32 0D | Turkish | ||
| ~XX71 1 | 7E 30 30 37 31 20 31 0D | Projection(ceiling M) | Front-Desktop | |
| ~XX71 2 | 7E 30 30 37 31 20 32 0D | Rear-Desktop | ||
| ~XX71 3 | 7E 30 30 37 31 20 33 0D | Front-Ceiling | ||
| ~XX71 4 | 7E 30 30 37 31 20 34 0D | Rear-Ceiling | ||
| ~XX72 1 | 7E 30 30 37 32 20 31 0D | Menu Location | Top Left | |
| ~XX72 2 | 7E 30 30 37 32 20 32 0D | Top Right | ||
| ~XX72 3 | 7E 30 30 37 32 20 33 0D | Centre | ||
| ~XX72 4 | 7E 30 30 37 32 20 34 0D | Bottom Left | ||
| ~XX72 5 | 7E 30 30 37 32 20 35 0D | Bottom Right | ||
| ~XX80 n | 7E 30 30 38 30 20 a 0D | Mute | n = 1/0 (On/Off) | |
| ~XX81 n | 7E 30 30 38 31 20 a 0D | Volume | n = 0 (a=30) ~ 20 (a=32 30) | |
| ~XX101 n | 7E 30 30 31 30 31 20 a 0D | High Altitude | n = 0/1 (a=30/31) | |
| ~XX106 n | 7E 30 30 31 30 36 20 a 0D | Auto Power Off (min) | n = 0 (a=30) ~ 120 (a=31 32 30), step=1 | |
| ~XX318 n | 7E 30 30 33 31 38 20 a 0D | Microphone Volume | n = 0 (a=30) ~32 (a=33 32) | |
| ~XX112 1 | 7E 30 30 31 31 32 20 31 0D | Reset | Yes |
| ~XX140 10 | 7E 30 30 31 34 30 20 31 30 0D Up |
| ~XX140 11 | 7E 30 30 31 34 30 20 31 31 0D Left |
| ~XX140 13 | 7E 30 30 31 34 30 20 31 33 0D Right |
| ~XX140 14 | 7E 30 30 31 34 30 20 31 34 0D Down |
| ~XX140 15 | 7E 30 30 31 34 30 20 31 35 0D Keystone+ |
| ~XX140 16 | 7E 30 30 31 34 30 20 31 36 0D Keystone- |
| ~XX140 17 | 7E 30 30 31 34 30 20 31 37 0D Volume- |
| ~XX140 18 | 7E 30 30 31 34 30 20 31 38 0D Volume+ |
| ~XX140 20 | 7E 30 30 31 34 30 20 32 30 0D Menu |
| ~XX140 29 | 7E 30 30 31 34 30 20 32 39 0D Source |
READ from projector
| 232 ASCII Code | HX3070U Code | Function | Projector Return | Description |
| ~XX121 1 | 7E 30 30 31 32 31 20 31 0D | Input Source(curr. src) | OKn | n : 0/2/3/5/4/7 = None / VGA1 / VGA2 / Video / S-Video / HDMI |
| ~XX122 1 | 7E 30 30 31 32 32 20 31 0D | Software Version | OKddd | ddd: FW version |
| ~XX123 1 | 7E 30 30 31 32 33 20 31 0D | Display Mode | OKn | n: 1/2/3/4/5 = Bright/PC/Movie/Game/User |
| ~XX127 1 | 7E 30 30 31 32 37 20 31 0D | Aspect Ratio | OKn | n: 1/2/3/7 = 4:3 / 16:9 / 16:10 / AUTO |
| ~XX150 1 | 7E 30 30 31 35 30 20 31 0D | Information | Okabbbbccddddee |
