X307UST - Ultra short projector OPTOMA - Free user manual and instructions

Product Type	Ultra-short throw DLP projector
Native Resolution	WXGA (1280x800) / XGA (1024x768)
Throw Ratio	0.35 (WXGA) / 0.43 (XGA)
Screen Size	70 – 100 inches (diagonal)
Keystone Correction	Vertical ±15°
Connectivity	HDMI, VGA (x2 input, 1 output), S-Video, Composite, LAN, RS232, USB mini, audio 3.5 mm (x2), RCA audio (L/R), micro 3.5 mm
Power Supply	AC 100-240 V, 50-60 Hz
Power Consumption	350 W (normal mode), 290 W (ECO mode), standby < 0.5 W
Dimensions (L x W x H)	357 x 367 x 135 mm (without mirror) / 357 x 367 x 231 mm (with mirror)
Weight	8 kg
3D Functions	Supports DLP Link 3D, Frame Packing, Side-by-Side, Top-and-Bottom formats
Network Management	LAN (RJ45), integrated Web management, RS232 protocol
Security	Startup password, code lock
Maintenance	Dust filter cleaning recommended every 500 hours, lamp replacement after expiration
Operating Temperature	5 °C to 40 °C
Box Contents	Projector, remote control, CR2025 battery, power cord, VGA cable

Frequently Asked Questions - X307UST OPTOMA

How to turn the projector on and off?

Press the Power button (Ⓞ) on the control panel or remote control. To turn off, press once, confirm by pressing again, then wait for cooling (about 90 seconds) before unplugging.

What to do if the image is blurry?

Turn the focus ring on the lens until sharp. Also ensure the projection distance is correct (refer to the distance table).

How to replace the lamp?

Turn off the projector and let it cool for 60 minutes. Unplug the cord, remove the lamp cover, unscrew the screws, then remove the old lamp by the handle. Install the new one, reconnect, and reset the hour counter in the Options > Lamp Settings menu.

Why is the screen staying black?

Check that all cables are properly connected, the lamp is installed, and the Blank (Hide) function is not activated. Press the Source key to select the correct input.

How to correct the trapezoidal shape of the image?

Use the V Keystone function in the Screen menu or the Keystone key on the remote control to adjust the vertical tilt.

Can I use an interactive stylus with this projector?

Yes, activate the Interactive function in the OSD menu by selecting Interactive Settings to IR Camera. Connect an external infrared camera and a mini-USB cable between the PC and projector.

How to connect the projector to a network?

Go to the LAN menu to configure the IP address (DHCP or manual). You can then control the projector via a Web browser by entering the IP address in Internet Explorer or Safari.

What to do if the remote control does not work?

Check the angle (max ±30° horizontal/vertical), remove obstacles, stay within 7 m, and ensure the battery (CR2025) is inserted correctly (+ side up). Replace the battery if necessary.

How to activate 3D mode?

In the 3D menu, set 3D to On or Auto. Choose the appropriate format (e.g., Side-by-Side for HDMI 1.4a). Wear compatible DLP Link 3D glasses.

What are the important safety precautions?

Do not look directly into the light beam. Do not block the ventilation slots. Do not place the projector near heat sources. Unplug before cleaning. Consult a qualified technician for any repairs.

USER MANUAL X307UST OPTOMA

Line drawing of a portable electronic device with front panel and control panel (no text or symbols)

Projecteur

Télécommande

Pile

Line drawing of a cord with two connectors and three terminal plugs (no text or symbols)

Pure electrical circuit lines without any symbols

Câble VGA

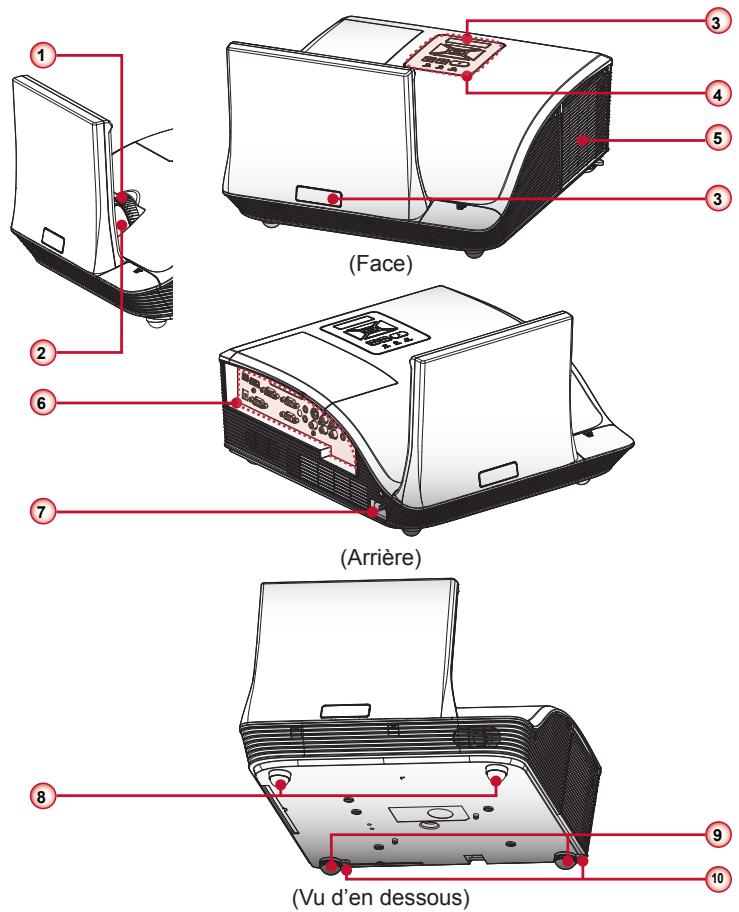

Aperçu du produit

Unité principale

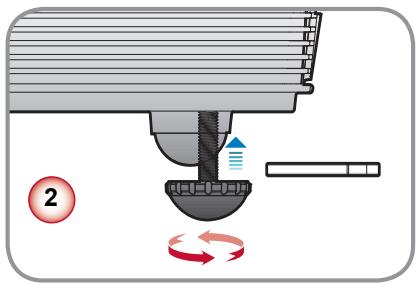

Diagram of a mechanical component with a downward force arrow and labeled part 1 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand holding a small object with red arrows indicating direction (no text or symbols)

Welcome to Web Management.

Projector Information

Projector Name:

IP Address:

D21211

192.168.0.100

? Image has slanted sides :

Power Off? Press power key again.

Erreur ventilateur

Warning! FAN LOCKED

The projector will switch off automatically.

1. Make sure air in and outlets are not blocked.
2. Make sure the environment temperature is under 40 degree C.

Projector Return (Pass) : P

Projector Return (Fail) : F

XX=00-99, projector's ID,

XX=00 is for all projectors

SEND to projector

232 ASCII Code	307UST Code	Function		Description
~XX00 1	7E 30 30 30 30 20 31 0D	Power ON
~XX00 0	7E 30 30 30 30 20 30 0D	Power OFF
~XX01 1	7E 30 30 30 31 20 31 0D	Resync
~XX02 1	7E 30 30 30 32 20 31 0D	AV Mute(Blank)	On
~XX02 0	7E 30 30 30 32 20 30 0D		Off
~XX03 1	7E 30 30 30 33 20 31 0D	Mute	On
~XX03 0	7E 30 30 30 33 20 30 0D		Off
~XX04 1	7E 30 30 30 34 20 31 0D	Freeze
~XX04 0	7E 30 30 30 34 20 30 0D	Unfreeze
~XX05 1	7E 30 30 30 35 20 31 0D	Zoom Plus
~XX06 1	7E 30 30 30 36 20 31 0D	Zoom Minus
~XX12 1	7E 30 30 31 32 20 31 0D	Direct Source	HDMI
~XX12 5	7E 30 30 31 32 20 35 0D		VGA 1
~XX12 6	7E 30 30 31 32 20 36 0D		VGA 2
~XX12 9	7E 30 30 31 32 20 39 0D		S-Video
~XX12 10	7E 30 30 31 32 20 31 30 0D		Video
~XX20 1	7E 30 30 32 30 20 31 0D	Color Mode	Bright
~XX20 2	7E 30 30 32 30 20 32 0D		PC
~XX20 3	7E 30 30 32 30 20 33 0D		Movie
~XX20 4	7E 30 30 32 30 20 34 0D		Game
~XX20 5	7E 30 30 32 30 20 35 0D		User
~XX21 n	7E 30 30 32 31 20 a 0D	Brightness		n = 0 (a=30) ~ 100 (a=31 30 30)
~XX22 n	7E 30 30 32 32 20 a 0D	Contrast		n = 0 (a=30) ~ 100 (a=31 30 30)
~XX23 n	7E 30 30 32 32 20 a 0D	Sharpness		n = 0 (a=30) ~ 31 (a=33 31)
~XX60 1	7E 30 30 36 30 20 31 0D	Format(aspect ratio)	4:3
~XX60 2	7E 30 30 36 30 20 32 0D		16:9
~XX60 3	7E 30 30 36 30 20 33 0D		16:10
~XX60 7	7E 30 30 36 30 20 37 0D		AUTO
~XX66 n	7E 30 30 36 36 20 a 0D	Keystone	n = -15/15
~XX70 1	7E 30 30 37 30 20 31 0D	Language	English
~XX70 2	7E 30 30 37 30 20 32 0D		German
~XX70 3	7E 30 30 37 30 20 33 0D		French
~XX70 4	7E 30 30 37 30 20 34 0D		Italian
~XX70 5	7E 30 30 37 30 20 35 0D		Spanish
~XX70 6	7E 30 30 37 30 20 36 0D		Portuguese
~XX70 7	7E 30 30 37 30 20 37 0D		Polish
~XX70 8	7E 30 30 37 30 20 38 0D		Dutch
~XX70 9	7E 30 30 37 30 20 39 0D		Swedish
~XX70 10	7E 30 30 37 30 20 31 30 0D		Norwegian/Danish
~XX70 13	7E 30 30 37 30 20 31 33 0D		Traditional Chinese
~XX70 14	7E 30 30 37 30 20 31 34 0D		Simplified Chinese
~XX70 15	7E 30 30 37 30 20 31 35 0D		Japanese
~XX70 16	7E 30 30 37 30 20 31 36 0D		Korean
~XX70 17	7E 30 30 37 30 20 31 37 0D		Russian
~XX70 20	7E 30 30 37 30 20 32 30 0D		Arabic
~XX70 22	7E 30 30 37 30 20 32 32 0D		Turkish
~XX71 1	7E 30 30 37 31 20 31 0D	Projection(ceiling M)	Front-Desktop
~XX71 2	7E 30 30 37 31 20 32 0D		Rear-Desktop
~XX71 3	7E 30 30 37 31 20 33 0D		Front-Ceiling
~XX71 4	7E 30 30 37 31 20 34 0D		Rear-Ceiling
~XX72 1	7E 30 30 37 32 20 31 0D	Menu Location	Top Left
~XX72 2	7E 30 30 37 32 20 32 0D		Top Right
~XX72 3	7E 30 30 37 32 20 33 0D		Centre
~XX72 4	7E 30 30 37 32 20 34 0D		Bottom Left
~XX72 5	7E 30 30 37 32 20 35 0D		Bottom Right
~XX80 n	7E 30 30 38 30 20 a 0D	Mute	n = 1/0 (On/Off)
~XX81 n	7E 30 30 38 31 20 a 0D	Volume		n = 0 (a=30) ~ 20 (a=32 30)
~XX101 n	7E 30 30 31 30 31 20 a 0D	High Altitude		n = 0/1 (a=30/31)
~XX106 n	7E 30 30 31 30 36 20 a 0D	Auto Power Off (min)		n = 0 (a=30) ~ 120 (a=31 32 30), step=1
~XX318 n	7E 30 30 33 31 38 20 a 0D	Microphone Volume		n = 0 (a=30) ~32 (a=33 32)
~XX112 1	7E 30 30 31 31 32 20 31 0D	Reset	Yes

~XX140 10	7E 30 30 31 34 30 20 31 30 0D Up
~XX140 11	7E 30 30 31 34 30 20 31 31 0D Left
~XX140 13	7E 30 30 31 34 30 20 31 33 0D Right
~XX140 14	7E 30 30 31 34 30 20 31 34 0D Down
~XX140 15	7E 30 30 31 34 30 20 31 35 0D Keystone+
~XX140 16	7E 30 30 31 34 30 20 31 36 0D Keystone-
~XX140 17	7E 30 30 31 34 30 20 31 37 0D Volume-
~XX140 18	7E 30 30 31 34 30 20 31 38 0D Volume+
~XX140 20	7E 30 30 31 34 30 20 32 30 0D Menu
~XX140 29	7E 30 30 31 34 30 20 32 39 0D Source

READ from projector

232 ASCII Code	HX3070U Code	Function	Projector Return	Description
~XX121 1	7E 30 30 31 32 31 20 31 0D	Input Source(curr. src)	OKn	n : 0/2/3/5/4/7 = None / VGA1 / VGA2 / Video / S-Video / HDMI
~XX122 1	7E 30 30 31 32 32 20 31 0D	Software Version	OKddd	ddd: FW version
~XX123 1	7E 30 30 31 32 33 20 31 0D	Display Mode	OKn	n: 1/2/3/4/5 = Bright/PC/Movie/Game/User
~XX127 1	7E 30 30 31 32 37 20 31 0D	Aspect Ratio	OKn	n: 1/2/3/7 = 4:3 / 16:9 / 16:10 / AUTO
~XX150 1	7E 30 30 31 35 30 20 31 0D	Information	Okabbbbccddddee
