3-IN-1 15W WIRELESS CHARGER

KAWLCSAK03A

SAFETY & WARNINGS

• Do not hit this product, throw it into fire or water to avoid short
• Do not place this product in a high or low temperature or humid environment (temperature range -10°C - +40°C)
• Keep wireless charger away from implanted medical equipment (pacemaker, implantable cochlea, etc.) by at least 20cm to avoid potential interference to medical equipment
• Keep the product away from children to avoid accidents
• Use the standard accessories of this product. If this product is damaged due to the use of non-standard accessories, it is not covered by the warranty
• Do not disassemble the product without permission. If the product is damaged, it will not be covered by the warranty

Foreign Object Detection Function

When the phone or ear buds wireless charging area senses a metal foreign object or the position is misplaced, it will start the FOD warning function and the corresponding indicator will show as blue light flashes continuously; After placing the phone or ear buds in the correct position or removing the metal foreign objects, the normal charging state can be restored.

SPECIFICATIONS

Input 5V-2A, 9-2A
Phone Output	5W / 7.5W / 10W / 15W (max)
Earphone output 5W
Watch output 3W
Frequency 110-205KHz
Charging distance 0~8mm
Conversion rate ≥80%
Material ABS
Included cable USB-C (1 metre)

OVERVIEW

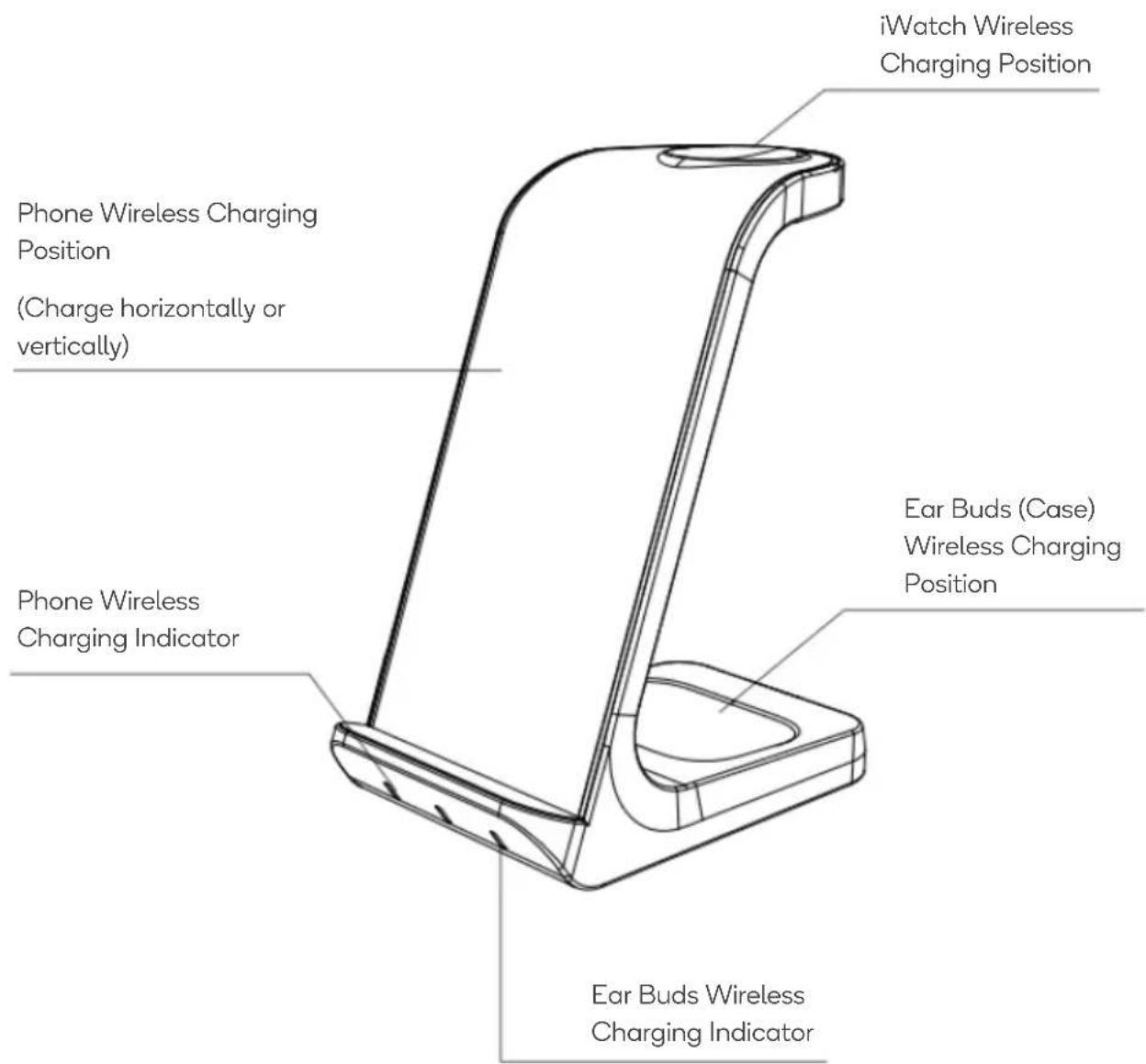

iWatch Wireless Charging Position Phone Wireless Charging Position (Charge horizontally or vertically) Phone Wireless Charging Indicator Ear Buds (Case) Wireless Charging Position Ear Buds Wireless Charging Indicator

OPERATION

1. Connect the Power

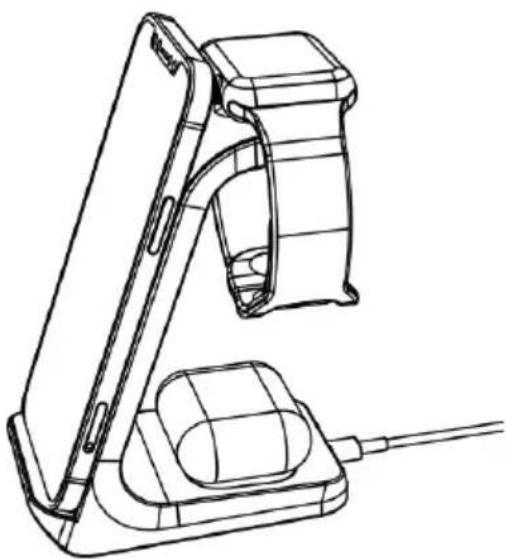

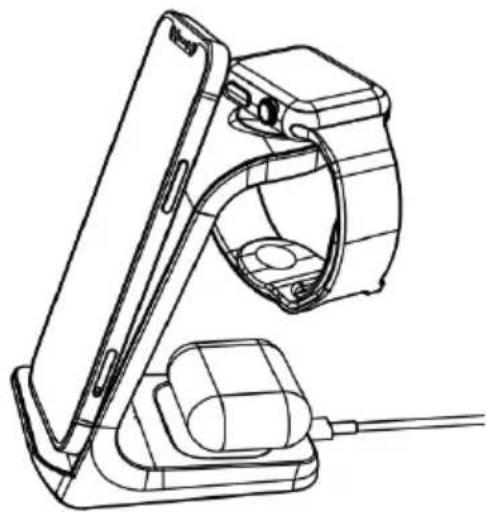

Connect one end of the USB-C data cable to product input port, the other end to the power supply (not supplied) – the product will enter standby state. The left and right indicators will be blue lights and remain on; the middle indicator will not make any display.

Technical line drawing of a mechanical device with a base, clamped plate, and cable (no text or symbols)

Line drawing of a handheld device with a handle and base mount (no text or symbols)

Line drawing of a handheld device with a cable and connector (no text or symbols)

2. Three Device Charging Models

- 5W / 7.5W / 10W / 15W — After placing a mobile phone with wireless charging function on the phone charging position, the phone will begin to charge. The corresponding left indicator will change to green and remain on. When the phone is fully charged, the left green light will flash 3 seconds then go off.

- 5W — After placing ear buds with a wireless charging case on the ear buds charging position, the ear buds will begin to charge. The corresponding right indicator will change to green and remain on.

- 3W — After place the iWatch on the watch charging position, the watch starts to charge. When the watch is charging, the product indicator light has no prompt.

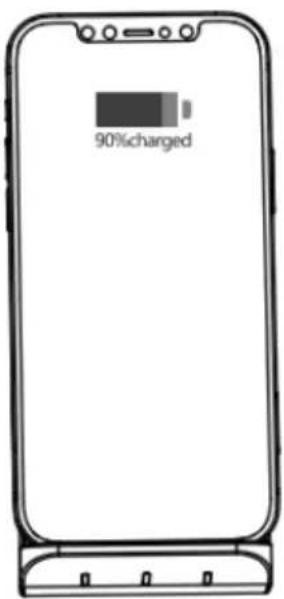

90%charged

Phone position

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Ear buds position

Technical line drawing of a handheld device with articulated arm and connector (no text or symbols)

iWatch position

Note:

At present, only Samsung mobile phones support full charge feedback, the indicator light does not give any hint when the other mobile phones are fully charged.

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
