USER MANUAL KAB22RGBC4B Kogan

White Kōgan light bulb with rainbow-colored glass dome and LED base (no text or symbols on body)

KOGAN SMARTERHOME™ 10W COLOUR & WARM/ COOL WHITE SMART BULB

(B22, Wi-Fi & BLUETOOTH)

KAB22RGBC1B, KAB22RGBC2B, KAB22RGBC4B

Safety & Warnings

3

Connect to SmarterHome™ App 4

Operation 7

Google Home Control 16

Amazon Alexa Control 19

Notes 22

SAFETY & WARNINGS

For bulbs with a weight significantly higher than that of the bulbs for which they are a replacement, attention should be drawn to the fact that the increased weight may reduce the mechanical stability of certain light fixtures may impair contact making and bulb retention.

Simple line drawing of a crossed cross over leaf-like shapes (no text or symbols)

IEC 60417-6179-1

Bulb not suitable for use under dust and moisture.

CONNECT TO SMARTERHOME™ APP

Install App

Download the "Kogan SmarterHome" app from the Play Store (Android) or App Store (iOS).

Register

If you do not have a Kogan SmarterHome™ account, register or sign in with a verification code sent by SMS.

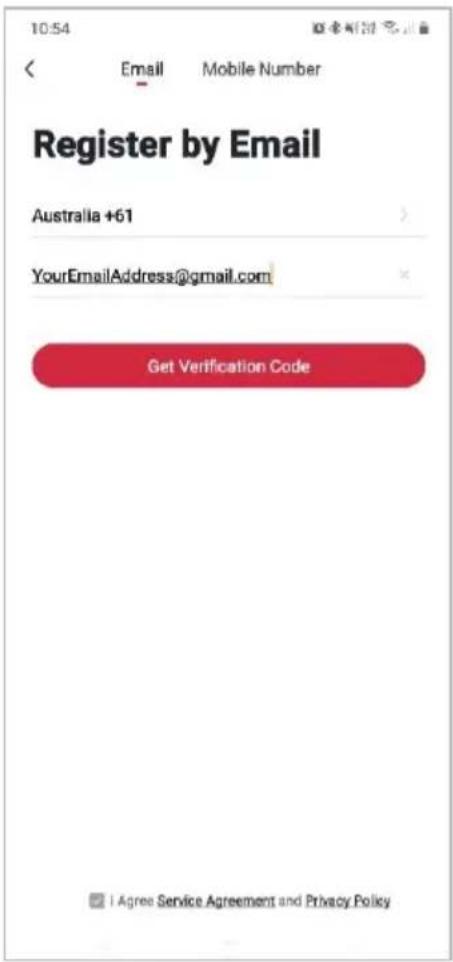

To register:

1. Tap to enter registration page.
2. The system automatically recognises your country/area. You can also select your country code manually. Enter your email address and tap 'Next.'

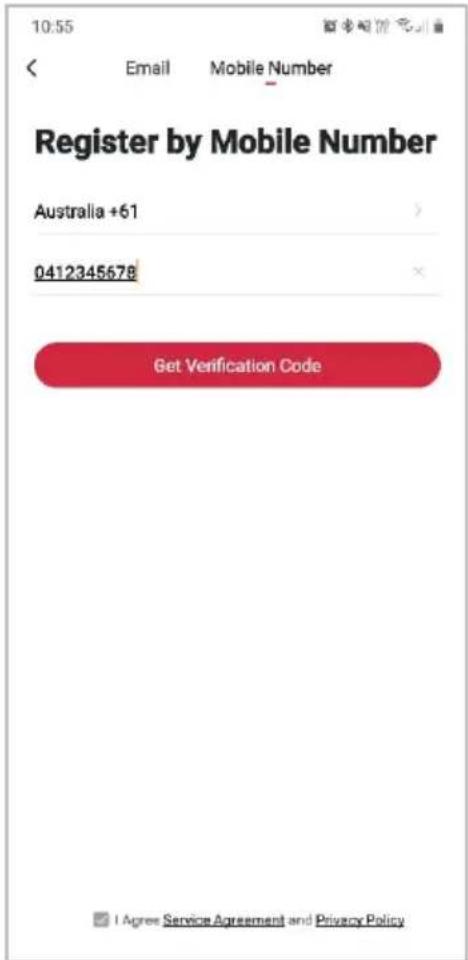

3. Alternatively, you can select 'Register by mobile number' and enter the verification code sent to you by SMS.
4. Create a profile on the next page to define your location and room.

10:54 Email Mobile Number Register by Email Australia +61 [e-mail] Get Verification Code I Agree Service Agreement and Privacy Policy

10:55 Email Mobile Number Register by Mobile Number Australia [phone] Get Verification Code I Agree Service Agreement and Privacy Policy

Set device in pairing mode

Install the bulbs into the appropriate light fitting and power them on.

When the device is first turned on, it may automatically enter pairing mode (the light will be flashing rapidly).

If not automatically in pairing mode when powered on, you can manually enter pairing mode by turning the light switch on and off three times: the bulb will begin flashing rapidly.

Add device through network

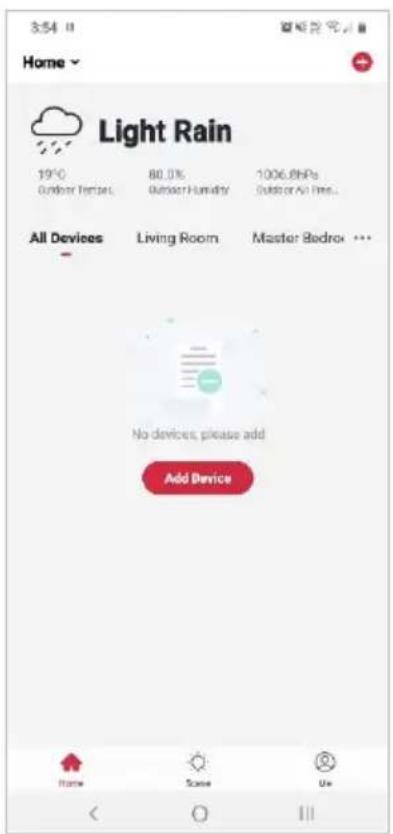

1. Once registered, tap "+" in the upper right corner of the app's home page to add a new device through the network.

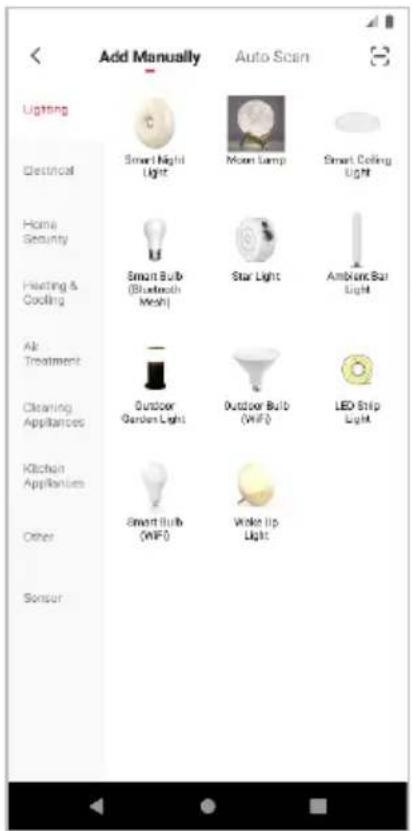

2. Select the product type from the list of options in the app (Lighting > Bulbs).
3. Ensure that the device is in pairing mode, with the bulb blinking, and tap "Confirm light is rapidly flashing".

Home Light Rain 19°C Outdoor Temperature 80.0% Outdoor Humidity 1006.8%Ps Outdoor Air Flux... All Devices Living Room Master: Bedroom No devices, please add Add Device Home Score Use

Add Manually Auto Scan Lighting Electrical Home Security Heating & Cooling Air Treatment Cleaning Appliances Kitchen Appliances Other Sensor Smart Night Light Moon Lamp Smart Ceiling Light Smart Bulb (Bluetooth Mesh) Star Light Ambore Bar Light Outdoor Garden Light Outdoor Bulb (WiFi) LED Strip Light Smart Bulb (WiFi) Wake Up Light

Cancel Reset the device Power on the device. Power off after 10s and then power on again. Back Next

1. Upon successfully confirming pairing mode, enter your Wi-Fi details. It is important that your SmarterHome™ device and the app are connected to the same Wi-Fi network during setup.
2. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete.
3. After successfully being added, you will have the option to rename the device and assign it to a location. It will now be listed on the app's home page. Tap the device listing to enter its control page.

3.98 Cancel Enter Wi-Fi Password 2.4GHz 5GHz ✓ ✗ Only 3.48 Wi-Fi networks are supported > Your Network Name Password Confirm

11:26 Add Device Connecting... Place your router, mobile phone, and device as close as possible 15% Device found Register Device to Smart Cloud Internalized device...

11:26 Add Device Device added successfully SmarterHome product Living Room Master Studio... Study Room Driving Room Kitchen Spots Room Backyard Done

Notes:

• The device and the app have to use the same Wi-Fi network.
• The device is only compatible with 2.4Ghz networks.
• The device requires constant power for proper functionality.
- Ensure Bluetooth is enabled on your device during connection.

OPERATION

Power On/Off

To quickly power the bulb on or off, tap the power icon to the right of the device name.

Reset

To reset the device to its default settings, turn the relevant light switch on and off 10 times.

Settings

1. Tap on the name of the device to enter the settings menu.
2. Tap the power icon at the bottom of the screen to turn the bulb on or off.

Smart Bulb Common Functions>

15:40 Kogan Smart Bulb White Colour Scene Party mode Timer More

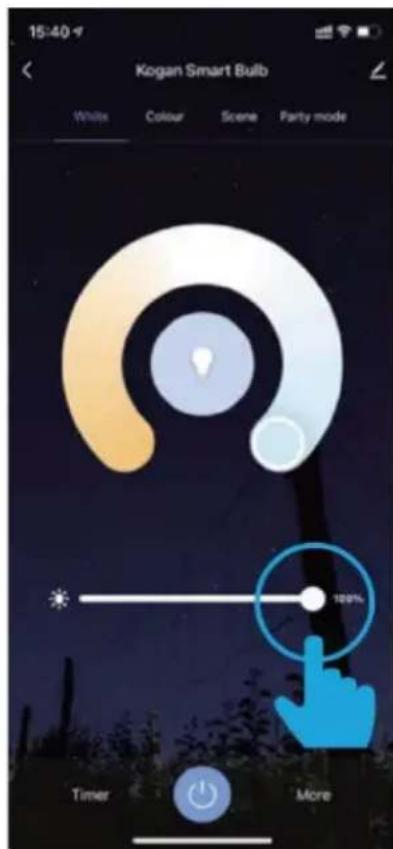

White

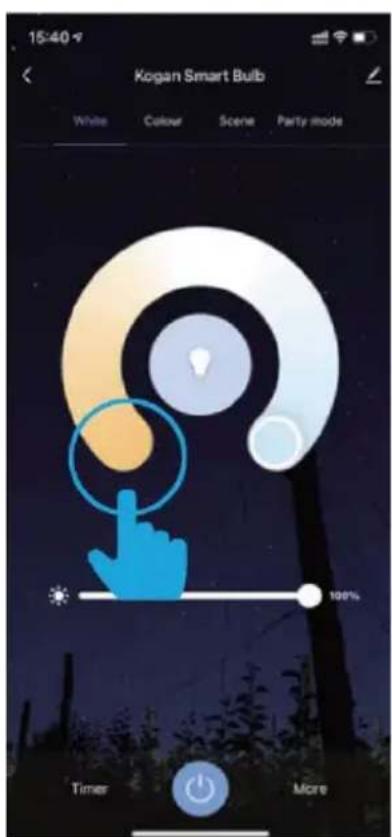

1. Tap on the "White" tab at the top of the screen to enter the white control menu.
2. Slide the dimming bar left or right to set the colour temperature from warm (3000K) to cool (6500K).
3. Slide the horizontal bar left or right to set the desired brightness level.

15:40 Kogan Smart Bulb White Colour Scene Party mode 100% Timer More

Kogan Smart Bulb Whits Colour Scene Party mode 100% Timer More

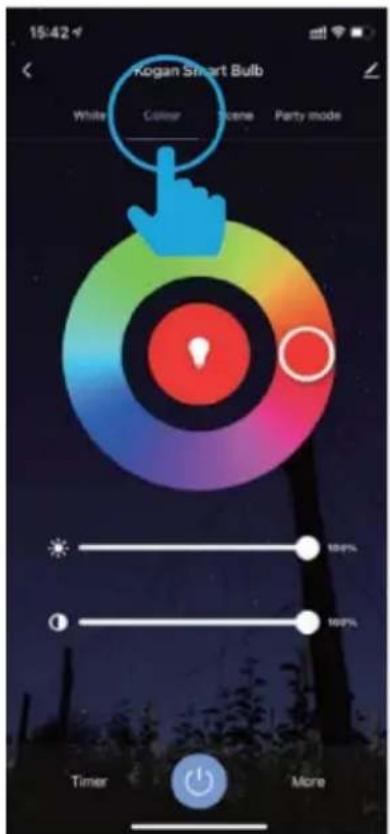

Colour

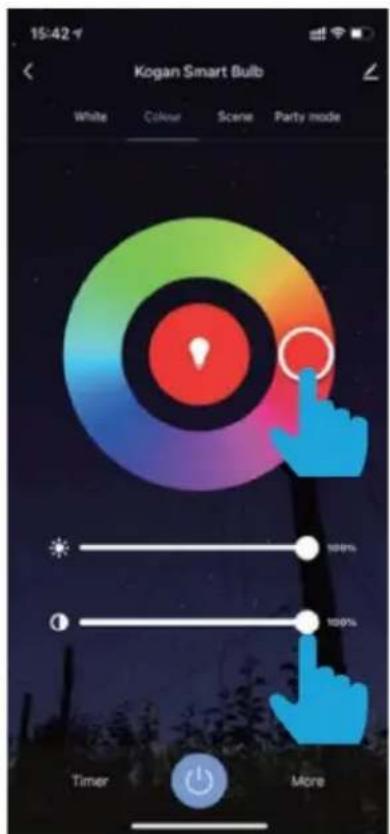

1. Tap on the "Colour" tab at the top of the screen.
2. Tap on any part of the colour picker to select a desired colour or choose a pre-set colour.
3. Slide the horizontal bars left or right to adjust the colour saturation and brightness.

Kogan Smart Bulb White Colour Scene Party mode Timer More

Kogan Smart Bulb White Colour Scene Party mode Timer More

Scene

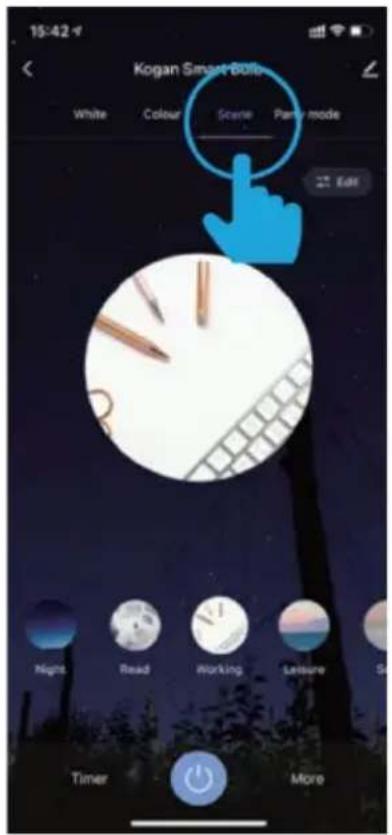

1. Tap on the "Scene" tab at the top of the screen.
2. Tap on any of the scene icons to select the desired scene.

Party Mode

1. Tap on the "Party Mode" tab at the top of the screen.

Kogan SmartBob White Colour Scene Party mode Night Read Working Leisure Timer More

Kogan Smart Bulb White Colour Scene Party mode Timer More

Schedule

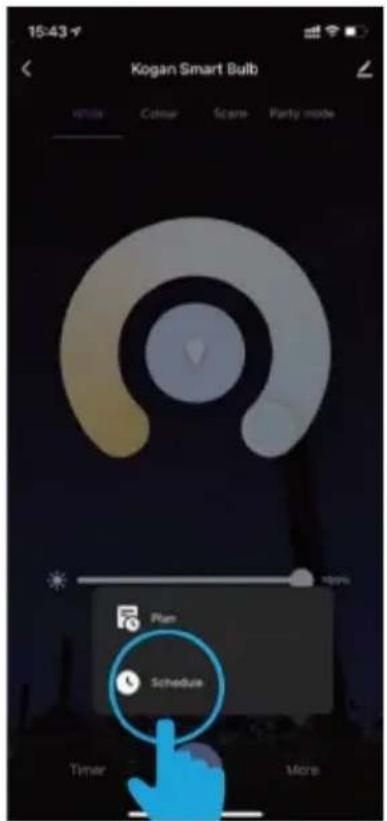

1. Tap on the "Schedule" tab at the bottom right of the screen.

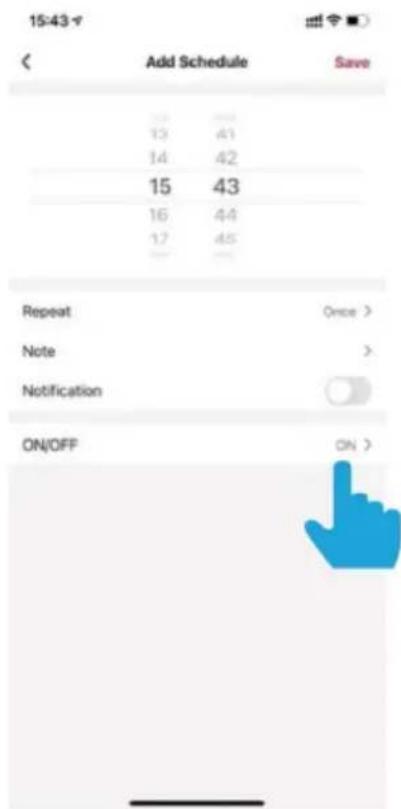

2. Tap on the "Add Schedule" tab at the bottom of the screen.

3. Choose a Start Time (on) or End Time (off). To repeat on certain days of the week tap "Repeat", or schedule will only occur once.

15:43 Kogan Smart Bulb Active Colour Scare Party mode Plan Schedule Timer More

15:43 Schedule No timer data Add

15:43 Add Schedule Save 13 41 14 42 15 43 16 44 17 45 Repeat Once > Note > Notification ON/OFF ON >

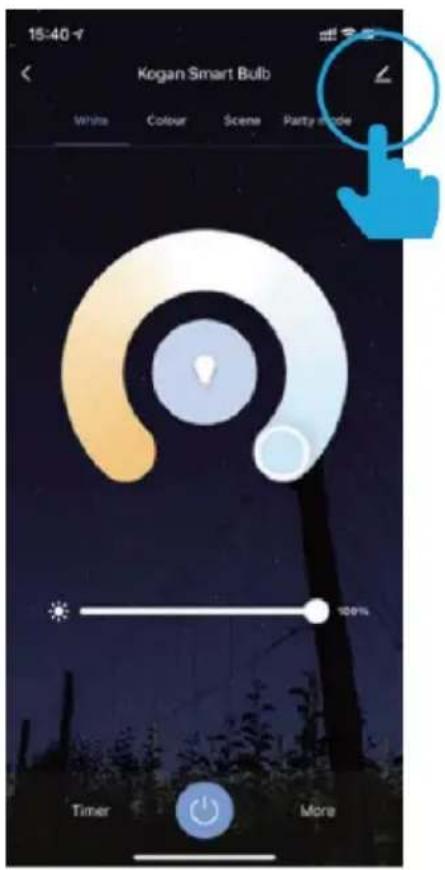

Additional settings

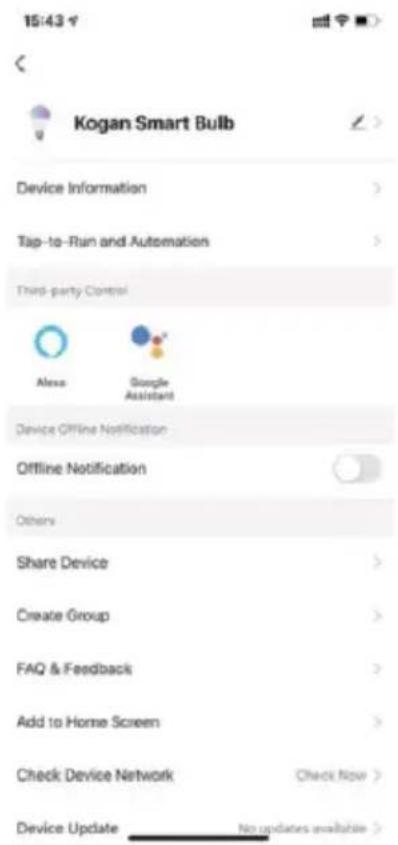

1. Tap the context menu in the upper right corner, represented by the pen icon.
2. Additional features are available in the bulb settings context menu, including renaming and removing devices.

15:40 Kogan Smart Bulb White Colour Scene Party mode 100% Timer More

15:43 Kogan Smart Bulb Device Information Tap-to-Run and Automation Third-party Control Alexa Google Assistant Device Offline Notification Offline Notification Others Share Device Create Group FAQ & Feedback Add to Home Screen Check Device Network Check Now Device Update No updates available >

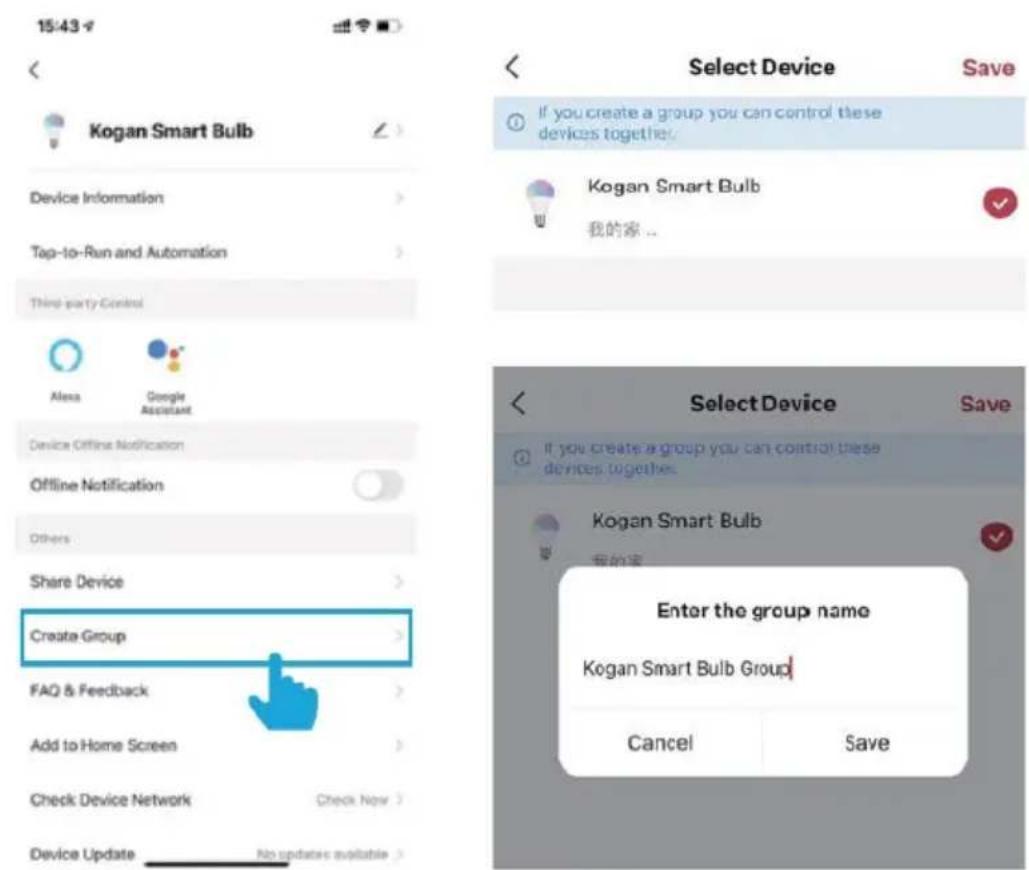

Grouping devices

1. From the context menu, tap on "Create Group".
2. Select the bulbs you want to group then tap "Confirm".
3. Enter the desired name for the group and tap "Save".

15:43 Kogan Smart Bulb Device Information Tap-to-Run and Automation Third-party Control Alexa Google Assistant Device Offline Notification Offline Notification Others Share Device Create Group FAQ & Feedback Add to Home Screen Check Device Network Check Now Device Update No updates available Select Device Save If you create a group you can control these devices together. Kogan Smart Bulb 我的家... Select Device Save If you create a group you can control these devices together. Kogan Smart Bulb Enter the group name Kogan Smart Bulb Group Cancel Save

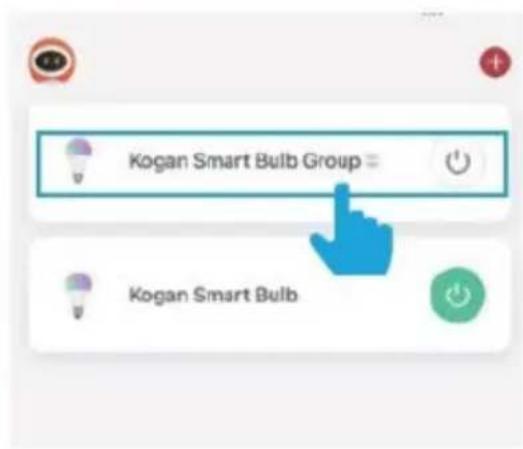

1. Tap the name of the created group in the device menu.
2. Tap the context menu in the upper right corner, represented by the pen icon.
3. From the context menu, you can rename the group or remove a bulb from the group. Once complete, tap "Save" in the upper right corner.

Kogan Smart Bulb Group Kogan Smart Bulb

15:44 Kogan Smart Bulb Group

Device Sharing

1. Tap on the name of the bulb or group you wish to share from the device menu.
2. Tap the context menu in the upper right corner, represented by the pen icon.
3. Tap on "Share Group", then "Add Sharing" at the bottom of the Device Sharing screen.
4. Enter the new user's mobile phone number or email address, then tap "Done" in the top-right corner of the screen.

15:44 Kegan Smart Bulb Group Group Devices Tap-to-Run and Automation Others Share Group Diemlos Group

Kogan Smart Bulb Group Group Device Tap-to-Run and Automation Others Share Group Dismiss Group

Device Sharing If a persistent existent in your home has an account, we recommend that you eat the account as a family member and share all your family devices and "Tap-To-Burn" Scene with the family member Home Settings Add Sharing

Note:

New users must set up a SmarterHome account before device sharing is possible.

GOOGLE HOME CONTROL

Note:

You will need to have set up a Google Home account prior to linking your Kogan SmarterHome™ device.

Adding "SmarterHome" to the Google Home app

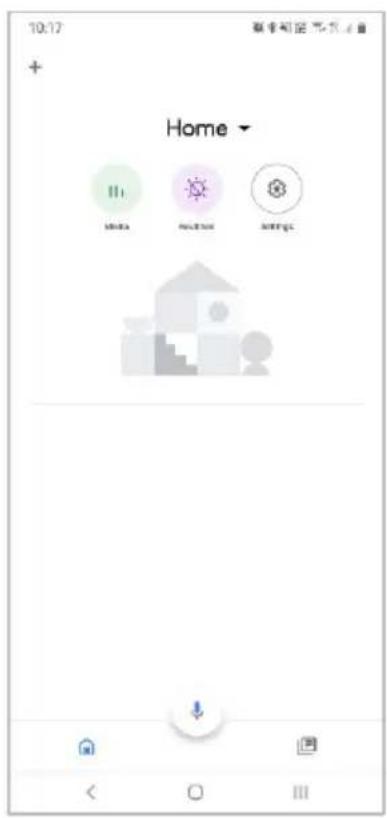

1. From the home page of the Google Home app, select the "+" icon to access the 'Add and manage' page.

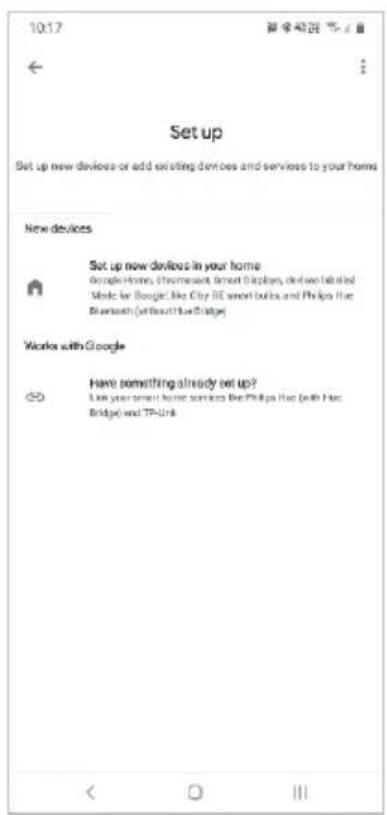

2. Select 'Set up device', then under the Works with Google banner, select 'Have something already set up?'

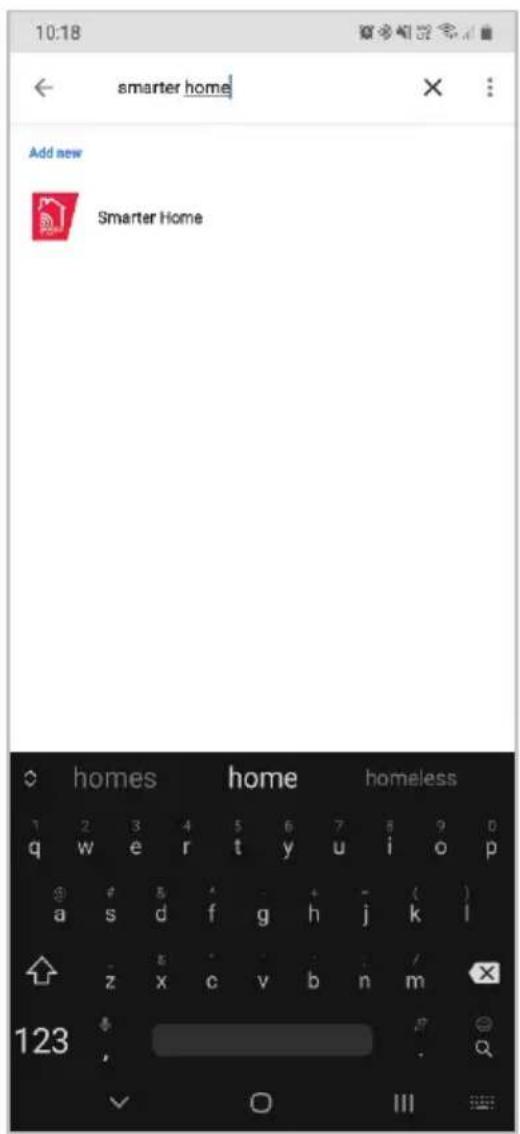

3. Select the search bar and type 'Smarter Home' to locate the Kogan SmarterHome™ service.

10:17 联系地址:北京海淀区 + Home MUSA HAPP ARTS

10:17 Add and manage Add to home Set up device Imite home member Create speaker group Creates new home Manage services Music and audio Video and photos Offers Offers

10:17 新设备 Set up Set up new devices or add existing devices and services to your homes New devices Set up new devices in your home Google Home, Tencent Smart Displays, client web installed Music for Google, like City BE smart builds and Philips that Bluetooth (without free Bridge) Works with Google Have something already set up? Link your smart home services the Philips that (with Free Bridge) and TP Link

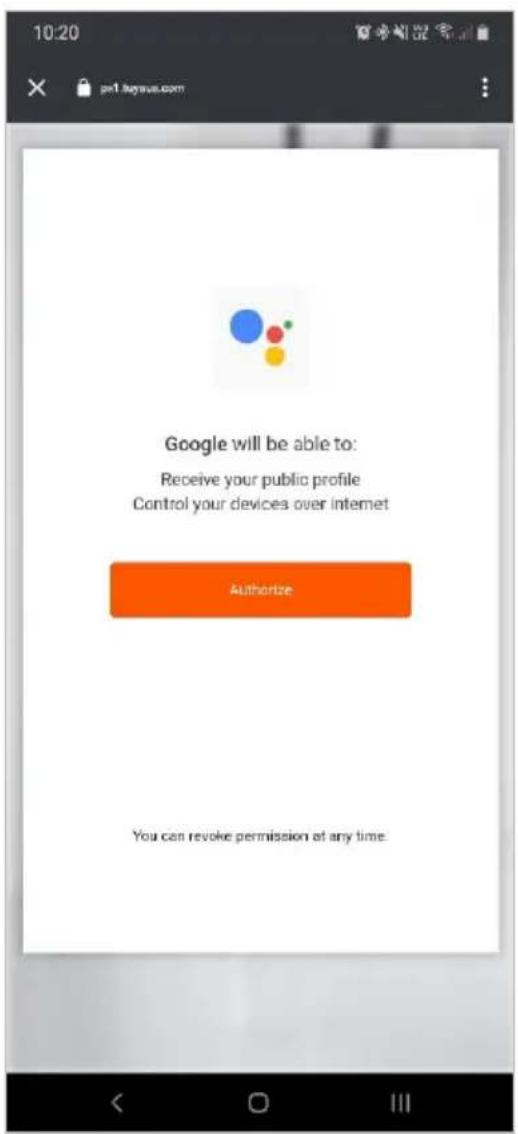

1. Tap 'Authorise' to grant Google permission to access the SmarterHome™ app and your devices.
2. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.

10:18 smarter home Add new Smarter Home homes home homeless 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p @ f s d f g h j k l z x c v b n m 123 ,

10:20 xpt buyave.com Google will be able to: Receive your public profile Control your devices over internet Authorize You can revoke permission at any time.

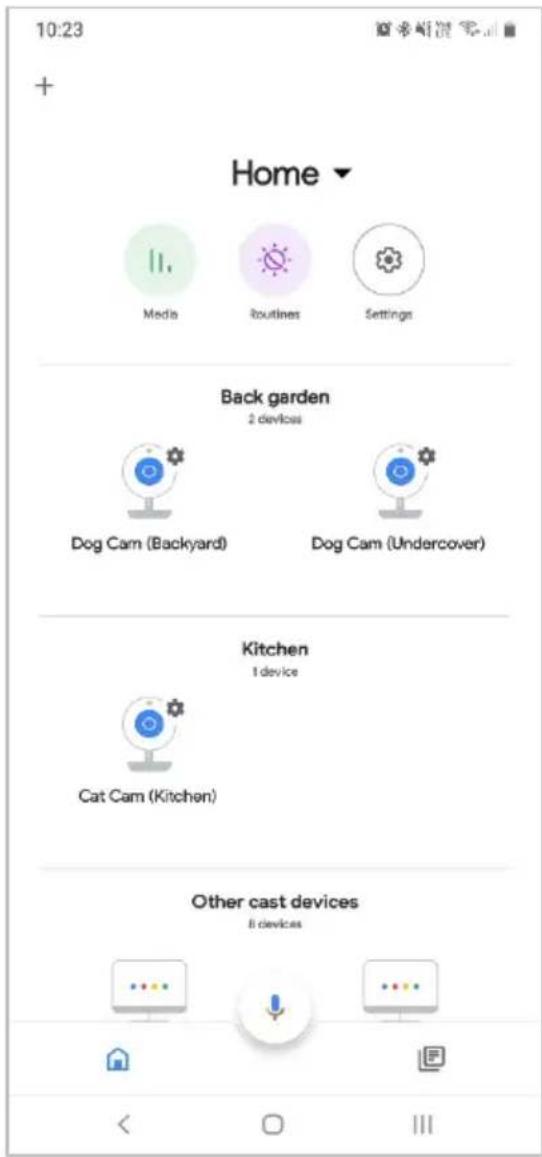

1. Once connected, the app will display any compatible devices linked to your SmarterHome™ account. From here you can assign them to rooms and set up any routines.
2. Tap on any of the devices to view a list of available commands.

10:21 Add smart home devices Select devices and add to a room Devices connected within the SmarterHome™ app will appear here if compatible ADD TO A ROOM

10:23 + Home ▼ Media Routines Settings Back garden 2 devices Dog Cam (Backyard) Dog Cam (Undercover) Kitchen 1 device Cat Cam (Kitchen) Other cast devices 8 devices

Note:

Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product's smart functionality, please use the Kogan SmarterHome™ app.

AMAZON ALEXA CONTROL

Note:

You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device.

Adding "SmarterHome" to the Alexa app

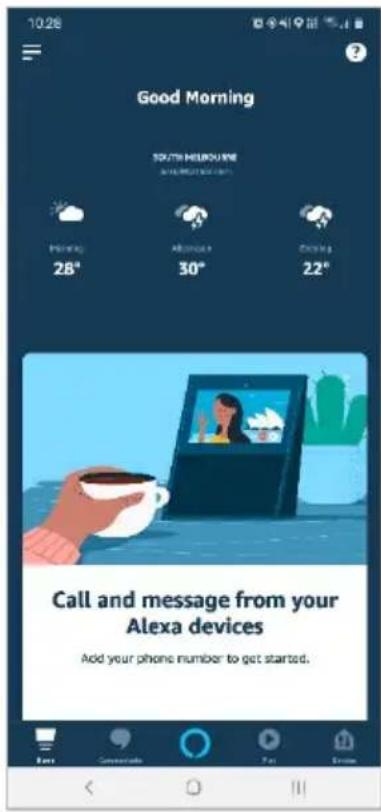

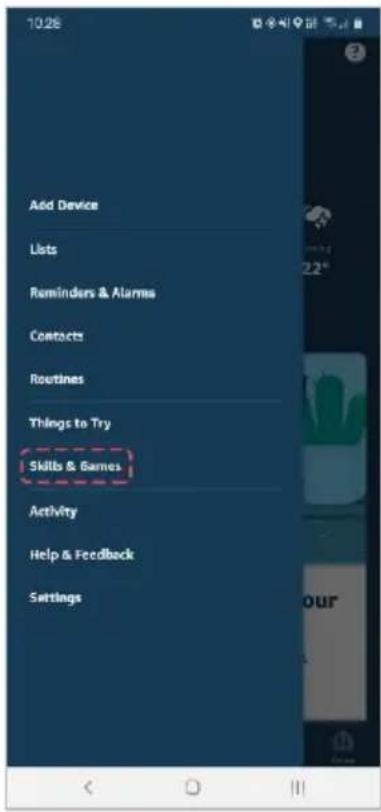

1. From the home page of the Alexa app, select the “≡” icon in the top-right and select Skills & Games from the sidebar.

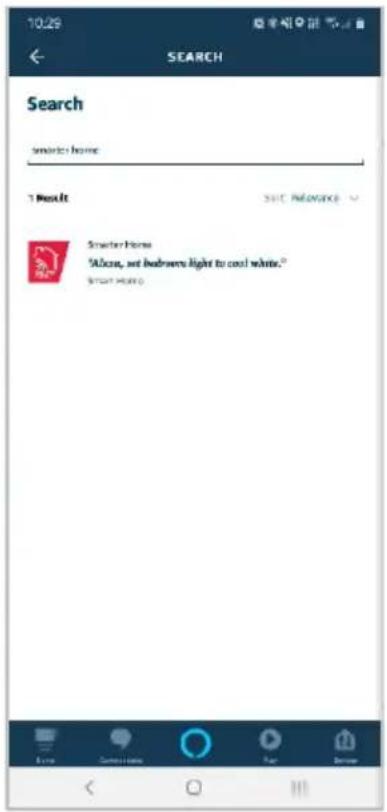

2. Select the search bar and type 'Smarter Home' to locate the Kogan SmarterHome™ skill.

10:28 Good Morning SOUTH HELMOURNE Weather 28° 30° 22° Call and message from your Alexa devices Add your phone number to get started.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games Activity Help & Feedback Settings

10.29 SEARCH Search Smart Home 1 Result SAVE INFO Smart Home "Alcoa, not headwarms right to cool white." SHORT HOME

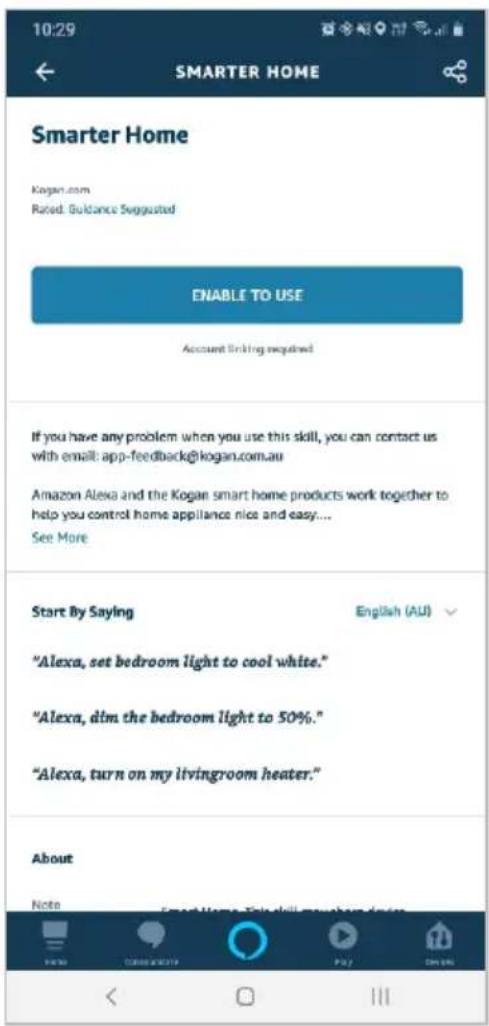

1. Tap 'Enable to Use' to add the Kogan SmarterHome™ skill to Alexa.
2. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
3. Tap 'Authorise' to grant Alexa permission to access the SmarterHome™ app and your devices.

10:29 SMARTER HOME Smarter Home Kogan.com Rated: Guidance Suggested ENABLE TO USE Account Linking Required If you have any problem when you use this skill, you can contact us with email: [e-mail] Amazon Alexa and the Kogan smart home products work together to help you control home appliance nice and easy.... See More Start By Saying English (AU) "Alexa, set bedroom light to cool white." "Alexa, dim the bedroom light to 50%." "Alexa, turn on my livingroom heater." About Note Smart Home: Take skill more than 4000 Play Get up

10:30 Account Binding https://pzyl.tuyes.com/pl/?client_id=amzn1... Alexa by Amazon will be able to: Receive your public profile Control your devices over internet Authorize You can revoke permission at any time.

1. Once connected, the app will perform a search and display the devices linked to your SmarterHome™ account.

2. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa's voice commands.

10:32 Alexa is looking for devices to connect... This may take up to 45 seconds.

10:45 ALL DEVICES Cat Cam (Study) • New Device Alexa on this Phone Online Cat Cam (Kitchen) Fish Cam Light 1 Plug 1

Note:

Please note that Alexa can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product's smart functionality, please use the Kogan SmarterHome™ app.

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
