USER MANUAL IF-918R Imarflex

imarflex® 18" 2w1 Stand Fan DESK FAN CONVERTIBLE Double-ring Gri DESIGN With Remote CONTROL 24hr OPERATION with 4-hour TIMER 1500 RPM 50 Watts 3 Speed CONTROL IF-918R

SPECIFICATION

MODEL NO. : IF-918R

RATED VOLTAGE : 230Va.c. \~ 60Hz

POWER CONSUMPTION : 50watts

SAFETY GUIDELINES

1. Read all instructions carefully.
2. Check the condition of the unit after taking out from the box. Ensure that all parts are in good condition.
3. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
5. Do not place the unit near gas stove or electric burner.
6. Close supervision is necessary when any appliance is used by or near children.
7. This unit must only be used for room ventilation. Do not use in bathrooms.
8. Do not insert any object into the fan guard.
9. Never touch the unit with wet hands.
10. Do not use the plug to stop or start the operation of the unit, use the switch button.
11. Always unplug the unit before cleaning.
12. Keep this instruction for future reference.

DESCRIPTION OF PARTS

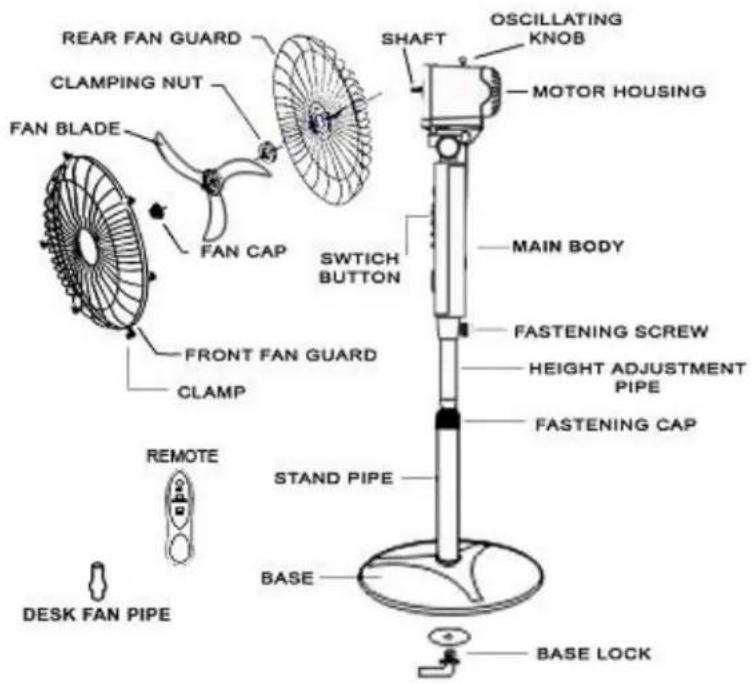

REAR FAN GUARD CLAMPING NUT FAN BLADE FAN CAP FRONT FAN GUARD CLAMP REMOTE DESK FAN PIPE SWITCH BUTTON SHAFT OSCILLATING KNOB MOTOR HOUSING MAIN BODY FASTENING SCREW HEIGHT ADJUSTMENT PIPE FASTENING CAP STAND PIPE BASE BASE LOCK

ASSEMBLY

STAND FAN

Two identical diagrams showing a cylindrical object mounted on a circular base with a small scale and a separate vertical rod, both without any text or symbols.

Two identical diagrams showing a vertical pole with arrows indicating movement or force direction, no text or symbols present.

• Insert the Stand Pipe on top of the Base.
• Insert the Base Lock on the bottom of the Base and turn it clockwise.

- Unscrew the Fastening Screw on the Main Body and insert Height Adjustment Pipe. Tighten the Fastening Screw.

DESK FAN

Diagram showing two mechanical components with directional arrows indicating motion (no text or symbols)

• Insert the Desk Pipe on top of the Base.
• Insert the Base Lock on the bottom of the Base and turn it clockwise.

- Unscrew the Fastening Screw on the Main Body and insert Height Adjustment Pipe. Tighten the Fastening Screw.

Illustration of a megaphone and a fan with blades, no text or symbols present

Abstract line drawing of a mechanical or biological structure with no visible text or symbols

• Fit the Rear Fan Guard to the motor housing by matching the three Rear Holes of the back guard to the three round pins in front of the motor housing.

• Fasten the clamping nut by turning it clockwise.

• Insert the fan blade to the motor shaft.

• Fasten the Fan Cap by turning it counter clockwise.

Fit th Gua

ont Fan

HOW TO USE

1. Plug the unit into the convenience outlet (230Va.c.).
2. Press the ON/SPEED Button:

a. Once - "1" light indicator will turn ON (indicates LOW speed)
b. Twice - "2" light indicator will turn ON (indicates MEDIUM speed)
c. 3 Times - "3" light indicator will turn ON (indicates HIGH speed)

1. Press OFF Button to turn it OFF.

2. Press the SWING Button for oscillation, and press again to fix the position.

3. The air flow can be adjusted upward or downward by moving the Motor Housing up or down.
4. To adjust the height: Turn Fastening Cap clockwise and Pull-up/Push-down to desired height then turn the Fastening Cap counter clockwise to fix the height.

HOW TO USE THE REMOTE CONTROL

OFF ON/SPEED TIMER SWING

1. Press the ON/SPEED Button:

a. Once - "1" light indicator will turn ON (indicates LOW speed).
b. Twice - "2" light indicator will turn ON (indicates MEDIUM speed)
c. 3 Times- "3" light indicator will turn ON (indicates HIGH speed)

1. Press OFF Button to turn it OFF.
2. Press the SWING Button for oscillation, and press again to fix the position.
3. To set the Timer: Press the TIMER Button:

a. Once - "1" light indicator will turn ON (1 hour).
b. Twice - "2" light indicator will turn ON (2 hours)
c. 3 Times- "4" light indicator will turn ON (4 hours)
d. 4 Times- Timer will Turn OFF

CLEANING MAINTENANCE

1. Always disconnect the unit from the convenience outlet before disassembling the unit.
2. To disassemble the unit, simply reverse the assembly instruction.
3. Wash the Front Fan Guard, Fan Cap, Fan Blade, Clamping Nut and Rear Fan Guard with soap and water.
4. Use a moistened cloth (NOT WET) to remove the dirt from the plastic and metal surfaces of Electric Fan.
5. Do not immerse the Motor Base in water or other liquids.
6. Allow the detachable parts to dry off before assembling the unit.
